PageTITLE
Cover Sheet
Block Diagram
CPU-CLK/Control/MISC/PEG/Memory
D D
CPU-Power
DDR4 U-DIMM
PCH-LPC/HDA/RTC/MISC/SPI ,PCH-Clock/Audio
PCH-DMI/PCIE/USB/SATA
PCH-GPIO/RSVD/CNVi

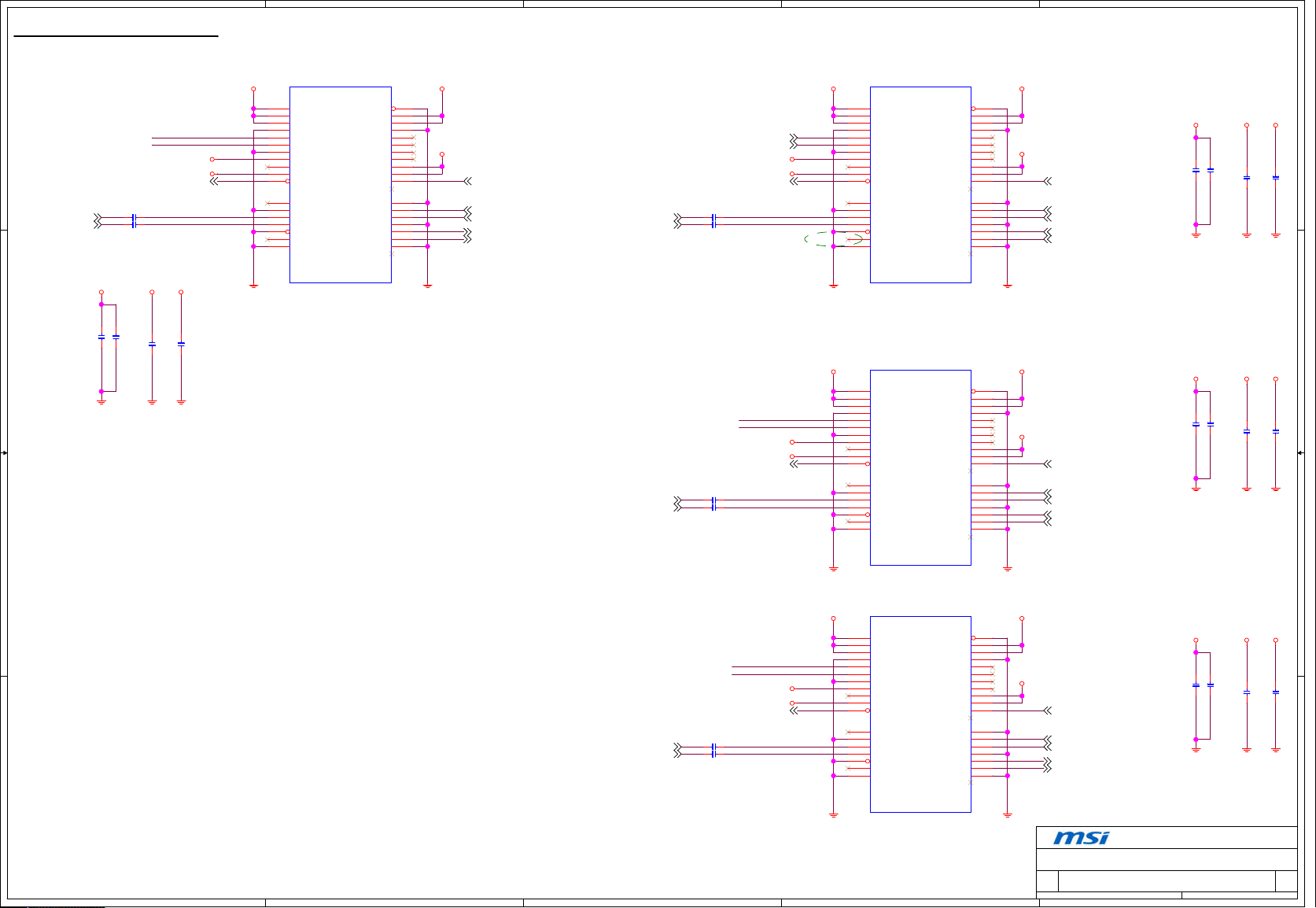

SPI ROM-BIOS

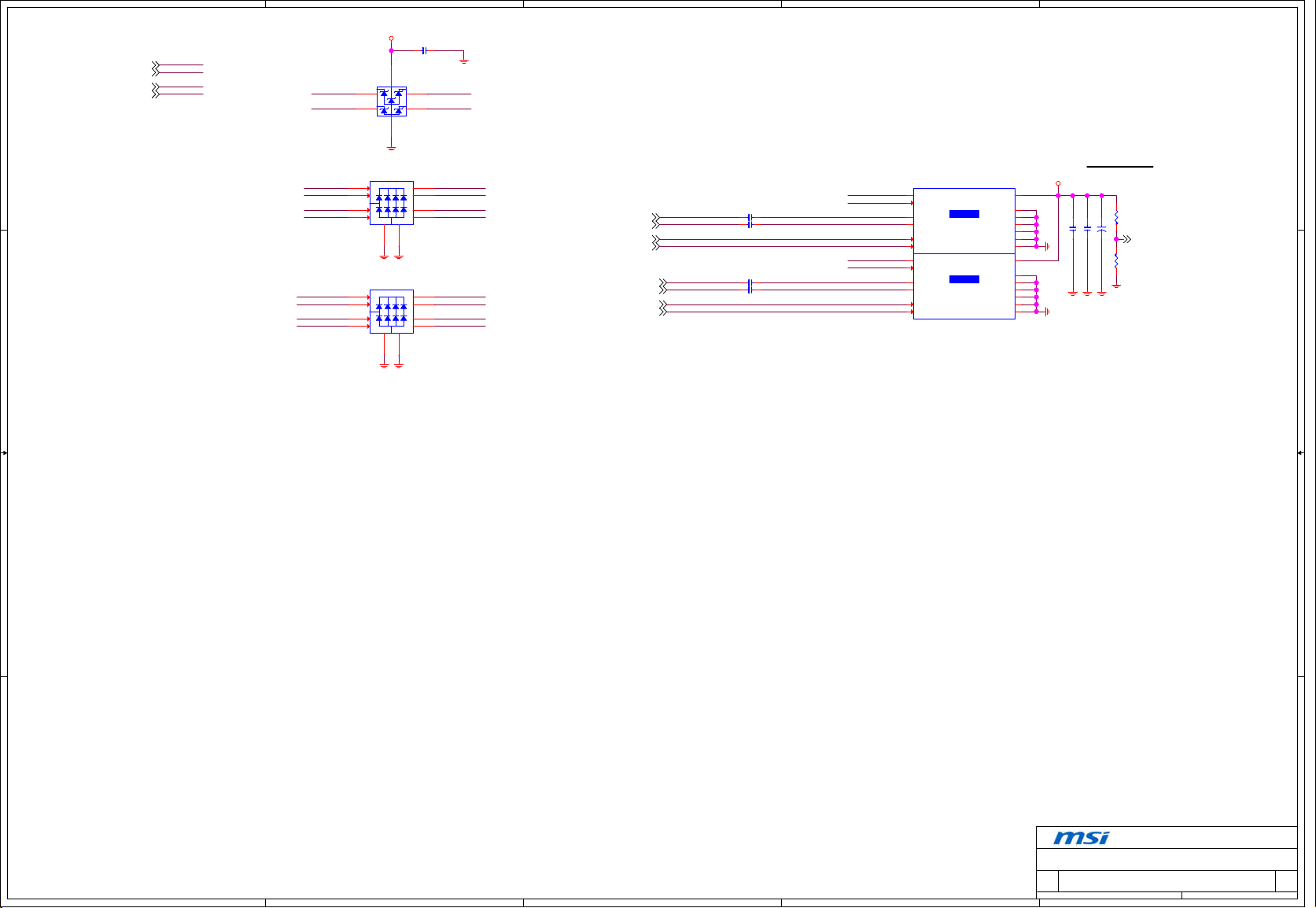

Displayport Connector

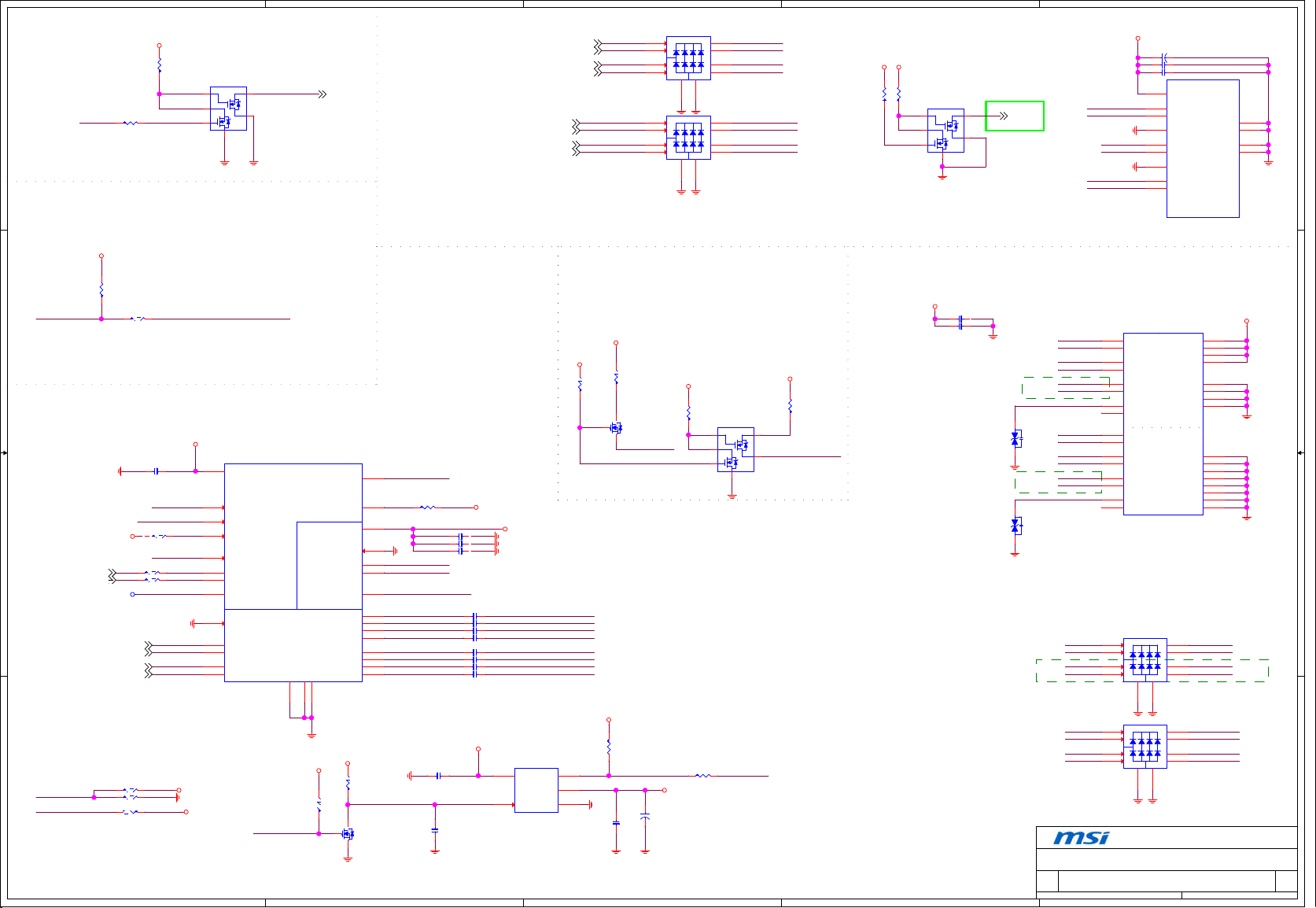

DVI connector , SILEGO

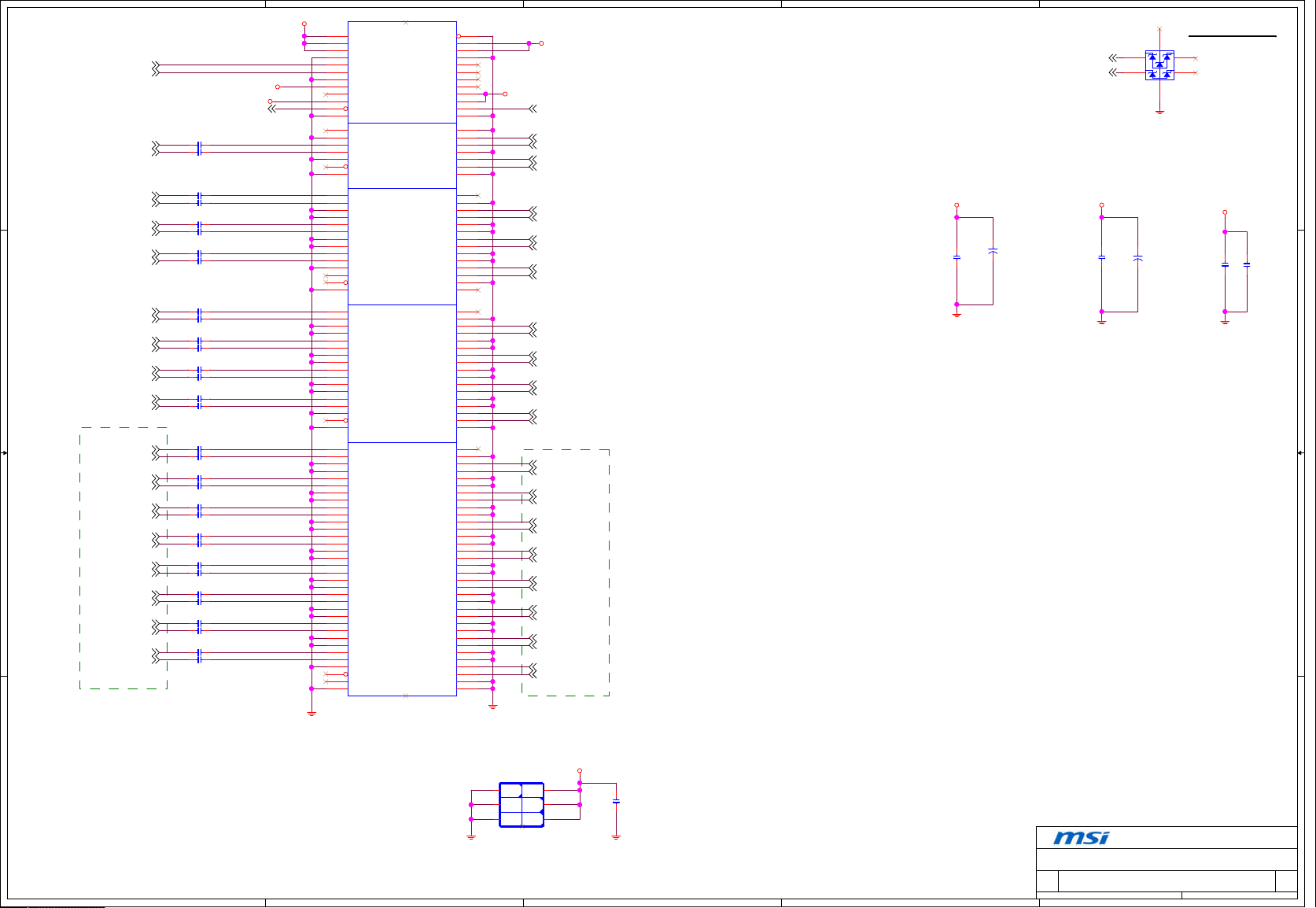

PCIE SLOT
SATA Connector
C C

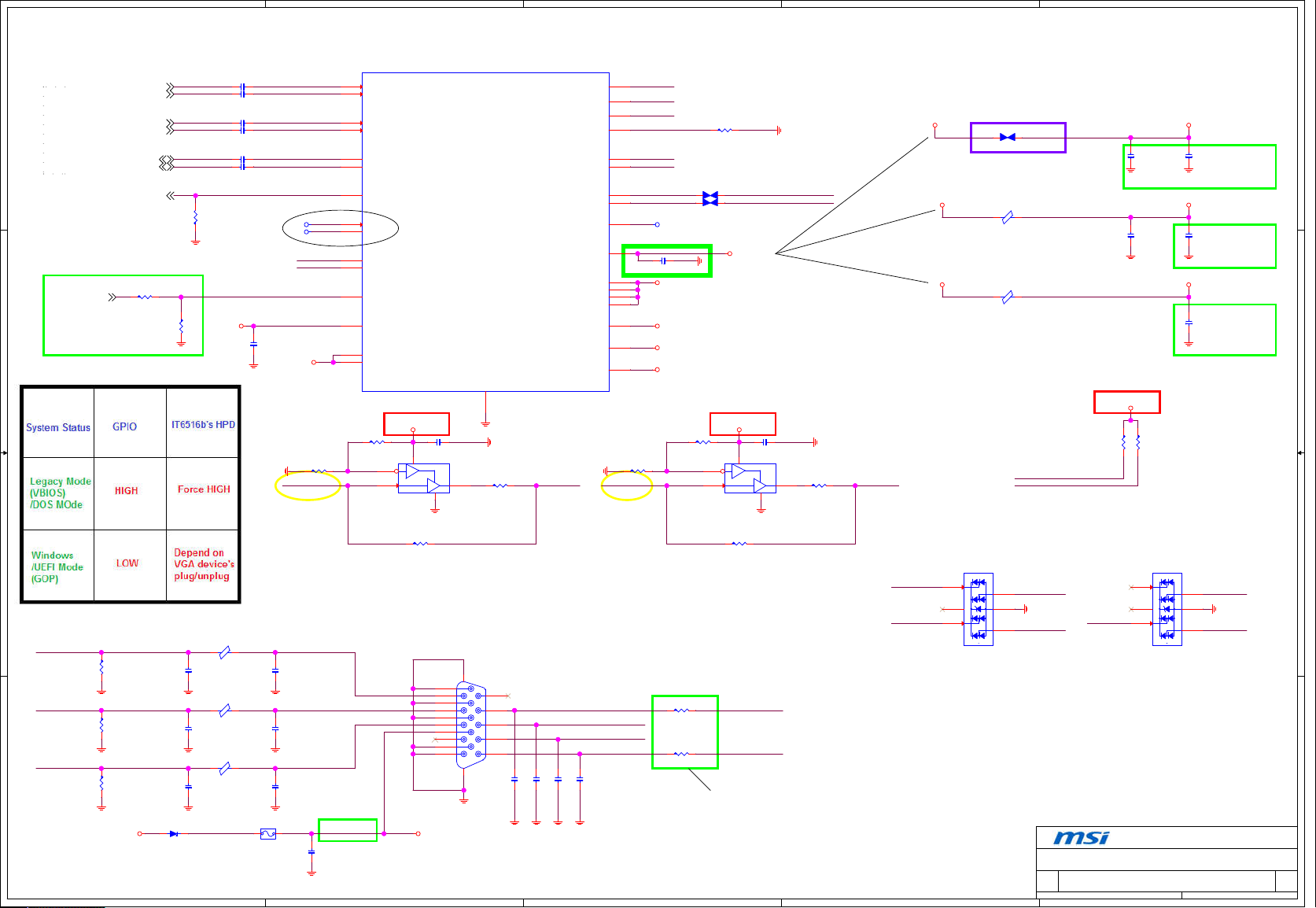

D-Sub Connector , ITE6516

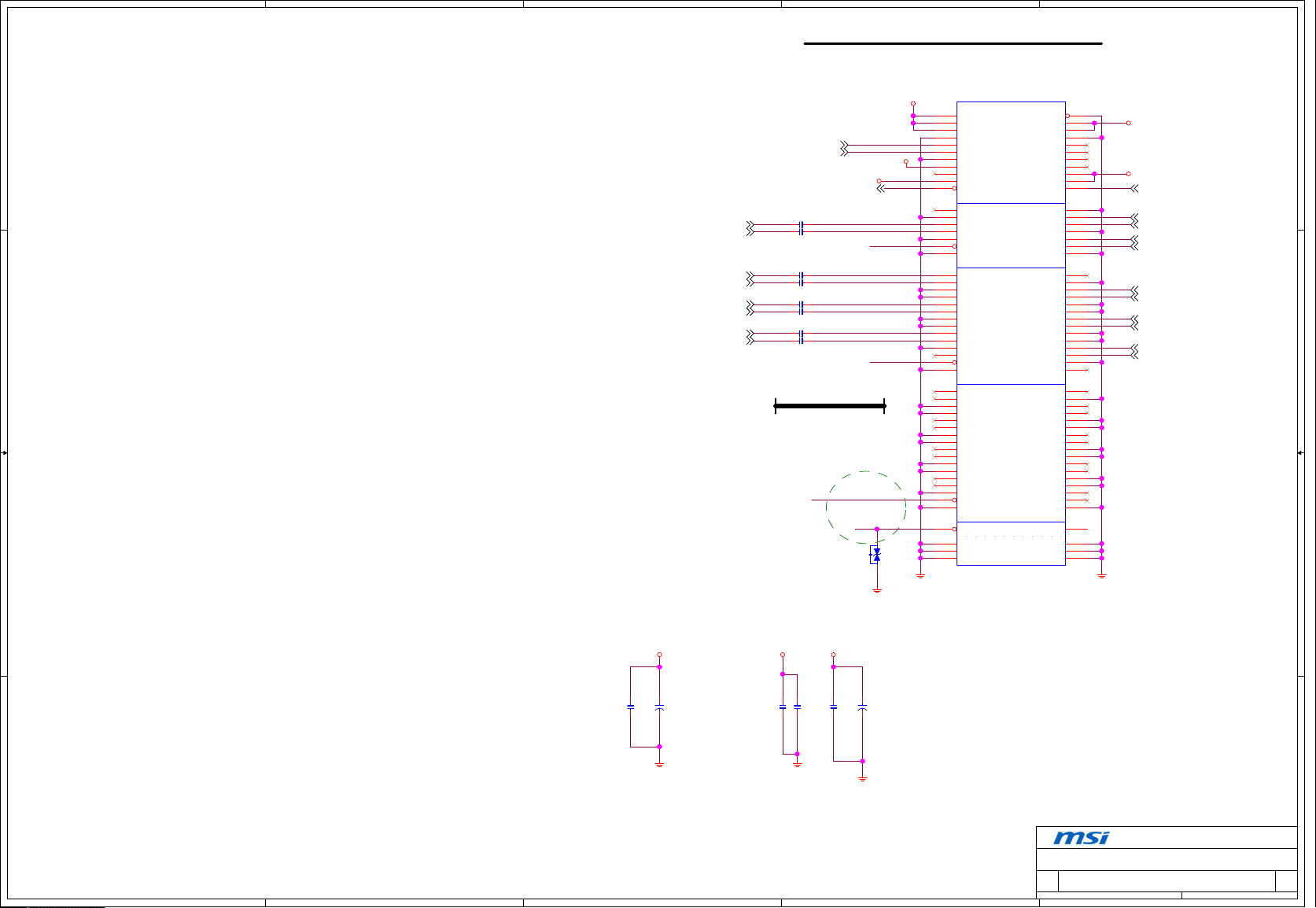

M.2 Slot

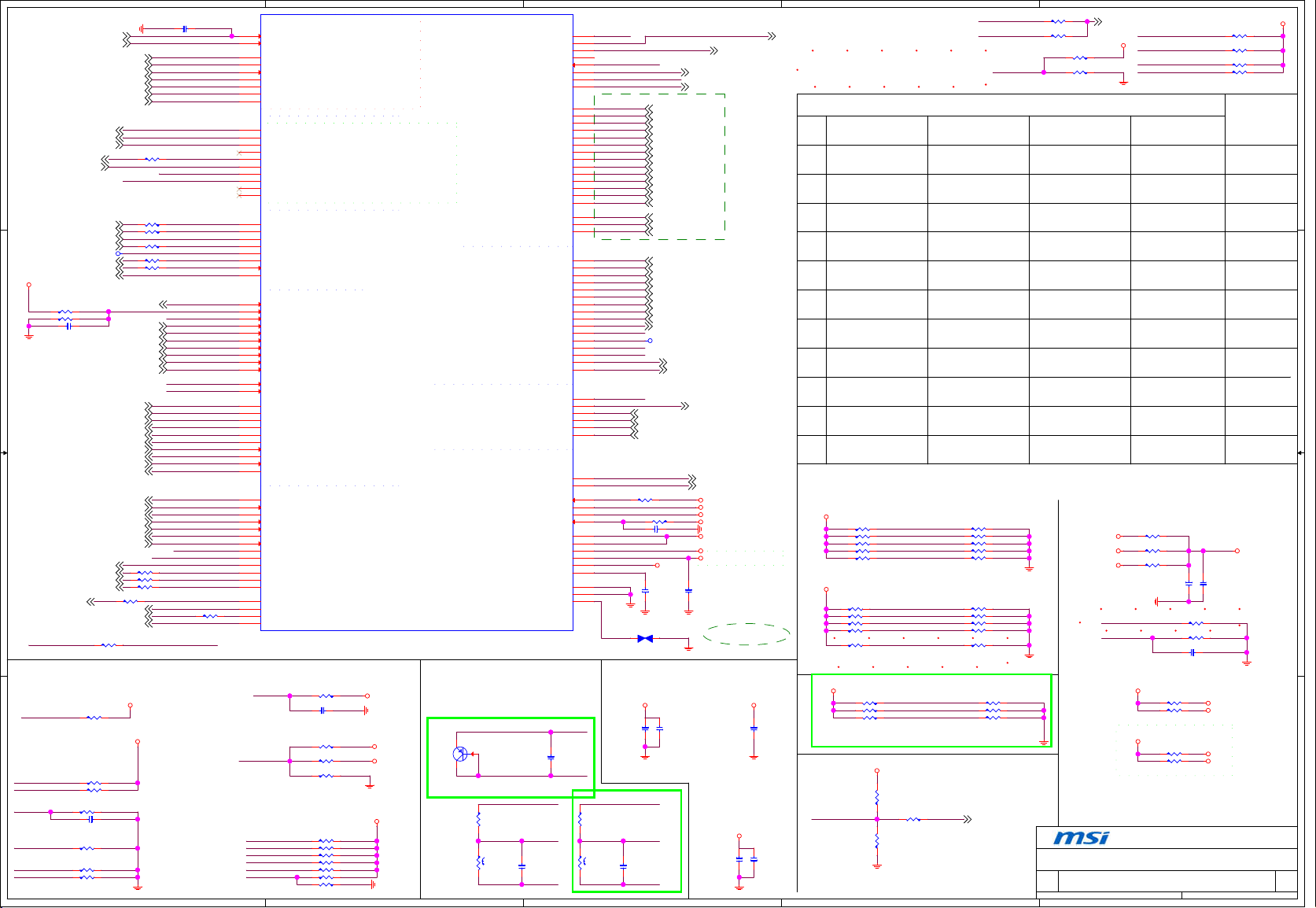

CNVi Connector

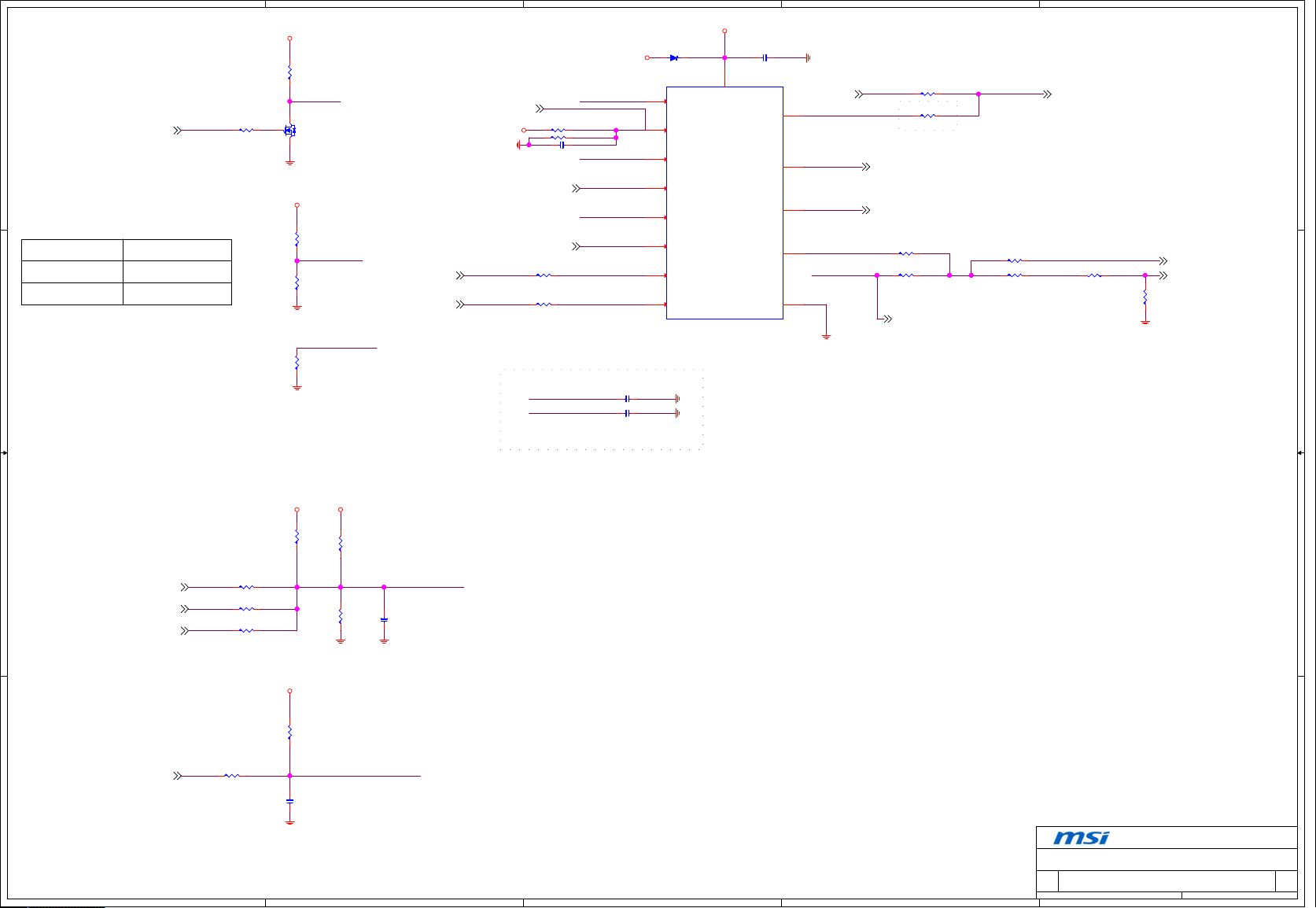

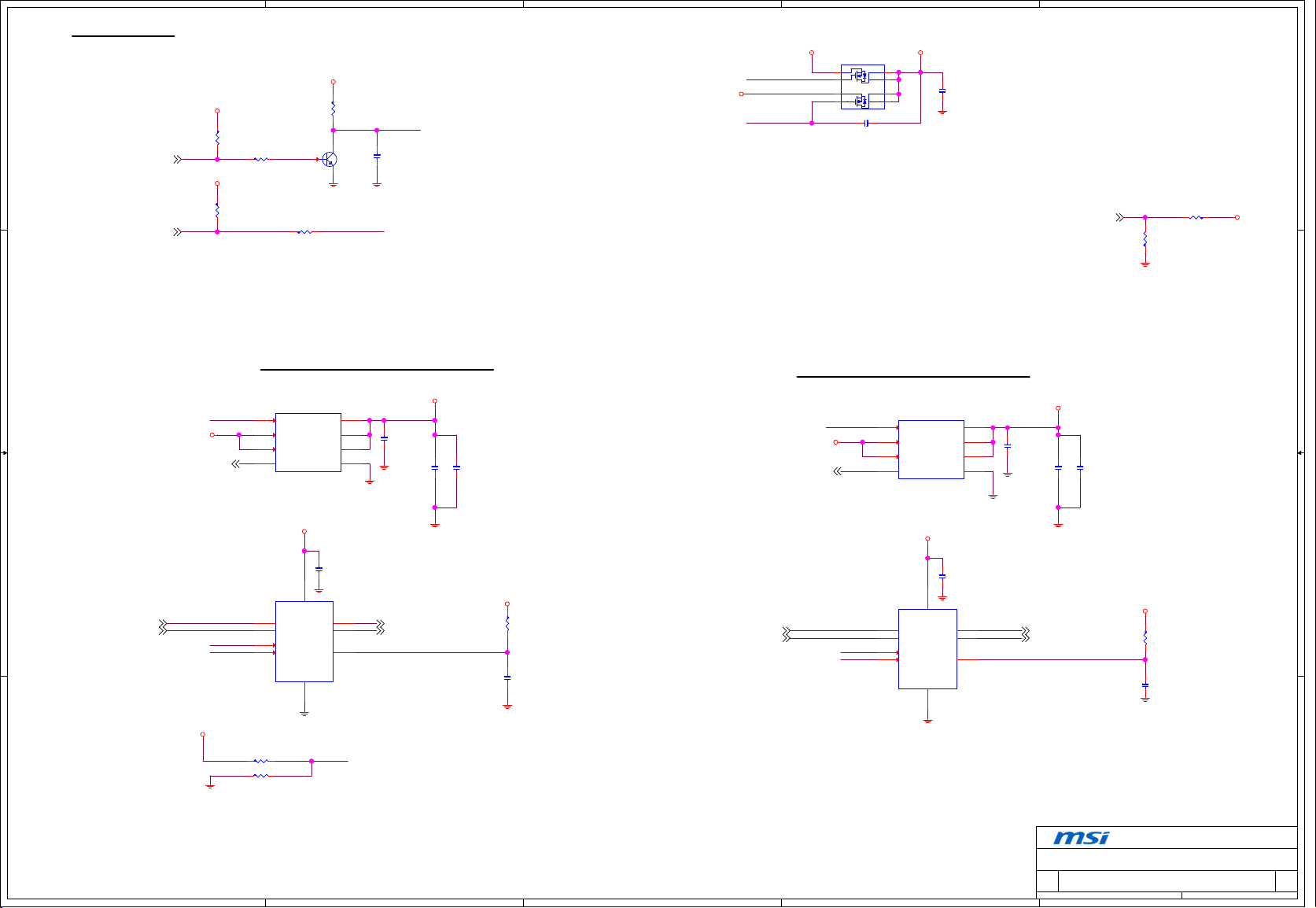

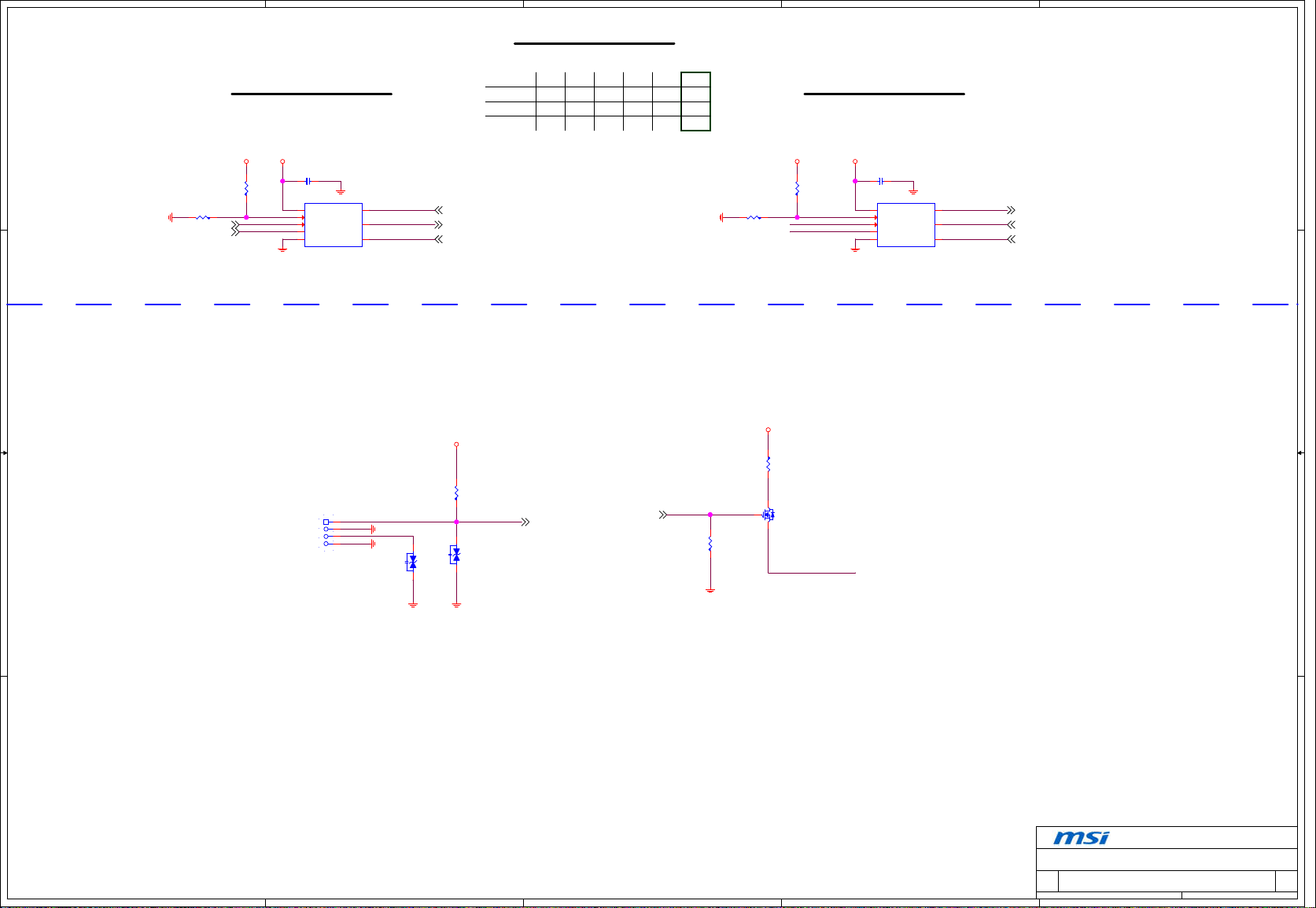

USB Charger

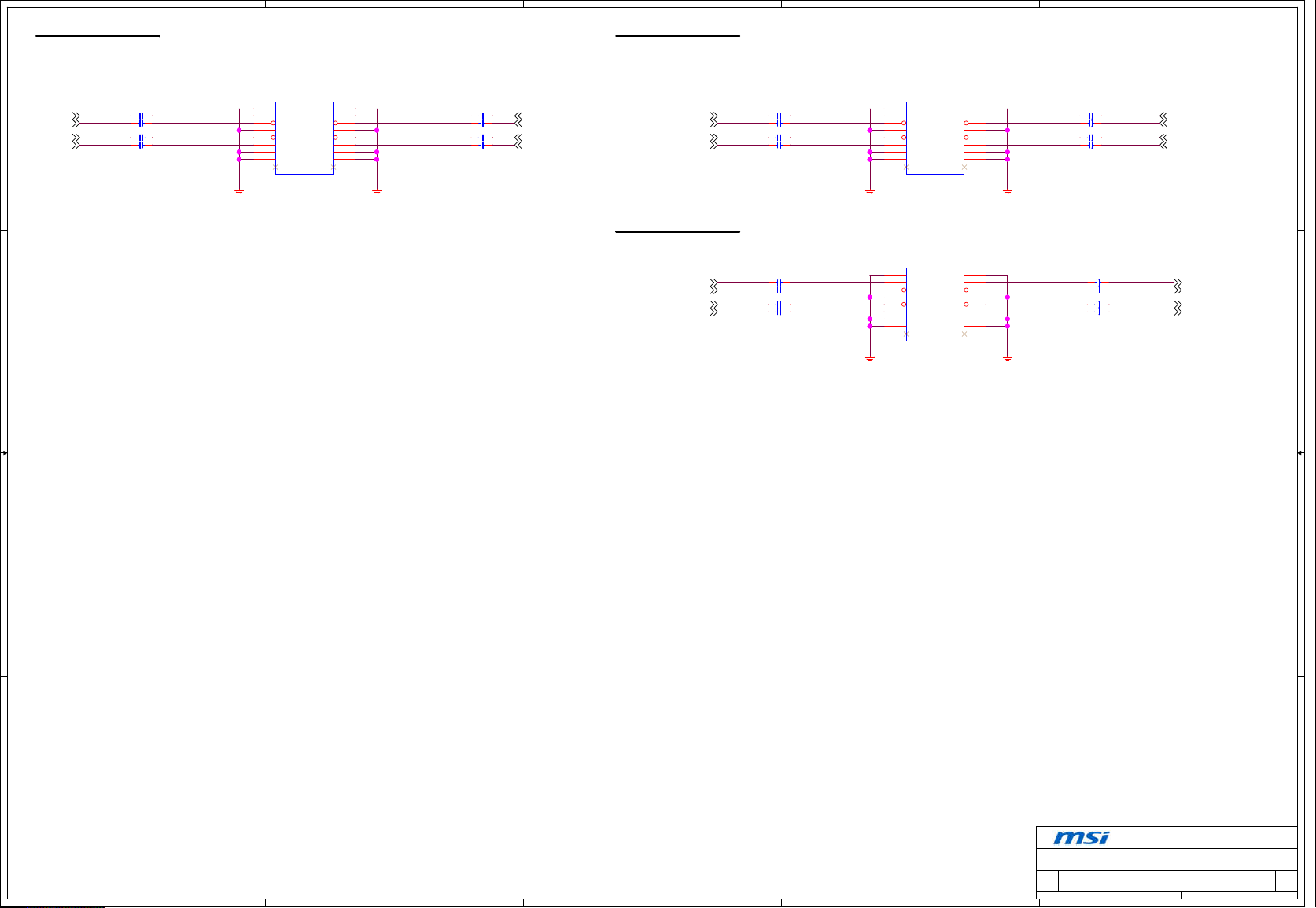

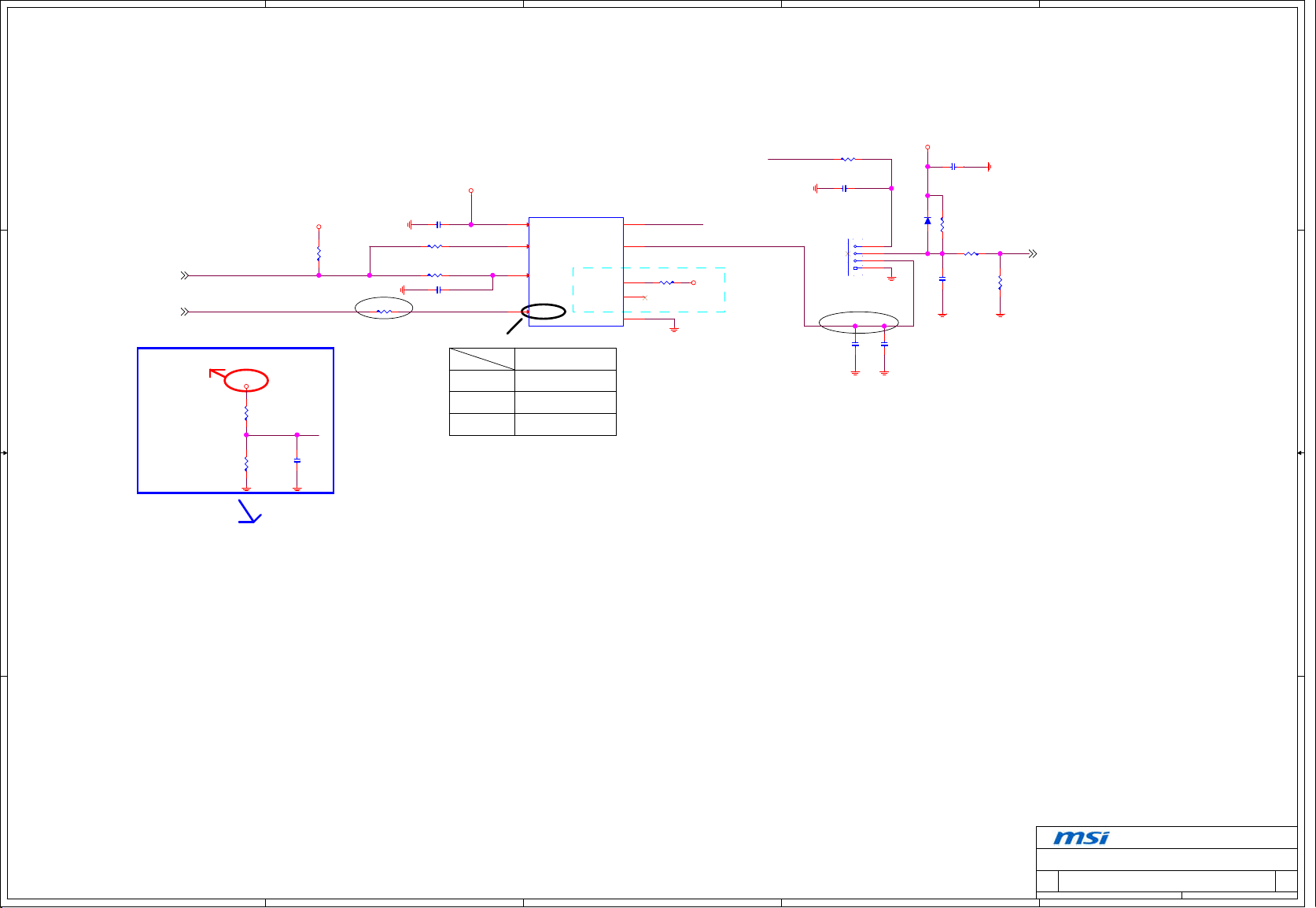

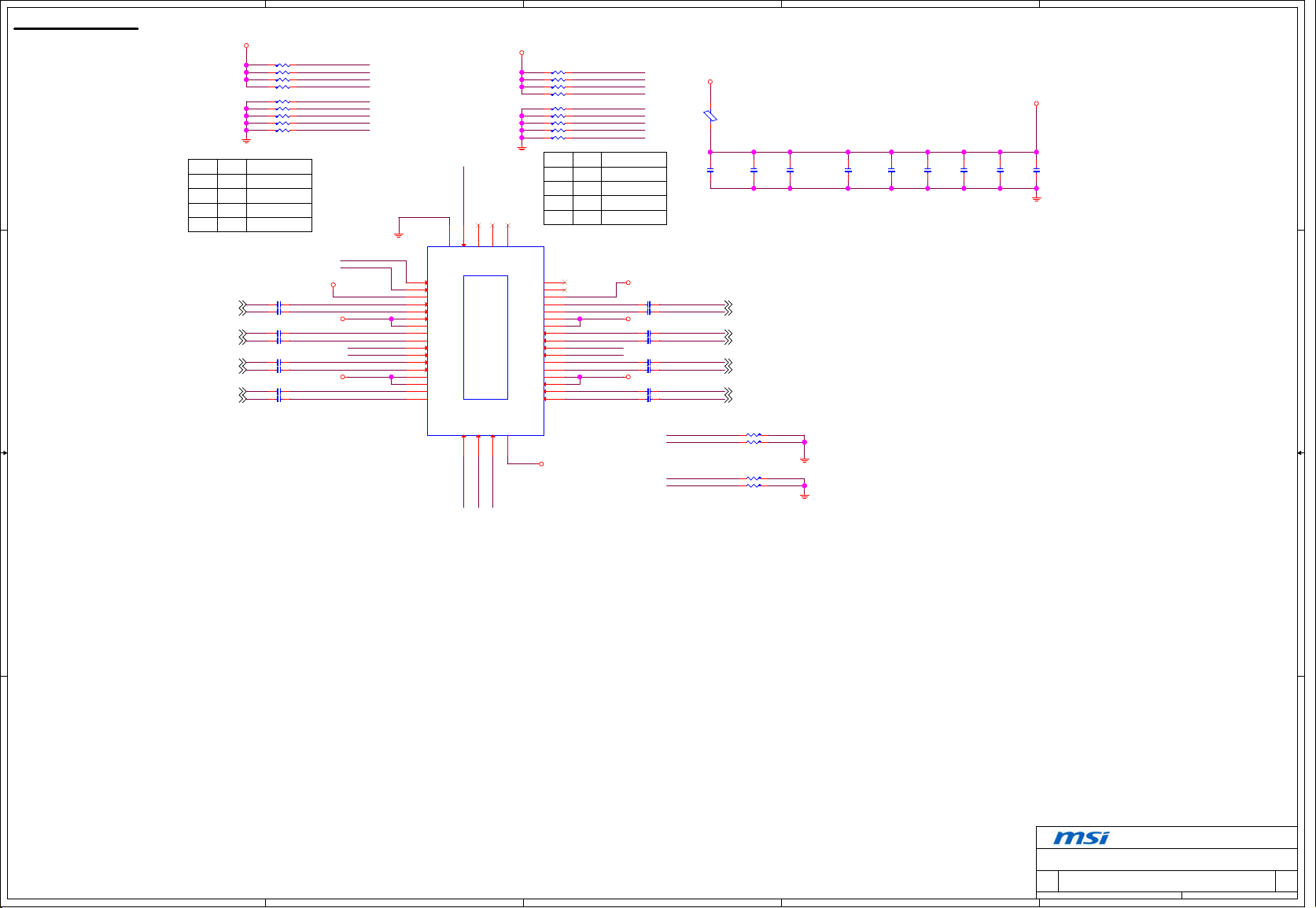

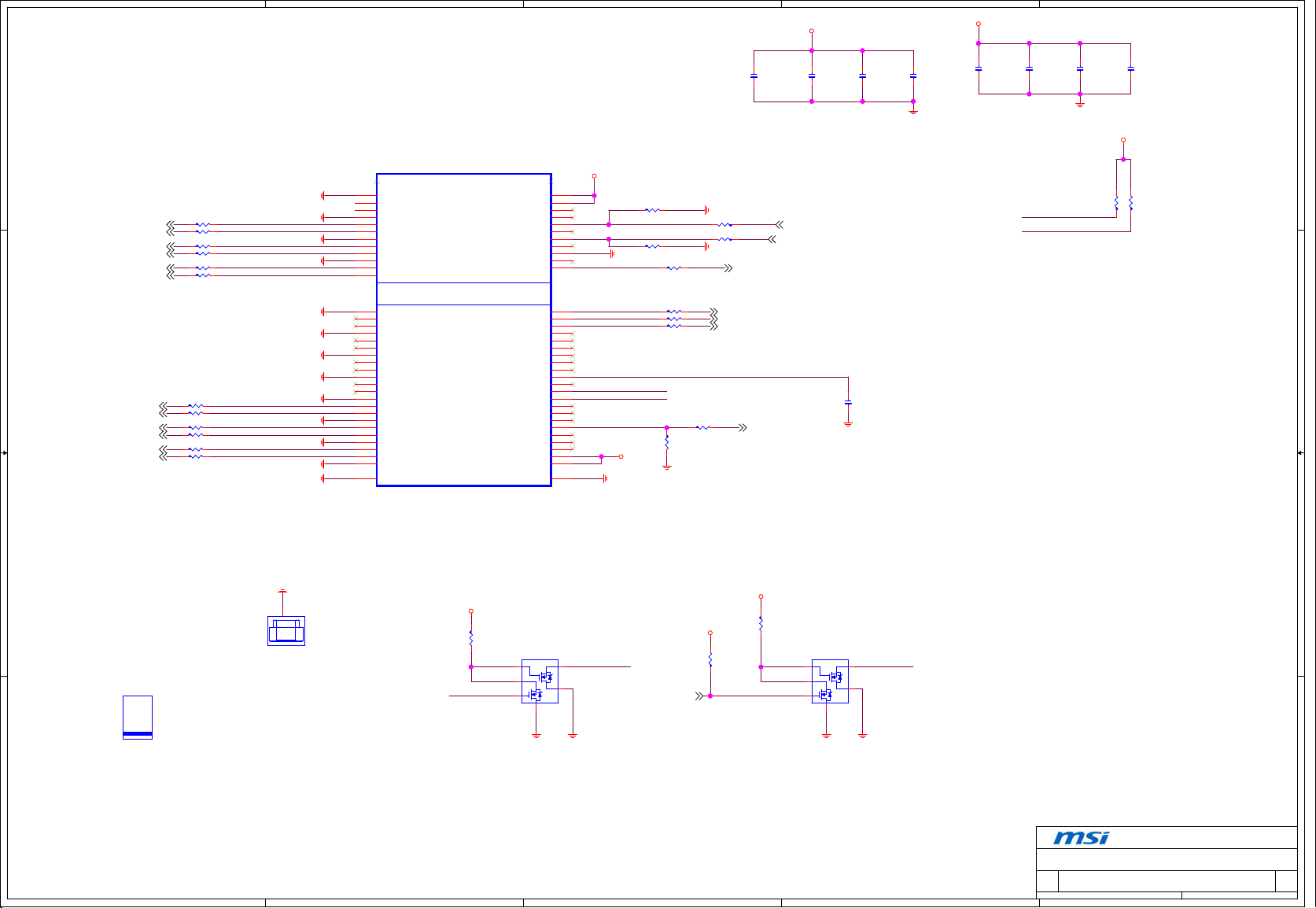

USB 3.1 Gen 2 re-driver

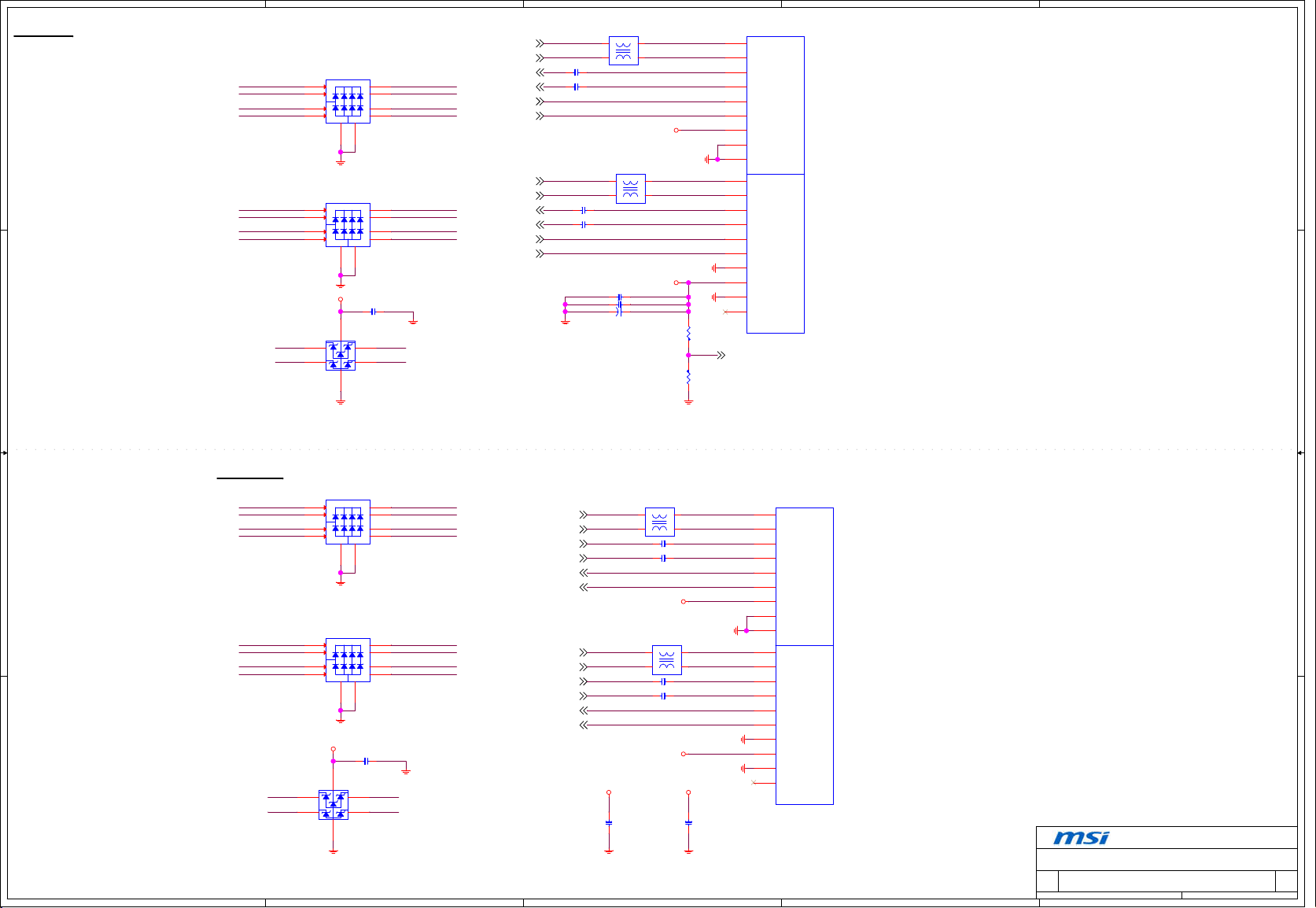

Rear USB Connector

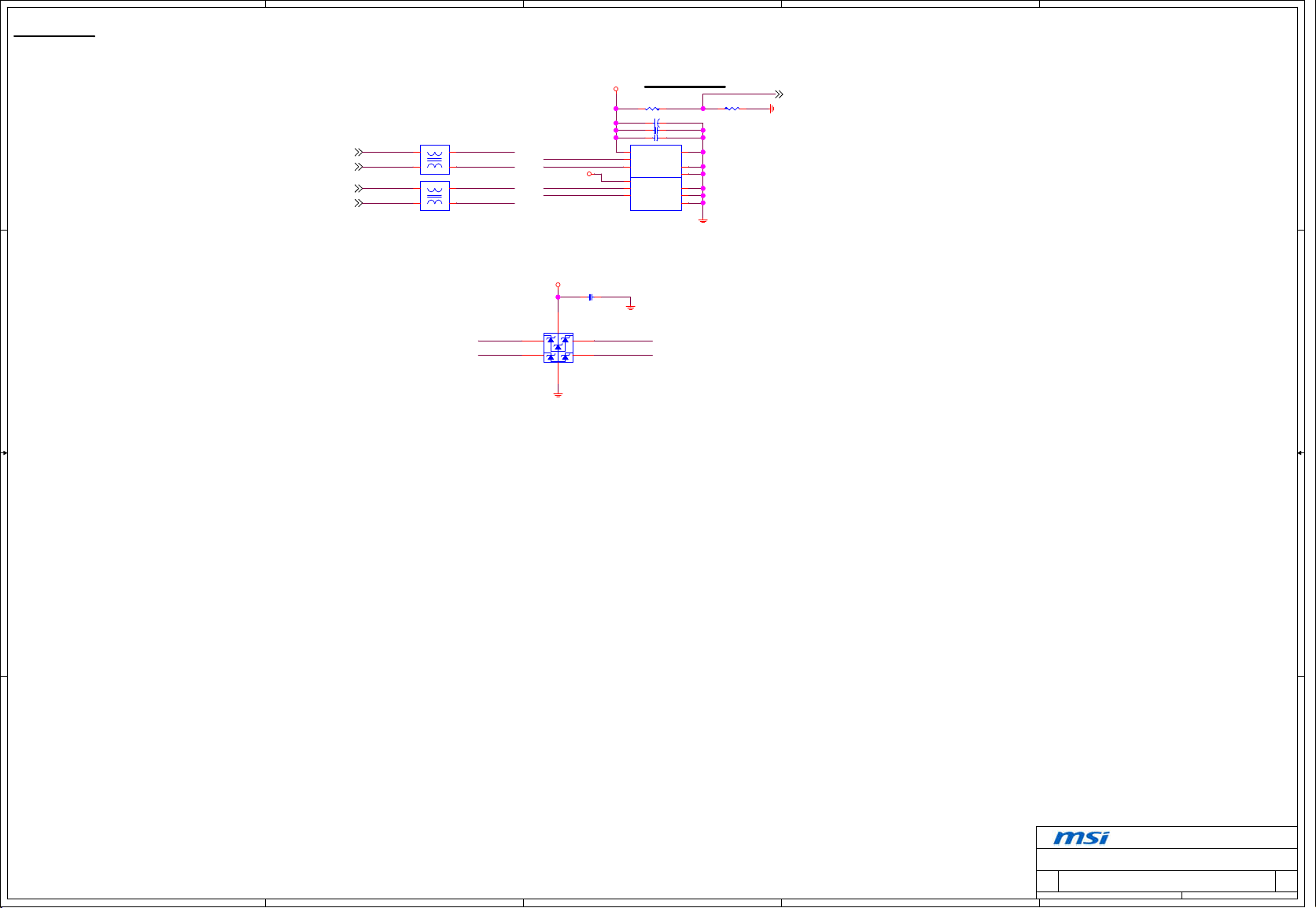

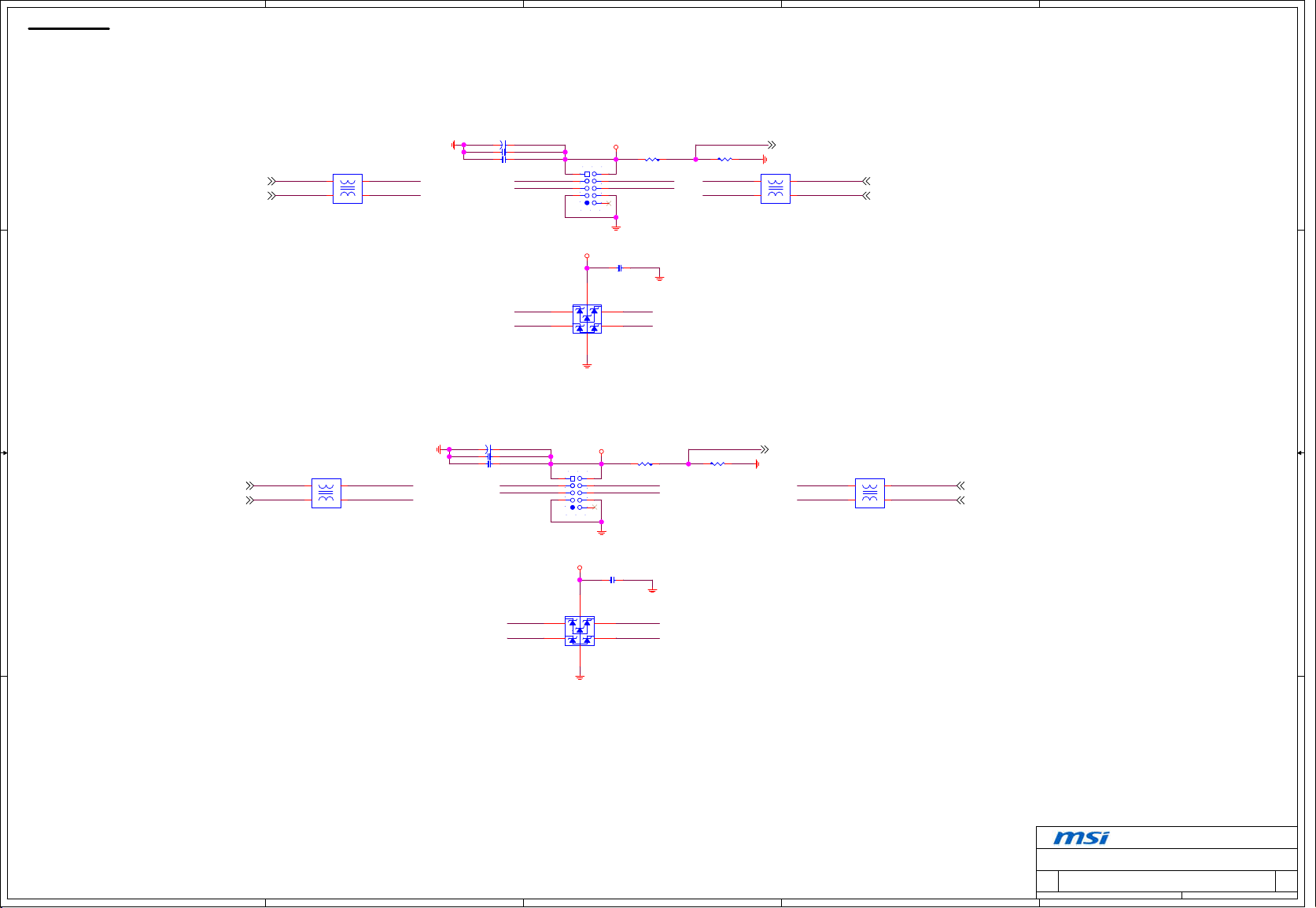

Front USB Connector , USB Power

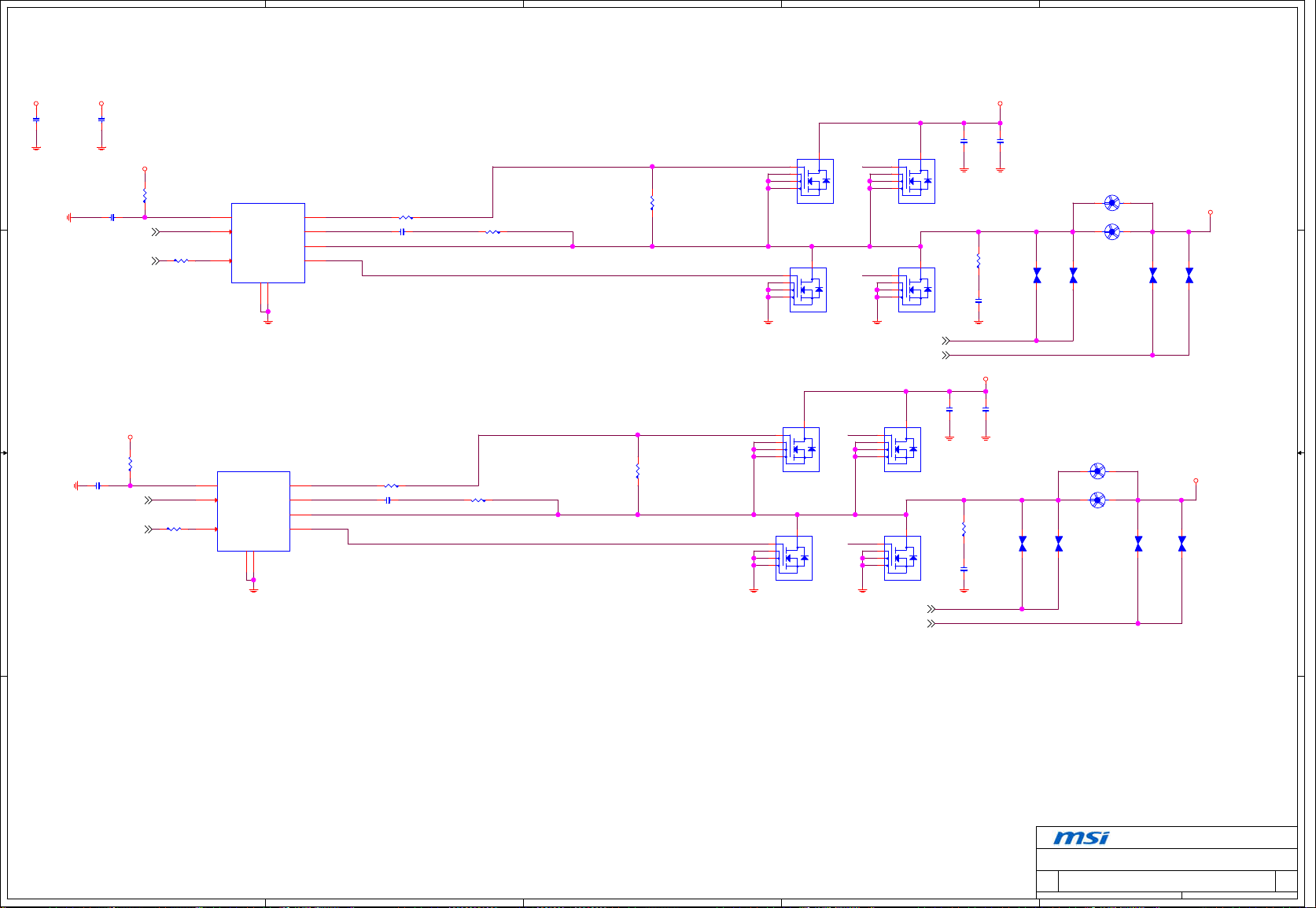

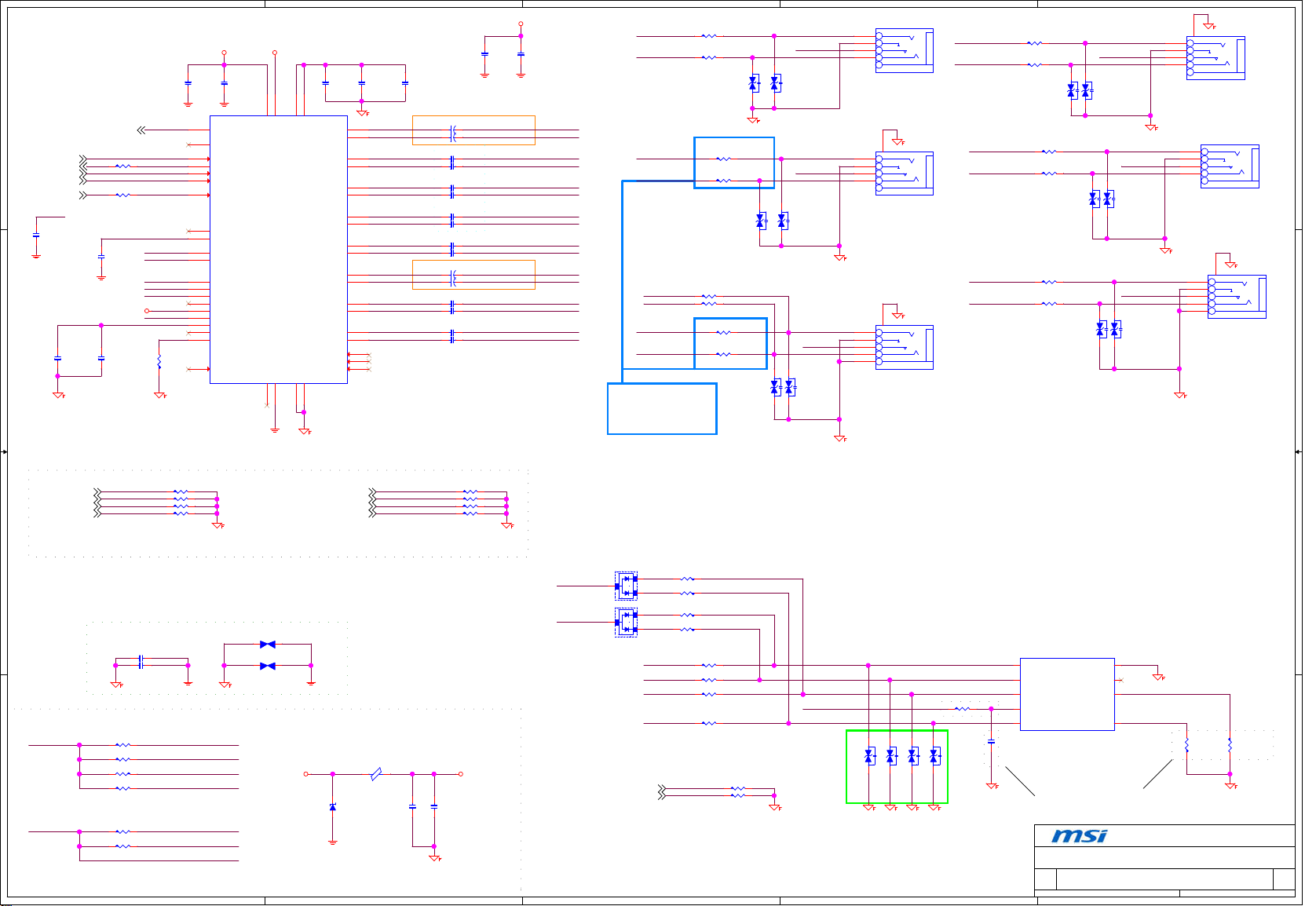

AUDIO Codec ALC892

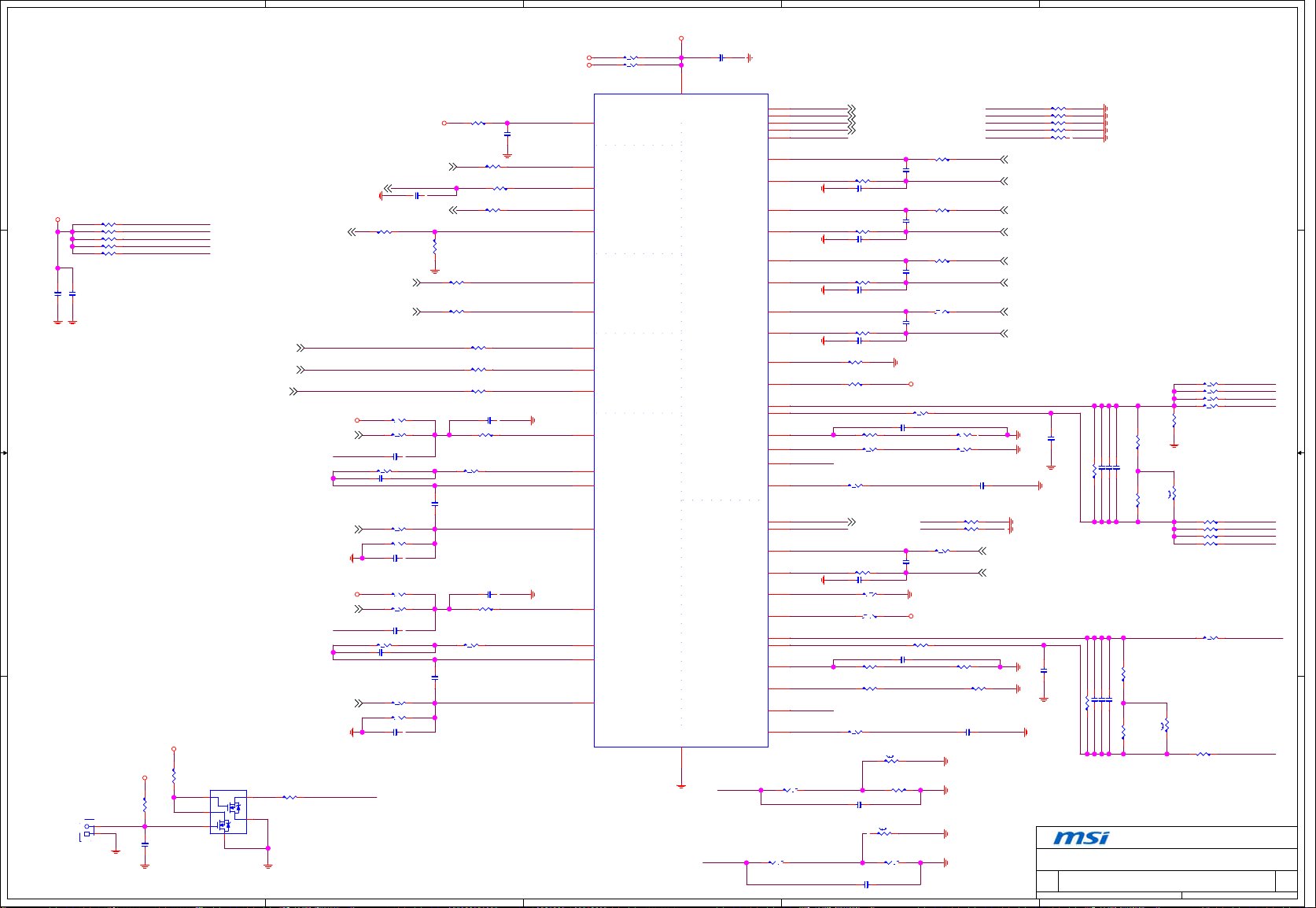

SIO NCT6797, COM PS2 LPT

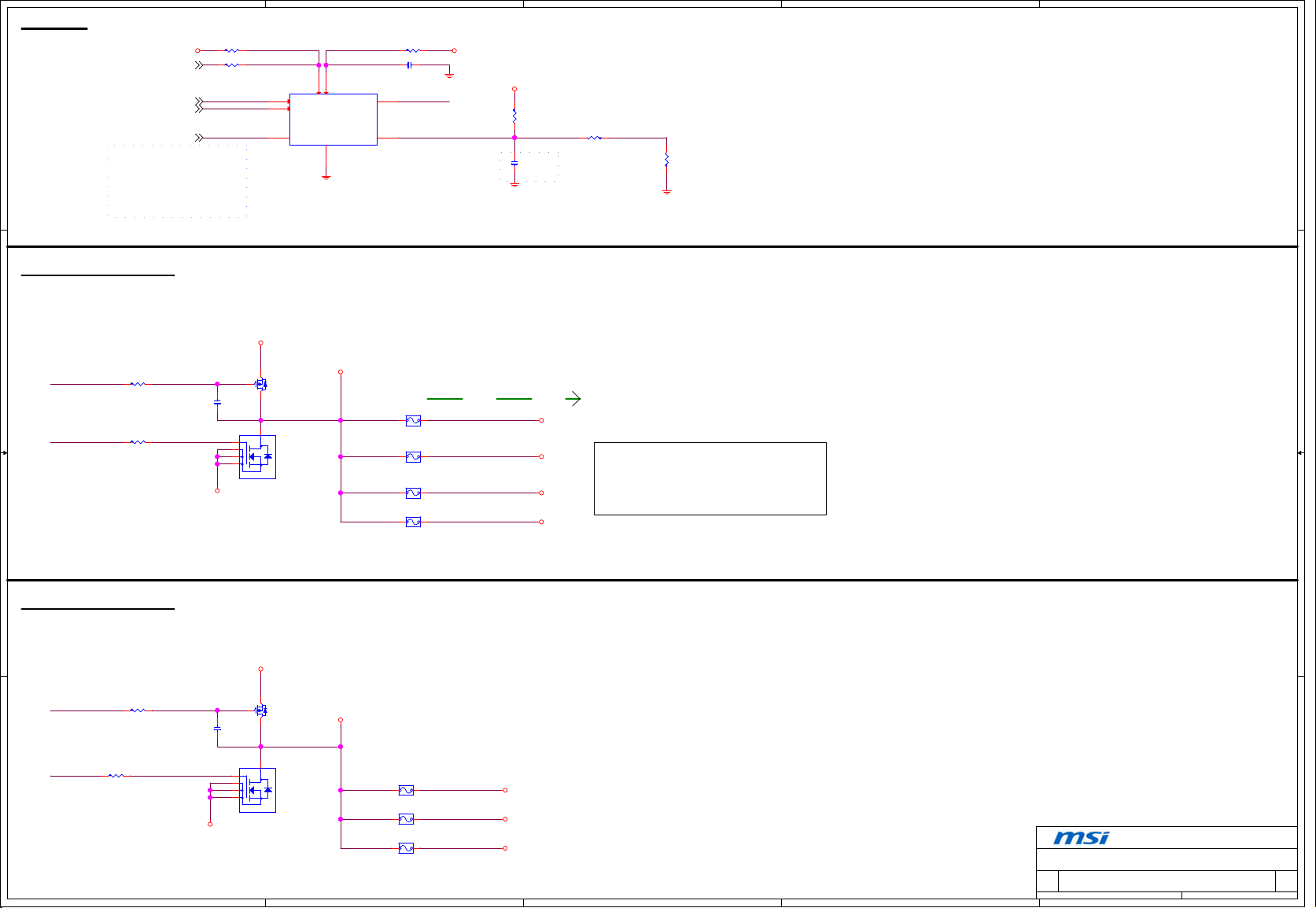

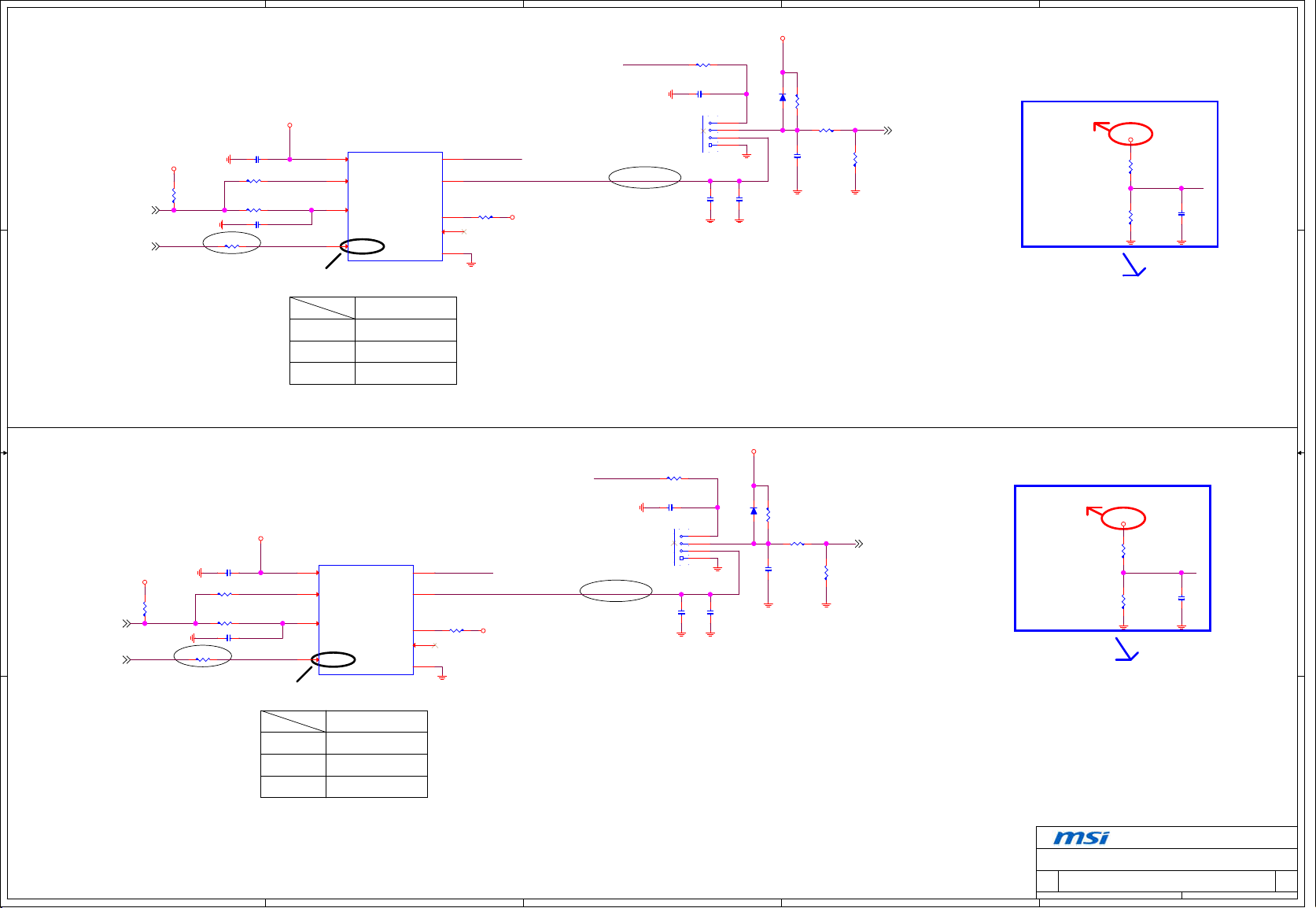

FAN

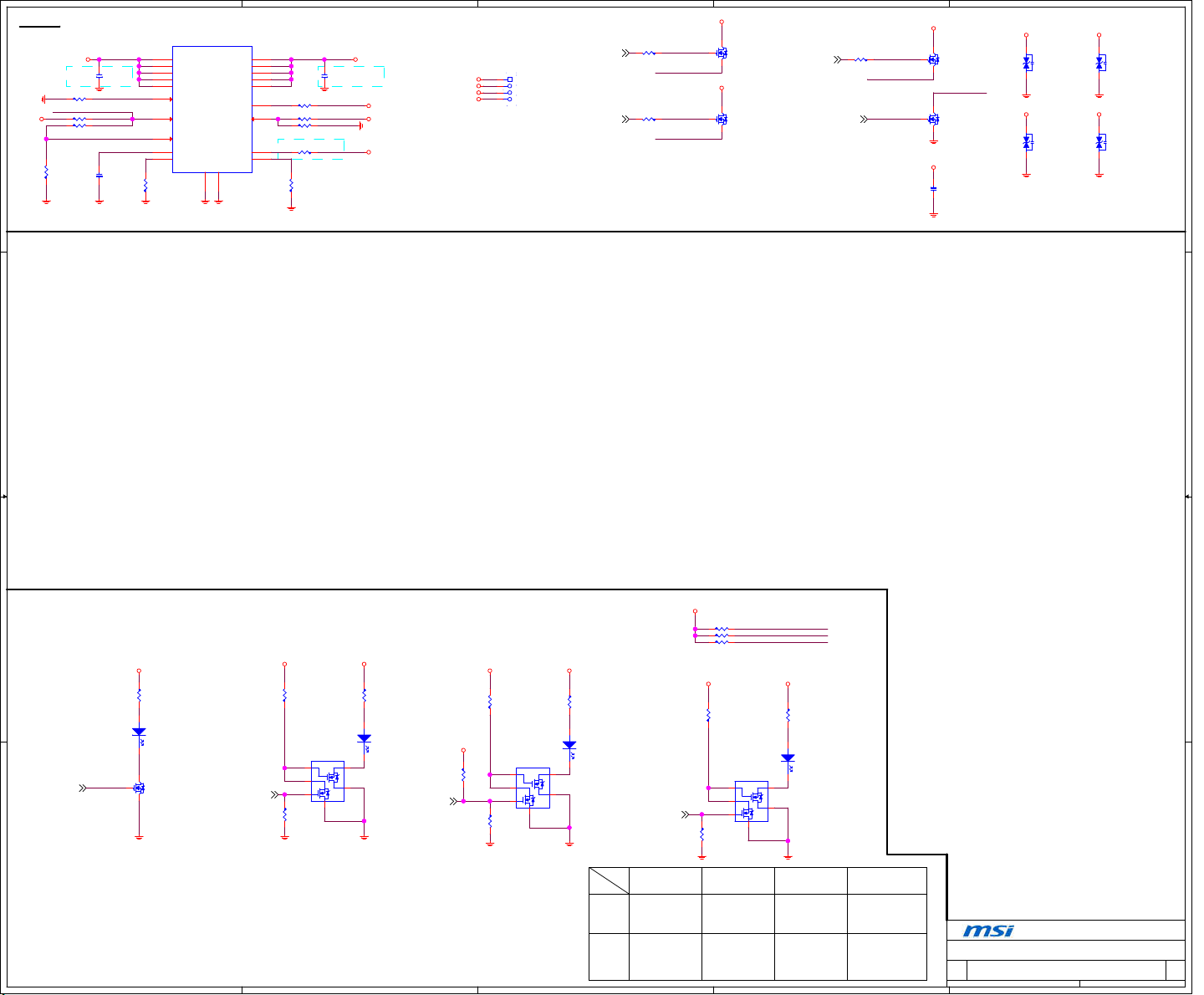

LED Connector
B B
CLR CMOS
OV-NCT3933, JOC
ACPI

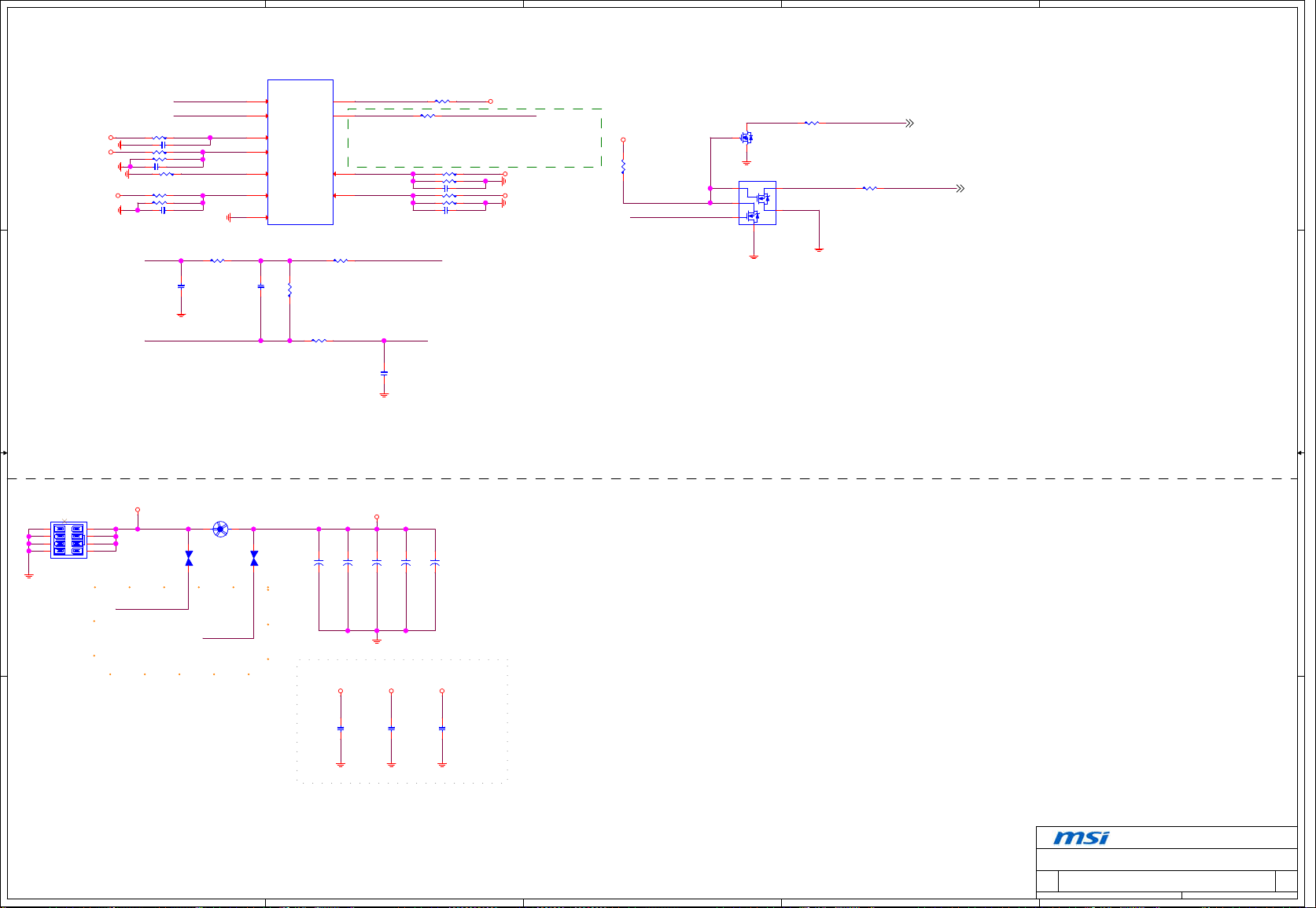

12VIN Current Sensor RT9553B
VRM- UP9521

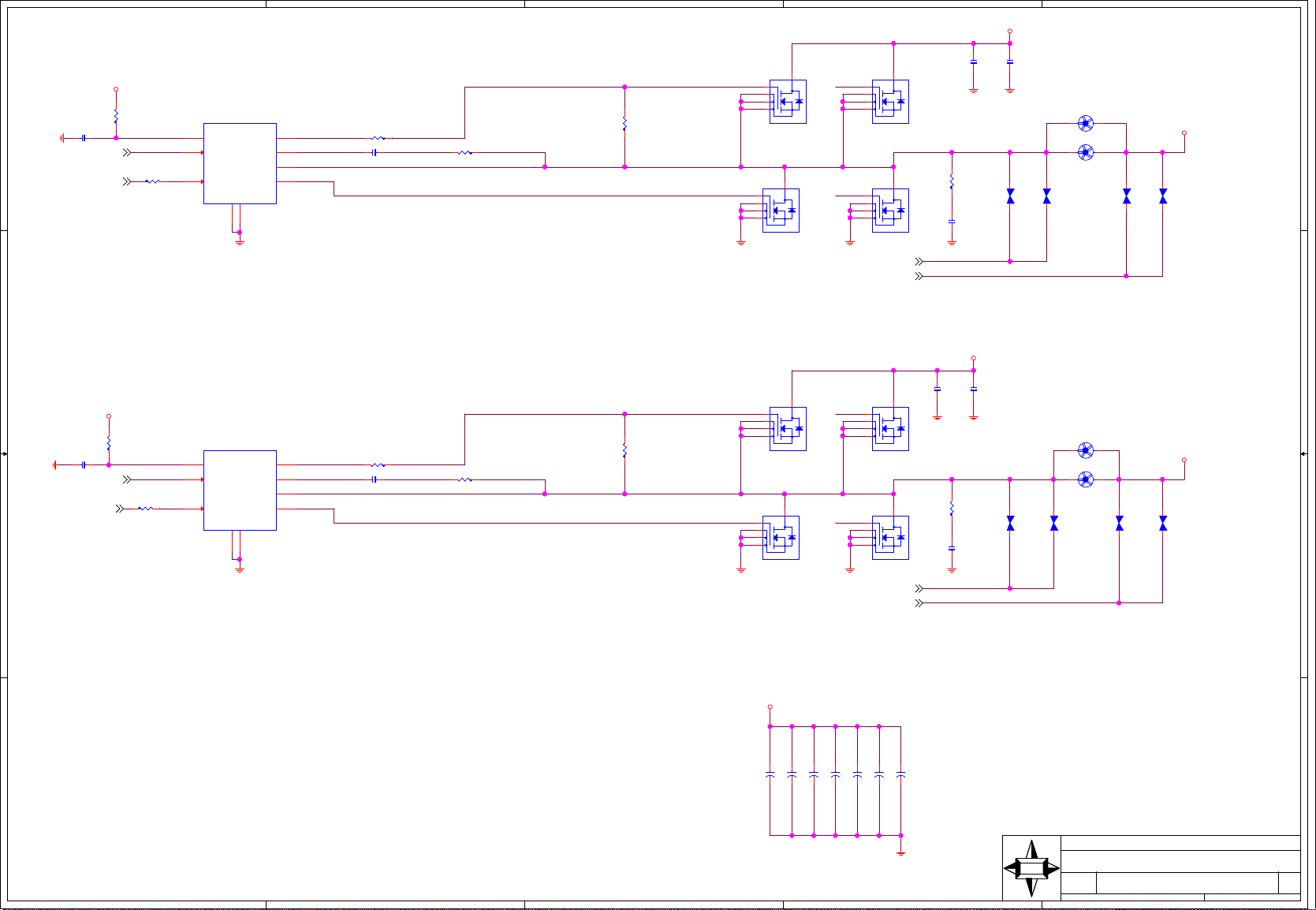

VCORE PHASE1~4

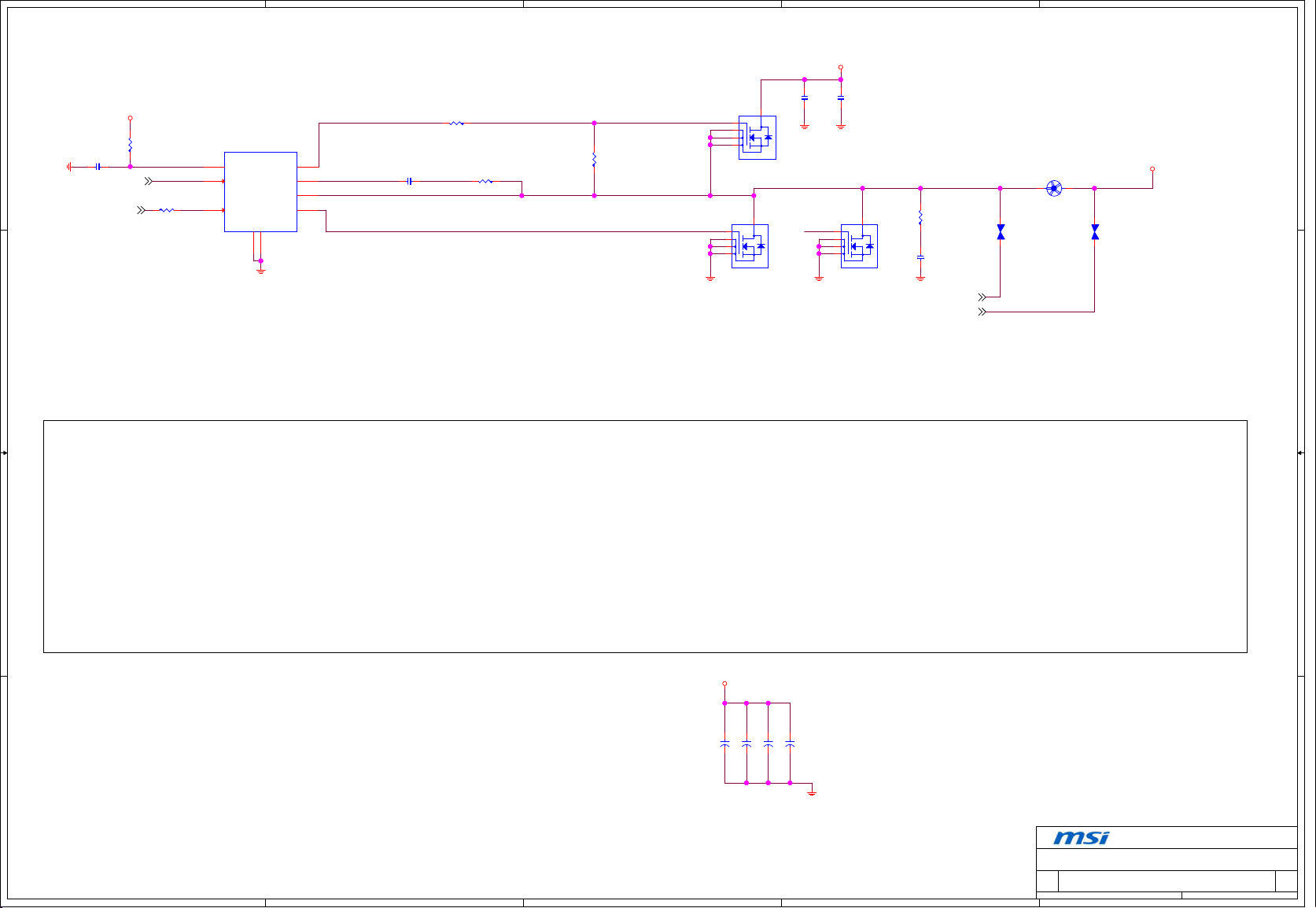

VGT PHASE 1

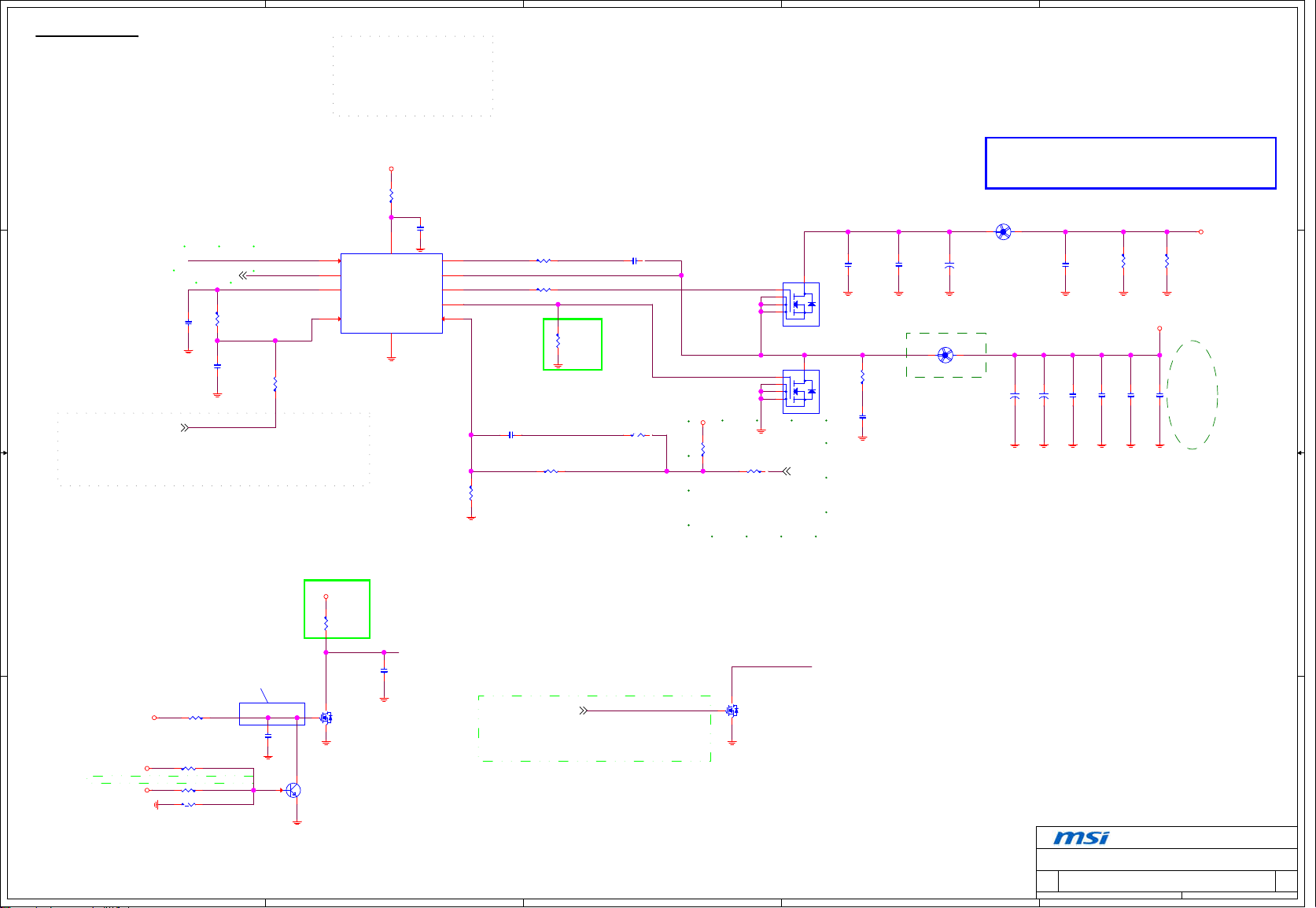

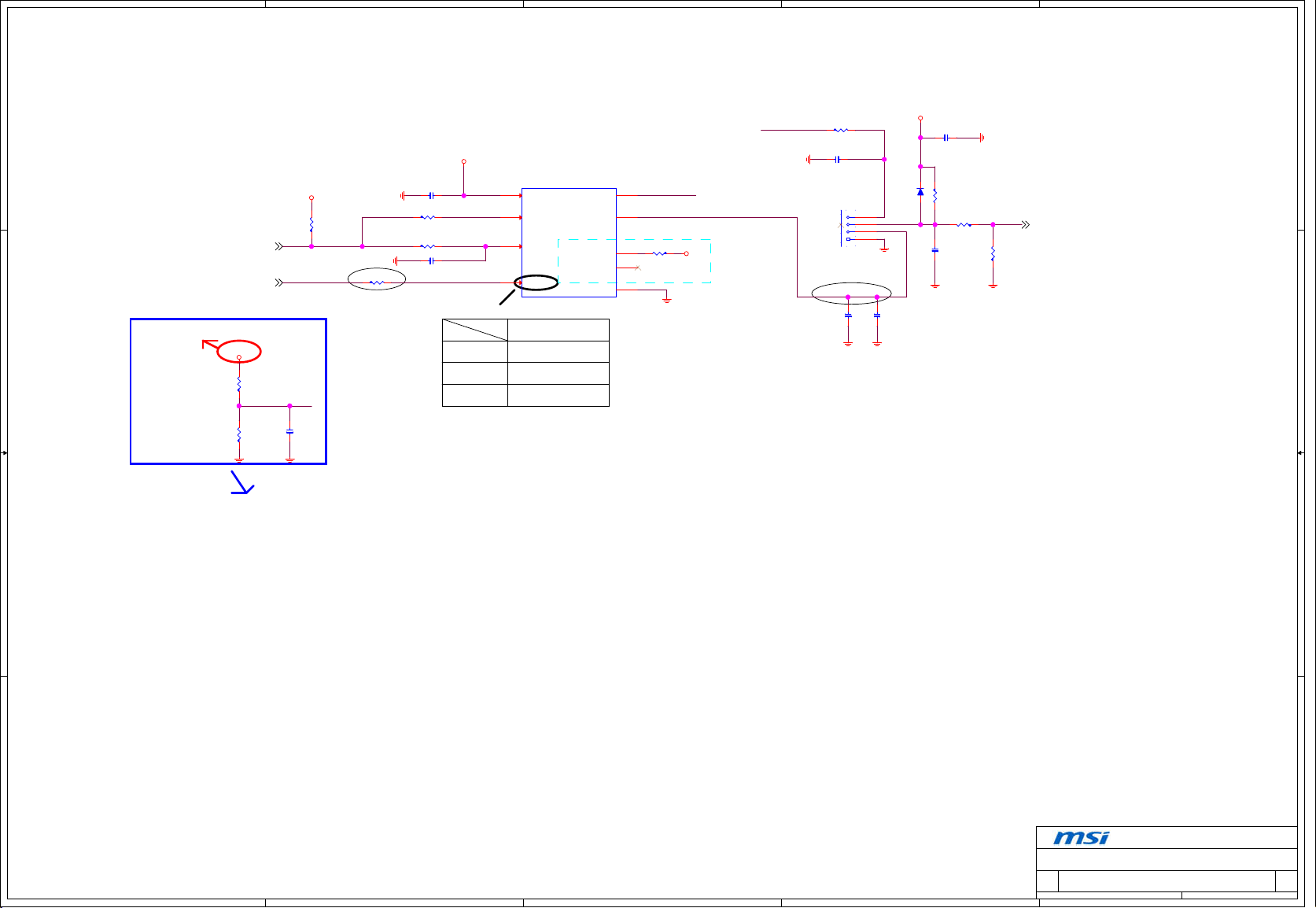

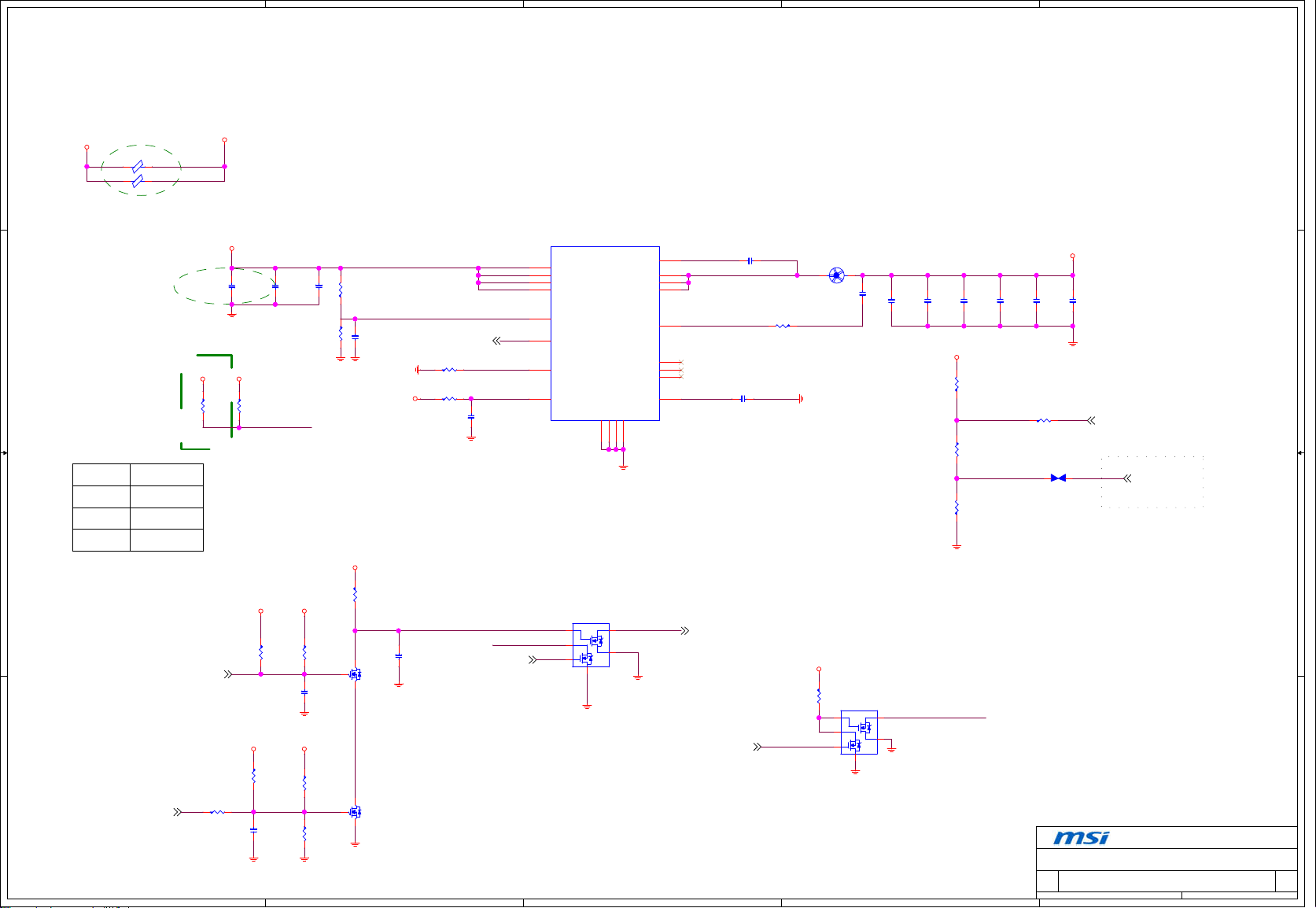

VCCIO-SY8288
VCCSA-RT8125E

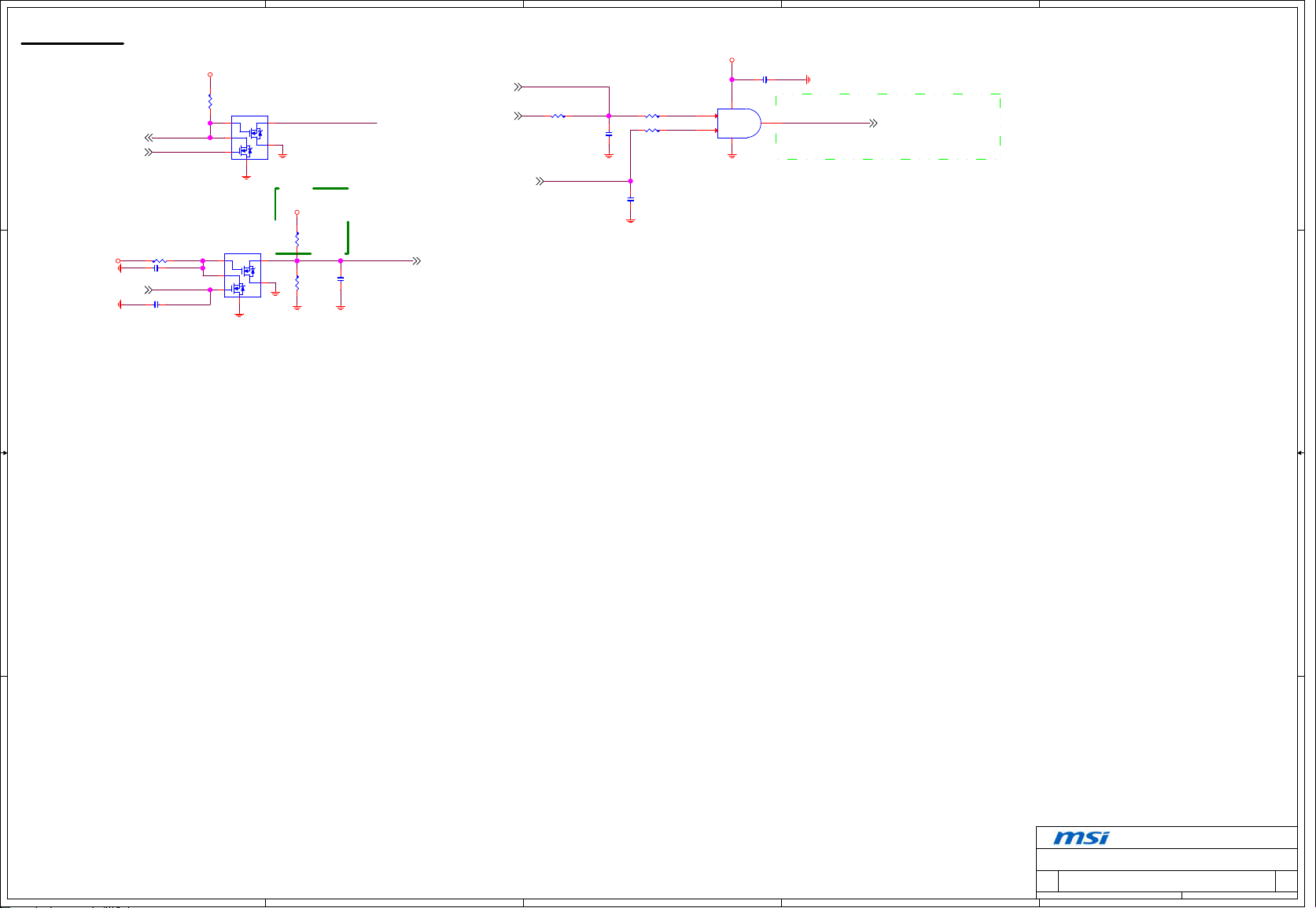

CPU PWR-VRM-Seqence
A A

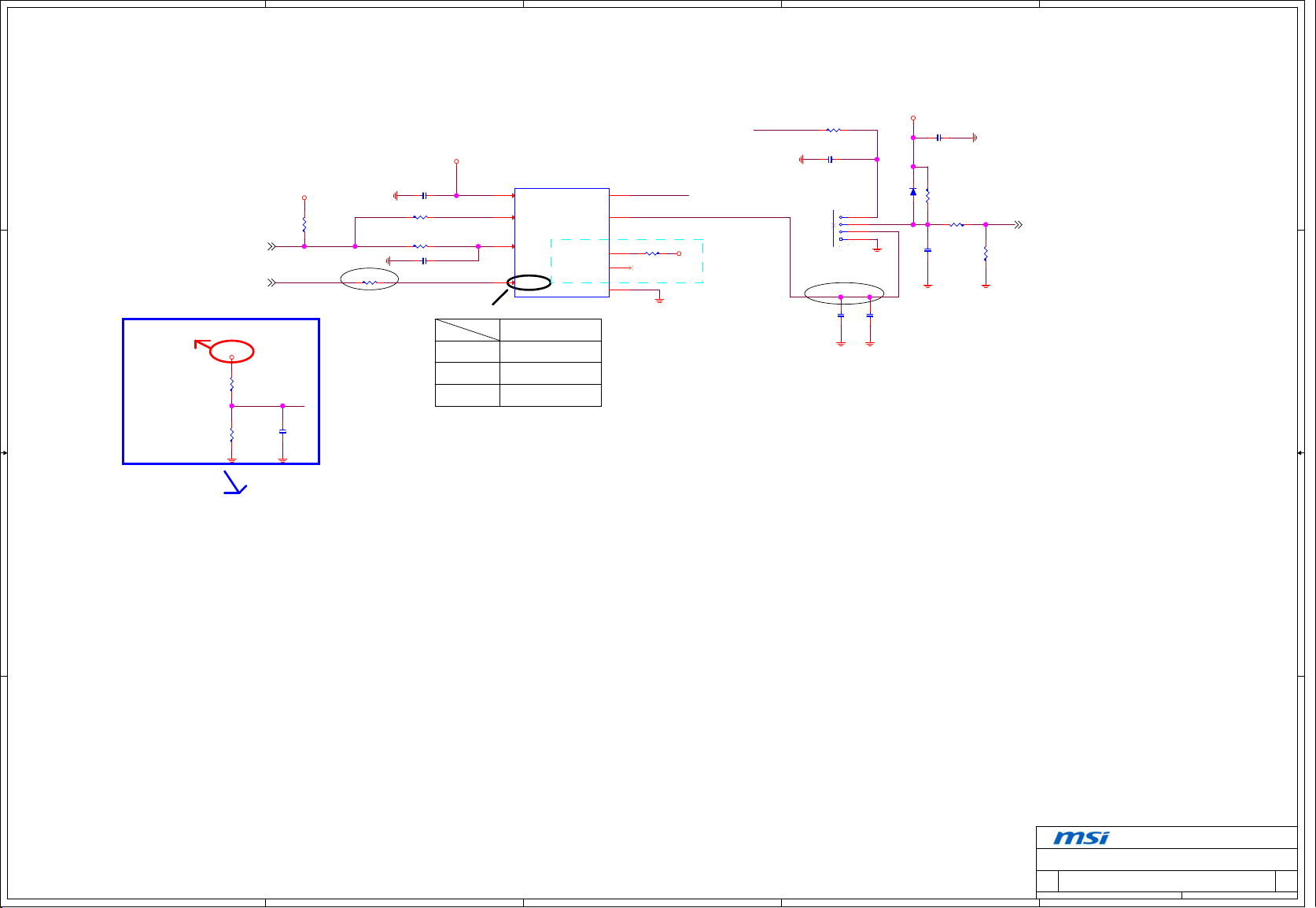

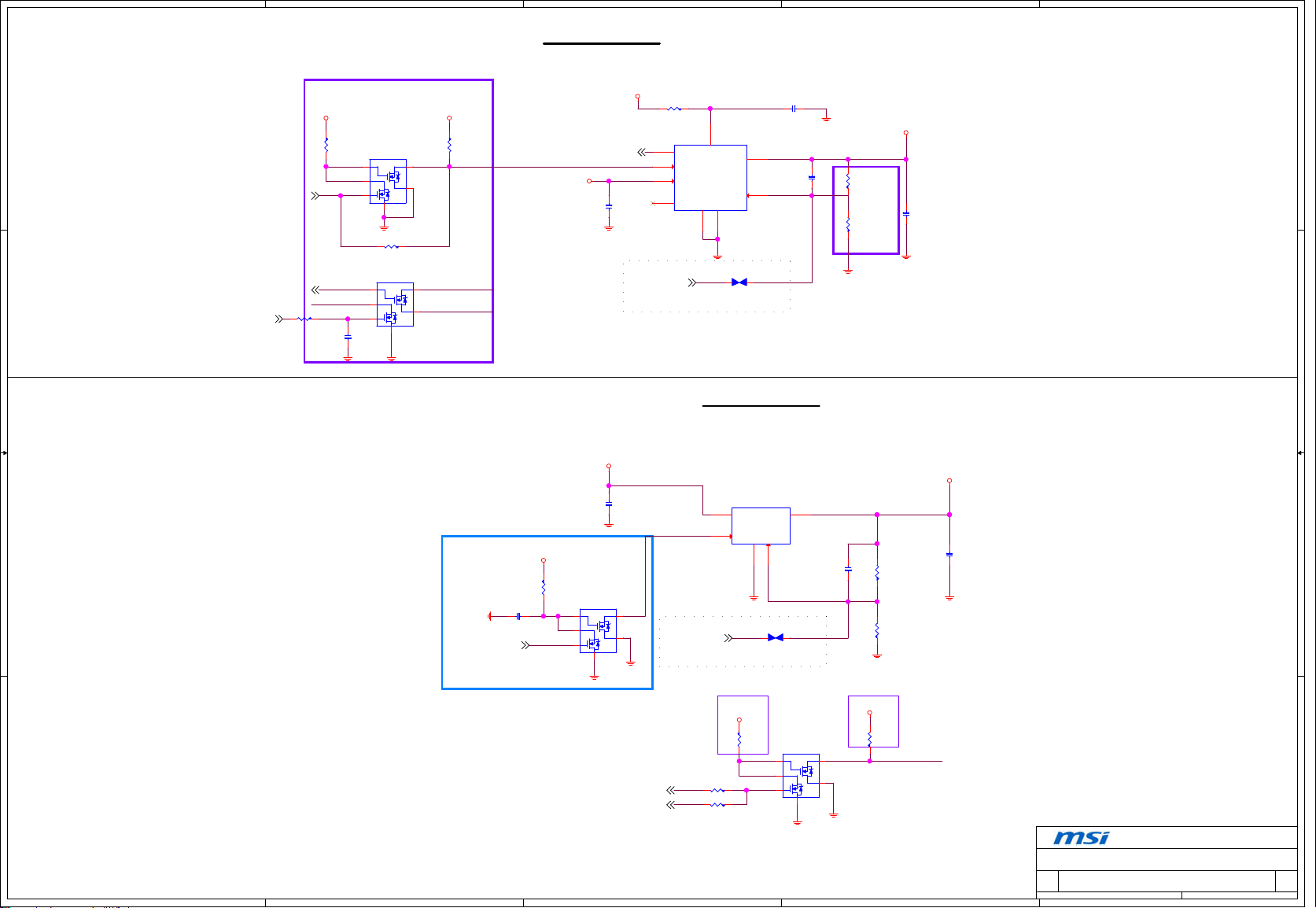

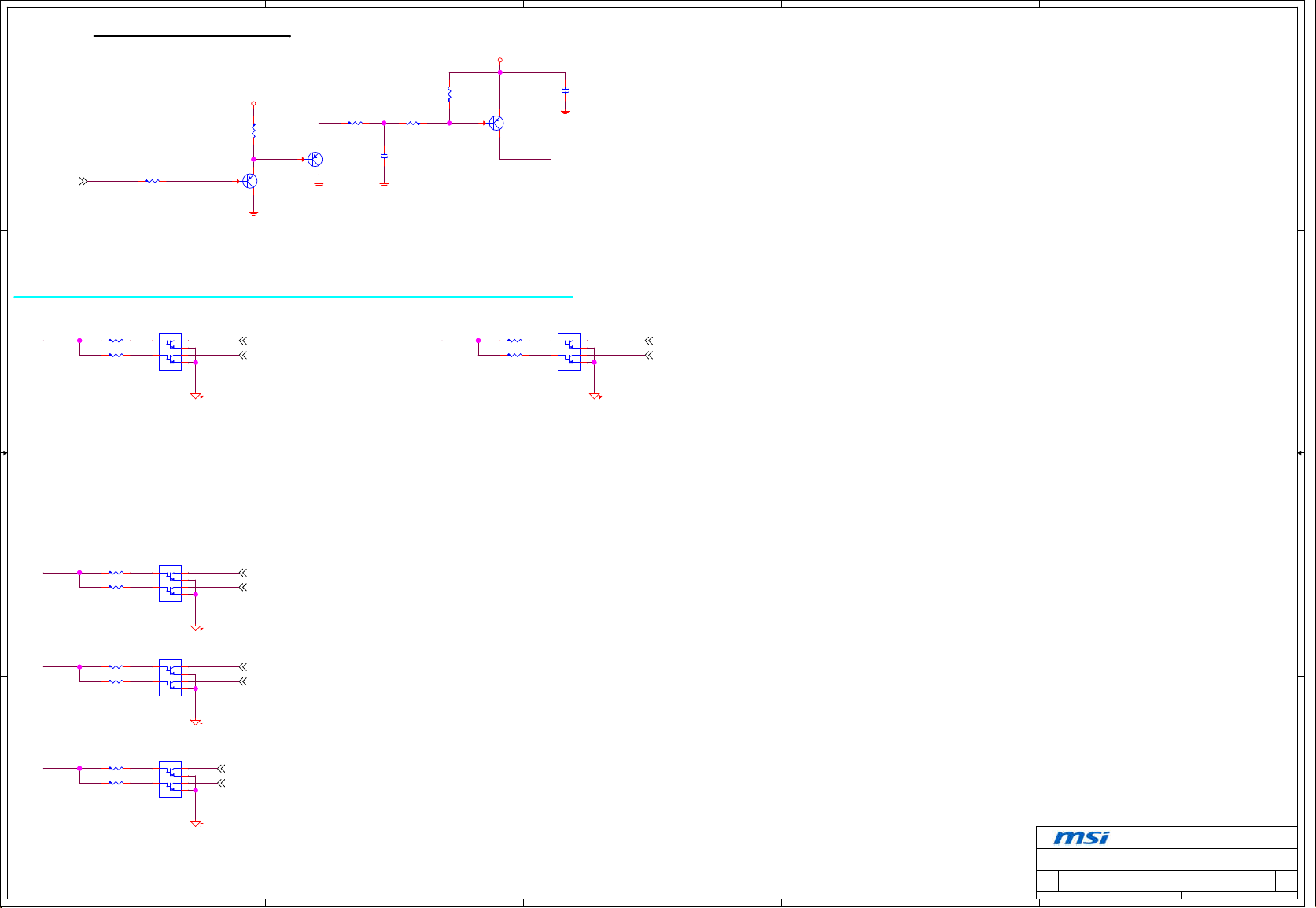

VCCST/PLL

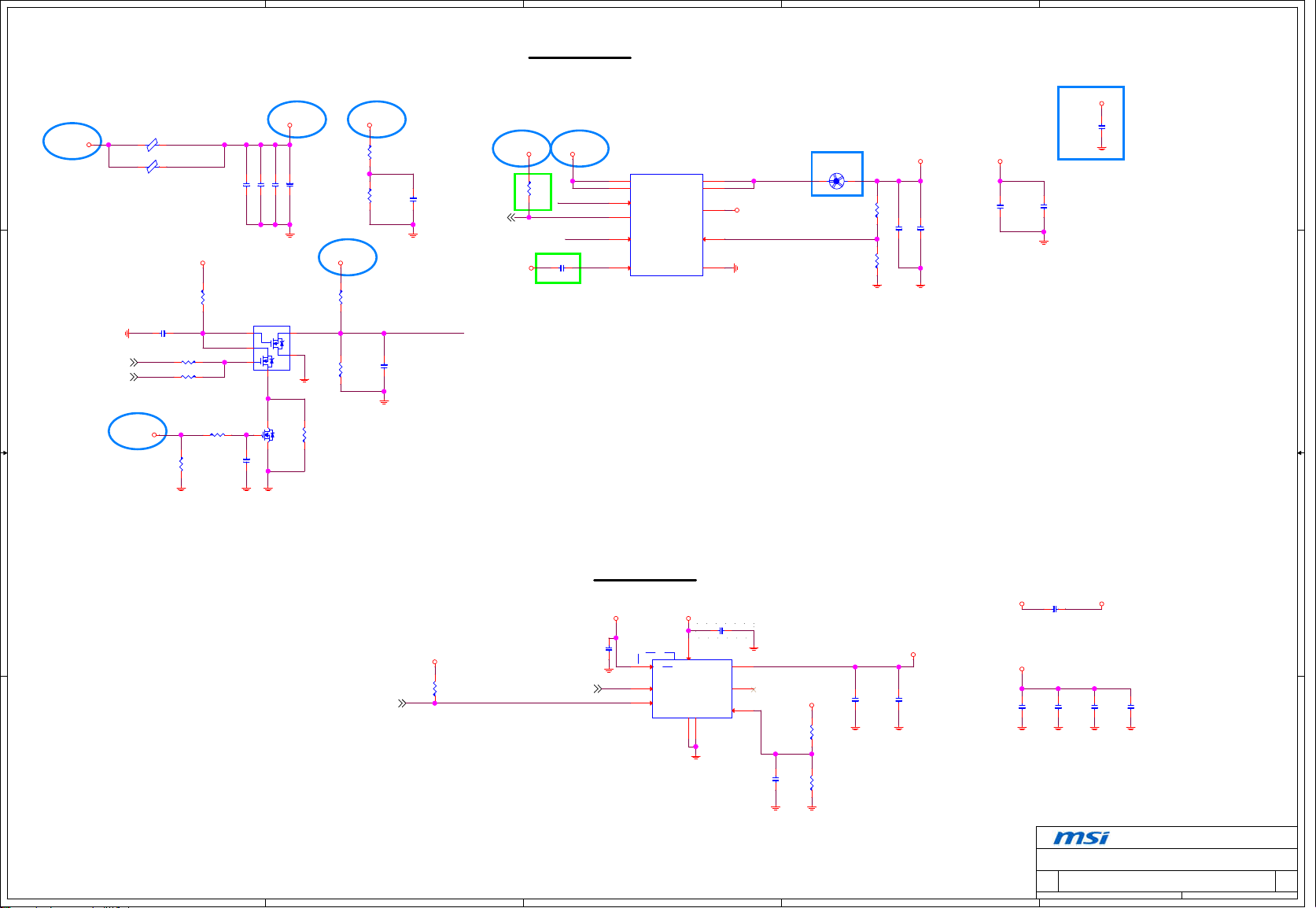

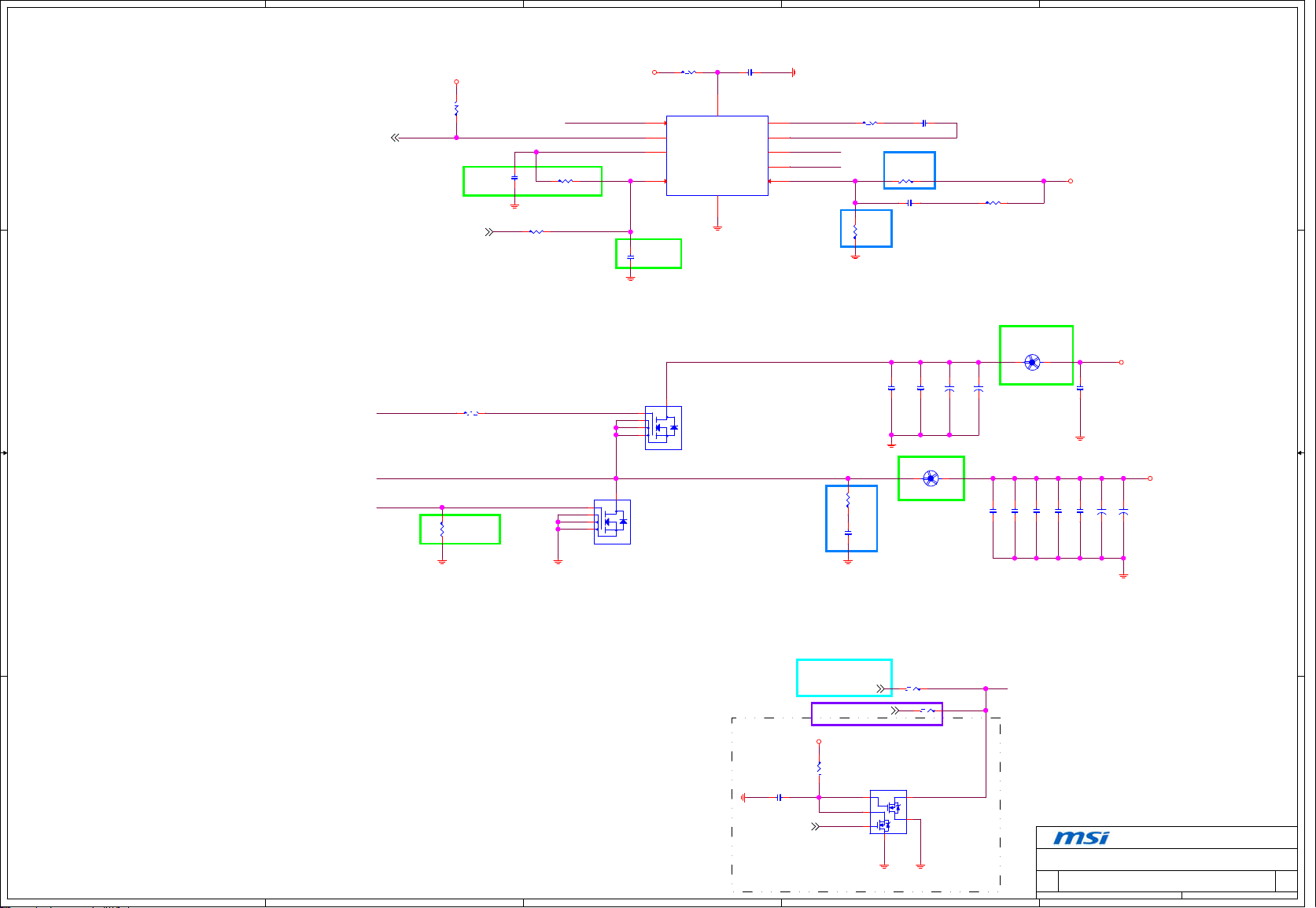

DDR PWR RT8125E ,VPP25 MP2147 /VTT

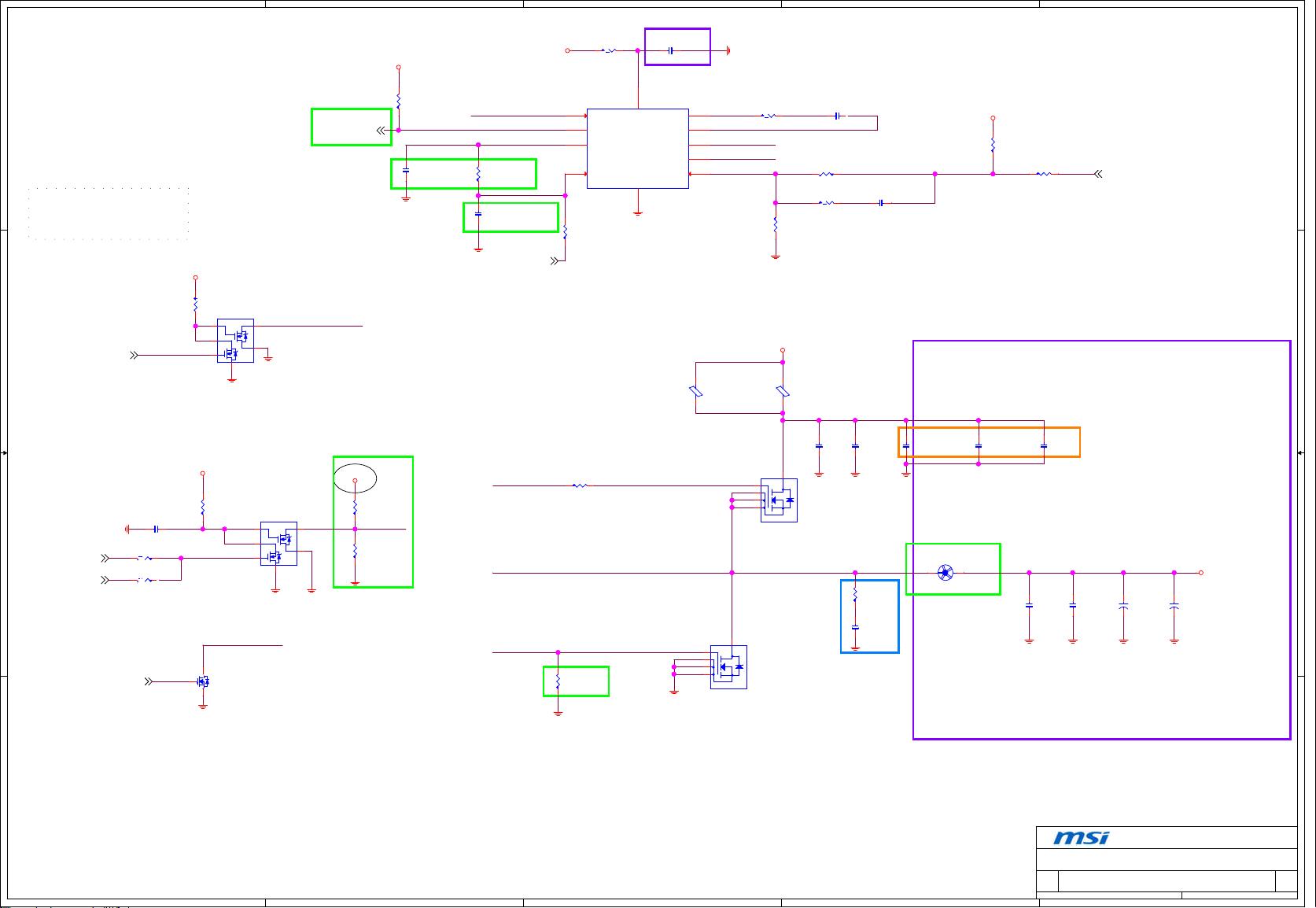

PCH POWER RT8125E, GS7133

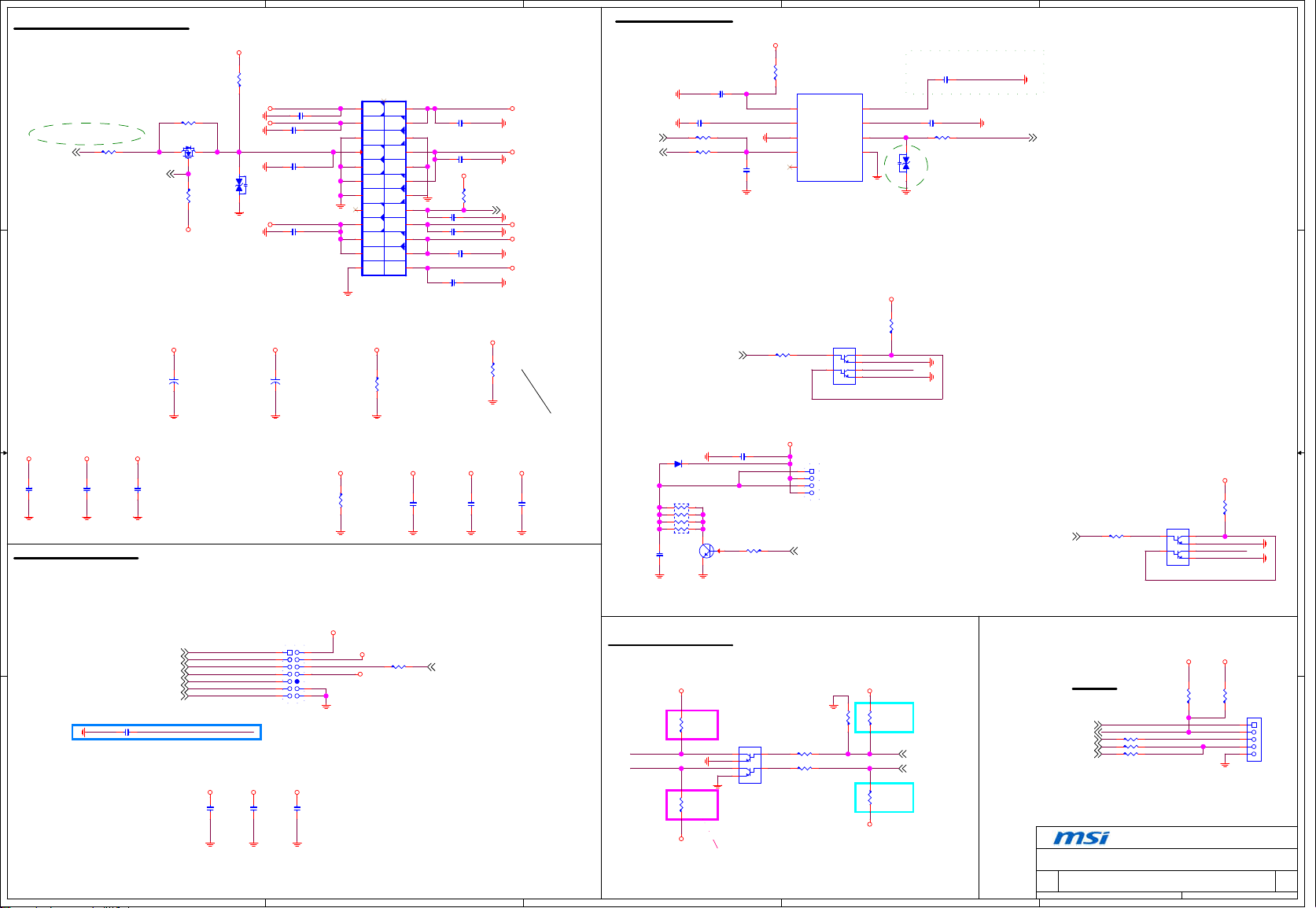

ATX Connector/ F_Panel

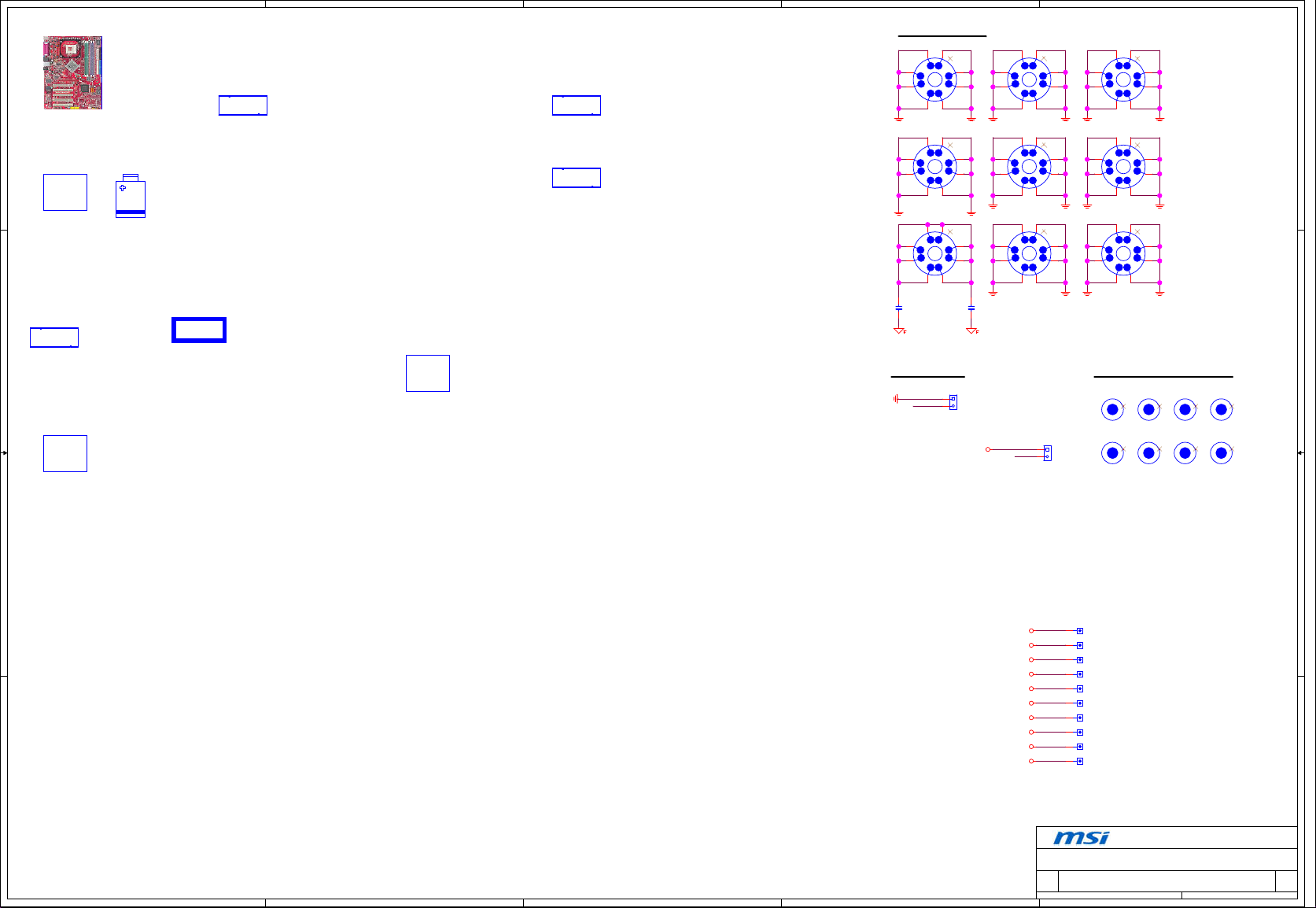

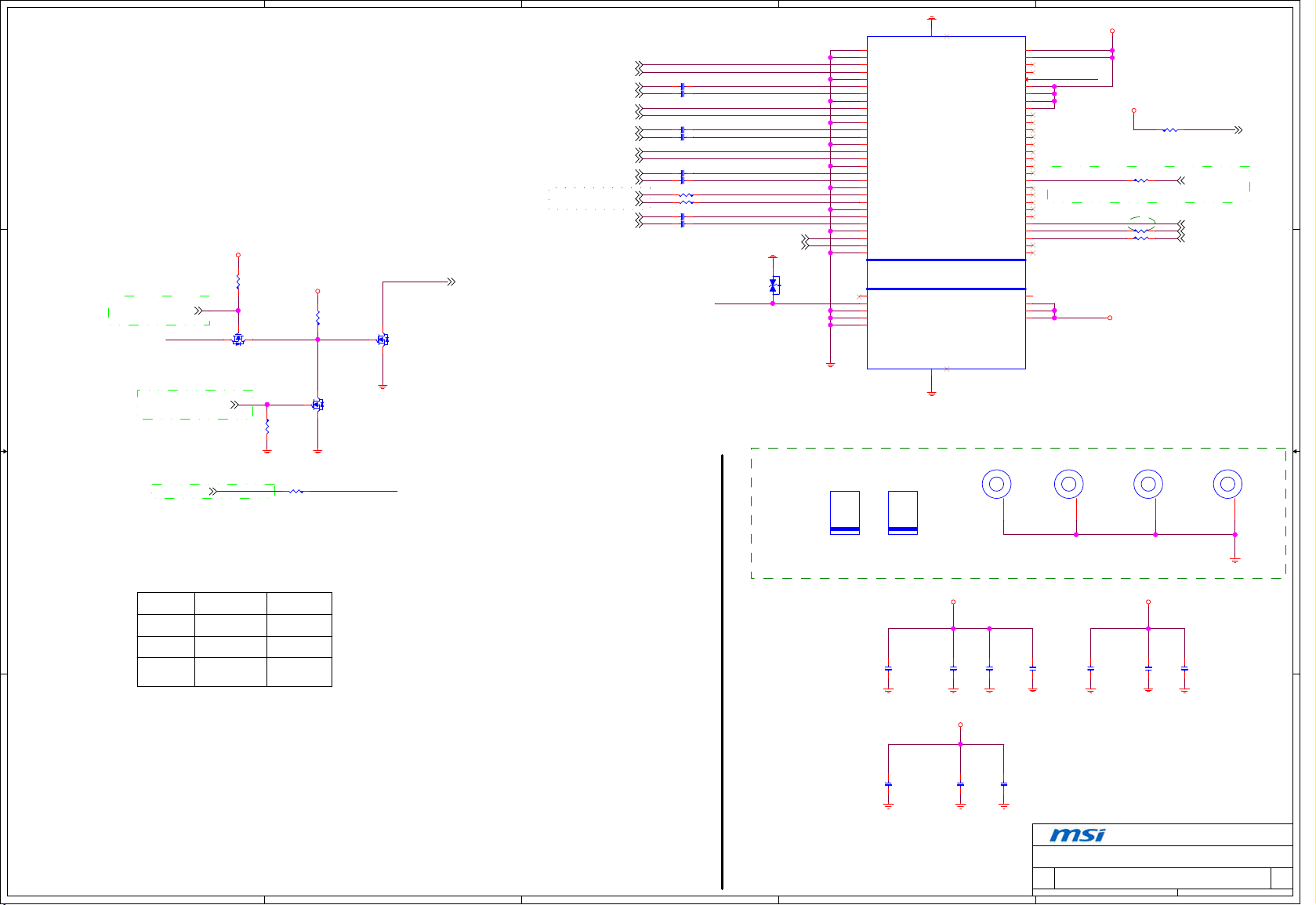

Manual Parts
,CPU-GND
, POWER/GND , Strap
5
4
1
2
3-5
6-7
8-11
12-13
14
15-18
19
20
21-22
23-25
26
27
28
29
30
31
32-34
35-38
39-40
41-43
44-49
51
52
53
54
55
56
57-58
59
60
61
62
63
64-65
66-67
68
69

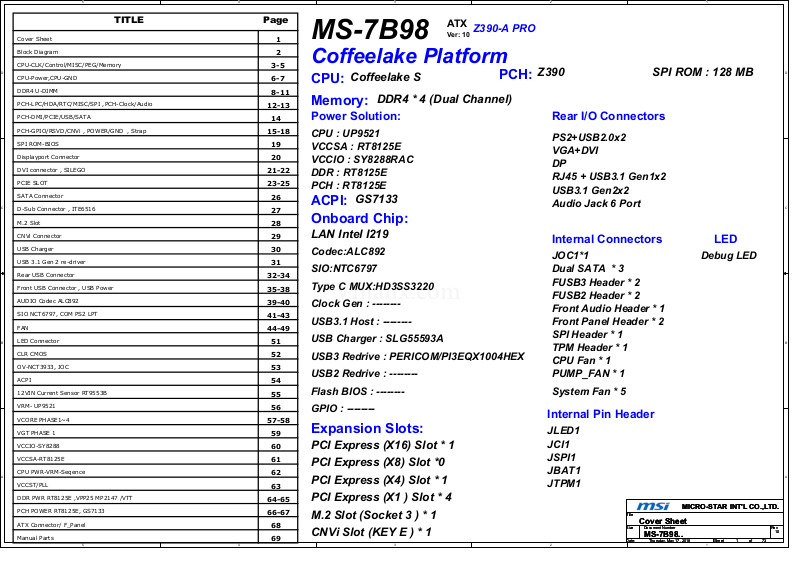

MS-7B98
Coffeelake Platform
CPU:
Memory:
Power Solution:
CPU : UP9521
VCCSA : RT8125E
VCCIO : SY8288RAC
DDR : RT8125E
PCH : RT8125E
ACPI:
Onboard Chip:
LAN Intel I219
Codec:ALC892
SIO:NTC6797
Type C MUX:HD3SS3220
Clock Gen : --------
USB3.1 Host : --------
USB Charger : SLG55593A
USB3 Redrive : PERICOM/PI3EQX1004HEX
USB2 Redrive : --------
Flash BIOS : --------
GPIO : --------
Expansion Slots:
PCI Express (X16) Slot * 1
PCI Express (X8) Slot *0
PCI Express (X4) Slot * 1
PCI Express (X1 ) Slot * 4
M.2 Slot (Socket 3 ) * 1
CNVi Slot (KEY E ) * 1
Coffeelake S
DDR4 * 4 (Dual Channel)
GS7133
3
ATX
Z390-A PRO
Ver: 10
PCH:
Z390
Rear I/O Connectors
PS2+USB2.0x2
VGA+DVI
DP
RJ45 + USB3.1 Gen1x2
USB3.1 Gen2x2
Audio Jack 6 Port
Internal Connectors
JOC1*1
Dual SATA * 3
FUSB3 Header * 2
FUSB2 Header * 2
Front Audio Header * 1
Front Panel Header * 2
SPI Header * 1
TPM Header * 1
CPU Fan * 1
PUMP_FAN * 1
System Fan * 5
Internal Pin Header
JLED1
JCI1
JSPI1
JBAT1
JTPM1
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
2
Date: Sheet of
SPI ROM : 128 MB
LED
Debug LED
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Cover Sheet
Cover Sheet
Cover Sheet
MS-7B98..
