Page 1
5
4
3
2
1
PageTITLE

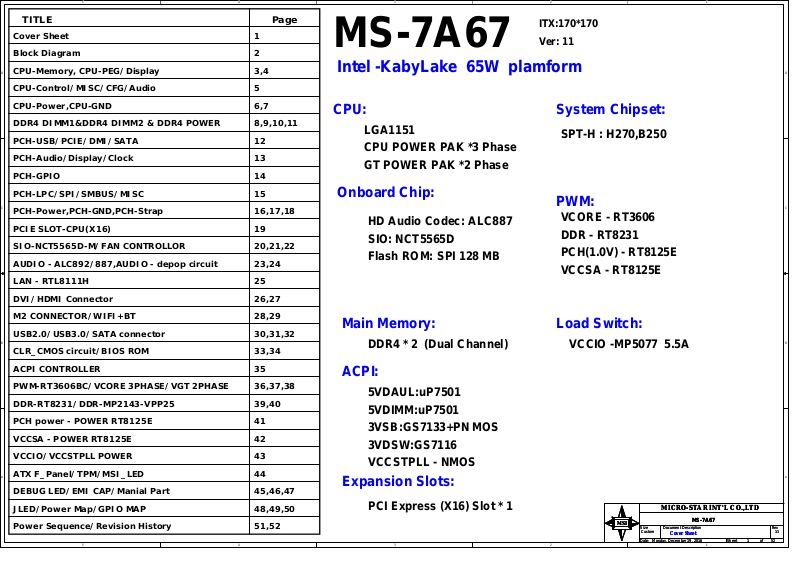

Cover Sheet 1
MS-7A67
Block Diagram
CPU-Memory,
D D
CPU-PEG/Display
2
3,
4
Intel -KabyLake 65W plamform
ITX:170*170
Ver: 11
5CPU-Control/MISC/CFG/Audio
CPU-Power,CPU-GND
DDR4 DIMM1&DDR4 DIMM2 & DDR4 POWER
PCH-USB/PCIE/DMI/SATA
PCH-Audio/Display/Clock
PCH-GPIO
PCH-LPC/SPI/SMBUS/MISC
C C
PCH-Power,PCH-GND,PCH-Strap
PCIE SLOT-CPU(X16)
SIO-NCT5565D-M/FAN CONTROLLOR
AUDIO - ALC892/887,AUDIO - depop circuit
LAN - RTL8111H
6,7
8,9,10,11
12
13
14
15
16,17,18
19
20,21,22
23,24
25
CPU:
LGA1151
CPU POWER PAK *3 Phase
GT POWER PAK *2 Phase
Onboard Chip:
HD Audio Codec: ALC887
SIO: NCT5565D
Flash ROM: SPI 128 MB
System Chipset:
SPT-H : H270,B250
PWM:
VCORE - RT3606
DDR - RT8231
PCH(1.0V) - RT8125E
VCCSA - RT8125E
DVI/HDMI Connector
M2 CONNECTOR/WIFI+BT
USB2.0/USB3.0/SATA connector
B B
CLR_CMOS circuit/BIOS ROM
ACPI CONTROLLER
DDR-RT8231/DDR-MP2143-VPP25
PCH power - POWER RT8125E
VCCIO/VCCSTPLL POWER
ATX F_Panel/TPM/MSI_LED
A A
DEBUG LED/EMI CAP/Manial Part
JLED/Power Map/GPIO MAP
Power Sequence/Revision History
5
26,27
28,29
30,31,32
33,34
35
36,37,38PWM-RT3606BC/VCORE 3PHASE/VGT 2PHASE
39,40
41
42VCCSA - POWER RT8125E
43
44
45,46,47
48,49,50
51,52
4
Main Memory:
DDR4 * 2 (Dual Channel)
ACPI:
5VDAUL:uP7501
5VDIMM:uP7501
3VSB:GS7133+PN MOS
3VDSW:GS7116
VCCSTPLL - NMOS
Expansion Slots:
PCI Express (X16) Slot * 1
3
Load Switch:
VCCIO -MP5077 5.5A
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
2
Date:
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MS-7A67
Cover Sheet
Cover Sheet
Cover Sheet
Monday, December 19, 2016
Monday, December 19, 2016
Monday, December 19, 2016
1
Sheet of
Sheet of
Sheet of
11
11
11
152
152
152
Page 2
5
MS-7A67 Block Diagram
4
3
2
1
D D
PCIEX16
HDMI(portB)
Lane0~15
INTEL
KBL-S LGA1151
DDR4
DDR4
DDR4
DIMM1
DDR4
DIMM2
DIMM Sequence:
A0
B0
DVI(portC)
DMI(GEN3)
JUSB2
C C
HDMI_USB1
JUSB1
LAN_USB1
PS2_USB1
B B
LAN_USB1
USB3-5USB3-6
HDMI_USB1 JUSB2
USB3-3USB3-4
USB2-1~2
USB2-3~4
USB2-5,6
USB2-7,8
USB2-9,10
USB2-11WIFI+BT
H210 disable
USB3-1USB3-2
USB 2.0
USB 2.0
USB 2.0
USB 2.0
USB 2.0
USB 2.0
USB 3.0
Sunrise Point
(PCH-H)
(B250/H270)
PCIE
HD AUDIO I/F
SATA 3.0 I/F
Lane5
Lane8
LAN8111H
WIFI
HD AUDIO
ALC887
SATA#1
SATA#2
SATA#3
SPI ROM
(128M/64M)
SPI I/F
SATA#4
Slot Sequence:
5
(By CPU GEN3)
SIO NCT5565D
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
KBD
MOUSE
4
3
2
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Thursday, December 22, 2016
Date:
Thursday, December 22, 2016
Date:
Thursday, December 22, 2016
MS-7A67
MS-7A67
MS-7A67
Block Diagram
Block Diagram
Block Diagram
1
252
252
252
Sheet of
Sheet of
Sheet of
11
11
11
PCIE X16
A A
Page 3
5
Vinafix.com
CPU1A
M_MAA_A[16..0]8
M_MAA_A0
M_MAA_A1
TP13TP13
M_MAA_A2
M_MAA_A3
M_MAA_A4
M_MAA_A5
M_MAA_A6
M_MAA_A7
M_MAA_A8
M_MAA_A9
M_MAA_A10
M_MAA_A11
M_MAA_A12
M_MAA_A13
M_MAA_A14
M_MAA_A15
M_MAA_A16
M_BG_A_1
M_ACT_A_N
M_CKE_A0
M_CKE_A1
M_CS#_A0
M_CS#_A1
M_ODT_A0
M_ODT_A1
M_BA_A_0
M_BA_A_1
M_BG_A_0
M_CK_A_DP0
M_CK_A_DN0
M_CK_A_DP1
M_CK_A_DN1
M_PARITY_A
M_ALERT_A_N
CPU_VREF_DQ_A
D D
M_BG_A_18
M_ACT_A_N8
M_CKE_A08
M_CKE_A18
M_CS#_A08
M_CS#_A18
C C
M_ODT_A08
M_ODT_A18
M_BA_A_08
M_BA_A_18
M_BG_A_08
M_CK_A_DP08
M_CK_A_DN08
M_CK_A_DP18
M_CK_A_DN18
M_PARITY_A8
M_ALERT_A_N8
B B
CPU_CA_VREF_A
CPU1A
AW15
DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]
AU18
DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1]
AU17
DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]
AV19
DDR0_MA[3]
AT19
DDR0_MA[4]
AU20
DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5]
AV20
DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6]
AU21
DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7]
AT20
DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8]
AT22
DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9]
AY14
DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]
AU22
DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]
AV22
DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12]
AV12
DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]
AV14
DDR0_MA[14]/DDR0_CAB[2]/DDR0_WE#
AY11
DDR0_MA[15]/DDR0_CAB[1]/DDR0_CAS#
AW13
DDR0_MA[16]/DDR0_CAB[3]/DDR0_RAS#
AV23
DDR0_BG[1]/DDR0_CAA[9]/DDR0_MA[14]
AU24
DDR0_ACT#/DDR0_CAA[8]/DDR0_MA[15]
AY24
DDR0_CKE[0]
AW24
DDR0_CKE[1]
AV24
DDR0_CKE[2]
AV25
DDR0_CKE[3]
AW12
DDR0_CS#[0]
AU11
DDR0_CS#[1]
AV13
DDR0_CS#[2]
AV10
DDR0_CS#[3]
AW11
DDR0_ODT[0]
AU14
DDR0_ODT[1]
AU12
DDR0_ODT[2]
AY10
DDR0_ODT[3]
AY13
DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0]
AV15
DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]
AW23
DDR0_BG[0]/DDR0_CAA[5]/DDR0_BA[2]
AW18
DDR0_CKP[0]
AV18
DDR0_CKN[0]
AW17
DDR0_CKP[1]
AY17
DDR0_CKN[1]
AW16
DDR0_CKP[2]
AV16
DDR0_CKN[2]
AT16
DDR0_CKP[3]
AU16
DDR0_CKN[3]
AY15
DDR0_PAR
AT23
DDR0_ALERT#
AU33
DDR0_ECC[0]
AT33
DDR0_ECC[1]
AW33
DDR0_ECC[2]
AV31
DDR0_ECC[3]
AU31
DDR0_ECC[4]
AV33
DDR0_ECC[5]
AW31
DDR0_ECC[6]
AY31
DDR0_ECC[7]
AB40
DDR_VREF_CA
AC40
DDR0_VREF_DQ
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
SKYLAKE-S
SKYLAKE-S
CHANNEL A
CHANNEL A
4
DDR0_DQ[0]
DDR0_DQ[1]
DDR0_DQ[2]
DDR0_DQ[3]
DDR0_DQ[4]
DDR0_DQ[5]
DDR0_DQ[6]
DDR0_DQ[7]
DDR0_DQ[8]
DDR0_DQ[9]
DDR0_DQ[10]
DDR0_DQ[11]
DDR0_DQ[12]
DDR0_DQ[13]
DDR0_DQ[14]
DDR0_DQ[15]
DDR0_DQ[32]/DDR0_DQ[16]
DDR0_DQ[33]/DDR0_DQ[17]
DDR0_DQ[34]/DDR0_DQ[18]
DDR0_DQ[35]/DDR0_DQ[19]
DDR0_DQ[36]/DDR0_DQ[20]
DDR0_DQ[37]/DDR0_DQ[21]
DDR0_DQ[38]/DDR0_DQ[22]
DDR0_DQ[39]/DDR0_DQ[23]
DDR0_DQ[40]/DDR0_DQ[24]
DDR0_DQ[41]/DDR0_DQ[25]
DDR0_DQ[42]/DDR0_DQ[26]
DDR0_DQ[43]/DDR0_DQ[27]
DDR0_DQ[44]/DDR0_DQ[28]
DDR0_DQ[45]/DDR0_DQ[29]
DDR0_DQ[46]/DDR0_DQ[30]
DDR0_DQ[47]/DDR0_DQ[31]
DDR1_DQ[0]/DDR0_DQ[32]
DDR1_DQ[1]/DDR0_DQ[33]
DDR1_DQ[2]/DDR0_DQ[34]
DDR1_DQ[3]/DDR0_DQ[35]
DDR1_DQ[4]/DDR0_DQ[36]
DDR1_DQ[5]/DDR0_DQ[37]
DDR1_DQ[6]/DDR0_DQ[38]
DDR1_DQ[7]/DDR0_DQ[39]
DDR1_DQ[8]/DDR0_DQ[40]
DDR1_DQ[9]/DDR0_DQ[41]
DDR1_DQ[10]/DDR0_DQ[42]
DDR1_DQ[11]/DDR0_DQ[43]
DDR1_DQ[12]/DDR0_DQ[44]
DDR1_DQ[13]/DDR0_DQ[45]
DDR1_DQ[14]/DDR0_DQ[46]
DDR1_DQ[15]/DDR0_DQ[47]
DDR1_DQ[32]/DDR0_DQ[48]
DDR1_DQ[33]/DDR0_DQ[49]
DDR1_DQ[34]/DDR0_DQ[50]
DDR1_DQ[35]/DDR0_DQ[51]
DDR1_DQ[36]/DDR0_DQ[52]
DDR1_DQ[37]/DDR0_DQ[53]
DDR1_DQ[38]/DDR0_DQ[54]
DDR1_DQ[39]/DDR0_DQ[55]
DDR1_DQ[40]/DDR0_DQ[56]
DDR1_DQ[41]/DDR0_DQ[57]
DDR1_DQ[42]/DDR0_DQ[58]
DDR1_DQ[43]/DDR0_DQ[59]
DDR1_DQ[44]/DDR0_DQ[60]
DDR1_DQ[45]/DDR0_DQ[61]
DDR1_DQ[46]/DDR0_DQ[62]
DDR1_DQ[47]/DDR0_DQ[63]
DDR0_DQSN[0]
DDR0_DQSN[4]/DDR0_DQSN[2]
DDR0_DQSN[5]/DDR0_DQSN[3]
DDR1_DQSN[0]/DDR0_DQSN[4]
DDR1_DQSN[1]/DDR0_DQSN[5]
DDR1_DQSN[4]/DDR0_DQSN[6]
DDR1_DQSN[5]/DDR0_DQSN[7]
DDR0_DQSP[4]/DDR0_DQSP[2]
DDR0_DQSP[5]/DDR0_DQSP[3]
DDR1_DQSP[0]/DDR0_DQSP[4]
DDR1_DQSP[1]/DDR0_DQSP[5]
DDR1_DQSP[4]/DDR0_DQSP[6]
DDR1_DQSP[5]/DDR0_DQSP[7]
DDR0_DQSN[1]
DDR0_DQSN[8]
DDR0_DQSP[0]
DDR0_DQSP[1]
DDR0_DQSP[8]
AE38
AE37
AG38
AG37
AE39
AE40
AG39
AG40
AJ38
AJ37
AL38
AL37
AJ40
AJ39
AL39
AL40
AN38
AN40
AR38
AR37
AN39
AN37
AR39
AR40
AW37
AU38
AV35
AW35
AU37
AV37
AT35
AU35
AY8
AW8
AV6
AU6
AU8
AV8
AW6
AY6
AY4
AV4
AT1
AT2
AV3
AW4
AT4
AT3
AP2
AM4
AP3
AM3
AP4
AM2
AP1
AM1
AK3
AH1
AK4
AH2
AH4
AK2
AH3
AK1
AF39
AK39
AP39
AU36
AW7
AU3
AN3
AJ3
AU32
AF38
AK38
AP38
AV36
AV7
AU2
AN2
AJ2
AV32
M_DATA_A0
M_DATA_A1
M_DATA_A2
M_DATA_A3
M_DATA_A4
M_DATA_A5
M_DATA_A6
M_DATA_A7
M_DATA_A8
M_DATA_A9
M_DATA_A10
M_DATA_A11
M_DATA_A12
M_DATA_A13
M_DATA_A14
M_DATA_A15
M_DATA_A16
M_DATA_A17
M_DATA_A18
M_DATA_A19
M_DATA_A20
M_DATA_A21
M_DATA_A22
M_DATA_A23
M_DATA_A24
M_DATA_A25
M_DATA_A26
M_DATA_A27
M_DATA_A28
M_DATA_A29
M_DATA_A30
M_DATA_A31
M_DATA_A32
M_DATA_A33
M_DATA_A34
M_DATA_A35
M_DATA_A36
M_DATA_A37
M_DATA_A38
M_DATA_A39
M_DATA_A40
M_DATA_A41
M_DATA_A42
M_DATA_A43
M_DATA_A44
M_DATA_A45
M_DATA_A46
M_DATA_A47
M_DATA_A48
M_DATA_A49
M_DATA_A50
M_DATA_A51
M_DATA_A52
M_DATA_A53
M_DATA_A54
M_DATA_A55
M_DATA_A56
M_DATA_A57
M_DATA_A58
M_DATA_A59
M_DATA_A60
M_DATA_A61
M_DATA_A62
M_DATA_A63
M_DQS_A_DN0
M_DQS_A_DN1
M_DQS_A_DN2
M_DQS_A_DN3
M_DQS_A_DN4
M_DQS_A_DN5
M_DQS_A_DN6
M_DQS_A_DN7
M_DQS_A_DP0
M_DQS_A_DP1
M_DQS_A_DP2
M_DQS_A_DP3
M_DQS_A_DP4
M_DQS_A_DP5
M_DQS_A_DP6
M_DQS_A_DP7
M_DATA_A[63..0] 8
M_DQS_A_DN0 8
M_DQS_A_DN1 8
M_DQS_A_DN2 8
M_DQS_A_DN3 8
M_DQS_A_DN4 8
M_DQS_A_DN5 8
M_DQS_A_DN6 8
M_DQS_A_DN7 8
M_DQS_A_DP0 8
M_DQS_A_DP1 8
M_DQS_A_DP2 8
M_DQS_A_DP3 8
M_DQS_A_DP4 8
M_DQS_A_DP5 8
M_DQS_A_DP6 8
M_DQS_A_DP7 8
3
M_MAA_B[16..0]9
M_PARITY_B9
M_ALERT_B_N9
M_BG_B_19
M_ACT_B_N9
M_CKE_B09
M_CKE_B19
M_CS#_B09
M_CS#_B19
M_ODT_B09
M_ODT_B19
M_BA_B_09
M_BA_B_19
M_BG_B_09
M_CK_B_DP09
M_CK_B_DN09
M_CK_B_DP19
M_CK_B_DN19
CPU_DQ_VREF_B
M_MAA_B0
M_MAA_B1
M_MAA_B2
M_MAA_B3
M_MAA_B4
M_MAA_B5
M_MAA_B6
M_MAA_B7
M_MAA_B8
M_MAA_B9
M_MAA_B10
M_MAA_B11
M_MAA_B12
M_MAA_B13
M_MAA_B14
M_MAA_B15
M_MAA_B16
M_BG_B_1
M_ACT_B_N
M_CKE_B0
M_CKE_B1
M_CS#_B0
M_CS#_B1
M_ODT_B0
M_ODT_B1
M_BA_B_0
M_BA_B_1
M_BG_B_0
M_CK_B_DP0
M_CK_B_DN0
M_CK_B_DP1
M_CK_B_DN1
M_PARITY_B
M_ALERT_B_N
CPU1B
CPU1B
AL19
DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]
AL22
DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1]
AM22
DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]
AM23
DDR1_MA[3]
AP23
DDR1_MA[4]
AL23
DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5]
AW26
DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6]
AY26
DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]
AU26
DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8]
AW27
DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9]
AP18
DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]
AU27
DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]
AV27
DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12]
AR15
DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]
AL17
DDR1_MA[14]/DDR1_CAB[2]/DDR1_WE#
AP16
DDR1_MA[15]/DDR1_CAB[1]/DDR1_CAS#
AN18
DDR1_MA[16]/DDR1_CAB[3]/DDR1_RAS#
AY28
DDR1_BG[1]/DDR1_CAA[9]/DDR1_MA[14]
AU28
DDR1_ACT#/DDR1_CAA[8]/DDR1_MA[15]
AY29
DDR1_CKE[0]
AV29
DDR1_CKE[1]
AW29
DDR1_CKE[2]
AU29
DDR1_CKE[3]
AP17
DDR1_CS#[0]
AN15
DDR1_CS#[1]
AN17
DDR1_CS#[2]
AM15
DDR1_CS#[3]
AM16
DDR1_ODT[0]
AL16
DDR1_ODT[1]
AP15
DDR1_ODT[2]
AL15
DDR1_ODT[3]
AL18
DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]
AM18
DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1]
AW28
DDR1_BG[0]/DDR1_CAA[5]/DDR1_BA[2]
AM20
DDR1_CKP[0]
AM21
DDR1_CKN[0]
AP22
DDR1_CKP[1]
AP21
DDR1_CKN[1]
AN20
DDR1_CKP[2]
AN21
DDR1_CKN[2]
AP19
DDR1_CKP[3]
AP20
DDR1_CKN[3]
AL20
DDR1_PAR
AY25
DDR1_ALERT#
AR25
DDR1_ECC[0]
AR26
DDR1_ECC[1]
AM26
DDR1_ECC[2]
AM25
DDR1_ECC[3]
AP26
DDR1_ECC[4]
AP25
DDR1_ECC[5]
AL25
DDR1_ECC[6]
AL26
DDR1_ECC[7]
AC39
DDR1_VREF_DQ
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
2
SKYLAKE-S
SKYLAKE-S
DDR0_DQSN[2]/DDR1_DQSN[0]
DDR0_DQSN[3]/DDR1_DQSN[1]
DDR0_DQSN[6]/DDR1_DQSN[2]
DDR0_DQSN[7]/DDR1_DQSN[3]
DDR1_DQSN[2]/DDR1_DQSN[4]
DDR1_DQSN[3]/DDR1_DQSN[5]
DDR0_DQSP[2]/DDR1_DQSP[0]
DDR0_DQSP[3]/DDR1_DQSP[1]
DDR0_DQSP[6]/DDR1_DQSP[2]
DDR0_DQSP[7]/DDR1_DQSP[3]
DDR1_DQSP[2]/DDR1_DQSP[4]
DDR1_DQSP[3]/DDR1_DQSP[5]
CHANNEL B
CHANNEL B
DDR0_DQ[16]/DDR1_DQ[0]
DDR0_DQ[17]/DDR1_DQ[1]
DDR0_DQ[18]/DDR1_DQ[2]
DDR0_DQ[19]/DDR1_DQ[3]
DDR0_DQ[20]/DDR1_DQ[4]
DDR0_DQ[21]/DDR1_DQ[5]
DDR0_DQ[22]/DDR1_DQ[6]
DDR0_DQ[23]/DDR1_DQ[7]
DDR0_DQ[24]/DDR1_DQ[8]
DDR0_DQ[25]/DDR1_DQ[9]
DDR0_DQ[26]/DDR1_DQ[10]
DDR0_DQ[27]/DDR1_DQ[11]
DDR0_DQ[28]/DDR1_DQ[12]
DDR0_DQ[29]/DDR1_DQ[13]
DDR0_DQ[30]/DDR1_DQ[14]
DDR0_DQ[31]/DDR1_DQ[15]
DDR0_DQ[48]/DDR1_DQ[16]
DDR0_DQ[49]/DDR1_DQ[17]
DDR0_DQ[50]/DDR1_DQ[18]
DDR0_DQ[51]/DDR1_DQ[19]
DDR0_DQ[52]/DDR1_DQ[20]
DDR0_DQ[53]/DDR1_DQ[21]
DDR0_DQ[54]/DDR1_DQ[22]
DDR0_DQ[55]/DDR1_DQ[23]
DDR0_DQ[56]/DDR1_DQ[24]
DDR0_DQ[57]/DDR1_DQ[25]
DDR0_DQ[58]/DDR1_DQ[26]
DDR0_DQ[59]/DDR1_DQ[27]
DDR0_DQ[60]/DDR1_DQ[28]
DDR0_DQ[61]/DDR1_DQ[29]
DDR0_DQ[62]/DDR1_DQ[30]
DDR0_DQ[63]/DDR1_DQ[31]
DDR1_DQ[16]/DDR1_DQ[32]
DDR1_DQ[17]/DDR1_DQ[33]
DDR1_DQ[18]/DDR1_DQ[34]
DDR1_DQ[19]/DDR1_DQ[35]
DDR1_DQ[20]/DDR1_DQ[36]
DDR1_DQ[21]/DDR1_DQ[37]
DDR1_DQ[22]/DDR1_DQ[38]
DDR1_DQ[23]/DDR1_DQ[39]
DDR1_DQ[24]/DDR1_DQ[40]
DDR1_DQ[25]/DDR1_DQ[41]
DDR1_DQ[26]/DDR1_DQ[42]
DDR1_DQ[27]/DDR1_DQ[43]
DDR1_DQ[28]/DDR1_DQ[44]
DDR1_DQ[29]/DDR1_DQ[45]
DDR1_DQ[30]/DDR1_DQ[46]
DDR1_DQ[31]/DDR1_DQ[47]
DDR1_DQ[48]
DDR1_DQ[49]
DDR1_DQ[50]
DDR1_DQ[51]
DDR1_DQ[52]
DDR1_DQ[53]
DDR1_DQ[54]
DDR1_DQ[55]
DDR1_DQ[56]
DDR1_DQ[57]
DDR1_DQ[58]
DDR1_DQ[59]
DDR1_DQ[60]
DDR1_DQ[61]
DDR1_DQ[62]
DDR1_DQ[63]
DDR1_DQSN[6]
DDR1_DQSN[7]
DDR1_DQSN[8]
DDR1_DQSP[6]
DDR1_DQSP[7]
DDR1_DQSP[8]
AD34
AD35
AG35
AH35
AE35
AE34
AG34
AH34
AK35
AL35
AK32
AL32
AK34
AL34
AK31
AL31
AP35
AN35
AN32
AP32
AN34
AP34
AN31
AP31
AL29
AM29
AP29
AR29
AM28
AL28
AR28
AP28
AR12
AP12
AM13
AL13
AR13
AP13
AM12
AL12
AP10
AR10
AR7
AP7
AR9
AP9
AR6
AP6
AM10
AL10
AM7
AL7
AM9
AL9
AM6
AL6
AJ6
AJ7
AE6
AF7
AH7
AH6
AE7
AF6
AF34
AK33
AN33
AN29
AN13
AR8
AM8
AG6
AN26
AF35
AL33
AP33
AN28
AN12
AP8
AL8
AG7
AN25
M_DATA_B0
M_DATA_B1
M_DATA_B2
M_DATA_B3
M_DATA_B4
M_DATA_B5
M_DATA_B6
M_DATA_B7
M_DATA_B8
M_DATA_B9
M_DATA_B10
M_DATA_B11
M_DATA_B12
M_DATA_B13
M_DATA_B14
M_DATA_B15
M_DATA_B16
M_DATA_B17
M_DATA_B18
M_DATA_B19
M_DATA_B20
M_DATA_B21
M_DATA_B22
M_DATA_B23
M_DATA_B24
M_DATA_B25
M_DATA_B26
M_DATA_B27
M_DATA_B28
M_DATA_B29
M_DATA_B30
M_DATA_B31
M_DATA_B32
M_DATA_B33
M_DATA_B34
M_DATA_B35
M_DATA_B36
M_DATA_B37
M_DATA_B38
M_DATA_B39
M_DATA_B40
M_DATA_B41
M_DATA_B42
M_DATA_B43
M_DATA_B44
M_DATA_B45
M_DATA_B46
M_DATA_B47
M_DATA_B48
M_DATA_B49
M_DATA_B50
M_DATA_B51
M_DATA_B52
M_DATA_B53
M_DATA_B54
M_DATA_B55
M_DATA_B56
M_DATA_B57
M_DATA_B58
M_DATA_B59
M_DATA_B60
M_DATA_B61
M_DATA_B62
M_DATA_B63
M_DQS_B_DN0
M_DQS_B_DN1
M_DQS_B_DN2
M_DQS_B_DN3
M_DQS_B_DN4
M_DQS_B_DN5
M_DQS_B_DN6
M_DQS_B_DN7
M_DQS_B_DP0
M_DQS_B_DP1
M_DQS_B_DP2
M_DQS_B_DP3
M_DQS_B_DP4
M_DQS_B_DP5
M_DQS_B_DP6
M_DQS_B_DP7
1
M_DQS_B_DN0 9
M_DQS_B_DN1 9
M_DQS_B_DN2 9
M_DQS_B_DN3 9
M_DQS_B_DN4 9
M_DQS_B_DN5 9
M_DQS_B_DN6 9
M_DQS_B_DN7 9
M_DQS_B_DP0 9
M_DQS_B_DP1 9
M_DQS_B_DP2 9
M_DQS_B_DP3 9
M_DQS_B_DP4 9
M_DQS_B_DP5 9
M_DQS_B_DP6 9
M_DQS_B_DP7 9
M_DATA_B[63..0] 9
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
Date:
5
4
3
2
Tuesday, December 20, 2016
MS-7A67
CPU-Memory
CPU-Memory
CPU-Memory
1
3 52
3 52
3 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 4
5
CPU1C
CPU1C
SKYLAKE-S
SKYLAKE-S
PEG_RXP[0]
PEG_RXN[0]
PEG_RXP[1]
PEG_RXN[1]
PEG_RXP[2]
PEG_RXN[2]
PEG_RXP[3]
PEG_RXN[3]
PEG_RXP[4]
PEG_RXN[4]
PEG_RXP[5]
PEG_RXN[5]
PEG_RXP[6]
PEG_RXN[6]
PEG_RXP[7]
PEG_RXN[7]
PEG_RXP[8]
PEG_RXN[8]
PEG_RXP[9]
PEG_RXN[9]
PEG_RXP[10]
PEG_RXN[10]
PEG_RXP[11]
PEG_RXN[11]
PEG_RXP[12]
PEG_RXN[12]
PEG_RXP[13]
PEG_RXN[13]
PEG_RXP[14]
PEG_RXN[14]
PEG_RXP[15]
PEG_RXN[15]
DMI_RXP[0]
DMI_RXN[0]
DMI_RXP[1]
DMI_RXN[1]
DMI_RXP[2]
DMI_RXN[2]
DMI_RXP[3]
DMI_RXN[3]
PEG_RCOMP
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
PEG_COMP
AA4
AA5
AB4
AB3
AC4
AC5
B8
B7
C7
C6
D6
D5
E5
E4
F6
F5
G5
G4
H6
H5
J5
J4
K6
K5
L5
L4
M6
M5
N5
N4
P6
P5
R5
R4
T6
T5
U5
U4
Y3
Y4
L7
D D
C C
VCCIO
EXP_A_RXP_019
EXP_A_RXN_019
EXP_A_RXP_119
EXP_A_RXN_119
EXP_A_RXP_219
EXP_A_RXN_219
EXP_A_RXP_319
EXP_A_RXN_319
EXP_A_RXP_419
EXP_A_RXN_419
EXP_A_RXP_519
EXP_A_RXN_519
EXP_A_RXP_619
EXP_A_RXN_619
EXP_A_RXP_719
EXP_A_RXN_719
EXP_A_RXP_819
EXP_A_RXN_819
EXP_A_RXP_919
EXP_A_RXN_919
EXP_A_RXP_1019
EXP_A_RXN_1019
EXP_A_RXP_1119
EXP_A_RXN_1119
EXP_A_RXP_1219
EXP_A_RXN_1219
EXP_A_RXP_1319
EXP_A_RXN_1319
EXP_A_RXP_1419
EXP_A_RXN_1419
EXP_A_RXP_1519
EXP_A_RXN_1519
DMI_RXP012
DMI_RXN012
DMI_RXP112
DMI_RXN112
DMI_RXP212
DMI_RXN212
DMI_RXP312
DMI_RXN312
R2 24.9R1%4R2 24.9R1%4
DMI_RXP0
DMI_RXN0
DMI_RXP1
DMI_RXN1
DMI_RXP2
DMI_RXN2
DMI_RXP3
DMI_RXN3
L<=0.4 inch
PEG_TXP[0]
PEG_TXN[0]
PEG_TXP[1]
PEG_TXN[1]
PEG_TXP[2]
PEG_TXN[2]
PEG_TXP[3]
PEG_TXN[3]
PEG_TXP[4]
PEG_TXN[4]
PEG_TXP[5]
PEG_TXN[5]
PEG_TXP[6]
PEG_TXN[6]
PEG_TXP[7]
PEG_TXN[7]
PEG_TXP[8]
PEG_TXN[8]
PEG_TXP[9]
PEG_TXN[9]
PEG_TXP[10]
PEG_TXN[10]
PEG_TXP[11]
PEG_TXN[11]
PEG_TXP[12]
PEG_TXN[12]
PEG_TXP[13]
PEG_TXN[13]
PEG_TXP[14]
PEG_TXN[14]
PEG_TXP[15]
PEG_TXN[15]
DMI_TXP[0]
DMI_TXN[0]
DMI_TXP[1]
DMI_TXN[1]
DMI_TXP[2]
DMI_TXN[2]
DMI_TXP[3]
DMI_TXN[3]
4
A5
A6
B4
B5
C3
C4
D2
D3
E1
E2
F2
F3
G1
G2
H2
H3
J1
J2
K2
K3
L1
L2
M2
M3
N1
N2
P2
P3
R2
R1
T2
T3
AC2
AC1
AD3
AD2
AE2
AE1
AF2
AF3
DMI_TXP0
DMI_TXN0
DMI_TXP1
DMI_TXN1
DMI_TXP2
DMI_TXN2
DMI_TXP3
DMI_TXN3
EXP_A_TXP_0 19
EXP_A_TXN_0 19
EXP_A_TXP_1 19
EXP_A_TXN_1 19
EXP_A_TXP_2 19
EXP_A_TXN_2 19
EXP_A_TXP_3 19
EXP_A_TXN_3 19
EXP_A_TXP_4 19
EXP_A_TXN_4 19
EXP_A_TXP_5 19
EXP_A_TXN_5 19
EXP_A_TXP_6 19
EXP_A_TXN_6 19
EXP_A_TXP_7 19
EXP_A_TXN_7 19
EXP_A_TXP_8 19
EXP_A_TXN_8 19
EXP_A_TXP_9 19
EXP_A_TXN_9 19
EXP_A_TXP_10 19
EXP_A_TXN_10 19
EXP_A_TXP_11 19
EXP_A_TXN_11 19
EXP_A_TXP_12 19
EXP_A_TXN_12 19
EXP_A_TXP_13 19
EXP_A_TXN_13 19
EXP_A_TXP_14 19
EXP_A_TXN_14 19
EXP_A_TXP_15 19
EXP_A_TXN_15 19
DMI_TXP0 12
DMI_TXN0 12
DMI_TXP1 12
DMI_TXN1 12
DMI_TXP2 12
DMI_TXN2 12
DMI_TXP3 12
DMI_TXN3 12
3
VCCIO
R3 24.9R1%4R3 24.9R1%4
EDP_COMP
CPU1D
CPU1D
E10
EDP_TXP[0]
D10
EDP_TXN[0]
D9
EDP_TXP[1]
C9
EDP_TXN[1]
G10
EDP_TXP[2]
H10
EDP_TXN[2]
F9
EDP_TXP[3]
G9
EDP_TXN[3]
D12
EDP_AUXP
E12
EDP_AUXN
D14
EDP_DISP_UTIL
M9
EDP_RCOMP
MEC1
MEC1
MEC2
MEC2
MEC3
MEC3
MEC4
MEC4
MEC5
MEC5
MEC6
MEC6
MEC7
MEC7
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
2
SKYLAKE-S
SKYLAKE-S
DDI1_TXP[0]
DDI1_TXN[0]
DDI1_TXP[1]
DDI1_TXN[1]
DDI1_TXP[2]
DDI1_TXN[2]
DDI1_TXP[3]
DDI1_TXN[3]
DDI1_AUXP
DDI1_AUXN
DDI2_TXP[0]
DDI2_TXN[0]
DDI2_TXP[1]
DDI2_TXN[1]
DDI2_TXP[2]
DDI2_TXN[2]
DDI2_TXP[3]
DDI2_TXN[3]
DDI2_AUXP
DDI2_AUXN
DDI3_TXP[0]
DDI3_TXN[0]
DDI3_TXP[1]
DDI3_TXN[1]
DDI3_TXP[2]
DDI3_TXN[2]
DDI3_TXP[3]
DDI3_TXN[3]
DDI3_AUXP
DDI3_AUXN
1
HDMI_DDPB_TX2_P
C21
HDMI_DDPB_TX2_N
D21
HDMI_DDPB_TX1_P
D22
HDMI_DDPB_TX1_N
E22
HDMI_DDPB_TX0_P
B23
HDMI_DDPB_TX0_N
A23
HDMI_DDPB_CLK_P
C23
HDMI_DDPB_CLK_N
D23
B13
C13
DVI_DDPC_TXP2
B18
DVI_DDPC_TXN2
A18
DVI_DDPC_TXP1
D18
DVI_DDPC_TXN1
E18
DVI_DDPC_TXP0
C19
DVI_DDPC_TXN0
D19
DVI_DDPC_CLK_P
D20
DVI_DDPC_CLK_N
E20
DVI max resolution is 1920x1200 @ 60 Hz
A12
B12
B14
A14
C15
B15
B16
A16
C17
B17
B11
C11
HDMI_DDPB_TX2_P 27
HDMI_DDPB_TX2_N 27
HDMI_DDPB_TX1_P 27
HDMI_DDPB_TX1_N 27
HDMI_DDPB_TX0_P 27
HDMI_DDPB_TX0_N 27
HDMI_DDPB_CLK_P 27
HDMI_DDPB_CLK_N 27
DVI_DDPC_TXP2 26
DVI_DDPC_TXN2 26
DVI_DDPC_TXP1 26
DVI_DDPC_TXN1 26
DVI_DDPC_TXP0 26
DVI_DDPC_TXN0 26
DVI_DDPC_CLK_P 26
DVI_DDPC_CLK_N 26
B B
CPU1F
CPU1F
SKYLAKE-S
SKYLAKE-S
H8
VSS-372
K10
RSVD-2
L10
RSVD-3
J17
RSVD-4
B39
RSVD-5
J19
RSVD-6
C40
RSVD-7
L12
RSVD-8
K12
RSVD-9
AU39
RSVD-10
AU40
RSVD-11
J15
RSVD-12
J14
RSVD-13
AU9
RSVD-14
AU10
RSVD-15
J13
RSVD-16
K11
RSVD-17
D15
RSVD-18
J11
RSVD-19
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
A A
5
4
RSVD_TP-10
3
RSVD-20
VSS-373
VSS-374
RSVD-23
RSVD_TP-1
RSVD_TP-2
RSVD_TP-3
RSVD_TP-4
RSVD_TP-5
RSVD_TP-6
RSVD_TP-7
RSVD_TP-8
RSVD_TP-9
AC37
G8
AY3
K13
J8
J7
L8
K8
AV1
AW2
H11
H12
AW38
AV39
TP_CPU_K13
R1 X_560R/4R1 X_560R/4
TP2TP2
TP3TP3
TP4TP4
TP5TP5
CRB 1.0 update
CRB unstuff
PCB come back remove
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A6717ci203
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
MS-7A67
CPU-PEG/Display
CPU-PEG/Display
CPU-PEG/Display
1
452
452
452
Sheet of
Sheet of
Sheet of
11
11
11
Page 5
5
Vinafix.com
4
3
2
1
D D
PCH_CPU_BCLK_DP13
PCH_CPU_BCLK_DN13
PCH_CPU_PCIE_DP13
PCH_CPU_PCIE_DN13
VCCSTPLL
R6 X_100R1%4R6 X_100R1%4
R156 100R1%4R156 100R1%4
R8 56.2R1%4R8 56.2R1%4
R10 75RR10 75R
CRB 1.0 update R10 change 75R
R14 1K/4R14 1K/4
VCCIO
This pin is for compatibility with future platforms. It should
be unconnected for SKL. for EDS0.85 page.117
R136 X_1K/4R136 X_1K/4
C C
VCCSTPLL
R375 10K/4R375 10K/4
VR_VIDSCLK
VR_VIDSOUT
VR_VIDALERT#
H_PROCHOT#
CPU_THERMTRIP_N
CPU_CNL_N
CPU_CATERR_N
2014.09.24
PCH_CPU_NSSC_CLK_DP13
PCH_CPU_NSSC_CLK_DN13
VR_VIDSCLK36
VR_VIDSOUT36
VR_VIDALERT#36
H_PROCHOT#36
CPU_PWRGD15
CPURST#15
CPU_PECI15,20
CPU_PM_SYNC15
CPU_PM_DOWN15
CPU_THERMTRIP_N15
DDR_VTT_CTRL39
CPU_SKTOCC#14
PCH_CPU_BCLK_DP
PCH_CPU_BCLK_DN
PCH_CPU_PCIE_DP
PCH_CPU_PCIE_DN
PCH_CPU_NSSC_CLK_DP
PCH_CPU_NSSC_CLK_DN
R7 0R/4R7 0R/4
R13 0R/4R13 0R/4
R157 220RR157 220R
R11 499R1%4R11 499R1%4
R234 20R/4R234 20R/4
CPU_VIDCLK
CPU_VIDSOUT
CPU_VIDALERT#
H_PROCHOT#_R
VCCST_PWRGD
CPURST#
CPU_PECI
CPU_PM_SYNC
CPU_PM_DOWN_R
CPU_THERMTRIP_N
DDR_VTT_CTRL
CPU_CNL_N
CPU_CATERR_N
2015.04.23 for debug use
CFG8
CFG9
CFG Strap
CFG Table
No Lock
NORM
DISABLE
DISABLE
DISABLE
RESET#
RSVD
RSVD
Lock
REVERSE
ENABLE
ENABLE
ENABLE
BIOS REQ
0
1
2
3
4
5
6
7
8
9
10
11
12
B B
13
14
15
DESCRIPTIONHIGH LOW
PCU PLL lock
RSVD
PEG_LANE_REVERSAL
RSVD
eDP
PEG0CFGSEL[0]
PEG0CFGSEL[1]
PEG_DEFER_TRAINING
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
R34 49.9R1%4R34 49.9R1%4
CFG10
CFG_COMP
CPU1E
CPU1E
W5
BCLKP
W4
BCLKN
W1
PCI_BCLKP
W2
PCI_BCLKN
K9
CLK24P
J9
CLK24N
E38
VIDSCK
E40
VIDSOUT
E39
VIDALERT#
C39
PROCHOT#
F8
PROCPWRGD
U2
VCCST_PWRGD
E7
RESET#
G7
PECI
E8
PM_SYNC
D8
PM_DOWN
D11
THERMTRIP#
AC36
DDR_VTT_CNTL
AB36
PROC_SELECT#
AB35
SKTOCC#
D13
CATERR#
H15
CFG[0]
F15
CFG[1]
F16
CFG[2]
H16
CFG[3]
F19
CFG[4]
H18
CFG[5]
G21
CFG[6]
H20
CFG[7]
G16
CFG[8]
E16
CFG[9]
F17
CFG[10]
H17
CFG[11]
G20
CFG[12]
F20
CFG[13]
F21
CFG[14]
H19
CFG[15]
F14
CFG[17]
E14
CFG[16]
F18
CFG[19]
G18
CFG[18]
M11
CFG_RCOMP
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
SKYLAKE-S
SKYLAKE-S
VCC_SENSE
VSS_SENSE
VCCGT_SENSE
VSSGT_SENSE
VCCGTX_SENSE
VSSGTX_SENSE
VCCSA_SENSE
VCCIO_SENSE
VSS_SAIO_SENSE
RSVD-24
RSVD-25
RSVD-26
PROC_TDO
PROC_TDI
PROC_TMS
PROC_TCK
BPM#[0]
BPM#[1]
BPM#[2]
BPM#[3]
PROC_AUDIO_CLK
PROC_AUDIO_SDI
PROC_AUDIO_SDO
PROC_TRST#
PROC_PREQ#
PROC_PRDY#
PROC_TRIGIN
PROC_TRIGOUT
RSVD-27
VCORE_VCC_SENSE
C38
VCORE_VSS_SENSE
D38
VGT_VCC_SENSE
F39
VGT_VSS_SENSE
F38
CPU_VCCGTX_SENSE
F37
F36
VCCSA_SENSE
AD5
VCCIO_SENSE
AF4
VSS_VCCSA_SENSE
AE4
V_OPC_SENSE
AK21
V_EOPIO_SENSE
AJ24
AK22
XDP_TDO XDP_TDO
H13
XDP_TDI
G12
XDP_TMS
F13
XDP_TCK0
F11
D16
D17
G14
H14
PCH_CPU_AUD_SCLK
V3
PCH_CPU_AUD_SDO
V2
PCH_CPU_AUD_SDI_R
U1
XDP_TRST
F12
CPU_PREQ
B9
CPU_PRDY
B10
CPU_INPUT_TRIGGER
D1
CPU_OUTPUT_TRIGGER_R
B3
ZVM#_R
AC38
VCORE_VCC_SENSE 36
VCORE_VSS_SENSE 36
VGT_VCC_SENSE 36
VGT_VSS_SENSE 36
TP139TP139
2015.09.18
VCCSA_SENSE 42
VSS_VCCSA_SENSE 42
TP137TP137
TP138TP138
XDP_TDO 15
XDP_TDI 15
XDP_TMS 15
XDP_TCK0 15
2014.09.24
CRB 1.0 update R29 change 20R
R29 20R/4R29 20R/4
XDP_TRST 15
CPU_PREQ 15
CPU_PRDY 15
R236 20R/4R236 20R/4
TP121TP121
R284 X_0R/4R284 X_0R/4
PCH_CPU_AUD_SCLK 13
PCH_CPU_AUD_SDO 13
PCH_CPU_AUD_SDI 13
CPU_INPUT_TRIGGER 15
CPU_OUTPUT_TRIGGER 15
VCCIO
close to CPU
2014.09.29 remove
XDP_TDI
XDP_TMS
XDP_TCK0
R19 X_51R/4R19 X_51R/4
R235 X_51R/4R235 X_51R/4
R224 X_51R/4R224 X_51R/4
R22 51R/4R22 51R/4
VCCSTPLL
Close CPU <1100 mil
1000 mil < CPU_XDP_MBP0~1 < 6000 mil
VCCSTPLL
XDP_TRST
CPU_PREQ
R231 X_51R/4R231 X_51R/4
R230 X_51R/4R230 X_51R/4
ATX_5VSB
VCCSA
CFG8
R54 X_1K/4R54 X_1K/4
CFG9
R133 X_1K/4R133 X_1K/4
CFG10
R135 X_1K/4R135 X_1K/4
VRM_PGD_R36
A A
5
VRM_PGD_R
R222
R222
1K/4
1K/4
R229 4.7K/4R229 4.7K/4
4
R227
R227
10K/4
10K/4
D
C222
C222
0.1u10X4
0.1u10X4
VCC3
D
G
G
S
S
R4
6.04K1%4R46.04K1%4
R5
2.8K1%4R52.8K1%4
Q37
Q37
2N7002
2N7002
VRM_PGD_CTRL
CE
Q76
Q76
B
2N3904
2N3904
C430
C430
X_0.1u10X4
X_0.1u10X4
R228 4.7K/4R228 4.7K/4
D
D
G
G
Q77
Q77
S
S
2N7002
2N7002
3
VCC3
R431
R431
4.7K/4
4.7K/4
R233
R233
100K
100K
PCH_PWROK 15
1.045V
VCCST_PWRGD
2
POWER DOWN
Q36
Q36
NN-2N7002D
SLP_S3_CTRL PCH_PWROK
VCCST_PWRGD
SLP_S3_CTRL
For VCCST_PWRGD deassertion
max:200us
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
CPU-Control/MISC/CFG/Audio
CPU-Control/MISC/CFG/Audio
CPU-Control/MISC/CFG/Audio
Tuesday, December 20, 2016
Tuesday, December 20, 2016
Tuesday, December 20, 2016
MSI
MSI
MSI
SLP_S3_CTRL36,42,43
NN-2N7002D
G2
D1
G1
MS-7A67
MS-7A67
MS-7A67
1
S1
D2
S2
5 52
5 52
5 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 6
5
VCORE VGT VGTVCORE VCCSA
CPU1G
CPU1G
SKYLAKE-S
SKYLAKE-S
A25
VCC-001
A26
VCC-002
A27
VCC-003
A28
VCC-004
A29
VCC-005
A30
VCC-006
B25
VCC-007
D D
C C
B B
B27
VCC-008
B29
VCC-009
B31
VCC-010
B32
VCC-011
B33
VCC-012
B34
VCC-013
B35
VCC-014
B36
VCC-015
B37
VCC-016
C25
VCC-017
C26
VCC-018
C27
VCC-019
C28
VCC-020
C29
VCC-021
C30
VCC-022
C32
VCC-023
C34
VCC-024
C36
VCC-025
D25
VCC-026
D27
VCC-027
D29
VCC-028
D31
VCC-029
D32
VCC-030
D33
VCC-031
D34
VCC-032
D35
VCC-033
D36
VCC-034
E24
VCC-035
E25
VCC-036
E26
VCC-037
E27
VCC-038
E28
VCC-039
E29
VCC-040
E30
VCC-041
E32
VCC-042
E34
VCC-043
E36
VCC-044
F23
VCC-045
F24
VCC-046
F25
VCC-047
F27
VCC-048
F29
VCC-049
F31
VCC-050
G30
VCC-051
G32
VCC-052
H22
VCC-053
H23
VCC-054
H25
VCC-055
H27
VCC-056
H29
VCC-057
H31
VCC-058
AJ11
VCC-059
AJ13
VCC-060
AJ15
VCC-061
AJ17
VCC-062
AJ19
VCC-063
AJ21
VCC-064
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
VCC-128
VCC-127
VCC-126
VCC-125
VCC-124
VCC-123
VCC-122
VCC-121
VCC-120
VCC-119
VCC-118
VCC-117
VCC-116
VCC-115
VCC-114
VCC-113
VCC-112
VCC-111
VCC-110
VCC-109
VCC-108
VCC-107
VCC-106
VCC-105
VCC-104
VCC-103
VCC-102
VCC-101
VCC-100
VCC-099
VCC-098
VCC-097
VCC-096
VCC-095
VCC-094
VCC-093
VCC-092
VCC-091
VCC-090
VCC-089
VCC-088
VCC-087
VCC-086
VCC-085
VCC-084
VCC-083
VCC-082
VCC-081
VCC-080
VCC-079
VCC-078
VCC-077
VCC-076
VCC-075
VCC-074
VCC-073
VCC-072
VCC-071
VCC-070
VCC-069
VCC-068
VCC-067
VCC-066
VCC-065
H32
J21
F32
F33
F34
G23
G24
G25
G26
G27
G28
G29
J22
J23
J24
J25
J26
J27
J28
J29
J30
J31
K16
K18
K20
K21
K23
K25
K27
K29
K31
L14
L15
L16
L17
L18
L19
L20
L21
L22
L23
L24
L25
L26
L27
L28
L29
L30
M13
M14
M16
M18
M20
M22
M24
M26
M28
M30
AJ12
AJ14
AJ16
AJ18
AJ20
AJ22
CAP
VCORE
A A
C668 22u6.3X8C668 22u6.3X8
C483 22u6.3X8C483 22u6.3X8
C665 22u6.3X8C665 22u6.3X8
C223 22u6.3X8C223 22u6.3X8
C229 22u6.3X8C229 22u6.3X8
C39 22u6.3X8C39 22u6.3X8
C485 22u6.3X8C485 22u6.3X8
C184 22u6.3X8C184 22u6.3X8
C666 22u6.3X8C666 22u6.3X8
C24 22u6.3X8C24 22u6.3X8
C224 22u6.3X8C224 22u6.3X8
C669 22u6.3X8C669 22u6.3X8
C33 22u6.3X8C33 22u6.3X8
C22 22u6.3X8C22 22u6.3X8
C23 22u6.3X8C23 22u6.3X8
C225 22u6.3X8C225 22u6.3X8
C31 22u6.3X8C31 22u6.3X8
C197 22u6.3X8C197 22u6.3X8
TOP SIDE SOCKET CAVITY
BOTTOM SIDE SOCKET CAVITY
4
CPU1H
CPU1H
SKYLAKE-S
AA34
AA35
AA36
AA37
AA38
AB33
AB34
VGT
TOP SIDE SOCKET CAVITY BOTTOM SIDE SOCKET CAVITY
VGT
SKYLAKE-S
VCCGT-01
VCCGT-02
VCCGT-03
VCCGT-04
VCCGT-05
VCCGT-06
VCCGT-07
G36
VCCGT-08
G37
VCCGT-09
G38
VCCGT-10
G39
VCCGT-11
G40
VCCGT-12
H36
VCCGT-13
H38
VCCGT-14
H40
VCCGT-15
J36
VCCGT-16
J37
VCCGT-17
J38
VCCGT-18
J39
VCCGT-19
J40
VCCGT-20
K36
VCCGT-21
K38
VCCGT-22
K40
VCCGT-23
L34
VCCGT-24
L35
VCCGT-25
L36
VCCGT-26
L37
VCCGT-27
L38
VCCGT-28
L39
VCCGT-29
L40
VCCGT-30
M33
VCCGT-31
M34
VCCGT-32
M36
VCCGT-33
M38
VCCGT-34
M40
VCCGT-35
N34
VCCGT-36
N35
VCCGT-37
N36
VCCGT-38
N40
VCCGT-39
P33
VCCGT-40
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
C490 22u6.3X8C490 22u6.3X8
C120 22u6.3X8C120 22u6.3X8
C495 22u6.3X8C495 22u6.3X8
C489 22u6.3X8C489 22u6.3X8
C25 22u6.3X8C25 22u6.3X8
C34 22u6.3X8C34 22u6.3X8
C38 22u6.3X8C38 22u6.3X8
C487 22u6.3X8C487 22u6.3X8
C488 22u6.3X8C488 22u6.3X8
C185 22u6.3X8C185 22u6.3X8
C36 22u6.3X8C36 22u6.3X8
TOP SIDE SOCKET EDGE BOTTOM SIDE SOCKET EDGE
VCCGT-80
VCCGT-79
VCCGT-78
VCCGT-77
VCCGT-76
VCCGT-75
VCCGT-74
VCCGT-73
VCCGT-72
VCCGT-71
VCCGT-70
VCCGT-69
VCCGT-68
VCCGT-67
VCCGT-66
VCCGT-65
VCCGT-64
VCCGT-63
VCCGT-62
VCCGT-61
VCCGT-60
VCCGT-59
VCCGT-58
VCCGT-57
VCCGT-56
VCCGT-55
VCCGT-54
VCCGT-53
VCCGT-52
VCCGT-51
VCCGT-50
VCCGT-49
VCCGT-48
VCCGT-47
VCCGT-46
VCCGT-45
VCCGT-44
VCCGT-43
VCCGT-42
VCCGT-41
3
N39
N38
N37
R34
P40
P38
P36
P34
R35
R36
R37
R38
R39
R40
T33
T34
T36
T38
T40
U34
U35
U36
U37
U38
U39
U40
V33
V34
V36
V38
V40
W34
W35
W36
W37
W38
Y33
Y34
Y36
Y38
C45 22u6.3X8C45 22u6.3X8
VGT
C486 22u6.3X8C486 22u6.3X8 C12 22u6.3X6C12 22u6.3X6
C119 22u6.3X8C119 22u6.3X8
C27 22u6.3X8C27 22u6.3X8
C32 22u6.3X8C32 22u6.3X8
C491 22u6.3X8C491 22u6.3X8
VCCIO
VGTX
2
CPU1I
CPU1I
AA7
VCCSA-01
AB6
VCCSA-02
AB7
VCCSA-03
AB8
VCCSA-04
AC7
VCCSA-05
AC8
VCCSA-06
N7
VCCSA-07
P7
VCCSA-08
R7
VCCSA-09
T7
VCCSA-10
U7
VCCSA-11
Y6
VCCSA-12
Y7
VCCSA-13
Y8
VCCSA-14
W7
VCCSA-15
V7
VCCSA-16
AA6
VCCSA-17
AK11
VCCIO-01
AK14
VCCIO-02
AK24
VCCIO-03
AJ23
VCCIO-04
M8
VCCIO-05
P8
VCCIO-06
T8
VCCIO-07
U8
VCCIO-08
W8
VCCIO-09
F35
VCCGTX-01
G34
VCCGTX-02
G35
VCCGTX-03
H33
VCCGTX-04
H34
VCCGTX-05
J33
VCCGTX-06
J35
VCCGTX-07
K32
VCCGTX-08
K34
VCCGTX-09
L31
VCCGTX-10
L33
VCCGTX-11
M32
VCCGTX-12
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
VCCSA
VCC_DDR
VCCIO
SKYLAKE-S
SKYLAKE-S
VCCPLL_OC
VCCST-01
VCCST-02
C2 22u6.3X6C2 22u6.3X6
C4 22u6.3X6C4 22u6.3X6
C5 22u6.3X6C5 22u6.3X6
C59 22u6.3X6C59 22u6.3X6
C64 22u6.3X6C64 22u6.3X6
C69 22u6.3X6C69 22u6.3X6C30 22u6.3X8C30 22u6.3X8
TOP SIDE SOCKET CAVITY
C6 22u6.3X6C6 22u6.3X6
C7 22u6.3X6C7 22u6.3X6
C8 22u6.3X6C8 22u6.3X6
C9 22u6.3X6C9 22u6.3X6
TOP SIDE SOCKET CAVITY
C13 22u6.3X6C13 22u6.3X6
C15 22u6.3X6C15 22u6.3X6
C17 22u6.3X6C17 22u6.3X6
C19 22u6.3X6C19 22u6.3X6
C20 22u6.3X6C20 22u6.3X6
C21 22u6.3X6C21 22u6.3X6
TOP SIDE SOCKET CAVITY
VDDQ-01
VDDQ-02
VDDQ-03
VDDQ-04
VDDQ-05
VDDQ-06
VDDQ-07
VDDQ-08
VDDQ-09
VDDQ-10
VDDQ-11
VDDQ-12
VDDQ-13
VDDQ-14
VDDQ-15
VDDQ-16
RSVD-28
RSVD-29
RSVD-30
RSVD-31
RSVD-32
RSVD-33
RSVD-34
RSVD-35
RSVD-36
VCCPLL
AT18
AT21
AU13
AU15
AU19
AU23
AV11
AV17
AV21
AW10
AW14
AW25
AY12
AY16
AY18
AY23
AJ9
AJ30
AJ27
AJ28
AJ29
AK27
AJ25
AJ26
AB37
AB38
V5
V6
V4
VCC_DDR
VCC_DDR
V_OPC_EOPIO
V_OPC_EOPIO
VCCSTPLL
VCCSTPLL
CRB
V_OPC_EOPIO
TOP SIDE SOCKET CAVITY
V_OPC_1P8
VGTX
1
V_OPC_1P8
VCCSTPLL
VCCSTPLL
VCCSTPLL
C132 1u6.3X4C132 1u6.3X4
TOP SIDE SOCKET CAVITY
C235 22u6.3X8C235 22u6.3X8
C28 X_22u6.3X6C28 X_22u6.3X6
C124 X_10u6.3X6C124 X_10u6.3X6
C179 X_22u6.3X6C179 X_22u6.3X6
By MOW 33
V6
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
CPU-Power
CPU-Power
CPU-Power
MS-7A67
1
652
652
652
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
Date:
5
4
3
2
Tuesday, December 20, 2016
Page 7
5
D D
AR24
AR31
AR32
AR34
AR35
AR36
AR4
AR5
AR33
AR27
AR3
AJ36
AR30
VSS-268
VSS-264
VSS-267
VSS-266
VSS-265
VSS-65
VSS-70
VSS-69
VSS-68
VSS-67
VSS-66
AK9
AK8
AK7
AK6
AK5
AK10
CPU1J
CPU1J
A7
VSS-001
A11
VSS-002
A13
VSS-003
A15
VSS-004
A17
VSS-005
A24
VSS-006
AA3
VSS-007
AA33
VSS-008
AA8
VSS-009
AB5
VSS-010
AB39
VSS-011
AC3
VSS-012
AC6
VSS-013
AC33
VSS-014
AC34
VSS-015
AC35
VSS-016
AD1
VSS-017
AD4
VSS-018
AD6
VSS-019
AD7
VSS-020
AD8
VSS-021
AD33
C C
B B
AD36
AD37
AD38
AD39
AD40
AE3
AE5
AE8
AE33
AE36
AF1
AF5
AF8
AF33
AF36
AF37
AF40
AG1
AG2
AG3
AG4
AG5
AG8
AG33
AG36
AH33
AH36
AH37
AH38
AH39
AH40
AH5
AH8
AJ31
AJ32
AJ33
AJ34
AJ35
VSS-022
VSS-023
VSS-024
VSS-025
VSS-026
VSS-027
VSS-028
VSS-029
VSS-030
VSS-031
VSS-032
VSS-033
VSS-034
VSS-035
VSS-036
VSS-037
VSS-038
VSS-039
VSS-040
VSS-041
VSS-042
VSS-043
VSS-044
VSS-045
VSS-046
VSS-047
VSS-048
VSS-049
VSS-050
VSS-051
VSS-052
VSS-053
VSS-054
VSS-055
AJ1
VSS-056
AJ4
VSS-057
AJ5
VSS-058
AJ8
VSS-059
VSS-060
VSS-061
VSS-062
VSS-063
VSS-064
LGA1151
LGA1151
AT9
AT8
AT7
AT6
AT5
VSS-263
VSS-261
VSS-260
VSS-259
VSS-258
VSS-257
VSS-262
VSS-256
VSS-255
VSS-254
VSS-253
VSS-252
VSS-71
VSS-72
VSS-73
VSS-74
VSS-75
VSS-76
VSS-77
VSS-78
VSS-79
VSS-80
VSS-81
VSS-82
AK12
AK13
AK15
AK16
AK17
AK18
AK19
AK20
AK23
AK25
AK26
AT40
VSS-251
VSS-83
AK28
AT39
B24
4
AT38
AT37
AT36
AT34
AT32
AT31
AT30
AT29
AT28
AT27
AT26
AT25
AT24
AT17
AT14
AT13
AT12
AT11
AT10
AU7
AU5
AU4
AU34
AU30
AU25
AU1
AV9
AV5
AV38
AV34
AV30
AV28
AV26
AV2
VSS-250
VSS-249
VSS-248
VSS-247
VSS-246
VSS-245
VSS-244
VSS-243
VSS-242
VSS-241
VSS-240
VSS-239
VSS-238
VSS-237
VSS-236
VSS-235
VSS-234
VSS-233
VSS-232
VSS-231
VSS-230
VSS-229
VSS-228
VSS-227
VSS-226
VSS-225
VSS-224
VSS-223
VSS-222
VSS-221
VSS-220
VSS-219
VSS-218
VSS-217
SKYLAKE-S
SKYLAKE-S
GND
GND
VSS-108K1VSS-109
VSS-111
VSS-84
VSS-85
VSS-86
VSS-87
VSS-88B6VSS-89
VSS-90
VSS-91
VSS-92
VSS-93
VSS-94
VSS-95
VSS-96
VSS-97
VSS-98
VSS-99
VSS-100
VSS-101
VSS-102
VSS-103
J10
J12
J16
J18
B26
B28
B30
C12
C14
C16
C18
C20
C22
C24
C31
J20
C33
C35
VSS-104J3VSS-105
J32
VSS-110
VSS-106
VSS-107
J6
J34
K14
K17
K15
VSS-216
VSS-118
VSS-117
VSS-116
VSS-115
VSS-114
VSS-113
VSS-112
K33
K30
K28
K26
K24
K22
K19
3
AK29
AK30
AK36
AK37
VSS-206
VSS-128
AY7
VSS-205
VSS-129
AR11
AY9
AR1
VSS-204
VSS-130
L6
AK40
VSS-203
VSS-202
VSS-201
VSS-200
VSS-199
VSS-198
VSS-197
VSS-196
VSS-195
VSS-194
VSS-193
VSS-192
VSS-191
VSS-190
VSS-189
VSS-188
VSS-187
VSS-186
VSS-185
VSS-184
VSS-183
VSS-182
VSS-181
VSS-180
VSS-179
VSS-178
VSS-177
VSS-176
VSS-175
VSS-174
VSS-173
VSS-172
VSS-171
VSS-170
VSS-169
VSS-168
VSS-167
VSS-166
VSS-165
VSS-164
VSS-163
VSS-162
VSS-161
VSS-160
VSS-159
VSS-158
VSS-157
VSS-156
VSS-155
VSS-154
VSS-153
VSS-152
VSS-151
VSS-150
VSS-149
VSS-148
VSS-147
VSS-146
VSS-145
VSS-144
VSS-143
VSS-142
VSS-141
VSS-140
VSS-139
VSS-138
VSS-137
VSS-136
VSS-135
VSS-134
VSS-133
VSS-132L9VSS-131
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
L13
L32
AL1
AL11
AL14
AL2
AL21
AL24
AL27
AL3
AL30
AL36
AL4
AL5
AM35
AM34
AM33
AM32
AM31
AM30
AM27
AM24
AM19
AM17
AM14
AM11
AM36
AM37
AM38
AM39
AM40
AM5
AN1
AN10
AN11
AN14
AN16
AN19
AN22
AN23
AN24
AN27
AN30
AN36
AN4
AN5
AN6
AN7
AN8
AN9
AP11
AP14
AP24
AP27
AP30
AP36
AP37
AP40
AP5
K39
K4
K7
L3
L11
M1
M4
AW32
AW30
AW3
AW34
AW36
AW5
AW9
AY27
AY30
AY5
VSS-215
VSS-214
VSS-213
VSS-212
VSS-211
VSS-210
VSS-209
VSS-208
VSS-207
VSS-120
VSS-119
K37
K35
VSS-121
AR21
VSS-122
AR20
AR2
VSS-123
VSS-124
AR19
VSS-125
AR18
VSS-126
AR17
VSS-127
AR16
AR14
2
CPU1K
CPU1K
SKYLAKE-S
SKYLAKE-S
M7
VSS-269
M10
VSS-270
M12
VSS-271
M15
VSS-272
M17
VSS-273
M19
VSS-274
M21
VSS-275
M23
VSS-276
M25
VSS-277
M27
VSS-278
M29
VSS-279
M35
VSS-280
M37
VSS-281
M39
VSS-282
N3
VSS-283
N33
VSS-284
N6
VSS-285
N8
VSS-286
P1
VSS-287
P35
VSS-288
P37
VSS-289
P39
VSS-290
P4
VSS-291
R3
VSS-292
R33
VSS-293
R6
VSS-294
R8
VSS-295
T1
VSS-296
T35
VSS-297
T37
VSS-298
T39
VSS-299
T4
VSS-300
U3
VSS-301
U33
VSS-302
U6
VSS-303
V1
VSS-304
V35
VSS-305
V37
VSS-306
V39
VSS-307
V8
VSS-308
W3
VSS-309
W33
VSS-310
W6
VSS-311
Y35
VSS-312
Y37
VSS-313
Y5
VSS-314
C10
VSS-315
C8
VSS-316
C5
VSS-317
C37
VSS-318
D37
VSS-319
D30
VSS-320
D28
VSS-321
D26
VSS-322
D24
VSS-323
D4
VSS-324
D39
VSS-325
D7
VSS-326
E13
VSS-327
E11
VSS-328
LGA1151
LGA1151
ZIF-SOCKET1151-HF-1
ZIF-SOCKET1151-HF-1
GND
GND
VSS_NCTF-1
VSS_NCTF-2
VSS_NCTF-3
VSS_NCTF-4
VSS-329
VSS-330
VSS-331
VSS-332
VSS-333
VSS-334
VSS-335
VSS-336
VSS-337
VSS-338
VSS-339
VSS-340
VSS-341
VSS-342
VSS-343
VSS-344
VSS-345
VSS-346
VSS-347
VSS-348
VSS-349
VSS-350
VSS-351
VSS-352
VSS-353
VSS-354
VSS-355
VSS-356
VSS-357
VSS-358
VSS-359
VSS-360
VSS-361
VSS-362
VSS-363
VSS-364
VSS-365
VSS-366
VSS-367
VSS-368
VSS-369
VSS-370
VSS-371
VSS-AT15
VSS-AR23
VSS-AR22
E15
E17
E19
E21
E23
E3
E31
E33
E35
E37
E6
E9
F1
F10
F22
F26
F28
F30
F4
F40
F7
G11
G13
G15
G17
G19
G22
G3
G31
G33
G6
H1
H21
H24
H26
H28
H30
H35
H37
H39
H4
H7
H9
AT15
AR23
AR22
D40
C2
B38
A4
1
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
CPU-GND
CPU-GND
CPU-GND
MS-7A67
1
752
752
752
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
Date:
5
4
3
2
Tuesday, December 20, 2016
Page 8
5
Vinafix.com
VCC_DDR
DIMMA1A
DIMMA1A
51
DQS17P
52
DQS17N
A0 B0
D D
VCC_DDR
M_DQS_A_DP7
M_DQS_A_DN7
M_DQS_A_DP6
M_DQS_A_DN6
M_DQS_A_DP5
M_DQS_A_DN5
M_DQS_A_DP4
M_DQS_A_DN4
M_DQS_A_DP3
M_DQS_A_DN3
M_DQS_A_DP2
M_DQS_A_DN2
M_DQS_A_DP1
M_DQS_A_DN1
M_DQS_A_DP0
M_DQS_A_DN0
M_CK_A_DP1
M_CK_A_DN1
M_CK_A_DP0
M_CK_A_DN0
R241
R241
470R1%4
470R1%4
DRAM_RESET#
DIMM1_EVENT
M_ALERT_A_N
M_ACT_A_N
M_PARITY_A
M_DQS_A_DP73
M_DQS_A_DN73
M_DQS_A_DP63
M_DQS_A_DN63
M_DQS_A_DP53
M_DQS_A_DN53
M_DQS_A_DP43
C C
B B
DRAM_RESET#
C153
C153
X_0.1u10X4
X_0.1u10X4
A A
5
M_DQS_A_DN43
M_DQS_A_DP33
M_DQS_A_DN33
M_DQS_A_DP23
M_DQS_A_DN23
M_DQS_A_DP13
M_DQS_A_DN13
M_DQS_A_DP03
M_DQS_A_DN03
M_CK_A_DP13
M_CK_A_DN13
M_CK_A_DP03
M_CK_A_DN03
M_CS#_A13
M_CS#_A03
M_CKE_A13
M_CKE_A03
M_ODT_A13
M_ODT_A03
DRAM_RESET#9,15
M_ALERT_A_N3
M_ACT_A_N3
M_PARITY_A3
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_RED-RH
DDRIV-288P_RED-RH
4
M_DATA_A57
280
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A16_RAS_N
A15_CAS_N
A14_WE_N
SDA
SA-2
SA-1
SA-0
SMBCLK_VCC15
SMBDATA_VCC15
4
M_DATA_A60
135
M_DATA_A56
273
M_DATA_A58
128
M_DATA_A59
282
M_DATA_A62
137
M_DATA_A61
275
M_DATA_A63
130
M_DATA_A55
269
M_DATA_A49
124
M_DATA_A50
262
M_DATA_A52
117
M_DATA_A51
271
M_DATA_A53
126
M_DATA_A54
264
M_DATA_A48
119
M_DATA_A42
258
M_DATA_A46
113
M_DATA_A40
251
M_DATA_A45
106
M_DATA_A43
260
M_DATA_A47
115
M_DATA_A44
253
M_DATA_A41
108
M_DATA_A38
247
M_DATA_A39
102
M_DATA_A37
240
M_DATA_A36
95
M_DATA_A35
249
M_DATA_A34
104
M_DATA_A33
242
M_DATA_A32
97
M_DATA_A31
188
M_DATA_A30
43
M_DATA_A25
181
M_DATA_A28
36
M_DATA_A27
190
M_DATA_A26
45
M_DATA_A24
183
M_DATA_A29
38
M_DATA_A23
177
M_DATA_A22
32
M_DATA_A16
170
M_DATA_A20
25
M_DATA_A19
179
M_DATA_A18
34
M_DATA_A21
172
M_DATA_A17
27
M_DATA_A15
166
M_DATA_A14
21
M_DATA_A13
159
M_DATA_A9
14
M_DATA_A11
168
M_DATA_A10
23
M_DATA_A8
161
M_DATA_A12
16
M_DATA_A7
155
M_DATA_A6
10
M_DATA_A0
148
M_DATA_A4
3
M_DATA_A3
157
M_DATA_A2
12
M_DATA_A1
150
M_DATA_A5
5
M_BG_A_1
207
M_BG_A_0
63
M_BA_A_1
224
M_BA_A_0
81
234
A17
M_MAA_A16
82
M_MAA_A15
86
M_MAA_A14
228
M_MAA_A13
232
A13
M_MAA_A12
65
A12
M_MAA_A11
210
A11
M_MAA_A10
225
A10
M_MAA_A9
66
A9
M_MAA_A8
68
A8
M_MAA_A7
211
A7
M_MAA_A6
69
A6
M_MAA_A5
213
A5
M_MAA_A4
214
A4
M_MAA_A3
71
A3
M_MAA_A2
216
A2
M_MAA_A1
72
A1
M_MAA_A0
79
A0
SMB_CLK_DIMM
141
SCL
SMB_DATA_DIMM
285
238
140
139
DIMM1(CHANNEL-A)
ADDRESS = 0:0 [SA1:SA0]
SMBCLK_VCC
SMBDATA_VCC
R440 0R/4R440 0R/4
R367 0R/4R367 0R/4
M_BG_A_1 3
M_BG_A_0 3
M_BA_A_1 3
M_BA_A_0 3
M_MAA_A[16..0]
SMB_CLK_DIMM
SMB_DATA_DIMM
3
M_DATA_A[63..0] 3
N13-2880811-F02: TEST FOOTPRINT
DDRIV_D288_4_TEST
M_MAA_A[16..0] 3
VCC_DDR
DIMM1_EVENT
SMB_CLK_DIMM 9
SMB_DATA_DIMM 9
3
R238 240R1%4R238 240R1%4
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
2
Date:
DDR4 DIMM A1
DDR4 DIMM A1
DDR4 DIMM A1
Monday, December 19, 2016
Monday, December 19, 2016
Monday, December 19, 2016
1
MS-7A67
MS-7A67
MS-7A67
1
8 52
8 52
8 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 9
5
4
3
2
1
VCC_DDR
D D
M_DQS_B_DP73
M_DQS_B_DN73
M_DQS_B_DP63
M_DQS_B_DN63
M_DQS_B_DP53
DIMM2_EVENT
5
M_DQS_B_DN53
M_DQS_B_DP43
M_DQS_B_DN43
M_DQS_B_DP33
M_DQS_B_DN33
M_DQS_B_DP23
M_DQS_B_DN23
M_DQS_B_DP13
M_DQS_B_DN13
M_DQS_B_DP03
M_DQS_B_DN03
M_CK_B_DP13
M_CK_B_DN13
M_CK_B_DP03
M_CK_B_DN03
M_CS#_B13
M_CS#_B03
M_CKE_B13
M_CKE_B03
M_ODT_B13
M_ODT_B03
DRAM_RESET#8,15
M_ALERT_B_N3
M_ACT_B_N3
M_PARITY_B3
C C
B B
VCC_DDR
R336 240R1%4R336 240R1%4
A A
M_DQS_B_DP7
M_DQS_B_DN7
M_DQS_B_DP6
M_DQS_B_DN6
M_DQS_B_DP5
M_DQS_B_DN5
M_DQS_B_DP4
M_DQS_B_DN4
M_DQS_B_DP3
M_DQS_B_DN3
M_DQS_B_DP2
M_DQS_B_DN2
M_DQS_B_DP1
M_DQS_B_DN1
M_DQS_B_DP0
M_DQS_B_DN0
M_CK_B_DP1
M_CK_B_DN1
M_CK_B_DP0
M_CK_B_DN0
DIMM2_EVENT M_MAA_B0
M_ALERT_B_N
M_ACT_B_N
M_PARITY_B
DIMMB1A
DIMMB1A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_RED-RH
DDRIV-288P_RED-RH
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A16_RAS_N
A15_CAS_N
A14_WE_N
SCL
SDA
SA-2
SA-1
SA-0
4
M_DATA_B63
135
M_DATA_B60
273
M_DATA_B57
128
M_DATA_B62
282
M_DATA_B58
137
M_DATA_B61
275
M_DATA_B56
130
M_DATA_B55
269
M_DATA_B54
124
M_DATA_B49
262
M_DATA_B48
117
M_DATA_B51
271
M_DATA_B50
126
M_DATA_B53
264
M_DATA_B52
119
M_DATA_B43
258
M_DATA_B42
113
M_DATA_B40
251
M_DATA_B41
106
M_DATA_B47
260
M_DATA_B46
115
M_DATA_B45
253
M_DATA_B44
108
M_DATA_B34
247
M_DATA_B38
102
M_DATA_B37
240
M_DATA_B36
95
M_DATA_B35
249
M_DATA_B39
104
M_DATA_B33
242
M_DATA_B32
97
M_DATA_B31
188
M_DATA_B26
43
M_DATA_B29
181
M_DATA_B24
36
M_DATA_B30
190
M_DATA_B27
45
M_DATA_B28
183
M_DATA_B25
38
M_DATA_B19
177
M_DATA_B18
32
M_DATA_B16
170
M_DATA_B20
25
M_DATA_B23
179
M_DATA_B22
34
M_DATA_B21
172
M_DATA_B17
27
M_DATA_B11
166
M_DATA_B10
21
M_DATA_B13
159
M_DATA_B12
14
M_DATA_B15
168
M_DATA_B14
23
M_DATA_B9
161
M_DATA_B8
16
M_DATA_B7
155
M_DATA_B6
10
M_DATA_B0
148
M_DATA_B1
3
M_DATA_B3
157
M_DATA_B2
12
M_DATA_B4
150
M_DATA_B5
5
M_BG_B_1
207
M_BG_B_0
63
M_BA_B_1
224
M_BA_B_0
81
234
A17
M_MAA_B16
82
M_MAA_B15
86
M_MAA_B14
228
M_MAA_B13
232
A13
M_MAA_B12
65
A12
M_MAA_B11
210
A11
M_MAA_B10
225
A10
M_MAA_B9
66
A9
M_MAA_B8
68
A8
M_MAA_B7
211
A7
M_MAA_B6
69
A6
M_MAA_B5
213
A5
M_MAA_B4
214
A4
M_MAA_B3
71
A3
M_MAA_B2
216
A2
M_MAA_B1
72
A1
79
A0
SMB_CLK_DIMM
141
SMB_DATA_DIMM
285
238
140
139
DIMM4(CHANNEL-B)
ADDRESS = 1:0 [SA1:SA0]
M_DATA_B59
280
DDR_SPD
M_DATA_B[63..0]
M_BG_B_1 3
M_BG_B_0 3
M_BA_B_1 3
M_BA_B_0 3
M_MAA_B[16..0]
SMB_CLK_DIMM 8
SMB_DATA_DIMM 8
3
M_DATA_B[63..0] 3
N13-2880811-F02: TEST FOOTPRINT
DDRIV_D288_4_TEST
M_MAA_B[16..0] 3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
2
Monday, December 19, 2016
MS-7A67
DDR4 DIMM B1
DDR4 DIMM B1
DDR4 DIMM B1
1
952
952
952
Sheet of
Sheet of
Sheet of
11
11
11
Page 10
5
DIMMA1C
DIMMA1C
1
12V3_NC_1
145
12V3_NC_145
DDR_SPD
D D
C C
DIMM_CA_VREF_A
VTT_DDR
DIMM_CA_VREF_A
VPP25
VPP25
C374 0.1u10X4C374 0.1u10X4
C470 0.1u10X4C470 0.1u10X4
C73 2.2u6.3X4C73 2.2u6.3X4
C58 0.1u10X4C58 0.1u10X4
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC3
MEC2
MEC2
MEC1
MEC1
DDRIV-288P_RED-RH
DDRIV-288P_RED-RH
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
VCC_DDR
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
VCC_DDR
C232 22u6.3X6C232 22u6.3X6
C467 22u6.3X6C467 22u6.3X6
C468 22u6.3X6C468 22u6.3X6
C155 22u6.3X6C155 22u6.3X6
C125 22u6.3X6C125 22u6.3X6
C160 0.1u10X4C160 0.1u10X4
C117 0.1u10X4C117 0.1u10X4
C190 0.1u10X4C190 0.1u10X4
C123 0.1u10X4C123 0.1u10X4
C134 1u6.3X4C134 1u6.3X4
C329 1u6.3X4C329 1u6.3X4
C133 1u6.3X4C133 1u6.3X4
C65 1u6.3X4C65 1u6.3X4
4
DIMM SLOT PN BY SPEC
VCC_DDR
EC17
EC17
+
+
12
560u6.3SO
560u6.3SO
OB change to OS-CON
VCC_DDR
C469 0.22u6.3X4C469 0.22u6.3X4
VTT_DDR
3
CPU_CA_VREF_A
C10
C10
0.022u16X4
0.022u16X4
R51
R51
24.9R1%4
24.9R1%4
2
F7
F7
VCC3 DDR_SPD
DDR_SPD
R30 2R1%4R30 2R1%4
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
DT CRB VCC3
Server CRB VPP
C330 0.1u10X4C330 0.1u10X4
DIMM_CA_VREF_A
C14
C14
0.1u10X4
0.1u10X4
DIMM_CA_VREF_A
C61
C61
0.1u10X4
0.1u10X4
VCC_DDR
VCC_DDR
R46
R46
1K1%4
1K1%4
R43
R43
1K1%4
1K1%4
1
C375
C375
0.1u10X4
0.1u10X4
DIMMA1B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
B B
A A
5
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
DDRIV-288P_RED-RH
DDRIV-288P_RED-RH
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
VTT_DDR
C226
C226
C203
C203
0.1u10X4
0.1u10X4
4.7u6.3X6
4.7u6.3X6
4
3
VCC_DDR
C78
C472
C472
22u6.3X6
22u6.3X6
Between in CPU and DIMM SLOT
Bottom side ,OB add
C78
22u6.3X6
22u6.3X6
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
DDR4-POWER/GND-1
DDR4-POWER/GND-1
DDR4-POWER/GND-1
1
10 52
10 52
10 52
Sheet of
Sheet of
Sheet of
11
11
11
DIMMA1B
0.1uFx1 per dimm
Page 11
5
Vinafix.com
4
3
2
1
DIMMB1C
DIMMB1C
1
12V3_NC_1
145
12V3_NC_145
DDR_SPD
D D
C C
DIMM_CA_VREF_B
B B
A A
VPP25
VTT_DDR
DIMM_CA_VREF_B
VPP25
C473 0.1u10X4C473 0.1u10X4
C477 0.1u10X4C477 0.1u10X4
C166 2.2u6.3X4C166 2.2u6.3X4
C163 0.1u10X4C163 0.1u10X4
5
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC3
MEC2
MEC2
MEC1
MEC1
DDRIV-288P_RED-RH
DDRIV-288P_RED-RH
DIMMB1B
DIMMB1B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
DDRIV-288P_RED-RH
DDRIV-288P_RED-RH
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
VCC_DDR
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
VCC_DDR
C156 22u6.3X6C156 22u6.3X6
C159 22u6.3X6C159 22u6.3X6
C494 22u6.3X6C494 22u6.3X6
C475 22u6.3X6C475 22u6.3X6
C481 22u6.3X6C481 22u6.3X6
C176 0.1u10X4C176 0.1u10X4
C171 0.1u10X4C171 0.1u10X4
C478 0.1u10X4C478 0.1u10X4
C173 0.1u10X4C173 0.1u10X4
C474 1u6.3X4C474 1u6.3X4
C479 1u6.3X4C479 1u6.3X4
C480 1u6.3X4C480 1u6.3X4
C180 1u6.3X4C180 1u6.3X4
VCC_DDR
C471 0.22u6.3X4C471 0.22u6.3X4
VTT_DDR
CPU_DQ_VREF_B
C82
C82
0.022u16X4
0.022u16X4
R126
R126
24.9R1%4
24.9R1%4
DIMM_CA_VREF_B
R110 2R1%4R110 2R1%4
DIMM_CA_VREF_B
VCC_DDR
C75
C75
0.1u10X4
0.1u10X4
C86
C86
0.1u10X4
0.1u10X4
VCC_DDR
R124
R124
1K1%4
1K1%4
R109
R109
1K1%4
1K1%4
C11
C11
0.1u10X4
0.1u10X4
0.1uFx1 per dimm
VTT_DDR
C476
C476
C182
C182
0.1u10X4
0.1u10X4
4.7u6.3X6
4.7u6.3X6
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
4
3
2
Monday, December 19, 2016
MS-7A67
DDR4-POWER/GND-2
DDR4-POWER/GND-2
DDR4-POWER/GND-2
1
11 52
11 52
11 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 12
5
PCH1B
DMI_TXP04
DMI_TXN04
DMI_TXP14
DMI_TXN14
DMI_TXP24
DMI_TXN24
DMI_TXP34
DMI_TXN34
D D
DMI_TXP0
DMI_TXN0
DMI_TXP1
DMI_TXN1
DMI_TXP2
DMI_TXN2
DMI_TXP3
DMI_TXN3
B250 Disable B250 Disable
PE5_LAN_RX25
PE5_LAN_RX#25
PE8_WIFI_BT_RX29
PE8_WIFI_BT_RX#29
PE9_SATA_RX28
PE9_SATA_RX#28
SATA_RX032
SATA_RX#032
SATA_RX132
SATA_RX#132
C C
SATA_RX232
SATA_RX#232
SATA_RX332
SATA_RX#332
B250 Disable
PE21_M2_RX28
PE21_M2_RX#28
PE22_M2_RX28
PE22_M2_RX#28
PE23_M2_RX28
PE23_M2_RX#28
PE24_M2_RX28
PE24_M2_RX#28
When used as DEVSLP, no external
pull-up or pull-down termination
required from SATA Host DEVSLP.
DEVSLP028
B B
DEVSLP0
PCH_RSVD
GFX_CRB_DETECT
SV_ADVANCE
DEVSLP0
TP21TP21
GPP_E6
TP23TP23
GPP_F9
GFX_CRB_DETECT
SV_ADVANCE
PCH_RSVD
PCH_CONFIG
R432 X_10K/4R432 X_10K/4
R430 X_10K/4R430 X_10K/4
R406 10K/4R406 10K/4
R417 X_10K/4R417 X_10K/4
R387 X_10K/4R387 X_10K/4
R378 10K/4R378 10K/4
R398 20K/4R398 20K/4
PCH1B
N27
DMI_RXP0
L27
DMI_RXN0
G24
DMI_RXP1
E24
DMI_RXN1
E26
DMI_RXP2
G27
DMI_RXN2
K29
DMI_RXP3
L29
DMI_RXN3
E15
PCIE1_RXP / USB3_7_RXP
G15
PCIE1_RXN / USB3_7_RXN
G17
PCIE2_RXP / USB3_8_RXP
E17
PCIE2_RXN / USB3_8_RXN
K17
PCIE3_RXP / USB3_9_RXP
L17
PCIE3_RXN / USB3_9_RXN
G19
PCIE4_RXP / USB3_10_RXP
E19
PCIE4_RXN / USB3_10_RXN
L19
PCIE5_RXP
K19
PCIE5_RXN
E22
PCIE6_RXP
G22
PCIE6_RXN
K22
PCIE7_RXP
L22
PCIE7_RXN
L24
PCIE8_RXP
K24
PCIE8_RXN
H31
PCIE9_RXP / SATA0A_RXP
G31
PCIE9_RXN / SATA0A_RXN
E29
PCIE10_RXP / SATA1A_RXP
G29
PCIE10_RXN / SATA1A_RXN
K31
PCIE11_RXP
L31
PCIE11_RXN
G33
PCIE12_RXP
E33
PCIE12_RXN
E35
PCIE13_RXP / SATA0B_RXP
G35
PCIE13_RXN / SATA0B_RXN
G37
PCIE14_RXP / SATA1B_RXP
E37
PCIE14_RXN / SATA1B_RXN
C42
PCIE15_RXP / SATA2_RXP
E41
PCIE15_RXN / SATA2_RXN
E43
PCIE16_RXP / SATA3_RXP
D42
PCIE16_RXN / SATA3_RXN
K39
PCIE17_RXP / SATA4_RXP
J41
PCIE17_RXN / SATA4_RXN
M41
PCIE18_RXP / SATA5_RXP
M39
PCIE18_RXN / SATA5_RXN
P41
PCIE19_RXP
P39
PCIE19_RXN
P36
PCIE20_RXP
P38
PCIE20_RXN
T41
PCIE_21_RXP
T39
PCIE_21_RXN
V36
PCIE_22_RXP
V35
PCIE_22_RXN
V41
PCIE_23_RXP
V39
PCIE_23_RXN
Y41
PCIE_24_RXP
Y39
PCIE_24_RXN
AL44
GPP_E4 / DEVSLP0
AL45
GPP_E5 / DEVSLP1
AK44
GPP_E6 / DEVSLP2
AF44
GPP_F5 / DEVSLP3
AG41
GPP_F6 / DEVSLP4
AH39
GPP_F7 / DEVSLP5
AH36
GPP_F8 / DEVSLP6
AF45
GPP_F9 / DEVSLP7
AE43
GPP_F13 / SDATAOUT0
AE44
GPP_F12 / SDATAOUT1
AH35
GPP_F11 / SLOAD
AE30
GPP_F10 / SCLOCK
PCH_H
PCH_H
GPP_F9
VCC3
VCC3
VCC3
VCC3
DMI
DMI
PCIE
PCIE
GPP_E0 / SATAXPCIE0 / SATAGP0
GPP_E1 / SATAXPCIE1 / SATAGP1
GPP_E2 / SATAXPCIE2 / SATAGP2
GPP_F0 / SATAXPCIE3 / SATAGP3
GPP_F1 / SATAXPCIE4 / SATAGP4
GPP_F2 / SATAXPCIE5 / SATAGP5
GPP_F3 / SATAXPCIE6 / SATAGP6
GPP_F4 / SATAXPCIE7 / SATAGP7
4
DMI_TXP0
DMI_TXN0
DMI_TXP1
DMI_TXN1
DMI_TXP2
DMI_TXN2
DMI_TXP3
DMI_TXN3
PCIE1_TXP / USB3_7_TXP
PCIE1_TXN / USB3_7_TXN
PCIE2_TXP / USB3_8_TXP
PCIE2_TXN / USB3_8_TXN
PCIE3_TXP / USB3_9_TXP
PCIE3_TXN / USB3_9_TXN
PCIE4_TXP / USB3_10_TXP
PCIE4_TXN / USB3_10_TXN
PCIE10_TXP / SATA1A_TXP
PCIE10_TXN / SATA1A_TXN
PCIE13_TXP / SATA0B_TXP
PCIE13_TXN / SATA0B_TXN
PCIE14_TXP / SATA1B_TXP
PCIE14_TXN / SATA1B_TXN
PCIE5_TXP
PCIE5_TXN
PCIE6_TXP
PCIE6_TXN
PCIE7_TXP
PCIE7_TXN
PCIE8_TXP
PCIE8_TXN
PCIE9_TXP / SATA0A_TXP
PCIE9_TXN / SATA0A_TXN
PCIE11_TXP
PCIE11_TXN
PCIE12_TXP
PCIE12_TXN
PCIE15_TXP / SATA2_TXP
PCIE15_TXN / SATA2_TXN
PCIE16_TXP / SATA3_TXP
PCIE16_TXN / SATA3_TXN
PCIE17_TXP / SATA4_TXP
PCIE17_TXN / SATA4_TXN
PCIE18_TXP / SATA5_TXP
PCIE18_TXN / SATA5_TXN
PCIE19_TXP
PCIE19_TXN
PCIE20_TXP
PCIE20_TXN
PCIE_21_TXP
PCIE_21_TXN
PCIE_22_TXP
PCIE_22_TXN
PCIE_23_TXP
PCIE_23_TXN
PCIE_24_TXP
PCIE_24_TXN
PCIE_RCOMPP
PCIE_RCOMPN
GPP_E8 / SATALED#
C27
D27
A28
B27
C28
B28
B29
C29
B18
A18
C19
B19
C20
B20
A21
B21
C22
D22
A23
B22
B23
C23
B24
C24
C31
D31
A32
B31
B32
C32
B33
C33
B36
C36
B37
A37
B38
C38
A39
B39
F45
E45
G44
G45
H45
H44
J44
J43
K44
K43
L44
L43
N45
N44
P44
P43
C10
B10
AM36
AM35
AM38
AK36
AK33
AK38
AH43
AE42
AJ44
DMI_RXP0
DMI_RXN0
DMI_RXP1
DMI_RXN1
DMI_RXP2
DMI_RXN2
DMI_RXP3
DMI_RXN3
PCIECOMP_P
PCIECOMP_N
GPP_E0
GPP_E1GPP_E5
GPP_E2
GPP_F0
GPP_F1
GPP_F2
PCH_SATA_LED#
PCH_SATA_LED#
R566 10K/4R566 10K/4
DMI_RXP0 4
DMI_RXN0 4
DMI_RXP1 4
DMI_RXN1 4
DMI_RXP2 4
DMI_RXN2 4
DMI_RXP3 4
DMI_RXN3 4
R324 100R1%4R324 100R1%4
R1409 0R/4R1409 0R/4
PCH_SATA_LED# 44
PE5_LAN_TX 25
PE5_LAN_TX# 25
PE8_WIFI_BT_TX 29
PE8_WIFI_BT_TX# 29
PE9_SATA_TX 28
PE9_SATA_TX# 28
SATA_TX0 32
SATA_TX#0 32
SATA_TX1 32
SATA_TX#1 32
SATA_TX2 32
SATA_TX#2 32
SATA_TX3 32
SATA_TX#3 32
PE21_M2_TX 28
PE21_M2_TX# 28
PE22_M2_TX 28
PE22_M2_TX# 28
PE23_M2_TX 28
PE23_M2_TX# 28
PE24_M2_TX 28
PE24_M2_TX# 28
SATA_PCIE_DET0 28
VCC3
3
PCIECOMP_P
PCIECOMP_N
GPP_E0
GPP_E1
GPP_E2
GPP_F0
GPP_F1
GPP_F2
SATAXPCIE0-PE9
SATAXPCIE1-PE10
SATAXPCIE2-PE15
SATAXPCIE3-PE16
SATAXPCIE4-PE17
SATAXPCIE5-PE18
0--PCIE
1--SATA
OC#030
OC#130
OC#230
OC#330
OC#430
USB2_ID
USB2_VBUSSENSE
SSRX1P
SSRX1N
SSRX2P
SSRX2N
SSRX3P
SSRX3N
SSRX4P
SSRX4N
SSRX5P
SSRX5N
SSRX6P
SSRX6N
USB2_COMP
SSRX1P31
SSRX1N31
SSRX2P31
SSRX2N31
SSRX3P31
SSRX3N31
SSRX4P31
SSRX4N31
SSRX5P30
SSRX5N30
SSRX6P30
SSRX6N30
R383 1K/4R383 1K/4
R390 1K/4R390 1K/4
R380 113R1%4R380 113R1%4
USB2_COMP < 500 mil
Length Match < 5mil
3VSB
R1396 10KR1396 10K
R1400 10KR1400 10K
R1393 10KR1393 10K
R1405 10KR1405 10K
R1408 10KR1408 10K
R1402 10KR1402 10K
OC#0
OC#1
OC#2
OC#3
OC#4
OC#5
OC#6
OC#7
AJ43
AH44
AM39
AK42
AD43
AC44
AH42
AC43
AE10
3VSB
PCH1C
PCH1C
A7
USB3_1_RXP
B7
USB3_1_RXN
B8
USB3_2_SSIC_1_RXP
C8
USB3_2_SSIC_1_RXN
A9
USB3_3_SSIC_2_RXP
B9
USB3_3_SSIC_2_RXN
G11
USB3_4_RXP
E11
USB3_4_RXN
G13
USB3_5_RXP
E13
USB3_5_RXN
K15
USB3_6_RXP
H15
USB3_6_RXN
GPP_E9 / USB_OC0#
GPP_E10 / USB_OC1#
GPP_E11 / USB_OC2#
GPP_E12 / USB_OC3#
GPP_F15 / USB_OCB4#
GPP_F16 / USB_OCB5#
GPP_F17 / USB_OC6#
GPP_F18 / USB_OC7#
AG2
USB2_ID
USB2_VBUSSENSE
AG3
USB2_COMP
PCH_H
PCH_H
2
USB3
USB3
USB2
USB2
C359 X_0.1u10X4C359 X_0.1u10X4
C357 X_0.1u10X4C357 X_0.1u10X4
C350 X_0.1u10X4C350 X_0.1u10X4
C355 X_0.1u10X4C355 X_0.1u10X4
C352 X_0.1u10X4C352 X_0.1u10X4
R409 10K/4R409 10K/4
R370 10K/4R370 10K/4
R369 10K/4R369 10K/4
USB3_1_TXP
USB3_1_TXN
USB3_2_SSIC_1_TXP
USB3_2_SSIC_1_TXN
USB3_3_SSIC_2_TXP
USB3_3_SSIC_2_TXN
USB3_4_TXP
USB3_4_TXN
USB3_5_TXP
USB3_5_TXN
USB3_6_TXP
USB3_6_TXN
USB2P_1
USB2N_1
USB2P_2
USB2N_2
USB2P_3
USB2N_3
USB2P_4
USB2N_4
USB2P_5
USB2N_5
USB2P_6
USB2N_6
USB2P_7
USB2N_7
USB2P_8
USB2N_8
USB2P_9
USB2N_9
USB2P_10
USB2N_10
USB2P_11
USB2N_11
USB2P_12
USB2N_12
USB2P_13
USB2N_13
USB2P_14
USB2N_14
OC#0
OC#1
OC#2
OC#3
OC#4
OC#5
OC#6
OC#7
C13
D13
A14
B13
C14
B14
C15
B15
B16
A16
D17
C17
AH7
AH5
AE7
AE5
AH10
AH8
AE3
AE2
AC3
AC2
AF1
AF2
AB1
AB2
AM7
AM8
Y2
Y3
AK7
AK8
W1
W2
AD2
AD3
V2
V3
AK13
AK11
SSTX1P
SSTX1N
SSTX2P
SSTX2N
SSTX3P
SSTX3N
SSTX4P
SSTX4N
SSTX5P
SSTX5N
SSTX6P
SSTX6N
MB_USB_1DP
MB_USB_1DN
MB_USB_2DP
MB_USB_2DN
MB_USB_3DP
MB_USB_3DN
MB_USB_4DP
MB_USB_4DN
MB_USB_5DP
MB_USB_5DN
MB_USB_6DP
MB_USB_6DN
MB_USB_7DP
MB_USB_7DN
MB_USB_8DP
MB_USB_8DN
MB_USB_9DP
MB_USB_9DN
MB_USB_10DP
MB_USB_10DN
MB_USB_11DP
MB_USB_11DN
MB_USB_1DP 31
MB_USB_1DN 31
MB_USB_2DP 31
MB_USB_2DN 31
MB_USB_3DP 31
MB_USB_3DN 31
MB_USB_4DP 31
MB_USB_4DN 31
MB_USB_5DP 30
MB_USB_5DN 30
MB_USB_6DP 30
MB_USB_6DN 30
MB_USB_7DP 30
MB_USB_7DN 30
MB_USB_8DP 30
MB_USB_8DN 30
MB_USB_9DP 30
MB_USB_9DN 30
MB_USB_10DP 30
MB_USB_10DN 30
MB_USB_11DP 29
MB_USB_11DN 29
JUSB2
HDMI_USB1
JUSB1
LAN_USB1
PS2_USB1
WIFI+BT
1
SSTX1P 31
SSTX1N 31
SSTX2P 31
SSTX2N 31
SSTX3P 31
SSTX3N 31
SSTX4P 31
SSTX4N 31
SSTX5P 30
SSTX5N 30
SSTX6P 30
SSTX6N 30
JUSB3
HDMI_USB1
JUSB1
LAN_USB1
PS2_USB1
WIFI+BT
USB2-1~2
USB2-3~4
USB2-5,6
USB2-7,8
USB2-9,10
USB2-11
Only B150
A A
PCH_CONFIG
KB CRB
5
R391 1K/4R391 1K/4
R582 10K/4R582 10K/4
VCC3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
4
3
2
Monday, December 19, 2016
MS-7A67
PCH-USB/PCIE/DMI/SATA
PCH-USB/PCIE/DMI/SATA
PCH-USB/PCIE/DMI/SATA
1
Sheet of
Sheet of
Sheet of
12 52
12 52
12 52
11
11
11
Page 13
5
4
3
2
1
PCH1D
EMI
AZ_SDOUT_RAZ_SDOUT
CA25
CA26
CA26
X_10p50N4
X_10p50N4
D D
CA25
X_10p50N4
X_10p50N4
2016.08.09 Add CA25,CA26 for EMI
AZ_BITCLK
CA23
CA23
X_10p50N4
X_10p50N4
AZ_SDIN023
AZ_SDOUT_R18
AZ_SDOUT23
AZ_BITCLK23
AZ_RST#23
AZ_SYNC23
PCH_CPU_AUD_SCLK5
PCH_CPU_AUD_SDO5
PCH_CPU_AUD_SDI5
AZ_SDIN0
AZ_SDOUT_R
AZ_SDOUT AZ_SDOUT_R
R489 33R/4R489 33R/4
R449 33R/4R449 33R/4
R510 33R/4R510 33R/4
R490 33R/4R490 33R/4
R419 33R/4R419 33R/4
R412 33R/4R412 33R/4
AZ_BITCLK_LRAZ_BITCLK
AZ_RST#_RAZ_RST#
AZ_SYNC_RAZ_SYNC
PCH_CPU_AUD_SCLK_R
PCH_CPU_AUD_SDO_R
PCH_CPU_AUD_SDI
2016.07.07 Kabylake change
VCC3
C C
B B
R501 10K/4R501 10K/4
R546 10K/4R546 10K/4
R479 10K/4R479 10K/4
Conntact to SLOT Pin B12
for support L1 PM Substates
ME also can disable this funtion.
R327 1M1%4R327 1M1%4
R272
R272
2015.12.02
0R/4
0R/4
1 2
24MHZ20p_S-HF
24MHZ20p_S-HF
C332
C332
22p50N4
22p50N4
CLKREQ#4
CLKREQ#5
CLKREQ#6
XTAL_24M_PCH_OUT
XTAL_24M_PCH_IN
R271
R271
KBL出PIN位置與SKL有異
0R/4
Y1
Y1
34
0R/4
C326
C326
22p50N4
22p50N4
C172
C172
X_10p50N4
X_10p50N4
CLK_SIO_PCI
C214
C214
X_10p50N4
X_10p50N4
TPM_CLK
CLK_SIO_PCI20
TPM_CLK44
2016.06.30 Add
PCH_CLK5_1P0
LAN
M2
M2 WIFI+BT
R499 22R/4R499 22R/4
R505 22R/4R505 22R/4
R339 2.7K1%4R339 2.7K1%4
XCLK_BIASREF < 500 mil
CLKREQ#425
CLKREQ#528
CLKREQ#629
CLKREQ#4
CLKREQ#5
CLKREQ#6
CLK_PCH_LPC0
CLK_PCH_LPC1
RTCX1
RTCX2
XTAL_24M_PCH_IN
XTAL_24M_PCH_OUT
XCLK_BIASREF
RTC Block
PCH1D
BA2
HDA_SDI0
BB1
HDA_SDI1
BC3
HDA_SDO
BB3
HDA_BCLK
BC1
HDA_RST#
BG6
HDA_SYNC
AM2
DISPA_BCLK
AM3
DISPA_SDO
AN2
DISPA_SDI
AP36
GPP_D5 / I2S0_SFRM
AU43
GPP_D6 / I2S0_TXD
AV44
GPP_D7 / I2S0_RXD
AU42
GPP_D8 / I2S0_SCLK
AP42
GPP_D17 / DMIC_CLK1
AN43
GPP_D18 / DMIC_DATA1
AP38
GPP_D19 / DMIC_CLK0
AM43
GPP_D20 / DMIC_DATA0
PCH_H
PCH_H
PCH1E
PCH1E
BE15
GPP_A9 / CLKOUT_LPC0 / ESPI_CLK
AY17
GPP_A10 / CLKOUT_LPC1
BC17
GPP_A16 / CLKOUT_48
BF7
RTCX1
BG7
RTCX2
E1
XTAL24_IN
A5
XTAL24_OUT
F1
XCLK_BIASREF
BE22
GPP_B5 / SRCCLKREQ0#
BA24
GPP_B6 / SRCCLKREQ1#
BA19
GPP_B7 / SRCCLKREQ2#
BE23
GPP_B8 / SRCCLKREQ3#
BD22
GPP_B9 / SRCCLKREQ4#
BF23
GPP_B10 / SRCCLKREQ5#
AR29
GPP_H0 / SRCCLKREQ6#
AU27
GPP_H1 / SRCCLKREQ7#
BG30
GPP_H2 / SRCCLKREQ8#
BF30
GPP_H3 / SRCCLKREQ9#
BD29
GPP_H4 / SRCCLKREQ10#
BE31
GPP_H5 / SRCCLKREQ11#
AY29
GPP_H6 / SRCCLKREQ12#
AV29
GPP_H7 / SRCCLKREQ13#
BD31
GPP_H8 / SRCCLKREQ14#
BF31
GPP_H9 / SRCCLKREQ15#
PCH_H
PCH_H
AUDIO
AUDIO
CLK_REQ
CLK_REQ
PORT B
PORT B
PORT C
PORT C
GPP_I8 / DDPC_CTRLDATA
PORT D
PORT D
GPP_I10 / DDPD_CTRLDATA
eDP
eDP
LPC
LPC
RTC
RTC
24MHZ
24MHZ
GPP_I5 / DDPB_CTRLCLK
GPP_I6 / DDPB_CTRLDATA
GPP_I0 / DDPB_HPD0
GPP_I7 / DDPC_CTRLCLK
GPP_I1 / DDPC_HPD1
GPP_I9 / DDPD_CTRLCLK
GPP_I2 / DDPD_HPD2
GPP_F19 / eDP_VDDEN
GPP_F20 / eDP_BKLTEN
GPP_F21 / eDP_BKLTCTL
GPP_I4 / EDP_HPD
GPP_I3 / DDPE_HPD3
CLKOUT_CPUBCLK_P
CLKOUT_CPUBCLK_N
CLKOUT_CPUNSSC_P
CLKOUT_CPUNSSC_N
CLKOUT_CPUPCIBCLK_P
CLKOUT_CPUPCIBCLK_N
CLKOUT_ITPXDP_P
CLKOUT_ITPXDP_N
CLKOUT_PCIE_P0
CLKOUT_PCIE_N0
CLKOUT_PCIE_P1
CLKOUT_PCIE_N1
CLKOUT_PCIE_P2
CLKOUT_PCIE_N2
CLKOUT_PCIE_P3
CLKOUT_PCIE_N3
CLKOUT_PCIE_P4
CLKOUT_PCIE_N4
CLKOUT_PCIE_P5
CLKOUT_PCIE_N5
CLKOUT_PCIE_P6
CLKOUT_PCIE_N6
CLKOUT_PCIE_P7
CLKOUT_PCIE_N7
CLKOUT_PCIE_P8
CLKOUT_PCIE_N8
CLKOUT_PCIE_P9
CLKOUT_PCIE_N9
CLKOUT_PCIE_P10
CLKOUT_PCIE_N10
CLKOUT_PCIE_P11
CLKOUT_PCIE_N11
CLKOUT_PCIE_P12
CLKOUT_PCIE_N12
CLKOUT_PCIE_P13
CLKOUT_PCIE_N13
CLKOUT_PCIE_P14
CLKOUT_PCIE_N14
CLKOUT_PCIE_P15
CLKOUT_PCIE_N15
HDMI_DDPB_CTRLCLK
AW5
HDMI_DDPB_CTRLDATA
AV7
HDMI_DDPB_HPD
AP7
DVI_DDPC_CTRLCLK
AT5
DVI_DDPC_CTRLDATA
BA6
DVI_DDPC_HPD
AT8
AY1
AY2
AP8
AC42
AE35
AE36
EDP_HPD
BA1
DDPE_HPD3
AT7
H1
H2
G2
G1
J2
J3
L3
L2
P7
P5
M5
M7
G7
H7
K5
K7
E4
E3
C6
C5
T7
T8
V7
V5
Y11
Y10
M1
M2
P2
P3
T3
T2
U2
U1
AA5
Y7
R2
R3
T11
T13
R492 100KR492 100K
R476 100KR476 100K
R428 10K/4R428 10K/4
By Server CRB
PCH_CPU_BCLK_DP
PCH_CPU_BCLK_DN
PCH_CPU_NSSC_CLK_DP
PCH_CPU_NSSC_CLK_DN
PCH_CPU_PCIE_DP
PCH_CPU_PCIE_DN
HDMI_DDPB_CTRLCLK 27
HDMI_DDPB_CTRLDATA 27
HDMI_DDPB_HPD 27
DVI_DDPC_CTRLCLK 26
DVI_DDPC_CTRLDATA 26
DVI_DDPC_HPD 26
2015.09.18
PCH_CPU_BCLK_DP 5
PCH_CPU_BCLK_DN 5
PCH_CPU_NSSC_CLK_DP 5
PCH_CPU_NSSC_CLK_DN 5
PCH_CPU_PCIE_DP 5
PCH_CPU_PCIE_DN 5
CK_SLOT1_DP 19
CK_SLOT1_DN 19
CK_PE_LAN 25
CK_PE_LAN# 25
CK_M2_DP 28
CK_M2_DN 28
CK_WIFI_BT_P 29
CK_WIFI_BT_N 29
HDMI_DDPB_CTRLCLK
HDMI_DDPB_CTRLDATA
DVI_DDPC_CTRLCLK
DVI_DDPC_CTRLDATA
DDI interfaace Disable
no connect
R414 2.2K/4R414 2.2K/4
R422 2.2K/4R422 2.2K/4
R410 2.2K/4R410 2.2K/4
R415 2.2K/4R415 2.2K/4
Port B HDMI
Port C DVI,HDMI2.0 OR Others
Port D DisplayPort
100M
24M
100M
VCC3
Close to PCH
A A
C381 12p50N6C381 12p50N6
12
C378 12p50N6C378 12p50N6
32.768KHZ12.5p_S-HF-3
32.768KHZ12.5p_S-HF-3
Y2
Y2
RTCX2
R448
R448
10M/6
10M/6
<1 inch
RTCX1
5
4
3
2
MSI
MSI
MSI
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
PCH-Audio/Display/Clock
PCH-Audio/Display/Clock
PCH-Audio/Display/Clock
1
13 52
13 52
13 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 14
5
Vinafix.com
GPP_A1828
ISH For U,Y only use
D D
2016.07.04
R526 10K/4R526 10K/4
3VSB
If the interface is not used: the signals can be used as
GPIO. If GPIO functionality is also not used, the signals can
be left as no-connect.
VCC3
CRB
R400 8.2K1%4R400 8.2K1%4
R545 8.2K1%4R545 8.2K1%4
GPP_E3
GPP_B4
WIFI_BTDIS#29
WF+BT_DET#29
VRALERT# VRALERT#
GPP_B11 default GPO to LOW
TP89TP89
TP90TP90
UART/GPIO no use can no connect
C C
2016.07.07
3VSB
R528 10K/4R528 10K/4
4
GPP_A18
WIFI_BTDIS#
WF+BT_DET#
GPP_B0
GPP_B1
GPP_B4
GPP_D9
PCH1F
PCH1F
BE17
GPP_A17 / ISH_GP7
BD19
GPP_A18 / ISH_GP0
BE18
GPP_A19 / ISH_GP1
BF19
GPP_A20 / ISH_GP2
BF18
GPP_A21 / ISH_GP3
BG16
GPP_A22 / ISH_GP4
BE19
GPP_A23 / ISH_GP5
AY22
GPP_B0
AV19
GPP_B1
BG21
GPP_B2 / VRALERT#
BF21
GPP_B3 / CPU_GP2
BF22
GPP_B4 / CPU_GP3
AR17
GPP_B11
AV22
GPP_B15 / GSPI0_CS#
AY24
GPP_B16 / GSPI0_CLK
BG25
GPP_B17 / GSPI0_MISO
BF25
GPP_B19
BF24
GPP_B20 / GSPI1_CLK
AP24
GPP_B21 / GSPI1_MISO
BA39
GPP_C8 / UART0_RXD
BG39
GPP_C9 / UART0_TXD
BF39
GPP_C10 / UART0_RTS#
BC45
GPP_C11 / UART0_CTS#
BB45
GPP_C12 / UART1_RXD / ISH_UART1_RXD
BA44
GPP_C13 / UART1_TXD / ISH_UART1_TXD
BA45
GPP_C14 / UART1_RTS# / ISH_UART1_RTS#
BA35
GPP_C15 / UART1_CTS# / ISH_UART1_CTS#
AY44
GPP_C20 / UART2_RXD
BA33
GPP_C21 / UART2_TXD
AW43
GPP_C22 / UART2_RTS#
AW42
GPP_C23 / UART2_CTS#
AV41
GPP_D0
AY39
GPP_D1
BB44
GPP_D2
AV43
GPP_D3
AU44
GPP_D4 / ISH_I2C2_SDA / ISH_I2C3_SDA
AT45
GPP_D9
AV39
GPP_D10
AT38
GPP_D11
AT41
GPP_D12
AP44
GPP_D13 / ISH_UART0_RXD / SML0BDATA / I2C2_SDA
AP43
GPP_D14 / ISH_UART0_TXD / SML0BCLK / I2C2_SCL
AT44
GPP_D15 / ISH_UART0_RTS#
AT39
GPP_D16 / ISH_UART0_CTS#
AM44
GPP_D21
AM42
GPP_D22
AN44
GPP_D23 / ISH_I2C2_SCL / ISH_I2C3_SCL
AP17
TP1
AU19
TP2
PCH_H
PCH_H
GPIO
GPIO
3
GPP_E3 / CPU_GP0
GPP_E7 / CPU_GP1
GPP_F14
GPP_F22
GPP_F23
GPP_G0 / FAN_TACH_0
GPP_G1 / FAN_TACH_1
GPP_G2 / FAN_TACH_2
GPP_G3 / FAN_TACH_3
GPP_G4 / FAN_TACH_4
GPP_G5 / FAN_TACH_5
GPP_G6 / FAN_TACH_6
GPP_G7 / FAN_TACH_7
GPP_G8 / FAN_PWM_0
GPP_G9 / FAN_PWM_1
GPP_G10 / FAN_PWM_2
GPP_G11 / FAN_PWM_3
GPP_G12 / GSXDOUT
GPP_G13 / GSXSLOAD
GPP_G14 / GSXDIN
GPP_G15 / GSXSRESET#
GPP_G16 / GSXCLK
GPP_G17 / ADR_COMPLETE
GPP_G18 / NMI#
GPP_G19 / SMI#
GPP_G20
GPP_G21
GPP_G22
GPP_G23
GPD7 / RSVD
RSVD-0
RSVD-1
RSVD-2
RSVD-3
RSVD-4
RSVD-5
RSVD-6
RSVD-7
RSVD-8
RSVD-9
RSVD-10
RSVD-11
RSVD-12
RSVD-13
RSVD-14
RSVD-15
RSVD-16
RSVD-17
RSVD-18
RSVD-19
RSVD-20
GPP_E3
AP41
GPP_E7
AK43
CPU_SKTOCC#_R
AD44
GPP_F22
AB45
AE39
AA43
AB44
AC36
T44
AC33
V43
Y42
AA44
W44
USB_MODE
Y44
AC35
AC41
AC39
Y36
Y43
U44
T43
V42
NMI#
U45
SMI#
R43
TEST_SETUP_MENU
Y35
GPP_G21
AC30
GPP_G22
R45
GPP_G23
R44
GPD7
BG11
V11
V13
AC13
AF17
AG17
AH14
AH16
M33
N33
AU22
P27
T27
T33
T35
N29
P29
T24
P24
AP29
BF1
BG2
TP91TP91
R373 0R/4R373 0R/4
TP88TP88
TP87TP87
R392 1K/4R392 1K/4
2
CPU_SKTOCC# 5
XMP_LED 44
USB_MODE 35
OPT BOM
SELECT
1.0 Add
1
XMP_LED
SMI#
NMI#
R356 10K/4R356 10K/4
R353 10K/4R353 10K/4
R354 10K/4R354 10K/4
3VSB
2015.04.23 USB mode change Pull down
USB_MODE
TEST_SETUP_MENU
For BIOS BOM USE
R362 10K/4R362 10K/4
R344 10K/4R344 10K/4
R333 10K/4R333 10K/4
R361 X_10K/4R361 X_10K/4
R360 10K/4R360 10K/4
R346 10K/4R346 10K/4
R355 X_10K/4R355 X_10K/4
GPP_G21
R365 X_10K/4R365 X_10K/4
GPP_G22
R345 X_10K/4R345 X_10K/4
GPP_G23
R338 X_10K/4R338 X_10K/4
3VSB
VCC3
3VSB
3VSB
B B
For BIOS BOM USE
GPP_G21 GPP_G22 GPP_G23
B250 Ac
B250
H270 AC
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
If an AMT capable Intel WLAN device is not implemented
then this signal can be left as NO CONNECT (NC).
5
MSI
MSI
MSI
4
3
2
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
0 0 0
0 0 1
0 01
MS-7A67
MS-7A67
MS-7A67
PCH-GPIO
PCH-GPIO
PCH-GPIO
1
14 52
14 52
14 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 15
5
3VSB
R384 X_10K/4R384 X_10K/4
R379 10K/4R379 10K/4
R454 10K/4R454 10K/4
GPP_H16
GPP_H17
GPP_H18
R459 10K/4R459 10K/4
R455 X_10K/4R455 X_10K/4
R461 X_10K/4R461 X_10K/4
PCH GPIO For BIOS DETCET MSI ID USED
D D
R497 10K/4R497 10K/4
3VSB
R480 10K/4R480 10K/4
VCC3
R509 10K/4R509 10K/4
VCC3
R543 X_10K/4R543 X_10K/4
VCC3
3VSB
R450 1K/4R450 1K/4
R443 1K/4R443 1K/4
LANPHY USE by SPEC
R433 499R1%4R433 499R1%4
R442 499R1%4R442 499R1%4
R413 1K/4R413 1K/4
R423 1K/4R423 1K/4
R470 150K1%4R470 150K1%4
PIRQA#
KBRST#
SERIRQ
LPC_DRQ#0
SMBCLK_VSB
SMBDATA_VSB
SMLINK0_CLK
SMLINK0_DATA
SMLINK1_CLK
SMLINK1_DATA
PCH_SML1ALERT#
LPC_AD020,44
LPC_AD120,44
LPC_AD220,44
LPC_AD320,44
LPC_FRAME#20,44
SERIRQ20,44
KBRST#20
GPP_H1218
BIOS_SEL_PCIESATA128
BIOS_DIS_SW128
MSI ID USED
FAN MODE USE
C C
DEBUG LED USE
PCH_SPI0_CLK34
PCH_SPI0_IO234
PCH_SPI0_IO334
PCH_SPI0_MISO34
PCH_SPI0_MOSI34
PCH_SPI0_CS0#34
GPP_H2045
GPP_H2145
GPP_H2245
GPP_H2345
4
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
SERIRQ
PIRQA#
CPUFAN1_MODE21
SYSFAN1_MODE22
KBRST#
R525 X_0R/4R525 X_0R/4
SMBCLK_VSB
SMBDATA_VSB
ME_TLS_ON
SMLINK0_CLK
SMLINK0_DATA
LPC_ESPI_SEL
SMLINK1_CLK
SMLINK1_DATA
PCH_SML1ALERT#
GPP_H12
GPP_H16
GPP_H17
GPP_H18
PCH_SPI0_CLK
PCH_SPI0_IO2
PCH_SPI0_IO3
PCH_SPI0_MISO
PCH_SPI0_MOSI
PCH_SPI0_CS0#
LPC_DRQ#0
ESPI_RESET# For NTC6793D
ME_TLS_ON18
LPC_ESPI_SEL18
TP114TP114
PCH1A
PCH1A
AR15
GPP_A1 / LAD0 / ESPI_IO0
AY15
GPP_A2 / LAD1 / ESPI_IO1
AV17
GPP_A3 / LAD2 / ESPI_IO2
BE14
GPP_A4 / LAD3 / ESPI_IO3
BF14
GPP_A5 / LFRAME# / ESPI_CS0#
BC13
GPP_A6 / SERIRQ / ESPI_CS1#
AY13
GPP_A7 / PIRQA# / ESPI_ALERT0#
AU15
GPP_A0 / RCIN# / ESPI_ALERT1#
BF16
GPP_A14/SUS_STAT#/ESPI_RESET#
BE38
GPP_C0 / SMBCLK
BC42
GPP_C1 / SMBDATA
BE41
GPP_C2 / SMBALERT#
BE37
GPP_C3 / SML0CLK
BC33
GPP_C4 / SML0DATA
BC35
GPP_C5 / SML0ALERT#
BC43
GPP_C6 / SML1CLK
BF38
GPP_C7 / SML1DATA
BA22
GPP_B23 / SML1ALERT# / PCHHOT#
BE32
GPP_H10 / SML2CLK
AU31
GPP_H11 / SML2DATA
BF33
GPP_H12 / SML2ALERT#
BE33
GPP_H13 / SML3CLK
AV31
GPP_H14 / SML3DATA
BD33
GPP_H15 / SML3ALERT#
BD36
GPP_H16 / SML4CLK
BF32
GPP_H17 / SML4DATA
BF34
GPP_H18 / SML4ALERT#
AY45
GPP_C16 / I2C0_SDA
AY33
GPP_C17 / I2C0_SCL
AY35
GPP_C18 / I2C1_SDA
AW44
GPP_C19 / I2C1_SCL
AY31
GPP_H19 / ISH_I2C0_SDA
BE36
GPP_H20 / ISH_I2C0_SCL
BF37
GPP_H21 / ISH_I2C1_SDA
BF36
GPP_H22 / ISH_I2C1_SCL
BG34
GPP_H23
AU2
CL_CLK
AU4
CL_DATA
AW2
CL_RST#
BE29
SPI0_CLK
BF26
SPI0_IO2
BD27
SPI0_IO3
BE27
SPI0_MISO
BF27
SPI0_MOSI
BF28
SPI0_CS0#
BA27
SPI0_CS1#
AY27
SPI0_CS2#
PCH_H
PCH_H
3
SLP_SUS#
GPD6 / SLP_A#
GPD4 / SLP_S3#
LPC
LPC
GPP_A13 / SUSWARN# / SUSPWRDNACK
SMB
Power
SMB
Power
Management
Management
GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLDOFF#
Thermalthip
PDG 600 ohm, CRB 560ohm
STRAP
STRAP
SPI JTAG
SPI JTAG
GPD5 / SLP_S4#
GPD10 / SLP_S5#
GPP_B12 / SLP_S0#
SLP_LAN#
GPD11 / LANPHYPC
GPD9 / SLP_WLAN#
GPP_A15 / SUSACK#
GPD8 / SUSCLK
DSW_PWROK
PCH_PWROK
SYS_PWROK
PROCPWRGD
RTCRST#
SRTCRST#
RSMRST#
DRAM_RESET#
SYS_RESET#
PLTRST_PROC#
GPP_B13 / PLTRST#
GPD3 / PWRBTN#
WAKE#
GPD2 / LAN_WAKE#
GPP_A11 /PME#
GPD1 / ACPRESENT
GPD0 / BATLOW#
GPP_A8 / CLKRUN#
THRMTRIP#
PM_DOWN
PM_SYNC
INTRUDER#
GPP_B14 / SPKR
GPP_B18 / GSPI0_MOSI
GPP_B22 / GSPI1_MOSI
JTAG_TCK
JTAG_TMS
JTAG_TDI
JTAG_TDO
JTAGX
ITP_PMODE
PCH_TRIGIN
PCH_TRIGOUT
PREQ#
PRDY#
CPU_TRST#
BF10
BE13
BA11
BF13
BB7
BE24
AV11
BC11
BA9
BF17
BD17
AV13
BD4
BE4
AW3
AL2
BE8
BF8
BG5
BD10
AV3
AK3
BD24
BC5
BE9
BE10
BF15
BD13
BF11
BD15
BA15
AK4
PECI
AH4
AH2
AH3
200mil < SYNC_R < 600 mil
BF9
AU24
BE26
AR24
AN1
AP4
AP2
AN3
AP3
AR2
AJ2
AL1
AU3
AR1
AV2
SLP_SUS#
SLP_A#
SLP_S3#
SLP_S4#
SLP_S5#
SLP_S0#
LAN_DISABLE#
SUSWARN#_CP
SUSACK#_CP
PCH_SUSCLK_R
PCH_DPWROK
PCH_PWROK
CHIP_PWGD
CPU_PWRGD_R
RTCRST#
SRTCRST#
RSMRST#
DRAM_RESET#
FP_RST#
CPURST#
PLTRST#_R
PWRBTN#
PCH_WAKE#
LAN_WAKE#
IO_PME_N
ME_DIS#
BATLOW#
GPP_A12
CLKRUN#
PCH_PECI
PCH_THERMTRIP_R
CPU_PM_DOWN
SYNC_R
INTRUDER#
NO_REBOOT
BOOT_BIOS_SEL
PCH_JTAG_TCK
ITP_PMODE
PCH_TRIGOUT
2
TP107TP107
TP113TP113
TP109TP109
R539 0R/4R539 0R/4
R26 33R/4R26 33R/4
R399 30R1%4R399 30R1%4
RTCRST# 33
R488 30R1%4R488 30R1%4
CRB
PECI Pull-down follow CRB
R388 X_0R/4R388 X_0R/4
R397 560R/4R397 560R/4
R402 30R1%4R402 30R1%4
R396 30R1%4R396 30R1%4
SLP_SUS# 20
SLP_S3# 20,35,36,43
SLP_S4# 20,35,39,40,43
PCH_SUSCLK 28,29
PCH_DPWROK 20,34
PCH_PWROK 5
CHIP_PWGD 20,34
CPU_PWRGD 5
RSMRST# 20,34
DRAM_RESET# 8,9
FP_RST# 44
CPURST# 5
PLTRST# 20
PWRBTN# 20
PCH_WAKE# 19,25,28,29
ME_DIS# 18
CPU_PECI 5,20
CPU_THERMTRIP_N 5
CPU_PM_DOWN 5
CPU_PM_SYNC 5
SPKR 18,44
NO_REBOOT 18
BOOT_BIOS_SEL 18
XDP_TMS 5
XDP_TDI 5
XDP_TDO 5
XDP_TCK0 5
TP22TP22
CPU_OUTPUT_TRIGGER 5
CPU_INPUT_TRIGGER 5
CPU_PREQ 5
CPU_PRDY 5
XDP_TRST 5
SERVER CRB USE
1
GPP_A12
PCH LANPHY PWR
Pull Down PCH PHY into low power state.
For No Use intel Lan
LAN_DISABLE#
PCH_WAKE#
LAN_WAKE#
Kaby Lake CRB0.7 no pull down
PCH_SUSCLK
SUSACK#_CP
CLKRUN#
2014.10.16 For PCH EDS
FP_RST#
BATLOW#
PCH_PECI
INTRUDER#
IO_PME_N
PWRBTN#
CPU_PM_DOWN
XDP_TCK0
XDP_TMS
XDP_TDO
XDP_TDI
PCH_JTAG_TCK
R486 10K/4R486 10K/4
R381 10K/4R381 10K/4
R519 1K/4R519 1K/4
R552 4.7K/4R552 4.7K/4
R586 X_1.5K1%4R586 X_1.5K1%4
R500 X_10K/4R500 X_10K/4
R544 10K/4R544 10K/4
R558 2.2K/4R558 2.2K/4
R485 10K/4R485 10K/4
R385 1K/4R385 1K/4
R554 1M1%4R554 1M1%4
R524 10K/4R524 10K/4
R464 3K1%4R464 3K1%4
R389 X_51R/4R389 X_51R/4
R416 X_1K/4R416 X_1K/4
R421 X_51R/4R421 X_51R/4
R401 51R/4R401 51R/4
R411 X_51R/4R411 X_51R/4
R429 X_51R/4R429 X_51R/4
VCC3
VCCSTPLL
close to PCH
3VSB
3VDSW
3VSB
VCC3
3VDSW
VBAT
3VSB
3VDSW
SMBUS
B B
PCH Thermal Monitor
需要再
隔離線路
S3/S5
不需要的接
Q61
PCH_SML1ALERT#
R475 X_10K/4R475 X_10K/4
3VSB
當溫度高於設定之後，此信號會被拉
PS:
只能在S0下使用，
VBAT
R522
C391
C391
1u6.3X6
1u6.3X6
R522
20K1%4
20K1%4
SRTCRST#
4
A A
5
CRB
Q61
D
D
S
S
G
G
X_2N7002
X_2N7002
JCI1
JCI1
H1X2M_BLACK-RH
H1X2M_BLACK-RH
R472 X_0R/4R472 X_0R/4
S5
不會有功能
2
1
INTRUDER#
LOW
。
PWR_FAULT# 20,44
RTCRST#
VBAT
3
R297
R297
20K1%4
20K1%4
C389
C389
1u6.3X6
1u6.3X6
(PCH
接出來是
底下動作的接
PULL HIGH 3VSB)
SMBCLK_VSB/SMBDATA_VSB
SMBCLK_VCC/SMBDATA_VCC
3VSB
R453
R453
10K/4
10K/4
Q16
Q16
NN-2N7002D
NN-2N7002D
G2
R452 1K/4R452 1K/4
R426 1K/4R426 1K/4
D1
G1
2
CHIP_PWGD
SMBCLK_VCC
SMBDATA_VCC
R458
R458
100K
100K
基本上
PCIE的SLOT
要接
3VSB的CPU的PWM IC/DDR
要接
VCC3
的其他的請注意
要怎麼接
+12V
Q59
Q59
NN-2N7002D
NN-2N7002D
R447
R447
10K/4
10K/4
D2
S2
S1
59G
G2
D1
59G
G1
S1
SMBDATA_VCC
SMBDATA_VSB
擺在一起(注意到所有的
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
VCC3
VCC3
MSI
MSI
MSI
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
SMBCLK_VSB
D2
R702
R702
X_0R/4
X_0R/4
S2
PCH-LPC/SPI/SMBUS/MISC
PCH-LPC/SPI/SMBUS/MISC
PCH-LPC/SPI/SMBUS/MISC
SMBCLK_VCC
R679
R679
X_0R/4
X_0R/4
SMBUS
MS-7A67
MS-7A67
MS-7A67
1
的分枝
Sheet of
Sheet of
Sheet of
SMBCLK_VSB 19,39
SMBCLK_VCC 8
SMBDATA_VCC 8
SMBDATA_VSB 19,39
)
15 52
15 52
15 52
11
11
11
Page 16

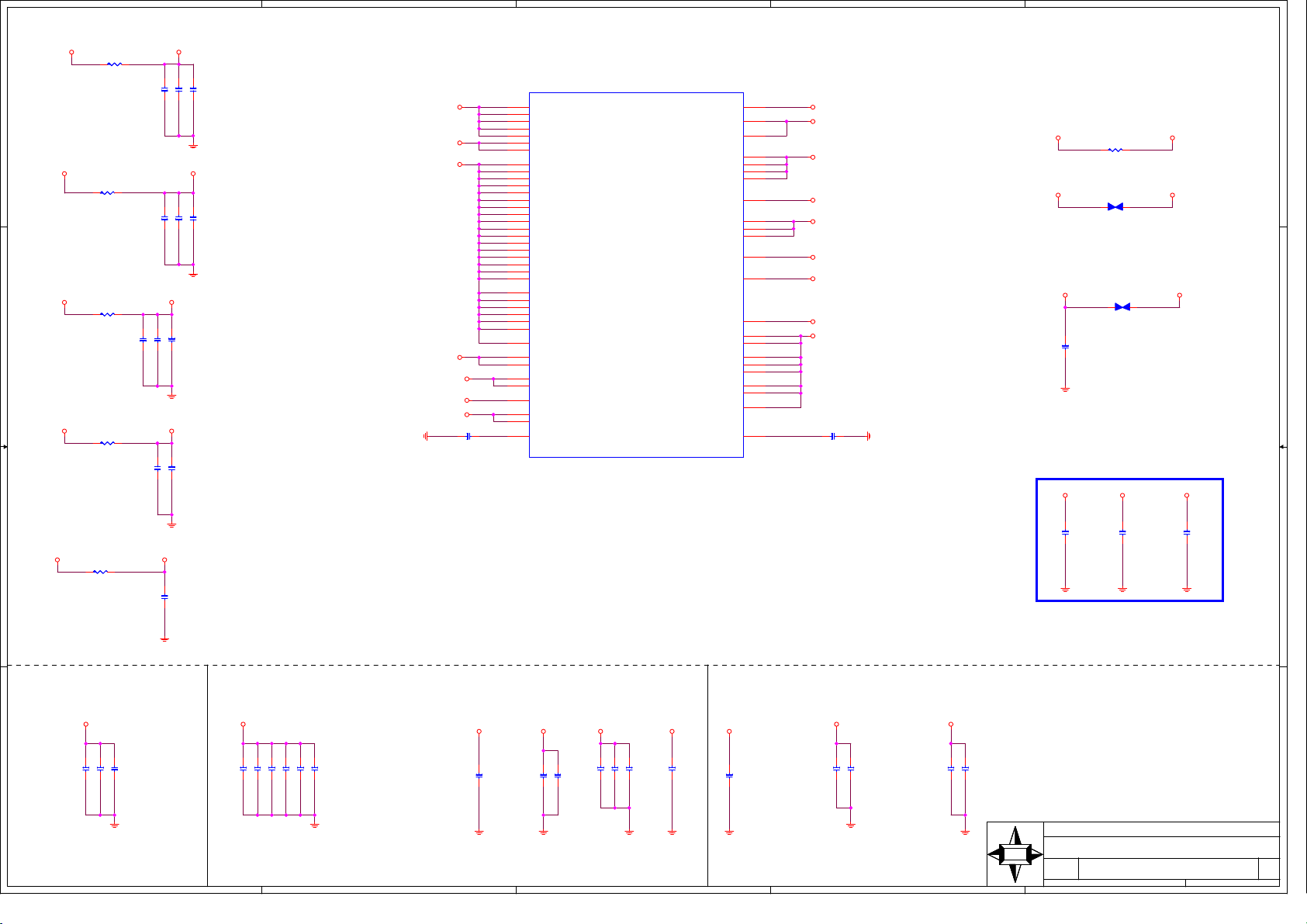

5
4
3
2
1
PCH_1VSB
R652 0R/6R652 0R/6
D D
PCH_1VSB
R584 0R/6R584 0R/6
PCH_1VSB PCH_PCIEPLL_1P0
R1295 0R/6R1295 0R/6
C C
PCH_1VSB
R1237 0R/6R1237 0R/6
PCH_CLK5_1P0
C535 10u6.3X6C535 10u6.3X6
PCH_MPHY_1P0
C516 10u6.3X6C516 10u6.3X6
C583 X_10u6.3X6C583 X_10u6.3X6
C577 10u6.3X6C577 10u6.3X6
C567 1u6.3X4C567 1u6.3X4
PCH_USBPLL_1P0
C934 10u6.3X6C934 10u6.3X6
C957 0.1u10X4C957 0.1u10X4
C956 0.1u10X4C956 0.1u10X4
C532 1u6.3X4C532 1u6.3X4
C528 1u6.3X4C528 1u6.3X4
C529 X_10u6.3X6C529 X_10u6.3X6
C44, C45
<120MIL
K1,K2
<120MIL
A43, B43
<120MIL
PCH_1VSB
PCH_CLK5_1P0
PCH_1VSB
PCH_MPHY_1P0
PCH_USBPLL_1P0
PCH_HDAPLL_1P0
PCH_PCIEPLL_1P0
C385 1u6.3X4C385 1u6.3X4
PCH1G
PCH1G
N17
VCCCLK1
T17
VCCCLK2-0
W17
VCCCLK2-1
T19
VCCCLK3
V20
VCCCLK4
K1
VCCCLK5-0
K2
VCCCLK5-1
AK25
VCCPRIM_1P0-0
AK23
VCCPRIM_1P0-1
AK21
VCCPRIM_1P0-2
AK20
VCCPRIM_1P0-3
AF26
VCCPRIM_1P0-4
AF23
VCCPRIM_1P0-5
AD28
VCCPRIM_1P0-6
AD26
VCCPRIM_1P0-7
AD23
VCCPRIM_1P0-8
AB28
VCCPRIM_1P0-9
AB26
VCCPRIM_1P0-10
AB23
VCCPRIM_1P0-11
AA25
VCCPRIM_1P0-12
AA23
VCCPRIM_1P0-13
AM22
VCCPRIM_1P0-14
AD17
VCCPRIM_1P0-15
AE16
VCCPRIM_1P0-16
V29
VCCMPHY_1P0-0
V28
VCCMPHY_1P0-1
V26
VCCMPHY_1P0-2
V25
VCCMPHY_1P0-3
V23
VCCMPHY_1P0-4
V21
VCCMPHY_1P0-5
W28
VCCAPLLEBB_1P1
B43
VCCAMPHYPLL_1P0-0
A43
VCCAMPHYPLL_1P0-1
AM5
VCCUSB2PLL_1P0-0
AK5
VCCUSB2PLL_1P0-1
AR19
VCCHDAPLL_1P0
C45
VCCPCIE3PLL_1P0-0
C44
VCCPCIE3PLL_1P0-1
BC29
DCPDSW_1P0
PCH_H
PCH_H
POWER
POWER
VCCRTC
VCCDSW_3P3
VCCPDSW_3P3
VCCPRIM_3P3-0
VCCPRIM_3P3-1
VCCPRIM_3P3-2
VCCPRIM_3P3-3
VCCHDA
VCCSPI-0
VCCSPI-1
VCCSPI-2
VCCRTCPRIM_3P3
VCCATS
VCCPGPPA
VCCPGPPBCH-0
VCCPGPPBCH-1
VCCPGPPD-0
VCCPGPPD-1
VCCPGPPD-2
VCCPGPPEF-0
VCCPGPPEF-1
VCCPGPPG
DCPRTC
BC22
Y16
BC24
AP5
BG4
BG3
BF3
BC15
BG43
BG42
BG41
BC20
AE13
BC31
BF42
BE40
BE45
BE44
BD45
AM41
AK41
AE41
BC27
DCPRTC
VBAT
3VDSW
PCH_CORE_3VSB
3VSB
PCH_SPI
3VSB
VCC3
PWR_GPP_A
3VSB
C940 0.1u10X4C940 0.1u10X4
BC27
<200MIL
PCH_CORE_3VSB 3VSB
R1241 0R/6R1241 0R/6
PCH_SPI 3VSB
CP13 X_COPPERCP13 X_COPPER
CP16 X_COPPERCP16 X_COPPER
Kabylake?
3VSB3VSB 3VSB
C367 X_0.1u10X4C367 X_0.1u10X4C968 0.1u10X4C968 0.1u10X4
C356 X_0.1u10X4C356 X_0.1u10X4
3VSBPWR_GPP_A
BF42AE41AM41
C380 X_0.1u10X4C380 X_0.1u10X4
PCH_1VSB
B B
A A
R1294 0R/6R1294 0R/6
PCH_1VSB PCH_1VSB 3VSB
C564 1u6.3X4C564 1u6.3X4
C563 1u6.3X4C563 1u6.3X4
C953 X_10u6.3X6C953 X_10u6.3X6
V21, V23, V25,
V26, V28, V29
<120MIL
5
PCH_HDAPLL_1P0
C947 0.1u10X4C947 0.1u10X4
PCH_SPIPCH_CORE_3VSB3VDSW
C958 0.1u10X4C958 0.1u10X4
C963 0.1u10X4C963 0.1u10X4
C961 0.1u10X4C961 0.1u10X4
C966 0.1u10X4C966 0.1u10X4
C960 0.1u10X4C960 0.1u10X4
C959 0.1u10X4C959 0.1u10X4
4
C927 1u6.3X4C927 1u6.3X4
C935 0.1u10X4C935 0.1u10X4
C936 1u6.3X4C936 1u6.3X4
C565 0.1u10X4C565 0.1u10X4
C932 0.1u10X4C932 0.1u10X4
C933 0.1u10X4C933 0.1u10X4
3
VCC33VSB
C967 0.1u10X4C967 0.1u10X4
C930 1u6.3X4C930 1u6.3X4
AE13
<200MIL
VBAT
C955 0.1u10X4C955 0.1u10X4
C937 1u6.3X4C937 1u6.3X4
BC20
<120MIL
BC20
C954 1u6.3X4C954 1u6.3X4
C938 0.1u10X4C938 0.1u10X4
<120MIL
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
17ci203
MS-7A67
PCH-Power
PCH-Power
PCH-Power
MS-7A67
1
16 52
16 52
16 52
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
2
Monday, December 19, 2016
Page 17
5
Vinafix.com
4
3
2
1
K27
PCH1H
PCH1H
G42
G40
BG9
BG44
BG40
BG37
BG32
BG28
BG23
BG18
BG14
BF45
BF44
BF43
BE2
BE1
BD7
BD39
BD34
BD30
BD25
BD21
BD2
BD16
BD11
BD1
BC9
BC40
BC38
BB40
BA42
BA4
BA37
BA31
K13
VSS-250
K11
VSS-249
J4
VSS-248
H9
VSS-247
H42
VSS-246
H4
VSS-245
H38
VSS-244
H35
VSS-243
H33
VSS-242
H29
VSS-241
H27
VSS-240
H24
VSS-239
H22
VSS-238
H19
VSS-237
H17
VSS-236
H13
VSS-235
H11
VSS-234
G9
VSS-233
VSS-232
VSS-231
G4
VSS-230
F6
VSS-229
F43
VSS-228
F39
VSS-227
F2
VSS-226
E8
VSS-225
E6
VSS-224
E31
VSS-223
D7
VSS-222
D45
VSS-221
D44
VSS-220
D39
VSS-219
D36
VSS-218
D35
VSS-217
D33
VSS-216
D30
VSS-215
D29
VSS-214
D25
VSS-213
D24
VSS-212
D21
VSS-211
D19
VSS-210
D16
VSS-209
D15
VSS-208
D12
VSS-207
D10
VSS-206
D1
VSS-205
C9
VSS-204
C37
VSS-203
C2
VSS-202
C1
VSS-201
VSS-200
VSS-199
VSS-198
VSS-197
VSS-196
VSS-195
VSS-194
VSS-193
VSS-192
BF5
VSS-191
VSS-190
VSS-189
VSS-188
BF2
VSS-187
VSS-186
VSS-185
VSS-184
VSS-183
VSS-182
VSS-181
VSS-180
VSS-179
VSS-178
VSS-177
VSS-176
VSS-175
VSS-174
VSS-173
VSS-172
VSS-171
VSS-170
VSS-169
VSS-168
VSS-167
PCH_H
PCH_H
BA29
D D
C C
B B
L13
K45
K38
K36
K35
K33
VSS-252K3VSS-251
VSS-166
VSS-253
VSS-165
BA17
VSS-254
VSS-164
BA13
VSS-259
VSS-258K8VSS-257
VSS-256
VSS-255
VSS-163
VSS-162
VSS-161
VSS-160B4VSS-159
B45
B44
B41
B35
M38
M36
M11
L42
L35
L15
VSS-260
VSS-158
B30
VSS-157B3VSS-156
B25
M4
VSS-266
VSS-265
VSS-264
VSS-263
VSS-262L4VSS-261
VSS-155B2VSS-154
VSS-153B1VSS-152
VSS-151
B12
AY8
AY42
N24
N22
N19
N15
N13
VSS-274
VSS-273
VSS-272
VSS-271
VSS-270
VSS-269M9VSS-268M8VSS-267
VSS-150
VSS-149
VSS-148
VSS-147
VSS-146
VSS-145
VSS-144
AY4
AV8
AY37
AY19
AY11
AV45
AV38
N31
VSS-275
VSS-143
AV35
N42
VSS-276
VSS-142
AV33
P10
VSS-277
VSS-141
AV27
P12
VSS-278
VSS-140
AV24
P13
AV15
P17
P15
VSS-281
VSS-280
VSS-279
VSS-139
VSS-138
VSS-137
AV1
AV10
P42
P35
P33
P31
P22
P19
VSS-290R1VSS-289P8VSS-288
VSS-287P4VSS-286
VSS-285
VSS-284
VSS-283
VSS-282
VSS
VSS
VSS-136
VSS-135
VSS-134
VSS-133
VSS-132
VSS-131
VSS-130
VSS-129
VSS-128
AT42
AT37
AT35
AT13
AU17
AU11
AT10
AU33
AU29
R32
AR4
T36
T32
T29
T22
T14
T10
VSS-296
VSS-295
VSS-294
VSS-293
VSS-292
VSS-291
VSS-127
VSS-126
VSS-125
VSS-124
VSS-123
VSS-122
AP39
AR33
AR31
AR27
AR22
AR13
V10
U42
T42
T38
VSS-304
VSS-303
VSS-302U4VSS-301T5VSS-300
VSS-299T4VSS-298
VSS-297
VSS-121
VSS-120
VSS-119
VSS-118
VSS-117
VSS-116
VSS-115
VSS-114
AP34
AP33
AP31
AP27
AP22
AP19
AP15
V14
VSS-305
VSS-113
AP13
V16
VSS-306
VSS-112
AP11
V17
VSS-307
VSS-111
AP10
V18
AN45
V33
V32
V30
VSS-311
VSS-310
VSS-309
VSS-308
VSS-110
VSS-109
VSS-108
VSS-107
AM4
AN14
AM33
V38
VSS-106
AM32
VSS-105
AM27
VSS-314V8VSS-313V4VSS-312
VSS-104
AM24
W18
VSS-315
VSS-103
AM19
W20
VSS-316
VSS-102
AM17
W21
VSS-317
VSS-101
AM14
W23
VSS-318
VSS-100
AM13
W25
VSS-319
VSS-099
AM11
W26
VSS-320
VSS-098
AM10
W29
AL42
Y14
Y13
W45
VSS-325
VSS-324
VSS-323
VSS-322W3VSS-321
VSS-097
VSS-096
VSS-095
VSS-094
VSS-093
AL4
AK39
AK35
AK32
Y30
VSS-326
VSS-092
AK30
Y32
VSS-327
VSS-091
AK29
Y33
VSS-328
VSS-090
AK28
Y38
VSS-089
AK26
VSS-088
AK18
VSS-331Y8VSS-330Y4VSS-329
VSS-087
AK17
AM29
VSS-332
VSS-086
AK16
VSS-085
AK14
VSS-084
AK10
VSS-000
VSS-001
VSS-002
VSS-003
VSS-004
VSS-005
VSS-006
VSS-007
VSS-008
VSS-009
VSS-010
VSS-011
VSS-012
VSS-013
VSS-014
VSS-015
VSS-016
VSS-017
VSS-018
VSS-019
VSS-020
VSS-021
VSS-022
VSS-023
VSS-024
VSS-025
VSS-026
VSS-027
VSS-028
VSS-029
VSS-030
VSS-031
VSS-032
VSS-033
VSS-034
VSS-035
VSS-036
VSS-037
VSS-038
VSS-039
VSS-040
VSS-041
VSS-042
VSS-043
VSS-044
VSS-045
VSS-046
VSS-047
VSS-048
VSS-049
VSS-050
VSS-051
VSS-052
VSS-053
VSS-054
VSS-055
VSS-056
VSS-057
VSS-058
VSS-059
VSS-060
VSS-061
VSS-062
VSS-063
VSS-064
VSS-065
VSS-066
VSS-067
VSS-068
VSS-069
VSS-070
VSS-071
VSS-072
VSS-073
VSS-074
VSS-075
VSS-076
VSS-077
VSS-078
VSS-079
VSS-080
VSS-081
VSS-082
VSS-083
A12
A2
A25
A3
A30
A35
A4
A40
A41
A42
A44
A6
AA17
AA18
AA20
AA21
AA26
AA28
AA29
AB17
AB18
AB20
AB21
AB25
AB29
AB4
AB42
AC10
AC11
AC14
AC16
AC32
AC38
AC4
AC5
AC7
AC8
AD1
AD18
AD20
AD21
AD25
AD29
AD45
AE11
AE14
AE32
AE33
AE38
AE4
AE8
AF18
AF20
AF21
AF25
AF28
AF29
AF4
AF42
AG18
AG20
AG21
AG23
AG25
AG26
AG28
AG29
AH11
AH13
AH30
AH32
AH33
AH38
AJ1
AJ17
AJ18
AJ20
AJ21
AJ23
AJ25
AJ26
AJ28
AJ29
AJ45
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
17ci203
MS-7A67
PCH-GND
PCH-GND
PCH-GND
MS-7A67
1
17 52
17 52
17 52
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
Page 18
5

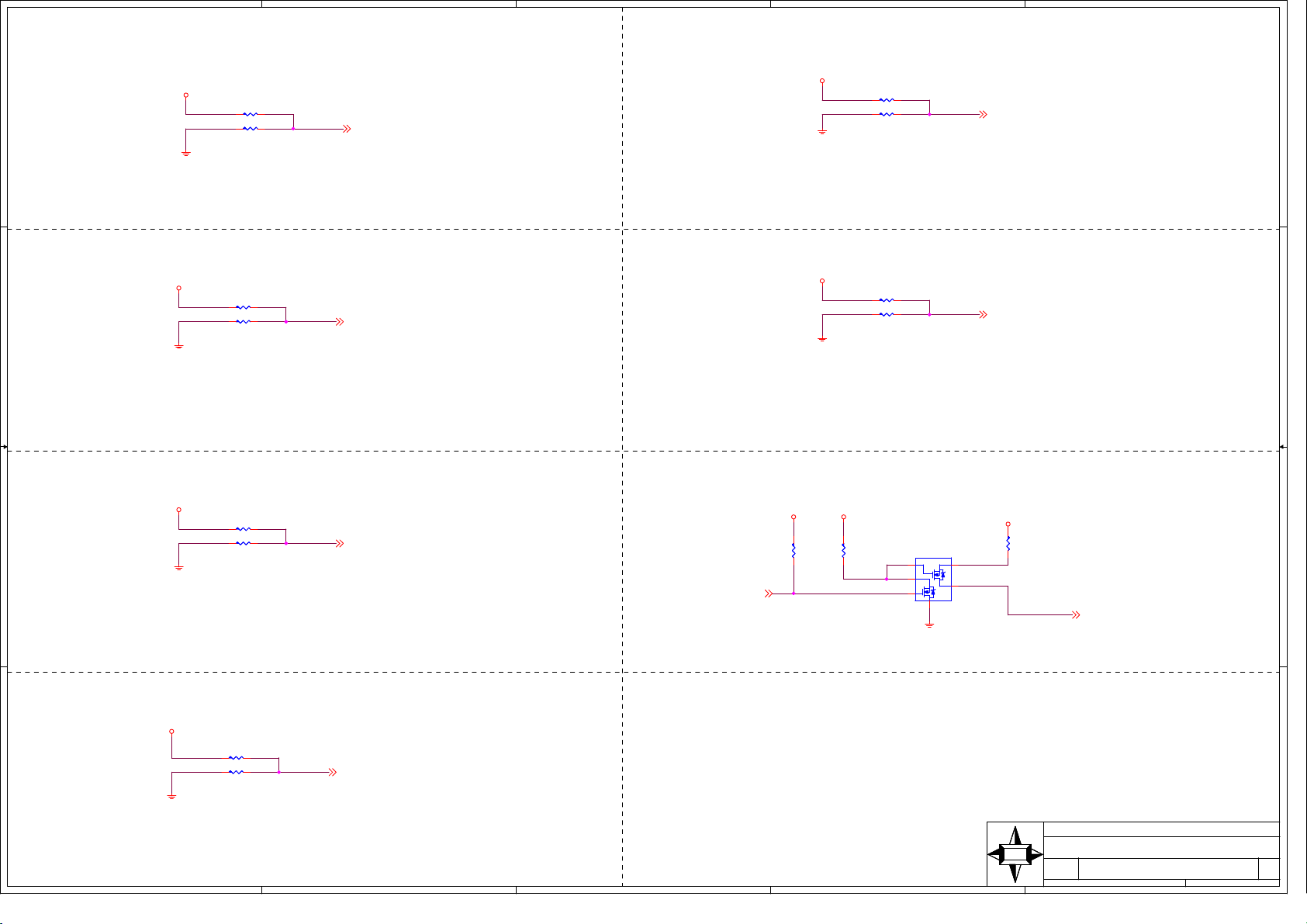

TOP Swap
+3.3S
VCC3
D D
R502 X_4.7K/4R502 X_4.7K/4 R425 X_20K/4R425 X_20K/4
R503 20K/4R503 20K/4
SPKR 15,44
4
3
2
1
LPC eSPI Mode
+3.3A
3VSB
R424 X_4.7K/4R424 X_4.7K/4
LPC_ESPI_SEL 15
0 : LPC
1 : eSPI
Internal pull-down 20K is disabled after PLTRST#
No Reboot
+3.3S
VCC3
R530 X_4.7K/4R530 X_4.7K/4
R504 1K/4R504 1K/4
C C
0 : DISABLE (Default)
1 : ENABLE
NO_REBOOT 15
Boot BIOS
Internal pull-down 20K is disabled after RSMRST
+3.3A
3VSB
0 : SPI
1 : LPC
R462 X_4.7K/4R462 X_4.7K/4
R463 X_20K/4R463 X_20K/4
BOOT_BIOS_SEL 15
Internal pull-down 20K is disabled after PLTRST
Internal pull-down 20K is disabled after PLTRST#
AMT and SBA with confidentiality
3VSB
+3.3A
B B
R434 4.7K/4R434 4.7K/4
R435 X_20K/4R435 X_20K/4
0 : DISABLE
1 : ENABLE (Default)
ME_TLS_ON 15
HDA_SDO
R585
R585
47K/4
47K/4
+12V
R571
R571
47K/4
47K/4
G2
D1
G1
Q75
Q75
NN-2N7002D
NN-2N7002D
S1
3VSB
R561
R561
1K/4
1K/4
D2
S2
AZ_SDOUT_R
AZ_SDOUT_R 13
ATX_5VSB
ME_DIS#15
Internal pull-down 20K is disabled after RSMRST
ESPI FLASH SHARING MODE
3VSB
+3.3A
R456 X_4.7K/4R456 X_4.7K/4
A A
R457 X_20K/4R457 X_20K/4
0 : MASTER ATTACHED FLASH SHARING
1 : SLAVE ATTACHED FLASH SHARING
Internal pull-down 20K is disabled after RSMRST
5
GPP_H12 15
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
PCH-Strap
PCH-Strap
PCH-Strap
MS-7A67
1
18 52
18 52
18 52
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
4
3
2
Monday, December 19, 2016
Page 19

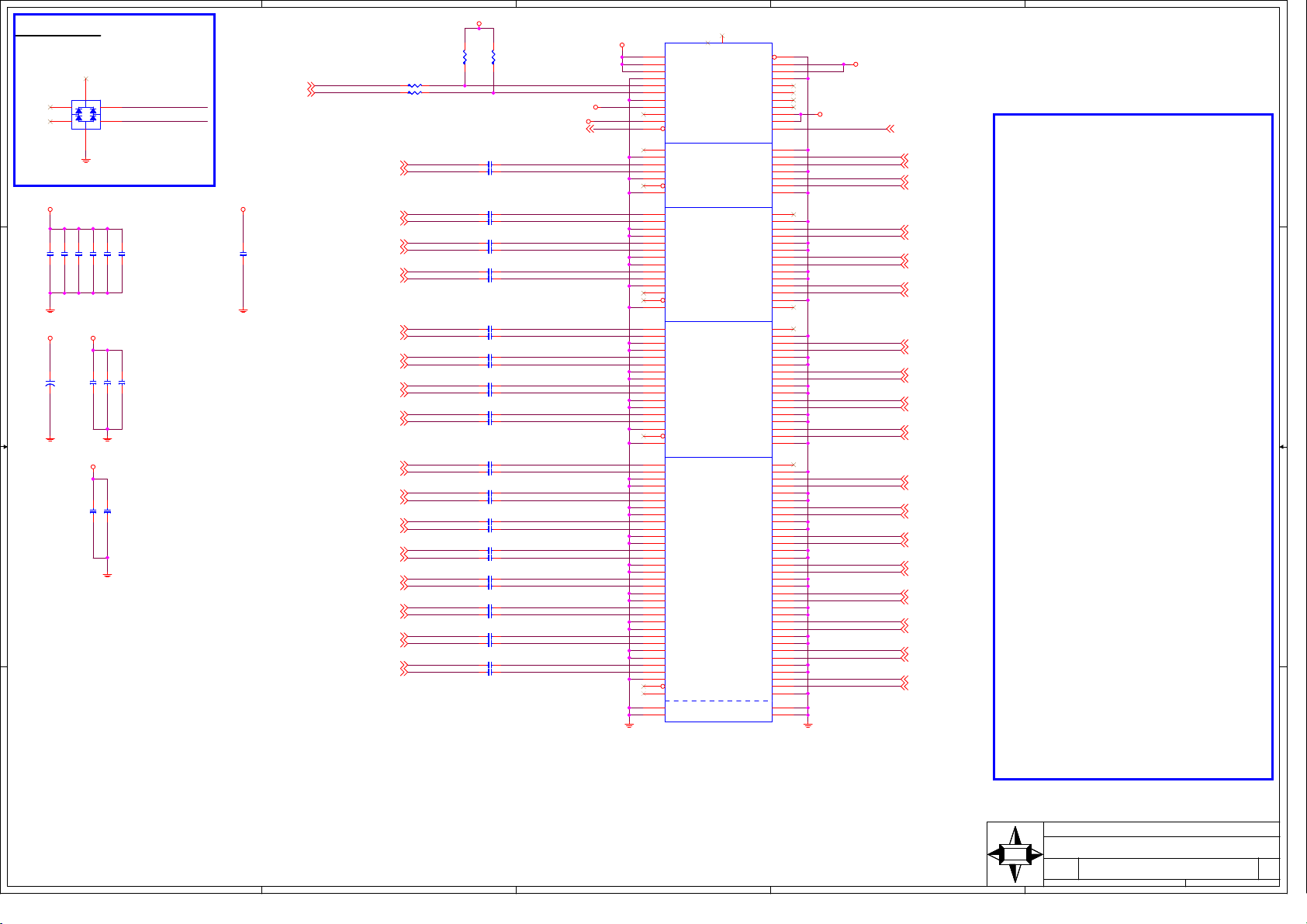

5
teknisi indonesia
SMBUS ESD
52
4
D D
3
SMBCLK_VSB_PCIE
6
SMBDATA_VSB_PCIE
1
D1
D1
ESD-AOZ8906
ESD-AOZ8906
2015.12.03
SMBCLK_VSB15,39
SMBDATA_VSB15,39
By Placement
+12V
C213 22u16X8C213 22u16X8
C131 22u16X8C131 22u16X8
C240 22u16X8C240 22u16X8
C234 22u16X8C234 22u16X8
C198 X_22u16X8C198 X_22u16X8
C211 22u16X8C211 22u16X8
VCC3
VCC3
C C
C312 0.1u10X4C312 0.1u10X4
C313 1u6.3X4C313 1u6.3X4
C304 1u6.3X4C304 1u6.3X4
+
+
12
EC28
EC28
560u6.3SO
560u6.3SO
3VSB
C311 X_0.1u10X4C311 X_0.1u10X4
C315 0.1u10X4C315 0.1u10X4
B B
+12V
C310 0.1u16X4C310 0.1u16X4
4
R650 X_0R/4R650 X_0R/4
R651 X_0R/4R651 X_0R/4
EXP_A_TXP_04
EXP_A_TXN_04
EXP_A_TXP_14
EXP_A_TXN_14
EXP_A_TXP_24
EXP_A_TXN_24
EXP_A_TXP_34
EXP_A_TXN_34
EXP_A_TXP_44
EXP_A_TXN_44
EXP_A_TXP_54
EXP_A_TXN_54
EXP_A_TXP_64
EXP_A_TXN_64
EXP_A_TXP_74
EXP_A_TXN_74
EXP_A_TXP_84
EXP_A_TXN_84
EXP_A_TXP_94
EXP_A_TXN_94
EXP_A_TXP_104
EXP_A_TXN_104
EXP_A_TXP_114
EXP_A_TXN_114
EXP_A_TXP_124
EXP_A_TXN_124
EXP_A_TXP_134
EXP_A_TXN_134
EXP_A_TXP_144
EXP_A_TXN_144
EXP_A_TXP_154
EXP_A_TXN_154
1K/4
1K/4
R451
R451
3VSB
R460
R460
1K/4
1K/4
C272 0.22u6.3X4C272 0.22u6.3X4
C273 0.22u6.3X4C273 0.22u6.3X4
C274 0.22u6.3X4C274 0.22u6.3X4
C275 0.22u6.3X4C275 0.22u6.3X4
C276 0.22u6.3X4C276 0.22u6.3X4
C277 0.22u6.3X4C277 0.22u6.3X4
C278 0.22u6.3X4C278 0.22u6.3X4
C279 0.22u6.3X4C279 0.22u6.3X4
C280 0.22u6.3X4C280 0.22u6.3X4
C281 0.22u6.3X4C281 0.22u6.3X4
C282 0.22u6.3X4C282 0.22u6.3X4
C283 0.22u6.3X4C283 0.22u6.3X4
C284 0.22u6.3X4C284 0.22u6.3X4
C285 0.22u6.3X4C285 0.22u6.3X4
C286 0.22u6.3X4C286 0.22u6.3X4
C287 0.22u6.3X4C287 0.22u6.3X4
C288 0.22u6.3X4C288 0.22u6.3X4
C289 0.22u6.3X4C289 0.22u6.3X4
C290 0.22u6.3X4C290 0.22u6.3X4
C291 0.22u6.3X4C291 0.22u6.3X4
C292 0.22u6.3X4C292 0.22u6.3X4
C293 0.22u6.3X4C293 0.22u6.3X4
C294 0.22u6.3X4C294 0.22u6.3X4
C295 0.22u6.3X4C295 0.22u6.3X4
C296 0.22u6.3X4C296 0.22u6.3X4
C297 0.22u6.3X4C297 0.22u6.3X4
C298 0.22u6.3X4C298 0.22u6.3X4
C299 0.22u6.3X4C299 0.22u6.3X4
C300 0.22u6.3X4C300 0.22u6.3X4
C301 0.22u6.3X4C301 0.22u6.3X4
C302 0.22u6.3X4C302 0.22u6.3X4
C303 0.22u6.3X4C303 0.22u6.3X4
SMBCLK_VSB_PCIE
SMBDATA_VSB_PCIE
VCC3
3VSB
PCH_WAKE#15,25,28,29
EXP_A_TXP_0_C
EXP_A_TXN_0_C
EXP_A_TXP_1_C
EXP_A_TXN_1_C
EXP_A_TXP_2_C
EXP_A_TXN_2_C
EXP_A_TXP_3_C
EXP_A_TXN_3_C
EXP_A_TXP_4_C
EXP_A_TXN_4_C
EXP_A_TXP_5_C
EXP_A_TXN_5_C
EXP_A_TXP_6_C
EXP_A_TXN_6_C
EXP_A_TXP_7_C
EXP_A_TXN_7_C
EXP_A_TXP_8_C
EXP_A_TXN_8_C
EXP_A_TXP_9_C
EXP_A_TXN_9_C
EXP_A_TXP_10_C
EXP_A_TXN_10_C
EXP_A_TXP_11_C
EXP_A_TXN_11_C
EXP_A_TXP_12_C
EXP_A_TXN_12_C
EXP_A_TXP_13_C
EXP_A_TXN_13_C
EXP_A_TXP_14_C
EXP_A_TXN_14_C
EXP_A_TXP_15_C
EXP_A_TXN_15_C
+12V
3
X1
PCI_E1
PCI_E1
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
X2
X5
X1
12V-3
12V-4
RSVD5
GND-35
SMCLK
SMDAT
GND-36
3.3V-3
JTAG1
3.3VAUX
WAKE#
RSVD6
GND
HSOP0
HSON0
GND-37
PRSNT2#1
GND-38
HSOP1
HSON1
GND-39
GND-40
HSOP2
HSON2
GND-41
GND-42
HSOP3
HSON3
GND-43
RSVD7
PRSNT2#2
GND-44
HSOP4
HSON4
GND-45
GND-46
HSOP5
HSON5
GND-47
GND-48
HSOP6
HSON6
GND-49
GND-50
HSOP7
HSON7
GND-51
PRSNT2#3
GND-52
HSOP8
HSON8
GND-53
GND-54
HSOP9
HSON9
GND-55
GND-56
HSOP10
HSON10
GND-57
GND-58
HSOP11
HSON11
GND-59
GND-60
HSOP12
HSON12
GND-61
GND-62
HSOP13
HSON13
GND-63
GND-64
HSOP14
HSON14
GND-65
GND-66
HSOP15
HSON15
GND-67
PRSNT2#4
RSVD8
GND-X2
GND-X5
SLOT-PCI164P_RED-2PITCH-RH-1
SLOT-PCI164P_RED-2PITCH-RH-1
2
X6
X6
EMI
EMI
PRSNT1#
12V-1
12V-2
GND-1
JTAG2
JTAG3
JTAG4
JTAG5
3.3V-1
3.3V-2
PWRGD
GND-2
REFCLK+
REFCLK-
GND-3
HSIP0
HSIN0
GND-4
RSVD1
GND-5
HSIP1
HSIN1
GND-6
GND-7
HSIP2
HSIN2
GND-8
GND-9
HSIP3
HSIN3
GND-10
RSVD2
RSVD3
GND-11
HSIP4
HSIN4
GND-12
GND-13
HSIP5
HSIN5
GND-14
GND-15
HSIP6
HSIN6
GND-16
GND-17
HSIP7
HSIN7
GND-18
RSVD4
GND-19
HSIP8
HSIN8
GND-20
GND-21
HSIP9
HSIN9
GND-22
GND-23
HSIP10
HSIN10
GND-24
GND-25
HSIP11
HSIN11
GND-26
GND-27
HSIP12
HSIN12
GND-28
GND-29
HSIP13
HSIN13
GND-30
GND-31
HSIP14
HSIN14
GND-32
GND-33
HSIP15
HSIN15
GND-34
GND-X3
GND-X4
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
X3
X4
+12V
VCC3
PLTRST_BU1#_X16
CK_SLOT1_DP
CK_SLOT1_DN
EXP_A_RXP_0
EXP_A_RXN_0
EXP_A_RXP_1
EXP_A_RXN_1
EXP_A_RXP_2
EXP_A_RXN_2
EXP_A_RXP_3
EXP_A_RXN_3
EXP_A_RXP_4
EXP_A_RXN_4
EXP_A_RXP_5
EXP_A_RXN_5
EXP_A_RXP_6
EXP_A_RXN_6
EXP_A_RXP_7
EXP_A_RXN_7
EXP_A_RXP_8
EXP_A_RXN_8
EXP_A_RXP_9
EXP_A_RXN_9
EXP_A_RXP_10
EXP_A_RXN_10
EXP_A_RXP_11
EXP_A_RXN_11
EXP_A_RXP_12
EXP_A_RXN_12
EXP_A_RXP_13
EXP_A_RXN_13
EXP_A_RXP_14
EXP_A_RXN_14
EXP_A_RXP_15
EXP_A_RXN_15
PLTRST_BU1#_X16 20
CK_SLOT1_DP 13
CK_SLOT1_DN 13
EXP_A_RXP_0 4
EXP_A_RXN_0 4
EXP_A_RXP_1 4
EXP_A_RXN_1 4
EXP_A_RXP_2 4
EXP_A_RXN_2 4
EXP_A_RXP_3 4
EXP_A_RXN_3 4
EXP_A_RXP_4 4
EXP_A_RXN_4 4
EXP_A_RXP_5 4
EXP_A_RXN_5 4
EXP_A_RXP_6 4
EXP_A_RXN_6 4
EXP_A_RXP_7 4
EXP_A_RXN_7 4
EXP_A_RXP_8 4
EXP_A_RXN_8 4
EXP_A_RXP_9 4
EXP_A_RXN_9 4
EXP_A_RXP_10 4
EXP_A_RXN_10 4
EXP_A_RXP_11 4
EXP_A_RXN_11 4
EXP_A_RXP_12 4
EXP_A_RXN_12 4
EXP_A_RXP_13 4
EXP_A_RXN_13 4
EXP_A_RXP_14 4
EXP_A_RXN_14 4
EXP_A_RXP_15 4
EXP_A_RXN_15 4
1.0 Remove PCIE SLOT LED
1
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
PCIE SLOT-CPU(X16)
PCIE SLOT-CPU(X16)
PCIE SLOT-CPU(X16)
1
19 52
19 52
19 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 20

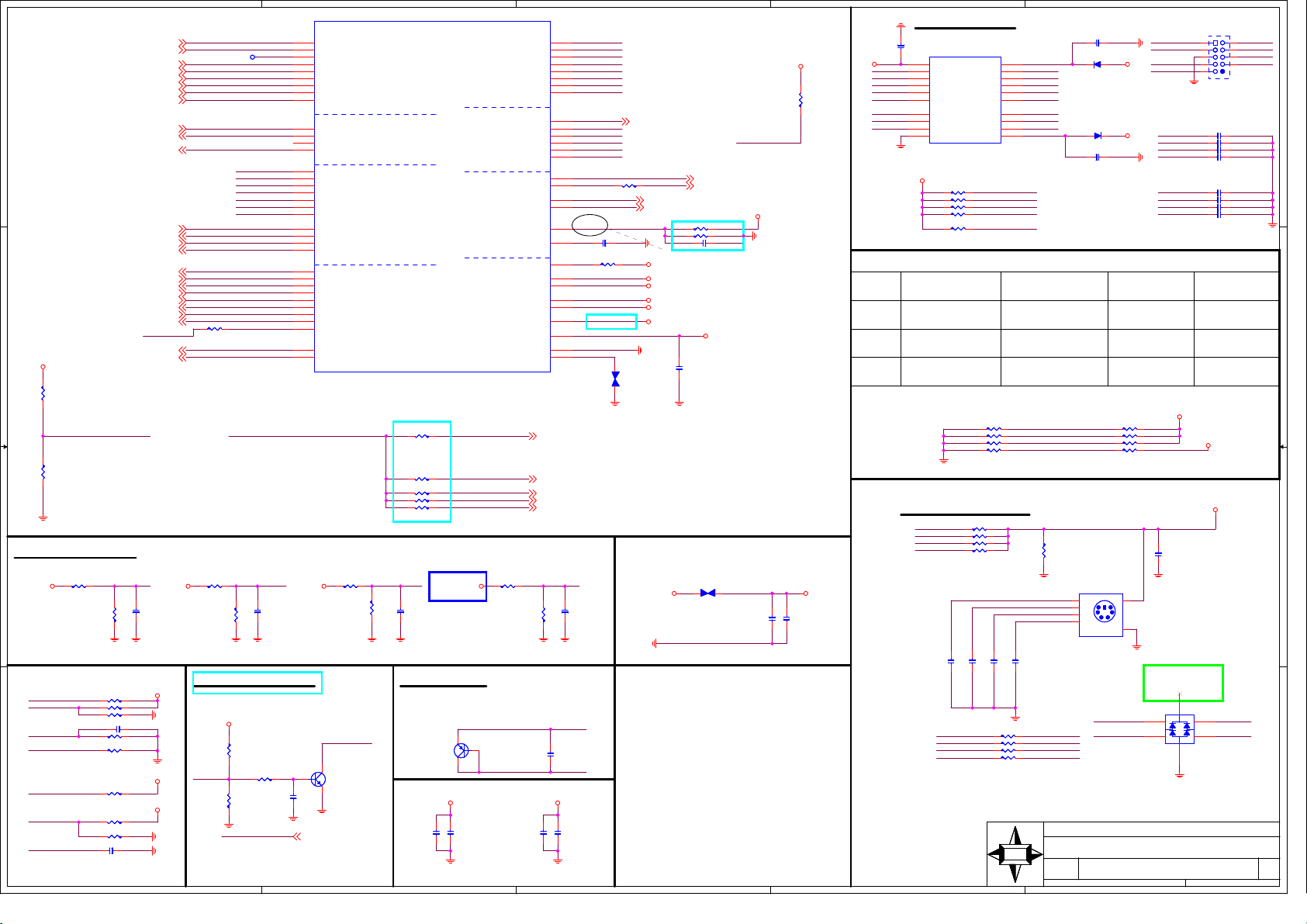

5
teknisi indonesia
PLTRST#15
CLK_SIO_PCI13
SERIRQ15,44
LPC_FRAME#15,44
LPC_AD015,44
LPC_AD115,44
LPC_AD215,44
LPC_AD315,44
D D
default Push-Pull
C C
SIO_3VA
R24
R24
4.7K1%4
4.7K1%4
R341
R341
100K1%4
100K1%4
HW Monitor - Voltage
B B
R303 10K1%4R303 10K1%4
default Push-Pull
PLTRST_BU1#_R
CHIP_PWGD
CPU_PECI
CPUTIN
A A
SYS3VSB_OFF
IO internal sink low
RSMRST#
HM_VREF
PCH_DPWROK
R364
R364
X_10K1%4
X_10K1%4
R340 4.7K/4R340 4.7K/4
R334 1K/4R334 1K/4
R332 X_4.7K/4R332 X_4.7K/4
C320 X_47p50N4C320 X_47p50N4
R317 X_1K/4R317 X_1K/4
R313 1K/4R313 1K/4
R307 22K/4R307 22K/4
R328 4.7K/4R328 4.7K/4
R319 X_4.7K/4R319 X_4.7K/4
C318 4.7u6.3X6C318 4.7u6.3X6
SLP_SUS#15
PCH_DPWROK15,34
PS2_MODE44
CPU_FANTAC21
SIO_CPU_FAN21
SYS1_FANTAC22
SIO_SYS1_FAN22
ATX_PWR_OK35,44
CHIP_PWGD15,34
LED_VSB44
LED_VCC44
RSMRST#15,34
PWRBTIN44
PWRBTN#15
SLP_S3#15,35,36,43
SLP_S4#15,35,39,40,43
PS_ON#44
PLTRST_BU1#
C319
C319
10u6.3X6
10u6.3X6
VCC3
ATX_5VSB
3VSB
5
R351 22R/4R351 22R/4
R315 220K1%4R315 220K1%4
R321
R321
20K1%4
20K1%4
5565D DSW SUPPORT
3VDSW
SLP_SUS#
R267
R267
100K
100K
TP140TP140
SLP_SUS#
PCH_DPWROK
VIN2
VIN1
VIN0
CPUVcore
HM_VREF
VTIN2
CPUTIN
PLTRST_BU1#_R
LED_VSB
LED_VCC
PLTRST_BU1#
R335
R335
X_4.7K/4
X_4.7K/4
R320 22K/4R320 22K/4
X_0.1u10X4
X_0.1u10X4
SYS3VSB_OFF
IOCLK
VIN0 VIN1CPUVcore
C325
C325
0.1u16X4
0.1u16X4
U16
U16
13
LRESET#/PLFLRST#
4
LCLK/ESPI_CLK
5
LDRQ#/ESPI_RST#
6
SERIRQ
12
LFRAME#/ESPI_CS#
10
LAD0/ESPI_IO0
9
LAD1/ESPI_IO1
8
LAD2/ESPI_IO2
7
LAD3/ESPI_IO3
45
GP54/SLP_SUS#
38
DPWROK#
37
DEEP_S5_1/CASEOPEN1#
36
USBEN/3VSBSW/PWROK/ATXPGDO
52
VIN2
51
VIN1
50
VIN0
54
CPUVCORE
55
VREF
56
AUXTIN0/VIN4
57
CPUTIN
63
CPUFANIN
64
CPUFANOUT
1
SYSFANIN
2
SYSFANOUT
49
RSMRST#
30
PSIN#
29
PSOUT#
33
SLP_S3#
42
SLP_S5#
32
PSON#
40
ATXPGD
41
PWROK
39
RSTOUT0#/GP74
43
GP57/AUXFANIN2
44
GP56/AUXFANOUT2
NCT5565D-M-B-RH
NCT5565D-M-B-RH
VCC5+12VVCORE
SYS3VSB_OFF
CE
B
C322
C322
SYS3VSB_OFF 34,35,41
ESPI/LPC Interface
ESPI/LPC Interface
R306 12K1%4R306 12K1%4
Q53
Q53
2N3904
2N3904
4
DSW Interface
DSW Interface
Hardware Monitor
Hardware Monitor
FAN Control
FAN Control
ACPI Function
ACPI Function
R316
R316
3K1%4
3K1%4
4
UART SIR
UART SIR
(TESTMODE1_EN)SOUTA/GP85
(FANOUT_DEF_EN)DTRA#/GP83
(2E_4E_SEL)RTSA#/GP82
KBC Function
KBC Function
CIRRX/AUXFANOU2/GP21/KCLK
AUXFANOUT3/GP23/MCLK
VIN7/AUXTIN3/ATX_5VSB
Power Pin
Power Pin
RIA#/GP87
DCDA#/GP86
SINA/GP84
DSRA#/GP81
CTSA#/GP80
KBRST#
(ESPI_EN)GA20M
AUXFANIN2/GP20/KDAT
AUXFANIN3/GP22/MDAT
PWR_FAULT#GP26/TSIC
PECI/TSID
GPO/GP73/CUT_VBAT
(DSW_EN)GP70
PAD_CAP
PCHVSB
VBAT
3VSB
AVSB
3VCC
PAD_VDD
CPUD-/AGND
VTT
VSS
Fine tune
R348 22R/4R348 22R/4
R595 22R/4R595 22R/4
R368 0R/4R368 0R/4
R589 22R/4R589 22R/4
R594 22R/4R594 22R/4
PLTRST_BU1#_X16
2015.09.18
PLTRST_BU1#_TPM
PLTRST_BU1#_LAN
PLTRST_BU1#_WIFI_BT
PLTRST_BU1#_M2
PLTRST_BU1#_X16 19
PLTRST_BU1#_TPM 44
PLTRST_BU1#_LAN 25
PLTRST_BU1#_WIFI_BT 29
PLTRST_BU1#_M2 28
2016.10.18
R305 10K1%4R305 10K1%4
R310
R310
X_10K1%4
X_10K1%4
C324
C324
0.1u10X4
0.1u10X4
PCH_1VSB
Thermal Monitor
Q52
Q52
B
C E
VCC3 SIO_3VA
C327
C327
1u6.3X4
1u6.3X4
C353
C353
10u6.3X6
10u6.3X6
10u6.3X6
10u6.3X6
C331
C331
P-3906
P-3906
close to pin3 close to pin25
RIA#
23
DCDA#
22
SOUTA
21
SINA
20
DTRA#
19
RTSA#
18
DSRA#
17
CTSA#
16
KBRST#
15
GA20M
14
KBDAT
28
KBCLK
27
MSDAT
26
MSCLK
25
PWR_FAULT#
60
SIO_PECI CPU_PECI
VIN2
C316
C316
10u6.3X6
10u6.3X6
C351
C351
1u6.3X4
1u6.3X4
1.5V
R318 43RR318 43R
MSI_LED
C354 4.7u6.3X6C354 4.7u6.3X6
R325 1K/4R325 1K/4
GNDHM
CP12
CP12
X_COPPER
X_COPPER
62
34
35
58
31
47
61
48
24
53
3
11
46
59
VTIN2
C321
C321
2200p50X4
2200p50X4
GNDHM
3
KBRST# 15
MSI_LED
PWR_FAULT# 15,44
CLR_CMOS# 33
MSI_LED 24,48
CPU_PECI 5,15
ATX_5VSB
R311 7.68K1%4R311 7.68K1%4
R312 3.3K1%4R312 3.3K1%4
C457 1u6.3X4C457 1u6.3X4
<1.2V DPWROK LOW FOR AC POWER LOSS
3VSB
VCCSTPLL
VBAT
SIO_3VA
AVCC3
2015.09.24
VCC3
C335
C335
0.1u10X4
0.1u10X4
2015.04.23
3VSB
close to PIN11
3V Analog Power
CP15 X_COPPERCP15 X_COPPER
C323
C323
0.1u10X4
0.1u10X4
3
AVCC3
SIO_3VA
C317
C317
10u6.3X6
10u6.3X6
R265
R265
4.7K/4
4.7K/4
AVCC3SIO_3VA
2
1
SERIAL PORT 1
VCC5
NRIA
NCTSA#
NDSRA#
NSINA
NDCDA#
RTSA#
DTRA#
SOUTA
C386
C386
X_0.1u10X4
X_0.1u10X4
U18
U18
20
VCC
2
RA1
3
RA2
4
RA3
7
RA4
9
RA5
16
DA1
15
DA2
13
DA3
11
GND
GD75232DBR_SSOP20-RH
GD75232DBR_SSOP20-RH
VCC3
R506 X_2.7KR506 X_2.7K
R473 X_2.7KR473 X_2.7K
R474 X_2.7KR474 X_2.7K
R496 X_2.7KR496 X_2.7K
R495 X_2.7KR495 X_2.7K
VDD
RY5
DY3
VSS
RY1
RY2
RY3
RY4
DY1
DY2
1
19
18
17
14
12
5
6
8
10
RIA#
DCDA#
SINA
CTSA#
DSRA#
+12V_COM
RIA#
CTSA#
DSRA#
SINA
DCDA#
NRTSA
NDTRA
NSOUTA
-12V_COM
C397 0.1u16X4C397 0.1u16X4
D8
AC
1N4148WD81N4148W
D9
A C
1N4148WD91N4148W
C402 0.1u16X4C402 0.1u16X4
+12V
-12V
NDCDA#
NSOUTA
NRTSA
NRIA
NRIA
NCTSA#
NDSRA#
NRTSA
NDTRA
NSINA
NSOUTA
NDCDA#
POWER ON STRAPPING PIN FOR NCT5563D
PIN 5563D NAME Circuit NAME 0 1
2E_4E_SEL
18
24M_48M_SEL
19
TESTMODE1_EN
21
R366 X_1K/4R366 X_1K/4
R377 1K/4R377 1K/4
R382 1K/4R382 1K/4
R619 1K/4R619 1K/4
RTSA#
DTRA#
SOUTA
PS2 Connector
MSCLK
R20 4.7K/4R20 4.7K/4
MSDAT
R25 4.7K/4R25 4.7K/4
KBCLK
R45 4.7K/4R45 4.7K/4
KBDAT
R18 4.7K/4R18 4.7K/4
KB_DT
MS_DT
KB_CK
MS_CK
C48
C48
C60
180p50N4
180p50N4
C60
C47
C47
180p50N4
180p50N4
180p50N4
180p50N4
R16 33R/4R16 33R/4
R38 33R/4R38 33R/4
R31 33R/4R31 33R/4
R21 33R/4R21 33R/4
C56
C56
180p50N4
180p50N4
KBDAT
KBCLK
MSDAT MS_DT
MSCLK MS_CK
SIO5563D RSMRST# (PIN49)
MSI
MSI
MSI
2
RTSA#
DTRA#
SOUTA
GA20M
R28
R28
X_1K/4
X_1K/4
KB_DT
KB_CK
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
I/O ADDRESS
2E
24M CLOCK
SOURCE
DISABLE
TEST1MODE
VCC3
R483 1K/4R483 1K/4
R482 X_1K/4R482 X_1K/4
R498 X_1K/4R498 X_1K/4
R511 X_1K/4R511 X_1K/4
C1
C1
X_0.1u10X4
X_0.1u10X4
PS2_USB1A
PS2_USB1A
10
11
13
14
MINIDIN_USBX2-RH-8
MINIDIN_USBX2-RH-8
20160629
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Monday, December 19, 2016
Monday, December 19, 2016
Monday, December 19, 2016
12
10
VCC-3
11
13
14
MS
MS
9
GND-3
PIN 5 NC
52
U17
MS-7A67
MS-7A67
MS-7A67
1
U17
6
1
MS_CK
KB_DT KB_CK
SIO-NCT5563D-M
SIO-NCT5563D-M
SIO-NCT5563D-M
JCOM1
JCOM1
NSINA
1 2
NDTRA
3 4
NDSRA#
6
5
NCTSA#
7 8
9
H2X5[10]M_BLACK-RH
H2X5[10]M_BLACK-RH
C250 X_470p50X4C250 X_470p50X4
C251 X_470p50X4C251 X_470p50X4
C262 X_470p50X4C262 X_470p50X4
C263 X_470p50X4C263 X_470p50X4
C336 X_470p50X4C336 X_470p50X4
C368 X_470p50X4C368 X_470p50X4
C442 X_470p50X4C442 X_470p50X4
C443 X_470p50X4C443 X_470p50X4
C12-4712812-T34 pending
I/O ADDRESS
4E
48M CLOCK
SOURCE
ENABLE
TEST1MODE
SIO_3VA
PS2_USB
MS_DT
4
3
ESD-AOZ8906
ESD-AOZ8906
20 52
20 52
20 52
Sheet of
Sheet of
Sheet of
11
11
11

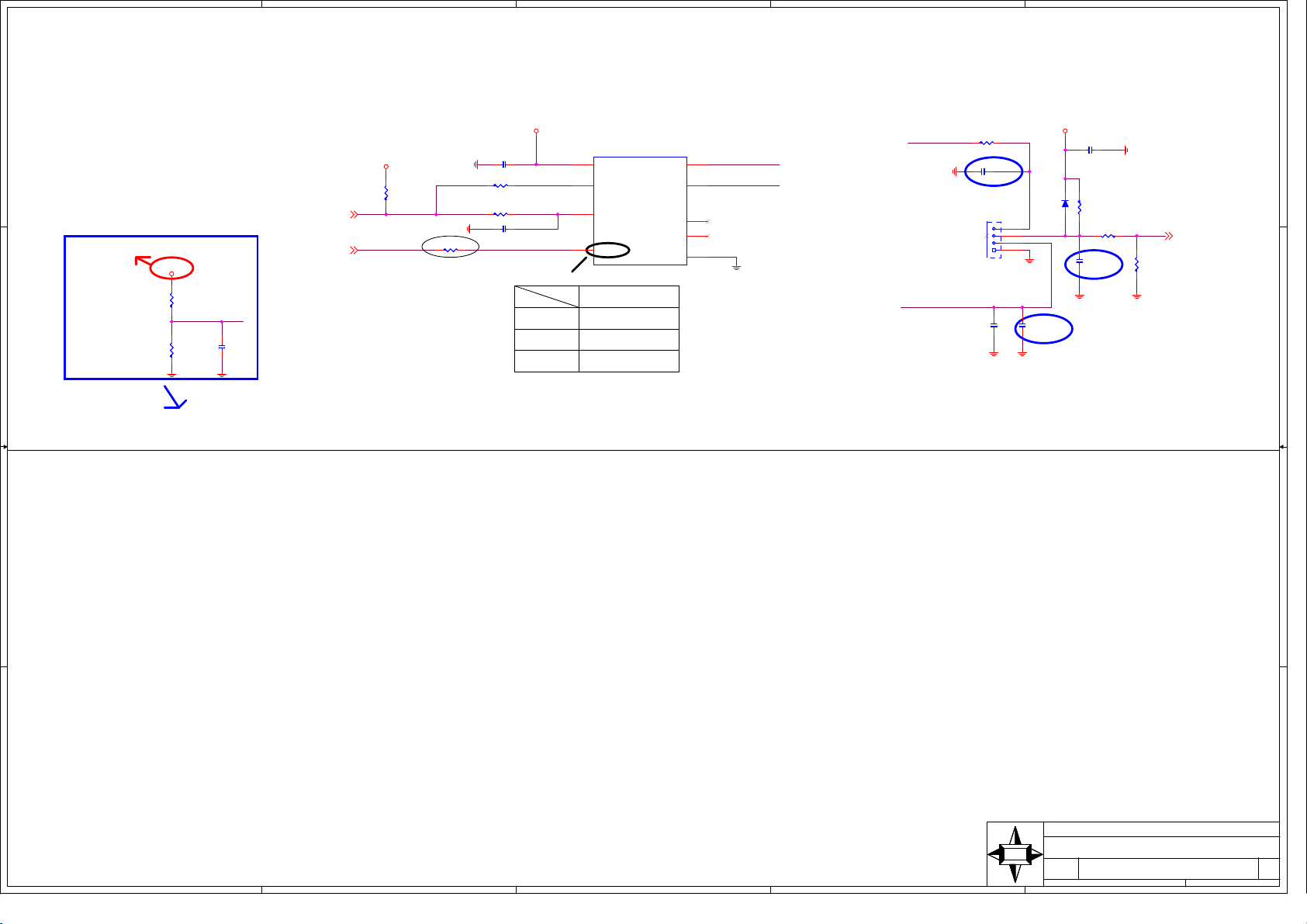

Page 21
5
4
3
TYPE K : 4 PIN CPU FAN USE NCT3947S USE PCH GPIO CONTROL FAN MODE
2
1
2.GPIO
D D
Avoid NCT3947S MODE PIN Leakage
C C
可以由
VCC3
R33
R33
X_10K/4
X_10K/4
CPUFAN1_FIX_MODE
R27
R27
X_10K/4
X_10K/4
C911
C911
1u6.3X4
1u6.3X4
BIOS
切換
From SIO
SIO_CPU_FAN20
CPUFAN1_MODE15
PWM/DC MODE
C53 Close to U9 PIN5
VCC3
R102
R102
2K/4
2K/4
CPUFAN1_MODE CPUFAN1_FIX_MODE
R175 0R/4R175 0R/4
FIX MODE unstuff
Default
C53 4.7u16X8C53 4.7u16X8
R41 0R/4R41 0R/4
R148 100K1%4R148 100K1%4
C170 0.1u16X4C170 0.1u16X4
GPIO Control
PWM MODE
DC MODE
AUTO MODE
+12V
PWM Mode : VOUT voltage follows VIN voltage
DC Mode : VOUT voltage is regulated to 3.8*DCIN voltage.
U9
U9
5
1
8
6
NCT3947S
NCT3947S
VIN
PWMIN
DCIN
MODE
PWMOUT
VOUT
Fault(OD)
FAULT#
FM
FM(PP)
GND
2
4
3
7
9
C_FAN1_PWM
CPUFAN1_PWR
PCH GPIO
HIGH
LOW
GPI(Floating)
C_FAN1_PWM
CPUFAN1_PWR
CPUFAN_PWR
>40mil
R149 100R/4R149 100R/4
C246 X_0.1u16X4C246 X_0.1u16X4
CPU_FAN1
CPU_FAN1
4
MEC1
3
2
1
BH1X4B_BLACK
BH1X4B_BLACK
N32-1040CF1-H06
C334
C334
22u16X8
22u16X8
+12V
>40mil
C231 0.1u16X4C231 0.1u16X4
D22
D22
R174
A C
R174
4.7K/4
4.7K/4
R35 27K/4R35 27K/4
C169
C169
0.1u16X4
0.1u16X4
R64
R64
10K/4
10K/4
TO SIO
CPU_FANTAC 20
1N4148W
1N4148W
C245
C245
0.1u16X4
0.1u16X4
C245,C169,C246 close to FAN Connector
NCT3947S Internall pull up 1.65V
Resever For FIX DC or PWM MODE USE By PM SPEC
B B
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
CPUFAN TYPE K
CPUFAN TYPE K
CPUFAN TYPE K
1
21 52
21 52
21 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 22
5
Vinafix.com
4
3

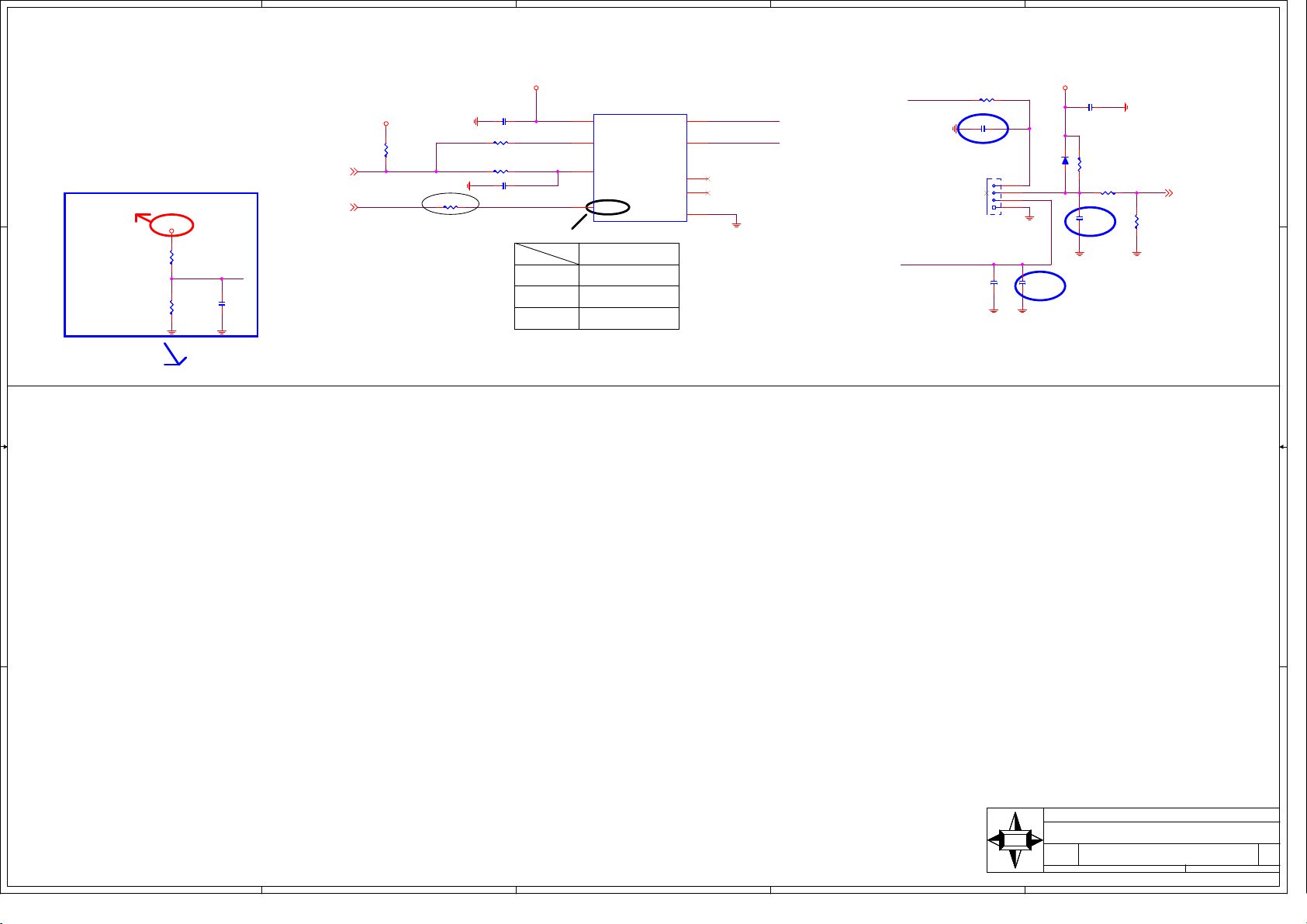

TYPE K : 4 PIN CPU FAN USE NCT3947S USE PCH GPIO CONTROL FAN MODE
2
1
2.GPIO
D D
Avoid NCT3947S MODE PIN Leakage
C C
可以由
VCC3
R36
R36
X_10K/4
X_10K/4
SYSFAN1_FIX_MODE
R32
R32
X_10K/4
X_10K/4
BIOS
C912
C912
1u6.3X4
1u6.3X4
切換
PWM/DC MODE
From SIO
SIO_SYS1_FAN20
SYSFAN1_MODE15
+12V
C57 Close to U1 PIN5
VCC3
R181
R181
2K/4
2K/4
SYSFAN1_MODE SYSFAN1_FIX_MODE
R199 0R/4R199 0R/4
C57 4.7u16X8C57 4.7u16X8
R176 0R/4R176 0R/4
R188 100K1%4R188 100K1%4
C261 0.1u16X4C261 0.1u16X4
FIX MODE unstuff
GPIO Control
PWM MODE
DC MODE
Default
AUTO MODE
PWM Mode : VOUT voltage follows VIN voltage
DC Mode : VOUT voltage is regulated to 3.8*DCIN voltage.
U24
U24
5
1
8
6
NCT3947S
NCT3947S
VIN
PWMIN
DCIN
MODE
PWMOUT
VOUT
Fault(OD)
FAULT#
FM
FM(PP)
GND
2
4
3
7
9
S_FAN1_PWM
SYSFAN1_PWR
PCH GPIO
HIGH
LOW
GPI(Floating)
NCT3947S Internall pull up 1.65V
S_FAN1_PWM
SYSFAN1_PWR
CPUFAN_PWR
>40mil
R187 100R/4R187 100R/4
C338 X_0.1u16X4C338 X_0.1u16X4
SYS_FAN1
SYS_FAN1
4
MEC1
3
2
1
BH1X4B_BLACK
BH1X4B_BLACK
N32-1040CF1-H06
C339
C339
22u16X8
22u16X8
+12V
>40mil
C266 0.1u16X4C266 0.1u16X4
D23
D23
R194
A C
R194
4.7K/4
4.7K/4
R37 27K/4R37 27K/4
C260
C260
0.1u16X4
0.1u16X4
R178
R178
10K/4
10K/4
TO SIO
SYS1_FANTAC 20
1N4148W
1N4148W
C337
C337
0.1u16X4
0.1u16X4
C337,C260,C338 close to FAN Connector
Resever For FIX DC or PWM MODE USE By PM SPEC
B B
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
5
4
3
2
MS-7A67
SYSFAN TYPE K
SYSFAN TYPE K
SYSFAN TYPE K
1
Sheet of
Sheet of
Sheet of
22 52
22 52
22 52
11
11
11
Page 23

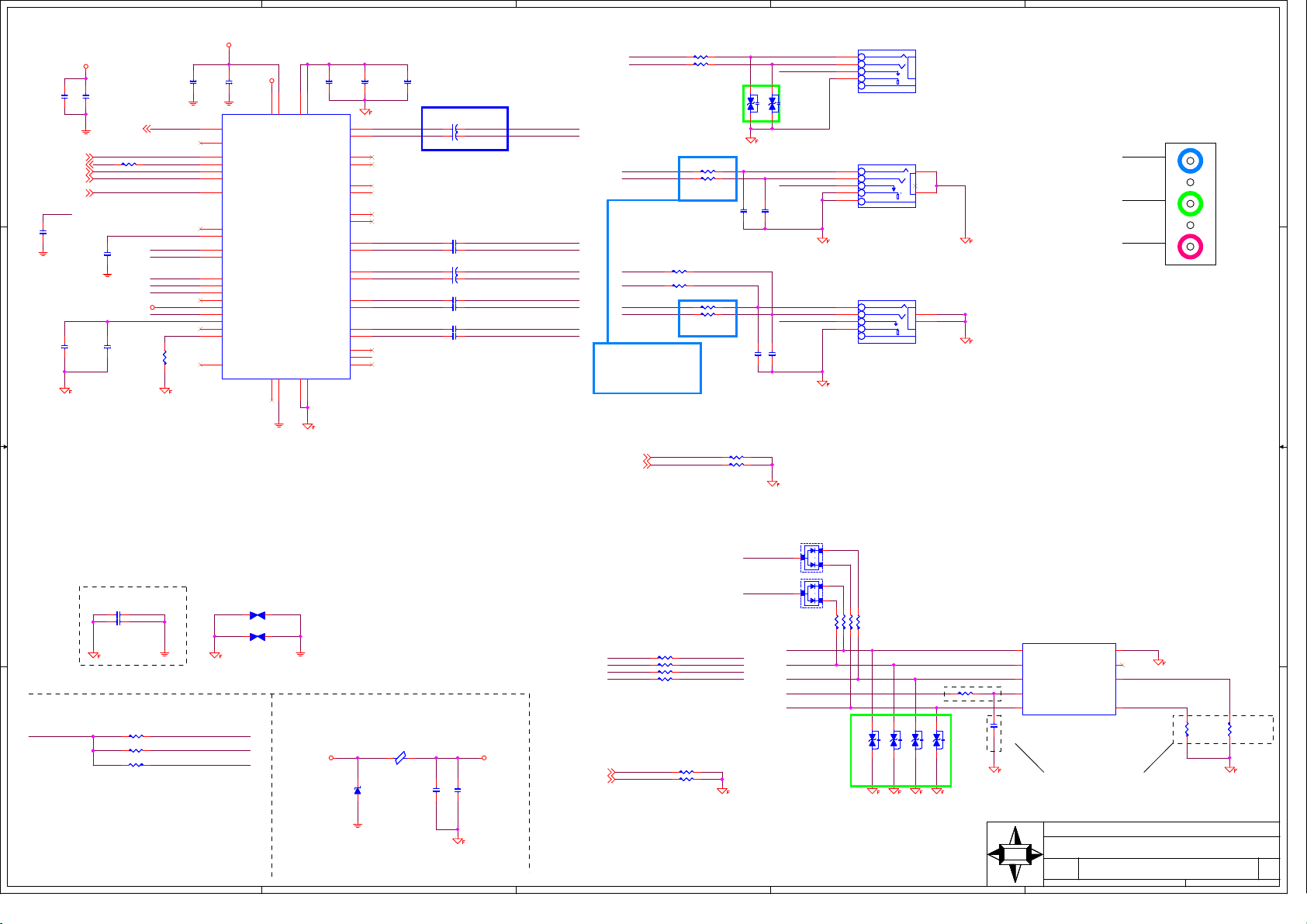

5
VCC3
1
9
DVDD
GPIO1/DMIC-DATA4DVSS
7
DVDD-IO
CA14 closed PIN25
CA30 closed PIN38
CA31 closed PIN38
A_VOUT
CA30
CA30
0.1u10X4
0.1u10X4
38
25
FRONT-R
FRONT-L
LDO-OUT2
LDO-OUT1
SURR-R
SURR-L
CENTER
LFE
SIDE-R
SIDE-L
LINE1-R
LINE1-L
LINE2-R
LINE2-L
MIC1-R
MIC1-L
MIC2-R
MIC2-L
CD-R
CD-GND
CD-L
AVSS
AVSS
ALC887-VD2-CG-HF
ALC887-VD2-CG-HF
42
26
Type B:
ALC892/887
Closed to PIN1
10u6.3X6
10u6.3X6
D D
CA37
CA37
AZ_SDOUT13
AZ_SDIN013
AZ_SYNC13
AZ_RST#13
AZ_BITCLK13
AZ_SDIN0
CA22
CA22
X_10p50N4
X_10p50N4
VCC3
CA36
CA36
0.1u10X4
0.1u10X4
RA21 33R/4RA21 33R/4
45.8mA
C C
CA16
CA16
X_0.1u10X4
X_0.1u10X4
Closed Codec
EAPD24
CA24
CA24
10u6.3X6
10u6.3X6
LDOVDD
CA17
CA17
10u6.3X6
10u6.3X6
Closed Codec
X_10u6.3X6
X_10u6.3X6
EAPD
REGREF
SENSE_A
SENSE_B
MIC1_V_R
MIC2_VREFO
MIC1_V_L
LINE2_VREFO
VREF_AUDIO
JDREF
CA28
CA28
SDIN0
RA23
RA23
20K1%4
20K1%4
3VSB
11mA
CA18
CA18
0.1u10X4
0.1u10X4
UA1
UA1
47
EAPD/SPDIFI
48
SPDIF-OUT
5
SDATA-OUT
8
SDATA-IN
10
SYNC
11
RESET#
6
BCLK
2
GPIO0/DMIC-CLK/SPDIF-OUT2
3
REGREF
13
SENSE A
34
SENSE B
32
MIC1-VREFO-R
30
MIC2-VREFO
28
MIC1-VREFO-L
37
PIN37-VREFO
29
LDO-IN
31
LINE2-VREFO
27
VREF
33
SENSE C
40
JDREF
12
BEEP
CA29.CA30 close to Pin27
4
CA31
CA31
CA14
CA14
10u6.3X6
10u6.3X6
22u6.3X8
22u6.3X8
36
35
41
39
43
44
46
45
24
23
15
14
22
21
17
16
20
19
18
7A67 0A 6*22u change to 2*100u
+
A_LOUT_R LOUT_R
A_LOUT_L LOUT_L
A_LINE_IN_R
A_LINE_IN_L
A_LINE2_R
A_LINE2_L
A_MIC1_R
A_MIC1_L
A_MIC2_R
A_MIC2_L
+
ECA3 100u10EL5
ECA3 100u10EL5
1 2
+
+
ECA4 100u10EL5
ECA4 100u10EL5
1 2
CA8 4.7u6.3X8CA8 4.7u6.3X8
CA9 4.7u6.3X8CA9 4.7u6.3X8
+
+
ECA1 100u10EL5
ECA1 100u10EL5
1 2
+
+
ECA2 100u10EL5
ECA2 100u10EL5
1 2
CA10 4.7u6.3X8CA10 4.7u6.3X8
CA11 4.7u6.3X8CA11 4.7u6.3X8
CA12 4.7u6.3X8CA12 4.7u6.3X8
CA13 4.7u6.3X8CA13 4.7u6.3X8
LINE_IN_R
LINE_IN_L
LINE2_R
LINE2_L
MIC1_R
MIC1_L
MIC2_R
MIC2_L
3
LOUT_R LOUT_RA
LOUT_L LOUT_LA
LINE_IN_R LINE_IN_RA
LINE_IN_L LINE_IN_LA
RA9 75RRA9 75R
RA12 75RRA12 75R
ESD-SFI0402
ESD-SFI0402
RA5 75RRA5 75R
RA7 75RRA7 75R
CA3
CA3
100p50N4
100p50N4
DA1
DA1
2.2k for better recording quality
RA8 75RRA8 75R
RA3 75RRA3 75R
MIC1_LAMIC1_V_L
MIC1_RAMIC1_V_R
100p50N4
100p50N4
CA1
CA1
RA6 2.2K/4RA6 2.2K/4
RA2 2.2K/4RA2 2.2K/4
MIC1_R
MIC1_L MIC1_LA
for rear I/O 6port:
887VD/892:1k
for rear I/O 3port:
887VD/892:75R
2015.10.19
2
1
LIN_OUT
AUDIO1B
AUDIO1B
6
FRONT_JD
12
12
DA2
DA2
ESD-SFI0402
ESD-SFI0402
LINE1_JD
CA4
CA4
100p50N4
100p50N4
9
7
8
JACK-AUDIOX3F_PK/LIME/BU-RH
JACK-AUDIOX3F_PK/LIME/BU-RH
LIN_IN
AUDIO1A
AUDIO1A
10
13
11
12
3
JACK-AUDIOX3F_PK/LIME/BU-RH
JACK-AUDIOX3F_PK/LIME/BU-RH
LIN_IN
15
14
16
D
E
F
LIN_OUT
MIC1
N54-13F0271-K06
MIC1
AUDIO1C
MIC1_RA
MIC1_JD
CA2
CA2
100p50N4
100p50N4
JACK-AUDIOX3F_PK/LIME/BU-RH
JACK-AUDIOX3F_PK/LIME/BU-RH
AUDIO1C
1
5
2
4
17
18
LOUT_LA24
LOUT_RA24
B B
LOUT_LA
LOUT_RA
EMI
CA6 X_0.1u10X4CA6 X_0.1u10X4
CA5 X_1000p50X4CA5 X_1000p50X4
Closed Codec
SENSE_A
A A
RA17 5.1K1%4RA17 5.1K1%4
RA18 10K1%4RA18 10K1%4
RA16 20K1%4RA16 20K1%4
5
FRONT_JD
LINE1_JD
MIC1_JD
CPA1 X_COPPERCPA1 X_COPPER
CPA2 X_COPPERCPA2 X_COPPER
ATX_5VSB
0R for cost down
LA1 0R/8LA1 0R/8
CA32
DA3
DA3
X_TVS
X_TVS
CA32
0.1u10X4
0.1u10X4
CA32,CA33 close to LA1
4
CA33
CA33
10u6.3X6
10u6.3X6
LDOVDD
MIC2_L
RA24 75RRA24 75R
MIC2_R
RA28 75RRA28 75R
LINE2_L
RA34 75RRA34 75R
LINE2_R
RA32 75RRA32 75R
F_LINE2_L24
F_LINE2_R24
F_LINE2_L
F_LINE2_R
3
RA33 22K/4RA33 22K/4
RA31 22K/4RA31 22K/4
RA4 22K/4RA4 22K/4
RA1 22K/4RA1 22K/4
F_MIC2_L
F_MIC2_R
F_LINE2_L
F_LINE2_R
LINE2_VREFO
S-BAT54A_SOT23
S-BAT54A_SOT23
MIC2_VREFO
S-BAT54A_SOT23
S-BAT54A_SOT23
DA8
DA8
Y
Z
X
Y
Z
F_MIC2_L
F_MIC2_R
F_LINE2_R
SENSE_B
F_LINE2_L
DA4
DA4
R579 4.7K/4R579 4.7K/4
R580 4.7K/4R580 4.7K/4
R576 4.7K/4R576 4.7K/4
R581 4.7K/4R581 4.7K/4
X
12
12
DA6ESD-MLVS0402 DA6ESD-MLVS0402
DA7ESD-MLVS0402 DA7ESD-MLVS0402
12
DA5ESD-MLVS0402 DA5ESD-MLVS0402
Varister --> cap for cost down
D0G-2950500-SI0
D0G-3010510-I05
Close to Jack
2
DA9ESD-MLVS0402 DA9ESD-MLVS0402
12
RA26 47RRA26 47R
JAUD1
JAUD1
1
MIC
MICPWR3PRESENCE#
5
FLINE OUTR
7
HPON
FLINE OUTL9LINE NEXT L
H2X5[8]M_BLACK-RH
H2X5[8]M_BLACK-RH
CA35
CA35
1000p50X4
1000p50X4
LINE NEXT R
N31-2051411-H06
GND
2
4
MIC2_JD
6
8
8
LINE2_JD
10
Close to Front panel
For HDA/AC97 front cable.
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
AUDIO - ALC887
AUDIO - ALC887
AUDIO - ALC887
1
RA27
RA27
39.2K1%4
39.2K1%4
23 52
23 52
23 52
Sheet of
Sheet of
Sheet of
RA25
RA25
20K1%4
20K1%4
11
11
11
Page 24

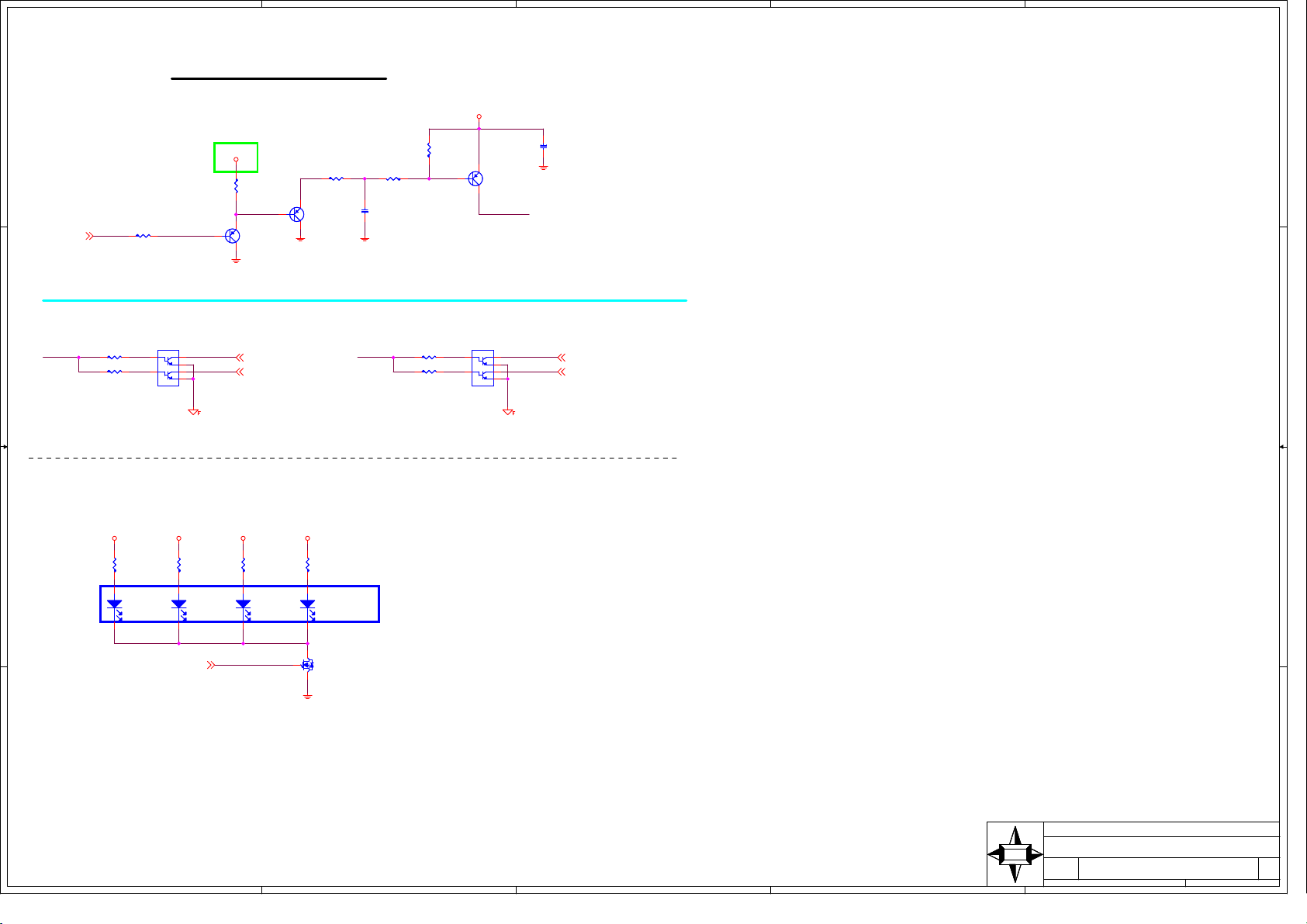

5
Vinafix.com
4
3
2
1
Rear Line OUT De-POP circuit
De-pop circuit for Rear Line out & Front Headphone out)
RA20
RA20
220K1%4
220K1%4
3VSB
CA15
CA15
0.1u10X4
0.1u10X4
QA4
QA4
B
P-MMBT3906
P-MMBT3906
C E
MUTE
D D
3VSB
RA13
RA13
10K/4
10K/4
B
QA2
QA2
B
P-MMBT3906
P-MMBT3906
C E
QA3
QA3
P-MMBT3906
P-MMBT3906
C E
RA15
RA15
0R/4
0R/4
RA19 10K/4RA19 10K/4
CA7
CA7
22u6.3X8
22u6.3X8
EAPD EAPD_R
EAPD23
2014.09.15
RA14 1K/4RA14 1K/4
History:
2014/02/13: stuff de-pop circuit of Line out & HP out.
Digital
Analog
C C
MUTE
RA10 1K/4RA10 1K/4
RA11 1K/4RA11 1K/4
QA1
QA1
2
5
NN-HBN2515S6R
NN-HBN2515S6R
LOUT_LA
6
1
3
4
LOUT_RA
LOUT_LA 23
LOUT_RA 23
MUTE
RA30 1K/4RA30 1K/4
RA29 1K/4RA29 1K/4
QA5
QA5
2
5
NN-HBN2515S6R
NN-HBN2515S6R
6
1
3
4
F_LINE2_R
F_LINE2_L
F_LINE2_R 23
F_LINE2_L 23
Audio LED
VCC5VCC5 VCC5VCC5
B B
A A
RA801KRA80
1K
AUD_LED1
AUD_LED1
LED04-[BR]-25mA
LED04-[BR]-25mA
紅
: D0C-040S600-E07
colay 白 : M:D0C-040T300-H91/S:D0C-040S300-E07
5
RA811KRA81
1K
AUD_LED2
AUD_LED2
LED04-[BR]-25mA
LED04-[BR]-25mA
MSI_LED20,48
MSI_LED
RA821KRA82
1K
AUD_LED3
AUD_LED3
LED04-[BR]-25mA
LED04-[BR]-25mA
RA831KRA83
1K
AUD_LED4
AUD_LED4
LED04-[BR]-25mA
LED04-[BR]-25mA
QA9
QA9
D
D
G
G
S
S
N-2N7002
N-2N7002
LED
的數量需參考各案子的
注意
LED
導通電流總和是否會超過
4
layout placement
MOS
的最大電流
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
3
2
Monday, December 19, 2016
MS-7A67
AUDIO - depop circuit
AUDIO - depop circuit
AUDIO - depop circuit
1
24 52
24 52
24 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 25
5
4
3
2
1

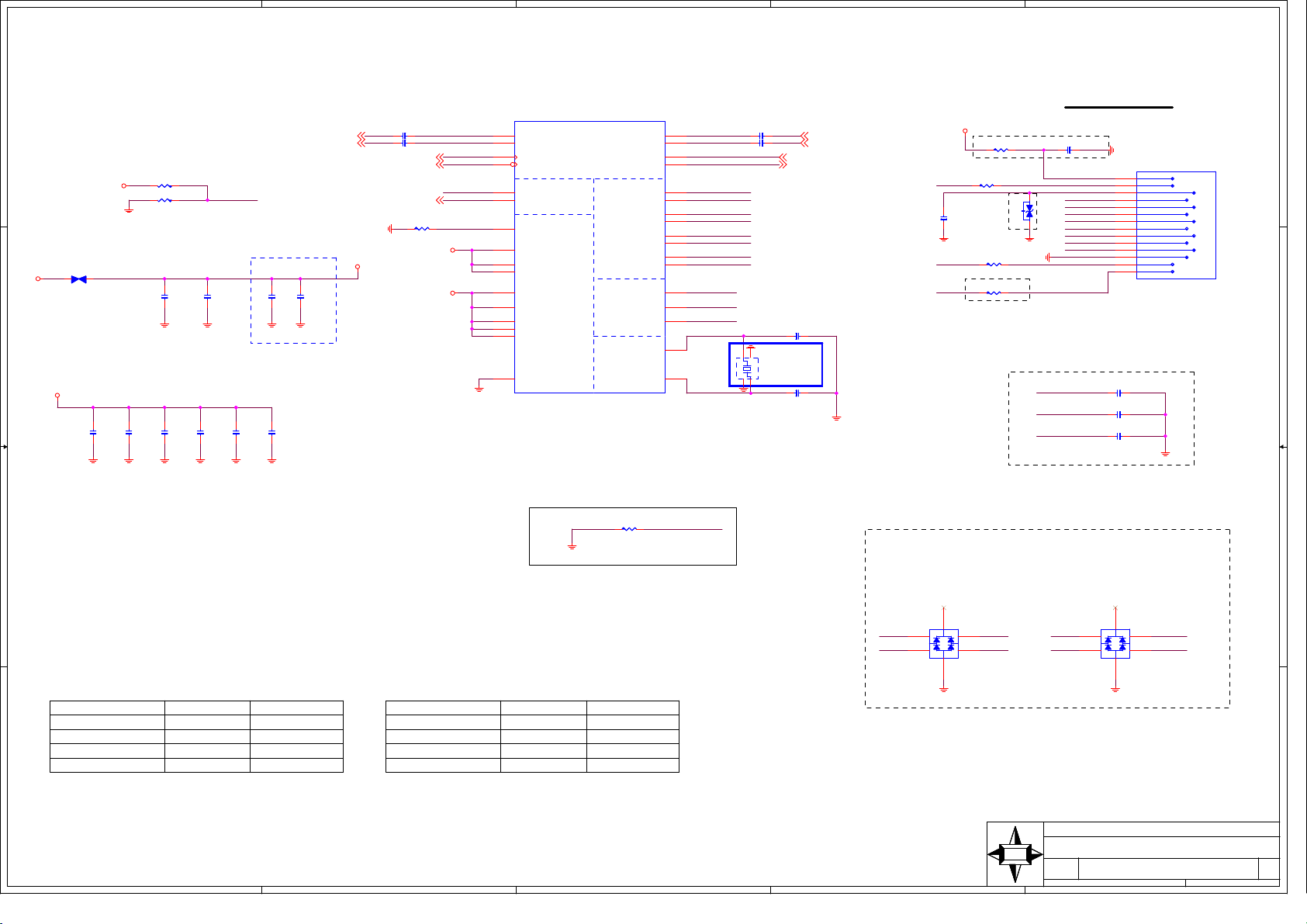

RTL8111G/RTL8111H Giga LAN
8111H:B06-08111CC-R09
8111G:B06-081116C-R09
LAN Connector
UL3
RSET
UL3
13
HSIP
14
HSIN
15
REFCLK_P
16
REFCLK_N
20
ISOLATEB
21
LANWACKEB
31
RSET
23
VDDREG
11
AVDD33-1
32
AVDD33-2
24
REGOUT
22
DVDD10
3
AVDD10-1
8
AVDD10-2
30
AVDD10-3
33
GND
RTL8111H-CG-RH
RTL8111H-CG-RH
PCIE interface
PCIE interface
PM
PM
Transceiver
Transceiver
Interface
Interface
Regulator & Power
Regulator & Power
EEPROM
EEPROM
CLOCK
CLOCK
HSOP
HSON
PERSTB
CLKREQB
MDIP0
MDIN0
MDIP1
MDIN1
MDIP2
MDIN2
MDIP3
MDIN3
LED0
LED1/GPO
LED2
CKXTAL1
CKXTAL2
PE5_LAN_RX_C
17
PE5_LAN_RX#_C
18
19
12
1
2
4
5
6
7
9
10
27
26
25
CLK_LANI
28
29
CLK_LAN0
CL10 0.1u10X4CL10 0.1u10X4
CL9 0.1u10X4CL9 0.1u10X4
PLTRST_BU1#_LAN
CLKREQ#4
TR_D0+
TR_D0-
TR_D1+
TR_D1-
TR_D2+
TR_D2-
TR_D3+
TR_D3-
LED0
LED1
LED2
34
PE5_LAN_RX 12
PE5_LAN_RX# 12
PLTRST_BU1#_LAN 20
CLKREQ#4 13
YL1 for space not enough
CL20 22p50N4CL20 22p50N4
YL1
YL1
25MHZ18p_S-HF-9
25MHZ18p_S-HF-9
1 2
CL21 22p50N4CL21 22p50N4
VCT 16mil
0.1u10X4
0.1u10X4
VDD33
For EMI
RL1 100RRL1 100R
LED2
RL2 220RRL2 220R
CL4
CL4
For EMI
D0G-1020530-I05
D0G-8010510-SI0
LED1
RL3 220RRL3 220R
LED0 LED0_LINK100#
RL4 100RRL4 100R
1 2
For EMI
CL1 0.1u10X4CL1 0.1u10X4
LVDD33
LED2_ACT
VCT
TR_D0+
TR_D0-
DL1
DL1
TR_D1+
ESD
ESD
TR_D1TR_D2+
TR_D2TR_D3+
TR_D3-
LINK1000#
LED2_ACT
LINK1000#
LED0_LINK100#
YELLOW+
YELLOW+
29
YELLOW-
YELLOW-
30
19
20
21
22
23
24
25
26
27
28
GREEN+/ORANGE-
GREEN+/ORANGE-
31
GREEN-/ORANGE+
GREEN-/ORANGE+
32
RJ45_USBX2_LEDX2_TX-1000-RH-53
RJ45_USBX2_LEDX2_TX-1000-RH-53
For EMI
CL2 100p50N4CL2 100p50N4
CL3 100p50N4CL3 100p50N4
CL5 100p50N4CL5 100p50N4
POWER
POWER
TD1+
TD1+
TD1-
TD1TD2+
TD2+
TD2-
TD2TD3+
TD3+
TD3-
TD3TD4+
TD4+
TD4-
TD4-
GND
GND
LAN_USB1B
LAN_USB1B
D D
PE5_LAN_TX12
PE5_LAN_TX#12
0.1u10X4
0.1u10X4
22
CL15
CL15
0.1u10X4
0.1u10X4
RL5 1K1%4RL5 1K1%4
RL6 15K1%4RL6 15K1%4
11 32
CL19
CL19
0.1u10X4
0.1u10X4
22
CL14
CL14
X_1u6.3X4
X_1u6.3X4
ISOLATEB
CL17
CL17
0.1u10X4
0.1u10X4
For surge improvement
CL13
CL13
CL18
CL18
0.1u10X4
0.1u10X4
0.1u10X4
0.1u10X4
11 32
CL8
CL8
4.7u6.3X6
4.7u6.3X6
CL22
CL22
0.1u10X4
0.1u10X4
CL23
CL23
4.7u6.3X6
4.7u6.3X6
VCC3
VDD10
CPL1CPL1
20mil=1A
324830
CL16
CL16
3VSB
8111G:MAX: 244mA
8111H:MAX:177.57mA
C C
VDD33
CL12 0.1u10X4CL12 0.1u10X4
CL11 0.1u10X4CL11 0.1u10X4
CK_PE_LAN13
CK_PE_LAN#13
PCH_WAKE#15,19,28,29
VDD33 width>40mil
VDD10 width>60mil
PE5_LAN_TX_C
PE5_LAN_TX#_C
RL7 2.49K1%4RL7 2.49K1%4
VDD33
VDD10
CK_PE_LAN
CK_PE_LAN#
ISOLATEB
PCH_WAKE#
Pin33: 4 via from top layer to GND layer
and make the via at the center of IC.
For module unstuff
R532 X_10K/4R532 X_10K/4
B B
8111G POWER Consumption
10 M Idle/TxRx
100 M Idle/TxRx
Giga Idle/TxRx
ALDPS
A A
5
3.3V @ mA mW
17.15/116.7
71.45/129.5
56.6/385.1
235.8/427.4
179.1/243.9 591/804.9
6.41
21.15
8111H POWER Consumption
10 M Idle/TxRx
100 M Idle/TxRx
Giga Idle/TxRx
ALDPS
4
3.3V @ mA mW
9.9/84.69
48.11/92.44
32.67/279.48
158.76/305.05
124.5/177.57 410.85/585.98
5.50
18.15
CLKREQ#4
ESD Protect
UL1&UL2 close to connector
UL1
UL1
TR_D0- TR_D1TR_D0+
3
52
6
4
1
2
TR_D1+ TR_D2+
3
ESD-AOZ8906
ESD-AOZ8906
D0G-0200529-A68
D0G-0100619-I05
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
UL2
UL2
TR_D2-
Monday, December 19, 2016
Monday, December 19, 2016
Monday, December 19, 2016
52
4
3
ESD-AOZ8906
ESD-AOZ8906
MS-7A67
MS-7A67
MS-7A67
1
TR_D3TR_D3+
6
1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
LAN - RTL8111H
LAN - RTL8111H
LAN - RTL8111H
25 52
25 52
25 52
Sheet of
Sheet of
Sheet of
11
11
11

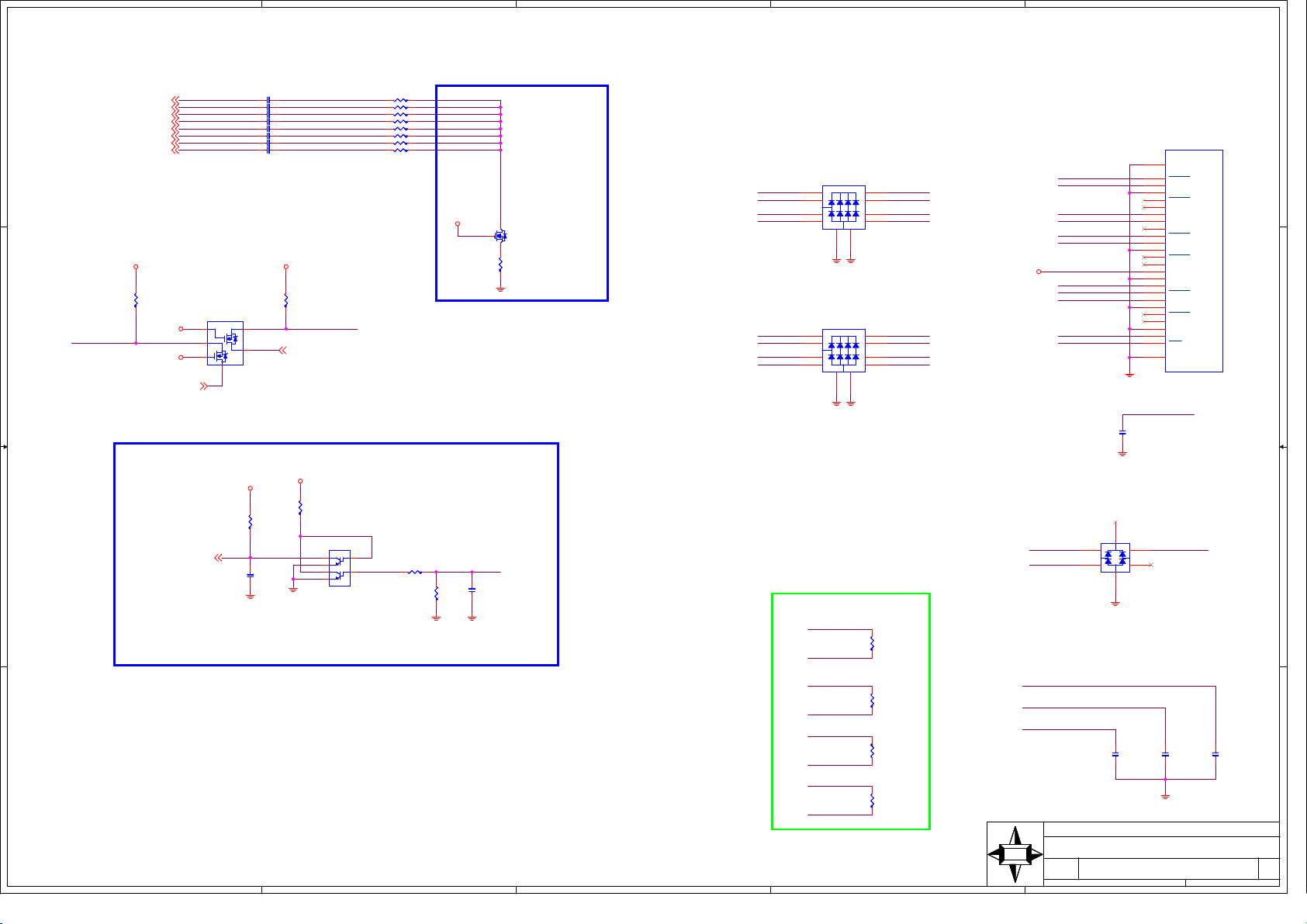

Page 26
5
4
3
2
1
DVI max resolution is 1920x1200 @ 60 Hz
7A67 0A change
DVI_TXCDVI_TXC+
DVI_TXD2DVI_TXD2+
DVI_TXD1DVI_TXD1+
DVI_TXD0DVI_TXD0+
HDMI_PWR_5V
R167
R167
2.2K/4
2.2K/4
DVI_DDC_DATA_R
DVI_DDPC_CTRLDATA 13
Q19
Q19
NN-2N7002D
NN-2N7002D
S1
C144 0.1u10X4C144 0.1u10X4
C140 0.1u10X4C140 0.1u10X4
C141 0.1u10X4C141 0.1u10X4
C137 0.1u10X4C137 0.1u10X4
C138 0.1u10X4C138 0.1u10X4
C135 0.1u10X4C135 0.1u10X4
C136 0.1u10X4C136 0.1u10X4
D2
S2
DVI_DDPC_CLK_N4
DVI_DDPC_CLK_P4
D D
C C
DVI_DDPC_TXN24
DVI_DDPC_TXP24
DVI_DDPC_TXN14
DVI_DDPC_TXP14
DVI_DDPC_TXN04
DVI_DDPC_TXP04
DVI_DDC_CLK_R
HDMI_PWR_5V
R166
R166
2.2K/4
2.2K/4
DVI_DDPC_CTRLCLK13
VCC3
VCC3
G2
D1
G1
R165 470R/4R165 470R/4
R163 470R/4R163 470R/4C142 0.1u10X4C142 0.1u10X4
R159 470R/4R159 470R/4
R162 470R/4R162 470R/4
R154 470R/4R154 470R/4
R158 470R/4R158 470R/4
R150 470R/4R150 470R/4
R152 470R/4R152 470R/4
VCC3
DVI1
DVI1
X1
DVI_TXD2-
U1
DVI_TXD2-
DVI_TXD2+
DVI_TXC-
D
D
Q43
Q43
G
G
2N7002
2N7002
S
S
R264
R264
0R/6
0R/6
DVI_TXC+
DVI_TXD0+ DVI_TXD0+
DVI_TXD0- DVI_TXD0-
DVI_TXD1DVI_TXD1+
U1
1
2
4
5
3
U2
U2
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
8
ESD3V3U4ULC
ESD3V3U4ULC
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
8
ESD3V3U4ULC
ESD3V3U4ULC
DVI_TXD2-
DVI_TXD2+
DVI_TXCDVI_TXC+
DVI_TXD1DVI_TXD1+
HDMI_PWR_5V
DVI_TXD2+
DVI_DDC_CLK_R
DVI_DDC_DATA_R
DVI_TXD1DVI_TXD1+
DVI_HOT_DET
DVI_TXD0DVI_TXD0+
DVI_TXC+
DVI_TXC-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
X2
DVI24P_BLACK-RH-15
DVI24P_BLACK-RH-15
HDMI_PWR_5V
CV21
CV21
0.1u10X4
0.1u10X4
Shell
DATA2
DATA2
SHIELD24
DATA4
DATA4
DDCCLK
DDCDATA
NC
DATA1
DATA1
SHIELD13
DATA3
DATA3
VCC5
GND5
HPDET
DATA0
DATA0
SHIELD05
DATA5
DATA5
SHIELDCLK
CLK
CLK
Shell1
HPD
R171
R171
10K/4
10K/4
VCC5
R172
R172
10K/4
10K/4
Q23
Q23
6
1
3
4
NN-CMKT3904
NN-CMKT3904
2
5
R170 10K/4R170 10K/4
DVI_HOT_DET
R168
R168
100K
100K
C148
C148
0.01u25X4
0.01u25X4
DVI_DDC_DATA_R
ESD-AOZ8906
ESD-AOZ8906
52
U3
U3
6
1
DVI_HOT_DETDVI_DDC_CLK_R
4
3
VCC3
B B
DVI_DDPC_HPD13
C152
C152
X_0.01u25X4
X_0.01u25X4
For EMI
DVI_TXD0-
DVI_TXD0+
R151
R151
X_243R1%4
X_243R1%4
DVI_TXD1-
DVI_TXD1+
DVI_TXC-
DVI_TXC+
A A
5
4
3
DVI_TXD2-
DVI_TXD2+
R155
R155
X_243R1%4
X_243R1%4
R164
R164
X_243R1%4
X_243R1%4
R161
R161
X_243R1%4
X_243R1%4
2
DVI_HOT_DET
DVI_DDC_CLK_R
DVI_DDC_DATA_R
C147
C147
X_10p50N4
X_10p50N4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
DVI Connector
DVI Connector
DVI Connector
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
MS-7A67
MS-7A67
1
C146
C146
X_10p50N4
X_10p50N4
C150
C150
X_10p50N4
X_10p50N4
26 52
26 52
26 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 27

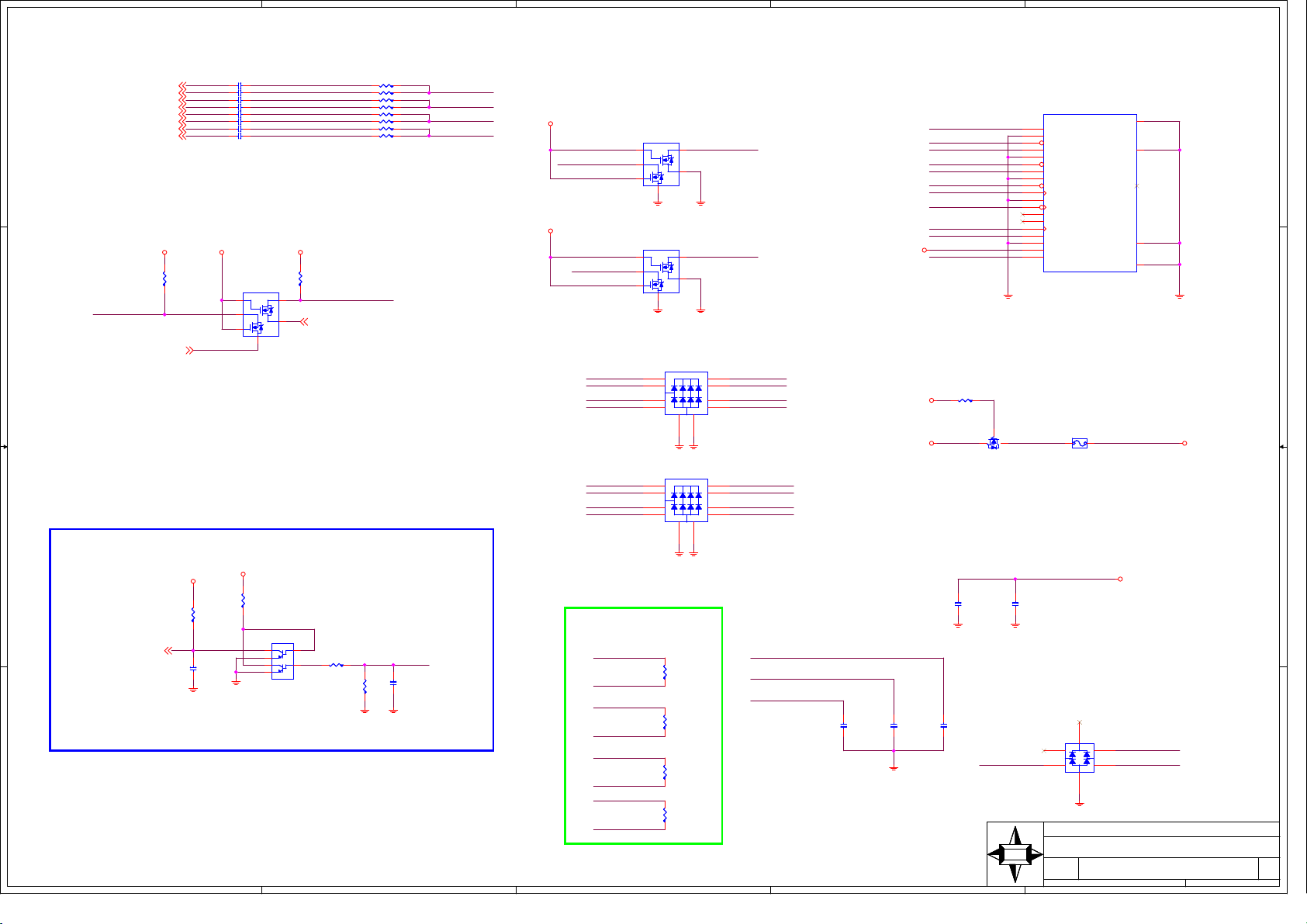

5
Vinafix.com
4
The HDMI* interface supports HDMI with 3D, 4Kx2K@24Hz, Deep Color, and
x.v.Color.
3
2
1
NN-2N7002D
NN-2N7002D
S1
HDMI_C_CLK_P
HDMI_C_CLK_N
HDMI_C_DATA2_P
HDMI_C_DATA2_N
HDMI_C_DATA1_P
HDMI_C_DATA1_N
HDMI_C_DATA0_P
HDMI_C_DATA0_N
HDMI_PWR_5V
R186
R186
2.2K/4
2.2K/4
HDMI_DDC_CLK_R
D2
S2
HDMI_DDPB_CTRLCLK 13
R204 470R/4R204 470R/4
R206 470R/4R206 470R/4
R198 470R/4R198 470R/4
R195 470R/4R195 470R/4
R200 470R/4R200 470R/4
R202 470R/4R202 470R/4
R193 470R/4R193 470R/4
R191 470R/4R191 470R/4
HDMI_DATA_CLK
HDMI_DATA2
HDMI_DATA1
HDMI_DATA0
VCC3
VCC3
layout swap
HDMI_DATA1
HDMI_DATA0
HDMI_C_DATA0_N
HDMI_C_DATA0_P
HDMI_C_DATA2_N
HDMI_C_DATA1_P
HDMI_C_DATA1_N
HDMI_C_CLK_P
HDMI_C_CLK_N
HDMI_USB1A
D
D
HDMI_USB1A
1
TMDS Data2+
TMDS Data2+
2
TMDS Data2 Shield
TMDS Data2 Shield
3
TMDS Data2-
TMDS Data2-
4
TMDS Data1+
TMDS Data1+
5
TMDS Data1 Shield
TMDS Data1 Shield
6
TMDS Data1-
TMDS Data1-
7
TMDS Data0+
TMDS Data0+
8
TMDS Data0 Shield
TMDS Data0 Shield
9
TMDS Data0-
TMDS Data0-
10
TMDS Clock+
TMDS Clock+
11
TMDS Clock Shield
TMDS Clock Shield
12
TMDS Clock-
TMDS Clock-
13
CEC
CEC
14
Utility
Utility
15
SCL
SCL
16
SDA
SDA
17
DDC/CEC Ground
DDC/CEC Ground
18
+5V Power
+5V Power
19
Hot Plug Delect
Hot Plug Delect
USB3.0X2_HDMI-RH
USB3.0X2_HDMI-RH
HDMI_5V
1 2
FS1
FS1
F-MICROSMD110
F-MICROSMD110
HDMI_C_DATA2_P
Q32
Q32
G2
D1
G1
Q29
Q29
G2
D1
G1
NN-2N7002D
NN-2N7002D
S1
NN-2N7002D
NN-2N7002D
S1
U4
U4
1
2
4
5
U5
U5
1
2
4
5
D2
S2
D2
S2
3
8
3
8
HDMI_DATA_CLK
HDMI_DATA2
HDMI_C_DATA0_N
10
NC
NC
HDMI_C_DATA0_P
9
NC
NC
HDMI_C_DATA2_N
7
NC
NC
HDMI_C_DATA2_PHDMI_C_DATA2_P
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
HDMI_C_DATA1_P
10
NC
NC
HDMI_C_DATA1_N
9
NC
NC
HDMI_C_CLK_P
7
NC
NC
HDMI_C_CLK_N
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
HDMI_PWR_5V
HDMI_C_DATA2_N
HDMI_C_DATA1_P
HDMI_C_DATA1_N
HDMI_C_DATA0_P
HDMI_C_DATA0_N
HDMI_C_CLK_P
HDMI_C_CLK_N
HDMI_DDC_CLK_R
HDMI_DDC_DATA_R
HDMI_PWR_5V
HDMI_HOT_DET
+12V
VCC5
R179 4.7K/4R179 4.7K/4
G
G
S
S
Q24
Q24
N-PM606BA
N-PM606BA
SHELL-1
SHELL-1
SHELL-2
SHELL-2
MEC1
MEC1
SHELL-3
SHELL-3
SHELL-4
SHELL-4
X1
X2
MEC1
X3
X4
HDMI_PWR_5V
HDMI_PWR_5V
HDMI_DDPB_CLK_P4
HDMI_DDPB_CLK_N4
HDMI_DDPB_TX2_P4
HDMI_DDPB_TX2_N4
D D
C C
HDMI_DDPB_TX1_P4
HDMI_DDPB_TX1_N4
HDMI_DDPB_TX0_P4
HDMI_DDPB_TX0_N4
HDMI_PWR_5V
HDMI_DDC_DATA_R
HDMI_DDPB_CTRLDATA13
R185
R185
2.2K/4
2.2K/4
C191 0.1u10X4C191 0.1u10X4
C195 0.1u10X4C195 0.1u10X4
C183 0.1u10X4C183 0.1u10X4
C181 0.1u10X4C181 0.1u10X4
C186 0.1u10X4C186 0.1u10X4
C188 0.1u10X4C188 0.1u10X4
C177 0.1u10X4C177 0.1u10X4
C174 0.1u10X4C174 0.1u10X4
VCC3
G2
D1
G1
Q28
Q28
HPD
B B
HDMI_DDPB_HPD13
A A
5
C175
C175
X_0.01u25X4
X_0.01u25X4
VCC3
R190
R190
10K/4
10K/4
VCC5
R184
R184
10K/4
10K/4
Q30
Q30
6
1
3
4
NN-CMKT3904
NN-CMKT3904
2
R183 10K/4R183 10K/4
5
R182
R182
100K
100K
HDMI_HOT_DET
C167
C167
0.01u25X4
0.01u25X4
4
For EMI
HDMI_C_CLK_N
HDMI_C_CLK_P
HDMI_C_DATA0_N
HDMI_C_DATA0_P
HDMI_C_DATA1_N
HDMI_C_DATA1_P
HDMI_C_DATA2_N
HDMI_C_DATA2_P
R205
R205
X_180R/1%4
X_180R/1%4
R192
R192
X_180R/1%4
X_180R/1%4 C192
R201
R201
X_180R/1%4
X_180R/1%4
R196
R196
X_180R/1%4
X_180R/1%4
3
HDMI_HOT_DET
HDMI_DDC_CLK_R
HDMI_DDC_DATA_R
C192
X_10p50N4
X_10p50N4
C194
C194
X_10p50N4
X_10p50N4
2
C157
C157
0.01u25X4
0.01u25X4
C189
C189
X_10p50N4
X_10p50N4
C158
C158
0.1u10X4
0.1u10X4
HDMI_DDC_DATA_R
MSI
MSI
MSI
HDMI_PWR_5V
U6
U6
6
1
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
HDMI_PWR_5V
52
HDMI_HOT_DET
4
HDMI_DDC_CLK_R
3
ESD-AOZ8906
ESD-AOZ8906
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MS-7A67
HDMI Connector
HDMI Connector
HDMI Connector
1
27 52
27 52
27 52
Sheet of
Sheet of
Sheet of
11
11
11

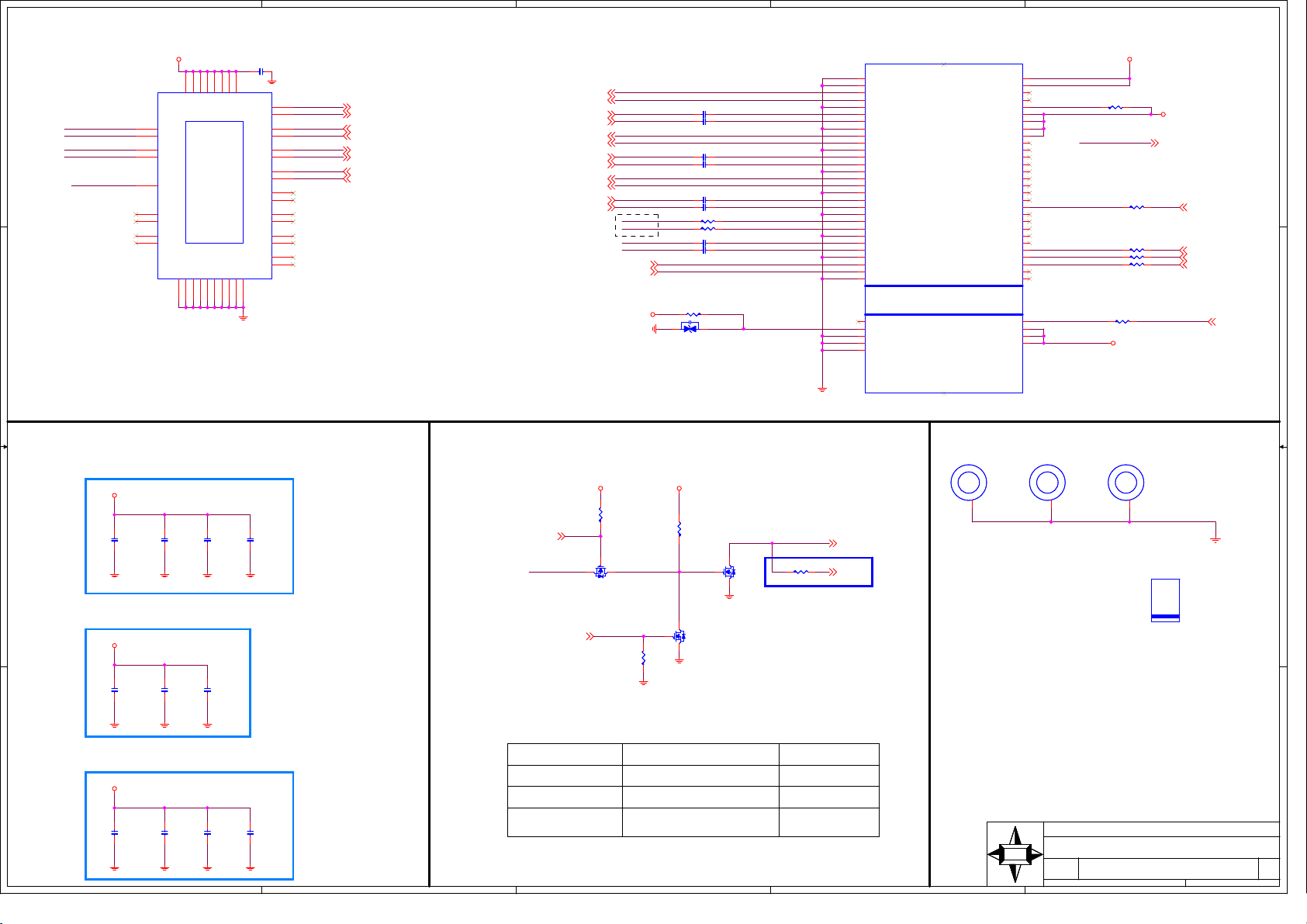

Page 28
5
4
3
2
1
780mA
VCC3
19
9
U43
U43
VDD
D D
C C
M.2RX1
M.2RX1#
M.2TX1
M.2TX1#
M2_1_DET
1
2
5
6
30
10
11
14
15
AI+
AI-
BI+
BI-
SEL
CI+
CI-
DI+
DI-
GND
18
VDD
GND20GND25GND29GND35GND38GND40GND42GND
GND
22
VDD21VDD26VDD39VDD31VDD
GND
GND
34
41
C499 0.1u10X4C499 0.1u10X4
AOa+
VDD
AOa-
BOa+
BOa-
AOb+
AOb-
BOb+
BOb-
COa+
COa-
DOa+
DOa-
COb+
COb-
DOb+
DOb-
ASM1480
ASM1480
43
37
36
33
32
3
4
7
8
28
27
24
23
12
13
16
17
Low: SATA
High: PCIE
PE9_SATA_RX 12
PE9_SATA_RX# 12
PE9_SATA_TX 12
PE9_SATA_TX# 12
PE21_M2_RX 12
PE21_M2_RX# 12
PE21_M2_TX 12
PE21_M2_TX# 12
PE24_M2_RX#12
PE24_M2_RX12
PE24_M2_TX#12
PE24_M2_TX12
PE23_M2_RX#12
PE23_M2_RX12
PE23_M2_TX#12
PE23_M2_TX12
PE22_M2_RX#12
PE22_M2_RX12
PE22_M2_TX#12
PE22_M2_TX12
SATA
要反接
CK_M2_DN13
CK_M2_DP13
PE24_M2_RX#
PE24_M2_RX
PE24_M2_TX#
PE24_M2_TX
PE23_M2_RX#
PE23_M2_RX
PE23_M2_TX#
PE23_M2_TX
PE22_M2_RX#
PE22_M2_RX
PE22_M2_TX#
PE22_M2_TX
M.2RX1
M.2RX1#
M.2TX1#
M.2TX1
3VSB
C562 0.22u6.3X4C562 0.22u6.3X4
C558 0.22u6.3X4C558 0.22u6.3X4
C555 0.22u6.3X4C555 0.22u6.3X4
C553 0.22u6.3X4C553 0.22u6.3X4
C552 0.22u6.3X4C552 0.22u6.3X4
C549 0.22u6.3X4C549 0.22u6.3X4
R648 0R/4R648 0R/4
R649 0R/4R649 0R/4
C546 0.22u6.3X4C546 0.22u6.3X4
C545 0.22u6.3X4C545 0.22u6.3X4
R704 X_10KR704 X_10K
1 2
D25
D25
ESD-SFI0402
ESD-SFI0402
PE24_M2_TX#_C
PE24_M2_TX_C
PE23_M2_TX#_C
PE23_M2_TX_C
PE22_M2_TX#_C
PE22_M2_TX_C
M.2RX1_R
M.2RX1#_R
M.2TX1#_C
M.2TX1_C
M.2_DET
M2_2
M2_2
1
GND-1
3
GND-2
5
PERn3
7
PERp3
9
GND-3
11
PETn3
13
PETp3
15
GND-4
17
PERn2
19
PERp2
21
GND-5
23
PETn2
25
PETp2
27
GND-6
29
PERn1
31
PERp1
33
GND-7
35
PETn1
37
PETp1
39
GND-8
41
PERn0/SATA-B+
43
PERp0/SATA-B-
45
GND-9
47
PETn0/SATA-APETp0/SATA-A+49PERST# (O)(0/3.3V) or N/C
51
GND-10
53
REFCLKN
55
REFCLKP
57
GND-11
67
NC-1
69
PEDET (NC-PCIe/GND-SATA)
71
GND-12
73
GND-13
75
GND-14
MEC1
MEC1
DAS/DSS# (IO)
CLKREQ# (IO)(0/3.3V) or N/C
PEWake# (IO)(0/3.3V) or N/C
KEY M
KEY M
SUSCLK(32kHz) (O)(0/3.3V)
3.3Vaux-1
3.3Vaux-2
NC-2
NC-3
3.3Vaux-3
3.3Vaux-4
3.3Vaux-5
3.3Vaux-6
NC-4
NC-5
NC-6
NC-7
NC-8
NC-9
NC-10
NC-11
NC-12
DEVSLP
NC-13
NC-14
NC-15
NC-16
NC-17
NC-18
NC-19
3.3Vaux-7
3.3Vaux-8
3.3Vaux-9
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
68
70
72
74
M2_DAS
DEVSLP0_R
CLKREQ#_M2
M2MSUS_CLK
VCC3
R427 10K/4R427 10K/4
M2_DAS
DEVSLP=H,requeststheSATAdeviceto
enterintotheDEVSLPpowerstate.
R653 0R/4R653 0R/4
R647 0R/4R647 0R/4
R646 0R/4R646 0R/4
R632 X_0R/4R632 X_0R/4
R633 X_0R/4R633 X_0R/4
VCC3
VCC3
M2_DAS 44
DEVSLP0 12
PLTRST_BU1#_M2 20
CLKREQ#5 13
PCH_WAKE# 15,19,25,29
PCH_SUSCLK
PCH_SUSCLK 15,29
D25 Close to M2 connector
MEC2
MEC2
SLOT-NGFFCARD67P_BLACK-HF-4
SLOT-NGFFCARD67P_BLACK-HF-4
M.2 VCC3>=2.5A
H2
H3
H3
<HP-BOM>
Near Pin2,Pin4
R667
R667
10K/4
10K/4
3VSB
S
S
2N7002
2N7002
G
G
D
D
Q90
Q90
VCC3
C498
C498
22u6.3X8
B B
22u6.3X8
C908
C908
1u6.3X4
1u6.3X4
C734
C734
0.01u25X4
0.01u25X4
C737
C737
0.01u25X4
0.01u25X4
BIOS_DIS_SW115
Near Pin12,Pin14,Pin16,Pin18
VCC3
C736
C910
C910
1u6.3X4
1u6.3X4
C736
0.01u25X4
0.01u25X4
C497
C497
22u6.3X8
22u6.3X8
Near Pin70,Pin72,Pin74
A A
VCC3
BIOS_SEL_PCIESATA115
R703
R703
10K/4
10K/4
BIOS_MODE
GPP_H15 GPP_H13
BIOS_DIS_SW1 Mode
0
0
C496
C496
22u6.3X8
22u6.3X8
5
C909
C909
1u6.3X4
1u6.3X4
C735
C735
0.01u25X4
0.01u25X4
C740
C740
0.01u25X4
0.01u25X4
4
GPI
3VSB
R668
R668
10K/4
10K/4
D
M2_1_DETM.2_DET
D
G
G
S
S
Add for distinguish on board or M.2 SATA
D
D
2N7002
2N7002
G
G
Q114
Q114
S
S
BIOS_SEL_PCIESATA1
1
0
GPI
3
2N7002
2N7002
Q115
Q115
R634 0R/4R634 0R/4
SATA_PCIE_DET0 12
GPP_A18 14
M2-SATA
M2-PCIE
AUTO
2
<HP-BOM>
1
E2B-7924010-RH
E2B-7924010-RH
H2
<HP-BOM>
<HP-BOM>
1
E2B-7924010-RH
E2B-7924010-RH
H1
H1
<HP-BOM>
<HP-BOM>
1
E2B-7924010-RH
E2B-7924010-RH
Footprint: H_R240D173_BR189_PT
M.2 : 22*42 & 22*60 & 22*80 mm
SCREW1
SCREW1
SCREW
SCREW
SCREW
SCREW
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
M2 CONNECTOR
M2 CONNECTOR
M2 CONNECTOR
1
28 52
28 52
28 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 29

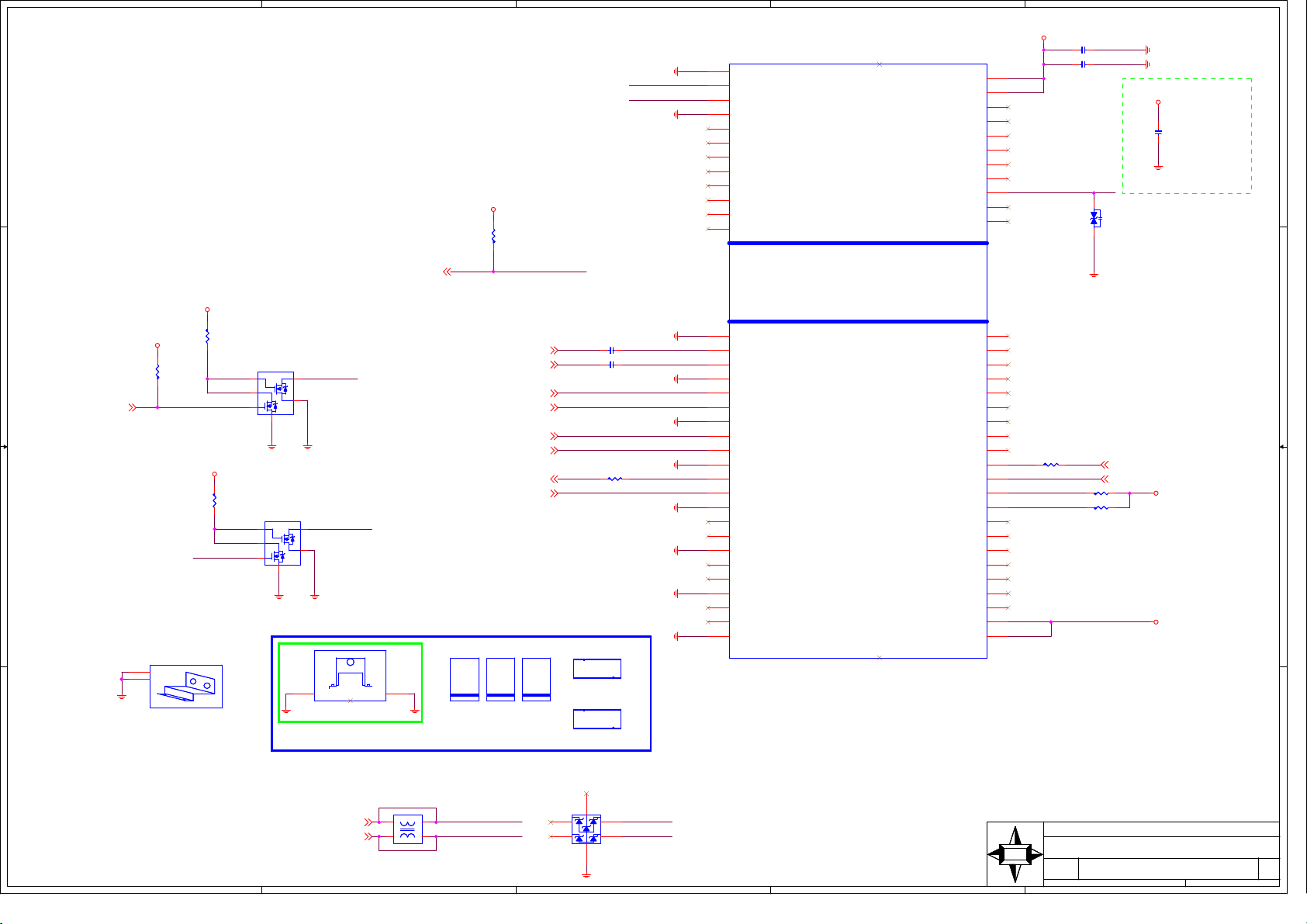

5
D D
4
3VSB
R555
R555
47K/4
47K/4
3
MB_USB_11DP
MB_USB_11DN
M2_1
M2_1
1
3
5
7
9
11
13
15
17
19
21
23
GND-1
USB_D+
USB_DGND-11
SDIO CLK
SDIO CMD
SDIO DATA0
SDIO DATA1
SDIO DATA2
SDIO DATA3
SDIO WAKE#
SDIO RESET#
2
MEC2
MEC2
PCM_OUT / I2S SD_OUT
3.3V-1
3.3V-2
LED1#
PCM_CLK / I2S SCK
PCM_SYNC / I2S WS
PCM_IN / I2S SD_IN
LED2#
GND-2
UART WAKE#
UART RXD
1
3VSB
780mA
C408 1u6.3X4C408 1u6.3X4
C409 10u6.3X6C409 10u6.3X6
2
4
6
8
10
12
14
16
18
20
22
WF+BT_DET#
12
D15
D15
ESD-SFI0402
ESD-SFI0402
3VSB
C410
C410
X_10u6.3X6
X_10u6.3X6
close to pin2
PE8_WIFI_BT_TX12
PE8_WIFI_BT_TX#12
PE8_WIFI_BT_RX12
PE8_WIFI_BT_RX#12
CK_WIFI_BT_P13
CK_WIFI_BT_N13
SCREW3
SCREW3
SCREW
SCREW
SCREW
SCREW
WF+BT_DET#
CLKREQ#613
PCH_WAKE#15,19,25,28
SCREW4
SCREW4
SCREW
SCREW
SCREW
SCREW
C521 0.1u10X4C521 0.1u10X4
C527 0.1u10X4C527 0.1u10X4
R484 0R/4R484 0R/4
Wireless1
Wireless1
INTEL-8265
INTEL-8265
Wireless
Wireless
Plastic1
Plastic1
WIFI
WIFI
固定塑膠
固定塑膠
WIFI_Plastic
WIFI_Plastic
PE8_WIFI_BT_TXC
PE8_WIFI_BT_TX#C
CLKREQ#6_R
33
GND-10
35
PETp0
37
PETn0
39
GND-9
41
PERp0
43
PERn0
45
GND-8
47
REFCLKP0
49
REFCLKN0
51
GND-7
53
CLKREQ0#
55
PEWAKE0#
57
GND-6
59
RESERVED / PETp1
61
RESERVED / PETn1
63
GND-5
65
RESERVED / PERp1
67
RESERVED / PERn1
69
GND-4
71
RESERVED / REFCLKP1
73
RESERVED / REFCLKN1
75
GND-3
KEY E
KEY E
VENDOR DEFINED-1
VENDOR DEFINED-2
VENDOR DEFINED-3
UIM_SWP / PERST1#
UIM_POWER_SNK / CLKREQ1#
UIM_POWER_SRC/GPIO1 / PEWAKE1#
MEC1
SLOT-NGFFCARD67P_BLACK-HF-6
SLOT-NGFFCARD67P_BLACK-HF-6
MEC1
UART TXD
UART CTS
UART RTS
COEX3
COEX2
COEX1
SUSCLK
PERST0#
W_DISABLE2#
W_DISABLE1#
I2C DATA
I2C CLK
ALERT#
RESERVED
3.3V-3
3.3V-4
32
34
36
38
40
42
44
46
48
50
PLTRST_BU1#_WIFI_BT
52
BT_DISABLE_L#
54
WIFI_DISABLE_L#
56
58
60
62
64
66
68
70
72
74
R487 0R/4R487 0R/4
PCH_SUSCLK 15,28
PLTRST_BU1#_WIFI_BT 20
R349 3.3KR349 3.3K
R547 3.3KR547 3.3K
3VSB
3VSB
WF+BT_DET#14
ATX_5VSB
R610
R612
R612
47K/4
47K/4
WIFI_BTDIS#
R610
47K/4
47K/4
ATX_5VSB
R611
R611
47K/4
47K/4
WIFI_BTDIS#
G2
D1
G1
G2
D1
G1
Q64
Q64
NN-2N7002D
NN-2N7002D
S1
Q65
Q65
NN-2N7002D
NN-2N7002D
S1
BT_DISABLE_L#
D2
S2
WIFI_DISABLE_L#
D2
S2
FRAME1
FRAME1
X2
X2
E21-7995050-HF
E21-7995050-HF
SCREW2
SCREW2
SCREW
X1
X1
X3
X3
SCREW
SCREW
SCREW
C C
WIFI_BTDIS#14
B B
3VSB
WH1
WH1
1
GND-1
2
GND-2
GR1223-RH
GR1223-RH
2016.01.05
A A
EMI
L17
L17
4
MB_USB_11DN12
MB_USB_11DP12
5
1
2
4
MB_USB_11DP
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
D19
D19
6
1
52
MB_USB_11DNMB_USB_11DN
4
MB_USB_11DP
3
ESD-AOZ8906
ESD-AOZ8906
NEAR CONNECTOR
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
WIFI+BT
WIFI+BT
WIFI+BT
MS-7A67
1
29 52
29 52
29 52
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
3
2
Monday, December 19, 2016
Page 30
5
Vinafix.com
1.0 change to P&N MOS
USB POWER
DIMM_SBDRV35
D D
DIMM_VCCDRV35,44
DIMM_SBDRV
DIMM_VCCDRV
VCC5
ATX_5VSB
G
C116
C116
X_18n16X4
X_18n16X4
4
3
2
1
N-PE618BA
N-PE618BA
Q44
Q44
P-P06P03
P-P06P03
D S
5
Q42
Q42
5V_USB
9.4A
4
5V_USB
F1
F1
1 2
F-SMD1206P350SLRT-G-HF
F-SMD1206P350SLRT-G-HF
F2
F2
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
F4
F4
1 2
F-SMD1206P350SLRT-G-HF
F-SMD1206P350SLRT-G-HF
F6
F6
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
5V_FUSB3_2
2.8A
5V_FUSB3_1
1.8A
5V_RUSB3_1
3A
5V_RUSB2_1
1A
JUSB1
LAN_USB1
JUSB2
HDMI_USB1
PS2_USB1
3
5V_FUSB3_15V_FUSB3_2
EC25
EC34
EC34
+
+
12
470u6.3SO
470u6.3SO
5V_RUSB3_1
EC3
EC3
+
+
12
470u6.3SO
470u6.3SO
EC25
+
+
12
470u6.3SO
470u6.3SO
5V_RUSB2_1
EC35
EC35
+
+
12
470u6.3SO
470u6.3SO
2
USB1,2
OC#012
OC#0
5V_FUSB3_1
R298
R298
10K1%4
10K1%4
R299
R299
15K1%4
15K1%4
USB3,4
1
5V_FUSB3_2
R292
R61
R61
10K1%4
10K1%4
R70
R70
15K1%4
15K1%4
OC#3
R292
10K1%4
10K1%4
R294
R294
15K1%4
15K1%4
USB9,10
OC#412
USB7,8
OC#312
5V_RUSB3_1
OC#1
OC#112
OC#212
5V_RUSB2_1
OC#4
USB5,6
R560
R560
10K1%4
10K1%4
R572
R572
15K1%4
15K1%4
5V_FUSB3_2
OC#2
R559
R559
10K1%4
10K1%4
R575
R575
15K1%4
15K1%4
VBUS-1
GND_D1
GND-1
GND-2
GND-3
GND-4
GND-5
VBUS-2
GND_D2
GND-6
GND-7
GND-8
GND-9
GND-10
5V_FUSB3_2
10
16
13
33
34
35
36
1
7
4
37
38
39
40
C482 1u6.3X4C482 1u6.3X4
FRONT USB PORT 5,6
C C
MB_USB_5DP
4
MB_USB_5DP12
MB_USB_5DN12
MB_USB_6DP12
MB_USB_6DN12
1
2
L2
L2
1
2
L14
L14
MB_USB_5DN
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_6DP
4
MB_USB_6DN
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_10DP12
MB_USB_10DN12
MB_USB_9DP12
MB_USB_9DN12
FRONT USB PORT 9,10
MB_USB_10DP
4
1
2
L1
L1
1
2
L4
L4
MB_USB_10DN
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_9DP
4
MB_USB_9DN
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
FRONT USB PORT 7,8 + USB3 PORT 5,6
MB_USB_7DN
4
MB_USB_7DN12
MB_USB_7DP12
MB_USB_8DN12
MB_USB_8DP12
1
2
L3
L3
1
2
L6
L6
MB_USB_7DP
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_8DN
4
MB_USB_8DP
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_8DP
MB_USB_8DN
SSTX6+
SSTX6-
SSRX6P
SSRX6N
MB_USB_7DP
MB_USB_7DN
SSTX5+
SSTX5-
SSRX5P
SSRX5N
LAN_USB1A
LAN_USB1A
12
D1+
11
D1-
18
SSTX1+
17
SSTX1-
UP
15
14
3
2
9
8
6
5
UP
SSRX1+
SSRX1-
D0+
D0-
SSTX0+
SSTX0-
DOWN
DOWN
SSRX0+
SSRX0-
RJ45_USBX2_LEDX2_TX-1000-RH-53
RJ45_USBX2_LEDX2_TX-1000-RH-53
EMI
EMIEMI
52
D14
MB_USB_5DN
B B
MB_USB_5DP
D14
6
1
4
3
ESD-AOZ8906
ESD-AOZ8906
MB_USB_6DN
MB_USB_6DP
MB_USB_10DP
NEAR CONNECTOR
MB_USB_10DN
MB_USB_10DP
MB_USB_9DN
MB_USB_9DP
5V_RUSB2_1
MB_USB_6DP
5V_FUSB3_2
1 2
3 4
5
7 8
CLOSE TO CONNECTOR
C405 1u6.3X4C405 1u6.3X4
JUSB1
JUSB1
MB_USB_5DNMB_USB_6DN
MB_USB_5DP
6
10
H2X5[9]M_BLACK-RH-3
H2X5[9]M_BLACK-RH-3
52
D6
D6
6
1
ESD-AOZ8906
ESD-AOZ8906
C445 1u6.3X4C445 1u6.3X4
PS2_USB1B
PS2_USB1B
4
VCC-1
3
USB2-
2
USB2+
8
VCC-2
7
USB1-
6
USB1+
MINIDIN_USBX2-RH-8
MINIDIN_USBX2-RH-8
MB_USB_9DNMB_USB_10DN
4
MB_USB_9DP
3
NEAR CONNECTOR
1
GND-1
15
15
16
16
5
GND-2
17
17
18
18
MB_USB_8DN
MB_USB_8DP MB_USB_7DP
52
D7
D7
6
1
SSTX5P12
SSTX5N12
SSTX6P12
SSTX6N12
SSRX5P12
SSRX5N12
SSRX6P12
SSRX6N12
MB_USB_7DN
4
3
ESD-AOZ8906
ESD-AOZ8906
NEAR CONNECTOR
C370 0.1u10X4C370 0.1u10X4
C363 0.1u10X4C363 0.1u10X4
C257 0.1u10X4C257 0.1u10X4
C361 0.1u10X4C361 0.1u10X4
SSTX5+
SSTX5-
SSTX6+
SSTX6-
SSRX5P
SSRX5N
SSRX6P
SSRX6N
SSTX5SSTX5+
SSTX6SSTX6+
U30
U29
U29
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
8
SSTX5SSTX5+
SSTX6SSTX6+
SSRX5N
SSRX5P
SSRX6N
SSRX6P
U30
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
8
SSRX5N
SSRX5P
SSRX6N
SSRX6P
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
USB2.0 Connector
USB2.0 Connector
USB2.0 Connector
1
30 52
30 52
30 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 31
5
MB_USB_4DN
4
MB_USB_4DN12
MB_USB_4DP12
MB_USB_3DN12
D D
MB_USB_3DP12
1
2
L9
L9
1
2
L10
L10
MB_USB_4DP
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_3DN
4
MB_USB_3DP
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
SSTX3N12
SSTX3P12
SSTX4N12
SSTX4P12
SSRX3N12
SSRX3P12
EMI
52
U8
MB_USB_3DP
MB_USB_3DN
C C
U8
6
1
4
3
ESD-AOZ8906
ESD-AOZ8906
MB_USB_4DP
MB_USB_4DN
SSRX4N12
SSRX4P12
4
C108 0.1u10X4C108 0.1u10X4
C105 0.1u10X4C105 0.1u10X4
C103 0.1u10X4C103 0.1u10X4
C99 0.1u10X4C99 0.1u10X4
SSTX3SSTX3+
SSTX4SSTX4+
SSRX3N
SSRX3P
SSRX4N
SSRX4P
SSTX3SSTX3+
SSTX4SSTX4+
SSRX3P
SSRX4N
SSRX4P
3
U11
U11
1
2
4
5
3
U10
U10
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
8
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
8
SSTX3SSTX3+
SSTX4SSTX4+
SSRX3NSSRX3N
SSRX3P
SSRX4N
SSRX4P
MB_USB_3DP
MB_USB_3DN
SSTX4+
SSTX4-
SSRX4P
SSRX4N
MB_USB_4DP
MB_USB_4DN
SSTX3+
SSTX3-
SSRX3P
SSRX3N
2
5V_RUSB3_1
HDMI_USB1B
HDMI_USB1B
31
D1+
30
D1-
37
STAD_SSTX1+
36
STAD_SSTX1-
34
STAD_SSRX1+
33
STAD_SSRX1-
22
D0+
21
D0-
28
STAD_SSTX0+
27
STAD_SSTX0-
25
STAD_SSRX0+
24
STAD_SSRX0-
USB3.0X2_HDMI-RH
USB3.0X2_HDMI-RH
UP
UP
DOWN
DOWN
GND_DRAIN-1
GND_DRAIN-2
VBUS-1
GND-1
SHELL-5
SHELL-6
VBUS-2
GND-2
SHELL-7
SHELL-8
20
26
23
X5
X6
29
35
32
X7
X8
1
5V_RUSB3_1
C80
C80
1u6.3X4
1u6.3X4
CLOSE TO CONNECTOR
2016.10.18 7A67 1.0 remove VR function
JUSB2
MB_USB_2DP
MB_USB_2DN
U14
MB_USB_2DP12
MB_USB_2DN12
B B
MB_USB_1DP12
MB_USB_1DN12
1
2
L7
L7
1
2
L8
L8
MB_USB_2DN
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_1DP
4
MB_USB_1DN
3
X_CMC-L12-9008080-HF
X_CMC-L12-9008080-HF
MB_USB_2DP
4
EMI
52
U12
MB_USB_1DP
MB_USB_1DN
U12
6
1
4
3
ESD-AOZ8906
ESD-AOZ8906
MB_USB_2DP
MB_USB_2DN
SSTX1P12
SSTX1N12
SSTX2P12
SSTX2N12
SSRX1P12
SSRX1N12
SSRX2P12
SSRX2N12
C259 0.1u10X4C259 0.1u10X4
C267 0.1u10X4C267 0.1u10X4
C256 0.1u10X4C256 0.1u10X4
C258 0.1u10X4C258 0.1u10X4
SSTX1+
SSTX1-
SSTX2+
SSTX2-
SSRX1P
SSRX1N
SSRX2P
SSRX2N
SSTX1SSTX1+
SSTX2SSTX2+
SSRX1N
SSRX1P
SSRX2N
SSRX2P
U14
1
2
4
5
3
U13
U13
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
8
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
ESD3V3U4ULC
ESD3V3U4ULC
8
SSTX1SSTX1+
SSTX2SSTX2+
SSRX1N
SSRX1P
SSRX2N
SSRX2P
SSTX2+
SSTX2SSRX2P
SSRX2N
5V_FUSB3_1
MB_USB_1DP
MB_USB_1DN
SSTX1+
SSTX1SSRX1P
SSRX1N
5V_FUSB3_1
JUSB2
11
D2+
12
D2-
14
TX2+
15
TX2-
17
RX2+
18
RX2-
19
VBUS2
16
GND
13
GND
9
D1+
8
D1-
6
TX1+
5
TX1-
3
RX1+
2
RX1-
7
GND
1
VBUS1
4
GND
10
NC
2X10_CONNECTOR
2X10_CONNECTOR
BH2X10[20]-2PITCH_BLACK-RH-1
BH2X10[20]-2PITCH_BLACK-RH-1
5V_FUSB3_1
C271
C271
1u6.3X4
1u6.3X4
CLOSE TO CONNECTOR
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
Rear USB3 & Front Connector
Rear USB3 & Front Connector
Rear USB3 & Front Connector
1
Sheet of
Sheet of
Sheet of
31 52
31 52
31 52
11
11
11
Page 32
5
4
3
2
1

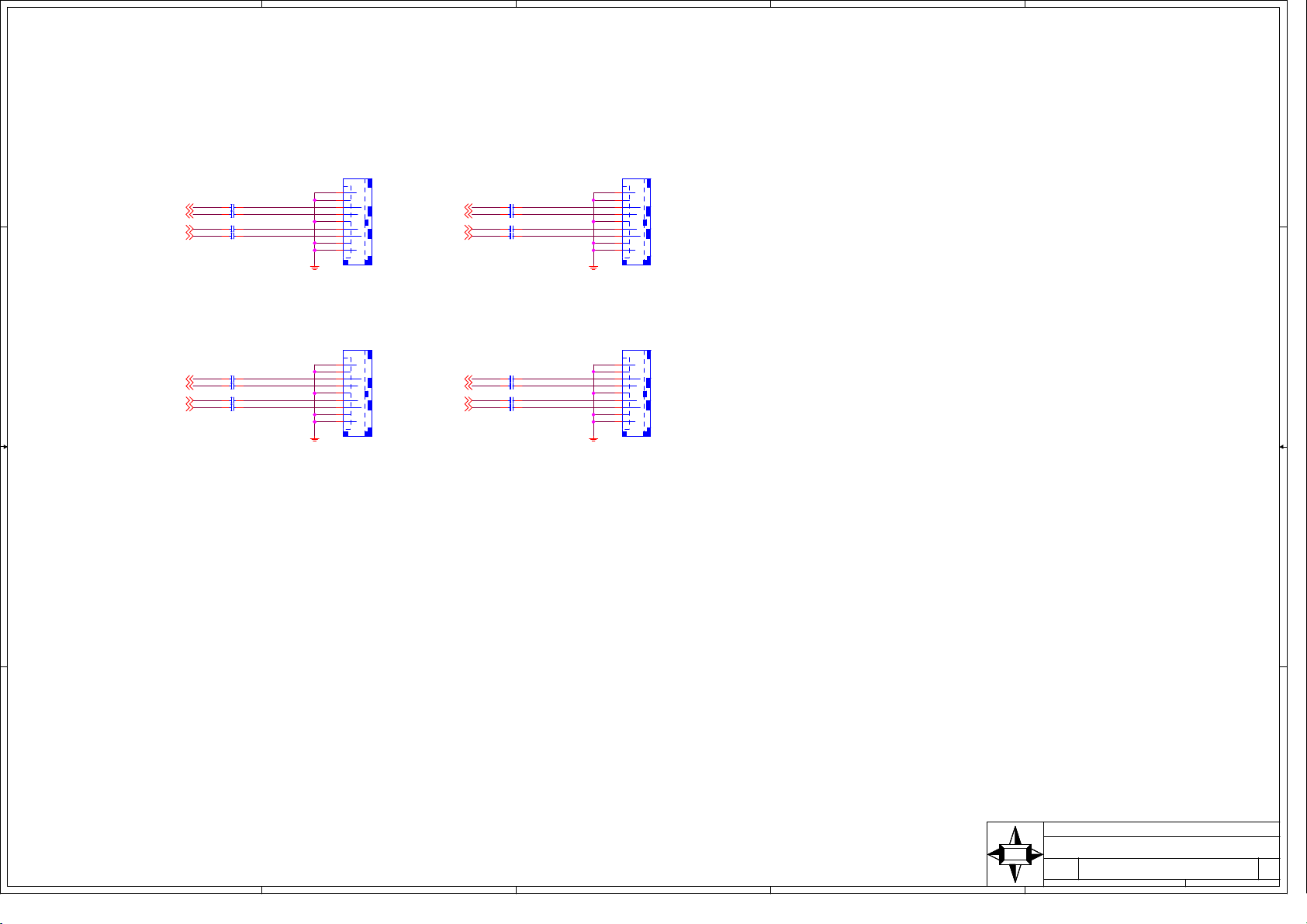

SATA GEN3
D D
SATA2
SATA1
SATA1
X1
X1
X1
7
RX+
SATA_RX012
SATA_RX#012
SATA_TX#012
SATA_TX012
C464 0.01u25X4C464 0.01u25X4
C460 0.01u25X4C460 0.01u25X4
C463 0.01u25X4C463 0.01u25X4
C466 0.01u25X4C466 0.01u25X4
ST_RX0
ST_RX#0
ST_TX#0
ST_TX0
RX+
6
RX-
RX-
5
GND-2GND-1
GND-2GND-1
4
TX-
TX-
3
TX+
TX+
2
GND-3
GND-3
1
X2
X2
X2
SATA7PM_BLACK-P-RH-20
SATA7PM_BLACK-P-RH-20
SATA_RX112
SATA_RX#112
SATA_TX#112
SATA_TX112
C465 0.01u25X4C465 0.01u25X4
C461 0.01u25X4C461 0.01u25X4
C462 0.01u25X4C462 0.01u25X4
C459 0.01u25X4C459 0.01u25X4
ST_RX1
ST_RX#1
ST_TX#1
ST_TX1
SATA2
X1
X1
X1
7
RX+
RX+
6
RX-
RX-
5
GND-2GND-1
GND-2GND-1
4
TX-
TX-
3
TX+
TX+
2
GND-3
GND-3
1
X2
X2
X2
SATA7PM_BLACK-P-RH-20
SATA7PM_BLACK-P-RH-20
C C
SATA_RX212
SATA_RX#212
SATA_TX#212
SATA_TX212
B B
A A
C420 0.01u25X4C420 0.01u25X4
C416 0.01u25X4C416 0.01u25X4
C419 0.01u25X4C419 0.01u25X4
C422 0.01u25X4C422 0.01u25X4
ST_RX2
ST_RX#2
ST_TX#2
ST_TX2
SATA3
SATA3
X1
X1
X1
7
RX+
RX+
6
RX-
RX-
5
GND-2GND-1
GND-2GND-1
4
TX-
TX-
3
TX+
TX+
2
GND-3
GND-3
1
X2
X2
X2
SATA7PM_BLACK-P-RH-20
SATA7PM_BLACK-P-RH-20
SATA4
SATA4
X1
X1
X1
7
RX+
SATA_RX312
SATA_RX#312
SATA_TX#312
SATA_TX312
C421 0.01u25X4C421 0.01u25X4
C417 0.01u25X4C417 0.01u25X4
C418 0.01u25X4C418 0.01u25X4
C415 0.01u25X4C415 0.01u25X4
ST_RX3
ST_RX#3
ST_TX#3
ST_TX3
RX+
6
RX-
RX-
5
GND-2GND-1
GND-2GND-1
4
TX-
TX-
3
TX+
TX+
2
GND-3
GND-3
1
X2
X2
X2
SATA7PM_BLACK-P-RH-20
SATA7PM_BLACK-P-RH-20
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
SATA connector
SATA connector
SATA connector
1
32 52
32 52
32 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 33
5
Vinafix.com
4
3
2
1

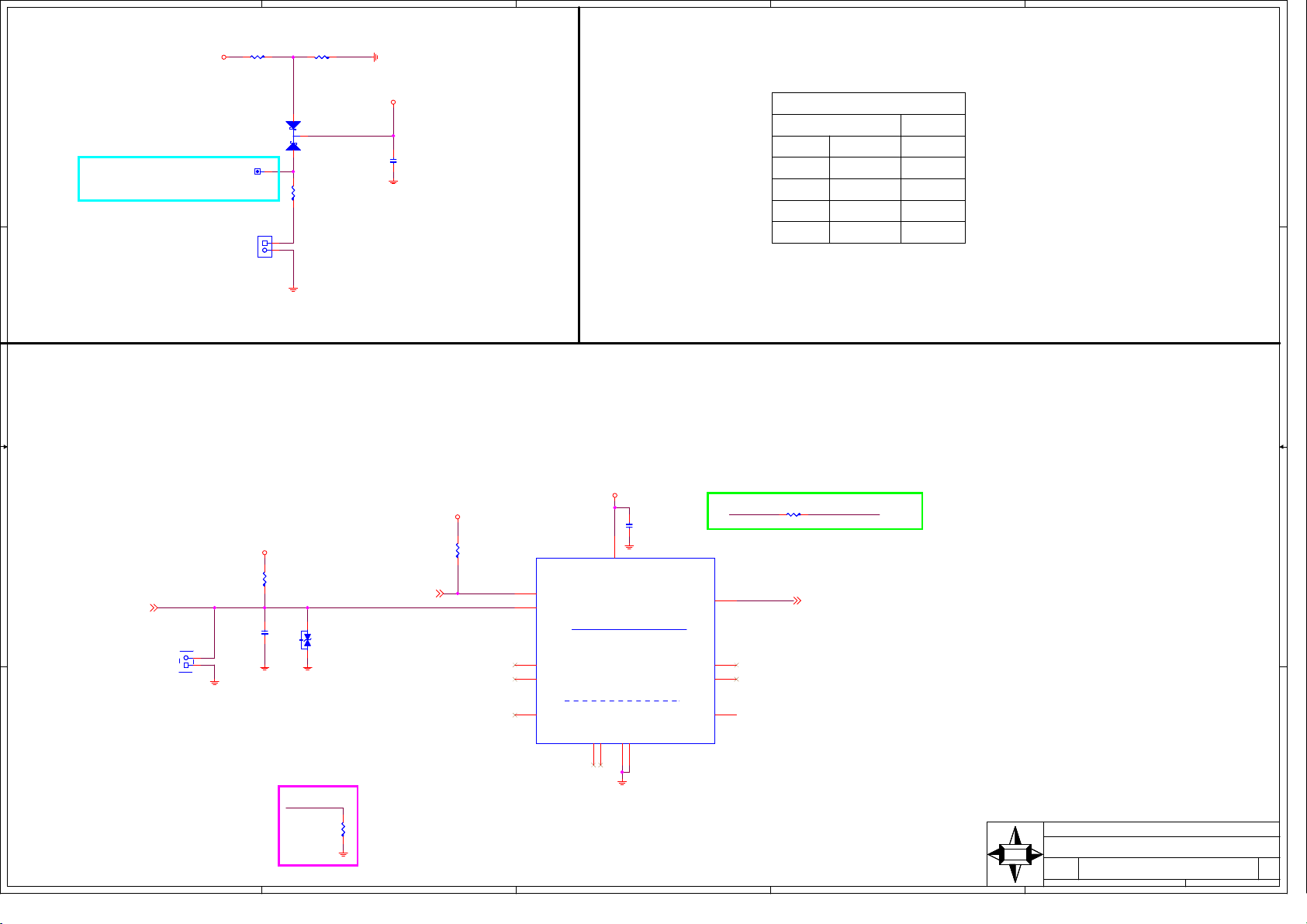

CRB
3VDSW
R296 45.3K1%4R296 45.3K1%4R295 3K1%4R295 3K1%4
VBAT
D D
Close to PCH
S-BAT54C_SOT23
S-BAT54C_SOT23
VBATVBAT
placement botton side
BH1X2-1.25PITCH_WHITE-RH-3
BH1X2-1.25PITCH_WHITE-RH-3
C C
BAT1
BAT1
X
D2
D2
Z
Y
R287
R287
1K1%4
1K1%4
1
2
C269
C269
1u6.3X6
1u6.3X6
INPUT1 INPUT2 OUTPUT1
0
1
1
0
Function 1
1 1
0
1
0
OUTIN
Default
0
0
0
BIOS MODE
If INSTALL R588 Please Check RTCRST# Double Pull High
VBAT
SIO_3VA
C739
C739
0.1u10
B B
RTCRST#_D35
JBAT1
JBAT1
2
1
H1X2M_BLACK-RH
H1X2M_BLACK-RH
VBAT
R587
R587
20K1%4
20K1%4
C433
C433
1u6.3X6
1u6.3X6
D20
D20
ESD-SFI0402ML080C-LF-HF
ESD-SFI0402ML080C-LF-HF
1 2
If has discharge function INPUT4 connect to ESD.
R286
R286
X_4.7K/4
X_4.7K/4
CLR_CMOS#20
CLR_CMOS#
RTCRST#_D
U22
U22
CLR_CMOS function 1
1
2
3
10
5
CLR_CMOS function 1
CLR_CMOS#
CLR_CMOS#
INPUT1
RTCRST#_D
RTCRST#_D
INPUT2
CUT_VBAT function 2
CUT_VBAT function 2
CUTVBAT
CUTVBAT
INPUT3
DIS_CHARGE
DIS_CHARGE
INPUT4
VIN
VBAT
VBAT
ESD"D0G-2950500-SI0"
A A
5
20160629
CLR_CMOS#
R9
X_100K/4R9X_100K/4
4
0.1u10
14
VDD
RTCRST#_PCH
RTCRST#_PCH
POWER_OFF
POWER_OFF
RTCRST#_SIO
RTCRST#_SIO
LOW SWITCH
LOW SWITCH
VBAT_PCH(POWER)
VBAT_PCH(POWER)
NC-14GND-18NC-26GND-2
9
3
Co-Lay NOT USE U22 , R588 INSTALL
RTCRST# RTCRST#_D
R588 X_0R/4R588 X_0R/4
RTCRST# Pull high on PCH side
RTCRST#
11
OUTPUT1
12
OUTPUT2
13
OUTPUT3
7
VOUT
SLG4B41231V_STQFN14-HF
SLG4B41231V_STQFN14-HF
RTCRST# 15
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
2
Monday, December 19, 2016
MS-7A67
CLR_CMOS circuit
CLR_CMOS circuit
CLR_CMOS circuit
1
33 52
33 52
33 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 34
5
4
3
2
1

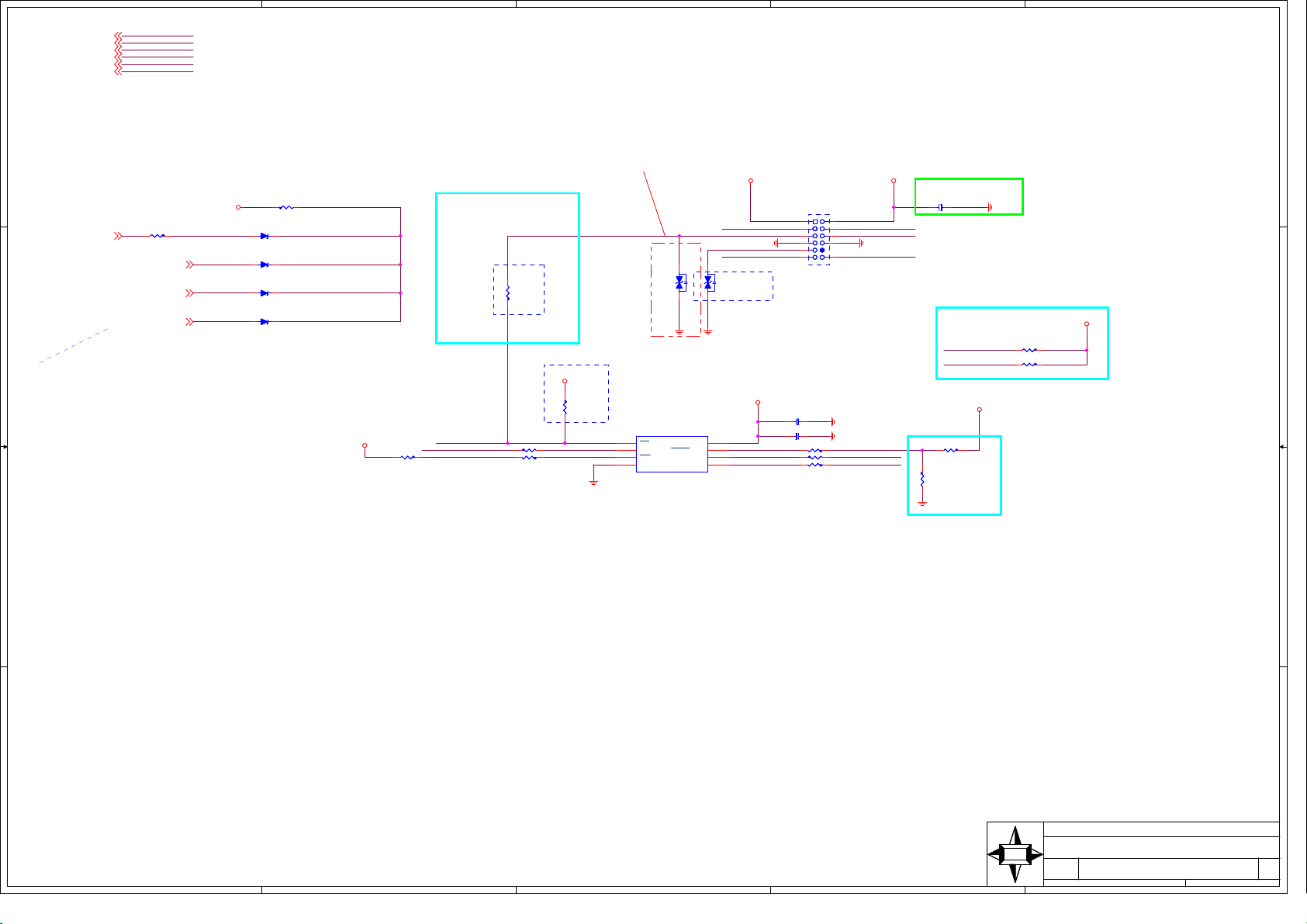

PCH_SPI0_MOSI15
PCH_SPI0_MISO15
PCH_SPI0_CLK15
PCH_SPI0_CS0#15
PCH_SPI0_IO215
PCH_SPI0_IO315
D D
RSMRST#15,20
C C
For TL624-1.1 (SKYLAKE)
In skylake,PCH core is powered by VSB which need sink RSMRST#
to low by SPI_SW_SEL.
PCH_SPI0_MOSI
PCH_SPI0_MISO
PCH_SPI0_CLK
PCH_SPI0_CS0#
PCH_SPI0_IO2
PCH_SPI0_IO3
Fine tune for SA reset
R553 0R/4R553 0R/4
CHIP_PWGD15,20
PCH_DPWROK15,20
SYS3VSB_OFF20,35,41
ATX_5VSB
RSMRST#_R
R548 10K/4R548 10K/4
D18
D18
S-RB751V-40_SOD323-RH
S-RB751V-40_SOD323-RH
D17
D17
X_S-RB751V-40_SOD323-RH
X_S-RB751V-40_SOD323-RH
D16
D16
S-RB751V-40_SOD323-RH
S-RB751V-40_SOD323-RH
D21
D21
S-RB751V-40_SOD323-RH
S-RB751V-40_SOD323-RH
SPI_SW_SEL
3VSB
R534 X_1K/4R534 X_1K/4
2015.09.18
SPI0_CS0#
PCH_SPI0_IO2
SPI CS# < 25pF
D0G-0402510-SI0
3VSB 3VSB
2014.08.25
Close to JSPI1
JSPI1
JSPI1
PCH_SPI0_MISO
PCH_SPI0_CS0#
SPI_SW_SEL
PCH_SPI0_IO2
12
VCC
HOLD(IO3)
DI(IO0)
12
D4
D4
ESD-SFI0402
ESD-SFI0402
For TL624-1.1 : Stuff D4
Old : Only RSVD (Because 12V level)
3VSB
8
SPI0_IO3
7
6
CLK
SPI0_MOSI PCH_SPI0_MOSI
5
D3
R493
R493
0R/4
0R/4
For TL624-1.1 : Stuff R493
Old : Don't stuff R493
3VSB
R494
R494
X_2.2K/4
X_2.2K/4
R508 15R/4R508 15R/4 R514 X_1K/4R514 X_1K/4
R517 15R/4R517 15R/4
SPI0_MISOPCH_SPI0_MISO
SPI0_IO2 SPI0_CLK PCH_SPI0_CLK
X_ESD-SFI0402D3X_ESD-SFI0402
For TL624-1.1 : Stuff R494
Old : Don't stuff R494
SPI1
SPI1
1
CS
2
DO(IO1)
3
WP(IO2)
4
GND
MX25L12873FM2I-10G-HF
MX25L12873FM2I-10G-HF
1 2
3 4
5
7 8
9
H2X6[10]M-2PITCH_BLACK-RH-3
H2X6[10]M-2PITCH_BLACK-RH-3
C387 0.1u10X4C387 0.1u10X4
C392 10u6.3X6C392 10u6.3X6
R513 15R/4R513 15R/4
R536 15R/4R536 15R/4
R535 15R/4R535 15R/4
6
1211
PCH_SPI0_IO3
PCH_SPI0_MOSI
PCH_SPI0_CLK
PCH_SPI0_IO3
C399 0.1u10X4C399 0.1u10X4
PCH_SPI0_MISO
PCH_SPI0_MOSI
2015.01.15
R537
R537
X_1K/4
X_1K/4
2014.12.15
3VSB
R551 X_1K/4R551 X_1K/4
R583 X_1K/4R583 X_1K/4
3VSB
2014.09.24 For intel MOW36 update
pull down resistor on SPI0_IO3 is needed for SKL S/H
platforms with pre-ES1/ES1 ES2 samples.
20150115
update this issue for PRE-ES2/ES2 refer mail 20150115
From synge
* if you not support Standby power in S5 Status, component Q14.G Pull-high to +12V & Q14 MOS select 2N7002
* if you support Standby power in S5 Status(Ex; PCH is B75 Chipset) , component Q14.G Pull-high to ATX_5VSB , Q14 must
B B
select "Vth" under 1V (Component Suggestion as below )
D03-0341409-A68 / D03-0230019-A30
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
BIOS ROM
BIOS ROM
BIOS ROM
1
34 52
34 52
34 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 35
5

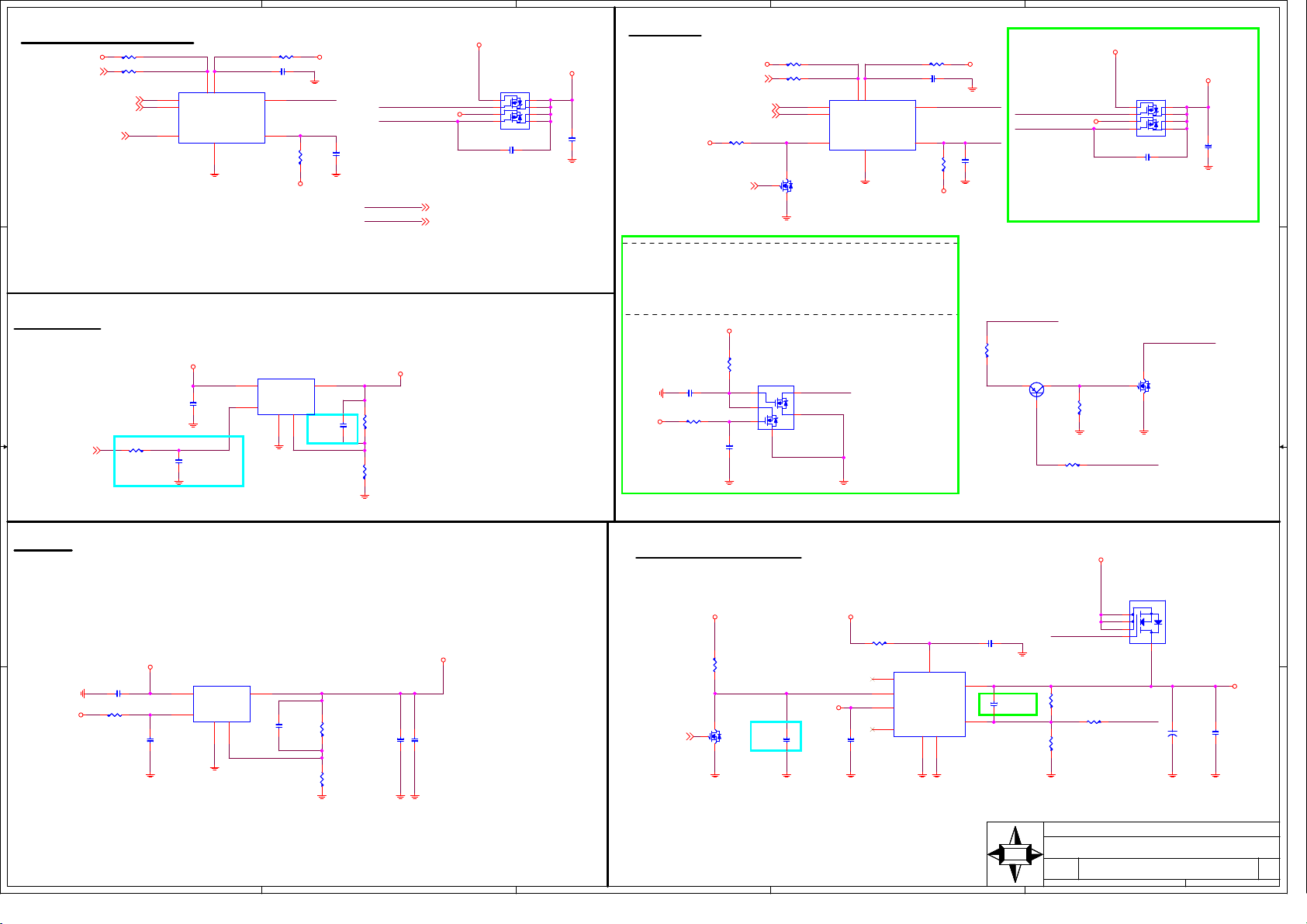

5VDIMM FOR DDR
5VSB_DRV
5VCC_DRV
uP7501
uP7501
R73 10R1%4R73 10R1%4
C83 0.1u10X4C83 0.1u10X4
DIMM_SBDRV
7
DIMM_VCCDRV
8
R50
R50
1K1%6
1K1%6
+12V
ATX_5VSB
R71 510R/4R71 510R/4
VCC5
USB_MODE14
R72 10K/4R72 10K/4
SLP_S3#15,20,36,43
SLP_S4#15,20,39,40,43
ATX_PWR_OK20,44
D D
7501 Mode
H:Support S0/S3/S5
L:Support S0/S3
5VDIMM_5VSB5VDIMM_5V
1
2
U36
U36
5
S3#
6
S5#
5VSB
5VCC
4
MODE
GND
3
SIO_3VA
C C
ATX_5VSB
U15 GS7116S_SOT23-5-RHU15 GS7116S_SOT23-5-RH
C16
C16
1u6.3X4
1u6.3X4
RTCRST#_D33
R322 30.1K1%4R322 30.1K1%4
C437
C437
1u6.3X4
1u6.3X4
VDD1VOUT
3
EN
AVL:I31-8866509-A36
5
GND
ADJ
2
4
C366
C366
680p50X4
680p50X4
3VA_FBSIO_3VA_EN
0.8V
C68
C68
0.022u16X4
0.022u16X4
4
DIMM_VCCDRV
DIMM_SBDRV
DIMM_VCCDRV
DIMM_SBDRV
20mA
SIO_3VA
2015.09.18
R393
R393
10K1%4
10K1%4
R394
R394
3.09K1%4
3.09K1%4
VCC5
ATX_5VSB
NP-P5003QVG_SOIC8-RH
NP-P5003QVG_SOIC8-RH
DIMM_VCCDRV 30,44
DIMM_SBDRV 30
Q60
Q60
1
2
3
4 5
C492 18n16X4C492 18n16X4
3
5VDUAL
5VDIMM
8
7
6
C493
C493
X_0.1u10X4
X_0.1u10X4
ATX_5VSB
7501 Mode
H:Support S0/S3/S5
L:Support S0/S3
For power 700W solution (only for uP7501+uP7506 for 3VSB solution)
The power supply VCC3 delay 12ms after VCC5 assert.
The chip U7501 PCH_VCCDRV work when the VCC5 ready
(When VCC5 up to 4.2V and the 5VDRV1 delay 6ms assert), but
VCC3 not ready and let the 3VSB sequence fail.
VCC3
ATX_PWR_OK20,44
R289 47K/4R289 47K/4
SYS3VSB_OFF20,34,41
ATX_5VSB
C79 1u6.3X6C79 1u6.3X6
R55 47K/4R55 47K/4
5VDUAL is power source of 1P0SB, 1.8PSB & 3VSB
R293 510R/4R293 510R/4
VCC5
R291 10K/4R291 10K/4
U32
U32
D
D
Q50
Q50
G
G
2N7002
2N7002
S
S
D2
S2
NN-2N7002D
NN-2N7002D
5
6
4
5VCC_5V
S3#
S5#
MODE
SLP_S3#15,20,36,43
SLP_S4#15,20,39,40,43
S5_MODE PCH_VCCDRV
R60
R60
47K/4
47K/4
Q8
Q8
G2
D1
G1
S1
C67
C67
1u16X6
1u16X6
1
5VCC
2
3
5VSB_5V5VCC_5V
5VSB
GND
2
5VSB_DRV
5VCC_DRV
uP7501
uP7501
R290 10R1%4R290 10R1%4
C270 0.1u10X4C270 0.1u10X4
PCH_SBDRV
7
8
R301
1K1%6
1K1%6
+12V
ATX_5VSB
PCH_VCCDRV
PCH_SBDRV
C305
C305
0.022u16X4
0.022u16X4
2015.09.15
PCH_SBDRV
R765
R765
4.7K/4
4.7K/4
Q107
Q107
P-3906
P-3906
B
防
G3-->S5底下5VSBDRV2
1
VCC5
Q51
Q51
1
2
ATX_5VSB
CE
R777 10K/4R777 10K/4
3
4 5
NP-P5003QVG_SOIC8-RH
NP-P5003QVG_SOIC8-RH
C306 0.047u16X4C306 0.047u16X4R301
D
D
G
G
S
R764
R764
20K/4
20K/4
S
PCH_VCCDRV
3VSB_EN
Q104
Q104
2N7002
2N7002
瞬間有電變沒電,使得下一級電壓爬升有
5VDUAL
8
7
6
5.84307A
C308
C308
X_0.1u10X4
X_0.1u10X4
drop
2014.12.15
3VDSW
B B
3VSB cost down
VCC3
2016.07.25 Modify to GS7116
Q70
ATX_5VSB5VDUAL
204mA
ATX_5VSB
3
C428 X_0.1u16X4C428 X_0.1u16X4
U31 GS7116S_SOT23-5-RHU31 GS7116S_SOT23-5-RH
VDD1VOUT
EN
5
GND
ADJ
2
4
3VDSW_FB
C395
C395
X_10p50N4
X_10p50N4
R491
R491
32.4K1%4
32.4K1%4
R512
R512
10.2K1%4
10.2K1%4
C406 1u6.3X4C406 1u6.3X4
ATX_5VSB
A A
R568 47K/4R568 47K/4
5
3.341V
C396 1u6.3X4C396 1u6.3X4
4
3VDSW
C390 0.1u16X4C390 0.1u16X4
SYS3VSB_OFF20,34,41
3
D
D
G
G
S
S
R549
R549
47K/4
47K/4
3VSB_EN
Q68
Q68
2N7002
2N7002
2014.12.15
C431
C431
0.1u10X4
0.1u10X4
5VDUAL
Min:1.2V
C400
C400
10u6.3X6
10u6.3X6
1
2
3
5
U33
U33
POK
EN
VIN
NC
2
3VSB_CNTL
4
VDD
GND8GND
9
C394 1u6.3X4C394 1u6.3X4R518 10R1%4R518 10R1%4
FOR NIKO modify
6
VOUT
FB
GS7133SO-R_PSOP8-HF
GS7133SO-R_PSOP8-HF
7
0.8V
C398
C398
220p50N4
220p50N4
PCH_VCCDRV
R538
R538
30.9K1%4
30.9K1%4
R542
R542
10.2K1%4
10.2K1%4
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Q70
1
2
3
4
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
5
2.53257A
PCH_VCCDRV3VSB_FB
R550 620K1%4R550 620K1%4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
ACPI CONTROLLER
ACPI CONTROLLER
ACPI CONTROLLER
MS-7A67
MS-7A67
MS-7A67
1
+
+
12
EC32
EC32
100u16SO
100u16SO
Sheet of
Sheet of
Sheet of
3VSB
C432
C432
10u6.3X6
10u6.3X6
35 52
35 52
35 52
11
11
11
Page 36
5
teknisi indonesia
2016.10.18 7A67 1.0 Remove LL Disable
D D
C C
ATX_5VSB 12VIN
R125
R142
VCCIO
SLP_S3# assertion to IMVP VRM_EN deassertion
max:1us
B B
R142
47K/4
47K/4
R134 1K/4R134 1K/4
C126
C126
X_0.1u10X4
X_0.1u10X4
SLP_S3_CTRL5,42,43
SLP_S3#15,20,35,43
Q14
Q14
Q33G VRM_EN
2
5
NN-CMKT3904
NN-CMKT3904
SLP_S3_CTRL
6
1
3
4
ATX_5VSB
R143
R143
47K/4
47K/4
Q33G
G2
D1
G1
Q15
Q15
NN-2N7002D
NN-2N7002D
close to phase1 CHOKE
RT4
RT4
R146
R146
VREF_3606
A A
VREF_3606
100KRT1%4
100KRT1%4
3.65K1%4
3.65K1%4
R145
R145
13.3K1%4
13.3K1%4
close to phase1 CHOKE
R147
R147
RT2
RT2
13.3K1%4
13.3K1%4
100KRT1%4
100KRT1%4
R141
R141
28K1%4
28K1%4
5
R144
R144
15.4K1%4
15.4K1%4
R132
R132
23.7K1%4
23.7K1%4
R125
26.1K1%4
26.1K1%4
VRM_EN 42
R121
R121
10K1%4
10K1%4
VRM_EN
D2
S2
S1
ICCMAX:80A
IMON_3606
ICCMAX:48A
IMONA_3606
4
VR_VIDSOUT5
VR_VIDSCLK5
VR_VIDALERT#5
2016.06.29 7A67 remove resistor
VCORE_VCC_SENSE5
VCORE
VCORE_VSS_SENSE5
VGT_VCC_SENSE5
VGT
VGT_VSS_SENSE5
4
remote sence
R111 100R1%4R111 100R1%4
Local sence
remote sence
R113 0R/4R113 0R/4
R114 100R1%4R114 100R1%4
Local sence
remote sence
R96 0R/4R96 0R/4
R92 100R1%4R92 100R1%4
Local sence
remote sence
R101 0R/4R101 0R/4
R95 100R1%4R95 100R1%4
Local sence
VR_VIDSOUT
VR_VIDSCLK
VR_VIDALERT#
VSEN_3606
VSENA_3606
12VIN
12VIN
C121
C121
0.1u16X4
0.1u16X4
R119 100R1%4R119 100R1%4
R120 45.3R1%4R120 45.3R1%4
R118 X_0R/4R118 X_0R/4
R98 10K1%4R98 10K1%4
C110 100p50N4C110 100p50N4
R91 10K1%4R91 10K1%4
C102 330p50X4C102 330p50X4
VCC5_3606
Close to PIN28,PIN29
2015.04.13
C127 0.47u16X4C127 0.47u16X4
R66 9.31K1%4R66 9.31K1%4
R700 0R/4R700 0R/4
R69 8.66K1%4R69 8.66K1%4
R701 0R/4R701 0R/4
R62 1R1%4R62 1R1%4
R52 1R1%4R52 1R1%4
0.22u16X4
0.22u16X4
J1
J1
1
2
H1X2M-2PITCH
H1X2M-2PITCH
3
C122
C122
1u6.3X4
1u6.3X4
R56 200K1%4R56 200K1%4
C74 0.1u16X4C74 0.1u16X4
VRM_PGD_R5
H_PROCHOT#5
VR_VIDSOUT
VR_VIDSCLK
VR_VIDALERT#
C76
C76
ATX_5VSB VCC512VIN
R131 1R1%4R131 1R1%4
R99 31.6K1%4R99 31.6K1%4R112 0R/4R112 0R/4
C111 68p50N4C111 68p50N4
R90 35.7K1%4R90 35.7K1%4
C101 120p50N4C101 120p50N4
C249 0.1u16X4C249 0.1u16X4
RT3 100KRT1%4RT3 100KRT1%4
R67 715K1%4R67 715K1%4
VR_HOT
RT1 100KRT1%4RT1 100KRT1%4
R68 715K1%4R68 715K1%4
VR_HOT
R63 402K1%4R63 402K1%4
R65 392K1%4R65 392K1%4
R107 X_4.7K/4R107 X_4.7K/4
R106 0R/4R106 0R/4
R115 X_4.7K/4R115 X_4.7K/4
R108 0R/4R108 0R/4
R515
R515
47K/4
47K/4
C230
C230
1u6.3X4
1u6.3X4
3
R104 10R1%4R104 10R1%4
R105 49.9R1%4R105 49.9R1%4
R103 0R/4R103 0R/4
VREF_3606
C233 0.1u16X4C233 0.1u16X4
C77
C77
0.22u16X4
0.22u16X4
12VIN
R53
R53
510K1%4
510K1%4
Sensor POR min 2V
VRM_EN
VRM_PGD_R
VDIO_3606
VCLK_3606
ALERT#_3606
VREF_3606
IMON_3606
IMONA_3606
VSEN_3606
VSENA_3606
VSEN_3606
COMP_3606
FB_3606
VSENA_3606
COMPA_3606
FBA_3606
TSEN_3606
TSEN_3606
C969 100p50X4C969 100p50X4
TSENA_3606
TSENA_3606
C970 100p50X4C970 100p50X4
TONSET_3606
TONSETA_3606
R100 100KR100 100K
OFSM_3606
OFSA_3606
OFFSET MODE 0.7V enable
Internal 1.7V
MAX:600mV
R533 47K/4R533 47K/4
G2
D1
G1
2
VCC5 12VIN
VCC5_3606VCCSTPLL
R122
R122
2.2R/8
2.2R/8
C114
C114
2.2u16X6
2.2u16X6
30
VCC
GND-PAD
61
0.7
0.6V
44
27
2
23
25
26
24
21
20
22
13
12
11
14
34
35
36
33
4
42
3
43
32
45
28
29
U21
U21
DVD
EN
PGOOD
VRHOT#
VDIO
VCLK
ALERT#
VREF
IMON
IMONA
VSEN
COMP
FB
RGND
VSENA
COMPA
FBA
RGNDA
TSEN
TSENA
TONSET
TONSETA
IBIAS
PS4
OFSM
OFSA/PSYS
比較器
Fequency 400K 可由pin3 and pin43
Q35
Q35
NN-2N7002D
NN-2N7002D
D2
SET2_3606
S2
S1
2
R49
R49
5.1R1%6
5.1R1%6
52
PVCC
UGATEA1
PHASEA1
LGATEA1
NC-131NC-239NC-3
RT3606BCGQW_WQFN60-HF
RT3606BCGQW_WQFN60-HF
46
PVCC_3606
For drvirer Gate Mos Use
C66
C66
2.2u16X6
2.2u16X6
RT3606_BOOT1
60
BOOT1
UGATE1
PHASE1
LGATE1
ISEN1P
ISEN1N
BOOT2
UGATE2
PHASE2
LGATE2
ISEN2P
ISEN2N
PWM3
ISEN3P
ISEN3N
BOOTA1
ISENA1P
ISENA1N
PWMA2
ISENA2P
ISENA2N
SET1
SET2
SET3
SETA1
SETA2
RT3606_UG1
59
RT3606_PH1
58
RT3606_LG1
57
ISEN1P_3606
8
ISEN1N
7
RT3606_BOOT2
56
RT3606_UG2
55
RT3606_PH2
54
RT3606_LG2
53
ISEN2P_3606
9
ISEN2N
10
RT3606_PWM3
1
ISEN3P_3606
5
ISEN3N
6
RT3606_GT_BOOTA1
48
RT3606_GT_UGA1
49
RT3606_GT_PHA1
50
RT3606_GT_LGA1
51
ISENA1P_3606
40
ISENA1N
41
RT3606_GT_PWMA2
47
ISENA2P_3606
38
ISENA2N
37
OCP:102.7A(1.3
SET1_3606
15
SET2_3606
16
SET3_3606
17
OCP:57.6A(1.2
SETA1_3606
18
SETA2_3606
19
SET1 control ICCMAX,OCP setting
SET2 control Internal compensation
SET3 control VR address
SETA1 cintrol ICCMAX,OCP setting
SETA2 control Internal compensation
調
MSI
MSI
MSI
Close to PWM
Close to PWM
Close to PWM
Close to PWM
Close to PWM
1
RT3606_BOOT1 37
RT3606_UG1 37
RT3606_PH1 37
RT3606_LG1 37
R83 680R1%4R83 680R1%4
C90 0.1u16X4C90 0.1u16X4
R94 680R1%4R94 680R1%4
C104 0.1u16X4C104 0.1u16X4
R81 680R1%4R81 680R1%4
C88 0.1u16X4C88 0.1u16X4
R74 680R1%4R74 680R1%4
C84 0.1u16X4C84 0.1u16X4
R88 680R1%4R88 680R1%4
C97 0.1u16X4C97 0.1u16X4
倍
倍
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
ISEN1P_3606 37
RT3606_BOOT2 37
RT3606_UG2 37
RT3606_PH2 37
RT3606_LG2 37
ISEN2P_3606 37
RT3606_PWM3 37
ISEN3P_3606 37
RT3606_GT_BOOTA1 38
RT3606_GT_UGA1 38
RT3606_GT_PHA1 38
RT3606_GT_LGA1 38
ISENA1P_3606 38
RT3606_GT_PWMA2 38
ISENA2P_3606 38
ISEN1N_3606 37
ISEN2N_3606 37
ISEN3N_3606 37
ISENA1N_3606 38
ISENA2N_3606 38
)
R117 54.9K1%4R117 54.9K1%4
R116 10.2K1%4R116 10.2K1%4
R127 20K1%4R127 20K1%4
R137 18K1%4R137 18K1%4
R128 22K1%4R128 22K1%4
R138 787R1%4R138 787R1%4
)
R129 143K1%4R129 143K1%4
R139 15K1%4R139 15K1%4
R130 14.7K1%4R130 14.7K1%4
R140 13.3K1%4R140 13.3K1%4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MS-7A67
PWM-RT3606BC
PWM-RT3606BC
PWM-RT3606BC
Tuesday, December 20, 2016
Tuesday, December 20, 2016
Tuesday, December 20, 2016
1
VREF_3606
VREF_3606
VREF_3606
VREF_3606
VREF_3606
36 52
36 52
36 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 37
5
RT3606_UG136
D D
RT3606_BOOT136
RT3606_PH136
RT3606_LG136
R57 2.2R/8R57 2.2R/8
4
C70
C70
0.1u25X6
0.1u25X6
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
12VIN
4
3
2
1
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
5
Q31
Q31
5
Q27
Q27
C168
C168
1u16X6
1u16X6
RT3606_LG1
3
Close to PWM
+
+
12
EC13
EC13
C165
C165
270u16SO
270u16SO
10u16X8
10u16X8
5
Q38
Q38
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
R197
R197
1R1%6
1R1%6
C187
C187
3300p50X4
3300p50X4
CP6 X_COPPERCP6 X_COPPER
CHOKE7
CHOKE7
1 2
0.22u60A0.5m-HF
0.22u60A0.5m-HF
2
ICCMAX:79A
CP7 X_COPPERCP7 X_COPPER
VCORE
LL:2.1m ohm
1
Close to IC
12VIN
Close to PWM
ISEN1+
ISEN1P_360636
ISEN1N_360636
R85 1K1%4R85 1K1%4
C96 0.47u16X4C96 0.47u16X4
R87 X_0R/4R87 X_0R/4
C C
5
Q22
Q22
RT3606_UG236
RT3606_BOOT236
RT3606_PH236
RT3606_LG236
R58 2.2R/8R58 2.2R/8
C71
C71
0.1u25X6
0.1u25X6
4
3
2
1
4
3
2
1
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
5
Q21
Q21
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
RT3606_LG2
C46
C46
1u16X6
1u16X6
C43
C43
10u16X8
10u16X8
5
Q39
Q39
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
R169
R169
1R1%6
1R1%6
C149
C149
3300p50X4
3300p50X4
CP8 X_COPPERCP8 X_COPPER
CHOKE6
CHOKE6
1 2
0.22u60A0.5m-HF
0.22u60A0.5m-HF
CP9 X_COPPERCP9 X_COPPER
EC18 560u6.3SO+EC18 560u6.3SO
EC16 560u6.3SO+EC16 560u6.3SO
EC11 560u6.3SO+EC11 560u6.3SO
+
12
+
12
+
12
VCORE
EC14 560u6.3SO+EC14 560u6.3SO
+
12
Close to IC
ISEN2+
B B
12VIN
Close to PWM
C145
C145
C143
PVCC_3606
5
Q11
R123
R123
5.1R1%6
5.1R1%6
C118 1u16X6C118 1u16X6
RT3606_PWM336
A A
4
1
3
2
9
U23
U23
VCC
PWM
NC
GND
GND-PAD
RT9624F
RT9624F
BOOT
UGATE
PHASE
LGATE
8
7
6
5
RT9624_BOOT3
RT9624_UG3
RT9624_PH3
RT9624_LG3
RT9624_UG3
RT9624_BOOT3
RT9624_PH3
RT9624_LG3
R97 2.2R/8R97 2.2R/8
C109
C109
0.1u25X6
0.1u25X6
5
Q9
Q9
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
Q11
4
3
2
1
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
RT9624_LG3
1u16X6
1u16X6
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
C143
10u16X8
10u16X8
5
Q40
Q40
ISEN2P_360636
ISEN2N_360636
R79
R79
1R1%6
1R1%6
C81
C81
3300p50X4
3300p50X4
R93 1K1%4R93 1K1%4
CP10 X_COPPERCP10 X_COPPER
C100 0.47u16X4C100 0.47u16X4
R89 X_0R/4R89 X_0R/4
CHOKE4
CHOKE4
1 2
0.22u60A0.5m-HF
0.22u60A0.5m-HF
CP11 X_COPPERCP11 X_COPPER
Close to IC
ISEN3+
R78 1K1%4R78 1K1%4
ISEN3P_360636
ISEN3N_360636
5
4
3
C85 0.47u16X4C85 0.47u16X4
R75 X_0R/4R75 X_0R/4
2
MSI
MSI
MSI
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
VCORE(P-PAK) PHASE1-3
VCORE(P-PAK) PHASE1-3
VCORE(P-PAK) PHASE1-3
1
Sheet of
Sheet of
Sheet of
37 52
37 52
37 52
11
11
11
Page 38
5
Vinafix.com
4
3
2
1
RT9624_GT_BOOTA2
8
RT9624_GT_UGA2
7
RT9624_GT_PHA2
6
RT9624_GT_LGA2
5
12VIN
RT3606_GT_UGA136
RT3606_GT_BOOTA136
RT3606_GT_PHA136
RT3606_GT_LGA136
RT9624_GT_UGA2
RT9624_GT_BOOTA2
RT9624_GT_PHA2
RT9624_GT_LGA2
R59 2.2R/8R59 2.2R/8
R76 2.2R/8R76 2.2R/8
C72
C72
0.1u25X6
0.1u25X6
C89
C89
0.1u25X6
0.1u25X6
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
5
Q6
Q6
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
5
Q7
Q7
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
12VIN
C55
C55
1u16X6
1u16X6
5
Q2
Q2
4
3
2
1
12VIN
C54
C54
1u16X6
1u16X6
5
Q3
Q3
4
3
2
1
Close to PWM
+
+
12
EC20
EC20
C52
C52
10u16X8
10u16X8
270u16SO
270u16SO
Close to PWM
C51
C51
10u16X8
10u16X8
R40
R40
1R1%6
1R1%6
C62
C62
3300p50X4
3300p50X4
ISENA1P_360636
ISENA1N_360636
R42
R42
1R1%6
1R1%6
C63
C63
3300p50X4
3300p50X4
CP2 X_COPPERCP2 X_COPPER
ISENA1+
R77 1K1%4R77 1K1%4
CP4 X_COPPERCP4 X_COPPER
CHOKE2
CHOKE2
1 2
0.22u60A0.5m-HF
0.22u60A0.5m-HF
C87 0.47u16X4C87 0.47u16X4
R80 X_0R/4R80 X_0R/4
CHOKE3
CHOKE3
1 2
0.22u60A0.5m-HF
0.22u60A0.5m-HF
CP3 X_COPPERCP3 X_COPPER
CP5 X_COPPERCP5 X_COPPER
VGT
VGT
ICCMAX:51A
LL:3.1m ohm
EC8 560u6.3SO+EC8 560u6.3SO
EC6 560u6.3SO+EC6 560u6.3SO
EC7 560u6.3SO+EC7 560u6.3SO
+
12
+
12
+
12
VGT
CPU_PWR1
CPU_PWR1
2
1
PWRCONN4P_BLACK-RH-3
PWRCONN4P_BLACK-RH-3
D D
C C
RT3606_GT_PWMA236
B B
GND GND
GND GND
MEC1
C98 1u16X6C98 1u16X6
12V
12V
12V
12V
4
3
PVCC_3606
R82
R82
5.1R1%6
5.1R1%6
C49
C49
0.1u16X4
0.1u16X4
4
VCC
1
PWM
3
NC
2
GND
9
GND-PAD
U7
BOOT
UGATE
PHASE
LGATE
RT9624FU7RT9624F
ISENA2+
R86 1K1%4R86 1K1%4
ISENA2P_360636
ISENA2N_360636
A A
5
4
3
2
C91 0.47u16X4C91 0.47u16X4
R84 X_0R/4R84 X_0R/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
VGT(P-PAK) PHASE1-2
VGT(P-PAK) PHASE1-2
VGT(P-PAK) PHASE1-2
1
38 52
38 52
38 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 39
5
DDR4_1.2V 2.8A+ 4.75A+0.375A=7.925
2.8A FOR CPU
9.5A FOR 4DIMM DDR4
4.75A FOR 2DIMM DDR4
0.375A FOR VTT_DDR
D D
OCP =7.925A*1.5=11.8875A
Rlimit(R44)
Current Limit =121K*5uA/10/5mohm
4
3
5VDIMM 5VDIMM_IN
C95
C95
C93
C93
0.01u25X4
0.01u25X4
22u6.3X8
22u6.3X8
2
C92
C92
22u6.3X8
22u6.3X8
1
Irms = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin)))
= 9.357 * 0.44
= 4.154A
C94
C94
1u6.3X4
1u6.3X4
L13 0R/8L13 0R/8
L12 0R/8L12 0R/8
EC5 560u6.3SO+EC5 560u6.3SO
+
12
C129
C129
0.1u10X4
0.1u10X4
C107
C107
22u6.3X8
22u6.3X8
5VDIMM_IN
C115
C115
C113
C113
10u6.3X6
10u6.3X6
22u6.3X8
22u6.3X8
--> 121Kohm(12.1A)
5VDIMM
f:400KHz
U25
R624
R624
5.1R1%4
5.1R1%4
C164
C164
1u6.3X4
1u6.3X4
C C
ATX_5VSB
R592
R592
2K1%4
2K1%4
DDR_VTT_CTRL_EN
R628
R628
3K1%4
3K1%4
MAX:0.375A
R189
R189
47K/4
47K/4
Q26
Q26
NN-2N7002D
NN-2N7002D
G2
D1
ATX_5VSB
B
G1
CE
R629
R629
10K/4
10K/4
Q101
Q101
2N3904
2N3904
S1
D
D
G
G
S
S
SLP_S4#15,20,35,40,43
B B
VCC_DDR
R17
R17
1K/4
A A
DDR_VTT_CTRL5
1K/4
R810 10K/4R810 10K/4
5
D2
S2
Q80
Q80
2N7002
2N7002
VPP_VR_PG
5VDIMM
VPP_VR_PG40
VCC_DDR
VTT_DDR
4
R44 121K1%4R44 121K1%4
VPP_VR_PG
DDR_VTT_CTRL_EN
C193 3300p50X4C193 3300p50X4
C219
C219
C162
C162
10u6.3X6
10u6.3X6
10u6.3X6
10u6.3X6
U25
11
VID
12
VDD
13
CS
10
PGOOD
2V
8
S5
7
S3
5
VDDQ
19
VLDOIN
4
VTTREF
20
VTT
2
VTTSNS
1
VTTGND
RT8231AGQW_WQFN20-HF
RT8231AGQW_WQFN20-HF
VTT LDO
VTT LDO
DDR_UG1
DDR_BOOT1 DDR_BOOT1_R
DDR_PH1
DDR_LG1
UPI VOLTAGE CONSOLE
0x26:RH=18K,RL=13K
R300 13K1%4R300 13K1%4
SMBCLK_VSB15,19
SMBDATA_VSB15,19
3
TON
UGATE
BOOT
PHASE
LGATE
FB
PGND
GND
PGND-1
R180 0R/6R180 0R/6
R177 0R/6R177 0R/6
9
17
18
16
15
6
14
3
21
R302
R302
18K1%4
18K1%4
R631 620K1%4R631 620K1%4
DDR_UG1
DDR_BOOT1
DDR_PH1
DDR_LG1
DDR_FB
FB:0.75V
DDR_OV
DDR_UG1_R
ATX_5VSBATX_5VSB
C309 0.1u10X4C309 0.1u10X4
U26
U26
1
VCC
2
ADD_SEL
5
SCL
4
SDA
3
GND
NCT3933U_SOT23-8-HF
NCT3933U_SOT23-8-HF
NCT3933 AVL up1816 (I34-1816P09-U33)
OUT1
OUT2
OUT3
CP1 X_COPPERCP1 X_COPPER
C154
C154
0.1u25X6
0.1u25X6
8
7
6
5VDIMM
By layout modify
R173 1K1%4R173 1K1%4
C236 X_0.1u10X4C236 X_0.1u10X4
R1056
R1056
1.65K1%4
1.65K1%4
C458 X_0.1u10X4C458 X_0.1u10X4
5
Q18
Q18
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
DDR_OV
PCH_CORE_OV
5VDIMM_IN
5
Q25
Q25
4
3
2
1
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
R153
R153
X_1R1%6
X_1R1%6
C18
C18
X_3300p50X4
X_3300p50X4
PCH_CORE_OV 41
2
MAX:7.925A
1.2V
VCC_DDR
2016.06.29 Change
MSI
MSI
MSI
CHOKE5
CHOKE5
1 2
CH-0.82u18A4.6mS-HF
CH-0.82u18A4.6mS-HF
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
DDR-RT8231
DDR-RT8231
DDR-RT8231
Monday, December 19, 2016
Monday, December 19, 2016
Monday, December 19, 2016
EC15 560u6.3SO+EC15 560u6.3SO
12
+
MS-7A67
MS-7A67
MS-7A67
1
1.2V
C265 22u6.3X8C265 22u6.3X8
C254 22u6.3X8C254 22u6.3X8
C255 22u6.3X8C255 22u6.3X8
39 52
39 52
39 52
Sheet of
Sheet of
Sheet of
C501 22u6.3X8C501 22u6.3X8
VCC_DDR
11
11
11
Page 40
5
4
3
2
1
2DIMM :1.12A FOR DDR VPP2.5V
D D
2016.07.04 7A67 Change MP2143
5VDIMM_VPP
5VDIMM
C C
L26 80L6A/8L26 80L6A/8
L32 80L6A/8L32 80L6A/8
C580
C580
1u6.3X4
1u6.3X4
R715 0R/4R715 0R/4
SLP_S4#15,20,35,39,43
C429 0.1u10X4C429 0.1u10X4
C412 22u6.3X8C412 22u6.3X8
C414 22u6.3X8C414 22u6.3X8
C413 22u6.3X8C413 22u6.3X8
ATX_5VSB 5VDIMM
R726
R726
47K/4
47K/4
Q66
Q66
NN-2N7002D
NN-2N7002D
G2
D1
G1
D2
S2
S1
R717
R717
2.2K/4
2.2K/4
R718
R718
3.3K1%4
3.3K1%4
C582
C582
0.1u10X4
0.1u10X4
VPP_EN
C581
C581
X_1u16X6
X_1u16X6
VPP_VR_PG39
ENABLE HIGH:1.6V
VPP25 Power
2.5V; 1.12A
5VDIMM_VPP
R729
R729
X_47K/4
X_47K/4
5VDIMM_VPP
VPP_EN
U38
U38
2
VIN
8
EN
1
PG
3
SW
5
OUT
7
FB
PGND4AGND
MP2143DJ_TSOT23-8-RH
MP2143DJ_TSOT23-8-RH
6
VPP_PHASE1
VPP25
VPP25_FB
AVL: L04-47B7350-M26
CHOKE12
CHOKE12
0.47u5A21mS
0.47u5A21mS
1 2
R814
R814
196KR1%/4
196KR1%/4
R815
R815
61.9K1%4
61.9K1%4
1.12A
VPP25
C526 22u6.3X8C526 22u6.3X8
C550 22u6.3X8C550 22u6.3X8
D
D
Q69
Q69
R716
2N7002
2N7002
R716
X_0R/4
X_0R/4
4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
3
2
Monday, December 19, 2016
MS-7A67
DDR-MP2143-VPP25
DDR-MP2143-VPP25
DDR-MP2143-VPP25
1
40 52
40 52
40 52
Sheet of
Sheet of
Sheet of
11
11
11
R727
R727
X_100K
X_100K
R725 100KR725 100K
5VDIMM
B B
A A
5
Make Sure VPP EN after 5VDIMM stable
C579
C579
1u6.3X4
1u6.3X4
G
G
S
S
Page 41
5
Vinafix.com
4
3
2
1
PCH_1VSB
1.0V; 9.586A
(6.588A +0.7+0.132*6+0.154*6+0.054+0.132*4)
OCP = 14.4A D03-4C05N03-O05 : 5 mohm
Rocset = 1.5 * Imax * Rdson(low) / Iocset
= 1.5 * 9.586 * 5mohm / 10uA
= 7.1865K
D D
Rocs:7.1865K,OCP:
D03-3669S00-F01 : 14.4A
PCH_1VSB_EN
C C
C364
C364
1000p50X4
1000p50X4
C365
C365
1000p50X4
1000p50X4
2014.12.25
RT8125C C365 stuff C1000P C11-1022032-W08
to sink/source over voltage IC.
pin10 sink/source current capability can't over 1mA
So max voltage can't over 1.8V.
B B
PCH_CORE_OV39
EN:2.4V
PCH_REFOUT
R407
R407
806R1%4
806R1%4
PCH_REFIN
PCH_CORE_OV
from NCT3933
Rdson(low)4.5V
D03-632BA0C-N03 : 4.6 mohm
D03-3056M00-U47 : 6.2mohm
D03-3669S00-F01 : 5.2m ohm
5VDUAL
POR:4.2V
U34
U34
7
EN
8
PGOOD
10
REFOUT
9
REFIN
RT8125EGQW
RT8125EGQW
R623
R623
0R/4
0R/4
R266
R266
10R/6
10R/6
C362
C362
1u6.3X6
1u6.3X6
5
BOOT
VCC
PHASE
UGATE
LGATE/OCSET
GND
11
7A67 change 10R
PCH_BOOT PCH_R_BOOT
1
PCH_PHASE
3
PCH_UGATE
2
PCH_LGATE
4
6
FB
PCH_CORE_FB_R
C376 X_0.01u25X4C376 X_0.01u25X4
R372 0R/6R372 0R/6
R371 0R/6R371 0R/6
R441 1K1%4R441 1K1%4
R374
R374
11.3K1%4
11.3K1%4
PCH_TYPE3
C349 0.1u25X6C349 0.1u25X6
PCH_R_UGATE
R437 X_0R/4R437 X_0R/4
CP14CP14
PCH_1VSB
PLACE UNDER THE PCH
5
Q62
Q62
4
3
2
1
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
5
Q56
Q56
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
Irms = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin)))
= 14.892 * 0.4
= 5.95686A
for ripple
C446 22u6.3X8C446 22u6.3X8
5VDUAL_PCH_IN
C444 10u6.3X6C444 10u6.3X6
5VDUAL_PCH_IN
C333
C333
0.1u16X4
0.1u16X4
C314
C314
10u16X8
10u16X8
+
+
12
EC26
EC26
560u6.3SO
560u6.3SO
L5 0R/8L5 0R/8
L11 0R/8L11 0R/8
too Big
2016.06.29 Change
CHOKE10
CHOKE10
1 2
CH-0.82u18A4.6mS-HF
CH-0.82u18A4.6mS-HF
R330
R330
X_2.2R/8
X_2.2R/8
C328
C328
X_3300p50X4
X_3300p50X4
Lmin = ((Vin - Vout)/(Fsw * k * Iout_max)) * (Vout/Vin)
= 0.59689uH (K = 30%)
EC30 560u6.3SO+EC30 560u6.3SO
12
+
C307
C307
X_0.1u10X4
X_0.1u10X4
MAX:9.586A
OCP:14.4A
PCH_1VSB
C369 22u6.3X8C369 22u6.3X8
C360 1u6.3X4C360 1u6.3X4
C371 10u6.3X6C371 10u6.3X6
5VDUAL
R439
R439
3.92K1%4
3.92K1%4
Vout = Vref * (1 + R821/R822)
= 0.8 * (1 + 1K/3.92K)
ATX_5VSB
R408
R408
47K/4
47K/4
Q58
Q58
G2
D1
C377
C377
G1
NN-2N7002D
NN-2N7002D
S1
5
3VSB
X_0.1u10X4
A A
X_0.1u10X4
5VDUAL
R420
R420
X_2K1%4
X_2K1%4
PCH_1VSB_EN
D2
C372
C372
S2
X_0.1u10X4
X_0.1u10X4R446 10K/4R446 10K/4
4
= 0.8 * 1.2551
= 1.004V
SYS3VSB_OFF20,34,35
D
D
G
G
S
S
PCH_1VSB_EN
Q63
Q63
2N7002
2N7002
7A67 add
3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
2
Monday, December 19, 2016
MS-7A67
PCH power - POWER RT8125E
PCH power - POWER RT8125E
PCH power - POWER RT8125E
1
Sheet of
Sheet of
Sheet of
41 52
41 52
41 52
11
11
11
Page 42
5
SA Power:1.05V,11.1A
4
2016.07.25
Remove UP1540 colay schematic
3
2
1
OCP =11.1A*1.4=15.54A
+12V
R210 10R/8R210 10R/8
C207 1u16X6C207 1u16X6
Rocs(R15)=OCP*Rdson(Low side)3.4mohm]/10uA
=15.54*(3.4)mohm/10uA
D D
=5.2836Kohm
Rocs:5.2836K,OCP:
D03-4C05N03-O05 : 15.76A
D03-632BA0C-N03 : 16.24A
use UBIQ MOS need Check
C216
Rdson(low)10V
D03-4C05N03-O05 : 3.4mohm
D03-632BA0C-N03 : 3.3mohm
D03-3056M00-U47 : 4.2mohm
C216
1000p50X4
1000p50X4
EN:VIH2.4V
EN pin Maximum:6.5V
SA_REFOUT
R219
R219
1K1%4
1K1%4
SA_REFIN
C215
C215
1000p50X4
1000p50X4
U35
U35
7
8
10
9
EN
PGOOD
REFOUT
REFIN
F:300K
RT8125C stuff C1000P C11-1022032-W08
ATX_5VSB
C C
C239 X_0.1u10X4C239 X_0.1u10X4
VRM_EN36
R244 0R/4R244 0R/4
R248
R248
47K/4
47K/4
G2
D1
G1
2014.09.11 By layout
Q72
Q72
D2
S2
NN-2N7002D
NN-2N7002D
S1
VCCSA_EN
+12V
R232
R232
26.1K1%4
26.1K1%4
VCCSA_EN
R250
R250
10K1%4
10K1%4
C247
C247
X_0.1u16X4
X_0.1u16X4
SA_UG1 SA_UG1_R
R207 0R/6R207 0R/6
POR:4.2V
5
VCC
PHASE
UGATE
LGATE/OCSET
GND
RT8125EGQW
RT8125EGQW
11
Vout=0.8*((R217+R215)/R215)
BOOT
SA_BOOT1 SA_BOOT1_RVCCSA_EN
1
SA_PH1
3
SA_UG1
2
SA_LG1
4
SA_FB
6
FB
FB:0.8V
不可調
+12V
C196
C196
1u16X6
1u16X6
5
Q33
Q33
4
3
2
1
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
R211 0R/6R211 0R/6
R217 1K1%4R217 1K1%4
C212 X_0.1u10X4C212 X_0.1u10X4
R215
R215
3.16K1%4
3.16K1%4
Irms = Iout * SQRT((Vout/Vin) * (1 - (Vout/Vin)))
= 11.1* 0.2825
= 3.13575A
+
+
12
EC1
EC1
C201
C201
270u16SO
270u16SO
10u16X8
10u16X8
2016.06.29 Change(
C208 0.1u16X4C208 0.1u16X4
2015.09.18
R226
R226
10R1%4
10R1%4
R225 0R/4R225 0R/4
需重帶料號
VCCSA
VSS_VCCSA_SENSE 5
)
R218
R218
10R1%4
10R1%4
R221 0R/4R221 0R/4
MAX:11.1A
VCCSA_SENSE 5
B B
SLP_S3_CTRL5,36,43
SLP_S3# assertion to VR disabled
max:1us
SLP_S3_CTRL
D
D
Q41
Q41
G
G
2N7002
2N7002
S
S
SA_PH1
SA_LG1
R213
R213
5.36K1%4
5.36K1%4
5
Q34
Q34
4
3
2
1
N-PK632BA_PDFN8-HF
N-PK632BA_PDFN8-HF
R212
R212
X_2.2R/8
X_2.2R/8
C210
C210
X_3300p50X4
X_3300p50X4
OCPSET:min 5Kohm
A A
5
4
3
CHOKE11 CH-1.0u14A5.5mS-HFCHOKE11 CH-1.0u14A5.5mS-HF
1 2
+
+
12
EC21
MSI
MSI
MSI
EC21
560u6.3SO
560u6.3SO
C200
C200
C205
snubber
Lmin = ((Vin - Vout)/(Fsw * k * Iout_max)) * (Vout/Vin)
= 0.5914uH (K = 30%)
C205
22u6.3X8
22u6.3X8
1u6.3X4
1u6.3X4
2
1.05V,11.1A
VCCSA
+
+
12
EC22
EC22
560u6.3SO
560u6.3SO
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
Date:
Tuesday, December 20, 2016
MS-7A67
VCCSA - POWER RT8125E
VCCSA - POWER RT8125E
VCCSA - POWER RT8125E
1
42 52
42 52
42 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 43
5
2016.07.05 change to MP5077
VCCIO
OV: 1~1.2V
4
3
2016.07.25 change from GS7133 to MOS
2
1
VCCSTPLL
0.95V; 5.5A
Source 1.00V
PCH_1VSB
U40
D D
ATX_5VSB
C388 22u6.3X6C388 22u6.3X6
C384 22u6.3X6C384 22u6.3X6
C382
C382
0.1u10X4
0.1u10X4
VCCIO_EN
EN:1.3V~1.7V
PCH_1VSB
EC31 560u6.3SO+EC31 560u6.3SO
12
+
C C
U40
6
VIN-1
11
VIN-2
3
VCC
1
EN
12
NC
MP5077GG_QFN12-HF
MP5077GG_QFN12-HF
Ilimit=(1/Rlimit)*S,S=80000,when VIN=1V
=(1/11.3)*80000=7.079A
Tss=(1/3)*((Vout*Css)/Iss),Iss=9uA
Tss=(1/3)*((1*22n)/9uA)=0.814mS
VOUT-1
VOUT-2
VOUT-3
VOUT-4
GND
ILIM
7
8
9
10
MP5077_Ilim
4
MP5077_SS
5
SS
2
MAX:5.5A
R270 11.3K/1%4R270 11.3K/1%4
C253 0.022u16X4C253 0.022u16X4
VCCIO
VCCIO
C248
C248
22u6.3X6
22u6.3X6
C237
C237
22u6.3X6
22u6.3X6
C383
C383
0.1u10X4
0.1u10X4
1.0V; VCCST:60mA,VCCPLL:150mA=60+150=210mA
For Cost down VCCST&VCCPLL merge
PCH_1VSB
C139 0.1u16X4C139 0.1u16X4
C345 X_10u6.3X6C345 X_10u6.3X6
Q12
Q12
D
VCCST_EN
D
G
G
S
S
N-PM514BA_SOT23-3-HF
N-PM514BA_SOT23-3-HF
VGS:0.5V~1V
VCCSTPLL
Main:D03-514BA09-N03
AVL:D03-0341409-A68,D03-P500209-N03 ?
MAX:210mA
VCCSTPLL
VCCIO ramped and stable before
beginning of VCCOPC/VCCEOPIO ramp
VCCST/PLL stable 1ms before PROCPWRGD
C242
C242
22u6.3X8
22u6.3X8
VCCSTPLL
C50
C50
0.1u16X4
0.1u16X4
VCCIO_EN VCCSTPLL_EN
+12V
7A67 change
R258
R258
300K1%4
300K1%4
VCCIO_EN
C264
C264
R259
R259
X_0.1u16X4
X_0.1u16X4
100K
C513
C513
X_0.1u10X4
X_0.1u10X4
5
100K
Q45
Q45
2
5
NN-CMKT3904
NN-CMKT3904
Q46
Q46G
Q46
NN-2N7002D
NN-2N7002D
G2
D1
G1
4
VCCIO_EN
D2
S2
S1
3
FIX G3 -> S5 mode VCCSTPLL leakage
ATX_5VSB
R617
R617
47K/4
47K/4
6
1
3
4
Q46G
C511
C511
X_0.1u10X4
X_0.1u10X4
SLP_S3_CTRL5,36,42
VCCIO_EN
SLP_S3# assertion to VR disabled
max:1us
VCC_DDR
B B
R604
R604
10K/4
10K/4
R601
R601
X_10K/4
X_10K/4
VCC3
R609
R609
10K/4
10K/4
R599
R599
10K/4
A A
10K/4
ATX_5VSB
R840
R840
Q167
Q167
4.7K/4
4.7K/4
NN-2N7002D
NN-2N7002D
G2
D1
SLP_S4#
SLP_S4#15,20,35,39,40
SLP_S3#15,20,35,36
G1
PSON#44
VSTP_EN_Q
R820 4.7K/4R820 4.7K/4
2
S1
R613 X_0R/4R613 X_0R/4
C450
C450
0.1u10X4
0.1u10X4
G2
D1
G1
D2
S2
Q169
Q169
NN-2N7002D
NN-2N7002D
S1
ATX_5VSB
R819
R819
4.7K/4
4.7K/4
VCCST_EN
2015.12.02
VCCST_EN
D2
VSTP_EN_Q
S2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
MS-7A67
VCCIO/VCCSTPLL POWER
VCCIO/VCCSTPLL POWER
VCCIO/VCCSTPLL POWER
1
43 52
43 52
43 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 44
5
ATX POWER CONNECTOR
4
3
2
1
FRONT PANNEL
VCC5
Q74
Q74
M2_DAS28
11 12
13 14
C810
C810
0.1u10X4
0.1u10X4
SIO_3VA
R563 4.7K/4R563 4.7K/4
2
R564 4.7K/4R564 4.7K/4
5
R606 5.1K1%4R606 5.1K1%4
JTPM1
JTPM1
1 2
3 4
5
7 8
9
H2X7[10]M-2PITCH
H2X7[10]M-2PITCH
R573
R573
10K/4
10K/4
close to SIO
C423
C423
0.1u10X4
0.1u10X4
3VSB
R562
R562
1K/4
1K/4
3VSB
VCC3
SERIRQ_R
6
C811
C811
0.1u10X4
0.1u10X4
VCC5
C812
C812
0.1u10X4
0.1u10X4
PWRBTIN 20
3VSB
R565
R565
1K/4
1K/4
LED_VSB
NN-CMKT3904
NN-CMKT3904
2
5
Q81
Q81
R1013 0R/4R1013 0R/4
6
1
3
4
LED_VSB 20
LED_VCC 20
VCC3
R596
R596
5.1K1%4
5.1K1%4
IDE_LED
SERIRQ 15,20
R570
ATX_5VSB
560R for minimun loading
D D
PS_ON#20
C C
R239 X_0R/4R239 X_0R/4
Q49
Q49
2N7002
2N7002
D
D
S
S
G
G
PWR_FAULT#15,20
R288
R288
47K/4
47K/4
SIO_3VA
VCC5
R240
R240
10K/4
10K/4
VCC3
-12V
12
D12
D12
ESD-SFI0402
ESD-SFI0402
VCC3 VCC5
R216
R216
X_1K/4
X_1K/4
1.0
預留不上件
C220 X_0.1u10X4C220 X_0.1u10X4
C228 0.1u16X4C228 0.1u16X4
PSON#
PSON#43
C217 X_0.1u10X4C217 X_0.1u10X4
R223
R223
X_1K/4
X_1K/4
PS2 POWER
B B
PS2_EN
PS2_MODE20
VCC5 ATX_5VSB
1
2
U20
U20
5
S3#
6
OC#
5VCC
4
EN
3
C41 10u6.3X6C41 10u6.3X6
VOUT1
5VSB
VOUT2
GND
UP7550PMA8_SOT23-8-HF
UP7550PMA8_SOT23-8-HF
PS2_EN
7
8
ATX_PWR1
ATX_PWR1
13
14
15
16
17
18
19
20
21
22
23
PWRCONN24P
PWRCONN24P
上1K是解決航嘉
supply
的問題,加1K是為了不讓
PS2_USB
C3
22u6.3X8C322u6.3X8
ATX_PWR1
25
1
3.3V
3.3V
25
2
3.3V
-12V
3
GND
GND
4
5V
P_ON
5
GND
GND
6
5V
GND
7
GND
GND
8
POK
-5V
9
5VSB
5V
10
+12V
5V
11
+12V
5V
12
GND243.3V
VCC5
+
+
12
EC27
EC27
560u6.3SO
560u6.3SO
200W(huntkey)power
0.5A
C426 X_0.1u10X4C426 X_0.1u10X4
R209
R209
4.7K/4
4.7K/4
VCC3
VCC5
ATX_PWR_OK 20,35
ATX_5VSB
+12V
VCC3
+
+
12
EC24
EC24
100u16SO
100u16SO
EMI
2016/10/18 Add XMP LED
VCC5
R590
R590
1K/4
1K/4
FP_RST#15
R574 33R/4R574 33R/4
Speaker Pin Header
D13 1N4148WD13 1N4148W
A C
RN1 150R/8P4RRN1 150R/8P4R
1
2
3
4
5
6
7
8
C403
C403
0.1u10X4
0.1u10X4
CE
SPEAKER
Q71
Q71
2N3904
2N3904
R507 10K/4R507 10K/4
B
VCC5
JFP2
JFP2
1
2
3
4
H1X4M_BLACK-RH-1
H1X4M_BLACK-RH-1
PCH_SATA_LED#12
FP_RST#_R
C424
C424
0.1u10X4
0.1u10X4
SPKR 15,18
C227 0.1u10X4C227 0.1u10X4
C209 0.1u10X4C209 0.1u10X4
VCC5
C206 X_0.1u10X4C206 X_0.1u10X4
C204 0.1u10X4C204 0.1u10X4
C199 0.1u16X4C199 0.1u16X4
C178 X_0.1u10X4C178 X_0.1u10X4
ATX_5VSB ATX_5VSB
R208
R208
1K/4
1K/4
ATX_5VSB
空載而產生震盪
XMP LED TPM
Close to DIMM SLOT
XMP_LED
XMP_LED
LED04-R-20mA
LED04-R-20mA
Q83
Q83
2N7002
2N7002
D
D
G
XMP_LED14
G
S
S
R570
330R/6
330R/6
JFP1
JFP1
HDD+
IDE_LED
C427
C427
X_0.1u10X4
X_0.1u10X4
1
3
7
9
PLED
HDD+
SLED
HDDRESET-5PWSW+
RESET+
PWSW-
NC
H2X5[10]M_BLACK-RH
H2X5[10]M_BLACK-RH
LED ( for NV5565)
SUS_LED
PWR_LED LED_VCC
NN-CMKT3904
R567 5.1K1%4R567 5.1K1%4
NN-CMKT3904
2
5
Q73
Q73
PLTRST_BU1#_TPM20
6
1
3
4
TPM_CLK13
LPC_FRAME#15,20
2
4
6
8
R577
R577
330R/6
330R/6
IDE_LED
LPC_AD015,20
LPC_AD115,20
LPC_AD215,20
LPC_AD315,20
PWR_LED
SUS_LED
PSIN#_R
5VDIMM
VCC3
R557 100RR557 100R
5VDIMM
R578
R578
330R/6
330R/6
6
1
3
4
NN-CMKT3904
NN-CMKT3904
R556
R556
5.1K1%4
5.1K1%4
TPM_CLK
PLTRST_BU1#_TPM
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
close to JTPM1 for ESD use
3VSB VCC3 VCC5
A A
DIMM_VCCDRV30,35
DIMM_VCCDRV
R47 200K1%4R47 200K1%4
USB MODE
5
R48
R48
56K1%4
56K1%4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
4
3
2
Monday, December 19, 2016
MS-7A67
ATX F_Panel/TPM/MSI_LED
ATX F_Panel/TPM/MSI_LED
ATX F_Panel/TPM/MSI_LED
1
Sheet of
Sheet of
Sheet of
44 52
44 52
44 52
11
11
11
Page 45
5
Vinafix.com
DEBUG LED
VCC5
D D
3VSB
R279
R279
4.7K/4
4.7K/4
GPP_H2115 GPP_H2215
D
D
G
G
S
S
R256
R256
1K/4
1K/4
CPU_LED1
CPU_LED1
LED04-R-20mA
LED04-R-20mA
Q79
Q79
2N7002
2N7002
R280
R280
4.7K/4
4.7K/4
R597
R597
X_100K
X_100K
4
3
2
紅
: D0C-040P100-H91
1
AVL: D0C-040S500-E07
VCC5
3VSB3VSB
R600
R600
47K/4
47K/4
Q47
Q47
NN-2N7002D
NN-2N7002D
G2
D1
G1
S1
D2
S2
R257
R257
1K/4
1K/4
DRAM_LED1
DRAM_LED1
LED04-R-20mA
LED04-R-20mA
3VSB3VSB
R603
R603
R602
R602
47K/4
47K/4
4.7K/4
4.7K/4
Q78
Q78
NN-2N7002D
NN-2N7002D
G2
D1
R598
R598
X_100K
X_100K
G1
GPP_H2315
VCC5
R274
R274
1K/4
1K/4
VGA_LED1
VGA_LED1
LED04-R-20mA
LED04-R-20mA
D2
S2
S1
GPP_H2015
R605
R605
4.7K/4
4.7K/4
R608
R608
X_100K
X_100K
3VSB3VSB
R607
R607
47K/4
47K/4
Q82
Q82
NN-2N7002D
NN-2N7002D
G2
D1
G1
VCC5
R276
R276
1K/4
1K/4
BOOT_LED1
BOOT_LED1
LED04-R-20mA
LED04-R-20mA
D2
S2
S1
C C
關機斷電狀態下， 個 先維持 全暗，開機通電後：
首先進行 亮， 後則 滅掉。
接著依序進行 亮 後則 滅掉。
的 亮， 後則 滅掉。
LED
PCH_GP20 PCH_GP21 PCH_GP22
亮
NATIVE
PULL HIGH
GPO
PULL HIGH
GPO
PULL HIGH
PCH_GP23
NATIVE
PULL HIGH
因此最後正常順利開機後，三個 燈都是滅掉的。
（系統重啟或其他原因造成系統重開機，則 仍按上述行為動作）
B B
滅
NATIVE LOW
GPO LOW
(default LOW)
GPO LOW
(default LOW)
GPO LOW
(default LOW)
1.0 Remove DIMM SLOT LED
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
MS-7A67
DEBUG LED
DEBUG LED
DEBUG LED
1
45 52
45 52
45 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 46
5
4
3
2
1
EMI CAP
D D
C C
B B
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
EMI CAP
EMI CAP
EMI CAP
MS-7A67
1
46 52
46 52
46 52
Sheet of
Sheet of
Sheet of
11
11
11
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
5
4
3
2
Monday, December 19, 2016
Page 47
5
4
3
2
1
VCC_DDR
VTT_DDR
HS_PCH1
HS_PCH1
D D
MEC1
MEC1
HS-0407530-RH
HS-0407530-RH
MEC2
MEC2
B250 NO AC OPT.
SCREW500
SCREW500
SCREW
SCREW
X_SCREW
X_SCREW
SCREW501
SCREW501
SCREW
SCREW
X_SCREW
X_SCREW
5VDIMM
3VSB
3VDSW
PCH_1VSB
VCORE
VGT
VCCSA
VCCSTPLL
VCCIO
VCC_DDRVCC_DDR
VTT_DDRVTT_DDR
5VDIMM5VDIMM
3VSB3VSB
3VDSW3VDSW
PCH_1VSBPCH_1VSB
VCOREVCORE
VGTVGT
VCCSAVCCSA
VCCSTPLLVCCSTPLL
VCCIOVCCIO
H270 AC OPT.
LA1000
PCH1000
PCH1000
PCH
PCH
H270
H270
X_H270
X_H270
C C
B250 OPT.
LA10
LA10
MKT
BAT1_X1
BAT1_X1
BAT-CR2032
BAT-CR2032
CPU_H1
CPU_H1
CPU
CPU
鐵座
鐵座
CPU_H1
CPU_H1
MKT
B250
B250
AC
AC
MKT
MKT
LABEL1
LABEL1
HDMI
HDMI
HDMI LABEL
HDMI LABEL
LA1000
MKT
MKT
H270
H270
AC
AC
X_MKT
X_MKT
LA500
LA500
MKT
MKT
B250
B250
X_MKT
X_MKT
LA11
LA11
AMI
AMI
AMI
AMI
MH1
MH1
MH2
MH2
7
6
5
7
6
5
Mounting Holes
981
2
3
X_MH001
X_MH001
4
981
X_MH001
X_MH001
4
MH4
MH4
2
7
3
6
981
MH5
MH5
7
6
981
2
CA34
CA34
3
0.1u10X4
X_MH001
X_MH001
5
4
0.1u10X4
5
X_MH001
X_MH001
4
CA29
CA29
0.1u10X4
0.1u10X4
2
3
B B
PCB1
PCB1
A A
7A67_10
7A67_10
2016/8/242016/9/1PK0-07A670A-G37,
2016/8/242016/9/1PK0-07A670A-E48,
5
精成-深圳
競華
,23,
,23,
寶安恩斯邁廠
寶安恩斯邁廠
LABEL3
LABEL3
Bundel
Bundel
Bundel LABEL
Bundel LABEL
LABEL2
LABEL2
VIRTUAL
VIRTUAL
VIRTUAL LABEL
VIRTUAL LABEL
(MSIS)6,Coffee
(MSIS)6,Coffee
4
Nahimic
Nahimic
Nahimic
Nahimic
Label
Label
SLI
SLI
XSplit
Label
Label
SLI
SLI
XSplit
XSPlit
XSPlit
Label
Label
SLI
SLI
SLI
SLI
SLI
SLI
Optical Fiducial Marks-120
FM3
FM3
X_FM
X_FM
FM5
FM5
X_FM
X_FM
3
FM2
FM2
X_FM
X_FM
FM6
FM6
X_FM
X_FM
FM1
FM1
X_FM
X_FM
FM7
FM7
X_FM
X_FM
FM4
FM4
X_FM
X_FM
FM8
FM8
X_FM
X_FM
Simulation
SIM1
SIM2
SIM2
SIM2 SIM1
X_PIN1*2
X_PIN1*2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Manual Parts
Manual Parts
Manual Parts
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
2
Monday, December 19, 2016
SIM1
X_PIN1*2
X_PIN1*2
MS-7A67
MS-7A67
MS-7A67
1
47 52
47 52
47 52
Sheet of
Sheet of
Sheet of
11
11
11
Page 48
5
4
3
2
1
2016.08.16 remove BOT LED
D D
C C
LED STRIPLINE
B B
A A
2016.07.06 Use TPS25944L
+12V
12V_LED_EN
R1223 383KR1%/4R1223 383KR1%/4
+12V
R1224 8.25KR1%/4R1224 8.25KR1%/4
R1226
R1226
R0402
R0402
外接
---- PCB
----
R1225
R1225
30.9KR1%/4
30.9KR1%/4
LED 燈條 (RGB )
文字面
手冊 註明
長度限制為2公尺 (待
5
C804
C804
10u16X8
10u16X8
C883
C883
C390p50N/4
C390p50N/4
(JLED1)
RGB
接頭支援標準
7A20驗證)
U37
U37
TPS25944L
9
IN1
10
IN2
11
IN3
12
IN4
13
IN5
1
DMODE
14
EN/ULVO
15
OVP
18
dV/dT
19
IMON
R1222
R1222
26.7KR1%/4
26.7KR1%/4
TPS25944L
GND
16
PAD
21
OUT1
OUT2
OUT3
OUT4
OUT5
PGOOD
PGTH
FLT#
ILIM
TPS25944L
TPS25944L
4
5
6
7
8
2
3
12V_FLT#
20
17
R1218 100KR/4R1218 100KR/4
R1219 475KR/4R1219 475KR/4
R1220 44.2KR1%/4R1220 44.2KR1%/4
5050 RGB LED 燈條 (12V/G/R/B) ,
4
+12V_LED
C221
C221
1u16X6
1u16X6
+12V_LED
+12V_LED
1.0 Chang
R979 100KR979 100K
Trip@3.6A
R1221
R1221
24.9KR1%/4
24.9KR1%/4
燈條總輸出電流限制為3安培
+12V
2016.07.06 only reserve now
G_LED
12
D10
D10
ESD-SFI0402-240E0R8PP
ESD-SFI0402-240E0R8PP
+12V_LED
12
D11
D11
ESD-SFI0402-240E0R8PP
ESD-SFI0402-240E0R8PP
2016.08.02 Add +12V_LED 0.1uF
+12V_LED
C785 0.1u/16X4C785 0.1u/16X4
e
MSI_LED20,24
(12 伏特) ,
G_LED
R269 0R/4R269 0R/4
3
Fad LEDMSI_LED
G
G
S
S
N-PM606BA
N-PM606BA
Q152
Q152
D
D
+12V_LED
G_LED
單色燈走(1)(3)PIN
2
JLED1
JLED1
1
2
3
4
H1X4M_BLACK-RH-6
H1X4M_BLACK-RH-6
MSI
MSI
MSI
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A67
MS-7A67
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
Date:
Monday, December 19, 2016
JLED
JLED
JLED
MS-7A67
1
48 52
48 52
48 52
Sheet of
Sheet of
Sheet of
11
11
11
Loading...
