Page 1
5
4
3
2
1
PageTITLE

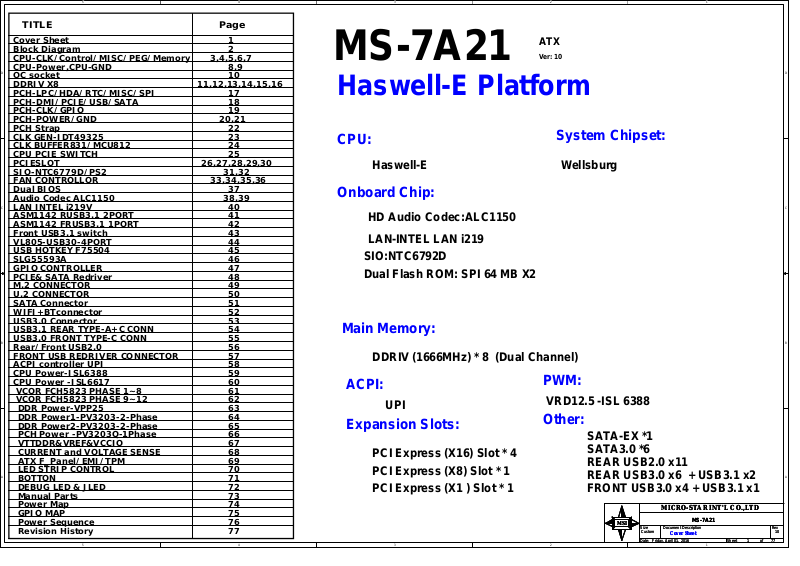

Cover Sheet 1
Block Diagram
CPU-CLK/Control/MISC/PEG/Memory
CPU-Power,CPU-GND 8,9
D D
OC socket 10
2
3,4,5,6,7
MS-7A21
11,12,13,14,15,16DDRIV X8
PCH-LPC/HDA/RTC/MISC/SPI 17
Haswell-E Platform
PCH-DMI/PCIE/USB/SATA 18
PCH-CLK/GPIO 19
PCH-POWER/GND 20,21
PCH Strap 22
23CLK GEN-IDT49325
24CLK BUFFER831/MCU812
CPU:
CPU PCIE SWITCH 25
PCIESLOT 26,27,28,29,30
SIO-NTC6779D/PS2
FAN CONTROLLOR
Dual BIOS
Audio Codec ALC1150
C C
LAN INTEL i219V
ASM1142 RUSB3.1 2PORT
ASM1142 FRUSB3.1 1PORT
31,32
33,34,35,36
37
38,39
40
41
42
Onboard Chip:
Front USB3.1 switch 43
VL805-USB30-4PORT
44
USB HOTKEY F75504 45
46SLG55593A
47GPIO CONTROLLER
48PCIE& SATA Redriver
Haswell-E
HD Audio Codec:ALC1150
LAN-INTEL LAN i219
SIO:NTC6792D
Dual Flash ROM: SPI 64 MB X2
49M.2 CONNECTOR
U.2 CONNECTOR 50
SATA Connector
51
WIFI+BTconnector 52
53USB3.0 Connector
USB3.0 FRONT TYPE-C CONN 55
B B
Rear/Front USB2.0 56
FRONT USB REDRIVER CONNECTOR 57
ACPI controller UPI 58
54USB3.1 REAR TYPE-A+C CONN
Main Memory:
DDRIV (1666MHz) * 8 (Dual Channel)
59CPU Power-ISL6388
CPU Power -ISL6617 60
VCOR FCH5823 PHASE 1~8
VCOR FCH5823 PHASE 9~12
DDR Power-VPP25
DDR Power1-PV3203-2-Phase
DDR Power2-PV3203-2-Phase
PCH Power -PV3203Q-1Phase
VTTDDR&VREF&VCCIO
CURRENT and VOLTAGE SENSE
ATX F_Panel/EMI/TPM
LED STRIP CONTROL
A A
BOTTON
DEBUG LED & JLED
Manual Parts
Power Map
GPIO MAP
Power Sequence
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
ACPI:
UPI
Expansion Slots:
PCI Express (X16) Slot * 4
PCI Express (X8) Slot * 1
PCI Express (X1 ) Slot * 1
Revision History 77
5
4
3
ATX
Ver: 10
System Chipset:
Wellsburg
PWM:
VRD12.5 -ISL 6388
Other:
SATA-EX *1
SATA3.0 *6
REAR USB2.0 x11
REAR USB3.0 x6 + USB3.1 x2
FRONT USB3.0 x4 + USB3.1 x1
MSI
MSI
MSI
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Cover Sheet
Cover Sheet
Cover Sheet
MS-7A21
1
177
177
177
Sheet of
Sheet of
Sheet of
10
10
10
Page 2
5
MS-7A21 Block Diagram
4
3
2
1
UDIMM CHANNEL A
D D
PCIE1 X16
Slot :
DDRIV DIMM1.2
UDIMM CHANNEL B
DDRIV DIMM3.4
HASWELL-E
LGA2011
UDIMM CHANNEL D
DDRIV DIMM7.8
UDIMM CHANNEL C
DDRIV DIMM5.6
PCIE2 X8
PCIE3 X8
DMI 0/1/2/3
PCIE4 X16 or X8
PCIE5 X1
0/1,4/5,6/7,10/11
PCIE1/2 & SATA4/5
front USB20
FRONT ASM1142
CPU
EXP_C_0~3
C C
PCH
PCIE1/2
SATA4/5
SATA4
SATA5
PCIE1
PCIE2
ASM1467 ASM1467
B B
SATA5
PCIE2
SATA4
PCIE1
PCIE6 X16
switch SEL
M2_EX_SATA
PE6X8_M2X4_SEL
low:from pch switch
high:from pcie switch
M2 TX 2,3/RX 2,3
M2
M2 TX 0,1/RX 0,1
switch SEL
PE6X8_M2X4
PE6_X8_4,5
PE6_X8_6,7
M2 0,1
SAEX 4,5
CM2 0,1
CPU
EXP_C_4~7
4/5 6/7
switch SEL
PE6X8_M2X4
EXP_C_4,5 EXP_C_6,7
switch SEL
U.2_EN
switch SEL
PE6X8_M2X4
switch SEL
U.2_EN
U2 2,3
U2 0,1
U2
HD AUDIO ALC1150
SPI ROM
SPI ROM
REAR USB20
2/3,8/9,12/13
front USB30
0/1,2/3
REAR USB30
4/5
SWITCH
HD AUDIO I/F
WELLSBURG
FCBGA836
PCIE3
LAN-i2189
PCIE4
VL805
PCIE5,6
REAR ASM1142
PCIE7
WIFI
PCIE8
PCIE X1
SATA30 :01-23-67-89
LPC I/F
HW SW
U31 or SAEX
default low SATA
A A
5
switch SEL
EX_USB31
SAEX 4,5
SATA_EX1
FUSB31 1,2
FASM1142
SIO NV6792
KBD
MOUSE
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
4
3
2
Friday, April 01, 2016
TPM 1.2
MS-7A21
MS-7A21
MS-7A21
Block Diagram
Block Diagram
Block Diagram
1
277
277
277
Sheet of
Sheet of
Sheet of
10
10
10
Page 3
5
4
3
2
1

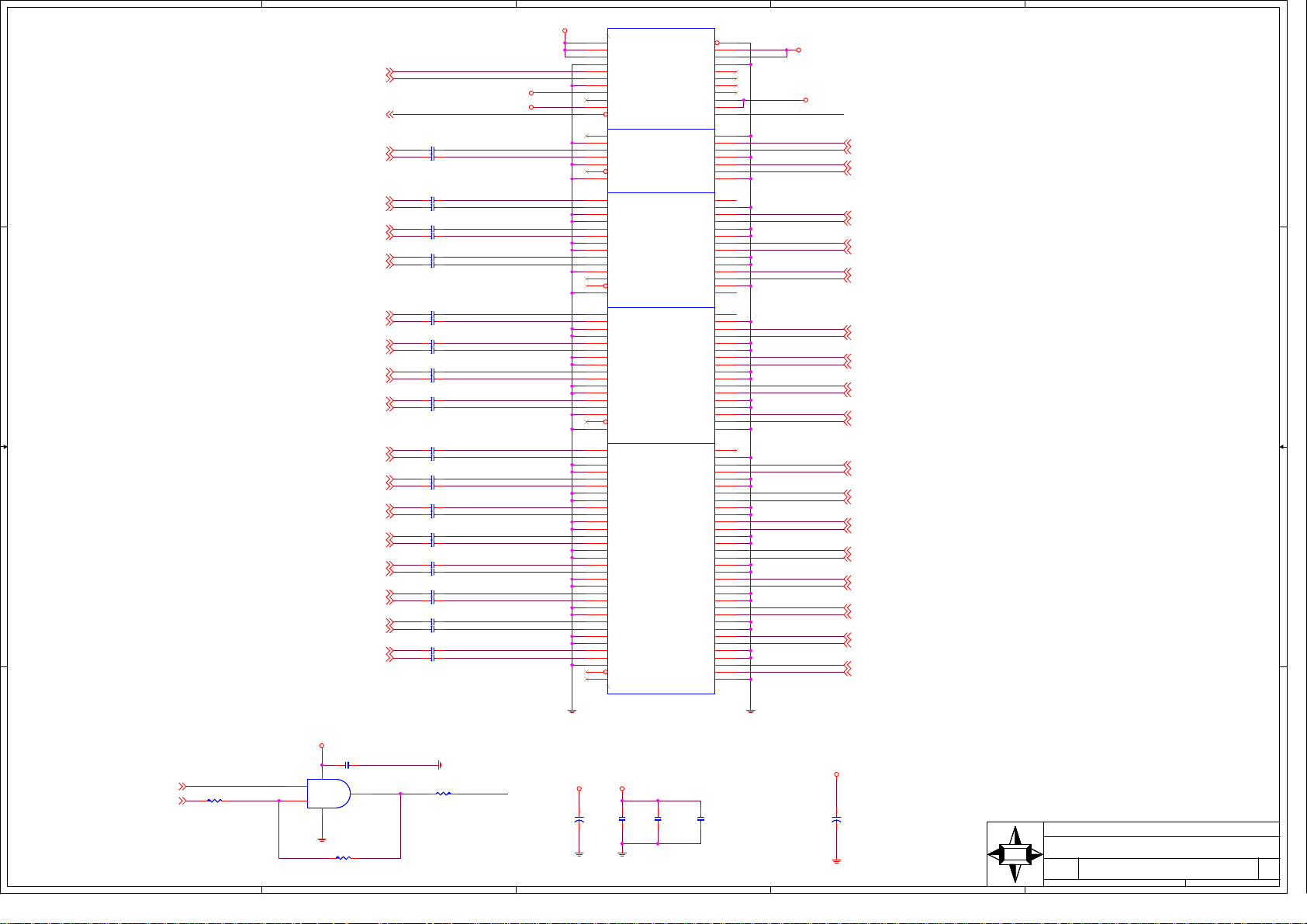

CPU-CLK/Control/MISC
+VCCIO_IN
MEM_HOT_C01_R
MEM_HOT_C23_R
D D
CPU_XDP_OBSFN_MBP7
CPU_XDP_OBSFN_MBP6
C C
NEAR CPU PIN
CPU_XDP_PREQ_N
CPU_TDI
CPU_TMS
CPU_TCK0
CPU_TRST_N
WITHIN 1100MILS OF CPU PIN
B B
A A
R1176 75R/4R1176 75R/4
R1234 75R/4R1234 75R/4
CK_DMI_0P_CPU(23)
CK_DMI_0N_CPU(23)
CK_DMI_1P_CPU(23)
CK_DMI_1N_CPU(23)
DDR_RESET_C01_N(11,12)
DDR_RESET_C23_N(13,14)
MEM_HOT_C01_N(11,12)
MEM_HOT_C23_N(13,14)
CPU_DDR_SCL_C01(11)
CPU_DDR_SDA_C01(11)
CPU_DDR_SCL_C23(13)
CPU_DDR_SDA_C23(13)
R1170 51R/4R1170 51R/4
R350 51R/4R350 51R/4
R384 51R/4R384 51R/4
R1164 51R/4R1164 51R/4
R1163 51R/4R1163 51R/4
R1165 51R/4R1165 51R/4
R1166 51R/4R1166 51R/4
C1042 X_100p50N/4C1042 X_100p50N/4
VCC_DDR_PG_01(64)
C1041 X_100p50N/4C1041 X_100p50N/4
VCC_DDR_PG_23(65)
+VREF_CPU_DDR01
+VREF_CPU_DDR23
+VCCIO_IN
+VCCIO_IN
PCH_MEM_PWRGD(17)
ATX_5VSB
ATX_5VSB
CK_DMI_0P_CPU
CK_DMI_0N_CPU
CK_DMI_1P_CPU
CK_DMI_1N_CPU
CPU_MEM_PWRGD_01
CPU_MEM_PWRGD_23
DDR_RESET_C01_N
DDR_RESET_C23_N
R338 0R/4R338 0R/4
R1233 0R/4R1233 0R/4
CPU_DDR_SCL_C01
CPU_DDR_SDA_C01
CPU_DDR_SCL_C23
CPU_DDR_SDA_C23
CPU_XDP_OBSFN_MBP7
CPU_XDP_OBSFN_MBP6
CPU_XDP_PREQ_N
CPU_TDI
CPU_TCK0
CPU_TMS
CPU_TRST_N
R1223
R1223
47K/4
47K/4
G2
D1
G1
R1222
R1222
Q144
Q144
47K/4
47K/4
NN-2N7002D
NN-2N7002D
G2
D1
G1
MEM_HOT_C01_R
MEM_HOT_C23_R
TP32TP32
TP29TP29
TP30TP30
TP42TP42
TP69TP69
TP61TP61
TP102TP102
TP101TP101
TP103TP103
TP104TP104
TP44TP44
TP45TP45
TP100TP100
R1200 0R/4R1200 0R/4
Q145
Q145
NN-2N7002D
NN-2N7002D
D2
S2
S1
D2
S2
CL41
CN41
BA45
AW45
CH16
W29
DC15
C23
CL33
P36
BY16
CP40
CF40
T40
M40
R41
CK42
CM42
V40
Y40
B46
D46
AW43
BA43
BD46
BE45
BF46
BE47
BB44
BC43
CW49
CU49
CF42
CA45
BY46
CV50
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
VCC_DDR_01
R1207
R1207
10K/4
10K/4
C1038
C1038
X_0.1u16X/4
X_0.1u16X/4
MEM_PWRGD_R
CPU1A
CPU1A
HASWELL-E
HASWELL-E
BCLK0_DP
BCLK0_DN
BCLK1_DP
BCLK1_DN
DRAM_PWR_OK_C01
DRAM_PWR_OK_C23
DDR_RESET_C01_N
DDR_RESET_C23_N
MEM_HOT_C01_N
MEM_HOT_C23_N
DDR01_VREF
RSVD-2
RSVD-1
DDR23_VREF
RSVD-4
RSVD-3
DDR_SCL_C01
DDR_SDA_C01
DDR_SCL_C23
DDR_SDA_C23
PE_HP_SCL
PE_HP_SDA
BPM_N[7]
BPM_N[6]
BPM_N[5]
BPM_N[4]
BPM_N[3]
BPM_N[2]
BPM_N[1]
BPM_N[0]
PREQ_N
PRDY_N
TDI
TCK
TMS
TRST_N
PCH_MEM_PWRGD_R
PWRGOOD
RESET_N
EAR_N
PMSYNC
PECI
SVIDDATA
SVIDCLK
SVIDALERT_N
CATERR_N
ERROR_N[2]
ERROR_N[1]
ERROR_N[0]
RSVD-20
PROCHOT_N
THERMTRIP_N
SAFE_MODE_BOOT
FRMAGENT
BMCINIT
TXT_AGENT
TXT_PLTEN
BIST_ENABLE
PM_FAST_WAKE_N
SKTOCC_N
SOCKET_ID[1]
SOCKET_ID[0]
PROC_ID
RSVD-42
RSVD-19
RSVD-18
RSVD-17
RSVD-16
RSVD-15
TDO
3VA
R1228
R1228
47K/4
47K/4
MEM_PWRGD_R
CE
Q146
Q146
B
2N3904
2N3904
R1224
R1224
2.26KR1%4
2.26KR1%4
CPU_MEM_PWRGD_01
C1035
R1218
R1218
1.05KR1%4
1.05KR1%4
D
D
G
G
Q143
Q143
S
S
2N7002
2N7002
C1035
X_100p50N/4
X_100p50N/4
3VSB
R1216
R1216
2.26KR1%4
2.26KR1%4
CPU_MEM_PWRGD_23
C1039
R1209
R1209
1.05KR1%4
1.05KR1%4
C1039
X_100p50N/4
X_100p50N/4
S1
D
MEM_PWRGD_R
5
D
G
G
Q148
Q148
S
S
2N7002
2N7002
4
CPU_PWRGD_R
BJ53
CPU_RESET
CR43
EAR_N
CE53
K52
H_PECI
CG55
CPU_SVID_DATA
AR43
CPU_SVID_CLK
AU43
CPU_SVID_ALERT_N_R
AN43
CPU_CATERR_N
CC51
CPU_ERROR2_N
BB52
CPU_ERROR1_N
BB48
CPU_ERROR0_N
BD50
CPU_MSMI_N
H52
PROCHOT_N
BL51
CPU_THERMTRIP_N
BJ47
CPU_SAFE_MODE_BOOT
BK56
CPU_FRMAGENT
Y48
CPU_BMCINIT
AM48
CPU_TXT_AGENT
AH52
CPU_TXT_PLTEN
AF52
CPU_BIST_ENABLE
AJ43
PM_FAST_WAKE_N
AV44
BU49
CPU_SOCKET_ID1
CC53
CPU_SOCKET_ID0
CP52
PROC_ID
AB48
CPU_OVERCLOCK
C53
CR51
DDR4_STRAP
AV46
AY46
TP67TP67
AJ55
TP93TP93
BD48
TP81TP81
CPU_TDO
CG41
OR:R278 REMOVED
TOP
R1175 0R/4R1175 0R/4
R343 240R1%/4R343 240R1%/4
R336 X_0R/6R336 X_0R/6
R1155 220R/4R1155 220R/4
R344 75R/4R344 75R/4
R351 75R/4R351 75R/4
R1173 75R/4R1173 75R/4
R1174 75R/4R1174 75R/4
R373 75R/4R373 75R/4
R364 240R1%/4R364 240R1%/4
R1162 75R/4R1162 75R/4
3
CPU_PWRGD (17)
CPU_RESET (17)
+VCCIO_IN
PM_PCH_SYNC0 (17)
H_PECI (17,31)
CPU_SVID_DATA (59)
CPU_SVID_CLK (59)
CPU_SVID_ALERT_N (59)
+VCCIO_IN
+VCCIO_IN
PROCHOT_N (59)
CPU_THERMTRIP_N (17)
H_SKTOCC# (31)
PROC_ID (31,67)
CPU_OVERCLOCK (19)
+VCCIO_IN
+VCCIO_IN
SIO_TRIP#(31)
THWN#(61,62)
THWN#(61,62)
THWN#
VCC5
AC
D
D
G
G
S
S
VCC3
D
D
G
G
S
S
D
D
G
G
S
S
ATX_5VSB
THWN#
R138
R138
4.7K/4
4.7K/4
LED1
LED1
LED04-R-30mA
LED04-R-30mA
Q30
Q30
2N7002
2N7002
R382
R382
47K/4
47K/4
HOT_LED
Q140
Q140
2N7002
2N7002
Q135
Q135
2N7002
2N7002
R1136
R1136
47K/4
47K/4
CPU_SVID_DATA
CPU_SVID_ALERT_N
SLOW_MODE#(31,71)
Q132
Q132
NN-2N7002D
NN-2N7002D
G2
D1
G1
S1
ATX_5VSB
R1168
R1168
47K/4
47K/4
PROCHOT_N
D2
S2
R1152 100R/4R1152 100R/4
R1177 51R/4R1177 51R/4
Q138
Q138
NN-2N7002D
NN-2N7002D
G2
D1
G1
PLTRST_BU1B#(31)
VCC3
R370
R370
4.7K/4
4.7K/4
AC
LED10
LED10
LED04-R-30mA
LED04-R-30mA
SMI
D
D
G
G
Q40
Q40
S
S
2N7002
2N7002
2
+VCCIO_IN
D2
S2
S1
PCH_GP21 (18)
PROCHOT_N
PROCHOT_N_S
R1169
R1169
X_0R/4
X_0R/4
MSI
MSI
MSI
G
G
D
D
S
S
Q139
Q139
2N7002
2N7002
PM_FAST_WAKE_N
PROCHOT_N
CPU_THERMTRIP_N
CPU_SAFE_MODE_BOOT
CPU_FRMAGENT
CPU_BMCINIT
CPU_TXT_AGENT
CPU_TXT_PLTEN
CPU_BIST_ENABLE
CPU_SOCKET_ID1
CPU_SOCKET_ID0
CPU_OVERCLOCK
DDR4_STRAP
R345 X_75R/4R345 X_75R/4
R347 240R1%/4R347 240R1%/4
R346 75R/4R346 75R/4
R349 X_240R1%/4R349 X_240R1%/4
R348 240R1%/4R348 240R1%/4
R383 240R1%/4R383 240R1%/4
R372 X_240R1%/4R372 X_240R1%/4
R353 X_240R1%/4R353 X_240R1%/4
R354 240R1%/4R354 240R1%/4
R1182 X_240R1%/4R1182 X_240R1%/4
R1202 240R1%/4R1202 240R1%/4
R1190 X_240R1%/4R1190 X_240R1%/4
R1194 240R1%/4R1194 240R1%/4
R1181 240R1%/4R1181 240R1%/4
R1201 X_240R1%/4R1201 X_240R1%/4
R369 X_240R1%/4R369 X_240R1%/4
R368 240R1%/4R368 240R1%/4
R385 X_240R1%/4R385 X_240R1%/4
R367 240R1%/4R367 240R1%/4
R1197 10K/4R1197 10K/4
R1180 X_0R/6R1180 X_0R/6
CRB-0603
R1172 X_0R/6R1172 X_0R/6
CRB-0603
H_SKTOCC#
PROC_ID
PROC_ID
0
1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
CPU-CLK/Control/MISC
CPU-CLK/Control/MISC
CPU-CLK/Control/MISC
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
R371 10K/4R371 10K/4
+VCCIO_IN
0.95V
1.05V
MS-7A21
MS-7A21
MS-7A21
1
R352 10K/4R352 10K/4
R1171 X_10K/4R1171 X_10K/4
Sheet of
Sheet of
Sheet of
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN
+VCCIO_IN3VSB
VCC3
377
377
377
10
10
10
Page 4
5
4
3
2
1

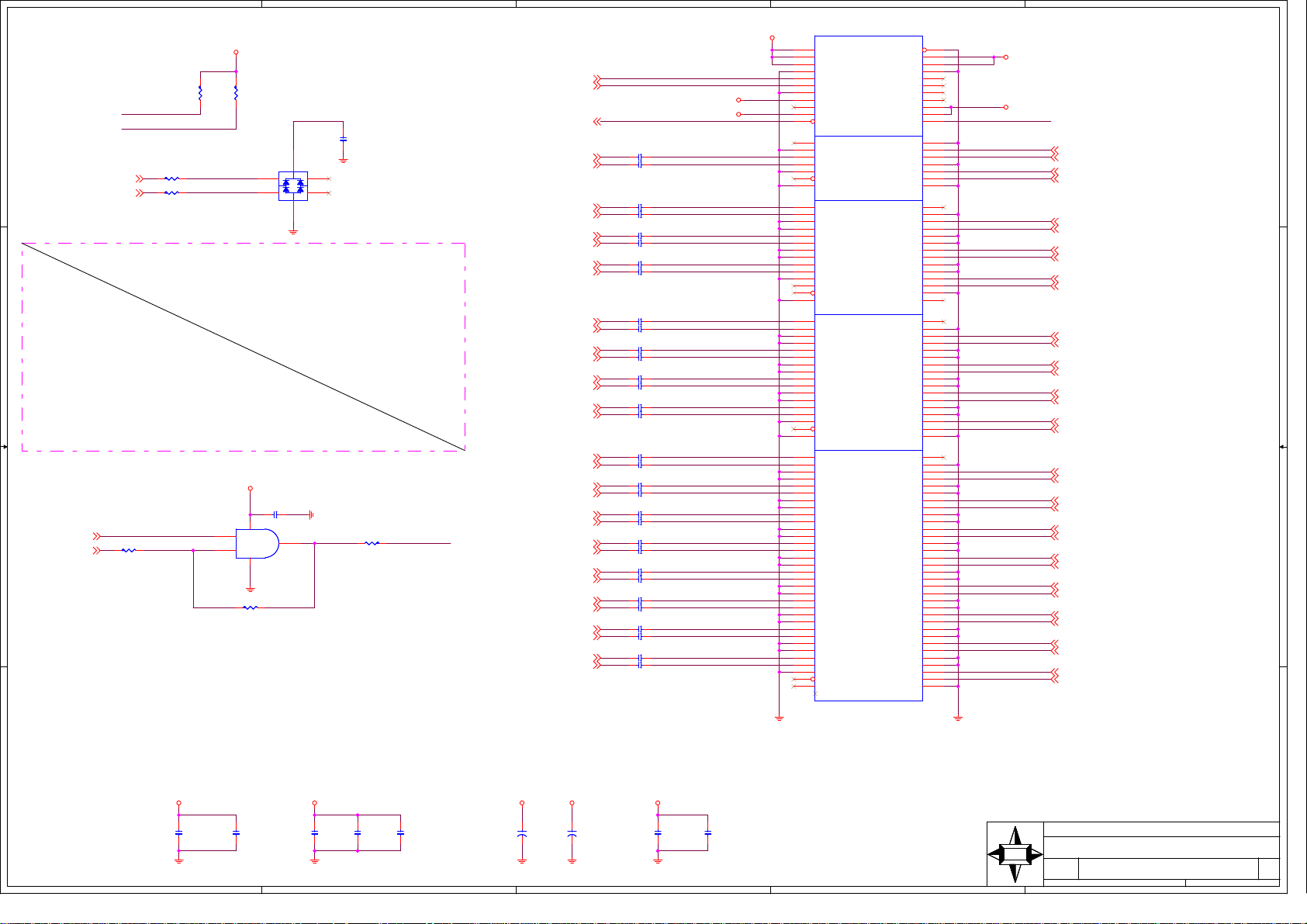

CPU-DMI/PEG
D D
CPU1G
CPU1F
CPU1F
HASWELL-E
DMI_RX3
DMI_RX3(18)
DMI_RX2(18)
DMI_RX1(18)
DMI_RX0(18)
DMI_RX3#(18)
DMI_RX2#(18)
DMI_RX1#(18)
DMI_RX0#(18)
EXP_C_RXP_7(30)
EXP_C_RXP_6(30)
EXP_C_RXP_5(30)
EXP_C_RXP_4(30)
EXP_C_RXN_7(30)
EXP_C_RXN_6(30)
EXP_C_RXN_5(30)
EXP_C_RXN_4(30)
EXP_C_RXP_3(30)
C C
EXP_C_RXP_2(30)
EXP_C_RXP_1(30)
EXP_C_RXP_0(30)
EXP_C_RXN_3(30)
EXP_C_RXN_2(30)
EXP_C_RXN_1(30)
EXP_C_RXN_0(30)
C370 0.1u10X/4C370 0.1u10X/4
DMI_RX2
C345 0.1u10X/4C345 0.1u10X/4 C355 0.1u10X/4C355 0.1u10X/4
DMI_RX1
C381 0.1u10X/4C381 0.1u10X/4 C348 0.1u10X/4C348 0.1u10X/4
DMI_RX0
C369 0.1u10X/4C369 0.1u10X/4
DMI_RX3#
DMI_RX2#
C346 0.1u10X/4C346 0.1u10X/4
DMI_RX1#
C374 0.1u10X/4C374 0.1u10X/4
DMI_RX0#
C362 0.1u10X/4C362 0.1u10X/4
DMI_CPU_RX3
DMI_CPU_RX2
DMI_CPU_RX1
DMI_CPU_RX0
DMI_CPU_RX3#
DMI_CPU_RX2#
DMI_CPU_RX1#
DMI_CPU_RX0#
M56
M54
E47
D48
E49
D50
C47
B48
C49
B50
L57
L53
K56
J57
K54
J53
G55
F54
F52
E51
E55
D54
D52
C51
Not functional in HSW-E 28-lane SKU Not functional in HSW-E 28-lane SKU
EXP_A_RXP_15(28)
EXP_A_RXP_14(28)
EXP_A_RXP_13(28)
EXP_A_RXP_12(28)
EXP_A_RXN_15(28)
EXP_A_RXN_14(28)
EXP_A_RXN_13(28)
EXP_A_RXN_12(28)
EXP_A_RXP_11(28)
EXP_A_RXP_10(28)
EXP_A_RXP_9(28)
EXP_A_RXP_8(28)
EXP_A_RXN_11(28)
EXP_A_RXN_10(28)
EXP_A_RXN_9(28)
EXP_A_RXN_8(28)
B B
EXP_A_RXP_7(28)
EXP_A_RXP_6(28)
EXP_A_RXP_5(28)
EXP_A_RXP_4(28)
EXP_A_RXN_7(28)
EXP_A_RXN_6(28)
EXP_A_RXN_5(28)
EXP_A_RXN_4(28)
EXP_A_RXP_3(28)
EXP_A_RXP_2(28)
EXP_A_RXP_1(28)
EXP_A_RXP_0(28)
EXP_A_RXN_3(28)
EXP_A_RXN_2(28)
EXP_A_RXN_1(28)
EXP_A_RXN_0(28)
BB56
BA57
AT56
AV58
AY56
AY58
AP56
AT58
AU57
AL57
AM58
AK56
AR57
AJ57
AK58
AH56
AF58
AE55
AD56
AD54
AE57
AC55
AB56
AB54
W55
V56
V54
N55
U55
T56
T54
L55
HASWELL-E
DMI_RX_DP[3]
DMI_RX_DP[2]
DMI_RX_DP[1]
DMI_RX_DP[0]
DMI_RX_DN[3]
DMI_RX_DN[2]
DMI_RX_DN[1]
DMI_RX_DN[0]
PE1B_RX_DP[7]
PE1B_RX_DP[6]
PE1B_RX_DP[5]
PE1B_RX_DP[4]
PE1B_RX_DN[7]
PE1B_RX_DN[6]
PE1B_RX_DN[5]
PE1B_RX_DN[4]
PE1A_RX_DP[3]
PE1A_RX_DP[2]
PE1A_RX_DP[1]
PE1A_RX_DP[0]
PE1A_RX_DN[3]
PE1A_RX_DN[2]
PE1A_RX_DN[1]
PE1A_RX_DN[0]
PE2D_RX_DP[15]
PE2D_RX_DP[14]
PE2D_RX_DP[13]
PE2D_RX_DP[12]
PE2D_RX_DN[15]
PE2D_RX_DN[14]
PE2D_RX_DN[13]
PE2D_RX_DN[12]
PE2C_RX_DP[11]
PE2C_RX_DP[10]
PE2C_RX_DP[9]
PE2C_RX_DP[8]
PE2C_RX_DN[11]
PE2C_RX_DN[10]
PE2C_RX_DN[9]
PE2C_RX_DN[8]
PE2B_RX_DP[7]
PE2B_RX_DP[6]
PE2B_RX_DP[5]
PE2B_RX_DP[4]
PE2B_RX_DN[7]
PE2B_RX_DN[6]
PE2B_RX_DN[5]
PE2B_RX_DN[4]
PE2A_RX_DP[3]
PE2A_RX_DP[2]
PE2A_RX_DP[1]
PE2A_RX_DP[0]
PE2A_RX_DN[3]
PE2A_RX_DN[2]
PE2A_RX_DN[1]
PE2A_RX_DN[0]
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
DMI_TX_DP[3]
DMI_TX_DP[2]
DMI_TX_DP[1]
DMI_TX_DP[0]
DMI_TX_DN[3]
DMI_TX_DN[2]
DMI_TX_DN[1]
DMI_TX_DN[0]
PE1B_TX_DP[7]
PE1B_TX_DP[6]
PE1B_TX_DP[5]
PE1B_TX_DP[4]
PE1B_TX_DN[7]
PE1B_TX_DN[6]
PE1B_TX_DN[5]
PE1B_TX_DN[4]
PE1A_TX_DP[3]
PE1A_TX_DP[2]
PE1A_TX_DP[1]
PE1A_TX_DP[0]
PE1A_TX_DN[3]
PE1A_TX_DN[2]
PE1A_TX_DN[1]
PE1A_TX_DN[0]
PE2D_TX_DP[15]
PE2D_TX_DP[14]
PE2D_TX_DP[13]
PE2D_TX_DP[12]
PE2D_TX_DN[15]
PE2D_TX_DN[14]
PE2D_TX_DN[13]
PE2D_TX_DN[12]
PE2C_TX_DP[11]
PE2C_TX_DP[10]
PE2C_TX_DP[9]
PE2C_TX_DP[8]
PE2C_TX_DN[11]
PE2C_TX_DN[10]
PE2C_TX_DN[9]
PE2C_TX_DN[8]
PE2B_TX_DP[7]
PE2B_TX_DP[6]
PE2B_TX_DP[5]
PE2B_TX_DP[4]
PE2B_TX_DN[7]
PE2B_TX_DN[6]
PE2B_TX_DN[5]
PE2B_TX_DN[4]
PE2A_TX_DP[3]
PE2A_TX_DP[2]
PE2A_TX_DP[1]
PE2A_TX_DP[0]
PE2A_TX_DN[3]
PE2A_TX_DN[2]
PE2A_TX_DN[1]
PE2A_TX_DN[0]
D42
E43
D44
E45
B42
C43
B44
C45
L49
K48
L47
K46
J49
H48
J47
H46
L45
K44
L43
K42
J45
H44
J43
H42
BA47
AY48
BA49
AY50
AW47
AV48
AW49
AV50
BA51
BB54
BA53
AY52
AW51
AY54
AW53
AV52
AT54
AR53
AK54
AJ53
AP54
AN53
AH54
AG53
AP52
AR51
AP50
AR49
AM52
AN51
AM50
AN49
DMI_CPU_TX3
DMI_CPU_TX2
DMI_CPU_TX1
DMI_CPU_TX0
DMI_CPU_TX3#
DMI_CPU_TX2#
DMI_CPU_TX1#
DMI_CPU_TX0#
C343 0.1u10X/4C343 0.1u10X/4
C341 0.1u10X/4C341 0.1u10X/4
C344 0.1u10X/4C344 0.1u10X/4C363 0.1u10X/4C363 0.1u10X/4
C356 0.1u10X/4C356 0.1u10X/4
C342 0.1u10X/4C342 0.1u10X/4
C347 0.1u10X/4C347 0.1u10X/4
DMI_TX3
DMI_TX2
DMI_TX1
DMI_TX0
DMI_TX3#
DMI_TX2#
DMI_TX1#
DMI_TX0#
DMI_TX3 (18)
DMI_TX2 (18)
DMI_TX1 (18)
DMI_TX0 (18)
DMI_TX3# (18)
DMI_TX2# (18)
DMI_TX1# (18)
DMI_TX0# (18)
EXP_C_TXP_7 (30)
EXP_C_TXP_6 (30)
EXP_C_TXP_5 (30)
EXP_C_TXP_4 (30)
EXP_C_TXN_7 (30)
EXP_C_TXN_6 (30)
EXP_C_TXN_5 (30)
EXP_C_TXN_4 (30)
EXP_C_TXP_3 (30)
EXP_C_TXP_2 (30)
EXP_C_TXP_1 (30)
EXP_C_TXP_0 (30)
EXP_C_TXN_3 (30)
EXP_C_TXN_2 (30)
EXP_C_TXN_1 (30)
EXP_C_TXN_0 (30)
EXP_A_TXP_15 (28)
EXP_A_TXP_14 (28)
EXP_A_TXP_13 (28)
EXP_A_TXP_12 (28)
EXP_A_TXN_15 (28)
EXP_A_TXN_14 (28)
EXP_A_TXN_13 (28)
EXP_A_TXN_12 (28)
EXP_A_TXP_11 (28)
EXP_A_TXP_10 (28)
EXP_A_TXP_9 (28)
EXP_A_TXP_8 (28)
EXP_A_TXN_11 (28)
EXP_A_TXN_10 (28)
EXP_A_TXN_9 (28)
EXP_A_TXN_8 (28)
EXP_A_TXP_7 (28)
EXP_A_TXP_6 (28)
EXP_A_TXP_5 (28)
EXP_A_TXP_4 (28)
EXP_A_TXN_7 (28)
EXP_A_TXN_6 (28)
EXP_A_TXN_5 (28)
EXP_A_TXN_4 (28)
EXP_A_TXP_3 (28)
EXP_A_TXP_2 (28)
EXP_A_TXP_1 (28)
EXP_A_TXP_0 (28)
EXP_A_TXN_3 (28)
EXP_A_TXN_2 (28)
EXP_A_TXN_1 (28)
EXP_A_TXN_0 (28)
EXP_B_RXP_15(26)
EXP_B_RXP_14(26)
EXP_B_RXP_13(26)
EXP_B_RXP_12(26)
EXP_B_RXN_15(26)
EXP_B_RXN_14(26)
EXP_B_RXN_13(26)
EXP_B_RXN_12(26)
EXP_B_RXP_11(26)
EXP_B_RXP_10(26)
EXP_B_RXP_9(26)
EXP_B_RXP_8(26)
EXP_B_RXN_11(26)
EXP_B_RXN_10(26)
EXP_B_RXN_9(26)
EXP_B_RXN_8(26)
EXP_B_RXP_7(25)
EXP_B_RXP_6(25)
EXP_B_RXP_5(25)
EXP_B_RXP_4(25)
EXP_B_RXN_7(25)
EXP_B_RXN_6(25)
EXP_B_RXN_5(25)
EXP_B_RXN_4(25)
EXP_B_RXP_3(25)
EXP_B_RXP_2(25)
EXP_B_RXP_1(25)
EXP_B_RXP_0(25)
EXP_B_RXN_3(25)
EXP_B_RXN_2(25)
EXP_B_RXN_1(25)
EXP_B_RXN_0(25)
CPU1G
AR45
AP46
AR47
AJ47
AN45
AM46
AN47
AG47
AJ49
AH50
AJ51
AH48
AG49
AF50
AG51
AF48
AC51
AC53
AB52
AB50
AA51
AA53
Y52
Y50
AC49
AH46
AJ45
AH44
AA49
AF46
AG45
AF44
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
PE3D_RX_DP[15]
PE3D_RX_DP[14]
PE3D_RX_DP[13]
PE3D_RX_DP[12]
PE3D_RX_DN[15]
PE3D_RX_DN[14]
PE3D_RX_DN[13]
PE3D_RX_DN[12]
PE3C_RX_DP[11]
PE3C_RX_DP[10]
PE3C_RX_DP[9]
PE3C_RX_DP[8]
PE3C_RX_DN[11]
PE3C_RX_DN[10]
PE3C_RX_DN[9]
PE3C_RX_DN[8]
PE3B_RX_DP[7]
PE3B_RX_DP[6]
PE3B_RX_DP[5]
PE3B_RX_DP[4]
PE3B_RX_DN[7]
PE3B_RX_DN[6]
PE3B_RX_DN[5]
PE3B_RX_DN[4]
PE3A_RX_DP[3]
PE3A_RX_DP[2]
PE3A_RX_DP[1]
PE3A_RX_DP[0]
PE3A_RX_DN[3]
PE3A_RX_DN[2]
PE3A_RX_DN[1]
PE3A_RX_DN[0]
PE3D_TX_DP[15]
PE3D_TX_DP[14]
PE3D_TX_DP[13]
PE3D_TX_DP[12]
PE3D_TX_DN[15]
PE3D_TX_DN[14]
PE3D_TX_DN[13]
PE3D_TX_DN[12]
PE3C_TX_DP[11]
PE3C_TX_DP[10]
PE3C_TX_DP[9]
PE3C_TX_DP[8]
PE3C_TX_DN[11]
PE3C_TX_DN[10]
PE3C_TX_DN[9]
PE3C_TX_DN[8]
PE3B_TX_DP[7]
PE3B_TX_DP[6]
PE3B_TX_DP[5]
PE3B_TX_DP[4]
PE3B_TX_DN[7]
PE3B_TX_DN[6]
PE3B_TX_DN[5]
PE3B_TX_DN[4]
PE3A_TX_DP[3]
PE3A_TX_DP[2]
PE3A_TX_DP[1]
PE3A_TX_DP[0]
PE3A_TX_DN[3]
PE3A_TX_DN[2]
PE3A_TX_DN[1]
PE3A_TX_DN[0]
P44
AA43
AB44
AC45
T44
AC43
Y44
AA45
AB46
AC47
U45
T46
Y46
AA47
R45
P46
U49
T50
U51
T52
R49
P50
R51
P52
T48
U47
L51
K50
P48
R47
J51
H50
EXP_B_TXP_15 (26)
EXP_B_TXP_14 (26)
EXP_B_TXP_13 (26)
EXP_B_TXP_12 (26)
EXP_B_TXN_15 (26)
EXP_B_TXN_14 (26)
EXP_B_TXN_13 (26)
EXP_B_TXN_12 (26)
EXP_B_TXP_11 (26)
EXP_B_TXP_10 (26)
EXP_B_TXP_9 (26)
EXP_B_TXP_8 (26)
EXP_B_TXN_11 (26)
EXP_B_TXN_10 (26)
EXP_B_TXN_9 (26)
EXP_B_TXN_8 (26)
EXP_B_TXP_7 (25)
EXP_B_TXP_6 (25)
EXP_B_TXP_5 (25)
EXP_B_TXP_4 (25)
EXP_B_TXN_7 (25)
EXP_B_TXN_6 (25)
EXP_B_TXN_5 (25)
EXP_B_TXN_4 (25)
EXP_B_TXP_3 (25)
EXP_B_TXP_2 (25)
EXP_B_TXP_1 (25)
EXP_B_TXP_0 (25)
EXP_B_TXN_3 (25)
EXP_B_TXN_2 (25)
EXP_B_TXN_1 (25)
EXP_B_TXN_0 (25)
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
CPU-DMI/PEG
CPU-DMI/PEG
CPU-DMI/PEG
1
477
477
477
Sheet of
Sheet of
Sheet of
10
10
10
Page 5
CPU-Memory0/1
5
4
3
2
1
MEM_MA_DATA[63..0]
D D
C C
B B
MEM_MA_CLK_H3(11)
MEM_MA_CLK_H2(11)
MEM_MA_CLK_H1(11)
MEM_MA_CLK_H0(11)
MEM_MA_CLK_L3(11)
MEM_MA_CLK_L2(11)
MEM_MA_CLK_L1(11)
MEM_MA_CLK_L0(11)
MEM_MA_BG_1(11)
MEM_MA_BG_0(11)
MEM_MA_BA_1(11)
MEM_MA_BA_0(11)
A A
MEM_MA_DATA63
MEM_MA_DATA62
MEM_MA_DATA61
MEM_MA_DATA60
MEM_MA_DATA59
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA56
MEM_MA_DATA55
MEM_MA_DATA54
MEM_MA_DATA53
MEM_MA_DATA52
MEM_MA_DATA51
MEM_MA_DATA50
MEM_MA_DATA49
MEM_MA_DATA48
MEM_MA_DATA47
MEM_MA_DATA46
MEM_MA_DATA45
MEM_MA_DATA44
MEM_MA_DATA43
MEM_MA_DATA42
MEM_MA_DATA41
MEM_MA_DATA40
MEM_MA_DATA39
MEM_MA_DATA38
MEM_MA_DATA37
MEM_MA_DATA36
MEM_MA_DATA35
MEM_MA_DATA34
MEM_MA_DATA33
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA30
MEM_MA_DATA29
MEM_MA_DATA28
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA25
MEM_MA_DATA24
MEM_MA_DATA23
MEM_MA_DATA22
MEM_MA_DATA21
MEM_MA_DATA20
MEM_MA_DATA19
MEM_MA_DATA18
MEM_MA_DATA17
MEM_MA_DATA16
MEM_MA_DATA15
MEM_MA_DATA14
MEM_MA_DATA13
MEM_MA_DATA12
MEM_MA_DATA11
MEM_MA_DATA10
MEM_MA_DATA9
MEM_MA_DATA8
MEM_MA_DATA7
MEM_MA_DATA6
MEM_MA_DATA5
MEM_MA_DATA4
MEM_MA_DATA3
MEM_MA_DATA2
MEM_MA_DATA1
MEM_MA_DATA0
MEM_MA_CLK_H3
MEM_MA_CLK_H2
MEM_MA_CLK_H1
MEM_MA_CLK_H0
MEM_MA_CLK_L3
MEM_MA_CLK_L2
MEM_MA_CLK_L1
MEM_MA_CLK_L0
MEM_MA_BG_1
MEM_MA_BG_0
MEM_MA_BA_1
MEM_MA_BA_0
MEM_MA_DATA[63..0] (11)
CPU1B
CPU1B
CK38
DDR0_DQ[63]
CM38
DDR0_DQ[62]
CK34
DDR0_DQ[61]
CM34
DDR0_DQ[60]
CJ39
DDR0_DQ[59]
CL39
DDR0_DQ[58]
CJ35
DDR0_DQ[57]
CL35
DDR0_DQ[56]
CD38
DDR0_DQ[55]
CF38
DDR0_DQ[54]
CD34
DDR0_DQ[53]
CF34
DDR0_DQ[52]
CC39
DDR0_DQ[51]
CE39
DDR0_DQ[50]
CC35
DDR0_DQ[49]
CE35
DDR0_DQ[48]
CC31
DDR0_DQ[47]
CE31
DDR0_DQ[46]
CC27
DDR0_DQ[45]
CE27
DDR0_DQ[44]
CB32
DDR0_DQ[43]
CD32
DDR0_DQ[42]
CB28
DDR0_DQ[41]
CD28
DDR0_DQ[40]
CJ31
DDR0_DQ[39]
CL31
DDR0_DQ[38]
CJ27
DDR0_DQ[37]
CL27
DDR0_DQ[36]
CH32
DDR0_DQ[35]
CK32
DDR0_DQ[34]
CH28
DDR0_DQ[33]
CK28
DDR0_DQ[32]
CL13
DDR0_DQ[31]
CM12
DDR0_DQ[30]
CD14
DDR0_DQ[29]
CC13
DDR0_DQ[28]
CH14
DDR0_DQ[27]
CM14
DDR0_DQ[26]
CG15
DDR0_DQ[25]
CE13
DDR0_DQ[24]
CJ9
DDR0_DQ[23]
CK8
DDR0_DQ[22]
CE11
DDR0_DQ[21]
CD10
DDR0_DQ[20]
CJ11
DDR0_DQ[19]
CK10
DDR0_DQ[18]
CF8
DDR0_DQ[17]
CE9
DDR0_DQ[16]
BY12
DDR0_DQ[15]
CA11
DDR0_DQ[14]
BU15
DDR0_DQ[13]
BT14
DDR0_DQ[12]
BY14
DDR0_DQ[11]
BW13
DDR0_DQ[10]
BU11
DDR0_DQ[9]
BT12
DDR0_DQ[8]
CB6
DDR0_DQ[7]
CA7
DDR0_DQ[6]
BU9
DDR0_DQ[5]
BT8
DDR0_DQ[4]
CB8
DDR0_DQ[3]
CA9
DDR0_DQ[2]
BT6
DDR0_DQ[1]
BU7
DDR0_DQ[0]
CR11
DDR0_ECC[7]
CP10
DDR0_ECC[6]
CN9
DDR0_ECC[5]
CP8
DDR0_ECC[4]
CU11
DDR0_ECC[3]
CW11
DDR0_ECC[2]
CV8
DDR0_ECC[1]
CT8
DDR0_ECC[0]
CC19
DDR0_CLK_DP[3]
CD20
DDR0_CLK_DP[2]
CD18
DDR0_CLK_DP[1]
CC21
DDR0_CLK_DP[0]
CE19
DDR0_CLK_DN[3]
CF20
DDR0_CLK_DN[2]
CF18
DDR0_CLK_DN[1]
CE21
DDR0_CLK_DN[0]
CN17
DDR0_BG[1]
CL17
DDR0_BG[0]
CH20
DDR0_BA[1]
CL21
DDR0_BA[0]
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
DDR0_CS_N[7]/CID[4]
DDR0_CS_N[6]/CID[3]
DDR0_CS_N[3]/CID[1]
DDR0_CS_N[2]/CID[0]
DDR0_DQS_DP[17]
DDR0_DQS_DP[16]
DDR0_DQS_DP[15]
DDR0_DQS_DP[14]
DDR0_DQS_DP[13]
DDR0_DQS_DP[12]
DDR0_DQS_DP[11]
DDR0_DQS_DP[10]
DDR0_DQS_DP[9]
DDR0_DQS_DP[8]
DDR0_DQS_DP[7]
DDR0_DQS_DP[6]
DDR0_DQS_DP[5]
DDR0_DQS_DP[4]
DDR0_DQS_DP[3]
DDR0_DQS_DP[2]
DDR0_DQS_DP[1]
DDR0_DQS_DP[0]
DDR0_DQS_DN[17]
DDR0_DQS_DN[16]
DDR0_DQS_DN[15]
DDR0_DQS_DN[14]
DDR0_DQS_DN[13]
DDR0_DQS_DN[12]
DDR0_DQS_DN[11]
DDR0_DQS_DN[10]
DDR0_DQS_DN[9]
DDR0_DQS_DN[8]
DDR0_DQS_DN[7]
DDR0_DQS_DN[6]
DDR0_DQS_DN[5]
DDR0_DQS_DN[4]
DDR0_DQS_DN[3]
DDR0_DQS_DN[2]
DDR0_DQS_DN[1]
DDR0_DQS_DN[0]
DDR0_MA[17]
DDR0_MA[16]
DDR0_MA[15]
DDR0_MA[14]
DDR0_MA[13]
DDR0_MA[12]
DDR0_MA[11]
DDR0_MA[10]
DDR0_MA[9]
DDR0_MA[8]
DDR0_MA[7]
DDR0_MA[6]
DDR0_MA[5]
DDR0_MA[4]
DDR0_MA[3]
DDR0_MA[2]
DDR0_MA[1]
DDR0_MA[0]
DDR0_CKE[5]
DDR0_CKE[4]
DDR0_CKE[3]
DDR0_CKE[2]
DDR0_CKE[1]
DDR0_CKE[0]
DDR0_ODT[5]
DDR0_ODT[4]
DDR0_ODT[3]
DDR0_ODT[2]
DDR0_ODT[1]
DDR0_ODT[0]
DDR0_CS_N[9]
DDR0_CS_N[8]
DDR0_CS_N[5]
DDR0_CS_N[4]
DDR0_CS_N[1]
DDR0_CS_N[0]
DDR0_CID[2]
DDR0_ACT_N
DDR0_ALERT_N
DDR0_PAR
CU9
CM36
CF36
CE29
CL29
CG13
CG9
BU13
BV8
CV10
MEM_MA_DQS_H7
CJ37
MEM_MA_DQS_H6
CC37
MEM_MA_DQS_H5
CD30
MEM_MA_DQS_H4
CK30
MEM_MA_DQS_H3
CK14
MEM_MA_DQS_H2
CH10
MEM_MA_DQS_H1
BV12
MEM_MA_DQS_H0
BY6
CW9
CK36
CD36
CC29
CJ29
CF14
CH8
BV14
BW9
CT10
MEM_MA_DQS_L7
CL37
MEM_MA_DQS_L6
CE37
MEM_MA_DQS_L5
CF30
MEM_MA_DQS_L4
CM30
MEM_MA_DQS_L3
CJ13
MEM_MA_DQS_L2
CG11
MEM_MA_DQS_L1
BW11
MEM_MA_DQS_L0
BV6
MEM_MA_ADD17
CD24
MEM_MA_ADD16
CL23
MEM_MA_ADD15
CL25
MEM_MA_ADD14
CJ21
MEM_MA_ADD13
CE23
MEM_MA_ADD12
CR17
MEM_MA_ADD11
CP18
MEM_MA_ADD10
CP24
MEM_MA_ADD9
CK18
MEM_MA_ADD8
CJ19
MEM_MA_ADD7
CH18
MEM_MA_ADD6
CN19
MEM_MA_ADD5
CL19
MEM_MA_ADD4
CP20
MEM_MA_ADD3
CN21
MEM_MA_ADD2
CT22
MEM_MA_ADD1
CR21
MEM_MA_ADD0
CP22
CC15
CN15
MEM_MA_CKE3
CC17
MEM_MA_CKE2
CF16
MEM_MA_CKE1
CE17
MEM_MA_CKE0
CJ17
CE25
CF24
MEM_MA_ODT3
CC23
MEM_MA_ODT2
CJ23
MEM_MA_ODT1
CN25
MEM_MA_ODT0
CF22
CK26
CK24
MEM_MA_CS_L7
CD26
MEM_MA_CS_L6
CH26
MEM_MA_CS_L5
CH24
MEM_MA_CS_L4
CK22
MEM_MA_CS_L3
CC25
MEM_MA_CS_L2 MEM_MB_CLK_L3
CF26
MEM_MA_CS_L1
CH22
MEM_MA_CS_L0
CD22
MEM_MA_C2
CJ25
MEM_MA_ACT_N
CK16
MEM_MA_ALERT_N
CD16
MEM_MA_PAR MEM_MB_PAR
CK20
MEM_MA_DQS_H7 (11)
MEM_MA_DQS_H6 (11)
MEM_MA_DQS_H5 (11)
MEM_MA_DQS_H4 (11)
MEM_MA_DQS_H3 (11)
MEM_MA_DQS_H2 (11)
MEM_MA_DQS_H1 (11)
MEM_MA_DQS_H0 (11)
MEM_MA_DQS_L7 (11)
MEM_MA_DQS_L6 (11)
MEM_MA_DQS_L5 (11)
MEM_MA_DQS_L4 (11)
MEM_MA_DQS_L3 (11)
MEM_MA_DQS_L2 (11)
MEM_MA_DQS_L1 (11)
MEM_MA_DQS_L0 (11)
MEM_MA_ADD[17..0] MEM_MB_ADD[17..0]
MEM_MA_CKE3 (11)
MEM_MA_CKE2 (11)
MEM_MA_CKE1 (11)
MEM_MA_CKE0 (11)
MEM_MA_ODT3 (11)
MEM_MA_ODT2 (11)
MEM_MA_ODT1 (11)
MEM_MA_ODT0 (11)
MEM_MA_CS_L7 (11)
MEM_MA_CS_L6 (11)
MEM_MA_CS_L5 (11)
MEM_MA_CS_L4 (11)
MEM_MA_CS_L3 (11)
MEM_MA_CS_L2 (11)
MEM_MA_CS_L1 (11)
MEM_MA_CS_L0 (11)
MEM_MA_C2 (11)
MEM_MA_ACT_N (11)
MEM_MA_ALERT_N (11)
MEM_MA_PAR (11) MEM_MB_PAR (12)
MEM_MA_ADD[17..0] (11) MEM_MB_ADD[17..0] (12)
MEM_MB_CLK_H3(12)
MEM_MB_CLK_H2(12)
MEM_MB_CLK_H1(12)
MEM_MB_CLK_H0(12)
MEM_MB_CLK_L3(12)
MEM_MB_CLK_L2(12)
MEM_MB_CLK_L1(12)
MEM_MB_CLK_L0(12)
MEM_MB_BG_1(12)
MEM_MB_BG_0(12)
MEM_MB_BA_1(12)
MEM_MB_BA_0(12)
MEM_MB_DATA[63..0]
MEM_MB_DATA63
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA59
MEM_MB_DATA58
MEM_MB_DATA57
MEM_MB_DATA56
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA21
MEM_MB_DATA20
MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA11
MEM_MB_DATA10
MEM_MB_DATA9
MEM_MB_DATA8
MEM_MB_DATA7
MEM_MB_DATA6
MEM_MB_DATA5
MEM_MB_DATA4
MEM_MB_DATA3
MEM_MB_DATA2
MEM_MB_DATA1
MEM_MB_DATA0
MEM_MB_CLK_H3
MEM_MB_CLK_H2
MEM_MB_CLK_H1
MEM_MB_CLK_H0
MEM_MB_CLK_L2
MEM_MB_CLK_L1
MEM_MB_CLK_L0
MEM_MB_BG_1
MEM_MB_BG_0
MEM_MB_BA_1
MEM_MB_BA_0
MEM_MB_DATA[63..0] (12)
CPU1C
CPU1C
DE39
DDR1_DQ[63]
DF38
DDR1_DQ[62]
DB36
DDR1_DQ[61]
DC35
DDR1_DQ[60]
DA39
DDR1_DQ[59]
DC39
DDR1_DQ[58]
DF36
DDR1_DQ[57]
DC37
DDR1_DQ[56]
CT38
DDR1_DQ[55]
CV38
DDR1_DQ[54]
CT34
DDR1_DQ[53]
CV34
DDR1_DQ[52]
CR39
DDR1_DQ[51]
CU39
DDR1_DQ[50]
CR35
DDR1_DQ[49]
CU35
DDR1_DQ[48]
DE33
DDR1_DQ[47]
DA33
DDR1_DQ[46]
CY28
DDR1_DQ[45]
DB28
DDR1_DQ[44]
DF34
DDR1_DQ[43]
DC33
DDR1_DQ[42]
DB30
DDR1_DQ[41]
DA29
DDR1_DQ[40]
CR31
DDR1_DQ[39]
CU31
DDR1_DQ[38]
CR27
DDR1_DQ[37]
CU27
DDR1_DQ[36]
CP32
DDR1_DQ[35]
CT32
DDR1_DQ[34]
CP28
DDR1_DQ[33]
CT28
DDR1_DQ[32]
DF10
DDR1_DQ[31]
DE9
DDR1_DQ[30]
CY6
DDR1_DQ[29]
DA5
DDR1_DQ[28]
DC11
DDR1_DQ[27]
DE11
DDR1_DQ[26]
DB8
DDR1_DQ[25]
DA7
DDR1_DQ[24]
CR5
DDR1_DQ[23]
CU5
DDR1_DQ[22]
CP2
DDR1_DQ[21]
CR1
DDR1_DQ[20]
CP6
DDR1_DQ[19]
CT6
DDR1_DQ[18]
CV2
DDR1_DQ[17]
CR3
DDR1_DQ[16]
CL3
DDR1_DQ[15]
CK6
DDR1_DQ[14]
CF6
DDR1_DQ[13]
CE5
DDR1_DQ[12]
CM4
DDR1_DQ[11]
CL5
DDR1_DQ[10]
CF4
DDR1_DQ[9]
CE3
DDR1_DQ[8]
BY2
DDR1_DQ[7]
CA1
DDR1_DQ[6]
BT2
DDR1_DQ[5]
BT4
DDR1_DQ[4]
CB4
DDR1_DQ[3]
CA3
DDR1_DQ[2]
BU1
DDR1_DQ[1]
BV4
DDR1_DQ[0]
DE13
DDR1_ECC[7]
DC13
DDR1_ECC[6]
CT14
DDR1_ECC[5]
CR13
DDR1_ECC[4]
DF14
DDR1_ECC[3]
DD14
DDR1_ECC[2]
CV14
DDR1_ECC[1]
CU13
DDR1_ECC[0]
DE19
DDR1_CLK_DP[3]
DF20
DDR1_CLK_DP[2]
DF18
DDR1_CLK_DP[1]
DE21
DDR1_CLK_DP[0]
DC19
DDR1_CLK_DN[3]
DD20
DDR1_CLK_DN[2]
DD18
DDR1_CLK_DN[1]
DC21
DDR1_CLK_DN[0]
CP16
DDR1_BG[1]
CV16
DDR1_BG[0]
CV22
DDR1_BA[1]
CW23
DDR1_BA[0]
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
DDR1_CS_N[7]/CID[4]
DDR1_CS_N[6]/CID[3]
DDR1_CS_N[3]/CID[1]
DDR1_CS_N[2]/CID[0]
DDR1_DQS_DP[17]
DDR1_DQS_DP[16]
DDR1_DQS_DP[15]
DDR1_DQS_DP[14]
DDR1_DQS_DP[13]
DDR1_DQS_DP[12]
DDR1_DQS_DP[11]
DDR1_DQS_DP[10]
DDR1_DQS_DP[9]
DDR1_DQS_DP[8]
DDR1_DQS_DP[7]
DDR1_DQS_DP[6]
DDR1_DQS_DP[5]
DDR1_DQS_DP[4]
DDR1_DQS_DP[3]
DDR1_DQS_DP[2]
DDR1_DQS_DP[1]
DDR1_DQS_DP[0]
DDR1_DQS_DN[17]
DDR1_DQS_DN[16]
DDR1_DQS_DN[15]
DDR1_DQS_DN[14]
DDR1_DQS_DN[13]
DDR1_DQS_DN[12]
DDR1_DQS_DN[11]
DDR1_DQS_DN[10]
DDR1_DQS_DN[9]
DDR1_DQS_DN[8]
DDR1_DQS_DN[7]
DDR1_DQS_DN[6]
DDR1_DQS_DN[5]
DDR1_DQS_DN[4]
DDR1_DQS_DN[3]
DDR1_DQS_DN[2]
DDR1_DQS_DN[1]
DDR1_DQS_DN[0]
DDR1_MA[17]
DDR1_MA[16]
DDR1_MA[15]
DDR1_MA[14]
DDR1_MA[13]
DDR1_MA[12]
DDR1_MA[11]
DDR1_MA[10]
DDR1_MA[9]
DDR1_MA[8]
DDR1_MA[7]
DDR1_MA[6]
DDR1_MA[5]
DDR1_MA[4]
DDR1_MA[3]
DDR1_MA[2]
DDR1_MA[1]
DDR1_MA[0]
DDR1_CKE[5]
DDR1_CKE[4]
DDR1_CKE[3]
DDR1_CKE[2]
DDR1_CKE[1]
DDR1_CKE[0]
DDR1_ODT[5]
DDR1_ODT[4]
DDR1_ODT[3]
DDR1_ODT[2]
DDR1_ODT[1]
DDR1_ODT[0]
DDR1_CS_N[9]
DDR1_CS_N[8]
DDR1_CS_N[5]
DDR1_CS_N[4]
DDR1_CS_N[1]
DDR1_CS_N[0]
DDR1_CID[2]
DDR1_ACT_N
DDR1_ALERT_N
DDR1_PAR
CW13
DD36
CV36
DA31
CU29
DC7
CW3
CH4
BV2
DB14
DB38
CR37
DD32
CT30
DB10
CT4
CJ5
BY4
CY14
DE37
CT36
CY32
CR29
DD8
CU3
CG3
BW1
DA13
DA37
CU37
DB32
CV30
DC9
CV4
CH6
BW3
CT24
CY24
CV24
CN23
CW25
CW17
CV18
CR23
CY18
DA19
CT18
CW19
CY20
CR19
CW21
CV20
DA21
CY22
DA15
CY16
DF16
DD16
DC17
DA17
DD26
DA25
DC25
DC23
DE25
DD22
DF26
DF24
CV26
CY26
DD24
DA23
CP26
CT26
DE23
DF22
CR25
CT16
CR15
CT20
MEM_MB_DQS_H7
MEM_MB_DQS_H6
MEM_MB_DQS_H5
MEM_MB_DQS_H4
MEM_MB_DQS_H3
MEM_MB_DQS_H2
MEM_MB_DQS_H1
MEM_MB_DQS_H0
MEM_MB_DQS_L7
MEM_MB_DQS_L6
MEM_MB_DQS_L5
MEM_MB_DQS_L4
MEM_MB_DQS_L3
MEM_MB_DQS_L2
MEM_MB_DQS_L1
MEM_MB_DQS_L0
MEM_MB_ADD17
MEM_MB_ADD16
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
MEM_MB_CKE3
MEM_MB_CKE2
MEM_MB_CKE1
MEM_MB_CKE0
MEM_MB_ODT3
MEM_MB_ODT2
MEM_MB_ODT1
MEM_MB_ODT0
MEM_MB_CS_L7
MEM_MB_CS_L6
MEM_MB_CS_L5
MEM_MB_CS_L4
MEM_MB_CS_L3
MEM_MB_CS_L2
MEM_MB_CS_L1
MEM_MB_CS_L0
MEM_MB_C2
MEM_MB_ACT_N
MEM_MB_ALERT_N
MEM_MB_DQS_H7 (12)
MEM_MB_DQS_H6 (12)
MEM_MB_DQS_H5 (12)
MEM_MB_DQS_H4 (12)
MEM_MB_DQS_H3 (12)
MEM_MB_DQS_H2 (12)
MEM_MB_DQS_H1 (12)
MEM_MB_DQS_H0 (12)
MEM_MB_DQS_L7 (12)
MEM_MB_DQS_L6 (12)
MEM_MB_DQS_L5 (12)
MEM_MB_DQS_L4 (12)
MEM_MB_DQS_L3 (12)
MEM_MB_DQS_L2 (12)
MEM_MB_DQS_L1 (12)
MEM_MB_DQS_L0 (12)
MEM_MB_CKE3 (12)
MEM_MB_CKE2 (12)
MEM_MB_CKE1 (12)
MEM_MB_CKE0 (12)
MEM_MB_ODT3 (12)
MEM_MB_ODT2 (12)
MEM_MB_ODT1 (12)
MEM_MB_ODT0 (12)
MEM_MB_CS_L7 (12)
MEM_MB_CS_L6 (12)
MEM_MB_CS_L5 (12)
MEM_MB_CS_L4 (12)
MEM_MB_CS_L3 (12)
MEM_MB_CS_L2 (12)
MEM_MB_CS_L1 (12)
MEM_MB_CS_L0 (12)
MEM_MB_C2 (12)
MEM_MB_ACT_N (12)
MEM_MB_ALERT_N (12)
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
CPU-Memory0/1
CPU-Memory0/1
CPU-Memory0/1
1
577
577
577
Sheet of
Sheet of
Sheet of
10
10
10
Page 6
CPU-Memory2/3
5
4
3
2
1
MEM_MD_DATA[63..0]MEM_MC_DATA[63..0]
CPU1D
CPU1D
HASWELL-E
D D
C C
B B
MEM_MC_CLK_H3(13)
MEM_MC_CLK_H2(13)
MEM_MC_CLK_H1(13)
MEM_MC_CLK_H0(13)
MEM_MC_CLK_L3(13)
MEM_MC_CLK_L2(13)
MEM_MC_CLK_L1(13)
MEM_MC_CLK_L0(13)
MEM_MC_BG_1(13)
MEM_MC_BG_0(13)
MEM_MC_BA_1(13)
MEM_MC_BA_0(13)
A A
MEM_MC_DATA63
MEM_MC_DATA62
MEM_MC_DATA61
MEM_MC_DATA60
MEM_MC_DATA59
MEM_MC_DATA58
MEM_MC_DATA57
MEM_MC_DATA56
MEM_MC_DATA55
MEM_MC_DATA54
MEM_MC_DATA53
MEM_MC_DATA52
MEM_MC_DATA51
MEM_MC_DATA50
MEM_MC_DATA49
MEM_MC_DATA48
MEM_MC_DATA47
MEM_MC_DATA46
MEM_MC_DATA45
MEM_MC_DATA44
MEM_MC_DATA43
MEM_MC_DATA42
MEM_MC_DATA41
MEM_MC_DATA40
MEM_MC_DATA39
MEM_MC_DATA38
MEM_MC_DATA37
MEM_MC_DATA36
MEM_MC_DATA35
MEM_MC_DATA34
MEM_MC_DATA33
MEM_MC_DATA32
MEM_MC_DATA31
MEM_MC_DATA30
MEM_MC_DATA29
MEM_MC_DATA28
MEM_MC_DATA27
MEM_MC_DATA26
MEM_MC_DATA25
MEM_MC_DATA24
MEM_MC_DATA23
MEM_MC_DATA22
MEM_MC_DATA21
MEM_MC_DATA20
MEM_MC_DATA19
MEM_MC_DATA18
MEM_MC_DATA17
MEM_MC_DATA16
MEM_MC_DATA15
MEM_MC_DATA14
MEM_MC_DATA13
MEM_MC_DATA12
MEM_MC_DATA11
MEM_MC_DATA10
MEM_MC_DATA9
MEM_MC_DATA8
MEM_MC_DATA7
MEM_MC_DATA6
MEM_MC_DATA5
MEM_MC_DATA4
MEM_MC_DATA3
MEM_MC_DATA2
MEM_MC_DATA1
MEM_MC_DATA0
MEM_MC_CLK_H3
MEM_MC_CLK_H2
MEM_MC_CLK_H1
MEM_MC_CLK_H0
MEM_MC_CLK_L3
MEM_MC_CLK_L2
MEM_MC_CLK_L1
MEM_MC_CLK_L0
MEM_MC_BG_1
MEM_MC_BG_0
MEM_MC_BA_1
MEM_MC_BA_0
AL7
AK8
AE9
AE7
AL9
AK10
AG7
AG9
AL15
AK14
AF14
AG15
AL13
AK12
AF12
AE11
Y8
AA9
U11
T10
AB8
AA11
W11
U9
M6
K6
L9
J9
P6
R7
K8
N9
T24
V24
T28
V28
R23
U23
R27
U27
AC31
AE31
AA35
AC35
AB30
AD30
AB34
AD34
W31
T32
R35
U35
T30
V30
U33
V34
U37
T38
AC39
AE37
Y38
R37
AA37
AD38
AB24
AD24
AB28
AD28
AA23
AC23
AA27
AC27
AA19
AB18
AB20
AA17
W19
Y18
Y20
W17
AD20
AA21
U17
M14
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
DDR2_DQ[63]
DDR2_DQ[62]
DDR2_DQ[61]
DDR2_DQ[60]
DDR2_DQ[59]
DDR2_DQ[58]
DDR2_DQ[57]
DDR2_DQ[56]
DDR2_DQ[55]
DDR2_DQ[54]
DDR2_DQ[53]
DDR2_DQ[52]
DDR2_DQ[51]
DDR2_DQ[50]
DDR2_DQ[49]
DDR2_DQ[48]
DDR2_DQ[47]
DDR2_DQ[46]
DDR2_DQ[45]
DDR2_DQ[44]
DDR2_DQ[43]
DDR2_DQ[42]
DDR2_DQ[41]
DDR2_DQ[40]
DDR2_DQ[39]
DDR2_DQ[38]
DDR2_DQ[37]
DDR2_DQ[36]
DDR2_DQ[35]
DDR2_DQ[34]
DDR2_DQ[33]
DDR2_DQ[32]
DDR2_DQ[31]
DDR2_DQ[30]
DDR2_DQ[29]
DDR2_DQ[28]
DDR2_DQ[27]
DDR2_DQ[26]
DDR2_DQ[25]
DDR2_DQ[24]
DDR2_DQ[23]
DDR2_DQ[22]
DDR2_DQ[21]
DDR2_DQ[20]
DDR2_DQ[19]
DDR2_DQ[18]
DDR2_DQ[17]
DDR2_DQ[16]
DDR2_DQ[15]
DDR2_DQ[14]
DDR2_DQ[13]
DDR2_DQ[12]
DDR2_DQ[11]
DDR2_DQ[10]
DDR2_DQ[9]
DDR2_DQ[8]
DDR2_DQ[7]
DDR2_DQ[6]
DDR2_DQ[5]
DDR2_DQ[4]
DDR2_DQ[3]
DDR2_DQ[2]
DDR2_DQ[1]
DDR2_DQ[0]
DDR2_ECC[7]
DDR2_ECC[6]
DDR2_ECC[5]
DDR2_ECC[4]
DDR2_ECC[3]
DDR2_ECC[2]
DDR2_ECC[1]
DDR2_ECC[0]
DDR2_CLK_DP[3]
DDR2_CLK_DP[2]
DDR2_CLK_DP[1]
DDR2_CLK_DP[0]
DDR2_CLK_DN[3]
DDR2_CLK_DN[2]
DDR2_CLK_DN[1]
DDR2_CLK_DN[0]
DDR2_BG[1]
DDR2_BG[0]
DDR2_BA[1]
DDR2_BA[0]
DDR2_DQS_DP[17]
DDR2_DQS_DP[16]
DDR2_DQS_DP[15]
DDR2_DQS_DP[14]
DDR2_DQS_DP[13]
DDR2_DQS_DP[12]
DDR2_DQS_DP[11]
DDR2_DQS_DP[10]
DDR2_DQS_DP[9]
DDR2_DQS_DP[8]
DDR2_DQS_DP[7]
DDR2_DQS_DP[6]
DDR2_DQS_DP[5]
DDR2_DQS_DP[4]
DDR2_DQS_DP[3]
DDR2_DQS_DP[2]
DDR2_DQS_DP[1]
DDR2_DQS_DP[0]
DDR2_DQS_DN[17]
DDR2_DQS_DN[16]
DDR2_DQS_DN[15]
DDR2_DQS_DN[14]
DDR2_DQS_DN[13]
DDR2_DQS_DN[12]
DDR2_DQS_DN[11]
DDR2_DQS_DN[10]
DDR2_DQS_DN[9]
DDR2_DQS_DN[8]
DDR2_DQS_DN[7]
DDR2_DQS_DN[6]
DDR2_DQS_DN[5]
DDR2_DQS_DN[4]
DDR2_DQS_DN[3]
DDR2_DQS_DN[2]
DDR2_DQS_DN[1]
DDR2_DQS_DN[0]
DDR2_MA[17]
DDR2_MA[16]
DDR2_MA[15]
DDR2_MA[14]
DDR2_MA[13]
DDR2_MA[12]
DDR2_MA[11]
DDR2_MA[10]
DDR2_MA[9]
DDR2_MA[8]
DDR2_MA[7]
DDR2_MA[6]
DDR2_MA[5]
DDR2_MA[4]
DDR2_MA[3]
DDR2_MA[2]
DDR2_MA[1]
DDR2_MA[0]
DDR2_CKE[5]
DDR2_CKE[4]
DDR2_CKE[3]
DDR2_CKE[2]
DDR2_CKE[1]
DDR2_CKE[0]
DDR2_ODT[5]
DDR2_ODT[4]
DDR2_ODT[3]
DDR2_ODT[2]
DDR2_ODT[1]
DDR2_ODT[0]
DDR2_CS_N[9]
DDR2_CS_N[8]
DDR2_CS_N[7]/CID[4]
DDR2_CS_N[6]/CID[3]
DDR2_CS_N[5]
DDR2_CS_N[4]
DDR2_CS_N[3]/CID[1]
DDR2_CS_N[2]/CID[0]
DDR2_CS_N[1]
DDR2_CS_N[0]
DDR2_CID[2]
DDR2_ACT_N
DDR2_ALERT_N
DDR2_PAR
AD26
AH10
AH16
V8
M8
V26
AC33
T34
AB38
AC25
MEM_MC_DQS_H7
AJ7
MEM_MC_DQS_H6
AH12
MEM_MC_DQS_H5
AB10
MEM_MC_DQS_H4
N7
MEM_MC_DQS_H3
U25
MEM_MC_DQS_H2
AB32
MEM_MC_DQS_H1
U31
MEM_MC_DQS_H0
V38
AB26
AJ9
AJ15
W9
L7
T26
AA33
R33
AC37
AE25
MEM_MC_DQS_L7
AH8
MEM_MC_DQS_L6
AJ13
MEM_MC_DQS_L5
Y10
MEM_MC_DQS_L4
P8
MEM_MC_DQS_L3
W25
MEM_MC_DQS_L2
AD32
MEM_MC_DQS_L1
V32
MEM_MC_DQS_L0
W37
MEM_MC_ADD17
T14
MEM_MC_ADD16
P14
MEM_MC_ADD15
R13
MEM_MC_ADD14
Y14
MEM_MC_ADD13
P12
MEM_MC_ADD12
W21
MEM_MC_ADD11
T20
MEM_MC_ADD10
AA15
MEM_MC_ADD9
P20
MEM_MC_ADD8
L19
MEM_MC_ADD7
U19
MEM_MC_ADD6
M18
MEM_MC_ADD5
P18
MEM_MC_ADD4
R19
MEM_MC_ADD3
L17
MEM_MC_ADD2
T18
MEM_MC_ADD1
M16
MEM_MC_ADD0
L15
AD22
AB22
MEM_MC_CKE3
Y22
MEM_MC_CKE2
T22
MEM_MC_CKE1
U21
MEM_MC_CKE0
R21
AD14
AE17
MEM_MC_ODT3
AB14
MEM_MC_ODT2
R15
MEM_MC_ODT1
W15
MEM_MC_ODT0
Y16
T12
AD18
MEM_MC_CS_L7
AD16
MEM_MC_CS_L6
AC13
MEM_MC_CS_L5
U15
MEM_MC_CS_L4
P16
MEM_MC_CS_L3
AA13
MEM_MC_CS_L2
W13
MEM_MC_CS_L1
T16
MEM_MC_CS_L0
AB16
MEM_MC_C2
U13
MEM_MC_ACT_N
AE21
MEM_MC_ALERT_N
P22
MEM_MC_PAR MEM_MD_PAR
R17
MEM_MC_DQS_H7 (13)
MEM_MC_DQS_H6 (13)
MEM_MC_DQS_H5 (13)
MEM_MC_DQS_H4 (13)
MEM_MC_DQS_H3 (13)
MEM_MC_DQS_H2 (13)
MEM_MC_DQS_H1 (13)
MEM_MC_DQS_H0 (13)
MEM_MC_DQS_L7 (13)
MEM_MC_DQS_L6 (13)
MEM_MC_DQS_L5 (13)
MEM_MC_DQS_L4 (13)
MEM_MC_DQS_L3 (13)
MEM_MC_DQS_L2 (13)
MEM_MC_DQS_L1 (13)
MEM_MC_DQS_L0 (13)
MEM_MC_ADD[17..0]
MEM_MC_CKE3 (13)
MEM_MC_CKE2 (13)
MEM_MC_CKE1 (13)
MEM_MC_CKE0 (13)
MEM_MC_ODT3 (13)
MEM_MC_ODT2 (13)
MEM_MC_ODT1 (13)
MEM_MC_ODT0 (13)
MEM_MC_CS_L7 (13)
MEM_MC_CS_L6 (13)
MEM_MC_CS_L5 (13)
MEM_MC_CS_L4 (13)
MEM_MC_CS_L3 (13)
MEM_MC_CS_L2 (13)
MEM_MC_CS_L1 (13)
MEM_MC_CS_L0 (13)
MEM_MC_C2 (13)
MEM_MC_ACT_N (13)
MEM_MC_ALERT_N (13)
MEM_MC_PAR (13) MEM_MD_PAR (14)
MEM_MC_ADD[17..0] (13)
MEM_MD_CLK_H3(14)
MEM_MD_CLK_H2(14)
MEM_MD_CLK_H1(14)
MEM_MD_CLK_H0(14)
MEM_MD_CLK_L3(14)
MEM_MD_CLK_L2(14)
MEM_MD_CLK_L1(14)
MEM_MD_CLK_L0(14)
MEM_MD_BG_1(14)
MEM_MD_BG_0(14)
MEM_MD_BA_1(14)
MEM_MD_BA_0(14)
MEM_MD_DATA63
MEM_MD_DATA62
MEM_MD_DATA61
MEM_MD_DATA60
MEM_MD_DATA59
MEM_MD_DATA58
MEM_MD_DATA57
MEM_MD_DATA56
MEM_MD_DATA55
MEM_MD_DATA54
MEM_MD_DATA53
MEM_MD_DATA52
MEM_MD_DATA51
MEM_MD_DATA50
MEM_MD_DATA49
MEM_MD_DATA48
MEM_MD_DATA47
MEM_MD_DATA46
MEM_MD_DATA45
MEM_MD_DATA44
MEM_MD_DATA43
MEM_MD_DATA42
MEM_MD_DATA41
MEM_MD_DATA40
MEM_MD_DATA39
MEM_MD_DATA38
MEM_MD_DATA37
MEM_MD_DATA36
MEM_MD_DATA35
MEM_MD_DATA34
MEM_MD_DATA33
MEM_MD_DATA32
MEM_MD_DATA31
MEM_MD_DATA30
MEM_MD_DATA29
MEM_MD_DATA28
MEM_MD_DATA27
MEM_MD_DATA26
MEM_MD_DATA25
MEM_MD_DATA24
MEM_MD_DATA23
MEM_MD_DATA22
MEM_MD_DATA21
MEM_MD_DATA20
MEM_MD_DATA19
MEM_MD_DATA18
MEM_MD_DATA17
MEM_MD_DATA16
MEM_MD_DATA15
MEM_MD_DATA14
MEM_MD_DATA13
MEM_MD_DATA12
MEM_MD_DATA11
MEM_MD_DATA10
MEM_MD_DATA9
MEM_MD_DATA8
MEM_MD_DATA7
MEM_MD_DATA6
MEM_MD_DATA5
MEM_MD_DATA4
MEM_MD_DATA3
MEM_MD_DATA2
MEM_MD_DATA1
MEM_MD_DATA0
MEM_MD_CLK_H3
MEM_MD_CLK_H2
MEM_MD_CLK_H1
MEM_MD_CLK_H0
MEM_MD_CLK_L3
MEM_MD_CLK_L2
MEM_MD_CLK_L1
MEM_MD_CLK_L0
MEM_MD_BG_1
MEM_MD_BG_0
MEM_MD_BA_1
MEM_MD_BA_0
MEM_MD_DATA[63..0] (14)MEM_MC_DATA[63..0] (13)
CPU1E
CPU1E
AB6
DDR3_DQ[63]
AC3
DDR3_DQ[62]
V6
DDR3_DQ[61]
U5
DDR3_DQ[60]
AE5
DDR3_DQ[59]
AC5
DDR3_DQ[58]
W3
DDR3_DQ[57]
V4
DDR3_DQ[56]
AL1
DDR3_DQ[55]
AJ3
DDR3_DQ[54]
AE3
DDR3_DQ[53]
AG5
DDR3_DQ[52]
AL5
DDR3_DQ[51]
AL3
DDR3_DQ[50]
AG1
DDR3_DQ[49]
AG3
DDR3_DQ[48]
G7
DDR3_DQ[47]
D6
DDR3_DQ[46]
A9
DDR3_DQ[45]
C9
DDR3_DQ[44]
F6
DDR3_DQ[43]
E5
DDR3_DQ[42]
F8
DDR3_DQ[41]
E9
DDR3_DQ[40]
R3
DDR3_DQ[39]
K2
DDR3_DQ[38]
N3
DDR3_DQ[37]
P4
DDR3_DQ[36]
L1
DDR3_DQ[35]
J1
DDR3_DQ[34]
H4
DDR3_DQ[33]
K4
DDR3_DQ[32]
B24
DDR3_DQ[31]
C25
DDR3_DQ[30]
E29
DDR3_DQ[29]
G29
DDR3_DQ[28]
E23
DDR3_DQ[27]
F24
DDR3_DQ[26]
E27
DDR3_DQ[25]
F28
DDR3_DQ[24]
N31
DDR3_DQ[23]
L31
DDR3_DQ[22]
L35
DDR3_DQ[21]
J35
DDR3_DQ[20]
M30
DDR3_DQ[19]
K30
DDR3_DQ[18]
M34
DDR3_DQ[17]
K34
DDR3_DQ[16]
E33
DDR3_DQ[15]
D32
DDR3_DQ[14]
E35
DDR3_DQ[13]
F34
DDR3_DQ[12]
E31
DDR3_DQ[11]
G31
DDR3_DQ[10]
B34
DDR3_DQ[9]
A35
DDR3_DQ[8]
K38
DDR3_DQ[7]
G37
DDR3_DQ[6]
J39
DDR3_DQ[5]
C39
DDR3_DQ[4]
M38
DDR3_DQ[3]
L37
DDR3_DQ[2]
B38
DDR3_DQ[1]
D38
DDR3_DQ[0]
K24
DDR3_ECC[7]
M24
DDR3_ECC[6]
M28
DDR3_ECC[5]
K28
DDR3_ECC[4]
J23
DDR3_ECC[3]
L23
DDR3_ECC[2]
J27
DDR3_ECC[1]
L27
DDR3_ECC[0]
A19
DDR3_CLK_DP[3]
B18
DDR3_CLK_DP[2]
B20
DDR3_CLK_DP[1]
A17
DDR3_CLK_DP[0]
C19
DDR3_CLK_DN[3]
D18
DDR3_CLK_DN[2]
D20
DDR3_CLK_DN[1]
C17
DDR3_CLK_DN[0]
G21
DDR3_BG[1]
J21
DDR3_BG[0]
K14
DDR3_BA[1]
G13
DDR3_BA[0]
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
DDR3_CS_N[7]/CID[4]
DDR3_CS_N[6]/CID[3]
DDR3_CS_N[3]/CID[1]
DDR3_CS_N[2]/CID[0]
DDR3_DQS_DP[17]
DDR3_DQS_DP[16]
DDR3_DQS_DP[15]
DDR3_DQS_DP[14]
DDR3_DQS_DP[13]
DDR3_DQS_DP[12]
DDR3_DQS_DP[11]
DDR3_DQS_DP[10]
DDR3_DQS_DP[9]
DDR3_DQS_DP[8]
DDR3_DQS_DP[7]
DDR3_DQS_DP[6]
DDR3_DQS_DP[5]
DDR3_DQS_DP[4]
DDR3_DQS_DP[3]
DDR3_DQS_DP[2]
DDR3_DQS_DP[1]
DDR3_DQS_DP[0]
DDR3_DQS_DN[17]
DDR3_DQS_DN[16]
DDR3_DQS_DN[15]
DDR3_DQS_DN[14]
DDR3_DQS_DN[13]
DDR3_DQS_DN[12]
DDR3_DQS_DN[11]
DDR3_DQS_DN[10]
DDR3_DQS_DN[9]
DDR3_DQS_DN[8]
DDR3_DQS_DN[7]
DDR3_DQS_DN[6]
DDR3_DQS_DN[5]
DDR3_DQS_DN[4]
DDR3_DQS_DN[3]
DDR3_DQS_DN[2]
DDR3_DQS_DN[1]
DDR3_DQS_DN[0]
DDR3_MA[17]
DDR3_MA[16]
DDR3_MA[15]
DDR3_MA[14]
DDR3_MA[13]
DDR3_MA[12]
DDR3_MA[11]
DDR3_MA[10]
DDR3_MA[9]
DDR3_MA[8]
DDR3_MA[7]
DDR3_MA[6]
DDR3_MA[5]
DDR3_MA[4]
DDR3_MA[3]
DDR3_MA[2]
DDR3_MA[1]
DDR3_MA[0]
DDR3_CKE[5]
DDR3_CKE[4]
DDR3_CKE[3]
DDR3_CKE[2]
DDR3_CKE[1]
DDR3_CKE[0]
DDR3_ODT[5]
DDR3_ODT[4]
DDR3_ODT[3]
DDR3_ODT[2]
DDR3_ODT[1]
DDR3_ODT[0]
DDR3_CS_N[9]
DDR3_CS_N[8]
DDR3_CS_N[5]
DDR3_CS_N[4]
DDR3_CS_N[1]
DDR3_CS_N[0]
DDR3_CID[2]
DDR3_ACT_N
DDR3_ALERT_N
DDR3_PAR
M26
Y6
AH4
B8
M4
F26
J33
C35
F38
L25
AB4
AK2
E7
H2
E25
M32
B32
E37
K26
W5
AJ5
D8
L3
D26
L33
D34
H38
N25
AA5
AJ1
C7
G3
G25
K32
A33
C37
L11
J13
F12
K12
M12
M20
K20
L13
F20
G19
J19
F18
K18
J17
G17
F16
K16
G15
K22
B22
D22
A21
E21
F22
E11
E13
D12
D14
A13
D16
B12
B14
A11
G11
F14
A15
H10
F10
C15
B16
J11
L21
M22
J15
MEM_MD_DQS_H7
MEM_MD_DQS_H6
MEM_MD_DQS_H5
MEM_MD_DQS_H4
MEM_MD_DQS_H3
MEM_MD_DQS_H2
MEM_MD_DQS_H1
MEM_MD_DQS_H0
MEM_MD_DQS_L7
MEM_MD_DQS_L6
MEM_MD_DQS_L5
MEM_MD_DQS_L4
MEM_MD_DQS_L3
MEM_MD_DQS_L2
MEM_MD_DQS_L1
MEM_MD_DQS_L0
MEM_MD_ADD17
MEM_MD_ADD16
MEM_MD_ADD15
MEM_MD_ADD14
MEM_MD_ADD13
MEM_MD_ADD12
MEM_MD_ADD11
MEM_MD_ADD10
MEM_MD_ADD9
MEM_MD_ADD8
MEM_MD_ADD7
MEM_MD_ADD6
MEM_MD_ADD5
MEM_MD_ADD4
MEM_MD_ADD3
MEM_MD_ADD2
MEM_MD_ADD1
MEM_MD_ADD0
MEM_MD_CKE3
MEM_MD_CKE2
MEM_MD_CKE1
MEM_MD_CKE0
MEM_MD_ODT3
MEM_MD_ODT2
MEM_MD_ODT1
MEM_MD_ODT0
MEM_MD_CS_L7
MEM_MD_CS_L6
MEM_MD_CS_L5
MEM_MD_CS_L4
MEM_MD_CS_L3
MEM_MD_CS_L2
MEM_MD_CS_L1
MEM_MD_CS_L0
MEM_MD_C2
MEM_MD_ACT_N
MEM_MD_ALERT_N
MEM_MD_DQS_H7 (14)
MEM_MD_DQS_H6 (14)
MEM_MD_DQS_H5 (14)
MEM_MD_DQS_H4 (14)
MEM_MD_DQS_H3 (14)
MEM_MD_DQS_H2 (14)
MEM_MD_DQS_H1 (14)
MEM_MD_DQS_H0 (14)
MEM_MD_DQS_L7 (14)
MEM_MD_DQS_L6 (14)
MEM_MD_DQS_L5 (14)
MEM_MD_DQS_L4 (14)
MEM_MD_DQS_L3 (14)
MEM_MD_DQS_L2 (14)
MEM_MD_DQS_L1 (14)
MEM_MD_DQS_L0 (14)
MEM_MD_ADD[17..0]
MEM_MD_CKE3 (14)
MEM_MD_CKE2 (14)
MEM_MD_CKE1 (14)
MEM_MD_CKE0 (14)
MEM_MD_ODT3 (14)
MEM_MD_ODT2 (14)
MEM_MD_ODT1 (14)
MEM_MD_ODT0 (14)
MEM_MD_CS_L7 (14)
MEM_MD_CS_L6 (14)
MEM_MD_CS_L5 (14)
MEM_MD_CS_L4 (14)
MEM_MD_CS_L3 (14)
MEM_MD_CS_L2 (14)
MEM_MD_CS_L1 (14)
MEM_MD_CS_L0 (14)
MEM_MD_C2 (14)
MEM_MD_ACT_N (14)
MEM_MD_ALERT_N (14)
MEM_MD_ADD[17..0] (14)
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
CPU-Memory2/3
CPU-Memory2/3
CPU-Memory2/3
1
677
677
677
Sheet of
Sheet of
Sheet of
10
10
10
Page 7
5
4
3
2
1
CPU-QPI/RESERVE
CPU1I
CPU1I
BN47
QPI0_DRX_DP[19]
BM48
QPI0_DRX_DP[18]
D D
C C
BG49
QPI0_DRX_DP[17]
BN49
QPI0_DRX_DP[16]
BM50
QPI0_DRX_DP[15]
BN51
QPI0_DRX_DP[14]
BM52
QPI0_DRX_DP[13]
BL53
QPI0_DRX_DP[12]
BM54
QPI0_DRX_DP[11]
BL55
QPI0_DRX_DP[10]
BM56
QPI0_DRX_DP[9]
BE57
QPI0_DRX_DP[8]
BD58
QPI0_DRX_DP[7]
BF50
QPI0_DRX_DP[6]
BF54
QPI0_DRX_DP[5]
BF56
QPI0_DRX_DP[4]
BE55
QPI0_DRX_DP[3]
BE53
QPI0_DRX_DP[2]
BH52
QPI0_DRX_DP[1]
BJ51
QPI0_DRX_DP[0]
BR47
QPI0_DRX_DN[19]
BP48
QPI0_DRX_DN[18]
BJ49
QPI0_DRX_DN[17]
BR49
QPI0_DRX_DN[16]
BP50
QPI0_DRX_DN[15]
BR51
QPI0_DRX_DN[14]
BP52
QPI0_DRX_DN[13]
BN53
QPI0_DRX_DN[12]
BP54
QPI0_DRX_DN[11]
BN55
QPI0_DRX_DN[10]
BP56
QPI0_DRX_DN[9]
BG57
QPI0_DRX_DN[8]
BF58
QPI0_DRX_DN[7]
BH50
QPI0_DRX_DN[6]
BH54
QPI0_DRX_DN[5]
BH56
QPI0_DRX_DN[4]
BG55
QPI0_DRX_DN[3]
BG53
QPI0_DRX_DN[2]
BF52
QPI0_DRX_DN[1]
BG51
QPI0_DRX_DN[0]
BK58
QPI0_CLKRX_DP
BM58
QPI0_CLKRX_DN
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
QPI0_DTX_DP[19]
QPI0_DTX_DP[18]
QPI0_DTX_DP[17]
QPI0_DTX_DP[16]
QPI0_DTX_DP[15]
QPI0_DTX_DP[14]
QPI0_DTX_DP[13]
QPI0_DTX_DP[12]
QPI0_DTX_DP[11]
QPI0_DTX_DP[10]
QPI0_DTX_DP[9]
QPI0_DTX_DP[8]
QPI0_DTX_DP[7]
QPI0_DTX_DP[6]
QPI0_DTX_DP[5]
QPI0_DTX_DP[4]
QPI0_DTX_DP[3]
QPI0_DTX_DP[2]
QPI0_DTX_DP[1]
QPI0_DTX_DP[0]
QPI0_DTX_DN[19]
QPI0_DTX_DN[18]
QPI0_DTX_DN[17]
QPI0_DTX_DN[16]
QPI0_DTX_DN[15]
QPI0_DTX_DN[14]
QPI0_DTX_DN[13]
QPI0_DTX_DN[12]
QPI0_DTX_DN[11]
QPI0_DTX_DN[10]
QPI0_DTX_DN[9]
QPI0_DTX_DN[8]
QPI0_DTX_DN[7]
QPI0_DTX_DN[6]
QPI0_DTX_DN[5]
QPI0_DTX_DN[4]
QPI0_DTX_DN[3]
QPI0_DTX_DN[2]
QPI0_DTX_DN[1]
QPI0_DTX_DN[0]
QPI0_CLKTX_DP
QPI0_CLKTX_DN
CE49
CE51
CD52
CD50
CD48
CE47
BY50
BY48
CA51
CD46
BV46
BV56
BU57
BV48
BT58
BU55
BV54
BU53
BV52
BV50
CG49
CG51
CF52
CF50
CF48
CG47
CA49
CA47
BY52
CF46
BW45
BY56
BW57
BW47
BV58
BW55
BY54
BW53
BW51
BW49
CD44
CF44
R1167 X_49.9R1%/4R1167 X_49.9R1%/4
TP91TP91
TP95TP95
TP6TP6
TP10TP10
TP99TP99
TP9TP9
CPU_N_COMP CPU_TEST1
TP34TP34
TP50TP50
TP62TP62
TP40TP40
TP68TP68
TP57TP57
TP35TP35
TP33TP33
TP52TP52
TP51TP51
TP36TP36
TP76TP76
TP49TP49
TP72TP72
TP60TP60
TP56TP56
TP66TP66
TP43TP43
TP59TP59
TP31TP31
TP74TP74
TP39TP39
TP82TP82
TP85TP85
TP71TP71
TP65TP65
TP8TP8
TP48TP48
TP63TP63
TP54TP54
TP46TP46
TP47TP47
CPU1H
CPU1H
AR55
RSVD-48
AU55
RSVD-47
H58
RSVD-46
K58
RSVD-45
D56
RSVD-44
F56
RSVD-43
DE53
RSVD-41
BJ43
RSVD-28
BH44
RSVD-27
BJ45
RSVD-26
BE43
RSVD-25
BG43
RSVD-24
BH46
RSVD-23
BF44
RSVD-36
BD44
RSVD-35
BR43
RSVD-34
BU43
RSVD-33
BP44
RSVD-32
BL43
RSVD-31
BR45
RSVD-30
BM44
RSVD-29
BN45
RSVD-22
BK44
RSVD-21
BY44
RSVD-40
BV44
RSVD-39
CA43
RSVD-38
BT44
RSVD-37
AM44
RSVD-80
BH48
RSVD-79
C41
RSVD-78
BF48
RSVD-77
E53
RSVD-76
F46
RSVD-75
G43
RSVD-74
H56
RSVD-73
J41
RSVD-72
P42
RSVD-71
R43
RSVD-70
V42
RSVD-69
W41
RSVD-68
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
RSVD-54
RSVD-53
RSVD-52
RSVD-51
RSVD-50
RSVD-49
TEST[1]
TEST[0]
TEST[3]
TEST[2]
RSVD-81
RSVD-82
PWR_DEBUG_N
FIVR_FAULT
RSVD-9
RSVD-8
RSVD-7
RSVD-6
DEBUG_EN_N
RSVD-5
RSVD-11
RSVD-10
RSVD-13
RSVD-12
RSVD-14
RSVD-67
RSVD-66
RSVD-65
RSVD-64
RSVD-63
RSVD-62
RSVD-61
RSVD-60
RSVD-59
RSVD-58
RSVD-57
RSVD-56
RSVD-55
BM46
BP46
DA57
CY58
DD54
DE55
DB4
DB2
C3
D2
CN43
CL43
AC41
CY40
B54
CW51
CU51
N41
F40
BA55
E57
F58
A53
DB56
AL55
Y54
AA41
AE45
AP48
AM54
CA53
BL47
DA11
CT50
U53
R53
CY56
DC3
TP70TP70
TP77TP77
TP94TP94
TP92TP92
TP84TP84
TP87TP87
R180 49.9R1%/4R180 49.9R1%/4
CPU_TEST0
R176 49.9R1%/4R176 49.9R1%/4
CPU_TEST3
R174 49.9R1%/4R174 49.9R1%/4
CPU_TEST2
R178 49.9R1%/4R178 49.9R1%/4
TP58TP58TP38TP38
TP53TP53
CPU_PWR_DEBUG_N
FIVR_FAULT
TP88TP88
TP83TP83
TP78TP78
TP41TP41
CPU_DEBUG_EN_N
TP7TP7
TP11TP11
TP86TP86
CPU_CORE3
C1015 X_0.1u10X/4C1015 X_0.1u10X/4
TP96TP96
TP37TP37
TP64TP64
TP75TP75
TP98TP98
TP80TP80
TP79TP79
TP28TP28
TP73TP73
TP97TP97
TP89TP89
TP90TP90
TP27TP27
500MIL
CPU_CORE3
OR:R259 REMOVED
CPU_PWR_DEBUG_N
FIVR_FAULT
CPU_DEBUG_EN_N
+VCCIO_IN
R1153 10K/4R1153 10K/4
R337 1K1%/4R337 1K1%/4
R363 976R1%4R363 976R1%4
CPU1J
CPU1J
CC55
QPI1_DRX_DP[19]
CD56
QPI1_DRX_DP[18]
CD54
QPI1_DRX_DP[17]
CJ55
QPI1_DRX_DP[16]
CM56
QPI1_DRX_DP[15]
CT58
QPI1_DRX_DP[14]
CU57
QPI1_DRX_DP[13]
CV56
QPI1_DRX_DP[12]
CU55
B B
A A
QPI1_DRX_DP[11]
CP54
QPI1_DRX_DP[10]
CR53
QPI1_DRX_DP[9]
CT52
QPI1_DRX_DP[8]
CL51
QPI1_DRX_DP[7]
CK50
QPI1_DRX_DP[6]
CL49
QPI1_DRX_DP[5]
CK48
QPI1_DRX_DP[4]
CL47
QPI1_DRX_DP[3]
CK46
QPI1_DRX_DP[2]
CL45
QPI1_DRX_DP[1]
CK44
QPI1_DRX_DP[0]
CE55
QPI1_DRX_DN[19]
CF56
QPI1_DRX_DN[18]
CF54
QPI1_DRX_DN[17]
CL55
QPI1_DRX_DN[16]
CK56
QPI1_DRX_DN[15]
CP58
QPI1_DRX_DN[14]
CR57
QPI1_DRX_DN[13]
CT56
QPI1_DRX_DN[12]
CR55
QPI1_DRX_DN[11]
CT54
QPI1_DRX_DN[10]
CU53
QPI1_DRX_DN[9]
CV52
QPI1_DRX_DN[8]
CN51
QPI1_DRX_DN[7]
CM50
QPI1_DRX_DN[6]
CN49
QPI1_DRX_DN[5]
CM48
QPI1_DRX_DN[4]
CN47
QPI1_DRX_DN[3]
CM46
QPI1_DRX_DN[2]
CN45
QPI1_DRX_DN[1]
CM44
QPI1_DRX_DN[0]
CJ53
QPI1_CLKRX_DP
CL53
QPI1_CLKRX_DN
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
5
HASWELL-E
HASWELL-E
QPI1_DTX_DP[19]
QPI1_DTX_DP[18]
QPI1_DTX_DP[17]
QPI1_DTX_DP[16]
QPI1_DTX_DP[15]
QPI1_DTX_DP[14]
QPI1_DTX_DP[13]
QPI1_DTX_DP[12]
QPI1_DTX_DP[11]
QPI1_DTX_DP[10]
QPI1_DTX_DP[9]
QPI1_DTX_DP[8]
QPI1_DTX_DP[7]
QPI1_DTX_DP[6]
QPI1_DTX_DP[5]
QPI1_DTX_DP[4]
QPI1_DTX_DP[3]
QPI1_DTX_DP[2]
QPI1_DTX_DP[1]
QPI1_DTX_DP[0]
QPI1_DTX_DN[19]
QPI1_DTX_DN[18]
QPI1_DTX_DN[17]
QPI1_DTX_DN[16]
QPI1_DTX_DN[15]
QPI1_DTX_DN[14]
QPI1_DTX_DN[13]
QPI1_DTX_DN[12]
QPI1_DTX_DN[11]
QPI1_DTX_DN[10]
QPI1_DTX_DN[9]
QPI1_DTX_DN[8]
QPI1_DTX_DN[7]
QPI1_DTX_DN[6]
QPI1_DTX_DN[5]
QPI1_DTX_DN[4]
QPI1_DTX_DN[3]
QPI1_DTX_DN[2]
QPI1_DTX_DN[1]
QPI1_DTX_DN[0]
QPI1_CLKTX_DP
QPI1_CLKTX_DN
CT44
CT46
CT48
DB52
DE51
CU47
DB50
DE49
CU45
DB48
DC47
CU43
DD46
DC45
CT42
DD44
DC43
CU41
DD42
DC41
CV44
CV46
CV48
DD52
DC51
CW47
DD50
DC49
CW45
DD48
DE47
CW43
DB46
DE45
CV42
DB44
DE43
CW41
DB42
DE41
DB54
CY54
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
4
3
2
Friday, April 01, 2016
MS-7A21
CPU-QPI/RESERVE
CPU-QPI/RESERVE
CPU-QPI/RESERVE
1
777
777
777
Sheet of
Sheet of
Sheet of
10
10
10
Page 8
5
4
3
2
1
CPU-Power
BL7
BL9
BL11
BL13
BL15
BL17
BM2
BM4
BM6
BM8
BM10
BM12
BM14
BM16
BM42
BN3
BN5
BN7
BN9
BN11
BN13
BN15
BN17
BP10
BP16
BP42
BR17
BU17
BV42
BY18
BY20
BY22
BY24
BY26
BY30
BY34
BY36
BY38
BY40
BY42
BN1
BP2
VCCPVCCP
CPU_VCC_SENSE (59)
CPU_VSS_SENSE (59)
CPU1M
CPU1M
HASWELL-E
VCCIN-85
VCCIN-84
VCCIN-83
VCCIN-82
VCCIN-81
BE1
VCCIN-80
BE3
VCCIN-79
BE5
VCCIN-78
BE7
VCCIN-77
BE9
VCCIN-76
VCCIN-75
VCCIN-74
VCCIN-73
VCCIN-72
BG1
VCCIN-71
BH2
VCCIN-70
BH4
VCCIN-69
BH6
VCCIN-68
BH8
VCCIN-67
VCCIN-66
VCCIN-65
VCCIN-64
VCCIN-63
VCCIN-62
BJ1
VCCIN-61
BJ3
VCCIN-60
BJ5
VCCIN-59
BJ7
VCCIN-58
BJ9
VCCIN-57
VCCIN-56
VCCIN-55
VCCIN-54
VCCIN-53
BK2
VCCIN-52
BK4
VCCIN-51
BK6
VCCIN-50
BK8
VCCIN-49
VCCIN-48
VCCIN-47
VCCIN-46
VCCIN-45
BL1
VCCIN-44
BL3
VCCIN-43
BL5
VCCIN-42
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
VCCIN_SENSE
VSS_VCCIN_SENSE
VCCIN-41
VCCIN-40
VCCIN-39
VCCIN-38
VCCIN-37
VCCIN-36
VCCIN-35
VCCIN-34
VCCIN-33
VCCIN-32
VCCIN-31
VCCIN-30
VCCIN-29
VCCIN-28
VCCIN-27
VCCIN-26
VCCIN-25
VCCIN-24
VCCIN-23
VCCIN-22
VCCIN-21
VCCIN-20
VCCIN-19
VCCIN-18
VCCIN-17
VCCIN-16
VCCIN-15
VCCIN-14
VCCIN-13
VCCIN-12
VCCIN-11
VCCIN-10
VCCIN-9
VCCIN-8
VCCIN-7
VCCIN-6
VCCIN-5
VCCIN-4
VCCIN-3
VCCIN-2
BD10
BD12
BD14
BD16
D D
C C
BD42
BE11
BE13
BE15
BE17
BH10
BH12
BH14
BH16
BH42
BJ11
BJ13
BJ15
BJ17
BK10
BK12
BK14
BK16
VCCP
CPU1L
CPU1L
AF42
VCCIN-173
AG23
VCCIN-172
AG27
VCCIN-171
AG29
VCCIN-170
AG33
VCCIN-169
AG35
VCCIN-168
AG39
VCCIN-167
AG41
VCCIN-166
AH42
VCCIN-165
AL17
VCCIN-164
AM42
VCCIN-163
AN11
VCCIN-162
AN17
VCCIN-161
AP2
VCCIN-160
AP4
VCCIN-159
AP6
VCCIN-158
AP8
VCCIN-157
AP10
VCCIN-156
AP12
VCCIN-155
AP14
VCCIN-154
AP16
VCCIN-153
AR1
VCCIN-152
AR3
VCCIN-151
AR5
VCCIN-150
AR7
VCCIN-149
AR9
VCCIN-148
AR11
VCCIN-147
AR13
VCCIN-146
AR15
VCCIN-145
AR17
VCCIN-144
AT2
VCCIN-143
AT4
VCCIN-142
AT6
VCCIN-141
AT8
VCCIN-140
AT10
VCCIN-139
AT12
VCCIN-138
AT14
VCCIN-137
AT16
VCCIN-136
AT42
VCCIN-135
AU1
VCCIN-134
AU3
VCCIN-133
AU5
VCCIN-132
AU7
VCCIN-131
AU9
VCCIN-130
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
VCCIN-129
VCCIN-128
VCCIN-127
VCCIN-126
VCCIN-125
VCCIN-124
VCCIN-123
VCCIN-122
VCCIN-121
VCCIN-120
VCCIN-119
VCCIN-118
VCCIN-117
VCCIN-116
VCCIN-115
VCCIN-114
VCCIN-113
VCCIN-112
VCCIN-111
VCCIN-110
VCCIN-109
VCCIN-108
VCCIN-107
VCCIN-106
VCCIN-105
VCCIN-104
VCCIN-103
VCCIN-102
VCCIN-101
VCCIN-100
VCCIN-99
VCCIN-98
VCCIN-97
VCCIN-96
VCCIN-95
VCCIN-94
VCCIN-93
VCCIN-92
VCCIN-91
VCCIN-90
VCCIN-89
VCCIN-88
VCCIN-87
VCCIN-86
AU11
AU13
AU15
AU17
AV2
AV4
AV6
AV8
AV10
AV12
AV14
AV16
AW1
AY42
BA1
BA3
BA5
BA7
BA9
BA11
BA13
BA15
BA17
BB2
BB4
BB6
BB8
BB10
BB12
BB14
BB16
BC1
BC3
BC5
BC7
BC9
BC11
BC13
BC15
BC17
BD2
BD4
BD6
BD8
VCCP
+CPU_VCCP-Decoupling
VCCP
C1003 22u6.3X/8C1003 22u6.3X/8
C264 22u6.3X/8C264 22u6.3X/8
C233 22u6.3X/8C233 22u6.3X/8
C1004 22u6.3X/8C1004 22u6.3X/8
C265 22u6.3X/8C265 22u6.3X/8
C266 22u6.3X/8C266 22u6.3X/8
C246 22u6.3X/8C246 22u6.3X/8
C249 22u6.3X/8C249 22u6.3X/8
C225 22u6.3X/8C225 22u6.3X/8
PLACE 0805 CAPS INSIDE CPU SOCKET CAVITY
VCCP
C222 22u6.3X/8C222 22u6.3X/8
C223 22u6.3X/8C223 22u6.3X/8
C220 22u6.3X/8C220 22u6.3X/8
C208 22u6.3X/8C208 22u6.3X/8
C248 22u6.3X/8C248 22u6.3X/8
C209 22u6.3X/8C209 22u6.3X/8
C206 22u6.3X/8C206 22u6.3X/8
C238 22u6.3X/8C238 22u6.3X/8
C993 22u6.3X/8C993 22u6.3X/8
C997 22u6.3X/8C997 22u6.3X/8
PLACE 0805 CAPS INSIDE CPU SOCKET CAVITY
C234 22u6.3X/8C234 22u6.3X/8
C998 22u6.3X/8C998 22u6.3X/8
C999 22u6.3X/8C999 22u6.3X/8
C247 22u6.3X/8C247 22u6.3X/8
C986 22u6.3X/8C986 22u6.3X/8
C251 22u6.3X/8C251 22u6.3X/8
C210 22u6.3X/8C210 22u6.3X/8
C250 22u6.3X/8C250 22u6.3X/8
C224 22u6.3X/8C224 22u6.3X/8
C1011 22u6.3X/8C1011 22u6.3X/8
C1006 22u6.3X/8C1006 22u6.3X/8
C232 22u6.3X/8C232 22u6.3X/8
C237 22u6.3X/8C237 22u6.3X/8
C1007 22u6.3X/8C1007 22u6.3X/8
C236 22u6.3X/8C236 22u6.3X/8
C1002 22u6.3X/8C1002 22u6.3X/8
C1000 22u6.3X/8C1000 22u6.3X/8
C207 22u6.3X/8C207 22u6.3X/8
C996 22u6.3X/8C996 22u6.3X/8
C1008 22u6.3X/8C1008 22u6.3X/8
C994 22u6.3X/8C994 22u6.3X/8
C1009 22u6.3X/8C1009 22u6.3X/8
C987 22u6.3X/8C987 22u6.3X/8
C1005 22u6.3X/8C1005 22u6.3X/8
C1001 22u6.3X/8C1001 22u6.3X/8
C205 22u6.3X/8C205 22u6.3X/8
C269 22u6.3X/8C269 22u6.3X/8
C221 22u6.3X/8C221 22u6.3X/8
C1010 22u6.3X/8C1010 22u6.3X/8
C268 22u6.3X/8C268 22u6.3X/8
C267 22u6.3X/8C267 22u6.3X/8
Skt cavity caps, place: 28 on top side & 26 on
back side.
VCC_DDR_01
B B
+VCCIO_IN
+VCC_PECI_R
R1154 0R/4R1154 0R/4
A A
5
VCCP
4
10 mils
CPU1K
CPU1K
CB16
VCCD_01-29
CB18
VCCD_01-28
CB20
VCCD_01-27
CB22
VCCD_01-26
CB24
VCCD_01-25
CB26
VCCD_01-24
CG17
VCCD_01-23
CG19
VCCD_01-22
CG21
VCCD_01-21
CG23
VCCD_01-20
CG25
VCCD_01-19
CM16
VCCD_01-18
CM18
VCCD_01-17
CM20
VCCD_01-16
CM22
VCCD_01-15
CM24
VCCD_01-14
CM26
VCCD_01-13
CU17
VCCD_01-12
CU19
VCCD_01-11
CU21
VCCD_01-10
CU23
VCCD_01-9
CU25
VCCD_01-8
DB16
VCCD_01-7
DB18
VCCD_01-6
DB20
VCCD_01-5
DB22
VCCD_01-4
DB24
VCCD_01-3
DB26
VCCD_01-2
DE17
VCCD_01-1
CC41
VCCIO_IN
CD42
VCCPECI
CE41
VCCIN-1
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
VCCD_23-27
VCCD_23-26
VCCD_23-25
VCCD_23-24
VCCD_23-23
VCCD_23-22
VCCD_23-21
VCCD_23-20
VCCD_23-19
VCCD_23-18
VCCD_23-17
VCCD_23-16
VCCD_23-15
VCCD_23-14
VCCD_23-13
VCCD_23-12
VCCD_23-11
VCCD_23-10
VCCD_23-9
VCCD_23-8
VCCD_23-7
VCCD_23-6
VCCD_23-5
VCCD_23-4
VCCD_23-3
VCCD_23-2
VCCD_23-1
MEC1
MEC2
MEC3
MEC4
MEC5
MEC6
MEC7
MEC8
C11
C13
C21
E15
E17
E19
H12
H14
H16
H18
H20
H22
N11
N13
N15
N17
N19
N21
V14
V16
V18
V20
V22
AC15
AC17
AC19
AC21
MEC1
MEC2
MEC3
MEC4
MEC5
MEC6
MEC7
MEC8
3
VCC_DDR_23
+CPU_DDR-Decoupling
VCC_DDR_01 VCC_DDR_23
C988 22u6.3X/8C988 22u6.3X/8
C990 22u6.3X/8C990 22u6.3X/8
C989 22u6.3X/8C989 22u6.3X/8
C995 22u6.3X/8C995 22u6.3X/8
PLACE 0805 CAPS INSIDE CPU SOCKET CAVITY
+VCCIO_IN
C984 22u6.3X/8C984 22u6.3X/8
C991 22u6.3X/8C991 22u6.3X/8
C985 22u6.3X/8C985 22u6.3X/8
2
C992 22u6.3X/8C992 22u6.3X/8
MSI
MSI
MSI
C1014 22u6.3X/8C1014 22u6.3X/8
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
CPU-Power
CPU-Power
CPU-Power
MS-7A21
1
877
877
877
Sheet of
Sheet of
Sheet of
10
10
10
Page 9
5
4
3
2
1
CPU-GND
CPU1O
CPU1N
CPU1N
HASWELL-E
HASWELL-E
A23
VSS-629
D D
C C
B B
A37
VSS-628
A39
VSS-627
A41
VSS-626
A43
VSS-625
A45
VSS-624
A47
VSS-623
A49
VSS-622
A5
VSS-631
A51
VSS-621
A7
VSS-630
B10
VSS-619
B36
VSS-618
B40
VSS-617
B52
VSS-616
B6
VSS-620
C33
VSS-614
C5
VSS-615
C55
VSS-613
D10
VSS-611
D24
VSS-610
D36
VSS-609
D4
VSS-612
D40
VSS-608
E1
VSS-607
E3
VSS-606
E39
VSS-605
E41
VSS-604
F2
VSS-603
F30
VSS-601
F32
VSS-600
F36
VSS-599
F4
VSS-602
F42
VSS-598
F44
VSS-597
F48
VSS-596
F50
VSS-595
G1
VSS-594
G23
VSS-591
G27
VSS-590
G33
VSS-589
G35
VSS-588
G39
VSS-587
G41
VSS-586
G45
VSS-585
G47
VSS-584
G49
VSS-583
G5
VSS-593
G51
VSS-582
G53
VSS-581
G57
VSS-580
G9
VSS-592
H24
VSS-577
H26
VSS-576
H28
VSS-575
H30
VSS-574
H32
VSS-573
H34
VSS-572
H36
VSS-571
H40
VSS-570
H54
VSS-569
H6
VSS-579
H8
VSS-578
J25
VSS-565
J29
VSS-564
J3
VSS-568
J31
VSS-563
J37
VSS-562
J5
VSS-567
J55
VSS-561
J7
VSS-566
K10
VSS-560
K36
VSS-559
K40
VSS-558
L29
VSS-556
L39
VSS-555
L41
VSS-554
L5
VSS-557
M10
VSS-552
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
VSS-553
VSS-551
VSS-550
VSS-549
VSS-548
VSS-547
VSS-546
VSS-545
VSS-543
VSS-542
VSS-541
VSS-540
VSS-539
VSS-538
VSS-537
VSS-536
VSS-535
VSS-534
VSS-533
VSS-544
VSS-532
VSS-531
VSS-530
VSS-529
VSS-528
VSS-527
VSS-526
VSS-525
VSS-524
VSS-523
VSS-522
VSS-521
VSS-520
VSS-517
VSS-516
VSS-515
VSS-514
VSS-513
VSS-519
VSS-512
VSS-518
VSS-508
VSS-511
VSS-507
VSS-510
VSS-509
VSS-504
VSS-506
VSS-503
VSS-502
VSS-501
VSS-505
VSS-500
VSS-499
VSS-498
VSS-497
VSS-496
VSS-495
VSS-494
VSS-493
VSS-491
VSS-490
VSS-489
VSS-488
VSS-487
VSS-486
VSS-485
VSS-484
VSS-483
VSS-482
VSS-481
VSS-492
VSS-479
VSS-478
VSS-477
VSS-476
VSS-475
VSS-474
VSS-473
M2
M36
M42
M44
M46
M48
M50
M52
N23
N27
N29
N33
N35
N37
N39
N43
N45
N47
N49
N5
N51
N53
P10
P24
P26
P28
P30
P32
P34
P38
P40
P54
P56
R11
R25
R29
R31
R39
R5
R55
R9
T36
T4
T42
T6
T8
U29
U3
U39
U41
U43
U7
V10
V12
V36
V44
V46
V48
V50
V52
W23
W27
W33
W35
W39
W43
W45
W47
W49
W51
W53
W7
Y12
Y24
Y26
Y28
Y30
Y32
Y34
CPU1O
Y36
VSS-472
Y4
VSS-480
Y42
VSS-471
Y56
VSS-470
AA3
VSS-469
AA25
VSS-467
AA29
VSS-466
AA7
VSS-468
AA31
VSS-465
AA39
VSS-464
AA55
VSS-463
AB12
VSS-462
AB36
VSS-461
AB40
VSS-460
AB42
VSS-459
AC7
VSS-458
AC9
VSS-457
AC11
VSS-456
AC29
VSS-455
AD4
VSS-454
AD8
VSS-452
AD6
VSS-453
AD10
VSS-451
AD12
VSS-450
AD36
VSS-449
AD40
VSS-448
AD42
VSS-447
AD44
VSS-446
AD46
VSS-445
AD48
VSS-444
AD50
VSS-443
AD52
VSS-442
AE13
VSS-441
AE15
VSS-440
AE19
VSS-439
AE23
VSS-438
AE27
VSS-437
AE29
VSS-436
AE33
VSS-435
AE35
VSS-434
AE39
VSS-433
AE41
VSS-432
AE43
VSS-431
AE47
VSS-430
AE49
VSS-429
AF10
VSS-422
AF16
VSS-421
AF18
VSS-420
AE51
VSS-428
AE53
VSS-427
AF2
VSS-426
AF4
VSS-425
AF6
VSS-424
AF8
VSS-423
AF20
VSS-419
AF22
VSS-418
AF24
VSS-417
AF26
VSS-416
AF28
VSS-415
AF30
VSS-414
AF32
VSS-413
AF34
VSS-412
AF36
VSS-411
AF38
VSS-410
AF40
VSS-409
AF54
VSS-408
AF56
VSS-407
AG11
VSS-406
AG13
VSS-405
AG17
VSS-404
AG19
VSS-403
AG21
VSS-402
AG25
VSS-401
AG31
VSS-400
AG37
VSS-399
AG43
VSS-398
AG55
VSS-397
AG57
VSS-396
AH2
VSS-395
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
VSS-394
VSS-393
VSS-392
VSS-391
VSS-390
VSS-389
VSS-388
VSS-387
VSS-386
VSS-385
VSS-384
VSS-383
VSS-382
VSS-381
VSS-380
VSS-379
VSS-378
VSS-377
VSS-376
VSS-375
VSS-374
VSS-373
VSS-372
VSS-371
VSS-370
VSS-369
VSS-368
VSS-367
VSS-366
VSS-365
VSS-364
VSS-363
VSS-362
VSS-361
VSS-360
VSS-359
VSS-358
VSS-357
VSS-356
VSS-355
VSS-354
VSS-353
VSS-352
VSS-351
VSS-350
VSS-349
VSS-348
VSS-347
VSS-346
VSS-345
VSS-344
VSS-343
VSS-342
VSS-341
VSS-340
VSS-335
VSS-334
VSS-333
VSS-332
VSS-339
VSS-338
VSS-337
VSS-336
VSS-331
VSS-330
VSS-329
VSS-328
VSS-327
VSS-326
VSS-325
VSS-324
VSS-323
VSS-322
VSS-321
VSS-320
VSS-319
VSS-318
VSS-317
VSS-316
AH6
AH14
AH58
AJ11
AJ17
AK4
AK6
AK16
AK42
AK44
AK46
AK48
AK50
AK52
AL11
AL43
AL45
AL47
AL49
AL51
AL53
AM2
AM4
AM6
AM8
AM10
AM12
AM14
AM16
AM56
AN1
AN3
AN5
AN7
AN9
AN13
AN15
AN55
AN57
AP42
AP44
AP58
AT44
AT46
AT48
AT50
AT52
AU45
AU47
AU49
AU51
AU53
AV42
AV54
AV56
AW11
AW13
AW15
AW17
AW3
AW5
AW7
AW9
AW55
AW57
AY2
AY4
AY6
AY8
AY10
AY12
AY14
AY16
AY44
BB42
BB46
BB50
BB58
BC45
CPU1P
CPU1P
BC47
VSS-315
BC49
VSS-314
BC51
VSS-313
BC53
VSS-312
BC55
VSS-311
BC57
VSS-310
BD52
VSS-309
BD54
VSS-308
BD56
VSS-307
BE49
VSS-306
BE51
VSS-305
BF2
VSS-304
BF4
VSS-303
BF10
VSS-300
BF12
VSS-299
BF14
VSS-298
BF16
VSS-297
BF6
VSS-302
BF8
VSS-301
BF42
VSS-296
BG3
VSS-295
BG5
VSS-294
BG7
VSS-293
BG9
VSS-292
BG11
VSS-291
BG13
VSS-290
BG15
VSS-289
BG17
VSS-288
BG45
VSS-287
BG47
VSS-286
BH58
VSS-285
BJ55
VSS-284
BJ57
VSS-283
BK42
VSS-282
BK46
VSS-281
BK48
VSS-280
BK50
VSS-279
BK52
VSS-278
BK54
VSS-277
BL45
VSS-276
BL49
VSS-275
BL57
VSS-274
BN43
VSS-273
BN57
VSS-272
BP4
VSS-271
BP6
VSS-270
BP8
VSS-269
BP12
VSS-268
BP14
VSS-267
BP58
VSS-266
BR1
VSS-265
BR3
VSS-264
BR5
VSS-263
BR7
VSS-262
BR9
VSS-261
BR11
VSS-260
BR13
VSS-259
BR15
VSS-258
BR53
VSS-257
BR55
VSS-256
BR57
VSS-255
BT10
VSS-254
BT16
VSS-253
BT42
VSS-252
BT46
VSS-251
BT48
VSS-250
BT50
VSS-249
BT52
VSS-248
BT54
VSS-247
BT56
VSS-246
BU3
VSS-245
BU5
VSS-244
BU45
VSS-243
BU47
VSS-242
BU51
VSS-241
BV10
VSS-240
BV16
VSS-239
BW5
VSS-238
BW7
VSS-237
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
VSS-236
VSS-235
VSS-234
VSS-233
VSS-232
VSS-231
VSS-230
VSS-229
VSS-228
VSS-227
VSS-226
VSS-225
VSS-224
VSS-223
VSS-222
VSS-221
VSS-220
VSS-219
VSS-218
VSS-217
VSS-216
VSS-215
VSS-214
VSS-213
VSS-212
VSS-211
VSS-210
VSS-209
VSS-208
VSS-207
VSS-206
VSS-205
VSS-204
VSS-203
VSS-202
VSS-201
VSS-200
VSS-199
VSS-198
VSS-197
VSS-196
VSS-195
VSS-194
VSS-193
VSS-192
VSS-191
VSS-190
VSS-189
VSS-188
VSS-187
VSS-186
VSS-185
VSS-184
VSS-180
VSS-183
VSS-182
VSS-181
VSS-179
VSS-178
VSS-177
VSS-176
VSS-175
VSS-174
VSS-173
VSS-172
VSS-171
VSS-170
VSS-167
VSS-169
VSS-168
VSS-166
VSS-165
VSS-164
VSS-163
VSS-162
VSS-161
VSS-160
VSS-159
VSS-158
BW15
BW17
BW43
BY8
BY10
BY28
BY32
BY58
CA5
CA13
CA15
CA17
CA19
CA21
CA23
CA25
CA27
CA29
CA31
CA33
CA35
CA37
CA39
CA41
CA55
CA57
CB2
CB10
CB12
CB14
CB30
CB34
CB36
CB38
CB40
CB42
CB44
CB46
CB48
CB50
CB52
CB54
CB56
CC3
CC5
CC7
CC9
CC11
CC33
CC43
CC45
CC47
CC49
CD12
CD4
CD6
CD8
CD40
CE7
CE15
CE33
CE43
CE45
CF10
CF12
CF28
CF32
CG27
CG5
CG7
CG29
CG31
CG33
CG35
CG37
CG39
CG43
CG45
CG53
CPU1Q
CPU1Q
CH12
VSS-157
CH30
VSS-156
CH34
VSS-155
CH36
VSS-154
CH38
VSS-153
CH40
VSS-152
CH42
VSS-151
CH44
VSS-150
CH46
VSS-149
CH48
VSS-148
CH50
VSS-147
CH52
VSS-146
CH54
VSS-145
CH56
VSS-144
CJ3
VSS-143
CJ7
VSS-142
CJ15
VSS-141
CJ33
VSS-140
CJ41
VSS-139
CJ43
VSS-138
CJ45
VSS-137
CJ47
VSS-136
CJ49
VSS-135
CJ51
VSS-134
CK4
VSS-133
CK12
VSS-132
CK40
VSS-131
CK52
VSS-130
CK54
VSS-129
CL7
VSS-128
CL9
VSS-127
CL11
VSS-126
CL15
VSS-125
CM6
VSS-124
CM8
VSS-123
CM10
VSS-122
CM28
VSS-121
CM32
VSS-120
CM40
VSS-119
CM52
VSS-118
CM54
VSS-117
CN3
VSS-116
CN5
VSS-115
CN7
VSS-114
CN11
VSS-113
CN13
VSS-112
CN27
VSS-111
CN29
VSS-110
CN31
VSS-109
CN33
VSS-108
CN35
VSS-107
CN37
VSS-106
CN39
VSS-105
CN53
VSS-104
CN55
VSS-103
CN57
VSS-102
CP4
VSS-101
CP12
VSS-100
CP14
VSS-99
CP30
VSS-98
CP34
VSS-97
CP36
VSS-96
CP38
VSS-95
CP42
VSS-94
CP44
VSS-93
CP46
VSS-92
CP48
VSS-91
CP50
VSS-90
CP56
VSS-89
CR7
VSS-88
CR9
VSS-87
CR33
VSS-86
CR41
VSS-85
CR45
VSS-84
CR47
VSS-83
CR49
VSS-82
CT2
VSS-81
CT12
VSS-80
CT40
VSS-79
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
HASWELL-E
HASWELL-E
VSS-78
VSS-77
VSS-76
VSS-75
VSS-74
VSS-73
VSS-72
VSS-71
VSS-70
VSS-69
VSS-68
VSS-67
VSS-66
VSS-65
VSS-64
VSS-63
VSS-62
VSS-61
VSS-60
VSS-59
VSS-58
VSS-57
VSS-56
VSS-55
VSS-54
VSS-53
VSS-52
VSS-51
VSS-50
VSS-49
VSS-48
VSS-47
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
CU1
CU7
CU15
CU33
CV6
CV12
CV28
CV32
CV40
CV54
CV58
CW1
CW5
CW7
CW15
CW27
CW29
CW31
CW33
CW35
CW37
CW39
CW53
CW55
CW57
CY2
CY4
CY8
CY10
CY12
CY30
CY34
CY36
CY38
CY42
CY44
CY46
CY48
CY50
CY52
DA3
DA9
DA27
DA35
DA41
DA43
DA45
DA47
DA49
DA51
DA53
DA55
DB6
DB12
DB34
DB40
DB58
DC5
DC53
DC55
DD6
DD10
DD12
DD34
DD38
DD40
DE7
DE15
DE35
DF8
DF12
DF40
DF42
DF44
DF46
DF48
DF50
DF52
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
CPU-GND
CPU-GND
CPU-GND
MS-7A21
1
977
977
977
Sheet of
Sheet of
Sheet of
10
10
10
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
Page 10
5
CPU1R
CPU1R
TP131TP131
TP132TP132
TP133TP133
TP134TP134
TP135TP135
TP136TP136
TP137TP137
DC27
FRSVD-9
DD28
FRSVD-10
DF28
FRSVD-11
D28
FRSVD-12
B28
FRSVD-13
C27
FRSVD-14
B26
FRSVD-15
CF58
FRSVD-16
CE57
FRSVD-17
CH2
FRSVD-18
CF2
FRSVD-19
DE27
FRSVD-20
DD30
FRSVD-21
DC31
FRSVD-22
N57
FRSVD-23
C29
FRSVD-24
D30
FRSVD-25
ZIF-SOCKET2036_0
ZIF-SOCKET2036_0
CPU_CORE0
CPU_CORE1CPU_CORE1
CPU_CORE2CPU_CORE2
CPU_CORE4CPU_CORE4
CPU_CORE5CPU_CORE5
CPU_CORE6CPU_CORE6
CPU_CORE7CPU_CORE7
CPU_SA
D D
CPU_RING
VCC5
C14
C14
22u6.3X/8
22u6.3X/8
DDR_OC_EN1(18)
C C
40uA
R1075
R1075
4.7K/4
4.7K/4
ocp:4.8A
U3
U3
2
VIN
8
EN
1
PG
VCC5
C13
C13
40uA
U2
22u6.3X/8
22u6.3X/8
DDR_OC_EN1(18)
R1074 0R/4R1074 0R/4
U2
2
VIN
8
EN
1
PG
VCC3
U116
B B
C1065 1u6.3X/4C1065 1u6.3X/4
DDR_OC_EN2(18)
U116
VDD1VOUT
3
EN
GND
GS7116S_SOT23-5-RH
GS7116S_SOT23-5-RH
2
R1252
R1252
4.7K/4
4.7K/4
ADJ
4
SW
OUT
FB
PGND4AGND
MP2143DJ
MP2143DJ
6
SW
OUT
FB
PGND4AGND
MP2143DJ
MP2143DJ
6
5
X_0.1u10X/4
X_0.1u10X/4
DDR_OC3_FB
HASWELL-E
HASWELL-E
DDR_OC1_PH
3
5
7
DDR_OC1_FB
DDR_OC2_PH
3
5
7
DDR_OC2_FB
default:1.33V
C1064
C1064
FRSVD-1
FRSVD-2
FRSVD-3
FRSVD-4
FRSVD-5
FRSVD-6
FRSVD-7
FRSVD-8
default:1.05V,1.5A
L2
L2
1.0u6.3A_1210-HF
1.0u6.3A_1210-HF
R1076
R1076
1K1%/4
1K1%/4
R1067
R1067
1.33K1%4
1.33K1%4
L1
L1
1.0u6.3A_1210-HF
1.0u6.3A_1210-HF
R1068
R1068
1K1%/4
1K1%/4
R1069
R1069
1.33K1%4
1.33K1%4
DDR_OC3_R
C1063
C1063
R1258
R1258
10u6.3X/6
10u6.3X/6
1K1%/4
1K1%/4
R1251
R1251
1.5K1%/4
1.5K1%/4
CG1
CE1
DE29
DE31
P58
R57
U57
DC29
DDR_OC1_R
default:1.05V,1.5A
DDR_OC2_R
+12VATX_5VSB ATX_5VSB +12V
R1090
D2
S2
R1090
100K/4
100K/4
DDR_MOS_EN1
C885
C885
0.1u16X/4
0.1u16X/4
DDR_OC_EN2
R1247 47K/4R1247 47K/4
C1058
C1058
0.1u16X/4
0.1u16X/4
R1250
R1250
47K/4
47K/4
R1089
R1089
47K/4
47K/4
Q131
Q131
NN-2N7002D
NN-2N7002D
G2
A A
DDR_OC_EN1
R1084 47K/4R1084 47K/4
D1
G1
C882
C882
0.1u16X/4
0.1u16X/4
S1
5
DDR_OC3_R3
10 mils
DDR_OC3_R4
10 mils
RING_OC1_R6
20 mils
RING_OC1_R7
20 mils
RING_OC1_R8
10 mils
C25
C25
22u6.3X/8
22u6.3X/8
C24
C24
22u6.3X/8
22u6.3X/8
Q152
Q152
N-P8503BMG
N-P8503BMG
D
D
S
S
G
G
DDR_MOS_EN2
Q149
Q149
NN-2N7002D
NN-2N7002D
G2
D1
G1
4
S1
4
R1259 1K/4R1259 1K/4
R1257 1K/4R1257 1K/4
R335 X_0R/8R335 X_0R/8
R362 X_0R/8R362 X_0R/8
R1184 1K/4R1184 1K/4
Q8
Q8
N-P3057LCG
N-P3057LCG
D
D
S
S
G
G
DDR_MOS_EN1
Q7
Q7
N-P3057LCG
N-P3057LCG
D
D
S
S
G
G
DDR_MOS_EN1
DDR_OC3
R1249
R1249
100K/4
100K/4
DDR_MOS_EN2
D2
C1057
C1057
S2
0.1u16X/4
0.1u16X/4
DDR_OC1
DDR_OC2
DDR_OC3
DDR_OC3
CPU_VCCU
RING_OC2
DDR_OC1
DDR_OC2
DDR_OC1
DDR_OC2
C35
C35
22u6.3X6
22u6.3X6
CLOSE TO CPU PIN
RING_OC_EN2(18)
RING_OC_EN1(18)
R365 2.2K1%/4R365 2.2K1%/4
SMBCLK_VCC(17,23,24,50,58,59,64,65,66,68,70)
SMBDATA_VCC(17,23,24,50,58,59,64,65,66,68,70)
3
C37
C37
22u6.3X6
22u6.3X6
RING_OC_EN1
C1060
C1060
22u6.3X/8
22u6.3X/8
C385 1u6.3X/4C385 1u6.3X/4
R366
R366
3K1%/4
3K1%/4
3
2
Modify 2014.12.24
CPU_VCCU
CPU_VCCU RING_OC2
C336
C336
22u6.3X6
22u6.3X6
C331 0.1u10X/4C331 0.1u10X/4
C1019 0.1u10X/4C1019 0.1u10X/4
CPU_RING
Detect OC socket or not. For factory use.
+12VATX_5VSB
R387
Q46
Q46
R390
R390
NN-2N7002D
NN-2N7002D
47K/4
47K/4
G2
D1
G1
C360
C360
S1
0.1u16X/4
0.1u16X/4
VCC5
40uA
U114
U114
2
VIN
SW
8
EN
OUT
1
PG
FB
PGND4AGND
MP2143DJ
R1246
R1246
4.7K/4
4.7K/4
MP2143DJ
6
VCC3
U45
U45
VDD1VOUT
3
EN
GND
GS7116S_SOT23-5-RH
GS7116S_SOT23-5-RH
R1375
R1375
4.7K/4
4.7K/4
2
VCC5VCC5 VCC5VCC5
1.5mA
C368 0.1u10X/4C368 0.1u10X/4
U44
U44
1
VCC
2
ADD_SEL
5
SCL
4
SDA
3
GND
NCT3933U_SOT23-8-HF
NCT3933U_SOT23-8-HF
R387
100K/4
100K/4
RING_MOS_EN1
D2
C367
C367
S2
3
5
7
0.1u16X/4
0.1u16X/4
RING_OC1_PH
L28
L28
1.0u6.3A_1210-HF
1.0u6.3A_1210-HF
R1254
R1254
1K1%/4
1K1%/4
RING_OC_EN2
RING_OC1_R
C1068
C1068
22u6.3X/8
22u6.3X/8
R573 47K/4R573 47K/4R380 47K/4R380 47K/4
RING_OC1_FB
R1248
R1248
1.33K1%4
1.33K1%4
default:1.4V
5
ADJ
4
X_0.1u10X/4
X_0.1u10X/4
C349
C349
R374
R374
1K1%/4
1K1%/4
RING_OC2_R
C353
C353
10u6.3X/6
10u6.3X/6
Q141
Q141
N-P8503BMG
N-P8503BMG
D
D
S
S
G
G
RING_MOS_EN1
RING_OC2_FB
R359
R359
1.33K1%4
1.33K1%4
RING_OC1_FB DDR_OC1_FB
8
OUT1
RING_OC2_FB
7
OUT2
6
OUT3
2
R738 1K/4R738 1K/4
Q172
Q172
R932
R932
NN-2N7002D
NN-2N7002D
47K/4
47K/4
G2
D1
G1
C398
C398
0.1u16X/4
0.1u16X/4
Q154
Q154
N-P3057LCG
N-P3057LCG
D
D
S
S
G
G
RING_MOS_EN2
RING_OC2
0X220X26
R1064
R1064
1.3KR1%4
1.3KR1%4
R1061 3.9KR1%4R1061 3.9KR1%4
SMBCLK_VCC(17,23,24,50,58,59,64,65,66,68,70)
SMBDATA_VCC(17,23,24,50,58,59,64,65,66,68,70)
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
1
Q83
Q83
2N3904
2N3904
PCH_GPIO0 (19)
CE
B
+12VATX_5VSB
R572
R572
100K/4
100K/4
RING_MOS_EN2
D2
C462
C462
S2
0.1u16X/4
0.1u16X/4
S1
CPU_VCCU
1.5mA
C874 0.1u10X/4C874 0.1u10X/4
U100
U100
1
VCC
OUT1
2
ADD_SEL
5
SCL
OUT2
4
SDA
3
GND
OUT3
NCT3933U_SOT23-8-HF
NCT3933U_SOT23-8-HF
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MS-7A21
OC socket
OC socket
OC socket
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
1
8
DDR_OC2_FB
7
DDR_OC3_FB
6
10 77
10 77
10 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 11
5
DDR IV DIMM1/2
D D
MEM_MA_DQS_H7(5)
MEM_MA_DQS_L7(5)
MEM_MA_DQS_H6(5)
MEM_MA_DQS_L6(5)
MEM_MA_DQS_H5(5)
MEM_MA_DQS_L5(5)
MEM_MA_DQS_H4(5)
C C
B B
A A
MEM_MA_DQS_L4(5)
MEM_MA_DQS_H3(5)
MEM_MA_DQS_L3(5)
MEM_MA_DQS_H2(5)
MEM_MA_DQS_L2(5)
MEM_MA_DQS_H1(5)
MEM_MA_DQS_L1(5)
MEM_MA_DQS_H0(5)
MEM_MA_DQS_L0(5)
MEM_MA_CLK_H2(5)
MEM_MA_CLK_L2(5)
MEM_MA_CLK_H0(5)
MEM_MA_CLK_L0(5)
MEM_MA_C2(5)
MEM_MA_CS_L3(5)
MEM_MA_CS_L2(5)
MEM_MA_CS_L1(5)
MEM_MA_CS_L0(5)
MEM_MA_CKE1(5)
MEM_MA_CKE0(5)
MEM_MA_ODT1(5)
MEM_MA_ODT0(5)
DDR_RESET_C01_N(3,12)
MEM_HOT_C01_N(3,12)
MEM_MA_ALERT_N(5)
MEM_MA_ACT_N(5)
MEM_MA_PAR(5)
CPU_DDR_SCL_C01_R
CPU_DDR_SDA_C01_R
DDR_SCL_C01
DDR_SDA_C01
CPU_DDR_SCL_C01(3)
CPU_DDR_SDA_C01(3)
MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0
MEM_MA_CLK_H2
MEM_MA_CLK_L2
MEM_MA_CLK_H0
MEM_MA_CLK_L0
MEM_MA_C2
MEM_MA_CS_L2
MEM_MA_CS_L1
MEM_MA_CS_L0
MEM_MA_CKE1
MEM_MA_CKE0
MEM_MA_ODT1
MEM_MA_ODT0
DDR_RESET_C01_N
MEM_HOT_C01_N
MEM_MA_ALERT_N
MEM_MA_ACT_N
MEM_MA_PAR
R391 240R1%/4R391 240R1%/4
R394 240R1%/4R394 240R1%/4
VDDSPD_01
R355 1.4KR1%4R355 1.4KR1%4
R356 1.4KR1%4R356 1.4KR1%4
R392 10R/4R392 10R/4
R393 10R/4R393 10R/4
VDDSPD_01
5
+VCCIO_IN
C371 0.1u10X/4C371 0.1u10X/4 C352 0.1u10X/4C352 0.1u10X/4
CPU_DDR_SCL_C01_R
CPU_DDR_SDA_C01_R DDR_SDA_C01
DIMM1A
DIMM1A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
+VCCIO_IN
R357 0R/4R357 0R/4
U43
U43
1
VCCB
VCCA
SCLA2SCLB
3
SDAA
SDAB
5
GND
EN
PCA9617ADPJ_TSSOP8-RH
PCA9617ADPJ_TSSOP8-RH
VDDSPD_01
8
DDR_SCL_C01
7
6
4
4
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A16_RAS_N
A15_CAS_N
A14_WE_N
SA-2
SA-1
SA-0
4
SCL
SDA
3
MEM_MA_DATA63
280
MEM_MA_DATA62
135
MEM_MA_DATA61
273
MEM_MA_DATA60
128
MEM_MA_DATA58
282
MEM_MA_DATA59
137
MEM_MA_DATA57
275
MEM_MA_DATA56
130
MEM_MA_DATA55
269
MEM_MA_DATA54
124
MEM_MA_DATA53
262
MEM_MA_DATA52
117
MEM_MA_DATA51
271
MEM_MA_DATA50
126
MEM_MA_DATA49
264
MEM_MA_DATA48
119
MEM_MA_DATA47
258
MEM_MA_DATA46
113
MEM_MA_DATA45
251
MEM_MA_DATA44
106
MEM_MA_DATA42
260
MEM_MA_DATA43
115
MEM_MA_DATA41
253
MEM_MA_DATA40
108
MEM_MA_DATA39
247
MEM_MA_DATA38
102
MEM_MA_DATA37
240
MEM_MA_DATA36
95
MEM_MA_DATA35
249
MEM_MA_DATA34
104
MEM_MA_DATA33
242
MEM_MA_DATA32
97
MEM_MA_DATA31
188
MEM_MA_DATA30
43
MEM_MA_DATA29
181
MEM_MA_DATA28
36
MEM_MA_DATA26
190
MEM_MA_DATA27
45
MEM_MA_DATA25
183
MEM_MA_DATA24
38
MEM_MA_DATA23
177
MEM_MA_DATA22
32
MEM_MA_DATA20
170
MEM_MA_DATA21
25
MEM_MA_DATA19
179
MEM_MA_DATA18
34
MEM_MA_DATA17
172
MEM_MA_DATA16
27
MEM_MA_DATA15
166
MEM_MA_DATA14
21
MEM_MA_DATA13
159
MEM_MA_DATA12
14
MEM_MA_DATA10
168
MEM_MA_DATA11
23
MEM_MA_DATA9
161
MEM_MA_DATA8
16
MEM_MA_DATA6
155
MEM_MA_DATA7
10
MEM_MA_DATA5
148
MEM_MA_DATA4
3
MEM_MA_DATA3
157
MEM_MA_DATA2
12
MEM_MA_DATA1
150
MEM_MA_DATA0
5
MEM_MA_BG_1MEM_MA_CS_L3
207
MEM_MA_BG_0
63
MEM_MA_BA_1
224
81
MEM_MA_ADD17
234
A17
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
82
86
228
232
65
210
225
66
68
211
69
213
214
71
216
72
79
141
285
238
140
139
MEM_MA_ADD16
MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0
DDR_SCL_C01
DDR_SDA_C01
MEM_MA_DATA[63..0]
7
6
5
4
3
2
1
0
MEM_MA_BG_1 (5)
MEM_MA_BG_0 (5)
MEM_MA_BA_1 (5)
MEM_MA_BA_0 (5)
MEM_MA_ADD[17..0]
DDR_SCL_C01 (12)
DDR_SDA_C01 (12)
DIMM1(CHANNEL-A0)
ADDRESS = 0:0:0 [SA2:SA1:SA0]
DIMM1 CH0 ADDRESS HEX:0
MEM_MA_DATA[63..0] (5)
MEM_MA_ADD[17..0] (5)
3
MEM_MA_DQS_H7(5)
MEM_MA_DQS_L7(5)
MEM_MA_DQS_H6(5)
MEM_MA_DQS_L6(5)
MEM_MA_DQS_H5(5)
MEM_MA_DQS_L5(5)
MEM_MA_DQS_H4(5)
MEM_MA_DQS_L4(5)
MEM_MA_DQS_H3(5)
MEM_MA_DQS_L3(5)
MEM_MA_DQS_H2(5)
MEM_MA_DQS_L2(5)
MEM_MA_DQS_H1(5)
MEM_MA_DQS_L1(5)
MEM_MA_DQS_H0(5)
MEM_MA_DQS_L0(5)
MEM_MA_CLK_H3(5)
MEM_MA_CLK_L3(5)
MEM_MA_CLK_H1(5)
MEM_MA_CLK_L1(5)
MEM_MA_C2(5)
MEM_MA_CS_L7(5)
MEM_MA_CS_L6(5)
MEM_MA_CS_L5(5)
MEM_MA_CS_L4(5)
MEM_MA_CKE3(5)
MEM_MA_CKE2(5)
MEM_MA_ODT3(5)
MEM_MA_ODT2(5)
DDR_RESET_C01_N(3,12)
MEM_HOT_C01_N(3,12)
MEM_MA_ALERT_N(5)
MEM_MA_ACT_N(5)
MEM_MA_PAR(5)
DIMM2(CHANNEL-A1)
ADDRESS = 0:0:1 [SA2:SA1:SA0]
MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0
MEM_MA_CLK_H3
MEM_MA_CLK_L3
MEM_MA_CLK_H1
MEM_MA_CLK_L1
MEM_MA_C2
MEM_MA_CS_L6
MEM_MA_CS_L5
MEM_MA_CS_L4
MEM_MA_CKE3
MEM_MA_CKE2
MEM_MA_ODT3
MEM_MA_ODT2
DDR_RESET_C01_N
MEM_HOT_C01_N
MEM_MA_ALERT_N
MEM_MA_ACT_N
MEM_MA_PAR
DIMM1 CH0 ADDRESS HEX:0
2
DIMM2A
DIMM2A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
2
1
MEM_MA_DATA63
280
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A16_RAS_N
A15_CAS_N
A14_WE_N
SA-2
SA-1
SA-0
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
DDR IV DIMM1/2
DDR IV DIMM1/2
DDR IV DIMM1/2
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
SCL
SDA
A17
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
MEM_MA_DATA62
135
MEM_MA_DATA61
273
MEM_MA_DATA60
128
282
137
MEM_MA_DATA57
275
MEM_MA_DATA56
130
MEM_MA_DATA55
269
MEM_MA_DATA54
124
MEM_MA_DATA53
262
MEM_MA_DATA52
117
MEM_MA_DATA51
271
MEM_MA_DATA50
126
MEM_MA_DATA49
264
MEM_MA_DATA48
119
MEM_MA_DATA47
258
MEM_MA_DATA46
113
MEM_MA_DATA45
251
MEM_MA_DATA44
106
260
115
MEM_MA_DATA41
253
MEM_MA_DATA40
108
MEM_MA_DATA39
247
MEM_MA_DATA38
102
MEM_MA_DATA37
240
MEM_MA_DATA36
95
MEM_MA_DATA35
249
MEM_MA_DATA34
104
MEM_MA_DATA33
242
MEM_MA_DATA32
97
MEM_MA_DATA31
188
MEM_MA_DATA30
43
MEM_MA_DATA29
181
MEM_MA_DATA28
36
190
45
MEM_MA_DATA25
183
MEM_MA_DATA24
38
MEM_MA_DATA23
177
MEM_MA_DATA22
32
170
25
MEM_MA_DATA19
179
MEM_MA_DATA18
34
MEM_MA_DATA17
172
MEM_MA_DATA16
27
MEM_MA_DATA15
166
MEM_MA_DATA14
21
MEM_MA_DATA13
159
MEM_MA_DATA12
14
168
23
161
16
155
10
148
3
157
12
150
5
207
63
224
81
MEM_MA_ADD17
234
MEM_MA_ADD16
82
MEM_MA_ADD15
86
MEM_MA_ADD14
228
MEM_MA_ADD13
232
MEM_MA_ADD12
65
MEM_MA_ADD11
210
MEM_MA_ADD10
225
MEM_MA_ADD9
66
MEM_MA_ADD8
68
MEM_MA_ADD7
211
MEM_MA_ADD6
69
MEM_MA_ADD5
213
MEM_MA_ADD4
214
MEM_MA_ADD3
71
MEM_MA_ADD2
216
MEM_MA_ADD1
72
MEM_MA_ADD0
79
DDR_SCL_C01
141
DDR_SDA_C01
285
238
140
139
MS-7A21
MS-7A21
MS-7A21
MEM_MA_DATA58
MEM_MA_DATA59
MEM_MA_DATA42
MEM_MA_DATA43
MEM_MA_DATA26
MEM_MA_DATA27
MEM_MA_DATA20
MEM_MA_DATA21
MEM_MA_DATA10
MEM_MA_DATA11
MEM_MA_DATA9
MEM_MA_DATA8
MEM_MA_DATA6
MEM_MA_DATA7
MEM_MA_DATA5
MEM_MA_DATA4
MEM_MA_DATA3
MEM_MA_DATA2
MEM_MA_DATA1
MEM_MA_DATA0
MEM_MA_BG_1MEM_MA_CS_L7
MEM_MA_BG_0
MEM_MA_BA_1MEM_MA_BA_0
MEM_MA_BA_0
VDDSPD_01
1
7
6
5
4
3
2
1
0
MEM_MA_BG_1 (5)
MEM_MA_BG_0 (5)
MEM_MA_BA_1 (5)
MEM_MA_BA_0 (5)
11 77
11 77
11 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 12
5
DIMM3A
DDR IV DIMM3/4
D D
MEM_MB_DQS_H7(5)
MEM_MB_DQS_L7(5)
MEM_MB_DQS_H6(5)
MEM_MB_DQS_L6(5)
MEM_MB_DQS_H5(5)
MEM_MB_DQS_L5(5)
MEM_MB_DQS_H4(5)
C C
B B
A A
MEM_MB_DQS_L4(5)
MEM_MB_DQS_H3(5)
MEM_MB_DQS_L3(5)
MEM_MB_DQS_H2(5)
MEM_MB_DQS_L2(5)
MEM_MB_DQS_H1(5)
MEM_MB_DQS_L1(5)
MEM_MB_DQS_H0(5)
MEM_MB_DQS_L0(5)
MEM_MB_CLK_H2(5)
MEM_MB_CLK_L2(5)
MEM_MB_CLK_H0(5)
MEM_MB_CLK_L0(5)
MEM_MB_C2(5)
MEM_MB_CS_L3(5)
MEM_MB_CS_L2(5)
MEM_MB_CS_L1(5)
MEM_MB_CS_L0(5)
MEM_MB_CKE1(5)
MEM_MB_CKE0(5)
MEM_MB_ODT1(5)
MEM_MB_ODT0(5)
DDR_RESET_C01_N(3,11)
MEM_HOT_C01_N(3,11)
MEM_MB_ALERT_N(5)
MEM_MB_ACT_N(5)
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_CLK_H2
MEM_MB_CLK_L2
MEM_MB_CLK_H0
MEM_MB_CLK_L0
MEM_MB_C2
MEM_MB_CS_L3
MEM_MB_CS_L2
MEM_MB_CS_L1
MEM_MB_CS_L0
MEM_MB_CKE1
MEM_MB_CKE0
MEM_MB_ODT1
MEM_MB_ODT0
DDR_RESET_C01_N
MEM_HOT_C01_N
MEM_MB_ALERT_N
MEM_MB_ACT_N
MEM_MB_PAR
5
DIMM3A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
4
A16_RAS_N
A15_CAS_N
A14_WE_N
4
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
SDA
SA-2
SA-1
SA-0
SCL
3
MEM_MB_DATA63
280
MEM_MB_DATA62
135
MEM_MB_DATA61
273
MEM_MB_DATA60
128
MEM_MB_DATA58
282
MEM_MB_DATA59
137
MEM_MB_DATA56
275
MEM_MB_DATA57
130
MEM_MB_DATA55
269
MEM_MB_DATA54
124
MEM_MB_DATA53
262
MEM_MB_DATA52
117
MEM_MB_DATA51
271
MEM_MB_DATA50
126
MEM_MB_DATA49
264
MEM_MB_DATA48
119
MEM_MB_DATA47
258
MEM_MB_DATA46
113
MEM_MB_DATA45
251
MEM_MB_DATA44
106
MEM_MB_DATA42
260
MEM_MB_DATA43
115
MEM_MB_DATA41
253
MEM_MB_DATA40
108
MEM_MB_DATA39
247
MEM_MB_DATA38
102
MEM_MB_DATA37
240
MEM_MB_DATA36
95
MEM_MB_DATA35
249
MEM_MB_DATA34
104
MEM_MB_DATA33
242
MEM_MB_DATA32
97
MEM_MB_DATA31
188
MEM_MB_DATA30
43
MEM_MB_DATA29
181
MEM_MB_DATA28
36
MEM_MB_DATA27
190
MEM_MB_DATA26
45
MEM_MB_DATA25
183
MEM_MB_DATA24
38
MEM_MB_DATA23
177
MEM_MB_DATA22
32
MEM_MB_DATA20
170
MEM_MB_DATA21
25
MEM_MB_DATA19
179
MEM_MB_DATA18
34
MEM_MB_DATA17
172
MEM_MB_DATA16
27
MEM_MB_DATA15
166
MEM_MB_DATA14
21
MEM_MB_DATA13
159
MEM_MB_DATA12
14
MEM_MB_DATA10
168
MEM_MB_DATA11
23
MEM_MB_DATA9
161
MEM_MB_DATA8
16
MEM_MB_DATA7
155
MEM_MB_DATA6
10
MEM_MB_DATA4
148
MEM_MB_DATA5
3
MEM_MB_DATA3
157
MEM_MB_DATA2
12
MEM_MB_DATA0
150
MEM_MB_DATA1
5
MEM_MB_BG_1
207
MEM_MB_BG_0
63
MEM_MB_BA_1
224
MEM_MB_BA_0
81
234
A17
82
86
228
232
A13
65
A12
210
A11
225
A10
66
A9
68
A8
211
A7
69
A6
213
A5
214
A4
71
A3
216
A2
72
A1
79
A0
141
285
238
140
139
MEM_MB_ADD17
MEM_MB_ADD16
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
DDR_SCL_C01
DDR_SDA_C01
DIMM3(CHANNEL-B0)
ADDRESS = 1:0:0 [SA2:SA1:SA0]
DIMM3 CH1 ADDRESS HEX:4 DIMM4 CH1 ADDRESS HEX:
MEM_MB_DATA[63..0]
7
6
5
4
3
2
1
0
MEM_MB_BG_1 (5)
MEM_MB_BG_0 (5)
MEM_MB_BA_1 (5)
MEM_MB_BA_0 (5)
MEM_MB_ADD[17..0]
DDR_SCL_C01 (11)
DDR_SDA_C01 (11)MEM_MB_PAR(5)
VDDSPD_01
MEM_MB_DATA[63..0] (5)
MEM_MB_ADD[17..0] (5)
3
MEM_MB_DQS_H7(5)
MEM_MB_DQS_L7(5)
MEM_MB_DQS_H6(5)
MEM_MB_DQS_L6(5)
MEM_MB_DQS_H5(5)
MEM_MB_DQS_L5(5)
MEM_MB_DQS_H4(5)
MEM_MB_DQS_L4(5)
MEM_MB_DQS_H3(5)
MEM_MB_DQS_L3(5)
MEM_MB_DQS_H2(5)
MEM_MB_DQS_L2(5)
MEM_MB_DQS_H1(5)
MEM_MB_DQS_L1(5)
MEM_MB_DQS_H0(5)
MEM_MB_DQS_L0(5)
MEM_MB_CLK_H3(5)
MEM_MB_CLK_L3(5)
MEM_MB_CLK_H1(5)
MEM_MB_CLK_L1(5)
MEM_MB_C2(5)
MEM_MB_CS_L7(5)
MEM_MB_CS_L6(5)
MEM_MB_CS_L5(5)
MEM_MB_CS_L4(5)
MEM_MB_CKE3(5)
MEM_MB_CKE2(5)
MEM_MB_ODT3(5)
MEM_MB_ODT2(5)
DDR_RESET_C01_N(3,11)
MEM_HOT_C01_N(3,11)
MEM_MB_ALERT_N(5)
MEM_MB_ACT_N(5)
MEM_MB_PAR(5)
DIMM4(CHANNEL-B1)
ADDRESS = 1:0:1 [SA2:SA1:SA0]
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_CLK_H3
MEM_MB_CLK_L3
MEM_MB_CLK_H1
MEM_MB_CLK_L1
MEM_MB_C2
MEM_MB_CS_L7
MEM_MB_CS_L6
MEM_MB_CS_L5
MEM_MB_CS_L4
MEM_MB_CKE3
MEM_MB_CKE2
MEM_MB_ODT3
MEM_MB_ODT2
DDR_RESET_C01_N
MEM_HOT_C01_N
MEM_MB_ALERT_N
MEM_MB_ACT_N
MEM_MB_PAR
2
DIMM4A
DIMM4A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
2
1
MEM_MB_DATA63
280
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A17
A16_RAS_N
A15_CAS_N
A14_WE_N
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
SCL
SDA
SA-2
SA-1
SA-0
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
DDR IV DIMM3/4
DDR IV DIMM3/4
DDR IV DIMM3/4
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
135
273
128
282
137
275
130
269
124
262
117
271
126
264
119
258
113
251
106
260
115
253
108
247
102
240
95
249
104
242
97
188
43
181
36
190
45
183
38
177
32
170
25
179
34
172
27
166
21
159
14
168
23
161
16
155
10
148
3
157
12
150
5
207
63
224
81
234
82
86
228
232
65
210
225
66
68
211
69
213
214
71
216
72
79
DDR_SCL_C01
141
DDR_SDA_C01
285
238
140
139
MS-7A21
MS-7A21
MS-7A21
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA58
MEM_MB_DATA59
MEM_MB_DATA56
MEM_MB_DATA57
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA42
MEM_MB_DATA43
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA20
MEM_MB_DATA21
MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA10
MEM_MB_DATA11
MEM_MB_DATA9
MEM_MB_DATA8
MEM_MB_DATA7
MEM_MB_DATA6
MEM_MB_DATA4
MEM_MB_DATA5
MEM_MB_DATA3
MEM_MB_DATA2
MEM_MB_DATA0
MEM_MB_DATA1
MEM_MB_BG_1
MEM_MB_BG_0
MEM_MB_BA_1
MEM_MB_BA_0
MEM_MB_ADD17
MEM_MB_ADD16
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
VDDSPD_01
VDDSPD_01
1
7
6
5
4
3
2
1
0
MEM_MB_BG_1 (5)
MEM_MB_BG_0 (5)
MEM_MB_BA_1 (5)
MEM_MB_BA_0 (5)
12 77
12 77
12 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 13
5
DDR IV DIMM5/6
D D
MEM_MC_DQS_H7(6)
MEM_MC_DQS_L7(6)
MEM_MC_DQS_H6(6)
MEM_MC_DQS_L6(6)
MEM_MC_DQS_H5(6)
MEM_MC_DQS_L5(6)
MEM_MC_DQS_H4(6)
C C
B B
A A
MEM_MC_DQS_L4(6)
MEM_MC_DQS_H3(6)
MEM_MC_DQS_L3(6)
MEM_MC_DQS_H2(6)
MEM_MC_DQS_L2(6)
MEM_MC_DQS_H1(6)
MEM_MC_DQS_L1(6)
MEM_MC_DQS_H0(6)
MEM_MC_DQS_L0(6)
MEM_MC_CLK_H2(6)
MEM_MC_CLK_L2(6)
MEM_MC_CLK_H0(6)
MEM_MC_CLK_L0(6)
MEM_MC_C2(6)
MEM_MC_CS_L3(6)
MEM_MC_CS_L2(6)
MEM_MC_CS_L1(6)
MEM_MC_CS_L0(6)
MEM_MC_CKE1(6)
MEM_MC_CKE0(6)
MEM_MC_ODT1(6)
MEM_MC_ODT0(6)
DDR_RESET_C23_N(3,14)
MEM_HOT_C23_N(3,14)
MEM_MC_ALERT_N(6)
MEM_MC_ACT_N(6)
MEM_MC_PAR(6)
CPU_DDR_SCL_C23_R
CPU_DDR_SDA_C23_R
DDR_SCL_C23
DDR_SDA_C23
CPU_DDR_SCL_C23(3)
CPU_DDR_SDA_C23(3)
MEM_MC_DQS_H7
MEM_MC_DQS_L7
MEM_MC_DQS_H6
MEM_MC_DQS_L6
MEM_MC_DQS_H5
MEM_MC_DQS_L5
MEM_MC_DQS_H4
MEM_MC_DQS_L4
MEM_MC_DQS_H3
MEM_MC_DQS_L3
MEM_MC_DQS_H2
MEM_MC_DQS_L2
MEM_MC_DQS_H1
MEM_MC_DQS_L1
MEM_MC_DQS_H0
MEM_MC_DQS_L0
MEM_MC_CLK_H2
MEM_MC_CLK_L2
MEM_MC_CLK_H0
MEM_MC_CLK_L0
R70 240R1%/4R70 240R1%/4
R53 240R1%/4R53 240R1%/4
R59 1.4KR1%4R59 1.4KR1%4
R42 1.4KR1%4R42 1.4KR1%4
R71 10R/4R71 10R/4
R54 10R/4R54 10R/4
VDDSPD_23
5
MEM_MC_C2
MEM_MC_CS_L2
MEM_MC_CS_L1
MEM_MC_CS_L0
MEM_MC_CKE1
MEM_MC_CKE0
MEM_MC_ODT1
MEM_MC_ODT0
DDR_RESET_C23_N
MEM_HOT_C23_N
MEM_MC_ALERT_N
MEM_MC_ACT_N
MEM_MC_PAR
+VCCIO_IN
VDDSPD_23
C46 0.1u10X/4C46 0.1u10X/4
CPU_DDR_SCL_C23_R
CPU_DDR_SDA_C23_R DDR_SDA_C23
132
133
121
122
110
111
100
197
196
278
277
267
266
256
255
245
244
186
185
175
174
164
163
153
152
218
219
235
237
203
199
192
201
194
208
222
230
144
205
227
+VCCIO_IN
R37 0R/4R37 0R/4
DIMM5A
DIMM5A
51
DQS17P
52
DQS17N
DQS16P
DQS16N
DQS15P
DQS15N
DQS14P
DQS14N
99
DQS13P
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
DQS8P
DQS8N
DQS7P
DQS7N
DQS6P
DQS6N
DQS5P
DQS5N
DQS4P
DQS4N
DQS3P
DQS3N
DQS2P
DQS2N
DQS1P
DQS1N
DQS0P
DQS0N
CK1P
CK1N
74
CK0P
75
CK0N
C2
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
CKE1
60
CKE0
91
ODT-1
87
ODT-0
CB-7
54
CB-6
CB-5
47
CB-4
CB-3
56
CB-2
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
ALERT_N
62
ACT_N
PAR
SAVE_N_NC
RFU-0
RFU-1
RFU-2
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
U7
U7
1
VCCA
SCLA2SCLB
3
SDAA
5
EN
PCA9617ADPJ_TSSOP8-RH
PCA9617ADPJ_TSSOP8-RH
VCCB
SDAB
GND
VDDSPD_23
8
7
6
4
C41 0.1u10X/4C41 0.1u10X/4
DDR_SCL_C23
4
A16_RAS_N
A15_CAS_N
A14_WE_N
4
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
SDA
SA-2
SA-1
SA-0
MEM_MC_DATA63
280
MEM_MC_DATA62
135
MEM_MC_DATA61
273
MEM_MC_DATA60
128
MEM_MC_DATA59
282
MEM_MC_DATA58
137
MEM_MC_DATA57
275
MEM_MC_DATA56
130
MEM_MC_DATA55
269
MEM_MC_DATA54
124
MEM_MC_DATA53
262
MEM_MC_DATA52
117
MEM_MC_DATA51
271
MEM_MC_DATA50
126
MEM_MC_DATA49
264
MEM_MC_DATA48
119
MEM_MC_DATA46
258
MEM_MC_DATA47
113
MEM_MC_DATA45
251
MEM_MC_DATA44
106
MEM_MC_DATA42
260
MEM_MC_DATA43
115
MEM_MC_DATA41
253
MEM_MC_DATA40
108
MEM_MC_DATA39
247
MEM_MC_DATA38
102
MEM_MC_DATA36
240
MEM_MC_DATA37
95
MEM_MC_DATA35
249
MEM_MC_DATA34
104
MEM_MC_DATA32
242
MEM_MC_DATA33
97
MEM_MC_DATA31
188
MEM_MC_DATA30
43
MEM_MC_DATA29
181
MEM_MC_DATA28
36
MEM_MC_DATA27
190
MEM_MC_DATA26
45
MEM_MC_DATA25
183
MEM_MC_DATA24
38
MEM_MC_DATA23
177
MEM_MC_DATA22
32
MEM_MC_DATA21
170
MEM_MC_DATA20
25
MEM_MC_DATA19
179
MEM_MC_DATA18
34
MEM_MC_DATA17
172
MEM_MC_DATA16
27
MEM_MC_DATA15
166
MEM_MC_DATA14
21
MEM_MC_DATA13
159
MEM_MC_DATA12
14
MEM_MC_DATA10
168
MEM_MC_DATA11
23
MEM_MC_DATA9
161
MEM_MC_DATA8
16
MEM_MC_DATA7
155
MEM_MC_DATA6
10
MEM_MC_DATA5
148
MEM_MC_DATA4
3
MEM_MC_DATA3
157
MEM_MC_DATA2
12
MEM_MC_DATA1
150
MEM_MC_DATA0
5
MEM_MC_BG_1MEM_MC_CS_L3
207
MEM_MC_BG_0
63
MEM_MC_BA_1
224
MEM_MC_BA_0
81
MEM_MC_ADD17
234
SCL
A17
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
MEM_MC_ADD16
82
MEM_MC_ADD15
86
MEM_MC_ADD14
228
MEM_MC_ADD13
232
MEM_MC_ADD12
65
MEM_MC_ADD11
210
MEM_MC_ADD10
225
MEM_MC_ADD9
66
MEM_MC_ADD8
68
MEM_MC_ADD7
211
MEM_MC_ADD6
69
MEM_MC_ADD5
213
MEM_MC_ADD4
214
MEM_MC_ADD3
71
MEM_MC_ADD2
216
MEM_MC_ADD1
72
MEM_MC_ADD0
79
DDR_SCL_C23
141
DDR_SDA_C23
285
238
140
139
DIMM5(CHANNEL-C0)
ADDRESS = 0:0:0 [SA2:SA1:SA0]
MEM_MC_DATA[63..0]
7
6
5
4
3
2
1
0
MEM_MC_BG_1 (6)
MEM_MC_BG_0 (6)
MEM_MC_BA_1 (6)
MEM_MC_BA_0 (6)
MEM_MC_ADD[17..0]
DDR_SCL_C23 (14)
DDR_SDA_C23 (14)
3
MEM_MC_DATA[63..0] (6)
MEM_MC_ADD[17..0] (6)
DIMM6(CHANNEL-C1)
ADDRESS = 0:0:1 [SA2:SA1:SA0]
DIMM6 CH2 ADDRESS HEX:0DIMM5 CH2 ADDRESS HEX:0
3
2
DIMM6A
DIMM6A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
MEM_MC_DQS_H7(6)
MEM_MC_DQS_L7(6)
MEM_MC_DQS_H6(6)
MEM_MC_DQS_L6(6)
MEM_MC_DQS_H5(6)
MEM_MC_DQS_L5(6)
MEM_MC_DQS_H4(6)
MEM_MC_DQS_L4(6)
MEM_MC_DQS_H3(6)
MEM_MC_DQS_L3(6)
MEM_MC_DQS_H2(6)
MEM_MC_DQS_L2(6)
MEM_MC_DQS_H1(6)
MEM_MC_DQS_L1(6)
MEM_MC_DQS_H0(6)
MEM_MC_DQS_L0(6)
MEM_MC_CLK_H3(6)
MEM_MC_CLK_L3(6)
MEM_MC_CLK_H1(6)
MEM_MC_CLK_L1(6)
MEM_MC_C2(6)
MEM_MC_CS_L7(6)
MEM_MC_CS_L6(6)
MEM_MC_CS_L5(6)
MEM_MC_CS_L4(6)
MEM_MC_CKE3(6)
MEM_MC_CKE2(6)
MEM_MC_ODT3(6)
MEM_MC_ODT2(6)
DDR_RESET_C23_N(3,14)
MEM_HOT_C23_N(3,14)
MEM_MC_ALERT_N(6)
MEM_MC_ACT_N(6)
MEM_MC_PAR(6)
MEM_MC_DQS_H7
MEM_MC_DQS_L7
MEM_MC_DQS_H6
MEM_MC_DQS_L6
MEM_MC_DQS_H5
MEM_MC_DQS_L5
MEM_MC_DQS_H4
MEM_MC_DQS_L4
MEM_MC_DQS_H3
MEM_MC_DQS_L3
MEM_MC_DQS_H2
MEM_MC_DQS_L2
MEM_MC_DQS_H1
MEM_MC_DQS_L1
MEM_MC_DQS_H0
MEM_MC_DQS_L0
MEM_MC_CLK_H3
MEM_MC_CLK_L3
MEM_MC_CLK_H1
MEM_MC_CLK_L1
MEM_MC_C2
MEM_MC_CS_L7
MEM_MC_CS_L6
MEM_MC_CS_L5
MEM_MC_CS_L4 MEM_MC_BA_0
MEM_MC_CKE3
MEM_MC_CKE2
MEM_MC_ODT3
MEM_MC_ODT2
DDR_RESET_C23_N
MEM_HOT_C23_N
MEM_MC_ALERT_N
MEM_MC_ACT_N
MEM_MC_PAR
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
2
MSI
MSI
MSI
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A17
A16_RAS_N
A15_CAS_N
A14_WE_N
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
SCL
SDA
SA-2
SA-1
SA-0
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
DDR IV DIMM5/6
DDR IV DIMM5/6
DDR IV DIMM5/6
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
280
135
273
128
282
137
275
130
269
124
262
117
271
126
264
119
258
113
251
106
260
115
253
108
247
102
240
95
249
104
242
97
188
43
181
36
190
45
183
38
177
32
170
25
179
34
172
27
166
21
159
14
168
23
161
16
155
10
148
3
157
12
150
5
207
63
224
81
234
82
86
228
232
65
210
225
66
68
211
69
213
214
71
216
72
79
141
285
238
140
139
1
MEM_MC_DATA63
MEM_MC_DATA62
MEM_MC_DATA61
MEM_MC_DATA60
MEM_MC_DATA59
MEM_MC_DATA58
MEM_MC_DATA57
MEM_MC_DATA56
MEM_MC_DATA55
MEM_MC_DATA54
MEM_MC_DATA53
MEM_MC_DATA52
MEM_MC_DATA51
MEM_MC_DATA50
MEM_MC_DATA49
MEM_MC_DATA48
MEM_MC_DATA46
MEM_MC_DATA47
MEM_MC_DATA45
MEM_MC_DATA44
MEM_MC_DATA42
MEM_MC_DATA43
MEM_MC_DATA41
MEM_MC_DATA40
MEM_MC_DATA39
MEM_MC_DATA38
MEM_MC_DATA36
MEM_MC_DATA37
MEM_MC_DATA35
MEM_MC_DATA34
MEM_MC_DATA32
MEM_MC_DATA33
MEM_MC_DATA31
MEM_MC_DATA30
MEM_MC_DATA29
MEM_MC_DATA28
MEM_MC_DATA27
MEM_MC_DATA26
MEM_MC_DATA25
MEM_MC_DATA24
MEM_MC_DATA23
MEM_MC_DATA22
MEM_MC_DATA21
MEM_MC_DATA20
MEM_MC_DATA19
MEM_MC_DATA18
MEM_MC_DATA17
MEM_MC_DATA16
MEM_MC_DATA15
MEM_MC_DATA14
MEM_MC_DATA13
MEM_MC_DATA12
MEM_MC_DATA10
MEM_MC_DATA11
MEM_MC_DATA9
MEM_MC_DATA8
MEM_MC_DATA7
MEM_MC_DATA6
MEM_MC_DATA5
MEM_MC_DATA4
MEM_MC_DATA3
MEM_MC_DATA2
MEM_MC_DATA1
MEM_MC_DATA0
MEM_MC_BG_1
MEM_MC_BG_0
MEM_MC_BA_1
MEM_MC_ADD17
MEM_MC_ADD16
MEM_MC_ADD15
MEM_MC_ADD14
MEM_MC_ADD13
MEM_MC_ADD12
MEM_MC_ADD11
MEM_MC_ADD10
MEM_MC_ADD9
MEM_MC_ADD8
MEM_MC_ADD7
MEM_MC_ADD6
MEM_MC_ADD5
MEM_MC_ADD4
MEM_MC_ADD3
MEM_MC_ADD2
MEM_MC_ADD1
MEM_MC_ADD0
DDR_SCL_C23
DDR_SDA_C23
MS-7A21
MS-7A21
MS-7A21
1
MEM_MC_BG_1 (6)
MEM_MC_BG_0 (6)
MEM_MC_BA_1 (6)
MEM_MC_BA_0 (6)
VDDSPD_23
Sheet of
Sheet of
Sheet of
7
6
5
4
3
2
1
0
13 77
13 77
13 77
10
10
10
Page 14
5
DIMM7A
DIMM7A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
D D
MEM_MD_DQS_H7(6)
MEM_MD_DQS_L7(6)
MEM_MD_DQS_H6(6)
MEM_MD_DQS_L6(6)
MEM_MD_DQS_H5(6)
MEM_MD_DQS_L5(6)
MEM_MD_DQS_H4(6)
C C
B B
A A
MEM_MD_DQS_L4(6)
MEM_MD_DQS_H3(6)
MEM_MD_DQS_L3(6)
MEM_MD_DQS_H2(6)
MEM_MD_DQS_L2(6)
MEM_MD_DQS_H1(6)
MEM_MD_DQS_L1(6)
MEM_MD_DQS_H0(6)
MEM_MD_DQS_L0(6)
MEM_MD_CLK_H2(6)
MEM_MD_CLK_L2(6)
MEM_MD_CLK_H0(6)
MEM_MD_CLK_L0(6)
MEM_MD_C2(6)
MEM_MD_CS_L3(6)
MEM_MD_CS_L2(6)
MEM_MD_CS_L1(6)
MEM_MD_CS_L0(6)
MEM_MD_CKE1(6)
MEM_MD_CKE0(6)
MEM_MD_ODT1(6)
MEM_MD_ODT0(6)
DDR_RESET_C23_N(3,13)
MEM_MD_ALERT_N(6)
MEM_MD_ACT_N(6)
MEM_MD_PAR(6) MEM_MD_PAR(6)
MEM_MD_DQS_H7
MEM_MD_DQS_L7
MEM_MD_DQS_H6
MEM_MD_DQS_L6
MEM_MD_DQS_H5
MEM_MD_DQS_L5
MEM_MD_DQS_H4
MEM_MD_DQS_L4
MEM_MD_DQS_H3
MEM_MD_DQS_L3
MEM_MD_DQS_H2
MEM_MD_DQS_L2
MEM_MD_DQS_H1
MEM_MD_DQS_L1
MEM_MD_DQS_H0
MEM_MD_DQS_L0
MEM_MD_CLK_H2
MEM_MD_CLK_L2
MEM_MD_CLK_H0
MEM_MD_CLK_L0
MEM_MD_C2
MEM_MD_CS_L2
MEM_MD_CS_L1
MEM_MD_CS_L0
MEM_MD_CKE1
MEM_MD_CKE0
MEM_MD_ODT1
MEM_MD_ODT0
DDR_RESET_C23_N
MEM_HOT_C23_N
MEM_MD_ALERT_N
MEM_MD_ACT_N
MEM_MD_PAR MEM_MD_PAR
5
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
4
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A16_RAS_N
A15_CAS_N
A14_WE_N
SA-2
SA-1
SA-0
4
SCL
SDA
3
MEM_MD_DATA63
280
MEM_MD_DATA62
135
MEM_MD_DATA61
273
MEM_MD_DATA60
128
MEM_MD_DATA59
282
MEM_MD_DATA58
137
MEM_MD_DATA57
275
MEM_MD_DATA56
130
MEM_MD_DATA55
269
MEM_MD_DATA54
124
MEM_MD_DATA53
262
MEM_MD_DATA52
117
MEM_MD_DATA51
271
MEM_MD_DATA50
126
MEM_MD_DATA49
264
MEM_MD_DATA48
119
MEM_MD_DATA47
258
MEM_MD_DATA46
113
MEM_MD_DATA45
251
MEM_MD_DATA44
106
MEM_MD_DATA43
260
MEM_MD_DATA42
115
MEM_MD_DATA41
253
MEM_MD_DATA40
108
MEM_MD_DATA38
247
MEM_MD_DATA34
102
MEM_MD_DATA32
240
MEM_MD_DATA36
95
MEM_MD_DATA39
249
MEM_MD_DATA35
104
MEM_MD_DATA37
242
MEM_MD_DATA33
97
MEM_MD_DATA26
188
MEM_MD_DATA30
43
MEM_MD_DATA29
181
MEM_MD_DATA28
36
MEM_MD_DATA27
190
MEM_MD_DATA31
45
MEM_MD_DATA25
183
MEM_MD_DATA24
38
MEM_MD_DATA23
177
MEM_MD_DATA22
32
MEM_MD_DATA21
170
MEM_MD_DATA20
25
MEM_MD_DATA19
179
MEM_MD_DATA18
34
MEM_MD_DATA17
172
MEM_MD_DATA16
27
MEM_MD_DATA15
166
MEM_MD_DATA14
21
MEM_MD_DATA13
159
MEM_MD_DATA12
14
MEM_MD_DATA11
168
MEM_MD_DATA10
23
MEM_MD_DATA9
161
MEM_MD_DATA8
16
MEM_MD_DATA7
155
MEM_MD_DATA6
10
MEM_MD_DATA5
148
MEM_MD_DATA4
3
MEM_MD_DATA3
157
MEM_MD_DATA2
12
MEM_MD_DATA1
150
MEM_MD_DATA0
5
MEM_MD_BG_1MEM_MD_CS_L3
207
MEM_MD_BG_0
63
MEM_MD_BA_1
224
MEM_MD_BA_0
81
DDR_SCL_C23
DDR_SDA_C23
MEM_MD_ADD17
MEM_MD_ADD16
MEM_MD_ADD15
MEM_MD_ADD14
MEM_MD_ADD13
MEM_MD_ADD12
MEM_MD_ADD11
MEM_MD_ADD10
MEM_MD_ADD9
MEM_MD_ADD8
MEM_MD_ADD7
MEM_MD_ADD6
MEM_MD_ADD5
MEM_MD_ADD4
MEM_MD_ADD3
MEM_MD_ADD2
MEM_MD_ADD1
MEM_MD_ADD0
VDDSPD_23
234
A17
82
86
228
232
A13
65
A12
210
A11
225
A10
66
A9
68
A8
211
A7
69
A6
213
A5
214
A4
71
A3
216
A2
72
A1
79
A0
141
285
238
140
139
MEM_MD_DATA[63..0]
7
6
5
4
3
2
1
0
MEM_MD_BG_1 (6)
MEM_MD_BG_0 (6)
MEM_MD_BA_1 (6)
MEM_MD_BA_0 (6)
MEM_MD_ADD[17..0]
DDR_SCL_C23 (13)
DDR_SDA_C23 (13)
DIMM7(CHANNEL-D0)
ADDRESS = 1:0:0 [SA2:SA1:SA0]
DIMM7 CH3 ADDRESS HEX:4
MEM_MD_DATA[63..0] (6)
MEM_MD_ADD[17..0] (6)
3
MEM_MD_DQS_H7(6)
MEM_MD_DQS_L7(6)
MEM_MD_DQS_H6(6)
MEM_MD_DQS_L6(6)
MEM_MD_DQS_H5(6)
MEM_MD_DQS_L5(6)
MEM_MD_DQS_H4(6)
MEM_MD_DQS_L4(6)
MEM_MD_DQS_H3(6)
MEM_MD_DQS_L3(6)
MEM_MD_DQS_H2(6)
MEM_MD_DQS_L2(6)
MEM_MD_DQS_H1(6)
MEM_MD_DQS_L1(6)
MEM_MD_DQS_H0(6)
MEM_MD_DQS_L0(6)
MEM_MD_CLK_H3(6)
MEM_MD_CLK_L3(6)
MEM_MD_CLK_H1(6)
MEM_MD_CLK_L1(6)
MEM_MD_C2(6)
MEM_MD_CS_L7(6)
MEM_MD_CS_L6(6)
MEM_MD_CS_L5(6)
MEM_MD_CS_L4(6)
MEM_MD_CKE3(6)
MEM_MD_CKE2(6)
MEM_MD_ODT3(6)
MEM_MD_ODT2(6)
DDR_RESET_C23_N(3,13)
MEM_HOT_C23_N(3,13)MEM_HOT_C23_N(3,13)
MEM_MD_ALERT_N(6)
MEM_MD_ACT_N(6)
DIMM8(CHANNEL-D1)
ADDRESS = 1:0:1 [SA2:SA1:SA0]
MEM_MD_DQS_H7
MEM_MD_DQS_L7
MEM_MD_DQS_H6
MEM_MD_DQS_L6
MEM_MD_DQS_H5
MEM_MD_DQS_L5
MEM_MD_DQS_H4
MEM_MD_DQS_L4
MEM_MD_DQS_H3
MEM_MD_DQS_L3
MEM_MD_DQS_H2
MEM_MD_DQS_L2
MEM_MD_DQS_H1
MEM_MD_DQS_L1
MEM_MD_DQS_H0
MEM_MD_DQS_L0
MEM_MD_CLK_H3
MEM_MD_CLK_L3
MEM_MD_CLK_H1
MEM_MD_CLK_L1
MEM_MD_C2
MEM_MD_CS_L6
MEM_MD_CS_L5
MEM_MD_CS_L4
MEM_MD_CKE3
MEM_MD_CKE2
MEM_MD_ODT3
MEM_MD_ODT2
DDR_RESET_C23_N
MEM_HOT_C23_N
MEM_MD_ALERT_N
MEM_MD_ACT_N
DIMM8 CH3 ADDRESS HEX:0
2
DIMM8A
DIMM8A
51
DQS17P
52
DQS17N
132
DQS16P
133
DQS16N
121
DQS15P
122
DQS15N
110
DQS14P
111
DQS14N
99
DQS13P
100
DQS13N
40
DQS12P
41
DQS12N
29
DQS11P
30
DQS11N
18
DQS10P
19
DQS10N
7
DQS9P
8
DQS9N
197
DQS8P
196
DQS8N
278
DQS7P
277
DQS7N
267
DQS6P
266
DQS6N
256
DQS5P
255
DQS5N
245
DQS4P
244
DQS4N
186
DQS3P
185
DQS3N
175
DQS2P
174
DQS2N
164
DQS1P
163
DQS1N
153
DQS0P
152
DQS0N
218
CK1P
219
CK1N
74
CK0P
75
CK0N
235
C2
237
S3_N_C1
93
S2_N_C0
89
S1_N
84
S0_N
203
CKE1
60
CKE0
91
ODT-1
87
ODT-0
199
CB-7
54
CB-6
192
CB-5
47
CB-4
201
CB-3
56
CB-2
194
CB-1
49
CB-0
58
RESET_N
78
EVENT_N
208
ALERT_N
62
ACT_N
222
PAR
230
SAVE_N_NC
144
RFU-0
205
RFU-1
227
RFU-2
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
2
1
MEM_MD_DATA63
280
DQ-63
DQ-62
DQ-61
DQ-60
DQ-59
DQ-58
DQ-57
DQ-56
DQ-55
DQ-54
DQ-53
DQ-52
DQ-51
DQ-50
DQ-49
DQ-48
DQ-47
DQ-46
DQ-45
DQ-44
DQ-43
DQ-42
DQ-41
DQ-40
DQ-39
DQ-38
DQ-37
DQ-36
DQ-35
DQ-34
DQ-33
DQ-32
DQ-31
DQ-30
DQ-29
DQ-28
DQ-27
DQ-26
DQ-25
DQ-24
DQ-23
DQ-22
DQ-21
DQ-20
DQ-19
DQ-18
DQ-17
DQ-16
DQ-15
DQ-14
DQ-13
DQ-12
DQ-11
DQ-10
DQ-9
DQ-8
DQ-7
DQ-6
DQ-5
DQ-4
DQ-3
DQ-2
DQ-1
DQ-0
BG-1
BG-0
BA-1
BA-0
A17
A16_RAS_N
A15_CAS_N
A14_WE_N
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
SCL
SDA
SA-2
SA-1
SA-0
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MEM_MD_DATA62
135
MEM_MD_DATA61
273
MEM_MD_DATA60
128
MEM_MD_DATA59
282
MEM_MD_DATA58
137
MEM_MD_DATA57
275
MEM_MD_DATA56
130
MEM_MD_DATA55
269
MEM_MD_DATA54
124
MEM_MD_DATA53
262
MEM_MD_DATA52
117
MEM_MD_DATA51
271
MEM_MD_DATA50
126
MEM_MD_DATA49
264
MEM_MD_DATA48
119
MEM_MD_DATA47
258
MEM_MD_DATA46
113
MEM_MD_DATA45
251
MEM_MD_DATA44
106
MEM_MD_DATA43
260
MEM_MD_DATA42
115
MEM_MD_DATA41
253
MEM_MD_DATA40
108
MEM_MD_DATA38
247
MEM_MD_DATA34
102
MEM_MD_DATA32
240
MEM_MD_DATA36
95
MEM_MD_DATA39
249
MEM_MD_DATA35
104
MEM_MD_DATA37
242
MEM_MD_DATA33
97
MEM_MD_DATA26
188
MEM_MD_DATA30
43
MEM_MD_DATA29
181
MEM_MD_DATA28
36
MEM_MD_DATA27
190
MEM_MD_DATA31
45
MEM_MD_DATA25
183
MEM_MD_DATA24
38
MEM_MD_DATA23
177
MEM_MD_DATA22
32
MEM_MD_DATA21
170
MEM_MD_DATA20
25
MEM_MD_DATA19
179
MEM_MD_DATA18
34
MEM_MD_DATA17
172
MEM_MD_DATA16
27
MEM_MD_DATA15
166
MEM_MD_DATA14
21
MEM_MD_DATA13
159
MEM_MD_DATA12
14
MEM_MD_DATA11
168
MEM_MD_DATA10
23
MEM_MD_DATA9
161
MEM_MD_DATA8
16
MEM_MD_DATA7
155
MEM_MD_DATA6
10
MEM_MD_DATA5
148
MEM_MD_DATA4
3
MEM_MD_DATA3
157
MEM_MD_DATA2
12
MEM_MD_DATA1
150
MEM_MD_DATA0
5
MEM_MD_BG_1MEM_MD_CS_L7
207
MEM_MD_BG_0
63
MEM_MD_BA_1
224
MEM_MD_BA_0
81
234
82
86
228
232
65
210
225
66
68
211
69
213
214
71
216
72
79
DDR_SCL_C23
141
DDR_SDA_C23
285
238
140
139
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MS-7A21
DDR IV DIMM7/8
DDR IV DIMM7/8
DDR IV DIMM7/8
MEM_MD_BG_1 (6)
MEM_MD_BA_1 (6)
MEM_MD_ADD17
MEM_MD_ADD16
MEM_MD_ADD15
MEM_MD_ADD14
MEM_MD_ADD13
MEM_MD_ADD12
MEM_MD_ADD11
MEM_MD_ADD10
MEM_MD_ADD9
MEM_MD_ADD8
MEM_MD_ADD7
MEM_MD_ADD6
MEM_MD_ADD5
MEM_MD_ADD4
MEM_MD_ADD3
MEM_MD_ADD2
MEM_MD_ADD1
MEM_MD_ADD0
VDDSPD_23
VDDSPD_23
1
7
6
5
4
3
2
1
0
MEM_MD_BG_0 (6)
MEM_MD_BA_0 (6)
14 77
14 77
14 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 15
5
DDR IV POWER
DIMM1C
DIMM1C
1
12V3_NC_1
145
12V3_NC_145
MEC3
MEC2
MEC1
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC2
MEC1
VDDSPD_01
+VPP25_C01
D D
VTT_DDR_01
+VREF_DDR01
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
VCC3 VDDSPD_01 VCC3 VDDSPD_23
VCC_DDR_01
1 2
4
F9
F9
F-SMD1812P110TF-RH
F-SMD1812P110TF-RH
VDDSPD_01
+VPP25_C01
+VREF_DDR01
VTT_DDR_01
MEC3
MEC2
MEC1
1
145
284
142
143
286
287
288
77
221
146
DIMM3C
DIMM3C
12V3_NC_1
12V3_NC_145
VDDSPD
VPP-1
VPP-2
VPP-3
VPP-4
VPP-5
VTT-1
VTT-2
VREFCA
MEC3
MEC2
MEC1
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
VCC_DDR_01
3
DIMM5C
DIMM5C
1
12V3_NC_1
145
12V3_NC_145
MEC3
MEC2
MEC1
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC2
MEC1
VDDSPD_23 VDDSPD_23
+VPP25_C23
VTT_DDR_23
+VREF_DDR23
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
2
F10
F10
1 2
F-SMD1812P110TF-RH
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
F-SMD1812P110TF-RH
+VPP25_C23
VTT_DDR_23
+VREF_DDR23
MEC3
MEC2
MEC1
1
145
284
142
143
286
287
288
77
221
146
DIMM7C
DIMM7C
12V3_NC_1
12V3_NC_145
VDDSPD
VPP-1
VPP-2
VPP-3
VPP-4
VPP-5
VTT-1
VTT-2
VREFCA
MEC3
MEC2
MEC1
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
1
VCC_DDR_23VCC_DDR_23
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
VCC_DDR_01
C273 10u6.3X/6C273 10u6.3X/6
C256 10u6.3X/6C256 10u6.3X/6
C320 10u6.3X/6C320 10u6.3X/6
C193 10u6.3X/6C193 10u6.3X/6
C299 10u6.3X/6C299 10u6.3X/6
C C
VDDSPD_01 VDDSPD_01
+VPP25_C01
VTT_DDR_01
B B
+VREF_DDR01
C182 10u6.3X/6C182 10u6.3X/6
C255 10u6.3X/6C255 10u6.3X/6
C227 10u6.3X/6C227 10u6.3X/6
C200 10u6.3X/6C200 10u6.3X/6
DIMM2CDIMM2C
1
12V3_NC_1
145
12V3_NC_145
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC3
MEC2
MEC2
MEC1
MEC1
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
C270 10u6.3X/6C270 10u6.3X/6
C272 10u6.3X/6C272 10u6.3X/6
C254 10u6.3X/6C254 10u6.3X/6
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
+VREF_CPU_DDR01
R57 2R1%6R57 2R1%6
C42
C42
0.01u16X/4
0.01u16X/4
+VREF_DDR01_R
H_VREF_EN H_VREF_EN
C229 10u6.3X/6C229 10u6.3X/6
C217 10u6.3X/6C217 10u6.3X/6
C242 10u6.3X/6C242 10u6.3X/6
VCC_DDR_01
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
R58 X_0R/6R58 X_0R/6
D
D
S
S
G
G
Q3
Q3
N-AO3414
N-AO3414
C179 10u6.3X/6C179 10u6.3X/6
C252 10u6.3X/6C252 10u6.3X/6
C240 10u6.3X/6C240 10u6.3X/6
+VREF_DDR01
A A
C393
C393
0.1u10X/4
0.1u10X/4
VCC_DDR_01 VCC_DDR_01
C202 10u6.3X/6C202 10u6.3X/6
C178 10u6.3X/6C178 10u6.3X/6
C283 0.1u10X/4C283 0.1u10X/4
C1045 22u6.3X/8C1045 22u6.3X/8
C396 0.1u10X/4C396 0.1u10X/4
C298 22u6.3X/8C298 22u6.3X/8
C280 0.1u10X/4C280 0.1u10X/4
C275 0.1u10X/4C275 0.1u10X/4
+VPP25_C01
VTT_DDR_01
+VREF_DDR01
MEC3
MEC2
MEC1
VCC_DDR_01+VREF_DDR01
C47 0.1u10X/4C47 0.1u10X/4
+VREF_DDR01
C457
C457
0.1u10X/4
0.1u10X/4
R100 1K1%/4R100 1K1%/4
R122
R122
1K1%/4
1K1%/4
C460
C460
0.1u10X/4
0.1u10X/4
DIMM4CDIMM4C
1
12V3_NC_1
145
12V3_NC_145
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC2
MEC1
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
C190 0.1u10X/4C190 0.1u10X/4
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
C180 X_10u6.3X/6C180 X_10u6.3X/6
C201 0.1u10X/4C201 0.1u10X/4
C291 0.1u10X/4C291 0.1u10X/4
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
+VREF_CPU_DDR23
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
C191 X_10u6.3X/6C191 X_10u6.3X/6
VCC_DDR_01
R413 2R1%6R413 2R1%6
C395
C395
0.01u16X/4
0.01u16X/4
+VREF_DDR23
+VREF_DDR23_R
+VPP25_C23
VTT_DDR_23
R412 X_0R/6R412 X_0R/6
D
D
G
G
+VREF_DDR23
CLOSE TO DIMM1,2,3,4 CLOSE TO DIMM5,6,7,8
5
4
3
DIMM6CDIMM6C
1
12V3_NC_1
145
12V3_NC_145
284
VDDSPD
142
VPP-1
143
VPP-2
286
VPP-3
287
VPP-4
288
VPP-5
77
VTT-1
221
VTT-2
146
VREFCA
MEC3
MEC3
MEC2
MEC2
MEC1
MEC1
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
S
S
Q54
Q54
N-AO3414
N-AO3414
C473
C473
0.1u10X/4
0.1u10X/4
VCC_DDR_23
C195 10u6.3X/6C195 10u6.3X/6
+VREF_DDR23
C475
C475
0.1u10X/4
0.1u10X/4
C192 10u6.3X/6C192 10u6.3X/6
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
C164 10u6.3X/6C164 10u6.3X/6
C173 10u6.3X/6C173 10u6.3X/6
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
C391 0.1u10X/4C391 0.1u10X/4
R410 1K1%/4R410 1K1%/4
R1229
R1229
1K1%/4
1K1%/4
C172 10u6.3X/6C172 10u6.3X/6
C163 10u6.3X/6C163 10u6.3X/6
VCC_DDR_23
2
C219 10u6.3X/6C219 10u6.3X/6
C183 10u6.3X/6C183 10u6.3X/6
C260 10u6.3X/6C260 10u6.3X/6
C262 10u6.3X/6C262 10u6.3X/6
C259 10u6.3X/6C259 10u6.3X/6
C181 10u6.3X/6C181 10u6.3X/6
C198 10u6.3X/6C198 10u6.3X/6
C218 10u6.3X/6C218 10u6.3X/6
VDDSPD_23VDDSPD_23
+VPP25_C23
C239 10u6.3X/6C239 10u6.3X/6
VTT_DDR_23
+VREF_DDR23
C231 10u6.3X/6C231 10u6.3X/6
C235 10u6.3X/6C235 10u6.3X/6
C175 10u6.3X/6C175 10u6.3X/6
1
145
284
142
143
286
287
288
77
221
146
MEC3
MEC2
MEC1
C194 10u6.3X/6C194 10u6.3X/6
C184 10u6.3X/6C184 10u6.3X/6
DIMM8CDIMM8C
12V3_NC_1
12V3_NC_145
VDDSPD
VPP-1
VPP-2
VPP-3
VPP-4
VPP-5
VTT-1
VTT-2
VREFCA
MEC3
MEC2
MEC1
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
VDD-0
VDD-1
VDD-2
VDD-3
VDD-4
VDD-5
VDD-6
VDD-7
VDD-8
VDD-9
VDD-10
VDD-11
VDD-12
VDD-13
VDD-14
VDD-15
VDD-16
VDD-17
VDD-18
VDD-19
VDD-20
VDD-21
VDD-22
VDD-23
VDD-24
VDD-25
236
233
231
229
226
223
220
217
215
212
209
206
204
92
90
88
85
83
80
76
73
70
67
64
61
59
VCC_DDR_23
VCC_DDR_23+VREF_DDR23
ATX_5VSBSIO_3VA 5VDIMM_01
R414
R414
47K/4
47K/4
Q53
R408
R408
47K/4
47K/4
VREF_EN(31)
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Q53
NN-2N7002D
NN-2N7002D
S1
MS-7A21
MS-7A21
MS-7A21
H_VREF_EN
D2
S2
1
G2
D1
G1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
DDR IV POWER
DDR IV POWER
DDR IV POWER
R428
R428
10K/4
10K/4
C400
C400
0.1u10X/4
0.1u10X/4
15 77
15 77
15 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 16
5
DDR IV GND
D D
C C
DIMM1B
DIMM1B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
4
DIMM3B
DIMM3B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
3
DIMM5B
DIMM5B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
2
DIMM7B
DIMM7B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
1
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
DIMM2BDIMM2B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
B B
A A
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
5
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
DIMM4BDIMM4B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
DDRIV-288P_BLACK-RH-33
DDRIV-288P_BLACK-RH-33
4
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
3
DIMM6BDIMM6B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
2
DIMM8BDIMM8B
2
VSS-93
4
VSS-92
6
VSS-91
9
VSS-90
11
VSS-89
13
VSS-88
15
VSS-87
17
VSS-86
20
VSS-85
22
VSS-84
24
VSS-83
26
VSS-82
28
VSS-81
31
VSS-80
33
VSS-79
35
VSS-78
37
VSS-77
39
VSS-76
42
VSS-75
44
VSS-74
46
VSS-73
48
VSS-72
50
VSS-71
53
VSS-70
55
VSS-69
57
VSS-68
94
VSS-67
96
VSS-66
98
VSS-65
101
VSS-64
103
VSS-63
105
VSS-62
107
VSS-61
109
VSS-60
112
VSS-59
114
VSS-58
116
VSS-57
118
VSS-56
120
VSS-55
123
VSS-54
125
VSS-53
127
VSS-52
129
VSS-51
131
VSS-50
134
VSS-49
136
VSS-48
138
VSS-47
DDRIV-288P_BLACK-RH-32
DDRIV-288P_BLACK-RH-32
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
VSS-46
VSS-45
VSS-44
VSS-43
VSS-42
VSS-41
VSS-40
VSS-39
VSS-38
VSS-37
VSS-36
VSS-35
VSS-34
VSS-33
VSS-32
VSS-31
VSS-30
VSS-29
VSS-28
VSS-27
VSS-26
VSS-25
VSS-24
VSS-23
VSS-22
VSS-21
VSS-20
VSS-19
VSS-18
VSS-17
VSS-16
VSS-15
VSS-14
VSS-13
VSS-12
VSS-11
VSS-10
VSS-9
VSS-8
VSS-7
VSS-6
VSS-5
VSS-4
VSS-3
VSS-2
VSS-1
VSS-0
MS-7A21
MS-7A21
MS-7A21
DDR IV GND
DDR IV GND
DDR IV GND
147
149
151
154
156
158
160
162
165
167
169
171
173
176
178
180
182
184
187
189
191
193
195
198
200
202
239
241
243
246
248
250
252
254
257
259
261
263
265
268
270
272
274
276
279
281
283
1
16 77
16 77
16 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 17
5
PCH-LPC/HDA/RTC/MISC/SPI
2
4
6
8
2
4
6
8
AZ_SDOUT_R
AZ_SYNC_R
AZ_RST#_R
AZ_BITCLK_R
3VSB
VCC3
8P4R-10KR0402
8P4R-10KR0402
AZ_SDOUT(38)
AZ_SYNC(38)
AZ_RST#(38)
AZ_BITCLK(38)
D D
AZ_BITCLK
PCH_SMBALERT#
PCH_SML1ALERT#
PCH_SML1CLK
PCH_SML1DATA
PCH_SML0ALERT#
SMLINK0_CLK
SMLINK0_DATA
data:499ohm
C744 X_10P50N/4C744 X_10P50N/4
1
3
5
7
RN17 33R/8P4RRN17 33R/8P4R
AZ_SDOUT_R (22)
R833 10K/4R833 10K/4
R892 10K/4R892 10K/4
R781 10K/4R781 10K/4
R777 10K/4R777 10K/4
R797 10K/4R797 10K/4
R782 499R1%/4R782 499R1%/4 R699 10K/4R699 10K/4
R772 499R1%/4R772 499R1%/4
AZ_BITCLK
CRB:8.2K
RN14
SMB_CLK_MEXP2_S
SMB_CLK_MEXP0_S
SMB_CLK_MEXP1_S
SMB_DATA_MEXP2_S
SMB_DATA_MEXP0_S
SMB_DATA_MEXP1_S
PCH_GP23_DVGA
C C
SMB_DATA_MEXP1_S
LT DEBUG MODE ENABLE
HIGH: NORMAL MODE (DEFAULT)
LOW : LT DEBUG MODE
SMB_DATA_MEXP0_S
RN14
1
3
5
7
R734 10K/4R734 10K/4
R826 10K/4R826 10K/4
R735 X_10K/4R735 X_10K/4
R740 X_10K/4R740 X_10K/4
LPC_AD3(31,69)
LPC_AD2(31,69)
LPC_AD1(31,69)
LPC_AD0(31,69)
PCH_GP23_DVGA(72)
LPC_DRQ#0(31)
LPC_FRAME#(31,69)
AZ_SDIN0(38)
DSWODVREN(22)
INTVRMEN(22)
SMBCLK_VSB(26,45,47,54,55)
SMBDATA_VSB(26,45,47,54,55)
SMLINK0_CLK(40)
SMLINK0_DATA(40)
ADR TIMER HOLD OFF (DEFENSIVE)
NOTE: EXT PU ON SMB
HIGH: NORMAL MODE (DEFAULT)
LOW : ADR TIMER HOLD OFF
Chassis Intrusion
VBAT_WELL
R929
R929
1M/4
JCI1
JCI1
B B
H1X2M_BLACK-RH
H1X2M_BLACK-RH
1M/4
INTRUDER#
2
1
PCH_SPI_CLK(37,45)
PCH_SPI_CS#(37,45)
PCH_SPI_MOSI(37,45)
PCH_SPI_MISO(37,45)
PCH_SPI_IO2(37)
PCH_SPI_IO3(37)
RTC Block
Close to PCH
C736 C12p50N6C736 C12p50N6
Y3
Y3
32.768KHZ12.5p
32.768KHZ12.5p
C737 C12p50N6C737 C12p50N6
VBAT_WELL
R1354
R1354
A A
20K1%/4
20K1%/4
VBAT_WELL
R876
R876
20K1%/4
20K1%/4
12
SRTCRST#
C721
C721
1u16X/6
1u16X/6
RTCRST#
C738
C738
1u16X/6
1u16X/6
RTCX1
R859
R859
10MR/6
10MR/6
RTCX2
VRM_PGD(24,59)
VRM_PGD
PCH_PWROK_R
Trace length of APWROK must be less than PCH_PWROK
PCH_PWROK_R
5
4
AZ_SDIN0
AZ_SDOUT_R
AZ_BITCLK_R
AZ_RST#_R
AZ_SYNC_R
RTCX1
RTCX2
INTRUDER#
DSWODVREN
INTVRMEN
PCH_SMBALERT#
SMBCLK_VSB
SMBDATA_VSB
PCH_SML1ALERT#
PCH_SML1CLK
PCH_SML1DATA
PCH_SML0ALERT#
SMLINK0_CLK
SMLINK0_DATA
SMB_CLK_MEXP0_S
SMB_CLK_MEXP1_S
SMB_CLK_MEXP2_S
SMB_DATA_MEXP0_S
SMB_DATA_MEXP1_S
SMB_DATA_MEXP2_S
TP123TP123
TP23TP23
TP125TP125
TP22TP22
PCH_SPI_CLK
PCH_SPI_CS#
PCH_SPI_MOSI
PCH_SPI_MISO
PCH_SPI_IO2
PCH_SPI_IO3
R869 X_0R/4R869 X_0R/4
R861 0R/4R861 0R/4
R878 X_0R/4R878 X_0R/4
R857 0R/4R857 0R/4
R879 0R/4R879 0R/4
4
PCH1D
PCH1D
AA36
LAD3
AC47
LAD2
AA38
LAD1
AA40
LAD0
AA35
GPIO23/LDRQ1_N
AD46
LDRQ0_N
AA41
LFRAME_N
AN47
HDA_SDI3
AN49
HDA_SDI2
AL47
HDA_SDI1
AJ47
HDA_SDI0
AR47
HDA_SDO
AK48
HDA_BCLK
AM46
HDA_RST_N
AP48
HDA_SYNC
T46
RTCX1
R47
RTCX2
N44
INTRUDER_N
N40
DSWVRMEN
N47
INTVRMEN
F39
SMBALERT_N/GPIO11
L39
SMBCLK
B40
SMBDATA
L44
SML1ALERT_N/PCHHOT_N/GPIO74/MGPIO8
L38
SML1CLK/GPIO58/MGPIO11
N36
SML1DATA/GPIO75/MGPIO12
D42
SML0ALERT_N/GPIO60/MGPIO4
J38
SML0CLK
F38
SML0DATA
BF32
MEXP_SMBCLK0
BH32
MEXP_SMBCLK1
BH30
MEXP_SMBCLK2
BJ33
MEXP_SMBDATA0
BF30
MEXP_SMBDATA1
BJ37
MEXP_SMBDATA2
F32
JTAG_TDI
C33
JTAG_TDO
G34
JTAG_TCK
B32
JTAG_TMS
C31
SPI_CLK
N21
SPI_CS2_N
L23
SPI_CS1_N
G23
SPI_CS0_N
B30
SPI_MOSI
N23
SPI_MISO
L27
SPI_IO2
C29
SPI_IO3
Wellsburg
Wellsburg
SYS_PWROK
PCH_PWROK_R
R880
R880
X_10K/4
X_10K/4
PCH_PWROK
APWROK
PCH_PWROK_R (31,59)
WDT# (31,69)
R858
R858
X_10K/4
X_10K/4
LPC
LPC
HDA
HDA
RTC
RTC
SPI
SPI
3
C43
SST
RCIN_N
SERIRQ
THRMTRIP_N
PECI
PM_SYNC
PM_SYNC2
SLP_A_N
SUSCLK/GPIO62
SUSWARN_N/GPIO30/MGPIO1
power management
power management
The negative min timing implies that
DRAMPWROK must either fall before SLP_S4# or within 100 ns
after it.
SUSACK_N
SLP_SUS_N
SLP_S3_N
SLP_S4_N
SLP_S5_N_GPIO63
SLP_LAN_N
APWROK
DPWROK
PCH_PWROK
PROCPWRGD
SYS_PWROK
DRAMPWROK
RTCRST_N
SRTCRST_N
RSMRST_N
PLTRST_N
PLTRST_PROC_N
SYS_RESET_N
PWRBTN_N
RI_N
PME_N
WAKE_N
TD_IREF
SPKR
CGC_DUT_DETECT_N
SUS_CLK_WIFI(52)
SUS_CLK_M2(49)
KBRST#
C25
SERIRQ
L21
PCH_THERMTRIP_N
A13
PM_PCH_PECI
A21
PM_PCH_SYNC0
J18
PM_PCH_SYNC2
BJ27
PM_SLP_A_N
E48
SUS_CLK
J32
PM_SUS_WARN_N
F43
PM_SUSACK_N
A41
PM_SLP_SUS_N
H46
SLP_S3#
B46
SLP_S4#
J49
SLP_S5#
D38
SLP_LAN#
J47
APWROK
G29
PM_DPWROK
N41
PCH_PWROK
M48
CPU_PWRGD
F6
SYS_PWROK
D30
PCH_MEM_PWRGD
B45
RTCRST#
P48
SRTCRST#
M46
RSMRST#
T44
PLTRST#
G38
CPU_RESET
A17
FP_RST#
D26
PWRBTN#
N43
PM_RI_N
J39
PM_PME_N
C35
PCH_WAKE#
F44
TD_IREF
BC6
SPKR
C27
PCH_DUT_DETECT
D48
3VSB 3VSB
R1343 39R/1%R1343 39R/1%
R1344 39R/1%R1344 39R/1%
R1318 0R/4R1318 0R/4
R1332 X_0R/4R1332 X_0R/4
R768 0R/4R768 0R/4
R1323 8.2K1%/4R1323 8.2K1%/4
R811 10K/4R811 10K/4
U120
U120
1
VDD
2
Q0
Q13Q2
4
GND
ICS553MILF_SOIC8-RH
ICS553MILF_SOIC8-RH
ICLK
OE
Q3
colse to PIN1,PIN8
+12V3VSB
R839
C740
C740
X_100p50N/4
X_100p50N/4
R839
X_10K/4
X_10K/4
D
PCH_PWROK_R
3
D
G
G
S
S
B
Q90
Q90
X_2N7002
X_2N7002
R825
R825
CE
Q86
Q86
X_2N3904
X_2N3904
X_47K/4
X_47K/4
SMB_EN
2
KBRST# (31)
SERIRQ (31,69)
CPU_THERMTRIP_N (3)
H_PECI (3,31)
PM_PCH_SYNC0 (3)
SUS_CLK (22)
PM_SLP_SUS_N (31)
SLP_S3# (31,45,56,58,66,67)
SLP_S4# (31,45,56,58,63,64,65)
SLP_S5# (71)
SLP_LAN# (40)
PM_DPWROK (31)
PCH_PWROK (37,45)
CPU_PWRGD (3)
SYS_PWROK (31)
PCH_MEM_PWRGD (3)
RTCRST# (22)
RSMRST# (31)
PLTRST# (24,31)
CPU_RESET (3)
FP_RST# (69)
PWRBTN# (31)
PCH_WAKE# (26,27,28,29,30,41,42,44,49,52)
SPKR (22,69)
SUS_CLK
2
3VSB
C1144
C1144
0.01u16X/4
0.01u16X/4
R1342 10K/4R1342 10K/4
8
7
6
5
1
+VCCIO_IN
PM_PCH_SYNC2
KBRST#
SERIRQ
PM_SLP_A_N
SLP_S3#
SLP_S4#
PM_DPWROK
PM_SUS_WARN_N
PM_SUSACK_N
RSMRST#
CHECK LIST
FP_RST#
PWRBTN#
PM_RI_N
PM_PME_N
PCH_WAKE#
SLP_LAN#
R726 X_10K/4R726 X_10K/4
R729 X_10K/4R729 X_10K/4
R720 10K/4R720 10K/4
R809 X_22K/4R809 X_22K/4
R831 X_22K/4R831 X_22K/4
R807 X_22K/4R807 X_22K/4
R874 2.2K1%/4R874 2.2K1%/4
R873 100K/4R873 100K/4
R765 X_10K/4R765 X_10K/4
R769 X_10K/4R769 X_10K/4R741 10K/4R741 10K/4
R886 4.7K/4R886 4.7K/4
R727 2.2K/4R727 2.2K/4
R891 X_22K/4R891 X_22K/4
R812 10K/4R812 10K/4
R752 10K/4R752 10K/4
R828 1K/4R828 1K/4
R806 X_10K/4R806 X_10K/4
VCC3
CHECK LIST
G2
D1
G1
Q87
Q87
S1
SMBDATA_VCC
MS-7A21
MS-7A21
MS-7A21
R815 0R/4R815 0R/4
R803 0R/4R803 0R/4
SMBCLK_VSB
D2
SMBCLK_VCC
S2
X_NN-2N7002DW
X_NN-2N7002DW
R836 2.2K/4R836 2.2K/4
R796 2.2K/4R796 2.2K/4
R800 X_2.2K/4R800 X_2.2K/4
R791 X_2.2K/4R791 X_2.2K/4
1
SMBCLK_VCC(10,23,24,50,58,59,64,65,66,68,70)
SMBDATA_VCC(10,23,24,50,58,59,64,65,66,68,70)
SMB_EN
SMBDATA_VSB
SMB_EN
SMBCLK_VCC
SMBDATA_VCC
SMBCLK_VSB
SMBDATA_VSB
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
PCH-LPC/HDA/RTC/MISC/SPI
PCH-LPC/HDA/RTC/MISC/SPI
PCH-LPC/HDA/RTC/MISC/SPI
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
3VA
3VA
3VSB
3VSB
3VSB
VCC3
3VA
3VSB
3VA
3VSB3VSB
SMBCLK_VSB
SMBDATA_VSB
17 77
17 77
17 77
Sheet of
Sheet of
Sheet of
VCC3
3VSB
10
10
10
Page 18
PCH-DMI/PCIE/USB/SATA
PCH_RCOMP_VCC
D D
PE8_SLOT5_RX(29)
PE8_SLOT5_RX#(29)
PE7_WIFI_BT_RX(52)
PE7_WIFI_BT_RX#(52)
PE6_ASM_USB_RX(41)
PE6_ASM_USB_RX#(41)
PE5_ASM_USB_RX(41)
PE5_ASM_USB_RX#(41)
VIA_USB_RX(44)
VIA_USB_RX#(44)
PE3_PHY_RX#(40)
MB_USB30_RX5+(53)
MB_USB30_RX5-(53)
MB_USB30_RX4+(53)
PCH_RCOMP_VCC
C C
B B
A A
MB_USB30_RX4-(53)
MB_USB30_RX2+(55)
MB_USB30_RX2-(55)
MB_USB30_RX1+(57)
MB_USB30_RX1-(57)
MB_USB30_RX0+(57)
MB_USB30_RX0-(57)
3VSB
5
PCH1B
DMI_TX3(4)
DMI_TX3#(4)
DMI_TX2(4)
DMI_TX2#(4)
DMI_TX1(4)
DMI_TX1#(4)
DMI_TX0(4)
DMI_TX0#(4)
SIO_PME_N(31)
USB3_SMI1(44) OC_RETRY(71)
OC#4(54,56)
OC#3(45,56)
OC#2(57)
OC#1(53)
OC#0(46,55)
DMI_TX3
DMI_TX3#
DMI_TX2
DMI_TX2#
DMI_TX1
DMI_TX1#
DMI_TX0
DMI_TX0#
R667 7.5K1%/4R667 7.5K1%/4
R666 0R/4R666 0R/4
R1321 7.5K1%/4R1321 7.5K1%/4
MB_USB30_RX2+
MB_USB30_RX2-
MB_USB30_RX1+
MB_USB30_RX1-
MB_USB30_RX0+
MB_USB30_RX0-
0A to 10
OC#6
USB3_SMI1
OC#4
OC#3
OC#2
OC#1
OC#0
R802 22.6R1%4R802 22.6R1%4
R1349 10K/4R1349 10K/4
R1346 10K/4R1346 10K/4
R810 10K/4R810 10K/4
R1345 10K/4R1345 10K/4
R757 X_10K/4R757 X_10K/4
R758 10K/4R758 10K/4
R832 10K/4R832 10K/4
PCH_RCOMP_VCC
DMI_RCOMP
DMI_IREF1P5
PCIE_RCOMP
PCIE_IREF1P5
USB_COMP
SIO_PME_N
OC#6
USB3_SMI1
OC#4
OC#3
OC#2
OC#1
OC#0
L6
J6
N6
N7
T9
T7
T14
T12
T15
V15
AU12
AU10
AU7
AU6
AP7
AP9
AP12
AP14
AM6
AM7
AM10
AM12
AG15
AG14
AG7
AG6
AG12
AC1
AC9
AC7
AC12
AC14
AA15
AA14
AA6
AA7
J44
L43
G43
G44
B42
A37
B38
J43
AP41
AP40
0A to 10
C1101 0.1u16X/4C1101 0.1u16X/4
C1099 0.1u16X/4C1099 0.1u16X/4
C1098 0.1u16X/4C1098 0.1u16X/4
C1131 0.1u16X/4C1131 0.1u16X/4
PCH1B
DMI_RXP3
DMI_RXN3
DMI_RXP2
DMI_RXN2
DMI_RXP1
DMI_RXN1
DMI_RXP0
DMI_RXN0
DMI_RCOMP
DMI_IREF
PERP_8
PERN_8
PERP_7
PERN_7
PERP_6
PERN_6
PERP_5
PERN_5
PERP_4
PERN_4
PERP_3
PERN_3
PERP_2/USB3RP_4
PERN_2/USB3RN_4
PERP_1/USB3RP_3
PERN_1/USB3RN_3
PCIE_RCOMP
PCIE_IREF
USB3RP6
USB3RN6
USB3RP5
USB3RN5
USB3RP2
USB3RN2
USB3RP1
USB3RN1
OC7_N/GPIO14
OC6_N/GPIO10
OC5_N/GPIO9
OC4_N/GPIO43
OC3_N/GPIO42
OC2_N/GPIO41
OC1_N/GPIO40
OC0_N/GPIO59
USBRBIAS
USBRBIAS_N
Wellsburg
Wellsburg
DMI
DMI
PCIE
PCIE
USB
USB
4
DMI_TXP3
DMI_TXN3
DMI_TXP2
DMI_TXN2
DMI_TXP1
DMI_TXN1
DMI_TXP0
DMI_TXN0
PETP_8
PETN_8
PETP_7
PETN_7
PETP_6
PETN_6
PETP_5
PETN_5
PETP_4
PETN_4
PETP_3
PETN_3
PETP_2/USB3TP_4
PETN_2/USB3TN_4
PETP_1/USB3TP_3
PETN_1/USB3TN_3
USB3TP6
USB3TN6
USB3TP5
USB3TN5
USB3TP2
USB3TN2
USB3TP1
USB3TN1
USB2P13
USB2N13
USB2P12
USB2N12
USB2P11
USB2N11
USB2P10
USB2N10
USB2P9
USB2N9
USB2P8
USB2N8
USB2P7
USB2N7
USB2P6
USB2N6
USB2P5
USB2N5
USB2P4
USB2N4
USB2P3
USB2N3
USB2P2
USB2N2
USB2P1
USB2N1
USB2P0
USB2N0
F4
E2
H4
H2
K4
K2
M4
M2
AV4
AV2
AT2
AT4
AP2
AP4
AM2
AM4
AK2
AK4
AH2
AH4
AF2
AF4
AD4
AD2
AB4
AB2
Y4
Y2
V4
V2
T4
T2
AC38
AC36
AC43
AC44
AC41
AC40
AG35
AG36
AG41
AG40
AG44
AG43
AM43
AM44
AJ43
AJ44
AJ41
AJ40
AM40
AM41
AP43
AP44
AJ35
AJ36
AY46
AY48
AV46
AV48
DMI_RX3
DMI_RX3#
DMI_RX2
DMI_RX2#
DMI_RX1
DMI_RX1#
DMI_RX0
DMI_RX0#
MB_USB30_TX2+
MB_USB30_TX2MB_USB30_TX1+
MB_USB30_TX1MB_USB30_TX0+
MB_USB30_TX0-
MB_USB_13D+
MB_USB_13DMB_USB_12D+
MB_USB_11D+
MB_USB_11DMB_USB_10D+
MB_USB_10DMB_USB_9D+
MB_USB_9DMB_USB_8D+
MB_USB_8DMB_USB_7D+
MB_USB_7DMB_USB_6D+
MB_USB_6D-
MB_USB_4D+
MB_USB_4DMB_USB_3D+
MB_USB_3DMB_USB_2D+
MB_USB_2DMB_USB_1D+
MB_USB_1DMB_USB_0D+
MB_USB_0D-
PCH_M.2_DET(48,49)
DMI_RX3 (4)
DMI_RX3# (4)
DMI_RX2 (4)
DMI_RX2# (4)
DMI_RX1 (4)
DMI_RX1# (4)
DMI_RX0 (4)
DMI_RX0# (4)
PE8_SLOT5_TX (29)
PE8_SLOT5_TX# (29)
PE7_WIFI_BT_TX (52)
PE7_WIFI_BT_TX# (52)
PE6_ASM_USB_TX (41)
PE6_ASM_USB_TX# (41)
PE5_ASM_USB_TX (41)
PE5_ASM_USB_TX# (41)
VIA_USB_TX (44)
VIA_USB_TX# (44)
PE3_PHY_TX (40)PE3_PHY_RX(40)
PE3_PHY_TX# (40)
MB_USB30_TX5+ (53)
MB_USB30_TX5- (53)
MB_USB30_TX4+ (53)
MB_USB30_TX4- (53)
MB_USB30_TX2+ (55)
MB_USB30_TX2- (55)
MB_USB30_TX1+ (57)
MB_USB30_TX1- (57)
MB_USB30_TX0+ (57)
MB_USB30_TX0- (57)
MB_USB_13D+ (45)
MB_USB_13D- (45)
MB_USB_12D+ (52)
MB_USB_12D- (52)
MB_USB_11D+ (56)
MB_USB_11D- (56)
MB_USB_10D+ (56)
MB_USB_10D- (56)
MB_USB_9D+ (56)
MB_USB_9D- (56)
MB_USB_8D+ (56)
MB_USB_8D- (56)
MB_USB_7D+ (56)
MB_USB_7D- (56)
MB_USB_6D+ (56)
MB_USB_6D- (56)
MB_USB_4D+ (55)
MB_USB_4D- (55)
MB_USB_3D+ (53)
MB_USB_3D- (53)
MB_USB_2D+ (53)
MB_USB_2D- (53)
MB_USB_1D+ (57)
MB_USB_1D- (57)
MB_USB_0D+ (57)
MB_USB_0D- (57)
DDR_OC_EN1(10)
DDR_OC_EN2(10)
RING_OC_EN1(10)
RING_OC_EN2(10)
R1358 0R/4R1358 0R/4
R888 0R/4R888 0R/4
R1356 0R/4R1356 0R/4
R1370 0R/4R1370 0R/4
R744 0R/4R744 0R/4
R743 0R/4R743 0R/4
3
Rear LAN
PCH_RCOMP_VCC
FTYPEC
PCH_RCOMP_VCC
Front USB30
JUSB3
USB HOTKEY
Rear BT
Front USB20
JUSB1
Rear PS2
Front USB20
JUSB2
Front USB20
CHARGE FTYPEC
Rear LAN
Front USB20
JUSB3
PCH_GP68
PCH_GP7
PCH_GP6
PCH_GP17
PCH_GP16
PCH_GP49
SATA_RX9(51)
SATA_RX#9(51)
SATA_RX8(51)
SATA_RX#8(51)
SATA_RX7(51)
SATA_RX#7(51)
SATA_RX6(51)
SATA_RX#6(51)
SATA_RX5(48)
SATA_RX#5(48)
SATA_RX4(48)
SATA_RX#4(48)
SATA_RX3(51)
SATA_RX#3(51)
SATA_RX2(51)
SATA_RX#2(51)
SATA_RX1(51)
SATA_RX#1(51)
SATA_RX0(51)
SATA_RX#0(51)
R745 7.5K1%/4R745 7.5K1%/4
R754 0R/4R754 0R/4
R668 7.5K1%/4R668 7.5K1%/4
R673 0R/4R673 0R/4
PCH_GP22_DDRAM(72)
R1316 X_10K/4R1316 X_10K/4
R732 X_10K/4R732 X_10K/4
VCC3
SATA_RX9
SATA_RX#9
SATA_RX8
SATA_RX#8
SATA_RX7
SATA_RX#7
SATA_RX6
SATA_RX#6
SATA_RX5
SATA_RX#5
SATA_RX4
SATA_RX#4
SATA_RX3
SATA_RX#3
SATA_RX2
SATA_RX#2
SATA_RX1
SATA_RX#1
SATA_RX0
SATA_RX#0
SATAS_RCOMP
SATAS_IREF1P5
SATA_RCOMP
SATA_IREF1P5
PCH_GP71MB_USB_12DPCH_GP70
PCH_GP69
PCH_GP68
PCH_GP7
PCH_GP6
OC_RETRY
PCH_GP17
PCH_GP22_DDRAM
PCH_GP38
PCH_1P5
PCH_1P05
PCH_GP17
PCH_GP38
PCH_GP22_DDRAM
PCH_GP68
PCH_GP6
PCH_GP7
OC_RETRY
2
PCH1C
PCH1C
AW39
sSATA_RXP_3
BA39
sSATA_RXN_3
BC43
sSATA_RXP_2
BD43
sSATA_RXN_2
BA44
sSATA_RXP_1
AW44
sSATA_RXN_1
AU43
sSATA_RXP_0
AU44
sSATA_RXN_0
L11
SATA_RXP_5/PERP_2
J11
SATA_RXN_5/PERN_2
G7
SATA_RXP_4/PERP_1
F7
SATA_RXN_4/PERN_1
G18
SATA_RXP_3
F18
SATA_RXN_3
M18
SATA_RXP_2
N18
SATA_RXN_2
L16
SATA_RXP_1
J16
SATA_RXN_1
F12
SATA_RXP_0
G12
SATA_RXN_0
BC32
sSATA_RCOMP
BD32
sSATA_IREF
N10
SATA_RCOMP
L12
SATA_IREF
V43
PWM3
V40
PWM2
V35
PWM1
V38
PWM0
V36
TACH7/GPIO71
V41
TACH6/GPIO70
T43
TACH5/GPIO69
T36
TACH4/GPIO68
T38
TACH3/GPIO7
V44
TACH2/GPIO6
T41
TACH1/GPIO1
T40
TACH0/GPIO17
J12
SCLOCK/GPIO22
G6
SLOAD/GPIO38
Wellsburg
Wellsburg
R665 0R/8R665 0R/8R794 X_10K/4R794 X_10K/4
R664 X_0R/8R664 X_0R/8
SATA
SATA
R872 X_10K/4R872 X_10K/4
RN12
RN12
1
2
3
4
5
6
7
8
8P4R-10KR0402
8P4R-10KR0402
R1357 X_10K/4R1357 X_10K/4
R1355 X_10K/4R1355 X_10K/4
R887 X_10K/4R887 X_10K/4
R805 10K/4R805 10K/4
sSATA_TXP_3
sSATA_TXN_3
sSATA_TXP_2
sSATA_TXN_2
sSATA_TXP_1
sSATA_TXN_1
sSATA_TXP_0
sSATA_TXN_0
SATA_TXP_5/PETP_2
SATA_TXN_5/PETN_2
SATA_TXP_4/PETP_1
SATA_TXN_4/PETN_1
SATA_TXP_3
SATA_TXN_3
SATA_TXP_2
SATA_TXN_2
SATA_TXP_1
SATA_TXN_1
SATA_TXP_0
SATA_TXN_0
SATALED_N
sSATALED_N
sSATA0GP
sSATA1GP
sSATA2GP
sSATA3GP
SATA0GP/GPIO21
SATA1GP/GPIO19
SATA2GP/GPIO36
SATA3GP/GPIO37
SATA4GP/GPIO16/MGPIO9
SATA5GP/GPIO49/MGPIO10
SDATAOUT0/GPIO39
SDATAOUT1/GPIO48
sSDATAOUT0
sSDATAOUT1
sSLOAD
sSCLOCK
PCH_RCOMP_VCC
VCC3
SATA_TX9
BF40
SATA_TX#9
BH40
SATA_TX8
BF42
SATA_TX#8
BH42
SATA_TX7
BD46
SATA_TX#7
BE48
SATA_TX6
BB48
SATA_TX#6
BB46
SATA_TX5
B10
SATA_TX#5
D10
SATA_TX4
D8
SATA_TX#4
B8
SATA_TX3
D18
SATA_TX#3
B18
SATA_TX2
D16
SATA_TX#2
B16
SATA_TX1
B14
SATA_TX#1
D14
SATA_TX0
D12
SATA_TX#0
B12
SATA_LED_N
J7
SATAS_LED_N
BH34
SATA0GP
AW32
SATA1GP
BF36
SATA2GP
BH36
SATA3GP
BF38
PCH_GP21
D4
PCH_GP19
B24
PCH_GP36
B5
PCH_GP37
G11
PCH_GP16
A9
PCH_GP49
B28
PCH_GP39
M21
PCH_GP48
D6
SSDATAOUT0
BH38
SSDATAOUT1
BF34
SSLOAD
BC29
SSCLOCK
BD29
FOR BIOS USED
R889 10K/4R889 10K/4
R885 X_10K/4R885 X_10K/4
R817 X_10K/4R817 X_10K/4
EMI RESERVATION
SATAS_RCOMP
SATA_RCOMP
PCIE_RCOMP
DMI_RCOMP
PCH_GP48
SSDATAOUT0
SSDATAOUT1
SSLOAD
SSCLOCK
PCH_GP21
PCH_GP39
R675 0R/4R675 0R/4R1317 0R/4R1317 0R/4
R746 0R/4R746 0R/4
PCH_GP69
PCH_GP70
PCH_GP71
1
SATA_TX9 (51)
SATA_TX#9 (51)
SATA_TX8 (51)
SATA_TX#8 (51)
SATA_TX7 (51)
SATA_TX#7 (51)
SATA_TX6 (51)
SATA_TX#6 (51)
SATA_TX5 (48)
SATA_TX#5 (48)
SATA_TX4 (48)
SATA_TX#4 (48)
SATA_TX3 (51)
SATA_TX#3 (51)
SATA_TX2 (51)
SATA_TX#2 (51)
SATA_TX1 (51)
SATA_TX#1 (51)
SATA_TX0 (51)
SATA_TX#0 (51)
RN13
RN13
1
2
3
4
5
6
7
8
8P4R-10KR0402
8P4R-10KR0402
PCH_GP21 (3)
PCH_GP19 (22)
PCH_GP36 (22)
PCH_GP37 (22)
R890 X_10K/4R890 X_10K/4
R871 10K/4R871 10K/4
R838 10K/4R838 10K/4
C694 X_0.1u16X/4C694 X_0.1u16X/4
C611 X_0.1u16X/4C611 X_0.1u16X/4
C1100 X_0.1u16X/4C1100 X_0.1u16X/4
C610 X_0.1u16X/4C610 X_0.1u16X/4
R691 2K/4R691 2K/4
R761 2K/4R761 2K/4
R747 2K/4R747 2K/4
R739 10K/4R739 10K/4
R749 10K/4R749 10K/4
R1308 10K/4R1308 10K/4
R1315 2K/4R1315 2K/4
SATAS_LED_N_R (69)
VCC3
VCC3
VCC3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
PCH-DMI/PCIE/USB/SATA
PCH-DMI/PCIE/USB/SATA
PCH-DMI/PCIE/USB/SATA
1
Sheet of
Sheet of
Sheet of
18 77
18 77
18 77
10
10
10
Page 19
5
TPM_CLK(69)
CLK_PCI1_LOOPBACK(73)
D D
Programmable output clock
to 33/48MHZ
CK_14P8M_PCH (73)
R705
R705
XTAL25_PCH_IN
XTAL25_PCH_OUT
C C
C64827P50N/4 C64827P50N/4
25MHZ20p_S-RH-2
25MHZ20p_S-RH-2
C64027P50N/4 C64027P50N/4
12
Y2
Y2
1M/1%6
1M/1%6
CK_P_33M_SIO(31)
CRYSTAL:25MHZ
PIRQD#
PIRQC#
PCH_BLK+
PCH_RATIO-
PIRQA#
PIRQB#
PCH_RATIO+
PCH_BLK-
B B
3VSB
R755
R755
X_10K/4
X_10K/4
R792 0R/4R792 0R/4
CPU_OVERCLOCK_L
A A
PCH_OVERCLOCK_STRAP_N
3VSB
R787
R787
1K/4
1K/4
R788 10K/4R788 10K/4
5
OVERCLOCK_STRAP
B
Q84
Q84
2N3904
2N3904
CE
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
CK_48M_SIO(31)
VCC3
RN15
RN15
8.2K/4/8P4R
8.2K/4/8P4R
RN16
RN16
8.2K/4/8P4R
8.2K/4/8P4R
CPU_OVERCLOCK (3)
4
TPM_CLK
CLK_PCI1_LOOPBACK
CK_48M_SIO
PCH_RCOMP_VCC
PCH_RCOMP_VCC
4
TP130TP130
VCC3
CRB:0R
R722 22R/4R722 22R/4
R706 0R/4R706 0R/4
R709 22R/4R709 22R/4
R742 22R/4R742 22R/4
R689 10K/4R689 10K/4
R688 10K/4R688 10K/4
R707 10K/4R707 10K/4
R702 10K/4R702 10K/4
R760 10K/4R760 10K/4
R766 10K/4R766 10K/4
R793 10K/4R793 10K/4
R786 10K/4R786 10K/4
R1322 10K/4R1322 10K/4
R1320 10K/4R1320 10K/4
R730 10K/4R730 10K/4
R1325 7.5K1%/4R1325 7.5K1%/4
R1324 0R/4R1324 0R/4
PCH_BLK-(71)
PCH_BLK+(71)
PCH_RATIO-(71)
PCH_RATIO+(71)
R728 10K/4R728 10K/4
R824 X_1K/4R824 X_1K/4
CK_33M_PCI2
CK_33M_PCI1
CK_33M_PCI0CK_P_33M_SIO
CK_48M_FLEX3
CPU_100M_P
CPU_100M_N
CLK100M_SATA_P
CLK100M_SATA_N
CLK100M_SATAX_P
CLK100M_SATAX_N
CLK96M_DOT_P
CLK96M_DOT_N
CLK100M_DMI_P
CLK100M_DMI_N
XTAL25_PCH_IN
XTAL25_PCH_OUT
CK_14P8M_PCH
XCLK_BIASREF
ICLK_IREF1P5
CLK_PCI1_LOOPBACK
PIRQA#
PIRQB#
PIRQC#
PIRQD#
PCH_BLKPCH_BLK+
PCH_RATIOPCH_RATIO+
TP118TP118
TP119TP119
RSVD_PCH_B26
TP127TP127
TP124TP124
DBG_PGDMON
PCH1E
PCH1E
BF24
CLKOUT_PCI4
BH24
CLKOUT_PCI3
BF22
CLKOUT_PCI2
BJ21
CLKOUT_PCI1
BH22
CLKOUT_PCI0
BC23
CLKOUTFLEX3/GPIO67
BJ17
CLKOUTFLEX2/GPIO66
BD23
CLKOUTFLEX1/GPIO65
AW23
CLKOUTFLEX0/GPIO64
P4
CLKIN_CPY_P
P2
CLKIN_CPY_N
B20
CLKIN_SATA_P
D20
CLKIN_SATA_N
BD38
CLKIN_SSATA_P
BC38
CLKIN_SSATA_N
AM36
CLKIN_DOT96_P
AM35
CLKIN_DOT96_N
V10
RESERVED6
V12
RESERVED7
BA12
XTAL25_IN
AW12
XTAL25_OUT
BA23
REFCLK14IN
BA11
DIFFCLK_BIASREF
AW11
ICLK_IREF
AE47
CLKIN_PCILOOPBACK
Wellsburg
Wellsburg
PCH1A
PCH1A
AA47
PIRQA_N
AA49
PIRQB_N
AE49
PIRQC_N
AF48
PIRQD_N
Y48
PIRQE_N/GPIO2
AD48
PIRQF_N/GPIO3
AB48
PIRQG_N/GPIO4
Y46
PIRQH_N/GPIO5
BA6
RESERVED0
AW6
RESERVED1
B26
RESERVED2
D46
RESERVED3
F34
RESERVED8
B4
NC_DUT_DETECT_1
BF2
NC_DUT_DETECT_2
BH46
NC_DUT_DETECT_3
A33
NCTF_TP17
N49
NCTF_TP16
BJ45
NCTF_TP15
BH45
NCTF_TP14
BC34
NCTF_TP13
BA34
NCTF_TP12
N15
NCTF_TP11
N14
NCTF_TP10
BC7
NCTF_TP9
BD7
NCTF_TP8
AW7
NCTF_TP7
BA7
NCTF_TP6
AG9
NCTF_TP5
AG10
NCTF_TP4
V7
NCTF_TP3
V6
NCTF_TP2
AH46
NCTF_TP1
Wellsburg
Wellsburg
3
3
CLKOUT_ITPXDP_P
CLKOUT_ITPXDP_N
CLKOUT_DMI_P1
CLKOUT_DMI_N1
CLKOUT_DMI_P0
CLKOUT_DMI_N0
CLKOUT_GPB_PCIE_P2
CLKOUT_GPB_PCIE_N2
CLKOUT_GPB_PCIE_P1
CLKOUT_GPB_PCIE_N1
CLKOUT_GPB_PCIE_P0
CLKOUT_GPB_PCIE_N0
CLKOUT_PCIE_P7
CLKOUT_PCIE_N7
CLKOUT_PCIE_P6
CLKOUT_PCIE_N6
CLKOUT_PCIE_P5
CLKOUT_PCIE_N5
CLKOUT_PCIE_P4
CLKOUT_PCIE_N4
CLKOUT_PCIE_P3
CLKOUT_PCIE_N3
CLKOUT_PCIE_P2
CLKOUT_PCIE_N2
CLKOUT_PCIE_P1
CLKOUT_PCIE_N1
CLKOUT_PCIE_P0
CLKOUT_PCIE_N0
F75501 GPIO11 Connection to PCH GPIO4
F75501 GPIO12 Connection to PCH GPIO5
F75501 GPIO13 Connection to PCH GPIO1
MGPIO13
MGPIO14
MGPIO15
MGPIO16
MGPIO17
GPIO73
GPIO72
GPIO61
GPIO57/MGPIO5
GPIO56
GPIO54_GSXSRESET_N
SLP_WLAN_N/GPIO29/MGPIO3
LAN_PHY_PWR_CTRL/GPIO12
GPIO55
GPIO53_GSXDIN
GPIO52_GSXSLOAD
GPIO51_GSXDOUT
GPIO50_GSXCLK
GPIO47
GPIO46
GPIO45
GPIO44
GPIO26
GPIO25
GPIO20/SMI_N
GPIO18
GPIO35/NMI_N
GPIO34
GPIO33
GPIO32
GPIO31/MGPIO2
GPIO28/MGPIO7
GPIO27/MGPIO6
GPIO24/MGPIO0
GPIO15
GPIO13
GPIO8
BMBUSY_N/GPIO0
BD16
BC16
CK_DMI_1P
AY2
CK_DMI_1N
AY4
CK_DMI_0P
BD4
CK_DMI_0N
BE2
BH20
BF20
BA18
BC18
CK_16PORT_A_DP
BH12
CK_16PORT_A_DN
BF12
BD11
BC11
BB4
BB2
BH5
BF6
BH8
BF8
BH14
BF14
BH16
BF16
BH10
BF10
BC21
BD21
BH26
BF28
BH28
BF26
BJ29
PCH_GP73
F29
PCH_GP72
G47
C37
ME_RCVR_N
C39
PCH_GP56
M29
PCH_GP55
J23
PCH_GP54
U49
V48
PCH_GP52
L34
PCH_GP51
L32
PCH_GP50
J34
PCH_GP47
F27
PCH_GP46_DFX
D34
PCH_GP45
G27
PCH_GP44_DFX
G32
PCH_GP26
J29
G39
PCH_GP20_DCPU
M23
G21
F11
PCH_GP34_DEVICE
F21
PCH_GP33
AJ49
J21
PCH_GP31
K48
PCH_GP29
H48
PCH_GP28
M27
LANWAKE_N
L29
B36
USB31_SMI1
B34
LAN_DISABLE#
L47
FUSB31_SMI1
AM48
PCH_OVERCLOCK_STRAP_N
C41
PCH_GPIO0
A25
PCH_OVERCLOCK_STRAP_N
HIGH: DISABLE
LOW : ENABLE
PCH_GPIO0
2
CK_DMI_1P (23)
CK_DMI_1N (23)
CK_DMI_0P (23)
CK_DMI_0N (23)
CK_16PORT_A_DP (24)
CK_16PORT_A_DN (24)
CK_FASM_USB31_DP (42)
CK_FASM_USB31_DN (42)
CK_ASM_USB31_DP (41)
CK_ASM_USB31_DN (41)
CK_WIFI_BT_P (52)
CK_WIFI_BT_N (52)
CK_M.2_DP (49)
CK_M.2_DN (49)
CLK_LAN_DP (40)
CLK_LAN_DN (40)
CK_PE5_DP (29)
CK_PE5_DN (29)
CK_VIA_USB_DP (44)
CK_VIA_USB_DN (44)
R764 X_1K/4R764 X_1K/4
R733 X_1K/4R733 X_1K/4
R776 2.2K/4R776 2.2K/4
R721 10K/4R721 10K/4
2
PCH_GP55 (22)
PCH_GP53 (22)
PCH_GP51 (22)
PCH_GP20_DCPU (72)
PCH_GP34_DEVICE (72)
PCH_GP33 (22)
LANWAKE_N (40)
USB31_SMI1 (41)
LAN_DISABLE# (40)
FUSB31_SMI1 (42)
PCH_GPIO0 (10)
VCC3
1
RN20
R1339 10K/4R1339 10K/4
R731 10K/4R731 10K/4
R725 10K/4R725 10K/4
PCH_GP54
PCH_GP52
PCH_GP50
PCH_GP29
RN20
1
2
3
4
5
6
7
8
8P4R-10KR0402
8P4R-10KR0402
R830 10K/4R830 10K/4
R756 10K/4R756 10K/4
R1337 10K/4R1337 10K/4
R1338 X_10K/4R1338 X_10K/4
R753 10K/4R753 10K/4
R737 X_10K/4R737 X_10K/4
R759 X_10K/4R759 X_10K/4
R851 10K/4R851 10K/4
R1341 10K/4R1341 10K/4
R770 10K/4R770 10K/4
R829 X_10K/4R829 X_10K/4
R808 10K/4R808 10K/4
PCH_GP34_DEVICE
PCH_GP45
PCH_GP47
PCH_GP56
PCH_GP73
LANWAKE_N
PCH_GP72
ME_RCVR_N
PCH_GP26
PCH_GP28
USB31_SMI1
PCH_GP44_DFX
PCH_GP46_DFX
CHECK LIST
PCH_GP31
FUSB31_SMI1
TPM_CLK
CLK_PCI1_LOOPBACK
CK_P_33M_SIO
CK_48M_SIO
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
R875 10K/4R875 10K/4
R822 10K/4R822 10K/4
C682 X_10P50N/4C682 X_10P50N/4
C1147 X_10P50N/4C1147 X_10P50N/4
C686 X_10P50N/4C686 X_10P50N/4
C690 X_10P50N/4C690 X_10P50N/4
MS-7A21
MS-7A21
MS-7A21
PCH-CLK/GPIO
PCH-CLK/GPIO
PCH-CLK/GPIO
1
VCC3
3VSB
3VSB
3VA
3VA
3VSB
VCC3
3VA
3VSB
3VA
3VSB
19 77
19 77
19 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 20
PCH-POWER
5
4
3
2
1
PCH1F
PCH_1P05:5.83A
+1P05V_ME:0.67A
D D
PCH_1P05
VCC3:0.2A
3VSB:0.27A
SPI_VCC3:0.02A
3VA:0.02A
PCH_1P05
+VCCIO_IN:0.004A
C C
C649 1u6.3X/4C649 1u6.3X/4
B B
R704 5.1R1%4R704 5.1R1%4
VCC3
DCPSUSBYP
V1P5_DMI_PLL
V1P5_SATA3X_PLL
V1P5_SATA_PLL
V1P5_USB_PLL
V1P5_XCK_VRM
AA26
AA27
AA29
AC26
AC27
AC29
W29
AG29
AJ29
AA21
AA23
AA24
AC21
AC23
AC24
AF21
AF23
AF24
AF26
AF27
AG21
AG23
AG24
AG26
AG27
AL18
AL19
AL24
AL26
AL27
W21
AC31
AF29
AF31
AG31
AL29
AL31
AL32
AW34
N29
AA9
AP36
AC15
AU15
AU29
AV29
AP27
AP29
AU27
AV27
J27
T27
V26
V27
V29
V31
V32
Y35
T21
T23
V21
V23
N9
PCH1F
VCCASW-1
VCCASW-2
VCCASW-3
VCCASW-4
VCCASW-5
VCCASW-6
VCCASW-7
VCCASW-8
VCCASW-9
VCCASW-10
VCCASW-11
VCCASW-14
VCCASW-12
VCCASW-13
VCCASW-15
VCCAUSBPLL-1
VCCAUSBPLL-2
VCC-1
VCC-2
VCC-3
VCC-4
VCC-5
VCC-6
VCC-8
VCC-9
VCC-10
VCC-11
VCC-12
VCC-15
VCC-16
VCC-17
VCC-18
VCC-19
VCC-21
VCC-22
VCC-23
VCC-24
VCC-25
VCC-30
VCC-31
VCC-32
VCC-33
VCC-34
VCC-7
VCC-13
VCC-14
VCC-20
VCC-26
VCC-27
VCC-28
VCC-29
DCPSUSBYP
VCCVRM-1
VCCVRM-5
VCCVRM-7
VCCVRM-2
VCCVRM-6
VCCCLK3_3-4
VCCCLK3_3-7
VCCCLK3_3-1
VCCCLK3_3-2
VCCCLK3_3-3
VCCCLK3_3-6
Wellsburg
Wellsburg
V_PROC_IO-2
V_PROC_IO-1
VCCCLK-3
VCCCLK-7
VCCCLK-6
VCCCLK-8
VCCCLK-1
VCCCLK-2
VCCCLK-10
VCCCLK-11
VCCCLK-5
VCCCLK-4
VCCCLK-9
DCPSUS-1
DCPSUS-2
VCCIO-1
VCCIO-2
VCCIO-3
VCCIO-4
VCCIO-5
VCCIO-6
VCCIO-7
VCCIO-8
VCCIO-9
VCCIO-10
VCCIO-11
VCCIO-12
VCCSUSHDA
VCC3_3-2
VCC3_3-3
VCC3_3-5
VCC3_3-1
VCC3_3-4
VCCDSW3_3
VCCRTC
VCCSPI
VCCSUS3_3_9
VCCSUS3_3-1
VCCSUS3_3-2
VCCSUS3_3-3
VCCSUS3_3-4
VCCSUS3_3-5
VCCSUS3_3-6
VCCSUS3_3-7
VCCSUS3_3-8
DCPSST
DCPSUS3-1
DCPSUS3-2
VCCCLK3_3-5
VCCCLK3_3-8
VCCVRM-3
VCCVRM-4
VCCST3_3_1
VCCST3_3-2
DCPRTC
L18
AP26
AM23
AP23
AP21
AP24
AL21
AL23
AU21
AU23
AM26
AM24
AU18
T29
AC35
AA12
AA18
AA19
AG18
AG19
AJ18
N12
T18
T19
V18
V19
V9
AG38
J25
T24
V24
AP32
T31
T32
N38
T26
T35
AA31
AA32
AC18
AC19
AC32
AF32
AG32
AJ32
N27
AF18
AF19
AU32
AV32
AP18
AP19
AJ15
AT46
N35
+VCCIO_IN
V_1P05_XCK_R
TP122TP122
TP126TP126
PCH_1P05
DCPSST
C1125 0.1u10X/4C1125 0.1u10X/4
TP120TP120
TP121TP121
DCPRTC
C696 0.1u10X/4C696 0.1u10X/4
PCH_1P05
3VSB
VCC3
3VA
VBAT_WELL
VCC3
3VSB
3VSB
VCC3
PCH_1P5
PCH_VCC3
PCH decoupling cap
PCH_1P05
C1115 1u6.3X/4C1115 1u6.3X/4
C1130 1u6.3X/4C1130 1u6.3X/4
PCH_1P05
C1126 1u6.3X/4C1126 1u6.3X/4
C1118 1u6.3X/4C1118 1u6.3X/4
C1105 1u6.3X/4C1105 1u6.3X/4
C597 22u6.3X/8C597 22u6.3X/8
C1128 1u6.3X/4C1128 1u6.3X/4
C1120 1u6.3X/4C1120 1u6.3X/4
C1132 1u6.3X/4C1132 1u6.3X/4
C697 1u6.3X/4C697 1u6.3X/4
+VCCIO_IN
VCC3
C1135 0.01u16X/4C1135 0.01u16X/4
C1129 1u6.3X/4C1129 1u6.3X/4
C1121 1u6.3X/4C1121 1u6.3X/4
C1112 1u6.3X/4C1112 1u6.3X/4
C1113 1u6.3X/4C1113 1u6.3X/4
C598 10u6.3X/6C598 10u6.3X/6
C637 10u6.3X/6C637 10u6.3X/6
C1110 X_0.1u10X/4C1110 X_0.1u10X/4
C1127 0.01u16X/4C1127 0.01u16X/4
C1138 1u6.3X/4C1138 1u6.3X/4
C1109 X_0.1u10X/4C1109 X_0.1u10X/4
C746 X_0.1u10X/4C746 X_0.1u10X/4
C693 X_0.1u10X/4C693 X_0.1u10X/4
C1124 1u6.3X/4C1124 1u6.3X/4
C1116 1u6.3X/4C1116 1u6.3X/4
C1102 1u6.3X/4C1102 1u6.3X/4
C1119 1u6.3X/4C1119 1u6.3X/4
C1123 1u6.3X/4C1123 1u6.3X/4
C1103 1u6.3X/4C1103 1u6.3X/4
C1107 1u6.3X/4C1107 1u6.3X/4
C1117 1u6.3X/4C1117 1u6.3X/4
PCH_1P5
C1108 X_0.1u10X/4C1108 X_0.1u10X/4
3VSB
C1136 X_0.1u10X/4C1136 X_0.1u10X/4
C1137 X_0.1u10X/4C1137 X_0.1u10X/4
3VA
C1133 X_0.1u10X/4C1133 X_0.1u10X/4
C1134 1u6.3X/4C1134 1u6.3X/4
C1139 X_0.1u10X/4C1139 X_0.1u10X/4
PCH_1P05
R697 10u100mA_0805-RH-2R697 10u100mA_0805-RH-2
PCH_1P5
PCH_1P5
PCH_1P5
PCH_1P5
5
R1311 X_0R/4R1311 X_0R/4
R1310 0R/4R1310 0R/4
R767 X_0R/4R767 X_0R/4
R774 0R/4R774 0R/4
R674 X_0R/4R674 X_0R/4
R669 0R/4R669 0R/4
R1314 X_0R/4R1314 X_0R/4
R1313 0R/4R1313 0R/4
V1P5_DMI_PLL
V1P5_SATA3X_PLL
V1P5_SATA_PLL
V1P5_USB_PLL
PCH_1P05
X_10u6.3X/6
X_10u6.3X/6
R1326 X_0R/8R1326 X_0R/8
10u6.3X/6
10u6.3X/6
4
PCH_1P05
PCH_1P05
PCH_1P05
PCH_1P05
A A
C639
C639
C1104
C1104
PCH_1P5
PCH_1P5
C645
C645
1u6.3X/4
1u6.3X/4
C1106
C1106
1u6.3X/4
1u6.3X/4
R1327 X_0R/4R1327 X_0R/4
R1328 0R/4R1328 0R/4
V1P5_XCK_VRM
V_1P05_XCK_R
C1111
C1111
1u6.3X/4
1u6.3X/4
C1114
C1114
1u6.3X/4
1u6.3X/4
VBAT_WELL
3
VCC3
C1122 1u6.3X/4C1122 1u6.3X/4
C714 X_0.1u10X/4C714 X_0.1u10X/4
C712 1u6.3X/4C712 1u6.3X/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
MS-7A21
PCH-POWER
PCH-POWER
PCH-POWER
1
20 77
20 77
20 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 21
5
4
3
2
1
PCH-GND
PCH1G
AA10
AA43
AA44
AB46
AC10
AC49
AD18
AD19
AD21
AD23
AD24
AD26
AD27
AD29
AD31
AD32
AE12
AE15
AE35
AE38
AE41
AE44
AF46
AG47
AG49
AH48
AJ10
AJ12
AJ14
AJ19
AJ21
AJ23
AJ24
AJ26
AU47
BE49
BF49
AA1
AA3
AC3
AC6
AE1
AE3
AE6
AE9
AG1
AG3
M20
M25
M30
M32
N32
R49
BC1
BE1
BF1
BH1
AJ1
L49
P12
P15
P35
P38
P41
P44
P46
T10
A45
A46
A48
B48
B49
L3
L7
N1
N3
P6
P9
R1
R3
A4
A5
A7
B2
PCH1G
VSS-1
VSS-2
VSS-3
VSS-4
VSS-5
VSS-6
VSS-7
VSS-8
VSS-9
VSS-10
VSS-11
VSS-12
VSS-13
VSS-14
VSS-15
VSS-16
VSS-17
VSS-18
VSS-19
VSS-20
VSS-21
VSS-22
VSS-23
VSS-24
VSS-25
VSS-26
VSS-27
VSS-28
VSS-29
VSS-30
VSS-31
VSS-32
VSS-33
VSS-34
VSS-35
VSS-36
VSS-37
VSS-38
VSS-39
VSS-40
VSS-41
VSS-42
VSS-43
VSS-44
VSS-45
VSS-46
VSS-47
VSS-48
VSS-49
VSS-50
VSS-51
VSS-52
VSS-53
VSS-54
VSS-55
VSS-56
VSS-57
VSS-58
VSS-59
VSS-60
VSS-61
VSS-62
VSS-63
VSS-64
VSS-65
VSS-66
VSS-67
VSS-68
VSS-69
VSS-70
VSS-71
VSS-72
VSS-73
VSS-74
VSS-75
VSS-76
VSS-77
VSS-78
VSS-79
VSS-80
VSS-81
VSS-82
VSS-83
VSS-84
Wellsburg
Wellsburg
VSS-85
VSS-86
VSS-87
VSS-88
VSS-89
VSS-90
VSS-91
VSS-92
VSS-93
VSS-94
VSS-95
VSS-96
VSS-97
VSS-98
VSS-99
VSS-100
VSS-101
VSS-102
VSS-103
VSS-104
VSS-105
VSS-106
VSS-107
VSS-108
VSS-109
VSS-110
VSS-111
VSS-112
VSS-113
VSS-114
VSS-115
VSS-116
VSS-117
VSS-118
VSS-119
VSS-120
VSS-121
VSS-122
VSS-123
VSS-124
VSS-125
VSS-126
VSS-127
VSS-128
VSS-129
VSS-130
VSS-131
VSS-132
VSS-133
VSS-134
VSS-135
VSS-136
VSS-137
VSS-138
VSS-139
VSS-140
VSS-141
VSS-142
VSS-143
VSS-144
VSS-145
VSS-146
VSS-147
VSS-148
VSS-149
VSS-150
VSS-151
VSS-152
VSS-153
VSS-154
VSS-155
VSS-156
VSS-157
VSS-158
VSS-159
VSS-160
VSS-161
VSS-162
VSS-163
VSS-164
VSS-165
VSS-166
VSS-167
VSS-168
A11
A15
A19
A23
A27
A29
A31
A35
A39
A43
C21
C23
C7
C9
D22
D24
D28
D32
D36
D40
D44
F14
F16
F20
F23
F25
F30
F36
F41
F46
F9
G16
G3
G49
J1
J14
J20
J3
J30
J36
J41
J9
K46
L1
Y12
Y15
Y38
Y41
Y44
Y6
Y9
U1
U3
U47
V14
V46
W1
W18
W19
W23
W24
W26
W27
W3
W31
W32
W47
W49
T48
T6
G1
BH2
BH48
BH49
BJ2
BJ4
BJ46
BJ48
BJ5
D1
D2
D49
E1
E49
AT41
AT44
AT48
AU14
AU35
AU36
AU38
AU40
AU41
AU49
AV18
AV20
AV21
AV23
AV25
AV30
AW1
AW16
AW18
AW21
AW27
AW29
AW3
AW38
AW43
AW47
AW49
BA14
BA16
BA20
BA21
BA25
BA27
BA29
BA30
BA32
BA36
BA38
BA41
BA43
BA47
BA49
BC12
BC27
AJ31
AJ38
AK12
AK15
AK35
AK38
AK41
AK44
AK46
AL49
AM14
AM15
AM18
AM19
AM21
AM27
AM29
AM31
AM32
AT6
AT9
AU1
AU3
AU9
B22
BA1
BA3
BA9
BC3
AJ3
AJ6
AJ7
AJ9
AK6
AK9
AL1
AL3
PCH1H
PCH1H
VSS-169
VSS-170
VSS-171
VSS-172
VSS-173
VSS-174
VSS-175
VSS-176
VSS-177
VSS-178
VSS-179
VSS-180
VSS-181
VSS-182
VSS-183
VSS-184
VSS-185
VSS-186
VSS-187
VSS-188
VSS-189
VSS-190
VSS-191
VSS-192
VSS-193
VSS-194
VSS-195
VSS-196
VSS-197
VSS-198
VSS-199
VSS-200
VSS-201
VSS-202
VSS-203
VSS-204
VSS-205
VSS-206
VSS-207
VSS-208
VSS-209
VSS-210
VSS-211
VSS-212
VSS-213
VSS-214
VSS-215
VSS-216
VSS-217
VSS-218
VSS-219
VSS-220
VSS-221
VSS-222
VSS-223
VSS-224
VSS-225
VSS-226
VSS-227
VSS-228
VSS-229
VSS-230
VSS-231
VSS-232
VSS-233
VSS-234
VSS-235
VSS-236
VSS-237
VSS-238
VSS-239
VSS-240
VSS-241
VSS-242
VSS-243
VSS-244
VSS-245
VSS-246
VSS-247
VSS-248
VSS-249
Wellsburg
Wellsburg
VSS-250
VSS-251
VSS-252
VSS-253
VSS-254
VSS-255
VSS-256
VSS-257
VSS-258
VSS-259
VSS-260
VSS-261
VSS-262
VSS-263
VSS-264
VSS-265
VSS-266
VSS-267
VSS-268
VSS-269
VSS-270
VSS-271
VSS-272
VSS-273
VSS-274
VSS-275
VSS-276
VSS-277
VSS-278
VSS-279
VSS-280
VSS-281
VSS-282
VSS-283
VSS-284
VSS-285
VSS-286
VSS-287
VSS-288
VSS-289
VSS-290
VSS-291
VSS-292
VSS-293
VSS-294
VSS-295
VSS-296
VSS-297
VSS-298
VSS-299
VSS-300
VSS-301
VSS-302
VSS-303
VSS-304
VSS-305
VSS-306
VSS-307
VSS-308
VSS-309
VSS-310
VSS-311
VSS-312
VSS-313
VSS-314
VSS-315
VSS-316
VSS-317
VSS-318
VSS-319
VSS-320
VSS-321
VSS-322
VSS-323
VSS-324
VSS-325
VSS-326
VSS-327
VSS-328
VSS-329
VSS-330
BC39
BC44
BC47
BC49
BD12
BD14
BD18
BD20
BD25
BD27
BD30
BD34
BD36
BD39
BD41
BD44
BD6
BD9
BF18
BF4
BF44
BF46
BF48
BG11
BG13
BG15
BG17
BG19
BG21
BG23
BG25
BG27
BG29
BG31
BG33
BG35
BG37
BG39
BG41
BG43
BG7
BG9
BH18
BH4
BJ11
BJ13
BJ15
BJ19
BJ23
BJ25
BJ31
BJ35
BJ39
BJ41
BJ43
BJ7
BJ9
C11
C13
C15
C17
C19
AM38
AM9
AN1
AN3
AP10
AP15
AP31
AP35
AP38
AP46
AP6
AR1
AR3
AR49
AT12
AT15
AT35
AT38
AJ27
D D
C C
B B
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
PCH-GND
PCH-GND
PCH-GND
MS-7A21
1
21 77
21 77
21 77
Sheet of
Sheet of
Sheet of
10
10
10
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
Page 22
5
PCH Strap/Clear cMOS
PCH_GP19(18)
PCH_GP51(19)
D D
PCH_GP19
PCH_GP51
DMI RX Termination
PCH_GP36(18)
This signal has a weak internal pull-down.
This signal only take effect if DMI is configured in AC-coupled
mode.
0 = DMI RX is terminated to VSS.
1 = option not supported.
PCH_GP37(18)
PCH_GP36
PCH_GP37
R708 10K/4R708 10K/4
R703 X_1K/4R703 X_1K/4
R763 10K/4R763 10K/4
R762 X_1K/4R762 X_1K/4
R1309 X_1K/4R1309 X_1K/4
R1312 X_10K/4R1312 X_10K/4
R693 1K/4R693 1K/4
R1319 X_10K/4R1319 X_10K/4
VCC3
VCC3
VCC3
VCC3
GP19 GP51
SPI
LPC
11
00
TLS CONFIDENTIALITY ENABLE STRAP
HIGH :TLS CONFIDENTIALITY ENABLE (DEFAULT)
LOW : RING OSCILLATOR BYPASS
LOW :TLS CONFIDENTIALITY DISABLE
C C
DMI TX TERMINATION (DEFENSIVE)
PCH_GP33(19)
This signal has a weak internal pull-down.
This signal only takes effect if DMI is configured in DC-coupled
mode.
0 = DMI TX is terminated to VSS.
1 = DMI TX is terminated to VCC/2.
PCH_GP33
R850 X_10K/4R850 X_10K/4
R823 X_10K/4R823 X_10K/4
VCC3
RTC and CLR_CMOS
B B
CLR_CMOS#(31)
SIO_3VA SIO_3VA
R936
R936
4.7K/4
4.7K/4
C801
C801
0.1u10X/4
0.1u10X/4
R933
R933
4.7K/4
4.7K/4
G
G
S
S
D
D
RTCRST#_R RTCRST#
Q96
Q96
2N7002
2N7002
Only connector to PCH
R901 0R/4R901 0R/4
RTCRST# (17)
4
+12VSIO_5VSB 3VSB
R1006
1
A
A
2
VBAT_WELL
RTCRST#_D
R1006
47K/4
47K/4
G2
D1
G1
DSWODVREN
R1335 1K/4R1335 1K/4
co-lay
RTCRST#_D
R856
R856
20K1%/4
20K1%/4
C798
C798
1u6.3X6
1u6.3X6
Q128
Q128
NN-2N7002D
NN-2N7002D
S1
DSWODVREN (17)
LOW : REBOOT
HIGH: NO-REBOOT
VCC3
RTCRST#
connector to other RTCRST#
R1003
R1003
47K/4
47K/4
ME_DIS#(31)
HIGH (1-2):SECURITY MEASURES OVERRIDEN
LOW (0-1) : SECURITY PER FLASH DESCRIPTOR (DEFAULT)
DEEP SLEEP WELL ON-DIE VRM ENABLE
VBAT_WELL
R855
R855
390K/4
390K/4
HIGH: ENABLE (INTERNAL SUPPLY) (DEFAULT)
LOW: DISABLE (EXTERNAL SUPPLY)
NO REBOOT OPTION STRAP
SPKR(17,69)
2014.03.11
RTCRST#
H1X2M_BLACK-RH
H1X2M_BLACK-RH
4
NC7SP125P5X
NC7SP125P5X
JBAT1
JBAT1
VBAT
5
U91
U91
VCC
VCC
OE#
OE#
Y
Y
GND
GND
3
2
1
3
D2
S2
R900 X_0R/4R900 X_0R/4
RTCRST#_D (31,71)
R1016
R1016
1K/4
1K/4
AZ_SDOUT_JME
AZ_SDOUT_R
RTCRST#_D
JME1
JME1
1
2
X_H1X2M-2PITCH
X_H1X2M-2PITCH
tri-state
INPUT
PIN1 PIN2
L
H
L
L
H
X
AZ_SDOUT_R (17)
outout
pin4
H
L
Z
2
INTEGRATED SUS 1.05V VRM ENABLE
VBAT_WELL
R877
R877
INTVRMEN
390K/4
390K/4
HIGH: ENABLE (INTERNAL SUPPLY) (DEFAULT)
LOW: DISABLE (EXTERNAL SUPPLY)
INTVRMEN (17)
PLL ON-DIE VR ENABLE
SUS_CLK(17)
Top-Block Swap
Override
PCH_GP55(19)
SUS_CLK
HIGH :PLL ON-DIE VR ENABLE. INT PU. (DEFAULT)
LOW :PLL ON-DIE VR DISABLE
R750 X_22K/4R750 X_22K/4
R1340 X_22K/4R1340 X_22K/4
R1331 10K/4R1331 10K/4
R1334 X_10K/4R1334 X_10K/4
VCC3
DMI AC Coupling
CHECK LIST
PCH_GP53(19)
This Signal has a weak internal pull-up.
0= Configures DMI for AC coupling mode.
1 = Configures DMI for DC coupling mode.
3VA
R592
R592
X_0R/4
X_0R/4
D17
D17
S-BAT54C_SOT23
S-BAT54C_SOT23
Y
Z
X
C543
C543
1u16X/6
1u16X/6
VBAT
R834 X_10K/4R834 X_10K/4
R813 1K/4R813 1K/4
20mil
VBAT1VBAT1
Close to PCH
R580
R580
1K1%/4
1K1%/4
3VSB
VCC3
BAT1
BAT1
1 2
BAT-2P-RH-1
BAT-2P-RH-1
1
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
PCH Strap/Clear cMOS
PCH Strap/Clear cMOS
PCH Strap/Clear cMOS
1
22 77
22 77
22 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 23
5
D D
VCC3
FB1 0R/8FB1 0R/8
C456
C456
0.1u16X/4
0.1u16X/4
Close to Pin23 21 18 15 10
C C
VCC3
VDDOX
R464
R464
X_0R/4
X_0R/4
CK_DMI_0P_R
CK_DMI_0N_R
VDDD
FB3 0R/6FB3 0R/6
C466
C466
0.1u16X/4
0.1u16X/4
C412 0.1u16X/4C412 0.1u16X/4
C403 0.1u16X/4C403 0.1u16X/4
C406 0.1u16X/4C406 0.1u16X/4
C413 10u6.3X/6C413 10u6.3X/6
C411 0.1u16X/4C411 0.1u16X/4
C404 0.1u16X/4C404 0.1u16X/4
CK_DMI_0P(19)
CK_DMI_0N(19)
VCC3
C1046 10u6.3X/6C1046 10u6.3X/6
SMDATA_MCU(24)
SMCLK_MCU(24)
PWRGD_CLK(24)
R465
R465
X_0R/4
X_0R/4
4
R463 2.2R/6R463 2.2R/6
C1047 0.1u16X/4C1047 0.1u16X/4
R445 0R/4R445 0R/4
R442 0R/4R442 0R/4
R460 X_1K/4R460 X_1K/4
R461 1K/4R461 1K/4
R458 0R/4R458 0R/4
R459 0R/4R459 0R/4
VDDA
C453 10u6.3X/6C453 10u6.3X/6
C450 0.1u16X/4C450 0.1u16X/4
SDA1
SCL1
CLKSEL
PWRGD_CLK
CK_DMI_0_P_R
CK_DMI_0_N_R
5
22
23
21
18
15
10
8
9
6
7
1
2
3
4
U50
U50
VDDA
VDDD
VDDO0
VDDO1
VDDO2
VDDO3
VDDO4
SEL1/SDA
SEL0/SCL
CLKSEL
SD/OE
CLKIN
CLKINB
XOUT
XIN/REF
IDT6P41501
IDT6P41501
IDT5P49V5901
IDT5P49V5901
OUT0_SEL_I2CB
OUT1
OUT1B
OUT2
OUT2B
OUT3
OUT3B
OUT4
OUT4B
GND
3
24
20
19
17
16
14
13
11
12
25
OUT0
CK_DMI_0P_CPU_R
CK_DMI_0N_CPU_R
CK_DMI_1P_CPU_R
CK_DMI_1N_CPU_R
CK_DMI_1P
CK_DMI_1N
CK_DMI_0P
CK_DMI_0N
R462 X_10K/4R462 X_10K/4
R457 10K/4R457 10K/4
R435 33R/4R435 33R/4
R436 33R/4R436 33R/4
CK_DMI_1P (19)
CK_DMI_1N (19)
CK_DMI_0P (19)
CK_DMI_0N (19)
R430 33R/4R430 33R/4
R431 33R/4R431 33R/4
VCC3
R432 X_0R/4R432 X_0R/4
R433 X_0R/4R433 X_0R/4
R420 49.9R1%/4R420 49.9R1%/4
R419 49.9R1%/4R419 49.9R1%/4
R424 X_0R/4R424 X_0R/4
R425 X_0R/4R425 X_0R/4
R418 49.9R1%/4R418 49.9R1%/4
R417 49.9R1%/4R417 49.9R1%/4
2
CK_DMI_1P (19)
CK_DMI_1N (19)
CK_DMI_0P_CPU (3)
CK_DMI_0N_CPU (3)
CK_DMI_0P_R
CK_DMI_0N_R
CK_DMI_1P_CPU (3)
CK_DMI_1N_CPU (3)
5/14
from PCH
to CPU
5/14
1
from PCH
to CPU
PWRGD_CLK
B B
A A
R451 X_10K/4R451 X_10K/4
SMBDATA_VCC(10,17,24,50,58,59,64,65,66,68,70)
SMBCLK_VCC(10,17,24,50,58,59,64,65,66,68,70)
PIN:CLKSEL. Input clock select. Selects the active input reference source in manual
switchover mode.
0 = XIN/REF, XOUT (default)
1 = CLKIN, CLKINB
R447 X_0R/4R447 X_0R/4
R437 X_0R/4R437 X_0R/4
SDA1
SCL1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
CLK GEN-IDT49325
CLK GEN-IDT49325
CLK GEN-IDT49325
1
23 77
23 77
23 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 24
5
CK_16PORT_A_DP(19)
CK_16PORT_A_DN(19)
VCC1P8_CLK
C477
C477
0.1u10X/4
0.1u10X/4
R563 1K1%/4R563 1K1%/4
R564 1K1%/4R564 1K1%/4
IDT841_SMBCLK
IDT841_SMBDATA
C504
C504
0.1u10X/4
0.1u10X/4
R554 4.7K/4R554 4.7K/4
R549 X_4.7K/4R549 X_4.7K/4
CK831_PGD
VCC1P8_CLK1
VCC1P8_CLK3
VCC1P8_CLK1
VCC1P8_CLK2
VCC1P8_CLK
D D
VCC1P8_CLK
FB2 FB80/8FB2 FB80/8
VCC1P8_CLK
R569 0R/8R569 0R/8
VCC1P8_CLK1
R474 1R/6R474 1R/6
C C
SMBUS adress:D5
SMBCLK_VCC(10,17,23,50,58,59,64,65,66,68,70)
SMBDATA_VCC(10,17,23,50,58,59,64,65,66,68,70)
VCC1P8_CLK1
C1069
C1069
C485
C485
C523
0.1u10X/4
0.1u10X/4
C524
C524
0.1u10X/4
0.1u10X/4
C503
C503
0.1u10X/4
0.1u10X/4
C523
0.1u10X/4
0.1u10X/4
VCC1P8_CLK2
C525
C525
0.1u10X/4
0.1u10X/4
VCC1P8_CLK3
C474
C474
0.1u10X/4
0.1u10X/4
22u6.3X/8
22u6.3X/8
C526
C526
22u6.3X/8
22u6.3X/8
C478
C478
0.1u10X/4
0.1u10X/4
C479
C479
0.1u10X/4
0.1u10X/4
C493
C493
0.1u10X/4
0.1u10X/4
R510 0R/4R510 0R/4
R502 0R/4R502 0R/4
841_PLL
4
U61
U61
9DBV0831
9DBV0831
6
CLK_IN
7
CLK_IN#
3
FB_DNC
4
FB_DNC#
2
^vHIBW_BYPM_LOBW#
1
vSADR_tri
10
SCLK_3.3
11
SDATA_3.3
48
^CKPWRGD_PD#
38
VDD1.8
20
VDD1.8
30
VDDA1.8
5
VDDR1.8
12
VDDDIG1.8
13
VDDIO
21
VDDIO
31
VDDIO
39
VDDIO
47
VDDIO
9DBV0831
9DBV0831
29
GNDA
8
GNDR
9
GNDDIG
GND
40
22
GND
3
DIF0
DIF0#
DIF1
DIF1#
DIF2
DIF2#
DIF3
DIF3#
DIF4
DIF4#
DIF5
DIF5#
DIF6
DIF6#
DIF7
DIF7#
vOE0#
vOE1#
vOE2#
vOE3#
vOE4#
vOE5#
vOE6#
vOE7#
GND
49
CLK_PE_E_DN
16
CLK_U2_DP
18
CLK_U2_DN
19
CLK_PE_A1_DP
23
CLK_PE_A1_DN
24
CLK_PE_A2_DP
26
CLK_PE_A2_DN
27
CLK_PE_B1_DP
32
CLK_PE_B1_DN
33
CLK_PE_B2_DP
35
CLK_PE_B2_DN
36
41
42
44
45
14
17
25
28
34
37
43
46
OE# = internal pull-down
CLK_PE_E_DP
15
R490 27R/1%4R490 27R/1%4
R489 27R/1%4R489 27R/1%4
R488 27R/1%4R488 27R/1%4
R485 27R/1%4R485 27R/1%4
R487 27R/1%4R487 27R/1%4
R486 27R/1%4R486 27R/1%4
R500 27R/1%4R500 27R/1%4
R504 27R/1%4R504 27R/1%4
R528 27R/1%4R528 27R/1%4
R548 27R/1%4R548 27R/1%4
R551 27R/1%4R551 27R/1%4
R556 27R/1%4R556 27R/1%4
R560 4.7K/4R560 4.7K/4
R561 4.7K/4R561 4.7K/4
CK_PE1_DP (26)
CK_PE1_DN (26)
CK_U2_DP (50)
CK_U2_DN (50)
CK_PE2_DP (27)
CK_PE2_DN (27)
CK_PE3_DP (27)
CK_PE3_DN (27)
CK_PE4_DP (28)
CK_PE4_DN (28)
CK_PE6_DP (30)
CK_PE6_DN (30)
VCC1P8_CLK
R557
R557
7.5K/4
7.5K/4
R601
R601
X_3.3K1%4
X_3.3K1%4
CHIP_PWGD(31)
2
3VSB 3VSBVCC3 VCC1P8_CLK
R575
B
1.5mA
R575
4.7K/4
4.7K/4
CE
CK_BUF_PGD
VCC5
R470 10R/4R470 10R/4
U57
U57
1
POK
2
EN
3
VIN
5
NC
2N3904
2N3904
Q66
Q66
CK_PWRGD#
C531
C531
X_0.1u10X/4
X_0.1u10X/4
VCC3
R558
R558
X_10K1%/4
X_10K1%/4
Q70
Q70
D
D
G
G
S
S
X_2N7002
X_2N7002
4
VOUT
VDD
GND8GND
GS7133SO
GS7133SO
9
841_VCC5
6
7
FB
C464 1u6.3X/4C464 1u6.3X/4
Vref=0.8
R591
R591
X_7.5K/4
X_7.5K/4
R586
R586
7.5K/4
7.5K/4
CK_B
C544
C544
1u6.3X/4
1u6.3X/4
R583 X_0R/4R583 X_0R/4
VRM_PGD(17,59)
R582 X_0R/4R582 X_0R/4
VCC3
R471
R471
47K/4
47K/4
VCC1P8_EN
VCC3
C463
C463
10u6.3X/6
10u6.3X/6
D
D
G
G
S
S
CK_PWRGD#
C506
C506
0.015u16X/4
0.015u16X/4
841_FB
R562
R562
4.7K/4
4.7K/4
CK831_PGD
Q68
Q68
2N7002
2N7002
1
VCC3
G
G
R550
R550
1.5K1%/4
1.5K1%/4
R546
R546
1.2KR1%/4
1.2KR1%/4
R577
R577
4.7K/4
4.7K/4
Q69
Q69
D
D
S
S
2N7002
2N7002
500 mA
C508
C508
22u6.3X/8
22u6.3X/8
PWRGD_CLK (23)
VCC1P8_CLK
C496
C496
0.1u10X/4
0.1u10X/4
SMCLK_MCU
SMDATA_MCU
USART_RXD
B B
LPC812_VDD
SIO 6792 , GPIO13
default low , active high
A A
5
PLTRST#(17,31)
LPC812_VDD
R647
R647
4.7K/4
4.7K/4
4
3VSB
R663 X_0R/4R663 X_0R/4
R681 0R/4R681 0R/4
R645 0R/4R645 0R/4
R678 33R/4R678 33R/4
C621 X_10P50N/4C621 X_10P50N/4
C600
C600
1u6.3X/4
1u6.3X/4
LPC812_VDD
LPC812_RST
USART_TXD
LPC812_FLAGLPC812_FLAG_R
USART_RXD
LPC812_TCK
LPC812_TMS
MCU_PLTRST#
U80
U80
12
VDD
3
RESET#/PIO0_5
4
PIO0_4/WAKEUP/TRST#
9
PIO0_1/ACMP_I2/CLKIN/TDI
16
PIO0_0/ACMP_I1/TDO
5
SWCLK/PIO0_3/TCK
6
SWDIO/PIO0_2/TMS
15
PIO0_6/VDDCMP
13
VSS
SMCLK_MCU
SMDATA_MCU
LPC812
LPC812
PIO0_8/XTALIN
PIO0_9/XTALOUT
3
PIO0_7
PIO0_10
PIO0_11
PIO0_12
PIO0_13
LPC812
LPC812
R662 X_4.7K/4R662 X_4.7K/4
R654 X_4.7K/4R654 X_4.7K/4
R672 4.7K/4R672 4.7K/4
R659 4.7K/4R659 4.7K/4
R658 4.7K/4R658 4.7K/4
SMBUS_ON
Slave
14
SMBCLK_812
8
SMBDATA_812
7
ISP_ENTRY
2
1
SMCLK_MCU
11
SMDATA_MCU
10
LPC812_VDD
VCC3
VCC3
R680
R680
10K/4
10K/4
C622
C622
0.1u10X/4
0.1u10X/4
R6830R/4 R6830R/4
SMBCLK_VCC (10,17,23,50,58,59,64,65,66,68,70)
R6820R/4 R6820R/4
SMBDATA_VCC (10,17,23,50,58,59,64,65,66,68,70)
SMCLK_MCU (23)
SMDATA_MCU (23)
2
JTAG for SW DEBUG
LPC812_VDD
LPC812_VDDVCC3
R650 100K/4R650 100K/4
R652 4.7K/4R652 4.7K/4
R651 4.7K/4R651 4.7K/4
JISP1
JISP1
ISP_ENTRY
1
H1X2M_BLACK-RH
H1X2M_BLACK-RH
MSI
MSI
MSI
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
LPC812_RST
LPC812_TMS
LPC812_TCK
R649
R649
10K/4
10K/4
MS-7A21
MS-7A21
MS-7A21
1
量產後不上件
燒錄
C592
C592
1u6.3X/4
1u6.3X/4
LPC812_VDD
CLK BUFFER831/MCU812
CLK BUFFER831/MCU812
CLK BUFFER831/MCU812
JTAG1
JTAG1
1
2
3
4
X_H1X4M_BLACK-RH-1
X_H1X4M_BLACK-RH-1
CONNECT
JB1
JB1
H1X3M_BLACK-RH-3
H1X3M_BLACK-RH-3
USART_RXD
3
USART_TXD
2
1
24 77
24 77
24 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 25
5
VCC3
C517 0.1u10X/4C517 0.1u10X/4
19
34
9
U63
U63
VDD
X8_EN#
1
2
5
6
30
10
11
14
15
AI+
AI-
BI+
BI-
SEL
CI+
CI-
DI+
DI-
GND
GND20GND25GND29GND35GND38GND40GND42GND
18
VCC3
EXP_B_RXN_6(4)
EXP_B_RXP_6(4)
D D
EXP_B_TXN_6(4)
EXP_B_TXP_6(4)
X8_EN#(27,31)
EXP_B_RXN_7(4)
EXP_B_RXP_7(4)
EXP_B_TXN_7(4)
EXP_B_TXP_7(4)
H:x16
L:x8
C C
EXP_B_RXN_4(4)
EXP_B_RXP_4(4)
EXP_B_TXN_4(4)
EXP_B_TXP_4(4)
X8_EN#
EXP_B_RXN_5(4)
EXP_B_RXP_5(4)
EXP_B_TXN_5(4)
EXP_B_TXP_5(4)
B B
EXP_B_RXN_2(4)
EXP_B_RXP_2(4)
EXP_B_TXN_2(4)
EXP_B_TXP_2(4)
X8_EN#
EXP_B_RXN_3(4)
A A
EXP_B_RXP_3(4)
EXP_B_TXN_3(4)
EXP_B_TXP_3(4)
U64
U64
1
2
5
6
30
10
11
14
15
U65
U65
1
2
5
6
30
10
11
14
15
5
9
VDD
AI+
AI-
BI+
BI-
SEL
CI+
CI-
DI+
DI-
GND
GND20GND25GND29GND35GND38GND40GND42GND
18
VCC3
9
VDD
AI+
AI-
BI+
BI-
SEL
CI+
CI-
DI+
DI-
GND
GND20GND25GND29GND35GND38GND40GND42GND
18
VDD
VDD21VDD26VDD39VDD31VDD
GND
GND
GND
22
19
VDD
VDD21VDD26VDD39VDD31VDD
GND
GND
GND
22
19
VDD
VDD21VDD26VDD39VDD31VDD
GND
GND
GND
22
41
VDD
43
C516 0.1u10X/4C516 0.1u10X/4
34
41
VDD
43
34
41
VDD
43
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
X16
16
DOb+
17
DOb-
F75480BN
F75480BN
C518 0.1u10X/4C518 0.1u10X/4
37
AOa+
36
AOa-
X8
33
BOa+
32
BOa-
3
AOb+
4
AOb-
X16
7
BOb+
8
BOb-
28
COa+
27
COa-
X8
24
DOa+
23
DOa-
12
COb+
13
COb-
X16
16
DOb+
17
DOb-
F75480BN
F75480BN
PCIE1(x16) share to
PCIE2(x8)
PE1_X8_RXN6
PE1_X8_RXP6
X8
PE1_X8_TXN6
PE1_X8_TXP6
X16
PE1_X8_RXN7
PE1_X8_RXP7
X8
PE1_X8_TXN7
PE1_X8_TXP7
X16
PE1_X8_RXN4
PE1_X8_RXP4
X8
PE1_X8_TXN4
PE1_X8_TXP4
X16
PE1_X8_RXN5
PE1_X8_RXP5
X8
PE1_X8_TXN5
PE1_X8_TXP5
PE1_X8_RXN2
PE1_X8_RXP2
PE1_X8_TXN2
PE1_X8_TXP2
PE1_X8_RXN3
PE1_X8_RXP3
PE1_X8_TXN3
PE1_X8_TXP3
4
PE1_X16_RXN6 (26)
PE1_X16_RXP6 (26)
PE1_X16_TXN6 (26)
PE1_X16_TXP6 (26)
PE1_X16_RXN7 (26)
PE1_X16_RXP7 (26)
PE1_X16_TXN7 (26)
PE1_X16_TXP7 (26)
PE1_X16_RXN4 (26)
PE1_X16_RXP4 (26)
PE1_X16_TXN4 (26)
PE1_X16_TXP4 (26)
PE1_X16_RXN5 (26)
PE1_X16_RXP5 (26)
PE1_X16_TXN5 (26)
PE1_X16_TXP5 (26)
PE1_X16_RXN2 (26)
PE1_X16_RXP2 (26)
PE1_X16_TXN2 (26)
PE1_X16_TXP2 (26)
PE1_X16_RXN3 (26)
PE1_X16_RXP3 (26)
PE1_X16_TXN3 (26)
PE1_X16_TXP3 (26)
4
3
VCC3
C519 0.1u10X/4C519 0.1u10X/4
19
34
9
U66
U66
EXP_B_RXN_0(4)
EXP_B_RXP_0(4)
EXP_B_TXN_0(4)
EXP_B_TXP_0(4)
X8_EN#
EXP_B_RXN_1(4)
EXP_B_RXP_1(4)
EXP_B_TXN_1(4)
EXP_B_TXP_1(4)
PE1_X8_RXN6
PE1_X8_RXP6
PE1_X8_TXN6
PE1_X8_TXP6
PE3_ENABLE#
PE1_X8_RXN7
PE1_X8_RXP7
PE1_X8_TXN7
PE1_X8_TXP7
PE1_X8_RXN4
PE1_X8_RXP4
PE1_X8_TXN4
PE1_X8_TXP4
PE3_ENABLE#
PE1_X8_RXN5
PE1_X8_RXP5
PE1_X8_TXN5
PE1_X8_TXP5
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
GND
18
VCC3
9
U76
U76
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
GND
18
VCC3
U77
U77
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
18
41
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND20GND25GND29GND35GND38GND40GND42GND
VDD
GND20GND25GND29GND35GND38GND40GND42GND
GND
VDD
GND
GND
GND
VDD21VDD26VDD39VDD31VDD
GND
GND
19
VDD
VDD21VDD26VDD39VDD31VDD
GND
GND
GND
22
3
43
C603 0.1u10X/4C603 0.1u10X/4
34
41
VDD
43
34
41
VDD
22
19
VDD
GND
22
9
VDD
GND20GND25GND29GND35GND38GND40GND42GND
PE1_X8_RXN0
37
AOa+
PE1_X8_RXP0
36
AOa-
X8
PE1_X8_TXN0
33
BOa+
PE1_X8_TXP0
32
BOa-
3
AOb+
4
AOb-
X16
7
BOb+
8
BOb-
PE1_X8_RXN1
28
COa+
PE1_X8_RXP1
27
COa-
X8
PE1_X8_TXN1
24
DOa+
PE1_X8_TXP1
23
DOa-
12
COb+
13
COb-
X16
16
DOb+
17
DOb-
F75480BN
F75480BN
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
C602 0.1u10X/4C602 0.1u10X/4
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
43
X8-1
X8-2
X8-1
X8-2
X8-1
X8-2
X8-1
X8-2
PE1_X16_RXN0 (26)
PE1_X16_RXP0 (26)
PE1_X16_TXN0 (26)
PE1_X16_TXP0 (26)
PE1_X16_RXN1 (26)
PE1_X16_RXP1 (26)
PE1_X16_TXN1 (26)
PE1_X16_TXP1 (26)
PE3_X8_RXN6 (27)
PE3_X8_RXP6 (27)
PE3_X8_TXN6 (27)
PE3_X8_TXP6 (27)
PE2_X8_RXN6 (27)
PE2_X8_RXP6 (27)
PE2_X8_TXN6 (27)
PE2_X8_TXP6 (27)
PE3_X8_RXN7 (27)
PE3_X8_RXP7 (27)
PE3_X8_TXN7 (27)
PE3_X8_TXP7 (27)
PE2_X8_RXN7 (27)
PE2_X8_RXP7 (27)
PE2_X8_TXN7 (27)
PE2_X8_TXP7 (27)
PE3_X8_RXN4 (27)
PE3_X8_RXP4 (27)
PE3_X8_TXN4 (27)
PE3_X8_TXP4 (27)
PE2_X8_RXN4 (27)
PE2_X8_RXP4 (27)
PE2_X8_TXN4 (27)
PE2_X8_TXP4 (27)
PE3_X8_RXN5 (27)
PE3_X8_RXP5 (27)
PE3_X8_TXN5 (27)
PE3_X8_TXP5 (27)
PE2_X8_RXN5 (27)
PE2_X8_RXP5 (27)
PE2_X8_TXN5 (27)
PE2_X8_TXP5 (27)
2
PE1_X8_RXN2
PE1_X8_RXP2
PE1_X8_TXN2
PE1_X8_TXP2
PE3_ENABLE#
PE1_X8_RXN3
PE1_X8_RXP3
PE1_X8_TXN3
PE1_X8_TXP3
H:x8-E2
L:x8-E3
PE1_X8_RXN0
PE1_X8_RXP0
PE1_X8_TXN0
PE1_X8_TXP0
PE3_ENABLE#(27)
PE3_ENABLE#
PE1_X8_RXN1
PE1_X8_RXP1
PE1_X8_TXN1
PE1_X8_TXP1
2
1
VCC3
C604 0.1u10X/4C604 0.1u10X/4
19
34
9
U78
U78
VDD
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
GND
GND20GND25GND29GND35GND38GND40GND42GND
18
VCC3
9
U79
U79
VDD
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
GND
GND20GND25GND29GND35GND38GND40GND42GND
18
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
41
37
36
33
32
3
4
7
8
28
27
24
23
12
13
16
17
37
36
33
32
3
4
7
8
28
27
24
23
12
13
16
17
X8-1
X8-2
X8-1
X8-2
X8-1
X8-2
X8-1
X8-2
1
PE3_X8_RXN2 (27)
PE3_X8_RXP2 (27)
PE3_X8_TXN2 (27)
PE3_X8_TXP2 (27)
PE2_X8_RXN2 (27)
PE2_X8_RXP2 (27)
PE2_X8_TXN2 (27)
PE2_X8_TXP2 (27)
PE3_X8_RXN3 (27)
PE3_X8_RXP3 (27)
PE3_X8_TXN3 (27)
PE3_X8_TXP3 (27)
PE2_X8_RXN3 (27)
PE2_X8_RXP3 (27)
PE2_X8_TXN3 (27)
PE2_X8_TXP3 (27)
PE3_X8_RXN0 (27)
PE3_X8_RXP0 (27)
PE3_X8_TXN0 (27)
PE3_X8_TXP0 (27)
PE2_X8_RXN0 (27)
PE2_X8_RXP0 (27)
PE2_X8_TXN0 (27)
PE2_X8_TXP0 (27)
PE3_X8_RXN1 (27)
PE3_X8_RXP1 (27)
PE3_X8_TXN1 (27)
PE3_X8_TXP1 (27)
PE2_X8_RXN1 (27)
PE2_X8_RXP1 (27)
PE2_X8_TXN1 (27)
PE2_X8_TXP1 (27)
VDD
VDD21VDD26VDD39VDD31VDD
GND
GND
GND
22
19
VDD
VDD21VDD26VDD39VDD31VDD
GND
GND
GND
22
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
AOa+
VDD
AOa-
BOa+
BOa-
AOb+
AOb-
BOb+
BOb-
COa+
COa-
DOa+
DOa-
COb+
COb-
DOb+
DOb-
F75480BN
F75480BN
43
C605 0.1u10X/4C605 0.1u10X/4
34
41
AOa+
VDD
AOa-
BOa+
BOa-
AOb+
AOb-
BOb+
BOb-
COa+
COa-
DOa+
DOa-
COb+
COb-
DOb+
DOb-
F75480BN
F75480BN
43
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MS-7A21
CPU PCIE SWITCH
CPU PCIE SWITCH
CPU PCIE SWITCH
25 77
25 77
25 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 26
5
PCIE1(X16) & PCIE2(X1) Slots
3VSB
R1306
R1306
R1307
R1307
4.7K/4
4.7K/4
4.7K/4
D D
SMBCLK_VSB(17,45,47,54,55)
SMBDATA_VSB(17,45,47,54,55)
C C
SMBCLK_VSB_R
SMBDATA_VSB_R
R660 X_0R/4R660 X_0R/4
R661 X_0R/4R661 X_0R/4
0A to 10 NC SMBUS switch
CLOSE_PE1#(27)
PLTRST_BU2A#(31,52)
B B
R524 100R/4R524 100R/4
PLTRST_BU2A#_1
4.7K/4
SMBCLK_VSB_R
SMBDATA_VSB_R
VCC3
A
A
1
2
B
B
R529 X_0R/4R529 X_0R/4
52
D20
D20
6
1
AOZ8902CIL
AOZ8902CIL
C522 0.1u16X/4C522 0.1u16X/4
53
U62
U62
VCC
VCC
GND
GND
NC7SZ08M5X_SOT23-5-RH
NC7SZ08M5X_SOT23-5-RH
Y
Y
4
PLTRST1#_R
4
3
C599
C599
X_0.1u16X/4
X_0.1u16X/4
R530 33R/4R530 33R/4
4
SMBCLK_VSB_R(27,28,29,30)
SMBDATA_VSB_R(27,28,29,30)
PCH_WAKE#(17,27,28,29,30,41,42,44,49,52)
EXP_B_TXP_15(4)
EXP_B_TXN_15(4)
EXP_B_TXP_14(4)
EXP_B_TXN_14(4)
EXP_B_TXP_13(4)
EXP_B_TXN_13(4)
EXP_B_TXP_12(4)
EXP_B_TXN_12(4)
EXP_B_TXP_11(4)
EXP_B_TXN_11(4)
EXP_B_TXP_10(4)
EXP_B_TXN_10(4)
EXP_B_TXP_9(4)
EXP_B_TXN_9(4)
EXP_B_TXP_8(4)
EXP_B_TXN_8(4)
PE1_X16_TXP7(25)
PE1_X16_TXN7(25)
PE1_X16_TXP6(25)
PE1_X16_TXN6(25)
PE1_X16_TXP5(25)
PE1_X16_TXN5(25)
PLTRST1#
PE1_X16_TXP4(25)
PE1_X16_TXN4(25)
PE1_X16_TXP3(25)
PE1_X16_TXN3(25)
PE1_X16_TXP2(25)
PE1_X16_TXN2(25)
PE1_X16_TXP1(25)
PE1_X16_TXN1(25)
PE1_X16_TXP0(25)
PE1_X16_TXN0(25)
3
C434 0.22u6.3X/4C434 0.22u6.3X/4
C415 0.22u6.3X/4C415 0.22u6.3X/4
C435 0.22u6.3X/4C435 0.22u6.3X/4
C416 0.22u6.3X/4C416 0.22u6.3X/4
C436 0.22u6.3X/4C436 0.22u6.3X/4
C417 0.22u6.3X/4C417 0.22u6.3X/4
C437 0.22u6.3X/4C437 0.22u6.3X/4
C418 0.22u6.3X/4C418 0.22u6.3X/4
C438 0.22u6.3X/4C438 0.22u6.3X/4
C419 0.22u6.3X/4C419 0.22u6.3X/4
C439 0.22u6.3X/4C439 0.22u6.3X/4
C420 0.22u6.3X/4C420 0.22u6.3X/4
C440 0.22u6.3X/4C440 0.22u6.3X/4
C421 0.22u6.3X/4C421 0.22u6.3X/4
C422 0.22u6.3X/4C422 0.22u6.3X/4
C441 0.22u6.3X/4C441 0.22u6.3X/4
C442 0.22u6.3X/4C442 0.22u6.3X/4
C423 0.22u6.3X/4C423 0.22u6.3X/4
C443 0.22u6.3X/4C443 0.22u6.3X/4
C424 0.22u6.3X/4C424 0.22u6.3X/4
C444 0.22u6.3X/4C444 0.22u6.3X/4
C425 0.22u6.3X/4C425 0.22u6.3X/4
C445 0.22u6.3X/4C445 0.22u6.3X/4
C426 0.22u6.3X/4C426 0.22u6.3X/4
C446 0.22u6.3X/4C446 0.22u6.3X/4
C427 0.22u6.3X/4C427 0.22u6.3X/4
C447 0.22u6.3X/4C447 0.22u6.3X/4
C428 0.22u6.3X/4C428 0.22u6.3X/4
C448 0.22u6.3X/4C448 0.22u6.3X/4
C429 0.22u6.3X/4C429 0.22u6.3X/4
C449 0.22u6.3X/4C449 0.22u6.3X/4
C430 0.22u6.3X/4C430 0.22u6.3X/4
SMBCLK_VSB_R
SMBDATA_VSB_R
VCC3
3VSB
EXP_B_TXP_15_C
EXP_B_TXN_15_C
EXP_B_TXP_14_C
EXP_B_TXN_14_C
EXP_B_TXP_13_C
EXP_B_TXN_13_C
EXP_B_TXP_12_C
EXP_B_TXN_12_C
EXP_B_TXP_11_C
EXP_B_TXN_11_C
EXP_B_TXP_10_C
EXP_B_TXN_10_C
EXP_B_TXP_9_C
EXP_B_TXN_9_C
EXP_B_TXP_8_C
EXP_B_TXN_8_C
PE1_X16_TXP7_C
PE1_X16_TXN7_C
PE1_X16_TXP6_C
PE1_X16_TXN6_C
PE1_X16_TXP5_C
PE1_X16_TXN5_C
PE1_X16_TXP4_C
PE1_X16_TXN4_C
PE1_X16_TXP3_C
PE1_X16_TXN3_C
PE1_X16_TXP2_C
PE1_X16_TXN2_C
PE1_X16_TXP1_C
PE1_X16_TXN1_C
PE1_X16_TXP0_C
PE1_X16_TXN0_C
+12V
PCI_E1
PCI_E1
MEC1
MEC1
B1
12V-3
B2
12V-4
B3
RSVD5
B4
GND-35
B5
SMCLK
B6
SMDAT
B7
GND-36
B8
3.3V-3
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD6
B13
GND-37
B14
HSOP0
B15
HSON0
B16
GND-38
B17
PRSNT2#1
B18
GND-39
B19
HSOP1
B20
HSON1
B21
GND-40
B22
GND-41
B23
HSOP2
B24
HSON2
B25
GND-42
B26
GND-43
B27
HSOP3
B28
HSON3
B29
GND-44
B30
RSVD7
B31
PRSNT2#2
B32
GND-45
B33
HSOP4
B34
HSON4
B35
GND-46
B36
GND-47
B37
HSOP5
B38
HSON5
B39
GND-48
B40
GND-49
B41
HSOP6
B42
HSON6
B43
GND-50
B44
GND-51
B45
HSOP7
B46
HSON7
B47
GND-52
B48
PRSNT2#3
B49
GND-53
B50
HSOP8
B51
HSON8
B52
GND-54
B53
GND-55
B54
HSOP9
B55
HSON9
B56
GND-56
B57
GND-57
B58
HSOP10
B59
HSON10
B60
GND-58
B61
GND-59
B62
HSOP11
B63
HSON11
B64
GND-60
B65
GND-61
B66
HSOP12
B67
HSON12
B68
GND-62
B69
GND-63
B70
HSOP13
B71
HSON13
B72
GND-64
B73
GND-65
B74
HSOP14
B75
HSON14
B76
GND-66
B77
GND-67
B78
HSOP15
B79
HSON15
B80
GND-68
B81
PRSNT2#4
B82
RSVD8
MEC2
MEC2
SLOT-PCI164P_BLACK-2PITCH-RH-51
SLOT-PCI164P_BLACK-2PITCH-RH-51
2
PRSNT1#
12V-1
12V-2
GND-1
JTAG2
JTAG3
JTAG4
JTAG5
3.3V-1
3.3V-2
PWRGD
GND-2
REFCLK+
REFCLK-
GND-3
HSIP0
HSIN0
GND-4
RSVD1
GND-5
HSIP1
HSIN1
GND-6
GND-7
HSIP2
HSIN2
GND-8
GND-9
HSIP3
HSIN3
GND-10
RSVD2
RSVD3
GND-11
HSIP4
HSIN4
GND-12
GND-13
HSIP5
HSIN5
GND-14
GND-15
HSIP6
HSIN6
GND-16
GND-17
HSIP7
HSIN7
GND-18
RSVD4
GND-19
HSIP8
HSIN8
GND-20
GND-21
HSIP9
HSIN9
GND-22
GND-23
HSIP10
HSIN10
GND-24
GND-25
HSIP11
HSIN11
GND-26
GND-27
HSIP12
HSIN12
GND-28
GND-29
HSIP13
HSIN13
GND-30
GND-31
HSIP14
HSIN14
GND-32
GND-33
HSIP15
HSIN15
GND-34
1
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
PLTRST1#
EXP_B_RXP_15
EXP_B_RXN_15
EXP_B_RXP_14
EXP_B_RXN_14
EXP_B_RXP_13
EXP_B_RXN_13
EXP_B_RXP_12
EXP_B_RXN_12
EXP_B_RXP_11
EXP_B_RXN_11
EXP_B_RXP_10
EXP_B_RXN_10
EXP_B_RXP_9
EXP_B_RXN_9
EXP_B_RXP_8
EXP_B_RXN_8
+12V
VCC3
CK_PE1_DP (24)
CK_PE1_DN (24)
EXP_B_RXP_15 (4)
EXP_B_RXN_15 (4)
EXP_B_RXP_14 (4)
EXP_B_RXN_14 (4)
EXP_B_RXP_13 (4)
EXP_B_RXN_13 (4)
EXP_B_RXP_12 (4)
EXP_B_RXN_12 (4)
EXP_B_RXP_11 (4)
EXP_B_RXN_11 (4)
EXP_B_RXP_10 (4)
EXP_B_RXN_10 (4)
EXP_B_RXP_9 (4)
EXP_B_RXN_9 (4)
EXP_B_RXP_8 (4)
EXP_B_RXN_8 (4)
PE1_X16_RXP7 (25)
PE1_X16_RXN7 (25)
PE1_X16_RXP6 (25)
PE1_X16_RXN6 (25)
PE1_X16_RXP5 (25)
PE1_X16_RXN5 (25)
PE1_X16_RXP4 (25)
PE1_X16_RXN4 (25)
PE1_X16_RXP3 (25)
PE1_X16_RXN3 (25)
PE1_X16_RXP2 (25)
PE1_X16_RXN2 (25)
PE1_X16_RXP1 (25)
PE1_X16_RXN1 (25)
PE1_X16_RXP0 (25)
PE1_X16_RXN0 (25)
A A
3VSB VCC3
C433
C433
X_0.1u10X/4
X_0.1u10X/4
5
C578
C578
X_0.1u10X/4
X_0.1u10X/4
C577
C577
1u6.3X/4
1u6.3X/4
C625
C625
1u6.3X/4
1u6.3X/4
4
C432
C432
0.01u16X/4
0.01u16X/4
EC40
EC40
270u/16V
270u/16V
+12V
12
+
+
560u6.3SO
560u6.3SO
EC41
EC41
VCC3
+12V
12
+
+
C576
C576
0.1u16X/4
0.1u16X/4
3
C431
C431
0.1u16X/4
0.1u16X/4
MSI
MSI
MSI
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
PCIE1(X16) & PCIE2(X1) Slots
PCIE1(X16) & PCIE2(X1) Slots
PCIE1(X16) & PCIE2(X1) Slots
1
26 77
26 77
26 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 27
5
D D
+12V
SMBCLK_VSB_R(26,28,29,30)
SMBDATA_VSB_R(26,28,29,30)
SMBCLK_VSB_R
SMBDATA_VSB_R
VCC3
PCH_WAKE#(17,26,28,29,30,41,42,44,49,52)
PE2_X8_TXP7(25)
PE2_X8_TXN7(25)
PE2_X8_TXP6(25)
C C
PE2_X8_TXN6(25)
PE2_X8_TXP5(25)
PE2_X8_TXN5(25)
PE2_X8_TXP4(25)
PE2_X8_TXN4(25)
C588 0.22u6.3X/4C588 0.22u6.3X/4
C579 0.22u6.3X/4C579 0.22u6.3X/4
C589 0.22u6.3X/4C589 0.22u6.3X/4
C580 0.22u6.3X/4C580 0.22u6.3X/4
C590 0.22u6.3X/4C590 0.22u6.3X/4
C581 0.22u6.3X/4C581 0.22u6.3X/4
C591 0.22u6.3X/4C591 0.22u6.3X/4
C582 0.22u6.3X/4C582 0.22u6.3X/4
3VSB
EXP2_X8_TXP_7_C
EXP2_X8_TXN_7_C
PE2_PSNT
EXP2_X8_TXP_6_C
EXP2_X8_TXN_6_C
EXP2_X8_TXP_5_C
EXP2_X8_TXN_5_C
EXP2_X8_TXP_4_C
EXP2_X8_TXN_4_C
PE2_PSNT
PE2_X8_TXP3(25)
PE2_X8_TXN3(25)
PE2_X8_TXP2(25)
PE2_X8_TXN2(25)
PE2_X8_TXP1(25)
PE2_X8_TXN1(25)
PE2_X8_TXP0(25)
PE2_X8_TXN0(25)
B B
C555 0.22u6.3X/4C555 0.22u6.3X/4
C554 0.22u6.3X/4C554 0.22u6.3X/4
C548 0.22u6.3X/4C548 0.22u6.3X/4
C549 0.22u6.3X/4C549 0.22u6.3X/4
C550 0.22u6.3X/4C550 0.22u6.3X/4
C551 0.22u6.3X/4C551 0.22u6.3X/4
C553 0.22u6.3X/4C553 0.22u6.3X/4
C552 0.22u6.3X/4C552 0.22u6.3X/4
EXP2_X8_TXP_3_C
EXP2_X8_TXN_3_C
EXP2_X8_TXP_2_C
EXP2_X8_TXN_2_C
EXP2_X8_TXP_1_C
EXP2_X8_TXN_1_C
EXP2_X8_TXP_0_C
EXP2_X8_TXN_0_C
PE2_PSNT
PE2_PSNT
PCI_E2
PCI_E2
B1
12V-1
B2
12V-2
B3
RSVD5
B4
GND-1
B5
SMCLK
B6
SMDAT
B7
GND-2
B8
3.3V-1
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD6
B13
GND-3
B14
HSOP0
B15
HSON0
B16
GND-4
B17
PRSNT2#1
B18
GND-5
B19
HSOP1
B20
HSON1
B21
GND-6
B22
GND-7
B23
HSOP2
B24
HSON2
B25
GND-8
B26
GND-9
B27
HSOP3
B28
HSON3
B29
GND-10
B30
RSVD7
B31
PRSNT2#2
B32
GND-11
B33
HSOP4
B34
HSON4
B35
GND-12
B36
GND-13
B37
HSOP5
B38
HSON5
B39
GND-14
B40
GND-15
B41
HSOP6
B42
HSON6
B43
GND-16
B44
GND-17
B45
HSOP7
B46
HSON7
B47
GND-18
B48
PRSNT2#3
B49
GND-19
B81
PRSNT2#4
MEC1
MEC1
4
A1
PRSNT1#
A2
12V-3
A3
12V-4
A4
GND-20
A5
JTAG2
A6
JTAG3
A7
JTAG4
A8
JTAG5
A9
3.3V-2
A10
3.3V-3
A11
PWRGD
A12
GND-21
A13
REFCLK+
A14
REFCLK-
A15
GND-22
A16
HSIP0
A17
HSIN0
A18
GND-23
A19
RSVD1
A20
GND-24
A21
HSIP1
A22
HSIN1
A23
GND-25
A24
GND-26
A25
HSIP2
A26
HSIN2
A27
GND-27
A28
GND-28
A29
HSIP3
A30
HSIN3
A31
GND-29
A32
RSVD2
A33
RSVD3
A34
GND-30
A35
HSIP4
A36
HSIN4
A37
GND-31
A38
GND-32
A39
HSIP5
A40
HSIN5
A41
GND-33
A42
GND-34
A43
HSIP6
A44
HSIN6
A45
GND-35
A46
GND-36
A47
HSIP7
A48
HSIN7
A49
GND-37
A81
HSIN15
X1
SLOT-PCI100P_BLACK-2PITCH-RH-5
SLOT-PCI100P_BLACK-2PITCH-RH-5
X1
PLTRST2_3#
+12V
VCC3
CK_PE2_DP (24)
CK_PE2_DN (24)
PE2_X8_RXP7 (25)
PE2_X8_RXN7 (25)
PE2_X8_RXP6 (25)
PE2_X8_RXN6 (25)
PE2_X8_RXP5 (25)
PE2_X8_RXN5 (25)
PE2_X8_RXP4 (25)
PE2_X8_RXN4 (25)
PE2_X8_RXP3 (25)
PE2_X8_RXN3 (25)
PE2_X8_RXP2 (25)
PE2_X8_RXN2 (25)
PE2_X8_RXP1 (25)
PE2_X8_RXN1 (25)
PE2_X8_RXP0 (25)
PE2_X8_RXN0 (25)
3
SMBCLK_VSB_R(26,28,29,30)
SMBDATA_VSB_R(26,28,29,30)
SMBCLK_VSB_R
SMBDATA_VSB_R
VCC3
PCH_WAKE#(17,26,28,29,30,41,42,44,49,52)
PE3_X8_TXP7(25)
PE3_X8_TXN7(25)
PE3_X8_TXP6(25)
PE3_X8_TXN6(25)
PE3_X8_TXP5(25)
PE3_X8_TXN5(25)
PE3_X8_TXP4(25)
PE3_X8_TXN4(25)
C613 0.22u6.3X/4C613 0.22u6.3X/4
C614 0.22u6.3X/4C614 0.22u6.3X/4
C615 0.22u6.3X/4C615 0.22u6.3X/4
C616 0.22u6.3X/4C616 0.22u6.3X/4
C617 0.22u6.3X/4C617 0.22u6.3X/4
C618 0.22u6.3X/4C618 0.22u6.3X/4
C619 0.22u6.3X/4C619 0.22u6.3X/4
C620 0.22u6.3X/4C620 0.22u6.3X/4
3VSB
EXP3_X8_TXP_7_C
EXP3_X8_TXN_7_C
PE3_PSNT
EXP3_X8_TXP_6_C
EXP3_X8_TXN_6_C
EXP3_X8_TXP_5_C
EXP3_X8_TXN_5_C
EXP3_X8_TXP_4_C
EXP3_X8_TXN_4_C
PE3_PSNT
PE3_X8_TXP3(25)
PE3_X8_TXN3(25)
PE3_X8_TXP2(25)
PE3_X8_TXN2(25)
PE3_X8_TXP1(25)
PE3_X8_TXN1(25)
PE3_X8_TXP0(25)
PE3_X8_TXN0(25)
C626 0.22u6.3X/4C626 0.22u6.3X/4
C632 0.22u6.3X/4C632 0.22u6.3X/4
C627 0.22u6.3X/4C627 0.22u6.3X/4
C631 0.22u6.3X/4C631 0.22u6.3X/4
C628 0.22u6.3X/4C628 0.22u6.3X/4
C633 0.22u6.3X/4C633 0.22u6.3X/4
C629 0.22u6.3X/4C629 0.22u6.3X/4
C634 0.22u6.3X/4C634 0.22u6.3X/4
EXP3_X8_TXP_3_C
EXP3_X8_TXN_3_C
EXP3_X8_TXP_2_C
EXP3_X8_TXN_2_C
EXP3_X8_TXP_1_C
EXP3_X8_TXN_1_C
EXP3_X8_TXP_0_C
EXP3_X8_TXN_0_C
PE3_PSNT
PE3_PSNT
+12V
2
PCI_E3
PCI_E3
B1
12V-1
B2
12V-2
B3
RSVD5
B4
GND-1
B5
SMCLK
B6
SMDAT
B7
GND-2
B8
3.3V-1
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD6
B13
GND-3
B14
HSOP0
B15
HSON0
B16
GND-4
B17
PRSNT2#1
B18
GND-5
B19
HSOP1
B20
HSON1
B21
GND-6
B22
GND-7
B23
HSOP2
B24
HSON2
B25
GND-8
B26
GND-9
B27
HSOP3
B28
HSON3
B29
GND-10
B30
RSVD7
B31
PRSNT2#2
B32
GND-11
B33
HSOP4
B34
HSON4
B35
GND-12
B36
GND-13
B37
HSOP5
B38
HSON5
B39
GND-14
B40
GND-15
B41
HSOP6
B42
HSON6
B43
GND-16
B44
GND-17
B45
HSOP7
B46
HSON7
B47
GND-18
B48
PRSNT2#3
B49
GND-19
B81
PRSNT2#4
MEC1
X1
X1
MEC1
A1
PRSNT1#
A2
12V-3
A3
12V-4
A4
GND-20
A5
JTAG2
A6
JTAG3
A7
JTAG4
A8
JTAG5
A9
3.3V-2
A10
3.3V-3
PWRGD
GND-21
REFCLK+
REFCLK-
GND-22
HSIP0
HSIN0
GND-23
RSVD1
GND-24
HSIP1
HSIN1
GND-25
GND-26
HSIP2
HSIN2
GND-27
GND-28
HSIP3
HSIN3
GND-29
RSVD2
RSVD3
GND-30
HSIP4
HSIN4
GND-31
GND-32
HSIP5
HSIN5
GND-33
GND-34
HSIP6
HSIN6
GND-35
GND-36
HSIP7
HSIN7
GND-37
HSIN15
SLOT-PCI100P_BLACK-2PITCH-RH-5
SLOT-PCI100P_BLACK-2PITCH-RH-5
PLTRST2_3#
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A81
1
+12V
VCC3
CK_PE3_DP (24)
CK_PE3_DN (24)
PE3_X8_RXP7 (25)
PE3_X8_RXN7 (25)
PE3_X8_RXP6 (25)
PE3_X8_RXN6 (25)
PE3_X8_RXP5 (25)
PE3_X8_RXN5 (25)
PE3_X8_RXP4 (25)
PE3_X8_RXN4 (25)
PE3_X8_RXP3 (25)
PE3_X8_RXN3 (25)
PE3_X8_RXP2 (25)
PE3_X8_RXN2 (25)
PE3_X8_RXP1 (25)
PE3_X8_RXN1 (25)
PE3_X8_RXP0 (25)
PE3_X8_RXN0 (25)
PE2_PSNT
D19
D19
ESD-SFI0402
ESD-SFI0402
CLOSE_PE2_3#
A A
CLOSE_PE2_3#
PE3_PSNT
D21
D21
ESD-SFI0402
ESD-SFI0402
G
G
G
G
VCC3
12
S
S
Q73
Q73
R593
2N7002
2N7002
Q82
Q82
2N7002
2N7002
VCC3
5
R593
4.7K/4
4.7K/4
PE2_ENABLE#
R700
R700
4.7K/4
4.7K/4
PE3_ENABLE#
PE2_ENABLE#
PE3_ENABLE# (25)
SOD323-RH
SOD323-RH
SOD323-RH
SOD323-RH
VCC3
R587
R587
4.7K/4
X8_EN#PE3_ENABLE#
D18
D18
D16
D16
4.7K/4
X8_EN# (25,31)
4
D
D
12
S
S
D
D
VCC3
3VSB
C701 0.1u10X/4C701 0.1u10X/4
C683 0.1u10X/4C683 0.1u10X/4
C702
C702
C624
C624
X_0.1u10X/4
X_0.1u10X/4
X_0.1u10X/4
X_0.1u10X/4
VCC3
C792 0.1u16X/4C792 0.1u16X/4
53
U90
U90
VCC
CLOSE_PE2_3#
PLTRST_BU2B#(28,29,30,31,69)
R895 100R/4R895 100R/4
PLTT_BU2B#_23
VCC
A
A
1
2
B
B
NC7SZ08M5X_SOT23-5-RH
NC7SZ08M5X_SOT23-5-RH
4
Y
Y
GND
GND
PLTRST2_3#_R
R917 33R/4R917 33R/4
PLTRST2_3#
R918 X_0R/4R918 X_0R/4
3
2
RN2
RN2
CLOSE_PE6#
1
2
4
6
8
8P4R-100KR0402
8P4R-100KR0402
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
CLOSE_PE4#
3
CLOSE_PE2_3#
5
CLOSE_PE1#
7
CLOSE_PE6#
CLOSE_PE4#
CLOSE_PE2_3#
CLOSE_PE1#
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
B1
B2
B3
B4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
PCIE3(X1) & PCIE4(X16) Slots
PCIE3(X1) & PCIE4(X16) Slots
PCIE3(X1) & PCIE4(X16) Slots
CLOSE_PE6# (30)
CLOSE_PE4# (28)
CLOSE_PE1# (26)
PEGSW1
PEGSW1
A1
A2
A3
A4
SW-DIPP4_BLUE-RH-1
SW-DIPP4_BLUE-RH-1
MS-7A21
MS-7A21
MS-7A21
1
7
8
5
6
3
4
1
2
RN1
RN1
8P4R-1KR0402
8P4R-1KR0402
27 77
27 77
27 77
Sheet of
Sheet of
Sheet of
VCC3
10
10
10
Page 28
5
SMBCLK_VSB_R(26,27,29,30)
SMBDATA_VSB_R(26,27,29,30)
D D
PCH_WAKE#(17,26,27,29,30,41,42,44,49,52)
EXP_A_TXN_0(4)
EXP_A_TXP_1(4)
EXP_A_TXN_1(4)
EXP_A_TXP_2(4)
EXP_A_TXN_2(4)
EXP_A_TXP_3(4)
EXP_A_TXN_3(4)
EXP_A_TXP_4(4)
EXP_A_TXN_4(4)
C C
B B
EXP_A_TXP_5(4)
EXP_A_TXN_5(4)
EXP_A_TXP_6(4)
EXP_A_TXN_6(4)
EXP_A_TXP_7(4)
EXP_A_TXN_7(4)
EXP_A_TXP_8(4)
EXP_A_TXN_8(4)
EXP_A_TXP_9(4)
EXP_A_TXN_9(4)
EXP_A_TXP_10(4)
EXP_A_TXN_10(4)
EXP_A_TXP_11(4)
EXP_A_TXN_11(4)
EXP_A_TXP_12(4)
EXP_A_TXN_12(4)
EXP_A_TXP_13(4)
EXP_A_TXN_13(4)
EXP_A_TXP_14(4)
EXP_A_TXN_14(4)
EXP_A_TXP_15(4)
EXP_A_TXN_15(4)
4
C651 0.22u6.3X/4C651 0.22u6.3X/4
C650 0.22u6.3X/4C650 0.22u6.3X/4
C652 0.22u6.3X/4C652 0.22u6.3X/4
C653 0.22u6.3X/4C653 0.22u6.3X/4
C654 0.22u6.3X/4C654 0.22u6.3X/4
C655 0.22u6.3X/4C655 0.22u6.3X/4
C656 0.22u6.3X/4C656 0.22u6.3X/4
C657 0.22u6.3X/4C657 0.22u6.3X/4
C658 0.22u6.3X/4C658 0.22u6.3X/4
C659 0.22u6.3X/4C659 0.22u6.3X/4
C660 0.22u6.3X/4C660 0.22u6.3X/4
C661 0.22u6.3X/4C661 0.22u6.3X/4
C662 0.22u6.3X/4C662 0.22u6.3X/4
C663 0.22u6.3X/4C663 0.22u6.3X/4
C664 0.22u6.3X/4C664 0.22u6.3X/4
C665 0.22u6.3X/4C665 0.22u6.3X/4
C666 0.22u6.3X/4C666 0.22u6.3X/4
C667 0.22u6.3X/4C667 0.22u6.3X/4
C669 0.22u6.3X/4C669 0.22u6.3X/4
C668 0.22u6.3X/4C668 0.22u6.3X/4
C671 0.22u6.3X/4C671 0.22u6.3X/4
C670 0.22u6.3X/4C670 0.22u6.3X/4
C673 0.22u6.3X/4C673 0.22u6.3X/4
C672 0.22u6.3X/4C672 0.22u6.3X/4
C675 0.22u6.3X/4C675 0.22u6.3X/4
C674 0.22u6.3X/4C674 0.22u6.3X/4
C677 0.22u6.3X/4C677 0.22u6.3X/4
C676 0.22u6.3X/4C676 0.22u6.3X/4
C679 0.22u6.3X/4C679 0.22u6.3X/4
C678 0.22u6.3X/4C678 0.22u6.3X/4
C681 0.22u6.3X/4C681 0.22u6.3X/4
C680 0.22u6.3X/4C680 0.22u6.3X/4
VCC3
3VSB
EXP_A_TXP_0_C
EXP_A_TXN_0_C
EXP_A_TXP_1_C
EXP_A_TXN_1_C
EXP_A_TXP_2_C
EXP_A_TXN_2_C
EXP_A_TXP_3_C
EXP_A_TXN_3_C
EXP_A_TXP_4_C
EXP_A_TXN_4_C
EXP_A_TXP_5_C
EXP_A_TXN_5_C
EXP_A_TXP_6_C
EXP_A_TXN_6_C
EXP_A_TXP_7_C
EXP_A_TXN_7_C
EXP_A_TXP_8_C
EXP_A_TXN_8_C
EXP_A_TXP_9_C
EXP_A_TXN_9_C
EXP_A_TXP_10_C
EXP_A_TXN_10_C
EXP_A_TXP_11_C
EXP_A_TXN_11_C
EXP_A_TXP_12_C
EXP_A_TXN_12_C
EXP_A_TXP_13_C
EXP_A_TXN_13_C
EXP_A_TXP_14_C
EXP_A_TXN_14_C
EXP_A_TXP_15_C
EXP_A_TXN_15_C
+12V
3
PCI_E4
PCI_E4
MEC1
MEC1
B1
12V-3
B2
12V-4
B3
RSVD5
B4
GND-35
B5
SMCLK
B6
SMDAT
B7
GND-36
B8
3.3V-3
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD6
B13
GND-37
B14
HSOP0
B15
HSON0
B16
GND-38
B17
PRSNT2#1
B18
GND-39
B19
HSOP1
B20
HSON1
B21
GND-40
B22
GND-41
B23
HSOP2
B24
HSON2
B25
GND-42
B26
GND-43
B27
HSOP3
B28
HSON3
B29
GND-44
B30
RSVD7
B31
PRSNT2#2
B32
GND-45
B33
HSOP4
B34
HSON4
B35
GND-46
B36
GND-47
B37
HSOP5
B38
HSON5
B39
GND-48
B40
GND-49
B41
HSOP6
B42
HSON6
B43
GND-50
B44
GND-51
B45
HSOP7
B46
HSON7
B47
GND-52
B48
PRSNT2#3
B49
GND-53
B50
HSOP8
B51
HSON8
B52
GND-54
B53
GND-55
B54
HSOP9
B55
HSON9
B56
GND-56
B57
GND-57
B58
HSOP10
B59
HSON10
B60
GND-58
B61
GND-59
B62
HSOP11
B63
HSON11
B64
GND-60
B65
GND-61
B66
HSOP12
B67
HSON12
B68
GND-62
B69
GND-63
B70
HSOP13
B71
HSON13
B72
GND-64
B73
GND-65
B74
HSOP14
B75
HSON14
B76
GND-66
B77
GND-67
B78
HSOP15
B79
HSON15
B80
GND-68
B81
PRSNT2#4
B82
RSVD8
MEC2
MEC2
SLOT-PCI164P_BLACK-2PITCH-RH-51
SLOT-PCI164P_BLACK-2PITCH-RH-51
PRSNT1#
12V-1
12V-2
GND-1
JTAG2
JTAG3
JTAG4
JTAG5
3.3V-1
3.3V-2
PWRGD
GND-2
REFCLK+
REFCLK-
GND-3
HSIP0
HSIN0
GND-4
RSVD1
GND-5
HSIP1
HSIN1
GND-6
GND-7
HSIP2
HSIN2
GND-8
GND-9
HSIP3
HSIN3
GND-10
RSVD2
RSVD3
GND-11
HSIP4
HSIN4
GND-12
GND-13
HSIP5
HSIN5
GND-14
GND-15
HSIP6
HSIN6
GND-16
GND-17
HSIP7
HSIN7
GND-18
RSVD4
GND-19
HSIP8
HSIN8
GND-20
GND-21
HSIP9
HSIN9
GND-22
GND-23
HSIP10
HSIN10
GND-24
GND-25
HSIP11
HSIN11
GND-26
GND-27
HSIP12
HSIN12
GND-28
GND-29
HSIP13
HSIN13
GND-30
GND-31
HSIP14
HSIN14
GND-32
GND-33
HSIP15
HSIN15
GND-34
2
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
PLTRST4#
EXP_A_RXP_0
EXP_A_RXN_0
EXP_A_RXP_1
EXP_A_RXN_1
EXP_A_RXP_2
EXP_A_RXN_2
EXP_A_RXP_3
EXP_A_RXN_3
EXP_A_RXP_4
EXP_A_RXN_4
EXP_A_RXP_5
EXP_A_RXN_5
EXP_A_RXP_6
EXP_A_RXN_6
EXP_A_RXP_7
EXP_A_RXN_7
EXP_A_RXP_8
EXP_A_RXN_8
EXP_A_RXP_9
EXP_A_RXN_9
EXP_A_RXP_10
EXP_A_RXN_10
EXP_A_RXP_11
EXP_A_RXN_11
EXP_A_RXP_12
EXP_A_RXN_12
EXP_A_RXP_13
EXP_A_RXN_13
EXP_A_RXP_14
EXP_A_RXN_14
EXP_A_RXP_15
EXP_A_RXN_15
+12V
VCC3
CK_PE4_DP (24)
CK_PE4_DN (24)EXP_A_TXP_0(4)
EXP_A_RXP_0 (4)
EXP_A_RXN_0 (4)
EXP_A_RXP_1 (4)
EXP_A_RXN_1 (4)
EXP_A_RXP_2 (4)
EXP_A_RXN_2 (4)
EXP_A_RXP_3 (4)
EXP_A_RXN_3 (4)
EXP_A_RXP_4 (4)
EXP_A_RXN_4 (4)
EXP_A_RXP_5 (4)
EXP_A_RXN_5 (4)
EXP_A_RXP_6 (4)
EXP_A_RXN_6 (4)
EXP_A_RXP_7 (4)
EXP_A_RXN_7 (4)
EXP_A_RXP_8 (4)
EXP_A_RXN_8 (4)
EXP_A_RXP_9 (4)
EXP_A_RXN_9 (4)
EXP_A_RXP_10 (4)
EXP_A_RXN_10 (4)
EXP_A_RXP_11 (4)
EXP_A_RXN_11 (4)
EXP_A_RXP_12 (4)
EXP_A_RXN_12 (4)
EXP_A_RXP_13 (4)
EXP_A_RXN_13 (4)
EXP_A_RXP_14 (4)
EXP_A_RXN_14 (4)
EXP_A_RXP_15 (4)
EXP_A_RXN_15 (4)
1
VCC3
C642 0.1u16X/4C642 0.1u16X/4
53
U82
A A
CLOSE_PE4#(27)
PLTRST_BU2B#(27,29,30,31,69)
R696 100R/4R696 100R/4
CLOSE_PE4#
PLT_BU2B_4
U82
VCC
VCC
A
A
1
2
B
B
NC7SZ08M5X_SOT23-5-RH
NC7SZ08M5X_SOT23-5-RH
4
Y
Y
GND
GND
PLTRST4#_R
R694 33R/4R694 33R/4
PLTRST4#
VCC3
12
+
+
EC48
EC48
560u6.3SO
560u6.3SO
VCC3
C730
C730
1u6.3X/4
1u6.3X/4
C1163
C1163
1u6.3X/4
1u6.3X/4
C1153
C1153
0.01u16X/4
0.01u16X/4
R695 X_0R/4R695 X_0R/4
5
4
3
EC47
EC47
270u/16V
270u/16V
+12V
12
+
+
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
MS-7A21
PCIE4(X16/X8)
PCIE4(X16/X8)
PCIE4(X16/X8)
1
28 77
28 77
28 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 29
5
D D
C C
4
+12V
B1
B2
B3
SMBCLK_VSB_R(26,27,28,30)
SMBDATA_VSB_R(26,27,28,30)
PCH_WAKE#(17,26,27,28,30,41,42,44,49,52)
PE8_SLOT5_TX(18)
PE8_SLOT5_TX#(18)
SMBCLK_VSB_R
SMBDATA_VSB_R
3VSB
C767 0.1u10X/4C767 0.1u10X/4
C768 0.1u10X/4C768 0.1u10X/4
VCC3
PE8_SLOT5_TX_C
PE8_SLOT5_TX#_C
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
PCI_E5
PCI_E5
12V
12V
12V
GND
SMCLK
SMDATA
GND
3.3V
JTAG1
3.3VAUX
WAKE_#
RSVD
GND
HSOP0+
HSOP0GND
PRSNT2_#
GND
3
+12V
A1
PRSNT1_#
A2
12V
A3
12V
A4
GND
A5
JTAG2
A6
JTAG3
JTAG4
JTAG5
3.3V
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0+
HSIP0-
GND
A7
A8
A9
A10
A11
X1
X1
A12
A13
A14
A15
A16
A17
A18
X2
X2
VCC3
PLT_BU2B#_PE5
R896 0R/4R896 0R/4
PLTRST_BU2B# (27,28,30,31,69)
CK_PE5_DP (19)
CK_PE5_DN (19)
PE8_SLOT5_RX (18)
PE8_SLOT5_RX# (18)
2
1
SLOT-PCIEx1_BLACK-R
SLOT-PCIEx1_BLACK-R
B B
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
PCIE5(X1)
PCIE5(X1)
PCIE5(X1)
MS-7A21
1
29 77
29 77
29 77
Sheet of
Sheet of
Sheet of
10
10
10
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
Page 30
5
PCIE6(X8)
+12V
D D
+12V
5
SMBCLK_VSB_R
SMBDATA_VSB_R
VCC3
3VSB
PE6_X8_TXP_7_C
PE6_X8_TXN_7_C
PE6_PSNT
PE6_X8_TXP_6_C
PE6_X8_TXN_6_C
PE6_X8_TXP_5_C
PE6_X8_TXN_5_C
PE6_X8_TXP_4_C
PE6_X8_TXN_4_C
PE6_PSNT
EXP_C_TXP_3_C
EXP_C_TXN_3_C
EXP_C_TXP_2_C
EXP_C_TXN_2_C
EXP_C_TXP_1_C
EXP_C_TXN_1_C
EXP_C_TXP_0_C
EXP_C_TXN_0_C
PE6_PSNT
PE6_PSNT
R930
R930
4.7K/4
4.7K/4
M.2_DET_SW(49)
M.2_DET_SW:
0:m2-sata or no m2 device
1:m2-pcie
VCC3
C821
C821
C762
C762
0.1u16X/4
0.1u16X/4
0.1u16X/4
0.1u16X/4
SMBCLK_VSB_R(26,27,28,29)
SMBDATA_VSB_R(26,27,28,29)
PCH_WAKE#(17,26,27,28,29,41,42,44,49,52)
PE6_X8_TXP7
PE6_X8_TXN7
PE6_X8_TXP6
PE6_X8_TXN6
PE6_X8_TXP5
PE6_X8_TXN5
C832
C832
EXP_C_TXP_3(4)
EXP_C_TXN_3(4)
EXP_C_TXP_2(4)
EXP_C_TXN_2(4)
EXP_C_TXP_1(4)
EXP_C_TXN_1(4)
EXP_C_TXP_0(4)
EXP_C_TXN_0(4)
0.1u16X/4
0.1u16X/4
PE6_X8_TXP4
PE6_X8_TXN4
5 6
PWRCONN4P_BLACK-RH-1
PWRCONN4P_BLACK-RH-1
C833
C833
C C
B B
A A
0.1u16X/4
0.1u16X/4
+12V
1
JPWR4
JPWR4
270u/16V
270u/16V
C803 0.22u6.3X/4C803 0.22u6.3X/4
C802 0.22u6.3X/4C802 0.22u6.3X/4
C804 0.22u6.3X/4C804 0.22u6.3X/4
C805 0.22u6.3X/4C805 0.22u6.3X/4
C806 0.22u6.3X/4C806 0.22u6.3X/4
C807 0.22u6.3X/4C807 0.22u6.3X/4
C808 0.22u6.3X/4C808 0.22u6.3X/4
C809 0.22u6.3X/4C809 0.22u6.3X/4
C816 0.22u6.3X/4C816 0.22u6.3X/4
C817 0.22u6.3X/4C817 0.22u6.3X/4
C818 0.22u6.3X/4C818 0.22u6.3X/4
C819 0.22u6.3X/4C819 0.22u6.3X/4
C810 0.22u6.3X/4C810 0.22u6.3X/4
C811 0.22u6.3X/4C811 0.22u6.3X/4
C812 0.22u6.3X/4C812 0.22u6.3X/4
C813 0.22u6.3X/4C813 0.22u6.3X/4
VCC5+12V
243
+12V
EC50
EC50
12
+
+
C834
C834
1u6.3X/4
1u6.3X/4
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B81
B1
B2
B3
B4
B5
B6
B7
B8
B9
PCI_E6
PCI_E6
12V-1
12V-2
RSVD5
GND-1
SMCLK
SMDAT
GND-2
3.3V-1
JTAG1
3.3VAUX
WAKE#
RSVD6
GND-3
HSOP0
HSON0
GND-4
PRSNT2#1
GND-5
HSOP1
HSON1
GND-6
GND-7
HSOP2
HSON2
GND-8
GND-9
HSOP3
HSON3
GND-10
RSVD7
PRSNT2#2
GND-11
HSOP4
HSON4
GND-12
GND-13
HSOP5
HSON5
GND-14
GND-15
HSOP6
HSON6
GND-16
GND-17
HSOP7
HSON7
GND-18
PRSNT2#3
GND-19
PRSNT2#4
G2
D1
G1
C815
C815
1u6.3X/4
1u6.3X/4
Q102
Q102
NN-2N7002D
NN-2N7002D
S1
C766
C766
0.01u16X/4
0.01u16X/4
MEC1
X1
X1
MEC1
0A to 10 for
M.2 and U.2 switch
PE6X8_M2X4_SEL
D2
S2
3VSB
4
A1
PRSNT1#
A2
12V-3
A3
12V-4
A4
GND-20
A5
JTAG2
A6
JTAG3
A7
JTAG4
A8
JTAG5
A9
3.3V-2
A10
3.3V-3
PWRGD
GND-21
REFCLK+
REFCLK-
GND-22
HSIP0
HSIN0
GND-23
RSVD1
GND-24
HSIP1
HSIN1
GND-25
GND-26
HSIP2
HSIN2
GND-27
GND-28
HSIP3
HSIN3
GND-29
RSVD2
RSVD3
GND-30
HSIP4
HSIN4
GND-31
GND-32
HSIP5
HSIN5
GND-33
GND-34
HSIP6
HSIN6
GND-35
GND-36
HSIP7
HSIN7
GND-37
HSIN15
SLOT-PCI100P_BLACK-2PITCH-RH-5
SLOT-PCI100P_BLACK-2PITCH-RH-5
C835
C835
X_0.1u10X/4
X_0.1u10X/4
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A81
C763
C763
X_0.1u10X/4
X_0.1u10X/4
4
PLTRST6#
PE6_X8_RXP7
PE6_X8_RXN7
PE6_X8_RXP6
PE6_X8_RXN6
PE6_X8_RXP5
PE6_X8_RXN5
PE6_X8_RXP4
PE6_X8_RXN4
EXP_C_RXP_3
EXP_C_RXN_3
EXP_C_RXP_2
EXP_C_RXN_2
EXP_C_RXP_1
EXP_C_RXN_1
EXP_C_RXP_0
EXP_C_RXN_0
EXP_C_TXP_4(4)
EXP_C_TXN_4(4)
+12V
VCC3
CK_PE6_DP (24)
CK_PE6_DN (24)
EXP_C_RXP_3 (4)
EXP_C_RXN_3 (4)
EXP_C_RXP_2 (4)
EXP_C_RXN_2 (4)
EXP_C_RXP_1 (4)
EXP_C_RXN_1 (4)
EXP_C_RXP_0 (4)
EXP_C_RXN_0 (4)
EXP_C_RXP_4(4)
EXP_C_RXN_4(4)
PE6X8_M2X4_SEL(48)
EXP_C_TXP_5(4)
EXP_C_TXN_5(4)
EXP_C_RXP_5(4)
EXP_C_RXN_5(4)
EXP_C_TXP_6(4)
EXP_C_TXN_6(4)
EXP_C_RXP_6(4)
EXP_C_RXN_6(4)
EXP_C_TXP_7(4)
EXP_C_TXN_7(4)
EXP_C_RXP_7(4)
EXP_C_RXN_7(4)
PE6X8_M2X4_SEL
FOR DETECT HAVE M2 SATA CARD
R906 100K/4R906 100K/4
SIO_GP80(31)
SIO_GP13(31,48,49)
PE6X8_M2X4_SEL
PE6X8_M2X4_SEL
G2
D1
G1
PE6_M2
high:CPU_PCIEto m2
low:CPU_PCIE to PE6
PE6_PSNT
VCC3
S
S
D
D
Q125
Q125
2N7002
2N7002
R985
R985
4.7K/4
4.7K/4
CLOSE_PE6#(27)
D28
D28
ESD-SFI0402
ESD-SFI0402
12
G
G
H:A to B
L:A to C
Q99
Q99
NN-2N7002D
NN-2N7002D
S1
PE6_EN#
3
D2
S2
3
U121
U121
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
U127
U127
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
VCC33VSB
R909
R909
4.7K/4
4.7K/4
PE6X8_M2X4_SEL
CLOSE_PE6#(27)
PLTRST_BU2B#(27,28,29,31,69)
VCC3
19
9
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND
GND
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
VCC3
19
9
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND
GND
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
R1048 100R/4R1048 100R/4
C1143 0.1u10X/4C1143 0.1u10X/4
34
41
VDD
43
C1179 0.1u10X/4C1179 0.1u10X/4
34
41
VDD
43
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
PLTRST_BU2B#_6
EXP_C_TX_4P
EXP_C_TX_4N
EXP_C_RX4P
EXP_C_RX4N
EXP_C_TX_5P
EXP_C_TX_5N
EXP_C_RX5P
EXP_C_RX5N
EXP_C_TX_6P
EXP_C_TX_6N
EXP_C_RX6P
EXP_C_RX6N
EXP_C_TX_7P
EXP_C_TX_7N
EXP_C_RX7P
EXP_C_RX7N
3VSB
R1020
R1020
100K/4
100K/4
PE6_EN#
SIO_GP13(31,48,49)
U.2_DET#(50)
1
2
2
M2_TX3 (49)
M2_TX3# (49)
M2_RX3 (49)
M2_RX3# (49)
M2_TX2 (49)
M2_TX2# (49)
M2_RX2 (49)
M2_RX2# (49)
CM2_TXP1 (48)
CM2_TXN1 (48)
CM2_RXP1 (48)
CM2_RXN1 (48)
0A to 1.0 SWAP for M.2 PCIE
CM2_TXP0 (48)
CM2_TXN0 (48)
CM2_RXP0 (48)
CM2_RXN0 (48)
0A to 10 for
M.2 and U.2 switch
Q165
Q165
G2
D1
G1
VCC3
C845 0.1u16X/4C845 0.1u16X/4
53
VCC
VCC
A
A
B
B
GND
GND
R1049 X_0R/4R1049 X_0R/4
D2
S2
NN-2N7002D
NN-2N7002D
S1
U97
U97
4
Y
Y
NC7SZ08M5X_SOT23-5-RH
NC7SZ08M5X_SOT23-5-RH
2
PE6_M2
PE6X8_M2X4_SEL
D
D
Q93
Q93
G
G
S
S
2N7002
2N7002
U.2_DET#
PLTRST6#_R
EXP_C_TX_4P
EXP_C_TX_4N
EXP_C_RX4P
EXP_C_RX4N
U.2_EN
EXP_C_TX_5P
EXP_C_TX_5N
EXP_C_RX5P
EXP_C_RX5N
EXP_C_TX_6P
EXP_C_TX_6N
EXP_C_RX6P
EXP_C_RX6N
U.2_EN
EXP_C_TX_7P
EXP_C_TX_7N
EXP_C_RX7P
EXP_C_RX7N
VCC3
R899 4.7K/4R899 4.7K/4
R1002 33R/4R1002 33R/4
MSI
MSI
MSI
1
C1140 0.1u10X/4C1140 0.1u10X/4
34
41
37
AOa+
VDD
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
43
C1178 0.1u10X/4C1178 0.1u10X/4
34
41
37
AOa+
VDD
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
F75480BN
F75480BN
43
R897
R897
4.7K/4
4.7K/4
Q94
Q94
G2
D1
G1
NN-2N7002D
NN-2N7002D
R931
R931
4.7K/4
4.7K/4
S1
3VSB
0A to 10 for
M.2 and U.2 switch
PE6_X8_TXP4
PE6_X8_TXN4
PE6_X8_RXP4
PE6_X8_RXN4
U.2_TXP3 (50)
U.2_TXN3 (50)
U.2_RXP3 (50)
U.2_RXN3 (50)
PE6_X8_TXP5
PE6_X8_TXN5
PE6_X8_RXP5
PE6_X8_RXN5
U.2_TXP2 (50)
U.2_TXN2 (50)
U.2_RXP2 (50)
U.2_RXN2 (50)
PE6_X8_TXP6
PE6_X8_TXN6
PE6_X8_RXP6
PE6_X8_RXN6
U.2_TXP1 (50)
U.2_TXN1 (50)
U.2_RXP1 (50)
U.2_RXN1 (50)
PE6_X8_TXP7
PE6_X8_TXN7
PE6_X8_RXP7
PE6_X8_RXN7
U.2_TXP0 (50)
U.2_TXN0 (50)
U.2_RXP0 (50)
U.2_RXN0 (50)
U.2_EN
D2
S2
U123
U123
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
U128
U128
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
VCC3
19
9
VDD
VDD
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
VCC3
19
9
VDD
VDD
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
SIO_GP31(31)
VDD21VDD26VDD39VDD31VDD
GND
GND
VDD21VDD26VDD39VDD31VDD
GND
GND
PE6_EN#
U.2_EN HIGH to U2
PLTRST6#
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
U.2_EN LOW to PE6
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MS-7A21
PCIE6(X8)
PCIE6(X8)
PCIE6(X8)
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
1
Sheet of
Sheet of
Sheet of
VCC33VSB
R898
R898
4.7K/4
4.7K/4
D
D
Q168
Q168
G
G
S
S
2N7002
2N7002
30 77
30 77
30 77
10
10
10
Page 31
5
SIO-NTC6792D/PS2
U69
C1096 X_10P50N/4C1096 X_10P50N/4
PLTRST#
CK_P_33M_SIO
CK_48M_SIO
LPC_DRQ#0
LPC_FRAME#
SIO_5VDUAL
R513 0R/4R513 0R/4
R540 0R/4R540 0R/4
USB_HOTKEY_EN
SIO_GP31
R1297 33R/4R1297 33R/4
R506 X_0R/4R506 X_0R/4
VIN6
VIN5
VIN4
VDIMM
VIN2
VIN1
VIN0
CPUVcore
SYSTIN
CPUTIN
CHIP_PWGD
FP_RST#_I
R537 22R/4R537 22R/4
R522 22R/4R522 22R/4
R538 22R/4R538 22R/4
R1304 33R/4R1304 33R/4
SLP_SUS#_SIO
SYS3VSB_OFF
DPWROK_SIO
SLP_S5_LCH#
PECI_IO
SIO_TRIP#
SKTOCC#_R
SIO_PME_N
VIN7
PLTRST_BU1#_R
PLTRST_BU2#_R
PLTRST#(17,24)
CK_P_33M_SIO(19)
CK_48M_SIO(19)
LPC_DRQ#0(17)
SERIRQ(17,69)
D D
0A to 10
C C
B B
LPC_FRAME#(17,69)
LPC_AD0(17,69)
LPC_AD1(17,69)
LPC_AD2(17,69)
LPC_AD3(17,69)
PM_SLP_SUS_N(17)
SYS3VSB_OFF(58)
PM_DPWROK(17)
PS2_MODE(56)
AMD used TSIC/D but intel used GPIO
USB_HOTKEY_EN(45)
SIO_GP31(30)
H_PECI(3,17)
H_SKTOCC#(3)
SIO_PME_N(18)
VIN8(32)
R633 8.2K1%/4R633 8.2K1%/4
SIO_5VSB
R624 4.7K1%4R624 4.7K1%4
VIN6(32)
VIN5(32)
VIN4(32)
VDIMM(32)
VIN2(32)
VIN1(32)
VIN0(32)
CPUVcore(32)
If un-used input pin please add pull down
SYS2_FANTAC(34)
SYS3_FANTAC(34)
SYS4_FANTAC(35)
SIO_SYS2_FAN(34)
SIO_SYS3_FAN(34)
SIO_SYS4_FAN(35)
CPU_FANTAC(33)
SIO_CPU_FAN(33)
SYS1_FANTAC(33)
SIO_SYS1_FAN(33)
RSMRST#(17)
PWRBTIN(45,69)
PWRBTN#(17)
SLP_S3#(17,45,56,58,66,67)
SLP_S4#(17,45,56,58,63,64,65)
SIO_PSON#(59,69)
ATX_PWR_OK(56,58,69)
CHIP_PWGD(24)
PLTRST_BU1#
PLTRST_BU2#
PLTRST_BU3# PLTRST_BU3#_R
LED_VSB(69)
LED_VCC(69)
U69
26
LRESET#
17
PCICLK
15
IOCLK
18
LDRQ#
19
25
23
22
21
20
93
90
92
91
89
88
73
62
70
72
75
76
118
120
2
128
102
65
103
116
115
114
111
107
106
105
104
109
113
112
3
4
5
121
122
123
124
125
126
127
101
61
60
64
84
63
80
82
83
37
79
78
77
81
86
87
LPC Interface
LPC Interface
SERIRQ
LFRAME#
LAD0
LAD1
LAD2
LAD3
GP50/SUSWARN#/RSTOUT3#
GP53/SUSWARN_5VDUAL/AUXFANOUT3
GP51/5VDUAL/AUXFANIN3
GP52/SUSACK#/RSTOUT4#
GP54/SLP_SUS#/PWROK/3VSBSW#
GP55/SLP_SUS_FET
DPWROK#
SLPS5_Lch/GP40(TEST_MODE_EN)
USBEN/3VSBSW/LATCH_BKFD_CUT/PWROK/ATXPGDO
DEEP_S5_1/CASEOPEN1#
GP32/SCL/MSCL
GP31/SDA/MSDA
TSIC/GP26/PWR_FAULT#
TSID/PECI
OVT#/SMI#/GP03
SMI#/OVT#
SKTOCC#
PME#
VIN8
ATX_5VSB/AUXTIN3/VIN7
AUXTIN2/VIN6
AUXTIN1/VIN5
AUXTIN0/VIN4
VIN3/VDIMM
VIN2/VLDT
VIN1
VIN0
CPUVCORE
SYSTIN
CPUTIN
AUXFANIN0/GP04
AUXFANIN1/GP05
AUXFANIN2/GP06
AUXFANOUT0/GP00
AUXFANOUT1/GP01
AUXFANOUT2/GP02
CPUFANIN
CPUFANOUT
SYSFANIN
SYSFANOUT
RSMRST#
PSIN#
PSOUT#
SLP_S3#
SLP_S5#
PSON#/AMD_PSON#
ATXPGD
PWROK
RESETCONI#/GP30/OVT#/SMI#
MSI_LED/GP47
RSTOUT0#/GP74
RSTOUT1#/GP75
RSTOUT2#/GP76
PWROK/AMD_PWROK
GP57/VLDT_EN
GP56/VCORE_EN
NCT6792D-RH
NCT6792D-RH
DSW Interface
DSW Interface
Harddware Monitor
Harddware Monitor
FAN Control
FAN Control
ACPI Function
ACPI Function
4
DSW_EN
AMDPWR_EN
(DSW_EN)GP70
GPIO
GPIO
(AMDPWR_EN)IRTX1/CIRTX1/GP25
Printer mode
Printer mode
Port80
Port80
LED
LED
Control
Control
GPIO
GPIO
(P80_EN)SOUTA_P80/SOUTA/GP85
UART SIR
UART SIR
(TEST1MODE_EN)IRTX0/SOUTB/GP12
KBC Function
KBC Function
LATCH_BKFD_CUT#/GP33/3VSBSW#/5VCCDRV#
Power Pin
Power Pin
GP71/DUAL_BIOS
GP72/CLR_CMOS#
GPO/GP73/CUT_VBAT#
PLED/CIRRWB1/GP27
IRRX1/GP24/CIRRX
CIRTX0/GP07
SLCT/CIRRXWB0/GP46
ACK#/GP43/DGL_0#
ERR#/GP36/DGL_1#
AFD#/GP35/DGH_1#
SOUTB_P80/STB#/GP34
INIT#/GP41/SCL/MSCL
SLIN#/GP42/BEEP/SDA/MSDA
PD0/KB_SCN1/GP60/LED_A
PD1/KB_SCN2/GP61/LED_B
PD2/KB_SCN3/GP62/LED_C
PD3/KB_SCN4/GP63/LED_D
PD4/KB_SCN5/GP64/LED_E
PD5/KB_SCN6/GP65/LED_F
PD6/GP66/LED_G
PD7/GP67/DGH_0#
BUSY/GP44/WHT_LED
PE/GP45/ORG_LED
RIA#/GP87
DCDA#/GP86
(24_48M_SEL)DTRA#/GP83
(UARTB_P80_EN)DTRB#/GP14
(UARTA_P80_EN)RTSB#/GP15
SINA/GP84
(2E_4E_SEL)RTSA#/GP82
DSRA#/GP81
CTSA#/GP80
RIB#/GP10
DCDB#/GP11
IRRX0/SINB/GP13
DSRB#/GP16
CTSB#/GP17
GA20M
KBRST#
GP23/MCLK
GP22/MDAT
GP21/KCLK
GP20/KDAT
5VSBDRV#
PCHVSB
VBAT
CASEOPEN0#
3VA-1
3VA-2
3VCC-1
3VCC-2
AVCC
VREF
VSS-1
VSS-2
CPUD-/AGND
R541 X_0R/4R541 X_0R/4
R521 0R/4R521 0R/4
DSW_EN
69
SPI_SEL
68
CLR_CMOS#
67
66
GP73 BIOS要PO成WDT# FUNCTION
98
AMDPWR_EN
96
ME_DIS#
95
6
CPU_BEEP
38
41
53
54
Turbo_LED_OFF#
55
52
51
LED_A
50
LED_B
49
LED_C
48
LED_D
47
LED_E
45
LED_F
44
LED_G
43
42
40
39
RIA#
36
35
SOUTA
34
SIO_GP84
33
DTRA#
32
RTSA#
31
XMP_OFF
30
SIO_GP80
29
SIO_GP10
14
SATA_EX_GPI#
13
TEST1MODE_EN
12
SIO_GP13
11
DTRB#
10
RTSB#
9
PROCID
KBRST#
MSCLK
MSDAT
KBCLK
KBDAT
FAST_BOOT
SIO_AVCC3
HM_VREF
GNDHM
SP3
SP3
R1300 0R/4R1300 0R/4
For USB charge
5VCCDRV#
5VSBDRV#
R533 1K1%/4R533 1K1%/4
R553 1M/4R553 1M/4
C511 100p50N/4C511 100p50N/4
8
7
27
28
56
57
58
59
71
74
97
119
VTT
99
100
46
85
1
24
108
110
16
94
117
X_COPPER
X_COPPER
3
USB_MODE (45,56)
SPI_SEL (37)
CLR_CMOS# (22)
WDT# (17,69)
ME_DIS# (22)
SLOW_MODE# (3,71)
CPU_BEEP (69)
DGL_0# (32)
Turbo_LED_OFF# (71)
VREF_EN (15)
CHARGE_CB (46)
LED_A (32)
LED_B (32)
LED_C (32)
LED_D (32)
LED_E (32)
LED_F (32)
LED_G (32)
DGH_0# (32)
WF+BT_DET# (52)
WIFI_BT_EN (52)
X8_EN# (25,27)
SIO_GP84 (49)
XMP_OFF (73)
SIO_GP80 (30)
SIO_GP10 (48)
SIO_GP13 (30,48,49)
PROC_ID (3,67)
ALL_LED_OFF# (40,71)
KBRST# (17)
MSCLK (32)
MSDAT (32)
KBCLK (32)
KBDAT (32)
3VSB
+VCCIO_IN
VBAT_WELL
VBAT_WELL
SIO_3VA
VCC3
SIO_AVCC3
(O,2.048V)
C1091
C1091
4.7u6.3X8
4.7u6.3X8
0A to 10
FAST_BOOT
GPIO 41, 46, 31 and 32 that
Support Wake-Up Function
5VCCDRV# (46)
5VSBDRV# (46)
FAST_BOOT (71)
2
ATX_5VSB3VA SIO_3VA
R456 X_0R/4R456 X_0R/4
U132
U132
1.4V enable
RTCRST#_D(22,71)
5
VIN
4
EN
1
VOUT
3
OC#
GND
UP7549TMA5-15_SOT235-HF
UP7549TMA5-15_SOT235-HF
2
0.133A
ATX_5VSB SIO_5VSB
R1255 X_0R/4R1255 X_0R/4
U133
R1253
R1253
47K/4
47K/4
C1049
C1049
C1061
C1061
0.1u16X/4
0.1u16X/4
10u6.3X/6
10u6.3X/6
SIO Pin Strap
(PIN31)RTSA# 0=2E 1=4E
(PIN32)DTRA# 0=24MHz 1=48MHz
(PIN34)SOUTA(P80_EN) 0= disable 1= Enable
(PIN9)(RTSB#)ORT80_EN 0=ENABLE 1=disable
(PIN10) (DTRB#)ORT80_EN 0=ENABLE 1=disable
(PIN69)DSW_EN 0=Disable 1=Enable
(PIN96)AMDPWR_EN 0=Disable 1=Enable
(PIN62)(SLP_S5_LCH#)TEST_MODE_EN 0=Disable 1=Enable
VCC3
RTSA#
DTRA#
SOUTA
RTSB#
DTRB#
AMDPWR_EN
DSW_EN
SLP_S5_LCH#
TEST1MODE_EN
SIO_3VA
R637 1K/4R637 1K/4
R638 1K/4R638 1K/4
R639 1K/4R639 1K/4
R642 X_1K/4R642 X_1K/4
R643 X_1K/4R643 X_1K/4
R505 X_1K/4R505 X_1K/4
R543 1K/4R543 1K/4
R544 X_1K/4R544 X_1K/4
R640 X_1K/4R640 X_1K/4
U133
5
VIN
4
EN
SIO_5VSB_OFF# (71)
R627 X_680R/4R627 X_680R/4
R628 X_680R/4R628 X_680R/4
R629 X_680R/4R629 X_680R/4
R625 680R/4R625 680R/4
R626 680R/4R626 680R/4
R534 680R/4R534 680R/4
R542 X_680R/4R542 X_680R/4
R555 680R/4R555 680R/4
R630 680R/4R630 680R/4
R455
R455
47K/4
47K/4
Closed PIN24,108
1
VOUT
3
OC#
GND
UP7549TMA5-15_SOT235-HF
UP7549TMA5-15_SOT235-HF
2
VCC3
1
3V Analog Power
R1290 0R/4R1290 0R/4
VCC3
Closed PIN99
VBAT_WELL
C512
C512
0.1u10X/4
0.1u10X/4
VCC3
C572
C572
C569
C569
X_10u6.3X/6
0.1u10X/4
0.1u10X/4
R1302 2.7KR/4R1302 2.7KR/4
R1303 10K/4R1303 10K/4
R653 X_2.7KR/4R653 X_2.7KR/4
NO USE UART PORT1
X_10u6.3X/6
R476
R476
47K/4
47K/4
RIA#
SATA_EX_GPI#
SIO_GP13
SIO_5VSBATX_5VSB
SIO_AVCC3
C530
C530
C1088
C1088
10u6.3X/6
SIO_3VA
C505
C505
0.1u10X/4
0.1u10X/4
C1051
C1051
10u6.3X/6
10u6.3X/6
SATA_EX_GPI# (49)
10u6.3X/6
R1238
R1238
X_10K/4
X_10K/4
C1089
C1089
10u6.3X/6
10u6.3X/6
0.1u10X/4
0.1u10X/4
Closed PIN46,85
VCC3
LPC_FRAME#
LPC_DRQ#0
PLTRST_BU1#_R
CHIP_PWGD
FP_RST#_I
PLTRST#
A A
PECI_IO
SIO_5VDUAL
CPUTIN
USB_MODE
R635 X_4.7K/4R635 X_4.7K/4
R641 X_4.7K/4R641 X_4.7K/4
R514 300R/4R514 300R/4
R531 1K/4R531 1K/4
R532 100K/4R532 100K/4
R507 4.7K/4R507 4.7K/4
R636 X_4.7K/4R636 X_4.7K/4
C1092 X_47p50N4C1092 X_47p50N4
R1296 X_1K/4R1296 X_1K/4
R535 1K/4R535 1K/4
R590 X_1K/4R590 X_1K/4
R520 10K/4R520 10K/4
CHIP_PWGD
5
SYS3VSB_OFF
SKTOCC#_R
R515 0R/4R515 0R/4
R536 X_0R/4R536 X_0R/4
R516 10K/4R516 10K/4
R525 X_2M/4R525 X_2M/4
R552 1K/4R552 1K/4
SYS_PWROK (17)
PCH_PWROK_R (17,59)
SIO_5VSB
VBAT_WELL
thermal senser
Q76
Q76
P-3906
P-3906
4
C E
PLTRST_BU1#
PLTRST_BU2#
PLTRST_BU3#
PLTRST_BU1#
R598
R598
X_10K1%/4
X_10K1%/4
RT3
RT3
B
X_10K/1%6
X_10K/1%6
R249 100R/4R249 100R/4
R253 100R/4R253 100R/4
R1260 0R/4R1260 0R/4
R1264 0R/4R1264 0R/4
R684 100R/4R684 100R/4
R679 100R/4R679 100R/4
R685 100R/4R685 100R/4
PLTRST_BU1# (40,69)
HM_VREF
SYSTIN
C1093
C1093
2.2n50X/4
2.2n50X/4
GNDHM
PLTRST_BU1A# (41,42,44)
PLTRST_BU1B# (3)
PLTRST_BU2A# (26,52)
PLTRST_BU2B# (27,28,29,30,69)
PLTRST_BU3A# (51)
PLTRST_BU3B# (49)
PLTRST_BU3C# (50)
HM_VREF
R597
R597
10K1%/4
10K1%/4
CPUTIN
C1095
C1095
RT1
RT1
2.2n50X/4
2.2n50X/4
10KRT1%4
10KRT1%4
GNDHM
3
VCC3 ATX_5VSB
R378
R378
R381
R381
47K/4
47K/4
4.7K/4
4.7K/4
G2
D1
SIO_TRIP#
G1
SIO_TRIP#
Q42
Q42
NN-2N7002D
NN-2N7002D
D2
S2
S1
SIO_TRIP# (3)
2
SLOW_MODE#
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
SIO-NTC6792D
SIO-NTC6792D
SIO-NTC6792D
1
31 77
31 77
31 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 32
5
4
3
DEBUG LED
Placement
POST4
POST3
2
Placement
POST2 POST1
1
PS2 KEYBOARD & MOUSE CONNECTOR
Placement
D D
C C
RN19
RN19
MSDAT
KBCLK
MSCLK
246
135
4.7K/8P4R
4.7K/8P4R
KBDAT(31)
MSDAT(31)
KBCLK(31)
MSCLK(31)
For EMI solution 2008-12-03
8
7
R1077 33R/4R1077 33R/4
R11 33R/4R11 33R/4
R1062 33R/4R1062 33R/4
R10 33R/4R10 33R/4
C16
C16
180p50N4
180p50N4
R9
X_1K/4R9X_1K/4
C17
C17
180p50N4
180p50N4
C7
0.1u10X/4C70.1u10X/4
C878
C878
180p50N4
180p50N4
KB_DTKBDAT
MS_DT
KB_CK
MS_CK
C881
C881
180p50N4
180p50N4
PS2_USB1A
PS2_USB1A
10
10
VCC
11
11
13
13
14
GND
14
MS
MS
MINIDIN_USBX2-RH-6
MINIDIN_USBX2-RH-6
12
9
MS_DT
MS_CK
AOZ8902CIL
AOZ8902CIL
PS2_USB
可以切換在
s5
底下是不
是要有電
PS2_USB
52
U6
U6
6
4
1
3
C8
0.1u10X/4C80.1u10X/4
KB_DT
KB_CK
DGL_0#(31)
DGH_0#(31)
(DGH1=Post4/DGL1=Post3/DGH0=Post2/DGL0=Post1)
DGL_0#
R670 0R/4R670 0R/4
R671 0R/4R671 0R/4
一定要對
SIO_3VA
SIO_3VA
R676
R676
10K/4
10K/4
R677
R677
10K/4
10K/4
L_DGL_0#
L_DGH_0#DGH_0#
LED_A(31)
LED_B(31)
LED_C(31)
LED_D(31)
LED_E(31)
LED_F(31)
LED_G(31)
LED_A
LED_B
LED_C
LED_D
LED_E
LED_F
LED_G
L_DGH_0#
L_DGL_0#
H0_LED_A
H0_LED_B
H0_LED_C
H0_LED_D
H0_LED_E
H0_LED_F
H0_LED_G
RN10 8P4R-220R0402RN10 8P4R-220R0402
LED_A
1
LED_B
3
LED_C
5
LED_D
7
1
LED_E
3
LED_F
5
LED_G
7
RN11 8P4R-220R0402RN11 8P4R-220R0402
POST1
POST1
3
a
9
b
8
c
6
d
7
e
4
f
1
g
10
DIGH#
5
DIGL#
LED06-R-7SEGX2-RH-2
LED06-R-7SEGX2-RH-2
2
4
6
8
2
4
6
8
LSBMSB
H0_LED_A
H0_LED_B
H0_LED_C
H0_LED_D
H0_LED_E
H0_LED_F
H0_LED_G
MSI_LED
0A to 10 remove
HW Monitor - Voltage
R1292 1K1%/4R1292 1K1%/4
VCCP +12V
CPUVcore VIN0
CPUVcore (31)
R1293
R1293
1K1%/4
1K1%/4
C535
C535
10u6.3X/6
10u6.3X/6
R1274 220K/1%4R1274 220K/1%4
R1276
R1276
20K1%/4
20K1%/4
VIN0 (31)
C514
C514
0.1u16X/4
0.1u16X/4
B B
VCC_DDR_23
A A
CPU_CORE0
CPU_CORE3
R1282 12K1%4R1282 12K1%4
VCC5
R473 1K1%/4R473 1K1%/4
R469
R469
1K1%/4
1K1%/4
R614 10K1%/4R614 10K1%/4
R611 X_10K1%/4R611 X_10K1%/4
5
Q59 2N7002
Q59 2N7002
VCC5
D
D
G
G
R1279
R1279
3K1%/4
3K1%/4
VIN2
S
S
C547
C547
10u6.3X/6
10u6.3X/6
VIN1
VIN5
VIN1 (31)
C521
C521
0.1u10X/4
0.1u10X/4
VIN2 (31)
C528
C528
10u6.3X/6
10u6.3X/6
VIN5 (31)
VCC_DDR_01
R1283 1K1%/4R1283 1K1%/4
+VCCIO_IN
CPU_VCCU
CPU_RING
CPU_SA
4
R1281
R1281
1K1%/4
1K1%/4
R589 X_10K1%/4R589 X_10K1%/4
R1240 10K1%/4R1240 10K1%/4
R1294 10K1%/4R1294 10K1%/4
R1288 10K1%/4R1288 10K1%/4
D
D
S
S
G
G
Q155 2N7002
Q155 2N7002
VCC5
VDIMM
C1085
C1085
10u6.3X/6
10u6.3X/6
C540
C540
10u6.3X/6
10u6.3X/6
C1090
C1090
10u6.3X/6
10u6.3X/6
C1086
C1086
10u6.3X/6
10u6.3X/6
VDIMM (31)
VIN4
VIN4 (31)
VIN6
VIN6 (31)
VIN8 (31)
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
3
2
Friday, April 01, 2016
MS-7A21
SIO-NTC6792D/PS2
SIO-NTC6792D/PS2
SIO-NTC6792D/PS2
1
32 77
32 77
32 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 33
5
4
3
Type I : 4 PIN CPU FAN USE SIO PWM (STUFF NCT3943S WITH GPIO CUT POWER)
2
1
CPUFAN
D D
From SIO
SIO_CPU_FAN(31)
CPUFAN_PWR_OFF(47)
R72 X_0R/4R72 X_0R/4
R79 0R/4R79 0R/4
GPIO
CPUFAN_PWR_OFF
GPIO Control
C C
Deafult GPI
If USE CUT POWER
1.OPEN DRAIN LOW:SD# LOW Active
2.OPEN DRAIN : SD# Internal Pull high，CPUFAN(PIN2)=12V
If NOT use NCT3943S PWM mode R35 pull down,R477 unstuff
2014.12.15
VCC3
R55
R55
X_2K/4
X_2K/4
CPU_FAN CPU_FAN_FB
X_0.1u16X/4
X_0.1u16X/4
C81 4.7u16X8C81 4.7u16X8
R99 10K/4R99 10K/4
R77 X_0R/4R77 X_0R/4
R76 X_100K1%/4R76 X_100K1%/4
C48 X_0.1u16X/4C48 X_0.1u16X/4
C50
C50
R107
R107
100R/4
100R/4
FON#=0 ; VIN=VOUT=12V
，
CPUFAN(PIN2)= 0V
+12V
POR=4V
U8
U8
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high 3V
C76
C76
X_0.1u16X/4
X_0.1u16X/4
PWMOUT
Vout
GND
3
1
2
FB
9
C_FAN_PWM
+12V
C12 0.1u16X/4C12 0.1u16X/4
R23
R23
13.3K1%4
13.3K1%4
R6
R6
4.99KR1%/4
4.99KR1%/4
R124
R124
X_0R/8
X_0R/8
CPUFAN1
CPUFAN1
4
BH1X4B
BH1X4B
3
2
1
CPU_FANT
MEC1
>40mil
CPUFAN_PWR
C82
C82
22u16X8
22u16X8
WITH CUT POWER
BOM OPT
SIO PWM
NCT3943 PWM
SIO PWM
R1 100R/4R1 100R/4
R2 X_100R/4R2 X_100R/4
C1 X_0.1u16X/4C1 X_0.1u16X/4
CPUFAN_PWMPWM_CPUFAN
C_FAN_PWM
2015.06.22
R50
R50
D2
4.7K/4
1N4148WD21N4148W
C29
C29
0.1u16X/4
0.1u16X/4
R482 R11
X
O
4.7K/4
A C
R60 27K/4R60 27K/4
C40
C40
0.1u16X/4
0.1u16X/4
R68
R68
10K/4
10K/4
TO SIO
CPU_FANTAC (31)
C268,C23,C265 close to FAN Connector
R15
R30 R12
O
X
OOO
O
X XXOX
R485
X
O
SIO PWM
VCC5VCC5VCC5
R1078
R1081
R1081
R1091
R1091
2.2K/4
2.2K/4
2.2K/4
2.2K/4
Q130
Q130
G2
R484
O
XX
D1
G1
NN-2N7002D
NN-2N7002D
S1
SIO_CPU_FAN(31)
R4
R41
R483 R3 C13
X
XQ7X
O
O
SIO_CPU_FAN
X
OO
R1078
2.2K/4
2.2K/4
CPUFAN_PWM
D2
S2
Type H : 4/3 PIN SYS FAN FROM NCT3943S(USE SIO CUT POWER)
PUMPFAN
+12V
B B
2014.12.15
VCC3
R239
R239
2K/4
2K/4
SIO_SYS1_FAN(31)
A A
R238 0R/4R238 0R/4
SYSFAN_PWR_OFF
SIO_S1_FAN SYS1_FAN_FB
FON#=0 ; VIN=VOUT=12V
C271 4.7u16X8C271 4.7u16X8
R233 10K/4R233 10K/4
R236 X_0R/4R236 X_0R/4
R243 100K1%/4R243 100K1%/4
C253 0.1u16X/4C253 0.1u16X/4
C258 X_0.1u16X/4C258 X_0.1u16X/4 R227
R246
R246
X_100R/4
X_100R/4
+12V
C261
C261
X_0.1u16X/4
X_0.1u16X/4
POR=3V
U34
U34
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high
PWMOUT
Vout
GND
FAN_PWM
3
1
2
FB
9
C257 0.1u16X/4C257 0.1u16X/4
R231
R231
13.3K1%4
13.3K1%4
R227
4.99KR1%/4
4.99KR1%/4
R242
R242
X_0R/8
X_0R/8
MEC1
>40mil
SYSFAN_PWR
C228
C228
22u16X8
22u16X8
PUMPFAN1
PUMPFAN1
BH1X4B
BH1X4B
PWM_SYSFAN1
4
S1_FTAC_R
3
2
1
C243
C243
0.1u16X/4
0.1u16X/4
R226 X_100R/4R226 X_100R/4
R228 X_100R/4R228 X_100R/4
C212 X_0.1u16X/4C212 X_0.1u16X/4
D6
1N4148WD61N4148W
A C
C267,C82,C260 close to FAN Connector
SIO control
Close SIO_SYS1_FAN Vout=0
5
4
3
R237
R237
4.7K/4
4.7K/4
R234 27K/4R234 27K/4
C226
C226
0.1u16X/4
0.1u16X/4
SYSFAN1_PWM
FAN_PWM
2015.06.22
SYS1_FANTAC (31)
R230
R230
10K/4
10K/4
VCC5VCC5VCC5
R225
R224
R224
R223
R223
X_2.2K/4
X_2.2K/4
X_2.2K/4
X_2.2K/4
Q24
Q24
G2
SIO_SYS1_FAN(31)
SIO_SYS1_FAN
2
D1
G1
MSI
MSI
MSI
S1
R225
X_2.2K/4
X_2.2K/4
SYSFAN1_PWM
D2
S2
X_NN-2N7002DW
X_NN-2N7002DW
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
FAN CONTROLLOR-1
FAN CONTROLLOR-1
FAN CONTROLLOR-1
1
33 77
33 77
33 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 34
5
4
3
Type H : 4/3 PIN SYS FAN FROM NCT3943S(USE SIO CUT POWER)
SYSFAN1
2
1
+12V
D D
2014.12.15
VCC3
R324
R324
2K/4
2K/4
SIO_SYS2_FAN(31)
C C
R323 0R/4R323 0R/4
SYSFAN_PWR_OFF
SIO_S2_FAN SYS2_FAN_FB
FON#=0 ; VIN=VOUT=12V
C357 4.7u16X8C357 4.7u16X8
R326 10K/4R326 10K/4
R325 X_0R/4R325 X_0R/4
R330 100K1%/4R330 100K1%/4
C335 0.1u16X/4C335 0.1u16X/4
C338 X_0.1u16X/4C338 X_0.1u16X/4
R361
R361
X_100R/4
X_100R/4
+12V
C350
C350
X_0.1u16X/4
X_0.1u16X/4
POR=3V
U41
U41
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high
PWMOUT
Vout
GND
FAN2_PWM
3
1
2
FB
9
C321 0.1u16X/4C321 0.1u16X/4
R360
R360
13.3K1%4
13.3K1%4
R341
R341
4.99KR1%/4
4.99KR1%/4
R375
R375
X_0R/8
X_0R/8
MEC1
>40mil
SYSFAN2_PWR
C354
C354
22u16X8
22u16X8
SYSFAN1
SYSFAN1
BH1X4B
BH1X4B
4
3
2
1
C351
C351
0.1u16X/4
0.1u16X/4
PWM_SYSFAN2
D14
D14
1N4148W
1N4148W
S2_FTAC_R
R302 X_100R/4R302 X_100R/4
R305 X_100R/4R305 X_100R/4
C316 X_0.1u16X/4C316 X_0.1u16X/4
R312
R312
4.7K/4
4.7K/4
A C
R328 27K/4R328 27K/4
C329
C329
0.1u16X/4
0.1u16X/4
C267,C82,C260 close to FAN Connector
SYSFAN2_PWM
FAN2_PWM
2015.06.22
SYS2_FANTAC (31)
R339
R339
10K/4
10K/4
VCC5VCC5VCC5
R321
R321
X_2.2K/4
D2
S2
X_NN-2N7002DW
X_NN-2N7002DW
X_2.2K/4
SYSFAN2_PWM
R322
R322
R358
R358
X_2.2K/4
X_2.2K/4
X_2.2K/4
X_2.2K/4
Q35
Q35
G2
SIO_SYS2_FAN(31)
SIO_SYS2_FAN
D1
G1
S1
SIO control
Close SIO_SYS1_FAN Vout=0
Type H : 4/3 PIN SYS FAN FROM NCT3943S(USE SIO CUT POWER)
SYSFAN2
FAN3_PWM
+12V
C842 0.1u16X/4C842 0.1u16X/4
R1054
R1054
13.3K1%4
13.3K1%4
R1055
R1055
4.99KR1%/4
4.99KR1%/4
R1043
R1043
X_0R/8
X_0R/8
MEC1
>40mil
SYSFAN3_PWR
C872
C872
22u16X8
22u16X8
B B
2014.12.15
VCC3
R1050
R1050
2K/4
2K/4
SIO_SYS3_FAN(31)
A A
R1047 0R/4R1047 0R/4
SIO_S3_FAN SYS3_FAN_FB
C852 4.7u16X8C852 4.7u16X8
R1052 10K/4R1052 10K/4
R1051 X_0R/4R1051 X_0R/4
R1046 100K1%/4R1046 100K1%/4
C847 0.1u16X/4C847 0.1u16X/4
C840 X_0.1u16X/4C840 X_0.1u16X/4
R996
R996
X_100R/4
X_100R/4
+12V
C839
C839
X_0.1u16X/4
X_0.1u16X/4
POR=3V
U99
U99
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high
PWMOUT
Vout
GND
3
1
2
FB
9
SYSFAN2
SYSFAN2
BH1X4B
BH1X4B
PWM_SYSFAN3
4
S3_FTAC_R
3
2
1
C864
C864
0.1u16X/4
0.1u16X/4
R1015 X_100R/4R1015 X_100R/4
R1056 X_100R/4R1056 X_100R/4
C855 X_0.1u16X/4C855 X_0.1u16X/4
R1013
R1013
4.7K/4
4.7K/4
D33
D33
1N4148W
1N4148W
A C
R1014 27K/4R1014 27K/4
C854
C854
0.1u16X/4
0.1u16X/4
C267,C82,C260 close to FAN Connector
SYSFAN3_PWM
FAN3_PWM
2015.06.22
SYS3_FANTAC (31)
R1028
R1028
10K/4
10K/4
VCC5VCC5VCC5
R1001
D2
S2
X_NN-2N7002DW
X_NN-2N7002DW
R1001
X_2.2K/4
X_2.2K/4
SYSFAN3_PWM
R991
R991
R995
R995
X_2.2K/4
X_2.2K/4
X_2.2K/4
X_2.2K/4
Q120
Q120
G2
SIO_SYS3_FAN(31)
SIO_SYS3_FAN
D1
G1
S1
SYSFAN_PWR_OFF
SIO control
Close SIO_SYS1_FAN Vout=0
5
FON#=0 ; VIN=VOUT=12V
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
4
3
2
Friday, April 01, 2016
MS-7A21
FAN CONTROLLOR-2
FAN CONTROLLOR-2
FAN CONTROLLOR-2
1
34 77
34 77
34 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 35
5
D D
4
3
2
1
Type H : 4/3 PIN SYS FAN FROM NCT3943S(USE SIO CUT POWER)
SYSFAN3
C C
2014.12.15
VCC3
R992
R992
2K/4
2K/4
SIO_SYS4_FAN(31)
B B
R1019 0R/4R1019 0R/4
SIO_S4_FAN SYS4_FAN_FB
C851 4.7u16X8C851 4.7u16X8
R1045 10K/4R1045 10K/4
R1022 X_0R/4R1022 X_0R/4
R1004 100K1%/4R1004 100K1%/4
C838 0.1u16X/4C838 0.1u16X/4
C837 X_0.1u16X/4C837 X_0.1u16X/4
R994
R994
X_100R/4
X_100R/4
+12V
C836
C836
X_0.1u16X/4
X_0.1u16X/4
POR=3V
U98
U98
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high
PWMOUT
GND
Vout
3
1
2
FB
9
FAN4_PWM
+12V
C841 0.1u16X/4C841 0.1u16X/4
R1057
R1057
13.3K1%4
13.3K1%4
R1058
R1058
4.99KR1%/4
4.99KR1%/4
R1041
R1041
X_0R/8
X_0R/8
SYSFAN3
SYSFAN3
MEC1
BH1X4B
BH1X4B
>40mil
SYSFAN4_PWR
C870
C870
22u16X8
22u16X8
4
3
2
1
D32
D32
1N4148W
1N4148W
S4_FTAC_R
C871
C871
0.1u16X/4
0.1u16X/4
R1018 X_100R/4R1018 X_100R/4
R1059 X_100R/4R1059 X_100R/4
C857 X_0.1u16X/4C857 X_0.1u16X/4
SYSFAN4_PWMPWM_SYSFAN4
FAN4_PWM
2015.06.22
R1009
R1009
4.7K/4
4.7K/4
A C
R1029 27K/4R1029 27K/4
C856
C856
0.1u16X/4
0.1u16X/4
C267,C82,C260 close to FAN Connector
SYS4_FANTAC (31)
R1017
R1017
10K/4
10K/4
SIO_SYS4_FAN(31)
R1088
R1088
X_2.2K/4
X_2.2K/4
SIO_SYS4_FAN
R993
R993
X_2.2K/4
X_2.2K/4
G2
D1
G1
Q121
Q121
S1
VCC5VCC5VCC5
D2
S2
X_NN-2N7002DW
X_NN-2N7002DW
R999
R999
X_2.2K/4
X_2.2K/4
SYSFAN4_PWM
SYSFAN_PWR_OFF
FON#=0 ; VIN=VOUT=12V
SIO control
Close SIO_SYS1_FAN Vout=0
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
FAN CONTROLLOR-3
FAN CONTROLLOR-3
FAN CONTROLLOR-3
1
35 77
35 77
35 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 36
5
4
3
Type H : 4/3 PIN SYS FAN FROM NCT3943S(USE SIO CUT POWER)
OPTFAN1
2
1
+12V
D D
2014.12.15
VCC3
R333
R333
2K/4
2K/4
SIO_SYS5_FAN(68)
C C
R1187 0R/4R1187 0R/4
SYSFAN_PWR_OFF
SIO_S5_FAN SYS5_FAN_FB
FON#=0 ; VIN=VOUT=12V
C340 4.7u16X8C340 4.7u16X8
R1192 10K/4R1192 10K/4
R1193 X_0R/4R1193 X_0R/4
R332 100K1%/4R332 100K1%/4
C334 0.1u16X/4C334 0.1u16X/4
C333 X_0.1u16X/4C333 X_0.1u16X/4
R340
R340
X_100R/4
X_100R/4
+12V
C332
C332
X_0.1u16X/4
X_0.1u16X/4
POR=3V
U42
U42
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high
PWMOUT
Vout
GND
FAN5_PWM
3
1
2
FB
9
C322 0.1u16X/4C322 0.1u16X/4
R388
R388
13.3K1%4
13.3K1%4
R389
R389
4.99KR1%/4
4.99KR1%/4
R318
R318
X_0R/8
X_0R/8
MEC1
>40mil
SYSFAN5_PWR
C325
C325
22u16X8
22u16X8
OPTFAN1
OPTFAN1
BH1X4B
BH1X4B
4
3
2
1
C330
C330
0.1u16X/4
0.1u16X/4
PWM_SYSFAN5
D13
D13
1N4148W
1N4148W
S5_FTAC_R
R291 X_100R/4R291 X_100R/4
R292 X_100R/4R292 X_100R/4
C307 X_0.1u16X/4C307 X_0.1u16X/4
R296
R296
4.7K/4
4.7K/4
A C
R313 27K/4R313 27K/4
C314
C314
0.1u16X/4
0.1u16X/4
C267,C82,C260 close to FAN Connector
SYSFAN5_PWM
FAN5_PWM
2015.06.22
SYS5_FANTAC (68)
R319
R319
10K/4
10K/4
VCC5VCC5VCC5
R1178
R1178
X_2.2K/4
D2
S2
X_NN-2N7002DW
X_NN-2N7002DW
X_2.2K/4
SYSFAN5_PWM
R1179
R1179
R334
R334
X_2.2K/4
X_2.2K/4
X_2.2K/4
X_2.2K/4
Q38
Q38
G2
SIO_SYS5_FAN(68)
SIO_SYS5_FAN
D1
G1
S1
SIO control
Close SIO_SYS1_FAN Vout=0
Type H : 4/3 PIN SYS FAN FROM NCT3943S(USE SIO CUT POWER)
OPTFAN2
FAN6_PWM
+12V
C292 0.1u16X/4C292 0.1u16X/4
R287
R287
13.3K1%4
13.3K1%4
R288
R288
4.99KR1%/4
4.99KR1%/4
R271
R271
X_0R/8
X_0R/8
MEC1
>40mil
SYSFAN6_PWR
C286
C286
22u16X8
22u16X8
B B
2014.12.15
VCC3
R286
R286
2K/4
2K/4
SIO_SYS6_FAN(68)
A A
R284 0R/4R284 0R/4
SIO_S6_FAN SYS6_FAN_FB
C302 4.7u16X8C302 4.7u16X8
R289 10K/4R289 10K/4
R285 X_0R/4R285 X_0R/4
R276 100K1%/4R276 100K1%/4
C296 0.1u16X/4C296 0.1u16X/4
C295 X_0.1u16X/4C295 X_0.1u16X/4
R273
R273
X_100R/4
X_100R/4
+12V
C294
C294
X_0.1u16X/4
X_0.1u16X/4
POR=3V
U36
U36
8
VIN
4
PWMIN
5
DCIN
6
SD#
7
FON#
NCT3943S_ESOP8-HF
NCT3943S_ESOP8-HF
SD# interl pull high
PWMOUT
Vout
GND
3
1
2
FB
9
OPTFAN2
OPTFAN2
BH1X4B
BH1X4B
PWM_SYSFAN6
4
S6_FTAC_R
3
2
1
C287
C287
0.1u16X/4
0.1u16X/4
R259 X_100R/4R259 X_100R/4
R260 X_100R/4R260 X_100R/4
C274 X_0.1u16X/4C274 X_0.1u16X/4
R274
R274
4.7K/4
4.7K/4
D11
D11
1N4148W
1N4148W
A C
R268 27K/4R268 27K/4
C285
C285
0.1u16X/4
0.1u16X/4
C267,C82,C260 close to FAN Connector
SYSFAN6_PWM
FAN6_PWM
2015.06.22
SYS6_FANTAC (68)
R275
R275
10K/4
10K/4
VCC5VCC5VCC5
R278
D2
S2
X_NN-2N7002DW
X_NN-2N7002DW
R278
X_2.2K/4
X_2.2K/4
SYSFAN6_PWM
R283
R283
R279
R279
X_2.2K/4
X_2.2K/4
X_2.2K/4
X_2.2K/4
SIO_SYS6_FAN(68)
SIO_SYS6_FAN
Q31
Q31
G2
D1
G1
S1
SYSFAN_PWR_OFF
SIO control
Close SIO_SYS1_FAN Vout=0
5
FON#=0 ; VIN=VOUT=12V
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
OPTFAN
OPTFAN
OPTFAN
MS-7A21
1
36 77
36 77
36 77
Sheet of
Sheet of
Sheet of
10
10
10
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
4
3
2
Friday, April 01, 2016
Page 37
5
4
3
2
1
PCH_SPI_MOSI(17,45)
PCH_SPI_MISO(17,45)
D D
PCH_SPI_CLK(17,45)
PCH_SPI_IO2(17)
PCH_SPI_IO3(17)
C C
PCH_SPI_MOSI
PCH_SPI_MISO
PCH_SPI_CLK
PCH_SPI_IO2
PCH_SPI_IO3
PCH_SPI_CS#(17,45)
For Tl624 1.1: Stuff R1232
Old: Unstuff
PCH_PWROK(17,45)
PCH_SPI_MISO
PCH_SPI_IO2
R837 33R/4R837 33R/4
R801 33R/4R801 33R/4
R818 0R/4R818 0R/4
12
D23
D23
ESD-SFI0402/7~13pF
ESD-SFI0402/7~13pF
SPI DEBUG PROT
Close to SPI ROM
VCC3 VCC3
PCH_SPI_MISO_TL
PCH_SPI_CS#
SPI_SW_SEL
PCH_SPI_IO2_TL PCH_SPI_IO3
Part Number:N31-2061341-H06
SPI_SW_SEL
For Tl624 1.1: stuff D19
Old: Unstuff due to 12V
SPI_SW_SELPCH_SPI_CS#
12
D22
D22
ESD-SFI0402
ESD-SFI0402
JSPI1
JSPI1
1 2
3 4
PCH_SPI_CLK_TL
6
5
7 8
9
PCH_SPI_IO3_TL
1211
H2X6[10]M-2PITCH_BLACK-RH-1
H2X6[10]M-2PITCH_BLACK-RH-1
R827 33R/4R827 33R/4
R854 33R/4R854 33R/4
R790 33R/4R790 33R/4
PCH_SPI_MOSIPCH_SPI_MOSI_TL
PCH_SPI_CLK
A BIOS
B BIOS
SIO NCT6793 GP71
SPI_SEL(31)
GPI default low
Active push pull high switch to SPI2
MEC1MEC2
A
SPI_SEL_R SPI_SEL
B
SPI2_SW
C
SW-DIP_BLACK-RH
SW-DIP_BLACK-RH
BIOS1
BIOS1
C643 0.1u10X/4C643 0.1u10X/4
3VSB
For auto testing in factory.
PCH_SPI_CS#
D31
D31
X_ESD-SFI0402
X_ESD-SFI0402
1 2
R710 1K/4R710 1K/4
R632 4.7K/4R632 4.7K/4
SPI_SEL
R711
R711
100K1%/4
100K1%/4
3VSB
U83
U83
4
D
5
VCC
6
IN
NC7SB3157P6X_SOT323-6
NC7SB3157P6X_SOT323-6
IN=0 , D connected to S2 (SPI1- A Bios)
IN=1 , D connected to S1 (SPI2- B Bios)
GND
SPI_CS1#
3
S2
2
SPI_CS2#
1
S1
VCC3
B B
SPI_CS1#
PCH_SPI_IO2
VCC3
R712 1K/4R712 1K/4
R714 33R/4R714 33R/4
R713 33R/4R713 33R/4
R715
R715
2.2K/4
2.2K/4
SPI1_MISOPCH_SPI_MISO
SPI1_IO2
A BIOS
SPI1
SPI1
1
CS
2
DO(IO1)
3
WP(IO2)
4
GND
W25Q128FVSIQ-HF
W25Q128FVSIQ-HF
HOLD(IO3)
16M ROM
VCC3
R719
R719
2.2K/4
2.2K/4
SPI_CS2#
PCH_SPI_MISO
PCH_SPI_IO2
A A
R718 33R/4R718 33R/4
R717 33R/4R717 33R/4
SPI2_MISO
B BIOS
SPI2
SPI2
1
CS
2
DO(IO1)
3
WP(IO2)
4
GND
W25Q128FVSIQ-HF
W25Q128FVSIQ-HF
HOLD(IO3)
SPI FLASH ROM
Place close to SB.
*SPI_CLK & SPI_MOSI must be length matched to within 500mils.
*SPI_CLK & SPI_CS0# must be length matched to within 500mils.
5
VCC
CLK
DI(IO0)
VCC
CLK
DI(IO0)
8
7
6
5
8
7
6
5
4
VCC3
VCC3
SPI1_IO3
SPI1_CLK
SPI1_MOSI
SPI2_IO3
SPI2_CLKSPI2_IO2
SPI2_MOSI
C709 0.1u10X/4C709 0.1u10X/4
C711 10u6.3X/6C711 10u6.3X/6
C710 0.1u10X/4C710 0.1u10X/4
C708 10u6.3X/6C708 10u6.3X/6
R780 33R/4R780 33R/4
R779 33R/4R779 33R/4
R778 33R/4R778 33R/4
R783 33R/4R783 33R/4
R795 33R/4R795 33R/4
R814 33R/4R814 33R/4
R784 1K/4R784 1K/4
PCH_SPI_IO3
PCH_SPI_CLK
PCH_SPI_MOSI
PCH_SPI_IO3
PCH_SPI_CLK
PCH_SPI_MOSI
VCC3
SPI_SEL
ATX_5VSB
D
D
G
G
2N7002
2N7002
S
S
3
R972
R972
47K/4
47K/4
Q109
Q109
R971
R971
4.7K/4
4.7K/4
AC
A_BIOS1
A_BIOS1
LED04-R-30mA
LED04-R-30mA
SPI_SEL
G2
ABIOS_LED
D1
SPI1_SW
G1
20160225
remove all LED off
Q114
Q114
NN-2N7002D
NN-2N7002D
S1
BBIOS_LED
D2
S2
VCC5VCC5
R1010
R1010
1K/4
1K/4
AC
B_BIOS1
B_BIOS1
LED04-WHI-20m
LED04-WHI-20m
Placement 1
MULTI_BIOS_SWITCH
SPI2SPI1
BA
BIOS BIOS
Placement 2
SPI2SPI1
BA
BIOSBIOS
A_BIOS_LED B_BIOS_LED
MULTI_BIOS_SWITCH
A_BIOS_LED B_BIOS_LED
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
MS-7A21
Dual BIOS
Dual BIOS
Dual BIOS
1
37 77
37 77
37 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 38
5
Closed Codec
CA52
CA52
0.1u10X/4
0.1u10X/4
EAPD
SPDIFO1
SENSE_A
SENSE_B
SENSE_C
MIC1-VREFO-R
MIC1-VREFO-L
MIC2_VREFO
REGREF
VREF
JDREF
VRP
+
+
12
ECA11
ECA11
100u10SO
100u10SO
follow PCH power well
38.7mA
CA19
CA19
10u6.3X8
10u6.3X8
UA1
UA1
5
SDATA-OUT
SDIN0
8
SDATA-IN
10
SYNC
11
RESET#
6
BITCLK
7
I2S_MCLK
12
I2S_SCLK
47
EAPD/I2S-LRCLK
4
GPIO1/I2S-SDO
48
SPDIF-OUT
2
GPIO0/SPDIF-OUT2
14
SENSE A
15
SENSE B
16
SENSE C
23
MIC1-VREFO-R
22
MIC1-VREFO-L
17
MIC2-VREFO
45
LINE2-VREFO
46
PIN46-VREFO
3
REGREF
27
VREF
13
JDREF
44
VRP
RA25
RA25
X_0R/4
X_0R/4
ALC1150
GAMING MODE
Closed pin9
D D
AZ_SDOUT(17)
AZ_SDIN0(17)
X_10P50N/4
X_10P50N/4
C C
CA18
CA18
CA15
CA15
10u6.3X8
10u6.3X8
ECA7 must close to codec
CA17
CA17
MIC2_VREFO(39)
10u6.3X8
10u6.3X8
CA53
CA53
X_10u6.3X8
X_10u6.3X8
EAPD(39)
VCC3
RA24 22R/4RA24 22R/4
AZ_SYNC(17)
AZ_RST#(17)
AZ_BITCLK(17)
RA23
RA23
20K1%/4
20K1%/4
AVDD5
VCC3
CA16
CA16
0.1u10X/4
0.1u10X/4
1
9
DVDD
DVDD-IO
AVSS-2
AVSS-1
42
26
PIN 1~12, 47~49 reference GND,
others reference AGND
129mA
24
25
LDO-IN
49
43
LDO-OUT2
LDO-OUT1
FRONT-R+
GND
LDOOUT
FRONT-RFRONT-L+
FRONT-L-
SURR-R
SURR-L
CENTER
LINE1-R
LINE1-L
LINE2-R
LINE2-L
Closed Codec
CA22 closed PIN25
CA23 closed PIN43
CA22
CA22
0.1u10X/4
0.1u10X/4
LFE
SIDE-R
SIDE-L
MIC1-R
MIC1-L
MIC2-R
MIC2-L
ALC1150-CG-RH
ALC1150-CG-RH
Closed Codec
SENSE_A FRONT_JD
B B
A A
RA20 10K1%/4RA20 10K1%/4
RA17 20K1%/4RA17 20K1%/4
RA88 39.2KR1%RA88 39.2KR1%
RA16 39.2KR1%RA16 39.2KR1%
RA19 10K1%/4RA19 10K1%/4
RA21 X_20K1%/4RA21 X_20K1%/4
RA67 X_39.2KR1%RA67 X_39.2KR1%
DA3
DA3
X_TVS
X_TVS
LINE1_JD
MIC1_JD
CEN_JDSENSE_B
SURR_JD
MIC2_JDSENSE_C
LINE2_JD
SENSE_C
100u10SO
100u10SO
LA1
LA1
0R/8
0R/8
ECA14
ECA14
MIC2_JD (39)
LINE2_JD (39)
SENSE_C (39)
AVDD5ATX_5VSB
12
+
+
AnalogDigital
CA36
CA36
0.1u10X/4
0.1u10X/4
CA35
CA35
10u6.3X8
10u6.3X8
CA33,CA34 close to LA1
5
4
LDOOUTVCC3
CA23
CA23
CA14
CA14
22u6.3X/8
22u6.3X/8
10u6.3X8
10u6.3X8
40
41
39
38
A_SROUT_R SROUT_R
31
A_SROUT_L
30
A_CEN_OUT CEN_OUT
32
A_BASS
33
35
34
A_LINE_IN_R
21
A_LINE_IN_L
20
A_LINE2_R
37
A_LINE2_L
36
19
A_MIC1_L
18
A_MIC2_R
29
A_MIC2_L
28
LOUT_R-
LOUT_R+
LOUT_L-
LOUT_L+
4
+
+
ECA3 100u10SO
ECA3 100u10SO
1 2
+
+
ECA7 100u10SO
ECA7 100u10SO
1 2
+
+
ECA6 100u10SO
ECA6 100u10SO
1 2
+
+
ECA2 100u10SO
ECA2 100u10SO
1 2
CA12 22u6.3X/8CA12 22u6.3X/8
CA13 22u6.3X/8CA13 22u6.3X/8
CA21 2.2u6.3X6CA21 2.2u6.3X6
CA20 2.2u6.3X6CA20 2.2u6.3X6
CA46 4.7u6.3X8CA46 4.7u6.3X8
CA47 4.7u6.3X8CA47 4.7u6.3X8
CA51 4.7u6.3X8CA51 4.7u6.3X8
CA50 4.7u6.3X8CA50 4.7u6.3X8
LINE2_R
RA32 22K/4RA32 22K/4
LINE2_LLDOOUT
RA31 22K/4RA31 22K/4
ECA13 100u10SO
ECA13 100u10SO
1 2
+
+
CA29
CA29
22p50N/4
22p50N/4
ECA12 100u10SO
ECA12 100u10SO
1 2
+
+
ECA9 100u10SO
ECA9 100u10SO
1 2
+
+
CA28
CA28
22p50N/4
22p50N/4
ECA10 100u10SO
ECA10 100u10SO
1 2
+
+
LINE_IN_R
LINE_IN_L
LINE2_R
LINE2_L
MIC1_RA_MIC1_R
MIC1_L
MIC2_R
MIC2_L
RA38 390RRA38 390R
RA40 390RRA40 390R
RA28 390RRA28 390R
RA30 390RRA30 390R
LOUT_R+
LOUT_R-
LOUT_L+
LOUT_L-
SROUT_L
BASS
LINE2_R (39)
LINE2_L (39)
MIC2_R (39)
MIC2_L (39)
RA36 100R/4RA36 100R/4
CA33
CA33
0.01u16X/4
0.01u16X/4
RA35 100R/4RA35 100R/4
RA39
RA39
200R/4
200R/4
RA33 100R/4RA33 100R/4
CA45
CA45
0.01u16X/4
0.01u16X/4
RA34 100R/4RA34 100R/4
RA29
RA29
200R/4
200R/4
3
LOUT_L
LOUT_R
LINE_IN_L
LINE_IN_R
MIC1-VREFO-L
RA37 200R/4RA37 200R/4
CA30 2700p50XCA30 2700p50X
2
3
CA32
CA32
2700p50X
2700p50X
RA27 200R/4RA27 200R/4
CA27 2700p50XCA27 2700p50X
6
5
CA25
CA25
2700p50X
2700p50X
3
RA73 100R/6RA73 100R/6
RA8 100R/6RA8 100R/6
RA44 2.2K/4RA44 2.2K/4
RA49 2.2K/4RA49 2.2K/4
MIC1_L
MIC1_R
+12V_A
UA2A
UA2A
-IN A
+IN A
-12V_A
+12V_A
UA2B
UA2B
-IN B
+IN B
-12V_A
DA1
DA1
ESD-SFI0402
ESD-SFI0402
RA5 75R/4RA5 75R/4
RA2 75R/4RA2 75R/4
CA4
CA4
100p50N/4
100p50N/4
RA89 75R/4RA89 75R/4
RA90 75R/4RA90 75R/4
LOUT_LA(39)
LOUT_RA(39)
8
V+
1
OUT A
OPA1652AID_SOIC8-HF
OPA1652AID_SOIC8-HF
V-
4
8
V+
7
OUT B
OPA1652AID_SOIC8-HF
OPA1652AID_SOIC8-HF
V-
4
N58-25F0281-L06
LOUT_LA
FRONT_JD SROUT_LA
LOUT_RA
12
12
DA2
DA2
ESD-SFI0402
ESD-SFI0402
LINE_IN_LA
LINE1_JD
LINE_IN_RA
CA7
CA7
100p50N/4
100p50N/4
MIC1_LA
MIC1_RAMIC1-VREFO-R
MIC1_LA
MIC1_JD
MIC1_RA
CA48
CA48
CA49
CA49
100p50N/4
100p50N/4
100p50N/4
LOUT_LA
LOUT_RA
100p50N/4
RA75 22K/4RA75 22K/4
RA10 22K/4RA10 22K/4
near JACK
LOUT_R
LOUT_L
AUDIO1E
AUDIO1E
22
23
24
25
AUDIOJACKX5
AUDIOJACKX5
AUDIO1D
AUDIO1D
32
33
34
35
AUDIOJACKX5
AUDIOJACKX5
2
3
4
5
1
LOUT_R (39)
LOUT_L (39)
2
LIN_OUT
PORT2
PORT2
X3
LIN_IN
PORT3
PORT3
X2
MIC1
PORT1
PORT1
AUDIO1F
AUDIO1F
AUDIOJACKX5
AUDIOJACKX5
+12V_A
CA42
CA42
0.1u16X/4
0.1u16X/4
CA31
CA31
0.1u16X/4
0.1u16X/4
2
-12V_A
near OP
CA43
CA43
10u16X/8
10u16X/8
SROUT_L
SROUT_R
CEN_OUT
BASS
CA34
CA34
10u16X/8
10u16X/8
RA6 75R/4RA6 75R/4
RA7 75R/4RA7 75R/4
100p50N/4
100p50N/4
RA74 75R/4RA74 75R/4
RA13 75R/4RA13 75R/4
SPDIFO1 SPDIFO1_1
RA1 10R/4RA1 10R/4
MSI
MSI
MSI
1
SURR
PORT5
PORT5
AUDIO1B
AUDIO1B
52
53
54
55
AUDIOJACKX5
AUDIOJACKX5
X4
CA6
CA6
SURR_JD
SROUT_RA
CA5
CA5
100p50N/4
100p50N/4
CEN/BAS
PORT4
PORT4
AUDIO1A
AUDIO1A
42
43
44
45
41
AUDIOJACKX5
AUDIOJACKX5
X1
CA10
CA10
100p50N/4
100p50N/4
CEN_OUTA
CEN_JD
BASSA
CA3
CA3
100p50N/4
100p50N/4
SIDESURR
PORT6
PORT6
AUDIO1C
AUDIO1C
A
DRIVE
DRIVE
CA1 0.1u10X/4CA1 0.1u10X/4
RA76 22K/4RA76 22K/4
RA3 22K/4RA3 22K/4
RA4 22K/4RA4 22K/4
RA12 22K/4RA12 22K/4
near JACK
B
C
AUDIOJACKX5
AUDIOJACKX5
IC
IC
CA2
CA2
VCC5
100p50N/4
100p50N/4
CEN_OUTA
CEN_OUTA(39)
SROUT_LA
SROUT_LA(39)
SROUT_RA
SROUT_RA(39)
BASSA
BASSA(39)
AnalogDigital
+12V +12V_A
LA2 0R/8LA2 0R/8
LA3 0R/8LA3 0R/8
MS-7A21
MS-7A21
MS-7A21
1
-12V_A
Sheet of
Sheet of
Sheet of
LIN_IN
LIN_OUT
MIC
38 77
38 77
38 77
-12V
CEN/BAS
D
SURR
E
SPDIF
F
N54-26F0111-K06
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
Audio Codec ALC1150-1
Audio Codec ALC1150-1
Audio Codec ALC1150-1
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
10
10
10
Page 39
5
Z
DA5
DA5
DA6
DA6
DA4DA4
DA8DA8
DA7DA7
Y
X
RA52
RA52
4.7K/4
4.7K/4
F_MIC2_L
F_MIC2_R
F_LINE2R
F_LINE2L
12
12
12
12
ESD-SFI0402
ESD-SFI0402
RA51
RA51
4.7K/4
4.7K/4
RA66 47RRA66 47R
JAUD1
JAUD1
1
MIC
MICPWR3PRESENCE#
5
FLINE OUTR
HPON
7
HPON
FLINE OUTL9LINE NEXT L
CA41
CA41
1000P16X/4
1000P16X/4
Close to Front panel
For HDA/AC97 front cable.
F_MIC2_R
F_MIC2_L
F_LINE2L
F_LINE2R
RA62 22K/4RA62 22K/4
RA61 22K/4RA61 22K/4
RA60 22K/4RA60 22K/4
RA64 22K/4RA64 22K/4
near JACK
MIC2_L
MIC2_R
F_LINE2_R
SENSE_C
F_LINE2_L
MIC2_VREFO
S-BAT54A_SOT23
S-BAT54A_SOT23
RA53 75R/4RA53 75R/4
RA54 75R/4RA54 75R/4
RA55 100R/6RA55 100R/6
RA59 100R/6RA59 100R/6
F_LINE2L
F_LINE2R
F_MIC2_R
F_MIC2_L
MIC2_VREFO(38) LINE2_JD(38)
D D
MIC2_L(38)
MIC2_R(38)
SENSE_C(38)
Close to Jack
C C
ESD protect
D0G-2950500-SI0
D0G-3010510-I05
4
N31-2051411-H06
GND
LINE NEXT R
H2X5[8]M_BLACK-RH
H2X5[8]M_BLACK-RH
3
0A to 10 for MCU
MIC2_JD(38)
2
4
MIC2_JD
6
8
8
LINE2_JD
10
MIC2_JD
LINE2_JD
RA68
RA68
39.2KR1%
39.2KR1%
RA65
RA65
20K1%/4
20K1%/4
RA93 4.99KR1%/4RA93 4.99KR1%/4
LOUT_L(38)
From Audio Jack Side
RA94 1K1%/4RA94 1K1%/4
+12V_A
8
UA5A
UA5A
V+
2
-IN A
OUT A
3
+IN A
V-
4
-12V_A
RA96 X_0R/4RA96 X_0R/4
RA95 1K1%/4RA95 1K1%/4
+12V_A
LOUT_LA_R
1
OPA1652AID_SOIC8-HF
OPA1652AID_SOIC8-HF
2
Audio Moat
RA9 0R/6RA9 0R/6
+12V_A
-12V_A
AUDIO_INPUT1_C
CA54 10u16X/8CA54 10u16X/8
CA55 10u16X/8CA55 10u16X/8
1
AUDIO_INPUT1_C (70)
Close to U3(NE5532)
8
UA5B
UA5B
R1377 4.99KR1%/4R1377 4.99KR1%/4
LOUT_R(38)
From Audio Jack Side
V+
6
-IN B
5
+IN B
V-
4
-12V_A
RA97 X_0R/4RA97 X_0R/4
7
OUT B
OPA1652AID_SOIC8-HF
OPA1652AID_SOIC8-HF
LOUT_RA_R
Audio Moat
RA11 0R/6RA11 0R/6
AUDIO_INPUT2_C
AUDIO_INPUT2_C (70)
EMI
CA8 X_0.1u16X/4CA8 X_0.1u16X/4
CA44 X_1000P16X/4CA44 X_1000P16X/4
CPA2 X_COPPERCPA2 X_COPPER
CPA1 X_COPPERCPA1 X_COPPER
Rear Line OUT De-POP circuit
(reserve de-pop circuit for Rear Line out & Front Headphone out)
6
1
3
4
6
1
3
4
6
1
3
4
VCC3
B
LOUT_LA
LOUT_RA
BASSA
SROUT_RA
RA56
RA56
10K/4
10K/4
QA13
QA13
P-MMBT3906
P-MMBT3906
C E
LOUT_LA (38)
LOUT_RA (38)
CEN_OUTA (38)
BASSA (38)
SROUT_LA (38)
SROUT_RA (38)
RA57 0R/4RA57 0R/4
QA10
QA10
B
P-MMBT3906
P-MMBT3906
C E
2
RA58 10K/4RA58 10K/4
CA40
CA40
22u6.3X/8
22u6.3X/8
MUTE F_LINE2L
RA47 1K/4RA47 1K/4
RA42 1K/4RA42 1K/4
MSI
MSI
MSI
RA72 1K1%/4RA72 1K1%/4
+12V_A
8
UA3A
UA3A
B B
A A
RA71 4.99KR1%/4RA71 4.99KR1%/4
LINE2_R(38)
RA70 1K1%/4RA70 1K1%/4
RA69 4.99KR1%/4RA69 4.99KR1%/4
LINE2_L(38)
5
2
3
UA3B
UA3B
6
-IN B
5
+IN B
V+
-IN A
OUT A
+IN A
OPA1652AID_SOIC8-HF
OPA1652AID_SOIC8-HF
V-
4
-12V_A
+12V_A
8
V+
OUT B
OPA1652AID_SOIC8-HF
OPA1652AID_SOIC8-HF
V-
4
-12V_A
1
F_LINE2_R
Digital
Analog
+12V_A
-12V_A
7
F_LINE2_L
CA24 10u16X/8CA24 10u16X/8
CA26 0.1u16X/4CA26 0.1u16X/4
CA38 10u16X/8CA38 10u16X/8
CA39 0.1u16X/4CA39 0.1u16X/4
Close to U3(NE5532)
4
(add de-pop circuit by PM spec or customer request,
NOTE: add de-pop circuit need to change CA6,CA7, CA12, CA13, CA23, CA24 to TVS)
3
EAPD EAPD_R
EAPD(38)
MUTE
MUTE CEN_OUTA
MUTE SROUT_LA
RA86 1K/4RA86 1K/4
RA50 1K/4RA50 1K/4
RA45 1K/4RA45 1K/4
NN-HBN2515S6R
NN-HBN2515S6R
RA48 X_1K/4RA48 X_1K/4
RA43 X_1K/4RA43 X_1K/4
X_NN-HBN2515S6R
X_NN-HBN2515S6R
RA46 X_1K/4RA46 X_1K/4
RA41 X_1K/4RA41 X_1K/4
X_NN-HBN2515S6R
X_NN-HBN2515S6R
QA9
QA9
2
5
QA7
QA7
2
5
QA5
QA5
2
5
3VSB
RA63
RA63
220K/4
220K/4
QA11
QA11
B
P-MMBT3906
P-MMBT3906
C E
MUTE
QA6
QA6
2
5
NN-HBN2515S6R
NN-HBN2515S6R
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
Audio Codec ALC1150-2
Audio Codec ALC1150-2
Audio Codec ALC1150-2
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
6
1
F_LINE2R
3
4
MS-7A21
MS-7A21
MS-7A21
1
CA37
CA37
0.1u10X/4
0.1u10X/4
Sheet of
Sheet of
Sheet of
39 77
39 77
39 77
10
10
10
Page 40
5
4
3
2
1
Intel I219V / I218V PHY
U32
LAN_CLKREQ#
D D
PLTRST_BU1#(31,69)
Reserve RL9.RL13 for Schematic Checklists
RL29
RL29
X_10K/4
LAN_DISABLE#(19)
LAN_DISABLE# must be connected to
PCH's LAN_PHY_PWR_CTRL
C C
AVL:D04-1005700-SC6
PCH's PCIECLKRQ<n> port mustbe mapped to PCH's PET/R<n+1>port.
If CLK_REQ_N is not used, pin48 is pulled up 10KR to 3.3V_LAN
B B
The 10Kohm pull-up resistor (RL18) of CLK_REQ_N
is connected to 3.3V Suspend/Core/etc.
power well, depending on the power well
of PCH's input PCIECLKRQ<n> buffer.
RL26 0R/4RL26 0R/4
YL1
YL1
3 4
25MHZ18p
25MHZ18p
CL26
CL26
22p50N/4
22p50N/4
+3.3V_LAN
X_10K/4
RL30
RL30
X_10K/4
X_10K/4
XTALO XTALO
XTALI
12
CL25
CL25
22p50N/4
22p50N/4
RL28
RL28
10K/4
10K/4
LAN_CLKREQ#
PLTRST_BU1#
SMLINK0_CLK(17)
SMLINK0_DATA(17)
+3.3V_LAN
CLK_LAN_DP(19)
CLK_LAN_DN(19)
PE3_PHY_RX(18)
PE3_PHY_RX#(18)
PE3_PHY_TX(18)
PE3_PHY_TX#(18)
LANWAKE_N(19)
RL31 X_10K/4RL31 X_10K/4
RL32 X_10K/4RL32 X_10K/4
PLTRST_BU1_D3#
R221100R/4 R221100R/4
CLK_LAN_DP
CLK_LAN_DN
CL30 0.1u10X/4CL30 0.1u10X/4
CL31 0.1u10X/4CL31 0.1u10X/4
CL32 0.1u10X/4CL32 0.1u10X/4
CL33 0.1u10X/4CL33 0.1u10X/4
SMLINK0_CLK
SMLINK0_DATA
LANWAKE_N
LAN_DISABLE_R_#
LED0
LED1
LED2
TP_LAN_JTDI
TPL1TPL1
TP_LAN_JTDO
TPL2TPL2
TP_LAN_JTMS
TP_LAN_JTCK
RL27 1K/4RL27 1K/4
RL24 3.01K/1%/4RL24 3.01K/1%/4
TXDP_C
TXDN_C
RXDP_C
RXDN_C
XTALI
TEST_EN
RBIAS_LAN
U32
48
CLK_REQ_N
36
PE_RST_N
44
PE_CLKP
45
PE_CLKN
38
PETp
39
PETn
41
PERp
42
PERn
28
SMB_CLK
31
SMB_DATA
2
LANWAKE_N
3
LAN_DISABLE_N
26
LED0
27
LED1
25
32
34
33
35
9
10
30
12
LED2
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TCK
XTAL_OUT
XTAL_IN
TEST_EN
RBIAS
I218-V-HF
I218-V-HF
LED
LED
RBIAS_LAN <500mil
ALL_LED_OFF#(31,71)
MDI_PLUS[0]
MDI_MINUS[0]
MDI_PLUS[1]
MDI_MINUS[1]
MDI_PLUS[2]
MDI
MDI
PCIE
PCIE
SMBUS
SMBUS
JTAG
JTAG
MDI_MINUS[2]
MDI_PLUS[3]
MDI_MINUS[3]
RSVD1_VCC3P3
VDD3P3_IN
VDD3P3-1
VDD3P3-2
VDD3P3-3
VDD3P3-4
CTRL1P0
VDD0P9-0
VDD0P9-1
VDD0P9-2
VDD0P9-3
VDD0P9-4
VDD0P9-5
VDD0P9-6
VDD0P9-7
VDD0P9-8
SVR_EN_N
VSS_EPAD
0A to 10 change to I218
3VSB +12V VCC5
R235
R235
7.5K1%/4
7.5K1%/4
LAN_LED_OFF LAN_LED_OFF_R
MDI_C0P
13
MDI_C0N
14
MDI_C1P
17
MDI_C1N
18
MDI_C2P
20
MDI_C2N
21
MDI_C3P
23
MDI_C3N
24
RL36 4.7K/4RL36 4.7K/4
1
5
4
15
19
29
CHOKEL2 CH-4.7u1.7A90mS-RH-1CHOKEL2 CH-4.7u1.7A90mS-RH-1
7
8
11
16
22
37
40
43
46
47
RL20 0R/4RL20 0R/4
6
49
Q26
Q26
G2
D1
G1
S1
1 2
22u6.3X/8
22u6.3X/8
D2
S2
NN-2N7002D
NN-2N7002D
CL27
CL27
CL8
CL8
1u6.3X/4
1u6.3X/4
CL39
CL39
0.1u10X/4
0.1u10X/4
R240
R240
7.5K1%/4
7.5K1%/4
CL41
CL41
1u6.3X/4
1u6.3X/4
+3.3V_LAN+3.3V_LAN
+0.9V_LAN
LAN_LED_VCC5
CL7
CL7
X_10u6.3X/6
X_10u6.3X/6
QL7
QL7
D
D
G
G
S
S
2N7002
2N7002
500mA
RL38 330R/8RL38 330R/8
120mA
LAN_LED_VCC5
LED1
LED2
L04-47A7690-M26
L04-47A7870-C08
+3.3V_LAN
CL6
CL6
1u6.3X/4
1u6.3X/4
RL25 330R/4RL25 330R/4
RL23 330R/4RL23 330R/4
RL5
RL5
330R/4
330R/4
ACT_LINK#
LED0
VCT
MDI_C0P
MDI_C0N
MDI_C1P
MDI_C1N
MDI_C2P
MDI_C2N
MDI_C3P
MDI_C3N
LED1_1000#
LED2_100#
YELLOW+
YELLOW+
29
YELLOW-
YELLOW-
30
19
20
21
22
23
24
25
26
27
28
GREEN+/ORANGE-
GREEN+/ORANGE-
31
GREEN-/ORANGE+
GREEN-/ORANGE+
32
RJ45_USBX2_LEDX2-1000-RH-10
RJ45_USBX2_LEDX2-1000-RH-10
For EMI
ACT_LINK#
LED0
LED1_1000#
LED2_100#
UL2&UL3 close to connector
MDI_C0P
MDI_C0N
MDI_C1P
MDI_C1N
CL35 0.1u10X/4CL35 0.1u10X/4
CL36 0.1u10X/4CL36 0.1u10X/4
CL37 0.1u10X/4CL37 0.1u10X/4
CL38 0.1u10X/4CL38 0.1u10X/4
UL3
UL3
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
MDI_C0P
MDI_C0N
MDI_C1P
MDI_C1N
D0G-06A050C-A68
D0G-05A0300-I14
POWER
POWER
TD1+
TD1+
TD1-
TD1TD2+
TD2+
TD2-
TD2TD3+
TD3+
TD3-
TD3TD4+
TD4+
TD4-
TD4-
GND
GND
LAN_USB1B
LAN_USB1B
UL4
MDI_C2P MDI_C2P
MDI_C2N
support WOL from Deep Sx:
Power source from 3VA (DSW power) & make sure MAX current is enough to support i218/i219.
ATX_5VSB 3VA
RL33
RL33
47K/4
47K/4
QL4
G
D S
QL4
P-P06P03LCGA_SOT89
P-P06P03LCGA_SOT89
RL34
RL34
10K/4
10K/4
CL34
CL34
22u6.3X/8
22u6.3X/8
A A
QL3
CL28
CL28
1u6.3X/4
1u6.3X/4
QL3
D
D
G
G
S
S
2N7002
2N7002
RL35
RL35
SLP_LAN#(17)
20K1%/4
20K1%/4
SLP_LAN#_R
SLP_LAN
CL29
CL29
X_1u6.3X/4
X_1u6.3X/4
+3.3V_LAN
CL9
CL9
0.1u10X/4
0.1u10X/4
+3.3V_LAN
I218:132mA
I219:542mW
Note:These caps closed to PHY
5
4
3
2
MDI_C3P
MDI_C3N
Do not pair MDI0 and MDI1 on the same TVSdevice
(avoid LAN POE connecting issue).
Otherpairing combination is ok.
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
UL4
1
2
4
5
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
INTEL i218V
INTEL i218V
INTEL i218V
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
AOZ8808DI-05
AOZ8808DI-05
3
8
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
MS-7A21
MS-7A21
MS-7A21
1
MDI_C2N
MDI_C3P
MDI_C3N
Sheet of
Sheet of
Sheet of
40 77
40 77
40 77
10
10
10
Page 41
5
CLK Rule (Follow SB PDG)
CK_ASM_USB31_DP(19)
CK_ASM_USB31_DN(19)
CU6
CU6
1u16X6
1u16X6
ASM_SMI1
XO
CU8
CU8
C12p50N
C12p50N
XI
ASM_USB_RXP1_C
ASM_USB_RXN1_C
ASM_USB_TXP1_C
ASM_USB_TXN1_C
ASM_USB_RXP2_C
ASM_USB_RXN2_C
ASM_USB_TXP2_C
ASM_USB_TXN2_C
USB31_RST
ASM1142_WAKE#
CK1142_REQ#
ASM_SMI1
RU8 4.7K/4RU8 4.7K/4
USB3_3VCC
20MHZ18p_S
20MHZ18p_S
PE5_ASM_USB_RX(18)
PE5_ASM_USB_RX#(18)
PE5_ASM_USB_TX(18)
D D
Use 0.22uF cap for GEN3 , Gen2 use 0.1uf by Upstream SPEC
SMI connect to GPI which
support smi function.
SB side need pull high 10K ohm to 3VSB.
SMI connect to GPI which
support smi function.
SB side pull high 10K ohm to 3VSB.
(Intel 8X & 9X series use GPIO10)
(Intel SKL use GPP_C23)
C C
PCH_WAKE#(17,26,27,28,29,30,42,44,49,52)
DU11
DU11
ESD-SFI0402
ESD-SFI0402
3VSB
USB31_SMI1(19)
ASM_SMI has internal Pull-up to VCC
ASM_WAKE has internal Pull-up to VCCSUS
B B
USB_SPISCK
PE5_ASM_USB_TX#(18)
PE6_ASM_USB_RX(18)
PE6_ASM_USB_RX#(18)
PE6_ASM_USB_TX(18)
PE6_ASM_USB_TX#(18)
12
RU59 4.7K/4RU59 4.7K/4
RU10 4.7K/4RU10 4.7K/4
RU28 X_4.7K/4RU28 X_4.7K/4
PLTRST_BU1A#(31,42,44)
USB3_3VCC
USB3_3VCC
D2
G2D1G1
USB3_3VCC
CU11 0.22u6.3X/4CU11 0.22u6.3X/4
CU12 0.22u6.3X/4CU12 0.22u6.3X/4
CU13 0.22u6.3X/4CU13 0.22u6.3X/4
CU14 0.22u6.3X/4CU14 0.22u6.3X/4
PCIE Rule (Follow SB PDG)
CU15 0.22u6.3X/4CU15 0.22u6.3X/4
CU16 0.22u6.3X/4CU16 0.22u6.3X/4
CU20 0.22u6.3X/4CU20 0.22u6.3X/4
CU75 0.22u6.3X/4CU75 0.22u6.3X/4
RU33 0R/4RU33 0R/4
RU12 4.7K/4RU12 4.7K/4
RU9 80K/1%RU9 80K/1%
ASM1142_WAKE#
S2
Q25
Q25
NN-2N7002D
NN-2N7002D
S1
RU60 4.7K/4RU60 4.7K/4
X0/XI (95hm-Diff,Spacing 30mil )
UREXT,PEUREXT(W/S) : 10/7
OCIA,OCIB,PPONA,PPONB(W/S) : 5/8
ASM1142 1.2 VCC Power EEPROM
VCC5
CU79
CU79
22u6.3X/8
22u6.3X/8
USB3_3VCC
A A
RU5 47K/4RU5 47K/4
UU11
UU11
2
VIN
8
EN
1
PG
PGND4AGND
5
SW
OUT
FB
MP2143DJ
MP2143DJ
6
3
5
7
USB3_1P2_PH
USB3_1P2_FB
LU1
LU1
1.0u6.3A_1210-HF
1.0u6.3A_1210-HF
200K1%/4
200K1%/4
200K1%/4
200K1%/4
RU1
RU1
RU2
RU2
4
UU1A
UU1A
ASM1142
ASM1142
48
PONRST#
USB_SPISCK
USB_SPICSB
USB_SPISI
USB_SPISO
49
56
57
53
54
60
61
63
64
30
25
3
2
9
5
7
8
6
31
ASM1142AE
ASM1142AE
PECLKP
PECLKN
PTX0P
PTX0N
PRX0P
PRX0N
PTX1P
PTX1N
PRX1P
PRX1N
PE_RST#
PE_WAKE#
PE_CLKREQ#
SMI#
PORST#
SPI_CLK
SPI_CS#
SPI_DI
SPI_DO
TEST_EN
U2DP_A
U2DM_A
U3TXP_A
U3TXN_A
U3RXP_A
U3RXN_A
U2DP_B
U2DM_B
U3TXP_B
U3TXN_B
U3RXP_B
U3RXN_B
PRON_A
PRON_B
OCI_A#
OCI_B#
UART_RX
UART_TX
REXT
USB3.1 power switch
RUSB31_POWER_OFF(47)
12
YU1
YU1
3 4
USB3_1P2
CU39
CU39
CU78
CU78
CU40
CU40
X_0.1u6.3X
X_0.1u6.3X
ASM1142 RU1/RU2 200K/200K__1.2V
ASM2142 RU1/RU2 196K/261K__1.05V
4
22u6.3X/8
22u6.3X/8
22u6.3X/8
22u6.3X/8
Minimun gap should be greater of
>15mil with other signal.
USB HS (90Ohm-Diff)
SSD12+
23
SSD12-
22
SSTX12P
42
SSTX12N
43
SSRX12P
45
SSRX12N
46
USB SS (80Ohm-Diff)
USB HS (90Ohm-Diff)
SSD13+
19
SSD13-
18
SSTX13P
39
SSTX13N
40
SSRX13P
36
SSRX13N
37
USB SS (80Ohm-Diff)
PPONA
26
PPONB
27
PPON_X Internal Pull-up to VCC3
OCIA
28
OCIB
29
OCI_X Internal Pull-up to SUS
XI
51
XI
XO
50
XO
10
11
RX/TX Internal Pull-up
ASM1142_REXT
59
VCC3
RU16
RU16
7.5K/4
7.5K/4
RU17 0R/4RU17 0R/4
TPU14TPU14
TPU15TPU15
RU24 12.1K/1%RU24 12.1K/1%
U31_PWR_OFF
ASM1142 1.2 VSB Power
CU37
CU37
0.1u6.3X
0.1u6.3X
SSD12+ (54)
SSD12- (54)
SSTX12P (54)
SSTX12N (54)
SSRX12P (54)
SSRX12N (54)
SSD13+ (54)
SSD13- (54)
SSTX13P (54)
SSTX13N (54)
SSRX13P (54)
SSRX13N (54)
VCC3
VCC3
3
Layout Guide:
1.) USB3.1 to Connector Total Length < 1.5"
2.) VIA hole <2
TPU17TPU17
TPU18TPU18
TPU16TPU16
TPU19TPU19
USB3_3VCC
RU15 X_0R/8RU15 X_0R/8
UU2
UU2
2
1
SLG59M1440V
SLG59M1440V
CU38
CU38
1u6.3X/4
1u6.3X/4
USB3_3VCC
CU74
CU74
X_1u6.3X/4
X_1u6.3X/4
3
3
S
D
4
GND
ON
3VSB
ASM1142 RU32 19.6K__1.2V
ASM2142 RU32 31.6K__1.05V
ASM1142 unstuff
ASM2142 stuff
USB3_3VCC
UU10 GS7116S_SOT23-5-RHUU10 GS7116S_SOT23-5-RH
VDD1VOUT
3
EN
GND
2
UU14 X_GS7116S_SOT23-5-RHUU14 X_GS7116S_SOT23-5-RH
VDD1VOUT
3
EN
GND
2
2
Power Consumption
ASM1142
ASM1142 RU29 stuff RU14 unstuff
ASM2142 RU29 unstuff RU14 stuff
USB3_3VCC_2P5
USB3_1P2
Close to UU1.58
CU77 10u6.3X/6CU77 10u6.3X/6
USB3_1P2
Close to UU1.41
CU76 10u6.3X/6CU76 10u6.3X/6
USB3_3VCC
Close to UU1.4/32
CU10 0.1u6.3XCU10 0.1u6.3X
CU29 0.1u6.3XCU29 0.1u6.3X
3VSB
Close to UU1.20/24
CU34 0.1u6.3XCU34 0.1u6.3X
CU35 0.1u6.3XCU35 0.1u6.3X
USB3_1P2_VSB
5
ADJ
4
X_0.1u10X/4
X_0.1u10X/4
ADJ
4
X_0.1u10X/4
X_0.1u10X/4
5
CU36
CU36
CU73
CU73
RU61
RU61
10K1%/4
10K1%/4
RU32
RU32
19.6K/1%
19.6K/1%
RU65
RU65
X_20K1%/4
X_20K1%/4
RU37
RU37
X_9.31K1%4
X_9.31K1%4
USB3_2P5
2
1.2V(1.05V) Total Power
3.3VSUS3.3V
245mA 634mA 1mA 1mA
245mA 634mA
3VSB
CU41
CU41
1u6.3X/4
1u6.3X/4
CU85
CU85
X_1u6.3X/4
X_1u6.3X/4
RU14 X_0R/4RU14 X_0R/4
RU29 0R/4RU29 0R/4
USB3_1P2_VSB
1mA 1mA
13
TPU3TPU3
14
16
TPU2TPU2
17
TPU4TPU4
VCCLU
20
3VSB
USB3_1P2
USB3_3VCC_2P5
USB3_3VCC USB3_3VCC
MSI
MSI
MSI
24
21
34
65
15
TPU1TPU1
USB3_3VCC
USB3_2P5
ASM1142 RU7 stuff RU13 unstuff
ASM2142 RU7 unstuff RU13 stuff
Close to UU1.35/47/52 Close to UU1.21/34
CU17 2.2u6.3XCU17 2.2u6.3X
CU21 2.2u6.3XCU21 2.2u6.3X
CU26 2.2u6.3XCU26 2.2u6.3X
Close to UU1.38/44/55/62
CU33 2.2u6.3XCU33 2.2u6.3X
CU32 2.2u6.3XCU32 2.2u6.3X
CU31 2.2u6.3XCU31 2.2u6.3X
CU30 2.2u6.3XCU30 2.2u6.3X
RU25 10K/4RU25 10K/4
RU11 10K/4RU11 10K/4
USB_SPICSB
USB_SPISO
RU31 X_4.7K/4RU31 X_4.7K/4
USB_SPISCK
RU40 X_4.7K/4RU40 X_4.7K/4
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
1
1.05VSUS(1.2VSUS)
2.5V
300mAASM1142
UU1B
UU1B
ASM1142
ASM1142
VCC_IN
EXTL
VCCSUS_IN
VCCSUS_O
VCCSUS-1
VCCSUS-2
VDDSUS-1
VDDSUS-2
GND
PGND
ASM1142AE
ASM1142AE
RU7 0R/4RU7 0R/4
RU13 X_0R/4RU13 X_0R/4
USB_SPISI
USB_SPISO
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
ASM1142 RUSB3.1 2PORT
ASM1142 RUSB3.1 2PORT
ASM1142 RUSB3.1 2PORT
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
VCC-1
VCC-2
VCCP-1
VCCP-2
VCCU-1
VCCU-2
VDD-1
VDD-2
VDD-3
VDDP-1
VDDP-2
VDDU-1
VDDU-2
VDDU-3
USB3_1P2_VSB
USB3_1P2
UU3
UU3
7
HOLD
3
WP
1
CS
5
SI
2
SO
6
SCK
PM25LD512C2-SCE
PM25LD512C2-SCE
MS-7A21
MS-7A21
MS-7A21
1
4
32
55
62
38
44
1
12
33
52
58
35
41
47
USB3_3VCC_2P5
CU22 0.1u6.3XCU22 0.1u6.3X
CU23 0.1u6.3XCU23 0.1u6.3X
Close to UU1.1/12/33
CU27 0.1u6.3XCU27 0.1u6.3X
CU25 0.1u6.3XCU25 0.1u6.3X
CU28 0.1u6.3XCU28 0.1u6.3X
8
VCC
4
GND
Sheet of
Sheet of
Sheet of
1573.8(mW)
USB3_3VCC
USB3_3VCC_2P5
USB3_1P2
CU24
CU24
0.1u10X/4
0.1u10X/4
41 77
41 77
41 77
10
10
10
Page 42
5
CLK Rule (Follow SB PDG)
CK_FASM_USB31_DP(19)
CK_FASM_USB31_DN(19)
RU46 80K/1%RU46 80K/1%
CU44
CU44
1u16X6
1u16X6
FASM_USB_RXP1_C
FASM_USB_RXN1_C
FASM_USB_TXP1_C
FASM_USB_TXN1_C
FASM_USB_RXP2_C
FASM_USB_RXN2_C
FASM_USB_TXP2_C
FASM_USB_TXN2_C
FUSB31_RST
FASM1142_WAKE#
F_CK1142_REQ#
F_ASM_SMI1
FUSB3_3VCC
FUSB31_RX1+(43)
FUSB31_RX1-(43)
FUSB31_TX1+(43)
12
RU62 4.7K/4RU62 4.7K/4
FUSB31_TX1-(43)
FUSB31_RX2+(43)
FUSB31_RX2-(43)
FUSB31_TX2+(43)
FUSB31_TX2-(43)
PLTRST_BU1A#(31,41,44)
FUSB3_3VCC
D2
G2D1G1
D D
Use 0.22uF cap for GEN3 , Gen2 use 0.1uf by Upstream SPEC
SMI connect to GPI which
support smi function.
SB side need pull high 10K ohm to 3VSB.
SMI connect to GPI which
support smi function.
SB side pull high 10K ohm to 3VSB.
(Intel 8X & 9X series use GPIO10)
C C
(Intel SKL use GPP_C23)
PCH_WAKE#(17,26,27,28,29,30,41,44,49,52)
DU12
DU12
ESD-SFI0402
ESD-SFI0402
3VSB
FUSB31_SMI1(19)
ASM_SMI has internal Pull-up to VCC
ASM_WAKE has internal Pull-up to VCCSUS
CU52 0.22u6.3X/4CU52 0.22u6.3X/4
CU53 0.22u6.3X/4CU53 0.22u6.3X/4
CU62 0.22u6.3X/4CU62 0.22u6.3X/4
CU65 0.22u6.3X/4CU65 0.22u6.3X/4
PCIE Rule (Follow SB PDG)
CU50 0.22u6.3X/4CU50 0.22u6.3X/4
CU51 0.22u6.3X/4CU51 0.22u6.3X/4
CU59 0.22u6.3X/4CU59 0.22u6.3X/4
CU80 0.22u6.3X/4CU80 0.22u6.3X/4
RU50 0R/4RU50 0R/4
RU51 4.7K/4RU51 4.7K/4
FUSB3_3VCC
1042:
Stuff RU9 100K
1142:
Stuff RU9 80K
FASM1142_WAKE#
S2
Q81
Q81
NN-2N7002D
NN-2N7002D
F_ASM_SMI1
S1
RU63 4.7K/4RU63 4.7K/4
4
F_PONRST#
FUSB_SPISCK
FUSB_SPICSB
FUSB_SPISI
FUSB_SPISO
RU34 4.7K/4RU34 4.7K/4
UU6A
UU6A
ASM1142
ASM1142
48
49
56
57
53
54
60
61
63
64
30
25
3
2
9
5
7
8
6
31
ASM1142AE
ASM1142AE
PECLKP
PECLKN
PTX0P
PTX0N
PRX0P
PRX0N
PTX1P
PTX1N
PRX1P
PRX1N
PE_RST#
PE_WAKE#
PE_CLKREQ#
SMI#
PORST#
SPI_CLK
SPI_CS#
SPI_DI
SPI_DO
TEST_EN
U2DP_A
U2DM_A
U3TXP_A
U3TXN_A
U3RXP_A
U3RXN_A
U2DP_B
U2DM_B
U3TXP_B
U3TXN_B
U3RXP_B
U3RXN_B
PRON_A
PRON_B
OCI_A#
OCI_B#
UART_RX
UART_TX
REXT
USB3.1 power switch
USB31_POWER_OFF(47)
Minimun gap should be greater of
>15mil with other signal.
USB HS (90Ohm-Diff)
FUSB1+
23
FUSB1-
22
FSSTX1P
42
FSSTX1N
43
FSSRX1P
45
FSSRX1N
46
USB SS (80Ohm-Diff)
USB HS (90Ohm-Diff)
FUSB2+
19
FUSB2-
18
FSSTX2P
39
FSSTX2N
40
FSSRX2P
36
FSSRX2N
37
USB SS (80Ohm-Diff)
F_PPONA
26
F_PPONB
27
PPON_X Internal Pull-up to VCC3
F_OCIA
28
F_OCIB
29
OCI_X Internal Pull-up to SUS
F_XI
51
XI
F_XO
50
XO
10
11
RX/TX Internal Pull-up
F_ASM1142_REXT
59
VCC3
RU39
RU39
7.5K/4
7.5K/4
RU38 0R/4RU38 0R/4
TPU13TPU13
TPU12TPU12
RU35 12.1K/1%RU35 12.1K/1%
FU31_PWR_OFF
3
FUSB1+ (46)
FUSB1- (46)
FSSTX1P (57)
FSSTX1N (57)
FSSRX1P (57)
FSSRX1N (57)
FUSB2+ (46)
FUSB2- (46)
FSSTX2P (57)
FSSTX2N (57)
FSSRX2P (57)
FSSRX2N (57)
TPU7TPU7
TPU5TPU5
TPU10TPU10
TPU6TPU6
RU47 X_0R/8RU47 X_0R/8
VCC3 FUSB3_3VCC
2
1
Layout Guide:
1.) USB3.1 to Connector Total Length < 1.5"
2.) VIA hole <2
ASM1142 RU30 stuff RU20 unstuff
ASM2142 RU30 unstuff RU20 stuff
FUSB3_3VCCVCC3
UU5
UU5
3
S
D
4
GND
ON
SLG59M1440V
SLG59M1440V
Power Consumption
ASM1142
FUSB3_3VCC_2P5
FUSB3_1P2
Close to UU1.58
CU82 10u6.3X/6CU82 10u6.3X/6
FUSB3_1P2
Close to UU1.41
CU81 10u6.3X/6CU81 10u6.3X/6
FUSB3_3VCC
Close to UU1.4/32
CU56 0.1u6.3XCU56 0.1u6.3X
CU55 0.1u6.3XCU55 0.1u6.3X
3VSB
Close to UU1.20/24
CU67 0.1u6.3XCU67 0.1u6.3X
CU68 0.1u6.3XCU68 0.1u6.3X
2
1.2V(1.05V) Total Power
3.3VSUS3.3V
245mA 634mA 1mA 1mA
245mA 634mA
3VSB
FUSB3_1P2_VSB
TPU20TPU20
TPU9TPU9
RU20 X_0R/4RU20 X_0R/4
RU30 0R/4RU30 0R/4
TPU11TPU11
3VSB FUSB3_1P2
TPU8TPU8
FUSB3_3VCC
FUSB3_2P5
ASM1142 RU18 stuff RU19 unstuff
ASM2142 RU18 unstuff RU19 stuff
1mA 1mA
UU6B
UU6B
13
14
16
17
FVCCLU
20
24
21
34
65
15
ASM1142AE
ASM1142AE
FUSB3_1P2
Close to UU1.35/47/52 Close to UU1.21/34
CU43 2.2u6.3XCU43 2.2u6.3X
CU45 2.2u6.3XCU45 2.2u6.3X
CU42 2.2u6.3XCU42 2.2u6.3X
FUSB3_3VCC_2P5
Close to UU1.38/44/55/62
CU66 2.2u6.3XCU66 2.2u6.3X
CU58 2.2u6.3XCU58 2.2u6.3X
CU61 2.2u6.3XCU61 2.2u6.3X
CU57 2.2u6.3XCU57 2.2u6.3X
1.05VSUS(1.2VSUS)
ASM1142
ASM1142
VCC_IN
EXTL
VCCSUS_IN
VCCSUS_O
VCCSUS-1
VCCSUS-2
VDDSUS-1
VDDSUS-2
GND
PGND
RU18 0R/4RU18 0R/4
RU19 X_0R/4RU19 X_0R/4
VCC-1
VCC-2
VCCP-1
VCCP-2
VCCU-1
VCCU-2
VDD-1
VDD-2
VDD-3
VDDP-1
VDDP-2
VDDU-1
VDDU-2
VDDU-3
4
32
55
62
38
44
1
12
33
52
58
35
41
47
FUSB3_3VCC_2P5
FUSB3_1P2_VSB
1
2.5V
300mAASM1142
FUSB3_3VCC
FUSB3_3VCC_2P5
FUSB3_1P2
Close to UU1.1/12/33
1573.8(mW)
CU46 0.1u6.3XCU46 0.1u6.3X
CU47 0.1u6.3XCU47 0.1u6.3X
CU49 0.1u6.3XCU49 0.1u6.3X
CU48 0.1u6.3XCU48 0.1u6.3X
CU54 0.1u6.3XCU54 0.1u6.3X
X0/XI (95hm-Diff,Spacing 30mil )
UREXT,PEUREXT(W/S) : 10/7
B B
RU44 4.7K/4RU44 4.7K/4
FUSB_SPISCK
RU45 X_4.7K/4RU45 X_4.7K/4
FUSB3_3VCC
OCIA,OCIB,PPONA,PPONB(W/S) : 5/8
F_XO
CU9
CU9
C12p50N
C12p50N
F_XI
20MHZ18p_S
20MHZ18p_S
YU2
YU2
12
3 4
ASM1142 1.2 VCC Power
VCC5
CU84
CU84
22u6.3X/8
22u6.3X/8
FUSB3_3VCC
A A
RU6 47K/4RU6 47K/4
UU13
UU13
2
VIN
8
EN
1
PG
PGND4AGND
5
SW
OUT
FB
MP2143DJ
MP2143DJ
6
FUSB3_1P2_PH
3
5
7
FUSB3_1P2_FB
LU2
LU2
1.0u6.3A_1210-HF
1.0u6.3A_1210-HF
200K1%/4
200K1%/4
200K1%/4
200K1%/4
RU3
RU3
RU4
RU4
FUSB3_1P2
CU70
CU70
CU83
CU83
CU71
CU71
22u6.3X/8
22u6.3X/8
X_0.1u6.3X
X_0.1u6.3X
ASM1142 RU3/RU4 200K/200K__1.2V
ASM2142 RU3/RU4 196K/261K__1.05V
4
22u6.3X/8
22u6.3X/8
CU69
CU69
0.1u6.3X
0.1u6.3X
ASM1142 1.2 VSB Power
3VSB
CU64
CU64
1u6.3X/4
1u6.3X/4
ASM1142 RU36 19.6K__1.2V
ASM2142 RU36 31.6K__1.05V
FUSB3_3VCC
CU87
CU87
X_1u6.3X/4
X_1u6.3X/4
ASM1142 unstuff
ASM2142 stuff
3
UU12 GS7116S_SOT23-5-RHUU12 GS7116S_SOT23-5-RH
VDD1VOUT
3
EN
UU15 X_GS7116S_SOT23-5-RHUU15 X_GS7116S_SOT23-5-RH
VDD1VOUT
3
EN
GND
2
GND
2
ADJ
4
X_0.1u10X/4
X_0.1u10X/4
ADJ
4
X_0.1u10X/4
X_0.1u10X/4
5
5
CU63
CU63
CU86
CU86
FUSB3_1P2_VSB
RU64
RU64
10K1%/4
10K1%/4
RU36
RU36
19.6K/1%
19.6K/1%
RU66
RU66
X_20K1%/4
X_20K1%/4
RU42
RU42
X_9.31K1%4
X_9.31K1%4
CU72
CU72
1u6.3X/4
1u6.3X/4
FUSB3_2P5
CU88
CU88
X_1u6.3X/4
X_1u6.3X/4
2
EEPROM
FUSB3_3VCC FUSB3_3VCC
UU7
RU58 10K/4RU58 10K/4
RU57 10K/4RU57 10K/4
FUSB_SPICSB
FUSB_SPISO
FUSB_SPISI
FUSB_SPISCK
FUSB_SPISO
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MSI
MSI
MSI
RU41 X_4.7K/4RU41 X_4.7K/4
RU43 X_4.7K/4RU43 X_4.7K/4
UU7
7
HOLD
3
WP
1
CS
VCC
5
SI
2
SO
6
GND
SCK
PM25LD512C2-SCE
PM25LD512C2-SCE
MS-7A21
MS-7A21
MS-7A21
ASM1142 RUSB3.1 2PORT
ASM1142 RUSB3.1 2PORT
ASM1142 RUSB3.1 2PORT
1
Sheet of
Sheet of
Sheet of
8
4
CU60
CU60
0.1u10X/4
0.1u10X/4
42 77
42 77
42 77
10
10
10
Page 43
5
D D
4
3
2
1
U95
U95
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
3VSB
19
34
9
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND
GND
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
C828 0.1u10X/4C828 0.1u10X/4
41
AOa+
VDD
AOa-
BOa+
BOa-
AOb+
AOb-
BOb+
BOb-
COa+
COa-
DOa+
DOa-
COb+
COb-
DOb+
DOb-
F75480BN
F75480BN
43
37
36
33
32
3
4
7
8
28
27
24
23
12
13
16
17
20150311
FUSB31_RX2+ (42)
FUSB31_RX2- (42)
FUSB31_TX2+ (42)
FUSB31_TX2- (42)
SATA_RX5+ (51)
SATA_RX5- (51)
SATA_TX5+ (51)
SATA_TX5- (51)
FUSB31_RX1+ (42)
FUSB31_RX1- (42)
FUSB31_TX1+ (42)
FUSB31_TX1- (42)
SATA_RX4+ (51)
SATA_RX4- (51)
SATA_TX4+ (51)
SATA_TX4- (51)
訊號做
SWAP
確認一下
default
是否為為
BC
增加一個
GPIO給BIOS
C C
20150320 PIN A 和 PIN C
SWITCH 開關default AB
B B
SE_USB_SW1
SE_USB_SW1
SW-DIP_BLACK-RH
SW-DIP_BLACK-RH
5605_GP16(47)
5605_GP15(47)
C
B
A
MEC1 MEC2
互換
ATX_5VSB
ATX_5VSB
ESD-SFI0402
ESD-SFI0402
R984
R984
10K/4
10K/4
R1000
R1000
10K/4
10K/4
R974
R974
10K/4
10K/4
D34
D34
G2
D1
G1
G2
D1
G1
判斷為
USB31_SW_SEL
12
Q118
Q118
NN-2N7002D
NN-2N7002D
S1
Q123
Q123
NN-2N7002D
NN-2N7002D
S1
PCIE或SATAEXPRESS
3VSB3VSB
EX_USB31_SEL
D
D
G
G
Q111
Q111
S
S
2N7002
2N7002
D2
S2
EX_USB31_SEL
D2
S2
R975
R975
10K/4
10K/4
EX_USB31_SEL (48,49)
SAEX_RX5(48)
SAEX_RX#5(48)
SAEX_TX5(48)
SAEX_TX#5(48)
SAEX_RX4(48)
SAEX_RX#4(48)
SAEX_TX4(48)
SAEX_TX#4(48)
SAEX_RX5
SAEX_RX#5
SAEX_TX5
SAEX_TX#5
EX_USB31_SEL
SAEX_RX4
SAEX_RX#4
SAEX_TX4
SAEX_TX#4
BIOS_MODE
A A
5605_GP16 5605_GP15 SEL Mode
1
0
1
1
SATA
SATA
default
0 0 USB3.1
5
4
Switch_MODE
Switch
B_C
SEL Mode
SATAA_B
USB3.1
default
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
3
2
Friday, April 01, 2016
MS-7A21
Front USB3.1 switch
Front USB3.1 switch
Front USB3.1 switch
1
43 77
43 77
43 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 44
5
SMI#
21
22
24
25
27
28
19
20
30
31
18
35
34
36
33
51
50
48
47
CK_VIA_USB_DP(19)
CK_VIA_USB_DN(19)
VIA_USB_RX(18)
VIA_USB_RX#(18)
D D
PLTRST_BU1A#(31,41,42)
VIA_3VSB
VIA_USB_TX(18)
VIA_USB_TX#(18)
PCH_WAKE#(17,26,27,28,29,30,41,42,49,52)
USB3_SMI1(18)
C141 0.1u10X/4C141 0.1u10X/4
C139 0.1u10X/4C139 0.1u10X/4
C137 0.1u10X/4C137 0.1u10X/4
C135 0.1u10X/4C135 0.1u10X/4
R185 0R/4R185 0R/4
R193 10K/4R193 10K/4
VIA_RX
VIA_RX#
VIA_USB_TX_C
VIA_USB_TX#_C
VIA_PLTRST
VIA_PONRST#
R192 0R/4R192 0R/4
VIA_USB_SPISCK
VIA_USB_SPICS#
VIA_USB_SPISI
VIA_USB_SPISO
R159 4.7K/4R159 4.7K/4
R160 6.04K1%/4R160 6.04K1%/4
VIA_XT2
VIA_XT1
OC# High Level:2V, Low Level:0.8V.
C C
VIA_3VSB
R162 10K/4R162 10K/4
R163 10K/4R163 10K/4
R164 10K/4R164 10K/4
R165 10K/4R165 10K/4
VIA_OC1
VIA_OC2
VIA_OC3
VIA_OC4
43
41
39
37
Update- 2013.10.28
SMI (Open Drain)
SMI connect to default = GPI or Native pin.
SMI = Low Active (default high)
P.S. Avoid repeat pull up resister in SB side.
(Intel 8X & 9X series use GPIO10)
U26A
U26A
VL805
VL805
PEXCLK+
PEXCLK-
PEXTX0+
PEXTX0-
PEXRX0+
PEXRX0-
PEXRST#
PEXWAKE#
PEXCREQ#
PONRST#
SMI#
SPISCLK
SPICS#
SPISI
SPISO
TESTEN
SSREXT
SSXO
SSXI
USBHOC1#
USBHOC2#
USBHOC3#
USBHOC4#
VL805-Q6-RH
VL805-Q6-RH
C129
C129
C18p50N0402
C18p50N0402
4
Y1
Y1
1 2
25MHZ18P
25MHZ18P
58
USB2D1+
59
USB2D1-
52
SSTX1+
53
SSTX1-
55
SSRX1+
56
SSRX1-
67
USB2D2+
68
USB2D2-
61
SSTX2+
62
SSTX2-
64
SSRX2+
65
SSRX2-
7
USB2D3+
8
USB2D3-
1
SSTX3+
2
SSTX3-
4
SSRX3+
5
SSRX3-
16
USB2D4+
17
USB2D4-
10
SSTX4+
11
SSTX4-
13
SSRX4+
14
SSRX4-
44
USBHPE1#
42
USBHPE2#
40
USBHPE3#
38
USBHPE4#
R161 0R1%0402R161 0R1%0402
C127
C127
C18p50N0402
C18p50N0402
USB HS & SS (90Ohm-Diffl)
VIA_SSD1P (53)
VIA_SSD1N (53)
VIA_SSTX1P
VIA_SSTX1N
VIA_SSRX1P
VIA_SSRX1N
VIA_SSTX2P
VIA_SSTX2N
VIA_SSRX2P
VIA_SSRX2N
VIA_SSTX3P
VIA_SSTX3N
VIA_SSRX3P
VIA_SSRX3N
VIA_SSTX4P
VIA_SSTX4N
VIA_SSRX4P
VIA_SSRX4N
USBHPE1#
USBHPE2#
USBHPE3#
USBHPE4#
VIA_SSRX1P (53)
VIA_SSRX1N (53)
VIA_SSD2P (53)
VIA_SSD2N (53)
VIA_SSRX2P (53)
VIA_SSRX2N (53)
VIA_SSD3P (53)
VIA_SSD3N (53)
VIA_SSRX3P (53)
VIA_SSRX3N (53)
VIA_SSD4P (53)
VIA_SSD4N (53)
VIA_SSRX4P (53)
VIA_SSRX4N (53)
TP1TP1
TP2TP2
TP3TP3
TP4TP4
Update- 2013.10.17
VIA_XT1
VIA_XT2
3
VIA_1P05 VIA_3VSB
U26B
U26B
VL805
VL805
26
NC
29
VDD-2
45
VDD-3
54
VCCA10SSRX12-1
60
VDD-4
63
VCCA10SSRX12-2
3
VCCA10SSRX34-1
9
VDD-1
12
VCCA10SSRX34-2
VL805-Q6-RH
VL805-Q6-RH
VIA_SSTX1N VIA_SSTX1-
C138 0.1u10X/4C138 0.1u10X/4
C140 0.1u10X/4C140 0.1u10X/4
C134 0.1u10X/4C134 0.1u10X/4
VIA_SSTX2P VIA_SSTX2+
C136 0.1u10X/4C136 0.1u10X/4
VIA_SSTX3N VIA_SSTX3-
C149 0.1u10X/4C149 0.1u10X/4
C148 0.1u10X/4C148 0.1u10X/4
C145 0.1u10X/4C145 0.1u10X/4
VIA_SSTX4P VIA_SSTX4+
C142 0.1u10X/4C142 0.1u10X/4
VCCA33SS12-1
VCCA33SS12-2
VCCA33SS34-1
VCCA33SS34-2
VCCA33PEX
VCCA33SSM
VIA_SSTX1+VIA_SSTX1P
VIA_SSTX2-VIA_SSTX2N
VIA_SSTX3+VIA_SSTX3P
VIA_SSTX4-VIA_SSTX4N
VSUS33-1
VSUS33-2
GND
32
46
57
66
6
15
VCCA33PEX
23
49
69
VIA_SSTX1- (53)
VIA_SSTX1+ (53)
VIA_SSTX2- (53)
VIA_SSTX2+ (53)
VIA_SSTX3- (53)
VIA_SSTX3+ (53)
VIA_SSTX4- (53)
VIA_SSTX4+ (53)
2
VCCA33PEX
VCC3
97mA
R181
R181
0R/6
0R/6
Resered Bead.
C144
C144
0.1u10X/4
0.1u10X/4
1
Change to 25MHz.
EEPROM
VCC
SCK
VIA_3VSB
8
7
VIA_USB_SPISCK
6
VIA_USB_SPISI
5
R143
R143
10K/4
10K/4
VCC3
R184 0R/4R184 0R/4
C146
C146
X_0.1u10X/4
X_0.1u10X/4
ATX_5VSB
GS7133_EN
VCC3
C147
C147
10u6.3X/6
10u6.3X/6
Update- 2013.10.17
4
R1150 10R/4R1150 10R/4
U25
U25
1
POK
2
EN
3
VIN
5
NC
GS7133_CNTL
4
VOUT
VDD
GND8GND
GS7133SO
GS7133SO
9
FB
C975 1u6.3X/4C975 1u6.3X/4
6
7
C130
C130
0.015u16X/4
0.015u16X/4
GS7133_FB
VIA_1P05_S
R157
R157
4.99KR1%/4
4.99KR1%/4
R158
R158
16KR1%
16KR1%
3
R1151 0R/8R1151 0R/8
3VSB VIA_3VSB
Resered Bead.
1.05V core Power
Max Power disspation: (3.3 V-1.05V)*0.247A=0.55575W
VIA Core Power: VIA_1P05 247mA
R1149 0R/8R1149 0R/8
Resered Bead.
C128
C128
22u6.3X/8
22u6.3X/8
VIA_1P05
247mA
2
286mA
VIA_3VSB
C970 0.1u10X/4C970 0.1u10X/4
C983 0.1u10X/4C983 0.1u10X/4
C978 0.1u10X/4C978 0.1u10X/4
C971 0.1u10X/4C971 0.1u10X/4
C968 0.1u10X/4C968 0.1u10X/4
C981 0.1u10X/4C981 0.1u10X/4
VIA_1P05
C972 0.1u10X/4C972 0.1u10X/4
C977 0.1u10X/4C977 0.1u10X/4
C980 0.1u10X/4C980 0.1u10X/4
C982 0.1u10X/4C982 0.1u10X/4
C979 0.01u16X/4C979 0.01u16X/4
C976 0.01u16X/4C976 0.01u16X/4
C969 0.01u16X/4C969 0.01u16X/4
C973 0.01u16X/4C973 0.01u16X/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
VL805-USB30-4PORT
VL805-USB30-4PORT
VL805-USB30-4PORT
1
44 77
44 77
44 77
Sheet of
Sheet of
Sheet of
10
10
10
VIA_3VSB
B B
R142
R142
X_47K/4
X_47K/4
VIA_USB_SPICS#
VIA_USB_SPISO
R141 10K/4R141 10K/4 C974 0.1u10X/4C974 0.1u10X/4
VIA_WP
U24
U24
1
CE#
2
SO
HOLD#
3
WP#
GND4SIO
PM25LQ010B-SCE-HF
PM25LQ010B-SCE-HF
Change to 1M.
VIA_3VSB
R166
A C
C133
C133
1u6.3X/4
1u6.3X/4
R166
10K/4
10K/4
VIA_PONRST#
5
D5
A A
1N4148WD51N4148W
Page 45
5
4
3
2
1
Host USB connector
504_5VSB
D D
VCC3
C684
OSC1
OSC1
1
CONT
GND2OUTPUT
OSC-24MHZ50_S-HF
OSC-24MHZ50_S-HF
C C
4.7K/4
4.7K/4
0.1u10X/4
0.1u10X/4
R736
R736
C692
C692
VCC3
VDD
4
3
C684
0.01u16X/4
0.01u16X/4
OSC_24M OSC_24M_R
R155 0R/4R155 0R/4
C685
C685
15p50N
15p50N
VCC_DET
ATX_5VSB
5VDUAL
MB_USB_13D+(18)
MB_USB_13D-(18)
SMBDATA_VSB(17,26,47,54,55)
SMBCLK_VSB(17,26,47,54,55)
R402 X_0R/6R402 X_0R/6
R150 0R/6R150 0R/6
SLP_S4#(17,31,56,58,63,64,65)
SLP_S3#(17,31,56,58,66,67)
504_5VSB
R1333 0R/4R1333 0R/4
R1336 0R/4R1336 0R/4
MB_USB_13D+
MB_USB_13D-
OSC_24M_R
USB_HK2_SDA
USB_HK2_SCL
FLASH_ACTIVE#
VCC_DET
R156
R156
X_1K/4
X_1K/4
C641
C641
14
18
17
15
16
19
21
24
25
10u6.3X/6
10u6.3X/6
U84
U84
2
3
4
5
C638
C638
0.1u10X/4
0.1u10X/4
TDP
TDM
24M_CLK
SDA
SCL
S4#
S3#
START_UP
VCC_DET
NC-1
NC-2
NC-6
NC-7
VCC3
1
VDD5V
9
SPIVDD
POK_CTRL#
ACT_LED
SPI_MOSI
SPI_MISO
GND-1
GND-2
GND-3
6
23
29
28
CAP
PSOUT#
PS_ON#
SPI_CS#
SPI_CLK
F75504
F75504
DP
DM
C646
C646
0.1u10X/4
0.1u10X/4
USB_HK_RBIOS_DP_R
27
USB_HK_RBIOS_DN_R
26
PWROK_CTL#
7
8
ACT_LED
20
22
10
504_SPI_CLK
11
504_SPI_MOSI
12
504_SPI_MISO
13
R701 0R/4R701 0R/4
R716 33R/4R716 33R/4
R723 33R/4R723 33R/4
R724 33R/4R724 33R/4
ADD 33R,504_PSON# Netname
2014.12.16
PCH_PWROK (17,37)
PWRBTIN (31,69)
504_PSON# (69)
PCH_SPI_CS# (17,37)
PCH_SPI_CLK (17,37)
PCH_SPI_MOSI (17,37)
PCH_SPI_MISO (17,37)
REAR USB PORT 8,9 (With PS2)
from SIO6779 GP14
default=> GPI
POWER Well=> VSB
5VDRV3_EN(56)
504_5VSB
ATX_5VSB
USB_HOTKEY_EN(31)
5VDRV3_EN
R698 10K/4R698 10K/4
R1141 X_100K/4R1141 X_100K/4
C965
C965
0.1u10X/4
0.1u10X/4
USB_MODE(31,56)
HK_VSB_EN
R1140
R1140
200K1%/4
200K1%/4
R1146 0R/4R1146 0R/4
R1145 X_0R/4R1145 X_0R/4
RUSB_HK_VSB1 3VSB
OC# signal connect to
SB OC pin.
RH1
RH1
10K/4
10K/4
1
2
VCC5
U22
U22
S3#
EN
HK_VSB_EN
RH2
RH2
10K/4
10K/4
G2
D1
G1
3
4
5VCC
GND
UP7537
UP7537
QH1
QH1
ATX_5VSB
C112 10u6.3X/6C112 10u6.3X/6
5
VOUT3
5VSB
VOUT2
VOUT1
GND
UP7537BSU8_PSOP8-RH
UP7537BSU8_PSOP8-RH
9
RUSB_HK_VSB1
D2
S2
NN-2N7002D
NN-2N7002D
S1
6
7
8
+
+
12
EC6
EC6
100u16SO
100u16SO
OC#3 (18,56)
0.5A
RUSB_HK_VSB1
MB_USB_13D+ USB_HK_RBIOS_DP_R
LED12
LED12
B B
504_5VSB
504_5VSB
R4051K/4 R4051K/4
LED2
LED2
R1451K/4 R1451K/4
FLASHB1
FLASHB1
1 3
13
13
2 4
24
24
SW-TACTB1-4PS_BLACK-RH-1
SW-TACTB1-4PS_BLACK-RH-1
LED04-R-30mA
LED04-R-30mA
LED04-R-30mA
LED04-R-30mA
504_5VSB
R399
R399
47K/4
47K/4
FLASH_ACTIVE#
ACT_LED
ACT_LED
MB_USB_13D-
Reserved for when F75501 Hotkey device fail use
* All close to Front IO side
A A
5
4
R1329 X_0R/4R1329 X_0R/4
R1330 X_0R/4R1330 X_0R/4
USB_HK_RBIOS_DN_R
USB_HK_RBIOS_DP_R
USB_HK_RBIOS_DN_R
USB_HK_RBIOS_DP
USB_HK_RBIOS_DN
3
L6
USB_HK_RBIOS_DP
4
1
2
1
2
4
5
ESD close to connector.
(use usb3.0 ESD for eye diagram)
4P2R-0RL64P2R-0R
D4
D4
3
USB_HK_RBIOS_DN
3
0B add For EMI
2014.12.26
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
USB_HK_RBIOS_DP
USB_HK_RBIOS_DN
USB Connector power come from UP7537
provide(USB Hotkey Connector same)
RUSB_HK_VSB1
USB_HK_RBIOS_DN
USB_HK_RBIOS_DP
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
2
Date:
56
78
USB1
1
2
3
4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
USB1
USBAM-RH-2
USBAM-RH-2
MS-7A2116ci203
MS-7A21
MS-7A21
USB HOTKEY F75504
USB HOTKEY F75504
USB HOTKEY F75504
1
RUSB_HK_VSB1
C126
C126
0.1u10X/4
0.1u10X/4
45 77
45 77
45 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 46
5
4
3
2
1
0A to 10 change to jusb4 19 pin use.
+12V
6792 SIO pin71
D D
5VCCDRV#(31)
5VSBDRV#(31)
SIO_5VSB
6792 SIO pin74
R453
R453
10K/4
10K/4
R446 0R/4R446 0R/4
SIO_5VSB
R452
R452
4.7K/4
4.7K/4
R129
R129
4.7K/4
4.7K/4
CE
Q171
Q171
2N3904
2N3904
B
R127 0R/4R127 0R/4
VCC_GATE
C111
C111
X_0.022u16X/4
X_0.022u16X/4
ATX_5VSB
DUALGATE
3~4A
VCC5 5VDUAL_USB
U117
U117
NS
ND
NS
ND
1
NG ND
NG ND
2
PS
PS
3
PG
PG
4 5
NP-P5003QVG
NP-P5003QVG
PD
PD
PD
PD
C1072 18n16X/4C1072 18n16X/4
8
7
6
C1066
C1066
0.1u10X/4
0.1u10X/4
C C
From ASM1142
FUSB1+(42)
FUSB1-(42)
CHARGE_CB
B B
6
7
8
4
U51
U51
TDP
TDM
CB
SM_CDP
ATX_5VSB
C452
C452
0.1u10X/4
0.1u10X/4
5
VCC
DP
DM
CEN
GND
SLG55593A_TDFN8-HF
SLG55593A_TDFN8-HF
9
3
2
1
To Pin Header
FUSB1+_CH
FUSB1-_CH
CHARGE0_ENSM_CDP
FUSB1+_CH (57)
FUSB1-_CH (57)
ATX_5VSB
R441
R441
100K/4
100K/4
C408
C408
1u6.3X/4
1u6.3X/4
ATX_5VSB
R444 47K/4R444 47K/4
R443 X_47K/4R443 X_47K/4
SM_CDP
ATX_5VSB
C454
C454
0.1u10X/4
0.1u10X/4
5
U53
From ASM1142
FUSB2+(42)
FUSB2-(42)
CHARGE_CB
CHARGE_CB(31)
R450
R450
100K/4
100K/4
R440 10K/4R440 10K/4
VCC3
6
7
8
4
U53
TDP
TDM
CB
SM_CDP
VCC
DP
DM
CEN
GND
SLG55593A_TDFN8-HF
SLG55593A_TDFN8-HF
9
3
2
1
To Pin Header
FUSB2+_CH
FUSB2-_CH
CHARGE1_ENSM_CDP
FUSB2+_CH (57)
FUSB2-_CH (57)
ATX_5VSB
R454
R454
100K/4
100K/4
C414
C414
1u6.3X/4
1u6.3X/4
USB POWER PORT 1 For USB Charging
MAX 1.7A
C1184
C1184
X_0.1u10X/4
X_0.1u10X/4
IBC_VCC1
+
+
12
EC56
EC56
100u16SO
100u16SO
MAX 1.7A
U130
CHARGE0_EN
5VDUAL_USB
OC#0(18,55)
A A
U130
4
EN
2
3
5
VOUT1
VIN1
VOUT2
VIN2
VOUT3
GND
OC#
UP7549PRA8-25_MSOP8-HF
UP7549PRA8-25_MSOP8-HF
8
7
6
1
USB POWER PORT 1 For USB Charging
MAX 1.7A
U131
CHARGE1_EN
5VDUAL_USB
OC#0(18,55)
U131
4
EN
2
3
5
VOUT1
VIN1
VOUT2
VIN2
VOUT3
GND
OC#
UP7549PRA8-25_MSOP8-HF
UP7549PRA8-25_MSOP8-HF
8
7
6
1
MAX 1.7A
C1185
C1185
X_0.1u10X/4
X_0.1u10X/4
IBC_VCC2
+
+
12
EC57
EC57
100u16SO
100u16SO
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
SLG55593A
SLG55593A
SLG55593A
1
46 77
46 77
46 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 47
5
D D
3VSB
R182
R182
10K1%/4
10K1%/4
5605_RST#_B
C143
C143
1u6.3X/4
1u6.3X/4
C C
0A to 10.
SMBCLK_VSB(17,26,45,54,55)
SMBDATA_VSB(17,26,45,54,55)
RUSB31_POWER_OFF(41)
4
3VSB
C151
C151
0.1u16X/4
0.1u16X/4
R188 0R/4R188 0R/4
R189 0R/4R189 0R/4
OC_GPIO08(71)
OC_GPIO07(71)
OC_GPIO06(71)
OC_GPIO05(71)
slave address : Write 3EH
5605_CLK_B
5605_DAT_B
5605_RST#_B
Read 3FH
20
1
2
19
14
18
3
4
5
6
C150
C150
1u6.3X/4
1u6.3X/4
U27
U27
3VDD
SCL
SDA
RST#
BEEP/GP14
INT#
LED0/GP10
LED1/GP11
LED2/GP12
LED3/GP13
VSS7EP
21
A2/GP15
A1/GP16
A0/GP17
GP20
GP21
GP22
GP23
GP24
GP25
NCT5605Y-RH
NCT5605Y-RH
3
15
5605_GP16
16
A0_1
17
8
9
10
11
12
13
5605_GP15 (43)
5605_GP16 (43)
OC_GPIO04 (71)
OC_GPIO03 (71)
OC_GPIO02 (71)
OC_GPIO01 (71)
CPUFAN_PWR_OFF (33)
USB31_POWER_OFF (42)
2
5605_GP155605_GP15
5605_GP16
A0_1
R167 10K/4R167 10K/4
R170 10K/4R170 10K/4
R172 10K/4R172 10K/4
1
3VSB
B B
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
GPIO CONTROLLER
GPIO CONTROLLER
GPIO CONTROLLER
1
47 77
47 77
47 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 48
C742
C742
VCC3
R948
R948
4.7K/4
4.7K/4
VCC3
M.2_TX0#
M.2_TX0
M.2_RX0#
M.2_RX0
M.2_TX1#
M.2_TX1
M.2_RX1#
M.2_RX1
5
Q92
Q92
G2
D1
G1
R945 X_4.7K/4R945 X_4.7K/4
VCC3
ASM1467_SEL
D
D
Q105
Q105
G
G
2N7002
2N7002
S
S
R950 X_4.7K/4R950 X_4.7K/4
C1177 0R/4C1177 0R/4
C1176 0R/4C1176 0R/4
C1175 0R/4C1175 0R/4
C1174 0R/4C1174 0R/4
C1157 0R/4C1157 0R/4
C1156 0R/4C1156 0R/4
C1173 0R/4C1173 0R/4
C1172 0R/4C1172 0R/4
C1171 0R/4C1171 0R/4
C1170 0R/4C1170 0R/4
C1155 0R/4C1155 0R/4
C1154 0R/4C1154 0R/4
NN-2N7002D
NN-2N7002D
S1
M.2_TX0#_C
M.2_TX0_C
M.2_RX0#_C
M.2_RX0_C
CM2_TXN0_C
CM2_TXP0_C
M.2_TX1#_C
M.2_TX1_C
M.2_RX1#_C
M.2_RX1_C
CM2_TXN1_C
CM2_TXP1_C
D2
S2
SATA_TX4(18)
SATA_TX#4(18)
SATA_RX4(18)
SATA_RX#4(18)
CMPL_EN1
SATA_TX5(18)
SATA_TX#5(18)
SATA_RX5(18)
SATA_RX#5(18)
CMPL_EN2
R883
R883
4.7K/4
4.7K/4
VCC3
37
AOa+
36
AOa-
33
BOa+
32
BOa-
3
AOb+
4
AOb-
7
BOb+
8
BOb-
28
COa+
27
COa-
24
DOa+
23
DOa-
12
COb+
13
COb-
16
DOb+
17
DOb-
ATX_5VSB +12V
R882
R882
4.7K/4
4.7K/4
VCC3
D D
0.1u10X/4
0.1u10X/4
C C
PCH_M.2_DET(18,49)
B B
CM2_TXN0(30)
CM2_TXP0(30)
CM2_RXN0(30)
CM2_RXP0(30)
A A
CM2_TXN1(30)
CM2_TXP1(30)
CM2_RXN1(30)
CM2_RXP1(30)
PE6X8_M2X4_SEL
VCC3
G
G
C748
C748
1u16X4
1u16X4
C784 0.22u6.3X/4C784 0.22u6.3X/4
C783 0.22u6.3X/4C783 0.22u6.3X/4
C781 0.22u6.3X/4C781 0.22u6.3X/4
C782 0.22u6.3X/4C782 0.22u6.3X/4
TP25TP25
TP24TP24
MOSEL:
0:SATA
1:PCIE
C779 0.22u6.3X/4C779 0.22u6.3X/4
C778 0.22u6.3X/4C778 0.22u6.3X/4
C776 0.22u6.3X/4C776 0.22u6.3X/4
C777 0.22u6.3X/4C777 0.22u6.3X/4
TP129TP129
TP128TP128
MOSEL:
0:SATA
1:PCIE
41
VDD39VDD31VDD34VDD
VDD
GND
GND
43
Q91
Q91
D
D
S
S
N-P8503BMG
N-P8503BMG
DR_VCC3
MAX 260mA
SATA_TX4_C
SATA_TX#4_C
SATA_RX4_C
SATA_RX#4_C
1467SMBDAT_A0
ASM1467_SEL
R944 4.7K/4R944 4.7K/4
CMPL_EN:
0:SATA Complance mode
1:Normal mode
SATA_TX5_C
SATA_TX#5_C
SATA_RX5_C
SATA_RX#5_C
1467SMBDAT_A1
ASM1467_SEL
R949 4.7K/4R949 4.7K/4
CMPL_EN:
0:SATA Complance mode
1:Normal mode
C1162 0.1u16X/4C1162 0.1u16X/4
19
26
9
U126
U126
VDD
VDD21VDD
SEL
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
low:from pch switch
high:from pcie switch
5
CMPL_EN1
CMPL_EN2
AI+
AI-
BI+
BI-
CI+
CI-
DI+
DI-
Low: PCH
F75480BN
F75480BN
M2_TX0#
1
M2_TX0
2
M2_RX0#
5
M2_RX0
6
PE6X8_M2X4_SEL_R
30
M2_TX1#
10
M2_TX1
11
M2_RX1#
14
M2_RX1
15
4
4
1
2
5
4
18
19
17
13
1
2
5
4
18
19
17
13
U93
U93
AIP
AIN
BOP
BON
SMB_SCK
SMB_DATA
MOSEL
CMPL_EN
U92
U92
AIP
AIN
BOP
BON
SMB_SCK
SMB_DATA
MOSEL
CMPL_EN
DR_VCC3
10
20
VCC-1
GND-13GND-2
6
DR_VCC3
10
20
VCC-1
GND-13GND-2
6
M2_TX0# (49)
M2_TX0 (49)
M2_RX0# (49)
M2_RX0 (49)
M2_TX1# (49)
M2_TX1 (49)
M2_RX1# (49)
M2_RX1 (49)
C820 10u6.3X/6C820 10u6.3X/6
C785 0.1u10X/4C785 0.1u10X/4
15
AOP
14
VCC-2
AON
11
BIP
12
BIN
7
DE_A
8
DE_B
9
REXT
16
RSVD
GND-3
ASM1467_QFN20-RH
ASM1467_QFN20-RH
21
C814 10u6.3X/6C814 10u6.3X/6
C780 0.1u10X/4C780 0.1u10X/4
15
AOP
14
VCC-2
AON
11
BIP
12
BIN
7
DE_A
8
DE_B
9
REXT
16
RSVD
GND-3
ASM1467_QFN20-RH
ASM1467_QFN20-RH
21
RSATA_TX4_C
RSATA_TX#4_C
RSATA_RX4_C
RSATA_RX#4_C
1467EQ_A0
1467EQ_B01467SMBCLK_A0
RSATA_TX5_C
RSATA_TX#5_C
RSATA_RX5_C
RSATA_RX#5_C
1467EQ_A1
1467EQ_B11467SMBCLK_A1
0A to 10
R1242
R1242
4.7K/4
4.7K/4
PE6X8_M2X4_SEL_R
R947 0.22u6.3X/4R947 0.22u6.3X/4
R946 0.22u6.3X/4R946 0.22u6.3X/4
R938 0.22u6.3X/4R938 0.22u6.3X/4
R954 0.22u6.3X/4R954 0.22u6.3X/4
R905 4.7K/4R905 4.7K/4
R913 4.7K/4R913 4.7K/4
R920 2K1%/4R920 2K1%/4
R952 0.22u6.3X/4R952 0.22u6.3X/4
R951 0.22u6.3X/4R951 0.22u6.3X/4
R937 0.22u6.3X/4R937 0.22u6.3X/4
R953 0.22u6.3X/4R953 0.22u6.3X/4
R904 4.7K/4R904 4.7K/4
R912 4.7K/4R912 4.7K/4
R919 2K1%/4R919 2K1%/4
VCC3
H:normal
L:front typec
EX_USB31_SEL
G
G
S
S
D
D
Q174
Q174
2N7002
2N7002
3
RSATA_TX4
RSATA_TX#4
RSATA_RX4
RSATA_RX#4
DR_VCC3
RSATA_TX4
RSATA_TX#4
RSATA_RX4
RSATA_RX#4
100K/4
100K/4
RSATA_TX5
RSATA_TX#5
RSATA_RX5
RSATA_RX#5
DR_VCC3
RSATA_TX5
RSATA_TX#5
RSATA_RX5
RSATA_RX#5
X_100K/4
X_100K/4
PE6X8_M2X4_SEL (30)
3
R968
R968
R964
R964
0A to 10
EX_USB31_SEL(43,49)
M2_EX_SATA_SEL(49)
R969
R969
100K/4
100K/4
R965
R965
X_100K/4
X_100K/4
R960
R960
100K/4
100K/4
R966
R966
X_100K/4
X_100K/4
H:normal
L:front typec
EX_USB31_SEL
R961
R961
100K/4
100K/4
R967
R967
X_100K/4
X_100K/4
G
G
S
S
Q173
Q173
2N7002
2N7002
D
D
2
VCC3
R1241
R1241
4.7K/4
4.7K/4
M2_EX_SATA_SEL_R
RSATA_TX4
RSATA_TX#4
RSATA_RX4
RSATA_RX#4
M2_EX_SATA_SEL_R
RSATA_TX5
RSATA_TX#5
RSATA_RX5
RSATA_RX#5
M.2_ON#(49)
2
SIO_GP10(31)
SIO_GP13(30,31,49)
3VSB
R907
R907
4.7K/4
4.7K/4
M.2_ON#
M.2_ON#:
1:no m2
0:m2
U94
U94
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
G2
D1
G1
VCC3
19
9
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND
GND
GND
GND20GND25GND29GND35GND38GND40GND42GND
GND
18
22
R911 4.7K/4R911 4.7K/4
M2_EX_SATA_SEL
Q100
Q100
D2
S2
NN-2N7002D
NN-2N7002D
S1
MSI
MSI
MSI
1
C1180 0.1u16X/4C1180 0.1u16X/4
34
41
M.2_TX0
37
AOa+
VDD
AOa-
BOa+
BOa-
AOb+
AOb-
BOb+
BOb-
COa+
COa-
DOa+
DOa-
COb+
COb-
DOb+
DOb-
43
Q97
Q97
G2
D1
G1
PE6X8_M2X4
PE6X8_M2X4_SEL
當
SATA EX
PE6X8_M2X4_SEL
0:cpu lanes to pcie6
1:cpu lanes to m2
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
M.2_TX0#
36
M.2_RX0
33
M.2_RX0#
32
3
4
7
8
M.2_TX1
28
M.2_TX1#
27
M.2_RX1
24
M.2_RX1#
23
12
13
16
17
F75480BN
F75480BN
VCC3
M2_EX_SATA_SEL
D2
S2
NN-2N7002D
NN-2N7002D
S1
AUTO MODE
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
下有插
有作用
MS-7A21
MS-7A21
MS-7A21
PCIE&SATA Redriver
PCIE&SATA Redriver
PCIE&SATA Redriver
M.2
SAEX_TX4 (43)
SAEX_TX#4 (43)
SAEX_RX4 (43)
SAEX_RX#4 (43)
M.2
SAEX_TX5 (43)
SAEX_TX#5 (43)
SAEX_RX5 (43)
SAEX_RX#5 (43)
R908
R908
4.7K/4
4.7K/4
M2_EX_SATA_SEL:
0:to m2
1:to sata_ex
PE6X8_M2X4_SEL (30)
M2.PCIEX4
Sheet of
Sheet of
Sheet of
1
SATA_EX
SATA_EX
時，
48 77
48 77
48 77
10
10
10
Page 49
5
4
3
2
1
BIOS_MODE
76
M2_1
SIO_GP10 SIO_GP80 Mode
1
X
D D
X
GPI
C C
SIO_GP84 SIO_GP13
0
1
0
X0
1:PCIE
0:SATA
X
X
1:PCIE
0:SATA
GPIGPI
0
0
0
X
1
M2-PCH
PCIEX8
M2-X4
SATA EXpress
AUTO
SIO_GP13(30,31,48)
M.2_DET_SW(30)
SATA_EX_SEL
SATA_EX_D
M2_EX_SATA_SEL
M2_RX3#(30)
M2_RX3(30)
M2_TX3#(30)
M2_TX3(30)
M2_RX2#(30)
M2_RX2(30)
M2_TX2#(30)
M2_TX2(30)
M2_RX1#
M2_RX1#(48)
M2_RX1
M2_RX1(48)
M2_TX1#
M2_TX1#(48)
M2_TX1
M2_TX1(48)
SATA
M2_RX0
M2_RX0(48)
M2_RX0#
M2_RX0#(48)
SIO_3VA
R935
R935
10K/4
10K/4
G
G
M.2_DETM.2_DET_SW
S
S
D
D
2N7002
2N7002
Q104
Q104
Q98
Q98
G2
D1
G1
NN-2N7002D
NN-2N7002D
S1
SATA_EX_GPI#
D2
SATA_EX_D
S2
CK_M.2_DN(19)
CK_M.2_DP(19)
M.2_ON#(48)
SATA_EX_GPI# (31)
M2_TX0#(48)
M2_TX0(48)
M2_TX0#
M2_TX0
M.2_ON#:
1:no m2
0:m2
要反接
3VSB
C722 0.22u6.3X/4C722 0.22u6.3X/4
C726 0.22u6.3X/4C726 0.22u6.3X/4
C732 0.22u6.3X/4C732 0.22u6.3X/4
C735 0.22u6.3X/4C735 0.22u6.3X/4
R840 0R/4R840 0R/4
R852 0R/4R852 0R/4
R853 0.22u6.3X/4R853 0.22u6.3X/4
R860 0.22u6.3X/4R860 0.22u6.3X/4
R862 0R/4R862 0R/4
R870 0R/4R870 0R/4
R881 0.22u6.3X/4R881 0.22u6.3X/4
R884 0.22u6.3X/4R884 0.22u6.3X/4
R910
R910
10K/4
10K/4
M.2_DET
M.2_ON#
M2_TX3#_C
M2_TX3_C
M2_TX2#_C
M2_TX2_C
M2_RX1#_C
M2_RX1_C
M2_TX1#_C
M2_TX1_C
M2_RX0_C
M2_RX0#_C
M2_TX0#_C
M2_TX0_C
12
12
D25D25
D24D24
M2_1
1
GND-1
3
GND-2
5
PERn3
7
PERp3
9
GND-3
11
PETn3
13
PETp3
15
GND-4
17
PERn2
19
PERp2
21
GND-5
23
PETn2
25
PETp2
27
GND-6
29
PERn1
31
PERp1
33
GND-7
35
PETn1
37
PETp1
39
GND-8
41
PERn0/SATA-B+
43
PERp0/SATA-B-
45
GND-9
47
PETn0/SATA-APETp0/SATA-A+49PERST# (O)(0/3.3V) or N/C
51
GND-10
53
REFCLKN
55
REFCLKP
57
GND-11
67
NC-1
69
PEDET (NC-PCIe/GND-SATA)
71
GND-12
73
GND-13
75
GND-14
(Support dimension: Type 2242 / Type 2260 / Type 2280)
MEC1
76
MEC1
DAS/DSS# (IO)
CLKREQ# (IO)(0/3.3V) or N/C
PEWake# (IO)(0/3.3V) or N/C
KEY M
KEY M
SUSCLK(32kHz) (O)(0/3.3V)
MEC2
77
77
MEC2
Socket3(B+M) : support up to PCIEx4 / SSD
2
3.3Vaux-1
4
3.3Vaux-2
6
NC-2
8
NC-3
3.3Vaux-3
3.3Vaux-4
3.3Vaux-5
3.3Vaux-6
NC-4
NC-5
NC-6
NC-7
NC-8
NC-9
NC-10
NC-11
NC-12
DEVSLP
NC-13
NC-14
NC-15
NC-16
NC-17
NC-18
NC-19
3.3Vaux-7
3.3Vaux-8
3.3Vaux-9
SLOT-NGFFCARD67P_BLACK-HF-4
SLOT-NGFFCARD67P_BLACK-HF-4
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
PLTRST_M2
50
52
PCH_WAKE#_M2
54
56
58
68
70
72
74
M.2_DAS
M.2_DAS (69)
R914 0R/4R914 0R/4
R915 X_0R/4R915 X_0R/4
R916 X_0R/4R916 X_0R/4
SUS_CLK_M2
R789 10K/4R789 10K/4
VCC3
PLTRST_BU3B# (31)
PCH_WAKE# (17,26,27,28,29,30,41,42,44,52)
VCC3
SUS_CLK_M2 (17)
C800 X_10P50N/4C800 X_10P50N/4
B B
FRONT_U3.0 SEL
BIOS_MODE
GP13
1000000
0
3VSB
R976
R976
10K/4
10K/4
Q124
Q124
G2
D1
EX_USB31_SEL(43,48)
A A
G1
NN-2N7002D
NN-2N7002D
S1
5
D2
S2
PCH_M.2DET
4
0
0
0
3VSB
3VSB
R934
R934
10K/4
10K/4
M2_EX_SATA_SEL(48)
SATA & PCIE SWITCH
GP80 GP11 GP10
X
X
1
1
1
1
X
X
X
X
R987
R987
10K/4
10K/4
M.2_DET_SW
Q110
Q110
G2
D1
G1
S1
X
D2
S2
NN-2N7002D
NN-2N7002D
0
0
D
D
Q115
Q115
G
G
2N7002
2N7002
S
S
GP84
0
0
1
X
0
1
R922
R922
10K/4
10K/4
PCH_M.2DET
SATA_EX_SEL(51)
SATA_EX_SEL:
0:sata
1:sata_ex
M2_EX_SATA_SEL(48)
M2_EX_SATA_SEL:
0:to m2
1:to sata_ex
Mode
AUTO(Default)
M2-SATA
M2-PCIE
M2-CPU
SATA-E SATA
SATA-E PCIE
SIO_GP13(30,31,48)
G
G
G
G
3
VCC3VCC3
R962
R962
10K/4
R963
R963
10K/4
10K/4
10K/4
D
D
Q106
Q106
G
G
2N7002
2N7002
S
S
01PCIE/SATA Exp.
PCH_M.2_DET (18,48)
pch side
PCH_M.2_DET
SATA
(Default)
2
G
G
S
S
D
D
Q101
Q101
2N7002
Q112
Q112
2N7002
2N7002
Q107
Q107
2N7002
2N7002
2N7002
SIO_GP84
0:SATA
1:PCIE
SIO_GP84(31)
D
D
S
S
D
D
S
S
H1
H1
<HP-BOM>
<HP-BOM>
E2B-7924010-RH
E2B-7924010-RH
1
Footprint: H_R240D173_BR189_PT
PCH side
0:PCIE
1:SATA
M.2 side
0:SATA
NC:PCIE
VCC3
C1152
C1152
10u6.3X/6
10u6.3X/6
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
H2
H2
<HP-BOM>
<HP-BOM>
E2B-7924010-RH
E2B-7924010-RH
1
M_S1
M_S1
螺絲
螺絲
M2_SCREW
M2_SCREW
C1166
C1166
C1149
0.1u10X/4
0.1u10X/4
C1149
0.1u10X/4
0.1u10X/4
MS-7A21
MS-7A21
MS-7A21
C796
C796
10u6.3X/6
10u6.3X/6
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
M.2 CONNCTOR
M.2 CONNCTOR
M.2 CONNCTOR
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
1
H3
H3
<HP-BOM>
<HP-BOM>
C1168
C1168
0.1u10X/4
0.1u10X/4
Sheet of
Sheet of
Sheet of
E2B-7924010-RH
E2B-7924010-RH
1
C1145
C1145
0.1u10X/4
0.1u10X/4
49 77
49 77
49 77
C1146
C1146
0.1u10X/4
0.1u10X/4
10
10
10
Page 50
5
9
U89
D D
U.2_RXP0(30)
U.2_RXN0(30)
U.2_RXP1(30)
U.2_RXN1(30)
U.2_RXP2(30)
U.2_RXN2(30)
U.2_RXP3(30)
U.2_RXN3(30)
0A to 10 change to 0.22u.
U.2_TXP0(30)
U.2_TXN0(30)
U.2_TXP1(30)
U.2_TXN1(30)
U.2_TXP2(30)
C799
C799
1u6.3X/4
1u6.3X/4
U.2_TXN2(30)
U.2_TXP3(30)
U.2_TXN3(30)
C C
VCC3
C822
C822
10u6.3X/6
10u6.3X/6
C749 0.22u6.3X/4C749 0.22u6.3X/4
C752 0.22u6.3X/4C752 0.22u6.3X/4
C753 0.22u6.3X/4C753 0.22u6.3X/4
C756 0.22u6.3X/4C756 0.22u6.3X/4
C757 0.22u6.3X/4C757 0.22u6.3X/4
C760 0.22u6.3X/4C760 0.22u6.3X/4
C761 0.22u6.3X/4C761 0.22u6.3X/4
C769 0.22u6.3X/4C769 0.22u6.3X/4
C770 0.22u6.3X/4C770 0.22u6.3X/4
C772 0.22u6.3X/4C772 0.22u6.3X/4
C773 0.22u6.3X/4C773 0.22u6.3X/4
C786 0.22u6.3X/4C786 0.22u6.3X/4
C787 0.22u6.3X/4C787 0.22u6.3X/4
C789 0.22u6.3X/4C789 0.22u6.3X/4
C790 0.22u6.3X/4C790 0.22u6.3X/4
C793 0.22u6.3X/4C793 0.22u6.3X/4
VCC3
close PIN24
R928 X_10K/4R928 X_10K/4
B B
U.2_OUTB_RX0+
U.2_OUTB_RX0U.2_OUTB_RX1+
U.2_OUTB_RX1U.2_OUTB_RX2+
U.2_OUTB_RX3+
U.2_OUTB_RX3-
U.2_INA_TX0+
U.2_INA_TX0U.2_INA_TX1+
U.2_INA_TX1U.2_INA_TX2+
U.2_INA_TX2U.2_INA_TX3+
U.2_INA_TX3-
EQA01
EQA00
RATE
RXDET
SD_TH
ALL_DONE#
U89
1
OUTB_0+
2
OUTB_0-
3
OUTB_1+
4
OUTB_1-
5
OUTB_2+
6
OUTB_2-
7
OUTB_3+
8
OUTB_3-
10
INA_0+
11
INA_0-
12
INA_1+
13
INA_1-
15
INA_2+
16
INA_2-
17
INA_3+
18
INA_3-
19
EQA1
20
EQA0
21
RATE
22
RXDET
23
LPBK
24
VIN
25
VDD_SEL
26
SD_TH/READ_EN#
27
ALL_DONE#
DS80PCI402SQNOPB-RH
DS80PCI402SQNOPB-RH
VDD-1
4
C1165 0.1u16X/4C1165 0.1u16X/4
C1169 0.1u16X/4C1169 0.1u16X/4
C1161 0.1u16X/4C1161 0.1u16X/4
C764 0.1u16X/4C764 0.1u16X/4
C743 0.1u16X/4C743 0.1u16X/4
14
41
36
51
U.2_INB_RX0+
VDD-2
VDD-3
VDD-4
VDD-5
INB_0+
INB_0-
INB_1+
INB_1-
INB_2+
INB_2-
INB_3+
INB_3-
OUTA_0+
OUTA_0-
OUTA_1+
OUTA_1-
OUTA_2+
OUTA_2-
OUTA_3+
OUTA_3-
DEMB1/AD0
DEMB0/AD1
PRSNT#
DEMA1/SCL
DEMA0/SDA
ENSMB
EQB1/AD2
EQB0/AD3
45
44
43
42
40
39
38
37
U.2_OUTA_TX0+
35
U.2_OUTA_TX0-
34
U.2_OUTA_TX1+
33
U.2_OUTA_TX1-
32
U.2_OUTA_TX2+
31
U.2_OUTA_TX2-
30
U.2_OUTA_TX3+
29
U.2_OUTA_TX3-
28
DEMB1
54
DEMB0
53
PRSNT#
52
CDR_SCL
50
CDR_SDA
49
ENSMB
48
EQB1
47
EQB0
46
U.2_INB_RX0U.2_INB_RX1+
U.2_INB_RX1U.2_INB_RX2+
U.2_INB_RX2U.2_INB_RX3+
U.2_INB_RX3-
0A to 10 change to 0R
C747 0R/4C747 0R/4
C750 0R/4C750 0R/4
C751 0R/4C751 0R/4
C754 0R/4C754 0R/4
C755 0R/4C755 0R/4
C758 0R/4C758 0R/4
C759 0R/4C759 0R/4
C765 0R/4C765 0R/4
C771 0.22u6.3X/4C771 0.22u6.3X/4
C775 0.22u6.3X/4C775 0.22u6.3X/4
C774 0.22u6.3X/4C774 0.22u6.3X/4
C788 0.22u6.3X/4C788 0.22u6.3X/4
C791 0.22u6.3X/4C791 0.22u6.3X/4
C795 0.22u6.3X/4C795 0.22u6.3X/4
C794 0.22u6.3X/4C794 0.22u6.3X/4
C797 0.22u6.3X/4C797 0.22u6.3X/4
R865 1K/4R865 1K/4
U.2_RX0+
U.2_RX0U.2_RX1+
U.2_RX1U.2_RX2+
U.2_RX2U.2_RX3+
U.2_RX3-
U.2_TX0+
U.2_TX0U.2_TX1+
U.2_TX1U.2_TX2+
U.2_TX2U.2_TX3+
U.2_TX3-
3
U.2_RX0+
U.2_RX0-
U.2_RX1+
U.2_RX1-
U.2_RX2+
U.2_RX2-
U.2_RX3+
U.2_RX3-
墊片
墊片
SMBCLK_VCC_R1
CK_U2_DP
U2_RST#C
SMBDATA_VCC_R2
CK_U2_DP(24)
PLTRST_BU3C#(31)
SMBCLK_VCC
PLTRST_BU3C#
SMBDATA_VCCU.2_OUTB_RX2-
SCREW2
SCREW2
SCREW
SCREW
U2_SCREW
U2_SCREW
U38
U38
U2_NYLON
U2_NYLON
墊片
墊片
R958 X_0R/4R958 X_0R/4
R959 0R/4R959 0R/4
R955 X_0R/4R955 X_0R/4
SCREW3
SCREW3
SCREW
SCREW
U2_SCREW
U2_SCREW
U47
U47
U2_NYLON
U2_NYLON
2
U2_1
U2_1
B4
B4
B5
B5
A4
A4
A5
A5
SIGNAL
SIGNAL
B7
B7
B8
B8
A7
A7
A8
A8
C2
C2
A1
A1
SIDEBAND
SIDEBAND
B1
B1
D1
D1
A3
A3
A6
GND
GND
A6
A9
A9
B3
B3
B6
B6
B9
B9
MEC1
MEC2
MEC1
MEC2
U.2_TX0+
D4
D4
U.2_TX0-
D5
D5
U.2_TX1+
C4
C4
U.2_TX1-
C5
C5
U.2_TX2+
D7
D7
U.2_TX2-
D8
D8
U.2_TX3+
C7
C7
U.2_TX3-
C8
C8
SMBDATA_VCC_R1
C1
C1
U.2_DET#
B2
B2
CK_U2_DN
A2
A2
SMBCLK_VCC_R2
D2
D2
C3
C3
C6
C6
C9
C9
D3
D3
D6
D6
D9
D9
SAS36PF_BLACK-HF
SAS36PF_BLACK-HF
X4
R957 X_0R/4R957 X_0R/4
R956 X_0R/4R956 X_0R/4
SW
1
SMBDATA_VCC
SMBCLK_VCC
X4
U.2_DET# (30)
CK_U2_DN (24)
PCIE_6
U.2
SW
55
DAP_GND
X2
SW
M2 SLOT
X2
SMBCLK_VCC(10,17,23,24,58,59,64,65,66,68,70)
SMBDATA_VCC(10,17,23,24,58,59,64,65,66,68,70)
SMBCLK_VCC
R843X_0R/4 R843X_0R/4
R844X_0R/4 R844X_0R/4
CDR_SCL
CDR_SDASMBDATA_VCC
SW
X2
SW
X2
SATA
EXPRESS
PCH X2
VCC3 VCC3 VCC3 VCC3 VCC3VCC3
A A
R941
R941
X_1K/4
X_1K/4
RATE RXDET
R925
R925
X_20K/4
X_20K/4
R942
R942
X_1K/4
X_1K/4
R926
R926
X_20K/4
X_20K/4
5
SD_TH
R943
R943
X_1K/4
X_1K/4
R927
R927
X_20K/4
X_20K/4
VCC3
R939
R939
X_1K/4
X_1K/4
EQA01 EQA00
R923
R923
1K/4
1K/4
4
CPU X 4
R940
R940
X_1K/4
X_1K/4
DEMB0 DEMB1
R924
R924
1K/4
1K/4
R842
R842
X_1K/4
X_1K/4
R864
R864
X_1K/4
X_1K/4
R841
R841
X_1K/4
X_1K/4
R863
R863
X_1K/4
X_1K/4
3
VCC3 VCC3
R847
R847
X_1K/4
X_1K/4
R868
R868
1K/4
1K/4
R846
R846
X_1K/4
X_1K/4
R867
R867
1K/4
1K/4
VCC3
X4
R845
R845
X_1K/4
X_1K/4
ENSMBEQB0 EQB1
R866
R866
1K/4
1K/4
2
MSI
MSI
MSI
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
CLK GEN4105
CLK GEN4105
CLK GEN4105
1
50 77
50 77
50 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 51
5
4
3
2
1
SATA 6G PORT 0.1
SATA1_2
SATA1_2
1
SATA_TX0 ST_TX0
SATA_TX0(18)
SATA_TX#0(18)
SATA_RX#0(18)
D D
SATA_RX0(18)
C601 0.01u16X/4C601 0.01u16X/4
C606 0.01u16X/4C606 0.01u16X/4
C635 0.01u16X/4C635 0.01u16X/4
C636 0.01u16X/4C636 0.01u16X/4
ST_TX#0SATA_TX#0
ST_RX#0SATA_RX#0
ST_RX0SATA_RX0
GND-1
2
S3HT+1
3
S3HT-1
4
GND-2
5
S3HR-1
6
S3HR+1
7
GND-3
X1
X1
MEC1
MEC1
SATA14PM_BLACK-RH-2
SATA14PM_BLACK-RH-2
GND-4
S3HT+2
S3HT-2
GND-5
S3HR-2
S3HR+2
GND-6
MEC2
8
9
10
11
12
ST_RX1 SATA_RX1
13
14
X2
X2
MEC2
SATA_TX1ST_TX1
C6090.01u16X/4 C6090.01u16X/4
SATA_TX#1ST_TX#1
C6120.01u16X/4 C6120.01u16X/4
SATA_RX#1ST_RX#1
C6230.01u16X/4 C6230.01u16X/4
C6300.01u16X/4 C6300.01u16X/4
SATA_TX1 (18)
SATA_TX#1 (18)
SATA_RX#1 (18)
SATA_RX1 (18)
SATA 6G PORT 56
SE1_65
SATA 6G PORT 2.3
SATA3_4
SATA3_4
1
SATA_TX2(18)
SATA_TX#2(18)
SATA_RX#2(18)
SATA_RX2(18)
C C
SATA_TX2 ST_TX2
C647 0.01u16X/4C647 0.01u16X/4
C698 0.01u16X/4C698 0.01u16X/4
C699 0.01u16X/4C699 0.01u16X/4
ST_TX#2SATA_TX#2
ST_RX#2SATA_RX#2
ST_RX2SATA_RX2
GND-1
2
S3HT+1
3
S3HT-1
4
GND-2
5
S3HR-1
6
S3HR+1
7
GND-3
X1
X1
MEC1
MEC1
SATA14PM_BLACK-RH-2
SATA14PM_BLACK-RH-2
GND-4
S3HT+2
S3HT-2
GND-5
S3HR-2
S3HR+2
GND-6
MEC2
8
9
10
11
12
ST_RX3 SATA_RX3
13
14
X2
X2
MEC2
SATA_TX3ST_TX3
C6870.01u16X/4 C6870.01u16X/4
SATA_TX#3ST_TX#3
C6890.01u16X/4 C6890.01u16X/4
SATA_RX#3ST_RX#3
C6910.01u16X/4 C6910.01u16X/4
C6950.01u16X/4 C6950.01u16X/4
SATA_TX3 (18)
SATA_TX#3 (18)
SATA_RX#3 (18)
SATA_RX3 (18)
SATA_TX4+(43)
SATA_TX4-(43)
SATA_RX4+(43)
SATA_RX4-(43)
SATA_TX5+(43)
SATA_TX5-(43)
SATA_RX5+(43)
SATA_RX5-(43)
PLTRST_BU3A#(31)
R1036 0R/4R1036 0R/4
R1037 0R/4R1037 0R/4
R1034 0R/4R1034 0R/4
R1035 0R/4R1035 0R/4
R1032 0R/4R1032 0R/4
R1033 0R/4R1033 0R/4C644 0.01u16X/4C644 0.01u16X/4
R1030 0R/4R1030 0R/4
R1031 0R/4R1031 0R/4
R1027 0R/4R1027 0R/4
R1026 0R/4R1026 0R/4
SETX_0+
SETX_0-
SERX_0+
SERX_0-
SETX_1+
SETX_1-
SERX_1+
SERX_1-
PLTRST_BU3A#_SE
IFDET
SE1_65
S2
PETP0/A0+
S3
PETN0/A0-
S6
PERP0/B0+
S5
PERN0/B0-
S9
PETP1/A1+
S10
PETN1/A1-
S13
PERP1/B1+
S12
PERN1/B1-
P2
PERST#
P3
CLKREQ#/DEVSLP
P4
IFDET
SATA18P_BLACK-P-HF
SATA18P_BLACK-P-HF
Reserved
GND-1
GND-2
GND-3
GND-4
GND-5
GND-6
X1
X1
X2
X2
P1
S1
S4
S7
S8
S11
S14
SATA 6G PORT 6.7
SATA7_8
SATA7_8
1
SATA_TX6 ST_TX6
SATA_TX6(18)
SATA_TX#6(18)
SATA_RX#6(18)
SATA_RX6(18)
C715 0.01u16X/4C715 0.01u16X/4
C716 0.01u16X/4C716 0.01u16X/4
C741 0.01u16X/4C741 0.01u16X/4
C745 0.01u16X/4C745 0.01u16X/4
ST_TX#6SATA_TX#6
ST_RX#6SATA_RX#6
ST_RX6SATA_RX6
GND-1
2
S3HT+1
3
S3HT-1
4
GND-2
5
S3HR-1
6
S3HR+1
7
GND-3
X1
X1
MEC1
MEC1
SATA14PM_BLACK-RH-2
SATA14PM_BLACK-RH-2
GND-4
S3HT+2
S3HT-2
GND-5
S3HR-2
S3HR+2
GND-6
MEC2
8
9
10
11
12
ST_RX7 SATA_RX7
13
14
X2
X2
MEC2
SATA_TX7ST_TX7
C7190.01u16X/4 C7190.01u16X/4
SATA_TX#7ST_TX#7
C7230.01u16X/4 C7230.01u16X/4
SATA_RX#7ST_RX#7
C7340.01u16X/4 C7340.01u16X/4
C7390.01u16X/4 C7390.01u16X/4
SATA_TX7 (18)
SATA_TX#7 (18)
SATA_RX#7 (18)
SATA_RX7 (18)
B B
IFDET SATA_EX_SEL
SATA 6G PORT 8.9
SATA9
SATA9
X1
X1
X1
7
RX+
SATA_RX8(18)
SATA_RX#8(18)
SATA_TX#8(18)
SATA_TX8(18)
A A
SATA_RX9(18)
SATA_RX#9(18)
SATA_TX#9(18)
SATA_TX9(18)
5
C825 0.01u16X/4C825 0.01u16X/4
C824 0.01u16X/4C824 0.01u16X/4
C830 0.01u16X/4C830 0.01u16X/4
SATA_TX8 ST_TX8
C829 0.01u16X/4C829 0.01u16X/4
SATA_RX9 ST_RX9
C868 0.01u16X/4C868 0.01u16X/4
SATA_RX#9
C866 0.01u16X/4C866 0.01u16X/4
SATA_TX#9
C846 0.01u16X/4C846 0.01u16X/4
SATA_TX9
C843 0.01u16X/4C843 0.01u16X/4
ST_RX8SATA_RX8
ST_RX#8SATA_RX#8
ST_TX#8SATA_TX#8
ST_RX#9
ST_TX#9
ST_TX9
4
RX+
6
RX-
RX-
5
GND-2GND-1
GND-2GND-1
4
TX-
TX-
3
TX+
TX+
2
GND-3
GND-3
1
X2
X2
X2
SATA7PM_BLACK-P-RH-20
SATA7PM_BLACK-P-RH-20
SATA10
SATA10
X1
X1
X1
7
RX+
RX+
6
RX-
RX-
5
GND-2GND-1
GND-2GND-1
4
TX-
TX-
3
TX+
TX+
2
GND-3
GND-3
1
X2
X2
X2
SATA7PM_BLACK-P-RH-20
SATA7PM_BLACK-P-RH-20
3
IFDET
R1023
R1023
100K/4
100K/4
2
R1024 X_0R/4R1024 X_0R/4
R1025 4.7K/4R1025 4.7K/4
C853
C853
0.1u10X/4
0.1u10X/4
3VSB VCC3
R1011
R1011
R1012
R1012
10K/4
10K/4
10K/4
10K/4
SATA_EX_SEL
D
D
G
G
Q122
Q122
S
S
CE
B
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
2N7002
2N7002
Q117
Q117
2N3904
2N3904
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
SATA Connector
SATA Connector
SATA Connector
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
MS-7A21
MS-7A21
MS-7A21
1
SATA_EX_SEL (49)
16ci203
51 77
51 77
51 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 52
5
D D
4
3
2
3VSB
1
C312
C312
10u6.3X/6
10u6.3X/6
WIFI_BT_VCC3
C308
C308
X_10P50N/4
X_10P50N/4
ATX_5VSB3VSB WIFI_BT_VCC3
PLTRST_BU2A# (26,31)
WF+BT_DET# (31)
PE7_WIFI_BT_RX (18)
PE7_WIFI_BT_RX# (18)
SUS_CLK_WIFI (17)
R478
R478
47K/4
47K/4
MH4
MH4
7
6
JW_JB1
JW_JB1
PCH_WAKE#(17,26,27,28,29,30,41,42,44,49)
PE7_WIFI_BT_TX#(18)
PE7_WIFI_BT_TX(18)
MB_USB_12D-(18)
MB_USB_12D+(18)
CK_WIFI_BT_N(19)
CK_WIFI_BT_P(19)
C C
B B
WIFI_BT_EN(31)
R299
R299
47K/4
47K/4
PE7_WIFI_BT_TX#C
PE7_WIFI_BT_TXC
C3000.1u10X/4 C3000.1u10X/4
C309
C309
0.1u16X/4
0.1u16X/4
C317
C317
10u6.3X/6
10u6.3X/6
1 2
3 4
5
7 8
9
11 12
13 14
15 16
17 18
2X10 female head
2X10 female head
R303 X_0R/4R303 X_0R/4
U134
U134
5
VIN
4
EN
WIFI_RST#
WF+BT_DET#
6
2019
MEC2 MEC1
1
VOUT
3
OC#
GND
UP7549TMA5-15_SOT235-HF
UP7549TMA5-15_SOT235-HF
2
R294 100R/4R294 100R/4C3010.1u10X/4 C3010.1u10X/4
WF+BT_DET#
8
1
X_MH001
X_MH001
5
4
R293
R293
47K/4
47K/4
2
3
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
5
4
3
2
Friday, April 01, 2016
MS-7A21
WIFI+BTconnector
WIFI+BTconnector
WIFI+BTconnector
1
52 77
52 77
52 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 53
REAR USB3.0 Connector
5
Close to Connector
DU2
DU2
AOZ8808DI-05
VIA_SSTX1+(44)
VIA_SSTX1-(44)
VIA_SSTX2+(44)
D D
VIA_SSTX2-(44)
VIA_SSTX1+
VIA_SSTX1-
VIA_SSTX2+
VIA_SSTX2-
AOZ8808DI-05
1
2
4
5
3
Close to Connector
DU9
DU9
AOZ8808DI-05
VIA_SSTX3-(44)
VIA_SSTX3+(44)
VIA_SSTX4-(44)
VIA_SSTX4+(44)
C C
VIA_SSTX3- VIA_SSTX3-
VIA_SSTX4- VIA_SSTX4VIA_SSTX4+ VIA_SSTX4+
AOZ8808DI-05
1
2
4
5
3
VIA_SSTX1+
10
NC
NC
VIA_SSTX1-
9
NC
NC
VIA_SSTX2+
7
NC
NC
VIA_SSTX2-
6
NC
NC
8
10
NC
NC
VIA_SSTX3+VIA_SSTX3+
9
NC
NC
7
NC
NC
6
NC
NC
8
VIA_SSRX1N(44)
VIA_SSRX1P(44)
VIA_SSRX2N(44)
VIA_SSRX2P(44)
VIA_SSRX3P(44)
VIA_SSRX3N(44)
VIA_SSRX4P(44)
VIA_SSRX4N(44)
4
DU6
DU6
AOZ8808DI-05
VIA_SSRX1N VIA_SSRX1N
VIA_SSRX1P VIA_SSRX1P
VIA_SSRX2N VIA_SSRX2N
VIA_SSRX2P VIA_SSRX2P
VIA_SSRX3P
VIA_SSRX3N
VIA_SSRX4P
VIA_SSRX4N
AOZ8808DI-05
1
2
4
5
DU8
DU8
AOZ8808DI-05
AOZ8808DI-05
1
2
4
5
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
3
8
VIA_SSRX3P
10
NC
NC
VIA_SSRX3N
9
NC
NC
VIA_SSRX4P
7
NC
NC
VIA_SSRX4N
6
NC
NC
3
8
3
L9
VIA_SSD1P_R
1
VIA_SSD1N_R
2
L10
L10
VIA_SSD2P_R
1
VIA_SSD2N_R
2
L7
VIA_SSD3P_R
1
VIA_SSD3N_R
2
L8
VIA_SSD4P_R
1
VIA_SSD4N_R
2
5V_RUSB4 ATX_5VSB
R1376
R1376
10K1%/4
10K1%/4
VIA_SSD1P_R
VIA_SSD1N_R
AOZ8902CIL
AOZ8902CIL
VIA_SSD3N_R
AOZ8902CIL
AOZ8902CIL
0A to 10 add OCP function
R1374
R1374
47K/4
47K/4
Q167
Q167
NN-2N7002D
G2
D1
G1
NN-2N7002D
OC#1
D2
S2
S1
U31
U31
6
1
U28
U28
6
1
5V_RUSB2 ATX_5VSB
R154
R154
10K1%/4
10K1%/4
4P2R-0RL94P2R-0R
4P2R-0R
4P2R-0R
4P2R-0RL74P2R-0R
4P2R-0RL84P2R-0R
4
3
4
3
4
3
4
3
VIA_SSD1P(44)
VIA_SSD1N(44)
VIA_SSD2P(44)
VIA_SSD2N(44)
VIA_SSD3P(44)
VIA_SSD3N(44)
VIA_SSD4P(44)
VIA_SSD4N(44)
3VSB
CU19 0.1u10X/4CU19 0.1u10X/4
52
4
3
3VSB
CU18 0.1u10X/4CU18 0.1u10X/4
52
4
3
R153
R153
47K/4
47K/4
2
VIA_SSD2P_R
VIA_SSD2N_R
VIA_SSD4P_RVIA_SSD3P_R
VIA_SSD4N_R
Q20
Q20
NN-2N7002D
NN-2N7002D
G2
D1
G1
1
USB2A
USB2A
5V_RUSB2
5V_RUSB2
5V_RUSB2
C131
C131
0.1u10X/4
0.1u10X/4
5V_RUSB4
5V_RUSB4
C132
C132
0.1u10X/4
0.1u10X/4
D2
S2
S1
5V_RUSB4
OC#1 (18)
VIA_SSD1N_R
VIA_SSD1P_R
VIA_SSRX1N
VIA_SSRX1P
VIA_SSTX1VIA_SSTX1+
VIA_SSD2N_R
VIA_SSD2P_R
VIA_SSRX2N
VIA_SSRX2P
VIA_SSTX2VIA_SSTX2+
VIA_SSD3N_R
VIA_SSD3P_R
VIA_SSRX3N
VIA_SSRX3P
VIA_SSTX3VIA_SSTX3+
VIA_SSD4N_R
VIA_SSD4P_R
VIA_SSRX4N
VIA_SSRX4P
VIA_SSTX4VIA_SSTX4+
21
VBUS-2
22
D2-
23
D2+
24
GND-3
25
SSRX2-
26
SSRX2+
27
GND-4
28
SSTX2-
29
SSTX2+
11
VBUS-1
12
D1-
13
D1+
14
GND-1
15
SSRX1-
16
SSRX1+
17
GND-2
18
SSTX1-
19
SSTX1+
USBAX4M_RED-RH
USBAX4M_RED-RH
USB2B
USB2B
41
VBUS-4
42
D4-
43
D4+
44
GND-7
45
SSRX4-
46
SSRX4+
47
GND-8
48
SSTX4-
49
SSTX4+
31
VBUS-3
32
D3-
33
D3+
34
GND-5
35
SSRX3-
36
SSRX3+
37
GND-6
38
SSTX3-
39
SSTX3+
USBAX4M_RED-RH
USBAX4M_RED-RH
THIRD
THIRD
GND-10
GND-11
DOWN
DOWN
UP
UP
GND-12
GND-13
GND-14
SECOND
SECOND
GND-9
X1
X2
X3
X4
X5
X6
U30
U30
9
8
7
5
U29
U29
9
8
7
5
AIP
AIN
BOP
BON
CHIP_EN#
SMB_SCK
SMB_DATA
TYPE_IND#
REXT
RSVD
AIP
AIN
BOP
BON
CHIP_EN#
SMB_SCK
SMB_DATA
TYPE_IND#
REXT
RSVD
3VSB
GND
6
3VSB
GND
6
1
VCC33
GND
18
1
VCC33
GND
18
13
AOP
AON
VCC33
EQ_A
EQ_B
SW_A
SW_B
DE_A
DE_B
GND
ASM1464_QFN24-HF
ASM1464_QFN24-HF
25
13
AOP
AON
VCC33
EQ_A
EQ_B
SW_A
SW_B
DE_A
DE_B
GND
ASM1464_QFN24-HF
ASM1464_QFN24-HF
25
C171 10u6.3X/6C171 10u6.3X/6
C160 0.1u10X/4C160 0.1u10X/4
22
23
19
BIP
20
BIN
2
17
4
15
3
16
C165 10u6.3X/6C165 10u6.3X/6
C161 0.1u10X/4C161 0.1u10X/4
22
23
19
BIP
20
BIN
2
17
4
15
3
16
SSTX-4
SSTX+4
SSRXN4
SSRXP4
EQ_A4
EQ_B4
SW_A4
SW_B4
DE_A4
DE_B4
EQ_A4
EQ_B4
SSTX-5
SSTX+5
SSRXN5
SSRXP5
EQ_A5
EQ_B5
SW_A5
SW_B5
DE_A5
DE_B5
EQ_A5
EQ_B5
C169 0.1u10X/4C169 0.1u10X/4
C170 0.1u10X/4C170 0.1u10X/4
R202 4.7K/4R202 4.7K/4
R201 4.7K/4R201 4.7K/4
R206 4.7K/4R206 4.7K/4
R205 4.7K/4R205 4.7K/4
R211X_4.7K/4 R211X_4.7K/4
R209X_4.7K/4 R209X_4.7K/4
C167 0.1u10X/4C167 0.1u10X/4
C168 0.1u10X/4C168 0.1u10X/4
R200 4.7K/4R200 4.7K/4
R203 4.7K/4R203 4.7K/4
R204 4.7K/4R204 4.7K/4
R207 4.7K/4R207 4.7K/4
R208X_4.7K/4 R208X_4.7K/4
R212X_4.7K/4 R212X_4.7K/4
SSTXN4
SSTXP4
3VSB
SSTXN5
SSTXP5
3VSB
4
Close to Connector
DU7
DU7
AOZ8808DI-05
SSTXP4
SSTXN4
SSTXP5
SSTXN5
SSRXP4 SSRXP4
SSRXN4
SSRXP5
SSRXN5
AOZ8808DI-05
1
2
4
5
DU10
DU10
AOZ8808DI-05
AOZ8808DI-05
1
2
4
5
3
3
SSTXP4
10
NC
NC
SSTXN4
9
NC
NC
SSTXP5
7
NC
NC
SSTXN5
6
NC
NC
8
10
NC
NC
SSRXN4
9
NC
NC
SSRXP5
7
NC
NC
SSRXN5
6
NC
NC
8
3
MB_USB_3D+(18)
MB_USB_3D-(18)
MB_USB_2D+(18)
MB_USB_2D-(18)
MB_USB_3DP
MB_USB_3DN
4
3
4P2R-0R
4P2R-0R
4
3
4P2R-0R
4P2R-0R
3VSB
52
6
1
NEAR CONNECTOR
L12
L12
MB_USB_3DP
1
MB_USB_3DN
2
L11
L11
MB_USB_2DP
1
MB_USB_2DN
2
CU1 0.1u10X/4CU1 0.1u10X/4
DU1
DU1
MB_USB_2DP
4
MB_USB_2DN
3
AOZ8902CIL
AOZ8902CIL
2
EMI
LAN_USB1A
MB_USB_2DP
MB_USB_2DN
SSTXP4
SSTXN4
SSRXP4
SSRXN4
MB_USB_3DP
MB_USB_3DN
SSTXP5
SSTXN5
SSRXP5
SSRXN5
5V_RUSB3 ATX_5VSB
R149
R149
10K1%/4
10K1%/4
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
LAN_USB1A
12
D1+
11
D1-
18
SSTX1+
17
SSTX1-
15
SSRX1+
14
SSRX1-
3
D0+
2
D0-
9
SSTX0+
8
SSTX0-
6
SSRX0+
5
SSRX0-
RJ45_USBX2_LEDX2-1000-RH-10
RJ45_USBX2_LEDX2-1000-RH-10
R151
R151
47K/4
47K/4
Q19
Q19
NN-2N7002D
NN-2N7002D
G2
D1
G1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MS-7A21
USB3.0 Connector
USB3.0 Connector
USB3.0 Connector
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
DOWN
DOWN
S1
VBUS-2
GND_D-2
UP
UP
GND-10
VBUS-1
GND_D-1
D2
S2
16ci203
1
10
16
13
GND-6
33
GND-7
34
GND-8
35
GND-9
36
1
7
4
GND-1
37
GND-2
38
GND-3
39
GND-4
40
GND-5
OC#1 (18)
53 77
53 77
53 77
Sheet of
Sheet of
Sheet of
5V_RUSB3
5V_RUSB3
10
10
10
LAN USB3.0
MB_USB30_TX4-(18)
MB_USB30_TX4+(18)
MB_USB30_RX4-(18)
MB_USB30_RX4+(18)
3VSB
B B
MB_USB30_TX5-(18)
MB_USB30_TX5+(18)
MB_USB30_RX5-(18)
MB_USB30_RX5+(18)
3VSB
A A
C152 0.1u10X/4C152 0.1u10X/4
C159 0.1u10X/4C159 0.1u10X/4
C157 0.1u10X/4C157 0.1u10X/4
C158 0.1u10X/4C158 0.1u10X/4
R196 X_0R/4R196 X_0R/4
R214 X_0R/4R214 X_0R/4
R199 2K1%/4R199 2K1%/4
C155 0.1u10X/4C155 0.1u10X/4
C156 0.1u10X/4C156 0.1u10X/4
C153 0.1u10X/4C153 0.1u10X/4
C154 0.1u10X/4C154 0.1u10X/4
R195 X_0R/4R195 X_0R/4
R213 X_0R/4R213 X_0R/4
SSTX4SSTX4+
SSRX4SSRX4+
SMBCLK_A4
SMBDAT_A4
SSTX5SSTX5+
SSRX5SSRX5+
SMBCLK_A4
SMBDAT_A4
R198 2K1%/4R198 2K1%/4
5
12
11
10
24
21
14
12
11
10
24
21
14
Page 54
5
USB3.1
D D
3VSB
ROUT1
R264 X_0R/4R264 X_0R/4
ROUT2
R267 X_0R/4R267 X_0R/4
3VSB
5V_RUSB
SMBDATA_VSB(17,26,45,47,55)
SMBCLK_VSB(17,26,45,47,55)
C C
VCC3
TP55TP55
OC#4 RVCOM_FAULT#
R3220_ADD
RPORT
B B
C1012 0.1u16X/4C1012 0.1u16X/4
C289 22u16X8C289 22u16X8
C293 22u16X8C293 22u16X8
SSTX12P(41)
SSTX12N(41)
SSRX12P(41)
SSRX12N(41)
R261X_0R/4 R261X_0R/4
R1158 X_0R/4R1158 X_0R/4
R1157 X_0R/4R1157 X_0R/4
R1159 200K/4R1159 200K/4
R265 X_0R/4R265 X_0R/4
R269 X_0R/4R269 X_0R/4
SSTX12P
SSTX12N
SSRX12P
SSRX12N
RPORT
R3220_ADD
R_CURRENT_M
R1156200K/4 R1156200K/4
R_ROUT3
5V_RUSB
5V_RUSB
ROUT1
ROUT2
U35
U35
8
VCC33
30
VDD5
29
ENn_CC
12
ENn_MUX
25
SDA/OUT1
26
SCL/OUT2
6
TXp
7
TXn
9
RXp
10
RXn
4
PORT
22
ADDR
3
CURRENT_MODE
11
DIR
23
INT_N/OUT3
24
VCONN_FAULT_N
USB OC# Singal
5V_RUSBC 3VSB
Q39
R377
R396
R396
10K/4
10K/4
A A
R377
10K/4
10K/4
B
RVUBS_EN#
OC#4_EN
OC#4_R
CE
Q45
Q45
2N3904
2N3904
R395 0R/4R395 0R/4
1u6.3X/4
1u6.3X/4
Q39
G2
D1
G1
C387
C387
5
D2
OC#4 (18,56)
PCH side pull H 3vsb
OC#4_R
S2
NN-2N7002D
NN-2N7002D
S1
5V_RUSB 5V_RUSB
R376
R376
47K/4
47K/4
OC#4_EN
D
D
G
G
Q44
Q44
S
S
2N7002
2N7002
C1055
C1055
C113
1u6.3X/4
1u6.3X/4
C113
1u6.3X/4
1u6.3X/4
4
5
VBUS_DET
17
TX1p
16
TX1n
15
RX1p
14
RX1n
21
TX2p
20
TX2n
19
RX2p
18
RX2n
27
ID
2
CC1
1
CC2
GND1
GND2
GND(PAD)
HD3SS3220_QFN30-HF
HD3SS3220_QFN30-HF
13
28
31
Current Mode
+12V 5V_RUSB
R401
R401
47K/4
47K/4
ATX_5VSB
R404
R404
47K/4
47K/4
4
SSTX12+_1_C
SSTX12-_1_C
SSRX12P_1
SSRX12N_1
SSTX12+_2_C
SSTX12-_2_C
SSRX12P_2
SSRX12N_2
RVUBS_EN#
RCC1
RCC2
R400
R400
10K/4
10K/4
D
D
G
G
Q52
Q52
S
S
2N7002
2N7002
Q50
Q50
G2
D1
G1
S1
R272 910KR/4R272 910KR/4
C278 0.22u6.3X/4C278 0.22u6.3X/4
C279 0.22u6.3X/4C279 0.22u6.3X/4
C282 0.22u6.3X/4C282 0.22u6.3X/4
C277 0.22u6.3X/4C277 0.22u6.3X/4
R_CURRENT_M
D2
R_CURRENT_M
S2
NN-2N7002D
NN-2N7002D
5V_RUSB
3
5V_RUSBC
SSTX12+_1
SSTX12-_1
SSTX12+_2
SSTX12-_2
SSD12+(41)
SSD12-(41)
SSTX12-_1 SSTX12-_1_R
SSTX12+_1 SSTX12+_1_R
SSTX12+_2
SSTX12-_2
SSRX12P_2
SSRX12N_2
SSRX12N_1 SSRX12N_1_R
SSRX12P_1 SSRX12P_1_R
Important~~
If USB3.0 signal conect to front pin header,
please must less than 0.6 inch,short trace
has better eye diagram with some bad fly cable by SI customer.
1
2
RN5
RN5
1
2
RN3
RN3
1
2
RN9
RN9
1
2
RN8
RN8
1
2
RN4
RN4
VCOM Singal
5V_RUSB
R121
R121
220K/4
R397
R397
499K1%/4
499K1%/4
RVCOM_FAULT#
220K/4
R398 0R/4R398 0R/4
X_1u6.3X/4
X_1u6.3X/4
3
C388
C388
SSTX13N(41)
SSTX13P(41)
4
3
4
3
4
3
4
3
4
3
4P2R-0R
4P2R-0R
4P2R-0R
4P2R-0R
4P2R-0R
4P2R-0R
SSRX12P_2_R
SSRX12N_2_R
4P2R-0R
4P2R-0R
4P2R-0R
4P2R-0R
R403
R403
47K/4
47K/4
SSTX13N
SSTX13P
SSD12+_R
SSD12-_R
SSTX12+_2_R
SSTX12-_2_R
Q49
Q49
G2
D1
G1
C281 0.22u6.3X/4C281 0.22u6.3X/4
C276 0.22u6.3X/4C276 0.22u6.3X/4
SSRX13N(41)
SSRX13P(41)
SSTX13-
SSTX13+
SSRX13N
SSRX13P SSRX13P_R
Rear USB3 CONN
D8
D8
AOZ8808DI-05
AOZ8808DI-05
ESD Protection
NEAR CONNECTOR
RVBUS_EN
1
2
4
5
3
D7
D7
AOZ8808DI-05
AOZ8808DI-05
1
2
4
5
3
D10
D10
AOZ8808DI-05
AOZ8808DI-05
1
2
4
5
3
USB3.0
D0G-06A050C-A68 Main
D0G-05A0300-I14 AVL
D0G-45B031C-O05 AVL
SSD12-_R
SSD13+_R SSD13+_R
SSD13-_R
SSTX12+_1_R
SSTX12-_1_R
SSRX12P_1_R
SSRX12N_1_R
SSTX12+_2_R
SSTX12-_2_R
SSRX12P_2_R
SSRX12N_2_R
D2
S2
NN-2N7002D
NN-2N7002D
S1
8
8
8
1
2
1
2
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
4P2R-0R
4P2R-0R
RN7
RN7
4P2R-0R
4P2R-0R
RN6
RN6
10
9
7
6
10
9
7
6
10
9
7
6
RVUBS_EN#
2
SSTX13-_R
SSTX13+_R
4
3
4
3
SSD12+_R
SSD12-_R
SSD13-_R
SSTX12+_1_R
SSTX12-_1_R
SSRX12P_1_R
SSRX12N_1_R
SSTX12+_2_R
SSTX12-_2_R
SSRX12P_2_R
SSRX12N_2_R
R315
R315
10K/4
10K/4
2
SSTX13-_R
SSTX13+_R
SSRX13N_R
3VSB
1
2
4
5
5V_RUSB
D
D
G
G
S
S
D9
D9
AOZ8808DI-05
AOZ8808DI-05
3
8
5V_RUSB3
RCC1
12
ESD-TVL040201AB1-HF
ESD-TVL040201AB1-HF
ESD-TVL040201AB1-HF
ESD-TVL040201AB1-HF
C319 10u6.3X/6C319 10u6.3X/6
R310
R310
10K/4
10K/4
Q33
Q33
2N7002
2N7002
1
SSTX13-_R
10
NC
NC
SSTX13+_R
9
NC
NC
SSRX13N_RSSRX13N_R
7
NC
NC
SSRX13P_RSSRX13P_R
6
NC
NC
OC#4
R263 10K1%/4R263 10K1%/4
R262 15K1%/4R262 15K1%/4
USB HS (90Ohm-Diff)
4P2R-0R
4P2R-0R
SSD13+(41)
SSD13-(41)
5V_RUSB3
5V_RUSB3
EC21 560u6.3SO+EC21 560u6.3SO
+
12
D38
D38
RCC2
12
D39
D39
RVBUS_EN
C323
C323
1u6.3X/4
1u6.3X/4
MSI
MSI
MSI
C174 0.1u6.3XC174 0.1u6.3X
SSTX12+_1_RSSD12+_R
5V_RUSBC
5V_RUSBC
T-type
5V_RUSBC
5V_RUSBC
5V_RUSB
SSTX12-_1_R
RCC1
SSD12+_R
SSD12-_R
T-type
SSRX12N_2_R
SSRX12P_2_R
分支需小於
SSTX12+_2_R
SSTX12-_2_R
RCC2
SSD12+_R
SSD12-_R
T-type
SSRX12N_1_R
SSRX12P_1_R
close to Type C Connector
5V_RUSBC 5V_RUSBC
U39
U39
VIN5FLG
4
EN
RT9742AGJ5F
RT9742AGJ5F
PN:OI3-7A11001
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
1
2
L13
L13
USB4
USB4
21
A10
A11
A12
B10
B11
B12
3
1
2
MS-7A21
MS-7A21
MS-7A21
VBUS
29
StdA_SSTX+
28
StdA_SSTX-
24
GND
22
D-
23
D+
27
GND_DRAIN
25
StdA_SSRX-
26
StdA_SSRX+
USBAM_RED-RH-3
USBAM_RED-RH-3
USB3A
USB3A
A1
GND-3
A2
SSTXp1
A3
SSTXn1
A4
VBUS-1
A5
CC1
A6
Dp1
A7
Dn1
A8
SBU1
A9
VBUS-2
SSRXn2
SSRXp2
GND-4
USBCSM_BLACK-HF
USBCSM_BLACK-HF
USB3B
USB3B
B1
GND-5
B2
SSTXp2
B3
SSTXn2
B4
VBUS-3
B5
CC2
B6
Dp2
B7
Dn2
B8
SBU2
B9
VBUS-4
SSRXn1
SSRXp1
GND-6
USBCSM_BLACK-HF
USBCSM_BLACK-HF
C245
C245
0.1u10X/4
0.1u10X/4
1
SSTX13+_R
SSTX13-_R
SSD13-_R
SSD13+_R
SSRX13N_R
SSRX13P_R
140mils
C244
C244
1u6.3X/4
1u6.3X/4
OUT
GND
USB3.1 REAR TYPE-A+C CONN
USB3.1 REAR TYPE-A+C CONN
USB3.1 REAR TYPE-A+C CONN
SSD13+_R
4
SSD13-_R
3
Shield1
Shield2
Shield3
Shield4
MEC1
MEC1
X1
X1
X2
X2
X3
X3
X4
X4
MEC2
MEC2
X5
X5
X6
X6
X7
X7
X8
X8
5V_RUSBC
12
+
+
min 80mil.
3 A
C318 X_10u6.3X/6C318 X_10u6.3X/6
+
+
12
ECU1
ECU1
470u6.3SO
470u6.3SO
54 77
54 77
54 77
Sheet of
Sheet of
Sheet of
5V_RUSB3
X1
X2
X3
X4
EC26
EC26
C330u4SO
C330u4SO
5V_RUSBC
10
10
10
Page 55
5
130mA MAX
MB_USB30_TX2+(18)
MB_USB30_TX2-(18)
MB_USB30_RX2+(18)
MB_USB30_RX2-(18)
D D
C C
B B
3VSB
F3220_ADD
FPORT
F3220_ ADD 0x67 0x47 GPIO mode(V)
FPORT DFP(V) UFP DRP
C483 0.1u10X/4C483 0.1u10X/4
C488 0.1u10X/4C488 0.1u10X/4
C497 0.1u10X/4C497 0.1u10X/4
C498 0.1u10X/4C498 0.1u10X/4
R496 X_0R/4R496 X_0R/4
R492 X_0R/4R492 X_0R/4
R479 2K1%/4R479 2K1%/4
3VSB
5V_FUSB
SMBDATA_VSB(17,26,45,47,54)
SMBCLK_VSB(17,26,45,47,54)
VCC3
TP106TP106
RTP13 X_0R/4RTP13 X_0R/4
RTP14 X_0R/4RTP14 X_0R/4
RTP15 200K/4RTP15 200K/4
High Low NC
SSTX2+
SSTX2-
SSRX2+
12
SSRX2-
11
10
SMBDAT_A2
24
21
14
FOUT1
RTP5 X_0R/4RTP5 X_0R/4
FOUT2
RTP6 X_0R/4RTP6 X_0R/4
CTP1 0.1u16X/4CTP1 0.1u16X/4
CTP7 0.1u16X/4CTP7 0.1u16X/4
CTP17 22u6.3X6CTP17 22u6.3X6
CTP2 22u6.3X6CTP2 22u6.3X6
RTP7 X_0R/4RTP7 X_0R/4
RTP8 X_0R/4RTP8 X_0R/4
RTP12 200K/4RTP12 200K/4
OC#0 FVCOM_FAULT#
RTP11X_0R/4 RTP11X_0R/4
5V_FUSB
5V_FUSB
U59
U59
9
AIP
8
AIN
BOP
BON
CHIP_EN#
7
SMB_SCK
SMB_DATA
TYPE_IND#
5
REXT
RSVD
3VSB
FOUT1
FOUT2
SSTXN2
SSTXP2
SSRXN2
SSRXP2
FPORT
F3220_ADD
CURRENT_M
F_ROUT3
3VSB
1
13
AOP
AON
VCC33
VCC33
BIP
BIN
EQ_A
EQ_B
SW_A
SW_B
DE_A
DE_B
GND
GND
GND
ASM1464_QFN24-HF
ASM1464_QFN24-HF
6
18
25
UTP1
UTP1
8
VCC33
30
VDD5
29
ENn_CC
12
ENn_MUX
25
SDA/OUT1
26
SCL/OUT2
6
TXp
7
TXn
9
RXp
10
RXn
4
PORT
22
ADDR
3
CURRENT_MODE
11
DIR
23
INT_N/OUT3
24
VCONN_FAULT_N
HD3SS3220_QFN30-HF
HD3SS3220_QFN30-HF
C513 10u6.3X/6C513 10u6.3X/6
C480 0.1u10X/4C480 0.1u10X/4
22
23
19
20
2
17
4
15
3
16
SSRX+2
SSRX-2
EQ_A2
SW_A2
SW_B2
DE_A2
DE_B2
R894 0R/4R894 0R/4
R902 0R/4R902 0R/4
R519 0R/4R519 0R/4
R539 0R/4R539 0R/4
GND(PAD)
13
31
4
R483 4.7K/4R483 4.7K/4
R527 4.7K/4R527 4.7K/4
R477 4.7K/4R477 4.7K/4
R547 4.7K/4R547 4.7K/4
VBUS_DET
GND1
GND2
28
SSTXP2SSTX+2
SSTXN2SSTX-2
SSRXP2
SSRXN2
3VSB
EQ_A2
EQ_B2EQ_B2SMBCLK_A2
5
FSSTTX1-_1 FSSTTXN1_1
17
TX1p
FSSTTX1+_1
16
TX1n
15
RX1p
14
RX1n
FSSTTX1-_2
21
TX2p
FSSTTX1+_2
20
TX2n
19
RX2p
18
RX2n
FVUBS_EN#
27
ID
FCC1
2
CC1
FCC2
1
CC2
RTP10 910KR/4RTP10 910KR/4
CTP3 0.1u10X/4CTP3 0.1u10X/4
CTP4 0.1u10X/4CTP4 0.1u10X/4
CTP5 0.1u10X/4CTP5 0.1u10X/4
CTP6 0.1u10X/4CTP6 0.1u10X/4
3
FSSTRXP1_2
FSSTRXN1_2
R484X_4.7K/4 R484X_4.7K/4
R518X_4.7K/4 R518X_4.7K/4
4P2R-0R
G
G
QTP6
QTP6
D
D
S
S
4P2R-0R
1
2
LTP1
LTP1
UTP3
UTP3
1
2
4
5
QTP7
QTP7
2N7002
2N7002
CURRENT_M
D2
S2
NN-2N7002D
NN-2N7002D
S1
3
5V_FUSBC
FSSTTXP1_1
FSSTRXN1_1
FSSTRXP1_1
FSSTTXN1_2
FSSTTXP1_2
FSSTRXN1_2
FSSTRXP1_2
MB_USB_4D-(18)
MB_USB_4D+(18)
MB_USB_4D- FUSBT1-_CH_R
FUSBT1+_CH_R
FUSBT1-_CH_R
Current Mode
RTP31
RTP31
47K/4
47K/4
ATX_5VSB
5V_FUSB+12V
RTP29
RTP29
10K/4
10K/4
RTP33
RTP33
47K/4
47K/4
G2
G1
D1
FSSTTXN1_1 FSSTTXN1_1_R
FSSTTXP1_1 FSSTTXP1_1_R
FSSTRXP1_1
FSSTRXN1_1 FSSTRXN1_1_R
4
FUSBT1+_CH_RMB_USB_4D+
3
10
NC
NC
9
NC
NC
FUSBT1+_CH_R
7
NC
NC
FUSBT1-_CH_R
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
5V_FUSB
RTP30
RTP30
499K1%/4
499K1%/4
CURRENT_M
2
4P2R-0R
4P2R-0R
FSSTRXP1_2_R
4
1
2
1
2
1
2
1
2
close to Type C Connector
5V_FUSBC 5V_FUSBC
RNT5
RNT5
4P2R-0R
4P2R-0R
RNT4
RNT4
4P2R-0R
4P2R-0R
RNT3
RNT3
4P2R-0R
4P2R-0R
RNT2
RNT2
3
4
3
4
3
4
3
CTP13
CTP13
1u6.3X/4
1u6.3X/4
RTP24
RTP24
10K/4
10K/4
FVUBS_EN#
FSSTRXN1_2_R
FSSTTXN1_2_RFSSTTXN1_2
FSSTTXP1_2_RFSSTTXP1_2
FSSTRXP1_1_R
CTP19
CTP19
0.1u10X/4
0.1u10X/4
3VSB
G
G
D
D
S
S
ESD-TVL040201AB1-HF
ESD-TVL040201AB1-HF
ESD-TVL040201AB1-HF
ESD-TVL040201AB1-HF
RTP25
RTP25
10K/4
10K/4
QTP1
QTP1
2N7002
2N7002
12
DTP1
DTP1
12
DTP2
DTP2
CTP15 10u6.3X/6CTP15 10u6.3X/6
1
UTP5
140mils
UT1
UT1
VIN5FLG
4
EN
RT9742AGJ5F
RT9742AGJ5F
1
2
4
5
1
2
4
5
OUT
GND
UTP5
UTP4
UTP4
3
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
USB5A
USB5A
A1
GND-3
A2
SSTXp1
A3
SSTXn1
A4
VBUS-1
A5
CC1
A6
Dp1
A7
Dn1
A8
SBU1
A9
VBUS-2
A10
SSRXn2
A11
SSRXp2
A12
GND-4
USBCSM_BLACK-HF
USBCSM_BLACK-HF
USB5B
USB5B
B1
GND-5
B2
SSTXp2
B3
SSTXn2
B4
VBUS-3
B5
CC2
B6
Dp2
B7
Dn2
B8
SBU2
B9
VBUS-4
B10
SSRXn1
B11
SSRXp1
B12
GND-6
USBCSM_BLACK-HF
USBCSM_BLACK-HF
3
1
2
FSSTTXN1_2_R FSSTTXN1_2_R
FSSTTXP1_2_R FSSTTXP1_2_R
FSSTRXP1_2_R
FSSTRXN1_2_R
FSSTTXN1_1_R FSSTTXN1_1_R
FSSTTXP1_1_R FSSTTXP1_1_R
FSSTRXP1_1_R FSSTRXP1_1_R
FSSTRXN1_1_R FSSTRXN1_1_R
FSSTTXP1_1_R
T-type
分支需小於
T-type
5V_FUSB5V_FUSB
FSSTTXN1_1_R
FCC1
FUSBT1+_CH_R
FUSBT1-_CH_R
FSSTRXN1_2_R
FSSTRXP1_2_R
FSSTTXP1_2_R
FSSTTXN1_2_R
FCC2
FUSBT1+_CH_R
FUSBT1-_CH_R
FSSTRXN1_1_R
FSSTRXP1_1_R
5V_FUSBC
5V_FUSBC
T-type
5V_FUSBC
5V_FUSBC
FVBUS_EN
CTP14
CTP14
1u6.3X/4
1u6.3X/4
FSSTRXP1_2_R
FSSTRXN1_2_R
MEC1
MEC1
X1
X1
X2
X2
X3
X3
X4
X4
MEC2
MEC2
X5
X5
X6
X6
X7
X7
X8
X8
CTP16 X_10u6.3X/6CTP16 X_10u6.3X/6
+
+
12
ECTP1
ECTP1
C330u4SO
C330u4SO
for BOTTOM use
5V_FUSBC
5V_FUSB
5V_FUSB
A A
5
4
FVUBS_EN#
RTP28 0R/4RTP28 0R/4
CTP18
CTP18
1u6.3X/4
1u6.3X/4
G
G
USB OC# Singal
CTP25
CTP25
1u6.3X/4
1u6.3X/4
3
5V_FUSBC 3VSB
RTP26
RTP26
10K/4
10K/4
RTP27
RTP27
10K/4
10K/4
B
CE
OC#_EN
OC#0_R
QTP4
QTP4
2N3904
2N3904
QTP3
QTP3
G2
D1
G1
NN-2N7002D
NN-2N7002D
S1
D2
PCH side pull H 3vsb
OC#0_R
S2
OC#0 (18,46)
2
RTP22
RTP22
47K/4
47K/4
OC#_EN FVCOM_FAULT#
QTP5
QTP5
D
D
2N7002
2N7002
S
S
CTP20
CTP20
1u6.3X/4
1u6.3X/4
5V_FUSB
RTP42
RTP42
220K/4
220K/4
FVCOM_R
RTP19 0R/4RTP19 0R/4
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
VCOM Singal
RTP9
RTP9
47K/4
47K/4
QTP2
QTP2
G2
D1
G1
C386
C386
X_1u6.3X/4
X_1u6.3X/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
USB3.0 FRONT TYPE-C CONN
USB3.0 FRONT TYPE-C CONN
USB3.0 FRONT TYPE-C CONN
NN-2N7002D
NN-2N7002D
S1
MS-7A21
MS-7A21
MS-7A21
1
FVBUS_EN
D2
S2
55 77
55 77
55 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 56
5
4
3
2
1
USB POWER
Q47
Q47
P-P06P03LCGA_SOT89
P-P06P03LCGA_SOT89
R429
R429
5VSBDRV3_R5VSBDRV3
0R/4
0R/4
C359
C359
X_0.1u10X/4
X_0.1u10X/4
R386
R386
0R/4
0R/4
C372
C372
X_0.1u10X/4
X_0.1u10X/4
REAR USB PORT 8,9 FRONT USB PORT 10.11 FRONT USB PORT 4,5
MB_USB_9D-(18)
MB_USB_9D+(18)
MB_USB_8D-(18)
MB_USB_8D+(18)
MB_USB_9DP
MB_USB_9DN
MB_USB_8DP
MB_USB_8DN
5V_RUSB1 ATX_5VSB
R51
R51
10K1%/4
10K1%/4
5V_RUSB1
C49
C49
1
2
U48
U48
5
S3#
6
S5#
5VCC
4
MODE
uP7501
uP7501
3
C33 10u6.3X/6C33 10u6.3X/6
1
2
5VSB
5VCC
GND
3
5VDRV3_EN
R45 200K1%/4R45 200K1%/4
5VUSB_5VSB5VUSB_5V
5VSB_DRV
5VSB
5VCC_DRV
GND
7
VOUT1
8
VOUT2
UP7550PMA8_SOT23
UP7550PMA8_SOT23
R28
R28
56K1%/4
56K1%/4
R434 10R/4R434 10R/4
C401 0.1u10X/4C401 0.1u10X/4
5VSBDRV3
7
5VDRV3
8
R421
R421
1K/1%6
1K/1%6
+12V
ATX_5VSB
C399
C399
1u16X/6
1u16X/6
PS2_USB
5VDRV3 5VDRV3_R
C4
22u6.3X/8C422u6.3X/8
4
0.1u10X/4
0.1u10X/4
R423 510R/4R423 510R/4
VCC5
D D
C C
B B
A A
ATX_PWR_OK(31,58,69)
PS2_MODE(31)
R422 10K1%/4R422 10K1%/4
SLP_S3#(17,31,45,58,66,67)
SLP_S4#(17,31,45,58,63,64,65)
USB_MODE(31,45)
請在
BISO REQUEST FORM
H:SUPPORT S0/S3/S5
L:SUPPORT S0/S3
5VDRV3_EN
5VDRV3
註明
U5
U5
5
6
4
5VDRV3_EN(45)
5
VCC5 ATX_5VSB
S3#
OC#
EN
VCC5
5V_RUSB1
+
12
MB_USB_9DMB_USB_9D+
MB_USB_8DMB_USB_8D+
R66
R66
47K/4
47K/4
G2
D1
G1
MB_USB_9DN
MB_USB_9DP
MB_USB_8DN
MB_USB_8DP
G
D S
C358
C358
X_18n16X/4
X_18n16X/4
5
Q48
Q48
4
3
2
1
N-PK632BA_PDFN8
N-PK632BA_PDFN8
EC5 470u6.3SMD+EC5 470u6.3SMD
L27
L27
1
2
4P2R-0R
4P2R-0R
L26
L26
1
2
4P2R-0R
4P2R-0R
D37
D37
1
2
4
5
3
Q10
Q10
NN-2N7002D
NN-2N7002D
S1
5V_RUSBATX_5VSB
5V_RUSB
5V_RUSB2
5V_RUSB3
EC15 470u6.3SMD+EC15 470u6.3SMD
+
12
MB_USB_9DN
4
MB_USB_9DP
3
MB_USB_8DN
4
MB_USB_8DP
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
D2
S2
PS2_USB1B
PS2_USB1B
4
VCC-2
GND-2
3
USB2-
2
USB2+
8
VCC-1
7
USB1-
GND-1
6
USB1+
MINIDIN_USBX2-RH-6
MINIDIN_USBX2-RH-6
F1
F1
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
F2
F2
1 2
F-SMD1206P350SLRT-G-HF
F-SMD1206P350SLRT-G-HF
F7
F7
1 2
F-SMD1206P350SLRT-G-HF
F-SMD1206P350SLRT-G-HF
F3
F3
1 2
F-SMD1206P350SLRT-G-HF
F-SMD1206P350SLRT-G-HF
5V_RUSB4
EC53 C330u4SO+EC53 C330u4SO
+
12
MB_USB_9DP
MB_USB_9DN
MB_USB_8DP
MB_USB_8DN
OC#4 (18,54)
1
15
15
16
16
5
17
17
18
18
3
EC14 C330u4SO+EC14 C330u4SO
+
12
5V_RUSB1
5V_RUSB2
5V_RUSB3
5V_RUSB4
5VSBDRV3
5VDRV3
L23
L23
MB_USB_7D-(18)
MB_USB_7D+(18)
MB_USB_6D-(18)
MB_USB_6D+(18)
MB_USB_7DN
MB_USB_7DP
5V_FUSB4
C849
C849
0.1u10X/4
0.1u10X/4
MB_USB_7DN MB_USB_6DN
2
1
2
1
6
1
5V_FUSB4
VCC
VCC
1 2
D0-
D0-
3 4
D0+
D0+
5
GND
GND
7 8
BH2X5[9]_BLACK-RH-9
BH2X5[9]_BLACK-RH-9
4P2R-0R
4P2R-0R
L22
L22
4P2R-0R
4P2R-0R
3VSB
OC#3
JUSB2
JUSB2
52
5V_FUSB4
R619 0R/4R619 0R/4
R646 0R/4R646 0R/4
MB_USB_7DN
3
MB_USB_7DP
4
MB_USB_6DN
3
MB_USB_6DP
4
C848 0.1u10X/4C848 0.1u10X/4
D30
D30
4
3
AOZ8902CIL
AOZ8902CIL
R998
R998
10K1%/4
10K1%/4
R1008
R1008
15K1%/4
15K1%/4
VCC
VCC
D1-
D1D1+
D1+
MB_USB_6DPMB_USB_7DP
6
GND
GND
10
2
C571
C571
X_0.1u16X/4
X_0.1u16X/4
C575
C575
X_0.1u16X/4
X_0.1u16X/4
5V_FUSB1
MB_USB_6DN
MB_USB_6DP
5VSBDRV3_F
5VDRV3_F
VCC5
EC55
EC55
+
+
12
C330u4SO
C330u4SO
ATX_5VSB
Q78
Q78
P-P06P03LCGA_SOT89
P-P06P03LCGA_SOT89
G
D S
C573
C573
X_0.1u16X/4
X_0.1u16X/4
5V_FUSB
5
Q77
Q77
4
3
2
1
N-PK632BA_PDFN8
N-PK632BA_PDFN8
5V_FUSB3 5V_FUSB4
EC51
EC51
+
+
12
+
+
12
470u6.3SMD
470u6.3SMD
470u6.3SMD
470u6.3SMD
MB_USB_11D-(18)
MB_USB_11D+(18)
MB_USB_10D-(18)
MB_USB_10D+(18)
5V_FUSB3 ATX_5VSB
R988
R988
10K1%/4
10K1%/4
5V_FUSB3
C850
C850
0.1u10X/4
0.1u10X/4
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
5V_FUSB
F6
F6
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
F5
F5
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
F8
F8
1 2
F-SPR-P260T-HF
F-SPR-P260T-HF
EC52
EC52
MB_USB_11DN
MB_USB_11DP
R970
R970
47K/4
47K/4
G2
D1
G1
MB_USB_11DN MB_USB_10DN
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Rear/Front USB2.0
Rear/Front USB2.0
Rear/Front USB2.0
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
L25
L25
2
1
4P2R-0R
4P2R-0R
L24
L24
2
1
4P2R-0R
4P2R-0R
6
1
Q116
Q116
NN-2N7002D
NN-2N7002D
S1
5V_FUSB3
VCC
VCC
1 2
D0-
D0-
3 4
D0+
D0+
5
GND
GND
7 8
BH2X5[9]_BLACK-RH-9
BH2X5[9]_BLACK-RH-9
MS-7A21
MS-7A21
MS-7A21
1
3VSB
JUSB1
JUSB1
5V_FUSB3
5V_FUSB4
5V_FUSB1
52
D2
S2
3
4
3
4
C844 0.1u10X/4C844 0.1u10X/4
D29
D29
MB_USB_10DN
4
MB_USB_10DP
3
AOZ8902CIL
AOZ8902CIL
OC#3 (18,45)
VCC
VCC
D1-
D1D1+
D1+
GND
GND
Sheet of
Sheet of
Sheet of
MB_USB_11DN
MB_USB_11DP
MB_USB_10DN
MB_USB_10DP
MB_USB_10DPMB_USB_11DP
6
10
56 77
56 77
56 77
10
10
10
Page 57
5
SSTX0SSTX0+
SSRX0SSRX0+
SMBCLK_A0
SMBDAT_A0
130mA MAX
FRONT USB3 Redriver PORT 0,1
MB_USB30_TX0-(18)
MB_USB30_TX0+(18)
MB_USB30_RX0-(18)
D D
MB_USB30_RX0+(18)
TYPE_IND: Internal Pull-high,manual mode
C564 0.1u10X/4C564 0.1u10X/4
C561 0.1u10X/4C561 0.1u10X/4
C567 0.1u10X/4C567 0.1u10X/4
C566 0.1u10X/4C566 0.1u10X/4
TP16TP16
TP15TP15
R602 2K1%/4R602 2K1%/4
130mA MAX
MB_USB30_TX1-(18)
MB_USB30_TX1+(18)
MB_USB30_RX1-(18)
MB_USB30_RX1+(18)
C C
C537 0.1u10X/4C537 0.1u10X/4
C533 0.1u10X/4C533 0.1u10X/4
C541 0.1u10X/4C541 0.1u10X/4
C539 0.1u10X/4C539 0.1u10X/4
TP12TP12
TP13TP13
R565 2K1%/4R565 2K1%/4
SSTX1SSTX1+
SSRX1SSRX1+
SMBCLK_A1
SMBDAT_A1
9
8
12
11
10
7
24
21
5
14
9
8
12
11
10
7
24
21
5
14
U73
U73
AIP
AIN
BOP
BON
CHIP_EN#
SMB_SCK
SMB_DATA
TYPE_IND#
REXT
RSVD
U67
U67
AIP
AIN
BOP
BON
CHIP_EN#
SMB_SCK
SMB_DATA
TYPE_IND#
REXT
RSVD
3VSB
6
3VSB
6
GND
GND
1
VCC33
GND
18
1
VCC33
GND
18
13
AOP
AON
VCC33
BIP
BIN
EQ_A
EQ_B
SW_A
SW_B
DE_A
DE_B
GND
ASM1464_QFN24-HF
ASM1464_QFN24-HF
25
13
AOP
AON
VCC33
BIP
BIN
EQ_A
EQ_B
SW_A
SW_B
DE_A
DE_B
GND
ASM1464_QFN24-HF
ASM1464_QFN24-HF
25
4
C557 10u6.3X/6C557 10u6.3X/6
C568 0.1u10X/4C568 0.1u10X/4
SSTX-0
22
23
19
20
2
17
4
15
3
16
C527 10u6.3X/6C527 10u6.3X/6
C546 0.1u10X/4C546 0.1u10X/4
22
23
19
20
2
17
4
15
3
16
C565 0.1u10X/4C565 0.1u10X/4
SSTX+0
C562 0.1u10X/4C562 0.1u10X/4
SSRXN0
SSRXP0
EQ_A0 EQ_A0
EQ_B0
SW_A0
R595 4.7K/4R595 4.7K/4
SW_B0
R621 4.7K/4R621 4.7K/4
DE_A0
R604 4.7K/4R604 4.7K/4
DE_B0
R622 4.7K/4R622 4.7K/4
SSTX-1
C538 0.1u10X/4C538 0.1u10X/4
SSTX+1
C534 0.1u10X/4C534 0.1u10X/4
SSRXN1
SSRXP1
EQ_A1
EQ_B1
SW_A1
R566 4.7K/4R566 4.7K/4
SW_B1
R594 4.7K/4R594 4.7K/4
DE_A1
R567 4.7K/4R567 4.7K/4
DE_B1
R603 4.7K/4R603 4.7K/4
3VSB
3VSB
SSTXN0
SSTXP0
EQ_B0
SSTXN1
SSTXP1
EQ_A1
EQ_B1
3
U71
SSTXP1
SSTXN1
R606X_4.7K/4 R606X_4.7K/4
R623X_4.7K/4 R623X_4.7K/4
SSRXN0
SSRXP0
R568X_4.7K/4 R568X_4.7K/4
R596X_4.7K/4 R596X_4.7K/4
U71
1
2
4
5
3
U72
U72
1
2
4
5
3
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
SSTXP1
SSTXN1
SSRXP1SSRXP1
SSRXN1SSRXN1
MB_USB_1D+(18)
MB_USB_1D-(18)
MB_USB_0D+(18)
MB_USB_0D-(18)
SSRXN0
SSRXP0
SSTXN0SSTXN0
SSTXP0SSTXP0
MB_USB_1D+
MB_USB_1D-
MB_USB_0D+
MB_USB_0D-
5V_FUSB1 ATX_5VSB
R1373
R1373
10K1%/4
10K1%/4
1
2
4
5
R1042
R1042
47K/4
47K/4
U68
U68
3
G2
D1
G1
2
NC
NC
NC
NC
NC
NC
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
Q166
Q166
NN-2N7002D
NN-2N7002D
S1
1
900 mA
min 40mil.
MB_USB_1D+
MB_USB_1DSSTXP1
SSTXN1
SSRXP1
SSRXN1
5V_FUSB1
MB_USB_1D+
10
MB_USB_1D-
9
MB_USB_0D+
7
MB_USB_0D-
6
5V_FUSB1
C1097
C1097
0.1u10X/4
0.1u10X/4
5V_FUSB1
D2
S2
OC#2 (18)
MB_USB_0D+
MB_USB_0DSSTXP0
SSTXN0
SSRXP0
SSRXN0
BH2X10[20]#-2.0PITCH_BLACK-RH
BH2X10[20]#-2.0PITCH_BLACK-RH
JUSB3
JUSB3
11
D2+
12
D2-
14
TX2+
15
TX2-
17
RX2+
18
RX2-
19
VBUS-2
16
GND-1
13
GND-2
9
D1+
8
D1-
6
TX1+
5
TX1-
3
RX1+
2
RX1-
7
GND-3
1
VBUS-1
4
GND-4
10
NC
2X10 Connector
2X10 Connector
900 mA
min 40mil.
FRONT USB3 Redriver PORT 2,3
B B
A A
FSSRX2N(42)
FSSRX2P(42)
FSSTX2N(42)
FSSTX2P(42)
FSSRX1N(42)
FSSRX1P(42)
FSSTX1N(42)
FSSTX1P(42)
CTP11 0.22u6.3X/4CTP11 0.22u6.3X/4
CTP10 0.22u6.3X/4CTP10 0.22u6.3X/4
CTP9 0.22u6.3X/4CTP9 0.22u6.3X/4
CTP8 0.22u6.3X/4CTP8 0.22u6.3X/4
CTP22 0.22u6.3X/4CTP22 0.22u6.3X/4
CTP21 0.22u6.3X/4CTP21 0.22u6.3X/4
CTP23 0.22u6.3X/4CTP23 0.22u6.3X/4
CTP24 0.22u6.3X/4CTP24 0.22u6.3X/4
5
FSSRX2N_R
FSSRX2P_R
FSSTX2N_R
FSSTX2P_R
FSSRX1N_R
FSSRX1P_R
FSSTX1N_R
FSSTX1P_R
0A to 10
FSSRX2P_R
FSSTX2N_R
FSSTX2P_R
FSSRX1P_R
FSSTX1N_R
FSSTX1P_R
900 mA
min 40mil.
FUSB2+_CH
FUSB2-_CH
U56
U56
1
2
4
5
3
U75
U75
1
2
4
5
3
4
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
10
NC
NC
9
NC
NC
7
NC
NC
6
NC
NC
AOZ8808DI-05
AOZ8808DI-05
8
FSSRX2N_RFSSRX2N_R
FSSRX2P_R
FSSTX2N_R
FSSTX2P_R
FSSRX1N_RFSSRX1N_R
FSSRX1P_R
FSSTX1N_R
FSSTX1P_R
U52
FUSB2+_CH(46)
FUSB2-_CH(46)
FUSB1+_CH(46)
FUSB1-_CH(46)
FUSB2+_CH
FUSB2-_CH
FUSB1+_CH
FUSB1-_CH
3
U52
1
2
4
5
AOZ8808DI-05
AOZ8808DI-05
3
8
FUSB2+_CH
10
NC
NC
FUSB2-_CH
9
NC
NC
FUSB1+_CH
7
NC
NC
FUSB1-_CH
6
NC
NC
IBC_VCC2
C607
C607
0.1u10X/4
0.1u10X/4
IBC_VCC1
C494
C494
0.1u10X/4
0.1u10X/4
2
IBC_VCC2
IBC_VCC1
MSI
MSI
MSI
FSSTX2P_R
FSSTX2N_R
FSSRX2P_R
FSSRX2N_R
FUSB1+_CH
FUSB1-_CH
FSSTX1P_R
FSSTX1N_R
FSSRX1P_R
FSSRX1N_R
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
FRONT USB REDRIVER CONNECTOR
FRONT USB REDRIVER CONNECTOR
FRONT USB REDRIVER CONNECTOR
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
900 mA
min 40mil.
JUSB4
JUSB4
11
D2+
12
D2-
14
TX2+
15
TX2-
17
RX2+
18
RX2-
19
VBUS2
16
GND
13
GND
9
D1+
8
D1-
6
TX1+
5
TX1-
3
RX1+
2
RX1-
7
GND
1
VBUS1
4
GND
10
NC
2X10_CONNECTOR
2X10_CONNECTOR
BH2X10[20]#-2.0PITCH_BLACK-RH
BH2X10[20]#-2.0PITCH_BLACK-RH
MS-7A21
MS-7A21
MS-7A21
Sheet of
Sheet of
Sheet of
1
57 77
57 77
57 77
10
10
10
Page 58
5
4
3
2
1
VCC5
VCC5
4
3
2
1
4
3
2
1
4
ATX_5VSB
5VDIMM_01
G
Q56
Q56
D S
5
Q57
Q57
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
power
ATX_5VSB
5VDIMM_23
G
Q67
Q67
D S
5
Q65
Q65
N-PK616BA_PDFN8-HF
N-PK616BA_PDFN8-HF
C392
C392
0.1u10X/4
0.1u10X/4
C520
C520
0.1u10X/4
0.1u10X/4
ATX_5VSB
3VA_OFF#
SYS3VSB_OFF(31)
5VSBDRV2
R1360
R1360
4.7K/4
4.7K/4
CE
Q162
Q162
B
P-3906
P-3906
R1359 10K/4R1359 10K/4
防
G3-->S5底下5VSBDRV2
C1158 C0.22u16X/4C1158 C0.22u16X/4
R1362 47K/4R1362 47K/4
ATX_5VSB
3VA_OFF# (71)
ATX_PWR_OK(31,56,69)
D
D
G
G
S
S
SYS3VSB_OFF(31)
5VDUAL
R819
R819
47K/4
47K/4
D
D
Q160
Q160
G
G
2N7002
2N7002
S
S
SYS3VSB_OFF#
Q159
Q159
2N7002
2N7002
R1352 47K/4R1352 47K/4
ATX_5VSB
R1351
R1351
20K/4
20K/4
5VDRV2
瞬間有電變沒電,使得下一級電壓爬升有
ATX_5VSB
R1364 10R/4R1364 10R/4
U125
U125
1
3VA_OFF#
C1160
C1160
10u6.3X/6
10u6.3X/6
3
POK
2
EN
3
VIN
5
NC
5VDIMM FOR DDR
R449 510R/4R449 510R/4
VCC5
ATX_PWR_OK(31,56,69)
D D
7501 Mode
H:Support S0/S3/S5
L:Support S0/S3
ATX_PWR_OK(31,56,69)
C C
B B
A A
R448 10K1%/4R448 10K1%/4
SLP_S3#(17,31,45,56,66,67)
SLP_S4#(17,31,45,56,63,64,65)
5VDRV1看VCC5起來6-10ms
5VDIMM FOR DDR
R498 510R/4R498 510R/4
VCC5
R480 10K1%/4R480 10K1%/4
SLP_S3#(17,31,45,56,66,67)
SLP_S4#(17,31,45,56,63,64,65)
R751
R751
X_10K1%/4
X_10K1%/4
R748 10K1%/4R748 10K1%/4
SMBCLK_VCC(10,17,23,24,50,59,64,65,66,68,70)
SMBDATA_VCC(10,17,23,24,50,59,64,65,66,68,70)
R406
R406
10K1%/4
10K1%/4
R407 X_1K1%/4R407 X_1K1%/4
SMBCLK_VCC(10,17,23,24,50,59,64,65,66,68,70)
SMBDATA_VCC(10,17,23,24,50,59,64,65,66,68,70)
R18
R18
2.2K/4
2.2K/4
R16 3K1%/4R16 3K1%/4
SMBCLK_VCC(10,17,23,24,50,59,64,65,66,68,70)
SMBDATA_VCC(10,17,23,24,50,59,64,65,66,68,70)
5
5
6
4
5
6
4
U49
U49
S3#
S5#
MODE
uP7501
uP7501
U60
U60
S3#
S5#
MODE
uP7501
uP7501
5VDIMM_235VDIMM_23
5VDIMM_5VSB5VDIMM_5V
1
2
5VCC
3
5VDIMM_5VSB_25VDIMM_5V_2
1
2
5VCC
3
VCC5VCC5
C700
C700
0.1u10X/4
0.1u10X/4
1
2
5
4
3
C389
C389
0.1u10X/4
0.1u10X/4
U46
U46
1
2
5
4
3
NCT3933U_SOT23-8-HF
NCT3933U_SOT23-8-HF
5VDIMM_015VDIMM_01
C21
C21
0.1u10X/4
0.1u10X/4
1
2
5
4
3
R439 10R/4R439 10R/4
C409 0.1u10X/4C409 0.1u10X/4
7
5VSB_DRV
5VSB
8
5VCC_DRV
GND
R481 10R/4R481 10R/4
C482
C482
7
5VSB_DRV
5VSB
8
5VCC_DRV
GND
U85
U85
VCC
OUT1
ADD_SEL
SCL
OUT2
SDA
GND
OUT3
NCT3933U_SOT23-8-HF
NCT3933U_SOT23-8-HF
VCC
OUT1
ADD_SEL
SCL
OUT2
SDA
GND
OUT3
U1
U1
VCC
OUT1
ADD_SEL
SCL
OUT2
SDA
GND
OUT3
NCT3933U_SOT23-8-HF
NCT3933U_SOT23-8-HF
ATX_5VSB
5VSBDRV1
5VDRV1
R438
R438
1K/1%6
1K/1%6
+12V
後起來,因為當初挑
ATX_5VSB
0.1u10X/4
0.1u10X/4
5VSBDRV1_2
5VDRV1_2
R545
R545
1K/1%6
1K/1%6
+12V
8
PCH_1P5_FB
7
6
8
VPP25_FB2_R (63)
7
+VREF_DDR23
6
8
VPP25_FB_R (63)
7
6273_IMON
6
P-P06P03LCGA_SOT89
P-P06P03LCGA_SOT89
C410 18n16X/4C410 18n16X/4
C402
C402
0.022u16X/4
0.022u16X/4
P-P06P03LCGA_SOT89
P-P06P03LCGA_SOT89
C532 18n16X/4C532 18n16X/4
C507
C507
0.022u16X/4
0.022u16X/4
PCH_1P5_FB (66)
+VCCIO_IN_FB_R (67)
+VREF_DDR01
6273_IMON (68)
R1348 510R/4R1348 510R/4
VCC5
R1347 10K1%/4R1347 10K1%/4
SLP_S3#(17,31,45,56,66,67)
SLP_S4#(17,31,45,56,63,64,65)
S5_MODE 5VSBDRV25VDRV2
5VDUAL
SYS3VSB_OFF#(71)
SYS3VSB_OFF#
C727
C727
0.1u10X/4
0.1u10X/4
5
6
4
D
D
Q161
Q161
G
G
2N7002
2N7002
S
S
L21
L21
30L3A-15_0805-RH
30L3A-15_0805-RH
L20
L20
30L3A-15_0805-RH
30L3A-15_0805-RH
ATX_5VSB_VCC
3VSB
5VDUAL
R820
R820
10K/4
10K/4
2145_3VSB_MODE2
R821
R821
X_10K/4
X_10K/4
drop
C1167 1u6.3X/4C1167 1u6.3X/4
4
6
VOUT
VDD
7
FB
GND8GND
GS7133SO
GS7133SO
9
1
2
U124
U124
S3#
S5#
5VCC
MODE
uP7501
uP7501
3
ATX_5VSB_VCC
C706
C706
22u6.3X/8
22u6.3X/8
R798 10K/4R798 10K/4
2145_3VSB_MODE2
C729 X_0.1u16X/4C729 X_0.1u16X/4
C1159
C1159
0.015u16X/4
0.015u16X/4
5VSB_5V5VCC_5V
5VSB_DRV
5VSB
5VCC_DRV
GND
C720
C720
0.1u16X/4
0.1u16X/4
C705
C705
22u6.3X/8
22u6.3X/8
R1363
R1363
10K1%/4
10K1%/4
R1361
R1361
3.16KR1%/4
3.16KR1%/4
R1350 10R/4R1350 10R/4
C1150 0.1u10X/4C1150 0.1u10X/4
5VSBDRV2
7
8
R1353
R1353
1K/1%6
1K/1%6
+12V
U87
U87
8
VIN-1
13
VIN-2
5
EN
7
PG
MODE/VCON6FB
4
Ramp
MP2145GD_QFN12-RH
MP2145GD_QFN12-RH
2
C1164
C1164
10u6.3X/6
10u6.3X/6
ATX_5VSB
C1151
C1151
0.022u16X/4
0.022u16X/4
SW-1
SW-2
3VA
OUT
GND
U122
C718
C718
X_100p16X4
X_100p16X4
C704
C704
X_C2200p16/4
X_C2200p16/4
R775
R775
X_2.2R1%/8
X_2.2R1%/8
MS-7A21
MS-7A21
MS-7A21
U122
NS
NS
1
NG ND
NG ND
2
PS
PS
3
PG
PG
4 5
NP-P5003QVG
NP-P5003QVG
C1148 18n16X/4C1148 18n16X/4
C724
C724
1
VCC5
5VDRV2
ATX_5VSB
CHOKE19
CHOKE19
CH-0.47u7A16mS-RH
3VSB_PHASE2
1
9
2
3VSB
3VSB_FB
3
12
3VSB_PHASE2
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
CH-0.47u7A16mS-RH
1 2
R804
R804
200K1%/4
200K1%/4
R816
R816
44.2K1%/4
44.2K1%/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
ACPI controller UPI
ACPI controller UPI
ACPI controller UPI
ND
ND
8
7
PD
PD
6
PD
PD
C1142
C1142
X_0.1u25Y6
X_0.1u25Y6
3VSB
C725
C725
22u6.3X/8
22u6.3X/8
22u6.3X/8
22u6.3X/8
58 77
58 77
58 77
Sheet of
Sheet of
Sheet of
5VDUAL
10
10
10
Page 59
5
VRMPWRGD LEVEL SHIFT
6
1
3
4
VCC3
R44
R44
13K1%4
13K1%4
R48
R48
3.3K1%4
3.3K1%4
ATX_5VSB
R26
R26
4.7K/4
4.7K/4
R27
R27
100K/4
100K/4
+12VIN
G
G
VRM_PGD (17,24)
D
D
Q4
Q4
S
S
2N7002
2N7002
VRD_EN
C27
C27
X_0.1u16X/4
X_0.1u16X/4
VCCP
Vbe(max):0.95V
D D
VRM_PGD_R
ATX_5VSB
R75
R75
47K/4
47K/4
C C
PCH_ENABLE(66)
R31
R31
1K/4
1K/4
R20 4.7K/4R20 4.7K/4
C19
C19
100p16X4
100p16X4
Q9
Q9
NN-2N7002D
NN-2N7002D
G2
D1
G1
3VSB
R17
R17
10K1%/4
10K1%/4
Q2
Q2
2
5
NN-CMKT3904
NN-CMKT3904
R22 X_0R/4R22 X_0R/4
SLP_S3_CTRL(66)
D2
S2
S1
4
close to VRM
CPU_SVID_ALERT_N(3)
CPU_SVID_CLK(3)
CPU_SVID_DATA(3)
CPU_SVID_ALERT_N
CPU_SVID_CLK
CPU_SVID_DATA
between 3 to 6 inches
VCC3
R21
R21
X_10K1%/4
X_10K1%/4
CPU_VCC_SENSE(8)
CPU_VSS_SENSE(8)
R73 0R/4R73 0R/4
R105 0R/4R105 0R/4
VR_HOT#
VCCP
R1086 X_56R/4R1086 X_56R/4
R1085 56R/4R1085 56R/4
R1087 100R/4R1087 100R/4
R64
R64
100R/4
100R/4
CPU_VCC_SEN_R
CPU_VSS_SEN_R
R78
R78
100R/4
100R/4
PROCHOT_N(3)
CPU_SVID_CLK SVID_CLK
CPU_SVID_ALERT_N
3
+VCCIO_IN
C6 1u6.3X/4C6 1u6.3X/4
0.1u10X/4C50.1u10X/4
U4
R1063 1K/4R1063 1K/4
V6388
RT2 10KRT1%4RT2 10KRT1%4
PROCHOT_N
SMBDATA_VCC(10,17,23,24,50,58,64,65,66,68,70)
SMBCLK_VCC(10,17,23,24,50,58,64,65,66,68,70)
V6388
C38 X_0.1u16X/4C38 X_0.1u16X/4
C44
C44
X_0.1u16X/4
X_0.1u16X/4
C36 X_0.1u16X/4C36 X_0.1u16X/4
V6388
V6388
( 240A / 12 Phase ) * DCR / (Risen + Rset/64)
= 100uA
R753=4.64k ohm
VRD_EN(68)
R30 X_0R/4R30 X_0R/4
R35 150R1%4R35 150R1%4
R47 0R/4R47 0R/4
R8 0R/4R8 0R/4
R7 0R/4R7 0R/4
R1073 1K/4R1073 1K/4
R49 0R/4R49 0R/4
V6388
R33 42.2K1%/4R33 42.2K1%/4
R56 402KR1%/4R56 402KR1%/4
R52 392KR1%/4R52 392KR1%/4
VRD_EN
TM_EN_OTP
VRM_PGD_R
VR_HOT#
CPU_SVID_DATA
H_VIDALERT#
SMBDATA_6388
SMBCLK_6388
SMBALERT_6388
R41 X_1K/4R41 X_1K/4
C28 4700p50X6C28 4700p50X6
R69 35.7K1%4R69 35.7K1%4
R65 13.7K1%4R65 13.7K1%4
C877 X_0.01u16X/4C877 X_0.01u16X/4
R1065 182K1%/4R1065 182K1%/4
R1070 56K1%/4R1070 56K1%/4
OCP:240A
TP26TP26
U4
5
EN_PWR_CFP
21
TM_EN_OTP
11
VR_RDY
16
VR_HOT#
13
SVDATA
15
SVCLK
14
SVALERT#
17
SM_PM_I2DA
19
SM_PM_I2CLK
18
SM_PMALERT#
7
VSEN
8
VSEN_OVP
6
RGND
12
IMON
10
NVM_BANK_BT
9
VRSEL_ADDR
22
AUTO
23
RSET
20
BUF_COMP
R14
R14
2.2R/8
2.2R/8
C5
VR_5V
V6388
2
ISENIN-
V6388
ISENIN+
24
ISENIN-
3
ISENIN-
VCC
ISENIN+
PWM1
ISEN1-
ISEN1+
PWM2
ISEN2-
ISEN2+
PWM3
ISEN3-
ISEN3+
PWM4
ISEN4-
ISEN4+
PWM5
ISEN5-
ISEN5+
PWM6
ISEN6-
ISEN6+
GND
41
ISL6388HRTZ-T_TQFN40-HF-6
ISL6388HRTZ-T_TQFN40-HF-6
close phase sequence 6-3-5-2-4-1
4
28
37
38
R34 100R1%/4R34 100R1%/4
26
33
34
R12 100R1%/4R12 100R1%/4
29
39
40
R40 100R1%/4R40 100R1%/4
27
35
36
R24 100R1%/4R24 100R1%/4
25
31
32
R13 100R1%/4R13 100R1%/4
30
1
2
R46 100R1%/4R46 100R1%/4
ISENIN+
C26 27P50N/4C26 27P50N/4
C9 27P50N/4C9 27P50N/4
C31 27P50N/4C31 27P50N/4
C18 27P50N/4C18 27P50N/4
C10 27P50N/4C10 27P50N/4
C43 27P50N/4C43 27P50N/4
address:8AH
R62 2.55KR1%4R62 2.55KR1%4
C34
C34
0.01u16X/4
0.01u16X/4
R63 0R/4R63 0R/4
PWM1 (60)
ISEN1ISEN1+
PWM2 (60)
ISEN2ISEN2+
PWM3 (60)
ISEN3ISEN3+
PWM4 (60)
ISEN4ISEN4+
PWM5 (60)
ISEN5ISEN5+
PWM6 (60)
ISEN6ISEN6+
R74 5.36KR1%/4R74 5.36KR1%/4
C45
C45
0.1u10X/4
0.1u10X/4
C39
C39
1u16X/6
1u16X/6
R29 523R1%/4R29 523R1%/4
C22 X_0.1u10X/4C22 X_0.1u10X/4
R4 523R1%/4R4 523R1%/4
C2 X_0.1u10X/4C2 X_0.1u10X/4
R32 523R1%/4R32 523R1%/4
C23 X_0.1u10X/4C23 X_0.1u10X/4
R19 523R1%/4R19 523R1%/4
C15 X_0.1u10X/4C15 X_0.1u10X/4
R5 523R1%/4R5 523R1%/4
C3 X_0.1u10X/4C3 X_0.1u10X/4
R67 523R1%/4R67 523R1%/4
C32 X_0.1u10X/4C32 X_0.1u10X/4
1
CP5 X_COPPERCP5 X_COPPER
CP6 X_COPPERCP6 X_COPPER
ISEN1- (60)
ISEN2- (60)
ISEN3- (60)
ISEN4- (60)
ISEN5- (60)
ISEN6- (60)
+12VIN
12VIN
R130
R130
47K/4
Q12
Q12
2N3904
2N3904
47K/4
C116
C116
0.1u10X/4
0.1u10X/4
D
D
G
G
Q15
Q15
S
S
2N7002
2N7002
R140 0R/4R140 0R/4
VCC5
J_VBOOT1
J_VBOOT1
J1
J1
1
2
H1X2M-2PITCH
H1X2M-2PITCH
J2
J2
1
2
H1X2M_BLACK-RH
H1X2M_BLACK-RH
D1D1
4
R36 X_0R/4R36 X_0R/4
R25 0R/4R25 0R/4
SIO_PSON# (31,69)
1 2
VRM_PGD
3
PCH_PWROK_R (17,31)
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
X_H1X3M_BLACK-RH-3
X_H1X3M_BLACK-RH-3
1
3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MS-7A21
55 VRD12.5 - PWM-Intersil6388
55 VRD12.5 - PWM-Intersil6388
55 VRD12.5 - PWM-Intersil6388
1
VR_5V
1
VCC5
2
VR_5V
3
ATX_5VSB
JSMB1
JSMB1
SMBDATA_VCCSMBCLK_VCC
2
H2X2[4]M_BLACK-RH
H2X2[4]M_BLACK-RH
59 77
59 77
59 77
Sheet of
Sheet of
Sheet of
10
10
10
B B
VCC_DDR_01
A A
R112 1K/4R112 1K/4
5
C51
C51
0.1u10X/4
0.1u10X/4
CE
B
Page 60
5
R1118 120R1%/4R1118 120R1%/4
C925
C925
C220p50N0402
C220p50N0402
U105
D D
PWM1(59)
C C
PWM2(59)
B B
VCCP
EC16 C330u4SO+EC16 C330u4SO
+
12
+
12
A A
U105
CSN1_R
1
CSP1_R
2
3
CSN2_R
4
CSP2_R
ISL6617CRZ-T_DFN10-HF
ISL6617CRZ-T_DFN10-HF
R1099 120R1%/4R1099 120R1%/4
C896
C896
C220p50N0402
C220p50N0402
R1117 120R1%/4R1117 120R1%/4
C924
C924
C220p50N0402
C220p50N0402
U106
U106
CSN3_R
1
CSP3_R
2
3
CSN4_R
4
CSP4_R
ISL6617CRZ-T_DFN10-HF
ISL6617CRZ-T_DFN10-HF
R1105 120R1%/4R1105 120R1%/4
C898
C898
C220p50N0402
C220p50N0402
EC17 C330u4SO+EC17 C330u4SO
EC19 C330u4SO+EC19 C330u4SO
EC18 C330u4SO+EC18 C330u4SO
+
12
+
12
5
ISENA+
ISENAPWMIN
ISENB+
ISENB-5PWMB
ISENA+
ISENAPWMIN
ISENB+
ISENB-5PWMB
EC8 C330u4SO+EC8 C330u4SO
+
12
PWMA
VCC
IOUT
EN_PH_SYNC
GND
C893
C893
C0.18u16X-RH
C0.18u16X-RH
C888
C888
0.1u25X/6
0.1u25X/6
PWMA
VCC
IOUT
EN_PH_SYNC
GND
C899
C899
C0.18u16X-RH
C0.18u16X-RH
C900
C900
0.1u25X/6
0.1u25X/6
EC9 C330u4SO+EC9 C330u4SO
EC7 C330u4SO+EC7 C330u4SO
+
12
+
12
C916
C916
C0.18u16X-RH
C0.18u16X-RH
C921
C921
0.1u25X/6
0.1u25X/6
10
9
8
7
6
11
R1094
R1094
4.53K1%/6
4.53K1%/6
C917
C917
C0.18u16X-RH
C0.18u16X-RH
C919
C919
0.1u25X/6
0.1u25X/6
10
9
8
7
6
11
R1102
R1102
4.53K1%/6
4.53K1%/6
EC13 C330u4SO+EC13 C330u4SO
EC10 C330u4SO+EC10 C330u4SO
+
12
+
12
R1109
R1109
4.53K1%/6
4.53K1%/6
PWM1_1
PWM1_2
R1110
R1110
4.53K1%/6
4.53K1%/6
PWM2_1
PWM2_2
SYNC
SYNC
CSN1 (61)
ISEN1- (59)
CSP2 (61)
CSN2 (61)
CSN3 (61)
ISEN2- (59)
CSP4 (61)
CSN4 (61)
EC20 C330u4SO+EC20 C330u4SO
EC12 C330u4SO+EC12 C330u4SO
+
12
+
12
CSP1 (61)
R1120
R1120
2.2R/4
2.2R/4
C907
C907
0.1u25X6
0.1u25X6
CSP3 (61)
R1121
R1121
2.2R/4
2.2R/4
C910
C910
0.1u25X6
0.1u25X6
EC11 C330u4SO+EC11 C330u4SO
+
12
VCC5
VCC5
4
R1119 120R1%/4R1119 120R1%/4
C926
C926
C220p50N0402
C220p50N0402
CSN5_R
1
CSP5_R
2
3
CSN6_R
4
CSP6_R
R1106 120R1%/4R1106 120R1%/4
C903
C903
C220p50N0402
C220p50N0402
R1116 120R1%/4R1116 120R1%/4
C923
C923
C220p50N0402
C220p50N0402
U104
U104
CSN7_R
1
ISENA+
CSP7_R
2
ISENA-
3
PWMIN
CSN8_R
4
ISENB+
CSP8_R
ISENB-5PWMB
ISL6617CRZ-T_DFN10-HF
ISL6617CRZ-T_DFN10-HF
R1098 120R1%/4R1098 120R1%/4
C897
C897
C220p50N0402
C220p50N0402
VCC5
R1095
R1095
4.99KR1%/4
4.99KR1%/4
SYNC
R1096
R1096
7.5K1%/4
7.5K1%/4
4
3
U107
U107
ISENA+
ISENAPWMIN
ISENB+
ISENB-5PWMB
ISL6617CRZ-T_DFN10-HF
ISL6617CRZ-T_DFN10-HF
EN_PH_SYNC
PWMA
EN_PH_SYNC
C901
C901
C0.18u16X-RH
C0.18u16X-RH
C902
C902
0.1u25X/6
0.1u25X/6
C915
C915
C0.18u16X-RH
C0.18u16X-RH
C909
C909
0.1u25X/6
0.1u25X/6
10
PWMA
9
VCC
8
IOUT
7
6
11
GND
C892
C892
C0.18u16X-RH
C0.18u16X-RH
C887
C887
0.1u25X/6
0.1u25X/6
3
VCC
IOUT
GND
R1093
R1093
4.53K1%/6
4.53K1%/6
C920
C920
C0.18u16X-RH
C0.18u16X-RH
C922
C922
0.1u25X/6
0.1u25X/6
10
9
8
7
6
11
R1103
R1103
4.53K1%/6
4.53K1%/6
R1107
R1107
4.53K1%/6
4.53K1%/6
PWM4_1
ISEN4- (59)PWM4(59)
SYNC
PWM4_2
R1111
R1111
4.53K1%/6
4.53K1%/6
PWM3_1
ISEN3- (59)PWM3(59)
SYNC
PWM3_2
CSN7 (61)
CSN8 (61)
CSN5 (61)
2.2R/4
2.2R/4
0.1u25X6
0.1u25X6
CSP6 (61)
CSN6 (61)
CSP7 (61)
VCC5
R1122
R1122
2.2R/4
2.2R/4
C912
C912
0.1u25X6
0.1u25X6
CSP8 (61)
PWM1_1
PWM1_2
PWM2_1
PWM2_2
PWM3_1
PWM3_2
PWM4_1
PWM4_2
PWM5_1
PWM5_2
PWM6_1
PWM6_2
CSP5 (61)
VCC5
R1123
R1123
C913
C913
PWM1_1 (61)
PWM1_2 (61)
PWM2_1 (61)
PWM2_2 (61)
PWM3_1 (61)
PWM3_2 (61)
PWM4_1 (61)
PWM4_2 (61)
PWM5_1 (62)
PWM5_2 (62)
PWM6_1 (62)
PWM6_2 (62)
2
R1115 120R1%/4R1115 120R1%/4
C918
C918
C220p50N0402
C220p50N0402
U103
U103
CSN9_R
1
ISENA+
CSP9_R
2
ISENA-
3
PWMIN
CSN10_R
4
ISENB+
CSP10_R
ISENB-5PWMB
ISL6617CRZ-T_DFN10-HF
ISL6617CRZ-T_DFN10-HF
R1101 120R1%/4R1101 120R1%/4
C894
C894
C220p50N0402
C220p50N0402
R1114 120R1%/4R1114 120R1%/4
C927
C927
C220p50N0402
C220p50N0402
U102
U102
CSN11_R
1
ISENA+
CSP11_R
2
ISENA-
3
PWMIN
CSN12_R
4
ISENB+
CSP12_R
ISENB-5PWMB
ISL6617CRZ-T_DFN10-HF
ISL6617CRZ-T_DFN10-HF
R1097 120R1%/4R1097 120R1%/4
C895
C895
C220p50N0402
C220p50N0402
MSI
MSI
MSI
2
PWMA
VCC
IOUT
EN_PH_SYNC
GND
C889
C889
C0.18u16X-RH
C0.18u16X-RH
C890
C890
0.1u25X/6
0.1u25X/6
PWMA
VCC
IOUT
EN_PH_SYNC
GND
C891
C891
C0.18u16X-RH
C0.18u16X-RH
C886
C886
0.1u25X/6
0.1u25X/6
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
56 PHASE DOUBLER 6617
56 PHASE DOUBLER 6617
56 PHASE DOUBLER 6617
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
C905
C905
C0.18u16X-RH
C0.18u16X-RH
C906
C906
0.1u25X/6
0.1u25X/6
PWM5_1
10
9
8
7
PWM5_2
6
11
R1100
R1100
4.53K1%/6
4.53K1%/6
C914
C914
C0.18u16X-RH
C0.18u16X-RH
C904
C904
0.1u25X/6
0.1u25X/6
PWM6_1
10
9
8
7
PWM6_2
6
11
R1092
R1092
4.53K1%/6
4.53K1%/6
MS-7A21
MS-7A21
MS-7A21
1
R1104
R1104
4.53K1%/6
4.53K1%/6
SYNC
R1108
R1108
4.53K1%/6
4.53K1%/6
SYNC
1
CSN9 (62)
ISEN5- (59)PWM5(59)
CSN10 (62)
CSN11 (62)
ISEN6- (59)PWM6(59)
CSN12 (62)
Sheet of
Sheet of
Sheet of
CSP9 (62)
R1113
R1113
2.2R/4
2.2R/4
C908
C908
0.1u25X6
0.1u25X6
CSP10 (62)
CSP11 (62)
R1112
R1112
2.2R/4
2.2R/4
C911
C911
0.1u25X6
0.1u25X6
CSP12 (62)
60 77
60 77
60 77
VCC5
VCC5
10
10
10
Page 61
5
VCC5
D D
C C
B B
T6
VCC5
T7
VCC5
T1
C95 1u16X4C95 1u16X4 C52
R109 10K/4R109 10K/4
PWM1_1
TH_EN
THWN# THWN#
X_TPT6X_TP
C97 1u16X4C97 1u16X4
R110 10K/4R110 10K/4
PWM1_2
TH_EN
THWN# THWN#
X_TPT7X_TP
C92 1u16X4C92 1u16X4
R114 10K/4R114 10K/4
PWM2_1
TH_EN
THWN#
X_TPT1X_TP
R87 3.3R/1%8R87 3.3R/1%8
U13
U13
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
(27.33)
(27.33)
GL
6
NC
R89 3.3R/1%8R89 3.3R/1%8
U14
U14
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
(27.33)
(27.33)
GL
6
NC
U11
U11
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
GL
6
NC
29
PVCC
4
29
PVCC
4
R84 3.3R/1%8R84 3.3R/1%8
29
(27.33)
(27.33)
AGND-1
32
AGND-1
32
PVCC
4
AGND-2
AGND-2
AGND-1
1u16X4
1u16X4
3
VCC
SPS
SPS
1u16X4
1u16X4
3
VCC
SPS
SPS
3
AGND-2
32
C53
C53
PHASE1
C54
C54
PHASE2
C57
C57
1u16X4
1u16X4
VCC
SPS
SPS
8
9
VIN-1
VIN-2
PGND-4
PGND-5
(12~15)
(12~15)
15
28
8
9
VIN-1
VIN-2
PGND-4
PGND-5
(12~15)
(12~15)
15
28
8
VIN-1
PGND-4
(12~15)
(12~15)
15
(9~11)
(9~11)
FDMF5823DC
FDMF5823DC
(9~11)
(9~11)
FDMF5823DC
FDMF5823DC
9
VIN-2
(9~11)
(9~11)
PGND-5
28
C943 10u16X/8C943 10u16X/8
C942 10u16X/8C942 10u16X/8
C94 1u16X4C94 1u16X4
5
BOOT
7
PHASE
16
SW-1
(16~23)
(16~23)
24
SW-9
C932 10u16X/8C932 10u16X/8
C931 10u16X/8C931 10u16X/8
C96 1u16X4C96 1u16X4
5
BOOT
7
PHASE
16
SW-1
(16~23)
(16~23)
24
SW-9
C934 10u16X/8C934 10u16X/8
C933 10u16X/8C933 10u16X/8
C91 1u16X4C91 1u16X4
BOOT
PHASE
SW-1
(16~23)
(16~23)
SW-9
FDMF5823DC
FDMF5823DC
PHASE3
VCC5
R123 10K1%/4R123 10K1%/4
T5
X_TPT5X_TP
A A
C107 1u16X4C107 1u16X4
PWM2_2
TH_EN
THWN#
R86 3.3R/1%8R86 3.3R/1%8
U12
U12
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
GL
6
NC
(27.33)
(27.33)
29
PVCC
8
9
VIN-1
PGND-4
(12~15)
(12~15)
15
28
VIN-2
PGND-5
(9~11)
(9~11)
C945 10u16X/8C945 10u16X/8
C944 10u16X/8C944 10u16X/8
C93 1u16X4C93 1u16X4
BOOT
PHASE
SW-1
(16~23)
(16~23)
SW-9
FDMF5823DC
FDMF5823DC
C58
C58
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-1
AGND-2
4
32
PHASE4
5
4
12VIN
R1131
R1131
X_1R/8
X_1R/8
C948
C948
X_3.3n50X/4
X_3.3n50X/4
CSP1(60)
CSN1(60)
R1128
R1128
X_1R/8
X_1R/8
C947
C947
X_3.3n50X/4
X_3.3n50X/4
CSP2(60)
CSN2(60)
12VIN
R83 0R/6R83 0R/6
CPU_PHASE3
R1127
R1127
X_1R/8
X_1R/8
C956
C956
X_3.3n50X/4
X_3.3n50X/4
CSP3(60)
CSN3(60)
12VIN
R85 0R/6R85 0R/6
CPU_PHASE4
R1124
R1124
X_1R/8
X_1R/8
C949
C949
X_3.3n50X/4
X_3.3n50X/4
CSP4(60)
CSN4(60)
4
BT1_R
C74 0.1u/25X4C74 0.1u/25X4
CHOKE6 0.4u45ACHOKE6 0.4u45A
CSP1
CSN1
BT2_R
CSP2
CSN2
BT3_R
CSP3
CSN3
BT4_R
CSP4
CSN4
12
CP14
CP14
X_COPPER
X_COPPER
C67 0.1u/25X4C67 0.1u/25X4
CHOKE70.4u45A CHOKE70.4u45A
12
CP13
CP13
X_COPPER
X_COPPER
C65 0.1u/25X4C65 0.1u/25X4
CHOKE40.4u45A CHOKE40.4u45A
CP16
CP16
X_COPPER
X_COPPER
C66 0.1u/25X4C66 0.1u/25X4R115 10K/4R115 10K/4
CHOKE50.4u45A CHOKE50.4u45A
CP15
CP15
X_COPPER
X_COPPER
VCCP
CP26
CP26
X_COPPER
X_COPPER
CP25
CP25
X_COPPER
X_COPPER
12
12
CP28
CP28
X_COPPER
X_COPPER
CP27
CP27
X_COPPER
X_COPPER
VCCP
TH_EN(62)
THWN#(3,62)
BT1
R102 0R/6R102 0R/6
BT1_L
CPU_PHASE1
12VIN
BT2
R88 0R/6R88 0R/6
BT2_L
CPU_PHASE2
BT3
5
BT3_L
7
16
24
BT4
5
BT4_L
7
16
24
VCC5
VCC5
VCC5
VCC5
3
T3
T4
T8
T9
3
R108 10K/4R108 10K/4
X_TPT3X_TP
R113 10K/4R113 10K/4
X_TPT4X_TP
X_TPT8X_TP
R117 10K/4R117 10K/4
X_TPT9X_TP
TH_EN
THWN#
C88 1u16X4C88 1u16X4
PWM3_1
TH_EN
C90 1u16X4C90 1u16X4
PWM3_2
TH_EN
C99 1u16X4C99 1u16X4
R116 10K/4R116 10K/4
PWM4_1
TH_EN
THWN#
C101 1u16X4C101 1u16X4
PWM4_2
TH_EN
THWN#
R80 3.3R/1%8R80 3.3R/1%8
U9
U9
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
(27.33)
(27.33)
GL
6
NC
R82 3.3R/1%8R82 3.3R/1%8
U10
U10
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
(27.33)
(27.33)
GL
6
NC
2
1
31
30
27
6
2
1
31
30
27
6
29
29
R91 3.3R/1%8R91 3.3R/1%8
U15
U15
ZCD#
PWM
EN/FAULT#
THWN#
(27.33)
(27.33)
GL
NC
R93 3.3R/1%8R93 3.3R/1%8
U16
U16
ZCD#
PWM
EN/FAULT#
THWN#
(27.33)
(27.33)
GL
NC
PVCC
4
PVCC
4
2
BOOT
SW-1
SW-9
BOOT
SW-1
SW-9
12VIN
R1133
R1133
X_1R/8
X_1R/8
C951
C951
X_3.3n50X/4
X_3.3n50X/4
CSP5(60)
CSN5(60)
R1132
R1132
X_1R/8
X_1R/8
C950
C950
X_3.3n50X/4
X_3.3n50X/4
CSP6(60)
CSN6(60)
12VIN
R90 0R/6R90 0R/6
CPU_PHASE7
R1130
R1130
X_1R/8
X_1R/8
C955
C955
X_3.3n50X/4
X_3.3n50X/4
CSP7(60)
CSN7(60)
12VIN
R92 0R/6R92 0R/6
CPU_PHASE8
R1129
R1129
X_1R/8
X_1R/8
C946
C946
X_3.3n50X/4
X_3.3n50X/4
CSP8(60)
CSN8(60)
BT5_R
C73 0.1u/25X4C73 0.1u/25X4
CHOKE20.4u45A CHOKE20.4u45A
12
CP18
CP18
X_COPPER
X_COPPER
CSP5
CSN5
BT6_R
C64 0.1u/25X4C64 0.1u/25X4
CHOKE30.4u45A CHOKE30.4u45A
CP17
CP17
X_COPPER
X_COPPER
CSP6
CSN6
BT7_R
C68 0.1u/25X4C68 0.1u/25X4
CSP7
CSN7
BT8_R
CSP8
CSN8
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
CP30
CP30
X_COPPER
X_COPPER
12
CP29
CP29
X_COPPER
X_COPPER
CHOKE80.4u45A CHOKE80.4u45A
12
CP12
CP12
X_COPPER
X_COPPER
C69 0.1u/25X4C69 0.1u/25X4
CHOKE90.4u45A CHOKE90.4u45A
12
CP11
CP11
X_COPPER
X_COPPER
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
BT5
R101 0R/6R101 0R/6
5
BT5_L
7
CPU_PHASE5
16
24
12VIN
BT6
R81 0R/6R81 0R/6
5
BT6_L
7
CPU_PHASE6
16
24
BT7
5
BT7_L
7
16
24
BT8
5
BT8_L
7
16
24
C52
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-1
AGND-2
32
PHASE5
C56
C56
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-1
AGND-2
32
PHASE6
1u16X4
1u16X4
3
29
VCC
PVCC
SPS
SPS
AGND-1
AGND-2
4
32
8
VIN-1
PGND-4
(12~15)
(12~15)
15
8
VIN-1
PGND-4
(12~15)
(12~15)
15
C59
C59
9
VIN-2
(9~11)
(9~11)
PGND-5
28
9
VIN-2
(9~11)
(9~11)
PGND-5
28
8
VIN-1
PGND-4
(12~15)
(12~15)
15
C958 10u16X/8C958 10u16X/8
C957 10u16X/8C957 10u16X/8
C87 1u16X4C87 1u16X4
BOOT
PHASE
(16~23)
(16~23)
FDMF5823DC
FDMF5823DC
C936 10u16X/8C936 10u16X/8
C935 10u16X/8C935 10u16X/8
C89 1u16X4C89 1u16X4
BOOT
PHASE
(16~23)
(16~23)
FDMF5823DC
FDMF5823DC
9
VIN-2
(9~11)
(9~11)
PGND-5
FDMF5823DC
FDMF5823DC
28
SW-1
SW-9
SW-1
SW-9
C928 10u16X/8C928 10u16X/8
C941 10u16X/8C941 10u16X/8
C98 1u16X4C98 1u16X4
PHASE
(16~23)
(16~23)
PHASE7
C940 10u16X/8C940 10u16X/8
29
PVCC
4
C60
C60
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-1
AGND-2
32
8
9
VIN-1
VIN-2
PGND-4
PGND-5
(12~15)
(12~15)
15
28
C939 10u16X/8C939 10u16X/8
C100 1u16X4C100 1u16X4
(9~11)
(9~11)
(16~23)
(16~23)
FDMF5823DC
FDMF5823DC
PHASE
PHASE8
2
1
VCCP
PWM1_1(60)
PWM1_2(60)
PWM2_1(60)
PWM2_2(60)
PWM3_1(60)
PWM3_2(60)
PWM4_1(60)
PWM4_2(60)
CP24
CP24
X_COPPER
X_COPPER
CP23
CP23
X_COPPER
X_COPPER
MS-7A21
MS-7A21
MS-7A21
57 VCOR FCH5823 PHASE 1~8
57 VCOR FCH5823 PHASE 1~8
57 VCOR FCH5823 PHASE 1~8
1
PWM1_1
PWM1_2
PWM2_1
PWM2_2
PWM3_1
PWM3_2
PWM4_1
PWM4_2
VCCP
Sheet of
Sheet of
Sheet of
61 77
61 77
61 77
10
10
10
Page 62
5
VCC5
D D
T10
T10
VCC5
C C
B B
T12
T12
VCC5
R126 10K/4R126 10K/4
VCC5
T11
T11
TH_EN(61)
THWN#(3,61)
X_TP
X_TP
X_TP
X_TP
X_TP
X_TP
TH_EN
THWN#
C103 1u16X4C103 1u16X4
R118 10K/4R118 10K/4
PWM5_1
TH_EN
THWN#
C105 1u16X4C105 1u16X4
R111 10K/4R111 10K/4
PWM5_2
TH_EN
THWN#
C85 1u16X4C85 1u16X4
R119 10K/4R119 10K/4
PWM6_1
TH_EN
THWN#
R104 3.3R/1%8R104 3.3R/1%8
U17
U17
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
GL
6
NC
R95 3.3R/1%8R95 3.3R/1%8
U18
U18
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
GL
6
NC
U19
U19
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
GL
6
NC
29
PVCC
(27.33)
(27.33)
29
PVCC
(27.33)
(27.33)
R97 3.3R/1%8R97 3.3R/1%8
(27.33)
(27.33)
AGND-1
4
AGND-1
4
29
PVCC
C61
C61
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-2
32
PHASE1
C55
C55
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-2
32
PHASE2
C62
C62
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-1
AGND-2
4
32
8
9
VIN-1
PGND-4
(12~15)
(12~15)
15
28
8
9
VIN-1
PGND-4
(12~15)
(12~15)
15
28
8
(12~15)
(12~15)
15
VIN-2
PGND-5
VIN-2
PGND-5
VIN-1
PGND-4
(9~11)
(9~11)
(9~11)
(9~11)
9
VIN-2
PGND-5
28
C930 10u16X/8C930 10u16X/8
C929 10u16X/8C929 10u16X/8
C102 1u16X4C102 1u16X4
BOOT
PHASE
SW-1
(16~23)
(16~23)
SW-9
FDMF5823DC
FDMF5823DC
C952 10u16X/8C952 10u16X/8
C953 10u16X/8C953 10u16X/8
C104 1u16X4C104 1u16X4
BOOT
PHASE
SW-1
(16~23)
(16~23)
SW-9
FDMF5823DC
FDMF5823DC
C937 10u16X/8C937 10u16X/8
C938 10u16X/8C938 10u16X/8
C106 1u16X4C106 1u16X4
BOOT
PHASE
(9~11)
(9~11)
(16~23)
(16~23)
FDMF5823DC
FDMF5823DC
SW-1
SW-9
PHASE3
VCC5
R120 10K/4R120 10K/4
T2
X_TPT2X_TP
A A
C84 1u16X4C84 1u16X4
PWM6_2
TH_EN
THWN#
R106 3.3R/1%8R106 3.3R/1%8
U20
U20
2
ZCD#
1
PWM
31
EN/FAULT#
30
THWN#
27
(27.33)
(27.33)
GL
6
NC
29
PVCC
8
9
VIN-1
VIN-2
PGND-4
PGND-5
(12~15)
(12~15)
15
28
C961 10u16X/8C961 10u16X/8
C960 10u16X/8C960 10u16X/8
C86 1u16X4C86 1u16X4
(9~11)
(9~11)
FDMF5823DC
FDMF5823DC
BOOT
PHASE
SW-1
(16~23)
(16~23)
SW-9
C63
C63
1u16X4
1u16X4
3
VCC
SPS
SPS
AGND-1
AGND-2
4
32
PHASE4
5
4
12VIN
R1126
R1126
X_1R/8
X_1R/8
C959
C959
X_3.3n50X/4
X_3.3n50X/4
CSP9(60)
CSN9(60)
R1125
R1125
X_1R/8
X_1R/8
C954
C954
X_3.3n50X/4
X_3.3n50X/4
CSP10(60)
CSN10(60)
12VIN
R96 0R/6R96 0R/6
CPU_PHASE11
R1134
R1134
X_1R/8
X_1R/8
C962
C962
X_3.3n50X/4
X_3.3n50X/4
CSP11(60)
CSN11(60)
12VIN
R98 0R/6R98 0R/6
CPU_PHASE12
R133
R133
X_1R/8
X_1R/8
C119
C119
X_3.3n50X/4
X_3.3n50X/4
CSP12(60)
CSN12(60)
BT9_R
CSP9
CSN9
BT10_R
CSP10
CSN10
BT11_R
C75 0.1u/25X4C75 0.1u/25X4
CHOKE100.4u45A CHOKE100.4u45A
C70 0.1u/25X4C70 0.1u/25X4
CHOKE110.4u45A CHOKE110.4u45A
C71 0.1u/25X4C71 0.1u/25X4
CSP11
CSN11
BT12_R
CSP12
CSN12
12
CP10
CP10
X_COPPER
X_COPPER
12
CP9
CP9
X_COPPER
X_COPPER
CHOKE120.4u45A CHOKE120.4u45A
12
CP8
CP8
X_COPPER
X_COPPER
C72 0.1u/25X4C72 0.1u/25X4
CHOKE130.4u45A CHOKE130.4u45A
12
CP7
CP7
X_COPPER
X_COPPER
CP22
CP22
X_COPPER
X_COPPER
CP21
CP21
X_COPPER
X_COPPER
CP20
CP20
X_COPPER
X_COPPER
CP19
CP19
X_COPPER
X_COPPER
VCCP
VCCP
BT9
R103 0R/6R103 0R/6
5
BT9_L
7
CPU_PHASE9
16
24
12VIN
BT10
R94 0R/6R94 0R/6
5
BT10_L
7
CPU_PHASE10
16
24
BT11
5
BT11_L
7
16
24
BT12
5
BT12_L
7
16
24
4
3
PWM5_1(60)
PWM5_2(60)
PWM6_1(60)
PWM6_2(60)
3
PWM5_1
PWM5_2
PWM6_1
PWM6_2
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
1
MS-7A21
MS-7A21
MS-7A21
58 VCOR FCH5823 PHASE 9~12
58 VCOR FCH5823 PHASE 9~12
58 VCOR FCH5823 PHASE 9~12
1
62 77
62 77
62 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 63
5
VPP25-->VCCDDR
4DIMM :6A FOR DDR VPP
5VDIMM_VPP1
5VDIMM_01
D D
C515 C1u10X/4C515 C1u10X/4
C C
5VDIMM_VPP1
L18 30L3A-15_0805-RHL18 30L3A-15_0805-RH
L19 30L3A-15_0805-RHL19 30L3A-15_0805-RH
ATX_5VSB
R559
R559
47K/4
47K/4
SLP_S4#(17,31,45,56,58,64,65)
G2
D1
G1
C510
C510
22u6.3X/8
22u6.3X/8
Q63
Q63
NN-2N7002D
NN-2N7002D
S1
C500
C500
22u6.3X/8
22u6.3X/8
D2
S2
C499
C499
22u6.3X/8
22u6.3X/8
5VDIMM_01
R523
R523
2.2K/4
2.2K/4
VPP1_EN
R508
R508
3.3K1%4
3.3K1%4
C492
C492
0.1u16X/4
0.1u16X/4
High: PWM Mode
Low/NC: PFM Mode
5VDIMM_VPP1
R517
R517
10K/4
10K/4
2145_MODE
R509
R509
X_10K/4
X_10K/4
C490
C490
0.1u16X/4
0.1u16X/4
4
5VDIMM_VPP1
C495
C495
0.1u16X/4
0.1u16X/4
VR_DDR_EN1(64)
+VPP25_C01
VPP1_EN
2145_MODE
C481 X_0.1u16X/4C481 X_0.1u16X/4
3
U58
U58
8
VIN-1
13
VIN-2
5
EN
7
PG
MODE/VCON6FB
4
Ramp
MP2145GD_QFN12-RH
MP2145GD_QFN12-RH
SW-1
SW-2
OUT
GND
2
+VPP25_C01
C373
C373
C384
C384
10u6.3X/6
10u6.3X/6
10u6.3X/6
10u6.3X/6
+VPP25_C01
CHOKE15
CHOKE15
CH-0.47u7A16mS-RH
1 2
R494 0R/4R494 0R/4
CH-0.47u7A16mS-RH
R495
R495
C472 22u6.3X/8C472 22u6.3X/8
1K1%/4
1K1%/4
R497
R497
316R1%/4
316R1%/4
VPP25_FB_R (58)
VPP_PHASE1
C476
C459 22u6.3X/8C459 22u6.3X/8
C361
C361
0.22u6.3X/4
0.22u6.3X/4
C476
X_C2200p16/4
X_C2200p16/4
R493
R493
X_2.2R1%/8
X_2.2R1%/8
VPP_PHASE1
1
9
2
+VPP25_C01
VPP25_FB
3
12
C382
C382
10u6.3X/6
10u6.3X/6
1
C383
C383
10u6.3X/6
10u6.3X/6
C380
C380
10u6.3X/6
10u6.3X/6
2
R135
R135
1K1%/4
1K1%/4
R137
R137
316R1%/4
316R1%/4
+VPP25_C23
C122 22u6.3X/8C122 22u6.3X/8
+VPP25_C23
C121 22u6.3X/8C121 22u6.3X/8
C117
C117
0.22u6.3X/4
0.22u6.3X/4
VPP_PHASE2
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
C80
C80
C78
10u6.3X/6
10u6.3X/6
MS-7A21
MS-7A21
MS-7A21
C78
10u6.3X/6
10u6.3X/6
1
C77
C77
10u6.3X/6
10u6.3X/6
Sheet of
Sheet of
Sheet of
C108
C108
10u6.3X/6
10u6.3X/6
C83
C83
X_C2200p16/4
X_C2200p16/4
R128
R128
X_2.2R1%/8
X_2.2R1%/8
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
DDR Power-VPP25
DDR Power-VPP25
DDR Power-VPP25
C79
C79
10u6.3X/6
10u6.3X/6
63 77
63 77
63 77
10
10
10
5VDIMM_01
5VDIMM_23
B B
A A
R426
R426
X_100K/4
X_100K/4
5VDIMM_23
R427 100K/4R427 100K/4
5VDIMM_VPP2
L4 30L3A-15_0805-RHL4 30L3A-15_0805-RH
L5 30L3A-15_0805-RHL5 30L3A-15_0805-RH
C964 C1u10X/4C964 C1u10X/4
SLP_S4#(17,31,45,56,58,64,65)
R1147 100K/4R1147 100K/4
R1148
R1148
X_100K/4
X_100K/4
5
C1073
C1073
1u16X4
1u16X4
ATX_5VSB
R1137
R1137
47K/4
47K/4
D
D
G
G
S
S
C967
C967
1u16X4
1u16X4
22u6.3X/8
22u6.3X/8
G2
D1
G1
Q153
Q153
2N7002
2N7002
C109
C109
Q134
Q134
NN-2N7002D
NN-2N7002D
G
G
R1263
R1263
X_0R/4
X_0R/4
5VDIMM_VPP2
C114
C114
22u6.3X/8
22u6.3X/8
ENABLE HIGH:2V
D2
S2
S1
D
D
Q137
Q137
S
S
2N7002
2N7002
C115
C115
22u6.3X/8
22u6.3X/8
5VDIMM_23
R1144
R1144
X_0R/4
X_0R/4
C110
C110
0.1u16X/4
0.1u16X/4
R1143
R1143
2.2K/4
2.2K/4
VPP2_EN
R1139
R1139
3.3K1%4
3.3K1%4
5VDIMM_VPP2
R134
R134
10K/4
10K/4
2145_MODE2
R139
R139
X_10K/4
X_10K/4
ENABLE HIGH:1.6V
C963
C963
0.1u16X/4
0.1u16X/4
4
C125
C125
0.1u16X/4
0.1u16X/4
VR_DDR_EN2(65)
+VPP25_C23
5VDIMM_VPP2
VPP2_EN
2145_MODE2
C124 X_0.1u16X/4C124 X_0.1u16X/4
U21
U21
8
VIN-1
13
VIN-2
5
EN
7
PG
MODE/VCON6FB
4
Ramp
MP2145GD_QFN12-RH
MP2145GD_QFN12-RH
3
SW-1
SW-2
OUT
GND
VPP_PHASE2
1
9
2
+VPP25_C23
VPP25_FB2
3
12
1 2
R136 0R/4R136 0R/4
CHOKE1
CHOKE1
CH-0.47u7A16mS-RH
CH-0.47u7A16mS-RH
VPP25_FB2_R (58)
Page 64
5
DDR Power1-PV3201-2-Phase
DDR4_1.2V 11A , OC margin = 44A
OCP:66A for 2Phase
D D
DDR01_VDD33D
DDR01_VDD33A
DDR01_VCORE
3VSB
R1188 0R/6R1188 0R/6
3VSB
3VSB
R1195 1R/6R1195 1R/6
DDR01_VCORE
R1227 X_0R/4R1227 X_0R/4
R1226 X_0R/4R1226 X_0R/4
R1206 0R/4R1206 0R/4
R1208 0R/4R1208 0R/4
R1205 10K/4R1205 10K/4
R1210 0R/4R1210 0R/4
R1220 1K/4R1220 1K/4
R1225 121KR1%/4R1225 121KR1%/4
R1230 X_10K/4R1230 X_10K/4
3VSB
Internal LDO 1.8V
PV Address: 0X20
SMB Address: 0X40
SMBCLK_VCC(10,17,23,24,50,58,59,65,66,68,70)
SMBDATA_VCC(10,17,23,24,50,58,59,65,66,68,70)
VR_DDR_EN1(63)
C C
VCC_DDR_PG_01(3)
VCC_DDR_PG_01
Close to DDR PHASE1 Q103
DDR01_VCORE
DDR01_VDD33D
DDR01_VDD33A
DDR01_VCORE
DDR01_ADDR2
DDR01_ADDR1
DDR01_CLK
DDR01_DATA
DDRVR01_HOT#
VR_DDR01_EN1_R
VCC_DDR_PG_01
DDR01_TSENP2
DDR01_TSENN2
TP107TP107
TP108TP108
C1027 0.1u16X/4C1027 0.1u16X/4
C1031 0.1u16X/4C1031 0.1u16X/4
4
C1030 X_0.22u6.3X/4C1030 X_0.22u6.3X/4
C1025 0.22u6.3X/4C1025 0.22u6.3X/4
C1026 0.01u16X/4C1026 0.01u16X/4
U110
U110
30
VDD33D
28
VDD33A
31
VCORE
17
ADDR2
16
ADDR1
2
SCL
3
SDA
4
SALRT
5
CTRL
6
SYSG
7
PG
18
CONFIG
14
VSET
15
TSENP
19
TSENN
8
SYNC
PV3203Q
PV3203Q
DSS1VTRACK
13
DGND32AGND-1
3
Iin ripple = 5.082A
CHOKE14
CHOKE14
CH-0.47u22A2.2mS-HF
CH-0.47u22A2.2mS-HF
1 2
C390
C390
0.1u10X/4
0.1u10X/4
27
12
10
11
23
22
9
21
20
26
24
25
R1189 10K/4R1189 10K/4
R1196 1K/4R1196 1K/4
C1028 0.1u16X/4C1028 0.1u16X/4
TP110TP110
TP109TP109
DDR01_PWM1
DDR01_ISEN1P
DDR01_ISEN1N
DDR01_PWM2
DDR01_ISEN2P
DDR01_ISEN2N
DDR01_VSENP
DDR01_VSENN
DDR01_VCOMP
VINSEN <1.6V
VINSEN
DMD1
DMD2
PWM1
ISEN1P
ISEN1N
PWM2
ISEN2P
ISEN2N
VSENP
VSENN
VCOMP
AGND-2
29
33
EC31
EC31
+
+
12
470u6.3SMD
470u6.3SMD
5VDIMM_01
Place Close to Pins
DDR01_ISEN1P_R
R1211 1K/4R1211 1K/4
C1037 0.22u6.3X/4C1037 0.22u6.3X/4
DDR01_ISEN1N_R
R1212 1K/4R1212 1K/4
Place Close to Pins
DDR01_ISEN2P_R
R1217 1K/4R1217 1K/4
C1040 0.22u6.3X/4C1040 0.22u6.3X/4
DDR01_ISEN2N_R
R1221 1K/4R1221 1K/4
C1029 0.01u16X/4C1029 0.01u16X/4
R1203 0R/4R1203 0R/4 CP3 X_COPPERCP3 X_COPPER
C1033 100p50N/4C1033 100p50N/4
5VDIMM_IN1
EC32
EC32
+
+
12
470u6.3SMD
470u6.3SMD
CP4 X_COPPERCP4 X_COPPER
close to DIMM side
C379
C379
5VDIMM_IN15VDIMM_01
DDR01_UG1 DDR01_UG1_R
0.1u10X/4
0.1u10X/4
VCC_DDR_01
DDR01_UG2_R
C375
C375
10u16X/8
10u16X/8
R1191 0R/6R1191 0R/6
C378
C378
1u16X/6
1u16X/6
Q147
Q147
1
G1
5VDIMM_IN1
2
R1199 10K/4R1199 10K/4
Q43
Q43
1
G1
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
DDR01_PH2
9
SW
9
SW
DDR01_ISEN1P_R
DDR01_ISEN1N_R
G2
S2_3
S2_2
S2_1
DDR01_UG1_R
8
7
6
5
DDR01_PH1
DDR01_LG1
R1213 412R1%/4R1213 412R1%/4
R1214 0R/4R1214 0R/4
Q142
Q142
1
G1
1
L14
R1185
R1185
X_2.2R/8
X_2.2R/8
C1016
C1016
X_1000P50X/4
X_1000P50X/4
DDR01_PH1
9
SW
L14
1 2
CH-0.22u40A2.4mS-RH
CH-0.22u40A2.4mS-RH
VCC_DDR_01
DDR01_LG2
8
5VDIMM_IN1
C377
C377
1u16X/6
1u16X/6
2
G2
7
S2_3
6
S2_2
5
S2_1
R1219 10K/4R1219 10K/4
Q51
Q51
1
G1
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
5VDIMM_IN15VDIMM_IN1
C1022
C1022
10u16X/8
10u16X/8
DDR01_ISEN2P_R
DDR01_ISEN2N_R
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
DDR01_PH2
DDR01_LG2
8
G2
7
S2_3
6
S2_2
5
S2_1
R1231 412R1%/4R1231 412R1%/4
R1232 0R/4R1232 0R/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
DDR Power1-PV3203-2-Phase
DDR Power1-PV3203-2-Phase
DDR Power1-PV3203-2-Phase
MSI
MSI
MSI
C1021
C1021
1u16X/6
1u16X/6
9
SW
TP105TP105
R331
R331
200R/4
200R/4
TP111TP111
C1034 0.1u25X6C1034 0.1u25X6
DDR01_BOOT1_R
5VDIMM_01
C1018 0.1u25X6C1018 0.1u25X6
DDR01_BOOT2_R
5VDIMM_01
R308
R308
200R/4
200R/4
4
DDR01_PH1
R1204 2.2R/8R1204 2.2R/8
R1198 0R/6R1198 0R/6
C1017 0.1u16X/4C1017 0.1u16X/4
C1020 X_10u6.3X/6C1020 X_10u6.3X/6
DDR01_PH2
R11862.2R/8 R11862.2R/8
R1183 0R/6R1183 0R/6
C1023 0.1u16X/4C1023 0.1u16X/4
C1024 X_10u6.3X/6C1024 X_10u6.3X/6
U109
U109
DDR01_BOOT1 DDR01_UG1
DDR01_PWM1
Output Disable
UP1959_VCC0
DDR01_BOOT2 DDR01_UG2
Output Disable
UP1959_VCC1
VCC_DDR_01
EC27 560u6.3SO+EC27 560u6.3SO
12
+
1
B00T
2
PWM
3
OD#
4
VCC
U108
U108
1
B00T
2
PWM
3
OD#
4
VCC
EC30 C330u4SO+EC30 C330u4SO
EC33 C330u4SO+EC33 C330u4SO
+
12
+
12
GND
9
GND
9
UGATE
PHASE
GND
LGATE
UP1959
UP1959
UGATE
PHASE
GND
LGATE
UP1959
UP1959
EC23 470u6.3SMD+EC23 470u6.3SMD
+
12
8
DDR01_PH1
7
6
DDR01_LG1
5
8
DDR01_PH2DDR01_PWM2
7
6
DDR01_LG2
5
EC24 470u6.3SMD+EC24 470u6.3SMD
EC54 C330u4SO+EC54 C330u4SO
+
12
+
12
3
VCC_DDR_01
C365 22u6.3X/8C365 22u6.3X/8
2
D1
NN-FDMS3660S_POWER56-8-HF
C1032
C1032
C1036
C1036
10u16X/8
10u16X/8
1u16X/6
1u16X/6
DDR01_UG2 DDR01_UG2_R
C364 22u6.3X/8C364 22u6.3X/8
C366 22u6.3X/8C366 22u6.3X/8
C1043 22u6.3X/8C1043 22u6.3X/8
NN-FDMS3660S_POWER56-8-HF
R1215 0R/6R1215 0R/6
C376
C376
10u16X/8
10u16X/8
Q41
2N3904
2N3904
B B
C394 X_0.1u16X/4C394 X_0.1u16X/4
A A
C1044
C1044
B
100p50N/4
100p50N/4
DDR01_TSENN2
ATX_5VSB +VPP25_C01
R416
R416
47K/4
47K/4
Q55
Q55
NN-2N7002D
NN-2N7002D
G2
D1
SLP_S4#(17,31,45,56,58,63,65)
G1
ATX_5VSB
D
D
G
SLP_S4#(17,31,45,56,58,63,65)
G
S
S
5
DDR01_TSENP2
CE
Q41
R379
R379
330R/4
330R/4
AC
LED11
LED11
LED04-R-30mA
LED04-R-30mA
DDRVR01_HOT#
R415
R415
47K/4
47K/4
VCC_DDR_01
R311
R311
200R/4
200R/4
D
D
Q32
Q32
G
G
N-P8503BMG
N-P8503BMG
S
S
VR_DDR01_EN1_R
R314
R314
R320
R320
200R/4
200R/4
200R/4
200R/4
R329
R329
200R/4
200R/4
D2
S2
S1
R306
R306
47K/4
47K/4
Q34
Q34
2N7002
2N7002
G2
S2_3
S2_2
S2_1
R409
R409
X_2.2R/8
X_2.2R/8
C397
C397
X_1000P50X/4
X_1000P50X/4
1
DDR01_LG1
8
7
6
5
L15
L15
CH-0.22u40A2.4mS-RH
CH-0.22u40A2.4mS-RH
1 2
64 77
64 77
64 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 65
5
DDR3_1.2V 2.6A+6A+1.2A=9.8A
OCP:22A for 2Phase
2.6A FOR CPU
6A FOR 4DIMM
1.2A FOR DDR VTT
3VSB
R570 0R/6R570 0R/6
R571 1R/6R571 1R/6
DDR23_VCORE
R1272 X_0R/4R1272 X_0R/4
R1275 X_0R/4R1275 X_0R/4
R1286 0R/4R1286 0R/4
R1287 0R/4R1287 0R/4
R574 10K/4R574 10K/4
R1289 0R/6R1289 0R/6
R1285 1K/4R1285 1K/4
R1266 110KR1%/4R1266 110KR1%/4
R1280 X_10K/4R1280 X_10K/4
3VSB
Q71
Q71
NN-2N7002D
NN-2N7002D
G2
D1
G1
S1
DDR23_VCORE
AC
D D
Internal LDO 1.8V
PV Address: 0X20
SMB Address: 0X40
SMBCLK_VCC(10,17,23,24,50,58,59,64,66,68,70)
SMBDATA_VCC(10,17,23,24,50,58,59,64,66,68,70)
3VSB
DDR23_TSENP2
C1079
C1079
100p50N/4
100p50N/4
DDR23_TSENN2
SLP_S4#(17,31,45,56,58,63,64)
VR_DDR_EN2
3VSB
ATX_5VSB
R578
R578
47K/4
47K/4
VR_DDR_EN2(63)
CE
B
VCC_DDR_PG_23
C536 X_0.1u16X/4C536 X_0.1u16X/4
VCC_DDR_PG_23(3)
Close to DDR PHASE1 Q103
C C
Q58
Q58
2N3904
2N3904
B B
DDR23_VDD33D
DDR23_VDD33A
DDR23_VCORE
DDR23_ADDR2
DDR23_ADDR1
DDR23_CLK
DDR23_DATA
DDRVR23_HOT#
VR_DDR23_EN2_R
VCC_DDR_PG_23
DDR23_TSENP2
DDR23_TSENN2
R576
R576
330R/4
330R/4
LED13
LED13
LED04-R-30mA
LED04-R-30mA
DDRVR23_HOT#
D2
S2
DDR23_VDD33D
DDR23_VDD33A
DDR23_VCORE
TP117TP117
TP116TP116
+VPP25_C23
R579
R579
47K/4
47K/4
VR_DDR23_EN2_R
C1080 0.1u16X/4C1080 0.1u16X/4
C1081 0.1u16X/4C1081 0.1u16X/4
4
C1083 X_0.22u6.3X/4C1083 X_0.22u6.3X/4
C1084 0.22u6.3X/4C1084 0.22u6.3X/4
C1082 0.01u16X/4C1082 0.01u16X/4
U119
U119
30
VDD33D
28
VDD33A
31
VCORE
17
ADDR2
16
ADDR1
2
SCL
3
SDA
4
SALRT
5
CTRL
6
SYSG
7
PG
18
CONFIG
14
VSET
15
TSENP
19
TSENN
8
SYNC
PV3203Q
PV3203Q
TP115TP115
DSS1VTRACK
13
TP113TP113
DDR23_BOOT1_R
DDR23_BOOT2_R
DGND32AGND-1
29
33
C1062 0.1u25X6C1062 0.1u25X6
5VDIMM_23
C1067 0.1u25X6C1067 0.1u25X6
5VDIMM_23
5VDIMM_23
VINSEN <1.6V
VINSEN
DMD1
DMD2
PWM1
ISEN1P
ISEN1N
PWM2
ISEN2P
ISEN2N
VSENP
VSENN
VCOMP
AGND-2
DDR23_PH1
R1245 2.2R/8R1245 2.2R/8
R1256 0R/6R1256 0R/6
C1050 0.1u16X/4C1050 0.1u16X/4
C1048 X_10u6.3X/6C1048 X_10u6.3X/6
DDR23_PH2
R1278 0R/6R1278 0R/6
C1076 0.1u16X/4C1076 0.1u16X/4
C1078 X_10u6.3X/6C1078 X_10u6.3X/6
3
Iin ripple = 5.082A
CHOKE16
CHOKE16
CH-0.47u22A2.2mS-HF
CH-0.47u22A2.2mS-HF
1 2
C509
C509
0.1u10X/4
0.1u10X/4
R1277 10K/4R1277 10K/4
R1273 1K/4R1273 1K/4
C1074 0.1u16X/4C1074 0.1u16X/4
27
12
TP112TP112
10
TP114TP114
DDR23_PWM1
11
DDR23_ISEN1P
23
DDR23_ISEN1N
22
DDR23_PWM2
9
DDR23_ISEN2P
21
DDR23_ISEN2N
20
DDR23_VSENP
26
DDR23_VSENN
24
DDR23_VCOMP
25
DDR23_BOOT1 DDR23_UG1
DDR23_PWM1
Output Disable
UP1959_VCC2
DDR23_BOOT2 DDR23_UG2
R12652.2R/8 R12652.2R/8
Output Disable
UP1959_VCC3
+
+
12
EC37
EC37
470u6.3SMD
470u6.3SMD
5VDIMM_23
Place Close to Pins
DDR23_ISEN1P_R
R1267 1K/4R1267 1K/4
C1070 0.22u6.3X/4C1070 0.22u6.3X/4
DDR23_ISEN1N_R
R1268 1K/4R1268 1K/4
Place Close to Pins
DDR23_ISEN2P_R
R1269 1K/4R1269 1K/4
C1071 0.22u6.3X/4C1071 0.22u6.3X/4
DDR23_ISEN2N_R
R1270 1K/4R1270 1K/4
C1077 0.01u16X/4C1077 0.01u16X/4
R1271 0R/4R1271 0R/4
C1075 100p50N/4C1075 100p50N/4
U111
U111
1
B00T
2
PWM
3
OD#
4
VCC
GND
9
U118
U118
1
B00T
2
PWM
3
OD#
4
VCC
GND
9
CP2 X_COPPERCP2 X_COPPER
CP1 X_COPPERCP1 X_COPPER
close to DIMM side
UGATE
PHASE
GND
LGATE
UP1959
UP1959
UGATE
PHASE
GND
LGATE
UP1959
UP1959
5VDIMM_IN2
+
+
12
EC38
EC38
470u6.3SMD
470u6.3SMD
8
7
6
5
8
7
6
5
DDR23_PH1
DDR23_LG1
DDR23_PH2DDR23_PWM2
DDR23_LG2
Imax: 20.75A
5VDIMM_IN2
DDR23_UG1 DDR23_UG1_R
C502
C502
0.1u10X/4
0.1u10X/4
VCC_DDR_23
5VDIMM_IN2
DDR23_UG2 DDR23_UG2_R
DDR23_UG1_R
C1053
C1053
10u16X/8
10u16X/8
R1262 0R/6R1262 0R/6
5VDIMM_IN2
C471
C471
10u16X/8
10u16X/8
Q150
Q150
1
G1
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
C1054
C1054
1u16X/6
1u16X/6
R503 0R/6R503 0R/6
5VDIMM_IN2
C486
C486
10u16X/8
10u16X/8
2
R1261 10K/4R1261 10K/4
C468
C468
1u16X/6
1u16X/6
9
SW
R499 10K/4R499 10K/4
C501
C501
1u16X/6
1u16X/6
Q61
Q61
1
G1
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
DDR23_ISEN1P_R
DDR23_ISEN1N_R
DDR23_PH1
DDR23_LG1
8
G2
7
S2_3
6
S2_2
5
S2_1
Q62
Q62
1
G1
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
9
SW
S2_3
S2_2
S2_1
DDR23_UG2_R
5VDIMM_IN2
C1052
C1052
10u16X/8
10u16X/8
9
SW
DDR23_LG1
8
G2
7
6
5
R1239 412R1%/4R1239 412R1%/4
R1235 0R/4R1235 0R/4
1
2
C1056
C1056
1u16X/6
1u16X/6
DDR23_PH2
DDR23_LG2
8
G2
7
S2_3
6
S2_2
5
S2_1
CH-0.22u40A2.4mS-RH
DDR23_PH1
Q151
Q151
G1
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
CH-0.22u40A2.4mS-RH
R467
R467
X_2.2R/8
X_2.2R/8
C470
C470
X_1000P50X/4
X_1000P50X/4
DDR23_PH2
9
SW
S2_3
S2_2
S2_1
R466
R466
X_2.2R/8
X_2.2R/8
C469
C469
X_1000P50X/4
X_1000P50X/4
1
Iout ripple = 9A
L17
L17
1 2
DDR23_LG2
8
G2
7
6
5
L16
L16
CH-0.22u40A2.4mS-RH
CH-0.22u40A2.4mS-RH
1 2
VCC_DDR_23
VCC_DDR_23
DDR VTT Power
ATX_5VSB
A A
SLP_S4#(17,31,45,56,58,63,64)
5
R266
R266
47K/4
47K/4
D
D
G
G
S
S
Q29
Q29
2N7002
2N7002
D
D
G
G
S
S
R247
R247
100R/4
100R/4
Q28
Q28
N-P8503BMG
N-P8503BMG
R252
R252
100R/4
100R/4
R254
R254
100R/4
100R/4
R257
R257
100R/4
100R/4
R245
R245
100R/4
100R/4
R244
R244
100R/4
100R/4
4
If VTT need supported in S3 , VCC5 change to 5VDIMM.
VCC_DDR_23
C187
C187
0.1u10X/4
0.1u10X/4
C230
C230
0.1u10X/4
0.1u10X/4
0.3*4=1.2A
C241
C241
0.1u10X/4
0.1u10X/4
C405
C405
0.1u10X/4
0.1u10X/4
3
C407
C407
22u6.3X/8
22u6.3X/8
C188
C188
1u6.3X/4
1u6.3X/4
C214
C214
X_10u6.3X/6
X_10u6.3X/6
C176
C176
X_10u6.3X/6
X_10u6.3X/6
VCC_DDR_23
EC36 560u6.3SO+EC36 560u6.3SO
12
+
EC34 560u6.3SO+EC34 560u6.3SO
12
+
2
DDR23_ISEN2P_R
DDR23_ISEN2N_R
EC35 560u6.3SO+EC35 560u6.3SO
+
12
12
+
R1237 412R1%/4R1237 412R1%/4
R1236 0R/4R1236 0R/4
EC22 470u6.3SMD+EC22 470u6.3SMD
EC25 470u6.3SMD+EC25 470u6.3SMD
+
12
MSI
MSI
MSI
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
DDR Power2-PV3203-2-Phase
DDR Power2-PV3203-2-Phase
DDR Power2-PV3203-2-Phase
1
Sheet of
Sheet of
Sheet of
65 77
65 77
65 77
10
10
10
Page 66
5
PCH Core 6.504A
PCH Power:1.05V
D D
Internal LDO 1.8V
PV Address: 0X22
SMB Address: 0X44
SMBCLK_VCC(10,17,23,24,50,58,59,64,65,68,70)
SMBDATA_VCC(10,17,23,24,50,58,59,64,65,68,70)
VCC3
PCH_1P05
VCC3
R657 0R/6R657 0R/6
R656 1R/6R656 1R/6
R616 X_0R/4R616 X_0R/4
R609 X_10K/4R609 X_10K/4
R634 0R/4R634 0R/4
R620 0R/4R620 0R/4
R617 10K/4R617 10K/4
R613 1K/4R613 1K/4
R615 147K/1%R615 147K/1%
R608 X_10K/4R608 X_10K/4
PCH_VCORE
PCH_VCORE
PCH_VDD33D
PCH_VDD33A
PCH_VCORE
PCH_VDD33D
PCH_VDD33A
PCH_VCORE
PCH_ADDR2
PCH_ADDR1
PCH_CLK
PCH_DATA
1P05_ENABLE
PCH_VCC_PG
PCH_TSENP2
PCH_TSENN2 PCH_VSENP
TP20TP20
TP19TP19
C586 0.1u16X/4C586 0.1u16X/4
C585 0.1u16X/4C585 0.1u16X/4
4
C594 X_0.22u6.3X/4C594 X_0.22u6.3X/4
C587 0.22u6.3X/4C587 0.22u6.3X/4
C593 0.01u16X/4C593 0.01u16X/4
U74
U74
30
VDD33D
28
VDD33A
31
VCORE
17
ADDR2
16
ADDR1
2
SCL
3
SDA
4
SALRT
5
CTRL
6
SYSG
7
PG
18
CONFIG
14
VSET
15
TSENP
19
TSENN
8
SYNC
PV3203Q
PV3203Q
DSS1VTRACK
13
DGND32AGND-1
3
R581 10K/4R581 10K/4
27
12
10
11
23
22
9
21
20
26
24
25
R655 10K/4R655 10K/4
R648 1K/4R648 1K/4
C584 0.1u16X/4C584 0.1u16X/4
TP18TP18
TP17TP17
PCH_PWM1
PCH_ISEN1P
PCH_ISEN1N
PCH_VCOMP
R631 1K/4R631 1K/4
R618 1K/4R618 1K/4
C574 100p50N/4C574 100p50N/4
VINSEN <1.6V
VINSEN
DMD1
DMD2
PWM1
ISEN1P
ISEN1N
PWM2
ISEN2P
ISEN2N
VSENP
VSENN
VCOMP
AGND-2
29
33
+12V
Place Close to Pins
PCH_ISEN1P_R
C570 0.22u6.3X/4C570 0.22u6.3X/4
PCH_ISEN1N_RPCHVR_HOT#
R644 0R/4R644 0R/4
C583
C583
0.01u16X/4
0.01u16X/4
PCH_UG1 PCH_UG1_R
R585 0R/6R585 0R/6
CHOKE17
CHOKE17
CH-0.47u22A2.2mS-HF
CH-0.47u22A2.2mS-HF
1 2
+12V
PCH_1P05
EC42 C100u16SO-HF-3+EC42 C100u16SO-HF-3
EC43 C100u16SO-HF-3+EC43 C100u16SO-HF-3
12
+
+12V_PCH
12
+
C559
C559
10u16X/8
10u16X/8
+12V_PCH
C529
C529
1u16X/6
1u16X/6
2
Q74
Q74
1
G1
2
D1
NN-FDMS3660S_POWER56-8-HF
NN-FDMS3660S_POWER56-8-HF
Iin ripple = 2.15A
9
SW
S2_3
S2_2
S2_1
G2
PCH_PH1
PCH_LG1
8
7
6
5
R612
R612
X_2.2R/8
X_2.2R/8
C556
C556
X_1000P50X/4
X_1000P50X/4
CHOKE18
CHOKE18
0.82u18A
0.82u18A
1
12
C595 1u6.3X/4C595 1u6.3X/4
Imax: 5.6A
PCH_1P05
EC46 C330u4SO+EC46 C330u4SO
EC45 C330u4SO+EC45 C330u4SO
EC44 C330u4SO+EC44 C330u4SO
+
12
+
12
+
12
ATX_5VSB
R599
R599
47K/4
C C
R607 X_0R/4R607 X_0R/4
SLP_S3#(17,31,45,56,58,67)
R605 47K/4R605 47K/4
VCC3
47K/4
S3#_1P05_EN
C545
C545
1u6.3X/4
1u6.3X/4
G2
D1
G1
Q72
Q72
NN-2N7002D
NN-2N7002D
S1
+12V
R584
R584
11KR1%4
11KR1%4
D2
S2
1P05_ENABLE
R588
R588
5.11K1%4
5.11K1%4
Waitting PCH_1P05 Ready
VCC5
PCH_PH1
R610 2.2R/8R610 2.2R/8
R600 0R/6R600 0R/6
C542 0.1u16X/4C542 0.1u16X/4
C563 0.1u25X6C563 0.1u25X6
PCH_VCC_PG
R1284
R1284
X_0R/4
X_0R/4
C1087
C1087
X_1u6.3X/4
X_1u6.3X/4
D2
S2
PCH_BOOT1_R
PCH_ENABLE
Close to PCH_1P05 Q117
B
R1295
R1295
4.7K/4
4.7K/4
C1094
C1094
1u6.3X/4
1u6.3X/4
PCH_TSENP2
C558
C558
100p50N/4
100p50N/4
PCH_TSENN2
ATX_5VSBPCH_1P05 VCC3
R1305
R1305
20K1%/4
20K1%/4
CE
Q158
Q158
B
2N3904
2N3904
SLP_S3_CTRL(59)
SLP_S3#(17,31,45,56,58,67)
5
ATX_5VSB
R1298
R1298
20K1%/4
20K1%/4
R1291
R1291
47K/4
47K/4
D
D
G
G
Q156
Q156
S
S
2N7002
2N7002
Q157
Q157
NN-2N7002D
NN-2N7002D
G2
D1
G1
S1
CE
Q75
Q75
2N3904
2N3904
B B
A A
TP14TP14
TP21TP21
U70
U70
PCH_BOOT1 PCH_UG1
PCH_PWM1
UP1959_VCC5
PCH_ENABLE (59)
4
1
2
3
4
B00T
PWM
OD#
VCC
PCH_ENABLE
VCC3
GND
9
UGATE
PHASE
LGATE
UP1959
UP1959
GND
8
7
6
5
VCC5
C707
C707
10u6.3X/6
10u6.3X/6
PCH_PH1
PCH_LG1
R799 10R/4R799 10R/4
U86
U86
1
POK
2
EN
3
VIN
5
NC
PCH_1P5_FB(58)
4
VDD
GND8GND
9
VCC3_VCC
VOUT
FB
GS7133SO
GS7133SO
3
6
7
C717 1u6.3X/4C717 1u6.3X/4
C703
C703
0.015u16X/4
0.015u16X/4
R773
R773
1K1%/4
1K1%/4
R771
R771
1.13K1%4
1.13K1%4
PCH_ISEN1P_R
PCH_ISEN1N_R
PCH: 250mA
10mV
C713
C713
22u6.3X/8
22u6.3X/8
PCH_1P5
R1299 750R1%0/4R1299 750R1%0/4
R1301 0R/4R1301 0R/4
2
PCH_ENABLE
VIH:1.4
VIL:0.4V
PCH_VCC3
VCC5PCH_VCC3VCC3
R835 0R/6R835 0R/6
U23
U23
5
4
MSI
MSI
MSI
VIN
EN
1
VOUT
3
OC#
GND
X_UP7549TMA5-15_SOT235-HF
X_UP7549TMA5-15_SOT235-HF
2
PCH_VCC3VCC3
C731
C731
0.1u10X/4
0.1u10X/4
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
C733
C733
0.1u10X/4
0.1u10X/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
PCH Power -PV3203Q-1Phase
PCH Power -PV3203Q-1Phase
PCH Power -PV3203Q-1Phase
Imax: 0.133A
R482
R482
X_47K/4
X_47K/4
放
PCH
下面
PCH_VCC3
MS-7A21
MS-7A21
MS-7A21
1
C1141
C1141
0.1u10X/4
0.1u10X/4
66 77
66 77
66 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 67
5
4
3
2
1
channel AB
D D
VCC_DDR_01
C C
C213
C213
0.22u6.3X/4
0.22u6.3X/4
VTT_DDR_01
SP2
SP2
X_COPPER
X_COPPER
VCC5
C306
C306
0.1u10X/4
0.1u10X/4
U37
U37
8
NC-3
7
NC-2
6
VCNTL
5
NC-1
NCT3102S_ESOP8-HF
NCT3102S_ESOP8-HF
1.25V/2.9A
GND-1
VREF
VOUT
GND-2
0.3*4=1.2A
VTT_DDR_01VCC_DDR_01 VCC_DDR_01
R1160
R1160
10K1%/4
C1013
C1013
10K1%/4
R1161 10K1%/4R1161 10K1%/4
C297
C297
22u6.3X/8
22u6.3X/8
C290
C290
22u6.3X/8
22u6.3X/8
1
VIN
2
DDRVTT0_VREF
3
4
9
0.1u10X/4
0.1u10X/4
VCC_DDR_23
C215
C215
0.22u6.3X/4
0.22u6.3X/4
VTT_DDR_23
channel CD
VCC5
SP1
SP1
X_COPPER
X_COPPER
C186
C186
0.1u10X/4
0.1u10X/4
To CPU Copper trace width > 250mils , Fill
island behind DIMM > 400mils .
VTT_DDR_23VCC_DDR_23 VCC_DDR_23
R222
U33
U33
8
NC-3
7
NC-2
6
VCNTL
5
NC-1
NCT3102S_ESOP8-HF
NCT3102S_ESOP8-HF
1.25V/2.9A
GND-1
VREF
VOUT
GND-2
1
VIN
2
3
4
9
R222
10K1%/4
10K1%/4
DDRVTT2_VREF
C197
C197
0.1u10X/4
0.1u10X/4
R219 10K1%/4R219 10K1%/4
C199
C199
22u6.3X/8
22u6.3X/8
C204
C204
22u6.3X/8
22u6.3X/8
B B
ATX_5VSB VCC3
R468
NN-2N7002D
NN-2N7002D
S1
4
R468
4.7K/4
4.7K/4
D2
S2
S3#_VCCIO_EN
VCC3
R491
R491
4.7K/4
4.7K/4
SLP_S3#(17,31,45,56,58,66)
C458
C458
0.1u10X/4
A A
5
0.1u10X/4
Q60
Q60
G2
D1
G1
VCC5
C455
C455
10u6.3X/6
10u6.3X/6
R472 10R/4R472 10R/4
U55
U55
1
POK
2
EN
3
VIN
5
NC
4
VDD
GND8GND
9
PROC_ID(3,31)
C461 1u6.3X/4C461 1u6.3X/4
VOUT
FB
GS7133SO
GS7133SO
3
+VCCIO_IN
6
C487
C487
0.015u16X/4
0.015u16X/4
+VCCIO_IN_FB
7
R526
R526
8.06KR1%/4
8.06KR1%/4
+VCCIO_IN_FB_D
D
D
Q64
Q64
G
G
2N7002
2N7002
S
S
R511
R511
1K1%/4
1K1%/4
R501 0R/4R501 0R/4
R512
R512
5.23KR1%/4
5.23KR1%/4
+VCCIO_IN_FB_R (58)
2
C491
C491
22u6.3X/8
22u6.3X/8
PROC_ID
0
1
MSI
MSI
MSI
+VCCIO_IN
0.95V
1.05V
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
MS-7A21
CLK GEN4105
CLK GEN4105
CLK GEN4105
1
67 77
67 77
67 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 68
5
POWER METER
OCP: 120A
ATX_5VSB
D D
C C
VRD_EN(59)
ATX_5VSB
R43
R43
47K/4
47K/4
UP6273_FLAG#_G
UP6273_FLAG#
B B
R1083
R1083
2.2R/4
2.2R/4
C883 0.1u16X/4C883 0.1u16X/4
UP6273_VCC
VCC5
R1080
R1080
X_2.2R/4
X_2.2R/4
R1079 10K/4R1079 10K/4
VRD_EN
Q11
Q11
2N7002
2N7002
Q6
Q6
NN-2N7002D
NN-2N7002D
G2
D1
G1
C875
C875
C0.01u50X04
C0.01u50X04
D
D
G
G
S
S
S1
UP6273_VCC
UP6273_FLAG#
FAULT#_VRD
D2
S2
UP6273AMT8
UP6273AMT8
U101
U101
1
VCC
3
FLAG#
2
DLY
GND
4
Iin=(Vmon*Rcsn)/(Rmon*Rdc)
Vmon=1.2
can change OCP trigger level by Rcsn and Rmon
(1.2 * 0.2 ) / ( 10K* 0.3m) = 80A
R61 0R/4R61 0R/4
PWR_FAULT# (69)
CSP
CSN
IMON
VIN
2.8KR1%/4
2.8KR1%/4
8
7
6
5
Rmon
R1060
R1060
4
UP6273_VCC12
C884
C884
1u16X/6
1u16X/6
12VIN_CSP_R
12VIN_CSN_R
6273_IMON
3
+12VIN
R1082 10R/8R1082 10R/8
R298 2.2K/4R298 2.2K/4
7802_VSEN4
7802_VSEN3
6273_IMON (58)
C873
C873
1000P50X/4
1000P50X/4
12VIN_CS_P 12VIN_CSP_R
12VIN_CS_N
R1071 6.04K1%/4R1071 6.04K1%/4
C880
C880
X_1u/16V/6
X_1u/16V/6
C879
C879
0.1u16X/4
0.1u16X/4
C876
C876
12VIN_CSP
R1066 60.4R1%/4R1066 60.4R1%/4
R1072 0R/4R1072 0R/4
7802_VSEN2
Rcsn
16
17
18
19
20
21
12VIN_CSN_R
U40
U40
FANCTL3/GPIO6
GND
VCORE
TD2-/TR3/VSEN3
TD2+/TR2/VSEN2
EP
PCH_1P05
PCH_1P5
12
14
13
15
FANIN2/GPIO3
FANIN3/GPIO5
FANCTL1/GPIO2
FANCTL2/GPIO4
TD1-/VREF1TD1+/TR1/VSEN1
VCC3VTT4PECI
2
C327 0.1u16X/4C327 0.1u16X/4
C328 1u6.3X/4C328 1u6.3X/4
7802_VSEN1
VCC3
R309 10K1%/4R309 10K1%/4
R281 10K1%/4R281 10K1%/4
SIO_SYS6_FAN
SYS6_FANTAC
SIO_SYS5_FAN
SYS5_FANTAC
11
FANIN1/GPIO1
T_CRIT#/BEEP
ALERT#/SMI#
5
TP5TP5
R307
R307
10K1%/4
10K1%/4
R282
R282
10K1%/4
10K1%/4
2
SCL
SDA
RESET#
NCT7802Y-HF
NCT7802Y-HF
7802_VSEN1
C315
C315
10u6.3X/6
10u6.3X/6
7802_VSEN4
C304
C304
10u6.3X/6
10u6.3X/6
SIO_SYS6_FAN (36)
SYS6_FANTAC (36)
SIO_SYS5_FAN (36)
SYS5_FANTAC (36)
NCT7802_SMBCLK
10
NCT7802_SMBDAT
9
8
7
6
+VREF_DDR01
+VREF_DDR23
R3170R/4 R3170R/4
SMBCLK_VCC (10,17,23,24,50,58,59,64,65,66,70)
R3160R/4 R3160R/4
SMBDATA_VCC (10,17,23,24,50,58,59,64,65,66,70)
R304 10K1%/4R304 10K1%/4
R290 10K1%/4R290 10K1%/4
1
R300
R300
X_10K1%/4
X_10K1%/4
R295
R295
X_10K1%/4
X_10K1%/4
7802_VSEN2
C313
C313
10u6.3X/6
10u6.3X/6
7802_VSEN3
C310
C310
10u6.3X/6
10u6.3X/6
0.1u16X/4
0.1u16X/4
JPWR2
JPWR2
PWRCONN4P_BLACK-RH-3
PWRCONN4P_BLACK-RH-3
2
1
A A
UPI VOLTAGE CONSOLE
12V
12V
12V
12V
GND GND
GND GND
5
0xD4:RL=10K
ADDRESS
BUS_SEL Vlotage
0xD4
MaxTyp.Min MaxTyp.Min MaxTyp.Min
90
0xD6
MaxTyp.
Min
11070
5
250170 210 450310 380 690510 600
0xD8
0xDA
+12VIN
4
MEC1
JPWR3
3
4
JPWR3
1
GNDGNDGNDGND
GNDGNDGNDGND
+12V+12V+12V+12V
+12V+12V+12V+12V
2
3
4
PWRCONN8P_BLACK-RH-2
PWRCONN8P_BLACK-RH-2
5
6
7
8
+12VIN
12VIN_CS_N
12VIN_CS_P
L3 0.4u45AL3 0.4u45A
1 2
SP5
SP5
X_Short PAD
X_Short PAD
3
12VIN
EC1
EC1
EC3
EC3
12
+
+
SP4
SP4
270u/16V
270u/16V
X_Short PAD
X_Short PAD
12
+
+
270u/16V
270u/16V
EC2
EC2
12
+
+
270u/16V
270u/16V
EC4
EC4
12
+
+
270u/16V
270u/16V
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
MS-7A21
CURRENT and VOLTAGE SENSE
CURRENT and VOLTAGE SENSE
CURRENT and VOLTAGE SENSE
1
68 77
68 77
68 77
Sheet of
Sheet of
Sheet of
10
10
10
Page 69
5
ATX POWER CONNECTOR
ATX_5VSB
VCC3
12
-12V
VCC5
C326 0.1u10X/4C326 0.1u10X/4
C339 0.1u16X/4C339 0.1u16X/4
PSON#PS_ON#
C311 X_0.1u10X/4C311 X_0.1u10X/4
C303 X_0.1u10X/4C303 X_0.1u10X/4
R301
R301
10K/4
D D
C C
10K/4
R297 0R/4R297 0R/4
D12
D12
ESD-SFI0402
ESD-SFI0402
JPWR1
JPWR1
13
3.3V
14
-12V
15
GND
16
P_ON
17
GND
18
GND
19
GND
20
-5V
21
5V
22
5V
23
5V
GND243.3V
PWRCONN24P
PWRCONN24P
+
+
12
JPWR1
25
3.3V
25
3.3V
GND
GND
GND
POK
5VSB
+12V
+12V
ATX_5VSB ATX_5VSBVCC5
EC29
EC29
560u6.3SO
560u6.3SO
5V
5V
1
2
3
4
5
6
7
8
9
10
11
12
+
+
12
EC28
EC28
100u16SO
100u16SO
C324 0.1u10X/4C324 0.1u10X/4
C305 0.1u10X/4C305 0.1u10X/4
VCC5
C288 X_0.1u10X/4C288 X_0.1u10X/4
C284 X_0.1u10X/4C284 X_0.1u10X/4
C263 0.1u16X/4C263 0.1u16X/4
VCC3
C216 0.1u10X/4C216 0.1u10X/4
R270
R270
4.7K/4
4.7K/4
R258
R258
1K/4
1K/4
VCC5
4
VCC3
VCC5
ATX_PWR_OK (31,56,58)
ATX_5VSB
+12V
R277
R277
X_1K/4
X_1K/4
FRONT PANNEL
FP_RST#_R(71)
WDT#(17,31)
FP_RST#(17)
JFP2
JFP2
H1X4M_BLACK-RH-1
H1X4M_BLACK-RH-1
3
C862 X_0.1u10X/4C862 X_0.1u10X/4
R1053 X_0R/4R1053 X_0R/4
R1044 33R/4R1044 33R/4
VCC5
1
2
3
4
FP_RST#_R
C869
C869
0.1u10X/4
0.1u10X/4
D26
D26
1N4148W
1N4148W
AC
SPK_VCC5 BUZZER_R BEEP
C823
C823
0.1u10X/4
0.1u10X/4
VCC5
IDE_LED
C858
C858
X_0.1u10X/4
X_0.1u10X/4
IDE_LED
RN18 150R/8P4RRN18 150R/8P4R
1
2
3
4
5
6
7
8
CE
R1040
R1040
330R/6
330R/6
Q113
Q113
2N3904
2N3904
B
JFP1
JFP1
1
HDD+
3
HDDRESET-5PWSW+
7
RESET+
PWSW-
9
NC
H2X5[10]M_BLACK-RH
H2X5[10]M_BLACK-RH
HDD_LED1
HDD_LED1
LED_BLUE,20mA
LED_BLUE,20mA
SPKR_R
R973 10K/4R973 10K/4
PLED
SLED
2
4
6
8
AC
PWR_LEDHDD+
SUS_LED
PSIN#_R
R1021 1K/4R1021 1K/4
2
R1038 100R/4R1038 100R/4
C859
C859
X_0.1u10X/4
X_0.1u10X/4
VCC5
CPU_BEEP(31)
SPKR (17,22)
D27
D27
SOD323-RH
SOD323-RH
PLTRST_BU1# (31,40)
PSIN#_R
SIO_3VA
R1039
R1039
4.7K/4
4.7K/4
C860
C860
X_0.1u10X/4
X_0.1u10X/4
PSIN#_R (71)
PWRBTIN (31,45)
R687
R687
4.7K/4
4.7K/4
R686 0R/4R686 0R/4
B
2N3904
2N3904
1
VCC53VSB
B
Q80
Q80
2N3904
2N3904
BUZZER_R
CE
R690
R690
10K/4
10K/4
R692 0R/4R692 0R/4
CE
Q79
Q79
Front Panel LED
SIO_3VASIO_3VA
R250
R250
47K/4
47K/4
PS_ON#
D
B B
SIO_PSON#(31,59)
504_PSON#(45)
R256
R256
X_0R/4
X_0R/4
R255 0R/4R255 0R/4
Q27
Q27
2N7002
2N7002
D
G
G
S
S
Voltage test point
VCCP
VCC_DDR_01
5
C185
C185
10u6.3X/6
10u6.3X/6
VCC_DDR_23
CPU_SA
CPU_RING
C177
C177
10u6.3X/6
10u6.3X/6
CPU_RING
CPU_CORE
C211
C211
10u6.3X/6
10u6.3X/6
R194 0R/4R194 0R/4
R197 X_0R/4R197 X_0R/4
C203
C203
10u6.3X/6
10u6.3X/6
CPU_CORE0
CPU_CORE3
A A
VCCP VCC_DDR_01 VCC_DDR_23 CPU_SA
R251
R251
1K/4
1K/4
LED9
LED9
LED04-R-30mA
LED04-R-30mA
FV1
FV1
VCCIN
1
DDR01
2
DDR23
3
SA
4
RING
5
CORE
6
GND
7
GND
8
GND
9
PWRCONN9P_BLACK-RH-2
PWRCONN9P_BLACK-RH-2
CPU_CORE
C162
C166
C166
10u6.3X/6
10u6.3X/6
C162
10u6.3X/6
10u6.3X/6
Close to JPWR1
PWR_FAULT# (68)
TPM
4
5VDIMM_01
R978
R978
330R/6
330R/6
SUS_LED
PWR_LED
R989
R989
330R/6
330R/6
5VDIMM_01
Reserve pull high to 5VDIMM if PM
don't want PLED light in deep mode.
TPM_CLK(19)
PLTRST_BU2B#(27,28,29,30,31)
LPC_AD1(17,31)
LPC_AD2(17,31)
LPC_AD3(17,31)
LPC_FRAME#(17,31)
3
Q119
Q119
6
1
3
4
NN-CMKT3904
NN-CMKT3904
TPM_CLK
PLTRST_BU2B#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
LED_VSB_R
2
LED_VCC_R
5
1 2
3 4
5
7 8
9
11 12
13 14
R982 4.7K/4R982 4.7K/4
R983 4.7K/4R983 4.7K/4
3VSB
JTPM1
JTPM1
6
H2X7[10]M-2PITCH
H2X7[10]M-2PITCH
3VSB
R977
R977
1K/4
1K/4
R979
R979
1K/4
1K/4
3VSB
SIO ver. LAA
Push pull pin, no need
to stuff resisters.
3VSB VCC3
C867
C867
0.1u10X/4
0.1u10X/4
VCC3
SERIRQ (17,31)LPC_AD0(17,31)
VCC5
LED_VSB (31)
LED_VCC (31)
C865
C865
0.1u10X/4
0.1u10X/4
2
Q127
Q127
NN-CMKT3904
MS-7A21
MS-7A21
MS-7A21
1
NN-CMKT3904
2
5
Q126
Q126
NN-CMKT3904
NN-CMKT3904
2
5
M.2_DAS(49)
SATAS_LED_N_R(18)
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
R1005 5.1K1%4R1005 5.1K1%4
VCC3 VCC3
R997
R997
8.2KR/4
8.2KR/4
R1007 10K/4R1007 10K/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
ATX F_Panel/EMI/TPM
ATX F_Panel/EMI/TPM
ATX F_Panel/EMI/TPM
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
VCC3
6
1
IDE_LED
3
4
6
1
IDE_LED
3
4
69 77
69 77
69 77
Sheet of
Sheet of
Sheet of
R990
R990
5.1K1%4
5.1K1%4
R986
R986
5.1K1%4
5.1K1%4
10
10
10
Page 70
5
VCC5
C1183
D D
C C
JT1
JT1
H1X4M_BLACK-RH-1
H1X4M_BLACK-RH-1
C1183
1u16X/4
1u16X/4
C835C658 near VDD Pin.
For FW update.
SMBCLK_VCC(10,17,23,24,50,58,59,64,65,66,68)
SMBDATA_VCC(10,17,23,24,50,58,59,64,65,66,68)
VCC5
RGB_STRIP_OFF#(72)
VCC5
1
2
LED_RST#
3
P40
4
C1182
C1182
0.1u10X/4
0.1u10X/4
R1365 0R/4R1365 0R/4
R1366 0R/4R1366 0R/4
R1368 1K/4R1368 1K/4
R1367 4.7K/4R1367 4.7K/4
RGB_STRIP_OFF#
4
VCC5
C1181 4.7u6.3X/6C1181 4.7u6.3X/6
SMBCLK_R5F
SMBDATA_R5F
AUDIO_INPUT1
AUDIO_INPUT2
P40
LED_RST#
U129
U129
12
VDD
10
REGC
11
VSS
13
P60/SCLA0
14
P61/SDAA0
1
P20/ANI0/AVREFP
30
P21/ANI1/AVREFM
5
P40/TOOL0
6
RESET#
2
P01/ANI16/TO00/RxD1
3
P00/ANI17/TI00/TxD1
4
P120/ANI19/VCOUT0
R5F104ACASP#V0-RH
R5F104ACASP#V0-RH
P31/TI03
P30/INTP3
P50/INTP1/SI00
P51/INTP2
P17/TI02/TO02
P16/TI01/TO01
P15/PCLBUZ1
P14/RxD2
P13/TxD2
P12/SO11
P11/SI11
P10/SCK11
P147/ANI18
P23/ANI3
P22/ANI2/ANO0
P121/X1
P122/X2/EXCLK
P137/INTP0
3
15
16
LEDPWR_RST#
17
LED_MOS_MOAT_SW
18
19
PWM_G
20
PWM_R
21
PWM_B
22
23
PWM_MOAT_R
24
PWM_MOS_G
25
26
27
28
29
9
8
7
R1369 47K/4R1369 47K/4
LEDPWR_RST# (72)
VCC5
LED_MOS_MOAT_SW (73)
PWM_G (72)
PWM_R (72)
PWM_B (72)
PWM_MOAT_R (73)
PWM_MOS_G (73)
RGB
2
需要用
20,21,22 PWM
1
控制
B B
AUDIO_INPUT1
AUDIO_INPUT2
VCC5
R1378
R1378
1K1%/4
1K1%/4
R1380 1K1%/4R1380 1K1%/4
C1188 0.1u16X/4C1188 0.1u16X/4
C1189 0.1u16X/4C1189 0.1u16X/4
R1381 1K1%/4R1381 1K1%/4
R1379
R1379
1K1%/4
1K1%/4
VCC5
3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
2
Friday, April 01, 2016
MS-7A21
LED STRIP CONTROL
LED STRIP CONTROL
LED STRIP CONTROL
1
70 77
70 77
70 77
Sheet of
Sheet of
Sheet of
10
10
10
Audio Line out signal reference GND,
and keep away from high frequency signal.
AUDIO_INPUT1_C(39)
AUDIO_INPUT2_C(39)
A A
5
4
AUDIO_INPUT1_C
AUDIO_INPUT2_C
Placement near MCU
C1186 1u16X/6C1186 1u16X/6
C1187 1u16X/6C1187 1u16X/6
Page 71
Clear CMOS button
5
SLOW MODE#
LED LIGHTING RULE
S0/S3/S4 : LED OFF
S5 : LED ON
SLP_S5#
ATX_5VSB
R131
R131
10K/4
10K/4
Q14
Q14
D
D
G
G
S
S
2N7002
2N7002
C118
C118
X_0.1u16X/4
X_0.1u16X/4
CLR_CMOS1
CLR_CMOS1
1
1
3
3
5
5
+-
+-
MEC1
MEC1
MEC2
MEC2
ALL_LED_OFF#(31,40)
2
2
4
4
CCMOS_LED_RCCMOS_LED
6
6
SW-TACTB1_BLACK
SW-TACTB1_BLACK
RTCRST#_D (22,31)
Q13
Q13
D
D
G
G
S
S
2N7002
2N7002
D D
MEC1MEC2
SLOW_1
SLOW_1
A
B
C
SW-DIP_BLACK-RH
SW-DIP_BLACK-RH
JSLOW_1
JSLOW_1
H1X2M_BLACK-RH
H1X2M_BLACK-RH
+/- BCLK_RATIO Frequebcy
Low Active
C C
VCC5
MEC1
SW-TACT1
R210
R210
1K/8
1K/8
B B
SW-TACT1
1
1
3
3
L1
L1
MEC1
+-
+-
SW-TACTB1-RH-8
SW-TACTB1-RH-8
R217 1K/4R217 1K/4 R220 1K/4R220 1K/4
2
2
4
4
L2
L2
0A to 10.
BCLK_SEL
PCH_BLK-(19)
BCLK_SEL
R216
R216
100K/4
100K/4
RATIO_BLK+RATIO+_BLK+
POWER_LED
BLKOC_SEL1
BLKOC_SEL1
MEC1MEC2
BCLK_SEL
A
R146 10K/4R146 10K/4
B
RATIO_SEL
C
SW-DIP_BLACK-RH
SW-DIP_BLACK-RH
Q23
Q23
G2
D1
G1
C189
C189
0.1u10X/4
0.1u10X/4
NN-2N7002D
NN-2N7002D
S1
D2
RATIO_BLK+
S2
RATIO_BLK-
VCC5
R218
R218
1K/8
1K/8
+12V
PCH_BLK+ (19)
4
VCC3
R144
R144
4.7K/4
SLOW_MODE#
4.7K/4
SLOW_MODE# (3,31)
12
D3
D3
ESD-SFI0402
ESD-SFI0402
B Slow Mode
SLOW_MODE#
1
2
12
D35
D35
ESD-SFI0402
ESD-SFI0402
RATIO-_BLK- RATIO_BLK-
MEC1
SW-TACT2
SW-TACT2
1
3
L1
ALL_LED_OFF#
1
3
L1
+-
+-
SW-TACTB1-RH-9
SW-TACTB1-RH-9
2
MEC1
4
L2
2
4
L2
X_47K/4
X_47K/4
R169
R169
POWER_LED
3VSBSIO_3VA
R175
R175
47K/4
47K/4
OC Retry Botton
OC_RETRY(18)
OC Fail Setting Botton
0A to 10
FAST_BOOT(31)
Low Active
C196
C196
0.1u10X/4
0.1u10X/4
D
D
G
G
Q21
Q21
S
S
2N7002
2N7002
OC_RETRY
SW-TACTB1_BLACK-RH-6
SW-TACTB1_BLACK-RH-6
FAST_BOOT
SW-TACTB1_BLACK-RH-6
SW-TACTB1_BLACK-RH-6
OC Botton
3
PWR/RST Botton
OC_RT1
OC_RT1
1 3
13
13
2 4
24
24
PSIN#_R(69)
ATX_5VSB
FP_RST#_R(69)
OC_FS1
OC_FS1
1 3
13
13
2 4
24
24
VCC5
Discharge Botton
ATX_5VSB
R327
R327
300R/8
300R/8
G
SLP_S5#(17)
G
0A to 10 not use.
D
D
S
S
DIS_CHARGE
R342 1K/4R342 1K/4
ATX_5VSB
DIS_LED
C337
C337
Q37
Q37
X_0.1u16X/4
X_0.1u16X/4
2N7002
2N7002
ALL_LED_OFF#
OC1A
OC1A
2
5
8
1
2
3
4
5
6
8
7
RED
RED
+-
+-
SW-ROTATIVE18P_BLACK-RH
SW-ROTATIVE18P_BLACK-RH
R179 300R/8R179 300R/8
FP_RST#_RFP_RST#_R
R191 300R/8R191 300R/8
SW-TACTB1_BLACK-RH-4
SW-TACTB1_BLACK-RH-4
1
3
4
6
7
DISCH1
DISCH1
1
3
L1
POWER1
POWER1
1
1
3
3
L1
L1
+-
+-
RESET1
RESET1
1
1
3
3
L1
L1
+-
+-
1
3
L1
+-
+-
MEC1
MEC1
2
4
L2
MEC1
SW-TACTB1-RH-22
SW-TACTB1-RH-22
MEC1
2
4
L2
MEC1
SW-TACTB1-RH-20
SW-TACTB1-RH-20
MEC1
2
2
4
4
L2
L2
2
4
POWER_LED
L2
2
4
POWER_LED
L2
DIS_CHARGE
D
D
G
G
Q36
Q36
S
S
2N7002
2N7002
2
PSIN#_RPSIN#_RPSIN#_RPSIN#_R
FP_RST#_RFP_RST#_R
D15D15
1 2
Update~ 2013.12.25
DIS_CHARGE
R1138
R1138
100K/4
100K/4
Turbo_LED_OFF#(31)
R38 2.2K/4R38 2.2K/4
C30
C30
0.1u10X/4
0.1u10X/4
DIS_VBAT_ON
R39 1K/4R39 1K/4
C20
C20
0.1u10X/4
0.1u10X/4
R1135
R1135
0R/4
0R/4
R1142 0R/4R1142 0R/4
C966
C966
X_1u6.3X/4
X_1u6.3X/4
R132 0R/4R132 0R/4
C123
C123
X_1u6.3X/4
X_1u6.3X/4
blue change to Red
3VSB
H/W Mode BIOS Mode
R147
R147
10K/4
10K/4
Turbo_LED_OFF#
1
VBAT_WELL
VBAT
R15
R15
5.6K/1%
D
D
G
G
S
S
G
D S
5.6K/1%
Q5
Q5
2N7002
2N7002
have timming issue keep
0805 size don't removed
Q1
Q1
P-NTR2101PT1G
P-NTR2101PT1G
rds on: 52mOhm
3VA
Z
Y
D36
D36
S-BAT54C_SOT23
S-BAT54C_SOT23
R3
X_0R/4R3X_0R/4
X
C11
C11
10u6.3X8
10u6.3X8
3VA_OFF# (58)
D
D
G
G
Q136
Q136
S
S
2N7002
2N7002
SYS3VSB_OFF# (58)
D
D
G
G
Q16
Q16
S
S
2N7002
2N7002
SIO_5VSB_OFF# (31)
D
D
Q133
Q133
G
G
2N7002
2N7002
S
S
3VSB 3VSB
R152
R152
300R/8
300R/8
LED4
LED4
LED04-R-30mA
LED04-R-30mA
Q18
Q18
G2
D1
G1
NN-2N7002D
NN-2N7002D
S1
D2
S2
VBAT
VBAT_WELL
R148
R148
300R/8
300R/8
LED3
LED3
LED04-WHI-20m
LED04-WHI-20m
Q22
R215
R215
Q22
G2
D1
G1
NN-2N7002D
NN-2N7002D
S1
D2
RATIO_BLK+
S2
RATIO_BLK-
PCH_RATIO+ (19)
C1
OC1B
OC1B
OC_GPIO08(47)
OC_GPIO07(47)
OC_GPIO06(47)
OC_GPIO05(47)
4
R186 0R/4R186 0R/4
R190 0R/4R190 0R/4
R187 0R/4R187 0R/4
R183 0R/4R183 0R/4
OC_GPIO08_R
OC_GPIO07_R
OC_GPIO06_R
OC_GPIO05_R
7
R8
6
R7
5
R6
R5
3
SW-ROTATIVE18P_BLACK-RH
SW-ROTATIVE18P_BLACK-RH
C
C
C-1
R8
R7
C
C
R6
R5
MEC1
0
OC_GPIO01_R
R1
R1
1
OC_GPIO02_R
R2
R2
2
OC_GPIO03_R
R3
R3
34
OC_GPIO04_R
R4
R4
MEC1
R168 0R/4R168 0R/4
R171 0R/4R171 0R/4
R173 0R/4R173 0R/4
R177 0R/4R177 0R/4
2
OC_GPIO01 (47)
OC_GPIO02 (47)
OC_GPIO03 (47)
OC_GPIO04 (47)
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7A21
MS-7A21
BOTTON
BOTTON
BOTTON
MS-7A21
1
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
71 77
71 77
71 77
Sheet of
Sheet of
Sheet of
10
10
10
RATIO_SEL
PCH_RATIO-(19)
A A
5
RATIO_SEL
100K/4
100K/4
Page 72
DEBUG LED
VCC3
5
VCC5
4
3
2
1
R229
R229
1K/4
1K/4
D D
R785
R785
10K/4
10K/4
GPIO
LED
C C
PCH_GP20 PCH_GP22 PCH_GP34
亮
NATIVE
PULL HIGH
GPI
PULL LOW
DEBUG_CPU
D
D
G
G
S
S
CPU
LED5
LED5
LED04-R-30mA
LED04-R-30mA
Q85
Q85
2N7002
2N7002
PCH_GP22_DDRAM(18)PCH_GP20_DCPU(19) PCH_GP34_DEVICE(19)PCH_GP23_DVGA(17)
PCH_GP23
NATIVE
PULL LOW
GPI
PULL LOW
3VSB VCC5 VCC5
R849
R849
47K/4
47K/4
PCH_GP22_DDRAM
G2
D1
G1
Q89
Q89
NN-2N7002D
NN-2N7002D
S1
D2
S2
DEBUG_DRAM
R232
R232
1K/4
1K/4
DRAM VGA
LED6
LED6
LED04-R-30mA
LED04-R-30mA
PCH_GP23_DVGAPCH_GP20_DCPU
R848
R848
47K/4
47K/4
G2
D1
G1
Q88
Q88
NN-2N7002D
NN-2N7002D
S1
D2
S2
關機斷電狀態下，4個LED先維持default全暗，開機通電後：
1. 首先進行CPU checkCPU LED 亮，check PASS後則CPU LED滅掉。
2. 接著依序進行Memory /memory LED亮check PASS後則memory LED滅掉。
DEBUG_VGA
R241
R241
1K/4
1K/4
LED7
LED7
LED04-R-30mA
LED04-R-30mA
R893
R893
10K/4
10K/4
PCH_GP34_DEVICE
R921
R921
47K/4
47K/4
G2
D1
G1
Q103
Q103
NN-2N7002D
NN-2N7002D
S1
DEBUG_DEVICE
D2
S2
VCC5VCC3 VCC5VCC5
R248
R248
1K/4
1K/4
DEVICE
LED8
LED8
LED04-R-30mA
LED04-R-30mA
3. VGA的check/VGA LED亮，check PASS後則VGA LED滅掉。
滅
NATIVE LOW
外接
LED
燈條
---- PCB
----
手冊 註明
長度限制為
GPI HIGH
(default HIGH)
(RGB )
文字面
GPI HIGH
(default HIGH)
(JLED1)
RGB
2
接頭支援標準
公尺
GPI HIGH
(default HIGH)
(待7A20
4. LED恆滅，開機後若沒有 bootable device (HDD, ODD, USB, M.2..)，則亮燈。
5. 因此最後正常順利開機後，四個LED燈都是滅掉的。（系統重啟或其他原因造成系統重開機，則LED仍按上述行為動作）
5050 RGB LED
驗證
)
燈條
(12V/G/R/B) ,
燈條總輸出電流限制為
3
安培
(12
伏特
) ,
B B
LED STRIPLINE
3A
+12V
VCC5
ATX_5VSB
R1371
R1371
Q108
Q108
47K/4
47K/4
NN-2N7002D
NN-2N7002D
G2
LEDPWR_RST#(70)
A A
LEDPWR_RST#
D1
G1
5
12V_LED_EN
D2
S2
S1
4
C831 10u16X/8C831 10u16X/8
R981 X_4.7K/4R981 X_4.7K/4
RGB_STRIP_OFF#(70)
12V_LED_EN
C827
C827
X_0.1u10X/4
X_0.1u10X/4
U96
U96
11
VCC
3
ENABLE/FAULT
5
NC
2
DV/DT
MP5000
MP5000
VCC5
R1372
R1372
47K/4
47K/4
RGB_STRIP_OFF#
GND
1
SOURCE1
SOURCE2
SOURCE3
SOURCE4
SOURCE5
30mil
6
7
8
9
10
4
I-LIMIT
Trip@3.5A
30mil
RGB_A
Q187
Q187
D
D
G
G
S
S
N-PM514BA_SOT23-3-HF
N-PM514BA_SOT23-3-HF
R980
R980
39R/1%
39R/1%
3
3A
+12V_LED
C863
C863
10u16X/8
10u16X/8
PWM_G(70)
PWM_R(70)
PWM_B(70)
PWM_G
RGB_A
30mil
PWM_R
RGB_A
30mil
PWM_B
RGB_A
30mil
G_LED
Q129
Q129
D
D
G
G
S
S
N-AO3414
N-AO3414
R_LED
Q163
Q163
D
D
G
G
S
S
N-AO3414
N-AO3414
B_LED
Q164
Q164
D
D
G
G
S
S
N-AO3414
N-AO3414
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
2
Date:
+12V_LED
G_LED
R_LED
B_LED
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
DEBUG LED & JLED
DEBUG LED & JLED
DEBUG LED & JLED
Friday, April 01, 2016
Friday, April 01, 2016
Friday, April 01, 2016
MS-7A21
MS-7A21
MS-7A21
1
JLED1
JLED1
1
2
3
4
H1X4M_BLACK-RH-6
H1X4M_BLACK-RH-6
Sheet of
Sheet of
Sheet of
72 77
72 77
72 77
10
10
10
Page 73
5
4
3
2
1
VCC5
RA92
RA92
1K/4
1K/4
LEDA1
LEDA1
LED04-WHI-20m
XMP_LED
D
D
G
G
S
S
+VCCIO_IN1+VCCIO_IN1
+VCCIO_IN+VCCIO_IN
PCH_1P5PCH_1P5
PCH_1P05PCH_1P05
+VPP25_C23+VPP25_C23
+VPP25_C01+VPP25_C01
LED04-WHI-20m
QA8
QA8
2N7002
2N7002
MEC3
U135
U135
MEC3
MEC2
MEC2
RA15
RA15
680R/4
680R/4
LEDA5
LEDA5
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT1
MSi
MSi
PWM_MOAT_R(70)
MEC4
MEC4
RA18
RA18
680R/4
680R/4
MEC1
PCH
PCH
LED_MOAT2
MEC1
4
D D
XMP_OFF(31)
R280
R280
100K/4
100K/4
CPU_VCCU
C608 10u6.3X/6C608 10u6.3X/6
+VCCIO_IN
C C
+VPP25_C23
+VPP25_C01
3VSB
3VA
B B
VTT_DDR_01
VTT_DDR_23
A A
PCH_1P5
PCH_1P05
CLK_PCI1_LOOPBACK(19)
C467 10u6.3X/6C467 10u6.3X/6
C596 10u6.3X/6C596 10u6.3X/6
C560 10u6.3X/6C560 10u6.3X/6
C120 10u6.3X/6C120 10u6.3X/6
C451 10u6.3X/6C451 10u6.3X/6
HS1A
HS1A
MEC1
MEC1
MEC2
MEC2
MOS_IO_HS
MOS_IO_HS
HS1B
HS1B
MEC5
MEC5
MEC6
MEC6
MOS_IO_HS
MOS_IO_HS
CK_14P8M_PCH(19)
3VSB3VSB
3VA3VA
VTT_DDR_01VTT_DDR_01
VTT_DDR_23VTT_DDR_23
MEC3
MEC3
MEC4
MEC4
MEC7
MEC7
MEC8
MEC8
C728 X_10P50N/4C728 X_10P50N/4
C688 X_10P50N/4C688 X_10P50N/4
5
LEDA4
LEDA4
LED-R-10uA,5V
LED-R-10uA,5V
RA26
RA26
680R/4
680R/4
PWM_MOAT_R
LED_MOS_MOAT_SW
LEDA3
LEDA3
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT3
RA77
RA77
680R/4
680R/4
LED_MOS_MOAT_SW(70)
PWM_MOS_G(70)
R411
R411
100K/4
100K/4
VCC5
G
LEDA2
LEDA2
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT4
25 mil
AUDIO_LED1
G
G
LED_MOS_MOAT_SW
PWM_MOS_G
CPU_H2
CPU_H2
CPU
CPU
鐵座
鐵座
VIRTU_LA4
VIRTU_LA4
Label
Label
VIRTU
VIRTU
SS Certified Logos
SS Certified Logos
Q188
Q188
P-AP2305GN
P-AP2305GN
D S
LEDA6
LEDA6
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT5
RA78
RA78
680R/4
680R/4
QA12
QA12
D
D
S
S
N-AP2322GN_SOT23-3-HF
N-AP2322GN_SOT23-3-HF
GND has 25 mil and 4 VIA.
R125
R125
1K/4
1K/4
CPU_H2
CPU_H2
RA79
RA79
680R/4
680R/4
G
R475
R475
100K/4
100K/4
VIRTU_LA1
VIRTU_LA1
Label
Label
VIRTU
VIRTU
SW AP_3
SW AP_3
VIRTU_LA5
VIRTU_LA5
Label
Label
VIRTU
VIRTU
SW AP
SW AP
VCC5
G
G
D
D
S
S
LEDA7
LEDA7
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT6
RA80
RA80
680R/4
680R/4
Q189
Q189
P-AP2305GN
P-AP2305GN
JPIPE_LED1
JPIPE_LED1
20mil
D S
LED_MOS_VCC5
LED_MOS_PW
20mil
Q169
Q169
N-AP2322GN_SOT23-3-HF
N-AP2322GN_SOT23-3-HF
20mil
3
BH1X3HS-1.25PITCH_BLACK-RH
BH1X3HS-1.25PITCH_BLACK-RH
FM5
FM5
X_FM
X_FM
FM1
FM1
X_FM
X_FM
VIRTU_LA2
VIRTU_LA2
Label
Label
VIRTU
VIRTU
VR_SLI
VR_SLI
VIRTU_LA6
VIRTU_LA6
Label
Label
VIRTU
VIRTU
SW AP_2
SW AP_2
1
2
3
FM4
FM4
X_FM
X_FM
LED_MOAT7
LEDA10
LEDA10
LED-R-10uA,5V
LED-R-10uA,5V
RA81
RA81
680R/4
680R/4
4 5
FM3
FM3
X_FM
X_FM
FM6
FM6
X_FM
X_FM
LED_MOAT8
FM7
FM7
X_FM
X_FM
FM2
FM2
X_FM
X_FM
VIRTU_LA3
VIRTU_LA3
Label
Label
VIRTU
VIRTU
AMI
AMI
VIRTU_LA7
VIRTU_LA7
Label
Label
VIRTU
VIRTU
OC
OC
LEDA11
LEDA11
LED-R-10uA,5V
LED-R-10uA,5V
RA82
RA82
680R/4
680R/4
LEDA9
LEDA9
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT9
BAT1_X1
BAT1_X1
BAT-BCR2032P-RH
BAT-BCR2032P-RH
CPU_H1
CPU_H1
CPU
CPU
鐵座
鐵座
PCB1
PCB1
7A21_10
7A21_10
CPU_H1
CPU_H1
RA83
RA83
680R/4
680R/4
LED_MOAT10
2
LEDA13
LEDA13
LED-R-10uA,5V
LED-R-10uA,5V
RA84
RA84
680R/4
680R/4
LEDA12
LEDA12
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT11
MH1
MH1
7
6
MH6
MH6
7
6
MH10
MH10
7
6
25 mil
AUDIO_MOAT_PW
LEDA8
LEDA8
LED-R-10uA,5V
LED-R-10uA,5V
LED_MOAT12
RA85
RA85
680R/4
680R/4
FOR Memory Impedence
DDR_T1
DDR_T2
SIM1
SIM1
SIM1 SIM2
X_PIN1*2
X_PIN1*2
SIM3
SIM3
SIM3 SIM4
X_PIN1*2
X_PIN1*2
MH8
MH8
2
3
2
3
2
3
MS-7A21
MS-7A21
MS-7A21
1
7
6
C826
C826
0.1u10X/4
0.1u10X/4
MH5
MH5
7
6
MH9
MH9
7
6
981
2
3
X_MH001
X_MH001
5
4
981
2
3
X_MH001
X_MH001
5
4
981
2
3
X_MH001
X_MH001
5
4
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
Date:
Friday, April 01, 2016
981
MH2
MH2
7
6
X_MH001
X_MH001
5
4
981
MH7
MH7
7
6
X_MH001
X_MH001
5
4
981
MH3
MH3
7
6
X_MH001
X_MH001
5
4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Manual Parts
Manual Parts
Manual Parts
DDR_TR1DDR_TR1
DDR_T1DDR_T1
DDR_TR2DDR_TR2
DDR_T2DDR_T2
SIM4
SIM4
X_PIN1*2
X_PIN1*2
SIM2
SIM2
X_PIN1*2
X_PIN1*2
981
2
3
X_MH001
X_MH001
5
4
981
2
3
X_MH001
X_MH001
5
4
981
2
3
X_MH001
X_MH001
5
4
73 77
73 77
73 77
Sheet of
Sheet of
Sheet of
C861
C861
0.1u10X/4
0.1u10X/4
10
10
10
Loading...
