MSI MS-6340 Technical Manual

Mainboard

MS-6340 Micro-ATX

CHAPTER 1 INTRODUCTION

1-1

Chapter 1

INTRODUCTION

The MS-6340 Micro-ATX VA mainboard is a high-performance
computer mainboard based on VIA® KT133 chipset. The MS-6340 is
designed for the AMD® Socket processor for inexpensive business/
personal desktop markets.

The KT133 chipset consists of the VT8363 system controller (552
pin BGA) and the VT82C686A PCI to ISA bridge (352 pin BGA). The system
controller provides superior performance between the CPU, DRAM, AGP
bus, and PCI bus with pipelined burst, and concurrent operation.

The VT82C686A integrates all system control functions such as
ACPI (Advances Configuration and Power Interface). The ACPI provides
more Energy Saving Features for the OSPM (OS Direct Power Management)
function. The VT82C686A chipset also improves the IDE transfer rate by
supporting Ultra DMA-33/66 IDE that transfers data at the rate 33/66MB sec.

This mainboard which supports KT133 chipset coupled with
VT8363 and VT82C686A is ideal for high performance, high quality, high
energy efficient and high integration desktop AGP/PCI/ISA computer
systems.

CHAPTER 1 INTRODUCTION

1-2

1.1 Mainboard Features

CPU

l Socket A for AMD

®

PGA Duron/Athlon processor.

l Support 550-1000MHz

Chipset

l VIA

®

KT133 VT8363 chipset. (552 BGA)

- FSB @200MHz

- AGP 4x and PCI Advanced high performance memory controller

- Support PC100/133 SDRAM, & VCM technology

l VIA

®

VT82C686A chipset. (352 BGA)

- Enhanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)

- Dual bus Master IDE Ultra DMA33/66/100

- Integrated Hardware Sound Blaster

- Direct Sound AC97 Audio

- ACPI

Clock Generator

l 100Mhz clocks are supported. (200MHz Internal System Bus)

Main Memory

l Support four memory banks using two 168-pin unbuffered DIMM.
l Support a maximum memory size of 1GB (32M x 8).
l Support 3.3v SDRAM DIMM.

Slots

l One AGP(Accelerated Graphics Port) slot.

- AGP specification compliant

- Support AGP 2.0 1x/2x/4x

l One CNR(Communication Network Riser) slot.
l Three 32-bit Master PCI Bus slots.
l Supports 3.3v/5v PCI bus Interface.

CHAPTER 1 INTRODUCTION

1-3

On-Board IDE

l An IDE controller on the VIA

®

VT82C686A Chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.

l Can connect up to four IDE devices.

On-Board Peripherals

l On-Board Peripherals include:

- 1 floppy port supports 2 FDD with , 720K and 1.44M

- 2 serial ports (COMA + COM B) or 1 serial port with 1 VGA port.

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (2 Rear Connectors/USB Front Pin Header)

- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR.

- 1 Audio/Game port

Audio

l Chip Integrated

-Direct Sound AC97 Audio.

CHAPTER 1 INTRODUCTION

1-4

BIOS

l The mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

l The mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

l Micro ATX Form Factor: 20.8cm x 24.3cm.

Mounting

l 6 mounting holes.

CHAPTER 1 INTRODUCTION

1-5

1.2 Mainboard Layout

PCI SLOT 2

PCI SLOT 1

ATX

Power Supply

VIA

KT133

Socket 462

DIMM 1

Top: mouse
Bottom:
keyboard

Top: Port 1

USB

IDE1

Bottom:
Port 2

IDE2

FDD1

VT82C686A

JBAT1

JAUX1

J_PHN1

C_FAN1

JGS1

Top: LPT

Bottom:
COM A
COM B

Top: Midi/
Game Port

Bottom:
Line-Out
Line-In
Mic

MS-6340 Micro-ATX VA Mainboard

JCD1

J4

BIOS

AGP Slot

BATT
+

DIMM 2

CNR

S_FAN1

PCI SLOT 3

JFP1

Creative
CT5880

USB2

JMDM1

JWOL1

CHAPTER 2 HARDWARE INSTALLATION

2-1

CPU

CPU

Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

The mainboard operates with AMD® DuronTM/Athlon processor. The
mainboard uses a CPU socket called Socket 462 for easy CPU installation.
The CPU should always have a Heat Sink and a cooling fan attached to
prevent overheating.

3. Press the lever down to
complete the installation.

2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.

Open Lever

Sliding
Plate

White dot/
Cut edge

Close
Lever

1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.

2.1-1 CPU Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION

2-2

The mainboard CPU Bus Frequency can be set through BIOS setup.

If CPU Clock = 100MHz

Core/Bus ratio = 7

then CPU core speed = Host Clock x Core/Bus ratio

= 700MHz

2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2 HARDWARE INSTALLATION

2-3

2.1-3 Fan Power Connectors: C_FAN1/S_FAN1

These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.

For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.

Note: Always consult vendor for proper CPU cooling fan.

C_FAN1

C_FAN1: Processor Fan
S_FAN1: System Fan

+12V

GND

SENSOR

S_FAN1

+12V

SENSOR

GND

CHAPTER 2 HARDWARE INSTALLATION

2-4

2.2 Clear CMOS Jumper: JBAT1

A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.

Keep Data

Clear Data

1

1

3

3

Note: You can clear CMOS by shorting 2-3 pin, while the system is off.

Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.

2

2

1

3

JBAT1

CHAPTER 2 HARDWARE INSTALLATION

2-5

2.3 Memory Installation

2.3-1 Memory Bank Configuration

The mainboard supports a maximum memory size of 512 MB. It provides
two 168-pin unbuffered DIMMs (Double In-Line Memory Module) sockets.
It supports 8 MB to 512 Mbytes DIMM memory module.

DIMM1(Bank0+ Bank1)

DIMM2(Bank2+ Bank3)

CHAPTER 2 HARDWARE INSTALLATION

2-6

A. How to install a DIMM Module

1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.

3. The plastic clip at the side of the DIMM slot will automatically
close.

Single Sided DIMM

Double Sided DIMM

VOLTDRAM

2.3-2 Memory Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION

2-7

1. Supports only SDRAM DIMM.

2. To operate properly, at least one 168-pin DIMM module must be in­stalled.

3. This mainboard supports Table Free memory, so memory can be installed
on DIMM 1 or DIMM 2 in any order.

4. Supports 3.3 volt DIMM.

5. The DRAM addressing and the size supported by the mainboard is
shown below:

2.3-3 Memory Population Rules

16M 1Mx16 ASYM 11 8 8MBx4 16MBx8

2Mx8 ASYM 11 9 16MBx8 32MBx16
4Mx4 ASYM 11 10 32MB 64MB

64M 2Mx32 ASYM 11 9 32MBx2 64MBx4

2Mx32 ASYM 12 8 16MBx2 32MBx4
4Mx16 ASYM 11 10 32MB 64MB
4Mx16 ASYM 13 8 32MB 64MB

8Mx8 ASYM 13 9 64MB 128MB

16Mx4 ASYM 13 10 128MB 256MB

64M 2Mx32 ASYM 12 8 16MB 32MB

4Mx16 ASYM 13 8 32MB 64MB

8Mx8 ASYM 13 9 64MB 128MB

16Mx4 ASYM 13 10 128MB 256MB

256M 32Mx8 ASYM 14 9 256MB 512MB

DRAM

Tech.

DRAM

Density &

Width

DRAM

Addressing

Address Size

MB/DIMM

Row

Column

Single

Side(S)

Double
Side(D)

no.

pcs.

no.

pcs.

Table 2.3-1 SDRAM Memory Addressing

CHAPTER 2 HARDWARE INSTALLATION

2-8

2.4 Case Connector: JFP1

The Keylock (reserved), Power Switch, Reset Switch, Power LED, Speaker,
and HDD LED are all connected to the JFP1 connector block.

JFP1

Power
Switch

Power LED

+

Reset
Switch

HDD
LED

+

Speaker

Buzzer

(short

pin)

14
15

Keylock (Reserved)

Dual
Color

LED

Single
Color

LED

CHAPTER 2 HARDWARE INSTALLATION

2-9

2.4-1 Power Switch

Connect to a 2-pin push button switch.

2.4-2 Reset Switch

Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the HDD LED is lit. You can connect the Reset
switch from the system case to this pin.

2.4-3 Power LED

The Power LED is lit while the system power is on. Connect the Power LED
from the system case to this pin.

3 pin single color LED connect to pin 4, 5, & 6. This LED will lit
when the system is on.

2.4-4 Speaker

Speaker from the system case is connected to this pin.

2.4-5 HDD LED

HDD LED shows the activity of a hard disk drive. Avoid turning the power
off while the HDD led is lit. You can connect the HDD LED from the system
case to this pin.

CHAPTER 2 HARDWARE INSTALLATION

2-10

2.5 Floppy Disk Connector: FDD1

The mainboard also provides a standard floppy disk connector FDD1 which
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.

FDD1

1

CHAPTER 2 HARDWARE INSTALLATION

2-11

2.6 Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA/66 Controller
that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66 function. It
has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can
connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for
future BIOS) and other devices to IDE1 and IDE2. These connectors
support the provided IDE hard disk cable.

IDE1(Primary IDE Connector)

The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.

IDE2(Secondary IDE Connector)

IDE2 can also connect a Master and a Slave drive.

Secondary IDE Connector

Primary IDE Connector

1

1

CHAPTER 2 HARDWARE INSTALLATION

2-12

2.7 Power Supply

2.7-1 ATX 20-pin Power Connector: JWR1

This connector supports the power button on-board. Using the ATX power
supply, functions such as Modem Ring Wake-Up and Soft Power Off are
supported by this mainboard. This power connector supports instant power
on function which means that system will boot up instantly when the power
connector is inserted on the board.

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
4 5V
5 GND
6 5V
7 GND
8 PW_OK
9 5V_SB
10 12V

PIN DEFINITION

Warning: Since the mainboard has the instant power on function, make
sure that all components are installed properly before inserting the power
connector to ensure that no damage will be done.

ATX

Power Connector

11

2010

1

CHAPTER 2 HARDWARE INSTALLATION

2-13

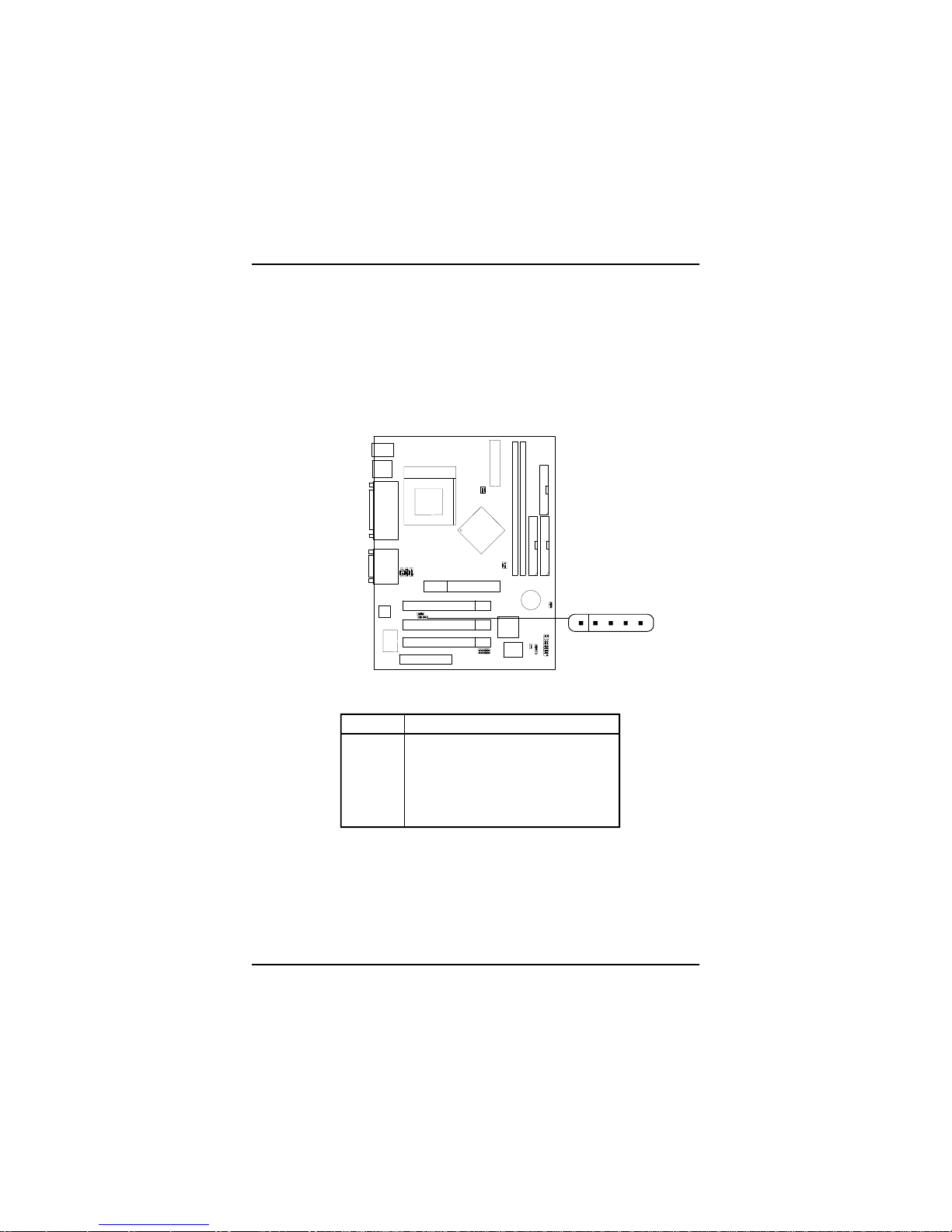

2.8 IrDA Infrared Module Connector: J4

The mainboard provides one infrared (J4) connector for IR modules. This
connector is for optional wireless transmitting and receiving infrared module.
You must configure the setting through the BIOS setup to use the IR
function.

VCC
NC

IRRX

GND

IRTX

1

J4

CHAPTER 2 HARDWARE INSTALLATION

2-14

2.9 Power Saving Switch Connector: JGS1(option)

Attach a power saving switch to JGS1. When the switch is pressed the
system immediately goes into suspend mode. Press any key and the system
wakes up.

JGS1

CHAPTER 2 HARDWARE INSTALLATION

2-15

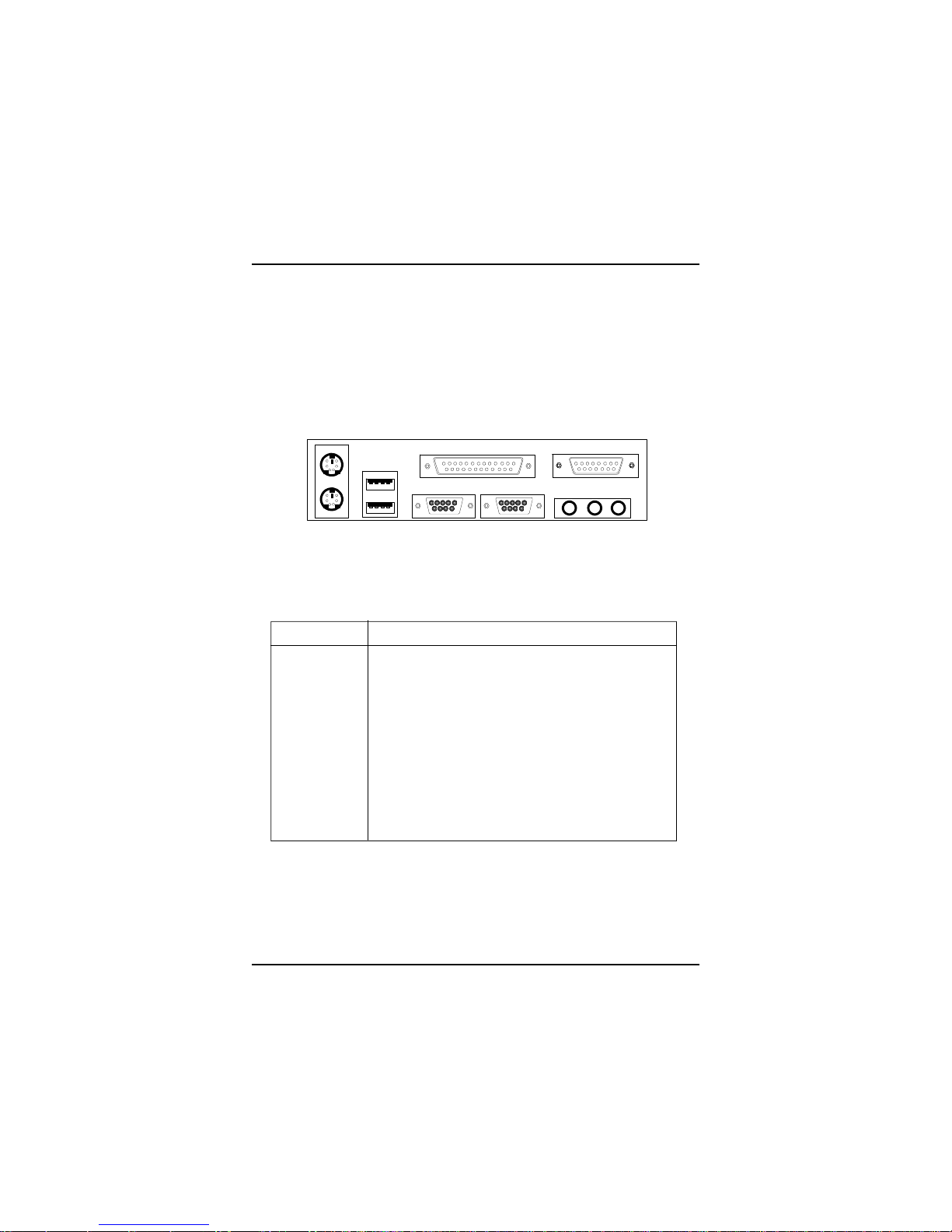

2.10 Serial Port Connectors: COM A and COM B

The mainboard provides two 9-pin male DIN connectors for serial port COM
A & COM B. These port are 16550A high speed communication port that
send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable
directly into this connector.

PIN SIGNAL

1 DCD(Data Carry Detect)
2 SIN(Serial In or Receive Data)

3 SOUT(Serial Out or Transmit Data)
4 DTR(Data Terminal Ready)
5 GND
6 DSR(Data Set Ready)
7 RTS(Request To Send)
8 CTS(Clear To Send)
9 RI(Ring Indicate)

PIN DEFINITION

1 2 3 4 5

6 7 8 9

COM A

Serial Port (9-pin Male)

COM B

CHAPTER 2 HARDWARE INSTALLATION

2-16

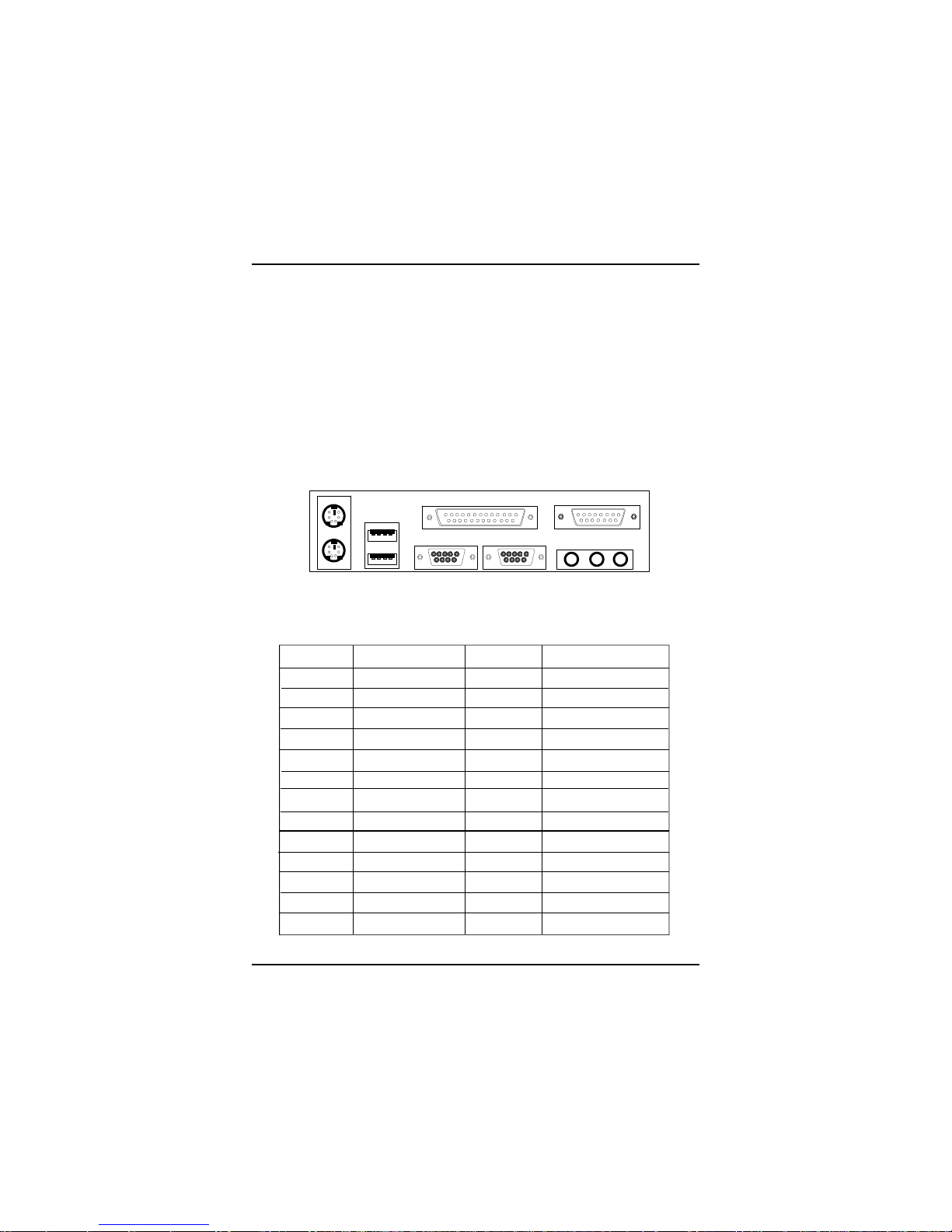

2.11 Parallel Port Connector: LPT1

The mainboard provides a 25 pin female centronic connector for LPT. A
parallel port is a standard printer port that also supports Enhanced Parallel
Port (EPP) and Extended capabilities Parallel Port (ECP). See connector and
pin definition below:

PIN SIGNAL PIN SIGNAL

1 STROBE 14 AUTO FEED#
2 DATA0 15 ERR#
3 DATA1 16 INIT#
4 DATA2 17 SLIN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SELECT

PIN DEFINITION

LPT 1

13

Parallel Port (25-pin Female)

1

25

14

CHAPTER 2 HARDWARE INSTALLATION

2-17

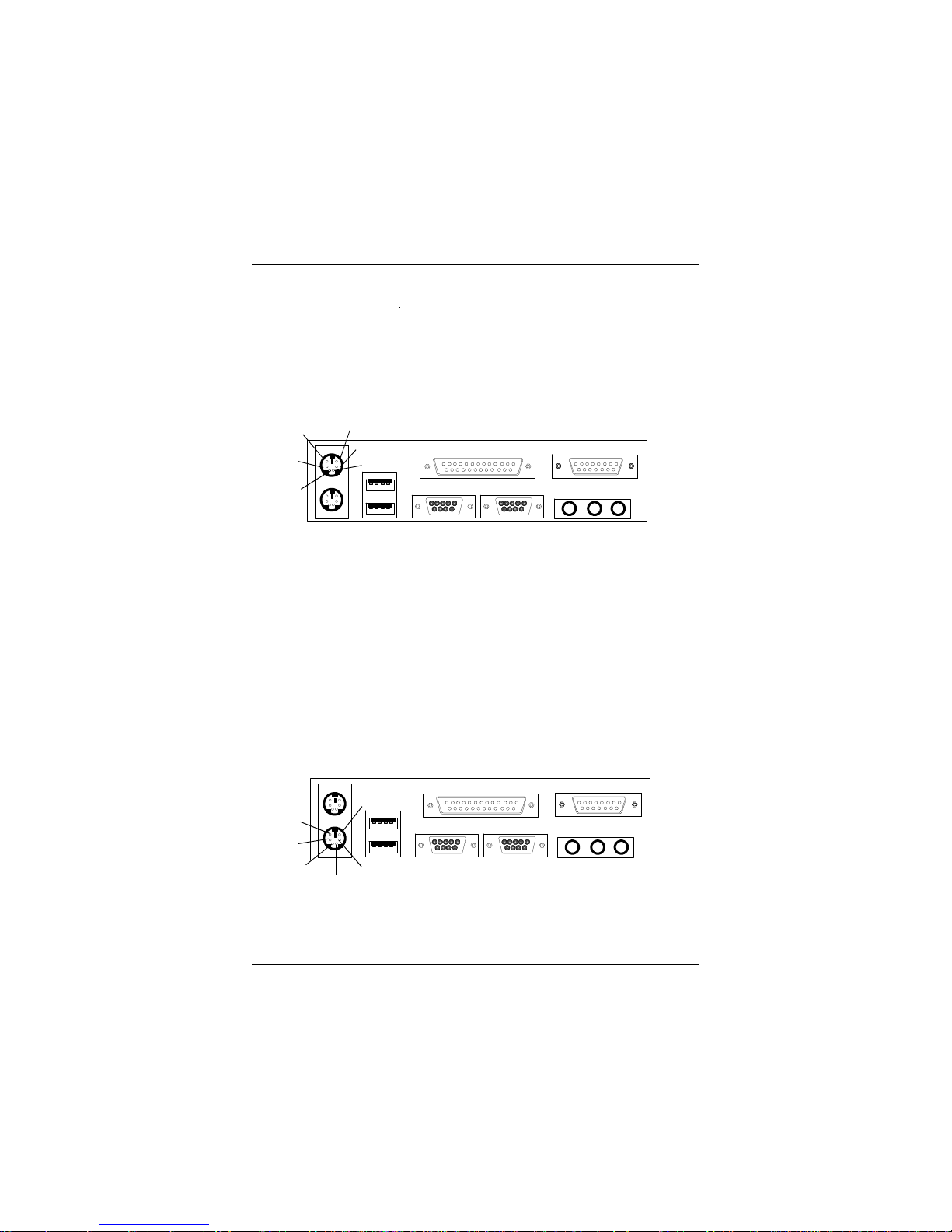

2.12 Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin definition are shown below:

2.13 Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector for
attaching a keyboard. You can plug a keyboard cable directly to this
connector.

PS/2 Mouse (6-pin Female)

PS/2 Keyboard (6-pin Female)

Pin1

Mouse DATA

Pin6

NC

Pin2

NC

Pin4
VCC

Pin3
GND

Pin5

Mouse Clock

Pin1

KBD DATA

Pin6

NC

Pin2

NC

Pin3
GND

Pin5

KBD Clock

Pin4
VCC

CHAPTER 2 HARDWARE INSTALLATION

2-18

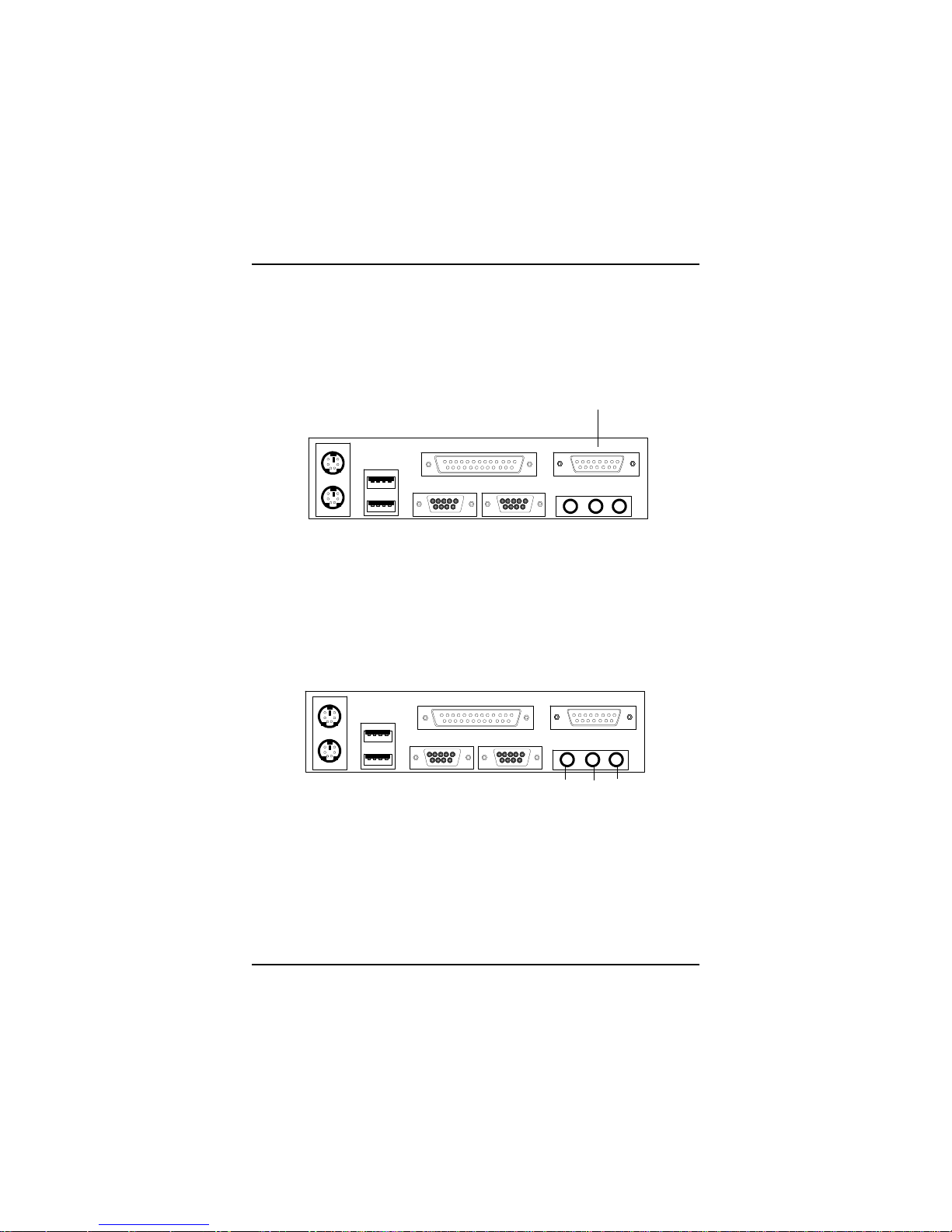

2.15 Audio Port Connectors

Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape layer, or other audio devices. Mic is a connector for
the microphones.

Line Out

Line In

Mic

1/8” Stereo Audio Connectors

2.14 Joystick/Midi Connectors

You can connect joystick or game pad to this connector.

Joystick/MIDI

CHAPTER 2 HARDWARE INSTALLATION

2-19

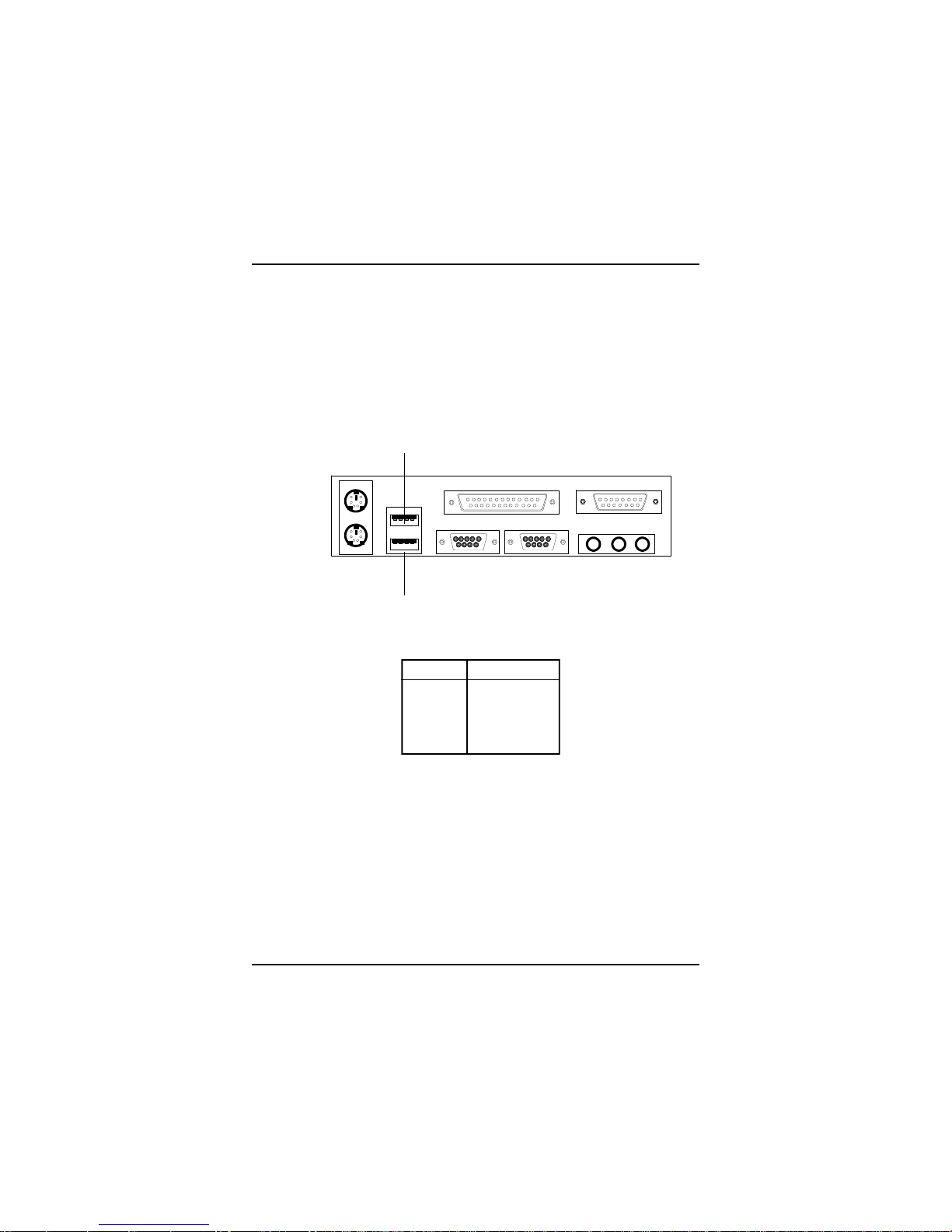

2.16 USB Connectors

The mainboard provides a UHCI(Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices like: keyboard, mouse

and other USB devices. You can plug the USB device directly to this
connector.

USB Port 1

USB Port 2

PIN SIGNAL

1 VCC
2 -Data
3 +Data
4 GND

1 2 3 4

CHAPTER 2 HARDWARE INSTALLATION

2-20

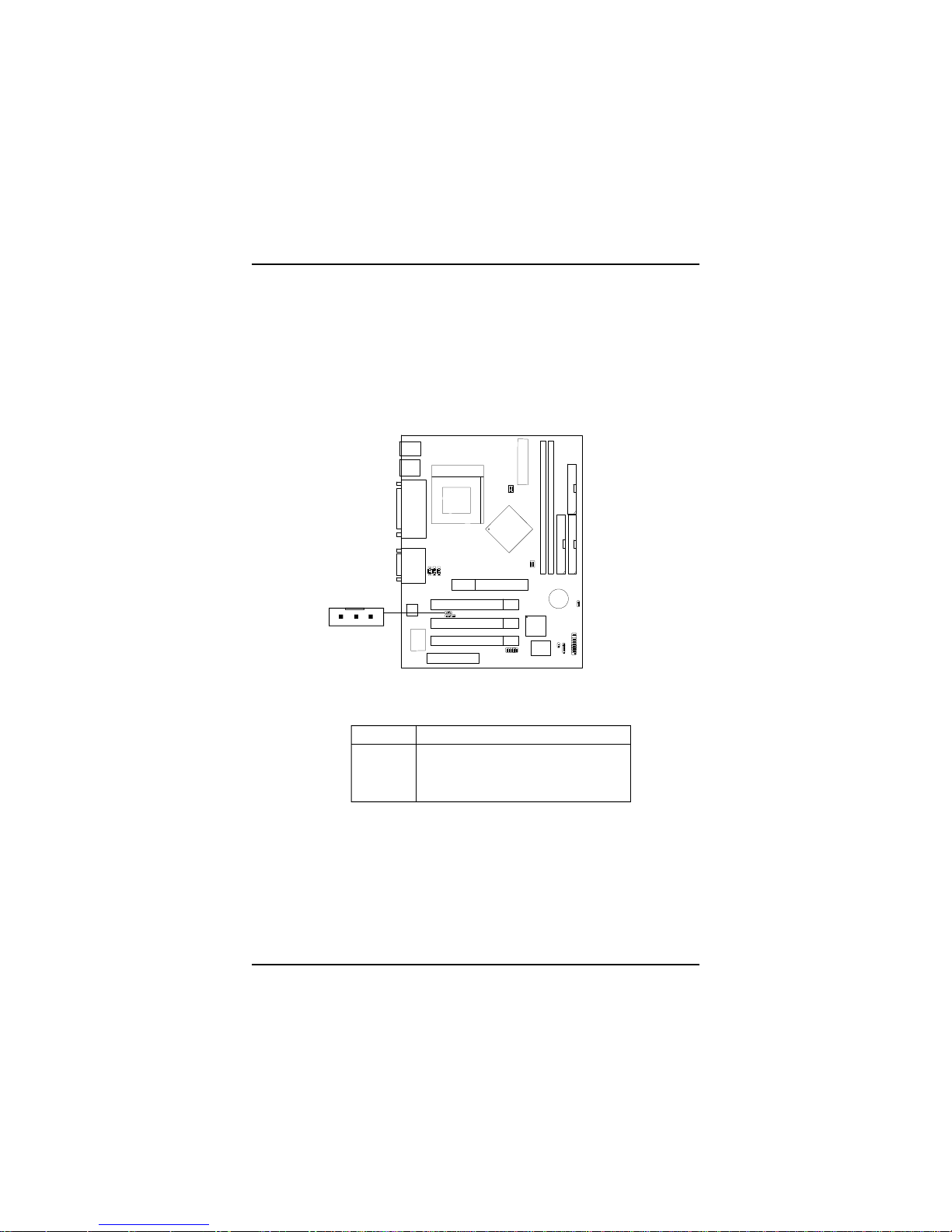

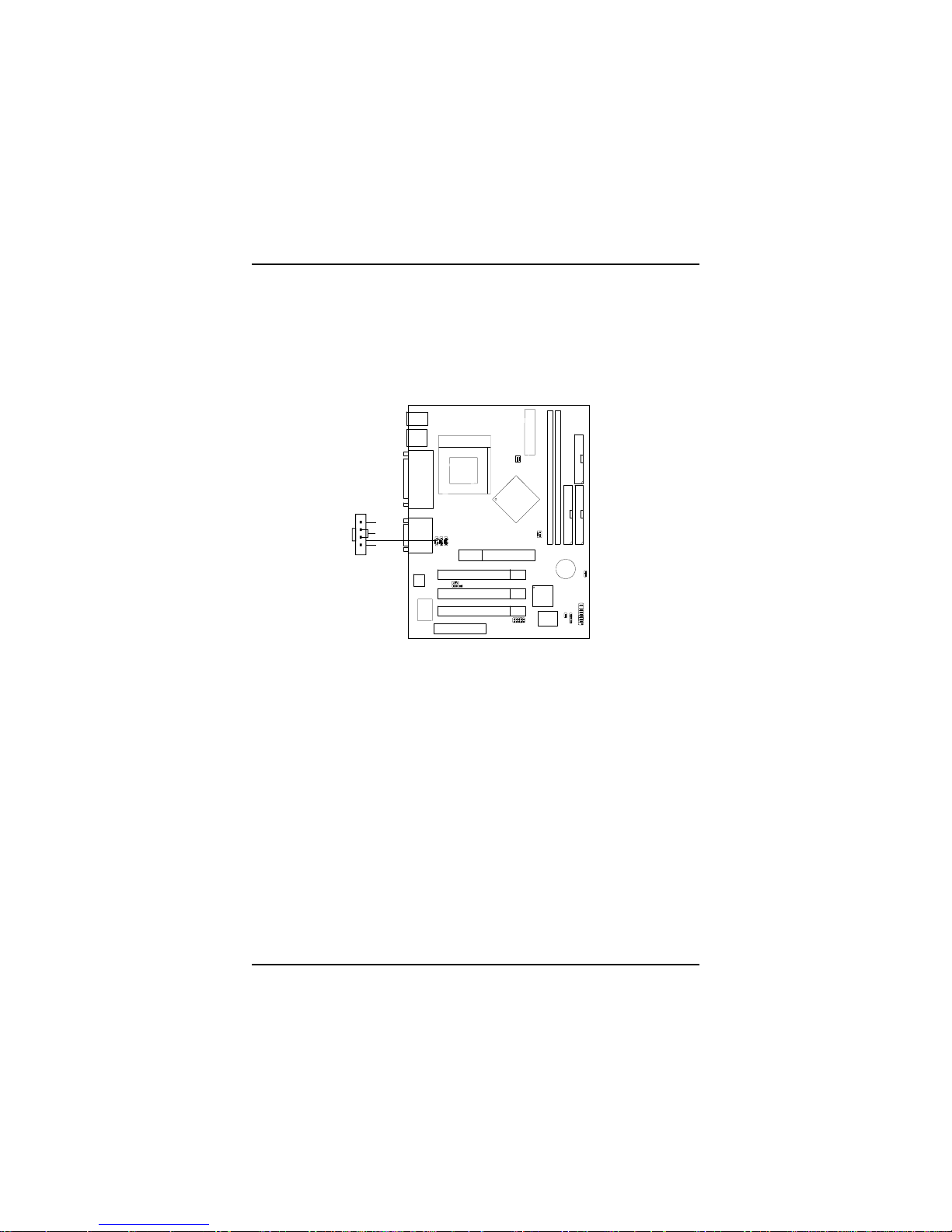

2.17 Wake-Up on LAN Connector: JWOL1

The JWOL1 connector is for use with LAN add-on cards that supports
Wake Up on LAN function. To use this function, you need to set the “Wake
Up on LAN/Ring” to enable at the BIOS Power Management Setup.

PIN SIGNAL

1 5VSB
2 GND
3 MP_WAKEUP

Note: LAN wake-up signal is active “high”.

Note: To be able to use this function, you need a power supply that

provide enough power for this feature. (Power supply with 750mA
5V Stand-by)

JWOL1

1

3

CHAPTER 2 HARDWARE INSTALLATION

2-21

2.18 Modem Wake Up Connector: JMDM1

The JMDM1 connector is for used with Modem add-on card that supports
the Modem Wake Up function. To use this function, you need to set the
“Wake Up on LAN/Ring” to enable at the BIOS Power Management Setup.

Note: Modem wake-up signal is active “low”.

PIN SIGNAL

1 NC
2 GND
3 MDM_WAKEUP
4 NC
5 5VSB

Note: To be able to use this function, you need a power supply that

provide enough power for this feature. (Power supply with 750mA
5V Stand-by)

JMDM1

1

5

CHAPTER 2 HARDWARE INSTALLATION

2-22

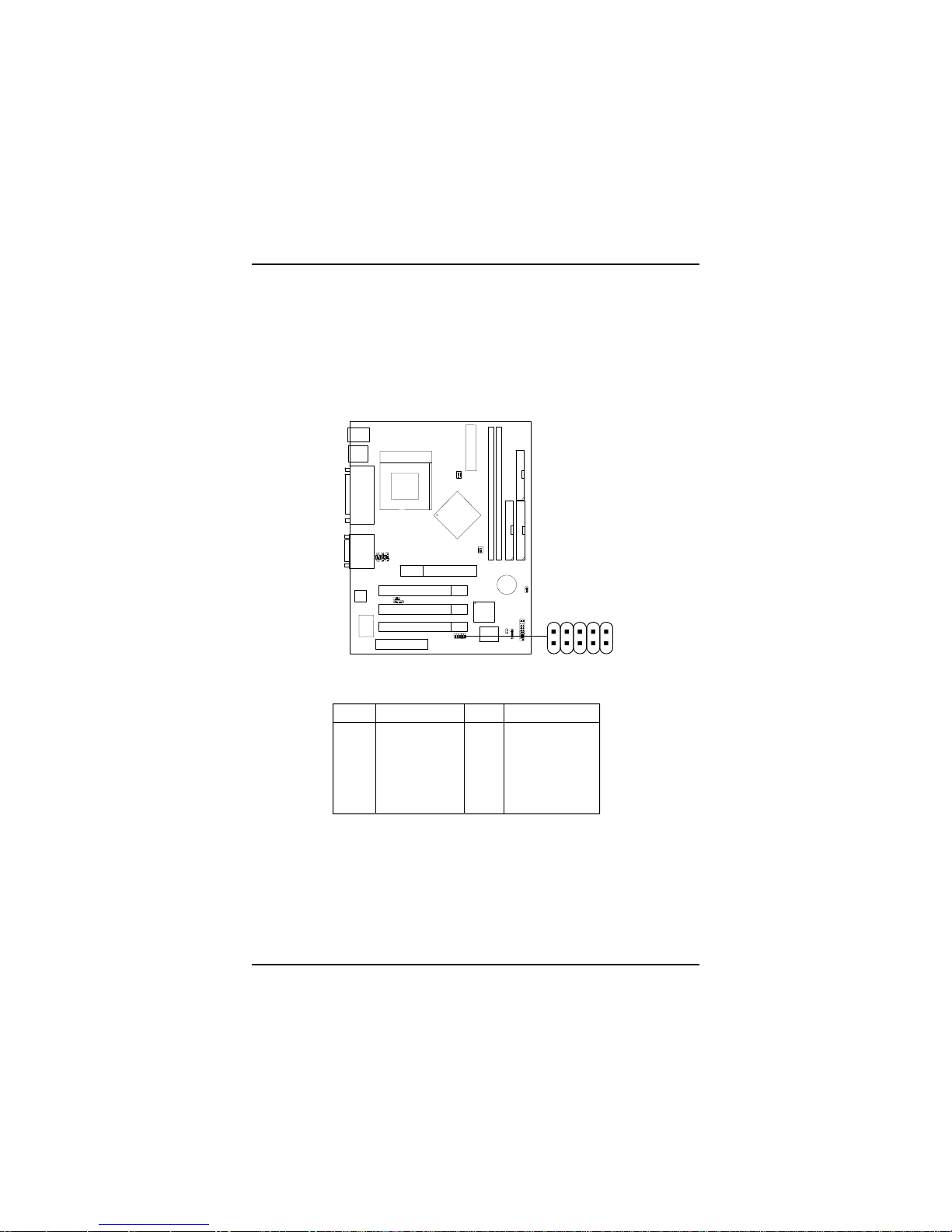

2.19 USB Front Connector: USB2 (option)

The mainboard provides a front Universal Serial Bus connector. This is an
optional USB connector for Front Panel.

USB2

Pin Description Pin Description

1 VCC 6 USBD2+
2 GND 7 GND
3 USBD3- 8 USBD2­4 GND 9 GND
5 USBD3+ 10 VCC

1 9

2 10

CHAPTER 2 HARDWARE INSTALLATION

2-23

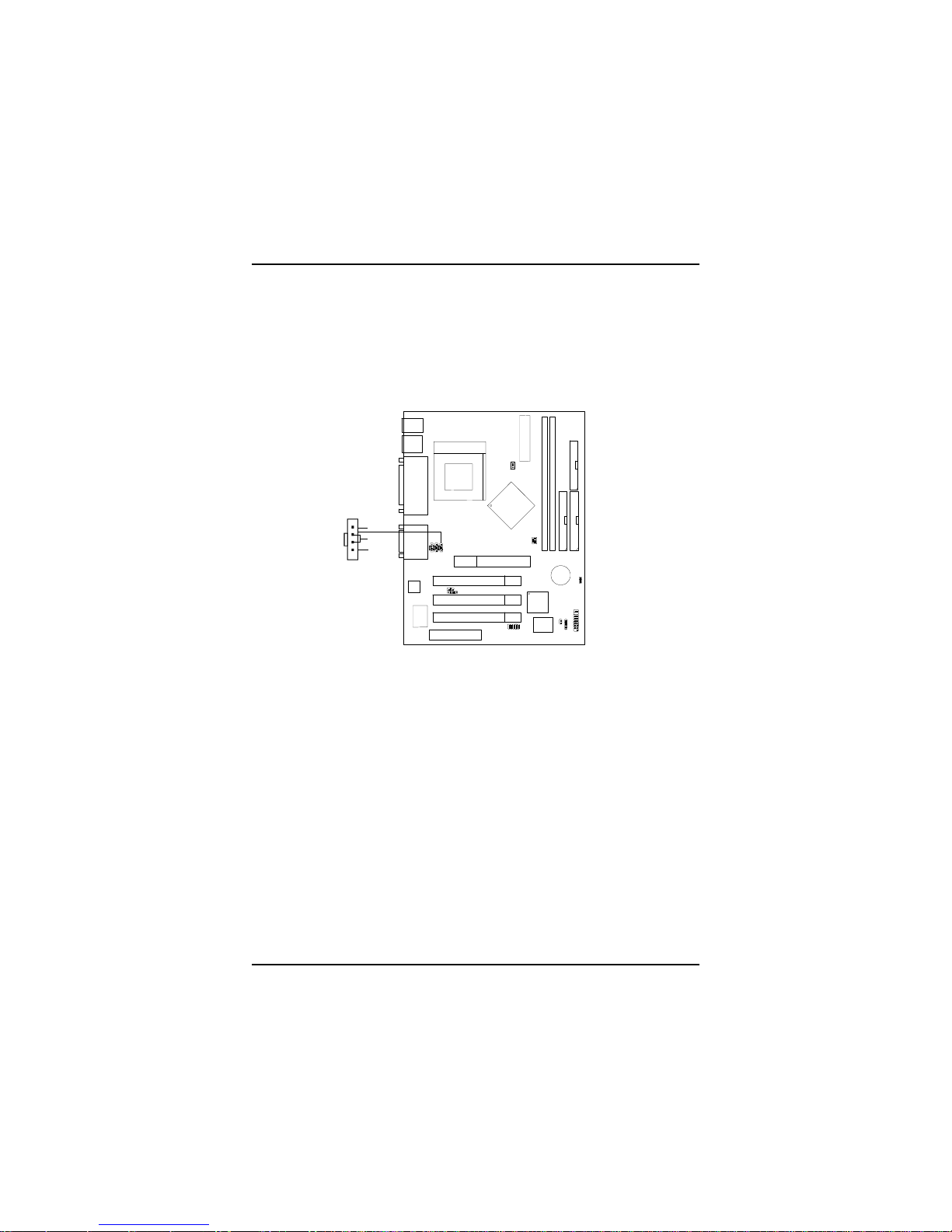

2.20 CD-In Connector: JCD1

This connector is for CD-ROM audio connector.

JCD1

L

GND

R

CHAPTER 2 HARDWARE INSTALLATION

2-24

2.21 AUX Line In Connector: JAUX1

This connector is used for DVD Add on Card with Line In connector.

JAUX1

L
GND
R

CHAPTER 2 HARDWARE INSTALLATION

2-25

2.22 Modem-In: J_PHN1

The connector is for Modem with internal voice connector.

Mono_Out is connected to the Modem Speaker Out connector.
Phone_In is connected to the Modem Microphone In connector.

J_PHN1

Mono_Out

GND

Phone_In

CHAPTER 2 HARDWARE INSTALLATION

2-26

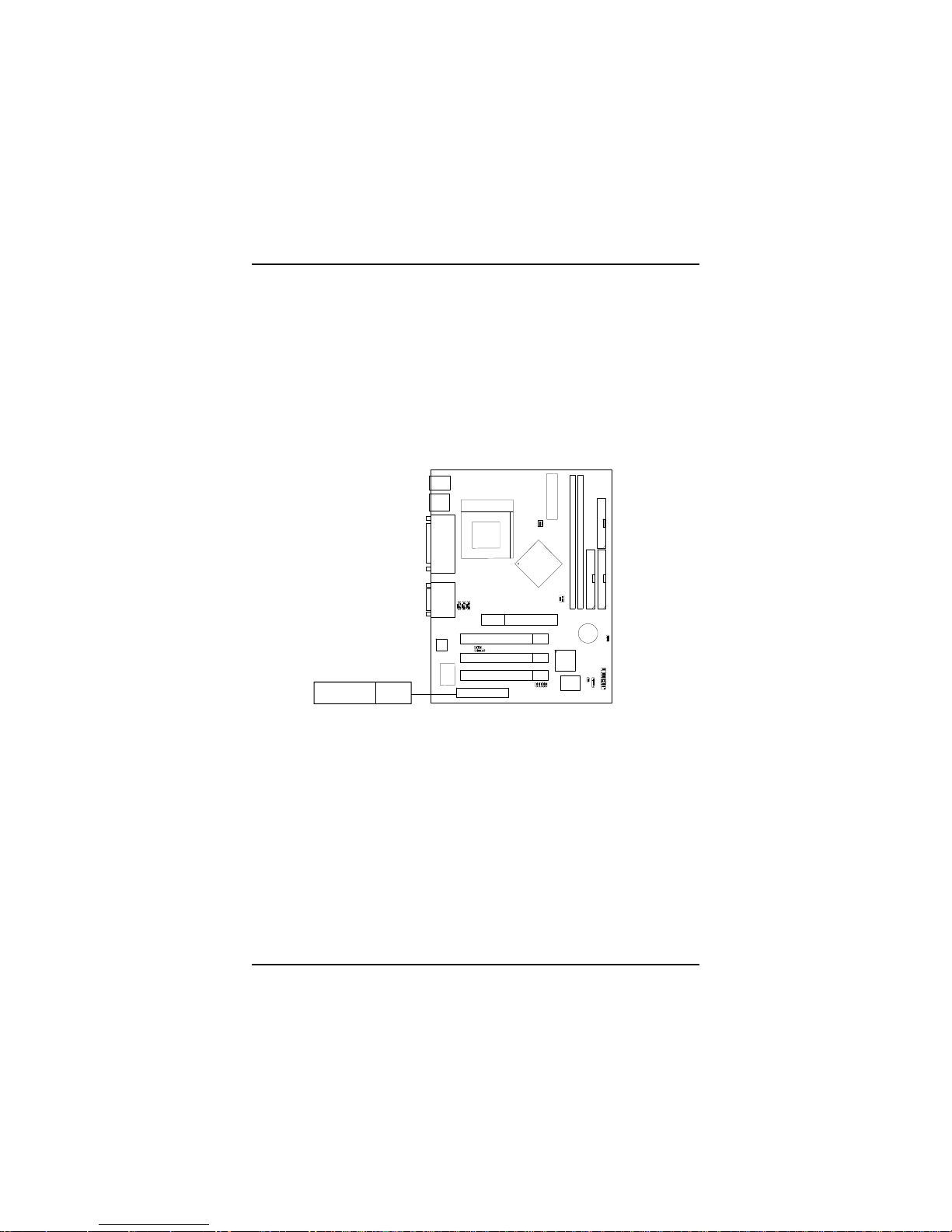

2.23 CNR (Communication Network Riser)

The Communication Network Riser specification is an open industry­standard specification that defines a hardware scalable Original Equipment
Manufacturer (OEM) mainboard riser board and interface, which supports
audio and modem only.

CNR

CHAPTER 3 AWARD® BIOS SETUP

3-1

Chapter 3

AWARD® BIOS SETUP

Award® BIOS ROM has a built-in Setup program that allows users to modify
the basic system configuration. This type of information is stored in
battery-backed RAM (CMOS RAM), so that it retains the Setup information
when the power is turned off.

CHAPTER 3 AWARD® BIOS SETUP

3-2

3.1 Entering Setup

Power on the computer and press <Del> immediately to allow you to
enter Setup. The other way to enter Setup is to power on the computer.
When the below message appears briefly at the bottom of the screen during
the POST (Power On Self Test), press <Del> key or simultaneously press
<Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT, PRESS <CTRL-ALT-ESC>

OR <DEL> KEY

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the “RESET” button on the system case. You may also restart by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not
press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to,

PRESS <F1> TO CONTINUE, <CTRL-ALT-ESC>

OR <DEL> TO ENTER SETUP

3.2 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed
at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropri­ate keys to use and the possible selections for the highlighted item. To exit
the Help Window, press <Esc>.

CHAPTER 3 AWARD® BIOS SETUP

3-3

STANDARD CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations

Load Fail-Safe Defaults

Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

Frequency/Voltage Control

Esc : Quit
F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

↑ ↓ → ← : Select Item

Standard CMOS Setup

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your
system.

3.3 The Main Menu

Once you enter Award® BIOS CMOS Setup Utility, the Main Menu (Figure 1)
will appear on the screen. The Main Menu allows you to select from twelve
setup functions and two exit choices. Use arrow keys to select among the
items and press <Enter> to accept or enter the sub-menu.

CMOS Setup Utility - Copyright(C) 1984-2000

CHAPTER 3 AWARD® BIOS SETUP

3-4

Advanced Chipset Features

Use this menu to change the values in the chipset registers and
optimize your system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI Configuration

This entry appears if your system supports PnP/PCI.

Frequency/Voltage

Use this menu to specify your settings for frequency/voltage

control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/

stable performance for your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory
settings for optimal performance system operations.

Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

CHAPTER 3 AWARD® BIOS SETUP

3-5

Date(mm:dd:yy): Thu,Jun 29,2000
Time(hh:mm:ss): 13:52:21

IDE Primary Master Press Enter6449MB
IDE Primary Slave Press Enter None
IDE Secondary Master Press Enter None Change the day,month,
IDE Secondary Slave Press Enter None year and centry

Drive A 1.44M, 3.5in.
Drive B None

Video EGA/VGA
Halt On All, But Keyboard

Based Memory 640K
Extended Memory 130048K
Total Memory 131072K

3.4 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys
to select the value you want in each item.

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

Standard CMOS Setup

CHAPTER 3 AWARD® BIOS SETUP

3-6

Date

The date format is <day><month> <date> <year>.

Day Day of the week, from Sun to Sat, determined by

BIOS. Read-only.

Month The month from Jan. through Dec.
Date The date from 1 to 31 can be keyed by numeric

function keys.

Year The year, depends on the year of the BIOS

Time

The time format is <hour> <minute> <second>.

PrimaryMaster/PrimarySlave
SecondaryMaster/Secondary Slave

Press PgUp/<+> or PgDn/<-> to select Manual, None, Auto type.
Note that the specifications of your drive must match with the drive table.
The hard disk will not work properly if you enter improper information for
this category. If your hard disk drive type is not matched or listed, you can
use Manual to define your own drive type manually.

If you select Manual, related information is asked to be entered to the
following items. Enter the information directly from the keyboard. This
information should be provided in the documentation from your hard disk
vendor or the system manufacturer.

CHAPTER 3 AWARD® BIOS SETUP

3-7

If the controller of HDD interface is SCSI, the selection shall be

“None”.

If the controller of HDD interface is CD-ROM, the selection shall be

“None”.

Access Mode The settings are Auto, Normal, Large,LBA.

Cylinder number of cylinders

Head number of heads

Precomp write precom

Landing Zone landing zone

Sector number of sectors

CHAPTER 3 AWARD® BIOS SETUP

3-8

3.5 Advanced BIOS Features

Anti-Virus Protection Disabled
CPU Internal Cache Enabled
External Cache Enabled
CPU L2 Cache ECC Checking Enabled
Quick Power On Self Test Enabled
First Boot device Floppy Allows you to choose
Second Boot device CDROM the VIRUS warning
Third Boot device HDD-0
Boot other device Enabled feature for IDE Hard
Swap Floppy Drive Disabled Disk boot sector
Boot Up Floppy Seek Disabled protection.If this
Boot Up Numlock Status On function is enabled and
Gate A20 Option Normal someone attempt to write

Typematic Rate Setting Disabled data into this area, BIOS
x Typematic Rate (Chars/Sec) 6 will show a warning
x Typematic Delay (Msec) 250 message on sceen and

Security Option Setup alarm beep.

OS Select for DRAM > 64MB Non-OS2

Video BIOS Shadow Enabled

C8000-CBFFF Shadow Disabled

CC000-CFFFF Shadow Disabled

D0000-D3FFF Shadow Disabled

D4000-D7FFF Shadow Disabled

D8000-DBFFF Shadow Disabled

DC000-DFFFF Shadow Disabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

Advanced BIOS Features

Anti-Virus Protection

Allows you to choose the VIRUS Warning feature for IDE Hard
Disk boot sector protection. If this function is enabled and someone attempt
to write date into this area, BIOS will show a warning message on screen and
alarm beep.

Disabled No warning message to appear when

anything attempts to access the boot
sector or hard disk partition table.

Enabled (default) Activates automatically when the

system boots up causing a warning
message to appear when anything
attempts to access the boot sector of
hard disk partition table.

CHAPTER 3 AWARD® BIOS SETUP

3-9

CPU Internal Cache

The default value is Enabled.

Enabled (default) Enable cache
Disabled Disable cache

Note: The internal cache is built in the processor.

External Cache

Choose Enabled or Disabled. This option enables the level 2 cache

memory.

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the level 2 cache

memory ECC(error check correction).

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you
power on the computer. If this is set to Enabled, BIOS will shorten or skip
some check items during POST.

Enabled Enable quick POST
Disabled (default) Normal POST

First/Second/Third/Other Boot Device

The BIOS attempts to load the operating system from the devices in
the sequence selected in these items. The settings are Floppy, LS/ZIP, HDD­0/HDD-1/HDD-2/HDD-3, SCSI, CDROM, LAN, and Disabled.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and
B. Default is Disabled.

CHAPTER 3 AWARD® BIOS SETUP

3-10

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is
40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80
tracks.

Boot Up NumLock Status

The default value is On.

On (default) Keypad is numeric keys.

Off Keypad is arrow keys.

Gate A20 Option

Normal The A20 signal is controlled by keyboard

controller or chipset hardware.

Fast The A20 signal is controlled by port 92 or

chipset specific method.

Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller.
When enabled, the typematic rate and typematic delay can be selected.
The settings are: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you
hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to
repeat the keystroke The settings are: 250, 500, 750, 1000.

CHAPTER 3 AWARD® BIOS SETUP

3-11

Security Option

This category allows you to limit access to the system and Setup, or
just to Setup.

System The system will not boot and access to Setup

will be denied if the correct password is not
entered at the prompt.

Setup(default)The system will boot, but access to Setup will

be denied if the correct password is not entered
at the prompt.

OS Selection for DRAM > 64MB

Allows OS2® to be used with > 64 MB of DRAM. Settings are Non­OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running
OS/2®.

CHAPTER 3 AWARD® BIOS SETUP

3-12

Note: Change these settings only if you are familiar with the chipset.

3.6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the
values of the chipset registers. These registers control most of the system
options in the computer.

Choose the “ADVANCED CHIPSET FEATURES” from the Main
Menu and the following screen will appear.

SDRAM Cycle Length Auto
DRAM Clock Auto
Memory Hole Disabled
P2C/C2P Concurrency Enabled
Fast R-W Turn Around Disabled
System BIOS Cacheable Disabled
Video RAM Cacheable Disabled
AGP Aperture Size 64M
AGP 4X Mode Enabled
AGP Driving Control Auto
x AGP Driving Value DA
K7 CLK_CTL Select Default
OnChip USB Enabled
USB Keyboard Support Enabled
OnChip Sound Auto
OnChip Modem Auto
CPU to PCI Write Buffer Enabled
PCI Dynamic Bursting Enabled
PCI Master 0 WS Write Enabled
PCI Delay Transaction Enabled
PCI#2 Access #1 Retry Disabled
AGP Master 1 WS Write Enabled
AGP Master 1 WS Read Enabled
Memory Parity/ECC Check Disabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

Advanced Chipset Features

CHAPTER 3 AWARD® BIOS SETUP

3-13

Bank 0/1 DRAM Timing
Bank 2/3 DRAM Timing
Bank 4/5 DRAM Timing

The DRAM timing is controlled by the DRAM Timing Registers.
The Timings programmed into this register are dependent on the system
design. Slower rates may be required in certain system designs to support
loose layouts or slower memory.

SDRAM Cycle Length

This item allows you to select the SDRAM cycle length. The set-

tings are 2 or 3.

DRAM Clock

The chipset support synchronous and asynchronous mode
between the host clock and DIMM clock.

Host CLK (default) DIMM clock equal to host clock

66MHz DIMM clock equal to 66MHz

Memory Hole

In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB.

Enabled Memory hole supported.
Disabled (default) Memory hole not supported.

P2C/C2P Concurrency

This item allows you to Enable or Disable the PCI to CPU, CPU to
PCI concurrency. The default setting is Enabled.

Fast R-W Turn Around

This item controls the DRAM timing. It allows the user to Enable
or Disable the fast read, write turn around. The settings are Enabled or
Disabled. The default setting is Disabled.

CHAPTER 3 AWARD® BIOS SETUP

3-14

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at
F0000h-FFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result. The settings
are: Enabled and Disabled.

Video RAM Cacheable

Select Enabled allows caching of the video BIOS , resulting in
better system performance. However, if any program writes to this memory
area, a system error may result. The settings are: Enabled and Disabled.

AGP Aperture Size

Select the size of the Accelerated Graphics Port (AGP) aperture. The
aperture is a portion of the PCI memory address range dedicated for graphics
memory address space. Host cycles that hit the aperture range are for­warded to the AGP without any translation.

AGP-4X Mode

This item is used to Enabled or Disabled the AGP support for AGP 4x
mode.

AGP Driving Control

This item allows you to adjust the AGP driving force. Choose
Manual to key in a AGP Driving Value in the next selection. This field is
recommended to set in Auto for avoiding any error in your system. The
default setting is Auto.

AGP Driving Value

This item allows you to adjust the AGP driving force.

CHAPTER 3 AWARD® BIOS SETUP

3-15

Onchip USB

Set this option to Enable or Disable the onchip USB controller. The

default setting is Enabled.

USB Keyboard Support

Set this option to Enable or Disable the USB keyboard/mouse

support. The default setting is Disabled.

OnChip Sound

This item allows you to control the onboard AC 97 audio.

OnChip Modem

This item allows you to control the onboard MC 97 Modem.

CPU to PCI Write Buffer

When this field is Enabled, writes from the CPU to the PCI bus are
buffered, to compensate for the differences between the CPU and the PCI
bus. When Disabled, the writes are not buffered and the CPU must wait
until the write is complete before starting another cycle. The default setting
is Enabled.

PCI Dynamic Bursting

This item allows you to Enable or Disable the PCI dynamic bursting
function. The settings are Enabled or Disabled.

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1. The settings are Enabled or Disabled.

PCI#2 Access #1 Retry

When Disabled, PCI#2 will not be disconnected until access
finishes (default). When Enabled, PCI#2 will be disconnected if max retries
are attempted without success. The default setting is Enabled.

CHAPTER 3 AWARD® BIOS SETUP

3-16

AGP Master 1 WS Write

When Enabled, writes to the AGP (Accelerated Graphics Port) are
executed with one wait states. The default setting is Enabled.

AGP Master 1 WS Read

When Enabled, reads to the AGP (Accelerated Graphics Port) are
executed with one wait states. The default setting is Enabled.

Memory Parity/ECC Check

This item when Enabled detects the memory parity and Error
Checking & Correction. The settings are Enabled or Disabled.

CHAPTER 3 AWARD® BIOS SETUP

3-17

3.7 Integrated Peripherals

Onchip IDE Channel0 Enabled
Onchip IDE Channel1 Enabled
IDE Prefetch Mode Enabled
Primary Master PIO Auto
Primary Slave PIO Auto
Secondary Master PIO Auto
Secondary Slave PIO Auto
Primary Master UDMA Auto
Primary Slave UDMA Auto
Secondary Master UDMA Auto
Secondary Slave UDMA Auto
Init Display First AGB
IDE HDD Block Mode Enabled
Onboard FDD Controller Enabled
Onboard Serial Port 1 Auto
Onboard Serial Port 2 Auto
UART 2 Mode Standard
X IR Function Duplex Half
X TX,RX inverting enable No, Yes

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

Integrated Peripherals

OnChip IDE Channel0/Onchip IDE Channel1

The integrated peripheral controller contains an IDE interface
with support for two IDE channels. Select Enabled to activate each
channel separately. The settings are: Enabled and Disabled.

IDE Prefetch Mode

This item is used to Enabled or Disabled the IDE Read/Write
Prefetch buffer. This buffer is used to store data for faster perform­ances.

CHAPTER 3 AWARD® BIOS SETUP

3-18

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE interface
supports. Modes 0 through 4 provide successively increased performance.
In Auto mode, the system automatically determines the best mode for each
device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver (Windows
95 OSR2 or a third-party IDE bus master driver). If your hard drive and your
system software both support Ultra DMA/33 and Ultra DMA/66, select
Auto to enable BIOS support. The settings are: Auto, Disabled.

Init Display First

This item allows you to decide to activate whether PCI Slot or AGP
Slot. The settings are: PCI Slot, AGP Slot.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or
multiple sector read/write. If your IDE hard drive supports block mode (most
new drives do), select Enabled for automatic detection of the optimal number
of block read/writes per sector the drive can support. The settings are:
Enabled, Disabled.

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDD)
installed on the system board and you wish to use it. If you install add-on
FDC or the system has no floppy drive, select Disabled in this field.
The settings are: Enabled and Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and
second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/
IRQ3, Disabled, Auto.

CHAPTER 3 AWARD® BIOS SETUP

3-19

UART 2 Mode

This item allows you to select which mode for the Onboard Serial
Port 2. The settings are: Standard, HPSIR, ASKIR.

IR Function Duplex

This item allows you to select the IR half/full duplex function.

TX, RX inverting enable

This item allows you to enable the TX, RX inverting which depends
on different H/W requirement. This field is not recommended to change its
default setting for avoiding any error in your system.

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset
that provides Standard, ECP, and EPP features. It has the following options:

Disable

3BCH/IRQ7 Line Printer port 0
278H/IRQ5 Line Printer port 2
378H/IRQ7 Line Printer port 1

CHAPTER 3 AWARD® BIOS SETUP

3-20

Onboard Parallel Mode

SPP : Standard Parallel Port

EPP : Enhanced Parallel Port

ECP : Extended Capability Port

To operate the onboard parallel port as Standard Parallel Port only,
choose “SPP.” To operate the onboard parallel port in the ECP and SPP
modes simultaneously, choose “ECP/SPP.” By choosing “ECP”, the
onboard parallel port will operate in ECP mode only. Choosing “ECP/EPP”
will allow the onboard parallel port to support both the ECP and EPP modes
simultaneously. The ECP mode has to use the DMA channel, so choose the
onboard parallel port with the ECP feature. After selecting it, the following
message will appear: “ECP Mode Use DMA” At this time the user can
choose between DMA channels 3 or 1. The onboard parallel port is EPP
Spec. compliant, so after the user chooses the onboard parallel port with the
EPP function, the following message will be displayed on the screen: “EPP
Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be
chosen.

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP
mode. The settings are 3 or 1. The default setting is 3.

Parallel Port EPP Type

Select EPP port type 1.7 or 1.9.

Onboard Legacy Audio

This fields controls the onboard legacy audio.

l Sound Blaster
l SB I/O Base Address
l SB IRQ Select
l SB DMA Select
l MPU-401
l MPU-401 I/O Address
l Game Port (200-207H)

CHAPTER 3 AWARD® BIOS SETUP

3-21

3.8 Power Management Setup

The Power Management Setup allows you to configure you system
to most effectively save energy while operating in a manner consistent with
your own style of computer use.

x Power Management Press Enter
ACPI Suspend Type S1(POS)
PM Control by APM Yes
Video Off Option Suspend->Off
Video Off Method V/H SYNC+Blank
MODEM Use IRQ 3
Soft-Off by PWRBTN Instant-Off
State After Power Failure Last State
LED In Suspend Blink
x Wake Up Events Press Enter

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

Power Management Setup

ACPI Function

This item allows you to Enabled/Disabled the Advanced Configura­tion and Power Management (ACPI). The Settings are Enabled and Disa­bled.

CHAPTER 3 AWARD® BIOS SETUP

3-22

Power Management

This category allows you to select the type (or degree) of power

saving and is directly related to the following modes:

Power Management User Define
HDD Power Down Disable
Doze Mode Disable

Suspend Mode Disable

There are three selections for Power Management, two of which have fixed
mode settings.

Min. Power Saving Minimum power management. Suspend

Mode = 1hr., and HDD Power Down = 15
min.

Max. Power Saving Maximum power management —

Suspend Mode = 1 min., and HDD
Power Down = 1 min.

User Defined (default) Allows you to set each mode individu

ally. When not disabled, each of the
ranges are from 1 min. to 1 hr. except for
HDD Power Down which ranges from 1
min. to 15 min. and disable.

ACPI Suspend Type

This item will set which ACPI suspend type will be used.

S1 (POS) The S1 sleeping state is low wake-up latency

sleeping state. In this state, no system context is
lost(CPU or chip set) and hardware maintains all
system context.

S3 (STR) The S3 state is a low wake-up latency sleeping

state where all system context is lost expect
system memory. CPU, cache, and chipset context
are lost in this state. Hardware maintains memory
context and restores some CPU and L2 configura
tion context.

CHAPTER 3 AWARD® BIOS SETUP

3-23

PM Control by APM

No System BIOS will ignore APM when

power managing the system.

Yes System BIOS will wait for APM’s

prompt before it enter any PM mode

Note :Enable this for O.S. with APM like Windows® 98, Windows® NT, etc.

Video Off Option

The settings are N/A, Standby, Doze, or Suspend. This option is for
choosing the setting in which the monitor will turn off.

N/A Always turn on.

Doze During Doze mode, the monitor will be turned off.

Standby During Standby mode, the monitor will be turned off.

Suspend During Suspend mode, the monitor will be turned off.

The default setting is Standby.

Video Off Method

This determines the manner in which the monitor is blanked.
V/H SYNC+Blank This selection will cause the system to

turn off the vertical and horizontal synchroniza
tion ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video

buffer.

DPMS (default) Initial display power management signaling.

Modem Use IRQ

This determines the IRQ in which the MODEM can use.

The settings are: 3, 4, 5, 7, 9, 10, 11, NA.

Soft-Off by PWR-BTTN

Pressing the power button for more than 4 seconds forces the system

to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off.

CHAPTER 3 AWARD® BIOS SETUP

3-24

State After Power Failure

This option will determine how the system will power on after a
power failure.

Wake Up Events

VGA Off
LPT & COM LPT/COM
HDD & FDD On
PCI Master Off
Power On by PCI Card Disabled
Wake Up On LAN/Ring Disabled
RTC Alarm Resume Disabled
x Date (of Month) 0
x Resume Time 0:0:0
Primary INTER ON
IRQs Activity Monitoring Press Enter

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

VGA

When Enabled, you can set the VGA to awaken the system.

LPT & COM

When LPT & COM is On, any activity from one of the listed system
peripheral devices or IRQs wakes up the system

HDD & FDD

When HDD & FDD is On, any activity from one of the listed
system peripheral devices or IRQs wakes up the system

PCI Master

When PCI Master is On, any activity from one of the listed system
peripheral devices or IRQs wakes up the system

CHAPTER 3 AWARD® BIOS SETUP

3-25

Wake Up On LAN/Ring

To use this function, you need a LAN add-on card or Modem
which supports power on functions. During Disabled, the system cannot be
boot up through LAN and ignores any incoming call from the modem.
During Enabled, the system can be boot up through LAN and modem.

RTC Alarm Resume

This function is for setting date and time for your computer to boot
up. During Disabled, you cannot use this function. During Enabled, choose
the Date and Time Alarm:

Date(of month) Alarm You can choose which month the

system will boot up. Set to 0, to boot
every day.

Time(hh:mm:ss) Alarm You can choose what hour, minute and

second the system will boot up.

Note: If you have change the setting, you must let the system boot up until

it goes to the operating system, before this function will work.

IRQs Activity Monitoring

IRQ3 (COM 2) Enabled
IRQ4 (COM 1) Enabled
IRQ5 (LPT 2) Enabled
IRQ6 (Floppy Disk) Enabled
IRQ7 (LPT 1) Enabled
IRQ8 (RTC Alarm) Disabled
IRQ9 (IRQ2 Redir) Disabled
IRQ10 (Reserved) Disabled
IRQ11 (Reserved) Disabled
IRQ12 (PS/2 Mouse) Enabled
IRQ13 (Coprocessor) Enabled
IRQ14 (Hard Disk) Enabled
IRQ15 (Reserved) Disabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CHAPTER 3 AWARD® BIOS SETUP

3-26

The following is a list of IRQ’s, Interrupt ReQuests, which can

be exempted much as the COM ports and LPT ports above can.
When an I/O device wants to gain the attention of the operating
system, it signals this by causing an IRQ to occur. When the operat­ing system is ready to respond to the request, it interrupts itself and
performs the service.

When set On, activity will neither prevent the system from going

into a power management mode nor awaken it.

l IRQ3 (COM 2)
l IRQ4 (COM 1)
l IRQ5 (LPT 2)
l IRQ6 (Floppy Disk)
l IRQ7 (LPT 1)
l IRQ8 (RTC Alarm)
l IRQ9 (IRQ2 Redir)
l IRQ10 (Reserved)
l IRQ11 (Reserved)
l IRQ12 (PS/2 Mouse)
l IRQ13 (Coprocesssor)
l IRQ14 (Hard Disk)
l IRQ15 (Reserved)

CHAPTER 3 AWARD® BIOS SETUP

3-27

3.9 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate at

speeds nearing the speed the CPU itself uses when communicating with its
own special components. This section covers some very technical items
and it is strongly recommended that only experienced users should make
any changes to the default settings.

PnP OS Installed

When set to YES, BIOS will only initialize the PnP cards used for
booting (VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP
operating system like Windows® 95 or 98. When set to NO, BIOS will
initialize all the PnP cards. So, for non-PnP operating system (DOS,
Netware®), this option must set to Yes.

PnP OS Installed Yes
Reset Configuration Data Disabled

Resources Controlled By Auto (ESCD)
x IRQ Resources Press Enter
x DMA Resources Press Enter

PCI/VGA Palette Snoop Disabled
Assign IRQ for VGA Enabled
Assign IRQ for USB Enabled

Item Help

Menu Level >

Select Yes if you
are using a Plug
and Play capable
operating system
Select No if you
need the BIOS to
configure non­boot devices

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

PnP/PCI Configuration Setup

CHAPTER 3 AWARD® BIOS SETUP

3-28

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if you
have installed a new add-on and the system reconfiguration has caused such
a serious conflict that the operating system can not boot.

The settings are: Enabled and Disabled .

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically
configure all of the boot and Plug and Play compatible devices. However,
this capability means absolutely nothing unless you are using a Plug and
Play operating system such as Windows95/98. If you set this field to
“manual” choose specific resources by going into each of the sub menu that
follows this field (a sub menu is preceded by a “Ø”). The settings are:
Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system inter­rupt a type, depending on the type of device using the interrupt.

DMA Resources

This sub menu can let you control the DMA resource.

PCI/VGA Palette Snoop

Leave this field at Disabled. The settings are Enabled, Disabled.

Assign IRQ for VGA

Leave this field at Enabled. The settings are Enabled, Disabled.

Assign IRQ for USB

Leave this field at Enabled. The settings are Enabled, Disabled.

CHAPTER 3 AWARD® BIOS SETUP

3-29

3.10 Frequency/Voltage Control

This section is for setting CPU Frequency/Voltage Control.

Auto Detect DIMM/PCI CLK

This item allows you to enable/disable auto detect DIMM/PCI

Clock.

The settings are: Enabled, Disabled.

Spread Spectrum Modulated

This item allows you to set the Spread Spectrum.

CPU Host/PCI Clock

This item allows you to select the CPU Host/PCI Clock.

Auto Detect DIMM/PCI Clk Enabled

CPU Host/PCI/Spread Spec. Default

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

CMOS Setup Utility - Copyright(C) 1984-2000 Award Software

Frequency/Voltage Control

CHAPTER 3 AWARD® BIOS SETUP

3-30

3.11 Load Fail-Safe/Optimized Defaults

Load Fail-Safe Defaults

When you press <Enter> on this item, you get a confirmation dialog box
with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable, minimal­performance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you get a confirmation dialog box
with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for optimal
performance system operations.

CHAPTER 3 AWARD® BIOS SETUP

3-31

3.12 Set Supervisor/User Password

You can set either supervisor or user password, or both of them. The
differences are:

Supervisor password : can enter and change the options of the setup

menus.

User password : Can only enter but do not have the right to change

the options of the setup menus. When you select
this function, the following message will appear at
the center of the screen to assist you in creating a
password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The
password typed now will clear any previously entered password from CMOS
memory. You will be asked to confirm the password. Type the password again
and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.

To disable a password, just press <Enter> when you are prompted to enter the
password. A message will confirm the password will be disabled. Once the
password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every
time you try to enter Setup. This prevents an unauthorized person from chang­ing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to
request a password every time your system is rebooted. This would prevent
unauthorized use of your computer.

CHAPTER 3 AWARD® BIOS SETUP

3-32

You determine when the password is required within the BIOS Features
Setup Menu and its Security option. If the Security option is set to “Sys­tem”, the password will be required both at boot and at entry to Setup. If set
to “Setup”, prompting only occurs when trying to enter Setup.
