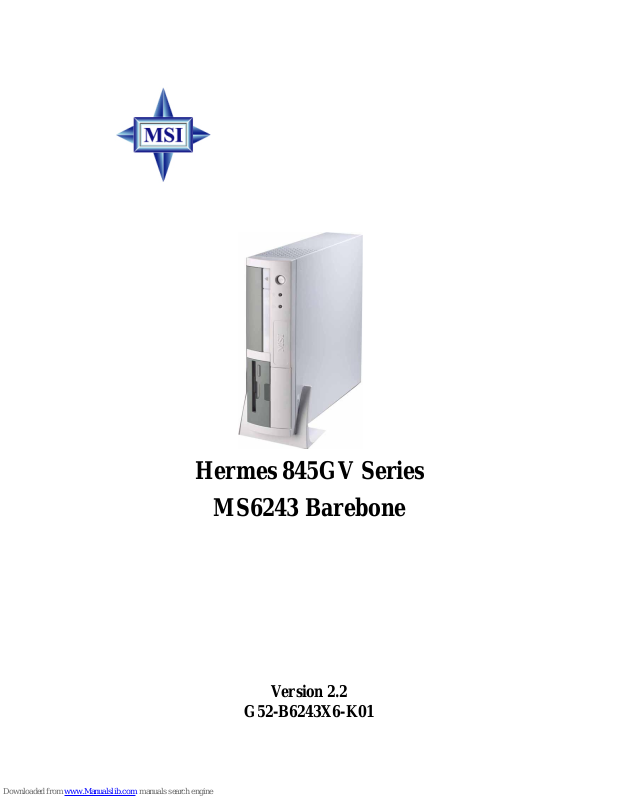

MSI MS6243 User Manual

i

Version 2.2

G52-B6243X6-K01

Hermes 845GV Series

MS6243 Barebone

ii

Manual Rev: 2.2
Release Date: Dec. 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLA TION AVANT DE RACCORDER AU
RESEAU.

Micro-Star International MS-6243

T ested to comply
with FCC Standard

For Home or Office Use

iii

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered

trademarks of AMD Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix T echnologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V1.0 First release May 2002
V2.0 Changing to Oct. 2002

Intel 845 GV+ICH4
v2.1 Special Edition for Elonex Dec. 2002
v2.2 Replace v2.0 Dec. 2002

iv

1. Always read the safety instructions carefully.
2 . Keep this User’ s Manual for future reference.
3 . Keep this equipment away from humidity.
4 . Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6 . Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

1 0 . Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged.
z Liquid has penetrated into the equipment.
z The equipment has been exposed to moisture.
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged.
z The equipment has obvious sign of breakage.

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERA TURE ABOVE 600 C (1400F), IT
MA Y DAMAGE THE EQUIPMENT .

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

About This Manual

This manual is written based on the idea to make a brief introduction of MS6243
barebone. It is ideal for the end-users to get a complete understanding about
this model. The advanced users can also get help while studying this book.

This manual contains six sections. Each section mentions the points as follows:

Chapter 1: Getting Started

-- includes barebone specifications, mainboard specifications and
mainboard layout. It is useful for the users to get a basic understanding
of this model.

Chapter 2: Mainboard Setup

-- tells you how to set up the mainboard; includes components
introduction and jumpers setting. It is helpful for the end and
advanced users.

Chapter 3: Chassis Installation

-- tells you how to install the chassis and components. It is useful for
the users who want to set up the system.

Chapter 4: BIOS Setup

--includes the function introduction of BIOS menu. It is ideal for the
advanced users who want to adjust the system.

Appendix: Using 4- or 6- Channel Audio Function

--provides you with the information of 4- or 6- channel audio function
for reference.

Glossary

--provides the definition of technical terms mentioned in this manual.
It is helpful for the end-users to get a clear understanding of technical

terms.

vi

T echnical Support

If a problem arises with your system and no solution can be
obtained from the user’s manual, please contact your place of
purchase or local distributor. Alternatively, please try the follow­ing help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS

updates, driver updates, and other information: http://www.

msi.com.tw/

Contact our technical staff at: [e-mail]

vii

CONTENTS

Chapter 1. Introduction ............................................................................ 1-1

Barebone Specifications.......................................................................1-2

Mainboard Specifications .................................................................... 1-4

Mainboard Layout ............................................................................... 1-6

Quick Component Guide ......................................................................1-7

Chapter 2. Mainboard Setup ..................................................................... 2-1

Central Processing Unit: CPU .............................................................. 2-2

CPU Installation Procedure ........................................................... 2-3

Attaching CPU Cooler................................................................... 2-4

Memory Installation ............................................................................. 2-5

Introduction to DDR SDRAM....................................................... 2-5

DDR Module Combination ............................................................ 2-6

Installing DDR Modules ............................................................... 2-6

Power Supply .......................................................................................2-7

ATX 20-Pin Power Connector: ATX1 ............................................2- 7

ATX 12V Power Connector: JPW1 ................................................ 2-7

Front Panel ........................................................................................... 2-8

1394 Port: J1394-2 ......................................................................... 2-8

USB Ports ...................................................................................... 2-9

Audio Port..................................................................................... 2-9

SPDIF Jack .................................................................................... 2-9

Back Panel .......................................................................................... 2-10

Serial Ports: COM A & COM B ................................................... 2-10

Audio Port................................................................................... 2-11

AV-out Connector: TV1 ............................................................... 2-11

RJ-45 LAN Jack ........................................................................... 2-11

Parallel Port.................................................................................. 2-12

DVI Port....................................................................................... 2-13

IEEE 1394 Port: J1394-1 ................................................................ 2-14

viii

VGA Port ..................................................................................... 2-14

USB Ports .................................................................................... 2-15

Mouse Connector ....................................................................... 2-15

Keyboard Connector ................................................................... 2-16

Connectors......................................................................................... 2-17

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-17

Front Panel Connector: JFP1 ....................................................... 2-18

CD-In Connector: JCD1 ............................................................... 2-19

Fan Power Connectors: CPUF AN1/SYS_F AN ............................ 2-20

FDD Connector: FDD1 ................................................................ 2-21

TV-Out Connector: JTV1 ............................................................. 2-21

Jumper ................................................................................................ 2-22

Clear CMOS Jumper: JBA T1........................................................ 2-22

Slot ..................................................................................................... 2-23

PCI Slot........................................................................................ 2-23

PCI Interrupt Request Routing .................................................... 2-24

Chapter 3. Chassis Installation ................................................................ 3-1

Overview .............................................................................................. 3-2

Installation Tools........................................................................... 3-2

Screws ...........................................................................................3-2

Installation Flowchart....................................................................3-3

Checking the items ........................................................................ 3-4

Installation Procedures ........................................................................3-5

Chapter 4. AMI® BIOS Setup ................................................................... 4-1

Entering Setup...................................................................................... 4-2

Selecting the 1st Boot Device .......................................................4-2

Control Keys ................................................................................. 4 -3

Getting Help ..................................................................................4-3

The Main Menu ................................................................................... 4-4

Standard CMOS Setup ......................................................................... 4-6

ix

Advanced BIOS Features .................................................................... 4-8

Advanced Chipset Features............................................................... 4-13

Power Management Features............................................................. 4-16

PNP/PCI Configurations..................................................................... 4-19

Integrated Peripherals ........................................................................ 4-22

PC Health Status ................................................................................ 4-25

Frequency/Voltage Control ................................................................ 4-26

Set Supervisor/User Password........................................................... 4-27

Load Optimal/Fail-Safe Defaults......................................................... 4-28

Appendix: Using 4- or 6-Channel Audio Function ....................................A-1

Installing the Audio Driver .................................................................A-2

Using 4-/6- Channel Audio Function ..................................................A-4

Testing the Connected Speakers.........................................................A-8

Playing KaraOK ................................................................................A-10

Glossary ....................................................................................................G-1

Introduction

1-1

Introduction

1

Congratulations for purchasing MS-6243 barebone. The MS­6243 barebone is your best Slim PC choice. Based on the “all-in­one” design idea, the MS-6243 provides 2 “1394” ports (option), 6
USB ports, 2 TV-out jacks (option), 1 DVI jack (option) and 1
SPDIF jack. With the fantastic appearance and small form factor ,

it can easily be set anywhere in a clean look. The feature packed
platform also gives you a exciting PC experience.

Chapter 1

1-21-2

Chassis

hDimension: 310mm (H) x 84mm (W) x 345mm (D)
hMinimised screw structure
hDetachable bay housing

Barebone Specifications

Front Panel

1. Slim Floppy Drive

2. CD-ROM Drive

3. Power Switch

4. Power LED

5. HDD LED

6. 4-Pin IEEE 1394 Port (option)

7. USB Ports

8. MIC-in

9. Line-out

10. SPDIF Jack (optical)

Introduction

1-31-3

Power Supply

hPFC : Passive PFC
hWattage : 200W max.
hSafety/EMC Compliant : FCC, UL, CUL, BSMI, CB, NEMKO, TUV, CCC
hAC Input Voltage : 100-127/200-240 VAC, Switch Selectable
hDC Output Voltage : 3.3V(14A). 5V(21A), 12V(10A), -12V(0.8A),

5Vsb (2A)

hPower Supply Fan : 80 x 80 x 25mm
hDimension : 80 (H) x 120 (W) x 120 (D) mm

Daughter Board

hPCI Riser Card: 1 to 2 slot PCI Riser Card

Back Panel

1. S-Video Port (option) 10. DVI Port (option)

2. COM A 11. VGA Port

3. PCI Slots 12. RJ-45 LAN Jack

4. COM B 13. USB Ports

5. MIC-in 14. PS/2 Mouse

6. Line-in 15. PS/2 Keyboard

7. Line-out 16. 6-Pin IEEE1394 Port (option)

8. AV-out (option) 17. Power Jack

9. Parallel Port 18. Voltage Selector (115/230V)

Chapter 1

1-4

Mainboard Specifications

Model: MS-6557
CPU

h Supports Socket 478 for Intel® Pentium™ 4 processor up to 2.53GHz and

above

Chipset

h Intel® 845GV chipset

- Integrated video accelerator

- Supports 100/133 MHz FSB

- Supports 533 /400 MHz Intel® NetBurst micro-architecture bus

- Supports DDR 200/266 memory.

h Intel® ICH4 chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec.

- 2 channel Ultra AT A 100 bus Master IDE controller.

- PCI Master 2.2.

- I/O APIC.

- AC’97 2.2 interface.

- 3 UHCI Host controllers and 1 EHCI Host controller.

Main Memory

h T wo 184-pin DDR DIMMs.
h Supports DDR 200/266 memory up to 2GB.

Slot

h One 32-bit PCI bus slot
h Can connect 2 Riser PCI card

On-Board IDE

h Supports P/O, Bus Master, Ultra DMA 66/100 operation
h Can connect to 2 IDE devices.

On-Board Peripherals

h Rear Panel

- 1 parallel port

- PS2 keyboard + PS2 mouse

- 2 USB ports

- Rear Audio (Mic_in, Line_in, Line_out)

- 1 VGA port

Introduction

1-5

- 1 LAN (RJ45) port

- 1 DVI connector for LCD monitor (Optional)

- 2 TV out connectors: AV out & S-video out (Optional)

- 6-pin 1394 connector (Optional)

- 2 serial ports (On-board x1; Header x 1)

h Front Panel

- 2 audio ports (Headphone-out, Mic_in)

- 4 USB ports

- 1 SPDIF

- 4-pin 1394 connector (Optional)

h Internal Pin-Header

- Intel® standard front panel pin-header

- CPU fan & system fan

- Clear CMOS pin-header

- 2 IDE (A T A66/100)

- 1 standard floppy connector

- 1 on-board COM port pin-header

- Audio (CD-in)

- On-board buzzer

- 1 to 2 PCI riser card

Audio

h AC’97 link controller integrated in ICH4
h RealTek ALC650 6-channel audio

- Compliance w/AC’97 v2.2 spec.

- Meet PC2001 audio performance requirement

Dimension

h 320mm (L) x 195mm (W)

Form Factor

h Proprietary (4-layer)

Mounting

h 6 mounting holes.

Chapter 1

1-6

B

A

T

T

+

D

D

R

1

D

D

R

2

J

P

W

1

U

S

B

3

U

S

B

2

J

1

3

9

4

-

2

J

1

3

9

4

-

1

S

P

D

I

F

A

T

X

P

o

w

e

r

S

u

p

p

l

y

C

P

U

F

A

N

1

S

Y

S

_

F

A

N

J

B

A

T

1

B

I

O

S

P

C

I

S

l

o

t

1

I

D

E

1

I

D

E

2

T

:

R

J

4

5

L

A

N

j

a

c

k

B

:

U

S

B

p

o

r

t

s

T

o

p

:

m

o

u

s

e

B

o

t

t

o

m

:

k

e

y

b

o

a

r

d

N

E

C

D

7

2

8

7

4

G

C

S

M

S

C

L

P

C

4

7

M

1

3

3

-

N

C

I

n

t

e

l

8

2

5

6

2

E

Z

C

h

r

o

n

t

e

l

C

H

7

0

0

9

A

-

T

C

o

d

e

c

J

C

D

1

T

V

1

J

T

V

1

T

o

p

:

C

O

M

A

B

o

t

t

o

m

:

L

i

n

e

-

O

u

t

L

i

n

e

-

I

n

M

i

c

C

O

M

2

F

D

D

1

T

o

p

:

P

a

r

a

l

l

e

l

P

o

r

t

B

o

t

t

o

m

:

V

G

A

p

o

r

t

D

V

I

-

I

p

o

r

t

I

C

H

4

I

n

t

e

l

8

4

5

G

V

T

:

M

i

c

B

:

L

i

n

e

O

u

t

Mainboard Layout

MS-6557 (V3.X) Mainboard

Introduction

1-7

Quick Component Guide

Component Function Reference

Socket 478 Installing CPU See p. 2-2~2-3
DIMM1 & DIMM2 Installing DIMM modules See p. 2-5~2-6
ATX Power Supply Connecting to ATX Power Supply See p. 2-7
IDE1 & IDE2 Connecting to HDD See p. 2-17
JFP1 Connecting to Front Panel See p. 2-18
JCD1 Connecting to CD-ROM audio See p.2-19

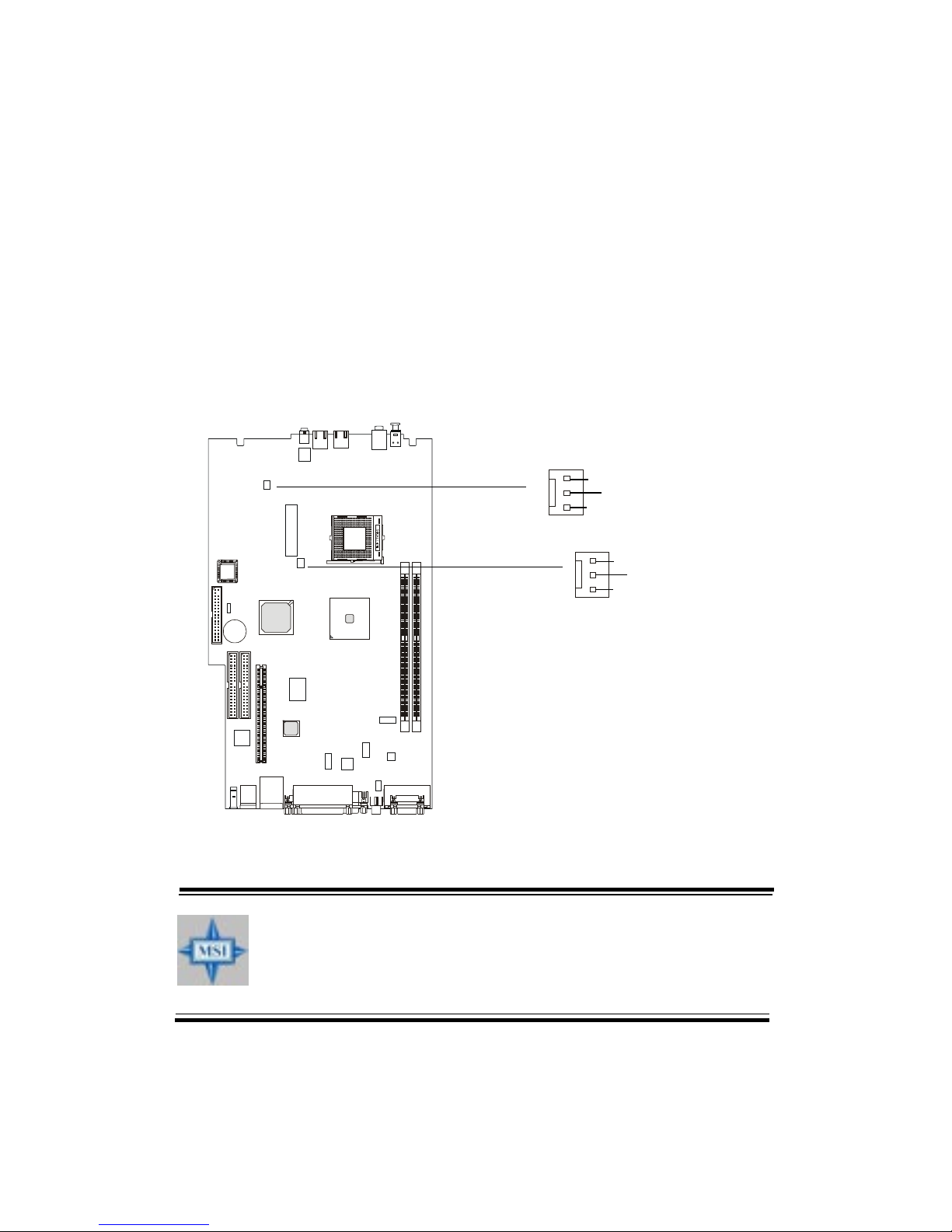

CPUFAN/SYS_FAN Connecting to system fan and CPU

fan

See p.2-20

FDD1 Connecting to FDD See p. 2-21
JTV1 Connecting to TV or video device See p. 2-21

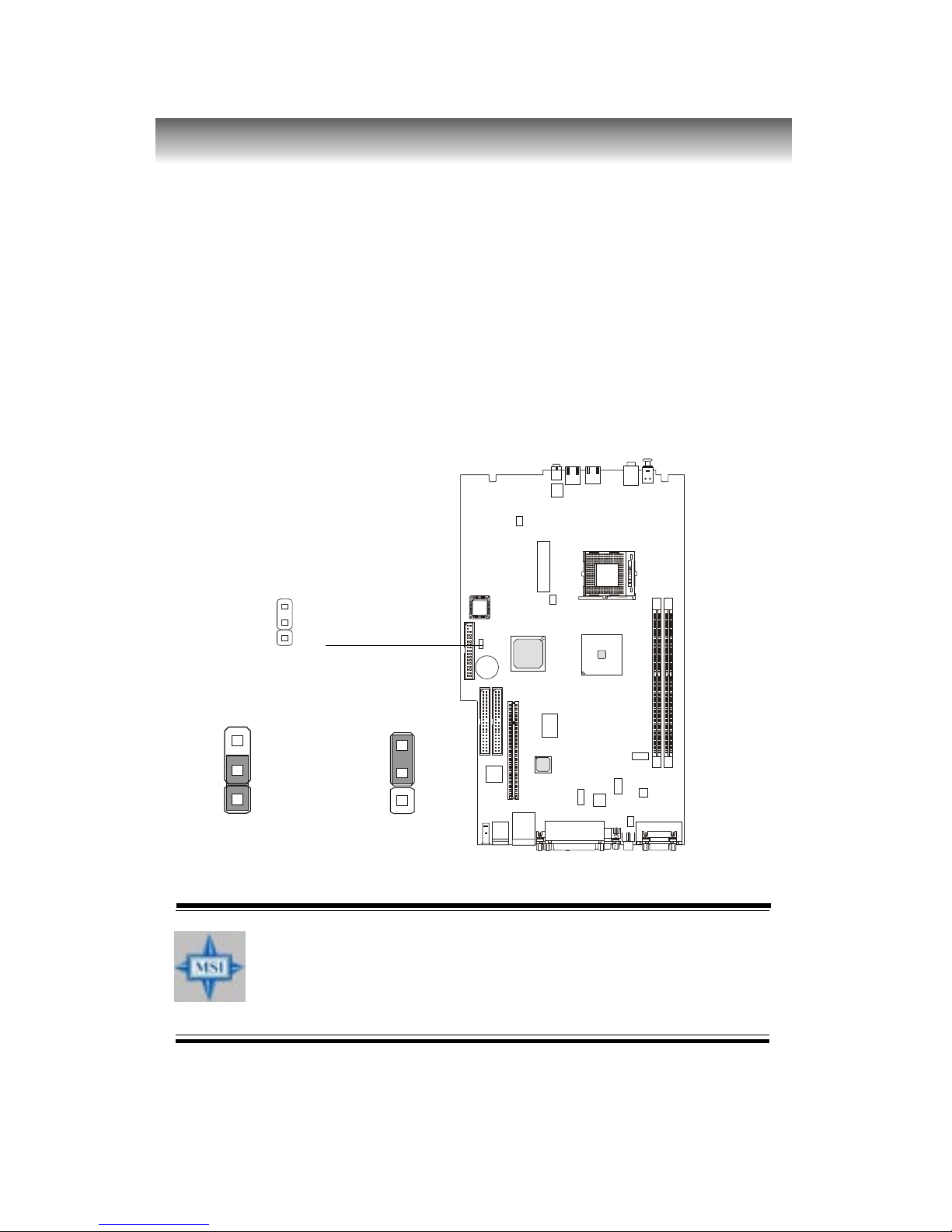

JBAT1 Setting clear CMOS See p. 2-22
PCI Slot1 Connecting to PCI card See p. 2-23

Mainboard Setup

2-1

2

This chapter provides you with the information about hard­ware setup procedures for MS-6557 mainboard. While doing the
installation, be careful in holding the components and follow the
installation procedures. For some components, if you install in the
wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the components.

Mainboard Setup

Chapter 2

2-2

The mainboard supports Intel® Pentium

TM

4 processors (Willimate

478 and Northwood 478). The mainboard uses a CPU socket called Socket 478

for easy CPU installation. While installing the CPU, make sure the CPU has a
heat sink and a cooling fan attached on the top to prevent overheating. If you
do not find the heat sink and cooling fan, contact your dealer or purchase them
before installing the CPU.

Central Processing Unit: CPU

Overheating

Overheating will seriously damage the CPU and system, al­ways make sure the cooling fan can work properly to protect
the CPU from overheating.

Replacing the CPU

While replacing the CPU, always turn off the ATX power sup­ply or unplug the power supply’s power cord from grounded
outlet first to ensure the safety of CPU.

Mainboard Setup

2-3

CPU Installation Procedures

1. Turn off the power and unplug

the power cord before install­ing the CPU.

2. Pull the lever sideways away

from the socket. Make sure
to raise the lever up to a 90­degree angle.

3. Look for the gold arrow. The
gold arrow should point to­wards the lever pivot. The
CPU can only fit in the correct
orientation.

4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket.

Any violation of the correct
installation procedures may
cause permanent damages to
your mainboard.

5. Press the CPU down firmly into

the socket and close the lever.

As the CPU is likely to move
while the lever is being
closed, always close the le­ver with your fingers press­ing tightly on top of the CPU
to make sure the CPU is prop­erly and completely embed­ded into the socket.

Open Lever

90 degree

Sliding

Plate

Close
Lever

Press down

the CPU

Gold arrow

Gold arrow

Gold arrow

Correct CPU plac em ent

Incorrect CPU pl ace men t

X

O

Chapter 2

2-4

The CPU cooler included in the packing is designed specially for MS­6243 barebone. It is different from other CPU cooler of PentiumTM4. See the
follows for the features:

z Copper Material

The heatsink is made of copper that has better heat-disseminating effect.

z Shockproof Effect

The cooler has good shockproof effect through the mechanical combi

nation design of CPU fan and heatsink.

z Small Size

Contrast to normal CPU cooler, the small size takes up less space.

z Special Fan Design

The CPU fan has ball bearing solution. The reliability is better than

sleeve solution. It is suitable for Slim PC.

z High Density Fan Fins

The CPU cooler has high density fan fins than normal CPU cooler. It is

ideal for heat disseminating.

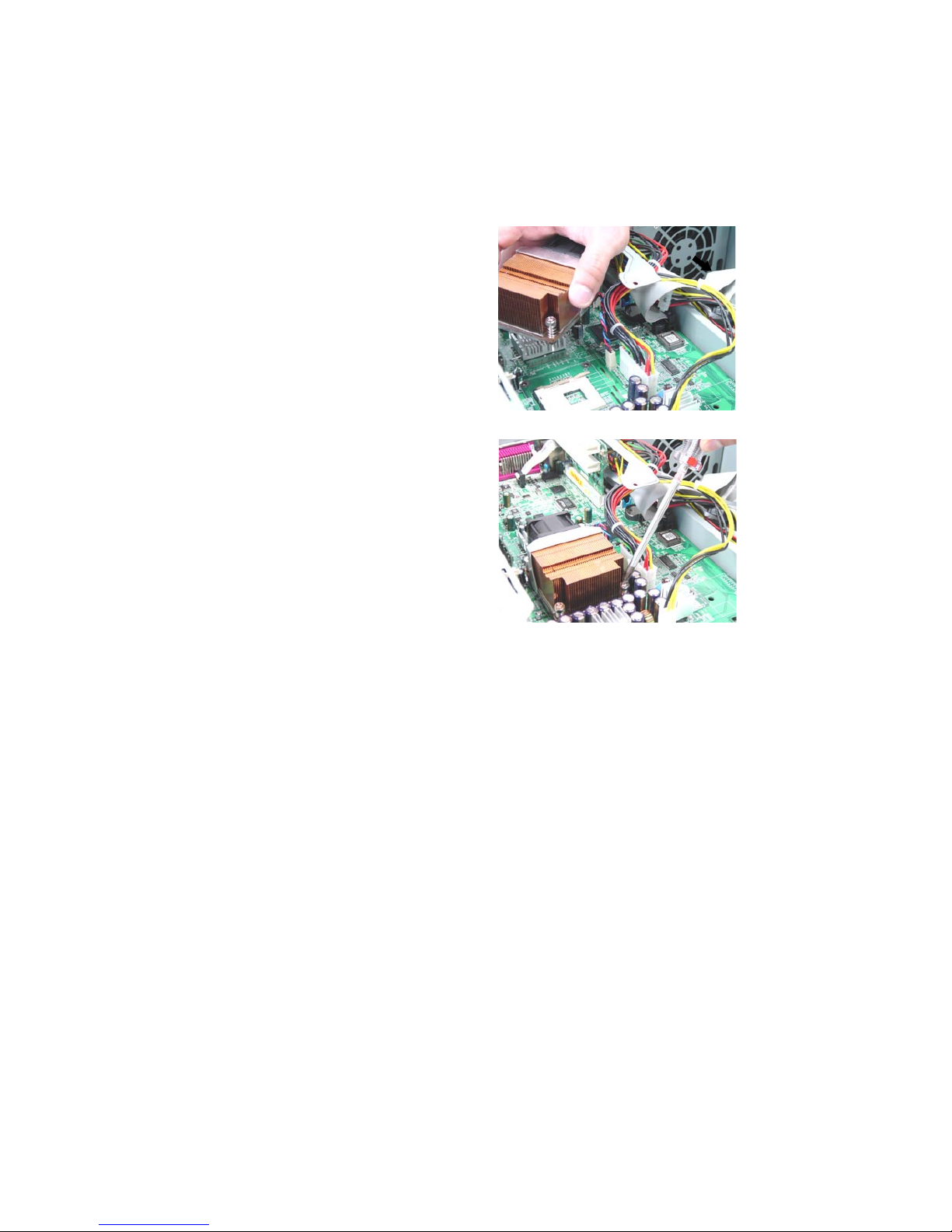

Attaching CPU Cooler

2. Use 4 screws to secure

the CPU cooler.

1. Put the CPU cooler on the CPU.

* The four screws of CPU cooler
are built-in.

* The front part of screw is de­signed for shockproof. While
securing the cooler, the front
part of screw can not be em­bedded into the hole
completely.

shockproof design

Mainboard Setup

2-5

The mainboard provides two sockets for 184-pin DDR SDRAM DIMM
(Double In-Line Memory Module) and supports the memory size up to 2 GB.
You can install PC2100/DDR266 or PC1600/DDR200 modules into the DDR
DIMM slots.

DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod­ules rather than 168-pin DIMM modules used by SDR SDRAM. T wo types of
DDR are available at the time of writing: PC1600 & PC2100. PC1600 DDR SDRAM
running at 100MHz will produce about 1.6GB/s memory bandwidth. PC2100
running at 133MHz will produce 2.1GB/s memory bandwidth. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta­tions and servers.

Intel

845GV

DDR1 DDR2

Introduction to DDR SDRAM

Memory Installation

Chapter 2

2-6

Install at least one DIMM module into the slots. Memory modules can

be installed into the slots in any order. You can install either single or double­sided modules to meet your need.

S (Single Side): 64MB ~ 512MB D (Double Side): 128MB ~ 1GB

Combination

Slot

1 2

DDR 1

S/D S/D

DDR 2

S/D S/D

Total Memor y

64MB~2GB 64MB~2GB

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

notch

DDR Module Combination

Installing DDR Modules

Mainboard Setup

2-7

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply , make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector. The power connector supports
instant power on function which means that system will boot up immediately
when the power supply connector is inserted on the board.

This 12V power connector is used to provide power to the CPU.

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5 V
20 5 V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12 V

ATX1 Pin Definition

Intel

845GV

ATX1

JPW1

1

3

2

4

PIN SIGNAL

1 GND
2 GND
3 12V
4 12V

JPW1 Pin Definition

ATX 20-Pin Power Connector: ATX1

ATX 12V Power Connector: JPW1

10

1

20 11

Power Supply

Chapter 2

2-8

J1394-2

USB Ports

Audio Port

SPDIF Jack

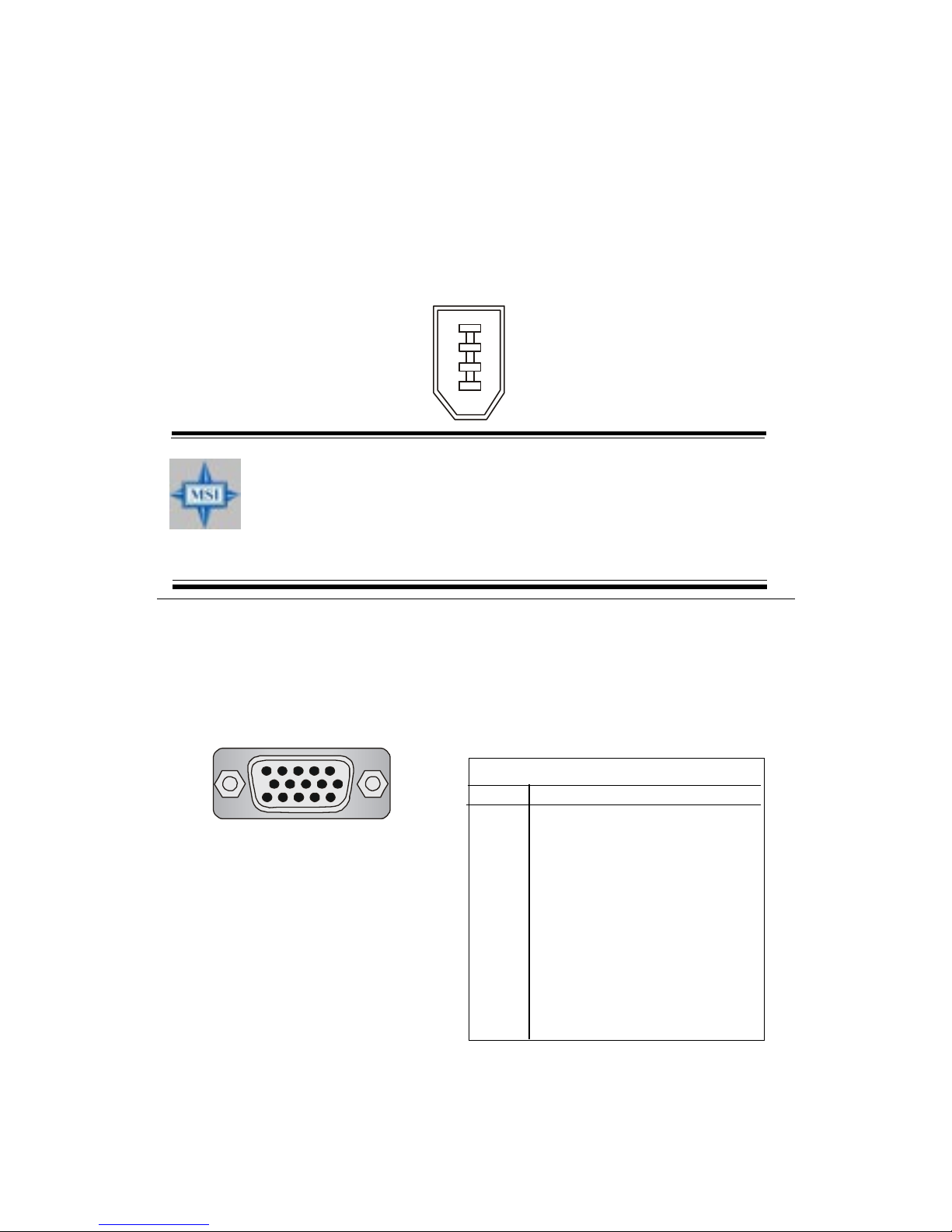

The mainboard provides two IEEE 1394 ports. This smaller one is designed for
you to connect the IEEE 1394 device with external power. The IEEE 1394 high­speed serial bus complements USB by providing enhanced PC connectivity
for a wide range of devices, including consumer electronics audio/video (A/V)
appliances, storage peripherals, other PCs, and portable devices.

IEEE 1394 Port: J1394-2

Front Panel

Software Support

IEEE 1394 Driver is provided by Windows® 98 SE, Windows

®

XP, Windows® ME and Windows® 2000. Just plug in the IEEE
1394 connector into the port. These Operating Systems will
install the driver for IEEE 1394.

Mainboard Setup

2-9

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
these connectors.

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

USB Port Description

This allows you to connect the front audio device

MIC-in

Line-Out

The connector allows you to connect to Sony & Philips Digital Inter­face (SPDIF), developed jointly by the Sony and Philips corporations . A
standard audio file transfer format, SPDIF allows the transfer of digital audio
signals from one device to another without having to be converted first to an
analog format.

USB Ports

Audio Port

SPDIF Jack

Chapter 2

2-10

The Rear Panel provides the following connectors:

MIC -in

Line-in

Line-out

TV1

DVI Port

VGA Port

USB Ports

Keyboard

J1394-1

COM A

Parallel Port

LAN Jack

Mouse

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data T erminal Ready
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear T o Send
9 RI Ring Indicate

Pin Definition

9-Pin Male DIN Connector

1 2 3 4 5

6 7 8 9

COM2 (COM B)

8
6
4
2

9
7
5
3
1

The mainboard offers two 9-pin male DIN connectors as serial port COM
A & COM B (COM B is the header COM2 on the board). The ports are 16550A
high speed communication ports that send/receive 16 bytes FIFOs. You can
attach a serial mouse or other serial devices directly to the connectors.

Serial Ports: COM A & COM B

Back Panel

Mainboard Setup

2-11

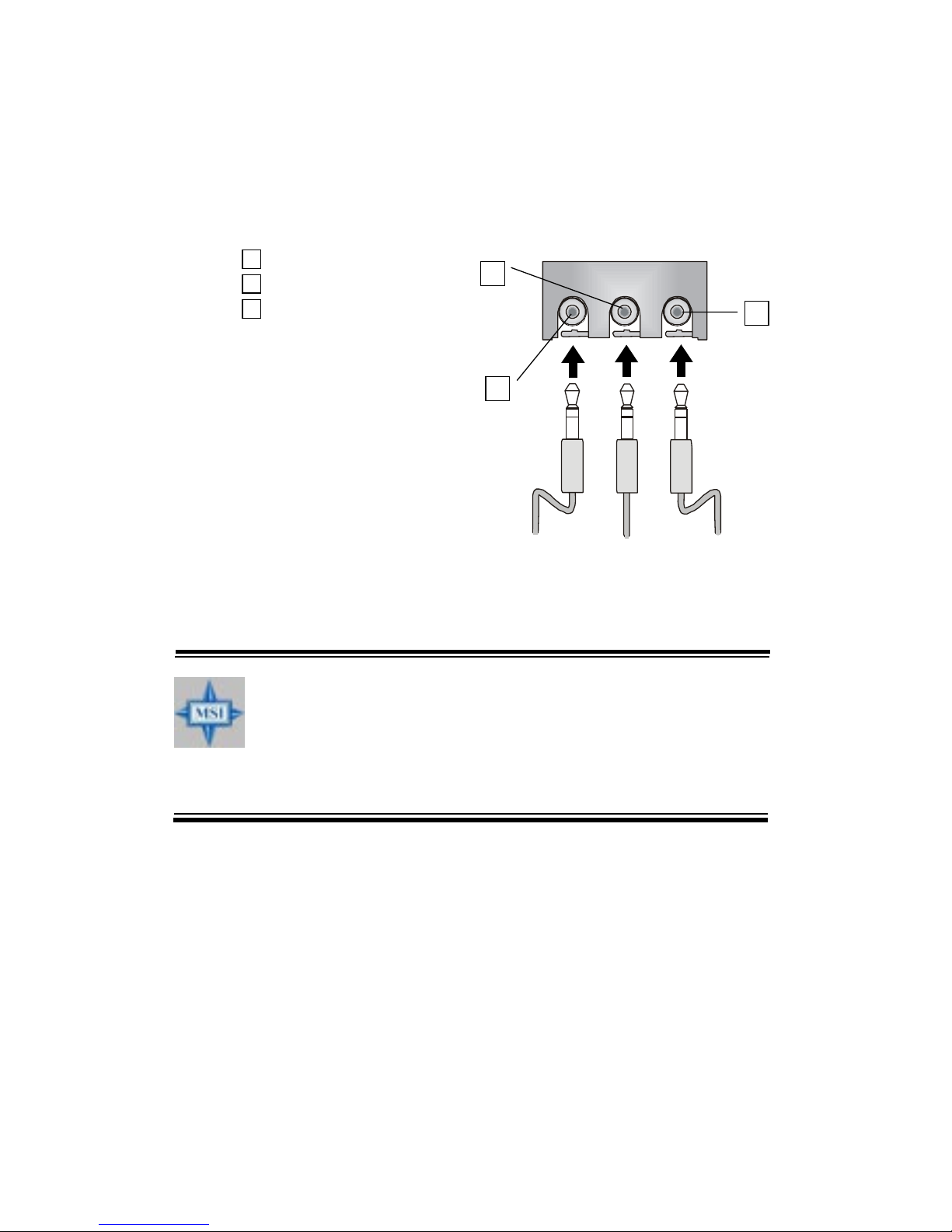

Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic-in is a connector
for microphones.

The mainboard provides one standard RJ-45 jack for connection to

Local Area Network (LAN). You can connect a network cable to the LAN jack.

Pin Definition

You can connect to a TV or video device to TV1 connector for video-

out function which allows you to output the image to a TV or video device.

TV1

Connector

TV

Projector

Note: The mainboard supports 4- or 6- channel audio function. For more
information, refer to Appendix.

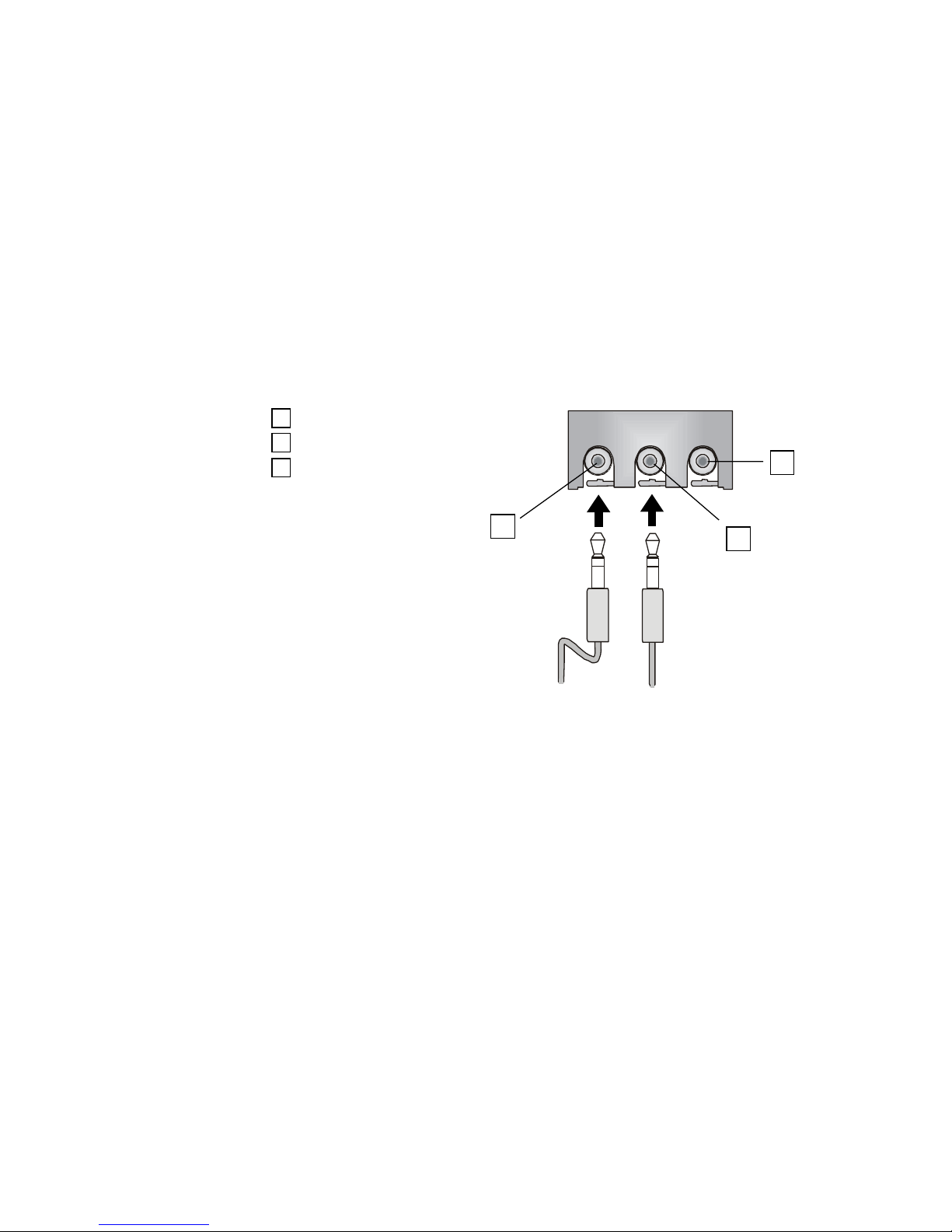

1/8” Stereo Audio Connectors

Line Out Line In MIC-in

PIN SIGNAL DESCRIPTION

1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used

Audio Port

RJ45 LAN Jack

AV-out Connector: TV1

Chapter 2

2-12

The mainboard provides a 25-pin female centronic connector as LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13 1

14

25

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
1 3 SELECT Select
1 4 AUTO FEED# Automatic Feed
15 ERR# Error
1 6 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground

Pin Definition

Parallel Port

Mainboard Setup

2-13

The mainboard provides a DVI (Digital Visual Interface) connector
which allows you to connect an LCD monitor. The DVI connector provides a
high-speed digital interconnection between the computer and its display device.

Pin

1
2
3
4
5
6
7
8

9
10
11
12

DVI-I Connector

Signal Assignment

T.M.D.S.* Data2­T.M.D.S. Data2+
T.M.D.S. Data2/4 Shield
T.M.D.S. Data4­T.M.D.S. Data4+
DDC Clock
DDC Data
N/C
T.M.D.S. Data1­T.M.D.S. Data1+
T.M.D.S. Data1/3 Shield
T.M.D.S. Data3-

Pin

13
14
15
16
17
18
19
20
21
22
23
24

Signal Assignment

T.M.D.S. Data3+
+5V
GND (for +5V)
Hot Plug Detect
T.M.D.S. Data0­T.M.D.S. Data0+
T.M.D.S. Data0/5 Shield
T.M.D.S. Data5­T.M.D.S. Data5+
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock-

C 1 Analog Red
C 2 Analog Green
C 3 Analog Blue

*T.M.D.S. Technology
The graphics data sent to the digital monitor use Transition Minimized
Differential Signaling (T.M.D.S.) technology. TMDS uses an encoding
algorithm to 8-bit of data into a 10-bit transition minimized, DC balanced
character, which are transition-minimized to reduce EMI with copper
cables and DC-balanced for transmission over fiber optic cables. The
TMDS algorithm also provides robust clock recovery for greater skew
tolerance with longer cables or low cost short cables.

1

2417

8

C1

C2

C3

DVI Port

Chapter 2

2-14

The bigger 6-pin IEEE 1394 Port on the back panel is designed for you to
connect to IEEE 1394 devices without external power. That means the mainboard
can provide the power for the devices connected to this port.

The mainboard provides one DB 15-pin female connector to connect a

VGA monitor.

IEEE 1394 Port: J1394-1

Pin Definition

Analog Video Display Connector (DB-15S)
PIN SIGNAL DESCRIPTION

1 Red
2 Green
3 Blue
4 Not used
5 Ground
6 Ground
7 Ground
8 Ground
9 Power
10 Ground
11 Not used
1 2 SDA
1 3 Horizontal Sync
1 4 Vertical Sync
15 SCL

DB 15-Pin Female Connector

5 1

15 11

VGA Port

Software Support

IEEE 1394 Driver is provided by Windows® 98 SE, Windows

®

XP, Windows® ME and Windows® 2000. Just plug in the IEEE
1394 connector into the port. These Operating Systems will
install the driver for IEEE 1394.

Mainboard Setup

2-15

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
the connector.

The mainboard provides a standard PS/2® mouse mini DIN connector
for attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector.

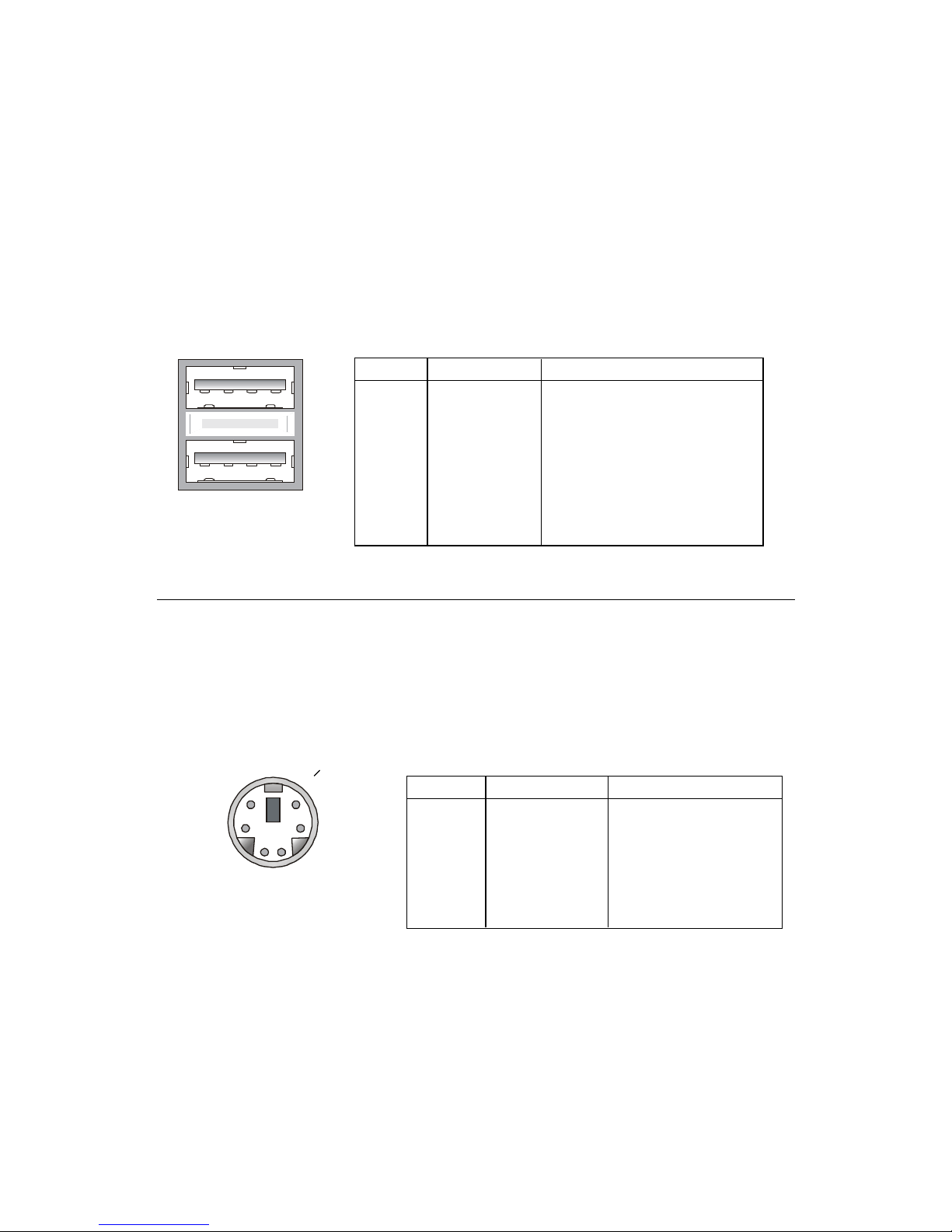

USB Ports

1 2 3 4

5 6 7 8

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

USB Port Description

USB Ports

Mouse Connector

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

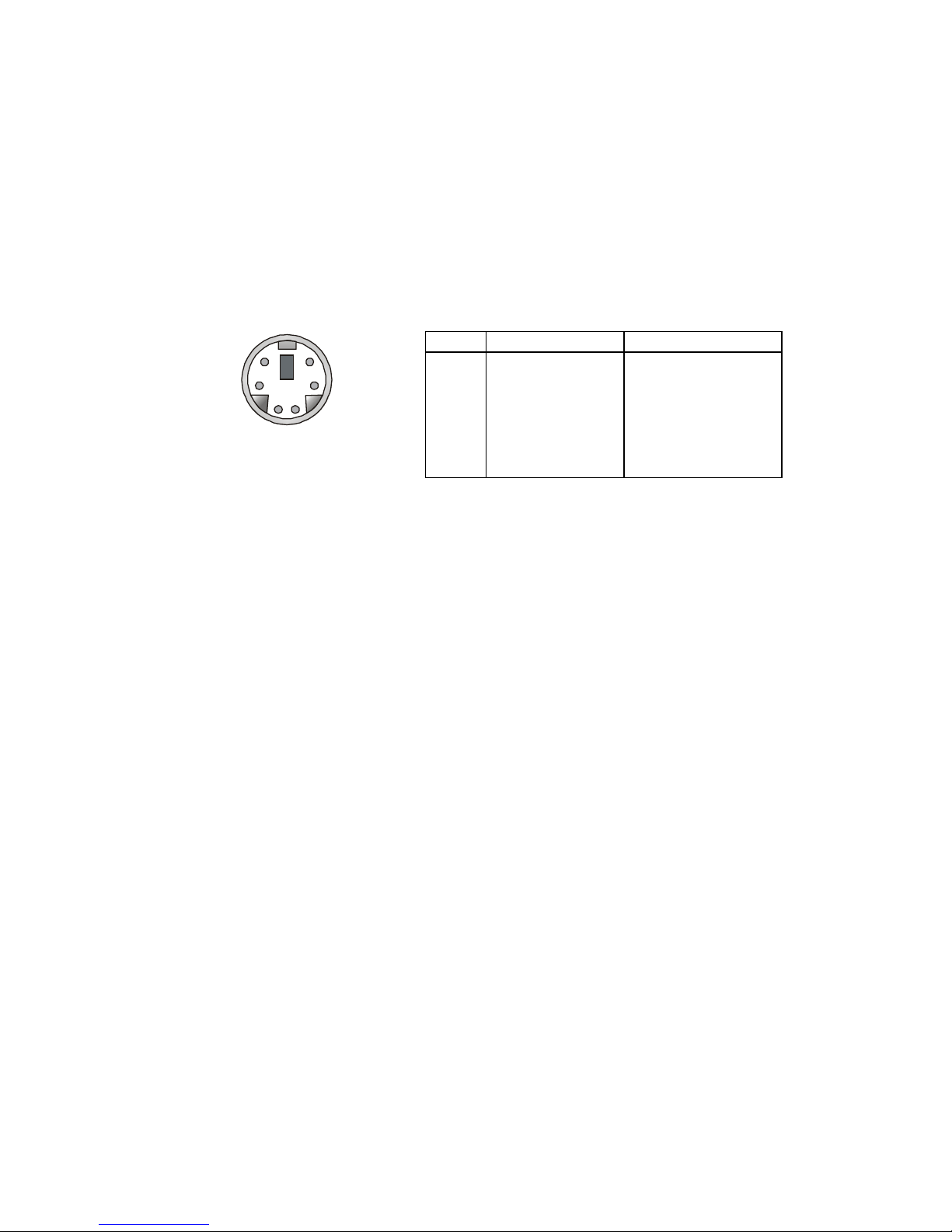

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

Chapter 2

2-16

The mainboard provides a standard PS/2® keyboard mini DIN connec­tor for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection

Pin Definition

PS/2 Keyboard (6-pin Female)

2

1

3

4

5

6

Keyboard Connector

Mainboard Setup

2-17

.

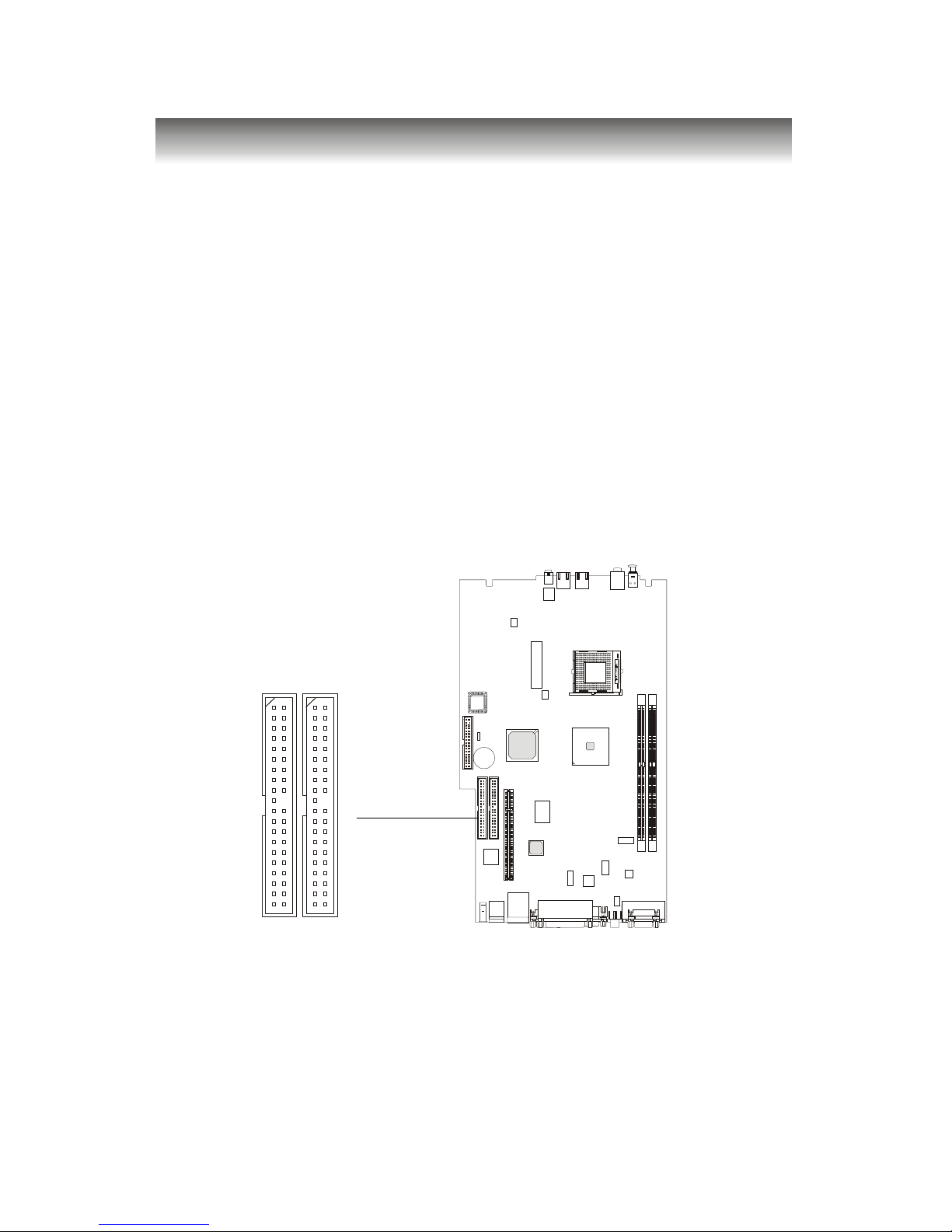

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66/100
function. The two connectors on the motherboard allows you to connect to
only two IDE devices. As the MS-6243 Barebone is a slim PC, there is no extra
space for you to connect two more IDE devices. Also, please be careful the
two connectors can only connect to the specific IDE devices as below:

IDE1 (Primary IDE Connector)
The hard drive should always be connected to IDE1.

IDE2 (Secondary IDE Connector)
IDE2 can only connect a CD-ROM drive.

Intel

845GV

I

D

E

1

I

D

E

2

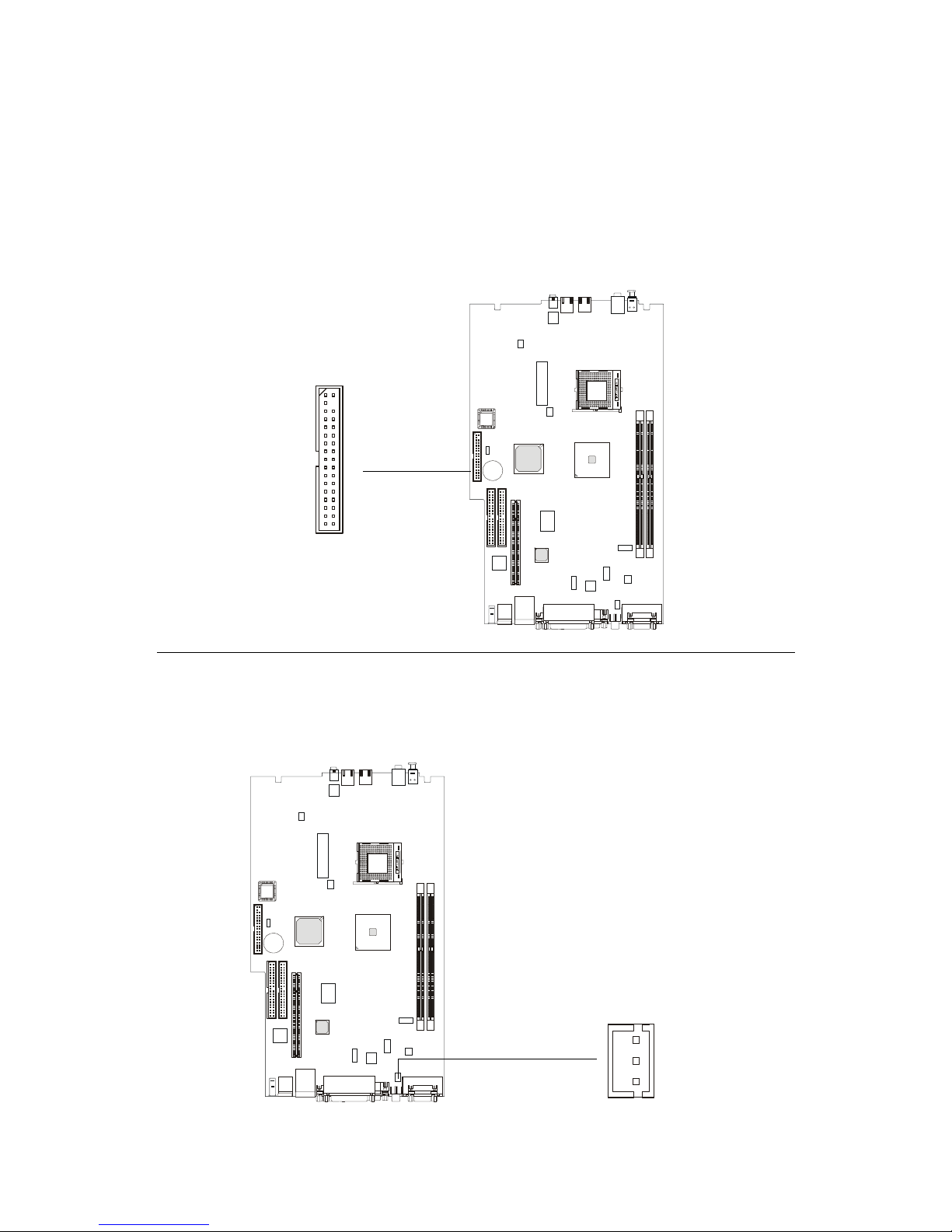

Hard Disk Connectors: IDE1 & IDE2

Connectors

Chapter 2

2-18

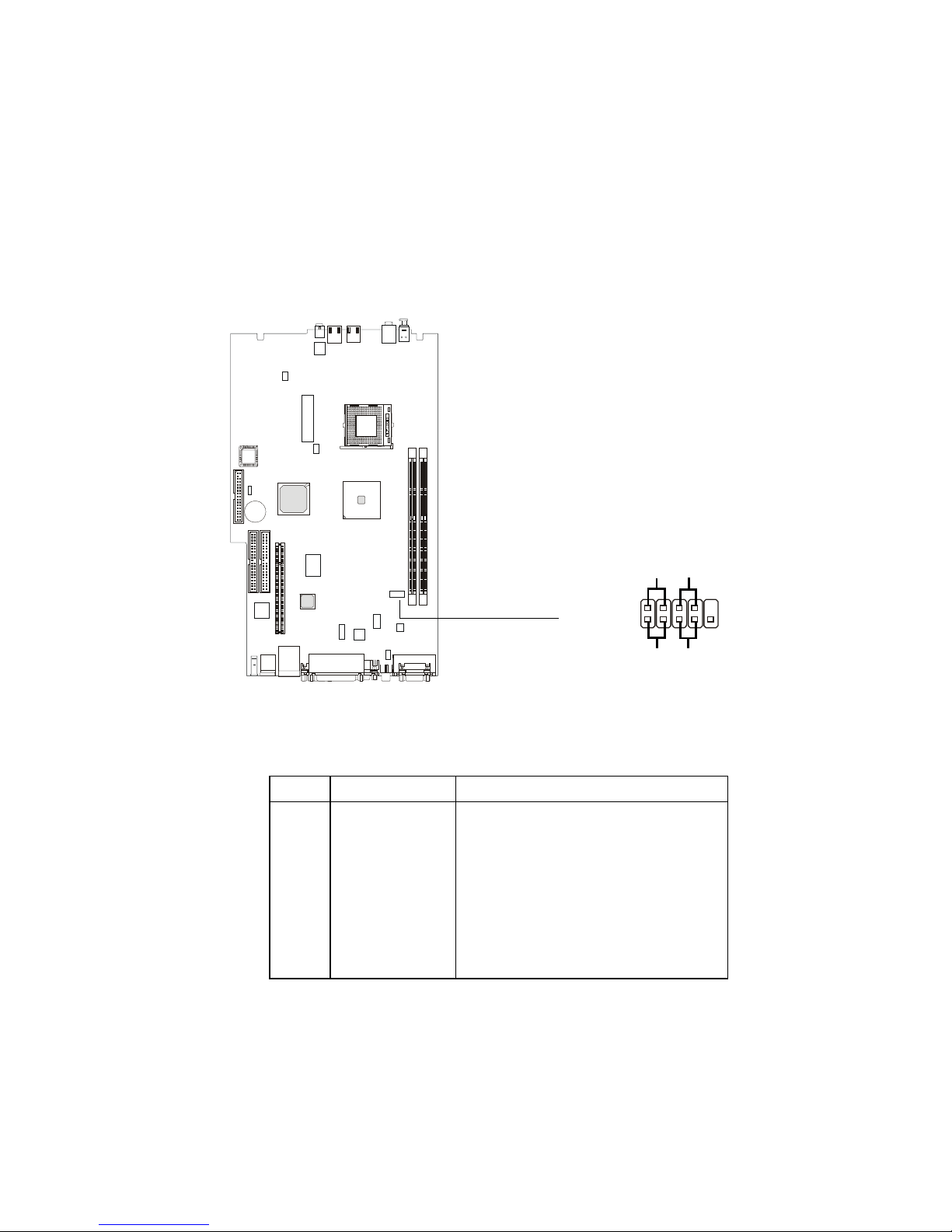

The mainboard provides one front panel connector for you to connect
to the front panel switches and LEDs. JFP1 is compliant with Intel® Front Panel
I/O Connectivity Design Guide.

Inte l

845GV

1

2

9

10

JFP1

HDD
LED

Reset
Switch

Power
LED

Power
Switch

PIN SIGNAL DESCRIPTION

1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

JFP1 Pin Definition

Front Panel Connector: JFP1

Mainboard Setup

2-19

The connector is for CD-ROM audio connector.

CD-In Connector: JCD1

Intel

845GV

JCD1

GND

R

L

Chapter 2

2-20

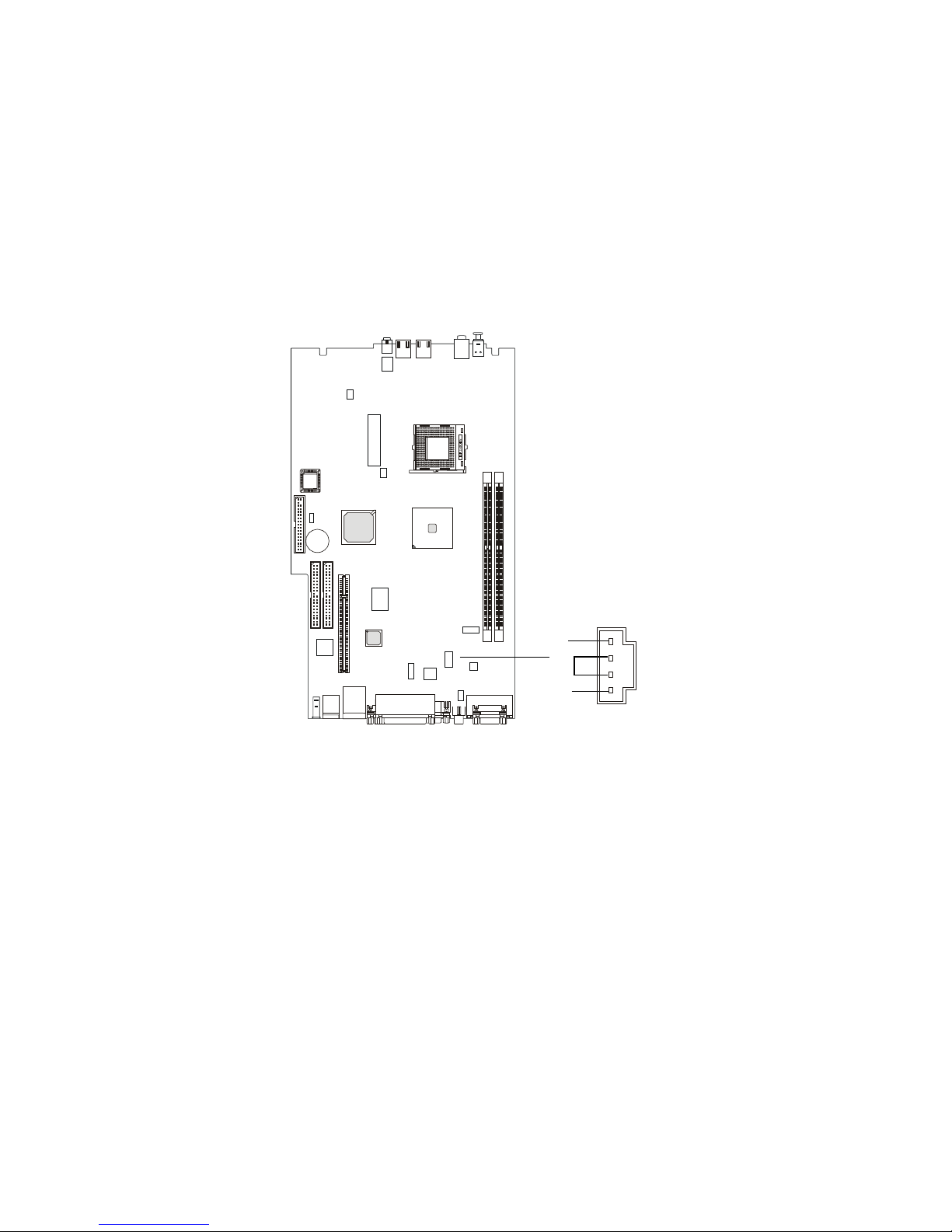

The CPUF AN1 (CPU fan) & SYS_F AN (system fan) support system cool­ing fans with +12V that is controlled by PWM. When connecting the wire to
the three-pin head connectors, always note that the red wire is the positive and
should be connected to the +12V (that is controlled by PWM), the black wire is
Ground and should be connected to GND. If the mainboard has a System
Hardware Monitor chipset on-board, you must use a specially designed fan
with speed sensor to take advantage of the CPU fan control.

Intel

845GV

CPUFAN1

SENSOR

+12V

GND

Fan Power Connectors: CPUFAN1/SYS_FAN

SYS_FAN

SENSOR

+12V

GND

1. Always consult the vendor for proper CPU cooling fan.

2. CPU Fan supports the fan control. You can install the PC
Alert utility that will automatically control the CPU Fan
speed according to the actual CPU temperature.

Mainboard Setup

2-21

The mainboard provides you with a standard floppy disk drive connec-

tor that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types

Intel

845GV

FDD1

The mainboard provides an onboard TV-out connector for you to con-

nect to a TV or video device.

FDD Connector:FDD1

TV-Out Connector:JTV1

Intel

845GV

JTV1

Chapter 2

2-22

There is a CMOS RAM on board that has a power supply from external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. That battery has
long life time for at least 5 years. If you want to clear the system configuration,
use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions
below to clear the data:

The motherboard provides one jumper for you to set the computer’s
function. This section will explain how to change your motherboard’s function
through the use of the jumper.

Keep CMOS

3

1

Clear CMOS

3

1

Intel

845GV

JBAT1

1

Clear CMOS Jumper:JBAT1

Jumper

You can clear CMOS by shorting 2-3 pin while the system is
off. Then return to 1-2 pin position. Avoid clearing the
CMOS while the system is on; it will damage the
mainboard.

Mainboard Setup

2-23

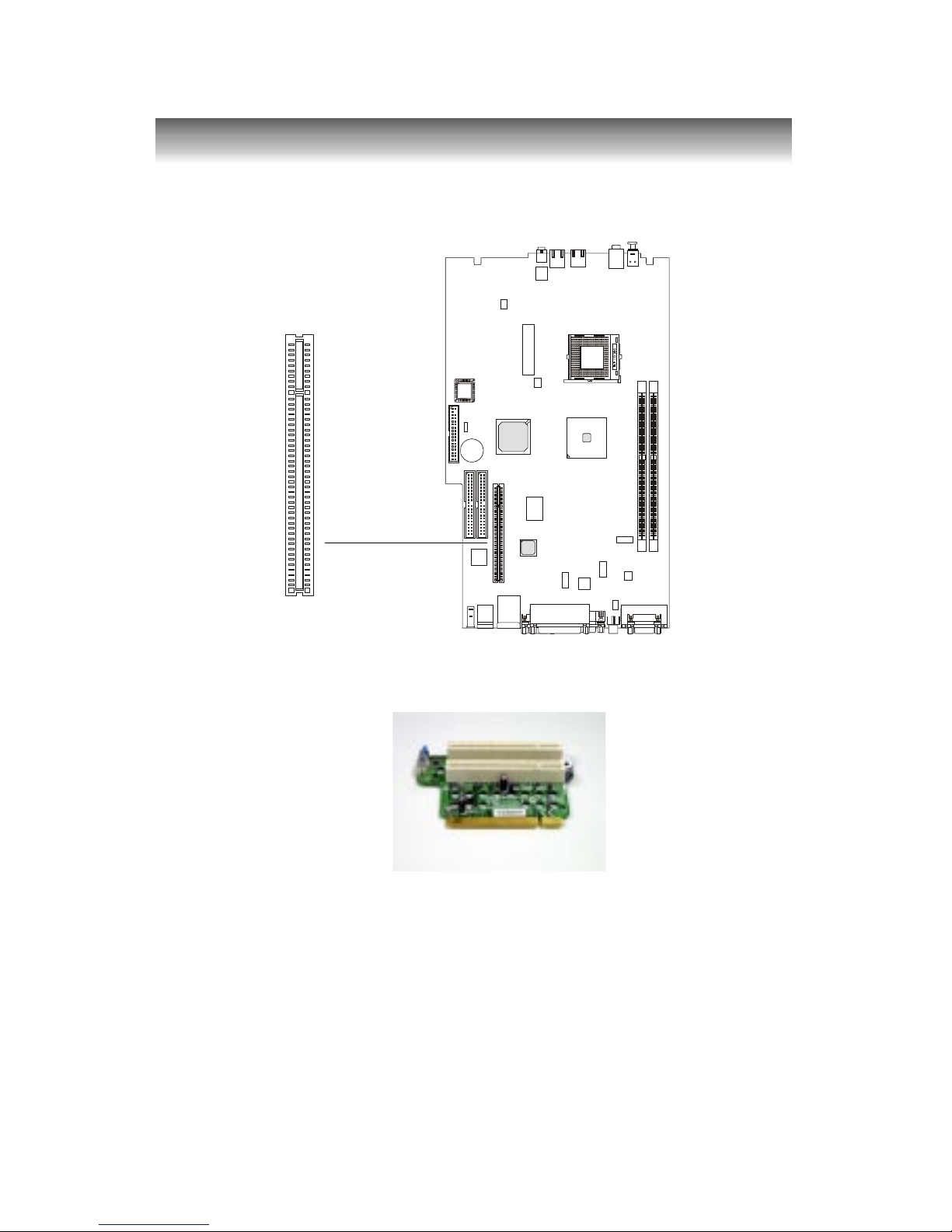

The PCI slot allows you to insert PCI Riser Card. The PCI Riser Card is
included in the MS-6243 Barebone. The Riser Card allows you to insert two
expansion cards. You can insert any type of PCI cards to meet your needs.

When adding or removing expansion cards, make sure that you unplug
the power supply first. Meanwhile, read the documentation for the expansion
card to make any necessary hardware or software settings.

The mainboard provides one 32-bit Master PCI bus slot.

PCI Slot 1

Intel

845GV

PCI Riser Card

PCI Slot

Slot

Chapter 2

2-24

The IRQ, abbreviation of interrupt request line and pronounced I-R-Q,
are hardware lines over which devices can send interrupt signals to the
microprocessor. The “AGP/PCI” IRQ pins are typically connected to the PCI
bus INT A# ~ INT D# pins as follows:

Order 1 Order 2 Order 3 Order 4
1394 INT E#
PCI Slot INT B# INT C# INT D# INT A#

PCI Interrupt Request Routing

Chassis Installation

3-1

This chapter provides you with the installation procedures
of the MS-6243 chassis. It is useful for you to read the information
of mainboard setup before assembling the whole system.

3

Chassis Installation

Chapter 3

3-2

The built-in MS-6557 mainboard is designed for MS-6243 barebone only.
Except MS-6557 mainboard, the built-in components of MS-6243 barebone
include power supply and PCI riser card. In this chapter we’ll show you how to
install CPU, FDD, HDD, CD-ROM and CPU Cooler.

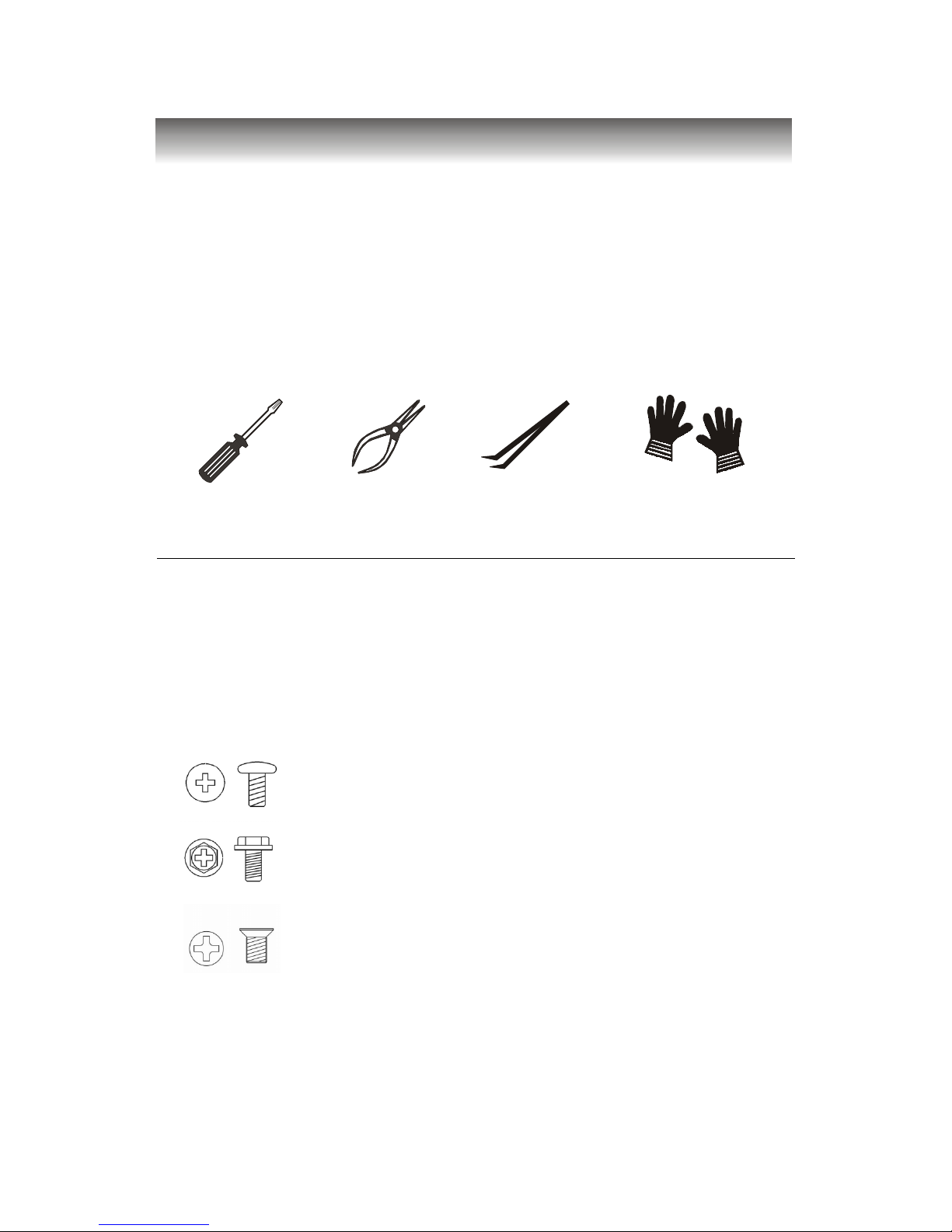

Installation Tools

Screw Driver

Pliers Rubber glovesForceps

Overview

Four types of screws are provided by MS-6243 Barebone: Round-

headed screws, Hexagonal screw with washer and two kinds of Flat-

headed screws. The screws that have been installed in the barebone

are not listed.

Round-headed screw: This type of screw is used to attach
the HDD to the chassis.

Hexagonal screw with washer: The screw is used to fasten
the mainboard, cover, and CD-ROM to the chassis.

Flat-headed screw: This type of screw is used to fasten
the Standard FDD to the Front Panel Bezel.

Screws

Chassis Installation

3-3

Installation Flowchart

START

Remove Chassis Cover

Remove Front Panel Bezel

Install DIMM Module

FINISH

Install CPU Cooler

Install CPU

Install FDD Module

Install HDD Module

Install CD-ROM Module

Replace Cover

Replace Front Panel Bezel

Chapter 3

3-4

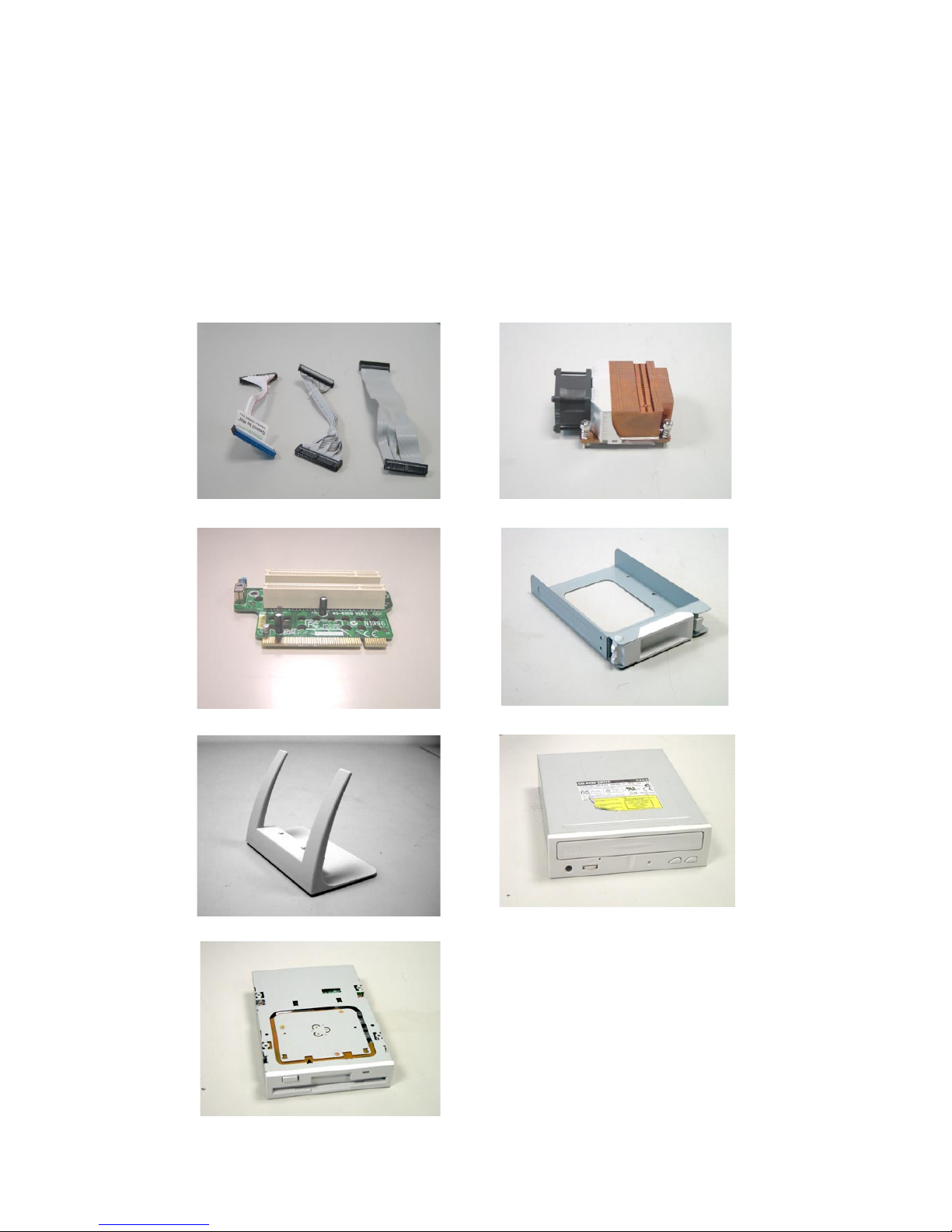

Checking the Items

Before installing chassis, check the items that are used. Some items are in­cluded in packing whereas some are not. Check with your dealer for the real

and complete packing list.

CPU Cooler

Riser Card

The Cables

Footstand

HDD Tray

FDD Module (Option)

CD-ROM Module (Option)

CD-ROM HDD FDD (Option)

Chassis Installation

3-5

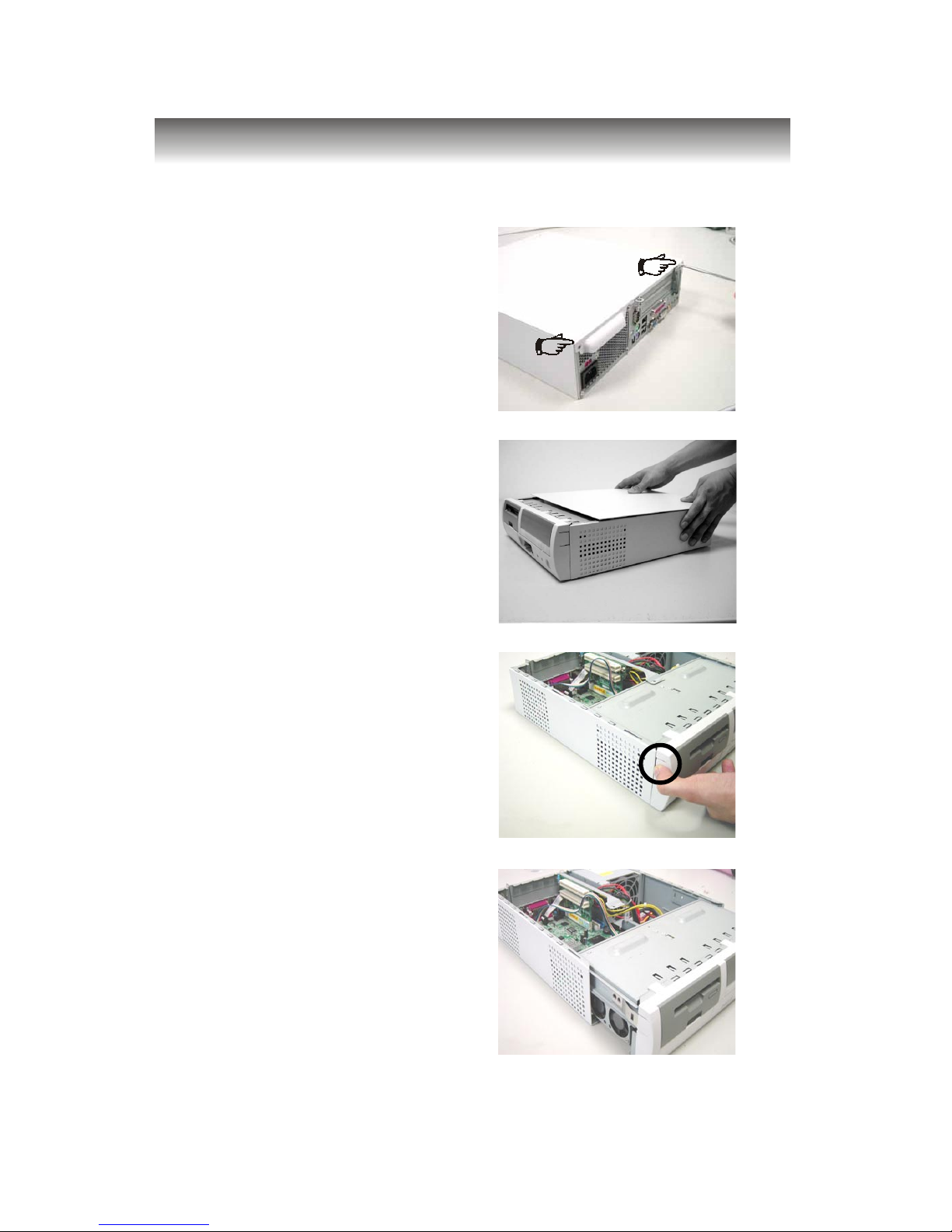

Remove the two screws on
the cover.

Take out the cover.

Use your two hands to press
the place indicated.

Remove the Front Panel Bezel.

Removing Cover & Front Panel Bezel

Installation Procedures

Chapter 3

3-6

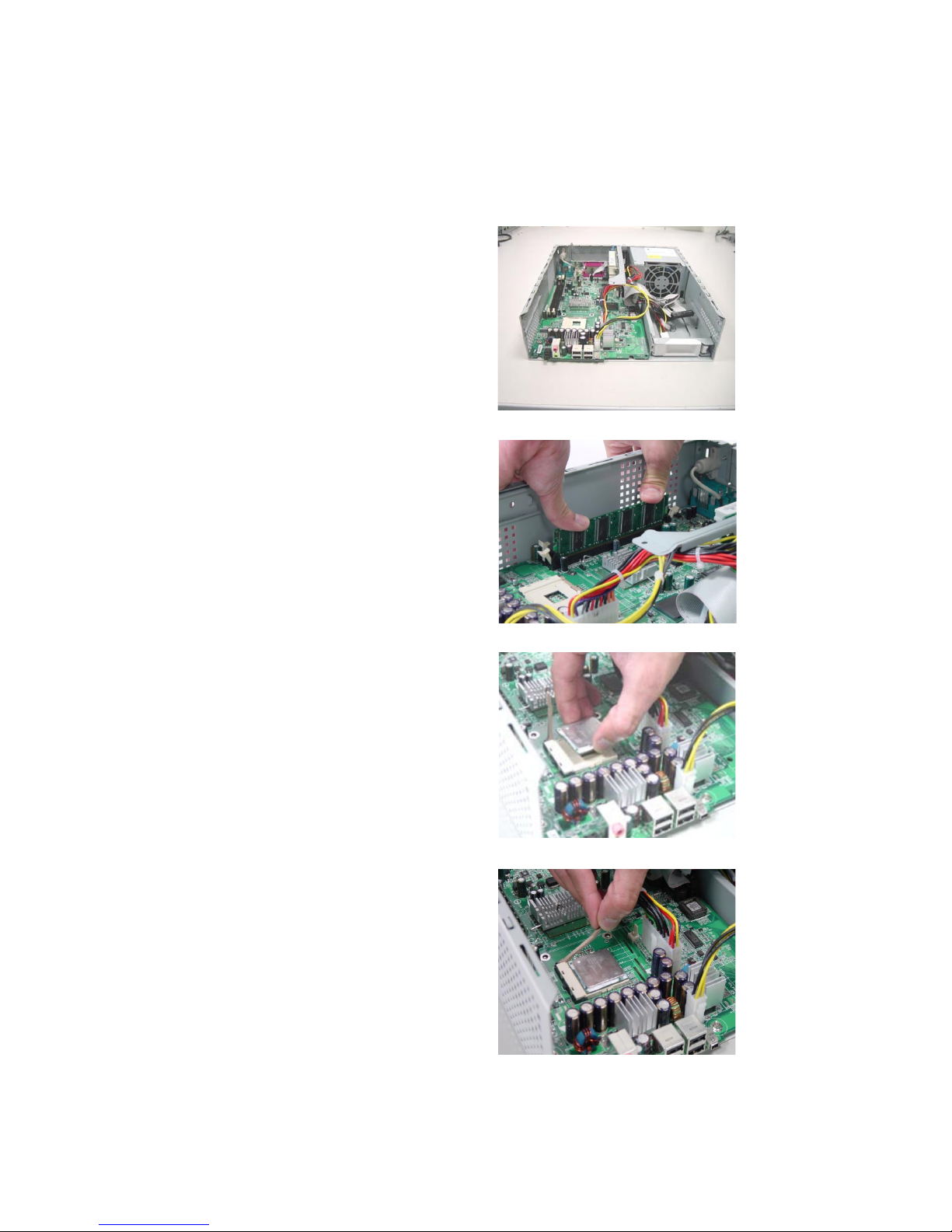

The barebone without cover and
Front Panel Bezel.

Install the DIMM module.
(Refer to p. 2-6 for
more information.)

Put the CPU on the CPU
socket.

Close the lever to finish the
installation of CPU. (Refer to
p. 2- 3 for more information.)

Installing Ram/CPU/CPU Cooler

Chassis Installation

3-7

Put the CPU cooler on the CPU.

Use screws to secure the CPU
cooler.

Chapter 3

3-8

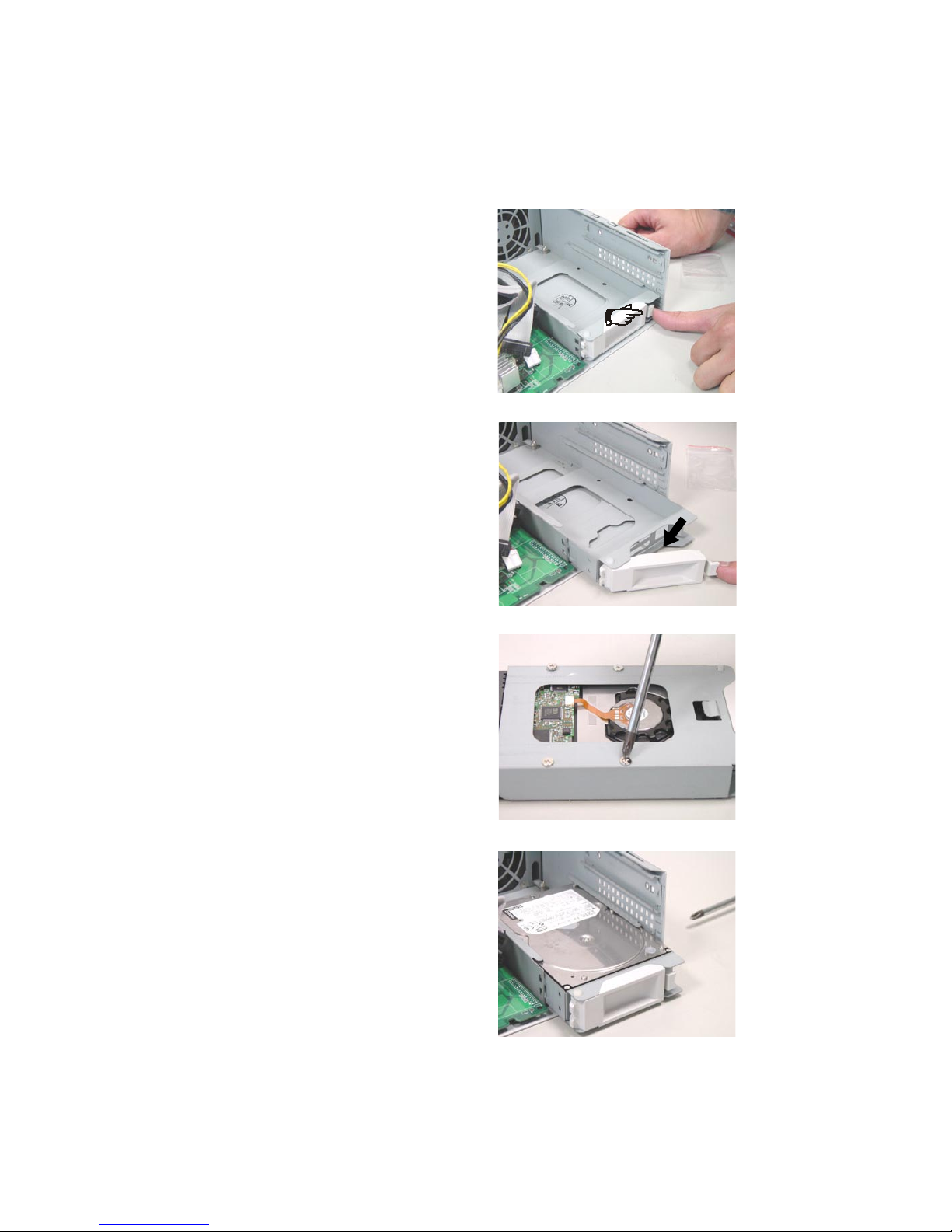

Pull the lever in the direction
indicated to take out the tray.

Insert the HDD module into
the tray. Using 4 screws to
secure the HDD module.

Insert the HDD tray into the
chassis.

Installing HDD Module

Flip the tray lever to release
the tray.

Chassis Installation

3-9

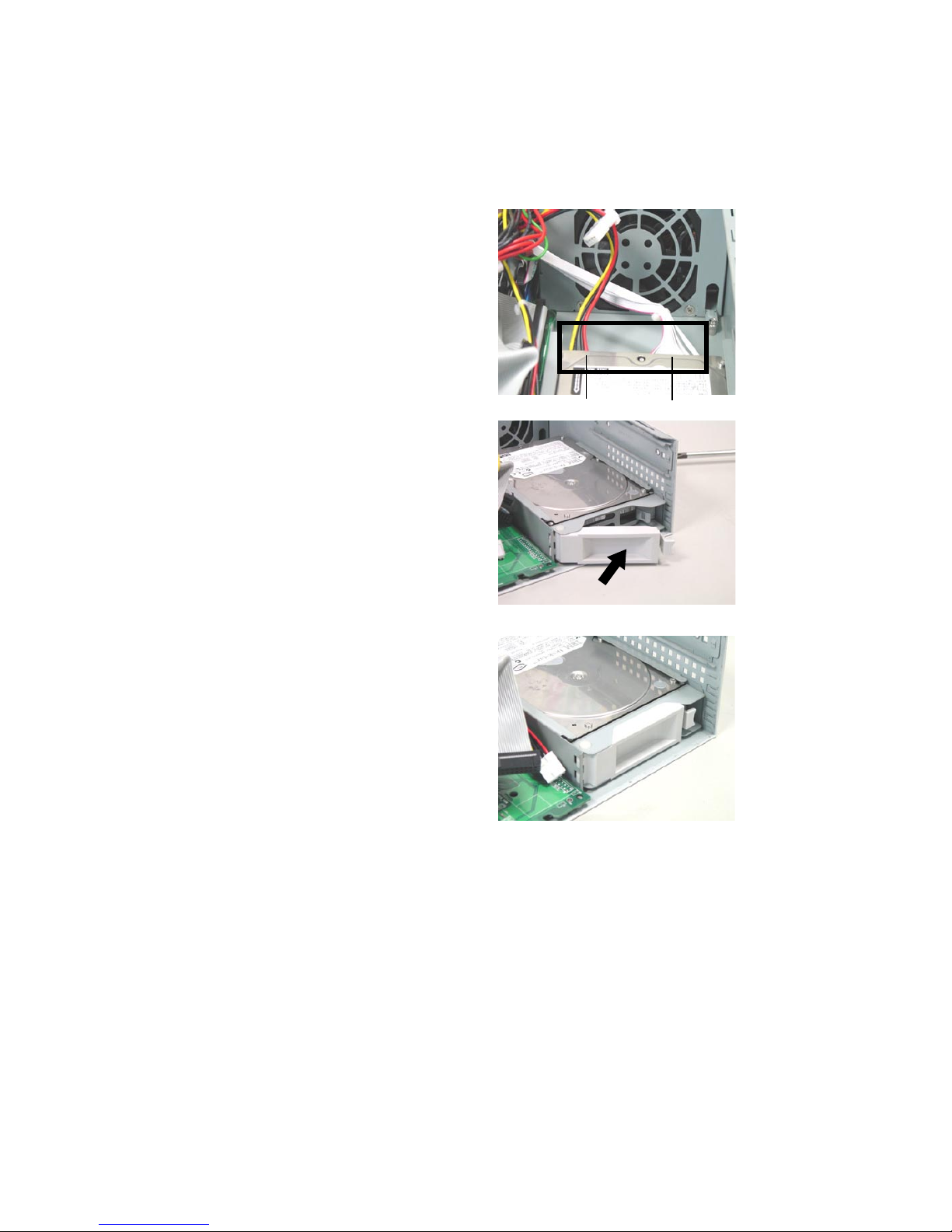

Finish the HDD installation.

Push the lever back into place.

Connect the cables (including
HDD cable and power cord).

HDD Cable

Power Cord

Chapter 3

3-10

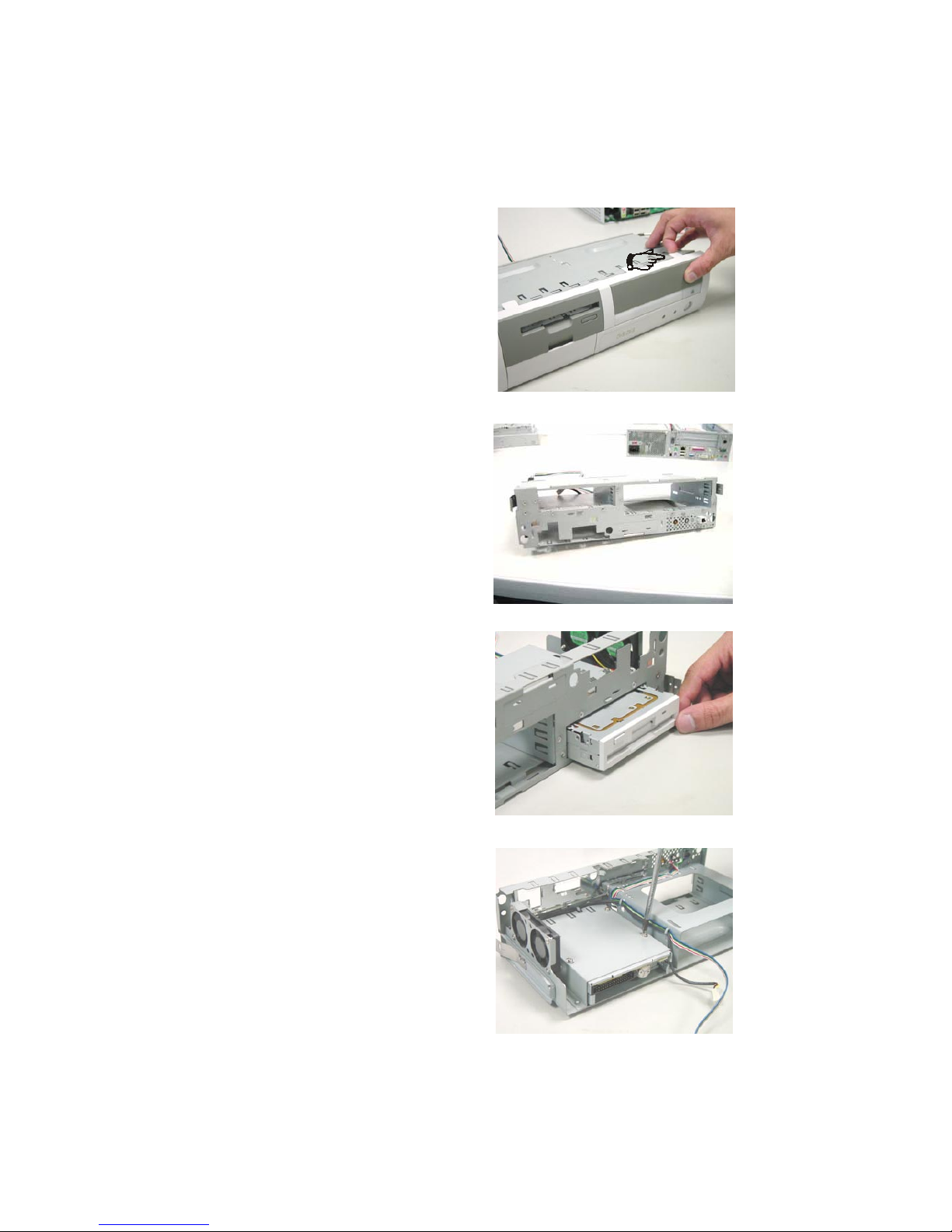

Insert the FDD module into
the Front Panel Bezel.

Using screws to secure the
FDD module.

Installing FDD

Flip the place indicated to
take out the bracket of Front
Panel Bezel.

Reverse the Front Panel
Bezel.

Chassis Installation

3-11

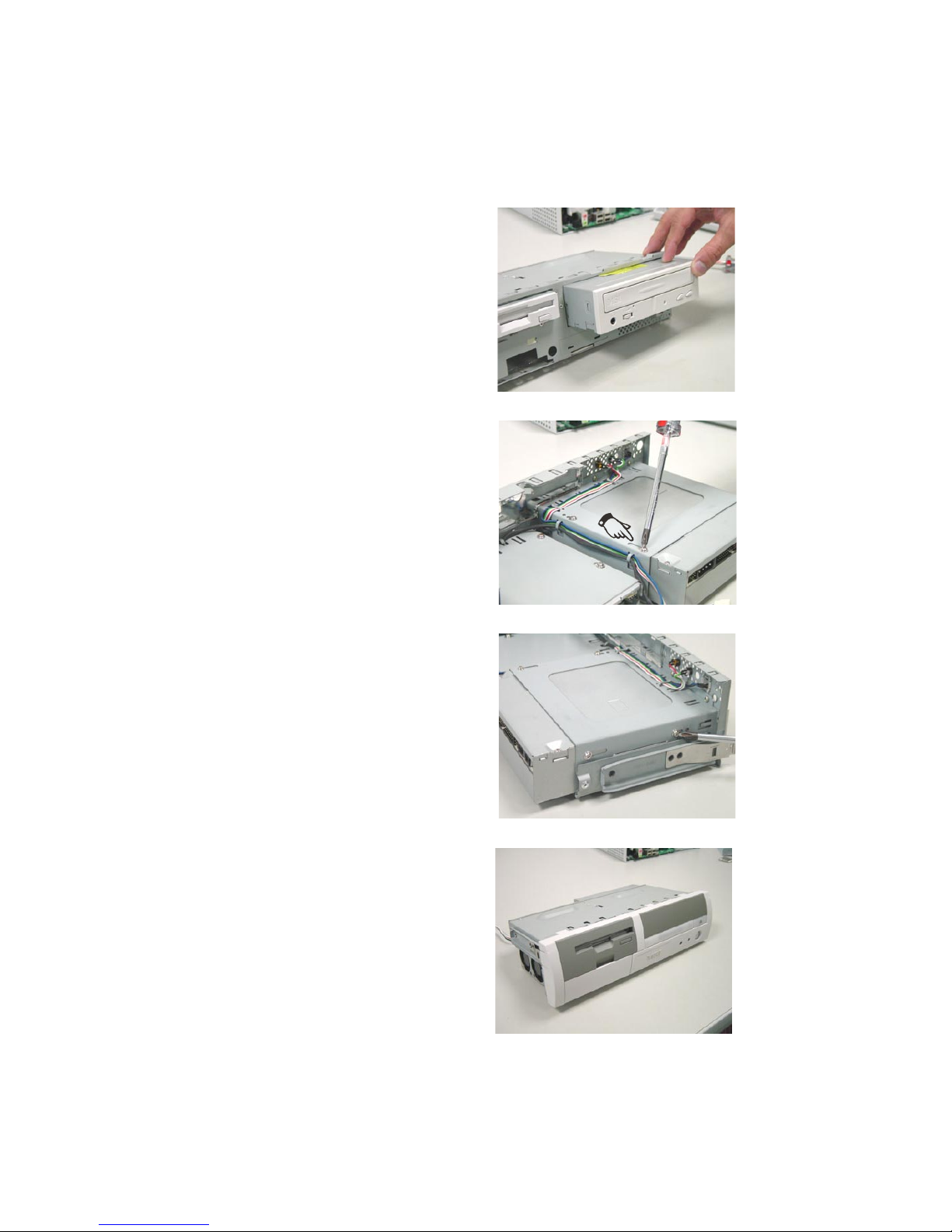

Secure the CD-ROM using
the two screws on the top.

Note: There are three holes: I, E
and S. Please insert the screw into
the third hole “S”.

Secure the CD-ROM using the
two screws on the right side.

Finish the FDD & CD-ROM
installation.

Installing CD-ROM

Insert the CD-ROM into the
Front Panel Bezel.

Note: There are three holes: I, E and
S. Please insert the screw into the
third hole “S”.

Chapter 3

3-12

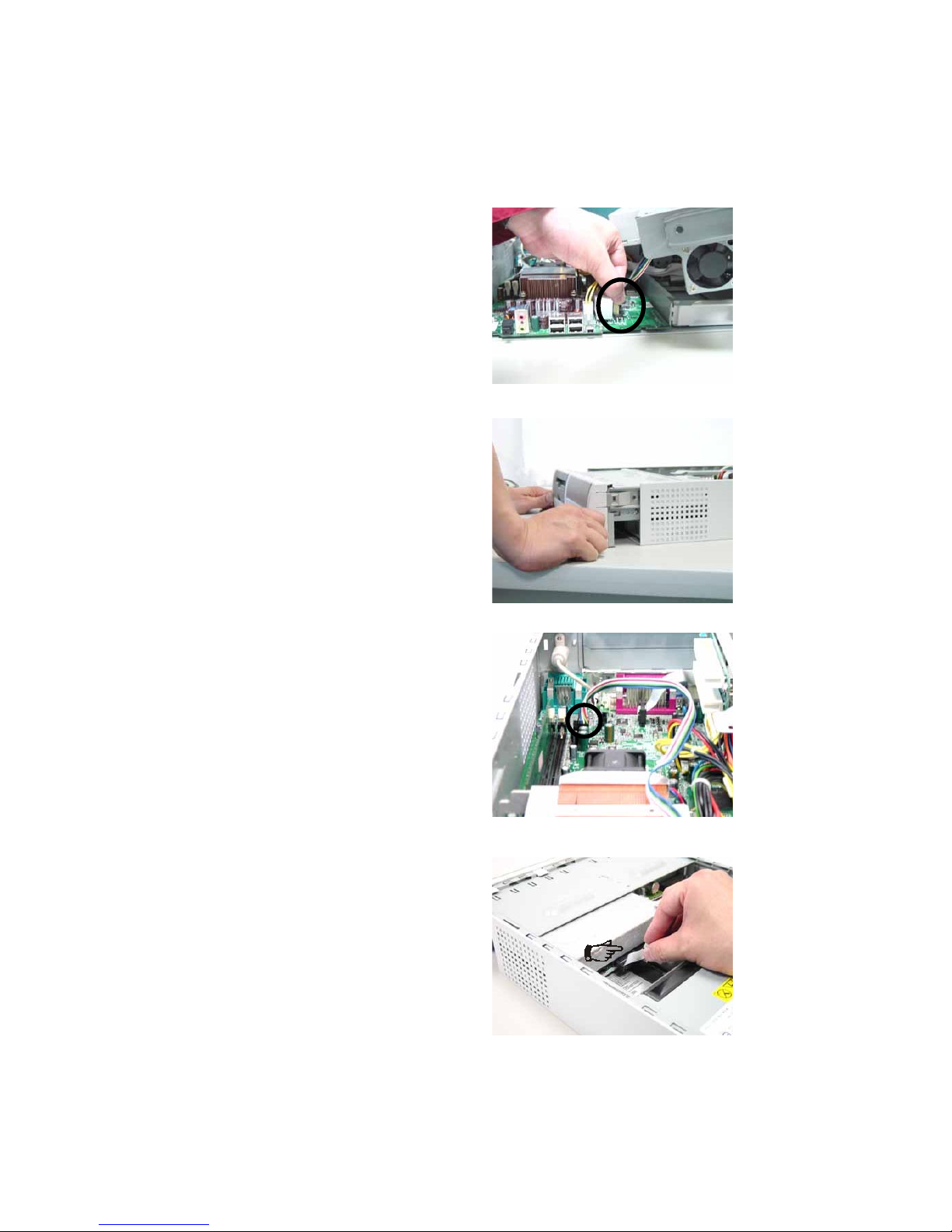

Connecting the Cables; Replacing Bezel & Cover

Connect the System Fan cable.

Replace the Front Panel Bezel.

Connect the LED indicator
cable.

Connect the CD-ROM cable.

Chassis Installation

3-13

Connect the FDD cable.

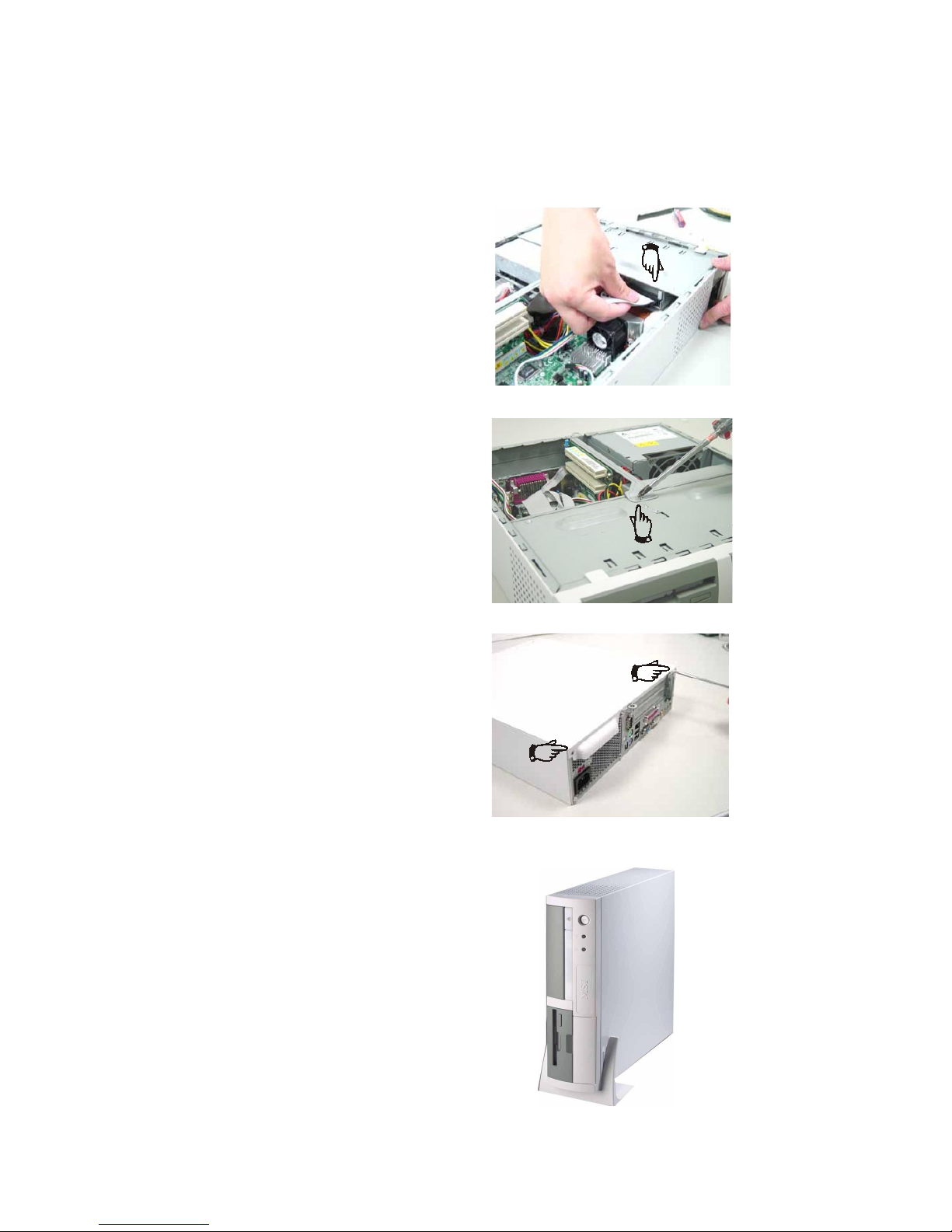

Replace the cover and use screws
to secure it

Use screws to secure the
Front Panel Bezel.

Place the barebone on the
Footstand.

BIOS Setup

4-1

4

AMI® BIOS Setup

This chapter provides information on the BIOS Setup pro-

gram and allows you to configure the system for optimum use.
You may need to run the Setup program when:

An error message appears on the screen during the system

booting up, and requests you to run SETUP.

You want to change the default settings for customized

features.

Chapter 4

4-2

Power on the computer and the system will start POST (Power On Self
Test) process. When the message below appears on the screen, press <DEL>
key to enter Setup.

DEL:Setup F12:Network boot TAB:Logo

If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On or pressing the RESET
button. You may also restart the system by simultaneously pressing <Ctrl>,
<Alt>, and <Delete> keys.

Entering Setup

Selecting the First Boot Device

You are allowed to select the 1st boot device without entering the BIOS
setup utility by pressing <F11>. When the same message as listed above
appears on the screen, press <F11> to trigger the boot menu.

The POST messages might pass by too quickly for you to respond in
time. If so, restart the system and press <F11> after around 2 or 3 seconds to
activate the boot menu similar to the following.

The boot menu will list all the bootable devices. Select the one you want
to boot from by using arrow keys and then pressing <Enter>. The system will
boot from the selected device. The selection will not make changes to the
settings in the BIOS setup utility, so next time when you power on the system,
it will still use the original first boot device to boot up.

Select First Boot Device

Floppy : 1st Floppy
IDE-0 : IBM-DTLA-307038
CD-ROM : ATAPI CD-ROM DRIVE 40X M

[Up/Dn] Select [RETURN] Boot [ESC] cancel

BIOS Setup

4-3

Getting Help

After entering the Setup utility, the first screen you see is the Main Menu.

Main Menu

The main menu displays the setup categories the BIOS supplies. You can use
the arrow keys ( ↑↓ ) to select the item. The on-line description for the selected
setup category is displayed at the bottom of the screen.

Default Settings

The BIOS setup program contains two kinds of default settings: the BIOS
Setup and Optimal defaults. BIOS Setup defaults provide stable performance
settings for all devices and the system, while High Performance defaults pro­vide the best system performance but may affect the system stability.

Control Keys

Move to the previous item

Move to the next item

Move to the item on the left-hand side
Move to the item on the right-hand side

Select the item
Jumps to the Exit menu or returns to the main menu from a
submenu

<Enter>
<Esc>

General help, only for Status Page Setup Menu and Option
Page Setup Menu

Decrease the numeric value or make changes

Increase the numeric value or make changes

<+/PU>

<-/PD>
<F1>

Load the default CMOS value from Fail-Safe default table, only

for Option Page Setup Menu

<F10>

<F7>

<F6>

Load Optimized defaults
Save all the CMOS changes and exit

< >

< >

< >

< >

Chapter 4

4-4

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of AMI® special enhanced features.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your
system’ s performance.

Power Management Features

Use this menu to specify your settings for power management.

PNP/PCI Configurations

This entry appears if your system supports PnP/PCI.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

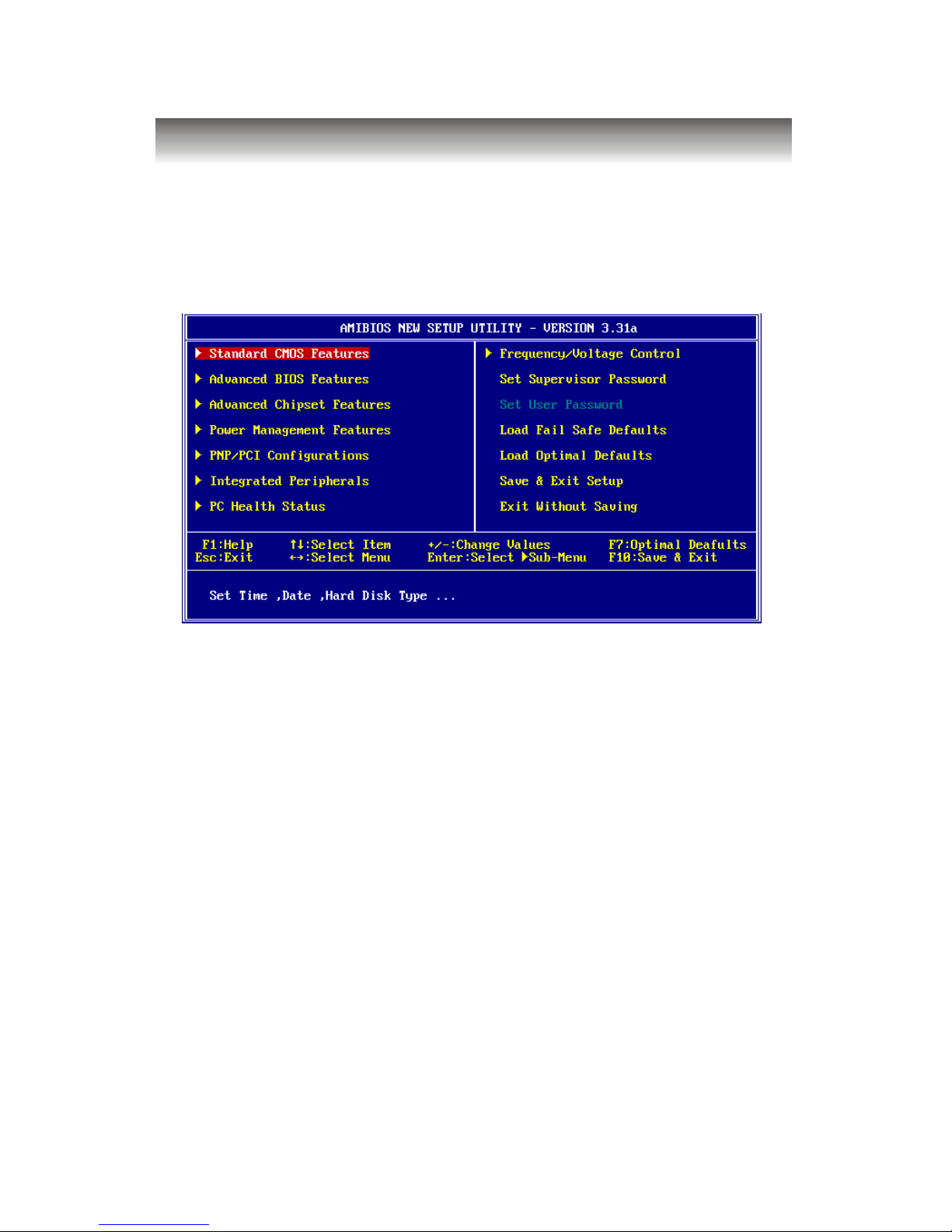

Once you enter AMIBIOS EASY SETUP UTILITY, the Main Menu will
appear on the screen. The Main Menu displays twelve configurative func­tions and two exit choices. Use arrow keys to move among the items and press
<Enter> to enter the sub-menu.

The Main Menu

BIOS Setup

4-5

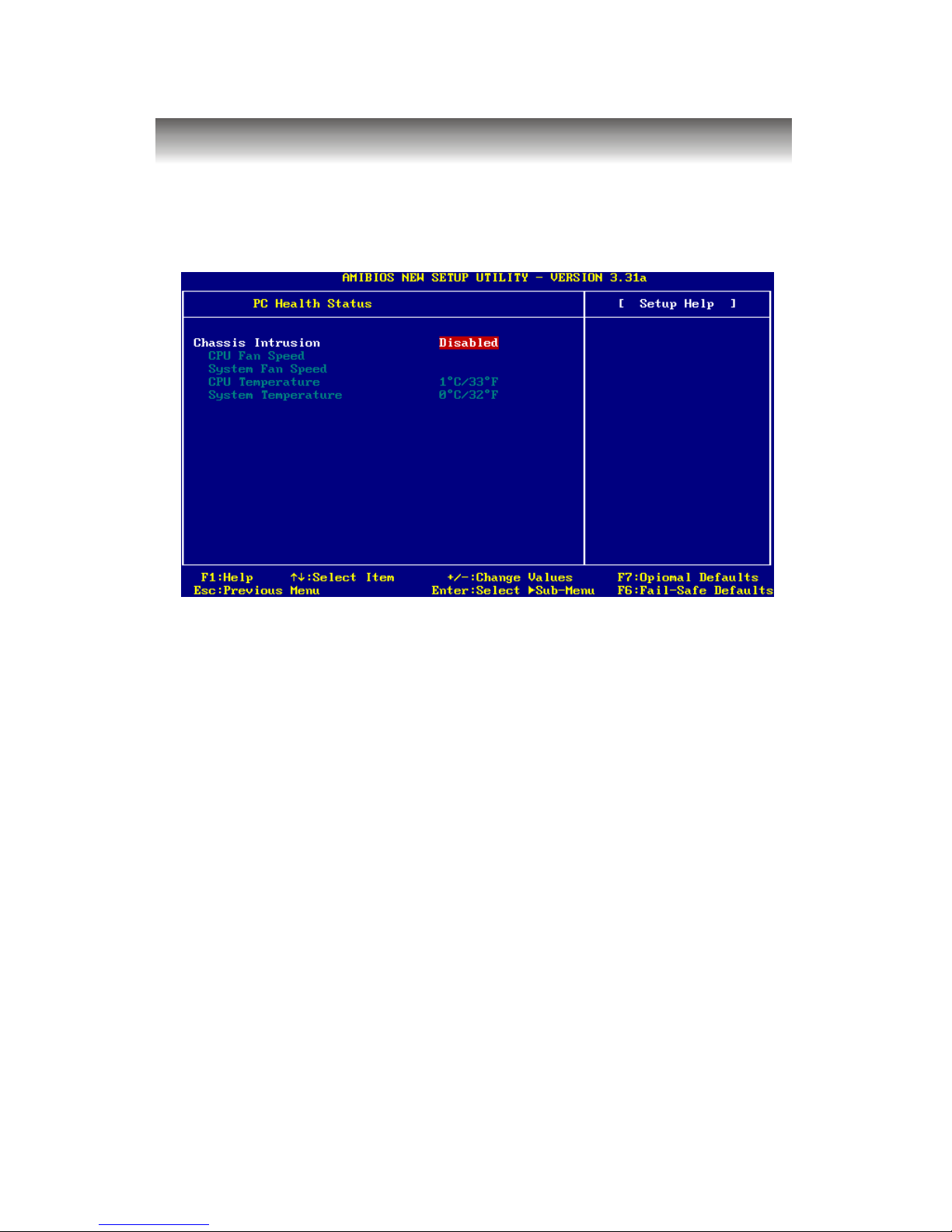

PC Health Status

This entry shows your PC health status.

Frequency/V oltage Control

Use this menu to specify your settings for frequency/voltage control.

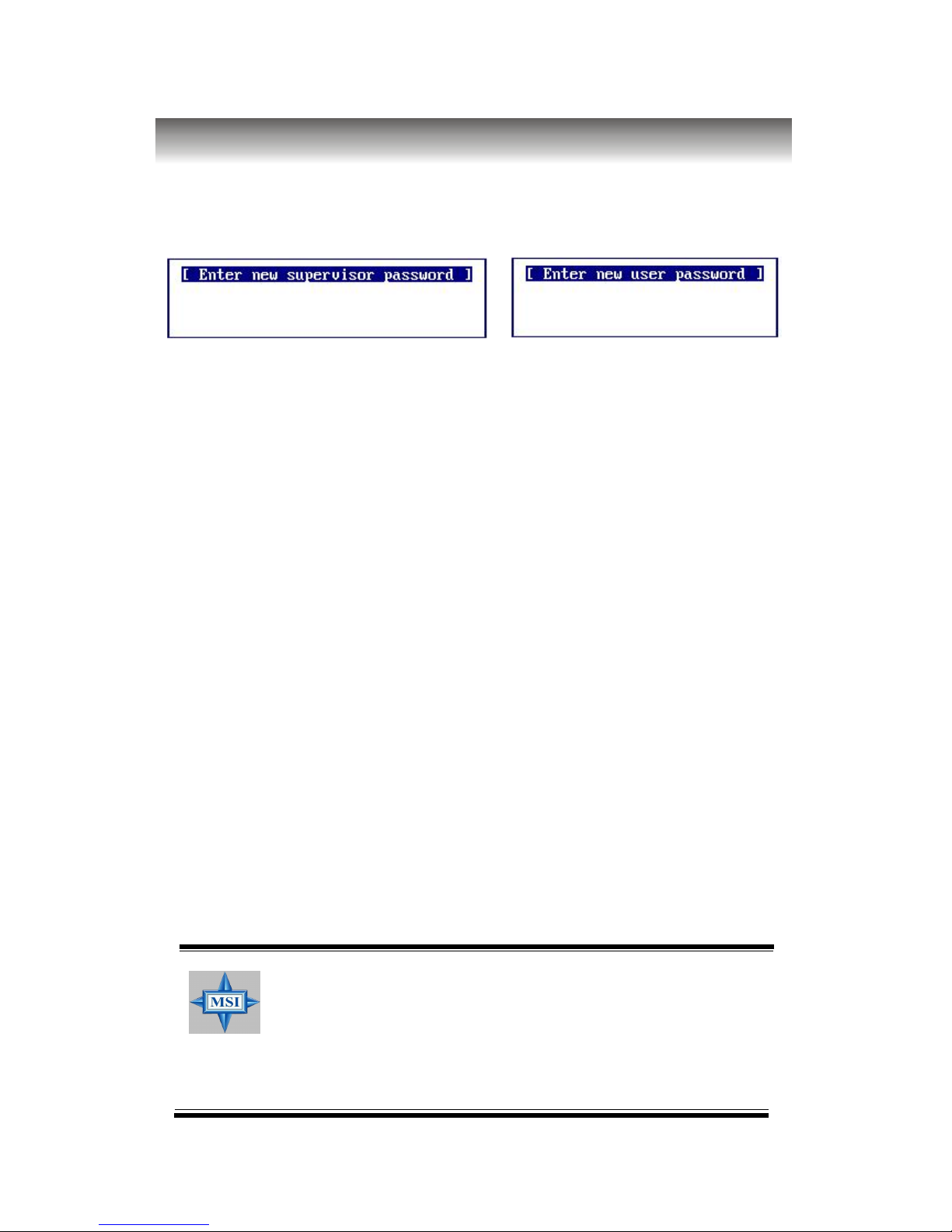

Set Supervisor Password

Use this menu to set Supervisor Password.

Set User Password

Use this menu to set User Password.

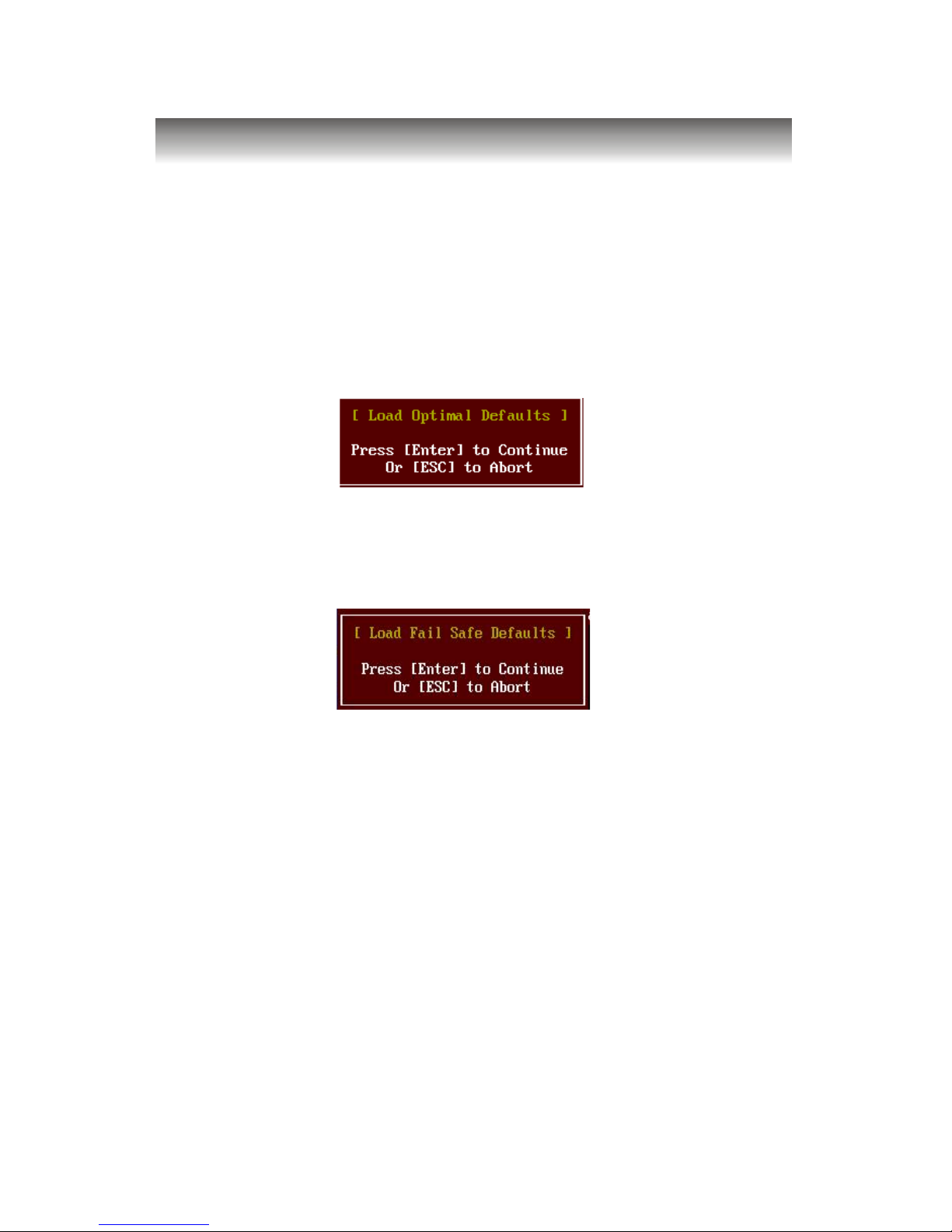

Load Fail Safe Defaults

Use this menu to load factory default settings into the BIOS for stable system
performance operations.

Load Optimal Defaults

Use this menu to load the BIOS values for the best system performance, but
the system stability may be affected.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

Chapter 4

4-6

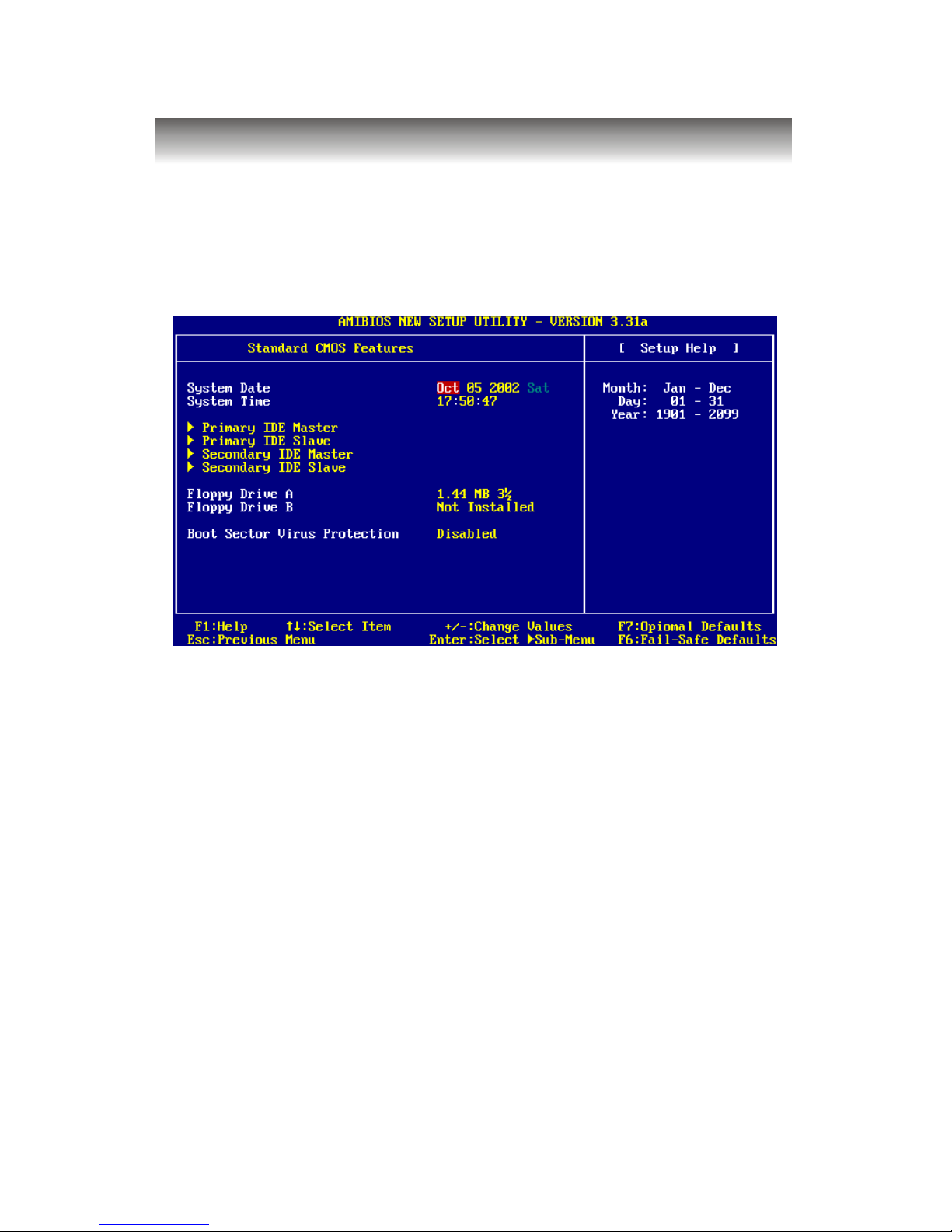

The items inside STANDARD CMOS FEATURES menu are divided
into 9 categories. Each category includes none, one or more setup items. Use
the arrow keys to highlight the item you want to modify and use the <PgUp> or
<PgDn> keys to switch to the value you prefer.

System Date

This allows you to set the system to the date that you want (usually the current
date). The format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by

BIOS. Read-only.

month The month from Jan. through Dec.

date The date from 1 to 31 can be keyed by numeric

function keys.

year The year can be adjusted by users.
System Time

This allows you to set the system time that you want (usually the current time).
The time format is <hour> <minute> <second>.

Standard CMOS Features

BIOS Setup

4-7

Primary/Secondary IDE Master/Slave

Press PgUp/<+> or PgDn/<-> to select the hard disk drive type. The specifica­tion of hard disk drive will show up on the right hand according to your selection.

TYPE Type of the device.

CY L Number of cylinders.

HD Number of heads.

WPCOM Write precompensation.

SE C Number of sectors.

SIZE Capacity of the device.

Floppy Drive A:/B:

This item allows you to set the type of floppy drives installed. Available
options: Not Installed, 360 KB 5¼ , 1.2 MB 5¼, 720 KB 3½, 1.44 MB 3½, 2.88
MB 3½.

Boot Sector Virus Protection

The item is to set the Virus Warning feature for IDE Hard Disk boot sector
protection. When Enabled, BIOS will issue a virus warning message and beep
if a write to the boot sector or the partition table of the HDD is attempted.
Setting options: Disabled, Enabled.

Note: This feature only protects the boot sector, not the whole hard disk.

Chapter 4

4-8

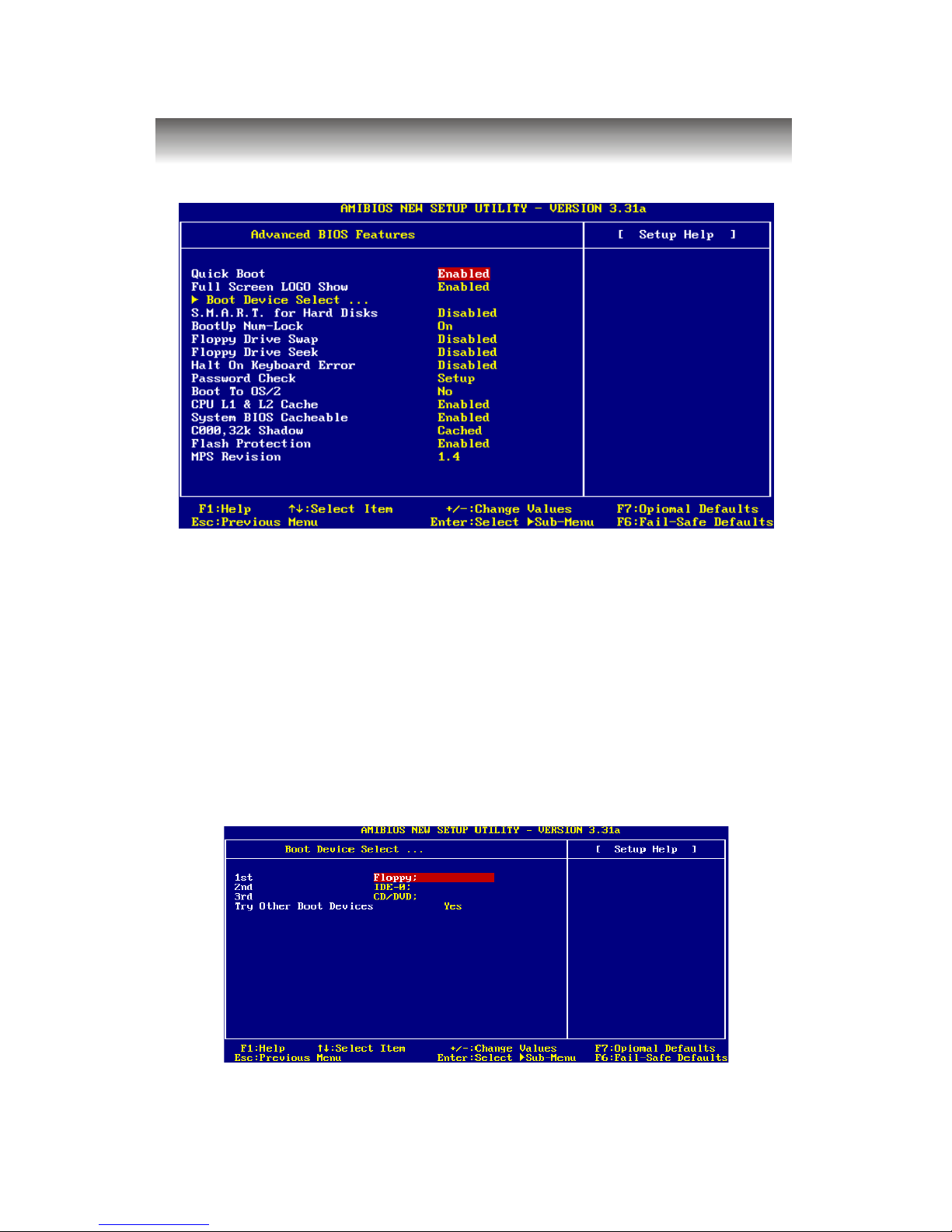

Quick Boot

Setting the item to Enabled allows the system to boot within 5 seconds since
it will skip some check items. Available options: Enabled, Disabled.

Full Screen LOGO Show

This item enables you to show the company logo on the bootup screen. Set­ting options: Enabled, Disabled.

Boot Device Select

Press <Enter> to enter the sub-menu screen.

Advanced BIOS Features

BIOS Setup

4-9

1st/2nd/3rd

The items allow you to set the sequence of boot devices where AMIBIOS
attempts to load the operating system. The settings are:

IDE-0 The system will boot from the first HDD.

IDE-1 The system will boot from the second HDD.

IDE-2 The system will boot from the third HDD.

IDE-3 The system will boot from the fourth HDD.

Floppy The system will boot from floppy drive.

ARMD-FDD The system will boot from any ARMD device,

such as LS-120 or ZIP drive, that functions as a
floppy drive.

ARMD-HDD The system will boot from ARMD device, such as

MO or ZIP drive, that functions as hard disk drive.

CD-ROM The system will boot from the CD-ROM.

Legacy SCSI The system will boot from the SCSI.

Legacy NETWORK The system will boot from the Network drive.

BBS-0 The system will boot from the first BBS (BIOS

Boot Specification) compliant device.

BBS-1 The system will boot from the second BBS (BIOS

Boot Specification) compliant device.

BBS-2 The system will boot from the third BBS (BIOS

Boot Specification) compliant device.

BBS-3 The system will boot from the fourth BBS (BIOS

Boot Specification) compliant device.

Disabled Disable this sequence.

T ry Other Boot Devices

Setting the option to Yes allows the system to try to boot from other
devices if the system fails to boot from the 1st/2nd/3rd boot device.

Available settings for “1st/2nd/3rd” boot device vary de­pending on the bootable devices you have installed. For
example, if you did not install a floppy drive, the setting
“Floppy” does not show up.

Chapter 4

4-10

S. .M.A.R.T. for Hard Disks

This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Re­porting Technology) capability for the hard disks. S.M.A.R.T is a utility that
monitors your disk status to predict hard disk failure. This gives you an
opportunity to move data from a hard disk that is going to fail to a safe place
before the hard disk becomes offline. Settings: Enabled, Disabled.

BootUp Num-Lock

This item is to set the Num Lock status when the system is powered on.
Setting to On will turn on the Num Lock key when the system is powered on.
Setting to Off will allow end users to use the arrow keys on the numeric keypad.
Setting options: On, Off.

Floppy Drive Swap

Setting to Enabled will swap floppy drives A: and B:.

Floppy Drive Seek

This setting causes the BIOS to search for floppy disk drives at boot time.
When enabled, the BIOS will activate the floppy disk drives during the boot
process: the drive activity light will come on and the head will move back and
forth once. First A: will be done and then B: if it exists. Setting options:
Disabled, Enabled.

Halt on Keyboard Error

When enabled, the system will stop POST process if the keyboard is not
connected. When disabled, the system will show Error message in POST
process while the keyboard is not connected.

Password Check

This specifies the type of AMIBIOS password protection that is implemented.
Setting options are described below.

Option Description

Setup The password prompt appears only when end users try to run

Setup.

Always A password prompt appears every time when the computer is

powered on or when end users try to run Setup.

BIOS Setup

4-11

Boot T o OS/2

This allows you to run the OS/2® operating system with DRAM larger than
64MB. When you choose No, you cannot run the OS/2® operating system
with DRAM larger than 64MB. But it is possible if you choose Yes.

CPU L1 & L2 Cache

Cache memory is additional memory that is much faster than conventional
DRAM (system memory). When the CPU requests data, the system trans­fers the requested data from the main DRAM into cache memory, for even
faster access by the CPU. This setting enables/disables the internal cache
(also known as L1 or level 1 cache) and external cache (also known as L2 or
level 2 cache). Settings are: Enabled and Disabled.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. Setting options: Enabled, Disabled.

C000, 32k Shadow

This item specifies how the contents of the adapter ROM named in the item are
handled. Settings are described below:

Flash Protection

This function protects the BIOS from accidental corruption by unauthorized
users or computer viruses. When enabled, the BIOS’ s data cannot be changed
when attempting to update the BIOS with a Flash utility. To successfully
update the BIOS, you’ll need to disable this BIOS Flash Write Control function.
You should enable this function at all times. The only time when you need to
disable the function is when you want to update the BIOS. After updating the
BIOS, you should immediately re-enable it to protect the BIOS against viruses.

Option Description

Disabled The specified ROM is not copied to RAM.
Enabled The contents of specified ROM are copied to RAM

for faster system performance.

Cached The contents of specified ROM are not only copied

to RAM, the contents of the ROM area can be writ­ten to and read from cache memory.

Chapter 4

4-12

Settings: Enabled, Disabled.

MPS Revision

This field allows you to select which MPS (Multi-Processor Specification)
version to be used for the operating system. You need to select the MPS
version supported by your operating system. To find out which version to
use, consult the vendor of your operating system. Options: 1.4, 1.1.

BIOS Setup

4-13

Note: Change these settings only if you are familiar with the chipset.

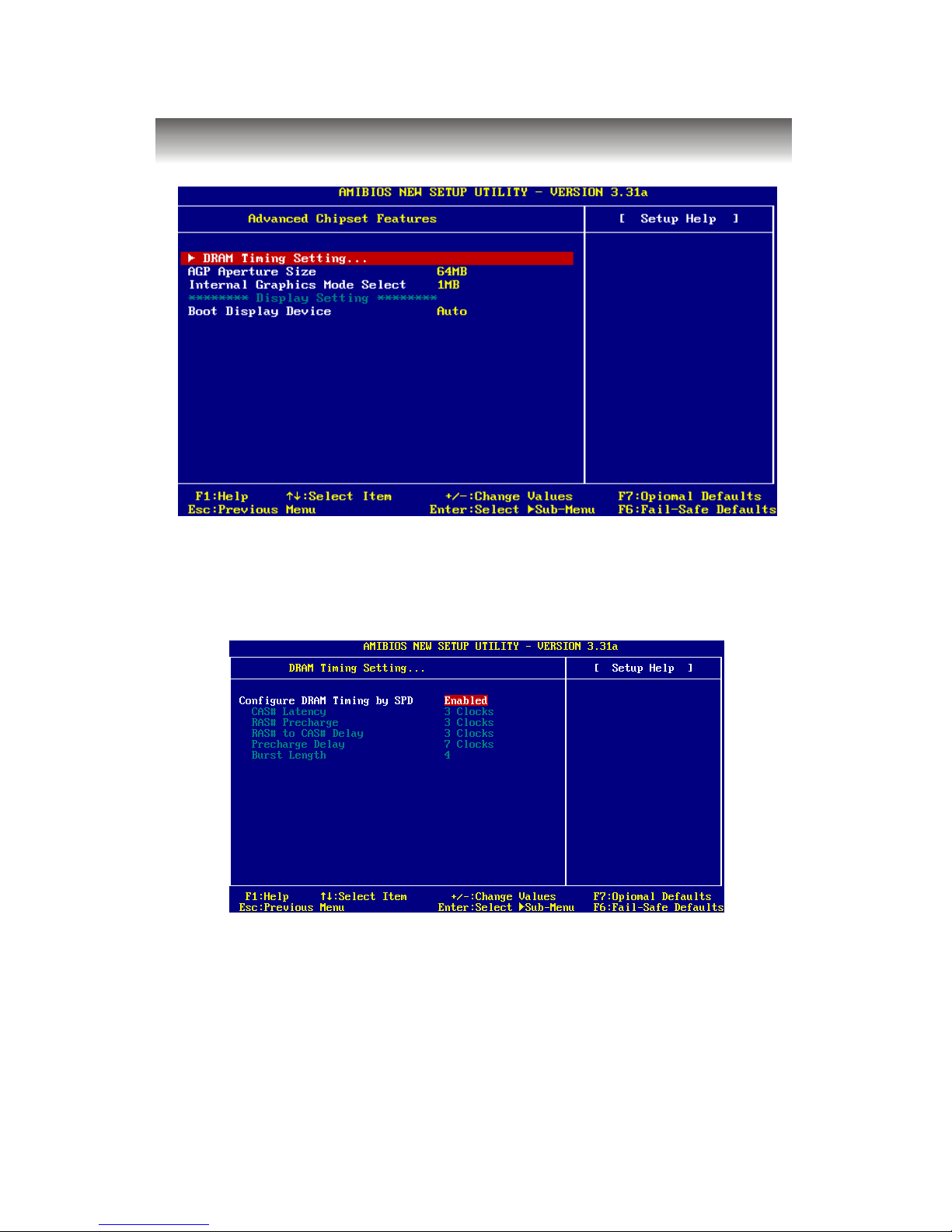

Advanced Chipset Features

DRAM Timing Setting

Press <Enter> and the following sub-menu appears.

Configure DRAM Timing by SPD

Selects whether DRAM timing is controlled by the SPD (Serial Presence
Detect) EEPROM on the DRAM module. Setting to Enabled enables
CAS# Latency, RAS# Precharge, RAS# to CAS# Delay, Precharge Delay
and Burst Length automatically to be determined by BIOS based on the
configurations on the SPD. Selecting Disabled allows users to configure
these fields manually.

Chapter 4

4-14

CAS# Latency

The field controls the CAS latency, which determines the timing de­lay before SDRAM starts a read command after receiving it. Setting
options: 2 Clocks and 3 Clocks. 2 Clocks increases system perform­ance while 3Clocks provides more stable system performance.

RAS# Precharge

This item controls the number of cycles for Row Address Strobe
(RAS) to be allowed to precharge. If insufficient time is allowed for
the RAS to accumulate its charge before DRAM refresh, refresh
may be incomplete and DRAM may fail to retain data. This item
applies only when synchronous DRAM is installed in the system.
Available settings: 2 Clocks, 3 Clocks.

RAS# to CAS# Delay

This field allows you to set the number of cycles for a timing delay
between the CAS and RAS strobe signals, used when DRAM is
written to, read from or refreshed. Fast speed offers faster perform­ance while slow speed offers more stable performance. Settings: 3
Clocks, 2 Clocks.

Precharge Delay

The field specifies the idle cycles before precharging an idle bank.
Settings: 7 Clocks, 6 Clocks, 5 Clocks.

Burst Length

This setting allows you to set the size of Burst-Length for DRAM.
Bursting feature is a technique that DRAM itself predicts the
address of the next memory location to be accessed after the first
address is accessed. To use the feature, you need to define the
burst length, which is the actual length of burst plus the starting
address and allows internal address counter to properly generate
the next memory location. The bigger the size, the faster the
DRAM performance. Settings: 4, 8 (QW).

BIOS Setup

4-15

AGP Aperture Size

This setting controls just how much system RAM can be allocated to AGP for
video purposes. The aperture is a portion of the PCI memory address range
dedicated to graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. The option allows the
selection of an aperture size of 4MB, 8MB, 16MB, 32MB, 64MB, 128MB, and

256 MB.

Internal Graphics Mode Select

The field specifies the size of system memory allocated for video memory.
Settings: 512KB, 1MB, 8MB, Disabled.

Chapter 4

4-16

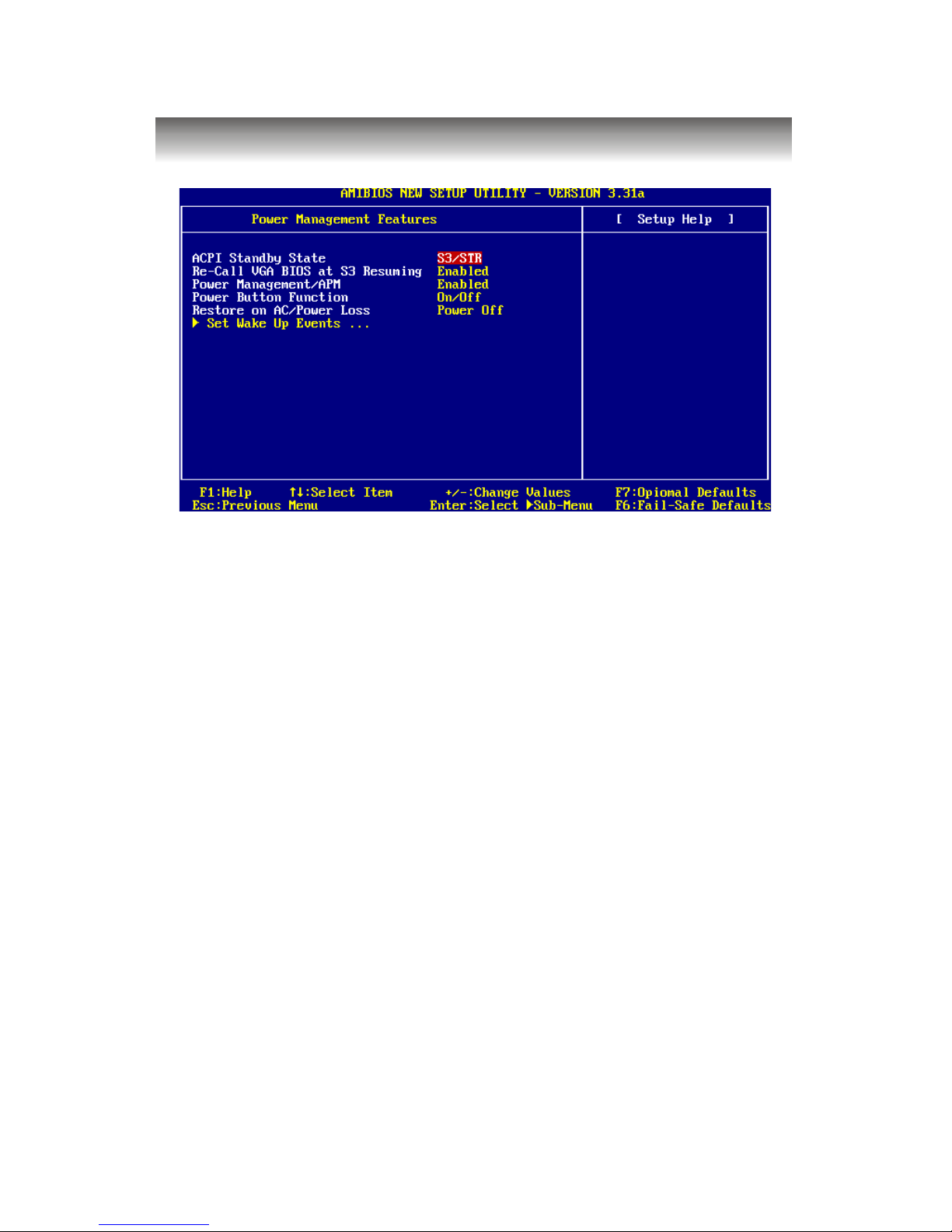

ACPI Standby State

This item specifies the power saving modes for ACPI function. Options are:

S1/POS The S1 sleep mode is a low power state. In this state, no

system context is lost (CPU or chipset) and hardware
maintains all system context.

S3/STR The S3 sleep mode is a lower power state where the infor-

mation of system configuration and open applications/
files is saved to main memory that remains powered while
most other hardware components turn off to save energy.
The information stored in memory will be used to restore
the system when a “wake up” event occurs.

Auto OS driver determines the best mode for ACPI standby

state.

Re-Call VGA BIOS at S3 Resuming

Selecting Enabled allows BIOS to call VGA BIOS to initialize the VGA card
when system wakes up (resume) from S3 sleep state. The system resume time
is shortened when you disable the function, but system will need an AGP
driver to initialize the VGA card. Therefore, if the AGP driver of the card does
not support the initialization feature, the display may work abnormally or not
function after resuming from S3.

Power Management Features

BIOS Setup

4-17

Power Management/APM

Setting to Enabled will activate an Advanced Power Management (APM)
device to enhance Max Saving mode and stop CPU internal clock. Settings:
Disabled, Enabled.

Power Button Function

This feature sets the function of the power button. Settings are:

On/Off The power button functions as normal on/off button.

Suspend When you press the power button, the computer enters

the suspend/sleep mode, but if the button is pressed for
more than four seconds, the computer is turned off.

Restore On AC/Power Loss

This setting specifies whether your system will reboot after a power failure or
interrupt occurs. Available settings are:

Power Off Leaves the computer in the power off state.

Power On Reboots the computer.

Last State Restores the system to the status before power failure or

interrupt occurred.

Set Wake Up Events

Press <Enter> to enter the sub-menu and the following screen appears:

Chapter 4

4-18

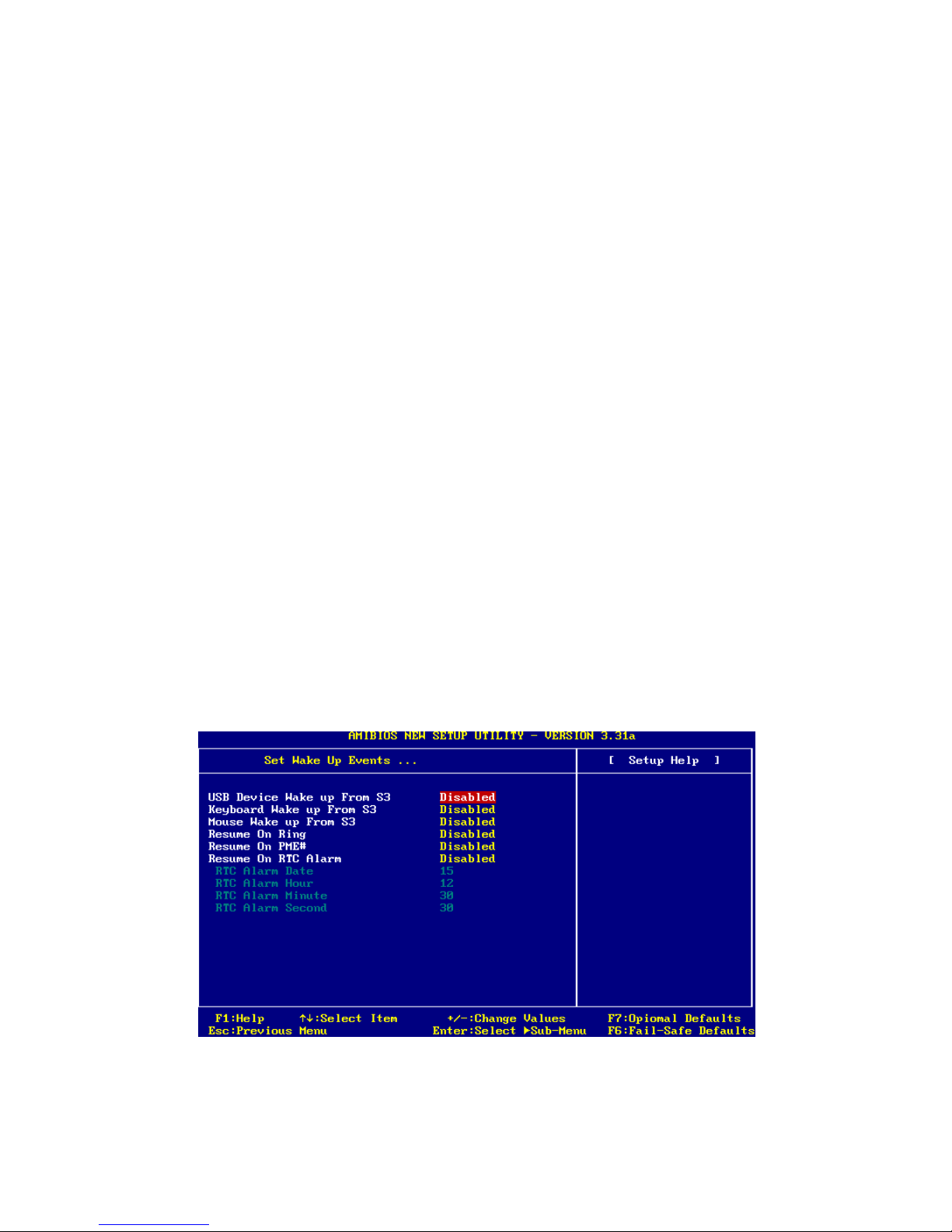

Keyboard/Mouse/USB Device Wake up From S3, Resume On Ring/PME#

These fields specify whether the system will be awakened from power
saving modes when activity or input signal of the specified hardware
peripheral or component is detected.

Resume On RTC Alarm

This is used to enable or disable the feature of booting up the system on a
scheduled time/date from the soft off (S5) state. Settings: Enabled, Disabled.

RTC Alarm Date/Hour/Minute/Second

If Resume On RTC Alarm is set to Enabled, the system will automatically
resume (boot up) on a specific date/hour/minute/second specified in these
fields. Available settings for each item are:

Alarm Date 01 ~ 31, Every Day
Alarm Hour 00 ~ 23
Alarm Minute 00 ~ 59
Alarm Second 00 ~ 59

1. You need to install a modem card supporting power on
function for “Resume On Ring” function.

2. In “Keyboard Wake up From S3”, you have two options:
“any key” & “disabled”. Selecting “any key” allows you
to power on the system by pressing any key.

3. In “Mouse Wake up From S3”, you have two options:
“disabled” & “enabled”. Selecting “anabled” allows you
to power on the system by clicking on the mouse.

BIOS Setup

4-19

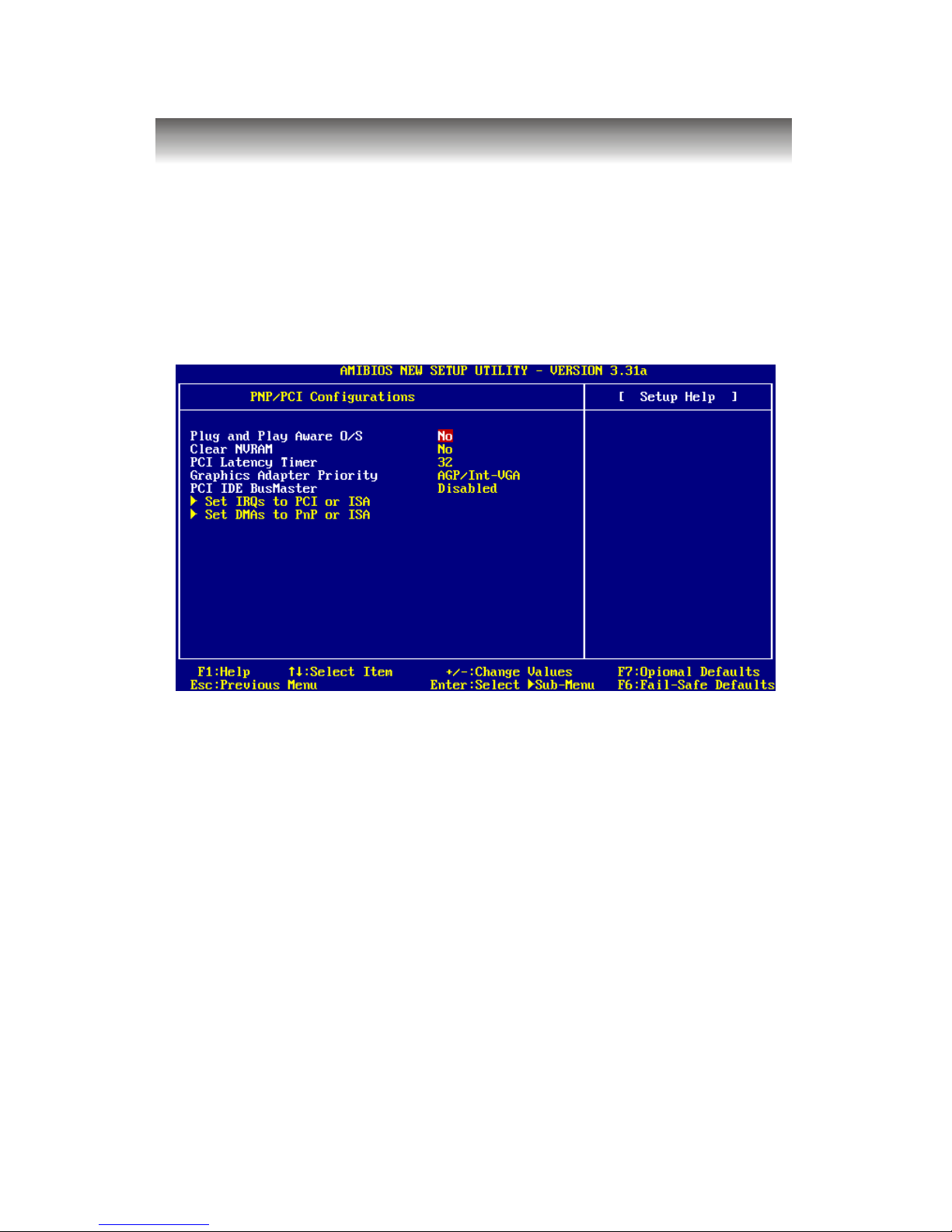

This section describes configuring the PCI bus system and PnP (Plug

& Play) feature. PCI, or Peripheral Component Interconnect, is a system which
allows I/O devices to operate at speeds nearing the speed the CPU itself uses
when communicating with its special components. This section covers some
very technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.

Plug and Play A ware O/S

When set to Yes, BIOS will only initialize the PnP cards used for booting (VGA,
IDE, SCSI). The rest of the cards will be initialized by the PnP operating system
like Windows® 98, 2000 or ME. When set to No, BIOS will initialize all the PnP
cards. Select Yes if the operating system is Plug & Play.

Clear NVRAM

The ESCD (Extended System Configuration Data) NVRAM (Non-volatile Ran­dom Access Memory) is where the BIOS stores resource information for both
PNP and non-PNP devices in a bit string format. When the item is set to Yes,
the system will reset ESCD NVRAM right after the system is booted up and
then set the setting of the item back to No automatically.

PNP/PCI Configurations

Chapter 4

4-20

PCI Latency Timer

This item controls how long each PCI device can hold the bus before another
takes over. When set to higher values, every PCI device can conduct transac­tions for a longer time and thus improve the effective PCI bandwidth. For
better PCI performance, you should set the item to higher values. Settings
range from 32 to 248 at a 32 increment.

Graphics Adapter Priority

This item specifies which VGA device is your primary graphics adapter. Set­tings are:

Internal VGA The system initializes the onboard VGA device.

PCI/Int-VGA The system initializes the installed PCI VGA card first.

If a PCI VGA card is not available, it will initialize the
onboard VGA device.

PCI IDE BusMaster

Set this option to Enabled to specify that the IDE controller on the PCI local
bus has bus mastering capability. Settings options: Disabled, Enabled.

Set IRQs to PCI or ISA

Press <Enter> to enter the sub-menu and the following screen appears:

BIOS Setup

4-21

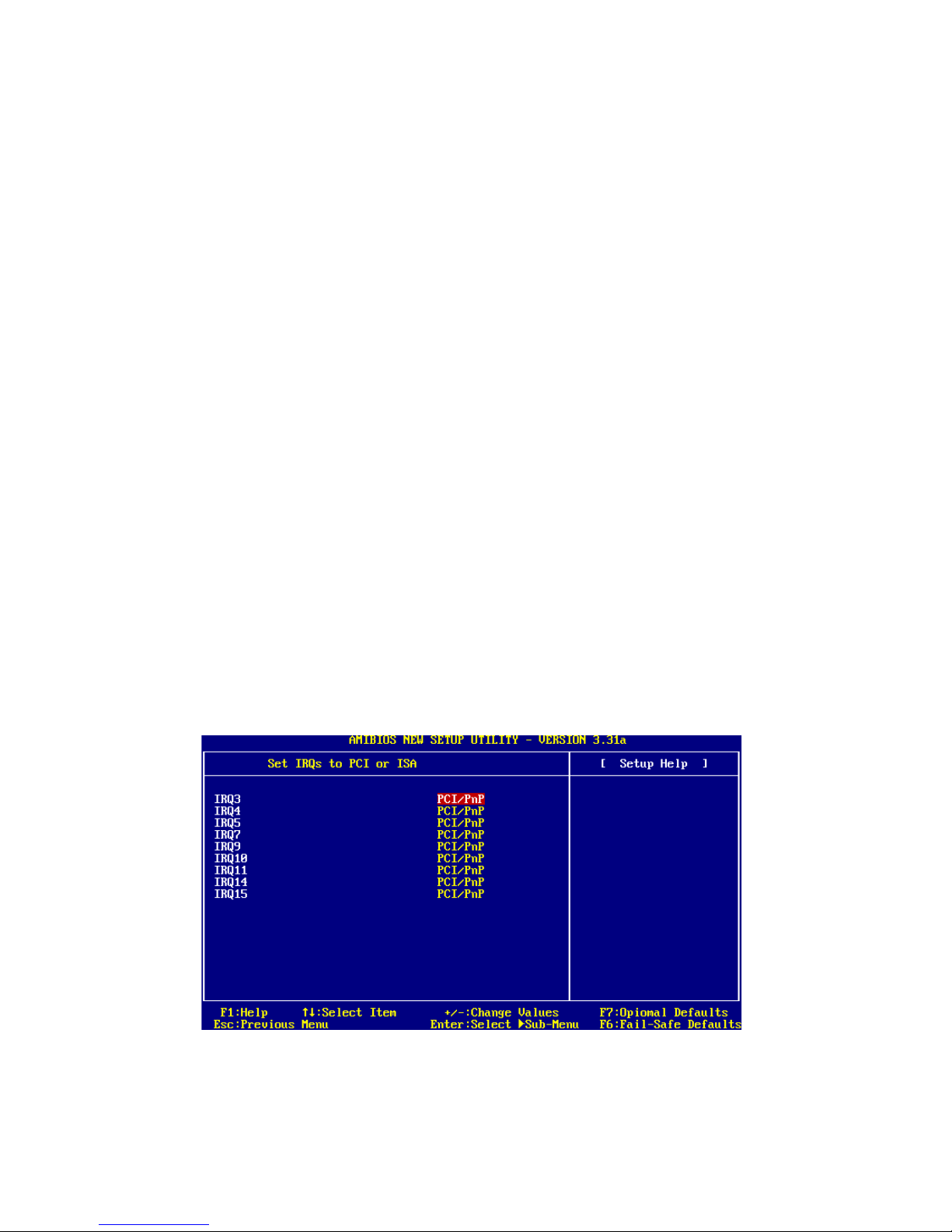

IRQ 3/4/5/7/9/10/11/14/15

These items specify the bus where the specified IRQ line is used.
The settings determine if AMIBIOS should remove an IRQ from the pool
of available IRQs passed to devices that are configurable by the system
BIOS. The available IRQ pool is determined by reading the ESCD NVRAM.
If more IRQs must be removed from the IRQ pool, the end user can use
these settings to reserve the IRQ by assigning an ISA/EISA setting to it.
Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O
are configured as PCI/PnP. If all IRQs are set to ISA/EISA, and IRQ 14/
15 are allocated to the onboard PCI IDE, IRQ 9 will still be available for PCI
and PnP devices. Available settings: ISA/EISA, PCI/PnP.

Set DMAs to PnP or ISA

Press <Enter> to enter the sub-menu and the following screen appears:

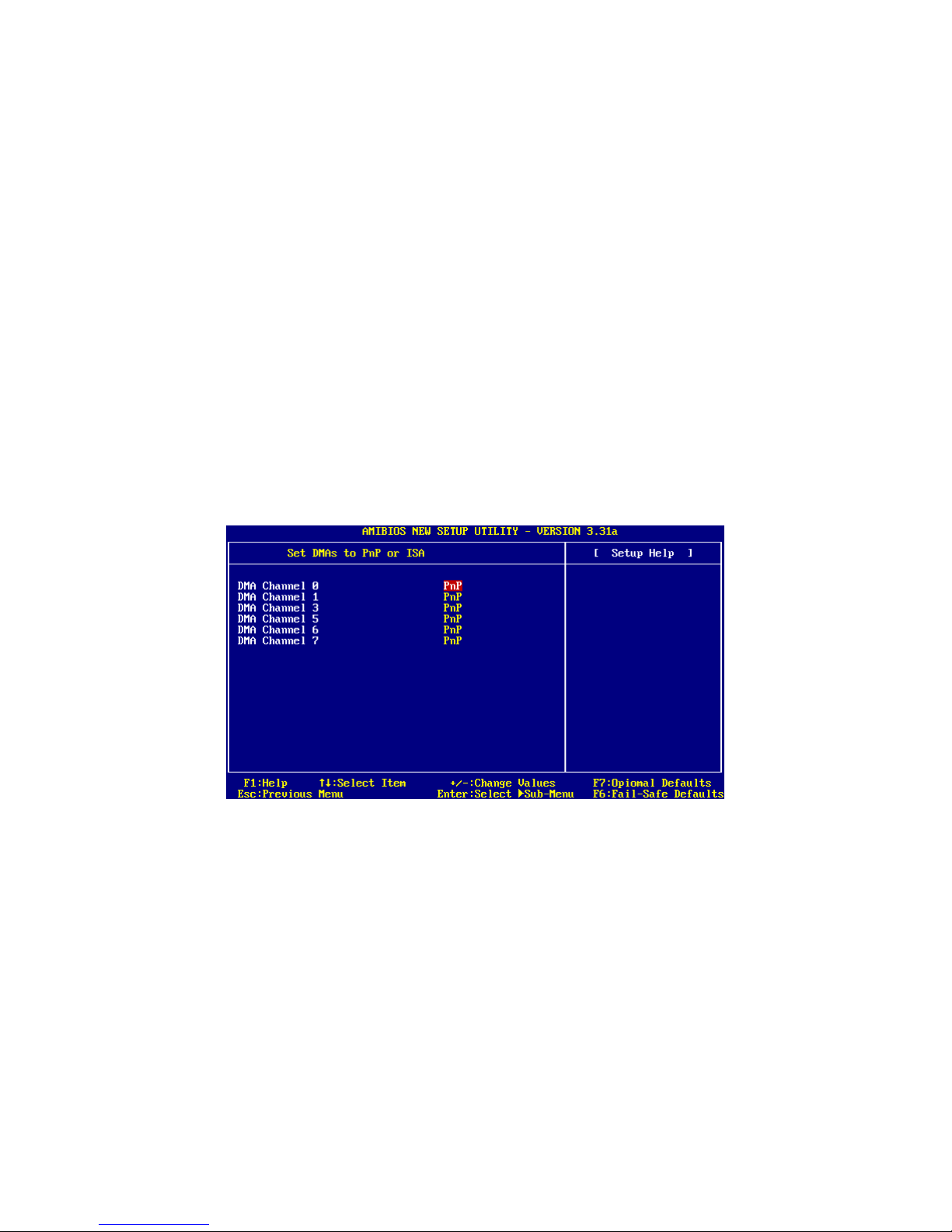

DMA Channel 0/1/3/5/6/7

These items specify the bus that the system DMA (Direct Memory
Access) channel is used.
The settings determine if AMIBIOS should remove a DMA from the avail­able DMAs passed to devices that are configurable by the system BIOS.
The available DMA pool is determined by reading the ESCD NVRAM. If
more DMAs must be removed from the pool, the end user can reserve the
DMA by assigning an ISA/EISA setting to it.

Chapter 4

4-22

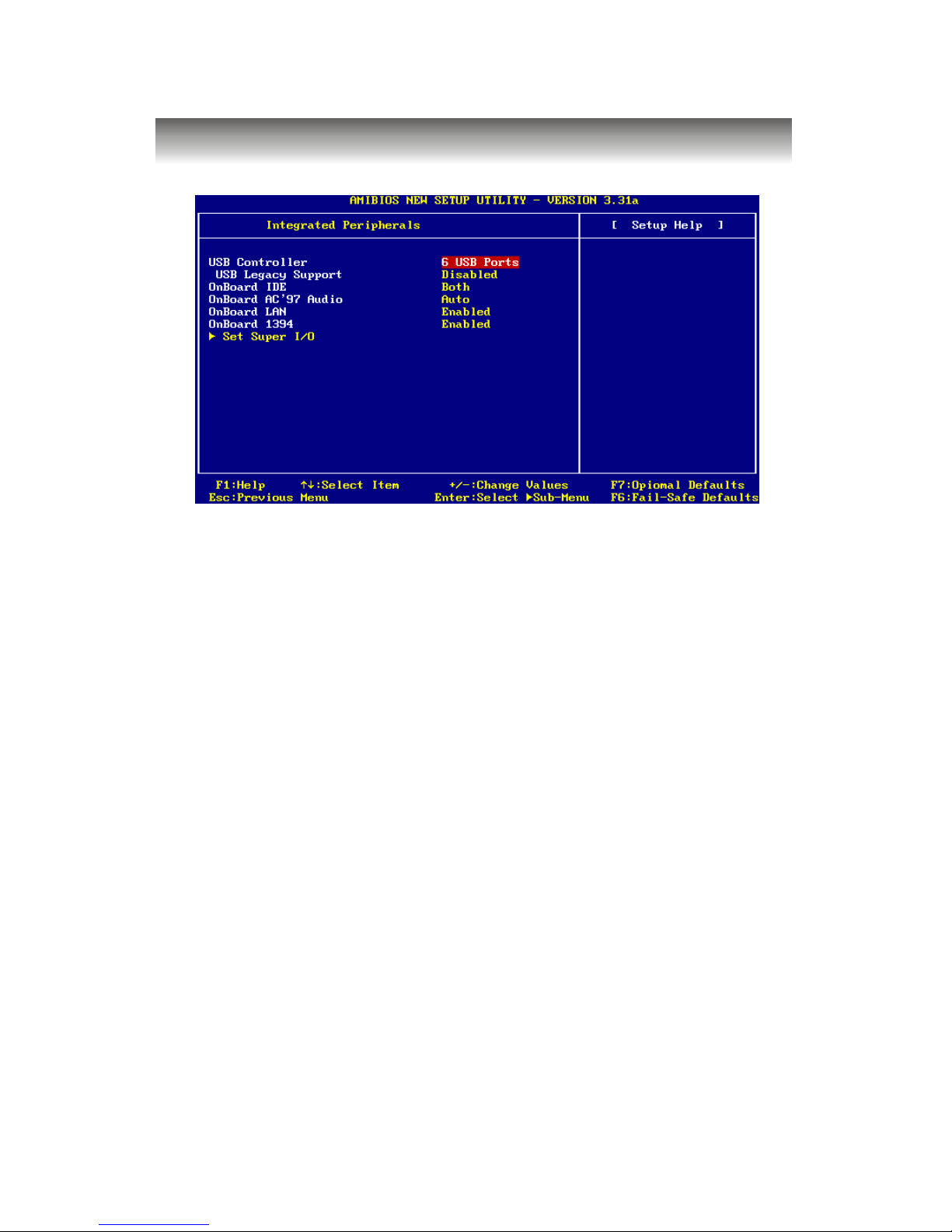

USB Controller

This setting is used to enable/disable the onboard USB controllers. Setting
options: 2 USB Ports, 4 USB Ports, 6 USB Ports, Disabled.

USB Legacy Support

Set to All Device if you need to use a USB1.1 device in the operating system
that does not support or have any USB driver installed, such as DOS and SCO
Unix. Set to No Mice if you want to use any USB1.1 device except the mouse.
Setting options: Disabled, No Mice, All Device.

OnBoard IDE

This setting controls the on-chip IDE controller. Setting options: Disabled,
Primary, Secondary, Both.

OnBoard AC’97 Audio

Auto allows the mainboard to detect whether an audio device is used. If an
audio device is detected, the onboard AC’97 (Audio Codec’97) controller will
be enabled; if not, it is disabled. Disable the controller if you want to use other
controller cards to connect an audio device. Settings: Auto, Disabled.

OnBoard LAN

The field determines whether the onboard LAN controller is activated. The
field appears only when the mainboard supports the LAN function. Setting

Integrated Peripherals

BIOS Setup

4-23

Option Description

Auto BIOS will automatically determine whether to enable the

onboard Floppy controller or not.

Enabled Enables the onboard Floppy controller.
Disabled Disables the onboard Floppy controller.

options: Enabled, Disabled.

OnBoard 1394

This item allows you to enable the onboard 1394 function.

Set Super I/O

Press <Enter> to enter the sub-menu and the following screen appears:

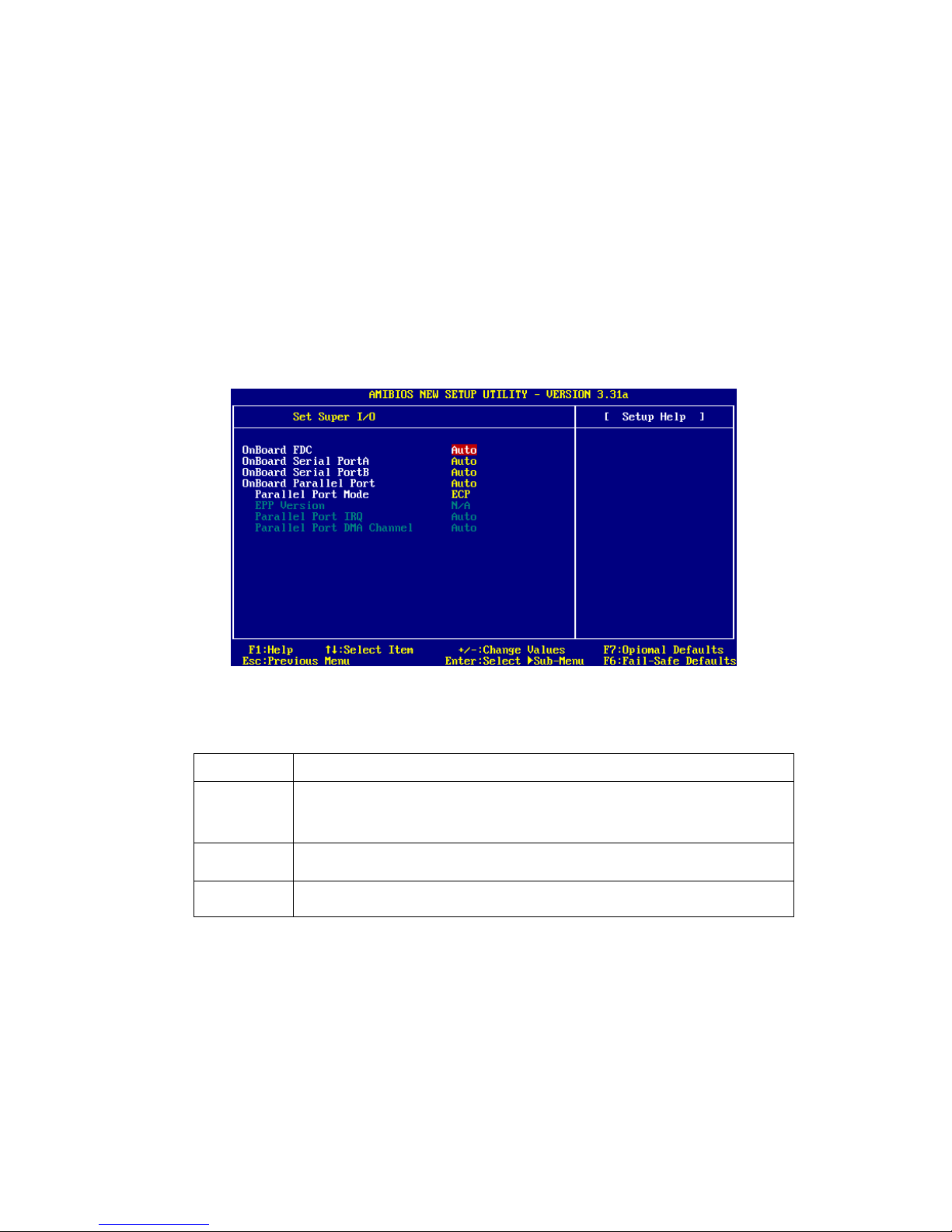

OnBoard FDC

This is used to enable or disable the onboard Floppy controller.

OnBoard Serial Port A/B

These items specify the base I/O port addresses of the onboard Serial
Port A (COM A)/Serial Port B (COM B). Selecting Auto allows AMIBIOS
to automatically determine the correct base I/O port address. Settings:
Auto, 3F8/COM1, 2F8/COM2, 3E8/COM3, 2E8/COM4, Disabled.

Chapter 4

4-24

OnBoard Parallel Port

This field specifies the base I/O port address of the onboard parallel port.
Selecting Auto allows AMIBIOS to automatically determine the correct
base I/O port address. Settings: Auto, 378, 278, 3BC, Disabled.

Parallel Port Mode

This item selects the operation mode for the onboard parallel port:
ECP, Normal, Bi-Dir or EPP.

EPP V ersion

The item selects the EPP version used by the parallel port if the port is
set to EPP mode. Settings: 1.7, 1.9.

Parallel Port IRQ

When Parallel Port is set to Auto, the item shows Auto indicating that
BIOS determines the IRQ for the parallel port automatically.

Parallel Port DMA Channel

This feature needs to be configured only when Parallel Port Mode is
set to the ECP mode. When Parallel Port is set to Auto, the field will
show Auto indicating that BIOS automatically determines the DMA
channel for the parallel port.

BIOS Setup

4-25

This section shows the status of your CPU, fan, and overall system
status.

Chassis Intrusion Detect

The field enables or disables the feature of recording the chassis intrusion
status and issuing a warning message if the chassis is once opened. To
clear the warning message, set the field to Reset. The setting of the field will
automatically return to Enabled later. Settings: Enabled, Reset, Disabled.

CPU/System Fan Speed, CPU /SystemT emperature

These items display the current status of all of the monitored hardware de­vices/components such as CPU voltages, temperatures and all fans’ speeds.

PC Health Status

Chapter 4

4-26

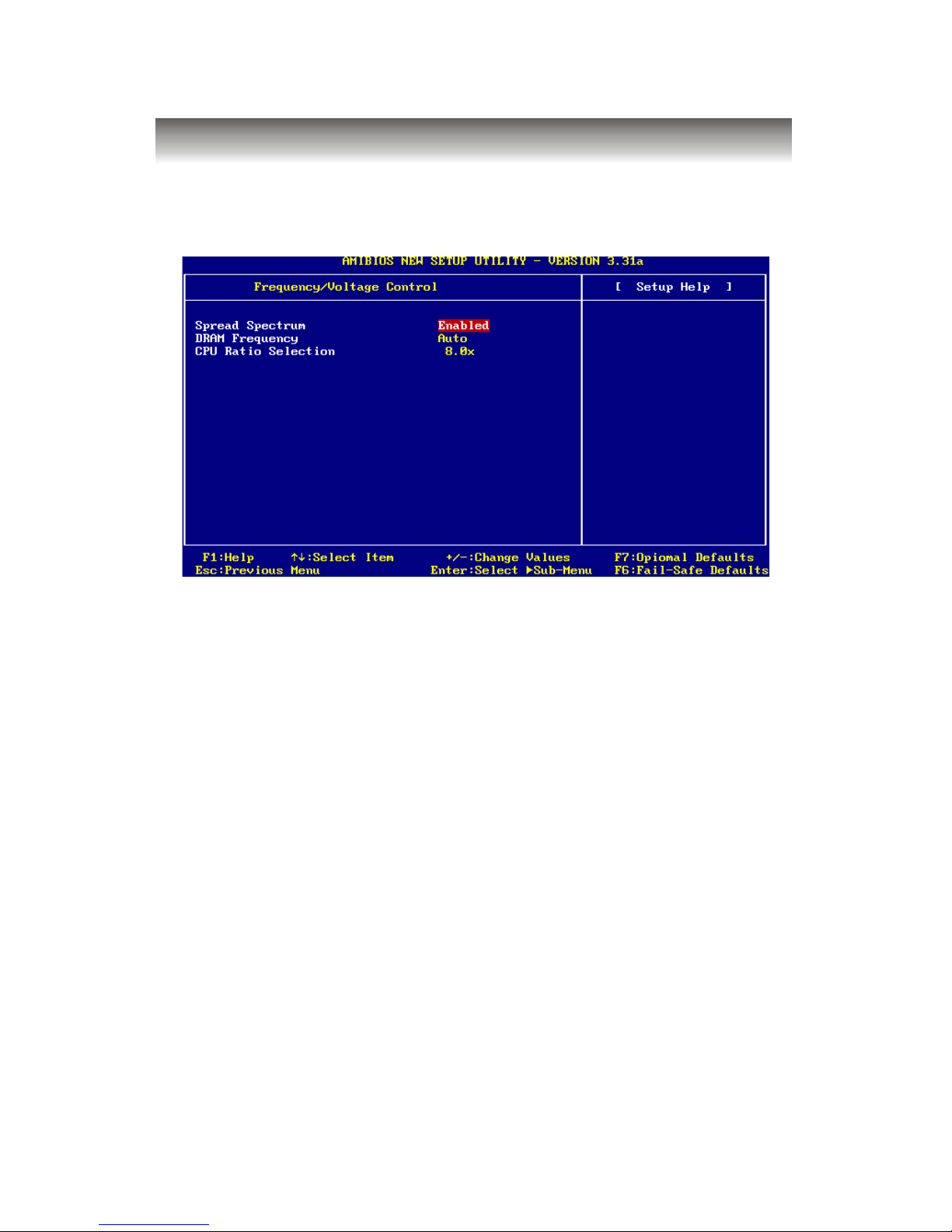

Spread Spectrum

When the motherboard clock generator pulses, the extreme values (spikes) of
the pulses creates EMI (Electromagnetic Interference). The Spread Spectrum
function reduces the EMI generated by modulating the pulses so that the
spikes of the pulses are reduced to flatter curves. If you do not have any EMI
problem, leave the setting at Disabled for optimal system stability and
performance. But if you are plagued by EMI, setting to Enabled for EMI
reduction. Remember to disable Spread Spectrum if you are overclocking be­cause even a slight jitter can introduce a temporary boost in clockspeed which
may just cause your overclocked processor to lock up.
speed of the processor relative to the external or motherboard clock speed.

DRAM Frequency

This setting shows the current frequency of DDR DRAM (read only).

CPU Ratio Selection

This setting controls the multiplier that is used to determine the internal clock
speed of the processor relative to the external or motherboard clock speed.

Use this menu to specify your settings for frequency/voltage control.

Frequency/Voltage Control

BIOS Setup

4-27

When you select this function, a message as below will appear on the
screen:

T ype the password, up to six characters in length, and press <Enter>. The
password typed now will replace any previously set password from CMOS
memory. You will be prompted to confirm the password. Retype the password
and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.

To clear a set password, just press <Enter> when you are prompted to
enter the password. A message will show up confirming the password will be
disabled. Once the password is disabled, the system will boot and you can
enter Setup without entering any password.

When a password has been set, you will be prompted to enter it every
time you try to enter Setup. This prevents an unauthorized person from chang­ing any part of your system configuration.

Additionally, when a password is enabled, you can also have AMIBIOS
to request a password each time the system is booted. This would prevent
unauthorized use of your computer. The setting to determine when the pass­word prompt is required is the P ASSWORD CHECK option of the ADVANCED
BIOS FEATURES menu. If the P ASSWORD CHECK option is set to Always,
the password is required both at boot and at entry to Setup. If set to Setup,
password prompt only occurs when you try to enter Setup.

About Supervisor Password & User Password:

Supervisor password: Can enter and change the

settings of the setup menu.

User password: Can only enter but do not have

the right to change the settings of

Set Supervisor/User Password

Chapter 4

4-28

The two options on the main menu allow users to restore all of the BIOS
settings to Optimal defaults or Fail-Safe defaults. The Optimal Defaults are the
default values set by the mainboard manufacturer for the best system perform­ance but probably will cause a stability issue. The Fail-Safe Defaults are the
default values also set by the mainboard manufacturer for stable performance
of the mainboard.

When you select Load Optimal Defaults, a message as below appears:

Pressing ‘Y’ loads the default BIOS values that enable the best system
performance but may lead to a stability issue.

When you select Load Fail-Safe Defaults, a message as below appears:

Pressing ‘Y’ loads the default values that are factory settings for stable system
performance.

Load Optimal/Fail-Safe Defaults

Using 4- or 6-Channel Audio Function

A-1

Appendix: Using 4- or 6-Channel Audio
Function

The motherboard is equipped with Realtek ALC650 chip, which
provides support for 6-channel audio output, including 2 Front, 2 Rear, 1
Center and 1 Subwoofer channel. ALC650 allows the board to attach 4 or 6
speakers for better surround sound effect. The section will tell you how to
install and use 4-/6-channel audio function on the board.

Appendix

A-2

You need to install the driver for Realtek ALC650 chip to function prop­erly before you can get access to 4-/6-channel audio operations. Follow the
procedures described below to install the drivers for different operating systems.

Installation for Windows 98SE/ME/2000/XP

For Windows® 2000, you must install Windows® 2000 Service Pack2 or

later before installing the driver.

The following illustrations are based on Windows® XP environment and
could look slightly different if you install the drivers in different operating
systems.

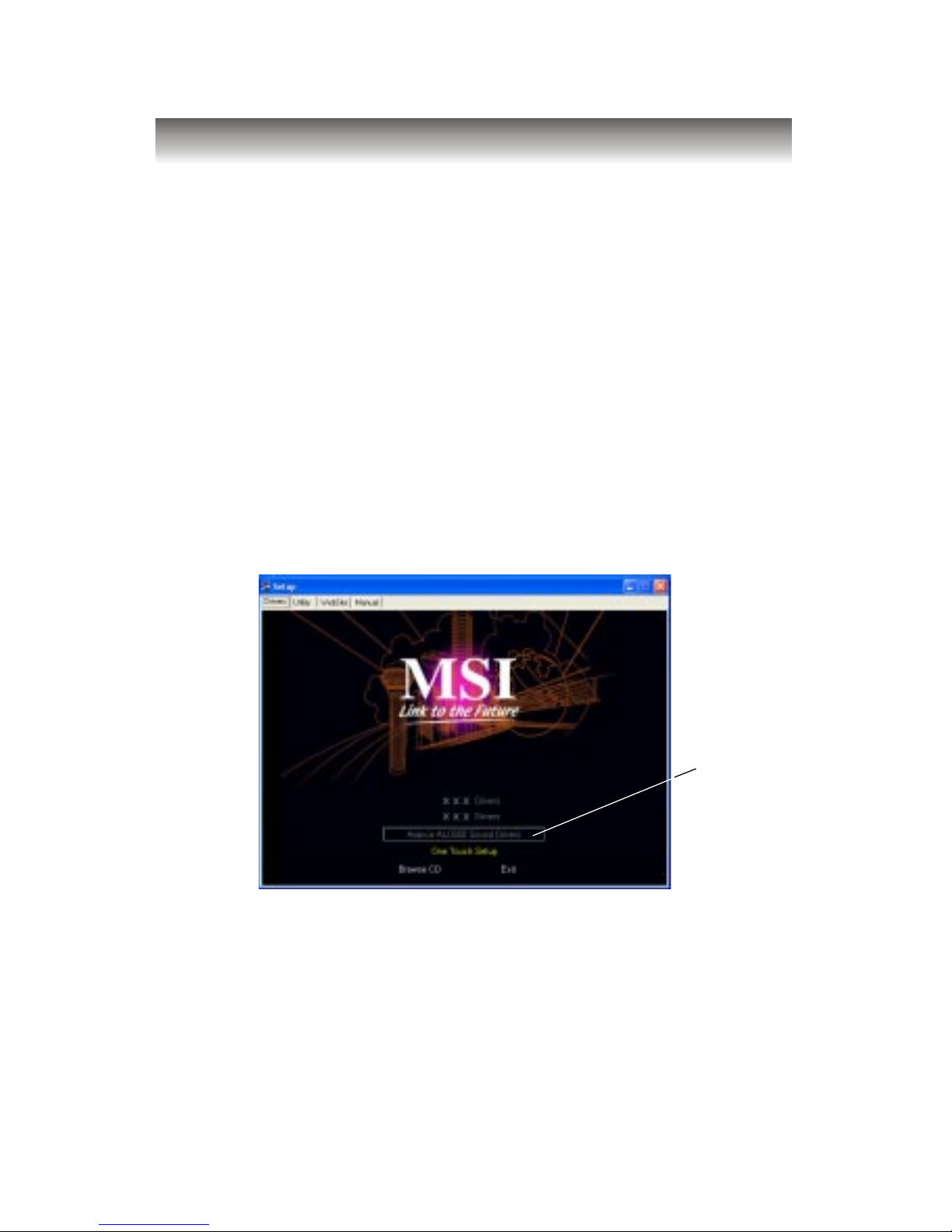

1. Insert the companion CD into the CD-ROM drive. The setup screen

will automatically appear.

2. Click Avance ALC650 Sound Drivers.

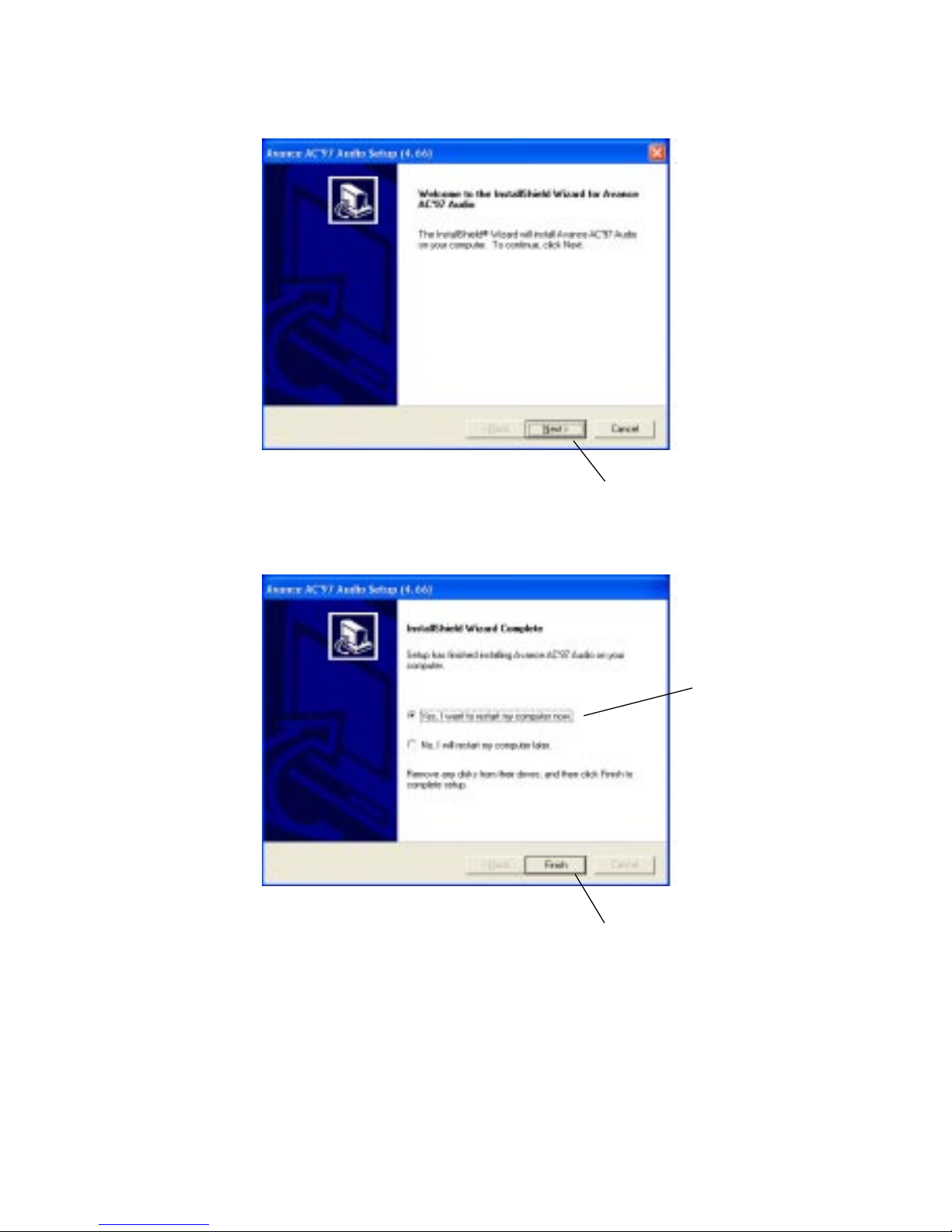

3. Click Next to start installing files into the system.

Click here

Installing the Audio Driver

Using 4- or 6-Channel Audio Function

A-3

4. Click Finish to restart the system.

Click here

Click here

Select this
option

Appendix

A-4

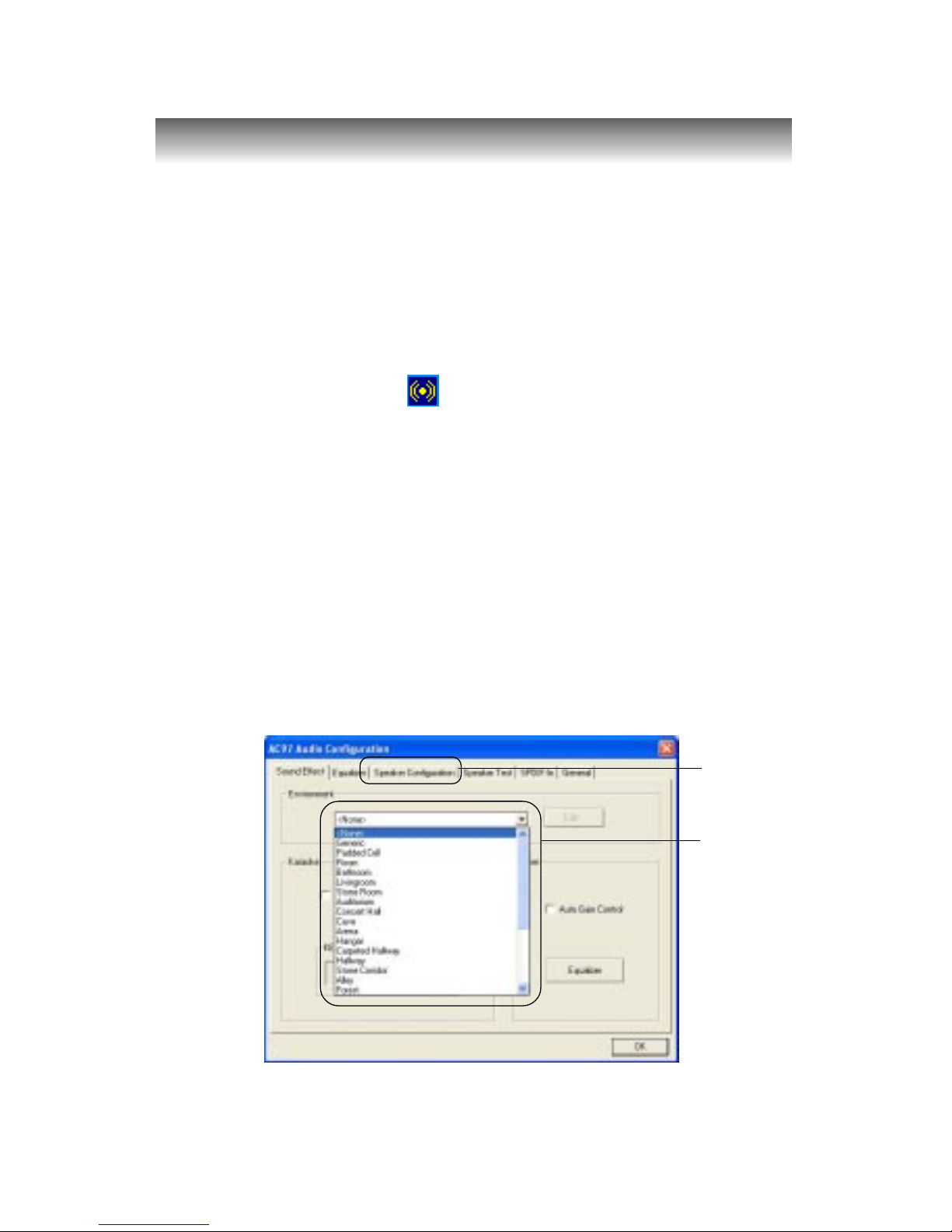

In addition to a default 2-Channel analog audio output function, the
audio connectors on the Back Panel also provide 4- or 6-Channel analog
audio output function if a proper setting is made in the software utility.

Read the following steps to have the Multi-Channel Audio Function
properly set in the software utility, and have your speakers correctly
connected to the Back Panel:

Configuration in the Software Utility

1. Click the audio icon from the window tray at the lower-right

corner of the screen.

2. Select a desired surround sound effect from the “Environment”
drop-down menu.

3. Click the Speaker Configuration tab.

4. Select Synchronize the phonejack switch with the settings.

5. Select a desired multi-channel operation from No. of Speakers.
a. 2-Channel Mode for Stereo-Speaker Output
b. 4-Channel Mode for 4-Speaker Output
c. 6-Channels Mode for 5.1-Speaker Output

6. Click OK to close this window.

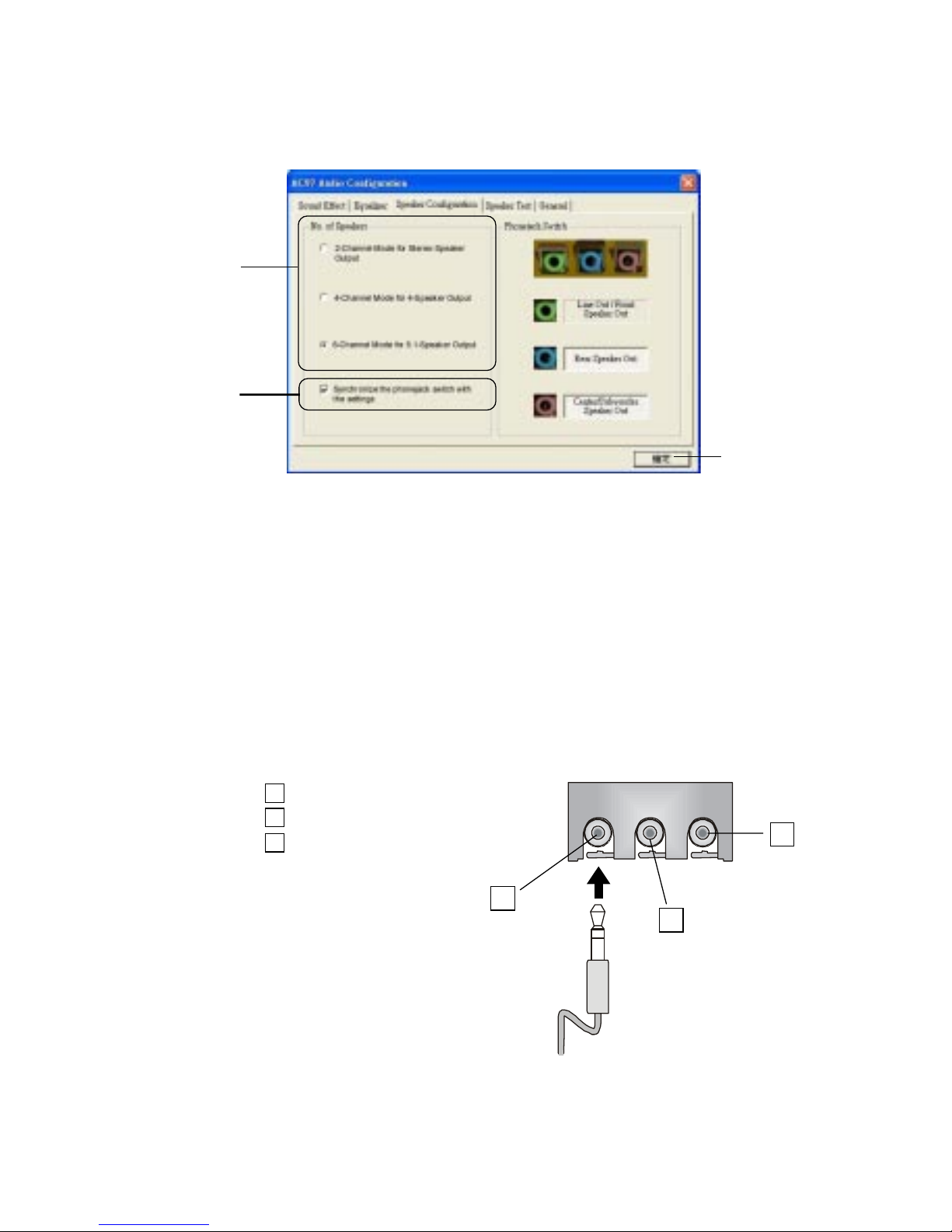

2

3

Using 4- or 6- Channel Audio Function

Using 4- or 6-Channel Audio Function

A-5

5

6

1

2

3

1 Line Out (Front channels)
2 Line In
3 MIC

Connecting the Speakers

When you have set the Multi-Channel Audio Function mode properly
in the software utility, connect your speakers to the correct phonejacks
in accordance with the setting in software utility.

 2-Channel Mode for Stereo-Speaker Output

Refer to the following diagram and caption for the function of each
phonejack on the back panel when 2-Channel mode is selected.

4

Appendix

A-6

1

2

3

1 Line Out (Front channels)
2 * Line Out (Rear channels)
3 MIC

* Line In function is converted to Line Out function when 4-Channel Mode for
4-Speaker Output is selected.

 4-Channel Mode for 4-Speaker Output

The audio jacks on the back panel always provide 2-Channel
analog audio output function, however these audio jacks can be
transformed to 4- or 6- channels analog audio jacks by selecting the
corresponding multi-channel operation from No. of Speakers.

Refer to the following diagram and caption for the founction of
each jack on the back panel when 4-Channels mode is selected.

Using 4- or 6-Channel Audio Function

A-7

1

2

3

1 Line Out (Front channels)
2 * Line Out (Rear channels)
3 * Line Out (Center and

Subwoofer channel)

* Both Line In and MIC function are converted to Line Out function when 4­Channel Mode for 6-Speaker Output is selected.

 6-Channel Mode for 6-Speaker Output

Refer to the following diagram and caption for the founction of
each jack on the back panel when 6-Channels mode is selected.

If the Center and Subwoofer speaker exchange their audio
channels when you play video or music on the computer, a
converter may be required to exchange center and subwoofer
audio signals. You can purchase the converter from a

speaker store.

Appendix

A-8

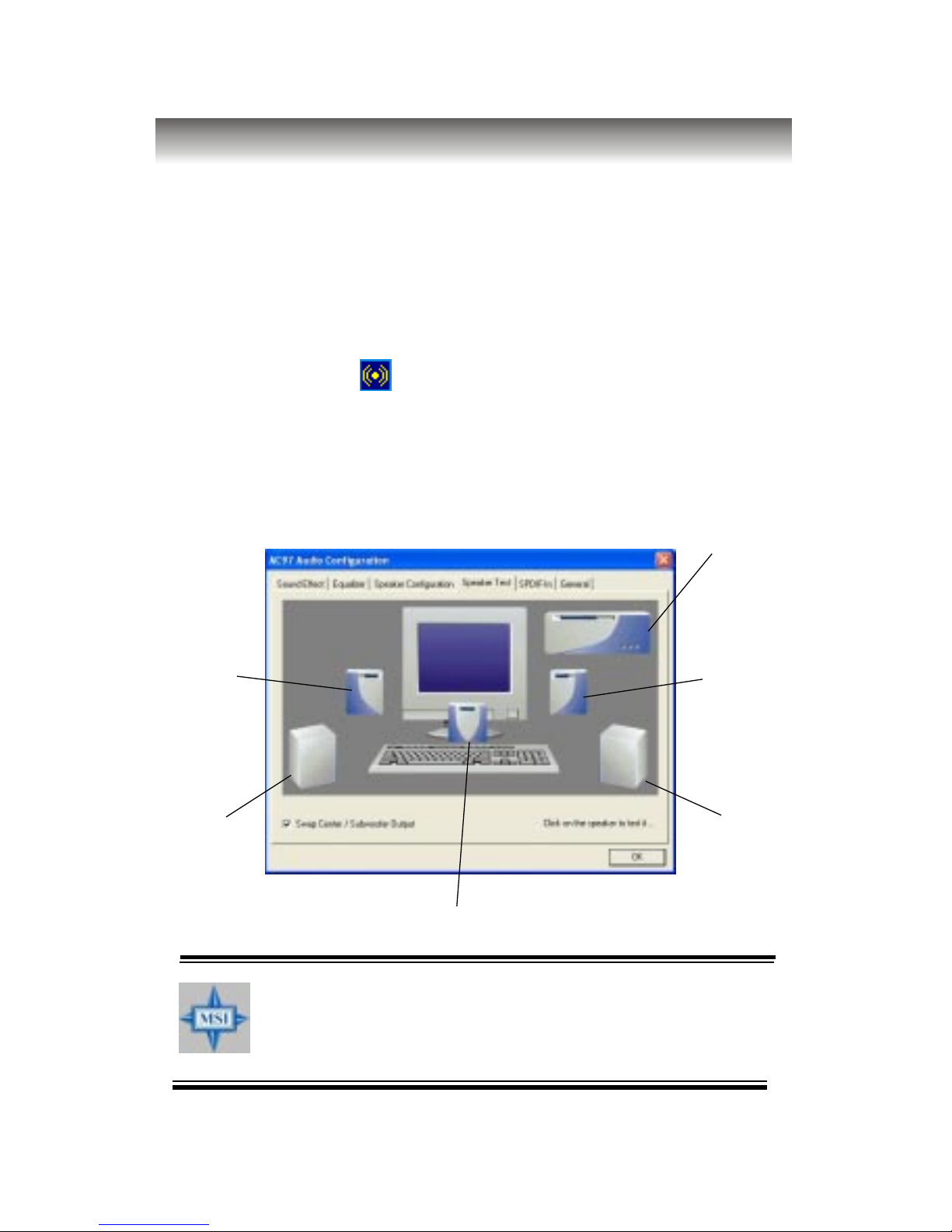

To ensure that 4- or 6-channel audio operation works properly, you may
need to test each connected speaker to make sure every speaker work properly.
If any speaker fails to sound, then check whether the cable is inserted firmly
to the connector or replace the bad speakers with good ones.

Testing Each Speaker:

1. Click the audio icon from the window tray at the lower-right corner

of the screen.

2. Click the Speaker Test tab.

3. The following window appears. Select the speaker which you want to

test by clicking it.

Subwoofer

Front Right

Rear Right

Center

Front Left

Rear Left

Testing the Connected Speakers

6 speakers appear on the “Speaker Test” window only when
you select “6-Channel Mode” in the “No. of Speakers” column.
If you select “4-Channel Mode”, only 4 speakers appear on
the window.

Using 4- or 6-Channel Audio Function

A-9

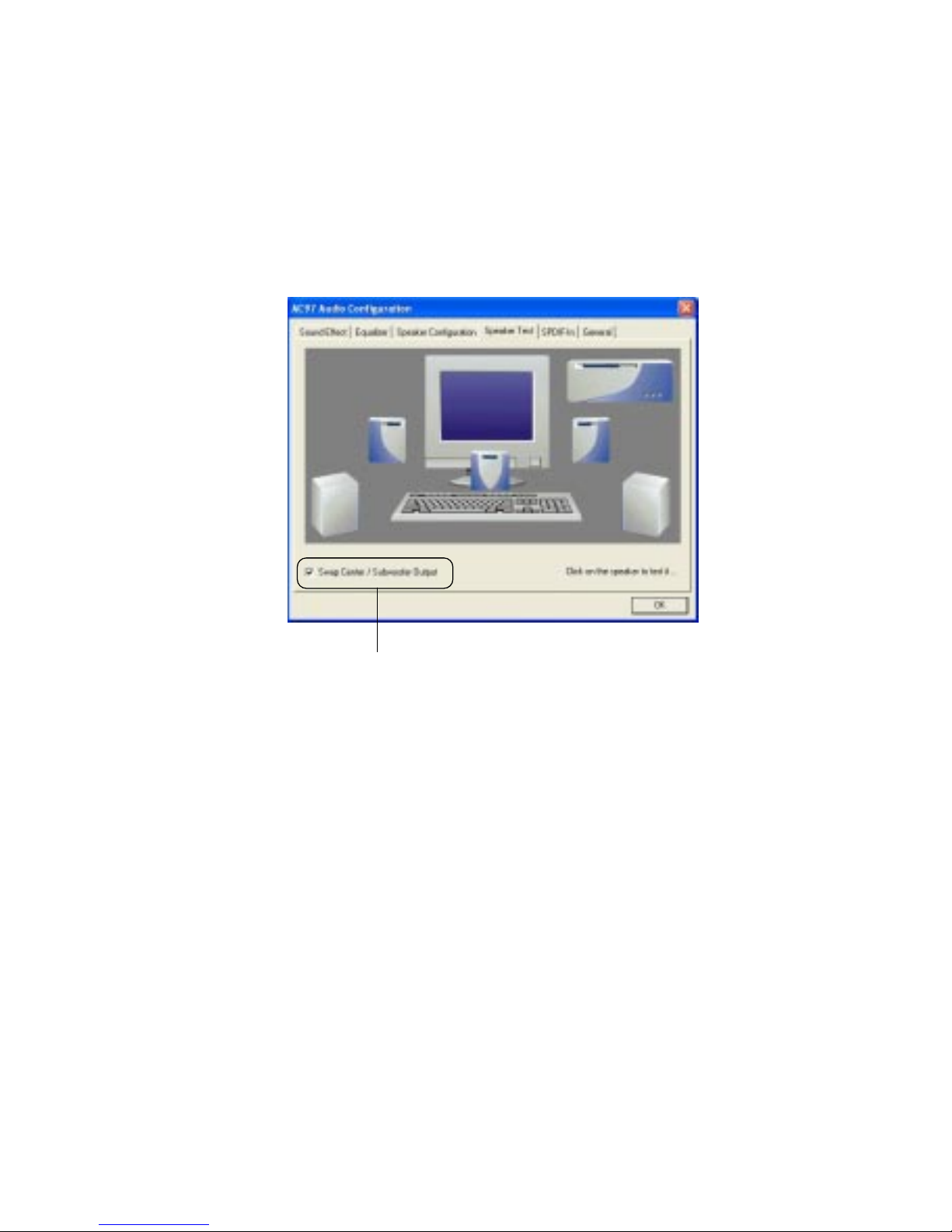

4. While you are testing the speakers in 6-Channel mode, if the sound

coming from the center speaker and subwoofer is swapped, you should
select Swap Center/Subwoofer Output to readjust these two channels .

Select this function

Appendix

A-10

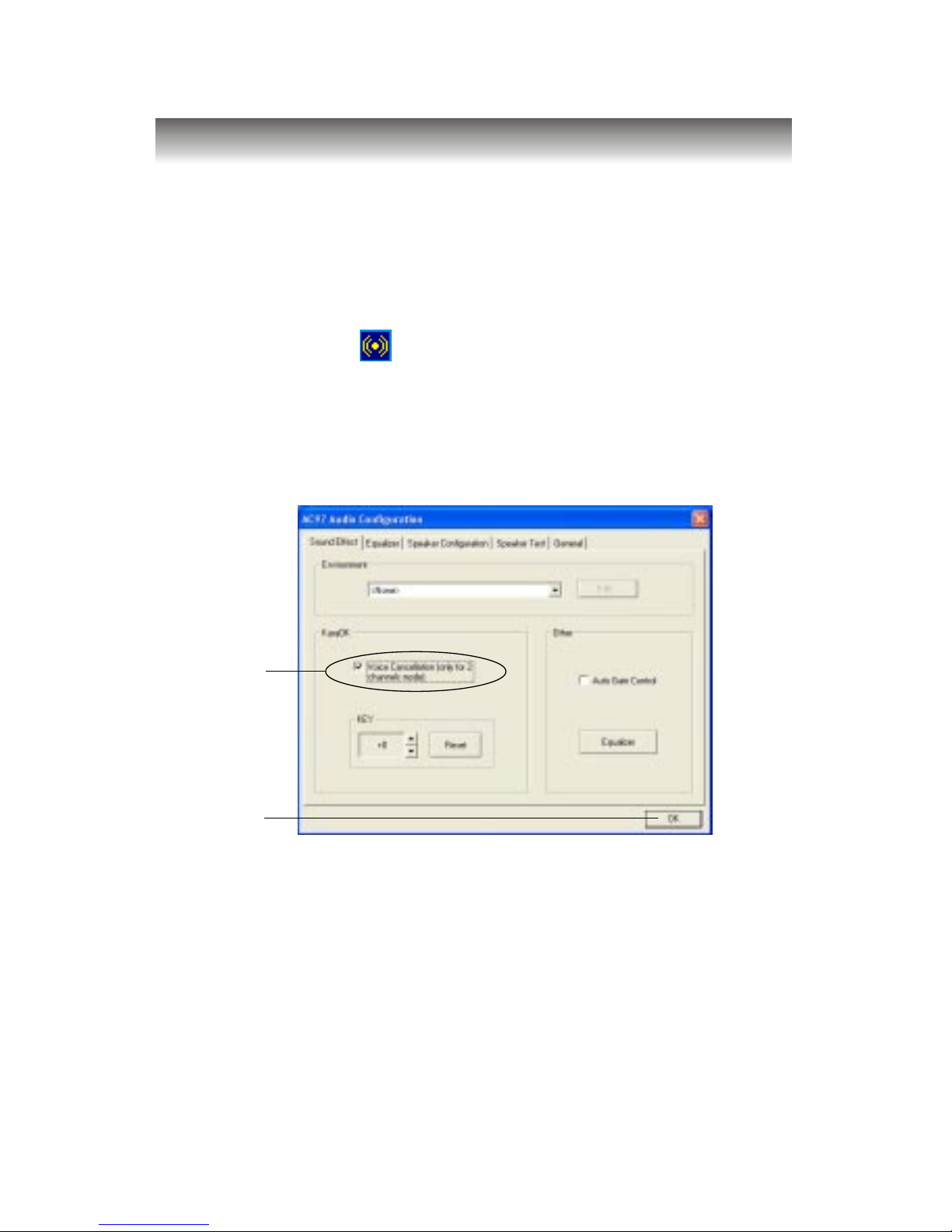

The KaraOK function will automatically remove human voice (lyrics)
and leave melody for you to sing the song. Note that this function applies
only for 2-channel audio operation.

Playing KaraOK:

1. Click the audio icon from the window tray at the lower-right

cornerof the screen.

2. In the Sound Effect tab, select Voice Cancellation under “KaraOK.”

3. Click OK to close this window.

Playing KaraOK

2

3

G-1

Glossary

Glossary

Glossary

ACPI (Advanced Configuration & Power Interface)

This power management specification enables the OS (operating system) to control the
amount of power given to each device attached to the computer. Windows 98/98SE,
Windows 2000 and Windows ME can fully support ACPI to allow users managing the
system power flexibly.

AGP (Accelerated Graphics Port)

A new, high-speed graphics interface that based on PCI construction and designed
especially for the throughput demands of 3-D graphics. AGP provides a direct channel
(32-bit wide bus) between the display controller and main memory for high graphics
quality and performance.

BIOS (Basic Input/Output System)

On PCs, an essential software that contains all the control code of input/output inter­face (such as keyboard, disk drives, etc.). It executes hardware test on booting the
system, starts the OS, and provides an interface between the OS and the components.
The BIOS is stored in a ROM chip.

Bus

A set of hardware lines within the computer system, through which the data is trans­ferred among different components. In a PC, the term bus usually refers to a local bus
that connects the internal components to the CPU and main memory.

Cache

A special memory subsystem that is used to speed up the data transfer. It stores the
contents of frequently accessed RAM locations and the addresses where these data
items are stored.

Chipset

A collection of integrated chips designed to perform one or more related functions. For
example, a modem chipset contains all the primary circuits for transmitting and receiv­ing data; a PC chipset provides the electronic interfaces between all subsystems.

CMOS (Complementary Metal-Oxide Semiconductor)

CMOS is a widely used type of semiconductor, which features high speed and low

G-2

Dynamic RAM (DRAM) Memory Technologies

Type

FPM (60,70ns)

EDO (50,60,70ns)

SDRAM (66MHz)

SDRAM (100MHz)

SDRAM (133MHz)

RDRAM (Direct Rambus)

DDR SDRAM (100MHz)

DDR SDRAM (133MHz)

First Used

1990

1994

1996

1998

1999

1999

2000

2000

Clock Rate

25MHz

40MHz

66MHz

100MHz

133MHz

400MHz

100MHz

133MHz

Bus* Width

64 bits

64 bits

64 bits

64 bits

64 bits

16 bits

64 bits

64 bits

Bandwidth

200 MBps

320 MBps

528 MBps

800 MBps

1.1 GBps

1.6 GBps

1.6 GBps

2.1 GBps

Volts

5v

5v

3.3v

3.3v

3.3v

2.5v

3.3v

3.3v

Peak

* Memory channel width (64 bits started with 75MHz Pentium)

Source: Computer Desktop Encyclopedia

power consumption. PCs usually contain a small amount of battery-powered CMOS
memory to retain the date, time, and system setup parameters.

DRAM (Dynamic RAM)

A most common type of computer memory. It usually uses one transistor and a
capacitor to represent a bit. As the development of technology, the memory type and
specification used in computer becomes variety, such as SDRAM, DDR SDRAM, and
RDRAM. For further instruction, please see the table below:

DVI

1) Short for Digital Visual Interface, a digital interface standard created by the Digital
Display Working Group (DDWG) to convert analog signals into digital signals to
accommodate both analog and digital monitors.

2) Short for Digital Video Interactive, a now-defunct technology developed by General
Electric that enables a computer to store and display moving video images like those on
television.

IDE (Integrated Drive Electronics)

A type of disk-drive interface widely used to connect hard disks, CD-ROMs and tape
drives to a PC, in which the controller electronics is integrated into the drive itself,
eliminating the need for a separate adapter card. The IDE interface is known as the
ATA (AT Attachment) specification.

IEEE 1394

A new, high speed external bus standard, also known as FireWire or iLink, which

G-3

Glossary

supports data transfer rates of up to 400 Mbps for connecting up to 63 external
devices.

IrDA (Infrared Data Association)

A group of device vendors, including computer, component and telecommunications,
who have developed a standard for transmitting data via infrared light waves. This
enables you to transfer data from one device to another without any cables.

IRQ (Interrupt Request Line)

IRQs are hardware lines over which devices can send interrupt signals to the
microprocessor. When you add a new device to a PC, you sometimes need to set its
IRQ number by setting a DIP switch. This specifies which interrupt line the device
may use. IRQ conflicts used to be a common problem when adding expansion boards,
but the Plug-and-Play specification has removed this headache in most cases.

LAN (Local Area Network)

A computer network that covers a relatively smaller area, such as in a building or an
enterprise. It is made up of servers, workstations, shared resources, a network oper­ating system and a communications link. These individual PCs and devices on a LAN
are known as “nodes”, and are connected by cables to access data and devices any­where on the LAN, so that many users can share expensive devices and data.

LED (Light Emitting Diode)

A semiconductor device that converts electrical energy into light. Since it lights up
(usually red) when electricity is passed through it, it is usually used for the activity
lights on computer’s component, such as disk drivers.

LPT (Line Printer Terminal)

Logical device name for a line printer; a name reserved by the MS-DOS for up to three
parallel printer ports: LPT1, LPT2, and LPT3. It is frequently used by the OS to
identify a printer.

PCI (Peripheral Component Interconnect)

A local bus standard developed by Intel that first appeared on PCs in late 1993. PCI
provides “plug and play” capability and allows IRQs to be shared. The PCI controller
can exchange data with the system's CPU either 32 bits or 64 bits at a time.

PCMCIA

Short forPersonal Computer Memory Card International Association, PCMCIA is an

G-4

organization consisting of some 500 companies that has developed a standard for small
, credit card-sized devices, called PC Cards. Originally designed for adding memory to
portable computers, the PCMCIA standard has been expanded several times and is
now suitable for many types of devices.

PnP (Plug and Play)

A set of specifications that allows a PC to configure itself automatically to work with
peripherals. The user can "plug" in a peripheral device and "play" it without configur­ing the system manually. To implement this useful feature, both the BIOS that sup­ports PnP and a PnP expansion card are required.

POST (Power On Self Test)

During booting up your system, the BIOS executes a series of diagnostic tests, include
checking the RAM, the keyboard, the disk drives, etc., to see if they are properly
connected and operating.

PS/2 Port

A type of port developed by IBM for connecting a mouse or keyboard to a PC. The
PS/2 port supports a mini DIN plug containing just 6 pins. Most modern PCs equipped
with PS/2 ports so that the special port can be used by another device, such as a
modem.

SPDIF

Short for Sony/Philips Digital Interface, a standard audio file transfer format. Deverloped
jointly by the Sony and Philips corporations, SPDIF allows the transfer of digital audio
signals from one device to another without having to be converted first to an analog
format.

USB (Universal Serial Bus)

A hardware interface for low-speed peripherals such as the keyboard, mouse, joystick,
etc. USB provides a maximum bandwidth of 12 Mbit/sec (Mbps) for connecting up to
127 peripheral devices to PC. USB features hot swap capability and multiple data
streams, allows external devices to be plugged in and unplugged without turning the
system off.
