MSI MS-6198 User Manual

Page 1

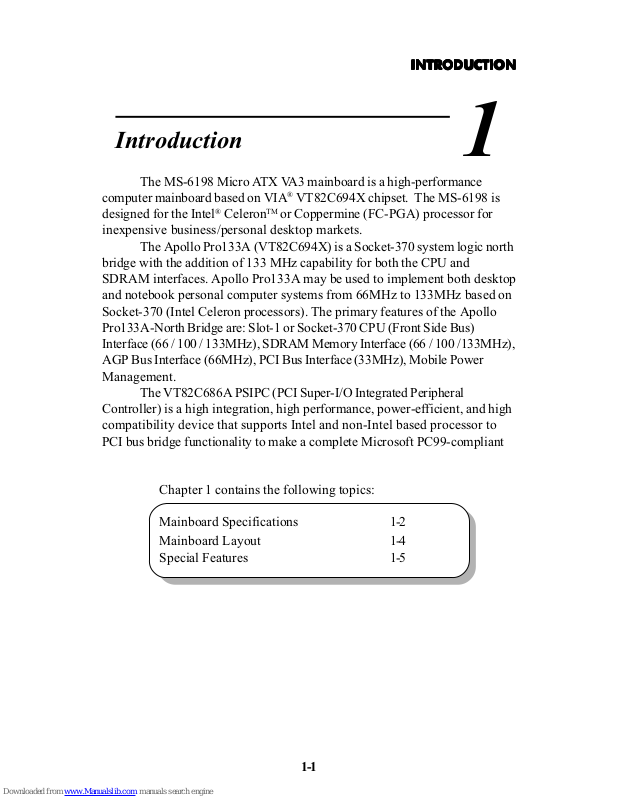

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-1

Introduction

The MS-6198 Micro ATX VA3 mainboard is a high-performance computer mainboard based on VIA® VT82C694X chipset. The MS-6198 is designed for the Intel® Celeron

or Coppermine (FC-PGA) processor for

inexpensive business/personal desktop markets.

The Apollo Pro133A (VT82C694X) is a Socket-370 system logic north bridge with the addition of 133 MHz capability for both the CPU and SDRAM interfaces. Apollo Pro133A may be used to implement both desktop and notebook personal computer systems from 66MHz to 133MHz based on Socket-370 (Intel Celeron processors). The primary features of the Apollo Pro133A-North Bridge are: Slot-1 or Socket-370 CPU (Front Side Bus) Interface (66 / 100 / 133MHz), SDRAM Memory Interface (66 / 100 /133MHz), AGP Bus Interface (66MHz), PCI Bus Interface (33MHz), Mobile Power Management.

The VT82C686A PSIPC (PCI Super-I/O Integrated Peripheral Controller) is a high integration, high performance, power-efficient, and high compatibility device that supports Intel and non-Intel based processor to PCI bus bridge functionality to make a complete Microsoft PC99-compliant



Chapter 1 contains the following topics:

Mainboard Specifications 1-2 Mainboard Layout 1-4 Special Features 1-5

Page 2

CHAPTER 1CHAPTER 1

CHAPTER 1

1-2

Mainboard Specifications

CPU

! Socket 370 for Intel® CeleronTM/CoppermineTM processor. ! Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz,

450MHz, 500MHZ, 533MHz., 550MHz, 667MHz or faster processor.

Chipset

! VIA® 694X chipset. (510 BGA)

- FSB @133MHz

- AGP 4x and PCI plus Advanced ECC Memory Controller

- Support PC100/133 SDRAM technology

! VIA® VT82C686A chipset. (352 BGA)

- Advanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)

- DirectSound AC97 Audio

- Dual bus Master IDE Ultra DMA33/66

- ACPI

Clock Generator

! 66.6/100/133MHz clocks are supported.

Main Memory

! Support four memory banks using two 168-pin unbuffered DIMM. ! Support a maximum memory size of 1GB. ! Support ECC(1-bit Error Code Correct) function. ! Support 3.3v SDRAM DIMM.

Slots

! One AGP(Accelerated Graphics Port) slot.

- AGP specification compliant

- AGP 66/133/266MHz 3.3v/1.5v device support

! Three 32-bit Master PCI Bus slots and one 16-bit ISA slot (wherein one

shared slot can be used as PCI or ISA).

! Supports 3.3v/5v PCI bus Interface.

Page 3

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-3

On-Board IDE

! An IDE controller on the VIA® VT82C686A Chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.

! Can connect up to four IDE devices.

On-Board Peripherals

! On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports (reserved 2 USB Front Pin Header)

- 1 IrDA/HP connector for SIR.

Audio

! Chip Integrated ! Direct Sound AC97 Audio

BIOS

! The mainboard BIOS provides Plug & Play BIOS which detects the

peripheral devices and expansion cards of the board automatically.

! The mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

! Micro-ATX Form Factor: 24.4cm (L) x 21cm (W)

Mounting

! 6 mounting holes.

Page 4

CHAPTER 1CHAPTER 1

CHAPTER 1

1-4

Mainboard Layout

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

AT X

Power Supply

VIA

694X

chipset

DIMM 2

Top: mouse Bottom:

keyboard

Top: Port 1

USB

IDE2

Bottom: Port 2

IDE1

.,,

VT82C686B

JMDM1

JBAT1

JWOL1

JCD1

JAUX1

CPUFAN

SYSFAN

Top: LPT

Bottom: COM A/ COM B

Top: Midi/ Game Port

Bottom: Audio Port

JPHONE

BIOS

AGP Slot

BATT

USB1

DIMM 1

ISA SLOT

JFP1

JGS1

JP1

SW1

Socket 370

MS-6198 Micro ATX Mainboard

Page 5

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-5

Special Features

! Microsoft

PC98/PC99 Compliant

! Micro ATX Form Factor

! Support Accelerated Graphic Port (AGP) Add-In Card

! Support Intel

Celeron/Coppermine processors at 66MHz and

100MHz, 133MHz System Bus Frequencies

! Chip Integrated Audio

! PC Alert System Hardware Monitor

! Support DMI (Desktop Management Interface) through BIOS

! TCAV (Build-in BIOS Anti-Virus)

! TOP Tech. (Thermal Overheat Protection Technology)

! LAN Wake Up Function

! Modem (Internal/External) Ring Wake Up Function

! Suspend to DRAM

! Support PCI 2.2

Page 6

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-1

Hardware Installation

This chapter provides you with the information about hardware setup procedures. During installation, be careful when handling the components and follow the installation procedures properly. For some components, installing it in a wrong orientation will cause it to become unstable.

Remember to use a grounded wrist strap before handling computer components. Static electricity may damage the components.

Central Processing Unit (CPU) 2-2 Memory Installation 2-5 Back Panel 2-8 Connectors 2-13 Power Supply 2-21 Jumpers 2-22 Slots 2-25

Chapter 2 contains the following topics:

Page 7

CHAPTER 2CHAPTER 2

CHAPTER 2

2-2

3. Press the lever down to complete the installation.

2. Locate Pin 1 in the socket and look for the white dot or cut edge in the CPU. Match Pin 1 with the white dot/cut edge. Then, insert the CPU. It should insert easily.

1. Pull the lever sideways away from the socket. Then, raise the lever up to a 90-degree angle.

••

• CPU Installation Procedures

+27

Open Lever

Pin 1

Sliding Plate

White dot/ Cut edge

Close Lever

Pin 1

Central Processing Unit: CPU

The mainboard operates with Intel® CeleronTM/Coppermine

processor. The mainboard uses a CPU socket called Socket 370 for easy

CPU installation. The CPU should always have a Heat Sink and a cooling fan attached to prevent overheating.

Page 8

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-3

• CPU Speed Setting: SW1

To set the proper speed and voltage of the CPU, you must know the specifications of your CPU (always ask your reseller for CPU specifications).

SW1

ONOFF

14 32

ECE ON

Page 9

CHAPTER 2CHAPTER 2

CHAPTER 2

2-4

• CPU Core Speed Derivation Procedure

If the CPU Core/Bus ratio is already fixed, adjusting the SW1 will not change the CPU Core/Bus ratio. If the Core/Bus ratio is not fixed by the CPU, then you can adjust the SWI to change the Core/Bus ratio.

If CPU Clock = 66MHz

Core/Bus ratio = 3.5

then CPU core speed = Host Clock x Core/Bus ratio

= 66MHz x 3.5 = 233MHz

4 3 2 1 Core/Bus Ratio

ON ON OFF ON 3

ON OFF OFF ON 3.5

ON ON ON OFF 4

ON OFF ON OFF 4.5

ON ON OFF OFF 5

ON OFF OFF OFF 5.5

OFF ON ON ON 6

OFF OFF ON ON 6.5

OFF ON OFF ON 7

OFF OFF OFF ON 7.5

OFF ON ON OFF 8

SW1 CPU

Page 10

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-5

Memory Installation

••

• Memory Bank Configuration

The mainboard supports a maximum memory size of 1GB (256-bit technology) for SDRAM: It provides two 168-pin unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports 8 MB to 512 Mbytes DIMM memory module.

DIMM1

DIMM2

••

• Memory Population Rules

1. Supports only SDRAM DIMM.

2. To operate properly, at least one 168-pin DIMM module must be installed.

3. This mainboard supports Table Free memory, so memory can be installed on DIMM1 or DIMM 2 in any order.

4. Supports 3.3 volt DIMM.

Page 11

CHAPTER 2CHAPTER 2

CHAPTER 2

2-6

How to install a DIMM Module

1. The DIMM slot has 2 Notch Keys VOLT and DRAM, so the DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in.

3. The plastic clip at the side of the DIMM slot will automatically close.

Single Sided DIMM

Double Sided DIMM

VOLTDRAM

••

• Memory Installation Procedures

Page 12

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-7

••

• SDRAM Memory Addressing

16M 1Mx16 ASYM 11 8 8MBx4 16MBx8

2Mx8 ASYM 11 9 16MBx8 32MBx16

64M 2Mx32 ASYM 11 9 32MBx2 64MBx4

2Mx32 ASYM 12 8 16MBx2 32MBx4 4Mx16 ASYM 11 10 32MB 64MB 4Mx16 ASYM 13 8 32MB 64MB

8Mx8 ASYM 13 9 64MB 128MB

64M 2Mx32 ASYM 11 8 16MB 32MB

4Mx16 ASYM 12 8 --- ---

8Mx8 ASYM 12 9 --- ---

DRAM

Tech.

DRAM

Density &

Width

DRAM

Addressing

Address Size

MB/DIMM

Row

Column

Single

Side(S)

Double Side(D)

no.

pcs.

no.

pcs.

Page 13

CHAPTER 2CHAPTER 2

CHAPTER 2

2-8

Back Panel

The mainboard provides the following back panel connectors:

Mouse Connector: JKBMS1Mouse Connector: JKBMS1

Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this connector.

Midi/JoystickMouse

Keyboard USB

Parallel

COM A COM B MICL-out L-in

PS/2 Mouse (6-pin Female)

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA 2 NC No connection 3 GND Ground 4 VCC +5V 5 Mouse Clock Mouse clock

Page 14

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-9

Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector for attaching a keyboard. You can plug a keyboard cable directly to this connector.

PS/2 Keyboard (6-pin Female)

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DATA 2 NC No connection 3 GND Ground 4 VCC +5V 5 Keyboard Clock Keyboard clock 6 NC No connection

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices like: keyboard, mouse

and other USB devices. You can plug the USB device directly to this connector.

1 2 3 4

5 6 7 8

PIN SIGNAL DESCRIPTION

1 VCC +5V 2 -Data 0 Negative Data Channel 0 3 GND Ground 4 +Data 0 Positive Data Channel 0 5 VCC +5V 6 +Data 1 Positive Data Channel 1 7 -Data 1 Negative Data Channel 1 8 GND Ground

USB Ports

Page 15

CHAPTER 2CHAPTER 2

CHAPTER 2

2-10

Parallel Port Connector: LPT1Parallel Port Connector: LPT1

Parallel Port Connector: LPT1

The mainboard provides a 25 pin female centronic connector for LPT. A parallel port is a standard printer port that also supports Enhanced Parallel Port (EPP) and Extended capabilities Parallel Port (ECP). See connector and pin definition below:

13 1

1425

PIN SIGNAL DESCRIPTION

1 STROBE Strobe 2 DATA0 Data0 3 DATA1 Data1 4 DATA2 Data2 5 DATA3 Data3 6 DATA4 Data4 7 DATA5 Data5 8 DATA6 Data6 9 DATA7 Data7 10 ACK# Acknowledge 11 BUSY Busy 12 PE Paper End 13 SELECT Select 14 AUTO FEED# Automatic Feed 15 ERR# Error 16 INIT# Initialize Printer 17 SLIN# Select In 18 GND Ground 19 GND Ground 20 GND Ground 21 GND Ground 22 GND Ground 23 GND Ground 24 GND Ground 25 GND Ground1

Page 16

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-11

Serial Port Connectors: COM A and COM BSerial Port Connectors: COM A and COM B

Serial Port Connectors: COM A and COM B

The mainboard provides two 9-pin male DIN connectors for serial port COM A & COM B. These port are 16550A high speed communication port that send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable directly into this connector.

1 2 3 4 5

6 7 8 9

PIN SIGNAL

1 DCD (Data Carry Detect)

2 SIN (Serial In or Receive Data) 3 SOUT (Serial Out or Transmit Data) 4 DTR (Data Terminal Ready) 5 GND 6 DSR (Data Set Ready) 7 RTS (Request To Send) 8 CTS (Clear To Send) 9 RI (Ring Indicate)

Joystick/Midi Connectors

You can connect joystick or game pad to this connector.

Page 17

CHAPTER 2CHAPTER 2

CHAPTER 2

2-12

Audio Port Connectors

Line Out is a connector for Speakers or Headphones. Line In is used for external CD player, Tape player, or other audio devices. Mic is a connector for the microphones.

Line Out Line In MIC

Page 18

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-13

Connectors

Fan Power Connectors: CPUFAN & SYSFANFan Power Connectors: CPUFAN & SYSFAN

Fan Power Connectors: CPUFAN & SYSFAN

These connectors support system cooling fan with + 12V. It supports three pin head connector. When connecting the wire to the connector, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND. If your mainboard has System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of this function.

CPUFAN

+12V

GND

SENSOR

For fans with fan speed sensor, every rotation of the fan will send out 2 pulses. System Hardware Monitor will count and report the fan rotation speed.

CPUFAN: Processor Fan SYSFA N: System Fan

Note: 1. Always consult your reseller for proper CPU cooling fan.

2. CPU FAN supports the FAN control. You can install PC Alert

utility. This will automatically control the CPU FAN Speed according to the actual CPU temperature.

SYSFAN

+12V

GND

SENSOR

Page 19

CHAPTER 2CHAPTER 2

CHAPTER 2

2-14

Case Connector: JFP1

The Power Switch, Reset Switch, Power LED, Speaker, and HDD LED are all connected to the JFP1 connector block.

JFP1

Power Switch

Reset Switch

HDD LED

Speaker

Buzzer

Power Switch

Connect to a 2-pin push button switch. This switch has the same feature with JRMS1.

Reset Switch

Reset switch is used to reboot the system rather than turning the power ON/OFF. Avoid rebooting while the HDD LED is lit. You can connect the Reset switch from the system case to this pin.

Power LED

Power LED will remain in Green mode when the system is power on.

Green mode: System is in full on mode. Blinking: System is in Suspend 1 (POS) mode. Yellow mode: System is in Suspend 3 (STR) mode.

Note: You can set the S1or S3 type Suspend mode in the Power Management of the BIOS setup.

Speaker

The speaker from the system case is connected to this pin. If on-board Buzzer is available:

Short pin 14-15: On-board Buzzer Enabled. Open pin 14-15: On-board Buzzer Disabled.

HDD LED

HDD LED shows the activity of a hard disk drive. Avoid turning the power off while the HDD led is lit. You can connect the HDD LED from the system case to this pin.

5V Standby

Power LED Suspend LED

Page 20

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-15

Floppy Disk Connector: FDD

The mainboard also provides a standard floppy disk connector FDD that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables.

USB Front Connector: USB1USB Front Connector: USB1

USB Front Connector: USB1

The mainboard provides a front Universal Serial Bus connector. This is an optional USB connector for Front Panel.

1 NC 6 +Data

2 VCC 7 GND

3 GND 8 -Data

4 NC 9 GND

5 NC 10 NC

Pin Signal Pin Signal

USB1

10 2

9 1

Page 21

CHAPTER 2CHAPTER 2

CHAPTER 2

2-16

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA/66/100 Controller that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66/ 100 function. It has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices to IDE1 and IDE2. These connectors support the provided IDE hard disk cable.

IDE1 (Primary IDE Connector) The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You must configure second hard drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector) IDE2 can also connect a Master and a Slave drive.

IDE2

IDE1

Page 22

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-17

akak

-Up on LAN Connector: JWOL1-Up on LAN Connector: JWOL1

-Up on LAN Connector: JWOL1

The JWOL1 connector is for use with LAN add-on cards that supports Wake Up on LAN function. To use this function, you need to set the Wake-Up on LAN to enable at the BIOS Power Management Setup.

PIN SIGNAL

1 5VSB 2 GND 3 MP_WAKEUP

Note: LAN wake-up signal is active high. To be able to use this function, you need a power supply that provide enough power for this feature. (Power supply with 750mA 5V Stand-by)

Modem WModem W

Modem W

akak

e Up Connector: JMDM1e Up Connector: JMDM1

e Up Connector: JMDM1

The JMDM1 connector is for use with Modem add-on card that supports the Modem Wake Up function.

JMDM1

PIN SIGNAL

1 NC 2 GND 3 MDM_WAKEUP 4 NC 5 5VSB

Note: Modem wake-up signal is active low. To be able to use this function, you need a power supply that provide enough power for this feature. (Power supply with 750mA 5V Stand-by)

JWOL1

Page 23

CHAPTER 2CHAPTER 2

CHAPTER 2

2-18

IrDA Infrared Module Connector: J1

The mainboard provides one infrared (J1) connector for IR modules. This connector is for optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function.

PIN SIGNAL

1 VCC 2 NC 3 IRRX 4 GND 5 IRTX

VCC

NC IRRX GND IRTX

Power Saving Switch Connector: JGS1

Attach a power saving switch to JGS1. When the switch is pressed the system immediately goes into suspend mode. Press any key and the system wakes up.

JGS1

Page 24

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-19

CDCD

-In Connector: JCD1-In Connector: JCD1

-In Connector: JCD1

This connector is for CD-ROM audio connector.

JCD1

GND

AUX Line In Connector: JAUX1AUX Line In Connector: JAUX1

AUX Line In Connector: JAUX1

This connector is used for DVD Add on Card with Line In connector.

JAUX1

GND

Page 25

CHAPTER 2CHAPTER 2

CHAPTER 2

2-20

Modem-In: JPHONE

The connector is for Modem with internal voice connector.

Mono_Out is connected to the Modem Speaker Out connector. Phone_In is connected to the Modem Microphone In connector.

JPHONE

Phone_In

GND

Mono_Out

Page 26

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-21

Power Supply

TX 20-pin PTX 20-pin P

TX 20-pin P

ower Connector: JWR1ower Connector: JWR1

ower Connector: JWR1

This connector supports the power button on-board. Using the ATX power supply, functions such as Modem Ring Wake-Up and Soft Power Off are supported by this mainboard. This power connector supports instant power on function which means that system will boot up instantly when the power connector is inserted on the board.

JWR1

20 1 1

10 1

PIN SIGNAL

11 3.3V 12 -12V 13 GND 14 PS_ON 15 GND 16 GND 17 GND 18 -5V 19 5V 20 5V

PIN SIGNAL

1 3.3V 2 3.3V 3 GND 45V 5 GND 65V 7 GND 8 PW_OK 9 5V_SB

10 12V

Warning: Since the mainboard has the instant power on function, make sure that all components are installed properly before inserting the power connector to ensure that no damage will be done.

Page 27

CHAPTER 2CHAPTER 2

CHAPTER 2

2-22

Clear CMOS Jumper: JBAClear CMOS Jumper: JBA

Clear CMOS Jumper: JBA

T1T1

A battery must be used to retain the mainboard configuration in CMOS RAM. Short 1-2 pins of JBAT1 to store the CMOS data.

Jumpers

1 3

JBAT1

Clear Data

Keep Data

You can clear CMOS by shorting 2-3 pin, while the system is off. Then, return to 1-2 pin position. Avoid clearing the CMOS while the system is on, it will damage the mainboard. Always unplug the power cord from the wall socket.

WARNING!

Page 28

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-23

Front Panel Audio Header: JP1Front Panel Audio Header: JP1

Front Panel Audio Header: JP1

You can connect an optional audio connector to the Front Panel Audio Header.

JP1

Pin No.

1 Active LINE Out(R) 2 Active LINE Out(L) 3 GND (aLO) 4 GND (aLO) 5 GND (+12) 6 GND (+12) 7 +12V (1A) * 8 (Cut Away) 9 MIC 10 GND (MIC) 11 Front LINE Out(R) 12 LINE Next(R) 13 Front LINE Out(L) 14 LINE Next(L) 15 GND (fLO) 16 (Cut away) 17 Line In(R) ** 18 Line In(L) **

Pin No.

Description Description

Note: For descriptions with asterisk (*) sign, please refer to page 2-25

for further details.

17 1

18 2

Page 29

CHAPTER 2CHAPTER 2

CHAPTER 2

2-24

* The +12V power should support 1A current atleast.

The audio interface includes three parts, one is the FrontAudio (For front audio jacks), another is the RearAudio (For rear audio jacks), the last is the ActiveAudio (For chassis speaker). Their priority level is a sequence. When the FrontAudio is available, the RearAudio and the ActiveAudio will be cut off. When the RearAudio is available, the ActiveAudio will be cut off. An onboard amplifier is needed for the case of earphonr plugged into. The block diagram is as follows:

FrontAudio RearAudio ActiveAudio

AC97

AMPLIFIER

The ActiveAudio will be connected to incase active speaker whose power supply must be provided as +12V by motherboard. In this table, Pin 1 to Pin 8 will be connected to the incase active speaker.

The FrontAudio is optional, which is defined from Pin 9 to Pin 16. When the FrontAudio is inexistence, Pin 11 and Pin 12, Pin 13 and Pin 14 must be short connected. When the FrontAudio is available, Pin 9 to Pin 16 will be connected to the FrontAudio board. The connection of the front earphone is as follows:

FrontLineOutR LineNextR

LineNextL

FrontLineOutL

GND

PHONEJACK

** Pin 17 and Pin 18 are reserved for some SI customers only.

Page 30

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-25

Slots

AGP (Accelerated Graphics Port) SlotAGP (Accelerated Graphics Port) Slot

AGP (Accelerated Graphics Port) Slot

The mainboard provides an AGP slot which you can install the AGP card.

PCI (Peripheral Component Interconnect) SlotsPCI (Peripheral Component Interconnect) Slots

PCI (Peripheral Component Interconnect) Slots

The mainboard provides 3 PCI slots which you can insert the expansion cards according to your needs.

ISA (Industry Standard Architecture) SlotISA (Industry Standard Architecture) Slot

ISA (Industry Standard Architecture) Slot

The mainboard provides 1 16-bit ISA slot which are used to add expansion cards to the computer. The ISA slot is provided for slow communication

only.

AGP slot

PCI slot

ISA slot

slot

Page 31

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-1

AWARD® BIOS Setup

Award® BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed RAM (CMOS RAM), so that it retains the Setup information when the power is turned off.

Chapter 3 contains the following topics:

Entering Setup 3-2 Getting Help 3-2 The Main Menu 3-3 Standard CMOS Setup 3-5 Advanced Chipset Features 3-12 Integrated Peripherals 3-16 Power Management Setup 3-20 PnP/PCI Configuration Setup 3-26 PC Health Status (Optional) 3-28 Frequency/Voltage Control 3-30 Load Fail-Safe/Optimized Defaults 3-31 Set Supervisor/User Password 3-32

Page 32

CHAPTER 3CHAPTER 3

CHAPTER 3

3-2

Entering SetupEntering Setup

Entering Setup

Power on the computer and press <Del> immediately to allow you to enter Setup. The other way to enter Setup is to power on the computer. When the below message appears briefly at the bottom of the screen during the POST (Power On Self Test), press <Del> key or simultaneously press <Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT, PRESS <CTRL-ALT-ESC>

OR <DEL> KEY

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the RESET button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to,

PRESS <F1> TO CONTINUE, <CTRL-ALT-ESC>

OR <DEL> TO ENTER SETUP

Getting HelpGetting Help

Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

Page 33

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-3

!Standard CMOS Features !Advanced BIOS Features !Advanced Chipset Features !Integrated Peripherals !Power Management Setup !PnP/PCI Configurations !PC Health Status

!Frequency/Voltage Control

Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Esc : Quit F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

↑ ↓ → ← : Select Item

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

The Main MenuThe Main Menu

The Main Menu

Once you enter Award® BIOS CMOS Setup Utility, the Main Menu (Figure

1) will appear on the screen. The Main Menu allows you to select from ten setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

Page 34

CHAPTER 3CHAPTER 3

CHAPTER 3

3-4

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your systems performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI Configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows your PC health status.

Frequency/Voltage Control

Use this menu to specify the settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for optimal performance system operations.

Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

Page 35

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-5

Date(mm:dd:yy): Fri, Jan 7,2000 Time(hh:mm:ss): 00:00:00

!IDE Primary Master Press Enter 2557MB !IDE Primary Slave Press Enter None !IDE Secondary Master Press Enter None !IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.5in. Drive B None

Video EGA/VGA Halt On All, But Keyboard

Base Memory 640K Extended Memory 64512K Total Memory 65536K

Standard CMOS FeaturesStandard CMOS Features

Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Standard CMOS Features

Page 36

CHAPTER 3CHAPTER 3

CHAPTER 3

3-6

Date

The date format is <day><month> <date> <year>.

Day Day of the week, from Sun to Sat, determined by

BIOS. Read-only.

month The month from Jan. through Dec.

date The date from 1 to 31 can be keyed by numeric

function keys.

year The year, depends on the year of the BIOS

Time

The time format is <hour> <minute> <second>.

PrimaryMaster/PrimarySlave SecondaryMaster/Secondary Slave

Press PgUp/<+> or PgDn/<-> to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Manual to define your own drive type manually.

If you select Manual, related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer.

Page 37

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-7

If the controller of HDD interface is SCSI, the selection shall be None.

If the controller of HDD interface is CD-ROM, the selection shall be

None.

Access Mode The settings are Auto, Normal, Large,LBA.

Cylinder number of cylinders

Head number of heads

Precomp write precom

Landing Zone landing zone

Sector number of sectors

Page 38

CHAPTER 3CHAPTER 3

CHAPTER 3

3-8

Advanced BIOS FeaturesAdvanced BIOS Features

Advanced BIOS Features

Anti-Virus Protection

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write date into this area, BIOS will show a warning message on screen and alarm beep.

Disabled(default) No warning message to appear when

anything attempts to access the boot sector or hard disk partition table.

Enable Activates automatically when the

system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.

Anti-Virus Protection Disabled BIOS Flash Write Control Disabled CPU Internal Cache Enabled External Cache Enabled CPU L2 Cache ECC Checking Enabled Processor Number Feature Enabled Quick Power On Self Test Disabled First Boot device Floppy Second Boot device HDD-0 Third Boot device LS120 Boot other device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up Numlock Status On Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM > 64MB Non-OS2 Video BIOS Shadow Enabled C8000-CBFFF Shadow Disabled CC000-CFFFF Shadow Disabled D0000-D3FFF Shadow Disabled D4000-D7FFF Shadow Disabled D8000-DBFFF Shadow Disabled DC000-DFFFF Shadow Disabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

X X

Page 39

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-9

CPU Internal Cache

The default value is Enabled.

Enabled (default) Enable cache

Disabled Disable cache Note: The internal cache is built in the processor.

External Cache

Choose Enabled or Disabled. This option enables the level 2 cache memory.

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the level 2 cache memory ECC (Error Check Correction).

Processor Number Feature

This feature is for Pentium® !!! only. When set to Enabled, the system will check the CPU serial number. Set to Disabled if you dont want the system to know the CPU serial number.

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled, BIOS will shorten or skip some check items during POST.

Enabled Enable quick POST

Disabled (default) Normal POST

First/Second/Third/Boot Other Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The settings are Floppy, LS/ZIP, HDD-0/HDD-1/HDD-2/HDD-3, SCSI, CDROM, LAN, and Disabled.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and B. Default is Disabled.

Page 40

CHAPTER 3CHAPTER 3

CHAPTER 3

3-10

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.

Boot Up NumLock Status

The default value is On.

On (default) Keypad is numeric keys.

Off Keypad is arrow keys.

Gate A20 Option

Normal The A20 signal is controlled by keyboard

controller or chipset hardware.

Fast(default) The A20 signal is controlled by port 92 or

chipset specific method.

Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat the keystroke The settings are: 250, 500, 750, 1000.

Page 41

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-11

Security Option

This category allows you to limit access to the system and Setup, or just to Setup.

System The system will not boot and access to Setup

will be denied if the correct password is not entered at the prompt.

Setup(default)The system will boot, but access to Setup will

be denied if the correct password is not entered at the prompt.

OS Select For DRAM > 64MB

Allows OS2® to be used with > 64 MB of DRAM. Settings are NonOS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2®.

Page 42

CHAPTER 3CHAPTER 3

CHAPTER 3

3-12

Note: Change these settings only if you are familiar with the chipset.

Advanced Chipset FeaturesAdvanced Chipset Features

Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.

Choose the ADVANCED CHIPSET FEATURES from the Main Menu and the following screen will appear.

SDRAM CAS Latency 3 DRAM Clock Host CLK Memory Hole Disabled P2C/C2P Concurrency Enabled Fast R-W Turn Around Disabled System BIOS Cacheable Disabled Video RAM Cacheable Disabled AGP Aperture Size 64M AGP-4X Mode Enabled OnChip USB Enabled USB Keyboard Support Disabled USB Mouse Support Disabled OnChip Sound Auto CPU to PCI Write Buffer Enabled PCI Dynamic Bursting Enabled PCI Master 0 WS Write Enabled PCI Delay Transaction Enabled PCI#2 Access #1 Retry Enabled AGP Master 1 WS Write Disabled AGP Master 1 WS Read Disabled Memory Parity/ECC Check Disabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Advanced Chipset Features

Page 43

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-13

DRAM Clock

The chipset support synchronous and asynchronous mode between the host clock and DIMM clock.

Auto BIOS automatically determines DIMM clock

Host CLK DIMM clock equal to host clock

Host - 33M DIMM clock equal to host clock minus 33MHz.

For example, if the host clock is 100MHz, the DIMM clock will be 66MHz.

Host + 33M DIMM clock equal to host clock plus 33MHz.

For example, if the host clock is 100MHz, the DIMM clock will be 133MHz.

Memory Hole

In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB.

15M-16M Enable a memory hole located at 15MB-16MB.

Disabled (default) Memory hole not supported.

P2C/C2P Concurrency

This item allows you to Enable or Disable the PCI to CPU, CPU to PCI concurrency. The default setting is Enabled.

Fast R-W Turn Around

This item controls the DRAM timing. It allows the user to Enable or Disable the fast read, write turn around. The settings are Enabled or Disabled. The default setting is Disabled.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Page 44

CHAPTER 3CHAPTER 3

CHAPTER 3

3-14

Video RAM Cacheable

Select Enabled allows caching of the video BIOS , resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

AGP Aperture Size

Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation.

AGP-4X Mode

This item is used to Enabled or Disabled the AGP support for AGP 4x mode.

OnChip USB

Set this option to Enable or Disable the onchip USB controller. The default setting is Enabled.

USB Keyboard/Mouse Support

Set this option to Enable or Disable the USB keyboard/mouse support. The default setting is Disabled.

OnChip Sound

This item allows you to control the onboard AC 97 audio.

CPU to PCI Write Buffer

When this field is Enabled, writes from the CPU to the PCI bus are buffered, to compensate for the differences between the CPU and the PCI bus. When Disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another cycle. The default setting is Enabled.

Page 45

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-15

PCI Dynamic Bursting

This item allows you to Enable or Disable the PCI dynamic bursting function. The settings are Enabled or Disabled.

PCI Master 0 WS Write

When Enabled, writes to the PCI bus are executed with zero wait states. The settings are Enabled or Disabled.

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The settings are Enabled or Disabled.

PCI#2 Access #1 Retry

When Disabled, PCI#2 will not be disconnected until access finishes (default). When Enabled, PCI#2 will be disconnected if ms retries are attempted without success. The default setting is Enabled.

AGP Master 1 WS Write

When Enabled, this item writes to the AGP (Accelerated Graphics Port) are executed with one wait states. The default setting is Enabled.

AGP Master 1 WS Read

When Enabled, this item read to the AGP (Accelerated Graphics Port) are executed with one wait states. The default setting is Enabled.

Memory Parity/ECC Check

This item when Enabled detects the memory parity and Error Checking & Correcting. The settings are Enabled or Disabled.

Page 46

CHAPTER 3CHAPTER 3

CHAPTER 3

3-16

Integrated PeripheralsIntegrated Peripherals

Integrated Peripherals

Onchip IDE Channel0 Enabled Onchip IDE Channel1 Enabled IDE Prefetch Mode Enabled Primary Master PIO Auto Primary Slave PIO Auto Secondary Master PIO Auto Secondary Slave PIO Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto Init Display First PCI Slot IDE HDD Block Mode Enabled Onboard FDD Controller Enabled Onboard Serial Port 1 Auto Onboard Serial Port 2 Auto UART 2 Mode Standard IR Function Duplex Half TX,RX inverting enable No, Yes Onboard Parallel Port 378/IRQ7 Onboard Parallel Mode Normal ECP Mode Use DMA 3 Parallel Port EPP Type EPP 1.9 Onboard Legacy Audio Enabled Sound Blaster Disabled SB I/O Base Address 220H SB IRQ Select IRQ5 SB DMA Select DMA1 MPU-401 Disabled MPU-401 I/O Address 330-333H Game Port (200-207H) Enabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Integrated Peripherals

OnChip IDE Channel0/Onchip IDE Channel1

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled.

IDE Prefetch Mode

This item is used to Enabled or Disabled the IDE Read/Write Prefetch buffer. This buffer is used to store data for faster performances.

X X

Page 47

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-17

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33, Ultra DMA/66 and Ultra DMA/100, select Auto to enable BIOS support. The settings are: Auto, Disabled.

Init Display First

This item allows you to decide to activate whether PCI Slot or AGP Slot. The settings are: PCI Slot, AGP Slot.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field. The settings are: Enabled and Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/ IRQ3, Disabled, Auto.

Page 48

CHAPTER 3CHAPTER 3

CHAPTER 3

3-18

UART 2 Mode

This item allows you to select which mode for the Onboard Serial Port

2. The settings are: Standard, HPSIR, ASKIR.

IR Function Duplex

This item allows you to select the IR half/full duplex function.

TX, RX inverting enable

This item allows you to enable the TX, RX inverting which depends on different H/W requirement. This field is not recommended to change its default setting for avoiding any error in your system.

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that provides Standard, ECP, and EPP features. It has the following options:

Disable

3BCH/IRQ7 Line Printer port 0 278H/IRQ5 Line Printer port 2 378H/IRQ7 Line Printer port 1

Onboard Parallel Mode

EPP : Enhanced Parallel Port

ECP : Extended Capability Port

To operate the onboard parallel port in the ECP and SPP modes simultaneously, choose ECP/SPP. By choosing ECP, the onboard parallel port will operate in ECP mode only. Choosing ECP/EPP will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. The ECP mode has to use the DMA channel, so choose the onboard parallel port with the ECP feature. After selecting it, the following message will appear: ECP Mode Use DMA At this time the user can choose between DMA channels 3 or 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: EPP Mode Select. At this time either EPP 1.7 spec. or EPP 1.9 spec. can be chosen.

Page 49

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-19

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode. The settings are 3 or 1. The default setting is 3.

Parallel Port EPP Type

Select EPP port type 1.7 or 1.9.

Onboard Legacy Audio

This fields controls the onboard legacy audio.

!"!"

!"Sound Blaster

!"!"

!"SB I/O Base Address

!"!"

!"SB IRQ Select

!"!"

!"SB DMA Select

!"!"

!"MPU-401

!"!"

!"MPU-401 I/O Address

!"!"

!"Game Port (200-207H)

Game Port (200-207H)

This field enables/disables the game port.

Page 50

CHAPTER 3CHAPTER 3

CHAPTER 3

3-20

Power Management SetupPower Management Setup

Power Management Setup

The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use.

IPCA Function

This item allows you to set ACPI (Advanced Configuration and Power Management) function. Setting options: [Enabled] [Disabled]. Default value: [Enabled]

IPCA Function Enabled !Power Management Press Enter ACPI Suspend Type S1(POS) PM Control by APM Ye s Video Off Option Suspend->Off Video Off Method V/H SYNC+Blank MODEM Use IRQ 3 Soft-Off by PWRBTN Instant-Off State After Power Failure Auto LED In Suspend Blinking !Wake Up Events Press Enter

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Power Management Setup

Page 51

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-21

Power Management

This category allows you to select the type (or degree) of power saving and is directly related to the following modes:

1. HDD Power Down

2. Doze Mode

3. Suspend Mode There are three selections for Power Management, two of which have fixed mode settings.

Min. Power Saving Minimum power management. Suspend

Mode = 1hr., and HDD Power Down = 15 min.

Max. Power Saving Maximum power management 

Suspend Mode = 1 min., and HDD Power Down = 1 min.

User Defined (default) Allows you to set each mode individu

ally. When not disabled, each of the ranges are from 1 min. to 1 hr. except for HDD Power Down which ranges from 1 min. to 15 min. and disable.

ACPI Suspend Type

This item will set which ACPI suspend type will be used. S1 (POS) The S1 sleeping state is low wake-up latency

sleeping state. In this state, no system context is lost(CPU or chip set) and hardware maintains all system context.

S3 (STR) The S3 state is a low wake-up latency sleeping

state where all system context is lost expect system memory. CPU, cache, and chipset context are lost in this state. Hardware maintains memory context and restores some CPU and L2 configura tion context.

Page 52

CHAPTER 3CHAPTER 3

CHAPTER 3

3-22

PM Control by APM

No System BIOS will ignore APM when

power managing the system.

Ye s System BIOS will wait for APMs

prompt before it enter any PM mode

Note :Enable this for O.S. with APM like Windows® 98, Windows® NT, etc.

Video Off Option

The settings are Always On, All Modes, or Suspend. This option is

for choosing the setting in which the monitor will turn off.

Always On Always turn on. All Modes During Doze, Standby or Suspend mode, the monitor

will be turned off.

Suspend During Suspend mode, the monitor will be turned off.

The default setting is Suspend.

Video Off Method

This determines the manner in which the monitor is blanked. V/H SYNC+Blank (default) This selection will cause the system to turn

off the vertical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video

buffer.

DPMS Initial display power management signaling.

Modem Use IRQ

This determines the IRQ in which the MODEM can use.

The settings are: 3, 4, 5, 7, 9, 10, 11, NA.

Soft-Off by PWRBTN

Pressing the power button for more than 4 seconds forces the system

to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off.

Page 53

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-23

State After Power Failure

This option will determine how the system will power on after a

power failure.

LED In Suspend

This option determines how the Power LED indicates the suspend

mode. The settings are Dual Color, Single Color and Blinking.

Dual Power LED will change its color when system enters

the suspend mode.

Single Power LED remains the same color. Blinking Power LED will blink when system enters the suspend

mode.

Wake Up Events

VGA

When Enabled, you can set the VGA to awaken the system.

LPT & COM

When On of LPT & COM, any activity from one of the listed system

peripheral devices or IRQs wakes up the system

VGA OFF LPT&COM I/O Address LPT/COM HDD&FDD I/O Address O n PCI Master Off PowerOn by PCI Card Disabled Wake Up On LAN/Ring Disabled RTC Alarm Resume Disabled Date (of Month) 0 Resume Time (hh:mm:ss) 0:0:0 IRQs Wake Up Event ON !IRQs Activity Monitoring Press Enter

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

X X

Page 54

CHAPTER 3CHAPTER 3

CHAPTER 3

3-24

HDD & FDD

When On of HDD & FDD, any activity from one of the listed system

peripheral devices or IRQs wakes up the system

PCI Master

When On of PCI Master, any activity from one of the listed system

peripheral devices or IRQs wakes up the system.

PowerOn by PCI Card

The item allows users to Enable/Disable the Power On by PCI Card

feature.

Wake Up On LAN/Ring

To use this function, you need a LAN add-on card or Modem which supports power on functions. During Disabled, the system cannot be boot up through LAN and ignores any incoming call from the modem. During Enabled, the system can be boot up through LAN and modem.

RTC Alarm Resume

This function is for setting date and time for your computer to boot up. During Disabled, you cannot use this function. During Enabled, choose the Date and Time Alarm:

Date(of month) Alarm You can choose which month the

system will boot up. Set to 0, to boot every day.

Time(hh:mm:ss) Alarm You can choose what hour, minute and

second the system will boot up.

Note: If you have change the setting, you must let the system boot up until

it goes to the operating system, before this function will work.

Page 55

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-25

The following is a list of IRQs, Interrupt ReQuests, which

can be exempted much as the COM ports and LPT ports above can. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

When set On, activity will neither prevent the system from

going into a power management mode nor awaken it.

!"!"

!"IRQ3 (COM 2)

!"!"

!"IRQ10 (Reserved)

!"!"

!"IRQ4 (COM 1)

!"!"

!"IRQ11 (Reserved)

!"!"

!"IRQ5 (LPT 2)

!"!"

!"IRQ12 (PS/2 Mouse)

!"!"

!"IRQ6 (Floppy Disk)

!"!"

!"IRQ13 (Coprocesssor)

!"!"

!"IRQ7 (LPT 1)

!"!"

!"IRQ14 (Hard Disk)

!"!"

!"IRQ8 (RTC Alarm)

!"!"

!"IRQ15 (Reserved)

!"!"

!"IRQ9 (IRQ2 Redir)

IRQ3 (COM 2) Enabled IRQ4 (COM 1) Enabled IRQ5 (LPT 2) Enabled IRQ6 (Floppy Disk) Enabled IRQ7 (LPT 1) Enabled IRQ8 (RTC Alarm) Disabled IRQ9 (IRQ2 Redir) Disabled IRQ10 (Reserved) Disabled IRQ11 (Reserved) Disabled IRQ12 (PS/2 Mouse) Enabled IRQ13 (Coprocessor) Enabled IRQ14 (Hard Disk) Enabled IRQ15 (Reserved) Disabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

IRQs Activity Monitoring

Page 56

CHAPTER 3CHAPTER 3

CHAPTER 3

3-26

PnP/PCI ConfigurationsPnP/PCI Configurations

PnP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or 2ersonal +omputer 1nterconnect, is a system which allows I/O devices to operate at

speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

PnP OS Installed

When set to YES, BIOS will only initialize the PnP cards used for booting (VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP operating system like Windows® 95 or 98. When set to NO, BIOS will initialize all the PnP cards. So, for non-PnP operating system (DOS, Netware®), this option must set to Yes.

PnP OS Installed N o Reset Configuration Data Disabled

Resources Controlled By Auto (ESCD) IRQ Resources Press Enter DMA Resources Press Enter

PCI/VGA Palette Snoop Disabled Assign IRQ For VGA Enabled Assign IRQ For USB Enabled

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

PnP/PCI Configurations

X X

Page 57

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-27

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot.

The settings are: Enabled and Disabled .

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows95/98. If you set this field to manual choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a #). The settings are: Auto (ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

DMA Resources

This sub menu can let you control the DMA resource.

PCI/VGA Palette Snoop

Leave this field at Disabled. The settings are Enabled, Disabled.

Assign IRQ for VGA

Leave this field at Enabled. The settings are Enabled, Disabled.

Assign IRQ for USB

Leave this field at Enabled. The settings are Enabled, Disabled.

Page 58

CHAPTER 3CHAPTER 3

CHAPTER 3

3-28

PC Health Status (Optional)PC Health Status (Optional)

PC Health Status (Optional)

This section helps you to get more information about your system including CPU temperature, FAN speed and voltages. It is recommended that you contact with your motherboard supplier to get proper value about your setting of the CPU temperature.

Current CPU Temp.

This item shows the current CPU temperature.

Current System Temp.

This item shows the current system temperature.

Current CPUFAN1 Temp.

This item shows the current CPUFAN1 speed.

Current CPU Temp. 33oC/91oF Current System Temp. 23oC/73oF Current CPUFAN1 Speed 6124Rpm Current SYSFAN2 Speed 0Rpm Vcore 2.03V

2.5V 2.41V

3.3V 3.30V 5V 4.92V 12V 11.40V

Item Help

Menu Level >

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

PC Health Status

Page 59

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-29

Current CPUFAN2 Temp.

This item shows the current CPUFAN2 speed.

Vcore

This item shows the current system voltage.

Page 60

CHAPTER 3CHAPTER 3

CHAPTER 3

3-30

Frequency/VFrequency/V

Frequency/V

oltage Controloltage Control

oltage Control

This section is for setting CPU Frequency/Voltage Control.

Auto Detect DIMM/PCI CLK

This item allows you to enable/disable auto detect DIMM/PCI Clock. The default is Disabled. Settings are Enabled and Disabled.

↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

Auto Detect DIMM/PCI CLK Enabled CPU Host Clock(CPU/PCI) Default Item Help

Menu Level >

F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Frequency/Voltage Control

Page 61

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-31

Load Fail-Safe/Optimized DefaultsLoad Fail-Safe/Optimized Defaults

Load Fail-Safe/Optimized Defaults

Load Fail-Safe Defaults

When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing Y loads the BIOS default values for the most stable, minimalperformance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing Y loads the default values that are factory settings for optimal performance system operations.

Page 62

CHAPTER 3CHAPTER 3

CHAPTER 3

3-32

Set Supervisor/User PasswordSet Supervisor/User Password

Set Supervisor/User Password

You can set either supervisor or user password, or both of them. The differences are:

Supervisor password : Can enter and change the options of the setup

menus.

User password: Can only enter but do not have the right to change

the options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

Page 63

AWARDAWARD

AWARD

BIOS SETUP BIOS SETUP

BIOS SETUP

3-33

You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to System, the password will be required both at boot and at entry to Setup. If set to Setup, prompting only occurs when trying to enter Setup.

Page 64

VIA CHIPSET DRIVERVIA CHIPSET DRIVER

VIA CHIPSET DRIVER

4-1

81)+DEFIAJ,HELAH

The MS-6198 is paired with the VIA VT82C686A south bridge. Highly advanced, the south bridge combines an integrated 2D/3D engine with DVD hardware acceleration, AC-97 audio support for SoundBlaster Pro and FM synthesis legacy audio.

Audio Features 4-2

System Requirements 4-2

Driver Setup & Usage Procedurers

for Windows® 98 4-3

Driver Setup & Usage Procedurers

for Windows® NT 4-5

Chapter 4 contains the following topics:

Page 65

CHAPTER 4CHAPTER 4

CHAPTER 4

4-2

Audio Features

!AC97 audio support for SoundBlaster Pro !FM synthesis legacy audio

System Requirements

This section describes system requirements for the VIA Driver

installation and Usage.

Computer Intel® CeleronTM/Coppermine FC-PGA Monitor VGA Support, mimimum 640x480

resolution

Operating system DOS 5.0 or higher, Windows® 95/98,

Windows® NT 3.51 or 4.0, or OS/2

CD-ROM Double Speed or Higher Chipset VIA® 694X/VT82C686A chipset

Page 66

VIA CHIPSET DRIVERVIA CHIPSET DRIVER

VIA CHIPSET DRIVER

4-3

Driver Setup & Usage Procedures for

Windows® 98

Insert the CD-title into your CD-ROM drive. The CD will auto-run and will display the four icons in the monitor VIA Chipset Drivers, VIA AC97 PCI Sound Drivers and Download VIA Drivers. In order to install the drivers correctly, you must install the Via Chipset Drivers first, and then install the VIA AC97 PCI Sound Drivers.

VIA Chipset Drivers installation procedure:

Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon.

This will show the setup screen.

Step 3: Click on Via Chipset Drivers icon and the screen will show VIA

Service Pack 4.XX.

Step 4: Click Next and the screen will show four drivers VIA Atapi

Vendor Support Driver, AGP VxD Driver, VIA Chipset Functions Registry and IRQ Routing Miniport Driver. Select all four drivers and click on Next.

Step 5: The setup program will request you to choose Install VIA Atapi

Vendor Support Driver. Please select Install and click Next to continue.

Step 6: Click to enabled DMA Mode, Please select Install and click

Next to continue.

Step 7: The setup program will request you to choose Install VIA AGP

VxD in turbo mode, Install VIA AGP VxD in normal mode or Uninstall VIA AGP VxD. Please select Install VIA AGP VxD in turbo mode and click on Next.

Page 67

CHAPTER 4CHAPTER 4

CHAPTER 4

4-4

Step 8: The setup program will let you choose between Install VIA

Chipset Functions Registry or Uninstall VIA Chipset Functions Registry. Please select Install VIA Chipset Functions Registry and then click Next.

Step 9: The setup program will let you choose between Install VIA IRQ

Routing Miniport Driver or Uninstall VIA IRQ Routing Miniport Driver. Please select Install VIA IRQ Routing Miniport Driver

Step 10: The setup program will request you to choose whether to

restart the computer or not. Please select Yes, I want to restart my computer now and click Finish. The computer will restart and finish the VIA Chipset Drivers installation.

VIA AC97 PCI Sound Drivers installation procedure:

Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM

icon. This will show the setup screen.

Step 3: Click on VIA AC97 PCI Sound Drivers icon and the screen

will show VIA AC97 PCI Sound Drivers.

Step 4: Click Next to proceed and the screen will show Install,

or Remove. Select Install and then click on Next.

Step 5: The setup program will request you to choose whether to

restart the computer or not. Please select Yes, I want to restart my computer now and click Finish. The computer will restart and finish the AC97 Audio Drivers Installation.

Page 68

VIA CHIPSET DRIVERVIA CHIPSET DRIVER

VIA CHIPSET DRIVER

4-5

Driver Setup & Usage Procedures for

Windows® NT

Install Windows® NT 4.0 Service Pack 3 or the latest version before installing the VIA drivers.

Insert the CD-title in the CD-ROM drive. The CD will auto-run and will display four icons on the screen VIA Chipset Drivers, VIA AC97 PCI Sound Driversand Download VIA Drivers. In order to install the drivers properly, install the VIA Chip Drivers first and then install the VIA AC97 PCI Sound Drivers.

VIA Chipset Drivers Installation Procedure:

Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon.

This will show the setup screen.

Step 3: Click on VIA Chipset Drivers icon and the screen will show

VIA Service Pack 4.XX.

Step 4: Click Next to proceed and the screen will show Install,

Uninstall or Enable/Disable Ultra DMA for IDE Driver. Select Install and then click on Next.

Step 5: Please click on Yes, I want to restart my computer.

Page 69

CHAPTER 4CHAPTER 4

CHAPTER 4

4-6

VIA AC97 PCI Sound Drivers Installation Procedure:

Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon.

This will show the setup screen.

Step 3: Click on VIA AC97 PCI Sound Drivers icon and the screen will

show the VIA PCI Audio Drivers setup screen. Click Next to continue

Step 4: The setup program will show Install or Remove in the screen.

Select Install and click Next

Step 5: The setup program will show the following on the screen:

Please choose Add from the next window and add the following device:

VIA AC97 PCI Audio Device VIA MIDI External Port

Then click OK. Step 6: Follow the steps shown in Step 5 to finish the VIA AC97 PCI

Audio Drivers Installation.
