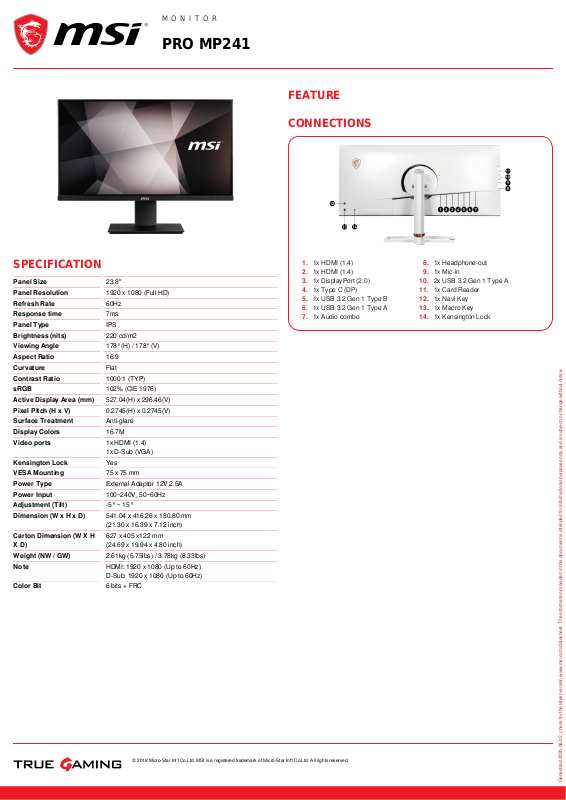

MSI MP241 Service Manual

MONITOR

PRO MP241

FEATURE

CONNECTIONS

SPECIFICATION

Panel Size 23.8"

Panel Resolution 1920 x 1080 (Full HD)

Refresh Rate 60Hz

Response time 7ms

Panel Type IPS

Brightness (nits) 220 cd/m2

Viewing Angle 178°(H) / 178°(V)

Aspect Ratio 16:9

Curvature Flat

Contrast Ratio 1000:1 (TYP)

sRGB 102% (CIE 1976)

Active Display Area (mm) 527.04(H) x 296.46(V)

Pixel Pitch (H x V) 0.2745(H) x 0.2745(V)

Surface Treatment Anti-glare

Display Colors 16.7M

Video ports 1x HDMI (1.4)

Kensington Lock Yes

VESA Mounting 75 x 75 mm

Power Type External Adaptor 12V 2.5A

Power Input 100~240V, 50~60Hz

Adjustment (Tilt) -5° ~ 15°

Dimension (W x H x D) 541.04 x 416.26 x 180.80 mm

Carton Dimension (W X H X D)

Weight (NW / GW) 2.61kg (5.75lbs) / 3.78kg (8.33lbs)

Note HDMI: 1920 x 1080 (Up to 60Hz)

Color Bit 6 bits + FRC

1x D-Sub (VGA)

(21.30 x 16.39 x 7.12 inch)

627 x 405 x122 mm (24.69 x 19.94 x 4.80 inch)

D-Sub: 1920 x 1080 (Up to 60Hz)

1x HDMI (1.4)1. 1x HDMI (1.4)2. 1x DisplayPort (2.0)3. 1x Type C (DP)4. 1x USB 3.2 Gen 1 Type B5. 1x USB 3.2 Gen 1 Type A6. 1x Audio combo7.

1x Headphone-out8. 1x Mic-in9. 2x USB 3.2 Gen 1 Type A10. 1x Card Reader11. 1x Navi Key12. 1x Macro Key13. 1x Kensington Lock14.

Generated 2020-06-22, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
