1
Getting Started
This chapter provides you with the information on hardware setup procedures�
While connecting devices, be careful in holding the devices and use a
grounded wrist strap to avoid static electricity�
IMPORTANT
•
The illustrations are for reference only� Your monitor may vary in appearance�
•
Do not use any sharp objects on the monitor�
Package Contents
1� Monitor
2� Stand
3� Stand Base with Screw
4� Power Cord (MAG272C / MAG272CR / MAG272CQR / MAG272CRX)
5� Power Adapter & Power Cord (MAG272 / MAG272R / MAG272QP /
MAG272QR)
6� HDMI Cable (Optional)
7� DisplayPort Cable (Optional)
8� USB Upstream Cable (to enable the USB ports on the monitor)
9� Quick Start Guide
10� Warranty Card
* Contact your place of purchase or local distributor if any of the items is damaged or
missing�
* Package contents may vary by country�
Getting Started
Installing the Monitor Stand
IMPORTANT
Place the monitor on a soft, protected surface to avoid scratching the display panel�
h MAG272C
1� Align the latches of the stand to the monitor�
2� Tighten the stand with the stand screws�
3� Connect the base to the stand and tighten the base screw to secure the base�
1
1-31-2
2
3
4� Align the latches to place the VESA cover and lock the screws�
5�
4
6�
7�
IMPORTANT
The holes for installing the stand can be also used for wall mount� Please contact your
dealer for proper wall mount kit�
Getting Started
h MAG272CR/ MAG272CQR/ MAG272CRX
1� Align the latches of the stand to the monitor�
2� Tighten the stand with the stand screws�
3� Connect the base to the stand and tighten the base screw to secure the base�
1
2
1-51-4
3
IMPORTANT
The holes for installing the stand can be also used for wall mount� Please contact your
dealer for proper wall mount kit�
h MAG272
1� Align the latches of the stand to the monitor�
2� Tighten the stand with the stand screws�
3� Connect the base to the stand and tighten the base screw to secure the base�
1
2
3
IMPORTANT
The holes for installing the stand can be also used for wall mount� Please contact your
dealer for proper wall mount kit�
Getting Started
h MAG272R/ MAG272QP/ MAG272QR
1� Align the latches of the stand to the monitor�
2� Tighten the stand with the stand screws�
3� Connect the base to the stand and tighten the base screw to secure the base�
1
2
1-71-6
3
IMPORTANT
The holes for installing the stand can be also used for wall mount� Please contact your
dealer for proper wall mount kit�
Adjusting the Monitor
-5
O20O
130mm
-5
O20O
This monitor is designed to maximize your viewing comfort with its adjustment
capabilities such as tilt and lift�
IMPORTANT
Avoid touching the display panel when adjusting the monitor�
h MAG272C
h MAG272CR/ MAG272CQR/ MAG272CRX
h MAG272
-5
O20O
-5
O20O
75
O
100mm
90
O
90
O
75
O
h MAG272R/ MAG272QP/ MAG272QR
Getting Started
1-91-8
IMPORTANT
Please tilt the monitor backward before pivoting�
Monitor Overview
h MAG272C/ MAG272CR/ MAG272CQR
1
2
9
4
5
73
6
10
8
Power Button
1
Power Jack
2
DisplayPort
3
4
HDMI Port
USB-C Port
5
This port can send simultaneously video signal and power stream up to
PD 5V/3A� It doesn’t support data transmission function�
Headphone Jack
6
USB 2�0 Type A Port (MAG272C/ MAG272CR)
7
USB 3�2 Gen1 Type A Port (MAG272CQR)
USB 2�0 Type B Upstream Port
8
(MAG272C/ MAG272CR)
USB 3�2 Gen1 Type B Upstream
Port (MAG272CQR)
For USB Upstream Cable�
Getting Started
1-111-10
IMPORTANT
Check the package for USB
Upstream Cable and connect
it to the PC and monitor� Once
this cable is connected, the USB
Type A Downstream Ports on the
monitor will be ready for use�
Navi Key
9
Kensington Lock
10
To PC
To Monitor
h MAG272CRX
1
2
9
5
7348
6
10
Power Button
1
Power Jack
2
3
HDMI Port
DisplayPort
4
USB-C Port
5
This port can send simultaneously video signal and power stream up to
PD 5V/3A� It doesn’t support data transmission function�
Headphone Jack
6
USB 3�2 Gen1 Type A Port
7
USB 3�2 Gen1 Type B Upstream Port
8
For USB Upstream Cable�
Getting Started
IMPORTANT
Check the package for USB Upstream
Cable and connect it to the PC and
monitor� Once this cable is connected, the
USB Type A Downstream Ports on the
monitor will be ready for use�
Navi Key
9
Kensington Lock
10
1-131-12
To PC
To Monitor
h MAG272/ MAG272R/ MAG272QP/ MAG272QR
1
2
9
73548
6
10
Power Button
1
DisplayPort
2
3
HDMI Port
USB-C Port
4
This port can send simultaneously video signal and power stream up to
PD 5V/3A� It doesn’t support data transmission function�
Headphone Jack
5
6
USB 2�0 Type B Upstream Port
For USB Upstream Cable�
IMPORTANT
Check the package for USB
Upstream Cable and connect
it to the PC and monitor� Once
this cable is connected, the USB
Type A Downstream Ports on the
monitor will be ready for use�
To PC
Getting Started
To Monitor
1-151-14
USB 2�0 Type A Port
7
Power Jack
8
Navi Key
9
Kensington Lock
10
Connecting the Monitor to PC
h MAG272C/ MAG272CR/ MAG272CQR/ MAG272CRX
1� Turn o your computer.
2� Connect the HDMI/DisplayPort cable from the monitor to your computer�
3� Connect the power cord to the monitor power jack� (Figure A)
4� Plug the power cord into the electrical outlet� (Figure B)
5� Turn on the monitor� (Figure C)
6� Power on the computer then monitor will auto detect signal source�
A
B
C
Getting Started
h MAG272/ MAG272R/ MAG272QP/ MAG272QR
1� Turn o your computer.
2� Connect the HDMI/DisplayPort cable from the monitor to your computer�
3� Assemble the monitor power adapter & power cord�(Figure A)
4� Connect the power adapter to the monitor power jack�(Figure B)
5� Plug the power cord into the electrical outlet�(Figure C)
6� Turn on the monitor�(Figure D)
7� Power on the computer then monitor will auto detect signal source�
B
C
A
1-171-16
D
OSD Setup
This chapter provides you with essential information on OSD Setup�
IMPORTANT
All information is subject to change without prior notice�
2
2-2
Navi Key
The monitor comes with a Navi Key, a multi-directional control that helps navigate the
On-Screen Display (OSD) menu�
Navi Key
The Navi Key default settings are as follows�
Navi KeyHot Key
(When OSD menu is OFF)
Middle Button
OSD Main Menu■ Entering submenus
Basic Operations
(When OSD menu is ON)
■ Conrming a selection or
setting
OSD Setup
Navi KeyHot Key
(When OSD menu is OFF)
Up
Down
Left
Right
Game Mode■ Press Middle
Screen Assistance■ Press Middle
Alarm Clock■ Press Middle
Input Source■ Press Middle
Button to conrm
selection and exit�
■ Press Up and
Down Buttons to
adjust�
■ Press Left Button
to cancel preview
and exit without
applying mode
eect.
Button to conrm
selection and exit�
■ Press Up and
Down Buttons to
adjust�
■ Press Left Button
to cancel preview
and exit�
Button to conrm
selection and exit�
■ Press Up and
Down Buttons to
select�
■ Press Left Button
to cancel preview
and exit�
Button to conrm
selection and exit�
■ Press Up and
Down Buttons to
select�
■ Press Left Button
to exit�
Basic Operations
(When OSD menu is ON)
■ Selecting function menus
and items
■ Allowing upward adjustment
in function values
■ Selecting function menus
and items
■ Allowing downward
adjustment in function values
■ Selecting function menus
and items
■ Exiting the current menu
2-3
■ Selecting function menus
and items
■ Entering submenus
Users may enter the OSD Menu to customize their own Navi Key Hot Keys.
More Hot Key options are as below�

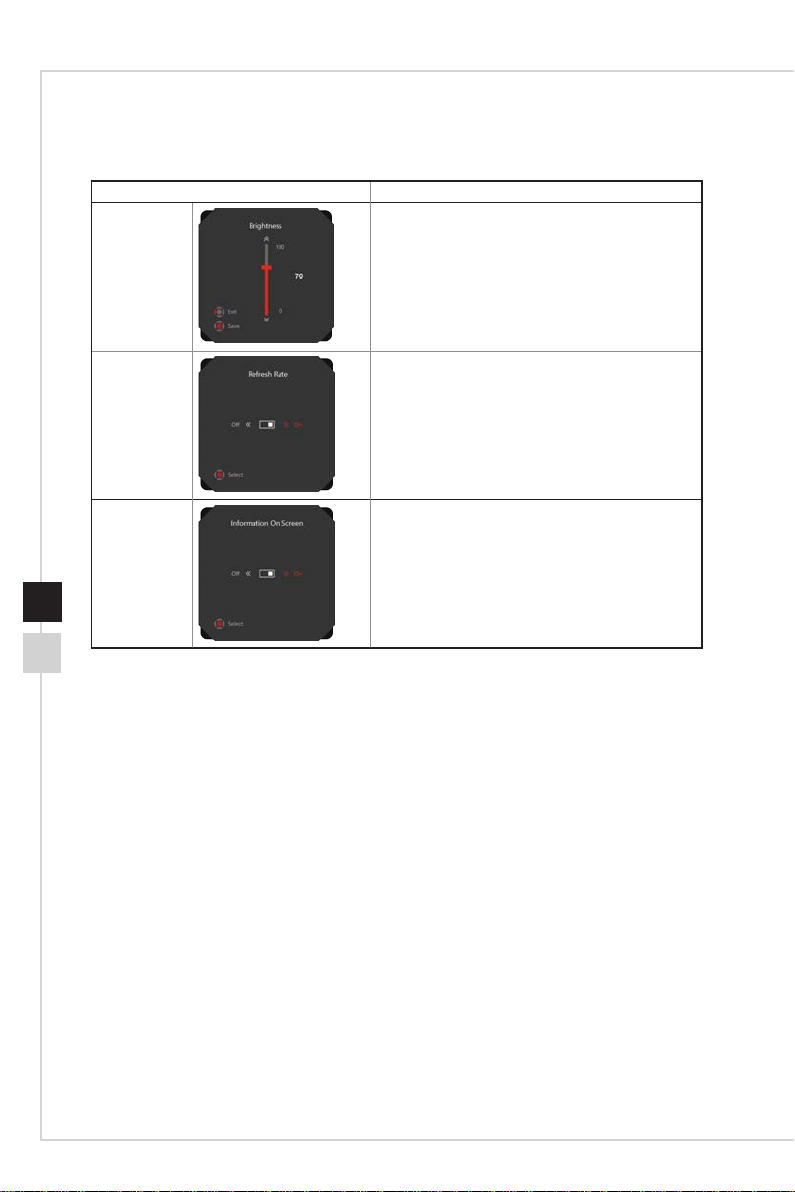

Navi Key Hot Key OptionsOperations
Brightness
■ Press Middle Button to save value and exit�
■ Press Up and Down Buttons to adjust�
■ Press Left Button to cancel preview and exit�
2-4
Refresh Rate■ Press Middle Button to conrm selection and
Information on
Screen
exit�
■ Press Right Button to turn on and Left Button to
turn o this function.
■ Press Middle Button to conrm selection and
exit�
■ Press Right Button to turn on and Left Button to
turn o this function.
OSD Setup
OSD Setup via Navi Key
Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main
menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to
suit your personal preferences�
h GAMING
1st Level Menu 2nd/3rd Level MenuDescription
Game ModeUser
FPSAll items can be adjusted by users�
RacingAll items can be adjusted by users�
RTSAll items can be adjusted by users�
RPGAll items can be adjusted by users�
■ Use Up or Down Button to select and preview mode eects.
■ Press the Middle Button to conrm and apply your mode type.
Night VisionOFF
Normal
Strong
Strongest
A�I�
Response Time Normal■ Users can adjust Response Time in any
Fast
Fastest
All items can be adjusted by users�
■ This function optimizes background
brightness and is recommended for FPS
games�
Mode�
■ Response Time will be grayed out while Anti
Motion Blur is enabled�
■ Response Time have to set to Fast after Anti
Motion Blur is disabled�
2-5
2-6
1st Level Menu 2nd/3rd Level MenuDescription
Anti Motion Blur
Refresh RateLocationLeft Top■ Users can adjust Refresh Rate in any Mode�
Alarm ClockLocationLeft Top
Screen
Assistance
FreeSync
(OFF)
(ON)
Right Top
Left Bottom
Right Bottom
OFF
ON
Right Top
Left Bottom
Right Bottom
OFF
15:0000:01~99:59
30:00
45:00
60:00
None
Icon
Position
Reset
(OFF)
(ON)
■ When Anti Motion Blur is enabled, HDCR and
Brightness cannot be enabled and will be
grayed out�
■ Response time will be grayed out while Anti
Motion Blur is enabled�
■ Anti Motion Blur have to set to OFF while
FreeSync is set to ON�
■ Default Refresh Rate Location is Left Top�
Location is adjustable in OSD Menu� Press
the Middle Button to conrm and apply your
Refresh Rate Location�
■ This monitor follows and works at the
Operating System’s preset Screen Refresh
Rate�
■ Users can adjust Alarm Clock in any Mode�
■ After setting the time, press the Middle
Button to activate the timer�
■ Default Alarm Clock Location is Left Top�
Users can select their own location�
■ Users can adjust Screen Assistance in any
Mode�
■ Screen Assistance default is None�
■ FreeSync prevents screen tearing
■ DisplayPort or HDMI default is ON and can
be adjusted ON/OFF in any mode, any
resolution, any input source and any screen
refresh rate
■ Anti Motion Blur will be disabled, if FreeSync
is enabled�
h Professional
1st Level Menu 2nd Level MenuDescription
Pro ModeUser
ReaderAll items can be adjusted by users�
CinemaAll items can be adjusted by users�
DesignerAll items can be adjusted by users�
HDRAll items can be adjusted by users�
■ Use Up or Down Button to select and preview mode eects.
■ Press the Middle Button to conrm and apply your mode type.
Eye Saver
HDCR
Anti Motion Blur
Enhancement
OFF■ Image Enhancement enhances image edges to
Weak
Medium
Strong
Strongest
(OFF)
(ON)
(OFF)
(ON)
(OFF)
(ON)
Default mode� All items can be adjusted by users�
■ Eye Saver protects your eyes against blue light�
When enabled, Eye Saver adjusts the screen color
temperature to a more yellow glow�
■ Users can adjust Eye Saver in any Mode�
■ When Pro Mode is set to Reader, it is mandatory to
enable Eye Saver�
■ Users can adjust HDCR in any Mode�
■ HDCR enhances image quality by increasing the
contrast of images�
■ When HDCR is set to ON, Brightness will be
grayed out�
■ HDCR and Anti Motion Blur cannot be enabled
simultaneously�
■ When Anti Motion Blur is enabled, HDCR and
Brightness cannot be enabled and will be grayed
out�
■ Response time will be grayed out while Anti Motion
Blur is enabled�
■ Anti Motion Blur have to set to OFF while FreeSync
is set to ON�
improve their acutance�
■ Users can adjust Image Enhancement in any
Mode�
OSD Setup
2-7
h Image
1st Level Menu 2nd/3rd Level Menu Description
Brightness0-100
Contrast0-100■ Users can adjust Contrast in any Mode�
Sharpness0-5■ Users can adjust Sharpness in any Mode�
■ Users can adjust Brightness in User, RTS, RPG
and Reader mode�
■ Brightness will be grayed out when Anti Motion Blur
or HDCR are enabled�
■ Sharpness improves clarity and details of images�
2-8
Color
Temperature
Screen SizeAuto■ Users can adjust Screen Size in any mode, any
Cool■ Color Temperature default is Normal�
Normal
Warm
Customization
4:3
16:9
■ Use Up or Down Button to select and preview
mode eects.
■ Press the Middle Button to conrm and apply your
R (0-
100)
G (0-
100)
B (0-
100)
mode type�
■ Users can adjust Color Temperature in
Customization mode.
resolution and any screen refresh rate�
■ Default is Auto�
h Input Source
1st Level Menu 2nd/3rd Level Menu Description
HDMI1
HDMI2
DP
Type C
Users can adjust Input Source in any Mode�
h Navi Key
1st Level Menu 2nd Level MenuDescription
Up / Down / Left
/ Right
OFF
Brightness
Game Mode
Screen Assistance
Alarm Clock
Input Source
Refresh Rate
Information on
Screen
■ Up Button default is Game Mode�
■ Down Button default is Screen Assistance�
■ Left Button default is Alarm Clock�
■ Right Button default is Input Source�
■ All Navi Key items can be adjusted via OSD Menu�
OSD Setup
h Setting
1st Level Menu 2nd Level MenuDescription
Language繁體中文
English
Français
Deutsch
Italiano
Español
한국어
日本語
Русский
Português
简体中文
ไทย
Bahasa Indonesia
Türkçe
(More languages
coming soon)
Transparency0~5
OSD Time Out5~30sUsers can adjust OSD Time Out in any Mode�
RGB LED
Information on
Screen
ResetYESUsers can Reset and restore settings to original OSD
(OFF)
(ON)
(OFF)
(ON)
NO
■ Language factory default is English�
■ Users have to press the Middle Button to conrm
and apply the Language setting�
■ Language is an independent setting� Users’ own
language setting will override the factory default�
When users set Reset to Yes, Language will not
be changed�
Users can adjust Transparency in any Mode�
Users can adjust RGB LED to On or O.
Default is ON�
* Not supported for MAG272C, MAG272, MAG272QP
■ The information of the monitor status will be
showed on the right side of the screen�
■ Users can enable or disable the Information on
Screen� Default is OFF�
Default in any Mode�
2-9
2-10
Appendix
IMPORTANT
All information is subject to change without prior notice�
A
MAG 272C Series Specications
ModelMAG272C
(3CA5)
Size27 inch
Curvature1500R
Panel TypeVA
Resolution1920 x 1080@165Hz2560 x
