MSI M610 User Manual

Getting Started

Congratulations on purchasing the MSI M610 Series Notebook
PC!

This first chapter provides a general introduction of your Note­book PC, introducing you to the hardware components. Read
on to learn more about the powerful features and multimedia
function of your new Notebook PC.

2 - 1

M610 Series Notebook PC

1.1 Before You Begin

Unpacking

First, unpack the shipping carton and check all items carefully. If any item
contained is damaged or missing, please contact your local dealer immedi­ately. Also, keep the box and packing materials in case you need to ship the
unit in the future.

The package should contain the following items:

One Notebook PC
Recovery CDs
Warranty Card
High-capacity Li-Ion battery pack
AC adapter and power cord

1 - 2

Features and Benefits

Next Generation CPU Support. Your Notebook PC is equipped with one

of the latest CPU (central processing unit) namely the AMD® Mobile
Athlon XP-M for excellent system performance and ultimate mobile func­tion.

Integrated Wireless LAN Solution. The computer is pre-installed with an

802.11g wireless LAN that allows you to roam between different rooms in
the office or at home and offer maximum network bandwidth.

USB 2.0 Support. The computer has four USB 2.0 ports that support data
transfer rate up to 480Mb/s. The USB standard allows you to connect up
to 127 devices through the single interface, including mouse, keyboard,
printer, hard disk drive, digital camera, and more.

Communication Ports. Support 56K Fax/MODEM (Cable size at least 26
or above). In addition, sharing files and printers can be easy tasks.

Memory. The computer provides two memory slots that allows you to
expand the memory size up to 2GB.

Innovative Direct Play Function. Without turning on the system, you can
enjoy your favorite multimedia with DVD, video CD, audio CD, MP3 with its
unparalleled sound system (using the wireless remote control).

15.4” Wide Screen. Experience the greatest visual presentation on your
Notebook PC! You can enjoy extreme entertainment with the 15.4” wide
screen color TFT LCD.

1 - 3

M610 Series Notebook PC

1.2 Quick Components Guide

This section provides the multi-views of your Notebook PC, and briefly intro­duces the function of each component.

Top-open View

Press the Cover Latch to open the top cover (see page 1-6), and you can find
the main operating area of your computer.

1 - 4

Display Panel

The 15.4” wide screen color TFT LCD screen displays the output of the
computer.

Quick Launch Buttons and Power Button:

- Power Button: to turn the computer power ON and OFF

- Quick Launch Button: Turns on/off the wireless LAN function

Keyboard

The built-in keyboard provides all the functions of a full-sized 87/88-key key­board (see Using Keyboard in Chapter 2 for more information).

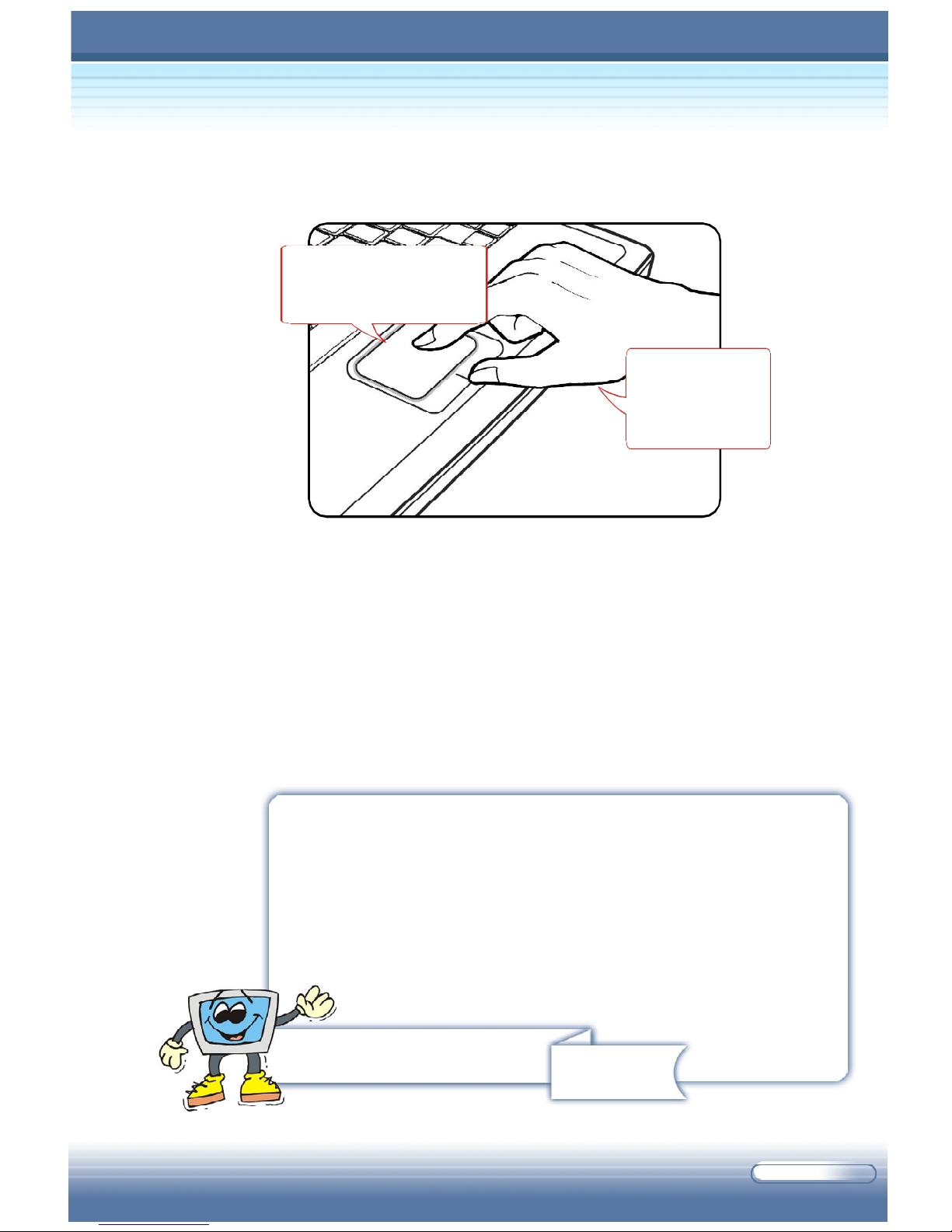

Touchpad

The pointing device of the computer (see Using Touchpad in Chapter 2 for
more information).

Stereo Speakers

The next-generation high quality speakers output the sound from the
computer.

LCM Panel

The innovative “DVD Direct Play” function with a built-in display panel brings
you a whole new multimedia experience.

1 - 5

M610 Series Notebook PC

Front View

Knowing the components on the front side of your computer.

Volume Increase-Decrease Controller

Press “+” button to increase volume level and press “-” to decrease volume
level.

Cover Latch

Slide this button toward the right to open the top cover.

Display Panel

It shows the status of direct playing control.

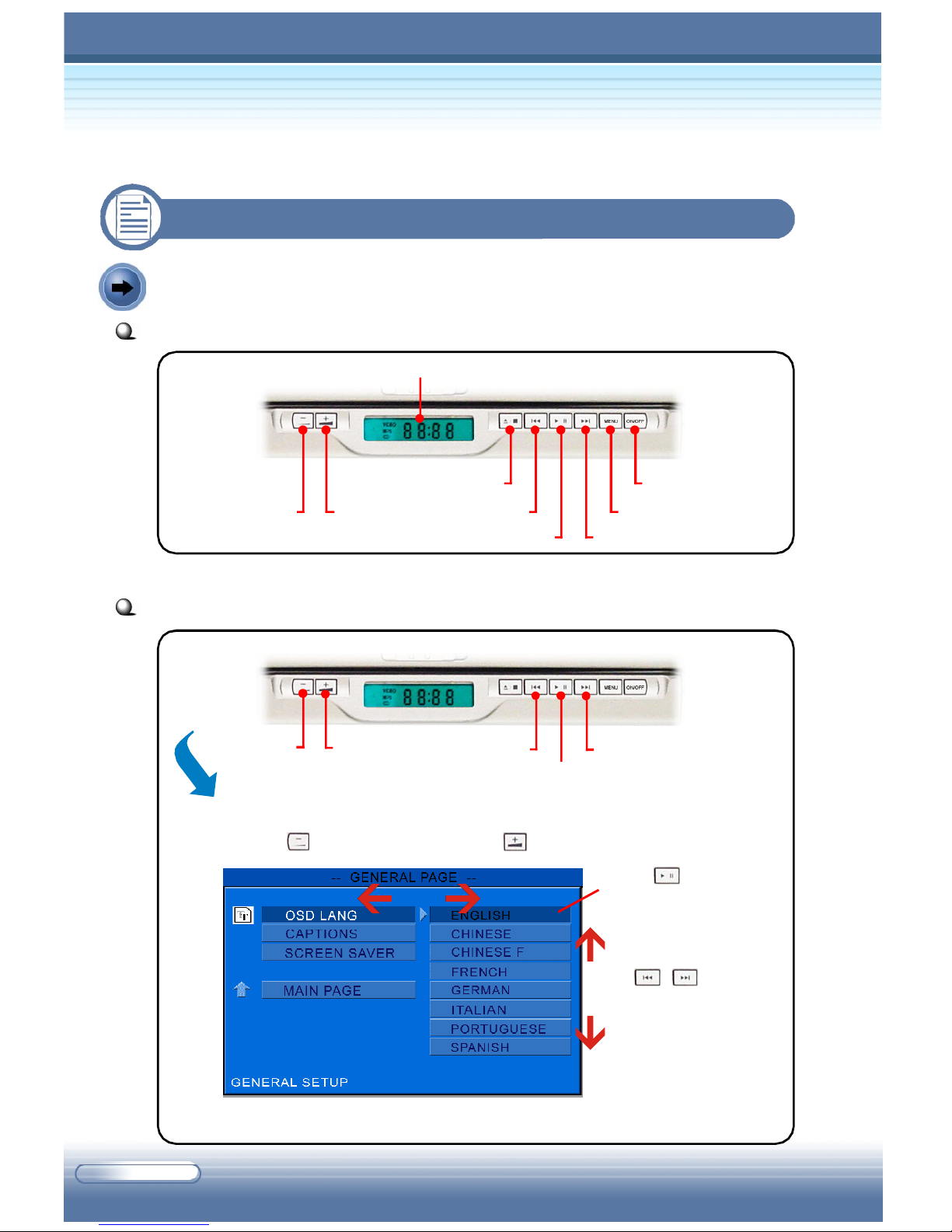

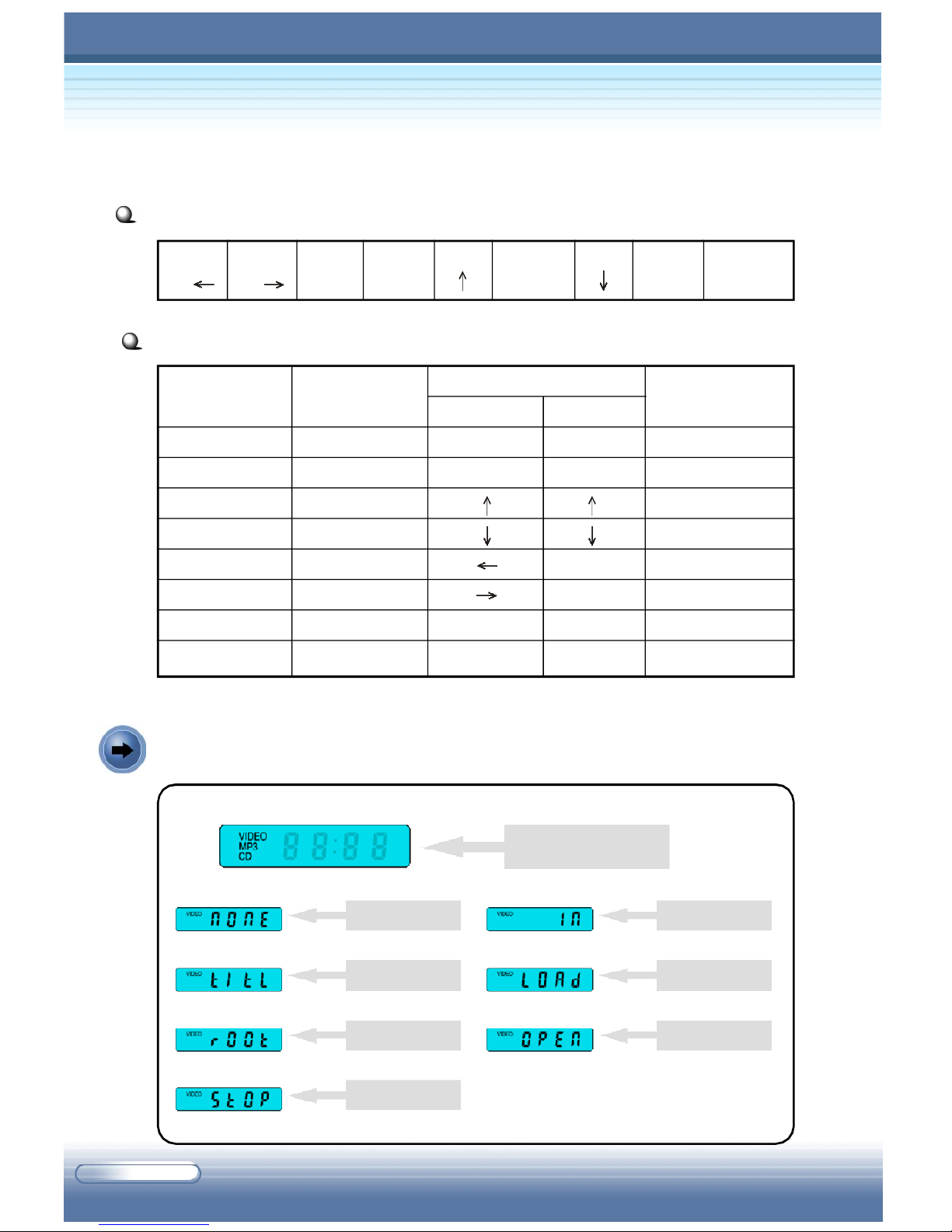

Front Panel Control Buttons

The direct play bar. The following table shows the Key Definition.

Key

AV_MODE
(DVD)

Eject/Stop
Play/Pause

CH-/CH+
Menu

MENU

DVD

OK/Enter ---

---

↑↓

Menu Menu

LCD

---

↑↓

1 - 6

Power

Power

Power

Consumer Infrared

It is used to receive the Wireless Remote Control’s signal.

Audio Port Connectors

- Line Out is used for speakers or headphones;

- MIC is used for microphones.

Line OutMIC

1 - 7

M610 Series Notebook PC

Right-side View

Knowing the components on the right side of your computer.

Status LED

-

- Battery Status (Green/Orange): ON (Green) - battery is charged
fully; ON (Orange) - battery is charging; Blinking (Orange) - battery
low or bad; Off - the AC adapter is disconnected.

- Power On/Off/Suspend (Blue): Blinking - system in suspend mode;
ON - system fully on; OFF - system off.

- Wireless LAN (Green): ON - wireless LAN enabled; OFF - wireless
LAN disabled.

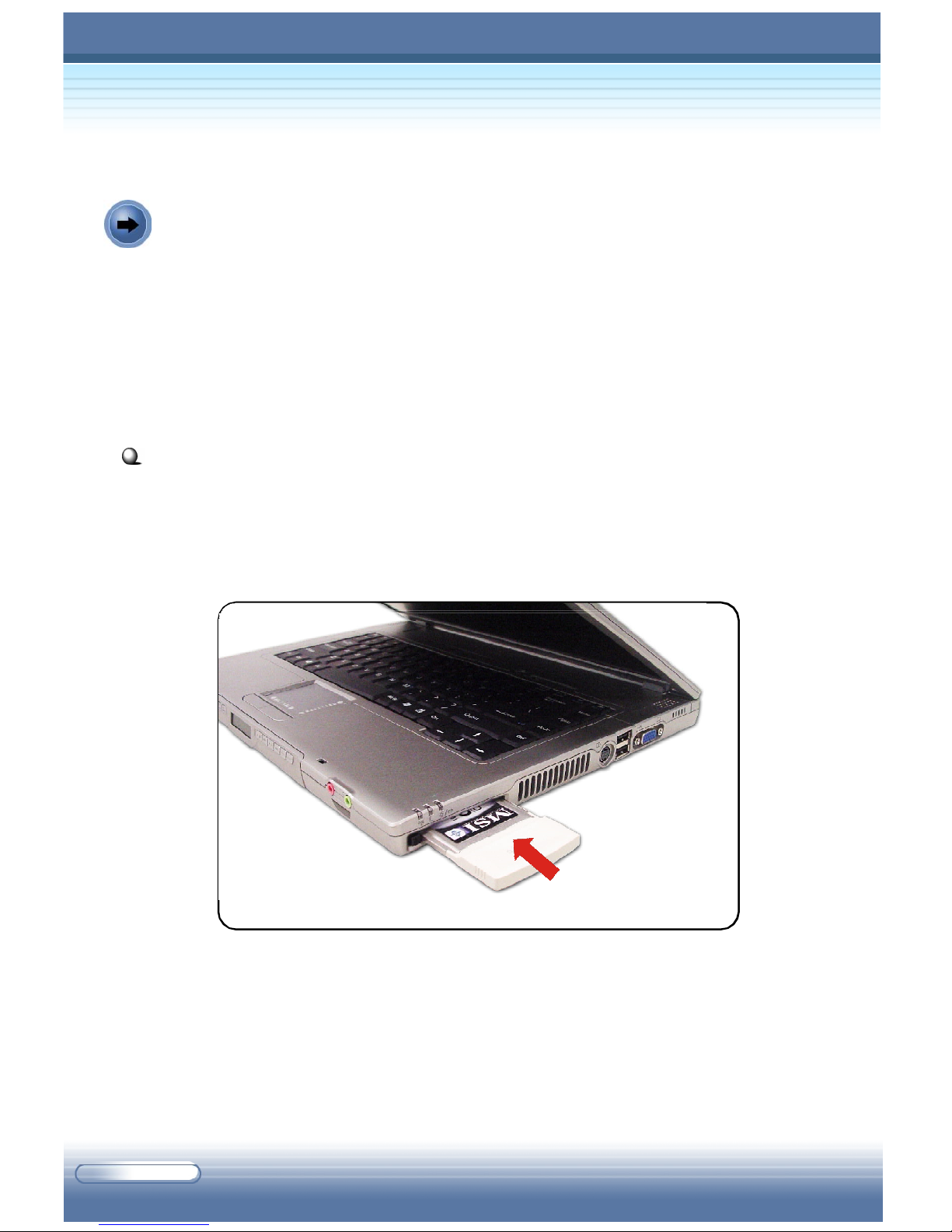

PC Card Slot

The computer provides a PC card slot to support one Type-II PC card for
expansion functions, such as a second LAN or WLAN card, modem card,
memory card, etc.

Vent

The vent is designed to cool the system. DO NOT block the vent.

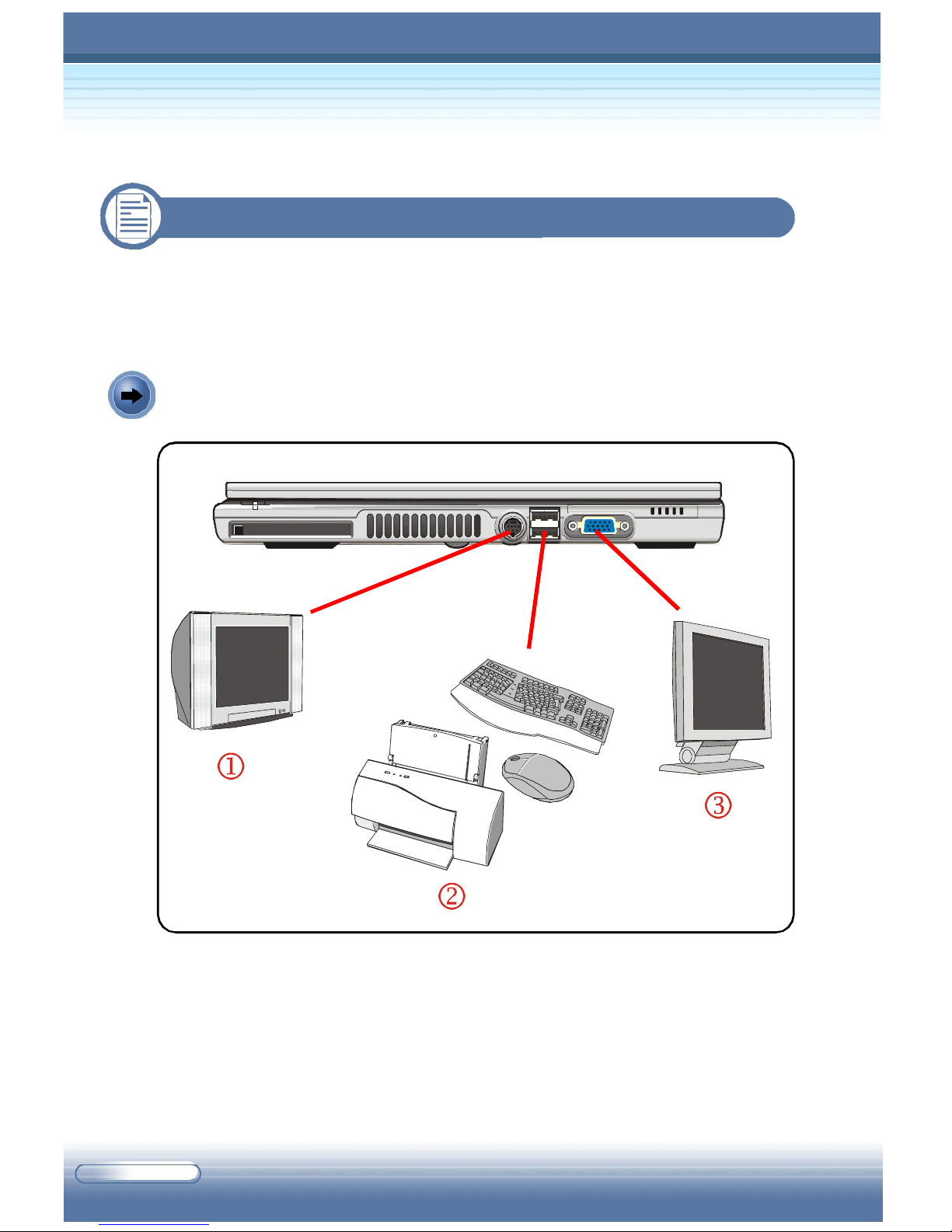

S-Video Connector

By using a Super VHS (S-Video) cable, this connector allows you to connect
a television (NTSC/PAL system) to use as a computer display.

1 - 8

USB Ports: The USB 2.0 ports allow you to connect USB-interface peripheral
devices, such as the mouse, keyboard, modem, external hard disk module,
printer, and more. There are two USB ports on the right side of your laptop.

VGA Port

The 15-pin D-sub VGA port allows you to connect an external monitor or other
standard VGA-compatible device (such as a projector).

1 - 9

M610 Series Notebook PC

Left-side View

Knowing the components on the left side of your computer.

Vent

The vent is designed to cool the system. DO NOT block the vent.

Power Connector

To connect the AC adapter which supplies power to the computer.

USB Ports

The USB 2.0 ports allow you to connect USB-interface peripheral devices,
such as the mouse, keyboard, modem, external hard disk module, printer,
and more.

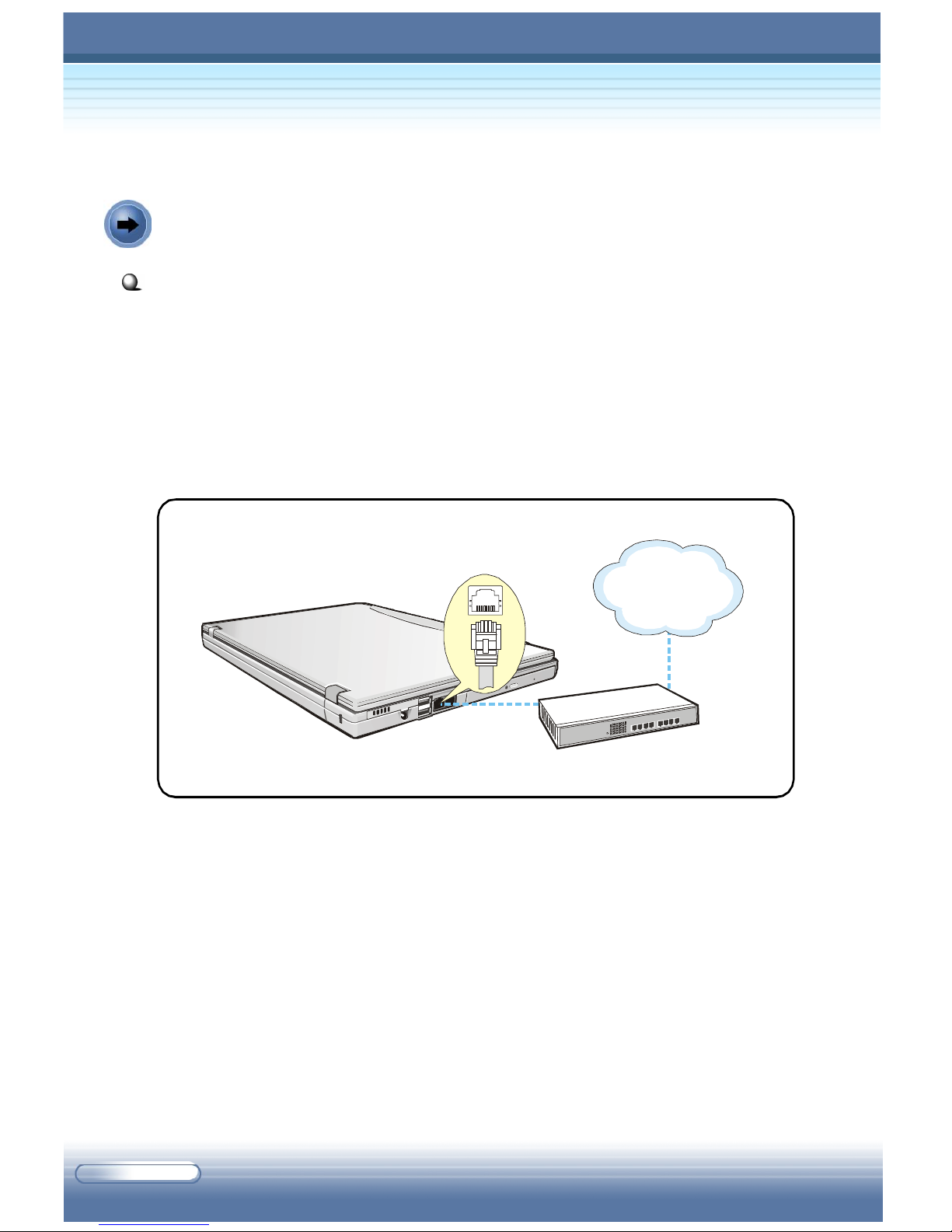

RJ-45 Connector

The 100/10 Ethernet connector is used to connect a LAN cable for network
connection.

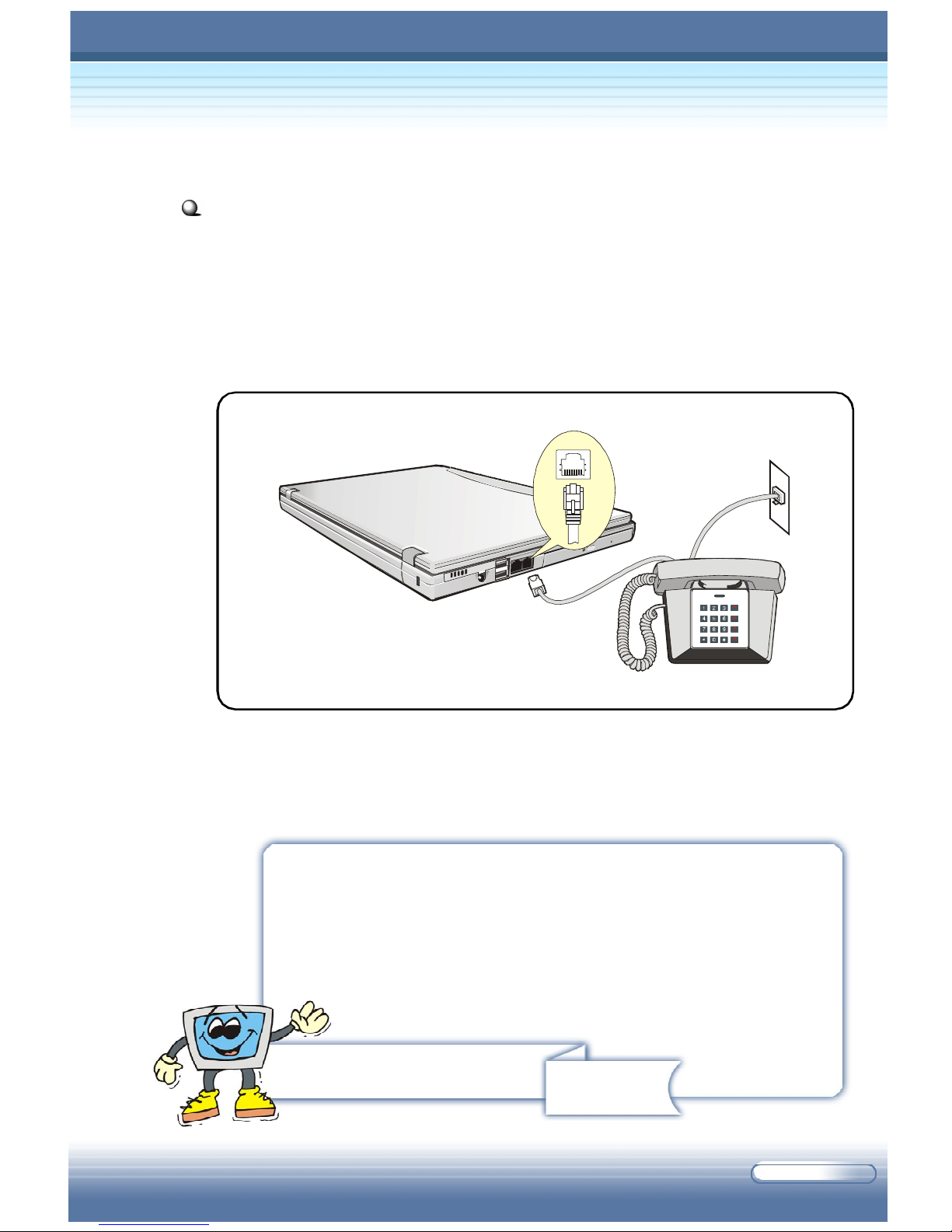

RJ-11 Connector

The computer provides a built-in modem that allows you to connect an RJ-11
telephone line through this connector. With the modem, you can make a dial­up connection or send/receive faxes.

1 - 10

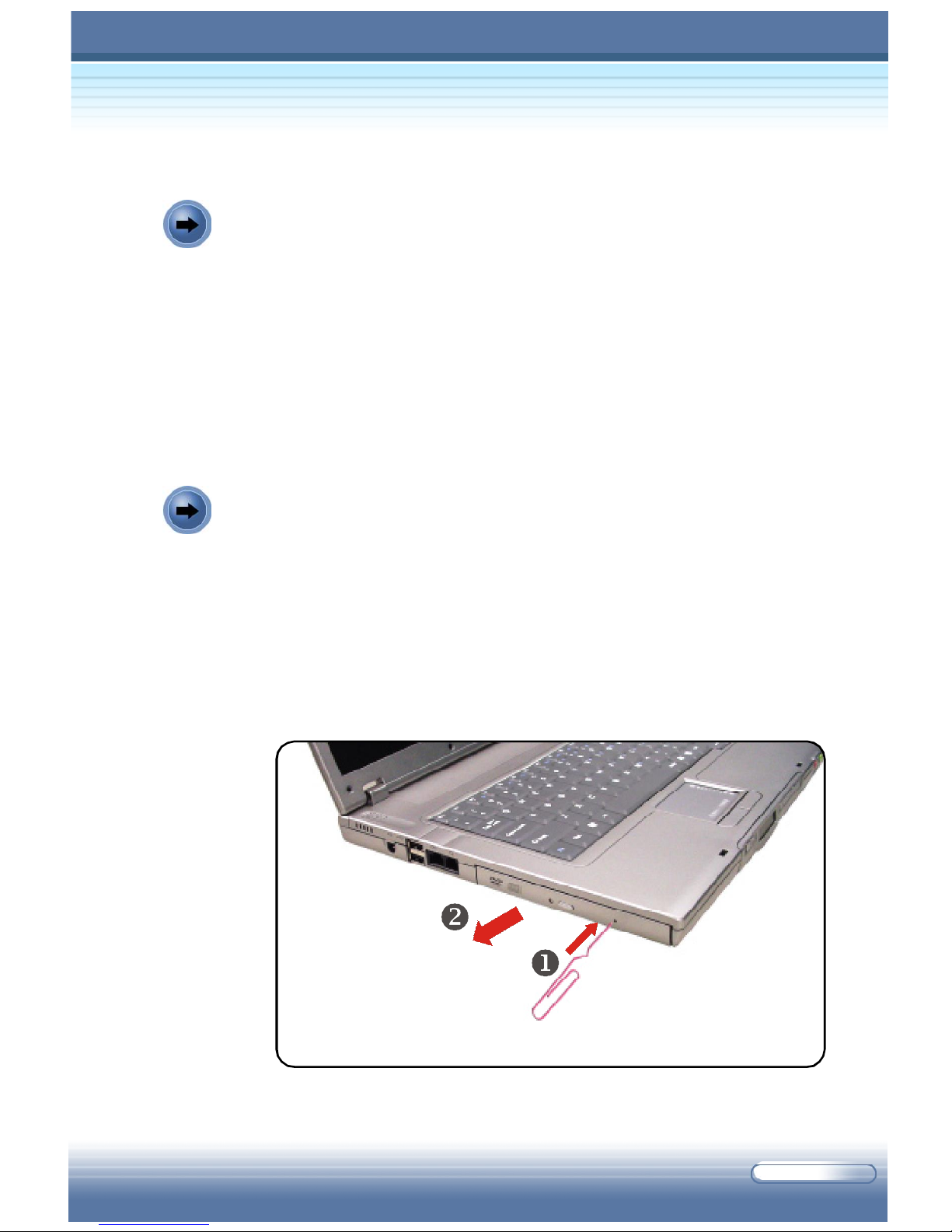

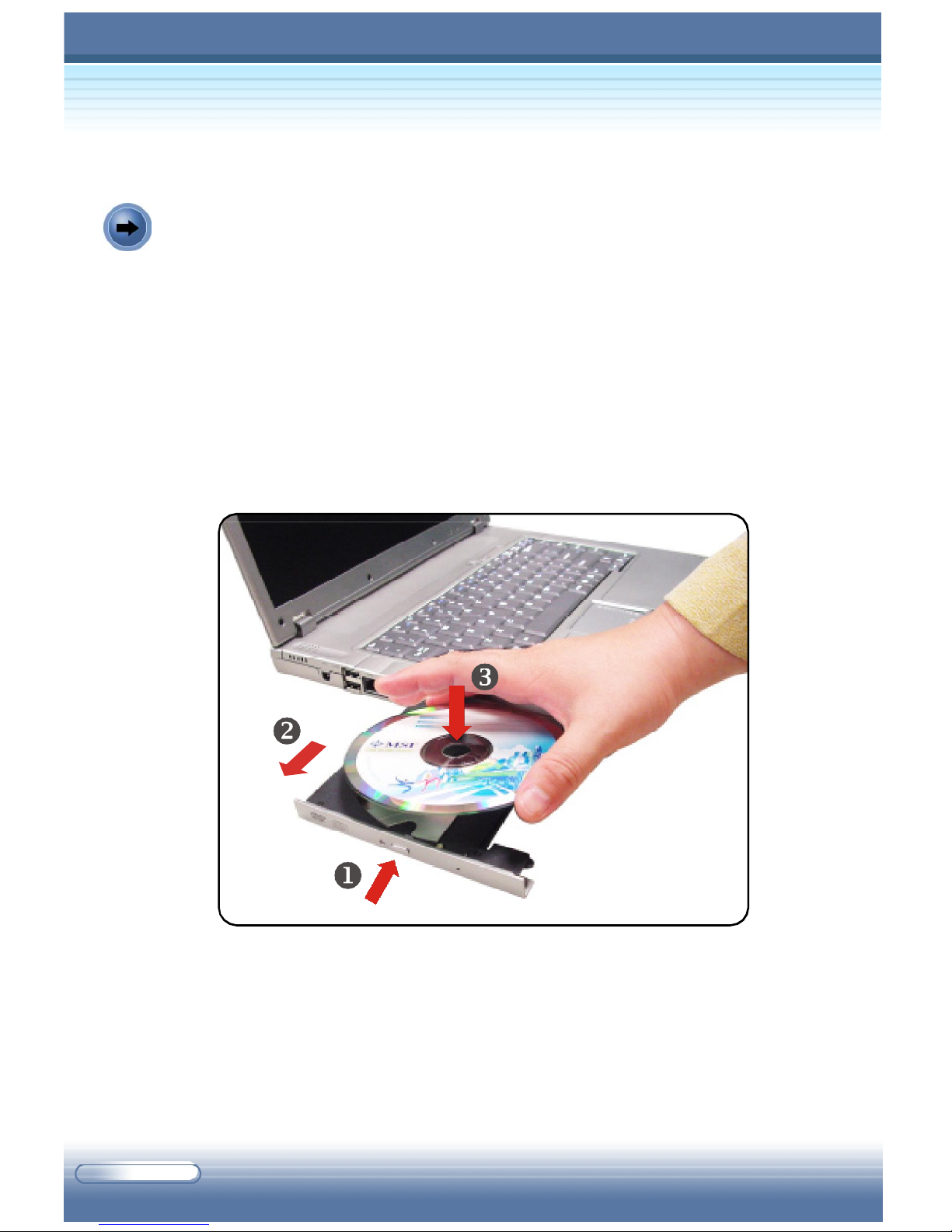

Optical Storage Device

A slim combo DVD+CD-RW or DVD+/-RW drive is available in the computer,
depending on the model you purchased. The optical device allows you to
use the CD/DVD disc for installing software, accessing data, and playing
music/movie on the computer as well as burning CDs or DVDs.

1 - 11

M610 Series Notebook PC

Bottom View

Carefully put the computer upside down, and you can find the core compo­nents of the computer.

Battery Pack

To supply power to your computer when the AC adapter is not connected (see
Introduction to the Power Source in Chapter 4 for more information).

CPU Compartment

Inside this compartment is the CPU (central processing unit) and thermal
module of the computer.

Mini PCI and Memory Compartment

The built-in wireless LAN card of the computer is installed in this compartment.
This compartment also includes two SO-DIMM slots for expanding the memory
size up to 2GB. Please note that the memory installation/replacement must
be done by an authorized retailer.

1 - 12

1.3 Preparing to Operate

Connecting the Power

Your Notebook PC is equipped with a high-capacity 8-cell Li-ion battery pack,
and it can operate either on the battery’s power or AC power. However, for the
first time to use your Notebook PC, it is recommended to connect the AC
adapter and use the AC power. When the AC adapter is connected, the
battery is charged immediately. Please NOTE that the AC adapter included in
the package is correct for your Notebook PC; using other adapter model may
damage the computer or other devices on the computer.

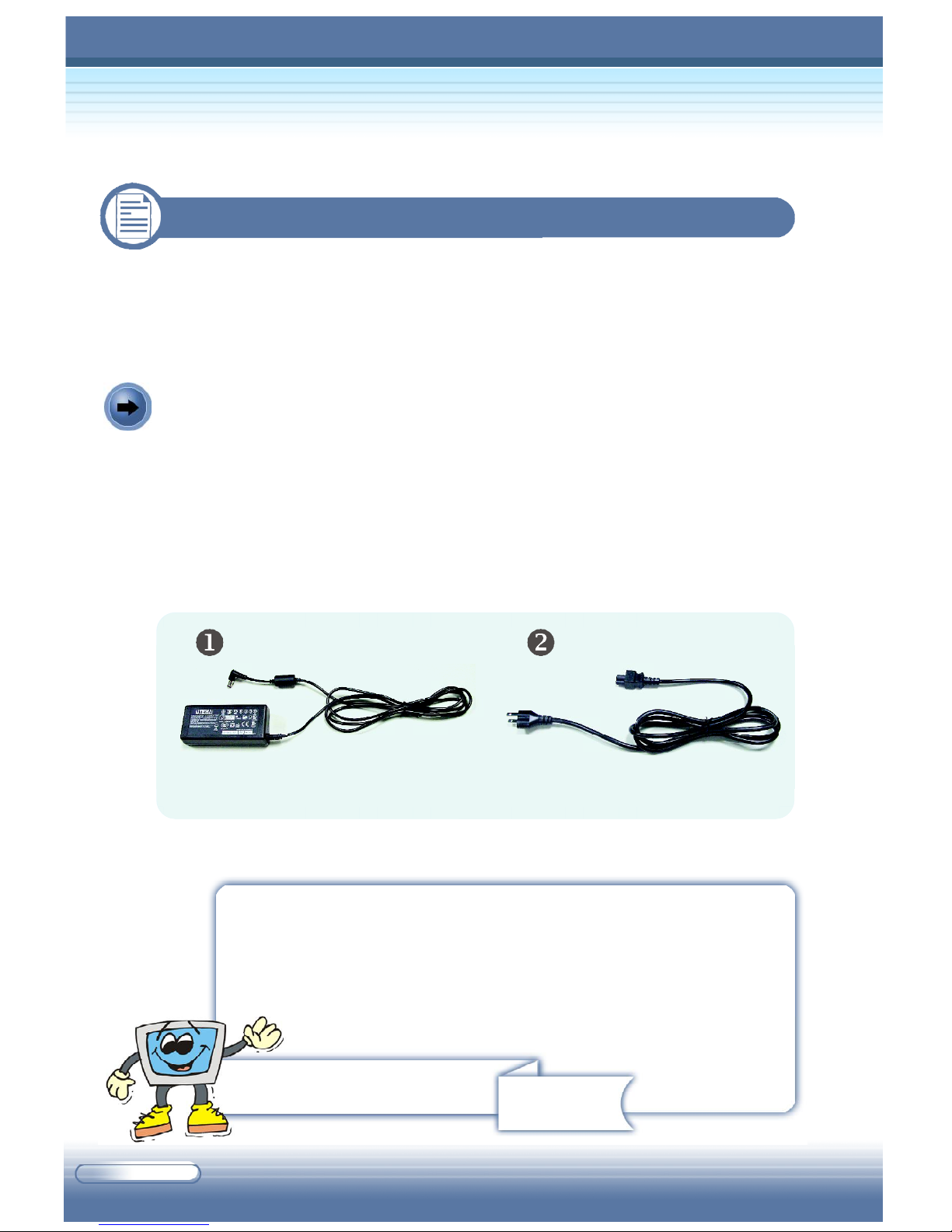

Connecting the AC Power

1. Unpack the package to find the AC adapter and power cord.

2. Attach the power cord to the connector of the AC adapter (Œ).

3. Plug the DC end of the adapter to the computer (•), and the male
end of the power cord to the electrical outlet (Ž).

4. When the AC adapter is connected, the green LED on the AC adapter
will light up (•) to indicate that the computer is powered from the
electrical outlet.

1 - 13

M610 Series Notebook PC

Disconnecting the AC Power

When you disconnect the AC adapter,
you should unplug the power cord from
the electrical outlet first, and then un­plug the connector from the computer.
When unplugging the power cord, al­ways hold the connector part of the
cord, never pull the cord.

1. The AC adapter included in the package is correct for
your Notebook PC; using a different adapter will
damage your computer.

2. When unplugging the power cord, always hold the
connector part of the cord (

(•).

MSI reminds you

1 - 14

), never pull the cord

Œ

Turning On/Off the Notebook PC

Now, when the AC adapter is connected, you are ready to use your computer.

Opening the Top Cover

First, open the top cover by sliding the
cover button on the front side of the
computer, and then lifting the top cover
gently. You can tilt the top cover forward/
backward to the optimal viewing position.

Turning On the Computer

1. Make sure that the computer
is connected to the AC power.

2. Press the power button .
Once pressed, the power button
will light Green to indicate that
the computer is turned on.

3. When the computer is turned on,
it will first perform a series of
diagnostic tests that is called
Power-On Self Test (POST).

Then, the operating system (such as Microsoft Windows XP in this
manual) should start, and you can start to work with your Notebook
PC!

Power-On Self Test

The POST (Power-On Self Test) is a software controlled diagnostic test tool,
which is a set of routines stored in a computer’s ROM (Read-Only Memory)
that tests various system components such as the memory, disk drives, and
the keyboard to see whether they are properly connected and operating. If
problems are found during booting, these routines alert the user by sound­ing a series of beeps or displaying a message on the screen.

1 - 15

M610 Series Notebook PC

Turning Off the Computer

In Windows, always use the “Shut Down” command to turn off the computer.
This is the normal operating procedure that can prevent system problems.

1. Click Start (Œ) from the taskbar, and then select the Turn Off
Computer option (•).

2. Click Turn Off (Ž) to turn off the system.

1 - 16

1. If you are working on a program, such as Microsoft

2. Confirm that the Hard Disk In-use LED is OFF before

3. Gently tilt down the top cover when you are closing the

MSI reminds you

Word, you should save the data and close the program
first, and then turn off the computer. Otherwise, you may
lose your data.

turning off the computer. Also, remember to remove
any CD disk from the drive.

cover, and make sure that the cover latches click into
place securely.

1 - 17

Basics of Using

Notebook PC

This chapter introduces the operating basics for your Notebook
PC, including the use of keyboard, touchpad, LCD panel, hard
disk drive, and optical storage device. It also includes the ad­vanced features such as DVD Direct Play and communication
functions.

2 - 1

M610 Series Notebook PC

2.1 Safety and Comfort Tips

If you are a beginner to the Notebook PC, please read the following tips for
safe and comfortable use during operation.

Set Up Your Work Environment

The Notebook PC is a portable platform that allows you to work anywhere.
However, choosing a good workspace is important if you have to work with
your Notebook PC for long periods of time.

Your work area should have enough illumination.
Choose the proper desk and chair, and adjust their height to fit your

posture when operating.
When sitting on the chair, adjust the chair’ s back (if available) to

make your back comfortable.
Place your feet flat and naturally on the floor, so that your knees and

elbows are properly positioned (about 90-degree) when operating.
Put your hands on the desk naturally to support your wrists.
Adjust the angle/position of the LCD panel, so that you can have the

optimal view.
Avoid using your Notebook PC in the space where may cause your

discomfort (such as on the bed).
The Notebook PC is an electrical device, please treat it with great

care to avoid personal injury.

2 - 2

Keep your hands
and feet with

Adjust the angle
and position of
LCD panel.

Adjust the
desk’s height.

optimal comfort.

Setting up your work environment

Sit straight and keep
a good posture.

Adjust the
chair’s height.

Have a Good Work Habit

Having good work habits are important if you have to work with your Notebook
PC for long periods of time. Otherwise, you may experience discomfort or
injury. Please keep the following tips in mind.

Change your posture frequently.
Stretch and exercise your body regularly.
Remember to take breaks after working for a period of time.

2 - 3

M610 Series Notebook PC

2.2 Knowing the Keyboard

The Notebook PC’s keyboard provides all the functions of a full-sized 87/88­key keyboard, and an additional [Fn] key for specific functions on the computer.
How to use keyboard can divide into four categories: Typewriter keys, Cur-

sor keys, Numeric keys, and Function keys.

The Keyboard

2 - 4

Typewriter Keys

The Typewriter Keys

The function of the Typewriter keys is the major function of the keyboard,
which is similar to the keys on a typewriter. It also provides several keys for
special purposes, such as the [Ctrl], [Alt], and [Esc] keys.

When the lock keys are pressed, the corresponding LEDs will light up to
indicate their status:

Num Lock: Press and hold the [Fn] key, and then press this key to
toggle the Num Lock on and off. When this function is activated, you
can use the numeric keys that are embedded in the typewriter keys.

Caps Lock: Press this key to toggle the Caps Lock on and off. When
this function is activated, the letters you type are in uppercase always.

Scroll Lock: Press and hold the [Fn] key, and then press this key to
toggle the Scroll Lock on and off. This function is defined by individual
programs.

2 - 5

M610 Series Notebook PC

Cursor Keys

The keyboard provides four cursor (arrow)
keys and [Home], [PgUp], [PgDn], [End] keys
at the lower right corner, which are used to
control the cursor movement.

The Cursor Keys

Move the cursor left for one space.

Move the cursor right for one space.

Move the cursor up for one line.

Move the cursor down for one line.

Move to the previous page.

Move to the next page.

Move to the beginning of the line (or document).

Move to the end of the line (or document).

The Backspace key, [Ins] and [Del] keys at the upper right corner are use for
editing purpose.

2 - 6

This key is used to switch the typing mode between “insert”
and “overtype“ modes.

Press this key to delete one character to the right of the
cursor, and move the following text left for one space.

Press this key to delete one character to the left of the
cursor, and move the following text left for one space.

Numeric Keys

The keyboard provides a 15-key
numeric keypad, which is embedded
in the typewriter keys.

When the Num Lock is activated, you
can use these numeric keys to enter
numbers and calculations.

The numeric keys may lose function in some specific software
applications. If so, you may use the typewriter keys to input the
numbers, or connect an external numeric keypad.

MSI reminds you

The Numeric Keys

2 - 7

M610 Series Notebook PC

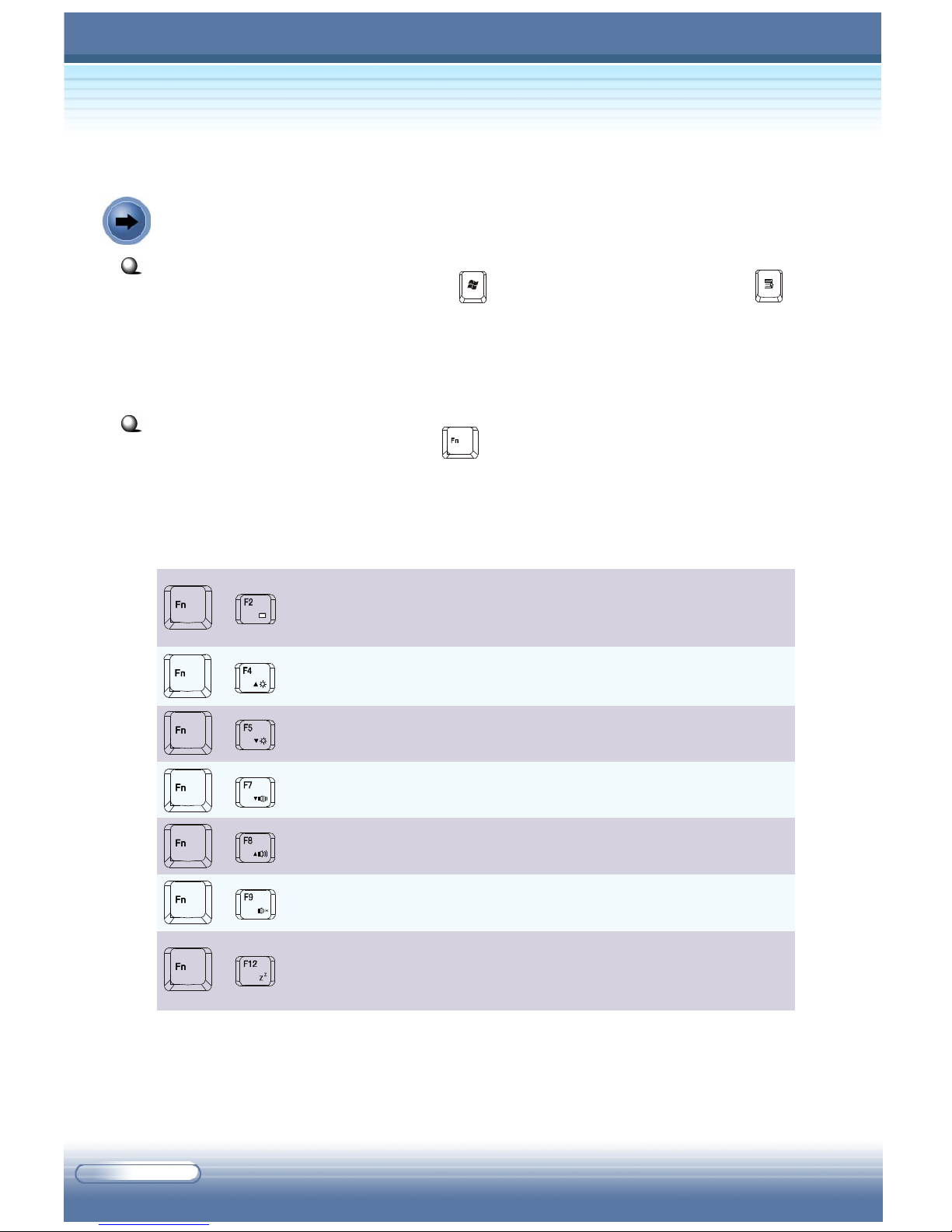

Function Keys

Windows Keys

You can find the Windows Logo key ( ) and one Application Logo key ( )
on the keyboard, which are used to perform Windows-specific functions,
such as opening the Start menu and launching the shortcut menu. For more
information of the two keys, please refer to your Windows manual or online
help.

[Fn] Key

The keyboard provides a [Fn] key ( ) at the lower left corner, which is to be
used with another key to perform the alternative function of a key. This com­bination of keys can be called “hot key” in operating your Notebook PC, which
allows you to perform some special functions easily and quickly. The hot
keys includes:

+

+

+

+

+

+

+

Switch the display output mode between the LCD, external
monitor, and Both.

Increase the LCD brightness.

Decrease the LCD brightness.

Decrease the built-in speaker’s volume.

Increase the built-in speaker’s volume.

Disable the computer’s audio function.

Force the computer into suspend mode (depending on the
system configuration).

2 - 8

2.3 Knowing the Touchpad

The touchpad integrated in your computer is a pointing device that compat­ible with the standard mouse, allowing you to control the computer by point­ing the location of the cursor on the screen and making selection with its two
buttons.

The Touchpad

Cursor Movement Area

The pressure-sensitive area of the touchpad, allows you to place your finger
on it and control the cursor on the screen by moving your finger.

Left Button

Acts as the mouse’s left button.

Right Button

Acts as the mouse’s right button.

Right/Left Scrolling Arrow

Allows you to scroll the cursor right and left.

Up/Down Scrolling Arrow

Allows you to scroll the cursor up and down.

2 - 9

M610 Series Notebook PC

Using the Touchpad

The following table and diagrams provide some tips that you should know
when using the touchpad:

Positioning and Moving: Place your finger on the touchpad (usually using the
forefinger), and the rectangular pad will act as a miniature duplicate of your
display. When you move your fingertip across the pad, the cursor on the
screen will move simultaneously in the same direction. When your finger
reaches the edge of the pad, lift your finger and replace it on a proper location
of the touchpad.

Scrolling Right/Left and Up/Down: When your are in a document, the
touchpad’s scrolling function allows you to scroll the document without moving
the pointer away from your work. By simply sliding your finger up/down at the
right edge of the touchpad, the contents of the current document will scroll
vertically; when sliding your finger right/left at the bottom edge of the touchpad,
the contents of the current document will scroll horizontally. That is, you can
scroll no matter where the pointer happens to be.

Point and Click: When you have moved and placed the cursor over an icon, a
menu item or a command that you want to execute, simply tap slightly on the
touchpad or press the left button to select. This procedure, called as “point
and click”, is the basics of operating your Notebook PC. Unlike the traditional
pointing device such as the mouse, the whole touchpad can act as a left
button, so that your each tap on the touchpad is equivalent to pressing the left
button. Tapping twice more rapidly on the touchpad is to execute a “double­click”.

Drag and Drop: You can move files or objects in your computer by using
“drag-and-drop”. To do so, place the cursor on the desired item and slightly
tap twice on the touchpad, and then keep your fingertip in contact with the
touchpad on the second tap. Now, you can drag the selected item to the
desired location by moving your finger on the touchpad, and then lift your
finger from the touchpad to drop the item into place. Alternately, you can
press and hold the left button when you select a item, and then move your
finger to the desired location; finally, release the left button to finish the drag­and-drop operation.

2 - 10

Move the cursor by
sliding your fingertip.

Put your wrist
on the desk
comfortably.

Using the Touchpad

1. Do not place heavy/sharp objects on the touchpad; do

2. Clean the touchpad with soft dry cloth regularly to

3. When using the touchpad, keep your fingers and the

MSI reminds you

not scratch the surface of touchpad.

prevent the dust and liquids on it.

touchpad clean and dry for optimal performance. Do
not use excessive force when tapping on the touch
pad.

2 - 11

M610 Series Notebook PC

Configuring the Touchpad

You can customize the pointing device to meet your personal needs. For
example, if you are a left-hand user, you may want to swap the functions of the
two buttons. In addition, you can change the size, shape, moving speed, and
other advanced features of the cursor on the screen.

To configure the touchpad, you can use the standard Microsoft or IBM PS/2
driver in your Windows operating system. The Mouse Properties in Control
Panel allows you to change the configuration.

2 - 12

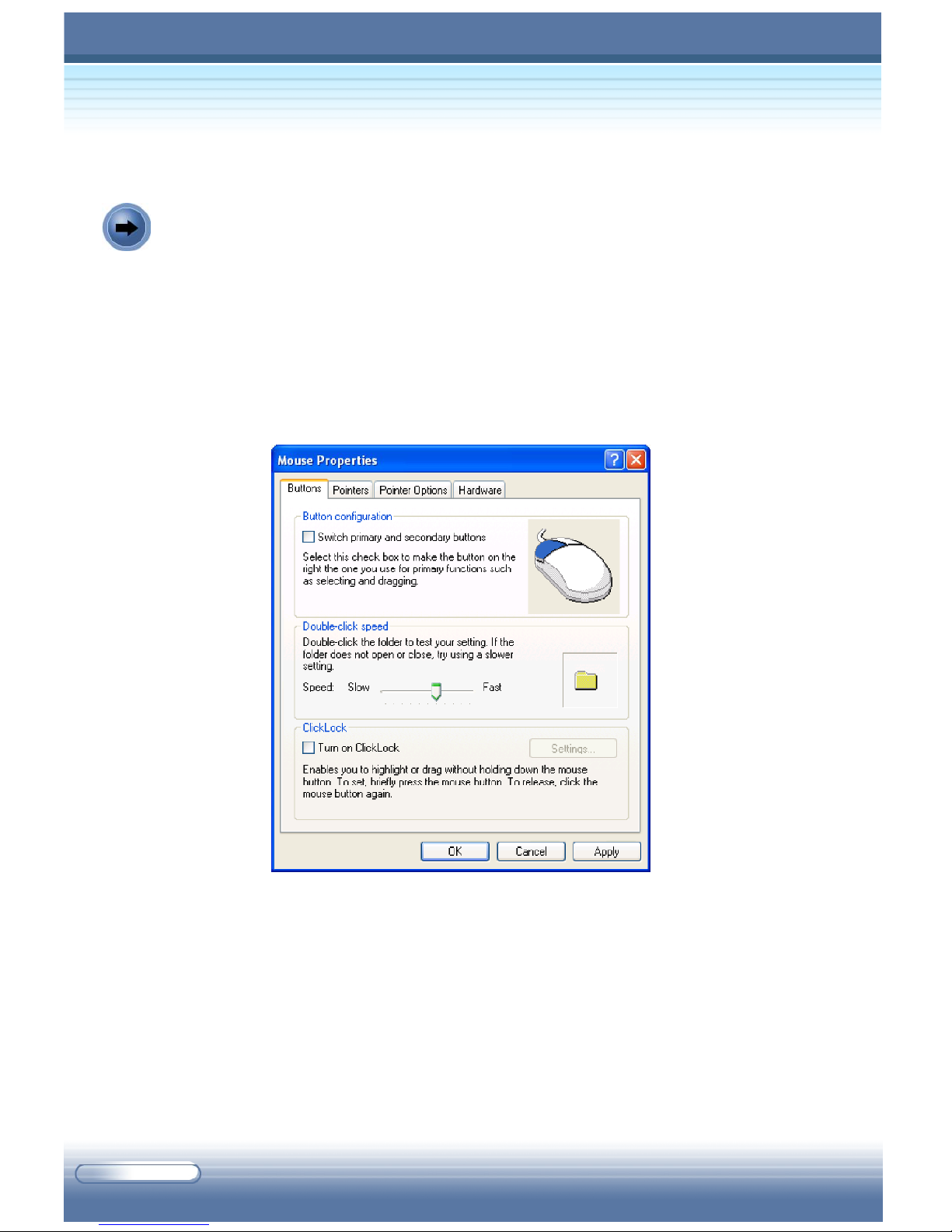

Mouse Properties window

2.4 Using the Optical Storage

Your computer is equipped with an optical storage device, which is known as
the Combo DVD+CD-RW or DVD+/-RW drive. The actual device installed in
your computer depends on the model you purchased.

Combo DVD+CD-RW Drive: a cost-effective solution that can work both as a
CD-ROM, DVD-ROM and CD-R/RW drive.

DVD+/-RW Drive: a dual format recorder, allowing you to record both the

-R/RW and +R/RW formats in addition to providing the same support as the
Combo DVD+CD-RW drive.

1. The optical storage devices are classified as a Class 1

2. Do not touch the lens inside the drive.

MSI reminds you

Laser products. Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.

2 - 13

M610 Series Notebook PC

Inserting the CD

The following instruction describes the general procedure when operating
the optical storage device.

1. Confirm that the computer is turned on.

2. Press the Eject Button on the drive’s panel (Œ), and the CD tray
will slide out partially. Then, gently pull the tray out until fully
extended (•).

3. Place your CD in the tray with its label facing up. Slightly press the
center of the CD to secure it into place (Ž).

4. Push the tray back into the drive.

2 - 14

Removing the CD

1. Confirm that the computer is turned on.

2. Press the Eject Button on the drive’s panel, and the CD tray will

slide out partially. Then, gently pull the tray out until fully extended.

3. Hold the CD by its edge with your fingers, and then lift it up from

the tray.

4. Push the tray back into the drive.

Releasing the CD Manually

If you cannot release the CD tray by pressing the Eject Button, you can re­lease it manually:

1. Confirm that the computer is turned off.

2. Insert a pointed object (e.g. a straightened clip) into the Emergency

Eject Hole (Œ), and the CD tray will slide out partially. Then, gently
pull the tray out until fully extended (•).

3. Remove the CD, and then push the tray back into the drive.

2 - 15

M610 Series Notebook PC

2.5 The Hard Disk Drive

Your computer is equipped with a 2.5-inch IDE (Integrated Drive Electronics)
hard disk drive. The hard disk drive is a non-removable storage device in
your computer. However, you can upgrade it by replacing a lager capacity
hard disk drive. To do so, please refer to Upgrading Your System in Chapter

6.

1. To avoid unexpected data loss in your system, please
backup your critical files regularly.

2. Do not turn off the computer when the Hard Disk In­use LED is on.

3. Do not remove or install the hard disk drive when the
computer is turned on. The replacement of hard disk
drive should be done by an authorized retailer or
service representative.

MSI reminds you

2 - 16

2.6 Using the Video Function

Configuring the Display Settings

Your Notebook PC has been set to a default resolution and colors when
shipping: Now, you can change the settings to meet your needs through the
operating system.

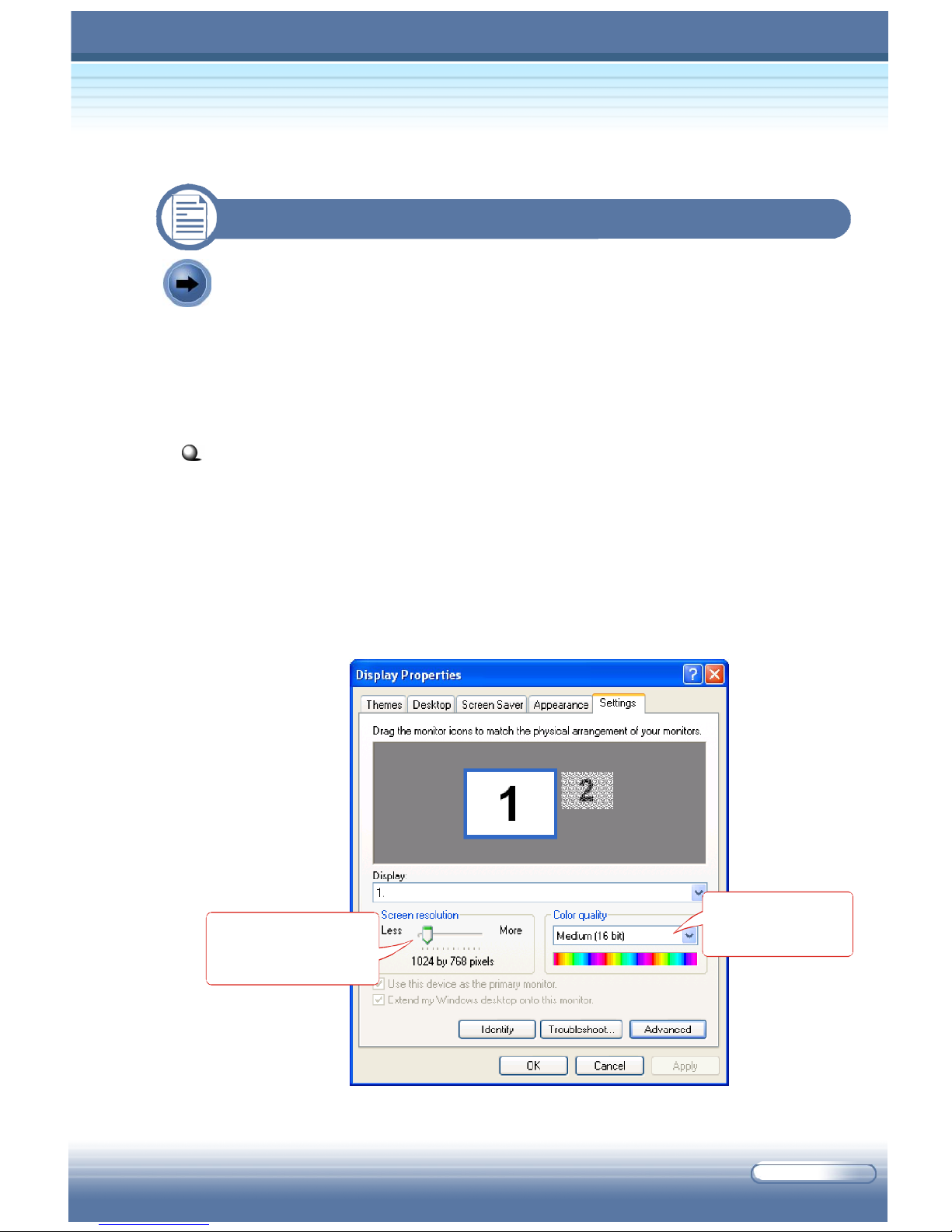

Changing the Resolution and Colors Quality

1. Click Start from the taskbar, and select Control Panel to open the
Control Panel window.

2. In the Control Panel, double-click the Display item to open the
Display Properties window.

3. In the Screen Resolution field, move the slide bar to adjust the
screen resolution; in the Color Quality field, select the desired

colors setting from the pull-down menu.

Adjust the screen
resolution.

The video solution on your computer.

Adjust the
colors quality.

2 - 17

M610 Series Notebook PC

Changing the Display Output Device

1. Click Start from the taskbar, and select Control Panel to open the
Control Panel window.

2. Double-click the Display item to open the Display Properties
window.

3. Click the Advanced button to bring up the following window that
contains more settings.

4. Under the Displays tab, if you have connected the external display
device, such as the CRT monitor or TV, simply select the one you
want to use and click OK. (You can also use the hot key [Fn]+[F2] on
the keyboard to switch the display output device.)

2 - 18

2.7 Using the Audio Function

Connecting Audio Devices

Your Notebook PC is equipped with an audio subsystem. However, you can
also connect the external audio devices for a better audio quality when enjoy­ing your music and movie on the computer. The audio-out jack allows you to
connect the speakers and headphones; the microphone jack allows you to
connect the external microphone.

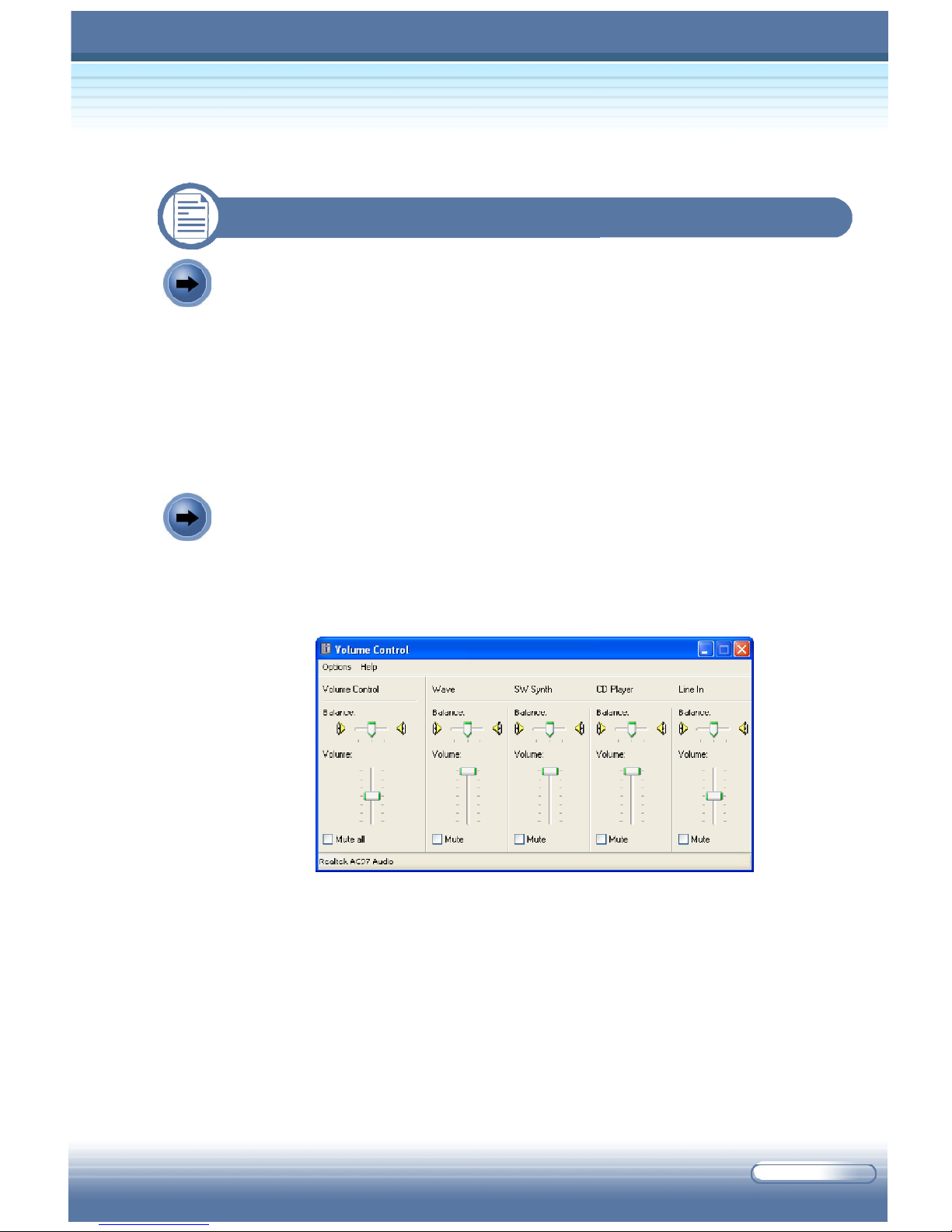

Volume Control

Double-click the Volume Control icon on the taskbar, and the Master Volume
dialog box will appear as shown below. You can move the slide bar to adjust
the volume.

2 - 19

M610 Series Notebook PC

2.8 DVD Direct Play Function

Control Key Function

Control Key function in Direct Play mode

LCM

Eject & Stop

Vol. down

Vol. up

Backward

Play & Pause

Control Key function in Setup Menu mode

Move rightMove left

Press to return to
the upper-level menu.

Move up

Press to enter
the sub-menu.

On/Off

Menu

Forward

Move down

Select/Enter

Press to select
the highlighted item.

Example of using control keys in Setup Menu mode

2 - 20

Press / to scroll
through the menu items.

Key Definition

Remote Control

MENU

00

03

CH-/<<

06

STOP

09

REPEAT

OC

Remote control button definition in any mode

ITEM

PLAY/PAUSE

AV_MODE

PLAY/PAUSE

01

PLAY/PAUSE

04

07

VOCAL

0A

(DVD)

OK/ENTER

POWER

CH+/>>

VOL+

VOL-

MENU

DVD

02

05

08

0B

OD

LCD

OK

PC

PLAY

STOP

<<
>>

VOL+

VOL-

VOCAL

MENU

POWER

STOP/EJECT
CH-/REWIND

CH+/FORWARD

VOL+

VOL-

VOCAL

MENU

POWER

---

---

---

---

---

---

MENU

POWER

---

---

---

---

---

/-

/+

---

MENU

POWER

STOP

CH-

CH+

VOL+

VOL-

---

---

---

---

MUTE

MEDIA

---

2 - 21

M610 Series Notebook PC

Direct play key definition

VOL-

-/

Direct play key definition in any mode

PLAY/PAUSE

STOP/EJECT

POWER

ITEM

CH-

CH+

VOL+

VOL-

MENU

VOL+
+/

LCM STOP

AV_MODE

(DVD)

PLAY/PAUSE

STOP/EJECT

CH-

CH+

VOL+

VOL-

MENU

POWER

CH- PLAY/

DVD

OK/ENTER

MENU

POWER

MENU

---

PAUSE

CH+

LCD

OK

---

+

-

MENU

POWER

MENU POWER

PC

PLAY/PAUSE

STOP/EJECT

CH-

CH+

VOL+

VOL-

MEDIA

---

Message on the LCM

no disk

2 - 22

title

root

stop

Media type

disk in

load

open

Using the Software

Applications

Provided with your Notebook PC, is a Recovery CD contain­ing useful software applications and required drivers for your
system in the even you need to restore your operating system
easily and quickly.

6200 Series Notebook PC

M610 Series Notebook PC

3.1 Using the Recovery CD

The Recovery CD is an important source that contains information and
critical data for the operating system which is used to restore the hard disk
to its original state. When the operating system of your computer is dam­aged and cannot work properly, you can use the Recovery CD to resume
the system in its original state.

Resuming the Operating System

To resume the operating system from the Recovery CD:

1. Connect the AC adapter and turn on the computer.

2. Insert the Recovery CD into the CD/DVD-ROM drive.

3. Choose to restore the operating system from the Recovery CD
when prompted. Then, follow the on-screen instructions to
complete the procedures. The system will reboot automati­cally when completed.

4. The system will resume the factory default settings after reboot.

3 - 2

Power Management

This chapter shows you how to manage the power effectively, in
order to maintain the longest battery life while using your
computer.

2 - 1

6200 Series Notebook PC

M610 Series Notebook PC

4.1 Introduction to the Power Source

Your Notebook PC provides a universal AC adapter and a high performance
Li-Ion battery in the package, and it can operate either on the battery’s power
or AC power.

The AC Adapter

The AC adapter included in your Notebook PC is a universal AC adapter that
can operate on any voltage ranging from 100~240V AC. This allows you to
use your computer at any place when traveling. The AC adapter is used as a
converter that transfers the alternating current (AC) to direct current (DC), to
supply power to your computer. Also, it can charge the battery pack when
connected. The AC adapter consists of two parts: the adapter (Π) and the
power cord (•).

1. The AC adapter included in the package is correct for
your Notebook PC; using a different adapter will damage
your computer.

2. When unplugging the power cord, always hold the
connector part of the cord, never pull the cord.

MSI reminds you

4 - 2

The Battery Pack

The rechargeable Li-Ion battery pack is an internal power source of the
computer. A fully charged battery pack can supply power to the computer for
several hours, depending on the actual use of your computer.

Charging the Battery

The battery pack can be charged while it is installed in the Notebook PC.
Connect the AC adapter to the computer, and it starts to charge the battery
automatically. Please charge your battery in a normal temperature
environment, ranging from 0OC (32OF) to 50OC (122OF). If the temperature is
higher than 60OC (140OF), it will stop charging to protect the battery pack. After
the temperature is down to 50OC (122OF), it resumes charging automatically.

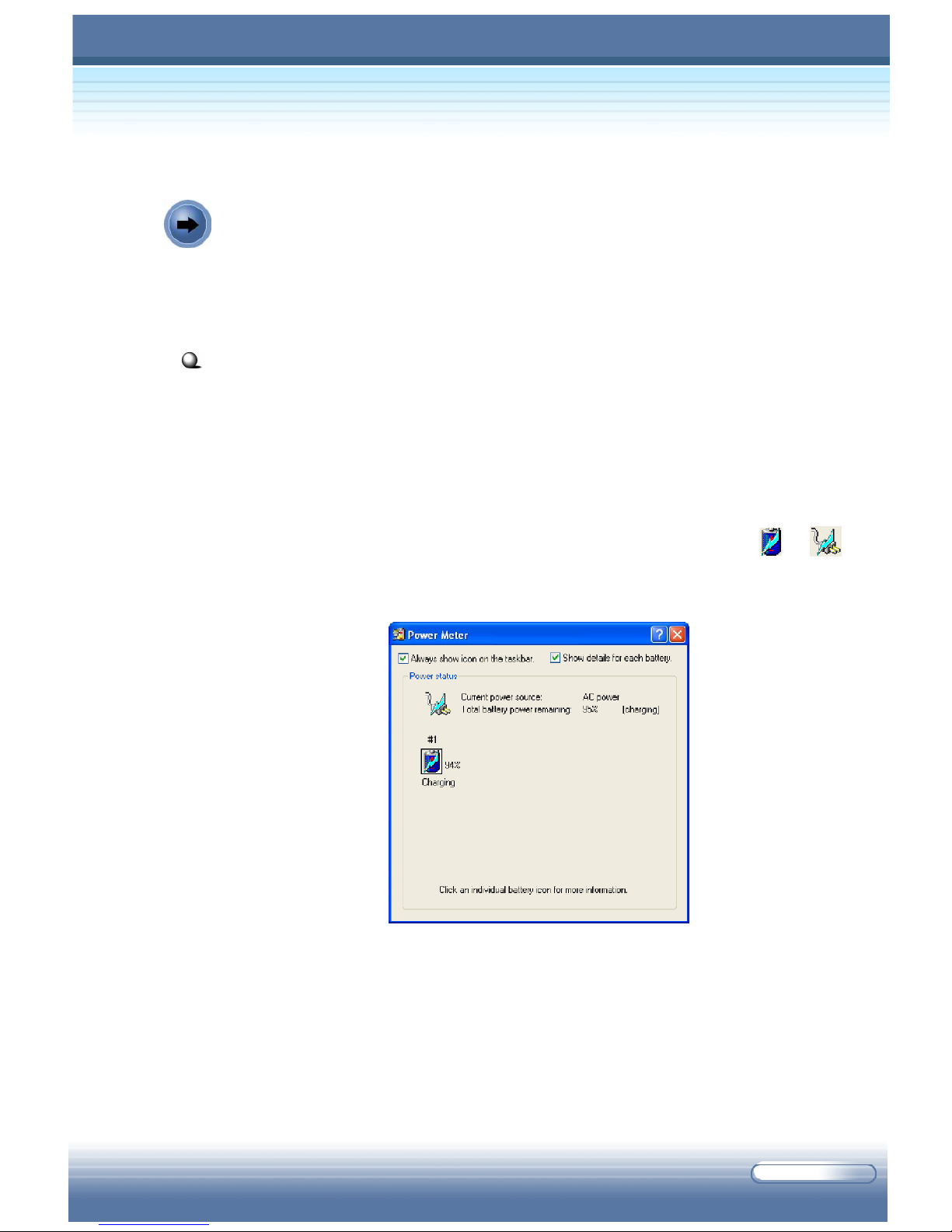

Alternately, you can check the charging status through the Power Meter in
Windows. The Power Meter icon is displayed on the taskbar as or ,
depending on the current power source. Double-click the icon to bring up the
Power Meter window, which contains the related information for your reference.

4 - 3

6200 Series Notebook PC

M610 Series Notebook PC

If the Power Meter icon does not appear on the taskbar, you can configure the
setting through Start menu.

1. Click Start and select Control Panel to open the Control Panel
window. Then, click the Performance and Maintenance item.

2. In the Performance and Maintenance window, click the Power
Options item to open the Power Option Properties window.

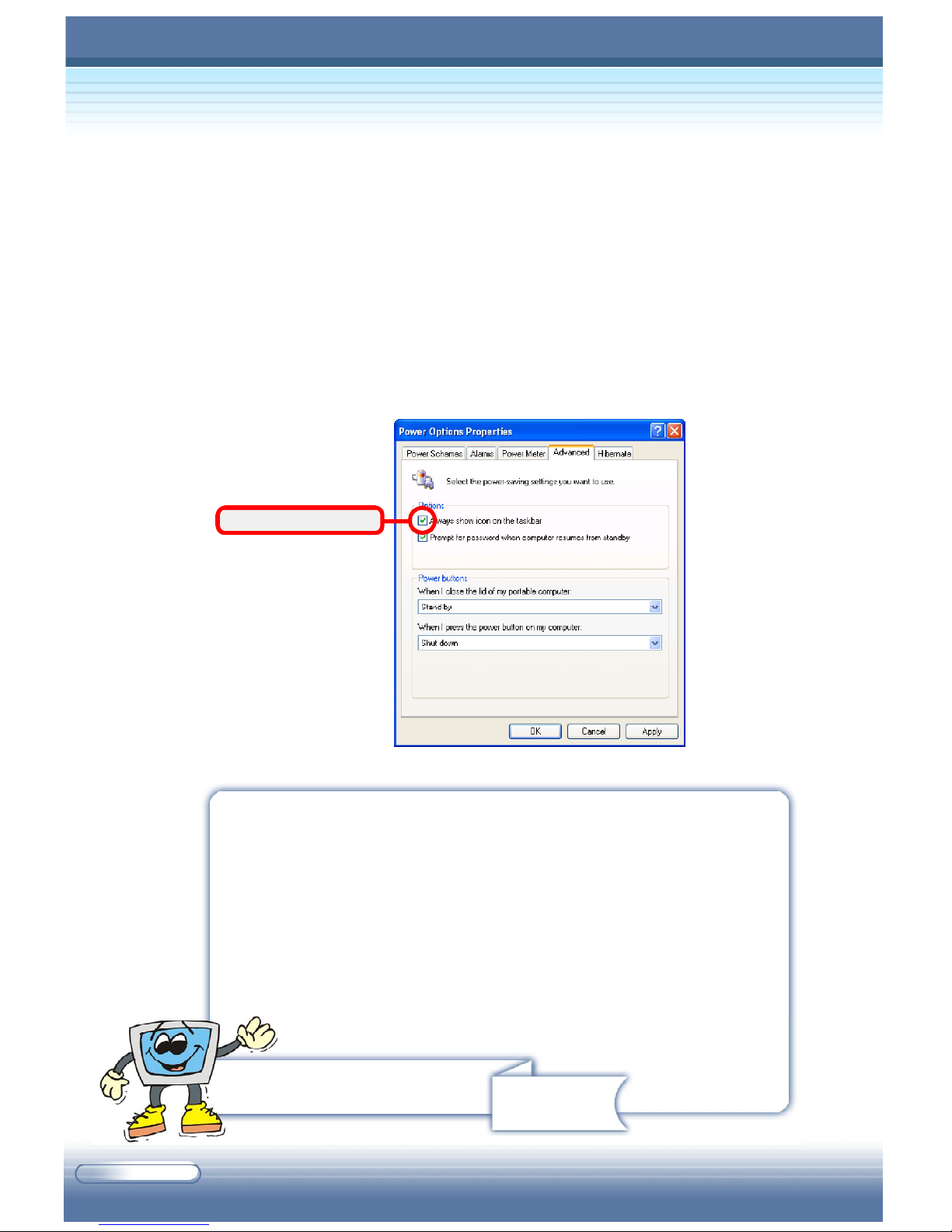

3. Under the Advanced tab, check the Always show icon on the
taskbar option and click OK.

Check this option

1. The charging time depends on the system mode.
When the computer is turned on, it will take longer
(3~4 hours) to fully charge the battery.

2. The Power Meter only provides an estimated value of
the battery power. The operating time allowed
depends on the actual use of your computer.

3. For more instructions on using and caring the battery
pack, please refer to Taking Care of Your Computer in
Chapter 7.

MSI reminds you

4 - 4

Changing the Battery Pack

You can purchase an additional battery pack from your local dealer, so that
you can use it as a spare when traveling.

To remove the battery pack:

1. Confirm that the computer is turned off.

2. Locate the Battery Unlock Button on the rear side of the
computer.

3. Push the Unlock Button upwards (Π).

4. Slide the battery cover outwards (•).

5. Pull out the battery pack from the compartment.

Replacing the battery pack

1. Insert the battery pack into the compartment.

2. Slide the battery cover into place and then push downwards to
secure the battery pack.

1. Do not try to disassemble the battery pack.

2. Please follow your local laws and regulations to

MSI reminds you

dispose your used battery pack.

4 - 5

6200 Series Notebook PC

M610 Series Notebook PC

4.2 Managing the Power

The Windows XP operating system supports ACPI (Advanced Configuration
and Power Interface), which allows you to manage the computer power easily
and efficiently. With the ACPI function, the power can be distributed to different
components individually according to their needs. This is helpful to provide
you with the maximum battery usage or optimal system performance.

Power Options

In order to maintain sufficient power for optimal system operation, please
set up the most appropriate configuration for your computer. The following
instructions describe the Power Options setup procedures:

1. Click Start from the taskbar, and then select Control Panel to
open the Control Panel window.

2. Click Performance and Maintenance.

3. In Performance and Maintenance window, click the Power
Options item to open the Power Options Properties window.

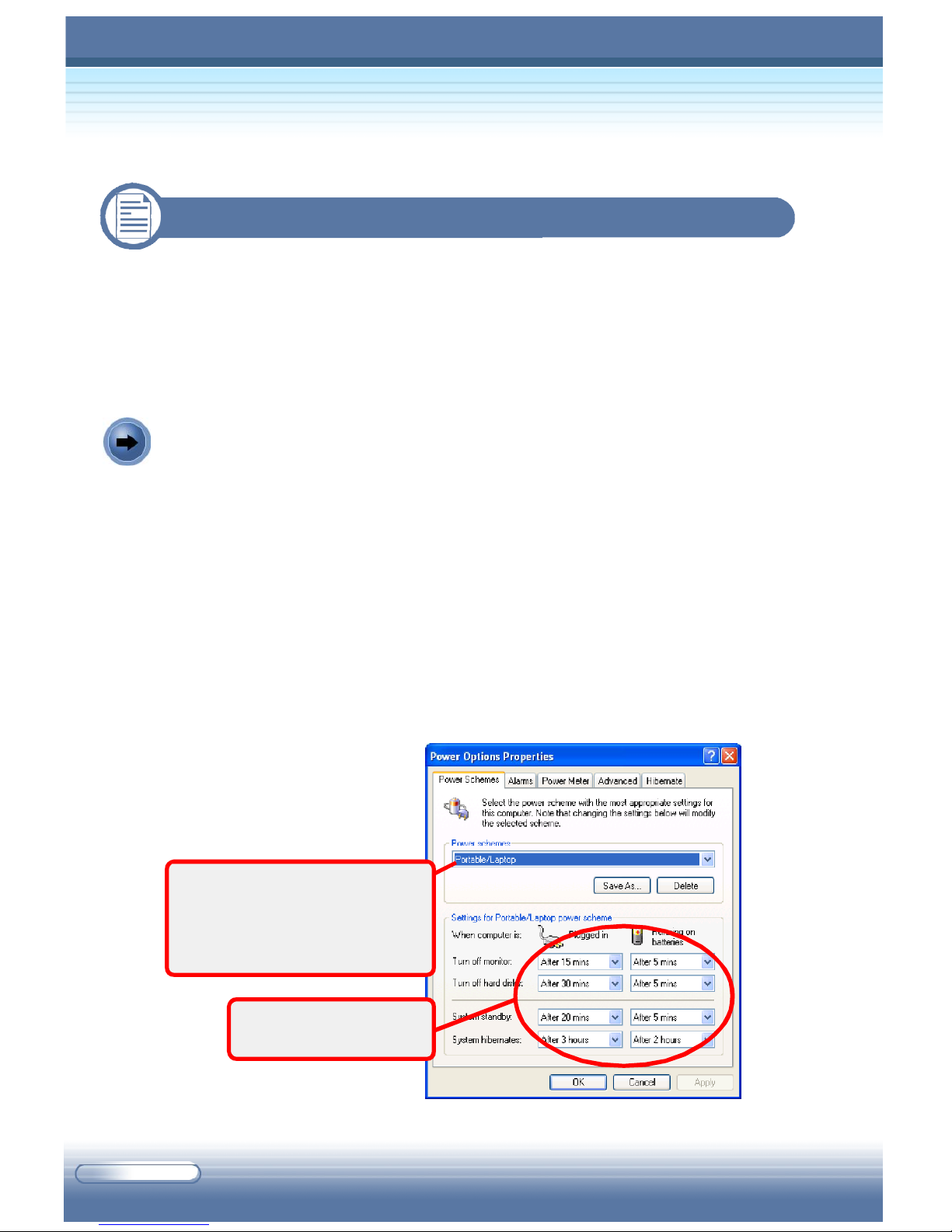

4. Under the Power Schemes tab, you can set up the most
appropriate configuration for your computer.

Select one Power Scheme that
is best fit to your computer
(see the table in page 4-11 for
more instructions).

Set up the related
settings in these fields.

4 - 6

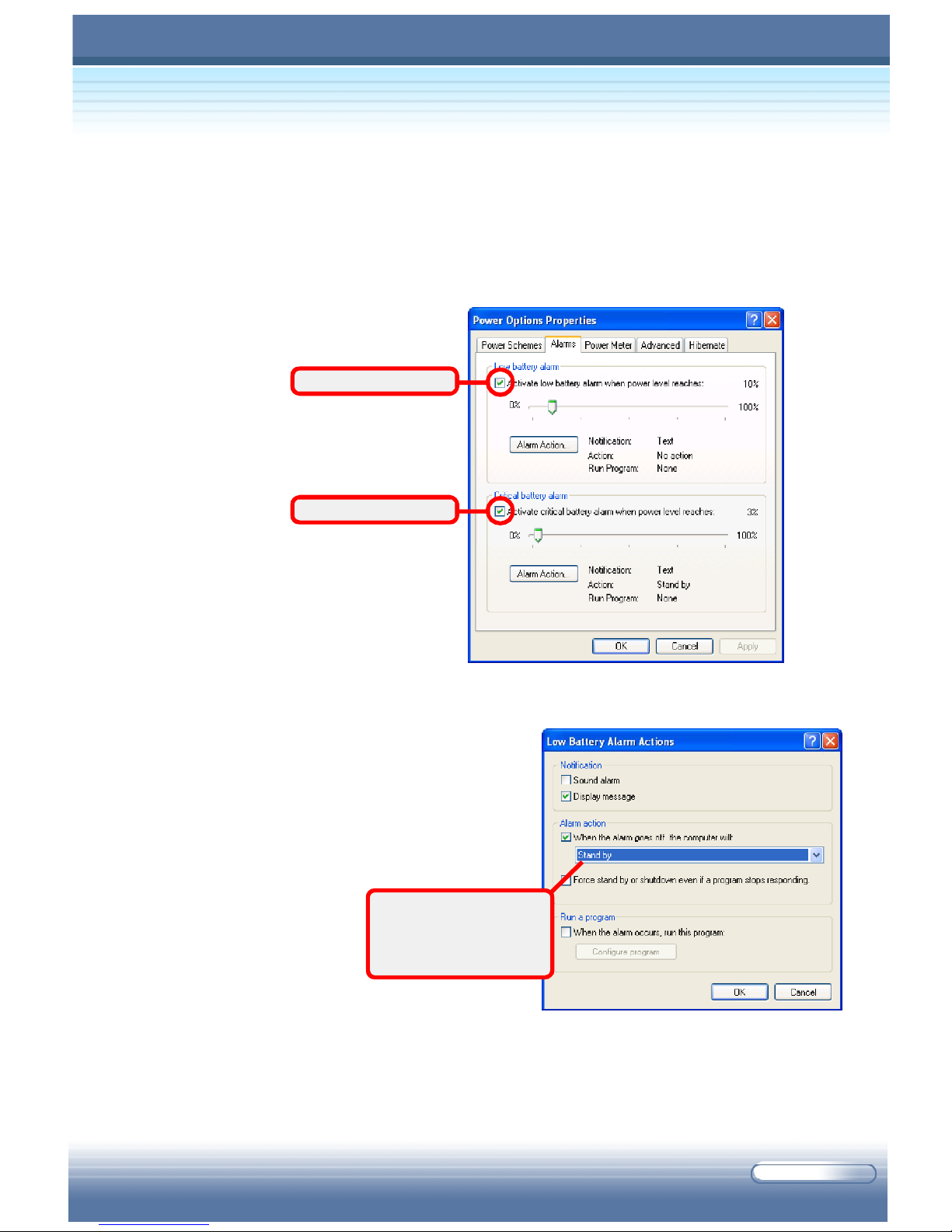

5. Under the Alarms tab, you can activate the battery alarm function
by checking the options in Low battery alarm and Critical battery
alarm fields. Once activated, adjust the slide bar to set up the low
or critical power level (the default setting is 10%).

Check this option

Check this option

Click Alarm Action within
the fields to set up the
actions when the power
has reached the preset
low or critical level.

Set up the actions:
Stand by, Hibernate,
or Shut down.

4 - 7

6200 Series Notebook PC

M610 Series Notebook PC

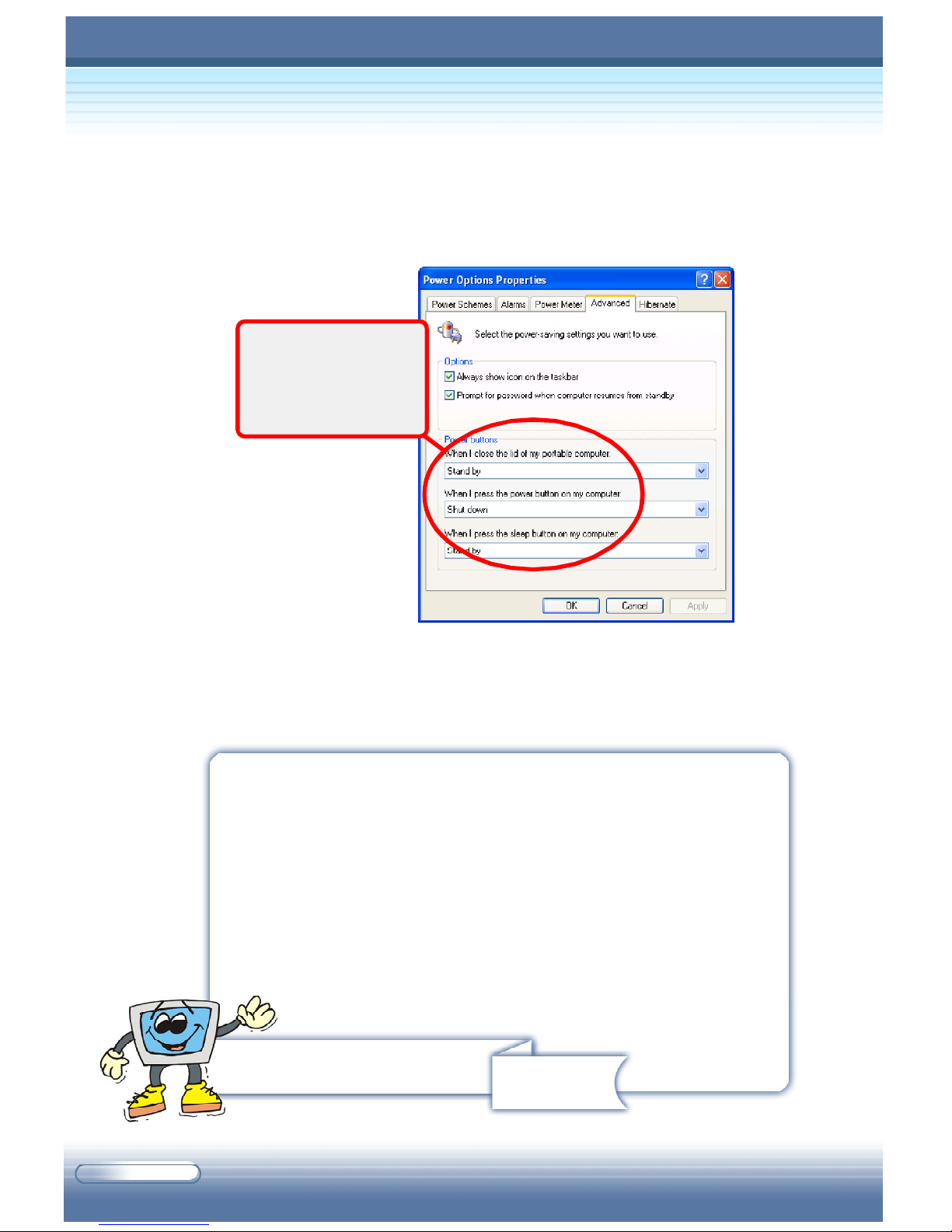

6. Under the Advanced tab, you can set up the actions when
pressing the power button, sleep button, and closing the LCD
panel.

Set up the Power
buttons’ function:
Stand by, Hibernate,
or Shut down.

1. Pressing [Fn]+[F12] allows your computer to entersuspend

mode immediately.

2. When you are alarmed for low battery power, save your

data as soon as possible. If available, connect the AC
adapter before you continue operating.

3. Do not use a card reader or other storage devices

when the battery power is low. The access time may be
longer than the time you can operate which may result
in lose of critical data.

MSI reminds you

4 - 8

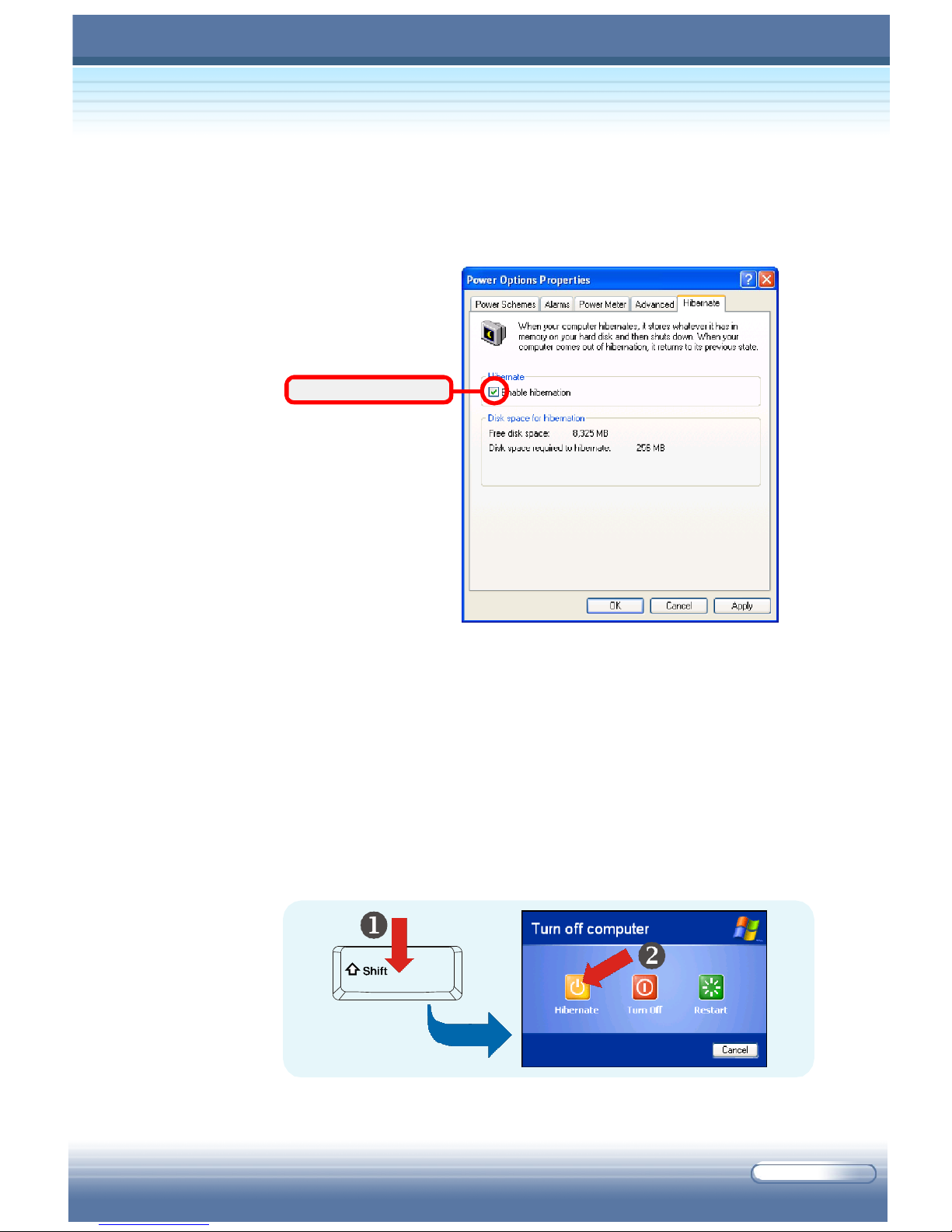

7. Under the Hibernate tab, you can activate Hibernation by

checking the Enable hibernation option.

Check this option

Hibernation is a very useful function of the Windows operating system. When
you activate this function, the current and programs are saved to the hard disk
drive. Therefore, you do not need to close the current applications when you
are going to exit the operating system temporarily. The next time you press
the Power button, you can resume the previous status when you left off.

To enter the Hibernation mode, click Start and select Turn off Computer.
Press and hold the [Shift] key (Π), so that the Stand By option changes to
Hibernate. Click Hibernate (•) to enter the Hibernation mode.

4 - 9

BIOS Setup

BIOS (Basic Input/Output System) is a program for setting up
the configuration of the computer. To take full advantage of your
computer and connected peripheral devices, you should
configure the system through BIOS Setup. This chapter provides
the information of BIOS Setup Utility, and guides you to configure
the system for optimal use.

For better Notebook PC performance, the BIOS will be
continuously updated. This chapter is for reference only.

2 - 1

6200 Series Notebook PC

M610 Series Notebook PC

5.1 Using BIOS Setup Utility

When to Use BIOS Setup?

You may need to run the BIOS Setup when:

An error message appears on the screen during the system booting
up, and requests you to run SETUP.

You want to change the default settings for customized features.
You want to reload the default BIOS settings.

How to Run BIOS Setup?

To run the BIOS Setup Utility, turn on the computer and press the [Del] key
during the POST procedure.

If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On, or simultaneously pressing
[Ctrl]+[Alt]+[Delete] keys to restart.

The screen snaps and setting options in this chapter are for
your references only. The actual setting screens and options
on your computer may be different because of BIOS update.

MSI reminds you

5 - 2

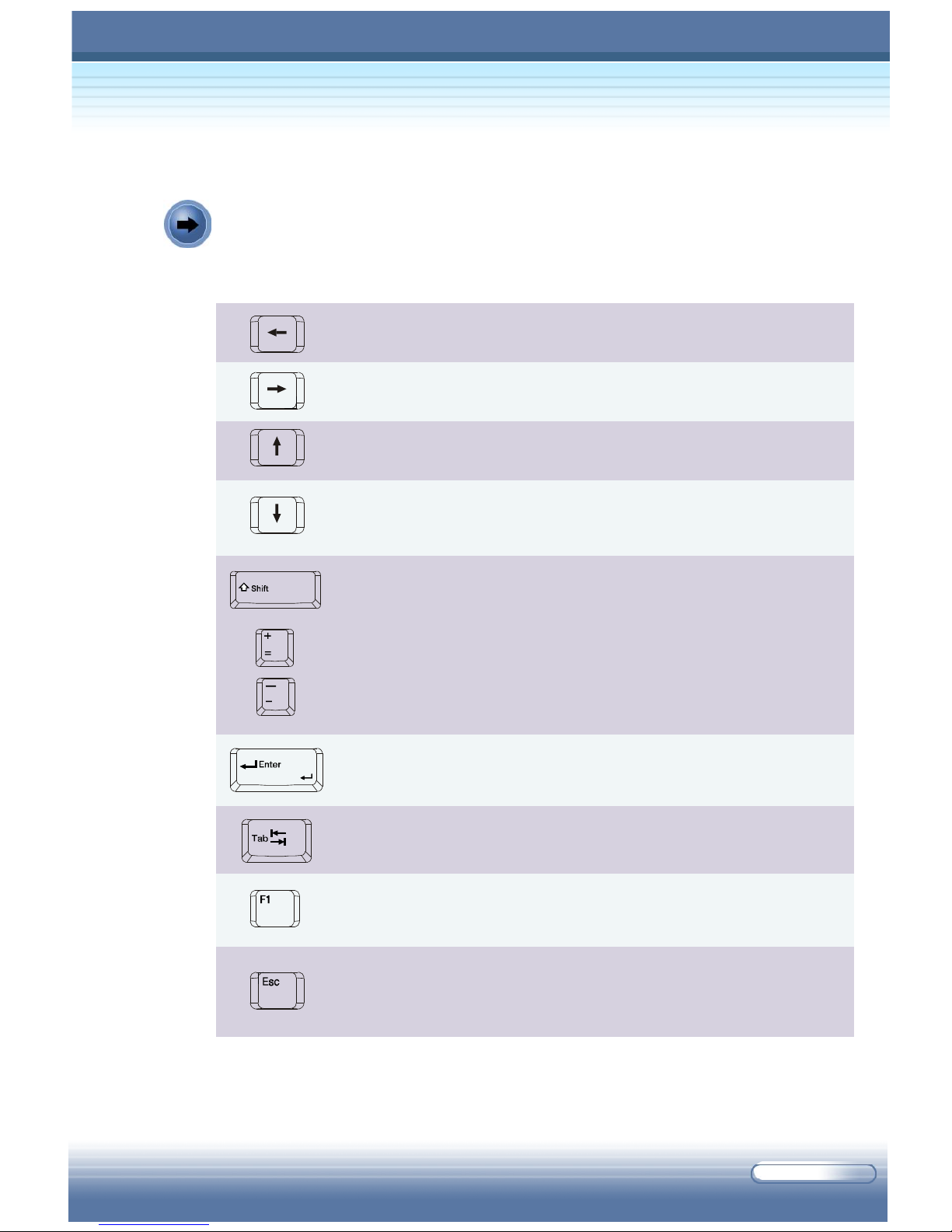

Control Keys

You can use only the keyboard to control the cursor in the BIOS Setup
Utility.

Move the cursor left to select one menu title.

Move the cursor right to select one menu title.

Move the cursor up to select one item under the menu title.

Move the cursor down to select one item under the menu
title.

+

Increase the setting value or make changes.

Decrease the setting value or make changes.

1) Open the selected item to change setting options.

2) Bring up a sub-menu when available.

In some items, press this key to change setting fields.

Bring up help screen providing the information of control
keys.

1) Exit the BIOS Setup Utility.

2) Return to the previous screen when in a sub-menu.

5 - 3

6200 Series Notebook PC

M610 Series Notebook PC

5.2 Main Menu

Once you enter the BIOS Setup Utility, the Main menu will appear on the
screen. The Main menu displays the system information, including the basic
configuration.

System Overview

Use this menu for basic information of BIOS version and Processor and
system configurations, such as time, date etc.

Advanced Settings

Use this menu to set the items of CPU, IDE, SuperIO and USB special
enhanced configuration.

Boot Settings

Use this menu to set the Boot functions, including Quick Boot, Quiet Boot,
PXE support and 1st Boot Device & 2nd Boot Device sequences.

Power Management Setup

Use this menu to specify your settings for power management, including
functions of Wake on LAN, Wake on MDC and RTC Resume.

5 - 4

Security Settings

Use this menu to set security password and change the status of using
password.

Exit Menu

Use this menu to choose whether saving your changes or not.

Available settings for “1st/2nd Boot Device” vary depending
on the bootable devices you have installed. For example, if
you did not install a floppy drive, the setting “Floppy” does not
show up.

MSI reminds you

5 - 5

6200 Series Notebook PC

M610 Series Notebook PC

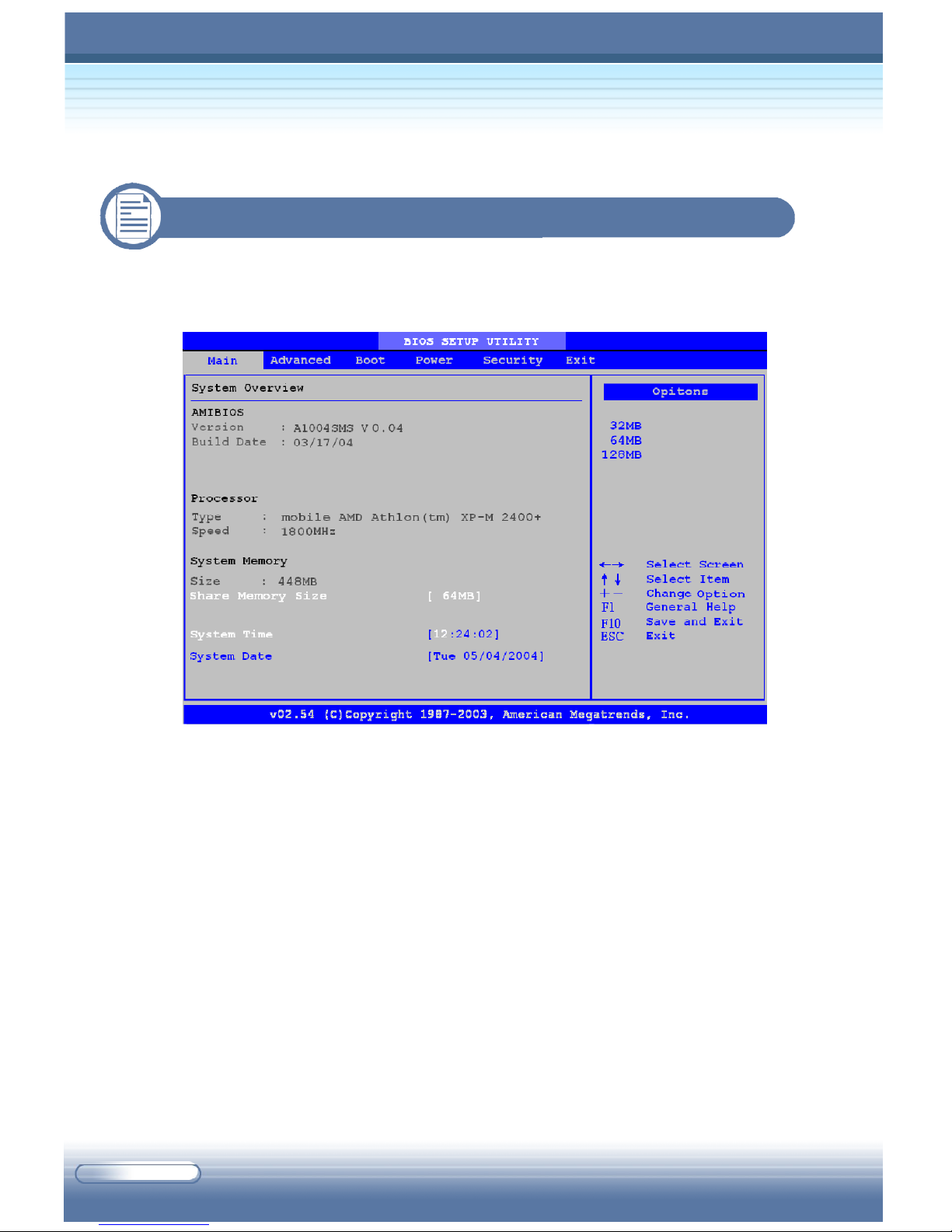

5.3 System Overview

AMIBIOS

This menu first shows AMIBIOS information including Version, Build Date,
VGA version and EC version.

Processor

The second field shows Processor Type and Speed.

System Memory

The third field shows information of System Memory Size.

System Time

The status is [hour:minute:second]. Use [ENTER], [TAB] or [SHIFT-TAB] to
select a field and use Shift plus [+] to increase values and single [-] to decrease
values.

Hour The value is set from 00 to 23 in 24hr format.
Minute The value is set from 00 to 59. It won’t make any change

to the value of hour by increasing or decreasing value of
minute.

5 - 6

Second The value is set from 00 to 59. It won’t make any change

to the value of hour and minute by increasing or
decreasing value of second.

System Date

This allows you to set the system date you want (usually the current date).
The status is <day> <month> <date> <year>. Use [ENTER], [TAB] or [SHIFT­TAB] to select a field and use Shift plus [+] to increase values and single [-] to
decrease values.

Month The month from Jan. through Dec. You can press Shift

and “+” to increase the number or key number directly in
the field.

Date The date from 1 to 31 can be keyed by numeric function

keys.

Year The year can be adjusted by users.
Day Day of the week, from Sun to Sat, the data shows

according to what the date you set, automatically
calculated by BIOS. Read-only.

5 - 7

6200 Series Notebook PC

M610 Series Notebook PC

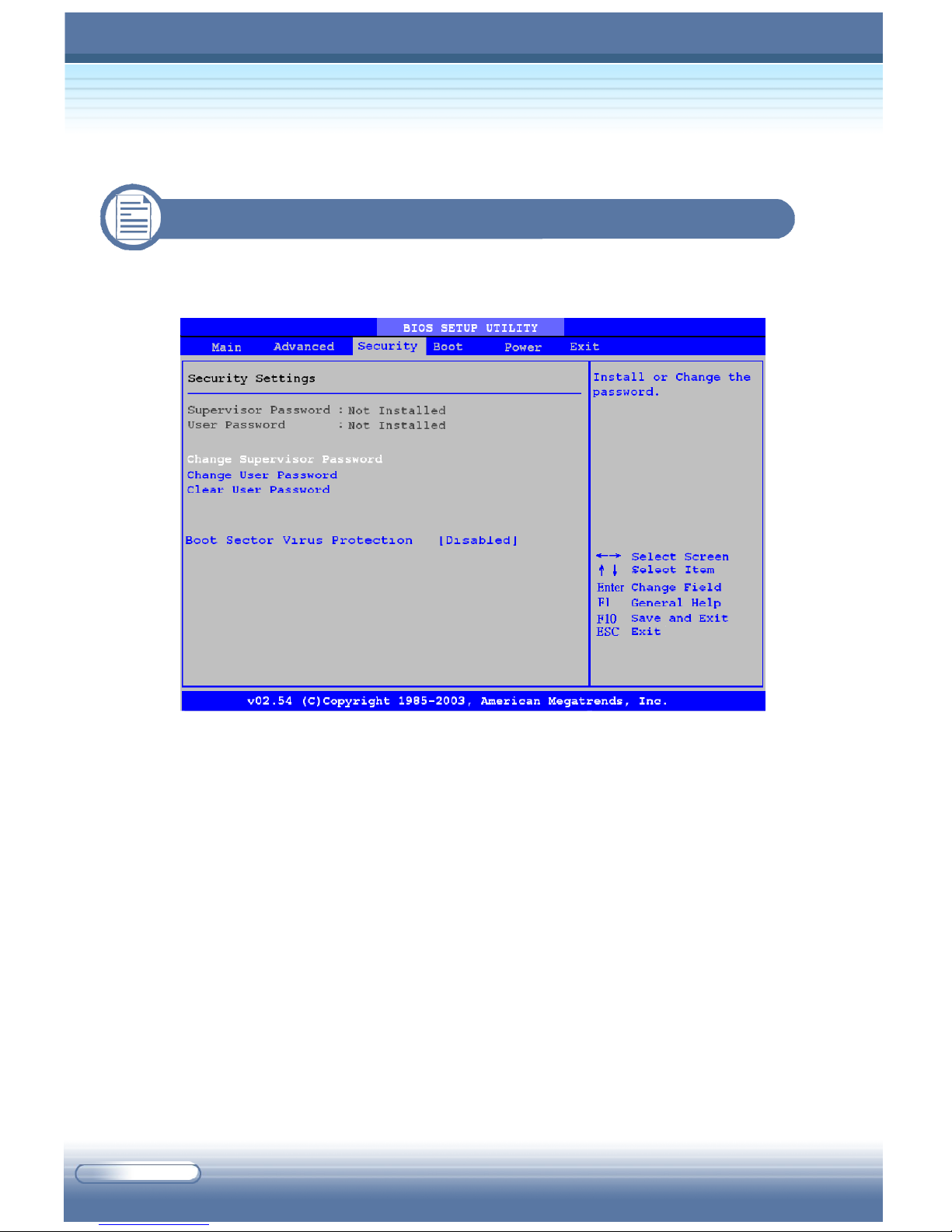

5.4 Security Settings

Security Settings

Press <Enter> and the following sub-menu appears.

It first shows the status of Password Installation. It will show “Not Installed”
if there is no password installed.

Change Supervisor Password

To install or change Supervisor Password by enter new password.

Change User Password

To install or change User Password by enter new password.

Clear User Password

It is a quick way to clear supervisor and user password by two options:
[Ok]/[Cancel].

5 - 8

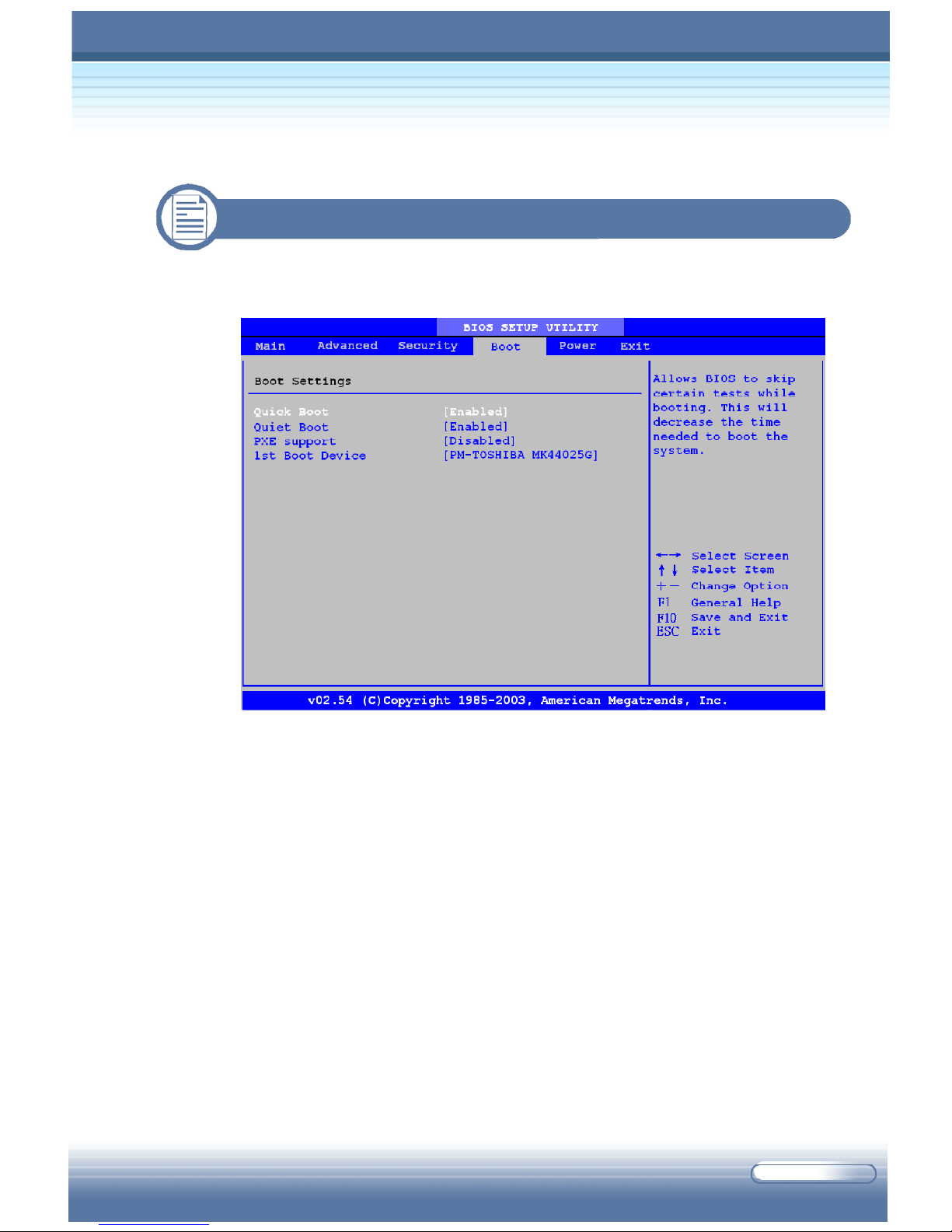

5.5 Boot Settings

Boot Settings

Press <Enter> and the following sub-menu appears.

Quick Boot

It allows BIOS to skip certain tests while booting. It will save time to boot the
system. There are two options available: [Disabled] and [Enabled]. Default
setting is [Enabled].

Quiet Boot

There are two options available: [Disabled] and [Enabled]. [Disabled] dis­plays normal POST messages. [Enabled] displays OEM Logo Instead of
POST messages. Default setting is [Enabled].

PXE support

Select [Enabled] to activate PXE support. Default setting is [Disabled].

1st Boot Device

It specifies the boot sequence from the available devices. There are three
options available: [PS-QSI CD-RW/DVD-ROM SBW242B], [PM-TOSHIBA
MK40255GAS] and [Disabled]. Default setting is [PM-TOSHIBA
MK40255GAS].

5 - 9

6200 Series Notebook PC

M610 Series Notebook PC

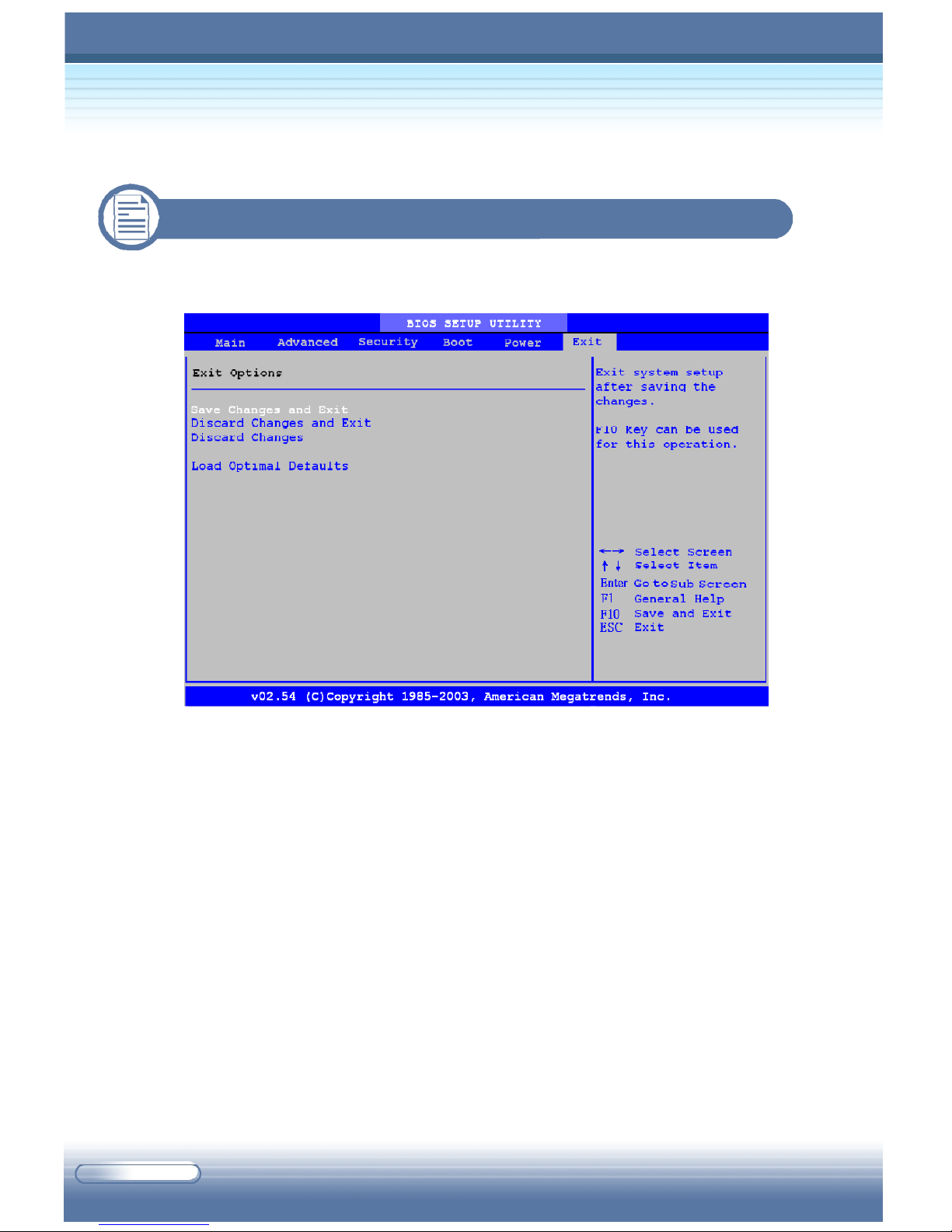

5.6 Exit Options

Exit Options

Press <Enter> and the following sub-menu appears.

Save Changes and Exit

Exit system with saving the changes.

Discard Changes and Exit

Exit system setup without saving any change. Press Enter or ESC can set
up this option.

Discard Changes

Discard Changes without exiting. It is used when you need to change some­thing else.

Load Optimal Defaults

Turn setting all back to defaults.

5 - 10

Expanding and

Upgrading

You can expand the capabilities of your Notebook PC and
upgrade your system as necessary. This chapter introduces the
installation of optional devices/components for your Notebook
PC.

2 - 1

6200 Series Notebook PC

M610 Series Notebook PC

6.1 Connecting the External Devices

The I/O (input/output) ports on the rear panel of the computer allow you to
connect peripheral devices. For the information of these I/O ports, please
refer to Quick Components Guide in Chapter 1.

Connecting the Peripheral Devices

6 - 2

Connecting a TV

The S-Video connector of your computer allows you to use a TV to display the
computer images for your specific purpose, such as enjoying your DVD movies.
To connect a TV, you will need the S-Video cable (not included). Then, you
can configure the display settings as described in the section Using the
Video Function of Chapter 2.

Connecting USB Devices

The USB 2.0 ports of your computer allow you to connect many peripheral
devices, such as the mouse, keyboard, speakers, modem, external hard
disk module, printer, and more. The USB-standard interface supports “plug-
and-play” technology, so that you can connect and remove the USB devices
without turning off the computer.
To connect the USB device, simply connect the cable of the device to the USB
port of your computer.

Connecting an External Monitor

You can connect an external monitor to your computer through the VGA port
for a larger view with higher resolution. To connect the monitor:

1. Confirm that the computer is turned off.

2. Plug the monitor’s D-type connector into the computer’s VGA port.

3. Connect the monitor’s power cord, and then turn on the monitor.

4. Turn on the computer, and the monitor should respond by default.
If not, you can switch the display mode by pressing [Fn]+[F2].
Alternately, you can change the display mode by configuring the
settings in Display Properties of Windows operating system.

6 - 3

6200 Series Notebook PC

INTERNET/

M610 Series Notebook PC

Connecting the Communication Devices

Using the LAN

The RJ-45 connector of the computer allows you to connect the LAN (local
area network) devices, such as a hub, switch, and gateway, to build a network
connection. This built-in 10/100 Base-T LAN module supports data transfer
rate up to 100Mbps.

The following diagram describes the basic connection in a network
environment. For more instructions or detailed steps on connecting to the
LAN, please ask your MIS staff or network manager for help.

INTRANET

6 - 4

Using the Modem

The built-in 56Kbps fax/data modem allows you to use a telephone line to
communicate with others, or to dial-up to connect the Internet. It should be
noticed that Cable size has to be at least 26 or above.

The following diagram provides the basic connection of modem. For more
instructions or detailed steps on dialing-up through the modem, please ask
your MIS staff or Internet service provider (ISP) for help.

1. To reduce the risk of fire, use only No. 26 AWG or larger

MSI reminds you

telecommunication line cord.

6 - 5

6200 Series Notebook PC

M610 Series Notebook PC

Installing the PC Card

The PC card slot of your computer allows you to install comprehensive Type­II PC cards that support various functions for your necessary, including the
LAN/WLAN card, modem card, and memory card.

The following instruction provides you with a basic installation for the PC
card, including how to install and remove it. For more information, please
refer to the manual of your PC card.

Installing the PC card

1. Locate the PC card slot on your notebook computer. If there is the
dummy card in the slot, remove it first.

2. Insert the PC card into the slot (usually with its label facing up)
and push it until it is firmly seated.

6 - 6

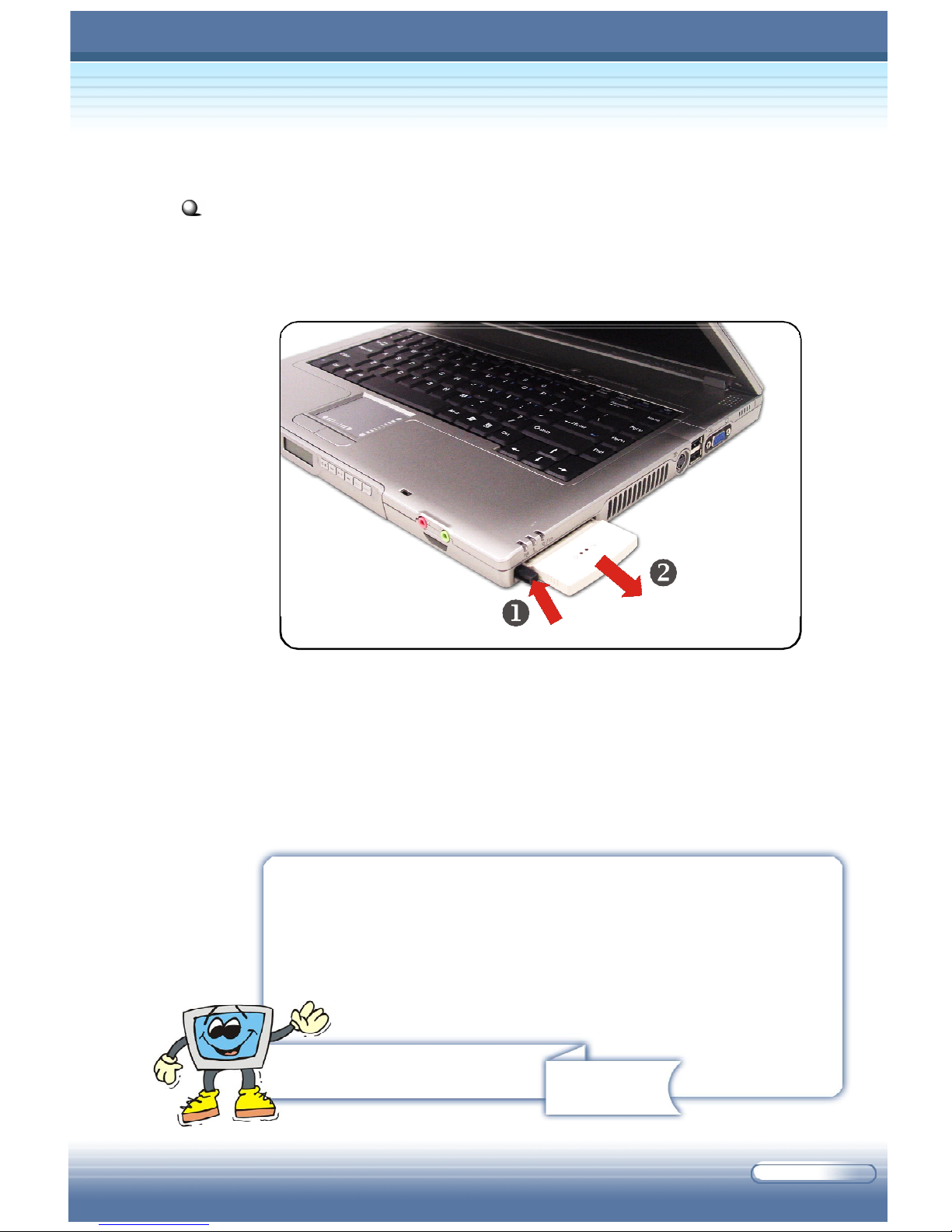

Removing the PC card

1. Press the Eject Button to make it stretch out.

2. Push the Eject Button (Œ) and the PC card will slide out slightly.

Then, pull it out of the slot (•).

1. Do not hold the “golden finger” when installing the PC

MSI reminds you

card; otherwise, it may cause interference or damage to
the PC card.

6 - 7

6200 Series Notebook PC

M610 Series Notebook PC

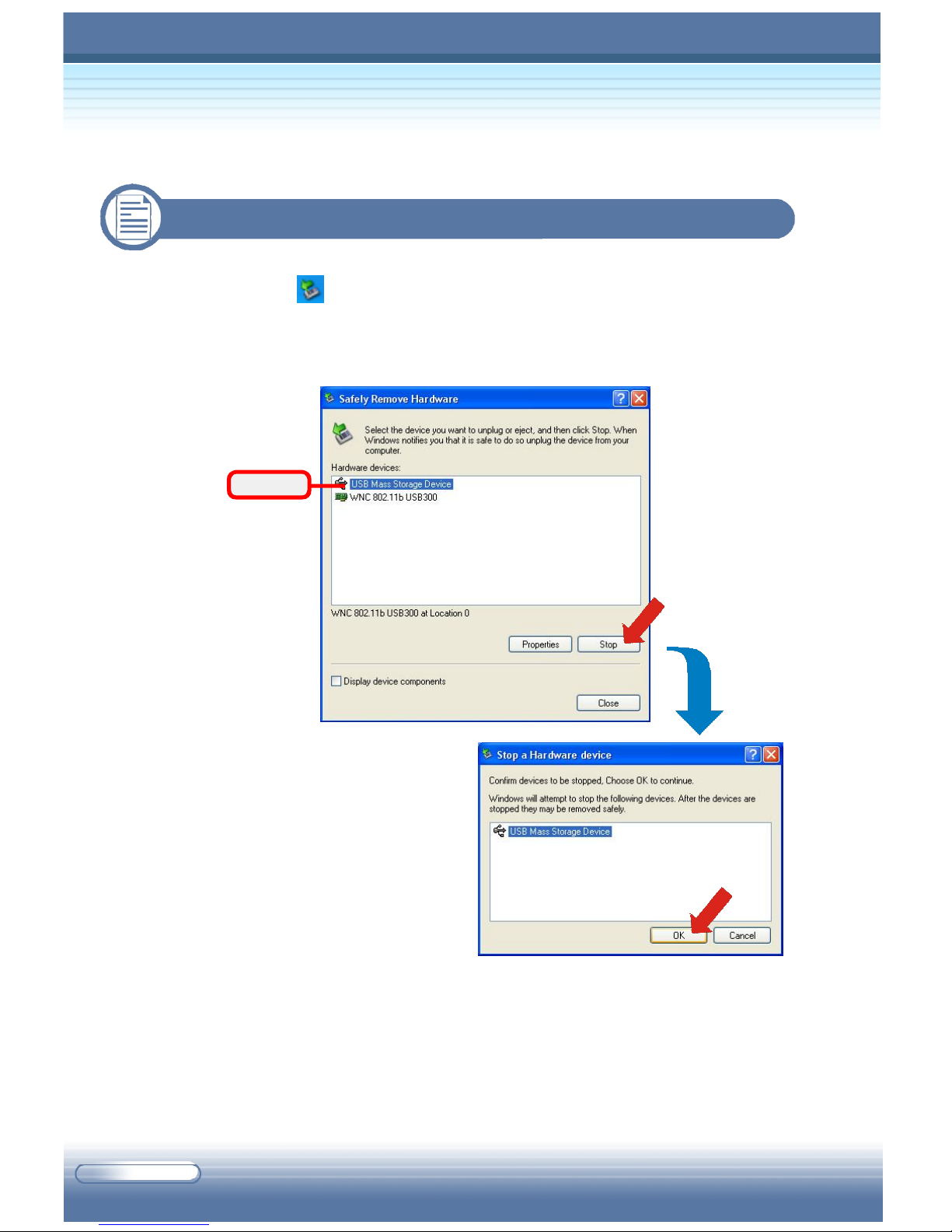

6.2 Safely Remove Hardware

If you connect any peripheral device to your system, the Safely Remove
Hardware icon ( ) will appear on the taskbar. Double-click the icon to bring

up the Safely Remove Hardware dialog box. You can see all connected
peripheral devices here. If you want to remove any of the devices, move the
cursor to the device and then click Stop.

Select

The following dialog box is to confirm
the device to be removed. Click OK
to continue.

You have successfully removed the device. Click Close to exit.

6 - 8

6.3 Upgrading your System

You can upgrade your Notebook PC through the following ways:

1) adding memory to a maximum of 2GB.

2) replacing the hard disk drive.

6 - 9

Caring Your

Notebook PC

To ensure trouble-free operation and reduce any hazardous
risk while working, you should take good care of your computer.
This chapter provides the basic guidelines to protect your
computer and critical data.

2 - 1

6200 Series Notebook PC

M610 Series Notebook PC

7.1 Protecting Your Notebook PC

We understand your Notebook PC is a valuable investment and how your
important data stored in your system means to you. Therefore, following are
suggestions to protect your system.

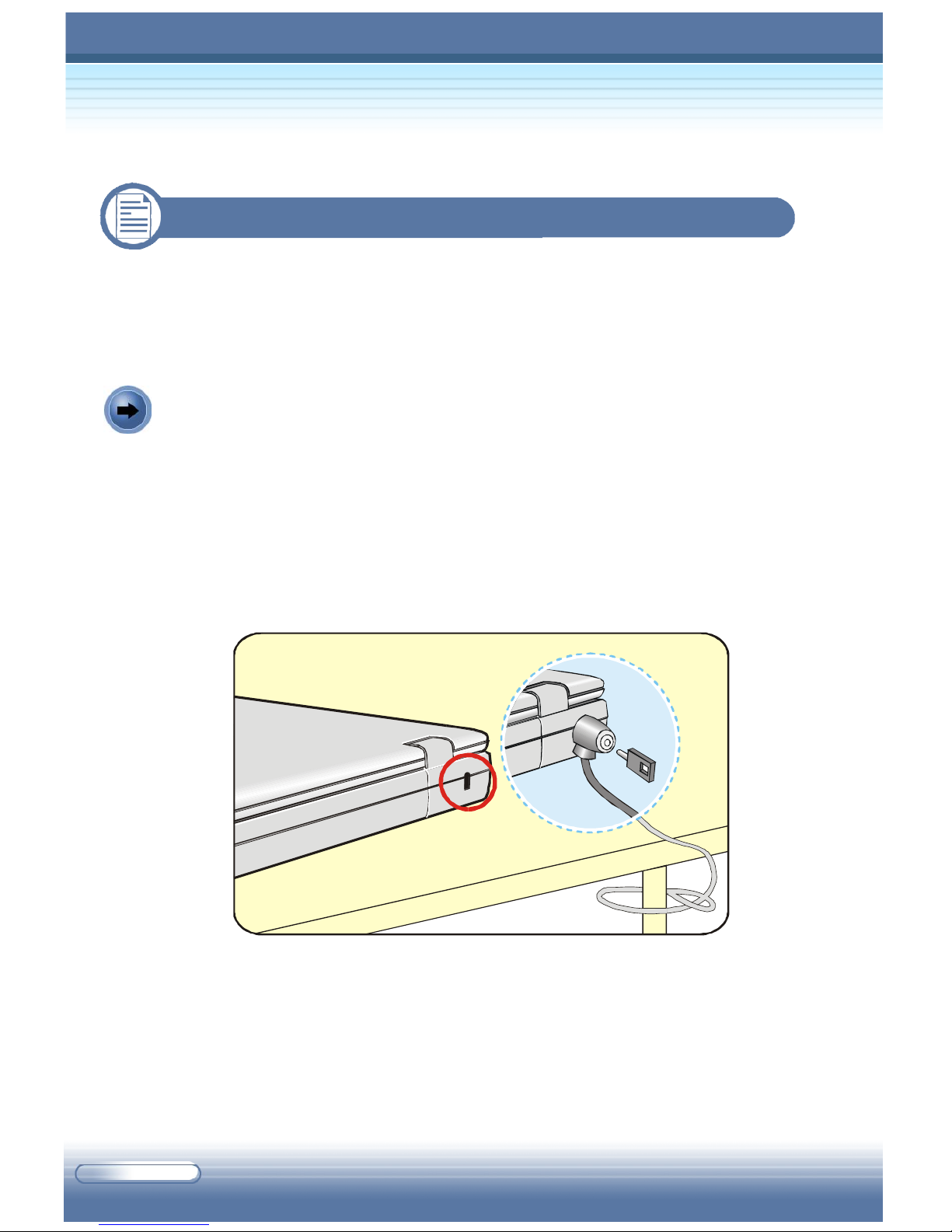

Locking Your Computer

When you use the computer in the public area, you can secure your computer
on the immovable object (such as a desk) by connecting a Kensington­compatible lock.

1. Loop the cable around the immovable object.

2. Plug the lock into the Kensington Lock hole of the computer, and
lock it up with the key.

3. Keep the key in a safe and personal location.

The Kensington lock is not included in your package; however, it is available
in the computer store. It can protect your computer from being stolen.

7 - 2

Setting Up Password

Power-on Password

You can protect your computer from
unauthorized use by setting up a boot
password. Once the boot password
is set, it will bring up a dialog box
requesting for the password
whenever the computer is turned on.
The boot password is stored in the
BIOS. To set up the password,
please refer to the instruction in
Chapter 5.

Operating System Password

In addition to the boot password, you can also set up the password in the
operating system, such as the login password and screen saver password.
Once the login password is set, it will ask you to enter the user name and
password when logging in Windows.

For more information on setting the system password, please refer to the
manual or online help of your operating system.

1. Remember the password once they are set. If you
forgot the passwords, please contact
your local dealer for assistance.

2. You are recommended to set up the password; it can
protect your computer from use by unauthorized
users.

MSI reminds you

7 - 3

6200 Series Notebook PC

M610 Series Notebook PC

Using the Anti-Virus Protection

About Computer Virus

In one word, the computer virus is a program that replicates; therefore, it will
need to attach itself to other program files, such as .exe, .com, .dll files. The
virus start to wreak havoc within the computer whenever these executable
programs execute. The destructive portion of a virus can range from overwriting
critical information stored on your hard disk’s partition table to scrambling
the numbers in your spreadsheets to just taunting you with sounds, pictures,
or obnoxious effects.

Anti Virus Software

To protect your computer from being attacked by the computer virus, the Anti
Virus application is pre-installed in your system. It provides comprehensive
and easy to use protection from viruses, hackers, and other Internet-based
threats. With its friendly interface, you can quickly become familiar with all the
powerful features of the software.

To know more about the computer virus and the Anti Virus
application, please refer to the document or online help of the
software.

MSI reminds you

7 - 4

7.2 Tips for Traveling

With your Notebook PC, you can use the computer with more versatility, and
in more situations than ever before. Empowered by its light weight design
and optimized battery life, you can bring it to presentation and meetings
whenever and wherever you want.

To better help our frequent-flying users work with their Notebook PCs, we
have put up some tips for them to take care of the units.

Bring the fully charged Notebook PC to meetings for long-time
use. If the meeting time is longer than 4 hours, you are
recommended to prepare a second battery pack or an AC adapter.

Store your Notebook PC in a cool and dry place if you cannot bring it
with you. Long-time exposure to temperature and humidity fluctuation
may cause malfunction of the system.

Carry your Notebook PC as a carry-on luggage. The airport X-ray
detector is OK but the handheld metal detector is not acceptable.

Use power cord and connector that are appropriate for the country to
which you are traveling.

7 - 5

6200 Series Notebook PC

M610 Series Notebook PC

7.3 Taking Care of Your Computer

The guidelines provided in this section are basic good practices to care for
your computer.

Placing and Operating Your Computer

Use the computer in a proper environment where the temperature
is between 10OC (50OF) and 35OC (95OF) and the humidity not
higher than 80%.

Place the computer on a flat, solid and steady surface.
DO NOT block the vent when operating the computer.
DO NOT move the computer vigorously while it is running.
DO NOT place any heavy object on the computer.
DO NOT scratch the LCD panel by using any sharp object, such as

your finger or pencil.
Keep the computer away from electrical appliances, such as a

TV, to avoid the interference.

7 - 6

Cleaning Your Computer

TURN OFF the computer when you have to clean it.
Clean your computer by using a soft, dry cloth ONLY; do not use alkaline

detergent to wipe the exterior of the computer.
Do not clean the LCD panel by using alcohol or detergent. Only use the soft,

lint-free cloth to wipe the LCD panel gently.
Dirt, dust and grease will cause the keyboard and touch pad malfunction, you

can clean them by using an air compressor or brush.

Using the Battery Pack

Battery Safety Tips

Replacing or handling the battery incorrectly may present a risk of fire or
explosion, which could cause serious injury.

Only replace the main battery pack with the same or equivalent
type of battery.

Do not disassemble, short-circuit, or incinerate batteries or expose
them to temperatures above +60OC (+140OF).

Do not tamper with batteries. Keep them away from children.
Do not use rusty or damaged batteries.
Dispose of batteries according to local regulations. Check with your

local solid waste officials for details about recycling options or for
proper disposal in your area.

7 - 7

6200 Series Notebook PC

M610 Series Notebook PC

Conserving Battery Power

Efficient battery power is critical to maintain a normal operation of the system.
If the battery power is not managed well, your saved data and customized
settings may be lost.

Follow these tips to help optimize battery life and avoid a sudden power loss.

Suspend system operation if the system will be idle for a while or
shorten the Suspend Timer’s time period.

Power off the system if you won’t be using it for a period of time.
Disable unneeded settings or remove idle peripherals to conserve

power.
Connect an AC adapter to the system whenever possible.

Charging the Battery Pack

The battery pack can be charged while it is installed in the Notebook PC.
Please NOTE that the following with respect to charging or changing the
battery pack:

If a charged battery pack is not available, save your work and
close all running programs, then shut down the system or
hibernate.

Plug in an external AC/DC power source.
You can use the system, suspend system operation, or shut down

and turn off the system without interrupting the charging process.
The battery pack uses Lithium Ion battery cells that have no

“memory effect.” You do not need to discharge the battery pack
before you begin charging. However, to optimized the life of your
battery pack, we suggest that once a month the power is
consumed entirely.

If you do not use the Notebook PC for a long time, it is suggested to
remove the battery pack from your computer. This may be helpful to
extend your battery life.

The actual charging time will be determined by the applications in
use.

7 - 8

1. The charging time depends on the system mode.

2. The Power Meter only provides an estimated value of

3. For more instructions on using and caring the battery

MSI reminds you

When the computer is turned on, it will take a longer
time (3~4 hours) to have the battery fully charged.

the battery power. The operating time allowed depends
on the actual use of your computer.

pack, please refer to Taking Care of Your Computer in
Chapter 7.

7 - 9
