MSI IM-945GC, IM-945GC-D User Manual

IM-945GC / IM-945GC-D
MS-9832 (V1.X) Mainboard
G52-98321X1
i
Copyright Notice
guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners. Intel® and Pentium® are registered trademarks of Intel Corporation.
AMD, Athlon, Athlon XP, Thoroughbred, and Duron are registered trade­marks of AMD Corporation. NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trade­marks of NVIDIA Corporation in the United States and/or other countries. PS/2 and OS®/2 are registered trademarks of International Business Machines Corporation. Windows® 98/2000/NT/XP/Vista are registered trademarks of Microsoft Corporation. Netware® is a registered trademark of Novell, Inc. Award® is a registered trademark of Phoenix Technologies Ltd. AMI® is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V1.0 First release September 2008
Technical Support
If a problem arises with your system and no solution can be obtained from the users manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.
Visit the MSI website at http://global.msi.com.tw/index.php?
func=service for FAQ, technical guide, BIOS updates, driver updates, and
other information.
Contact our technical staff at http://ocss.msi.com.tw.
ii
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this Users Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equip­ment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V be­fore connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical shock.
11. If any of the following situations arises, get the equipment checked by service personnel:
The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well or you can not get it work according to Users Manual. The equipment has dropped and damaged. The equipment has obvious sign of breakage.
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STOR­AGE TEMPERATURE ABOVE 600 C (1400F), IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
iii
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected. Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
VOIR LA NOTICE DINSTALLATION AVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-9832
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
iv
WEEE (Waste Electrical and Electronic Equipment) Statement
v
vi
vii
CONTENTS
Copyright Notice..............................................................................................................ii
Trademarks.......................................................................................................................ii
Revision History..............................................................................................................ii
Technical Support...........................................................................................................ii
Safety Instructions.........................................................................................................iii
FCC-B Radio Frequency Interference Statement........................................................iv
WEEE (Waste Electrical and Electronic Equipment) Statement....................................v
Chapter 1 Product Overview................................................................................1-1
Mainboard Specifications...................................................................................1-2
Block Diagram.......................................................................................................1-4
Mainboard Layout................................................................................................1-5
Board Dimension..................................................................................................1-6
Back Panel & I/O Shield Drawing........................................................................1-7
Power Consumption............................................................................................1-8
Safety Compliance & MTBF..............................................................................1-10
Chapter 2 Hardware Setup....................................................................................2-1
Quick Components Guide....................................................................................2-2
Memory.................................................................................................................2-3
Power Supply......................................................................................................2-4
Back Panel I/O......................................................................................................2-5
Connector............................................................................................................2-7
Jumper................................................................................................................2-13
Slot......................................................................................................................2-15
Chapter 3 BIOS Setup.............................................................................................3-1
Entering Setup.....................................................................................................3-2
The Main Menu.....................................................................................................3-4
Standard CMOS Features...................................................................................3-6
Advanced BIOS Features...................................................................................3-9
Integrated Peripherals.......................................................................................3-13
Power Management Setup...............................................................................3-16
PnP/PCI Configurations......................................................................................3-19
H/W Monitor........................................................................................................3-21
Load Fail-Safe / Optimized Defaults................................................................3-22
BIOS Setting Password.....................................................................................3-23
Chapter 4 System Resources.............................................................................4-1
Watch Dog Timer Setting.....................................................................................4-2
AMI POST Code...................................................................................................4-3
Resource List......................................................................................................4-7
viii
Product Overview
Chapter 1
Product Overview
Thank you for choosing the IM-945GC / IM-945GC-D (MS-9832 v1.X) Mini ITX mainboard from MSI.
Based on the innovative Intel® 945GC & ICH7 control­lers for optimal system efficiency, the IM-945GC / IM­945GC-D accommodates the latest Intel® Atom processor, single-core (230) & dual-core (330) (Diamondville) and supports one DDR2 533/667/800 DIMM slot to provide the maximum of 2GB memory capacity.
TM
In the entry-level and mid-range market segment, the IM-945GC / IM-945GC-D can provide a high-perform­ance solution for todays front-end and general pur­pose workstation, as well as in the future.
1-1
MS-9832 Mainboard
Mainboard Specifications
Processor
- Intel Atom processor, single-core (230) & dual-core (330) (Diamondville)
FSB
- 533MHz
Chipset
- Northbridge: Intel 945GC chipset
- Southbridge: Intel ICH7 chipset
Memory
- 1 unbuffered non-ECC DDR2 533/667/800 DIMM slot
- Up to 2GB memory capacity
LAN
- Supports Gigabit Ethernet by Realtek RTL8111C
Audio
- HDA Codec by Realtek ALC888 7.1 channel
- Compliant with Azalia 1.0 specs
IDE
- 1 IDE port by Intel ICH7
- Supports Ultra DMA 66/100 mode
- Supports PIO, Bus Master operation mode
SATA
- 4 SATAII ports by Intel ICH7
- Supports 4 SATAII devices
- Supports up to 3Gb/s data transfer rate
Graphics
- Onboard graphics integrated in Intel 945GC
NOTE: When assembling a system with this mainboard, make sure that
you install a system fan to prevent the system from overheating.
1-2
Connectors
Back Panel
- 1 PS/2 mouse port
- 1 PS/2 keyboard port
- 3 serial ports
- 1 VGA port
- 2 Gigabit LAN jacks
- 4 USB 2.0 ports
- 3 audio jacks
Onboard Connectors
- 1 front panel audio pinheader
- 1 USB 2.0 pinheader (2 ports)
- 3 serial port connectors
- 1 SPI Flash ROM pinheader (for debugging)
- 1 chassis intrusion switch pinheader
Product Overview
Slots
- 1 Mini PCI-E slot
- 1 32-bit/33MHz PCI slot
Form Factor
- Mini ITX: 170mm x 170mm
Mounting
- 4 mounting holes
Environmental
Storage Environment
- Temperature: -20oC ~ 80oC
- Humidity: 5% ~ 90% non condensing
Operation Environment
- Temperature: 0oC ~ 60oC
- Humidity: 5% ~ 90% non condensing
1-3
MS-9832 Mainboard
Block Diagram
1-4
JCOMP3
JUSB1
JSPI1
SATA1
SATA3
SATA2
SATA4
JPWR2
CPUFAN1
SYSFAN1
LAN Chip
Audio Chip
Diamondville
JCOMP3
JUSB1
JSPI1
SATA1
SATA3
SATA2
SATA4
CPUFAN1
SYSFAN1
Diamondville
Mainboard Layout
Product Overview
Top: Mouse Bottom: Keyboard
Top: CONN1 Serial Port Bottom: VGA Port
COM1
Top & Bottom: CONN2 Serial Ports
JCOMP2
Top: LAN Jack Bottom: USB Ports
Top: LAN Jack Bottom: USB Ports
T: Line-In M: Line- Out B: MIC-In
JCOMP7
LAN Chip
Audio Chip
JAUD1
LAN Chip
JCOMP1
COM2
JCOMP6
JCI1
JCOMP4
JCOMP5
CON1
PCI1
COM3
Intel CPU
Intel
945GC
DIMM1
Intel
+
ICH7
BATT
JBAT1
JFP1
ATX1
IDE1
IM-945GC (MS-9832 v1.X) Mini ITX Mainboard
Top: Mouse Bottom: Keyboard
Top: CONN1 Serial Port Bottom: VGA Port
COM1
Top & Bottom: CONN2 Serial Ports
JCOMP2
Top: LAN Jack Bottom: USB Ports
Top: LAN Jack Bottom: USB Ports
T: Line-In M: Line- Out B: MIC-In
JCOMP7
JAUD1
JPW1
LAN Chip
JCOMP1
COM2
JCOMP6
JCI1
JCOMP4
JCOMP5
COM3
CON1
PCI1
Intel CPU
Intel
945GC
DIMM1
IDE1
Intel
+
ICH7
BATT
JBAT1
JFP1
IM-945GC-D (MS-9832 v1.X) Mini ITX Mainboard
1-5
MS-9832 Mainboard
Board Dimension
1-6
Back Panel & I/O Shield Drawing
Product Overview
1-7
MS-9832 Mainboard
Power Consumption
Component Description
CPU Intel® Atom Processor 200 Series Memory Corsair 1G DDR2-800 x1 Add-On VGA NA Hard Disk Western 80G IDE 7200rpm HDD x1 Operating system Microsoft® Windows XP® Professional SP2
MS-9832 (ATX)
Enter DOS (Stable) Enter BIOS (Stable) Idle CPU Stress 100% Windows stress(3dMARK2006) Windows Desktop Standby S1 without LAN connected (stable) Windows Desktop Standby S3 without LAN connected (stable) Windows Desktop Hibernate S4 without LAN connected (stable) Windows Desktop Soft Off S5 without LAN connected (stable)
3.3V input 5V input
Current
(A)
0.58 0.47 0.11 0.05 5.834W
0.58 0.48 0.09 0.05 5.644W
0.41 0.50 1.04 0.05 16.583W
0.59 0.63 1.15 0.05 19.147W
0.59 1.10 1.50 0.05 25.697W
0.43 0.46 0.80 0.02 13.419W
0 0 0 0.28 1.4W
0 0 0 0.15 0.75W
0 0 0 0.15 0.75W
Current
(A)
12V
input
Current
(A)
5VSB Total Watt
Current
(A)
Watt
1-8
Component Description
Operating system
CPU Intel® Atom Processor 200 Series Memory Corsair 1G DDR2-800 x1 Add-On VGA NA Hard Disk Western 80G IDE 7200rpm HDD x1
Microsoft® Windows XP® Professional SP2
Product Overview
MS-9832 (DC) Current(A) Watt
Enter DOS (Stable) Enter BIOS (Stable) Idle 1.578 A 18.936W CPU Stress 100% 1.760 A 21.120W Windows stress(3dMARK200
6) Windows Desktop Standby S1 without LAN connected (stable) Windows Desktop Standby S3 without LAN connected (stable) Windows Desktop Hibernate S4 without LAN connected (stable) Windows Desktop Soft Off S5 without LAN connected (stable)
1.613 A 19.356W
1.600 A 19.200W
2.213 A 26.556W
1.270 A 15.240W
0.240 A 2.880W
0.175 A 2.100W
0.188 A 2.256W
12V input
1-9
MS-9832 Mainboard
flicker in low-voltage supply system
Safety Compliance & MTBF
CertificationStandard number Title of standard
Product family standard Limits for harmonic current emission
Limitation of voltage fluctuation and
CE
BSMI C-Tick
FCC
VCCI
EN 55022: 2006
RFI
Immunity EN 55024:1998+A1:2001+A2:2003Product family standard CNS 13438 乙類(1995年6月版) AS/NZS CISPR 22:2006 FCC CFR Title 47 Part 15 Subpart B: 2005 Class B CISPR 22: 2006 VCCI V-3:2008 Class B VCCI V-4:2008 Class B
EN 2006 EN 1995+A1:2001+A2:2005
9832-01S MTBF - Reliability Prediction
Calculation Model
Telcordia Issue 1 25
Operation
Temperature (°C)
GB, GC - Ground
9832-02S MTBF - Reliability Prediction
Calculation Model
Telcordia Issue 1 25
Operation
Temperature (°C)
Environment
GB, GC - Ground
Operating
Environment
Benign,
Controlled
Operating
Benign,
Controlled
Duty Cycle (FITs.) MTBF (hr.)
3,480.218071
Duty Cycle (FITs.) MTBF (hr.)
3,657.522543
287,338
273,409
1-10
Hardware Setup
Chapter 2
Hardware Setup
This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static electricity may damage the components.
2-1
MS-9832 Mainboard
Quick Components Guide
CPUFAN1, p.2-9
Back Panel
I/O, p.2-5
JCOMP1, p.2-14
COM1, p.2-9
JCOMP4, p.2-14
COM2, p.2-9
JCOMP5, p.2-14
JCOMP2, JCOMP7, JCOMP6,
p.2-14
JCI1, p.2-10
COM3, p.2-9
CON1, p.2-14
JPW1, p.2-4
JPWR2, p.2-4
SYSFAN1, p.2-9
DIMM Slot, p.2-3
ATX1, p.2-4
IDE1, p.2-7
JBAT1, p.2-13
SATA1~4,
p.2-8
JAUD1, p.2-12
2-2
JCOMP3, p.2-14
PCI1, p.2-14
JSPI1, p.2-8
JFP1, p.2-11
JUSB1, p.2-10
Hardware Setup
Memory
These DIMM slots are intended for system memory modules.
DDR2
240-pin, 1.8V
64x2=128 pin 56x2=112 pin
Installing Memory Modules
1. Locate the DIMM slots on the mainboard. Flip open the retaining clip at each side of the DIMM slot.
2. Align the notch on the DIMM with the key on the slot. Insert the DIMM vertically into the DIMM slot. Then push it in until the golden finger on the DIMM is deeply inserted in the DIMM slot. The retaining clip at each side of the DIMM slot will automatically close if the DIMM is properly seated.
Important
You can barely see the golden finger if the DIMM is properly inserted in the DIMM slot.
3. Manually check if the DIMM has been locked in place by the retaining clips at the sides.
Volt
Notch
2-3
MS-9832 Mainboard
Power Supply
System Power Connector: ATX1 (for IM-945GC)
This connector allows you to connect a 20-pin power supply. To connect the power supply, make sure the power supply connector is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.
ATX1
10 20
1
PIN SIGNAL
1 +3.3V 2 +3.3V 3 GND 4 +5V 5 GND 6 +5V 7 GND 8 PWR OK
11
9 5VSB 10 +12V
Pin Definition
PIN SIGNAL
11 +3.3V 12 -12V 13 GND 14 PS-ON# 15 GND 16 GND 17 GND 18 Res 19 +5V 20 +5V
System Power Connector: JPW1 (for IM-945GC-D)
This 12V power connector is used to provide power to the system & CPU.
Pin Definition
JPW1
2
1
34
PIN SIGNAL
1 GND 2 GND 3 12V 4 12V
SATA HDD Power Connector: JPWR2 (for IM-945GC-D)
These connectors provide power to the SATA hard disk drives.
2-4
JPWR2
G
G
V C
N
N
C
D
D
5
+ 1 2 V
Back Panel I/O
Hardware Setup
CONN2
Serial Port
LAN
LAN
Line-In
Mouse
CONN1
Serial Port
Line-Out
Keyboard USB Ports
VGA Port
CONN2
USB Ports
MIC
Serial Port
Mouse/Keyboard
The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.
Serial Port The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector.
VGA Port The DB15-pin female connector is provided for monitor.
USB Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices.
LAN The standard RJ-45 LAN jack is for con-
Speed IndicatorActivity Indicator
nection to the Local Area Network (LAN). You can connect a network cable to it.
Left LED Right LED Active LED 100M/1000M Speed LED
LED Color Yellow Green/Orange 10M Cable Plug-in No Transmission Slow Blinking OFF
Transition Swiftly Blinking OFF
100M Cable Plug-in No Transmission Slow Blinking Green(Lighting)
Transition Swiftly Blinking Green(Lighting)
1000M Cable Plug-in No Transmission Slow Blinking Orange(Lighting)
Transition Swiftly Blinking Orange(Lighting)
In S3/S4/S5 Standby State Green (Lighting) OFF
2-5
MS-9832 Mainboard
Audio Ports These audio connectors are used for audio devices. You can differentiate the color of the audio jacks for different audio sound effects.
Line-In (Blue) - Line In, is used for external CD player, tapeplayer or other
audio devices.
Line-Out (Green) - Line Out, is a connector for speakers or headphones. Mic (Pink) - Mic, is a connector for microphones.
2-6
Hardware Setup
Connector
IDE Connector: IDE1
This connector supports IDE hard disk drives, optical disk drives and other IDE devices.
IDE1
Important
If you install two IDE devices on the same cable, you must configure the drives separately to master / slave mode by setting jumpers. Refer to IDE device’s documentation supplied by the vendors for jumper setting instructions.
2-7
MS-9832 Mainboard
SPI Flash ROM Pinheader: JSPI1
This pinheader is used to flash SPI flash ROM.
Pin Definition
Pin Description Pin Description
9
10
JSPI1
1 2
1 VCC3_SB 2 VCC3_SB 3 SPI_MISO_F 4 SPI_MOSI_F 5 SPI_CS0_F# 6 SPI_CLK_F 7 GND 8 GND 9 SPI_HOLD# 10 NC
Serial ATA Connector: SATA1, SATA2, SATA3, SATA4
This connector is a high-speed Serial ATA interface port. Each connector can con­nect to one Serial ATA device.
SATA1
SATA3
SATA2
SATA4
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur during transmission.
2-8
Hardware Setup
Serial Port Connector: COM1, COM2, COM3
This connector is a 16550A high speed communications port that sends/receives 16 bytes FIFOs. You can attach a serial device to it through the optional serial port bracket.
Pin Definition
COM1
9 1
10 2
COM2
2 10 1 9
COM3
1
9
2
10
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect 2 SIN Serial In or Receive Data 3 SOUT Serial Out or Transmit Data 4 DTR Data Terminal Ready 5 GND Ground 6 DSR Data Set Ready 7 RTS Request To Send 8 CTS Clear To Send 9 VCC_COM Power Source
Fan Power Connector: CPUFAN1, SYSFAN1
The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.
CPUFAN1
GND
+1 2V
FAN_RPM
FAN_PW M
SYSFAN1
GND
+12V
FAN_RPM
Important
Please refer to the recommended CPU fans at CPU vendors official website or consult the mainboard vendor for proper CPU cooling fan.
2-9
MS-9832 Mainboard
Chassis Intrusion Connector: JCI1
This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.
CINTRU
GND
1 2
JCI1
Front USB Pinheader: JUSB1
This pinheader, compliant with Intel® I/O Connectivity Design Guide, is ideal for con­necting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC 3 USB0- 4 USB1­5 USB0+ 6 USB1+ 7 GND 8 GND 9 Key (no pin) 10 USBOC
USB 2.0 Bracket
(Optional)
9
10
JUSB1
1
2
Important
Note that the pins of VCC and GND must be connected correctly to avoid possible damage.
2-10
Hardware Setup
Front Panel Connector: JFP1
The mainboard provides one front panel connector for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.
Power
Power
LED
Switch
-
+
-
+
Reset Switch
10 9
JFP1
2
1
+
HDD LED
-
Pin Definition
PIN SIGNAL DESCRIPTION
1 HD_LED + Hard disk LED pull-up 2 FP PWR/SLP MSG LED pull-up 3 HD_LED - Hard disk active LED 4 FP PWR/SLP MSG LED pull-up 5 RST_SW - Reset Switch low reference pull-down to GND 6 PWR_SW + Power Switch high reference pull-up 7 RST_SW + Reset Switch high reference pull-up 8 PWR_SW - Power Switch low reference pull-down to GND 9 RSVD_DNU Reserved. Do not use.
2-11
MS-9832 Mainboard
Front Panel Audio Connector: JAUD1
This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.
JAUD1
2
1
HD Audio Pin Definition
PIN SIGNAL DESCRIPTION
1 MIC_L Microphone - Left channel 2 GND Ground 3 MIC_R Microphone - Right channel 4 PRESENCE# Active low signal-signals BIOS that a High Definition Audio dongle
is connected to the analog header. PRESENCE# = 0 when a
High Definition Audio dongle is connected 5 LINE out_R Analog Port - Right channel 6 MIC_JD Jack detection return from front panel microphone JACK1 7 Front_JD Jack detection sense line from the High Definition Audio CODEC
jack detection resistor network 8 NC No control 9 LINE out_L Analog Port - Left channel 10 LINEout_JD Jack detection return from front panel JACK2
10
9
2-12
Hardware Setup
Jumper
Clear CMOS Jumper: JBAT1
There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. With the CMOS RAM, the system can auto­matically boot OS every time it is turned on. If you want to clear the system configuration, set the jumper to clear data.
1
1
1
JBAT1
Keep Data
Clear Data
Important
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.
2-13
MS-9832 Mainboard
Serial Port Jumper: JCOMP1 ~ JCOMP7
These jumpers specify the operation voltage & function of the onboard serial ports.
1
JCOMP1
(for COM1),
JCOMP5
(for CONN1)
1
JCOMP2
(for COM2),
JCOMP7
(for CONN2
top port),
JCOMP6
(for CONN2
bottom port)
1
+5V
1
+5V +12V
1
+12V
1
JCOMP3
(for COM3)
JCOMP4
(for CONN1)
2-14
1
1
+5V
1
1
POWER
1
+12V
1
RING
Hardware Setup
Slot
PCI (Peripheral Component Interconnect) Express Slot
The CON1 is Mini PCI-E connector for wireless LAN, TV tuner, and Robson NAND Flash.
Mini PCI-E Slot
PCI (Peripheral Component Interconnect) Slot
The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.
32-bit PCI Slot
Important
When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expan­sion card, such as jumpers, switches or BIOS configuration.
2-15
This page is intentionally left blank.
viii
BIOS Setup
Chapter 3
BIOS Setup
This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when:
² An error message appears on the screen during the
system booting up, and requests you to run SETUP.
² You want to change the default settings for cus-
tomized features.
3-1
MS-9832 Mainboard
Entering Setup
Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <Del> key to enter Setup.
Press Del to enter SETUP
If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.
Important Important
1.The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the descrip­tion may be slightly different from the latest BIOS and should be held for reference only.
2.Upon boot-up, the 1st line appearing after the memory count is the BIOS version. It is usually in the format:
A9832IMS V1.0 081508 where:
1st digit refers to BIOS maker as A = AMI, W = AWARD, and P = PHOENIX. 2nd - 5th digit refers to the model number. 6th digit refers to the chipset as I = Intel, N = nVidia, and V = VIA. 7th - 8th digit refers to the customer as MS = all standard customers. V1.0 refers to the BIOS version. 081508 refers to the date this BIOS was released.
3-2
Control Keys
<> Move to the previous item <> Move to the next item <> Move to the item in the left hand <> Move to the item in the right hand
<Enter> Select the item <Esc> Jumps to the Exit menu or returns to the main menu from a
<+/PU> Increase the numeric value or make changes <-/PD> Decrease the numeric value or make changes <F6> Load Optimized Defaults
<F7> Load Fail-Safe Defaults <F10> Save configuration changes and exit setup
BIOS Setup
submenu
Getting Help
After entering the Setup menu, the first menu you will see is the Main Menu.
Main Menu
Sub-Menu
If you find a right pointer symbol (as shown in the right view) appears to the left of certain fields that means a sub-menu can be launched from this field. A sub-menu contains additional op­tions for a field parameter. You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >.
General Help <F1>
The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.
3-3
MS-9832 Mainboard
The Main Menu
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of AMI® special enhanced features.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
Use this menu to specify PnP/PCI settings.
H/W Monitor
This entry shows your PC health status.
Load Fail-Safe Defaults
Use this menu to load the default values set by the BIOS vendor for stable system performance.
3-4
BIOS Setup
Load Optimized Defaults
Use this menu to load the default values set by the mainboard manufacturer specifi­cally for optimal performance of the mainboard.
BIOS Setting Password
Use this menu to set the password for BIOS.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.
3-5
MS-9832 Mainboard
Standard CMOS Features
Date (MM:DD:YY)
This allows you to set the system to the date that you want (usually the current date). The format is <day> <month> <date> <year>.
day Day of the week, from Sun to Sat, determined by
BIOS. Read-only.
month The month from Jan. through Dec. date The date from 1 to 31 can be keyed by numeric function keys. year The year can be adjusted by users.
Time (HH:MM:SS)
This allows you to set the system time that you want (usually the current time). The time format is <hour> <minute> <second>.
ATA/IDE Configuration
This setting specifies the operation mode of the ATA/IDE device.
3-6
BIOS Setup
IDE Primary Master/Slave, SATA1/2/3/4
Important
The IDE Primary Master/Slave, SATA1/2/3/4 items appear when you con­nect hard disk drives to the IDE/SATA connector on the mainboard.
Device, Vender, Size
These settings show the IDE/SATA device information. Read only.
LBA/Large Mode
This setting allows you to enable or disable the LBA Mode. Setting to [Auto] enables LBA mode if the device supports it and has not been formatted with LBA mode disabled.
DMA Mode
This setting specifies the DMA Mode.
Hard Disk S.M.A.R.T.
This setting allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Reporting Technology) capability for the hard disk drives. S.M.A.R.T is a utility that monitors your disk status to predict hard disk failure. This gives you an opportunity to move data from a hard disk that is going to fail to a safe place before the hard disk becomes off-line.
3-7
MS-9832 Mainboard
Halt On
The setting determines whether the system will stop if an error is detected at boot. When the system stops for the errors preset, it will halt on for 15 seconds and then automatically resume its operation.
System Information
These items show the CPU information, BIOS version and memory status of your system. Read only.
3-8
Advanced BIOS Features
BIOS Setup
Boot Sector Protection
The item is to set the Virus Warning feature for IDE Hard Disk boot sector protection. If the function is enabled and any attempt to write data into this area is made, BIOS will display a warning message on screen and beep.
Quick Booting
Setting the item to [Enabled] allows the system to boot within 5 seconds since it will skip some check items.
Boot Up Num-Lock LED
This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad.
IOAPIC Function
This field is used to enable or disable the APIC (Advanced Programmable Interrupt Controller). Due to compliance with PC2001 design guide, the system is able to run in APIC mode. Enabling APIC mode will expand available IRQ resources for the system.
MPS Table Version
This field allows you to select which MPS (Multi-Processor Specification) version to be used for the operating system. You need to select the MPS version supported by
3-9
MS-9832 Mainboard
your operating system. To find out which version to use, consult the vendor of your operating system.
Flash Write Protection
This function protects the BIOS from accidental corruption by unauthorized users or computer viruses.
CPU Feature
Hyper-Threading Function
The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instructions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Please disable this item if your operating system doesnt
support HT Function, or unreliability and instability may occur.
Execute Bit Support
Intel's Execute Disable Bit functionality can prevent certain classes of malicious "buffer overflow" attacks when combined with a supporting operating system. This functionality allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.
Set Limit CPUID MaxVal to 3
This setting sets Max CPUID extended function value to 3.
3-10

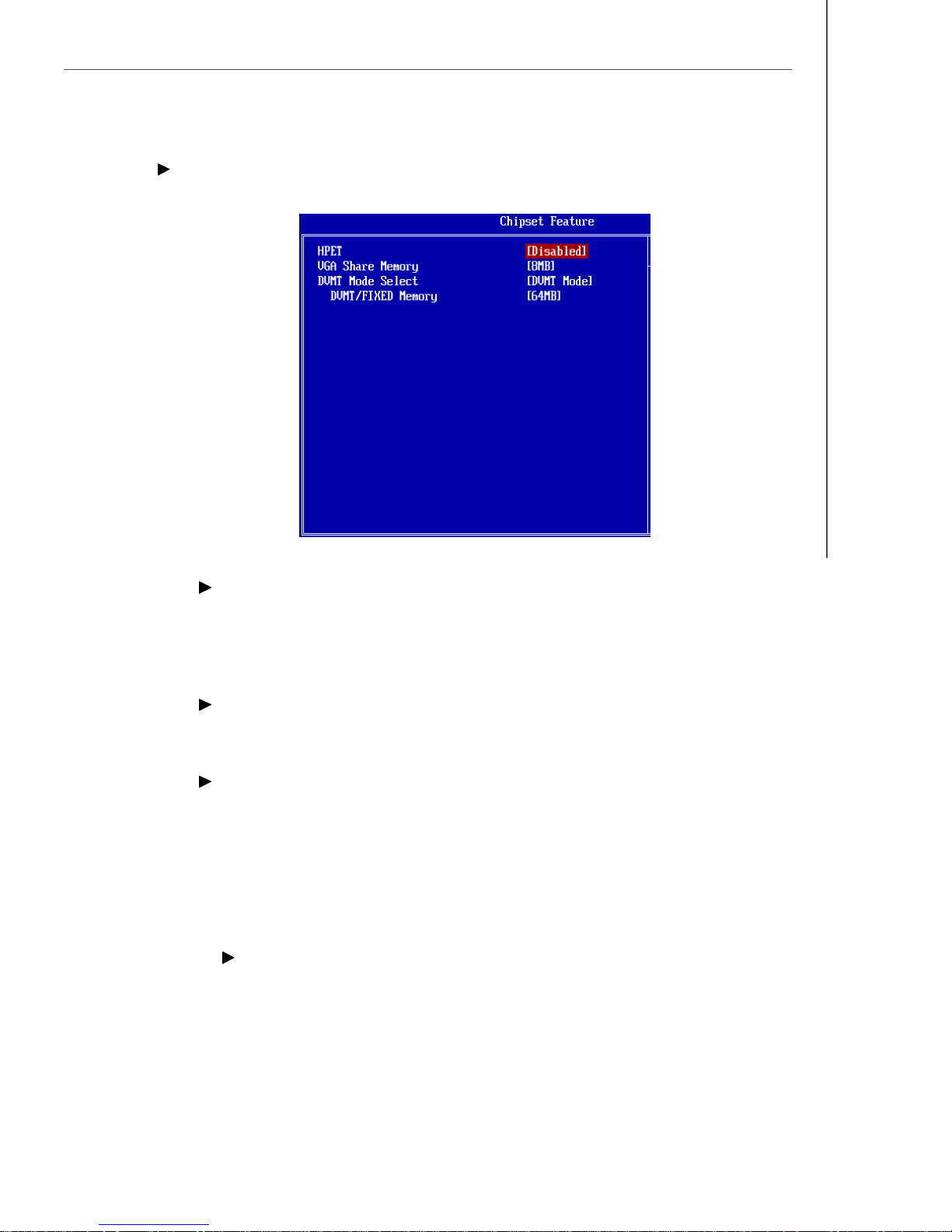

Chipset Feature
BIOS Setup
HPET
The High Precision Event Timer (HPET) was developed jointly by Intel and Microsoft to meet the timing requirements of multimedia and other time-sensitive applications. In addition to extending the capabilities and precision of a system, the HPET also improves system performance.
VGA Share Memory
The system shares memory to the onboard VGA card. This setting controls the exact memory size shared to the VGA card.
DVMT Mode Select
Intel's Dynamic Video Memory Technology (DVMT) allows the system to dy­namically allocate memory resources according to the demands of the system at any point in time. The key idea in DVMT is to improve the efficiency of the memory allocated to either system or graphics processor. It is recommended that you set this BIOS feature to DVMT Mode for maximum performance. Setting it to DVMT Mode ensures that system memory is dynami­cally allocated for optimal balance between graphics and system performance.
DVMT/FIXED Memory
When set to DVMT/FIXED Mode, the graphics driver will allocate a fixed amount of memory as dedicated graphics memory, as well as allow more system memory to be dynamically allocated between the graphics proces­sor and the operating system.
3-11
MS-9832 Mainboard
Boot Sequence
1st Boot Device
The items allow you to set the first boot device where BIOS attempts to load the disk operating system.
Boot From Other Device
Setting the option to [Yes] allows the system to try to boot from other device. if the system fails to boot from the 1st boot device.
3-12
Integrated Peripherals
BIOS Setup
USB Controller
This setting allows you to enable/disable the onboard USB 1.1/ 2.0 controller.
Onboard LAN Controller
This setting allows you to enable/disable the onboard LAN controller.
LAN Option ROM
The items enable or disable the initialization of the onboard LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot process.
3-13
MS-9832 Mainboard
On-Chip ATA Devices
On-Chip IDE Controller
This setting enables/disables the onchip IDE controller.
PCI IDE BusMaster
Set this option to [Enabled] to specify that the IDE controller on the PCI local bus has bus mastering capability.
On-Chip SATA Controller
This setting enables/disables the onchip SATA controller.
3-14
I/O Devices
BIOS Setup
COM Port 1, COM Port1 Mode, COM Port 2, Serial Port 3/ 4/ 5/ 6
Address, Serial Port 3/ 4/ 5/ 6 IRQ
These settings specify the base I/O port address and IRQ resource of the onboard serial ports.
Watch Dog
You can enable the system watch-dog timer, a hardware timer that generates either an NMI or a reset when the software that it monitors does not respond as expected each time the watch dog polls it.
3-15
MS-9832 Mainboard
Power Management Setup
Important
S3-related functions described in this section are available only when your BIOS supports S3 sleep mode.
ACPI Function
This item is to activate the ACPI (Advanced Configuration and Power Management Interface) Function. If your operating system is ACPI-aware, such as Windows 98SE/ 2000/ME/ XP, select [Enabled].
ACPI Standby State
This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, such as Windows 2000/ XP , you can choose to enter the Standby mode in S1(POS) or S3(STR) fashion through the setting of this field. Set­tings are:
[S1] The S1 sleep mode is a low power state. In this state, no
system context is lost (CPU or chipset) and hardware main­tains all system context.
[S3] The S3 sleep mode is a lower power state where the in
formation of system configuration and open applications/files
3-16
BIOS Setup
is saved to main memory that remains powered while most other hardware components turn off to save energy. The information stored in memory will be used to restore the sys­tem when a wake up event occurs.
Recall VGA BIOS from S3
Selecting [Enabled] will make BIOS call VGA BIOS to initialize the VGA card when system wakes up (resume) from S3 state. The system resume time is shortened if you disable the function, but system will need AGP driver to initialize the card. Therefore, if the AGP driver of the VGA card does not support the initialization feature, the display may work abnormally or not function after resuming from S3.
Suspend Time Out (Minute)
After the selected period of system inactivity, the system automatically enters Sus­pend mode.
Power Button Function
This feature sets the function of the power button. Settings are:
[Power On/Off]The power button functions as normal power on/off button. [Suspend] When you press the power button, the computer enters the
suspend/sleep mode, but if the button is pressed for more than four seconds, the computer is turned off.
Restore on AC Power Loss
This item specifies whether your system will reboot after a power failure or interrupt occurs. Settings are:
[Off] Always leaves the computer in the power off state. [On] Always leaves the computer in the power on state. [Last State] Restores the system to the status before power failure
or interrupt occurred.
3-17
MS-9832 Mainboard
Wake Up Event Setup
Resume From S3 By USB Device
The item allows the activity of the USB device to wake up the system from S3 (Suspend to RAM) sleep state.
Resume By Ring
When it is set to [Enabled], the feature allows your system to support COM port Modem to resume.
Resume By PCI Device (PME#)
When set to [Enabled], the feature allows your system to be awakened from the power saving modes through any event on PME (Power Management Event).
Resume By PCI-E Device
When set to [Enabled], the feature allows your system to be awakened from the power saving modes through any event on PCIE device.
Resume By RTC Alarm
The field is used to enable or disable the feature of booting up the system on a scheduled time/date.
3-18
PnP/PCI Configurations
BIOS Setup
Primary Graphics Adapter
This setting specifies which graphic card is your primary graphics adapter.
PCI Latency Timer
This item controls how long each PCI device can hold the bus before another takes over. When set to higher values, every PCI device can conduct transactions for a longer time and thus improve the effective PCI bandwidth. For better PCI performance, you should set the item to higher values.
PCI Slot1 IRQ
This setting specifies the IRQ of the PCI slot 1.
3-19
MS-9832 Mainboard
IRQ Resource Setup
IRQ 3/4/5/7/9/10/11/14/15
These items specify the bus where the specified IRQ line is used. The settings determine if AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices that are configurable by the system BIOS. The available IRQ pool is determined by reading the ESCD NVRAM. If more IRQs must be removed from the IRQ pool, the end user can use these settings to reserve the IRQ by assigning an [Reserved] setting to it. Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are configured as [Available]. If all IRQs are set to [Reserved], and IRQ 14/15 are allocated to the onboard PCI IDE, IRQ 9 will still be available for PCI and PnP devices.
3-20
H/W Monitor
BIOS Setup
Chassis Intrusion
The field enables or disables the feature of recording the chassis intrusion status and issuing a warning message if the chassis is once opened. To clear the warning message, set the field to [Reset]. The setting of the field will automatically return to [Enabled] later.
CPU Smart FAN Target
The mainboard provides the Smart Fan function which can control the CPU fan speed automatically depending on the current temperature to keep it within a specific range. You can select a fan target value here. If the current CPU fan temperature reaches to the target value, the smart fan function will be activated. It provides several sections to speed up for cooling down automatically.
CPU Min. FAN Speed (%)
This setting controls the minimum CPU fan speed for the Smart Fan function.
PC Health Status
CPU/System Temperature, CPU/SYS FAN Speed, CPU Vcore,
3.3V, 5V, 12V, VSB, VBAT
These items display the current status of all of the monitored hardware de­vices/components such as CPU voltage, temperatures and all fans speeds.
3-21
MS-9832 Mainboard
Load Fail-Safe / Optimized Defaults
The two options on the main menu allow users to restore all of the BIOS settings to the default Fail-Safe or Optimized values. The Optimized Defaults are the default values set by the mainboard manufacturer specifically for optimal performance of the mainboard. The Fail-Safe Defaults are the default values set by the BIOS vendor for stable system performance.
When you select Load Fail-Safe Defaults, a message as below appears:
Selecting Ok and pressing <Enter> loads the BIOS default values for the most stable, minimal system performance.
When you select Load Optimized Defaults, a message as below appears:
Selecting Ok and pressing <Enter> loads the default factory settings for optimal system performance.
3-22
BIOS Setup
BIOS Setting Password
When you select this function, a message as below will appear on the screen:
Type the password, up to six characters in length, and press <Enter>. The password typed now will replace any previously set password from CMOS memory. You will be prompted to confirm the password. Retype the password and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To clear a set password, just press <Enter> when you are prompted to enter the password. A message will show up confirming the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup without entering any password. When a password has been set, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.
3-23
This page is intentionally left blank.
viii
System Resources
Chapter 4
System Resources
This chapter provides information on the following system resources:
1. Watch Dog Timer Setting (p.4-2);
2. AMI POST Code (p.4-3);
3. Resource List (p.4-7).
4-1
MS-9832 Mainboard
Watch Dog Timer Setting
Software Code
SIO_IDX equ 4EH SIO_DTAequ 4FH Timer equ 10; reset after 10 seconds
1. Enter configuration mode Mov dx, SIO_IDX mov al, 87h out dx, al out dx, al
2. Set to LDN 07 Mov dx, SIO_IDX mov al, 07h out dx, al mov dx, SIO_DTA mov al, 07h out dx, al
3. Set WatchDog Timer Mov dx, SIO_IDX mov al, 0f6h out dx, al mov dx, SIO_DTA mov al, Timer out dx, al
4. Exit configuration mode Mov dx, SIO_IDX mov al, 0AAh out dx, al
4-2
System Resources
AMI POST Code
Bootblock Recovery Code Checkpoints
The Bootblock recovery code gets control when the BIOS determines that a BIOS recovery needs to occur because the user has forced the update or the BIOS checksum is corrupt. The following table describes the type of checkpoints that may occur during the Bootblock recovery portion of the BIOS:
4-3
MS-9832 Mainboard
POST Code Checkpoints
The POST code checkpoints are the largest set of checkpoints during the BIOS pre­boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS:
4-4
System Resources
4-5
MS-9832 Mainboard
4-6
System Resources
Resource List
ICH7 GPIO
PIN GPIO TYPE MULTI POWER CONNECTION
AB18 0 I/O Unmultiplexed# 3.3v GPI0(pull high) C8 1 I/O REQ5# 5v PREQ#5 G8 2 I/OD PIRQE# 5v GPIO2(pull high) F7 3 I/OD PIRQF# 5v GPIO3(pull high) F8 4 I/OD PIRQG# 5v GPIO4(pull high) G7 5 I/OD PIRQH# 5v GPIO5(pull high) AC21 6 I/O Unmultiplexed 3.3v ATADET0 AC18 7 I/O CLEAR CMOS 3.3v GPIO7(pull high) E21 8 I/O Unmultiplexed 3.3v POWER LED SW E20 9 I/O Unmultiplexed 3.3v GPIO9(pull high) A20 10 I/O Unmultiplexed 3.3v GPIO10(pull high) B23 11 I/O SMBALERT# 3.3v SMB_ALERT# F19 12 I/O Unmultiplexed 3.3v SIO_PME# E19 13 I/O Unmultiplexed 3.3v GPIO13(pull high) R4 14 I/O Unmultiplexed 3.3v GPIO14(pull high) E22 15 I/O Unmultiplexed 3.3v GPIO15(pull high) AC22 16 I/O Unmultiplexed 3.3v GPIO16(INTERNAL HI) D8 17 I/O GNT5# 3.3v PGNT5# AC20 18 I/O Unmultiplexed 3.3v NC AH18 19 I/O SATA_1GP 3.3v PULL HIGH AF21 20 I/O Unmultiplexed 3.3v NC AF19 21 I/O SATA_0GP 3.3v PULL HIGH A13 22 I/O REQ4# 3.3v PREQ#4 AA5 23 I/O LDRQ_1# 3.3v TEST POINT R3 24 I/O Unmultiplexed 3.3v BIOS_WP# D20 25 I/O Unmultiplexed 3.3v DMI STRAP A21 26 I/O Unmultiplexed 3.3v WLAN_PWRON B21 27 I/O Unmultiplexed 3.3v TEST POINT E23 28 I/O Unmultiplexed 3.3v NC C3 29 I/O OC5# 3.3v USB_OCP#2
4-7
MS-9832 Mainboard
PIN GPIO TYPE MULTI POWER CONNECTION
A2 30 I/O OC6# 3.3v USB_OCP#3 B3 31 I/O OC7# 3.3v USB_OCP#3 AG18 32 I/O Unmultiplexed 3.3v NC AC19 33 I/O Unmultiplexed 3.3v NC U2 34 I/O Unmultiplexed 3.3v NC AD21 35 I/O SATACLKREQ# 3.3v PULL HIGH AH19 36 I/O SATA2GP 3.3v PULL HIGH AE19 37 I/O SATA3GP 3.3v PULL HIGH AD20 38 I/O Unmultiplexed 3.3v GPIO38 (pull high) AE20 39 I/O Unmultiplexed 3.3v GPIO39 (pull high) A14 48 I/O GNT4# 3.3v PGNT4(INTERNAL HI) AG24 49 I/O CPUPWRGD 3.3v H_PWRGD
4-8
System Resources
SIO GPIO
PIN GPIO TYPE MULTI POWER CONNECTION
55 6 I/OOD12t SLOTOCC# VSB SLOTOCC# 60 11 OD12 GPIO11 VSB MB_ID0 61 12 OD12 GPIO12 VSB MB_ID1 64 15 OD12 LED_VSB/ALERT# VSB LED_VSB 65 16 OD12 LED_VCC/Turbo2# VSB LED_VCC 75 21 O12 PCIRST2# VSB PLTRST_BU2# 76 22 O12 PCIRST3# VSB PLTRST_BU3# 77 23 OD12 RSTCON# VSB RSTCON# 79 25 OD12-5v PME# VSB PME# 78 24 AIN ATXPG_IN VSB ATX_PWR_OK 84 32 OD12 PWROK VSB SIO_PWOK 80 26 INts5v PWSIN# VSB PSIN# 81 27 OD12 PWSOUT# VSB PSOUT# 82 30 INts5v S3# VSB SLP_S3# 83 31 OD12-5v PSON# VSB PSON# 85 33 OD12 RSMRST# VSB RSMRST# 28 43 INts IRRX VSB #EN422 56 7 OD12-5v Turbo1#/WDTRST# VSB WDTRST# 84 32 OD PWROK VSB SIO_PWOK 27 42 I/OOD12t IRTX VCC EN232 66 17 I/OOD12t GPIO17 VSB #EN485
4-9
Loading...
