i
865GM3/865GVM2/865PEM3/848PM
G52-M7037X3
MS-7037 (v1.X) M-A TX Mainboard
ii
Manual Rev: 1.2
Release Date: July 2004
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION A VANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7037
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation
iii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered
trademarks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Microsoft is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/
XP are registered trademarks of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the United States and/or other countries.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Technology
Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory
Card International Association.
Revision History
Revision Revision History Date
V1.0 First release of PCB 1.0 March 2004
with Intel 865G/865GV/865PE/848P & Intel ICH5
V1.1 Special version for Trigem April 2004
V1.2 Revise connector’s content July 2004
iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical
shock.
11. If any of the following situations arises, get the equipment checked by a service
personnel:
h The power cord or plug is damaged.
h Liquid has penetrated into the equipment.
h The equipment has been exposed to moisture.
h The equipment has not work well or you can not get it work according to
User’s Manual.
h The equipment has dropped and damaged.
h The equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage
temperature above 600 C (1400F), it may damage the equipment.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.
h Visit the MSI homepage & FAQ site for technical guide, BIOS updates, driver
updates, and other information: http://www.msi.com.tw & http://www.msi.
com.tw/program/service/faq/faq/esc_faq_list.php
h Contact our technical staff at: support@msi.com.tw
v
CONTENTS
FCC-B Radio Frequency Interference Statement ........................................................ ii
Copyright Notice ........................................................................................................... iii
Revision History............................................................................................................ iii
Technical Support ........................................................................................................ iv
Safety Instructions ...................................................................................................... iv
Chapter 1. Getting Started ................................................................................... 1-1
Mainboard Specifications...........................................................................................1-2
Mainboard Layout.......................................................................................................1-4
Chapter 2. Hardware Setup .................................................................................2-1
Quick Components Guide ...........................................................................................2-2
Central Processing Unit: CPU............................................................................... 2-3
Example of CPU Core Speed Derivation Procedure ..................................... 2-3
Memory Speed/CPU FSB Support Matrix..................................................... 2-3
CPU Installation Procedures for Socket 478 ............................................... 2-4
Installing the CPU Fan ...................................................................................2-5
Memory................................................................................................................. 2-6
Introduction to DDR SDRAM ......................................................................... 2-6
DDR Population Rules.................................................................................... 2-7
Installing DDR Modules.................................................................................. 2-7
Power Supply ...................................................................................................... 2-8
ATX 20-Pin Power Connector: ATX1 ........................................................... 2-8
ATX 12V Power Connector: JPW1 ..............................................................2-8
Back Panel............................................................................................................ 2-9
Mouse Connector ......................................................................................... 2-9
Keyboard Connector .................................................................................... 2-9
RJ-45 LAN Jack: 10/100 LAN (8100C) /
Giga-bit LAN (8110S/SB) (Optional) .........................................2-10

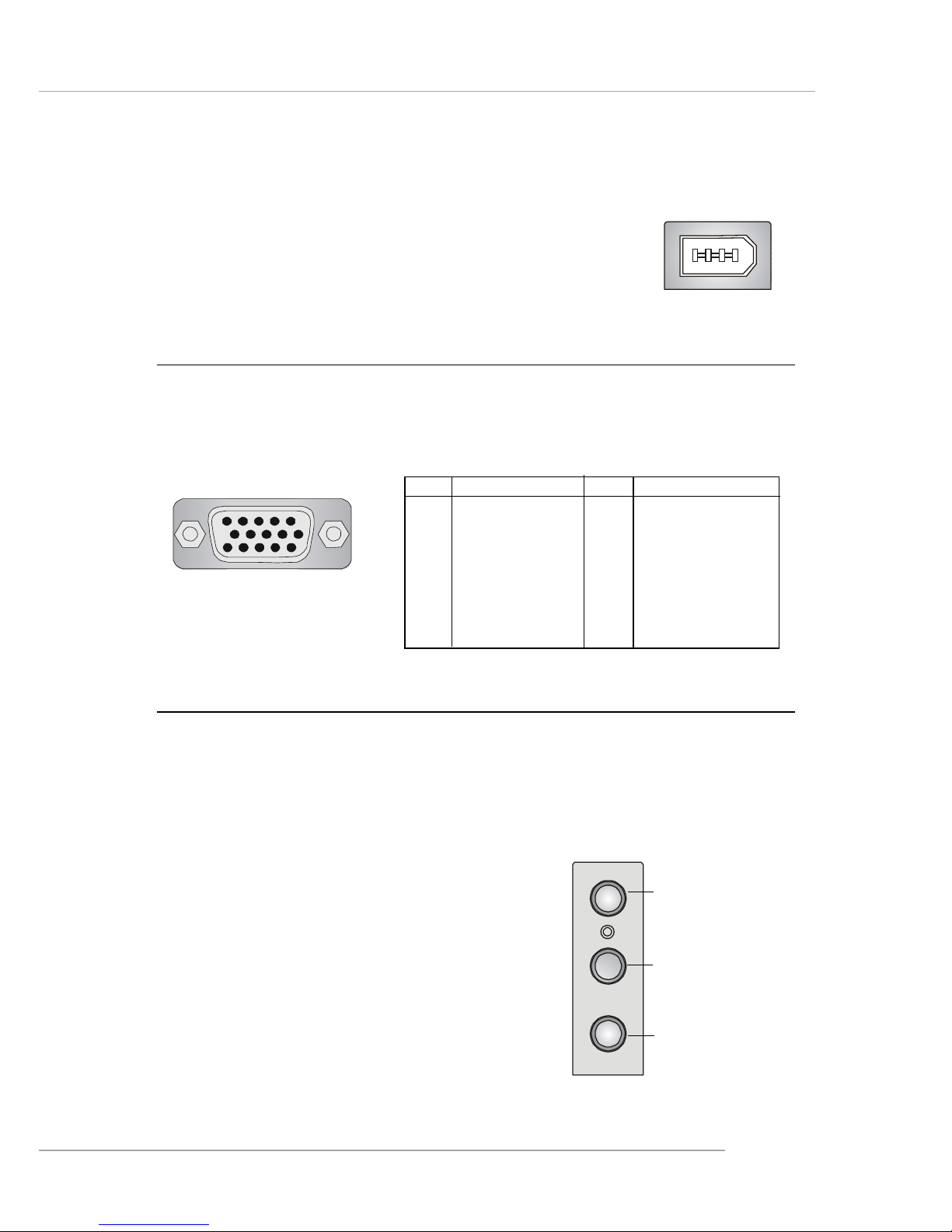

IEEE1394 Port (Optional)............................................................................. 2-11
VGA Connector (Optional, for 865G/GV).................................................. 2-11
Audio Port Connectors ............................................................................... 2-11
USB Connectors..........................................................................................2-12
Serial Port Connector: COM 1 & COM2 (Optional) ....................................2-12
Parallel Port Connector: LPT1.....................................................................2-13
Connectors ........................................................................................................2-14
Floppy Disk Drive Connector: FDD1...........................................................2-14
Fan Power Connectors: CPU_FAN/SYS_FAN ..........................................2-14
Hard Disk Connectors: IDE1 & IDE2 ...........................................................2-15
Chassis Intrusion Switch Connector: JCI1 ................................................2-15
vi
CD-In Connector: JCD1 ...............................................................................2-16
SPDIF-Out Connector: JSP1 ....................................................................... 2-16
Front USB Connectors: JUSB1 / JUSB2 ....................................................2-16
Front Panel Connectors: JFP1 & JFP2 .......................................................2-17
Serial ATA Connectors controlled by ICH5: SATA1, SATA2 ..................... 2-18
Front Panel Audio Connector: JAUD1........................................................2-19
Joystick/Game Connector: JGP1 (Optional) ..............................................2-19
IEEE 1394 Connector: J1394_1/J1394_2 (Optional) .................................2-20
Jumpers .............................................................................................................2-21
Clear CMOS Jumper: JBAT1 .......................................................................2-21
AGP (Accelerated Graphics Port) Slot...................................................... 2-22
PCI (Peripheral Component Interconnect) Slots ........................................2-22
PCI Interrupt Request Routing ....................................................................2-22
Chapter 3. BIOS Setup...........................................................................................3-1
Entering Setup ..................................................................................................... 3-2
Control Keys.................................................................................................. 3-2
Getting Help ................................................................................................... 3-2
The Main Menu.....................................................................................................3-3
Standard CMOS Features ................................................................................... 3-5
Advanced BIOS Features ................................................................................... 3-7
Advanced Chipset Features............................................................................. 3-11
Integrated Peripherals .......................................................................................3-14
Power Management Setup................................................................................3-19
PNP/PCI Configurations ..................................................................................... 3-22
PC Health Status................................................................................................ 3-24
Frequency/Voltage Control...............................................................................3-26
Load High Performance/BIOS Setup Defaults .................................................3-27
Set Supervisor/User Password ....................................................................... 3-28
Appendix A: Using 2-, 4- & 6-Channel Audio Function................................. A-1
Installing the Audio Driver .................................................................................. A-2
Installation for Windows 98SE/ME/2000/XP ............................................... A-2
Software Configuration ..................................................................................... A-4
Sound Effect....................................................................................................... A-4
Equalizer .................................................................................................... A-6
Speaker Configuration .............................................................................. A-7
Speaker Test.............................................................................................. A-8
HRTF Demo ................................................................................................ A-9
General .................................................................................................... A-10
Using 2-, 4- & 6- Channel Audio Function ..................................................... A-11
1-1
Getting Started
Chapter 1. Getting Started
Thank you for purchasing the 865GM3 / 865GVM2 / 865PEM3
/ 848PM (MS-7037) v1.X Micro ATX mainboard. The 865GM2 / 865GVM
/ 865PM / 848PM is based on Intel® 865G / 865GV / 865PE / 848P &
Intel® ICH5 chipsets for optimal system efficiency. Designed to fit the
advanced Intel® Pentium 4 processor in the 478-pin package, 865GM3
/ 865GVM2 / 865PEM3 / 848PM delivers a high performance and professional desktop platform solution.
Getting Started
1-2
MS-7037 M-ATX Mainboard
Mainboard Specifications
CPU
h Supports Socket 478 for Intel® Pentium 4 (Socket 478) processor
h Supports 533MHz or 800MHz FSB
h Supports 3.4GHz or higher speed P4 processor (Require multi-directional CPU
heatsink)
(For the latest information about CPU, please visit http://www.msi.com.tw/program/
products/mainboard/mbd/pro_mbd_cpu_support.php)
Chipsets
h Intel® 865G/865GV/865PE/848P chipset
- Supports AGP 8x/4x (for 865G/865PE)
- Integrated graphic controller (865G/865GV only)
- Supports DDR266/333/400 SDRAM.
- Supports 400/533/800MHz Intel NetBurst micro-architecture bus.
h Intel® ICH5 chipset (421 mBGA)
- AC’97 2.3 interface
- 8 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- 2 serial ATA Host Controllers
Main Memory
h Supports two 64-bit wide DDR data channels (848P supports a 64-bit wide DDR
data channel)
h Supports dual-channel function (865G/865PE/865GV only)
h Supports 128Mb, 256Mb or 512Mb DDR technologies
h Supports 2 DDR 333/400 memory modules
(For the updated supporting memory modules, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_trp_list.php to refer the memory module
part in the test report.)
Slots
h One AGP supports 8x/4x (865G/865PE/865GV only)
h Three PCI 2.2 32-bit Master PCI Bus slots.
On-Board ATA
h An IDE controller on the ICH5 chipset provides IDE HDD/CD-ROM with PIO, Bus
Master and Ultra DMA66/100 operation modes.
h Can connect up to four IDE devices.
h Supports Serial ATA Host Controllers*2.
On-Board Peripherals
h On-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88 Mbytes.
- 1 serial port (COM1), 1 VGA port (Optional, for 865G / 865GV only)
1-3
Getting Started
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0/1.1 ports (Rear * 4 / Front * 4)
- 1 Line-In/Line-Out/Mic
- 1 RJ45 connector (Optional)
- 2 1394 ports (Rear*1 / Front*1) (Optional)
- 3 1394 ports (Rear*1 / Front*2) (Optional)
- 1 serial port pin header (COM2) (Optional)
Audio
h AC97 link controller integrated in ICH5
h 6 channels software audio codec Realtek ALC655
- Compliant with AC97 v2.2 spec.
- Meet PC2001 audio performance requirement
On-Board LAN (Optional)
h Realtek 8110S / 8100SB / Realtek 8100 C
- Integrated Fast Ethernet MAC and PHY in one chip
- Supports 10/100Mb/s (for 8100C) and 10/100/1000Mb/s (for 8110S / 8100SB)
auto-negotiation operation
- Compliant with PCI v2.2, and LAN on Motherboard (LOM) standard
On-Board 1394 (Optional)
h VIA VT6307/6306
BIOS
h The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral
devices and expansion cards of the board automatically.
h The mainboard provides a Desktop Management Interface (DMI) function which
records your mainboard specifications.
Dimension
h M-ATX Form Factor: 24.5 cm (L) x 24.5 cm (W)
Mounting
h 8 mounting holes
1-4
MS-7037 M-ATX Mainboard
Mainboard Layout
MS-7037 v1.X M-ATX Mainboard
(MS-7037 v1.X is for Intel 865PE/G/GV chipset)
D
I
M
M
1
D
I
M
M
2
AGP Slot
T: mouse
B: keyboard
T:
Line-Out
B:Mic
Line-In
M:
JSP1
JAUD1
CD_IN1
Codec
RTL
8100C/8110S/
8110SB
BATT
+
BIOS
W
i
n
b
o
n
d
8
3
6
2
7
T
H
F
ICH5
Intel
865PE/G/GV
I
D
E
1
I
D
E
2
F
D
D
1
PCI Sl ot 1
PCI Sl ot 2
PCI Sl ot 3
SYS_FAN
CPU_FAN
JFP1
JPW1
A
T
X
P
o
w
e
r
S
u
p
p
l
y
J1394_1(Optional)
JBAT1
JUSB1
SATA2
SATA1
JUSB2
J1394_2(Optional)
JFP2
COM2
(Optional)
JCI1
1-5
Getting Started
D
I
M
M
2
D
I
M
M
1
AGP Slot
T: mo use
B: keyboard
T:
Line-O ut
B:Mic
Line-In
M:
JAUD1
CD_IN1
JSP1
Codec
Realtek
8100C/8110S/
8110SB
B
A
T
T
+
BIOS
W
i
n
b
o
n
d
W
8
3
6
2
7
T
H
F
ICH5
Intel
848P
IDE 1
IDE 2
FDD1
COM2 (Opt ional)
J1
PCI Slot 1
PCI Slot 2
PCI Slot 3
CPU_FAN
SYS_FAN
JFP1
JFP2
JPW1
A
T
X
P
o
w
e
r
S
u
p
p
l
y
JBAT1
JLAN_LED1
JUSB1
J1394_1 (Optional)
S
A
T
A
2
S
A
T
A
1
JUSB2
J1394_2 (Optional)
MS-7037 v2.X M-ATX Mainboard
(MS-7037 v2.X is for Intel 848P chipset)
2-1
Hardware Setup
Chapter 2. Hardware Setup
This chapter tells you how to install the CPU, memory modules, and
expansion cards, as well as how to setup the jumpers on the mainboard.
Also, it provides the instructions on connecting the peripheral devices, such
as the mouse, keyboard, etc.
While doing the installation, be careful in holding the components and
follow the installation procedures.
Hardware Setup
2-2
MS-7037 M-ATX Mainboard
Quick Components Guide
JCD1, p.2-16
JPW1, p.2-8
CPU, p.2-3
Back Panel
I/O, p.2-9
CPU_FAN1, p.2-14
FDD1, p.2-14
STAT2
SATA1, p.2-18
JCI1, p.2-15
JSP1, p.2-16
JFP1, p.2-17
JBAT1, p.2-21
DDR DIMMs, p.2-6
ATX1, p.2-8
JAUD1, p.2-19
AGP slot, p.2-22
J1394_1, J1394_2,
p.2-20
(optional)
JFP2, p.2-17
JUSB1, JUSB2,
p.2-16
PCI slots, p.2-22
IDE1
IDE2, p.2-15
SYS_FAN1, p.2-14
COM2, p.2-12
(optional)
2-3
Hardware Setup
Central Processing Unit: CPU
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 133MHz
Core/Bus ratio = 23
then CPU core speed = Host Clock x Core/Bus ratio
= 133MHz x 23
= 3.06 GHz
The mainboard supports Intel® Pentium® 4/Celeron Northwood/Prescott processor in the 478 pin package. The mainboard uses a CPU socket called PGA478 for
easy CPU installation. When you are installing the CPU, make sure the CPU has a
heat sink and a cooling fan attached on the top to prevent overheating. If
you do not find the heat sink and cooling fan, contact your dealer to purchase and
install them before turning on the computer.
For the latest information about CPU, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_cpu_support.php
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always make
sure the cooling fan can work properly to protect the CPU from
overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply or
unplug the power supply’s power cord from grounded outlet first to
ensure the safety of CPU.
Memory Speed/CPU FSB Support Matrix
FSB
Memory
DDR 266
400 MHz
DDR 333
533 MHz
800 MHz
OK N/A
OK
N/A
DDR 400
N/A
OK
OK
N/A
N/A
2-4
MS-7037 M-ATX Mainboard
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure to
raise the lever up to a 90-degree angle.
3. Look for the cut edge. The cut
edge should point towards the
lever pivot. The CPU can only fit
in the correct orientation.
4. If the CPU is correctly installed,
the pins should be completely
embedded into the socket and
can not be seen. Please note
that any violation of the correct
installation procedures may
cause permanent damages to
your mainboard.
5. Press the CPU down firmly into
the socket and close the lever.
As the CPU is likely to move while
the lever is being closed, always close the lever with your
fingers pressing tightly on top of
the CPU to make sure the CPU is
properly and completely embedded into the socket.
CPU Installation Procedures for Socket 478
Open Lever
Sliding
Plate
Dot / Cut edge
Close
Lever
Press down
the CPU
90 degree
Dot / Cut edge
Correct CPU placement
Dot / Cut edge
Incorrect CPU placement
X
O
2-5
Hardware Setup
5. Connect the fan power cable from
the mounted fan to the 3-pin fan
power connector on the board.
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly important. To dissipate heat, you need to
attach the CPU cooling fan and heatsink on top of the CPU. Follow the instructions
below to install the Heatsink/Fan:
2. Position the heatsink onto the retention mechanism.
1. Locate the CPU and its retention
mechanism on the motherboard.
3. Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the retention mechanism.
4. Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers
MSI Reminds You...
If your Intel Pentium 4 processor supports 3.0GHz (and
up), please be sure to use a
multi-direction fan to make the heatsink
exhausts air towards the voltage regulators on the board easier. Multi-direction fan has better performance in CPU
overheating.
fan power cable
2-6
MS-7037 M-ATX Mainboard
The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM (Double InLine Memory Module) modules and supports the memory size up to 1GB. You can
install DDR400/DDR333/DDR266 modules on the DDR DIMM slots (DDR 1~2).
For the updated supporting memory modules, please visit http://www.msi.
com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.
Memory
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM, but doubles
the rate by transferring data twice per cycle. It uses 2.5 volts as opposed to 3.3 volts
used in SDR SDRAM, and requires 184-pin DIMM modules rather than 168-pin DIMM
modules used by SDR SDRAM. High memory bandwidth makes DDR an ideal solution
for high performance PC, workstations and servers.
DIMM1 DIMM2
2-7
Hardware Setup
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will
only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
DDR Population Rules
Install at least one DIMM module on the slots. Each DIMM slot supports up to a
maximum size of 1GB. Users can install either single- or double-sided modules to
meet their own needs. Also, since this mainboard supports dual-channel function,
please note that DIMM1 (Channel A, in green) working together with DIMM2
(Channel B, in purple) will fuction as dual-channel.In order to have better
performance, it is recommended to install memory modules of the same type and
density on DDR DIMMs.
Please refer to the following table for detailed DDR population:
Volt
Notch
DIMM1 (Ch A) DIMM2 (Ch A) System Density
128MB~1GB 128MB~1GB
128MB~1GB 128MB~1GB
128MB~1GB * 128MB~1GB * 256MB~2GB
2-8
MS-7037 M-ATX Mainboard
Power Supply
The mainboard supports ATX power supply for the power system. Before
inserting the power supply connector, always make sure that all components are
installed properly to ensure that no damage will be caused.
ATX 20-Pin Power Connector: ATX1
This connector allows you to connect to an ATX power supply. To connect to
the ATX power supply, make sure the plug of the power supply is inserted in the
proper orientation and the pins are aligned. Then push down the power supply firmly
into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5 V
20 5 V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
ATX1 Pin Definition
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition
JPW1
ATX1
10
1
20
11
1
3
42
MSI Reminds You...
Power supply of 300 (and up) watt is highly recommended for system
stability.
2-9
Hardware Setup
The back panel provides the following connectors:
Back Panel
Keyboard Connector
The mainboard provides a standard PS/2® keyboard mini DIN connector for
attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into this connector.
Mouse Connector
The mainboard provides a standard PS/2® mouse mini DIN connector for attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this connector.
PS/2 Keyboard (6-pin Female)
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
PIN
1
2
3
4
5
6
Pin Definition
SIGNAL
Mouse DATA
(or Keyboard DATA)
NC
GND
VCC
Mouse Clock
(or Keyboard Clock)
NC
DESCRIPTION
Mouse DATA
(or Keyboard DATA)
No connection
Ground
+5V
Mouse clock
(or Keyboard Clock)
No connection
(1) MS-7037 v1.X Rear I/O
(2) MS-7037 v2.X Rear I/O
Mouse
Keyboard USB
Parallel
COM 1
L-out
L-in
MIC
USB
(Optional)
LAN
(Optional)
1394
Mouse
Keyboard USB
Parallel
COM 1
VGA (Optional,
for 865G/GV)
L-out
L-in
MIC
USB
(Optional)
LAN
(Optional)
1394
2-10
MS-7037 M-ATX Mainboard
RJ-45 LAN Jack: 10/100 LAN (8100C) /
Giga-bit LAN (8110S/SB) (Optional)
The mainboard provides two standard RJ-45 jacks for connection to Local
Area Network (LAN). Giga-bit LAN enables data to be transferred at 1000, 100 or
10Mbps. You can connect a network cable to either LAN jack.
The pin assignments vary depending on the transfer rates: 10/100Mbps or
1000Mbps. Note that Pin 1/2, 3/6, 4/5, 7/8 must work in pairs. Please refer
to the following for details:
10/100 LAN Pin Definition Giga-bit LAN Pin Definition
PIN SIGNAL DESCRIPTION
1 D0P Differential Pair 0+
2 D0N Differential Pair 0-
3 D1P Differential Pair 1+
4 D2P Differential Pair 2+
5 D2N Differential Pair 2-
6 D1N Differential Pair 1-
7 D3P Differential Pair 3+
8 D3N Differential Pair 3-
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
LED Color LED State Condition
Off LAN link is not established.
Left Green On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with another
computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Link Indicator
8 1
Activity Indicator
RJ-45 LAN Jack
2-11
Hardware Setup
Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. MIC-In is a connector for
microphones.
1/8” Stereo Audio Connectors
Line Out
Line In
MIC
VGA Connector (Optional, for 865G/GV)
The mainboard provides a DB 15-pin female connector to connect a VGA monitor.
VGA Connector
(DB 15-pin)
1
5
11
15
Pin Signal Description Pin Signal Description
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 +5V 10 GND
11 N/C 12 SDA
13 Horizontal Sync 14 Vertical Sync
15 SCL
IEEE1394 Port (Optional)
The mainboard provides one standard IEEE1394 port. The
standard IEEE1394 port connects to IEEE1394 devices without
external power. The IEEE1394 high-speed serial bus
complements USB by providing enhanced PC connectivity for a
wide range of devices, including consumer electronics audio/
video (A/V) appliances, storage peripherals, other PCs, and
portable devices.
2-12
MS-7037 M-ATX Mainboard
Serial Port Connector: COM 1 & COM2 (Optional)
The mainboard offers one 9-pin male DIN connector COM 1, and one optional
serial port COM2. Both are 16550A high speed communication ports that send/receive/ 16 bytes FIFOs. You can attach a serial mouse or other serial device directly
to them.
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition
9-Pin Male DIN Connector
COM 1
1 2 3 4 5
6 7 8 9
COM2
(Optional)
1
9
2 10
USB Connectors
The mainboard provides a UHCI (Universal Host Controller Interface) Universal
Serial Bus root for attaching USB devices such as keyboard, mouse or other USBcompatible devices. You can plug the USB device directly into the connector.
USB Ports
1 2 3 4
5 6 7 8
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB Port Description
COM Port Bracket
(Optional)
Connected to COM2
Connected to serial device
Loading...
