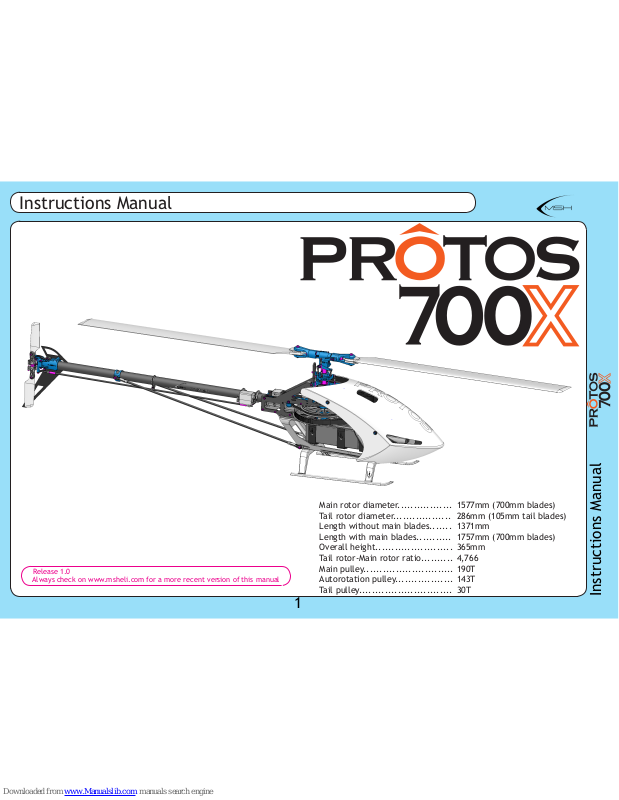

Page 1
Instructions Manual
Instructions Manual
1
Release 1.0
Always check on www.msheli.com for a more recent version of this manual

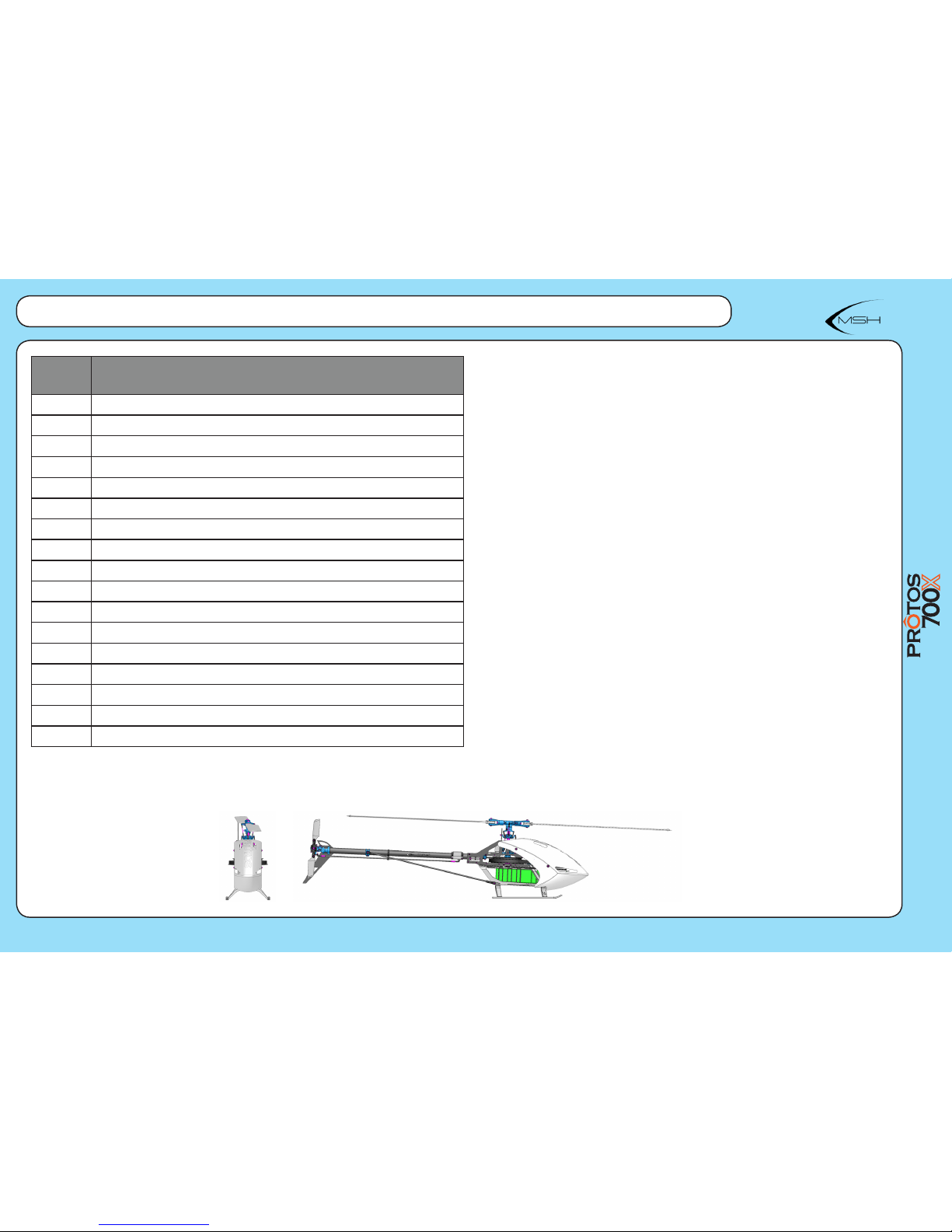

Main rotor diameter.................
Tail rotor diameter..................
Length without main blades.......
Length with main blades...........
Overall height........................
Tail rotor-Main rotor ratio..........
Main pulley............................
Autorotation pulley..................
Tail pulley.............................
1577mm (700mm blades)
286mm (105mm tail blades)
1371mm
1757mm (700mm blades)
365mm
4,766
190T
143T
30T
Page 2

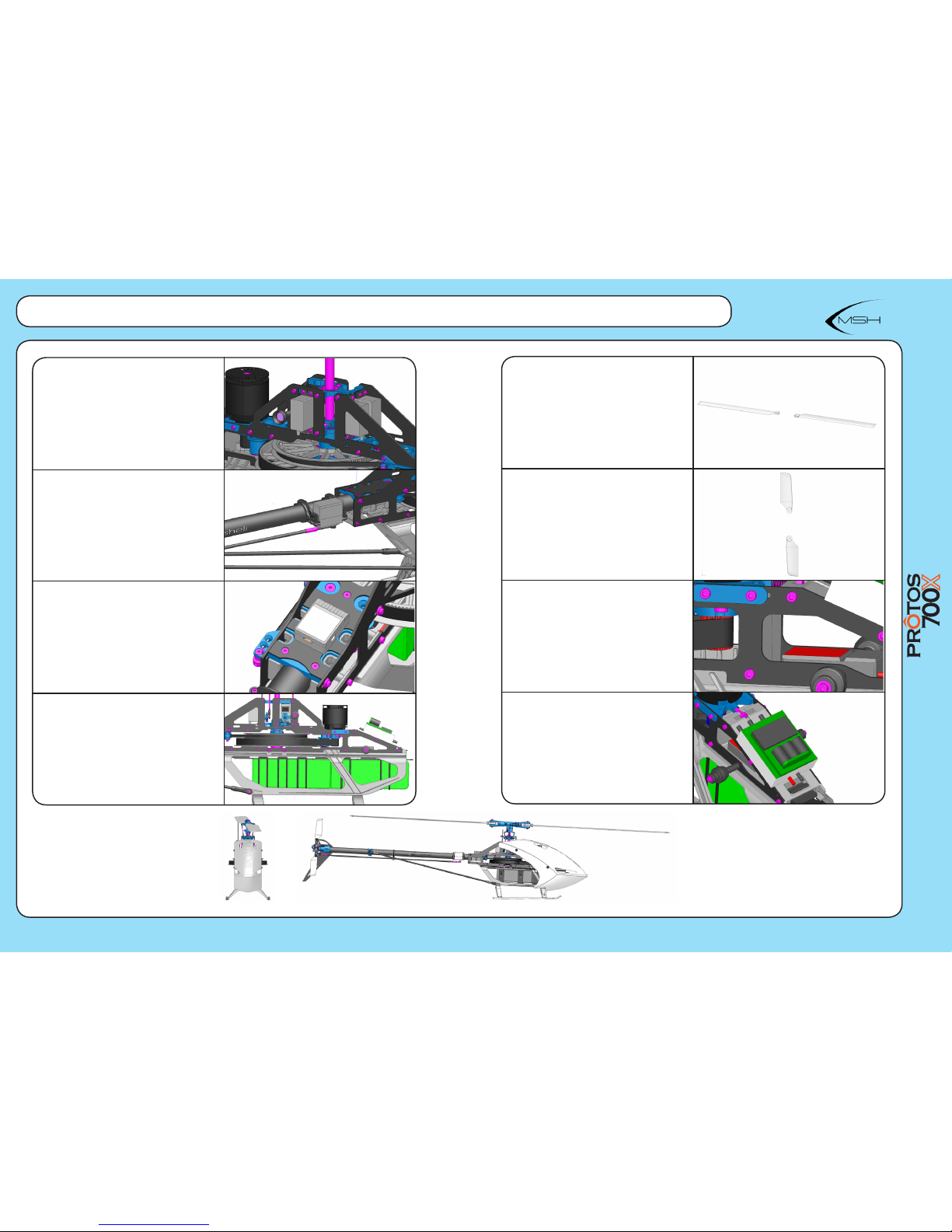

Pages Content
3
safety rules
4
tools required for assembly
5
R/C equipment required to complete
6
motor pinion teeth choice
7
how to read this manual
8-29
main frame assembly
30-41

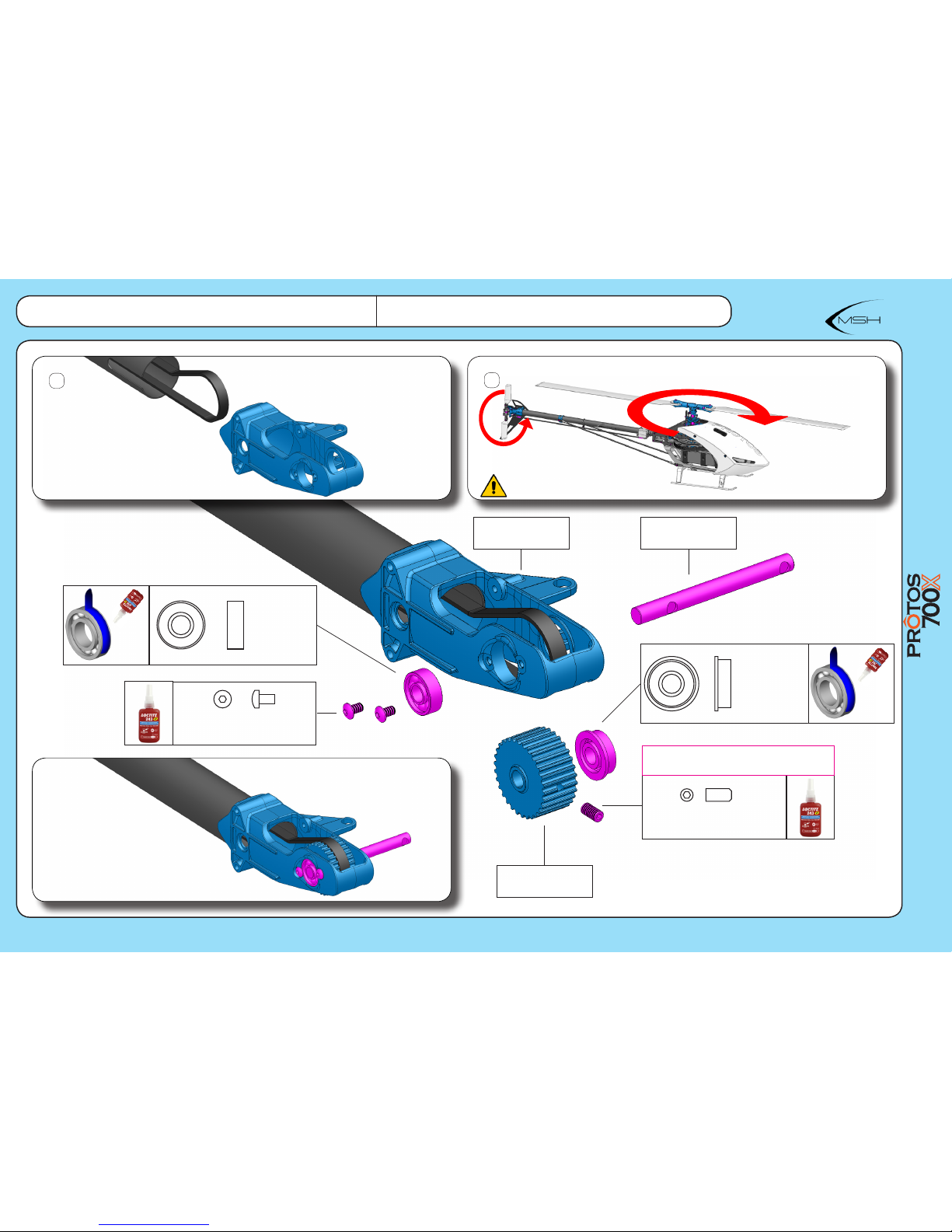

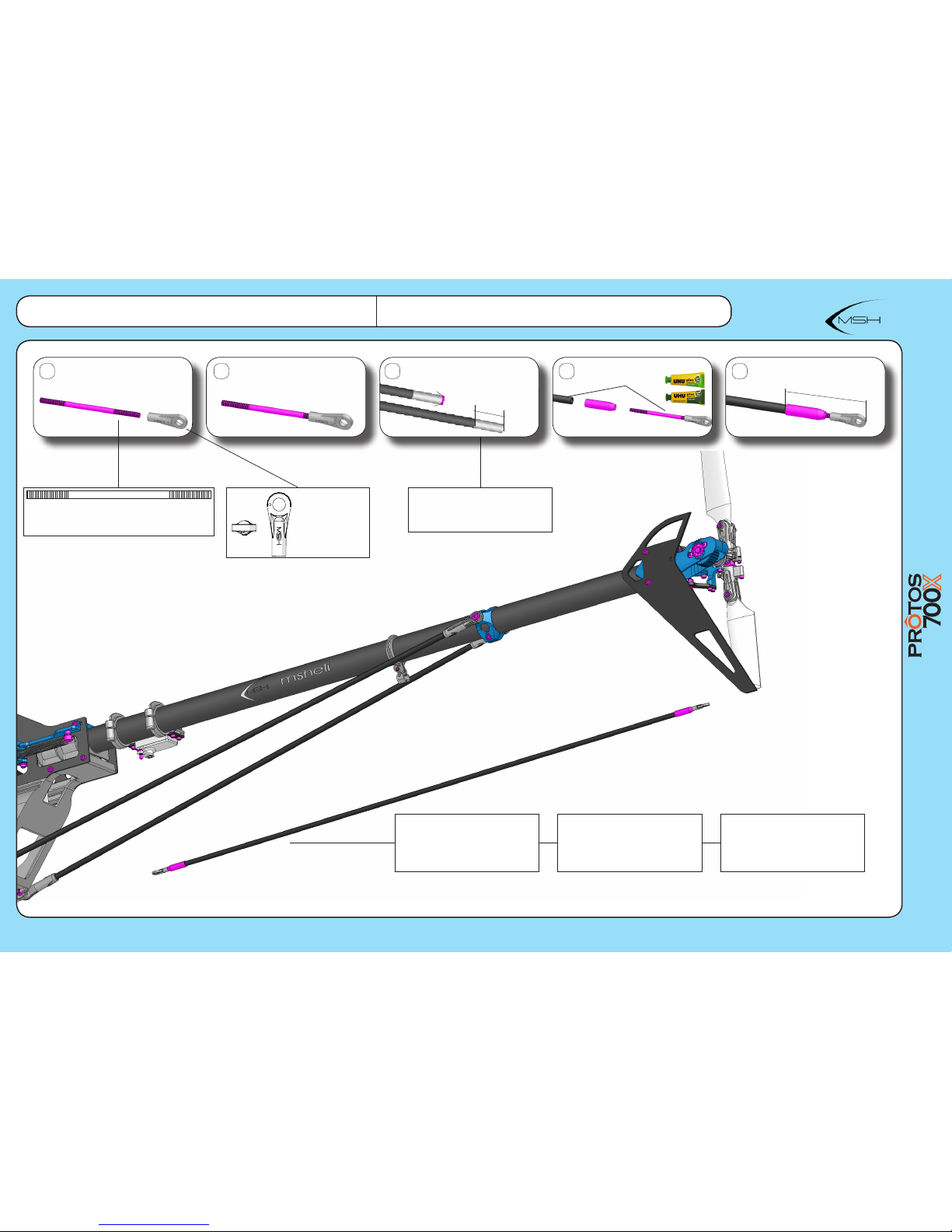

tail assembly

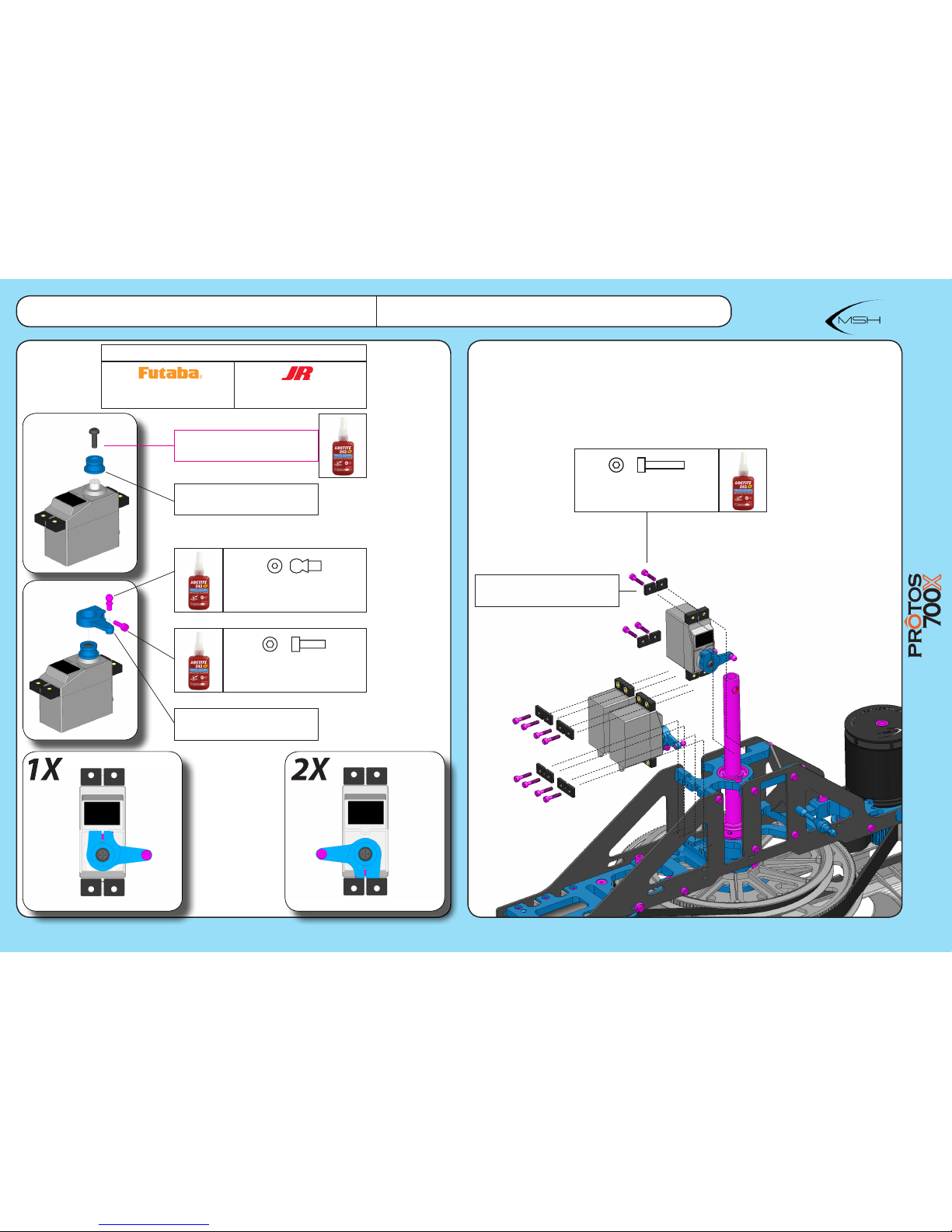

42
cyclic servos
43-49

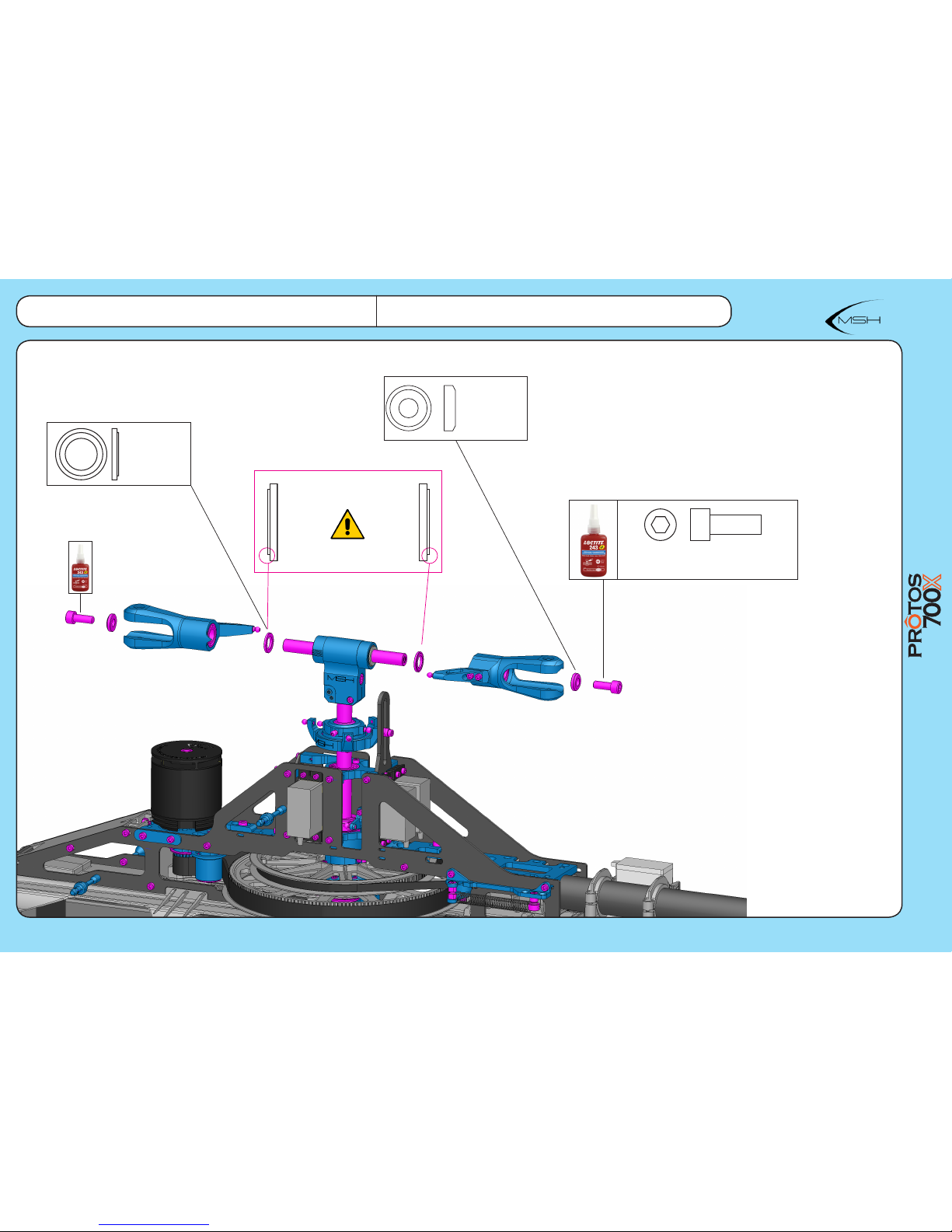

head assembly
50-51

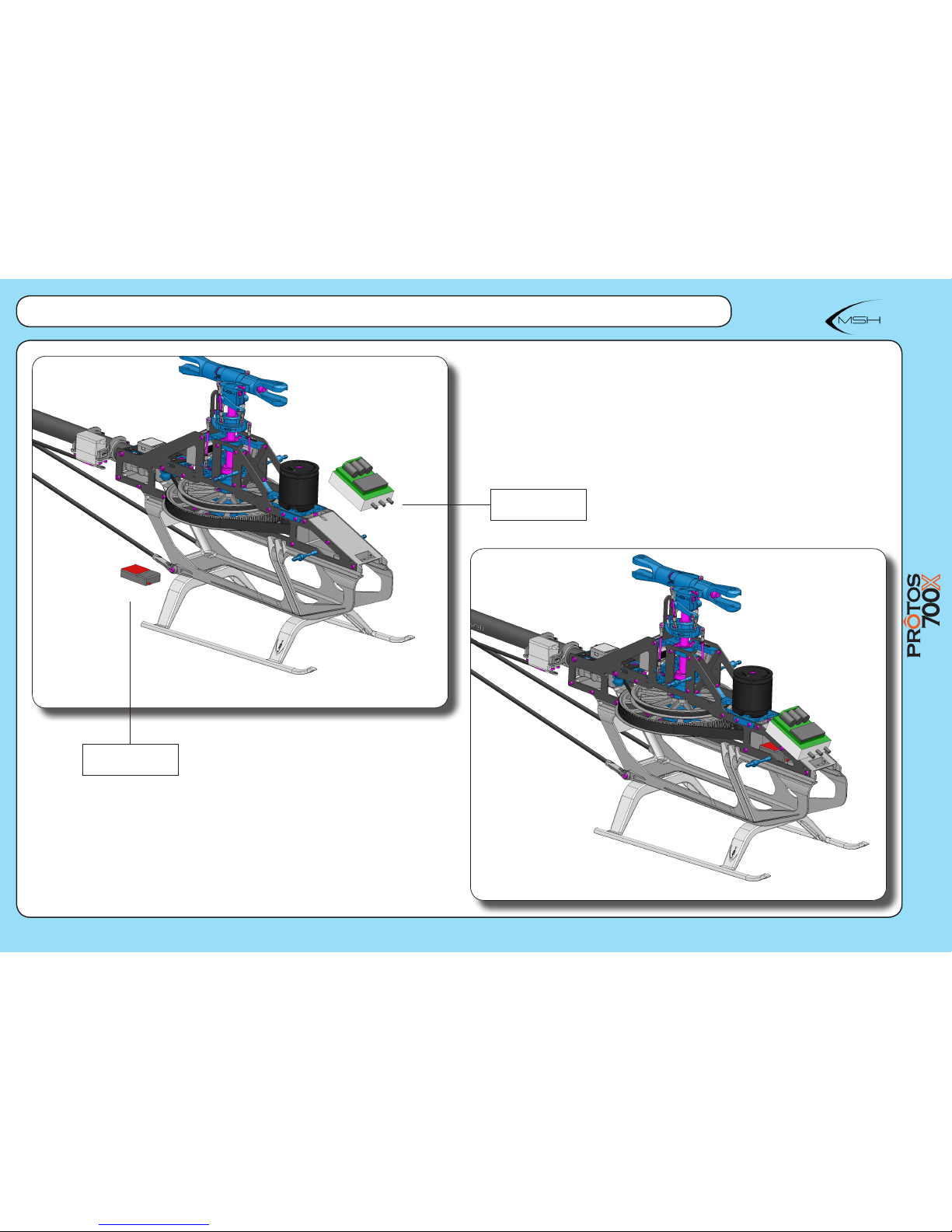

Brain, ESC, BEC
52-53

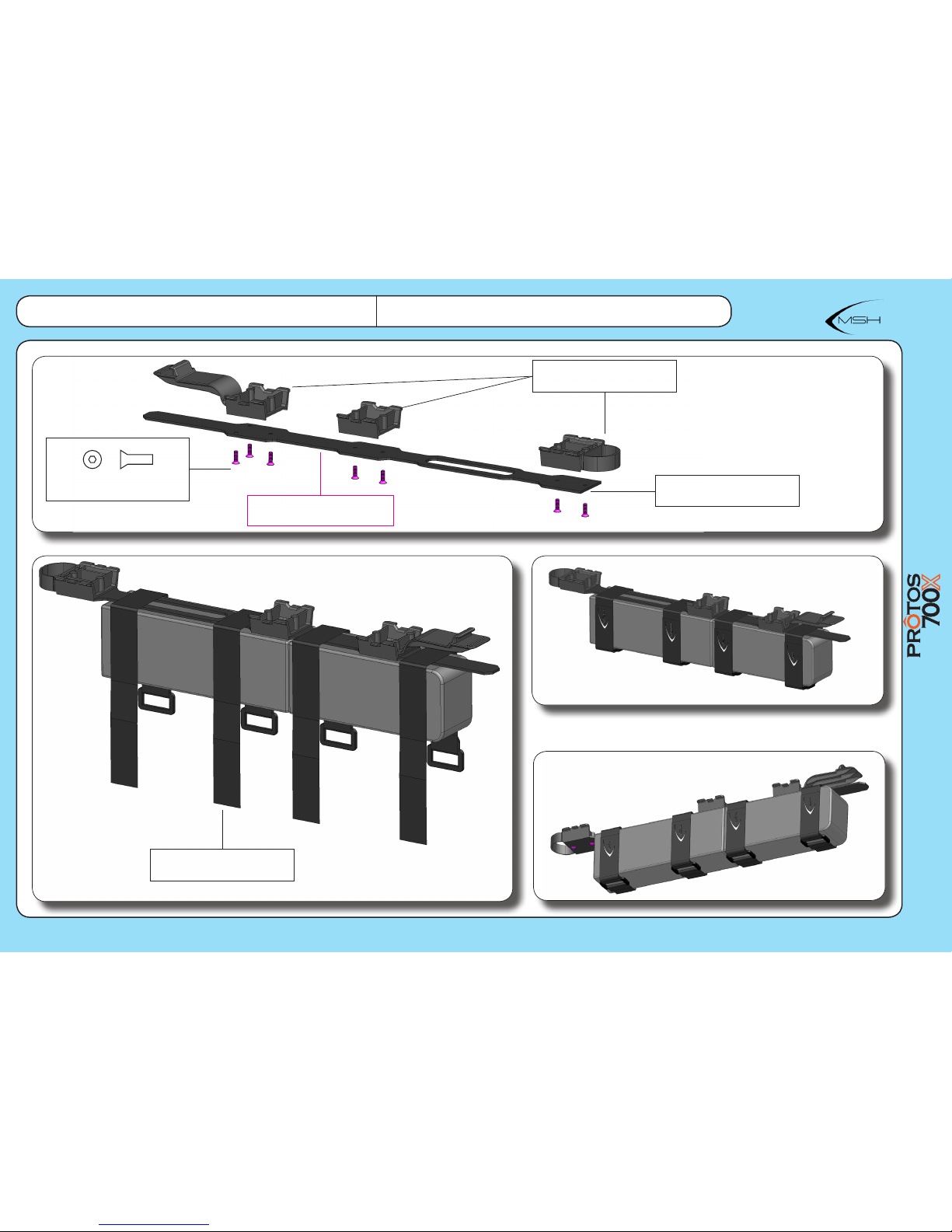

battery installation
54
main blades installation
55

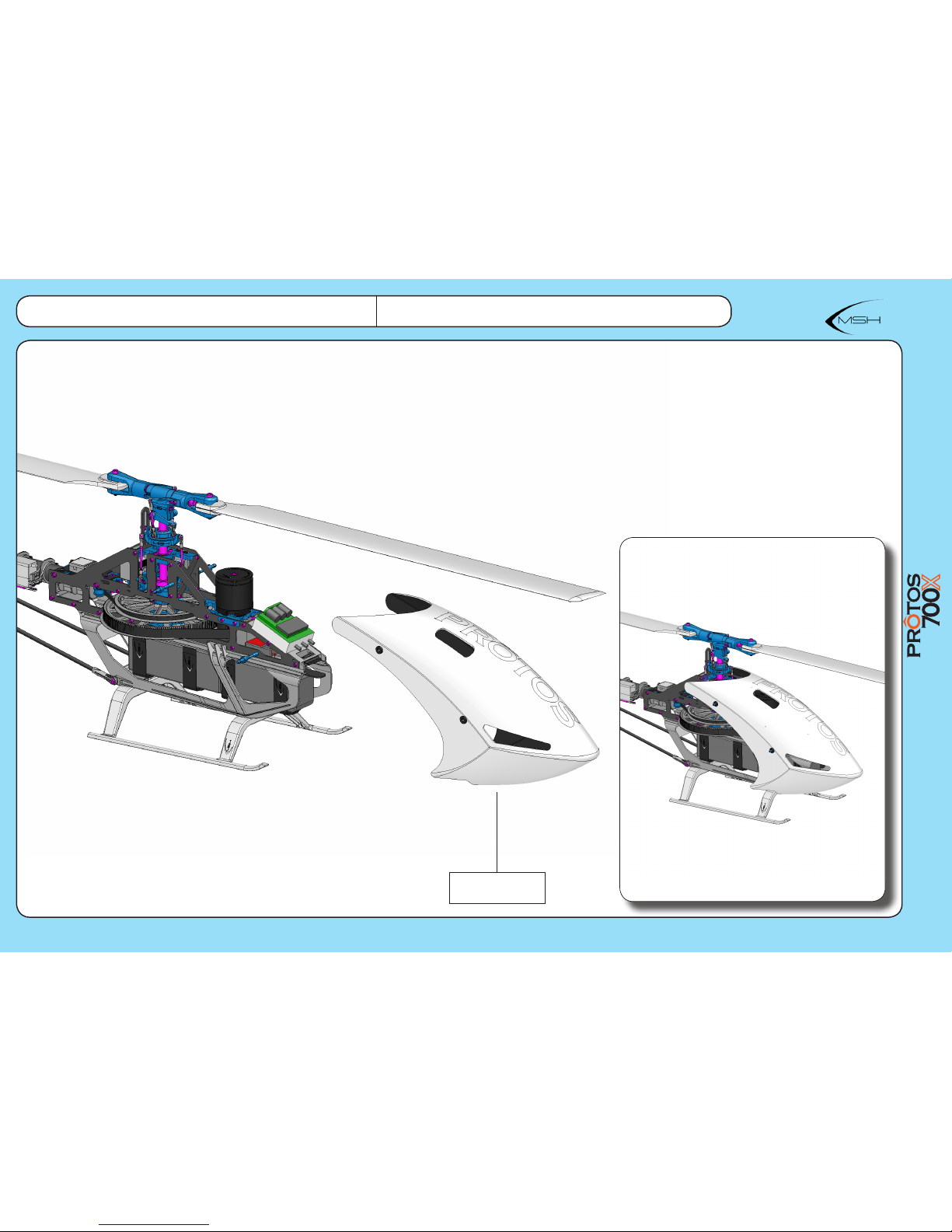

canopy installation
56
main blades pitch check
57
tail blades pitch check
58
belt tension check - tail side
59
belt tension check - motor side
Index
Instructions Manual
2
Page 3
Always follow these rules for safety
Instructions Manual
Operate the helicopter in open areas with no people nearby.
Do NOT operate the helicopter in the following places and situations (or else you risk severe
accidents):
-in places where children gather or people pass through
-in residential areas and parks
-indoors and in limited space
-in windy weather or when there is rain, snow, fog or other precipitation
If you do not observe these instructions you may be held liable for personal injury or property damage!
Always check the R/C system prior to operating your helicopter.
When the R/C system batteries get weaker,the operational range of the R/C system decreases.
Note that you may lose control of your model when operating it under such conditions.
Keep in mind that other people around you might also be operating a R/C model.
Never use a frequency which someone else is using at the same time.
Radio signals will be mixed and you will lose control of your model.
If the model shows irregular behavior, bring the model to a halt immediately and disconnect the batteries.
Investigate the reason and x the problem.
Do not operate the model again as long as the problem is not solved, as this may lead to further trouble
and unforeseen accidents.
In order to prevent accidents and personal injury, be sure to observe the following:
Before ying the helicopter, ensure that all screws are tightened.
A single loose screw may cause a major accident.
Replace all broken or defective parts with new ones, as damaged parts lead to crashes.
Never approach a spinning rotor. Keep at least 10 meters/yards away from a spinning rotor blades.
Do not touch the motor immediately after use. It may be hot enough to cause burns.
Perform all necessary maintenance.
PRIOR TO ADJUSTING AND OPERATING YOUR MODEL, OBSERVE THE FOLLOWING
Operate the helicopter only outdoors and out of people’s reach as the main rotor operates at high rpm!
While adjusting, stand at least 10 meters
Novice R/C helicopter pilots should always seek advice from experienced pilots to obtain hints with assembly
and for pre-ght adjustments.
Note that a badly assembled or insuciently adjusted helicopter is a safety hazard!
In the beginning, novice R/C helicopter pilots should always be assisted by an experienced pilot
and never y alone!
MSHeli Srl
Italy
3
Page 4

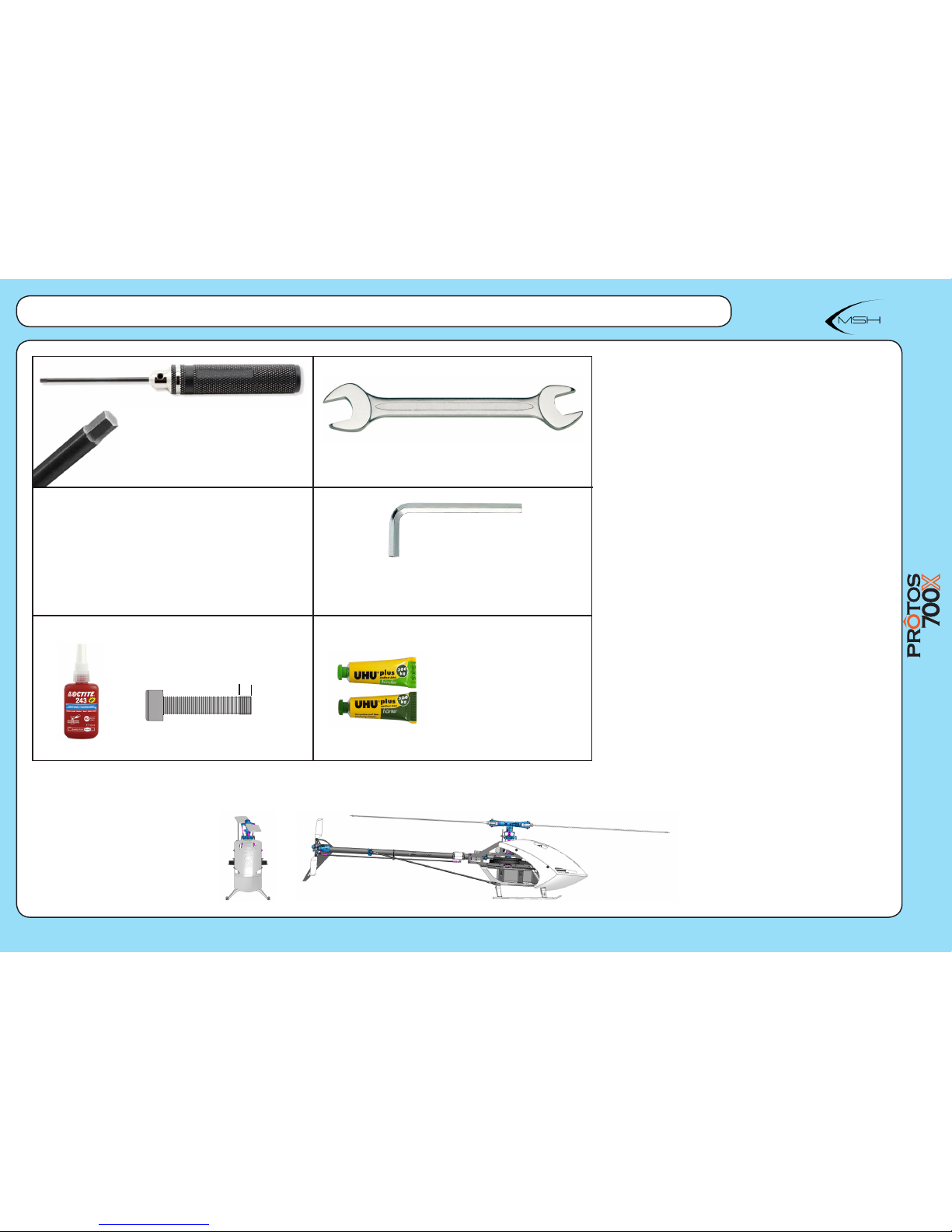

Tools required for assembly
Instructions Manual
4
Thrust bearing grease
Slow curing EPOXY
Philips screw driver
where indicated use
Thread lock MEDIUM
open-end wrench 7mm
Hexagon screw drivers :
1,5mm
2mm (need with handle and long tip)
2,5mm - 4mm
two 5 mm (spindle)
Hexagon L-key 2,5mm
Page 5
R/C equipment required for assembly
Instructions Manual
5
Main blades:
standard full carbon blades
690mm - 716mm
750mm - 800mm
need 800 conversion Kit Protos
Max V2
ART. MSH71165
Tail blades:
standard full carbon blades
105mm to 115mm
BEC
ESC :
at least
160 A High Voltage
Swashplate servos supported:
all standard servos (qnty. 3)
Tail servo supported:
all standard servos (qnty. 1)
Trasmitter
Receiver/satellite
Flybarless unit
Battery pack:
LiPo 10s to 14s 4000/5500mAh
Page 6

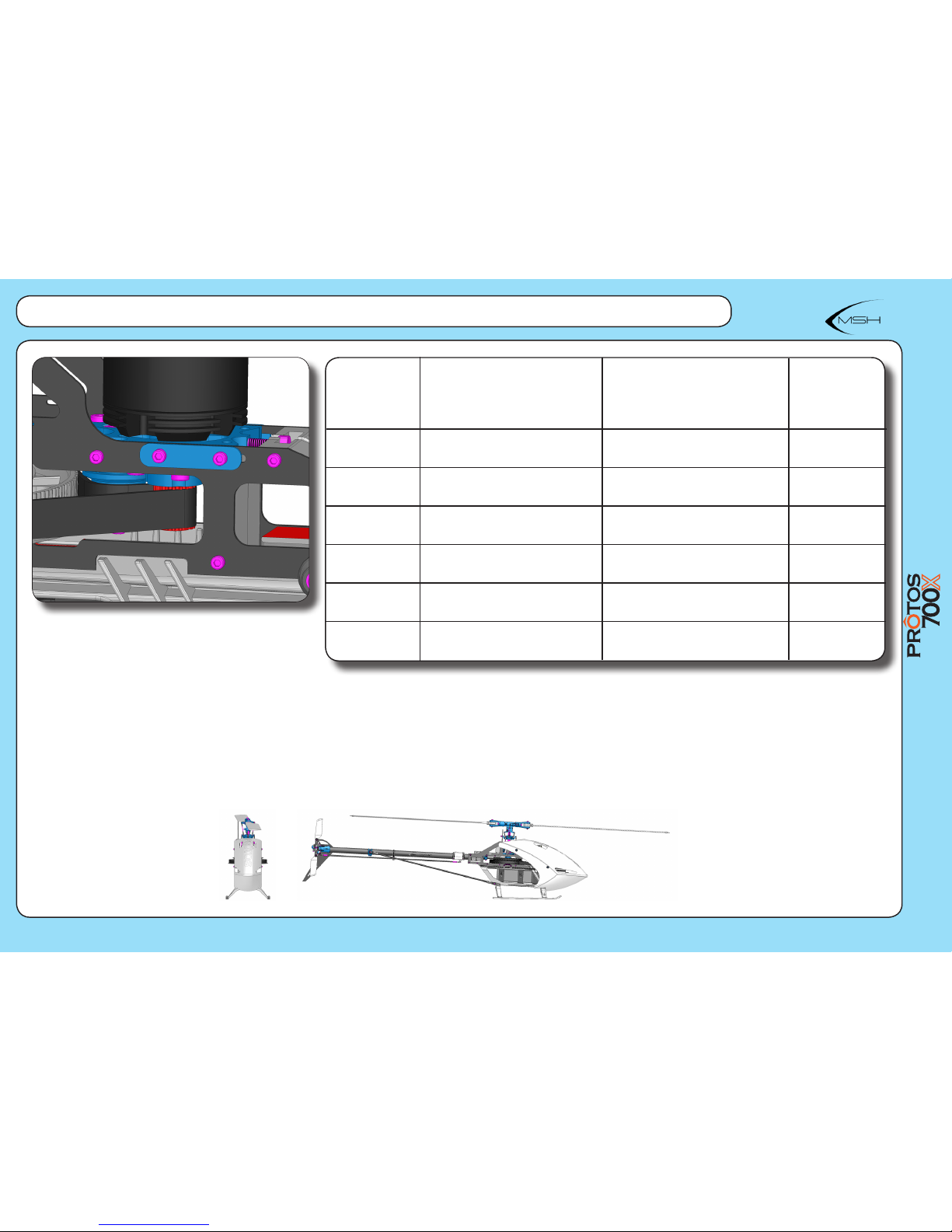

Motor pinion teeth choice
Instructions Manual
6
23T ART MSH71231 (Optional)
Fly style
Beginner
Sport
Soft 3D
Hardcore 3D
Pinion
Aluminium
18T ART MSH71226 (Optional)
19T ART MSH71227 (Optional)
20T ART MSH71228
RPM
(520Kv motor)
1800
1950
2100
2350
3D
21T ART MSH71229 (Optional)
2150
Hard 3D
22T ART MSH71230 (Optional)
2250
23T ART MSH71218 (Optional)
20T ART MSH71215 (Optional)
21T ART MSH71216 (Optional)
22T ART MSH71217 (Optional)
Pinion
Steel
Page 7

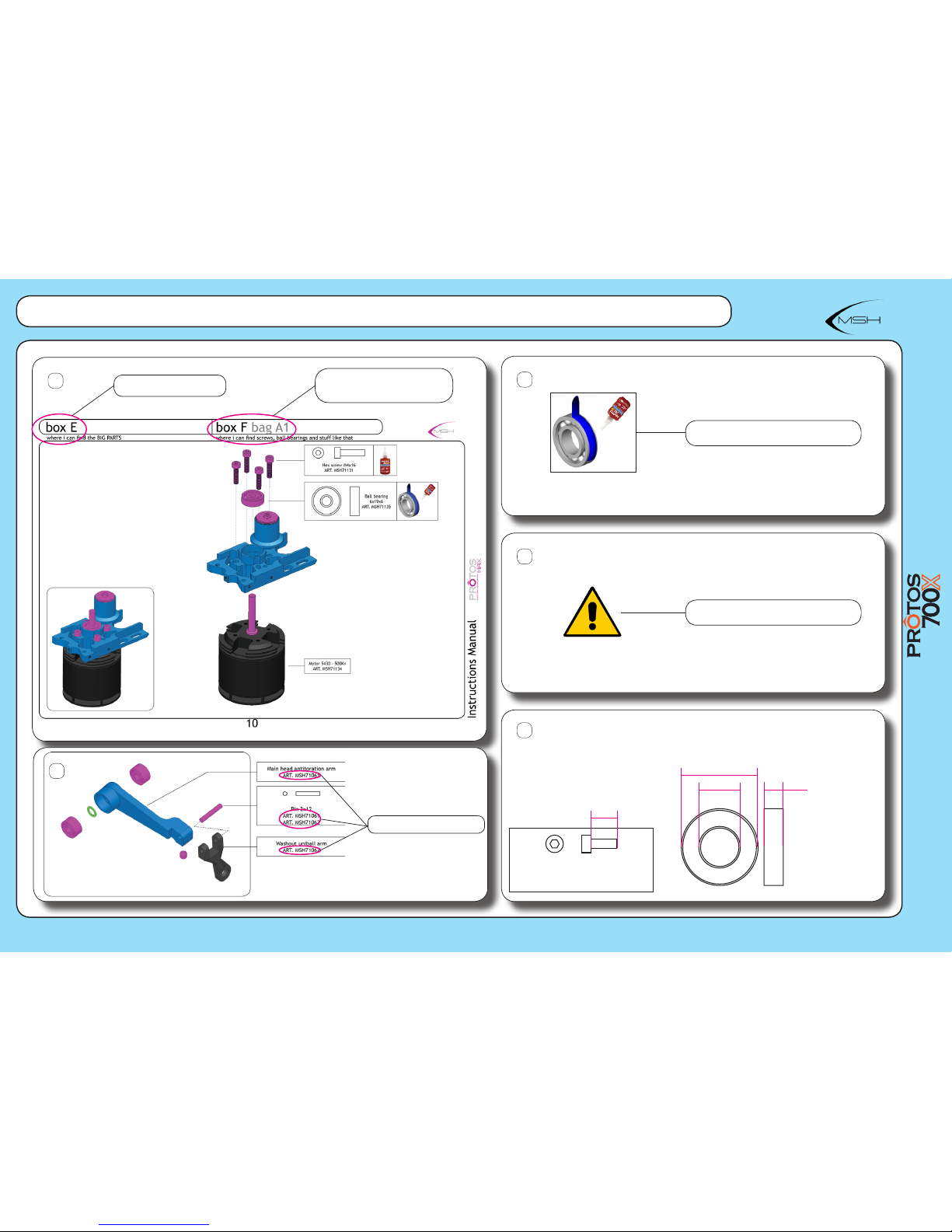

How to read this manual
Instructions Manual
7
Box where you can
nd all big parts
Box and bag where you can
nd washers, bearings, screws
and all other small parts
MSH spare part code
Apply a thin layer of threadlock on the
external part of the ball bearing
Pay attention to the instruction steep
behind this icon
1
3
4
2
5

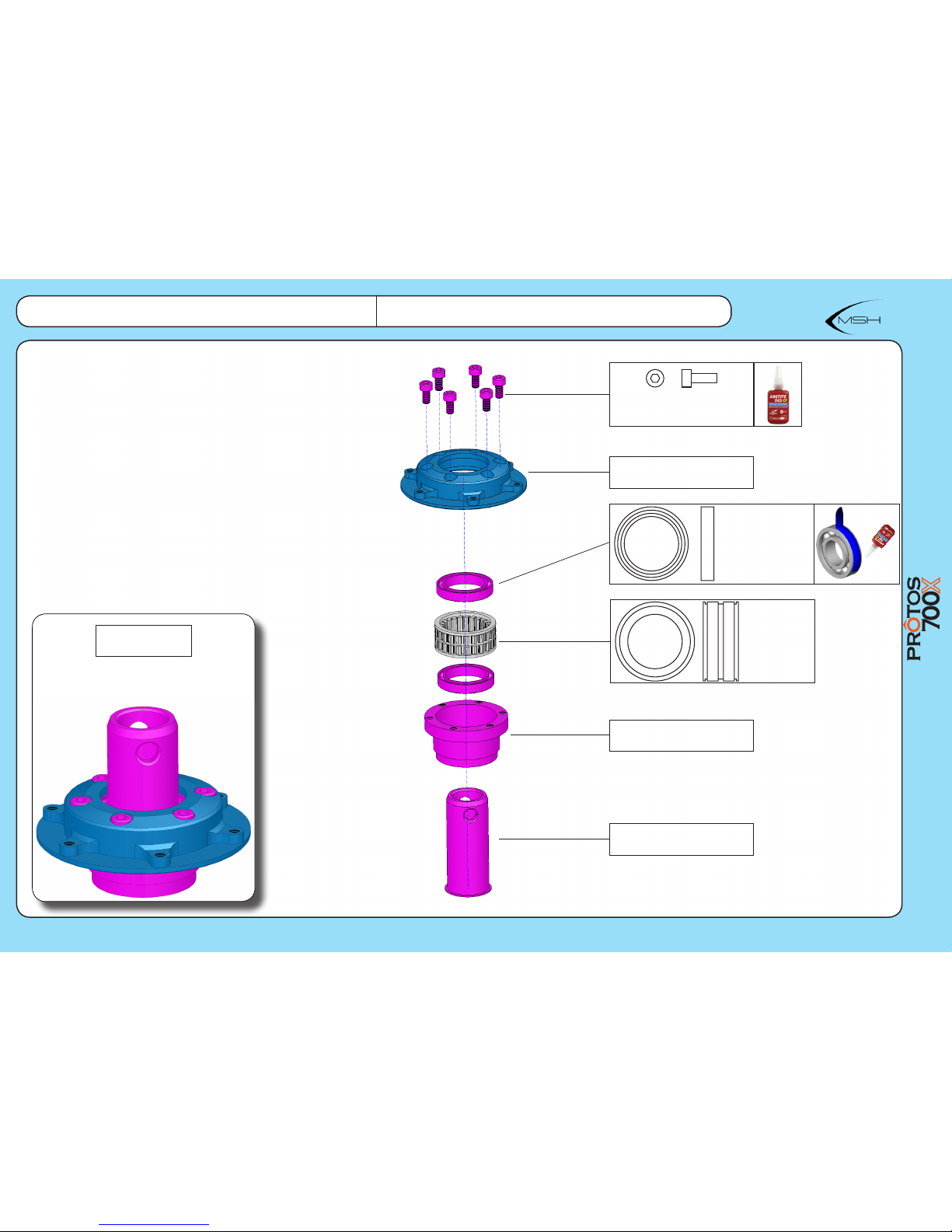

Hex screw M3x6
ART. MSH71108
6mm
24mm
12mm
6mm
Ball bearing
12x24x6
ART. MSH71155
1:1
Page 8

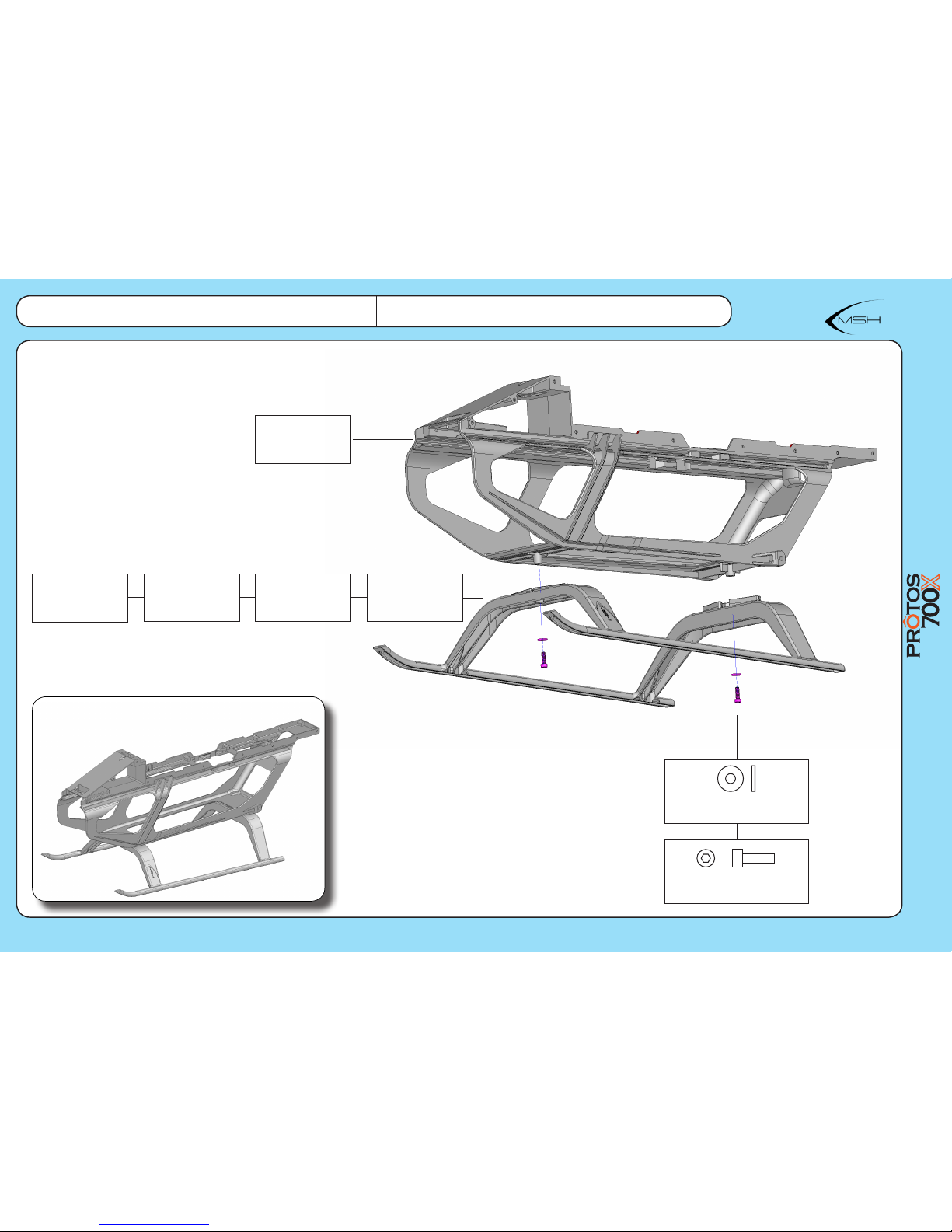

box A
Instructions Manual
8
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A1
Washer
3.1x8x1
Hex screw M3x10
ART. MSH71114
Main plastic frame v2
Leggero
ART. MSH71225
Landing gear White
Gorilla Gear
ART. MSH7173
Landing gear
Gorilla Gear
ART. MSH71172
OPTIONAL
Landing gear Red
Gorilla Gear
ART. MSH7241
OPTIONAL
Landing gear Yellow
Gorilla Gear
ART. MSH71242
OPTIONAL
Page 9

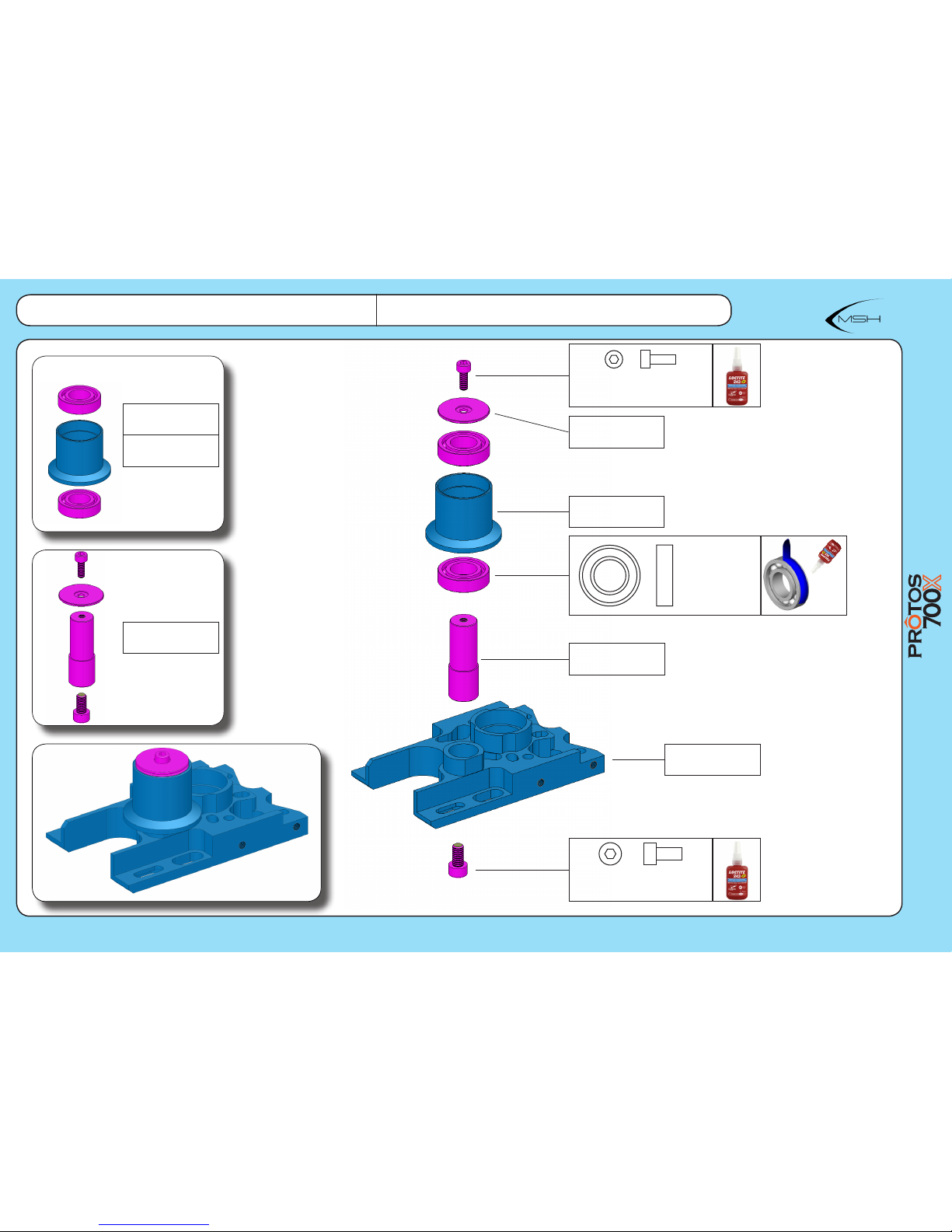

Guide pulley support
- Front side -
Guide pulley
- Front side -
Hex screw M3x8
ART. MSH71109
Ball bearing
10x19x5
ART. MSH71071
Hex screw M4x8
ART. MSH71117
Motor mount
ART. MSH71132
box G
Instructions Manual
9
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A1
Guide pulley support
- Front side -
ART. MSH71133
Guide pulley
- Front side -
ART. MSH71136
PRE-ASSEMBLED
Guide pulley washer
- Front side -
Page 10
Instructions Manual
10
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A1

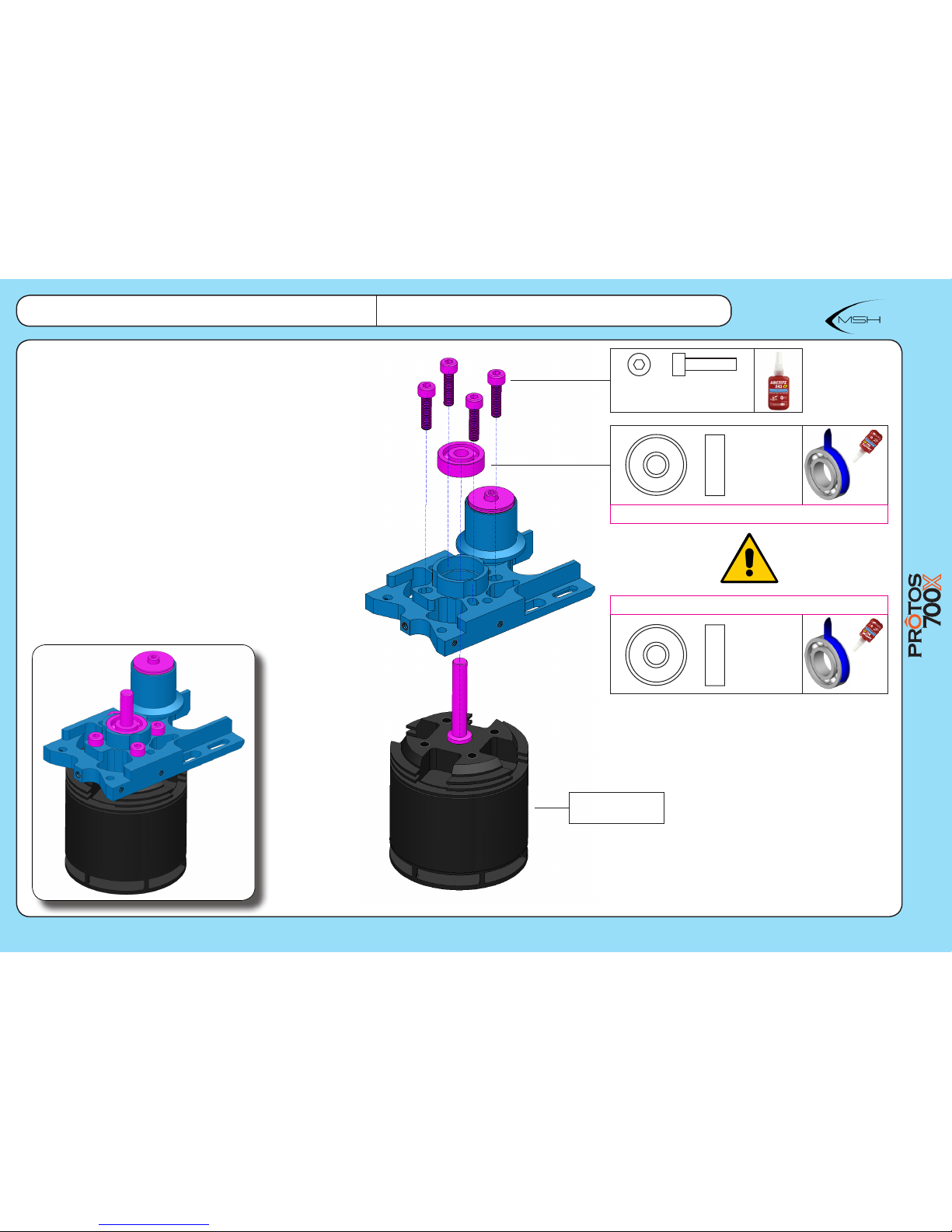

Ball bearing
6x19x6
ART. MSH71135
Hex screw M4x16
ART. MSH71131
NOT INCLUDED
Ball bearing
8x19x6
ART. MSH71162
For 6mm motor shaft
For 8mm motor shaft

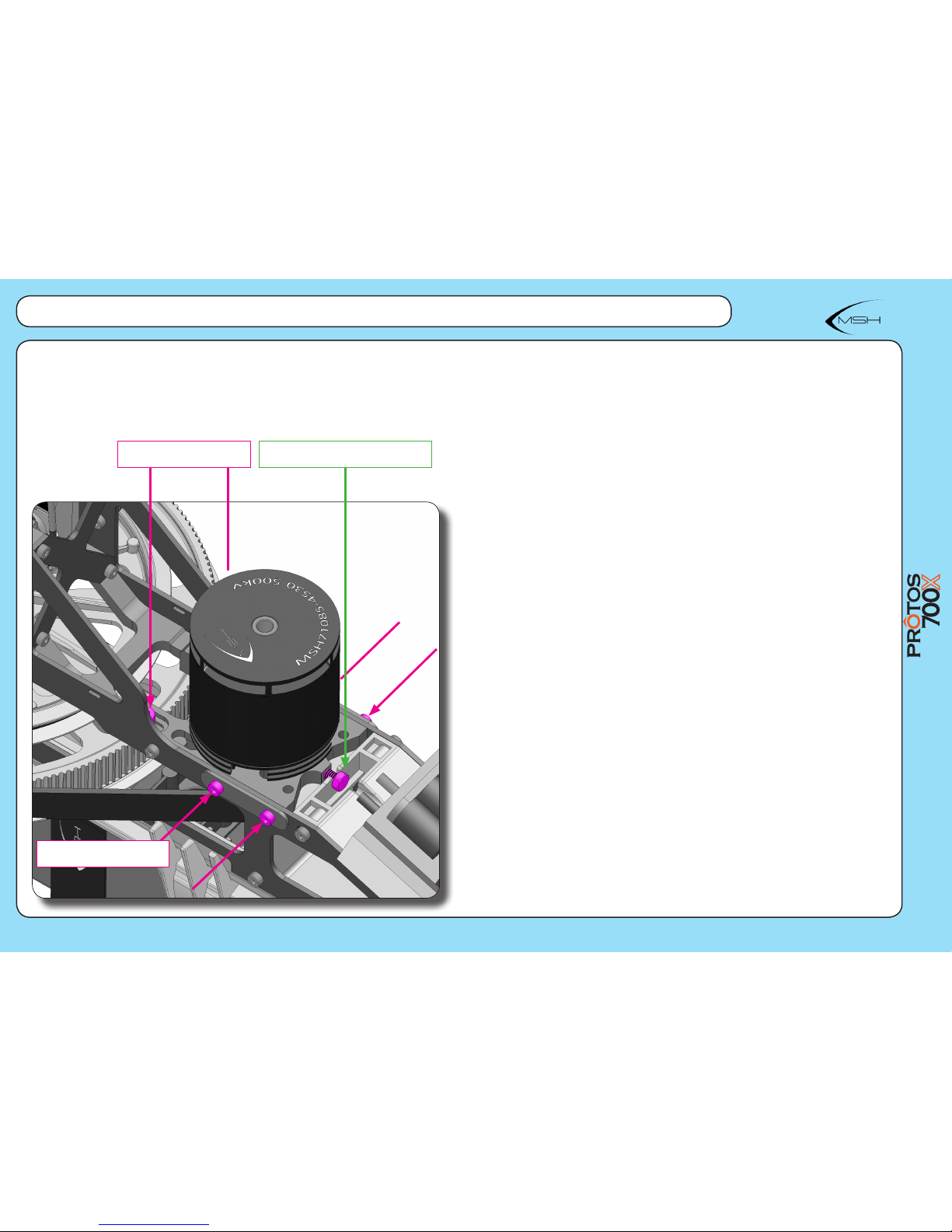

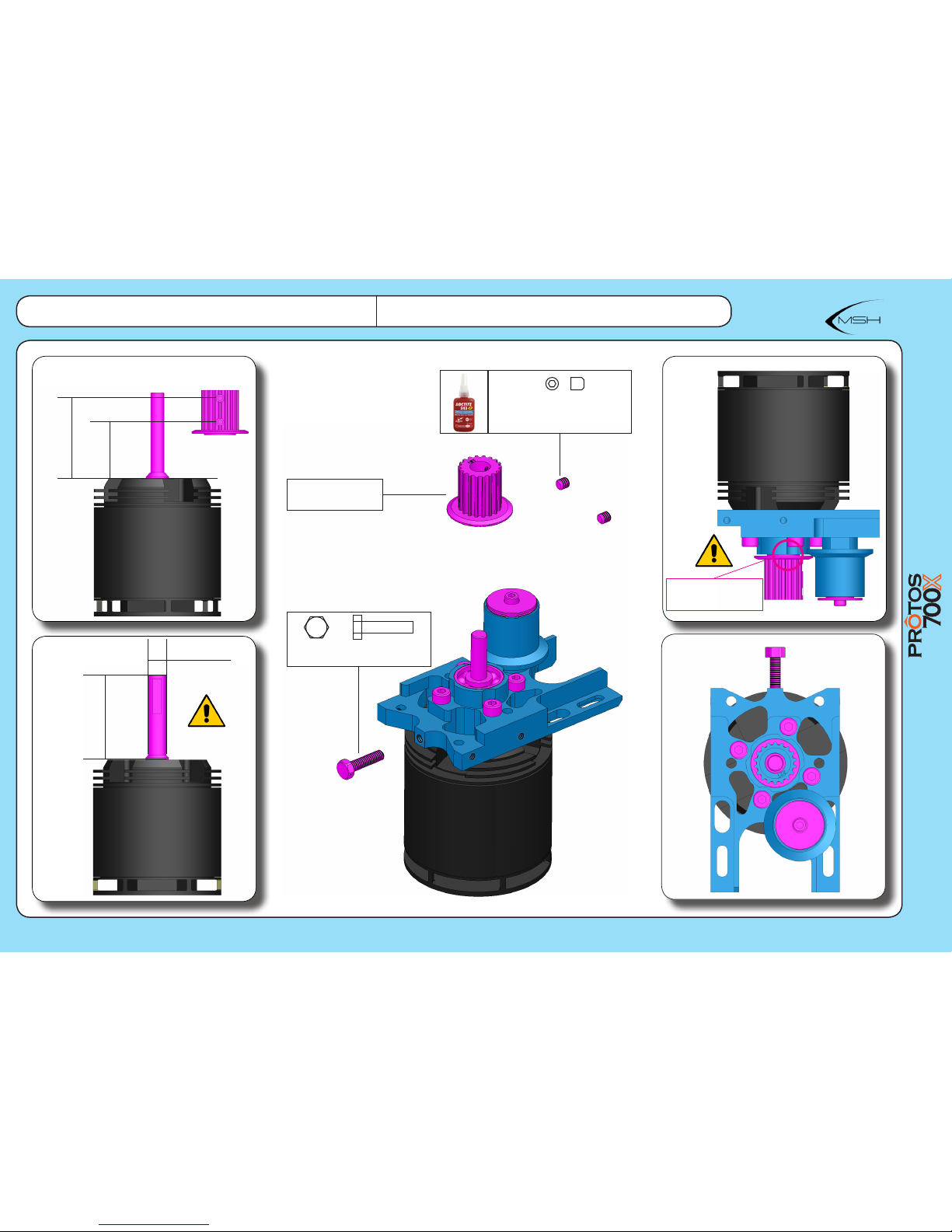

Page 11
Instructions Manual
11
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A1
23mm
34mm
38 - 49mm
6 - 8mm
Pinion 20T V2 r2 Alu
ART. MSH71228
M4X4 Socket screw
ART. MSH71122
Hex screw M4x16
ART. MSH71093
VERY IMPORTANRT
No gap
Page 12
Instructions Manual
12
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A2
Ball bearing
6x12x4
ART. MSH71082
Hex screw M3x5
ART. MSH71140
Ball bearing
6x10x2,5
ART. MSH51073

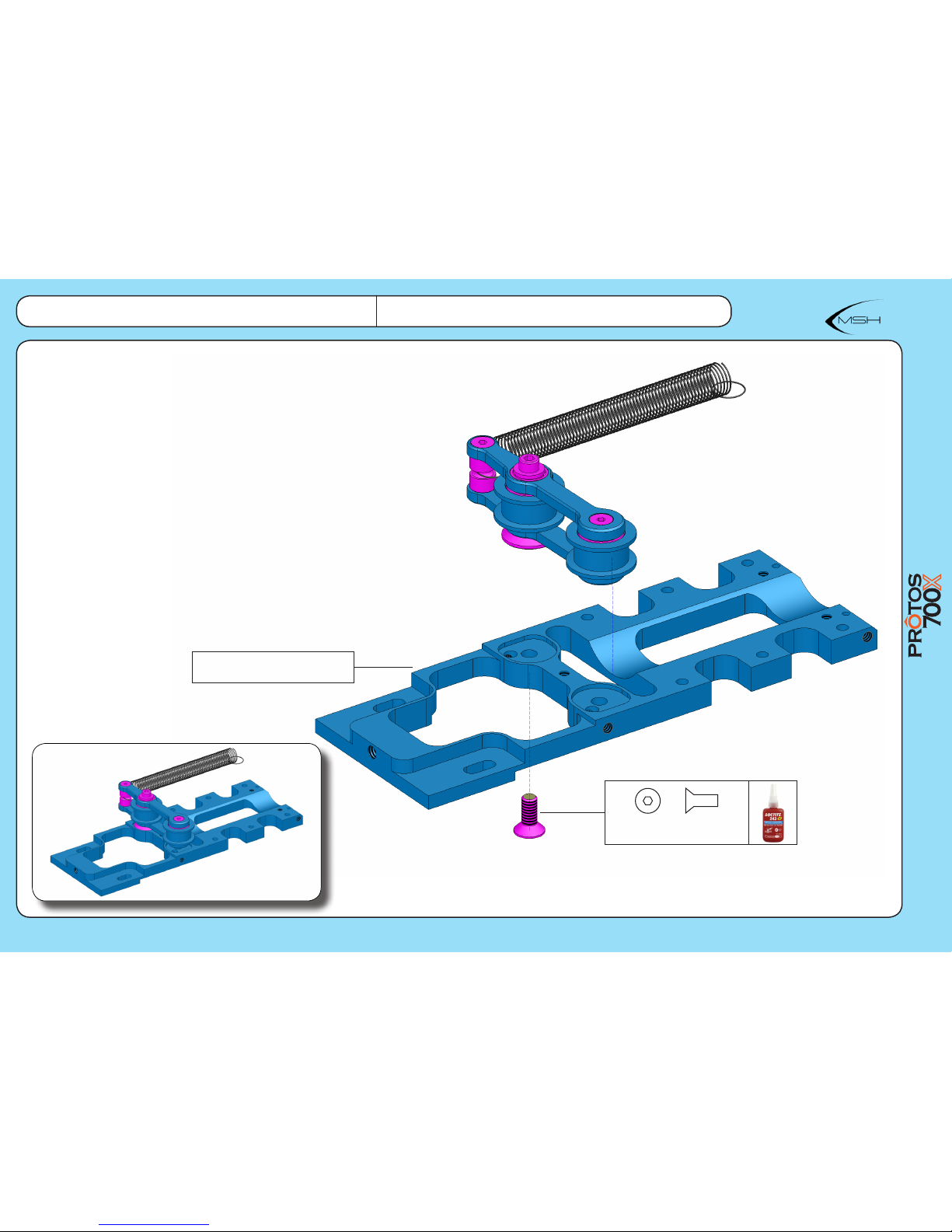

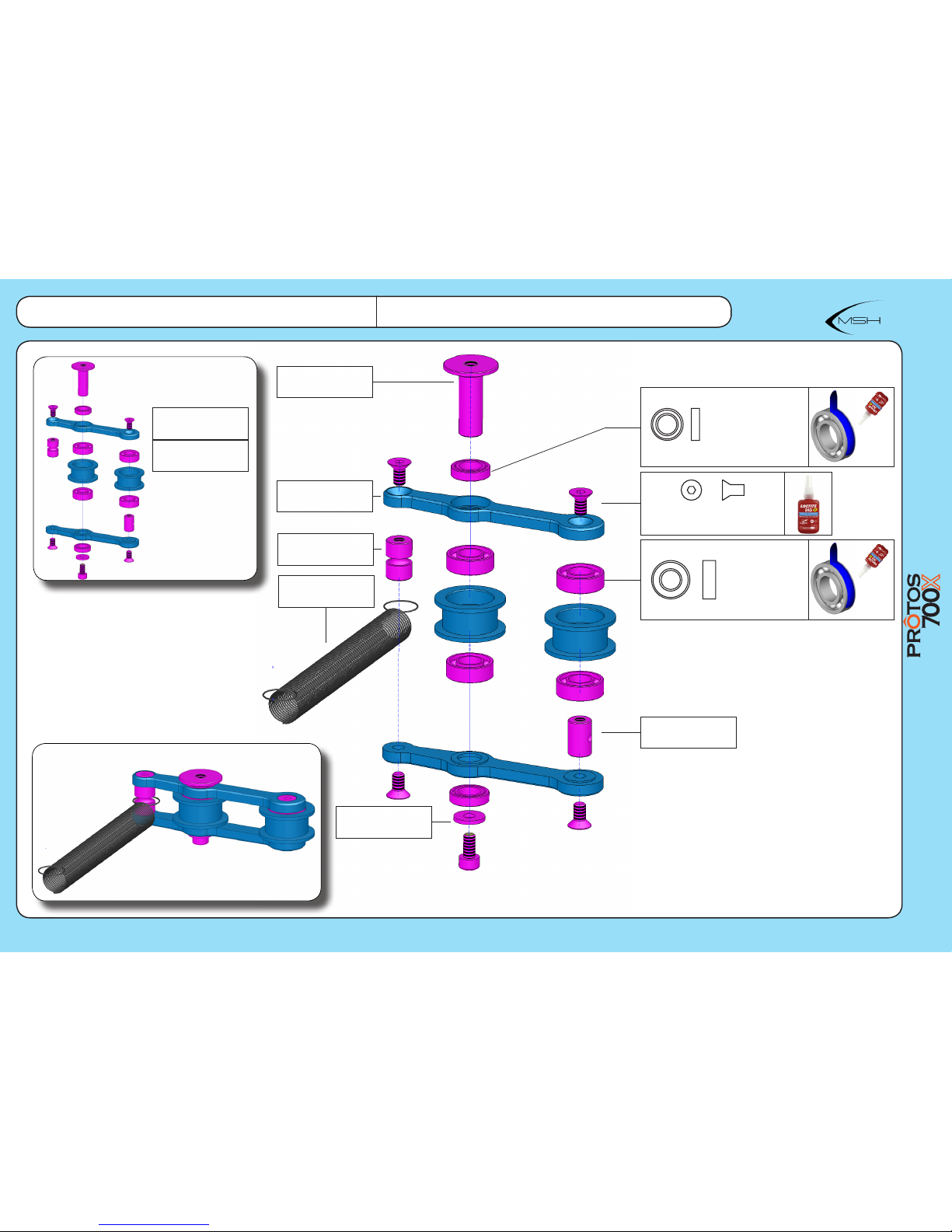

Guide pulley support
- Back Side -
Guide pulley arm -
Back Side -
Spring support
- Front Side -
Guide pulley bushing
Spring belt tensioner
ART. MSH71145
Washer
- 3,1x8x1 -
Belt tensioner
ART. MSH71144
PRE-ASSEMBLED
Page 13
box G
Instructions Manual
13
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A2
Hex screw M4x10
ART. MSH71101

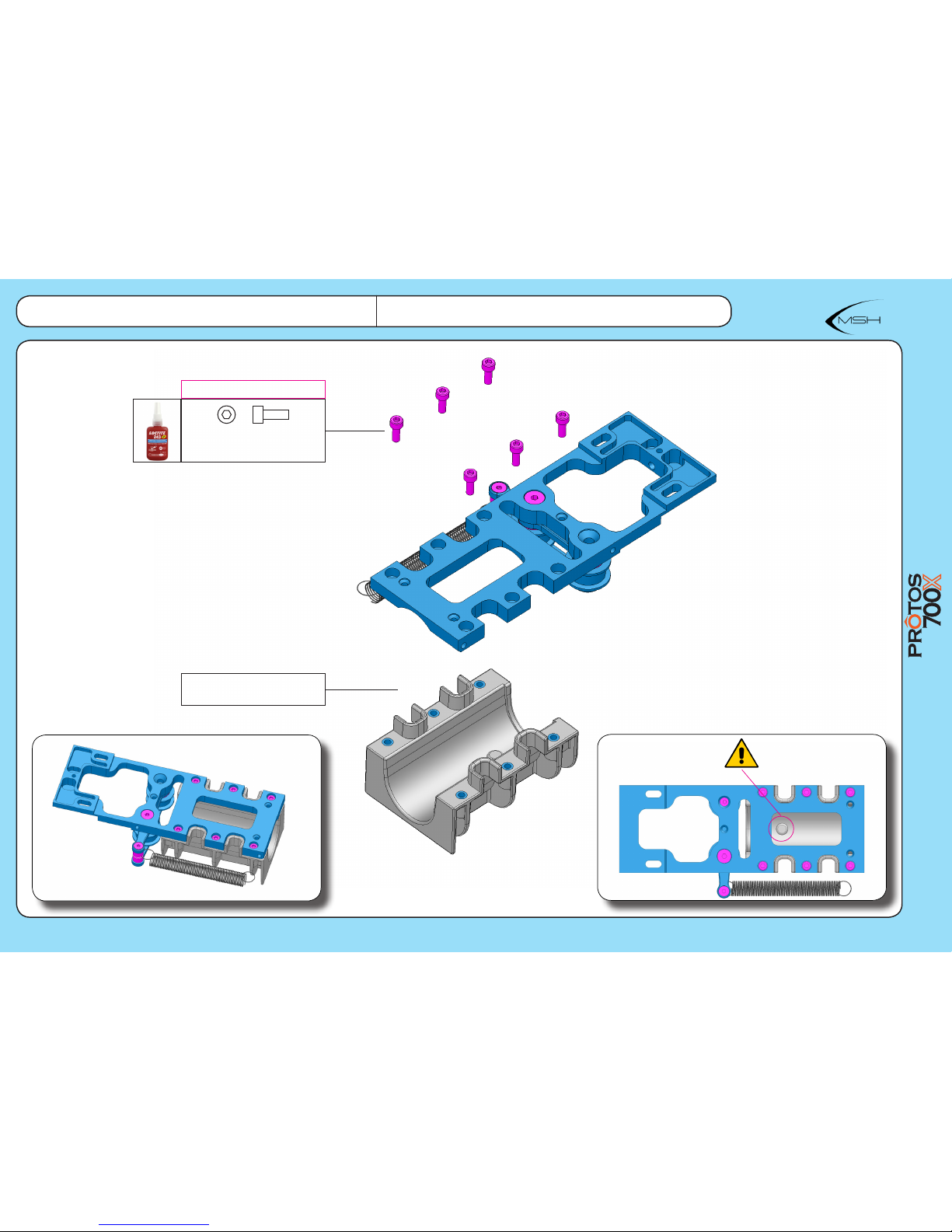

Frame rear plate
ART. MSH71017
Page 14
Instructions Manual
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that

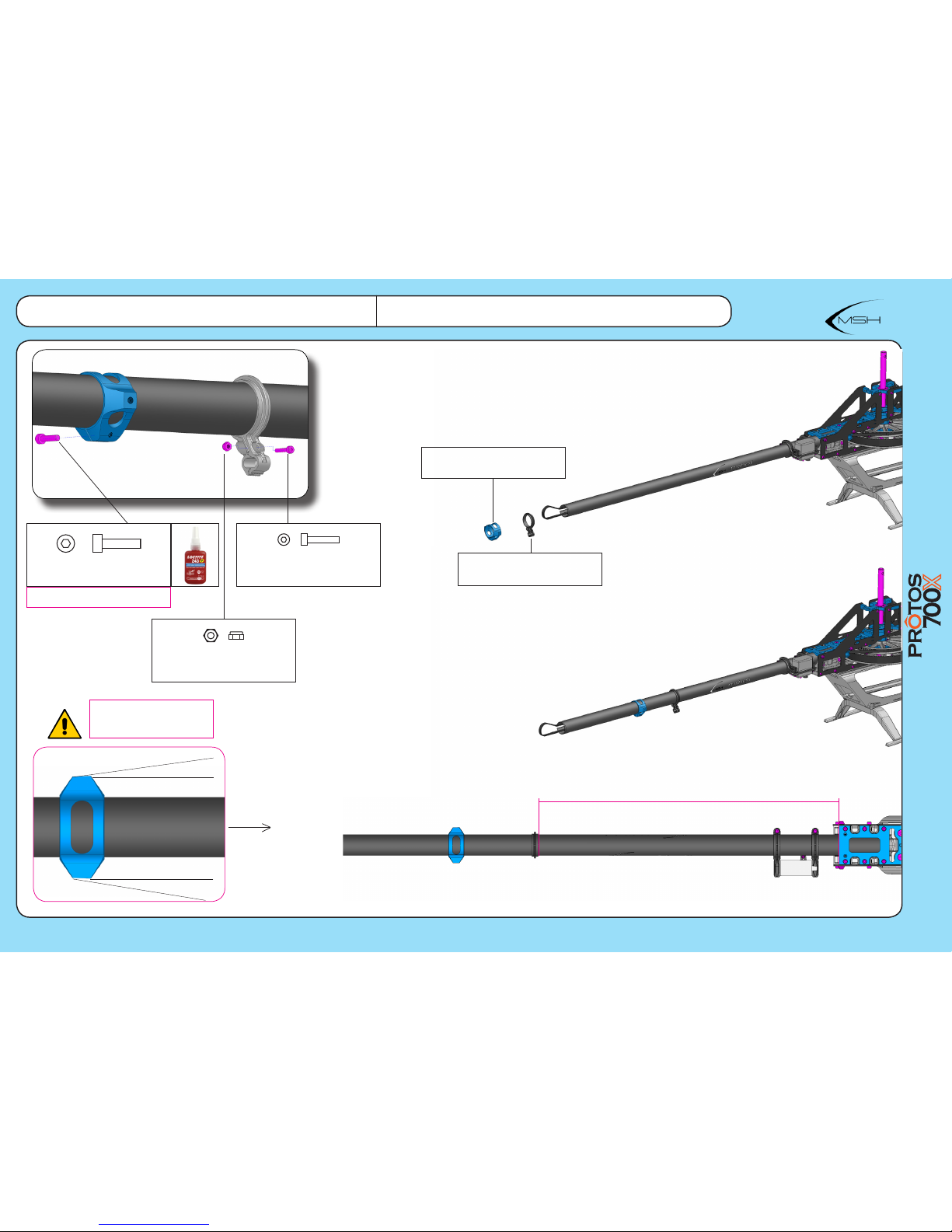

box F bag A + A2
Hex screw M3x8
ART. MSH71109
Tail boom frame clamp
ART. MSH71028
Do not fully thighten yet
14

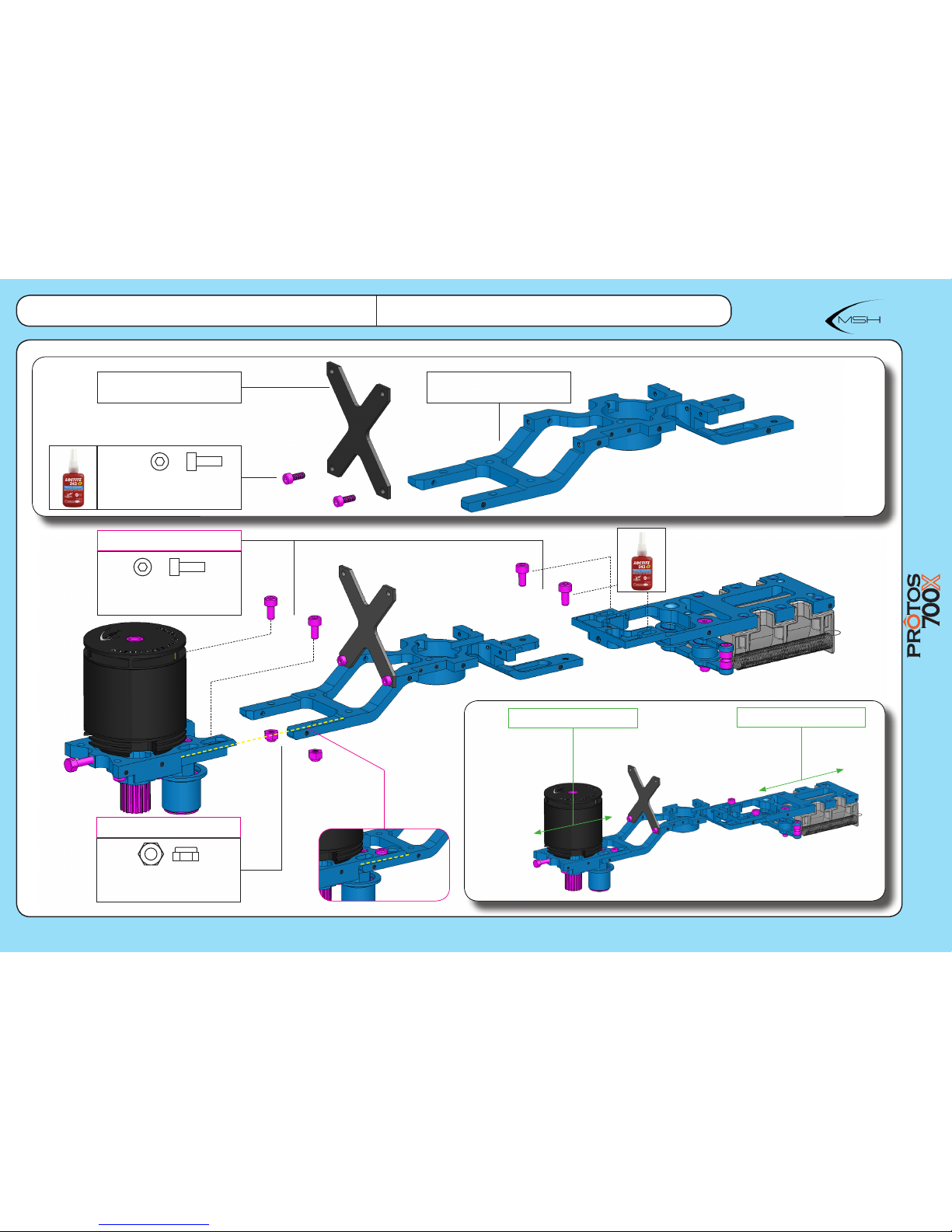

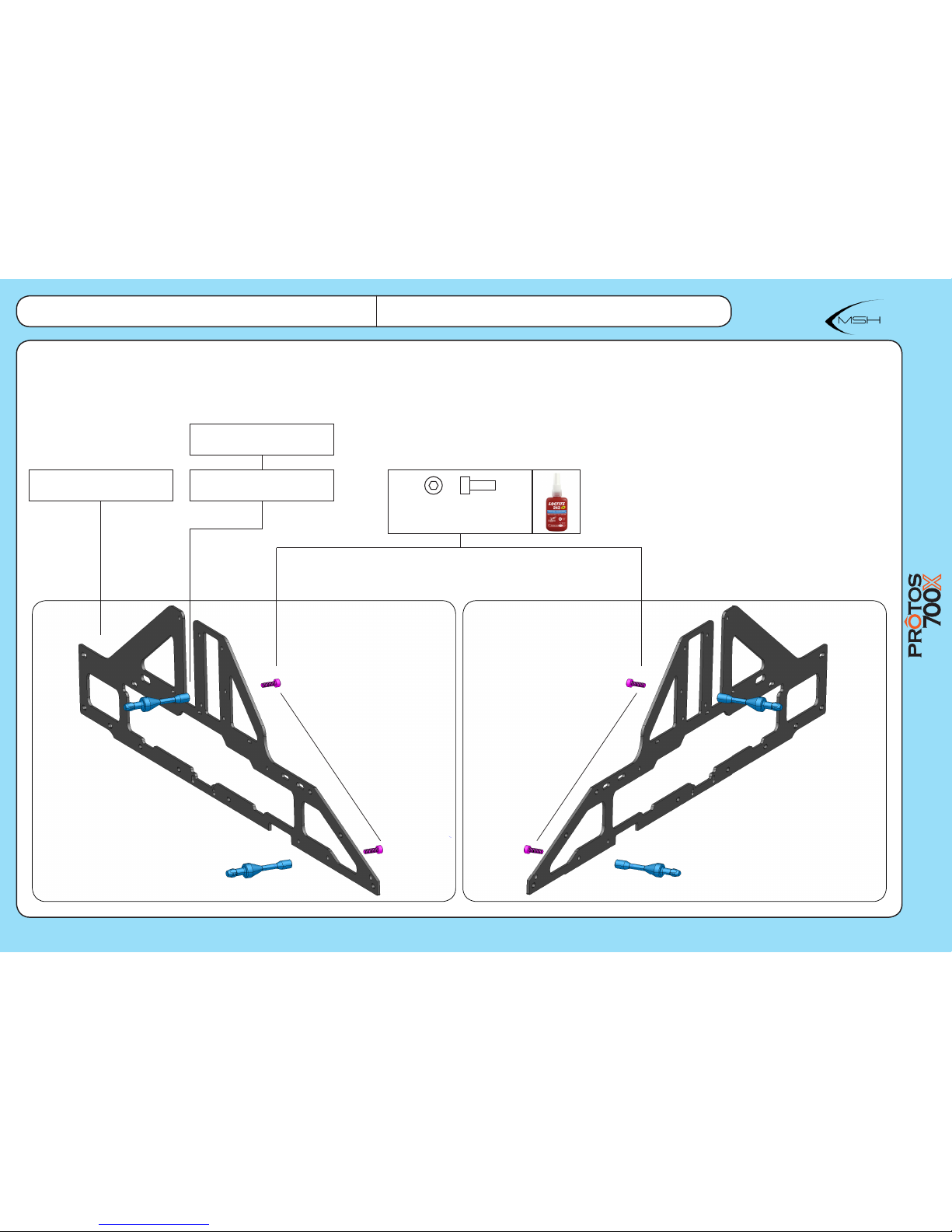

Page 15
box G + B
Instructions Manual
15
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A2

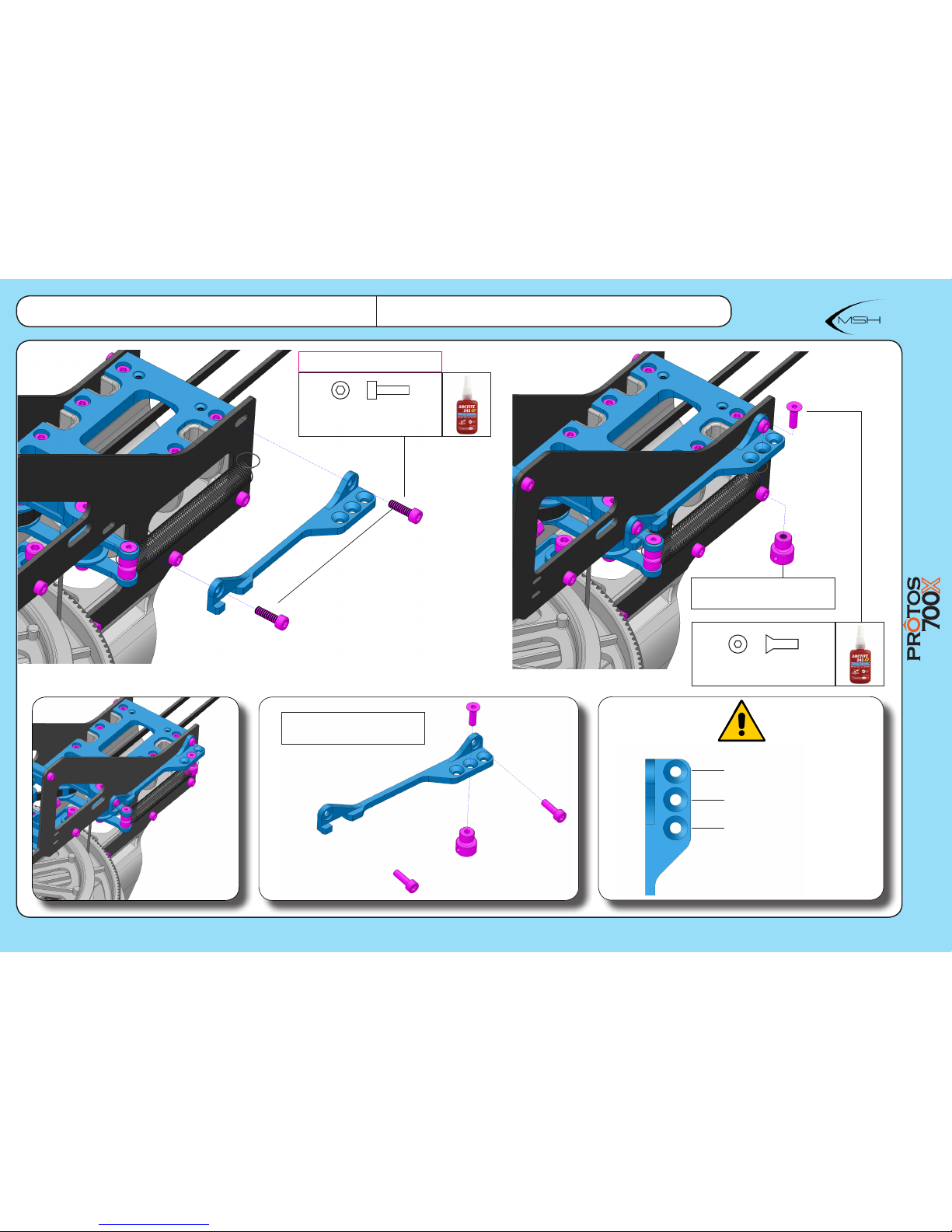

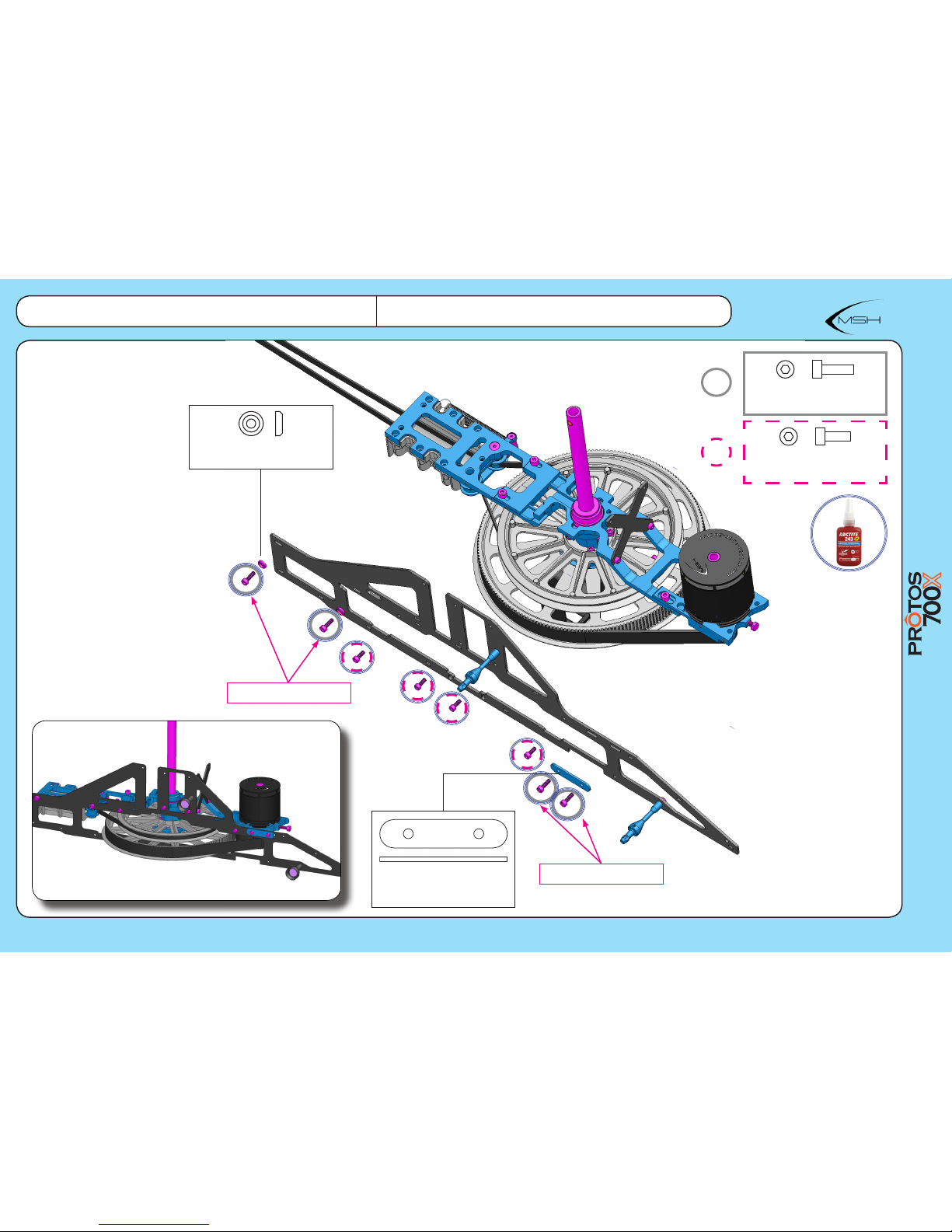

Rear belt tension regulation
Front belt tension regulation
Hex screw M3x8
ART. MSH71109
X carbon frame
ART. MSH71018
Frame central plate
ART. MSH71157
Hex screw M4x8
ART. MSH71117
Do not fully tighten yet
M4 Nut
ART. MSH71097
Do not fully tighten yet
Page 16
box A
Instructions Manual
16
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
Hex screw M3x6
ART. MSH71108
Oneway top
Oneway hub
Oneway shaft
Ball bearing
17x23x4
ART. MSH71146
Oneway bearing
PRE-ASSEMBLED
Page 17
box A
Instructions Manual
17
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
Hex screw M3x6
ART. MSH71108

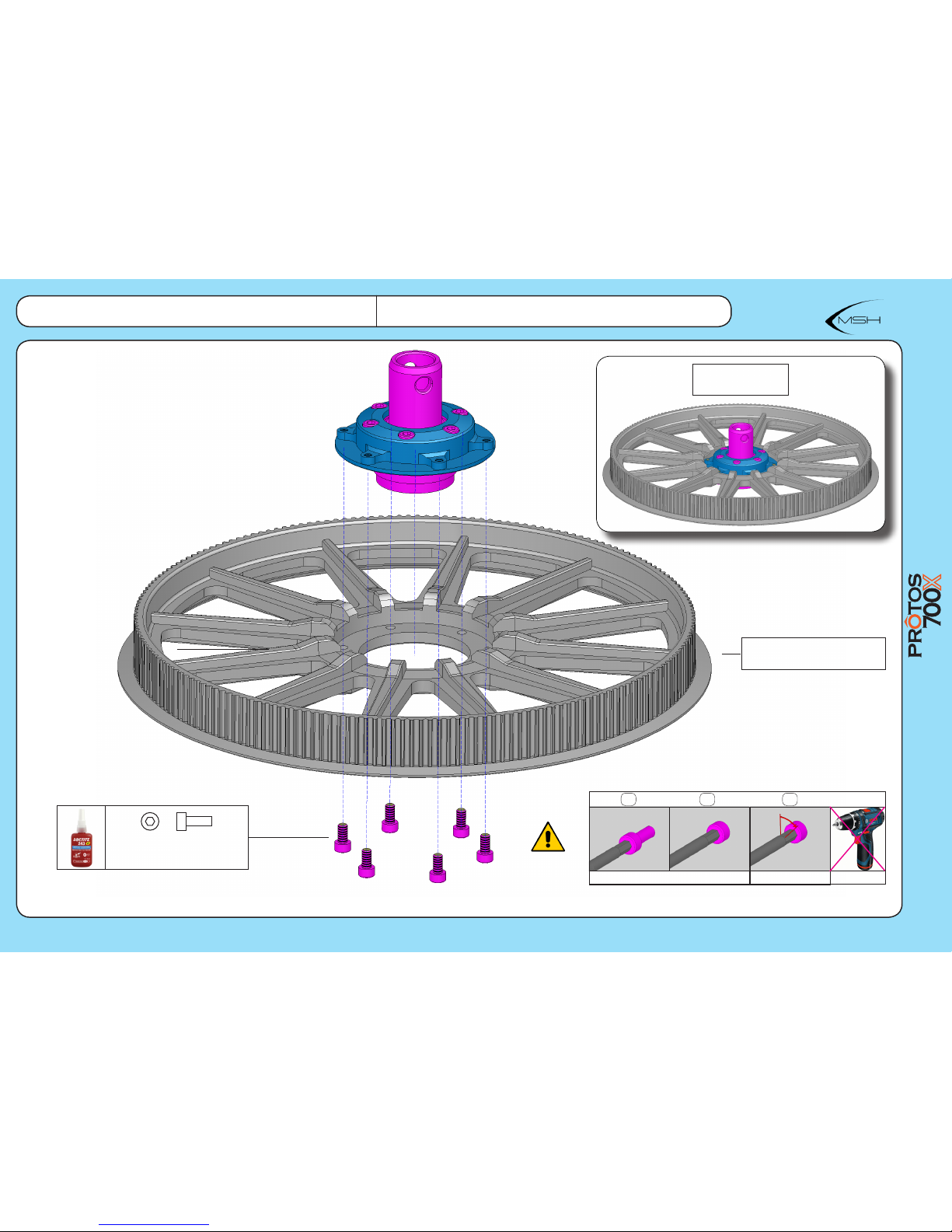

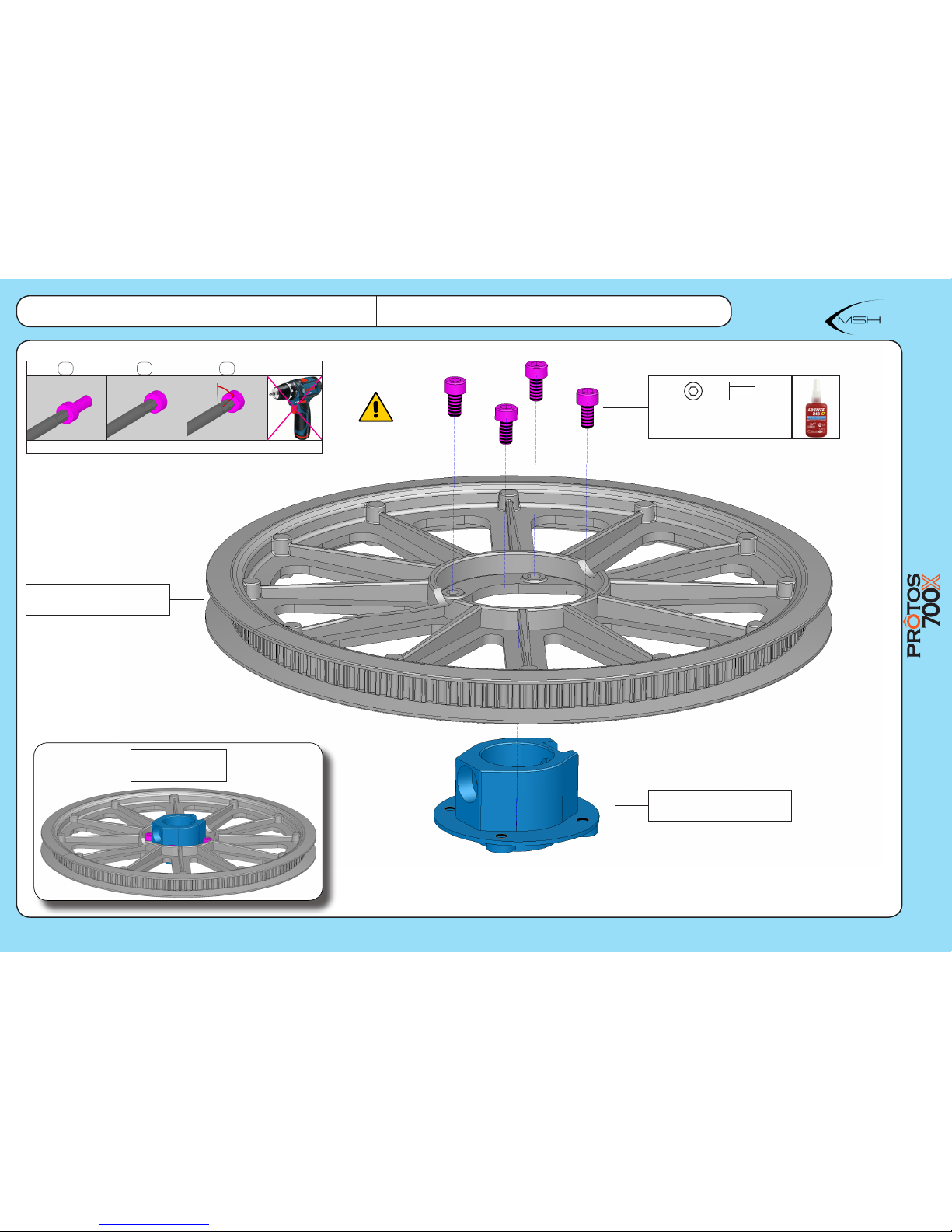

Main pulley V2 r2 Leggero
ART.MSH71234
1
tighten untill completely seated
2 3
tighten 1/8 turn
PRE-ASSEMBLED
Page 18
box A
Instructions Manual
18
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
Hex screw M3x6
ART. MSH71108
Autorotation pulley Leggero
ART.MSH71235
Autorotation pulley support
PRE-ASSEMBLED
1
tighten untill completely seated
2 3
tighten 1/8 turn

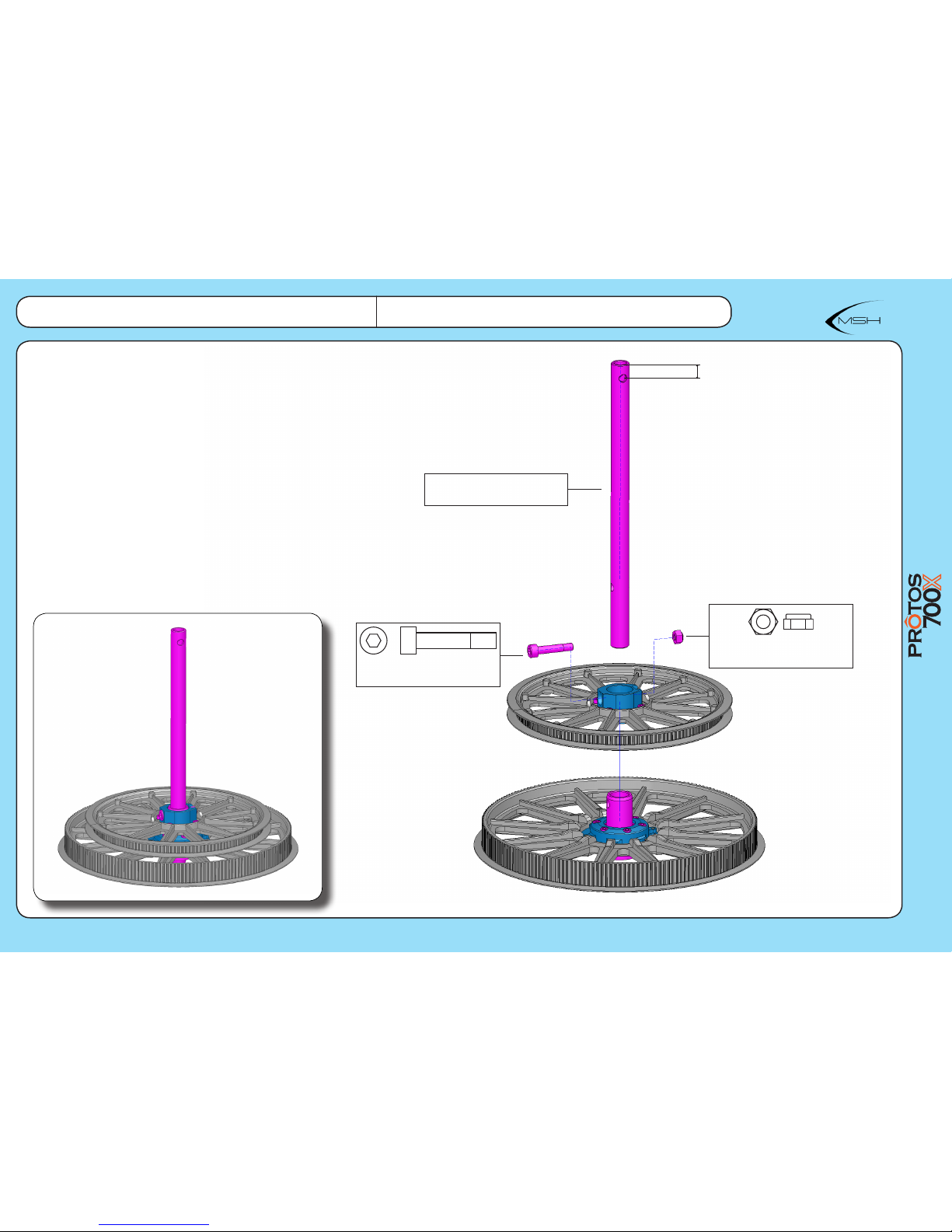

Page 19
Instructions Manual
19
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A2
Main shaft hollow V2 Leggero
ART.MSH71236
Hex screw M5x25
ART. MSH71118
M5 Nut
ART. MSH71098
Short dimension

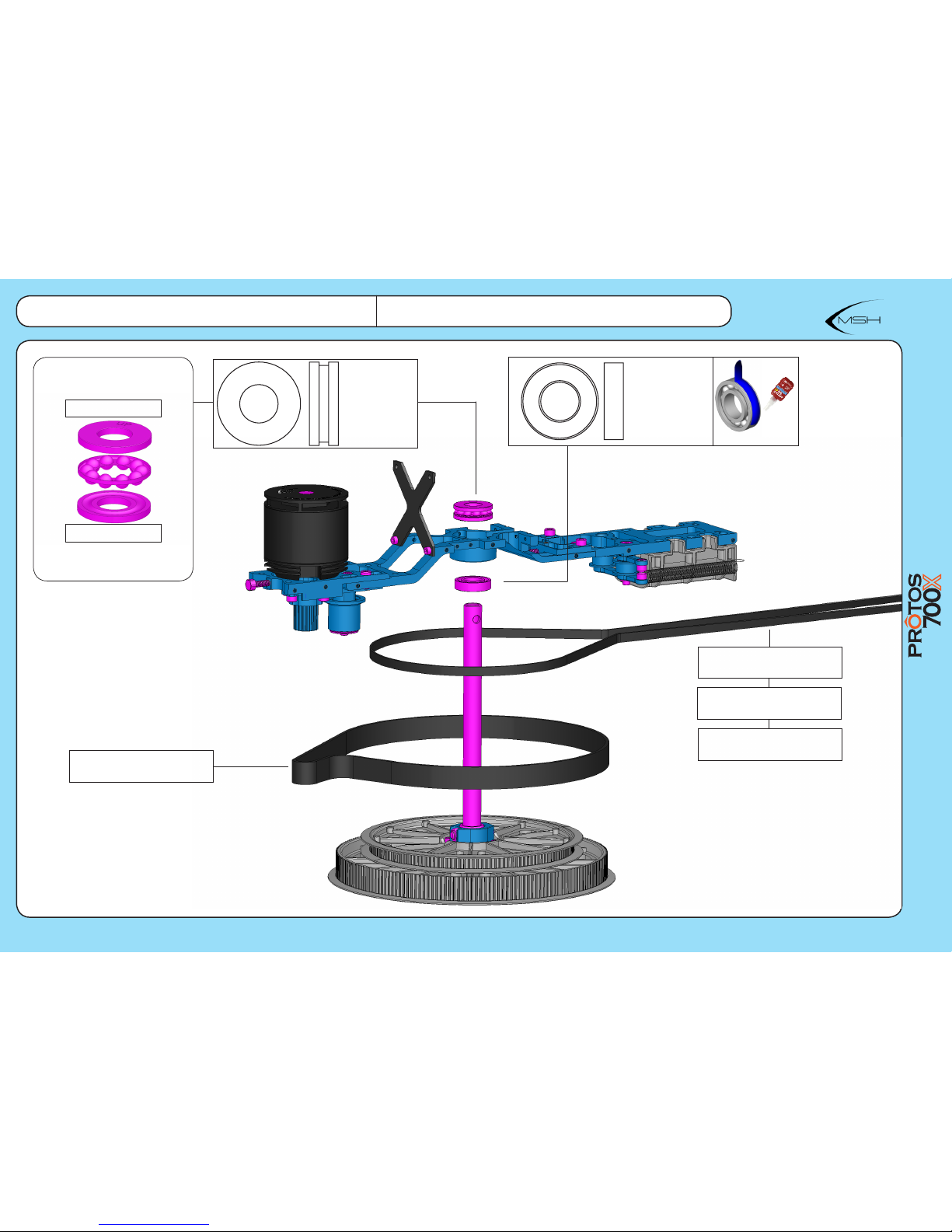

Page 20
box A + box B
Instructions Manual
20
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A2
Apply grease on thrust
bearing
Tail belt 800
ART.MSH71153
OPTIONAL
Tail belt 700
ART.MSH71152
Ball bearing
12x24x6
ART. MSH71155
Internal hole SMALLER
Internal hole BIGGER
Thrust bearing
12x26x9
ART. MSH71077
Tail belt 770
ART.MSH71206
OPTIONAL
Front belt
ART.MSH71154
Page 21
Instructions Manual
21
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A2

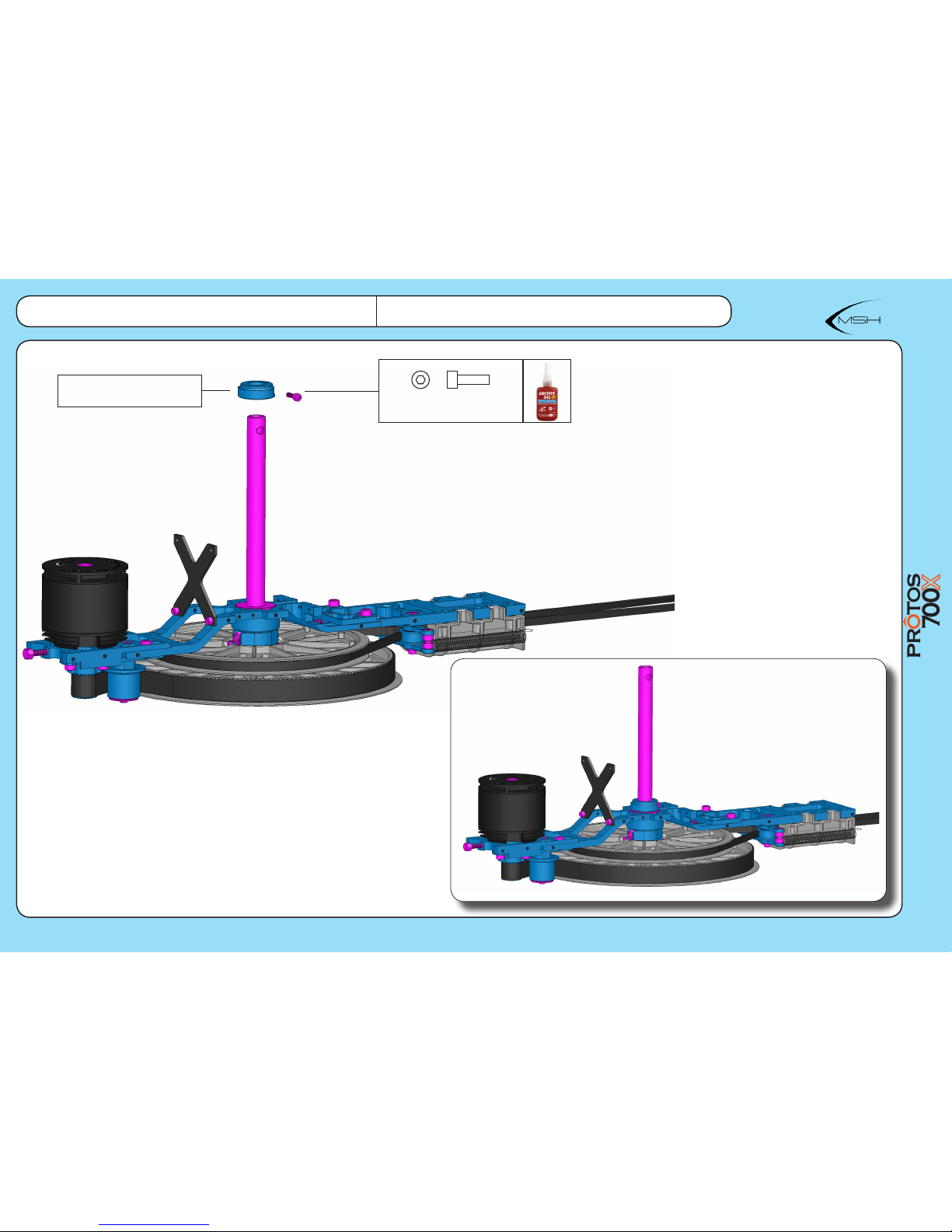

Main shaft locking ring
ART. MSH71025
Hex screw M3x10
ART. MSH71114

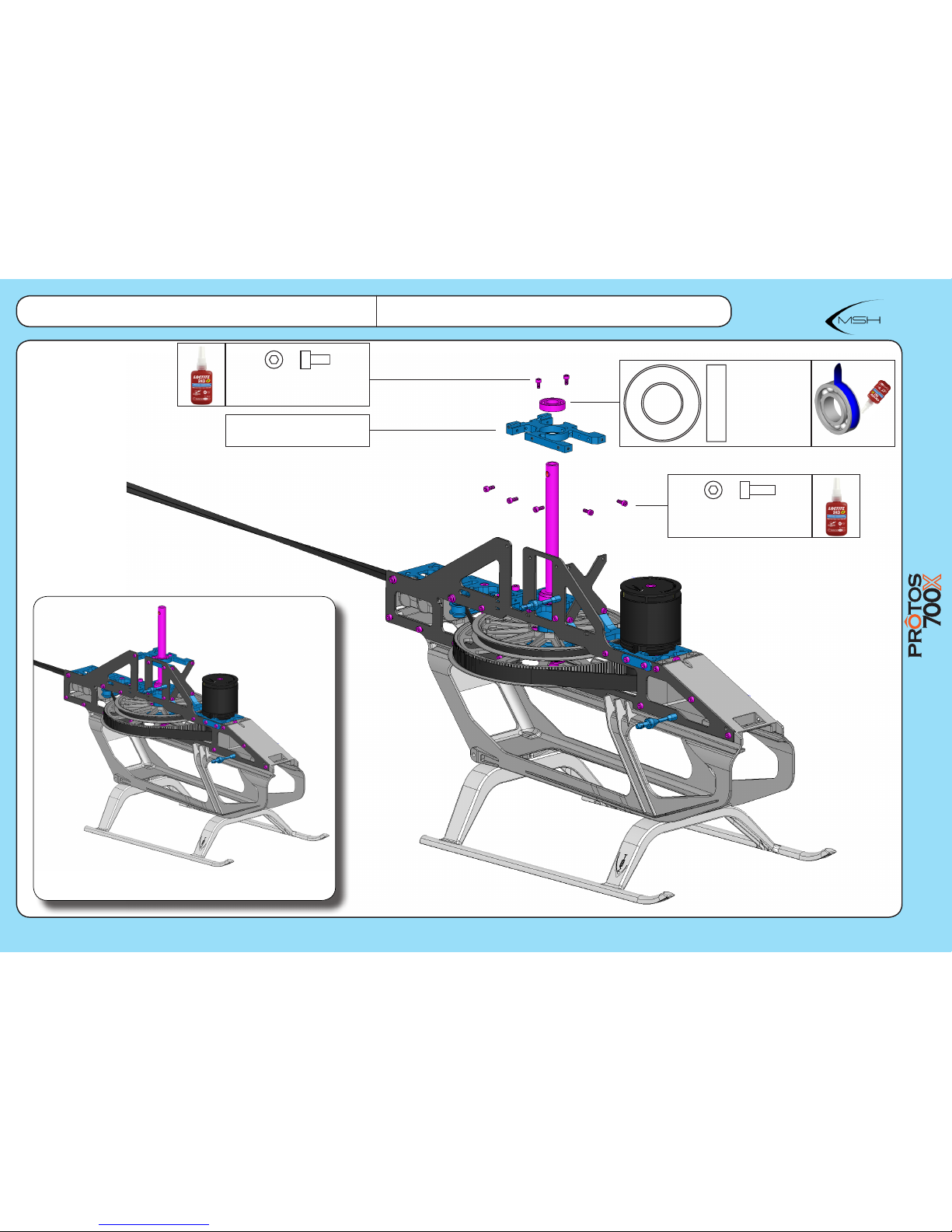

Page 22
box B
Instructions Manual
22
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F A
Carbon main frame V2 Leggero
ART. MSH71238
Hex screw
M3x8
ART. MSH71109
Magnet canopy support Kit
ART. MSH71022
Canopy mount Leggero
ART. MSH71237
Page 23

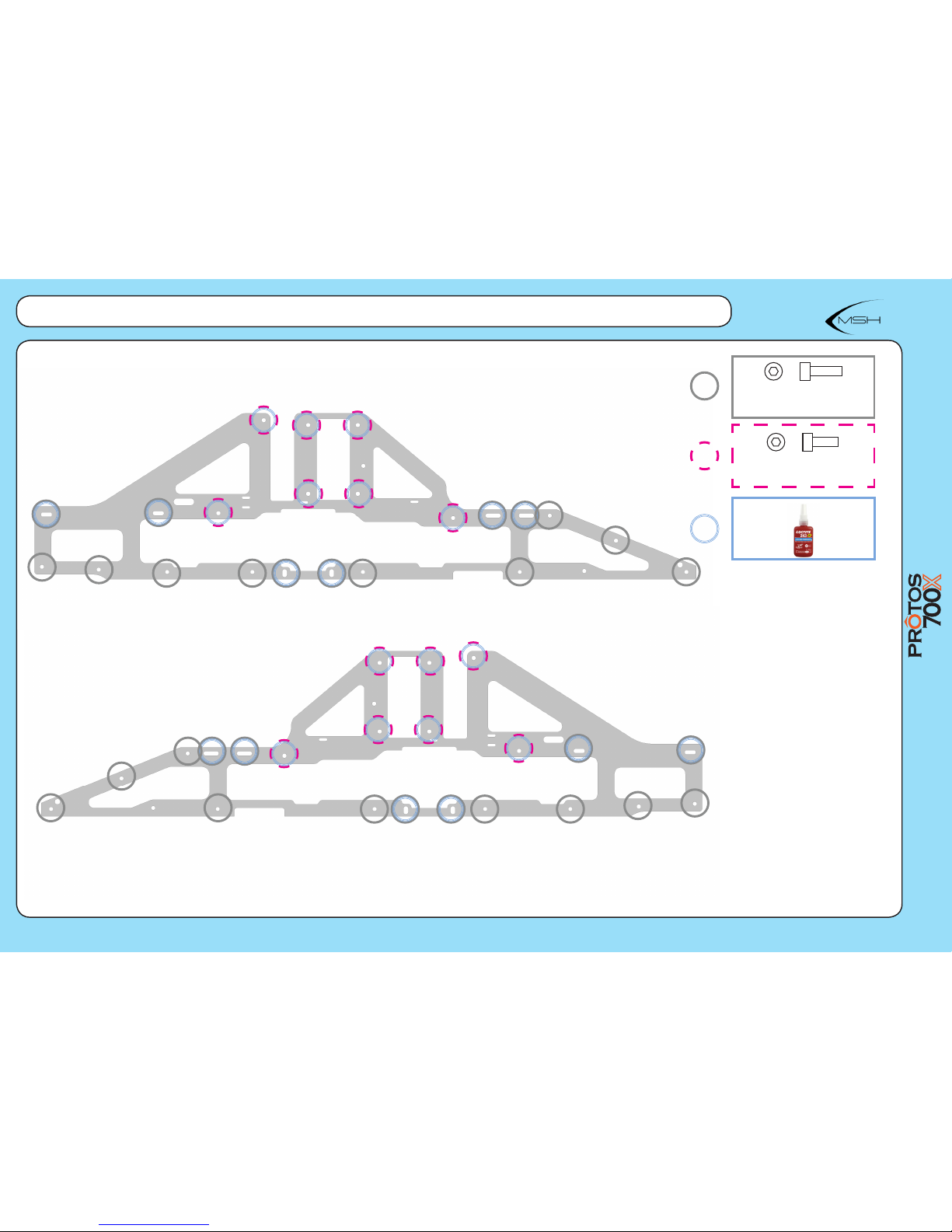

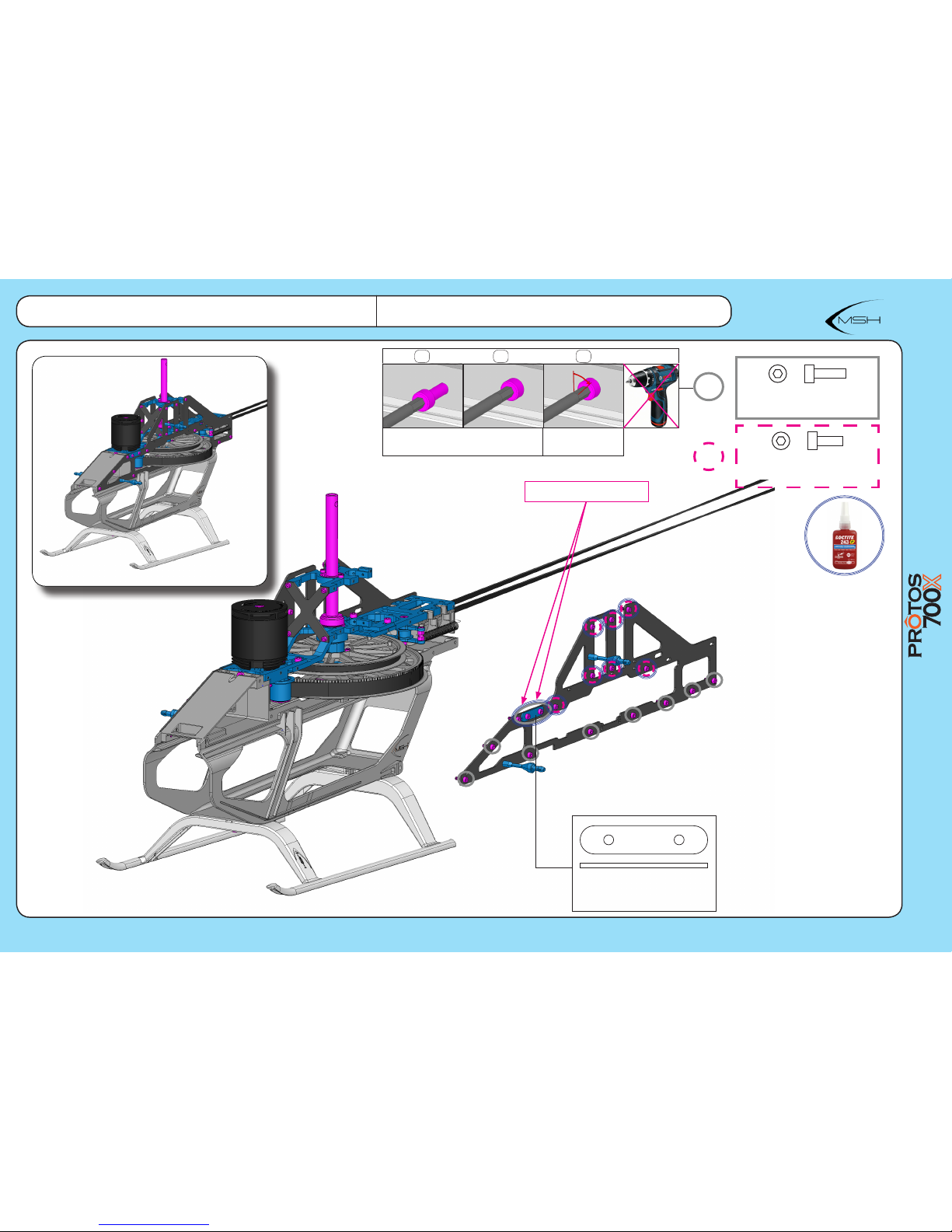

Screws layout
Instructions Manual
23
Hex screw
M3x10
ART. MSH71114
Hex screw
M3x8
ART. MSH71109
Page 24
box B
Instructions Manual
24
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A3
Rectangular washer
ART MSH71021
MSH Washer
3x8
ART. MSH71091
Hex screw
M3x10
ART. MSH71114
Hex screw
M3x8
ART. MSH71109
Do not fully thighten yet
Do not fully thighten yet

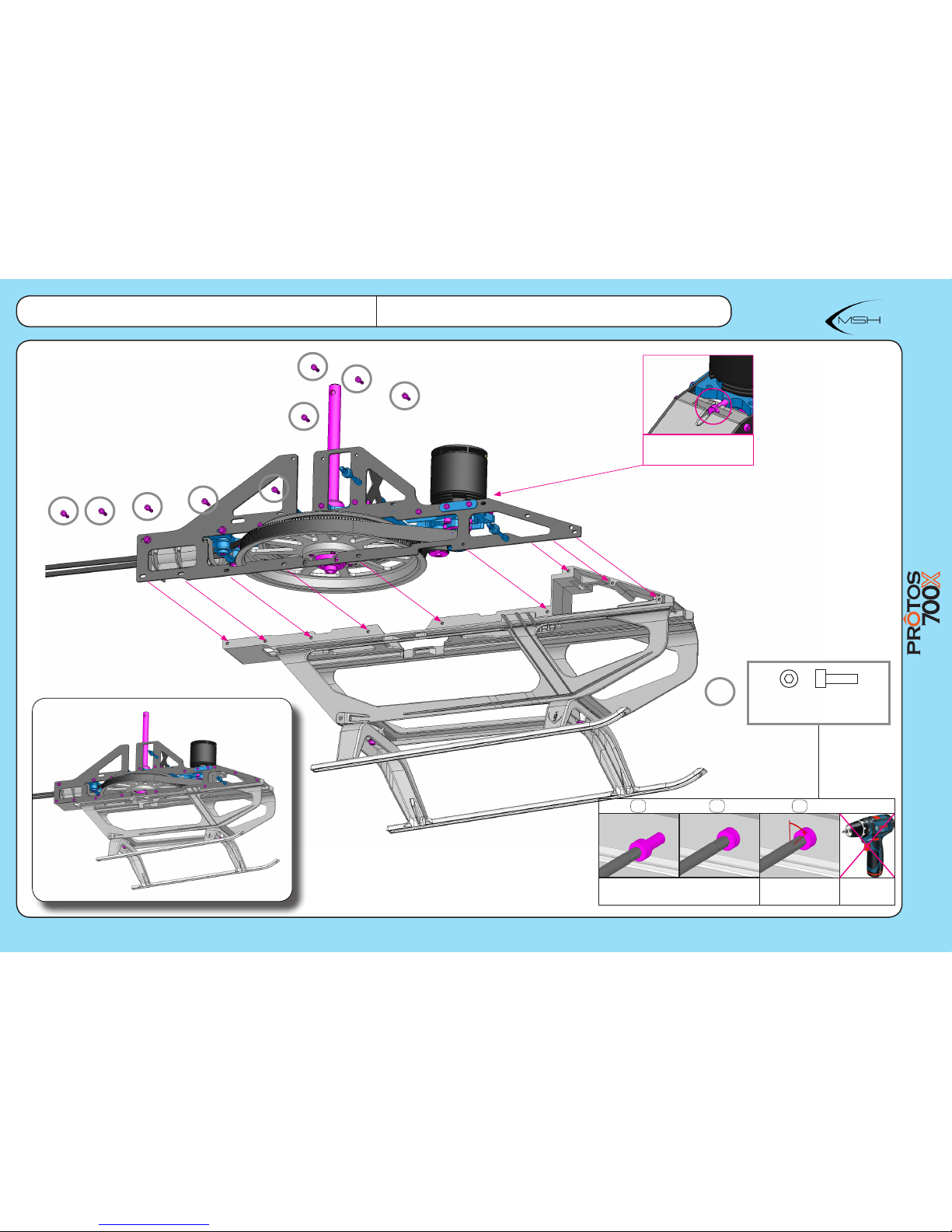

Page 25
box
Instructions Manual
25
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A3
Check that screw goes
inside the plastic housing
1
tighten slowly until completely
seated
2 3
tighten 1/8 turn
Hex screw
M3x10
ART. MSH71114
Page 26
box G
Instructions Manual
26
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A3
Hex screw
M3x6
ART. MSH71108
Ball bearing
12x24x6
ART. MSH71073
Servo frame
ART. MSH71024
Hex screw
M3x8
ART. MSH71109
Page 27
Instructions Manual
27
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A4
Do not fully tighten yet
1
tighten slowly until completely
seated
2 3
tighten 1/8 turn
Rectangular washer
ART MSH71021
Hex screw
M3x10
ART. MSH71114
Hex screw
M3x8
ART. MSH71109

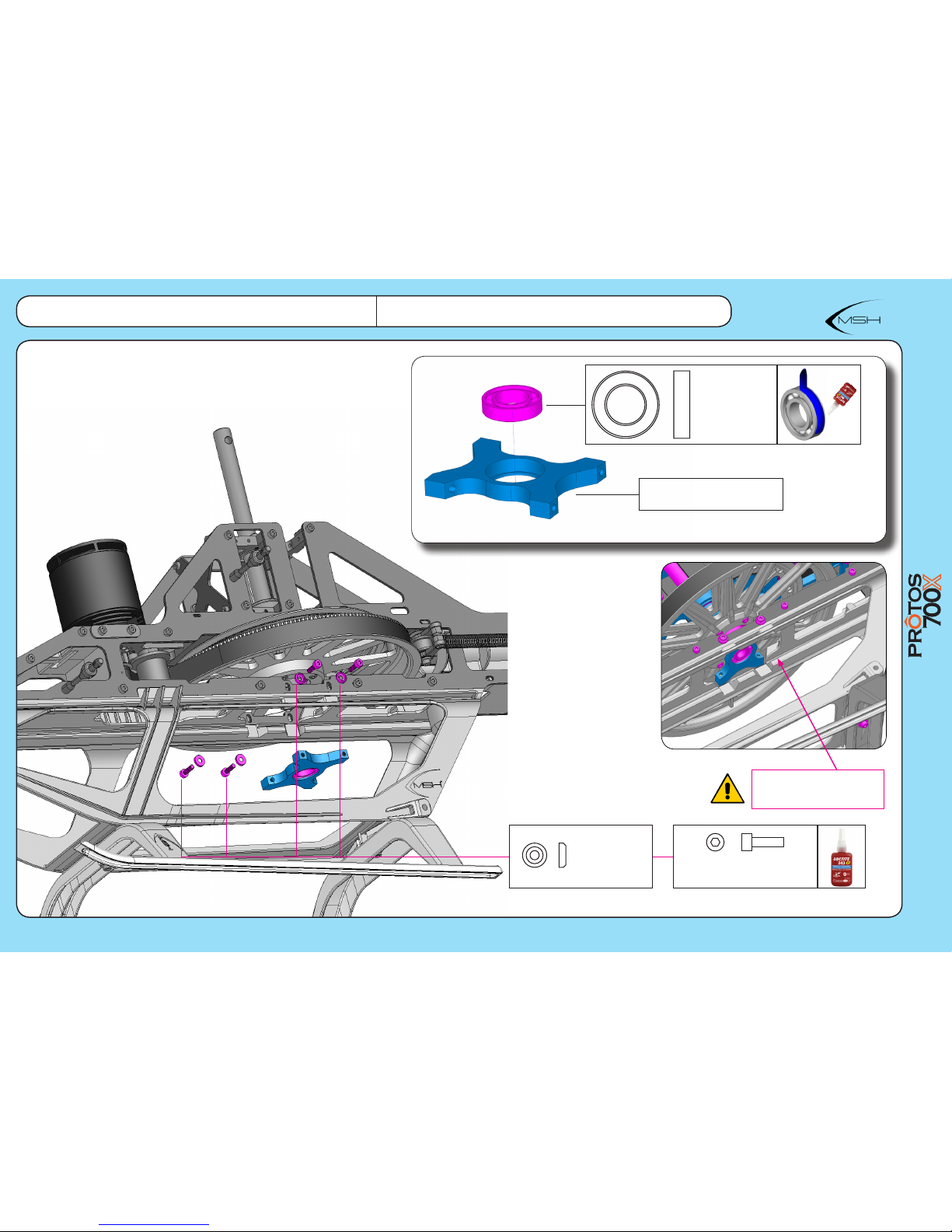

Page 28
box G
Instructions Manual
28
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A4
Ball Bearing
12x21x5
ART. MSH71072
MSH Washer
3x8
ART. MSH71091
Third bearing support
ART. MSH71023
Press the bearing support
upward against the main pulley
and tighten the 4 screws
Hex screw
M3x10
ART. MSH71114
Page 29
Instructions Manual
29
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag A5
Hex screw M3x10
ART. MSH71114
Do not fully tighten yet
Hex screw M3x10
ART. MSH71099
Spring support
- Front Side -
Spring bracket
ART. MSH71161
Hard 3D
Sport / 3D
Beginner

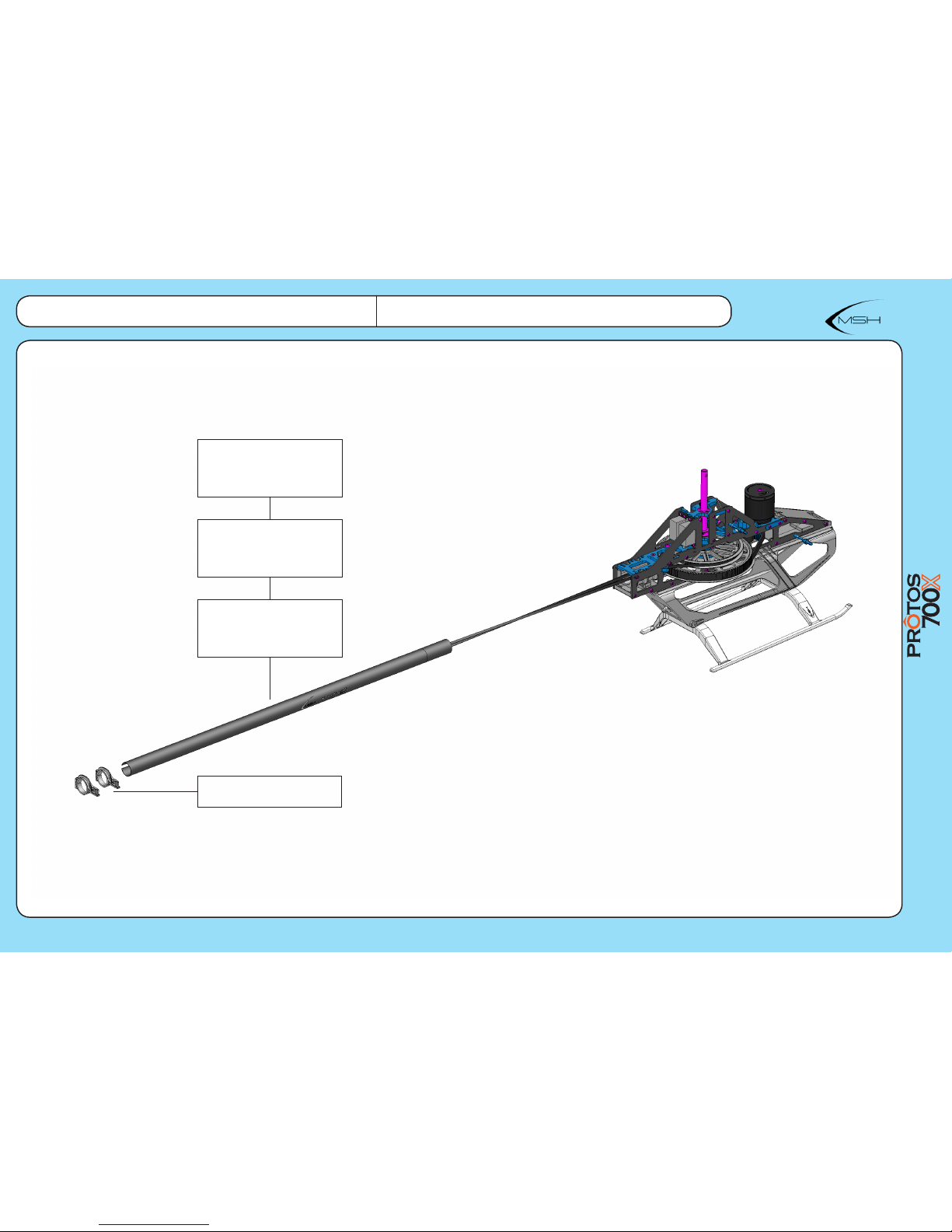

Page 30
box B
Instructions Manual
30
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag B
Tail servo holder
ART. MSH71029
Tail boom 800 size
To be used with
800mm Main blades
ART. MSH71159
OPTIONAL
Tail boom 770 size
To be used with
770mm Main blades
ART. MSH71207
OPTIONAL
Tail boom 700 size
To be used with
700mm Main blades
ART. MSH71158

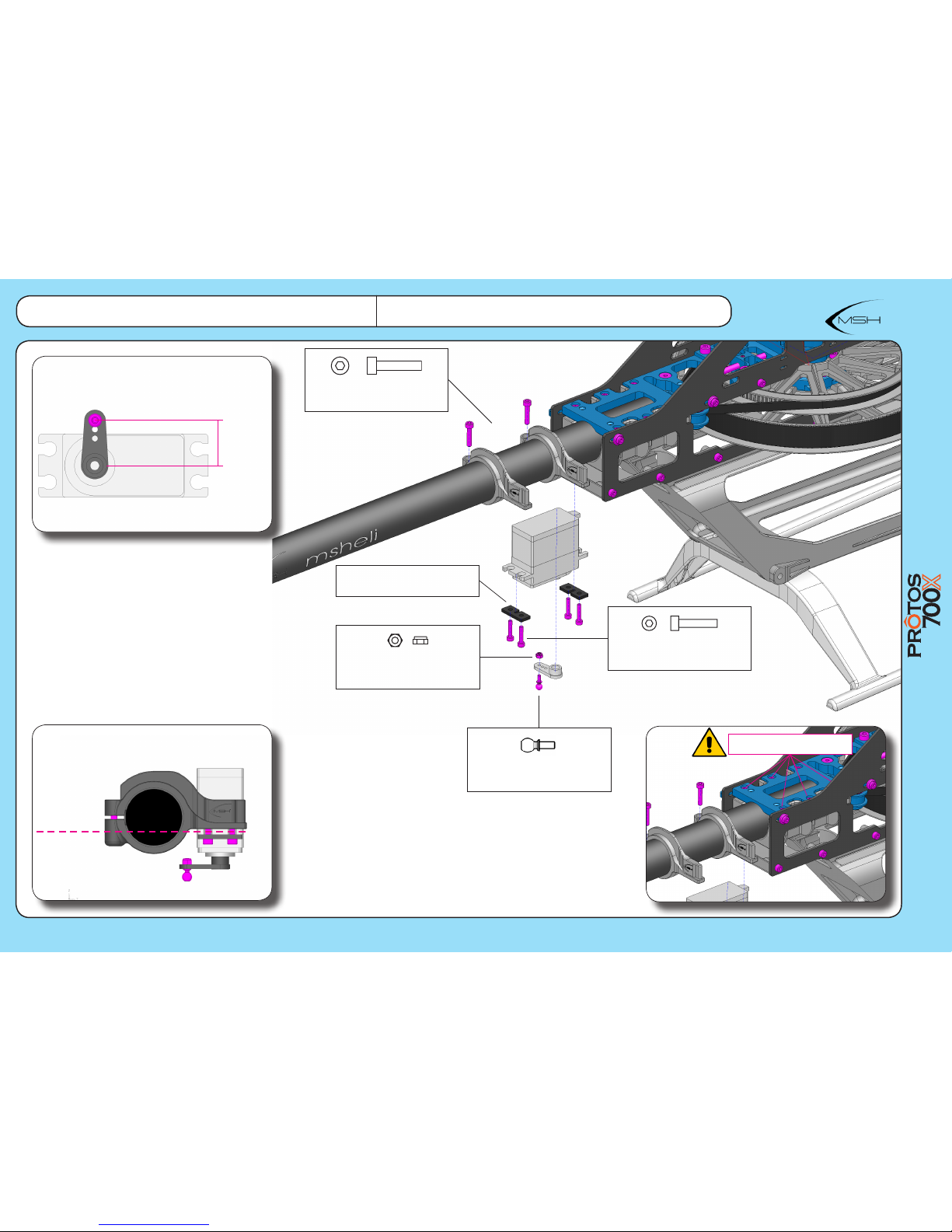

Page 31
Hex screw
M3x14
ART. MSH71112
Hex screw
M2,5x12
ART. MSH71104
Ball M2x4.8
ART. MSH41009
M2 Nut
ART. MSH71095
Instructions Manual
31
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag B1
level
15mm
Carbon servo washer
ART. MSH71032
Tighten the six tail clamp
screws
Page 32
Instructions Manual
32
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag B+B1
Tail rod clamp
ART. MSH71036
Hex screw
M3x12
ART. MSH71106
M2 Nut
ART. MSH71095
Hex screw
M2x10
ART. MSH71102
Do not fully tighten yet
Front
Check the direction of the
tappered plane of tail rod
clamp
inclination side
inclination side
390mm with 700mm main blades
425mm with 770mm main blades
440mm with 800mm main blades
Tail control rod support
ART. MSH71035
Page 33
box C
Instructions Manual
33
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C+C1
Hex screw
M3x5
ART. MSH71249
Tail pulley monolithic
ART. MSH71246
1
Check the rotation direction during the installation of the belt
2
Tail shaft
ART. 71040
Ball bearing
6x15x5 anged
ART. MSH71074
Hex grub screw
M4x8
ART. MSH71123
Tighten hard and make sure the grub screw
engages in the recess when tightening
Tail box 700 monolithic
ART. MSH72250
Ball bearing
6x15x5
ART. MSH71247

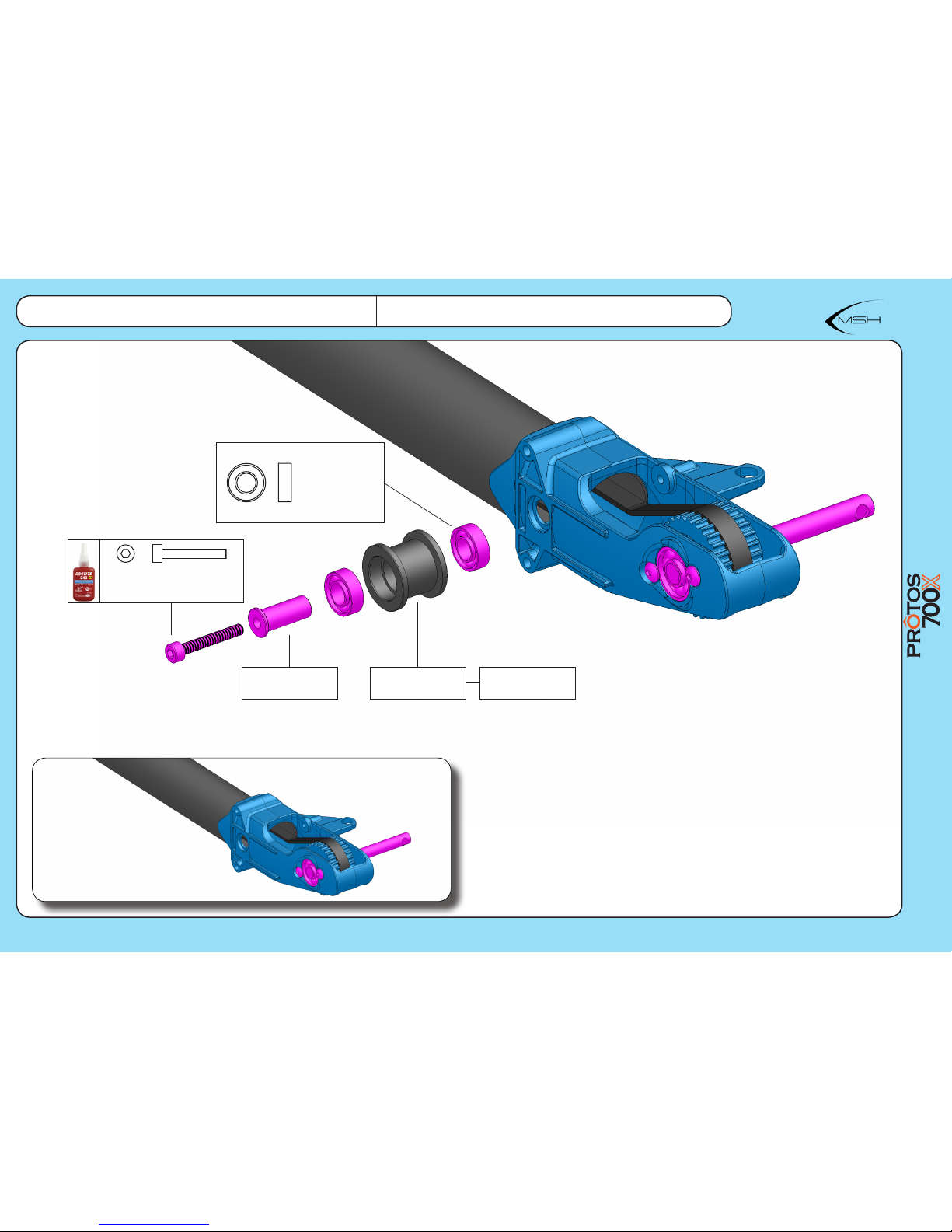

Page 34
Instructions Manual
34
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C+C1
Hex screw
M3x20
ART. MSH71107
Ball bearing
6x12x4
ART. MSH71082
Tail guide pulley
bushing
ART. MSH71041
Guide pulley - 10mm
ART. MSH71010
Guide pulley - 10mm
Metal ART. MSH711678
OPTIONAL

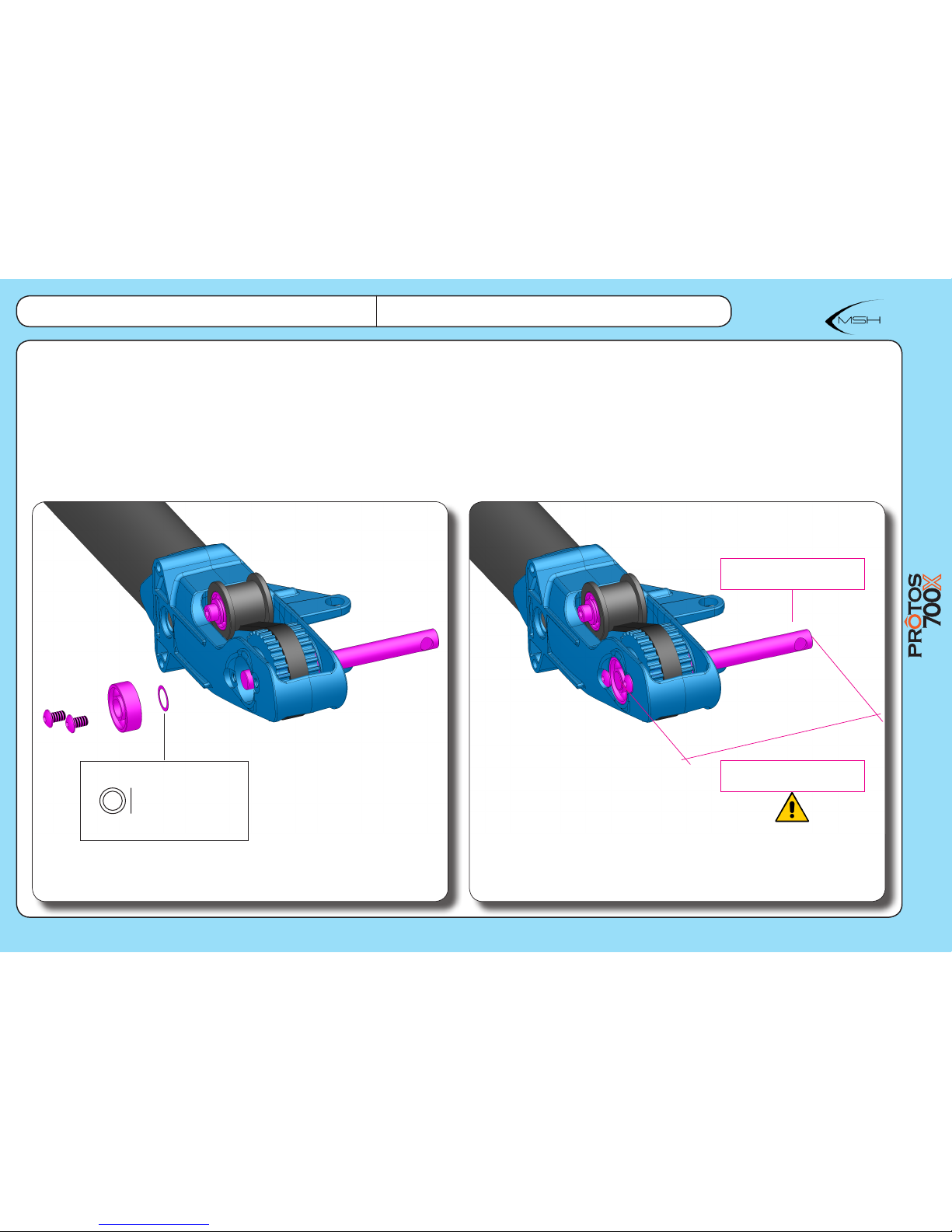

Page 35
Instructions Manual
35
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
Tail shaft must have a little play
Maintenance:
Keep cleaned shaft surface
Washer
6x8x0.1
ART. MSH71246
box F bag C1
Page 36
box B + C
Instructions Manual
36
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C+C1

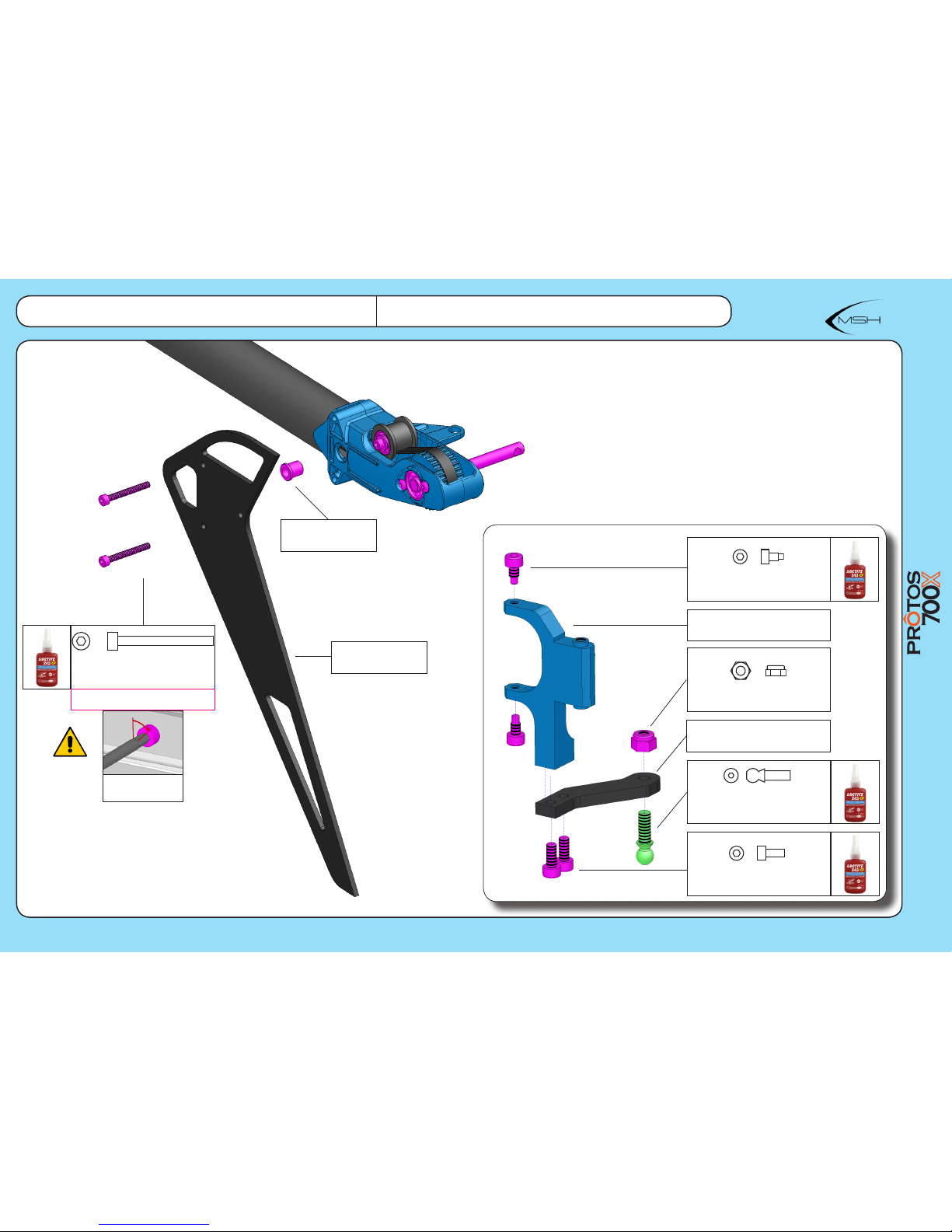

Hex screw
M3x25
ART. MSH7148
tighten 1/8 turn
Do not overtighten.
Alignment pin
ART. MSH71044
Tail pitch carbon lever
ART. MSH71043
ART. MSH71160
Tail pitch lever screw M2,5x5
ART. MSH71124
M3 Nut
ART. MSH71096
Hex screw M2,5x6
ART. MSH71110
Ball M3x8
ART. MSH71090
Tail pitch lever
ART. MSH71160
Vertical n
ART. MSH71044
Page 37
Instructions Manual
37
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that

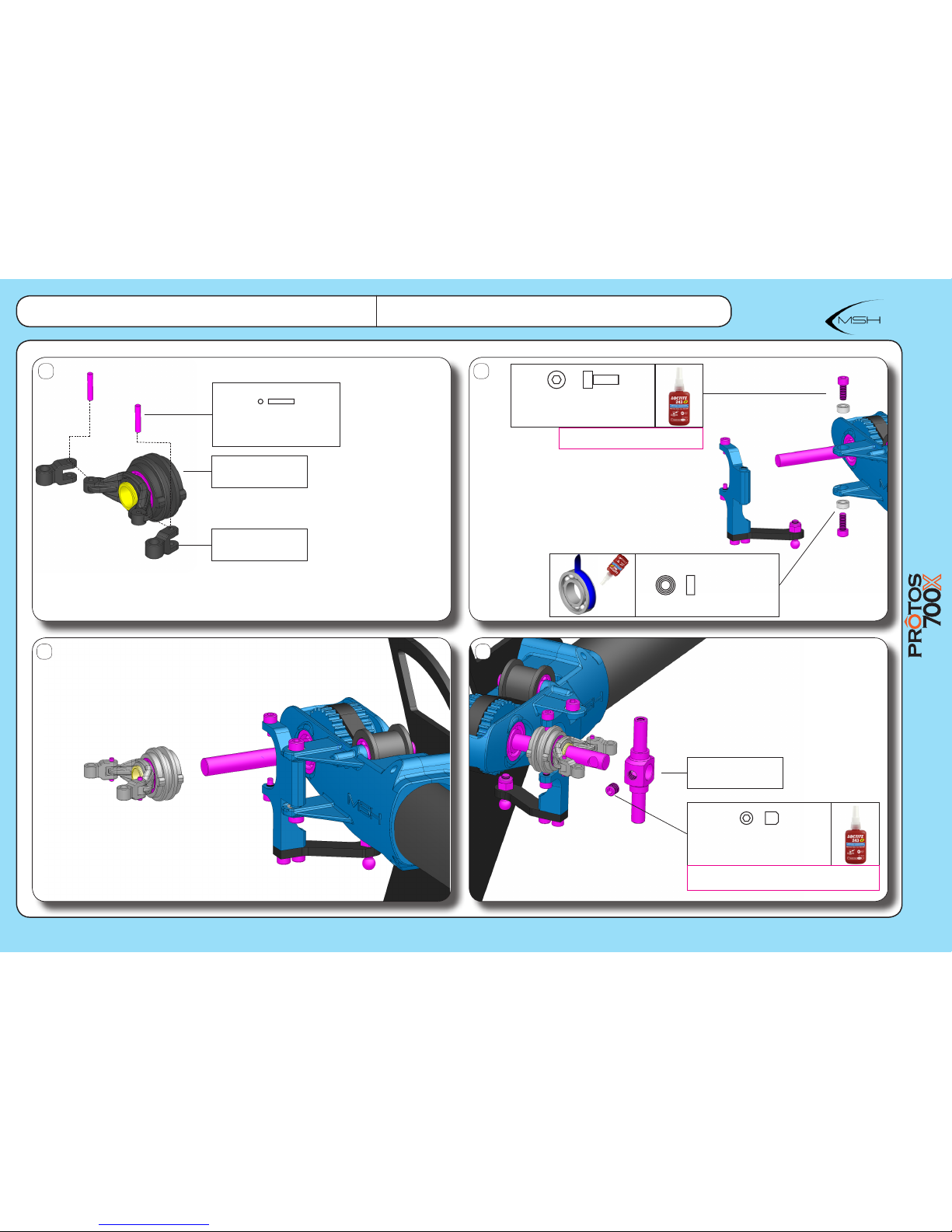

box F bag C1+C2
2
Pin 1,5x8
ART. MSH71045
Tail plastic rod
ART. MSH71045
ART. MSH71048
Tail pitch assembly
ART. MSH71045
1
4
3
Ball bearing
3x6x2,5
ART. MSH71079
Do not fully tighten yet
Hex grub screw
M4x4
ART. MSH71122
Tail spindle
ART. MSH71046
Tighten hard and make sure the grub screw
engages in the recess when tightening
Hex screw M3x8
ART. MSH71109

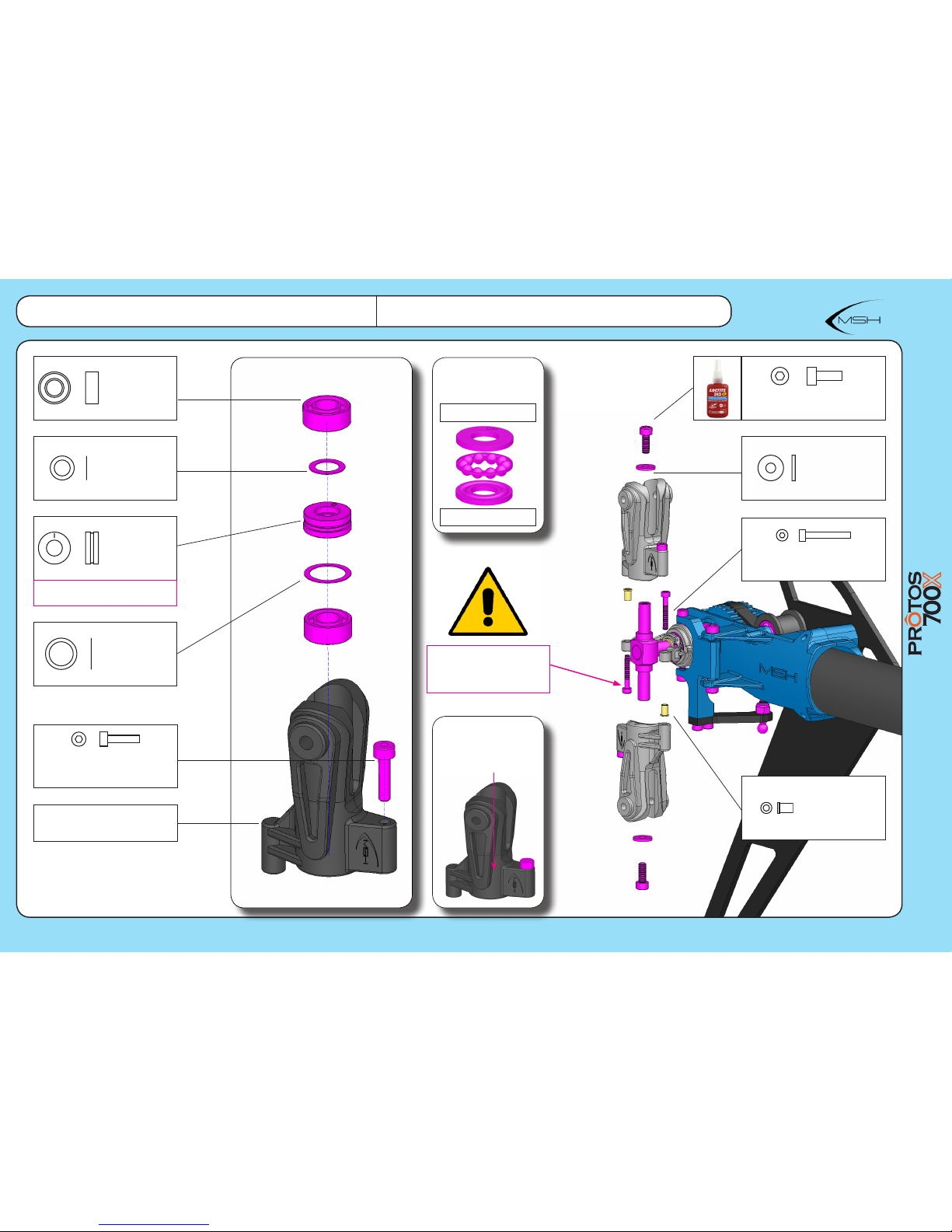

Page 38
Instructions Manual
38
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C1+C2
Ball bearing
5x10x4
ART. MSH71081
ART. MSH71048
Washer
5x7,5x0,2
ART. MSH71048
Washer
7,5x9,8x0,2
ART. MSH71048
Hex screw M2,5x10
ART. MSH71103
ART. MSH71048

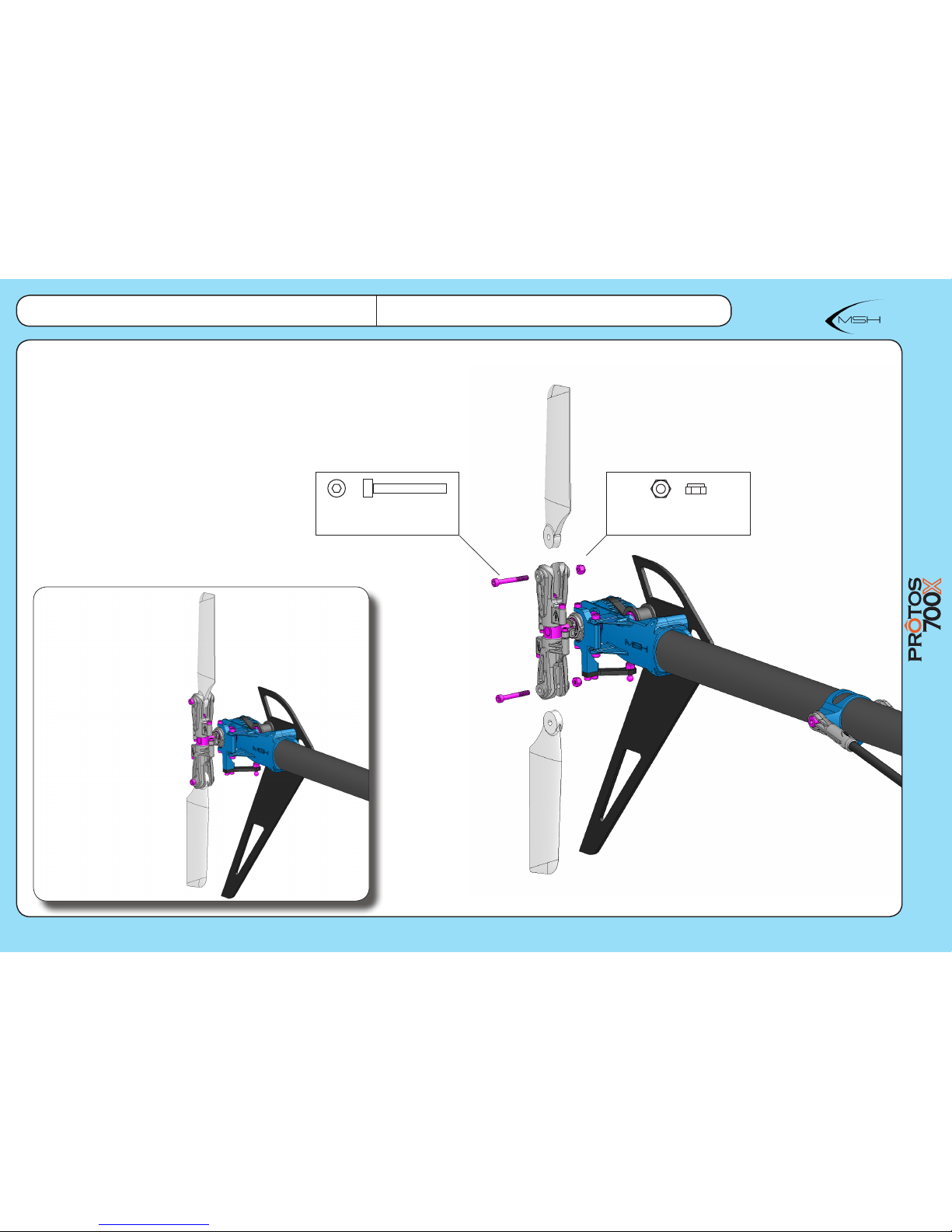

Tail blade holder
ART. MSH71048
ART. MSH71125
Thrust
5x10x4
ART. MSH51065
ART. MSH71048
Thrust bearing is marked “I” and
“O” for inside and outside
Hex screw M2x14
ART. MSH71105
ART. MSH71048
Hex screw M3x8
ART. MSH71109
Washer
3.1x8x1
ART. MSH71048
Tail pitch bushing
ART. MSH71048
Apply grease on thrust
bearing
Internal hole SMALLER
Internal hole BIGGER
VERY IMPORTANT
Do not overtighten.
Push hard the bearing
pack with a pin D=10mm
(the main spindle for
example)
Page 39
Instructions Manual
39
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C2
Hex screw M3x23
ART. MSH51151
ART. MSH71048
M3 Nut
ART. MSH71096
ART. MSH71048
Page 40
box B
Instructions Manual
40
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C3
Hex screw
M4x10
ART. MSH71116
25mm
Remove coating with sandpaper Apply a lm of slow curing epoxy
Mount it on the model
Check the alignment and wait
glue curing
1 2 3 4
Tighten completely
Tighten completely
Hex Screw M4x16
ART. MSH71049
ART. MSH71086
Tighten completely
M4 Nut
ART. MSH71097

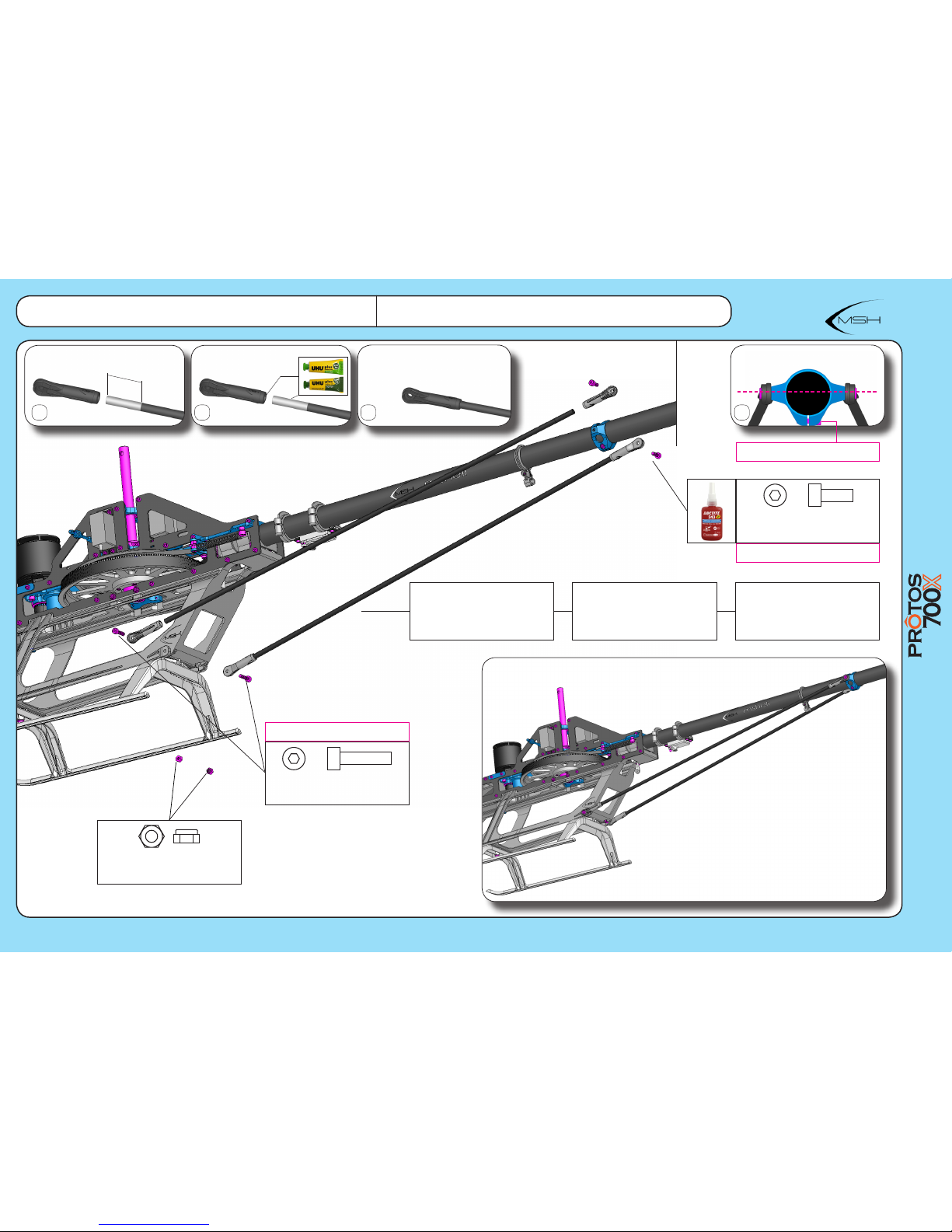

Tail boom brace 800 size
To be used with
800mm Main blades
ART. MSH71086
OPTIONAL
Tail boom brace 770 size
To be used with
770mm Main blades
ART. MSH71204
OPTIONAL
Tail boom brace 700 size
To be used with
700mm Main blades
ART. MSH71049

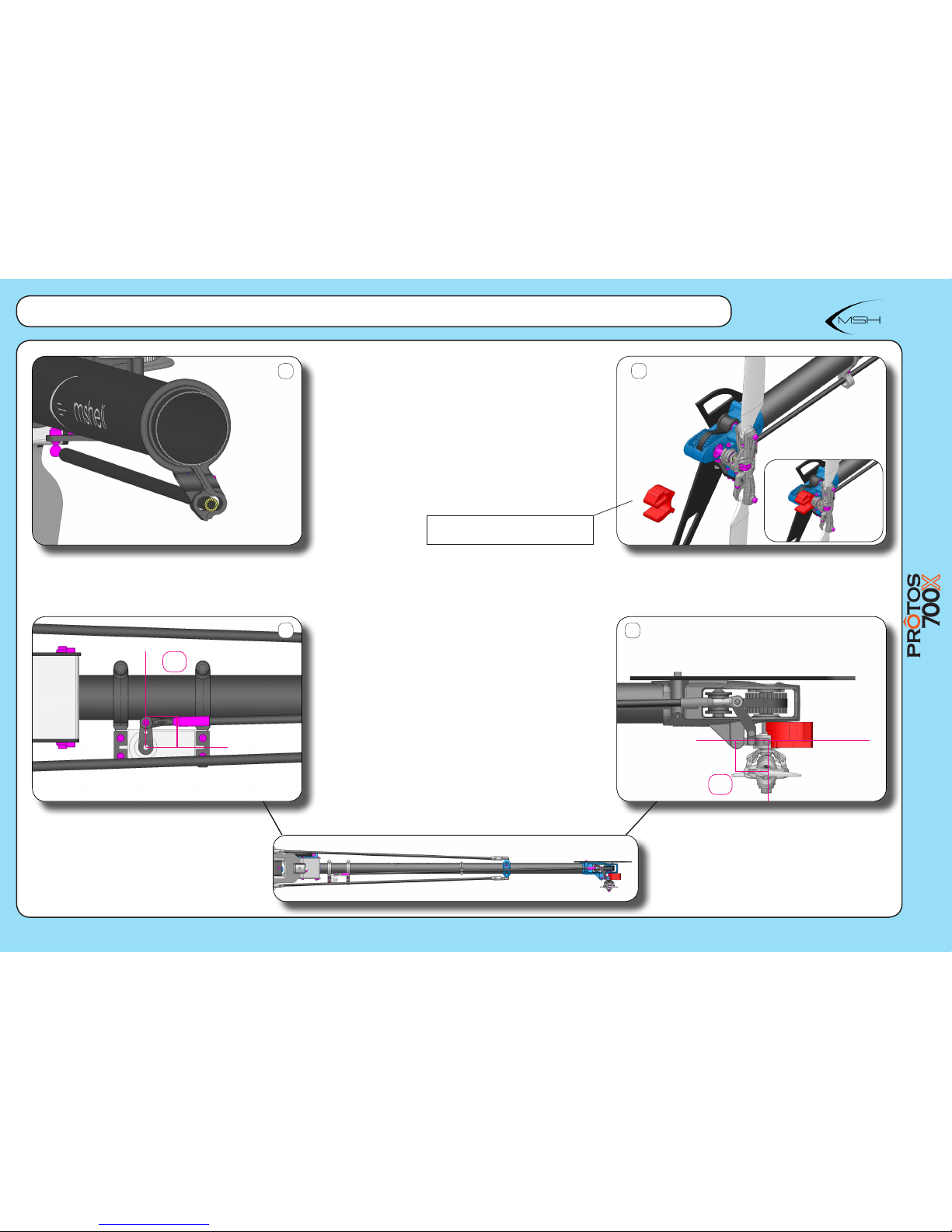

Page 41
box B
Instructions Manual
41
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag C3
Uniball hand
M2.5
ART. MSH71083
Apply a lm of slow
curing epoxy
Wait completely curing and
mount it on the model
4 51 2
Tail control rod tting
ART. MSH71087
ART. MSH71088
ART. MSH71205
Tighten completely
Tail control rod 800 size
To be used with
800mm Main blades
ART. MSH71088
OPTIONAL
Tail control rod 770 size
To be used with
770mm Main blades
ART. MSH71205
OPTIONAL
Tail control rod 700 size
To be used with
700mm Main blades
ART. MSH71087
45,5mm
Servo rods set
M2.5 x 52mm
ART. MSH71064
15mm
Remove edgs and coating
with sandpaper
3
Page 42
Instructions Manual
42
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag D+D1
Hex screw
M2,5x10
ART. MSH71103
Ball M3x4
ART. MSH71089
Hex screw
M2.5x8
ART. MSH71111
Servo horn 19mm
MSH71052
Carbon servo washer
ART. MSH71032
ART. MSH71050 A RT. MSH71051
OPTIONAL
Servo horn adapter
Apply loctite if servo has metal
gears
Servo horn 19mm
MSH71052

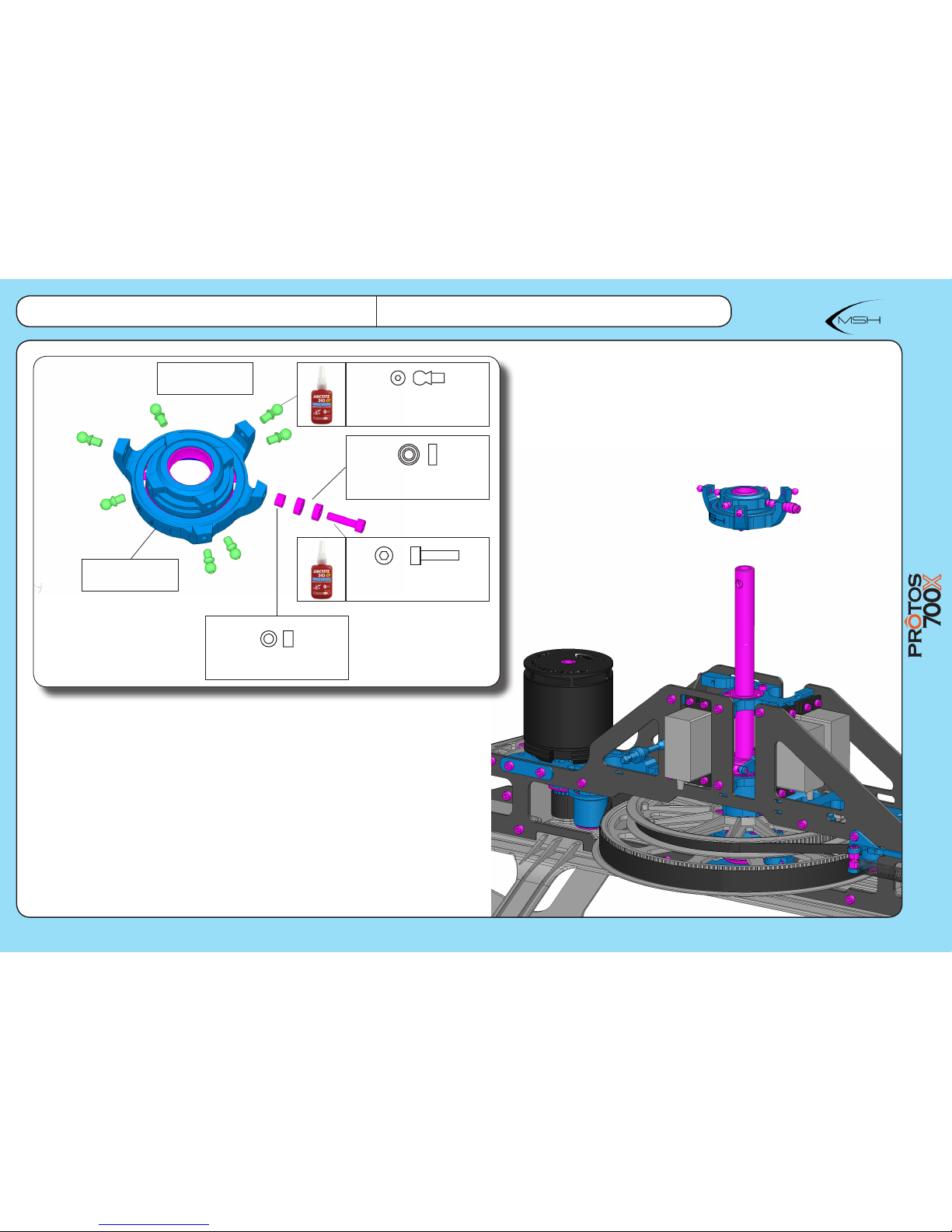

Page 43
box C
Instructions Manual
43
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
Ball M3x4
ART. MSH71089
Bushing 3x5x3
ART. MSH71053
Ball bearing
3x6,5x2,5
ART. MSH71078
Swashplate
ART. MSH71053
Hex screw M3x12
ART. MSH71106
PRE-ASSEMBLED
Page 44
box C
Instructions Manual
44
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that

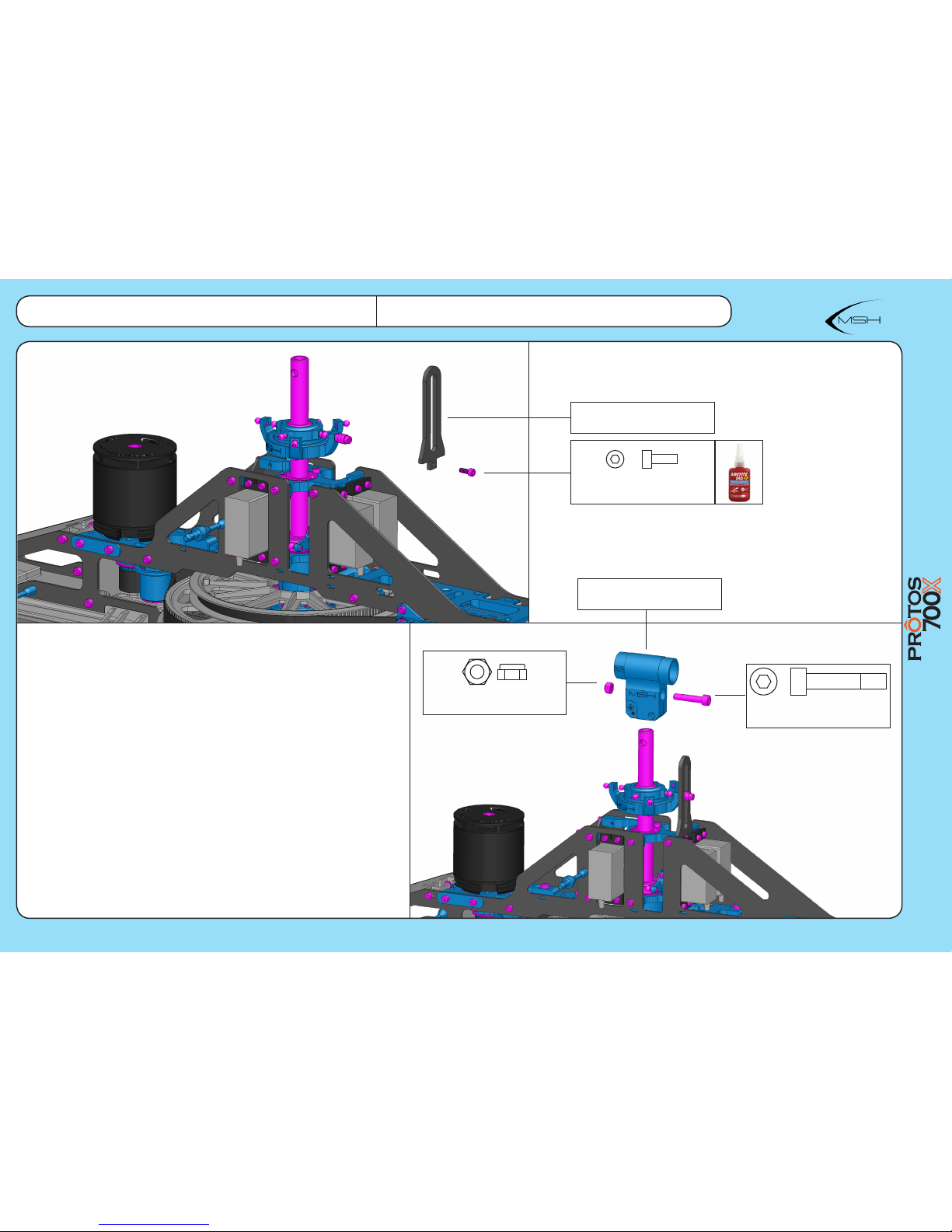

box F bag E+E1
Hex screw M3x8
ART. MSH71109
Screw M5x25
ART. MSH71118
M5 Nut
ART. MSH71098
Anti swashplate spin carbon
ART. MSH71054
Main hub
ART. MSH71055
Page 45
box
Instructions Manual
45
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag E+E1
Hex screw
M3x12
ART. MSH71106

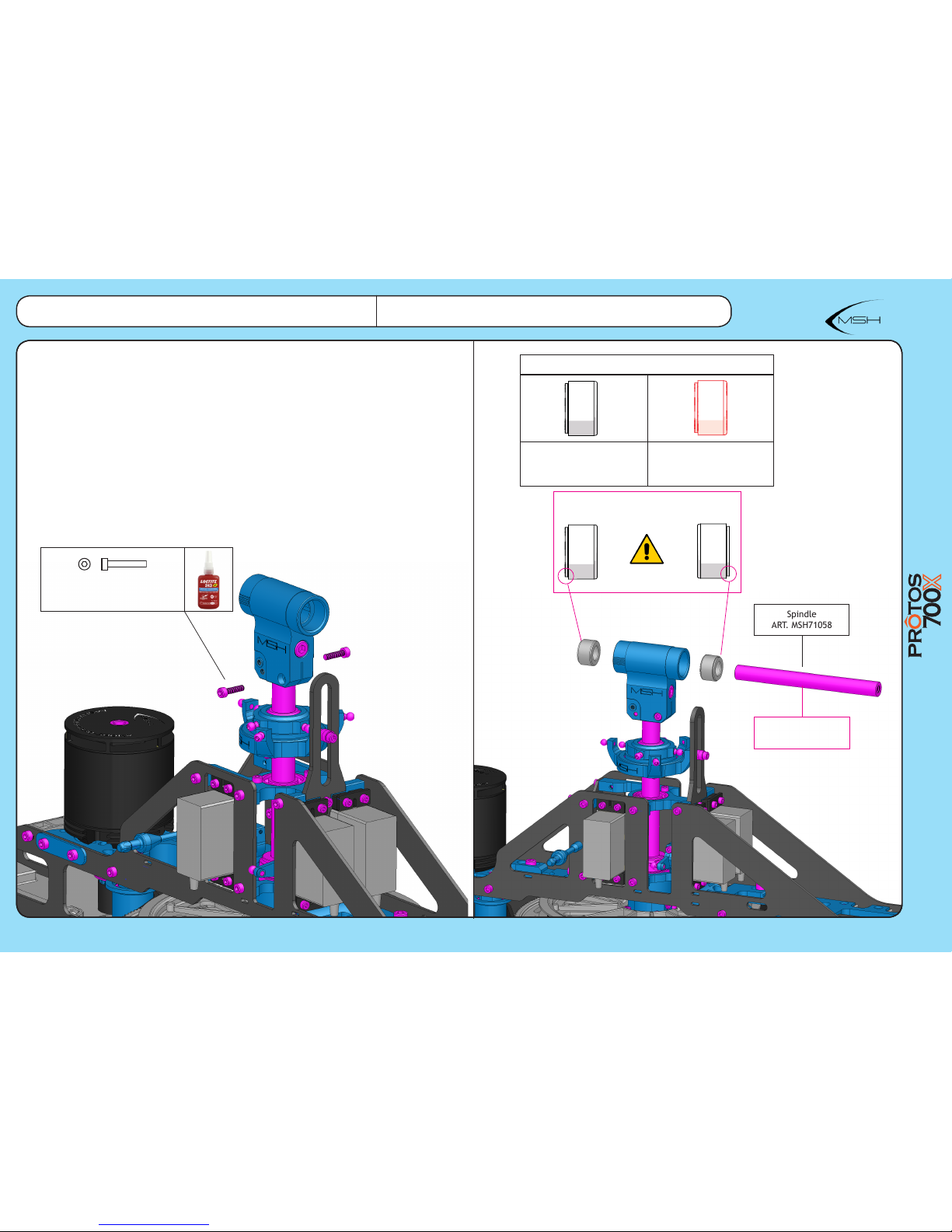

Spindle
ART. MSH71058
ART. MSH71056
sport / 3D
ART. MSH71057
Hard 3D 700 blades
3D 800 blades
Optional
Head dampeners
Step visible outside
the main hub
Apply grease

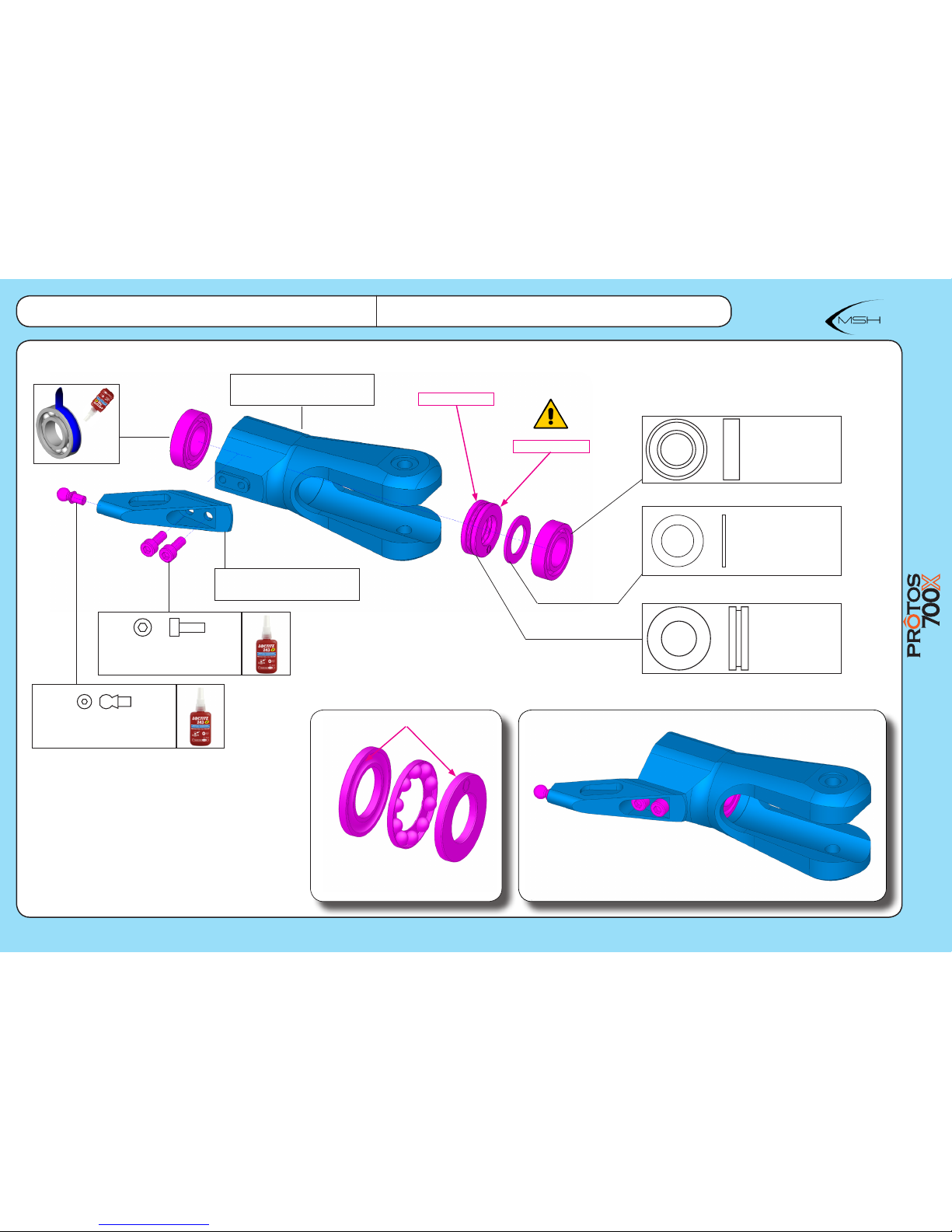

Page 46
box C
Instructions Manual
46
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that

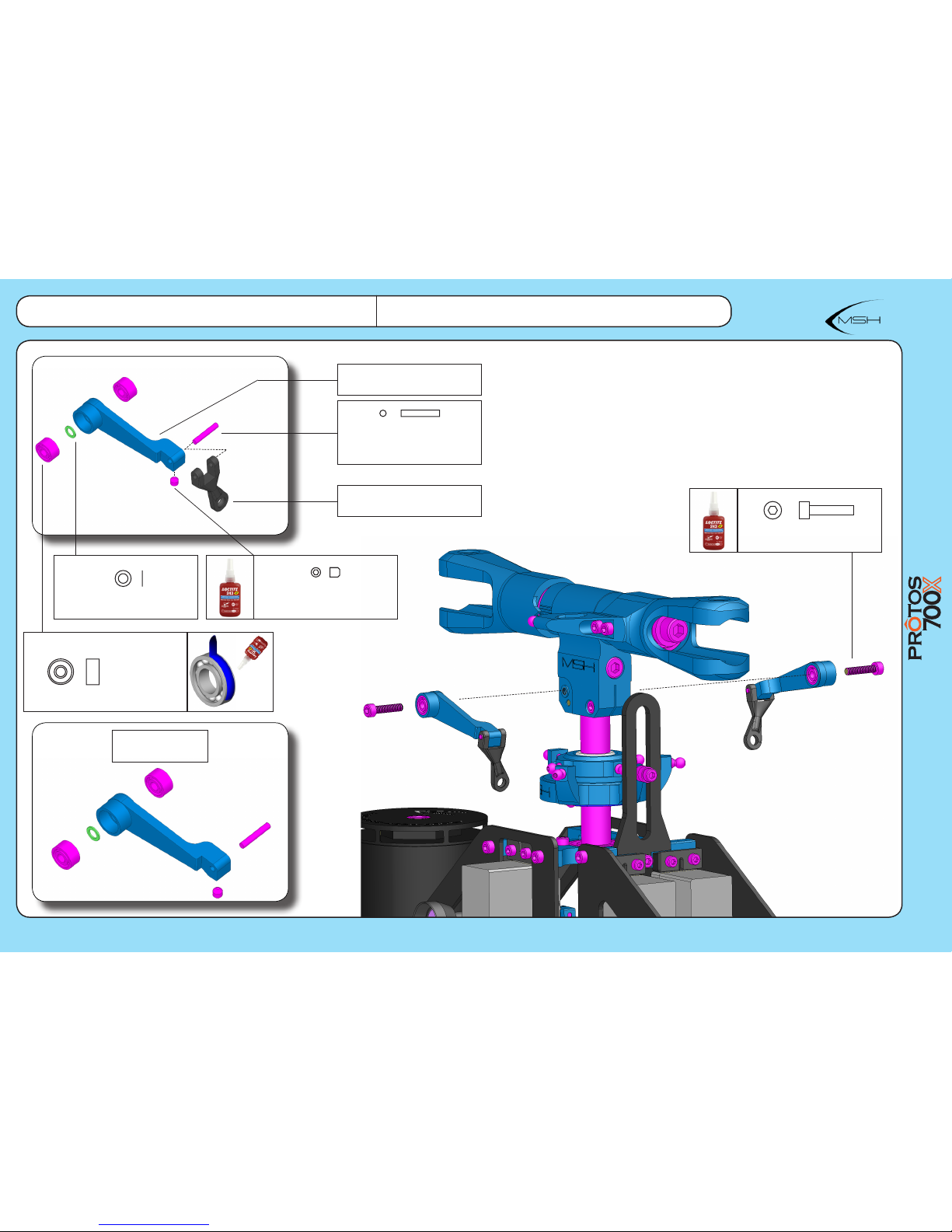

box F bag E1
Ball M3x4
ART. MSH71089
Hex screw
M3x8
ART. MSH71109
Ball bearing
10x19x5
ART. MSH71071
Thrust
10x18x5,5
ART. MSH71076
Washer
10x16x1
ART. MSH71059
Main blade holder control arm
ART. MSH71060
Main blade holder
ART. MSH71059
SMALLER hole
BIGGER hole
Apply grease on thrust bearing
Page 47
Step outside
the main hub
Instructions Manual
47
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag E1
Spindle spacer
ART. MSH70056
ART. MSH71057
Washer CNC
6,1X14X2.5
ART. MSH71058
Screw M6x16
ART. MSH71058
ART. MSH71120
Page 48
box C
Instructions Manual
48
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag E1
Pin 2x12
ART. MSH71061
ART. MSH71062
Ball bearing
3x8x4
ART. MSH71080
Spacer 3X5X0.5
ART. MSH71061
Hex grub screw M3x3
ART. MSH71121
Hex screw M3x14
ART. MSH71112
Washout uniball arm
ART. MSH71062
Main head antitoration arm
ART. MSH71061
PRE-ASSEMBLED
Page 49
Instructions Manual
49
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that

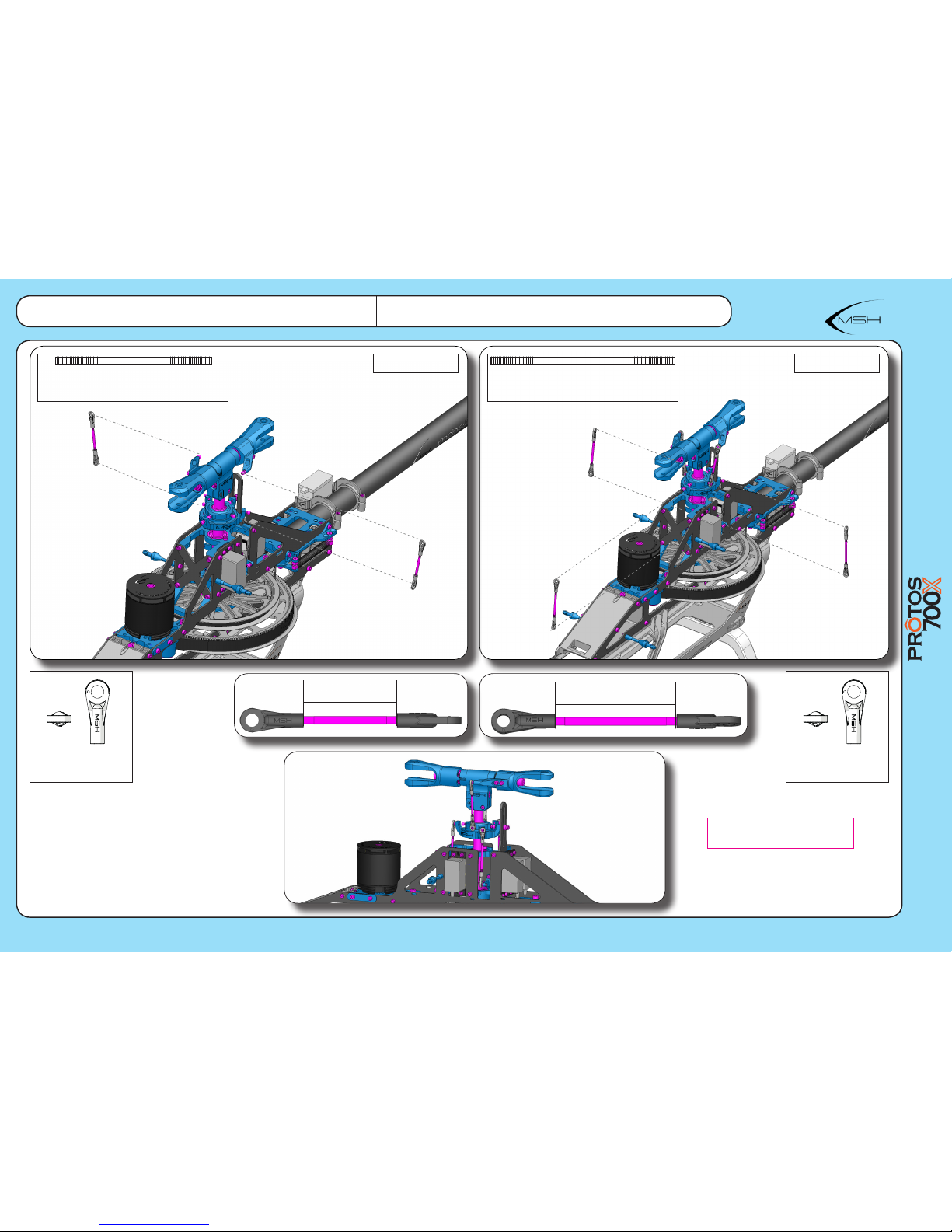

box F bag E2
Uniball hand M2.5
ART. MSH71083
Uniball hand M2.5
ART. MSH71083
Servo rods set
M2.5 x 57.8mm
ART. MSH71064
Head rods set
M2.5 x 49mm
ART. MSH71063
37,5mm
29mm
Head rod set Servo rod set
Servo rod lenght may dier slightly
with dierent servo brand
Page 50
box B
Instructions Manual
50
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag E2
Hex screw M3x5
ART. MSH71100

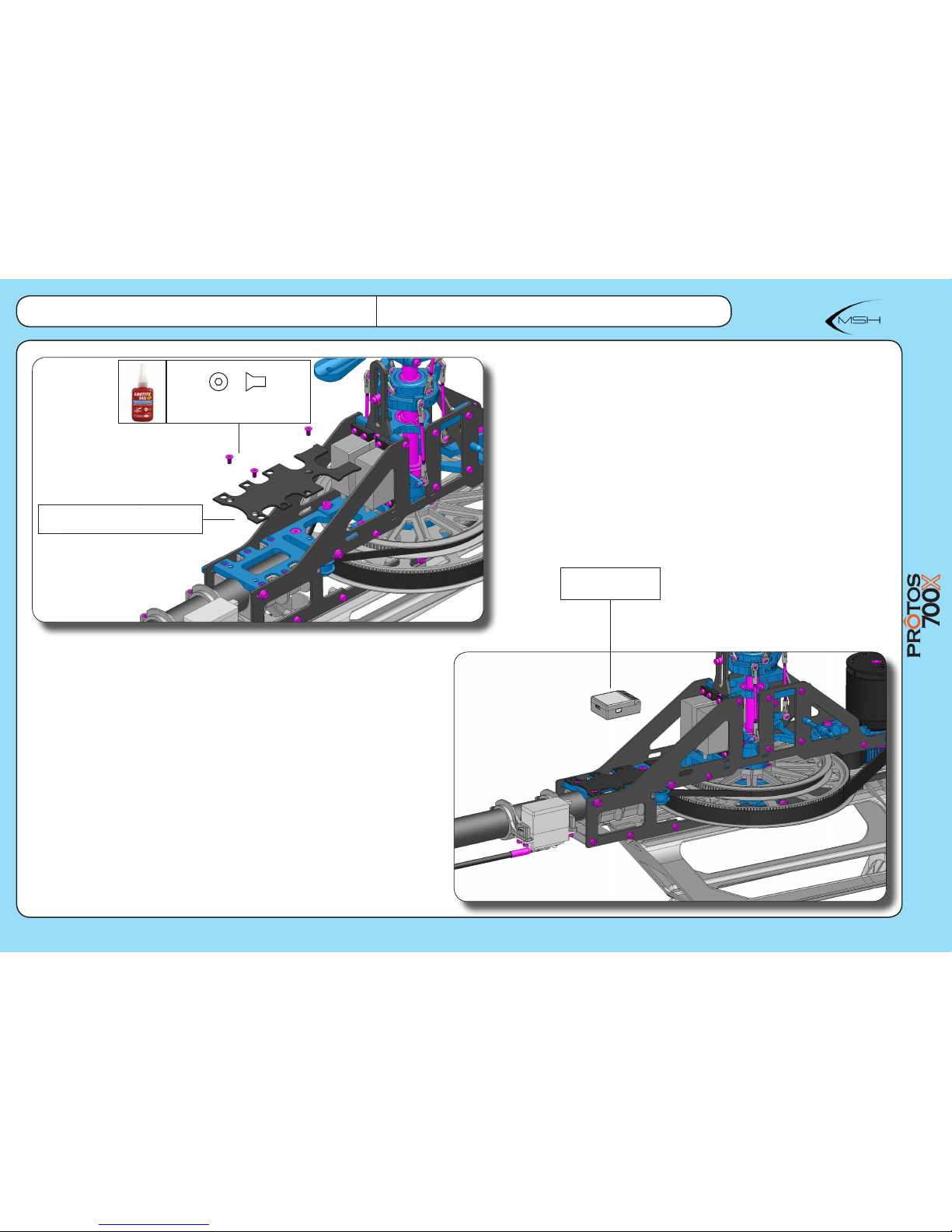

Carbon cover Frame rear plate
ART. MSH71016
Brain 2
MSH51636
OPTIONAL
Page 51
Instructions Manual
51
where I can nd the BIG PARTS
BEC
NOT INCLUDED
ESC
NOT INCLUDED
Page 52
box B
Instructions Manual
52
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that

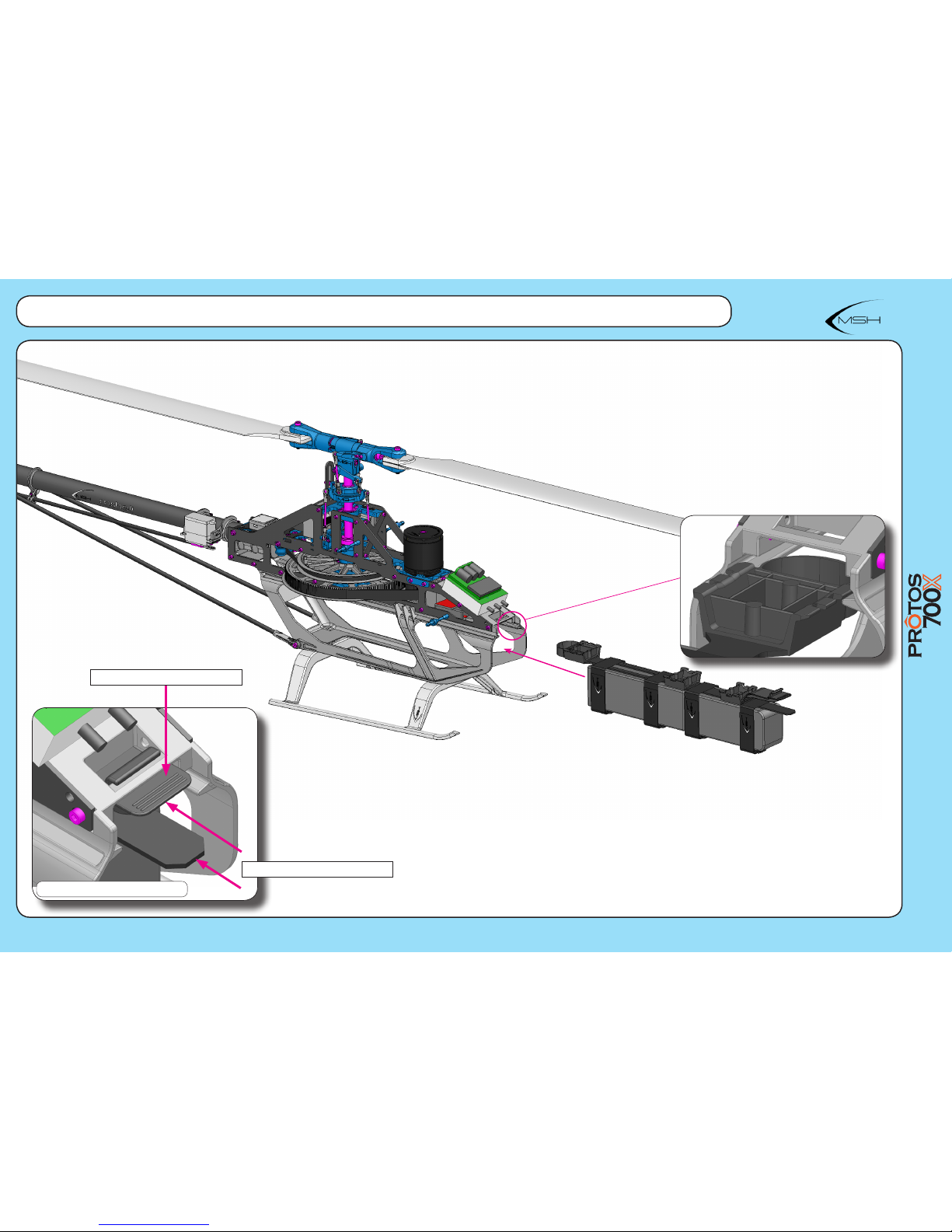

box F bag F
Hex Screw M3x10
ART. MSH71099
ART. MSH71232
Plastic - battery support slide
ART. MSH71232
ART. MSH71176
Battery support slide Leggero
ART. MSH71232
Battery velcro straps 700
ART. MSH71184
ART. MSH71232
Use sandpaper to remove edges
Page 53
battery slide
Instructions Manual
53
To remove the battery
1 - Push back the slide
2 - Push the button

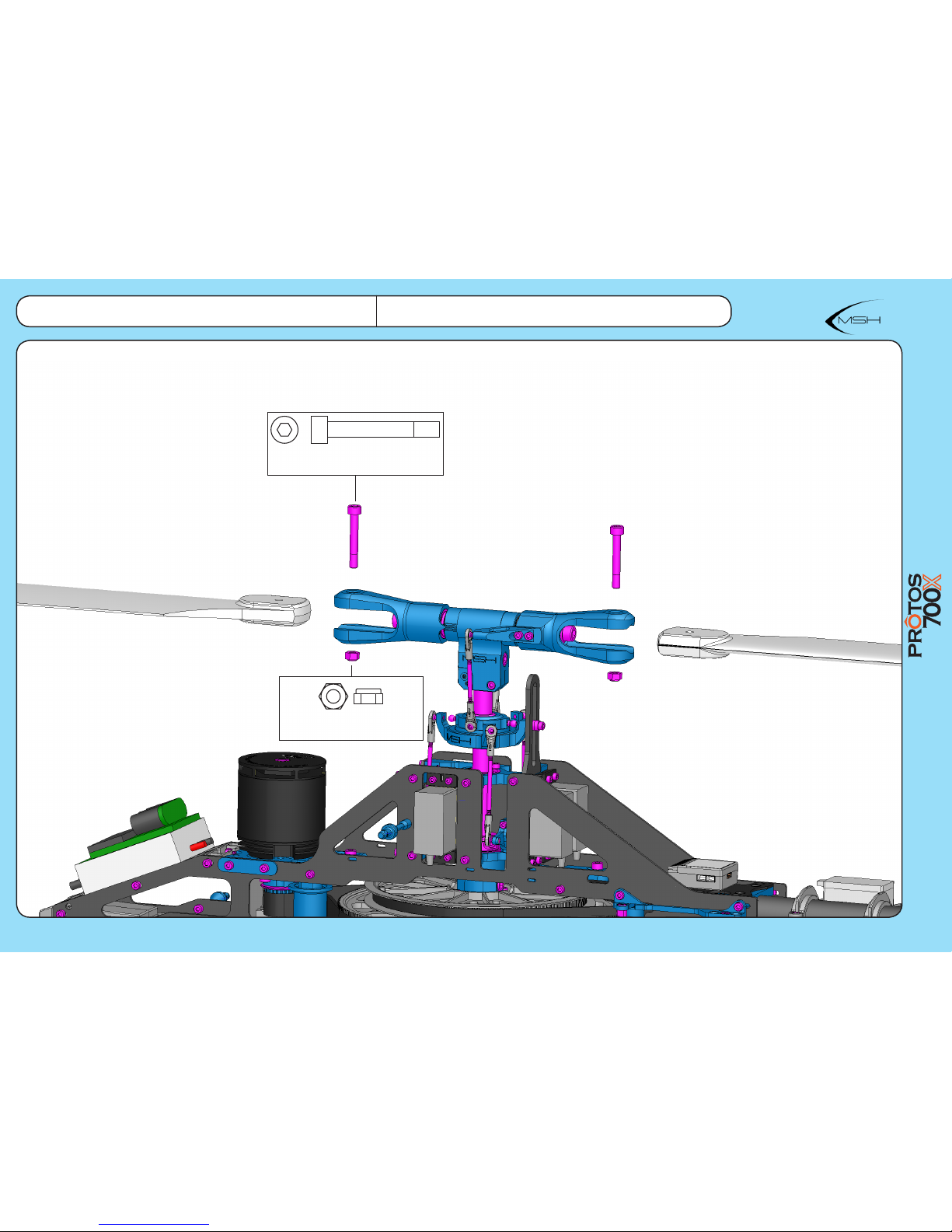

Page 54
Instructions Manual
54
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
box F bag E2
Hex screw
M5x35
ART. MSH71119
M5 Nut
ART. MSH71098
Page 55
box A
Instructions Manual
55
where I can nd the BIG PARTS where I can nd screws, ball bearings and u like that
Painted canopy FG
Page 56

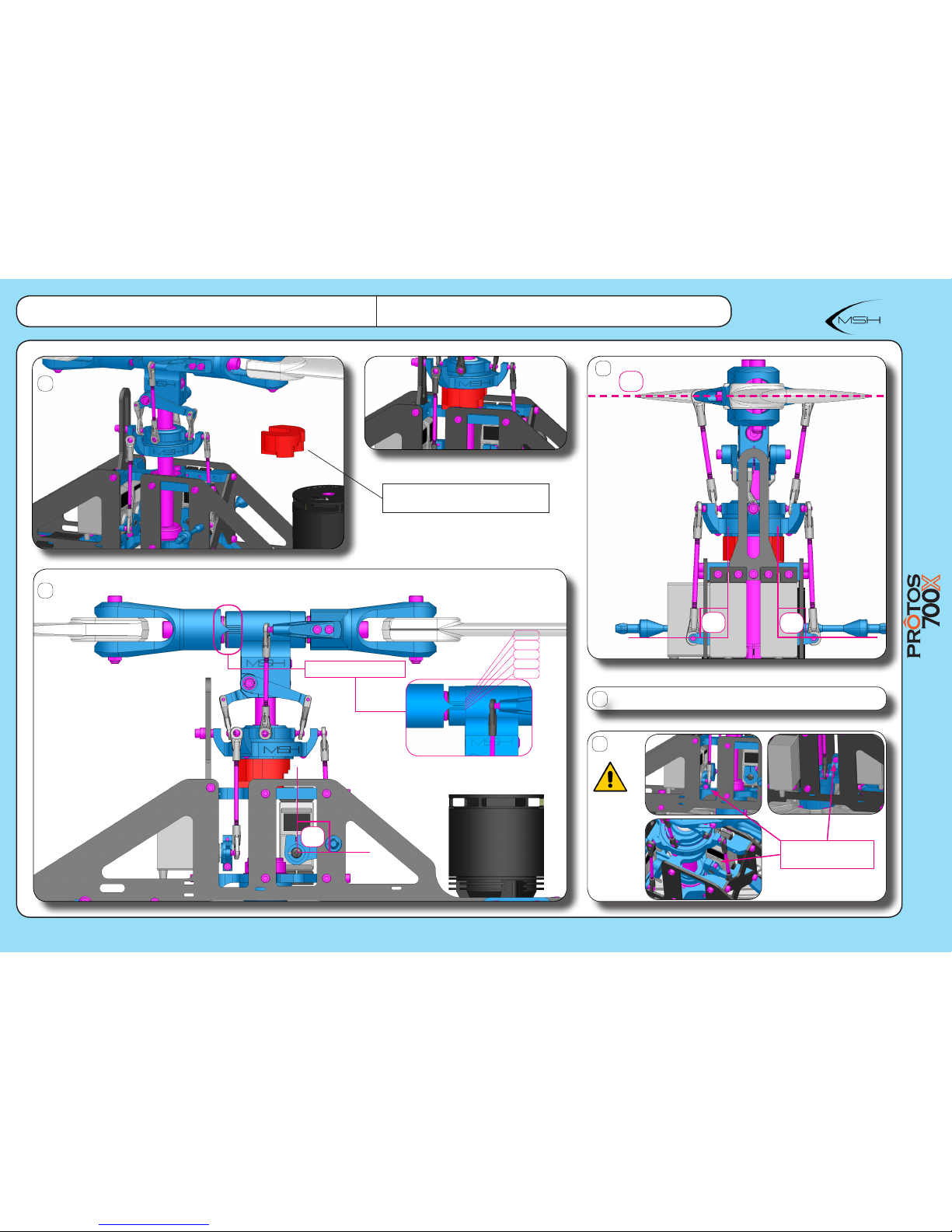

main blades pitch check
Instructions Manual
56
where I can nd screws, ball bearings and u like that
box F bag E2
Main and tail blades pitch checker
ART. MSH71126
90°
90°
0°
90°
1
2
Set transmitter and Brain to 0
°
-12°
-6°
0°
+6°
+12°
Pitch indicator
3
4
5
Tighten the 3 servo
horn screws
Page 57
tail blades pitch check
Instructions Manual
57
1
3 4
2
90°
90°
Main and tail blades pitch checker
ART. MSH71126

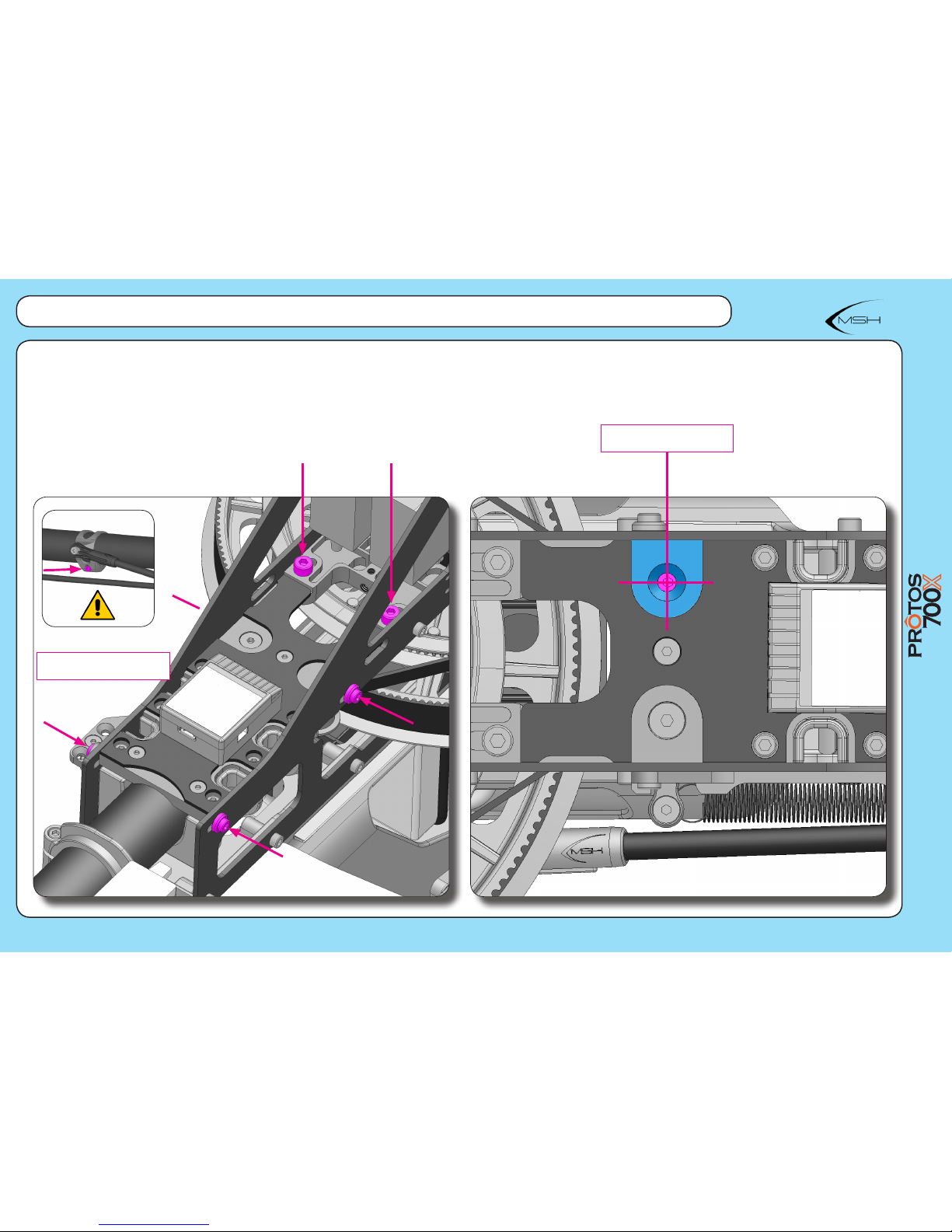

Page 58
belt tension check - Tail side
Instructions Manual
58
loose to adjust the belt
tighten to y
Belt tensioner
correct position
Page 59
belt tension check - Motor side
Instructions Manual
59
Tighten to increase the belt tension
Loose to decrease the belt tension
loose to adjust the belt
tighten to y
loose to adjust the belt
tighten to y
Page 60
Upgrades
Instructions Manual
60
Magnet canopy support Kit (2x)
MSH71051
MSH71057
MSH71203
MSH71022
Servo horn adapter JR (2x)
Head dampeners 3D (red)
770 conversion Kit Protos Max V2
MSH71165
800 conversion Kit Protos Max V2
MSH71168
Guide pulley - 10mm - Metal
Pinion 22T V2 r2 Alu
MSH71173
MSH71177
MSH71226
MSH71230
Landing gear White - Gorilla Gear
Power Bus Protos Max V2 Sticker included
Pinion 18T V2 r2 Alu
MSH71227
Pinion 19T V2 r2 Alu
MSH71229
Pinion 21T V2 r2 Alu
Pinion 18T V2 r2 Steel
MSH71213
MSH71231
Pinion 23T V2 r2 Alu
Pinion 19T V2 r2 Steel
MSH71214
Vertical n sticker - Neon Yellow
MSH71215
MSH71216
MSH71217
MSH71183
Pinion 20T V2 r2 Steel
Pinion 21T V2 r2 Steel
Pinion 22T V2 r2 Steel
MSH71218
Pinion 23T V2 r2 Steel
MSH71182
Vertical n sticker - Neon Orange
Page 61
Instructions Manual
61
specifcation and design are subject to change without notice
LOCTITE, UHU Plus are registered trademarks
MSHeli s.r.l.
Uboldo (VA)
ITALY
Loading...
