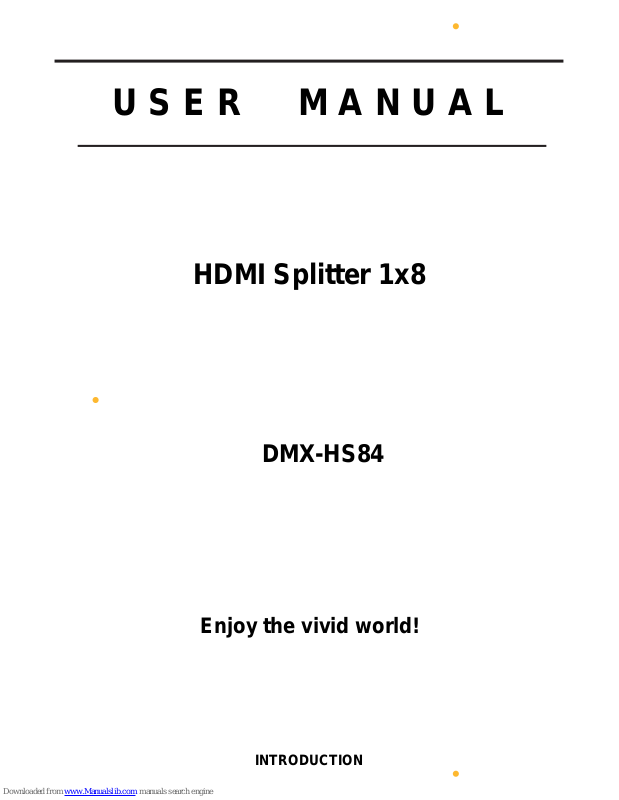

U S E R M A N U A L
HDMI Splitter 1x8
DMX-HS84
Enjoy the vivid world!
INTRODUCTION
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
Our series of HDMI Converters, switchers, extenders, matrixes and splitters are designed to
make your A/V device use more convenient, more comfortable, more productive and more
cost-efficient.
The 1x8 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source，
accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to
eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a
long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
FEATURES
One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
Support Full HD, Full 3D
Support 4K*2K resolution
Support CEC
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
/DSD/HD（HBR）
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length,
output up to 15metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/3A power supply
The accessories with the machines lists as picture：
1、5V Power Adapter
2、one pc of Manual
Power Adapter
Physical Connection Showing Picture：
Figure 1.0 Front Panel Showing Picture
L1-L8： HDMI output led status light
RESET ：Reset Button
Input： HDMI input led status light
0N/0FF: On Is Turn On The Device,Off Is Turm Off On The Device
Figure 1.1 rear panel showing picture
DC 5V: 5V DC-DC power interface
HDMI OUT1- HDMI OUT8: HDMI output interface
HDMI IN: HDMI input interface
Operating and Connecting：
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x8 Splitter.
SPECIFICATIONS: DMX-HS84
HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit
Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………………………………….………………………….340MHz
Max baud rate…………………….………………….………………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………...………….≤15m HDMI AWG26
Output cable distance…………………………….……….…...≤15m AWG26 HDMI standard cable
Max working current………………………………..……………………………………………..... 3A
Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range……..…………….……………………………….…… (-15 to +55℃)
Operating Humidity range………………………….….…………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………….. 280X138X25(mm)
Weight…..………………………………………………………..…….…………………..………871g
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty,
Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the
socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
Before power on, pls check the connection line carefully. And make sure that all interfaces
are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non-Power-
Connected
1、 Check if the power adaptor head is truly and
correctly inserted the power socket.
2、Check the power switch if it is in on status.
2
No Picture
1、Pls to make sure that the TV is on and has been
connected with the machine.
2、 To check if the signal source is on and well
connected.
3、Check the system connection quality.
4、Check if the line is all good quality.
5、Check the cable quality
3
Obscure Picture
1、To try again to connect the cable to be free from the
unsuccessful connection.
2、HDMI Cable Quality
