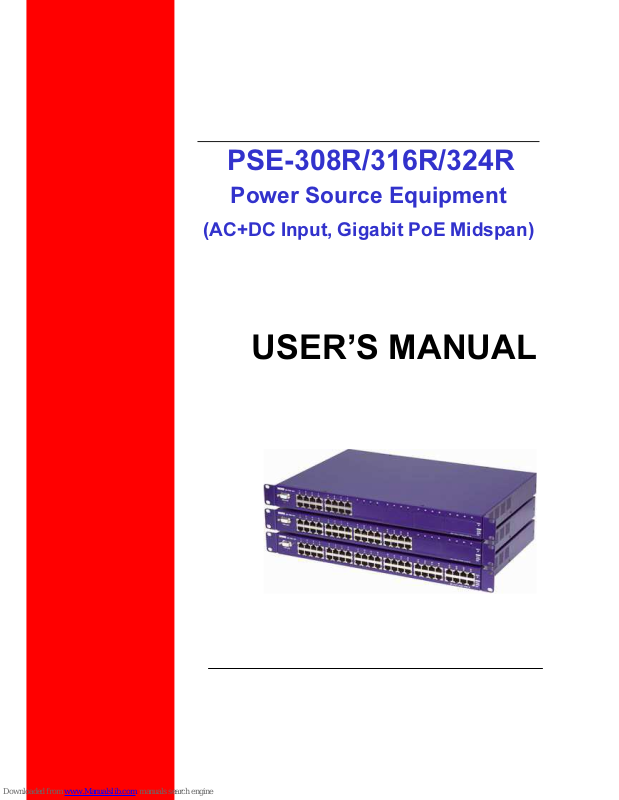

USER’S MANUAL
PSE-308R/316R/324R
Power Source Equipment
(AC+DC Input, Gigabit PoE Midspan)
User’s Manual
PSE-308R/316R/324R
2
Contents
1. Introduction...........................................................................
Features................................................................................................
Package Contents.................................................................................
2. Hardware Description...........................................................
Physical Dimension...............................................................................
Front Panel............................................................................................
LED Indicators.......................................................................................
Rear Panel............................................................................................
Power On..............................................................................................
Network Application...............................................................................
RJ-45 Remote Control Port...................................................................
3. Software Utility Installation..................................................
4. GUI Management...................................................................
Display and Illustration..........................................................................
System Login........................................................................................
Modify Password…...............................................................................
Edit Station TCP/IP...............................................................................
Edit Remote PoE IP.............................................................................
GUI Connect All....................................................................................
Single Station Connect/Disconnect……………………………………..
Station and Status Window Select …...................................................
Edit Port Name…………………………………………………………….
Configuration.........................................................................................
Factory Setting…………........................................................................
Board Status…………………………………………………………………
Port Status…………………………………………………………………...
GUI Version………………………………………………………………….
GUI Disconnect All…………..…………………………………………......
File Open and Save…………………………………………………………
5. Technical Specification........................................................
3
3
4
4
4
4
5
5
6
6
7
14
15
15
16
17
18
20
21
23
24
25
26
27
29
30
31
32
33
3
4
User’s Manual
PSE-308R/316R/324R
3
1. Introduction
PSE-308R/316R/ 324R (Power Sourcing Equipment ), is an AC+DC input, gigabit PoE
Midspan which injects power over data-carrying Ethernet cabling. The
PSE-308R/316R/324R, support 8, 16 and 24 ports respectively in a
10/100/1000BaseT Ethernet network, over TIA/EIA-568 Category 5/5e/6 cabling. DC
operating power, for data terminal units, is fed over data pairs C (4/5) and D (7/8) of the
cabling. Remote management of up to 24 units via TCP/IP protocol is featured, which
allows greater flexibility in the locating of network devices and significantly decreasing
installation costs in many cases.
The PSE-308R/316R/324R follows the IEEE 802.3af standard and is completely
compatible with existing Ethernet switches and networked devices. This device
normally powers PDs (Powered Devices) that are Power over Ethernet enabled or are
equipped to receive power over Ethernet. The PSE tests whether a networked device
is PoE-capable and power is never transmitted unless a Powered Device is at other
end of the cable. It also continues to monitor the channel. If the Powered Device does
not draw a minimum current, because it has been unplugged or physically turned off,
the PSE shuts down the power to that port. Devices which are not equipped to receive
power over Ethernet may require an external splitter in order to be powered. Contact
Mstronic for such a splitter.
Features
8/16/24 port Power Sourcing Equipment (PoE midspan)
Support 8/16/24 ports full load, max. 134W/268W/403W
IEEE802.3af compliance
Remote power feeding of Ethernet terminals up to 100 meters
Auto detect PD, and support manual detect PD
Centralized power distribution for PoE powered Device (PD)
Independent overload and short-circuit protection per channel
Supports IEEE 802.3af non-standard device
Auto refresh port status and support Plug and Play feature for PD
Standard 19” or 23” rack mountable
DIY upgrade from 8 port to 24 port available
Remote manage up to 24 units via TCP/IP protocol
DC input available, can work with battery, non-interrupt performance.
User’s Manual
PSE-308R/316R/324R
4
Package Contents
Unpack the contents of the PSE-308R/316R/324R and verify them against the
checklist below.
PSE-308R/316R/324R x 1
Power Cord x 1
Bracket x 2 (for 19” rack mounted)
CD-ROM x 1 (Software Utility + User Manual)
Compare the contents of your PSE-308R/316R/324R package with the standard
checklist above. IF any item is missing or damaged, please contact your local dealer
for service.
2. Hardware Description
This Section mainly describes the hardware of the PSE-308R/316R/324R and gives a
physical and functional overview.
Physical Dimension
PSE-308R/316R/324R physical dimension is: 430mm x 290mm x 44mm (Lx W x H)
(1U,19” or 23” Rack mountable)
Front Panel
Figure 2-1. The Front panel of PSE-308R/316R/324R
User’s Manual
PSE-308R/316R/324R
5
The Front Panel of the PSE-308R/316R/324R consists of 8/16/24 x RJ-45 Ethernet
ports (data), 8/16/24 x RJ-45 PoE ports (data + power), 8/16/24 x LED port indicators,
one LED power indicator and one RJ-45 remote control port (include one LED).
LED Indicators
The LED Indicators gives real-time information of systematic operation status. The
following table provides descriptions of LED status and their meaning.
LED Status Color Description
RJ45
On Green
A network device is
detected(10/100/1000 Mbps)
but no communication activity is
detected
Blinking Green
The Ethernet port is transmitting
to, or receiving package from
another device
Off -- No device is detected
Power
On Green Power feeding normally
On
Red
Power or fan alarm
Off -- Power off
Ports
On Green Power feeding
Blinking Orange Detecting
On Orange
The port has been shutdown
No power feeding
On Red
Alarm
No power feeding
Off --
Unknown device attached
No power feeding
Table 2-1. The Description of LED Indicators
User’s Manual
PSE-308R/316R/324R
6
Rear Panel
Figure 2-2. The Rear Panel of PSE-308R/316R/324R
The AC inlet, DC input terminal and 4 Ventilation fan are located at the rear panel of
the PSE-316R/324R, (PSE-308R only 2 fans). The device will work with AC in the
range 100-240V AC, 50-60Hz. Or work with DC -56V(-42V~-57V).
Power On
Connect the power cord to the power socket on the rear panel of the PSE. The other
side of power cord connects to the power outlet. The internal power supply of the PSE
works with the voltage range of 100V-240VAC, frequency 50~60Hz, or with voltage
range of DC -42V~-57V. Check the port, the power indicator will self-test on the front
panel to see if power is properly supplied.
Network Application
The PSE can provide power to the PD which follow the IEEE 802.3af standard in the
network. It can solve the problem of position limitation. The network device can be
installed in a more appropriate position for better performance. The following figure is
an example of a network application for PSE
User’s Manual
PSE-308R/316R/324R
7
RJ-45 Remote Control Port
PSE-308R/316R/324R can remotely manage the PoE via the network. To manage
PSE-308R/316R/324R, you must to set the PSE-308R/316R/324R TCP/IP parameter.
PSE-308R/316R/324R allowed you to use a standard Web-browser such as Microsoft
Internet Explorer or Mozila, to set the TCP/IP parameter.
Before you use the web interface to set the PoE TCP/IP, verify that
PSE-308R/316R/324R is properly installed on your network and PC on the network
can access PoE via the web-browser.
1. Verify that PC network interface card (NIC) is operational on the TCP/IP protocol.
2. Supply power to PSE-308R/316R/324R.
3. Use RJ45 cable, connect PSE308R/316R/324R direct to your PC.
4. Make sure the PSE-308R/316R/324R default IP is 192.168.1.10.
5. Set your PC IP to 192.168.1.2 or other IP address which is located in the
192.168.1.x subnet.
6. Make sure the connector is OK (Ping 192.168.1.10 on the DOS mode).
7. Start the web-browser and type
http://192.168.1.10 (or used PoE IP setting icon in
User’s Manual
PSE-308R/316R/324R
8
the PoE management software).
8. The login in screen will appear next.
9. Key in ID (user name) and password to enter PoE TCP/IP parameter setting. Default
ID and password is admin and system.
10. PSE-308R/316R/324R TCP/IP parameter has 4 pages interface (administrator
setting, TCP Mode, UDP Mode and UART). You must change the administrator & TCP
mode to fit your network.
User’s Manual
PSE-308R/316R/324R
9
11. Administrator setting: you can assign nickname, IP setting, user name, password
and view system information.
Nickname: You can assign a name to the device.
IP Address: You must assign the IP address reserved by your network. The default IP
is 192.168.1.10.
Subnet Mask: You can assign the subnet mask for the IP address. The default subnet
mask is 255.255.255.0.
Gateway: You can assign the gateway here. The default gateway is 192.168.1.1.
IP Configure: You must assign to Static for PoE serve operation. The default IP
configure is Static.
Username: You can assign new user name. The default setting is admin.
Password/Confirm: You can type in new password here. The default setting is system.
When you have finished the set up, click on Update to update your setting.
User’s Manual
PSE-308R/316R/324R
10
12. TCP Mode: You can update the TCP control parameter here.
Telnet Server/Client: Set to Server for PoE management operation.
Port Number: You can assign port number for TCP/IP operation. The default Port
Number is 23.
Remote Server IP Address: Unused.
Clint mode inactive timeout: Unused.
Server mode protect timeout: Set to 0(Disable) for normal operation.
When you have finished the set up, click on Update to update your setting.
User’s Manual
PSE-308R/316R/324R
11
13. UDP Mode: This mode is not used in the PoE application.
