Page 1
96M5980
Intel ® ArrandaleTM /PCH
Mini-ITX Motherboard
USER’S MANUAL
Version 1.0
Page 2
ii
96M5980 User’s Manual
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Arrandale DC Mobile Processor are registered
trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Fintek is a registered trademark of Fintek Electronics Corporation.
All other product names or trademarks are properties of their
respective owners.
Page 3
96M5980 User’s Manual iii
Table of Contents
Introduction ....................................................... 1
Product Description ............................................................. 1
Checklist .............................................................................. 2
96M5980 Specifications ..................................................... 3
Board Dimensions ............................................................... 4
Installations ....................................................... 6
Installing the CPU ............................................................... 7
Installing the Memory ......................................................... 8
Setting the Jumpers ............................................................. 9
Connectors on 96M5980 .................................................... 13
BIOS Setup ....................................................... 23
Drivers Installation ...................................... 51

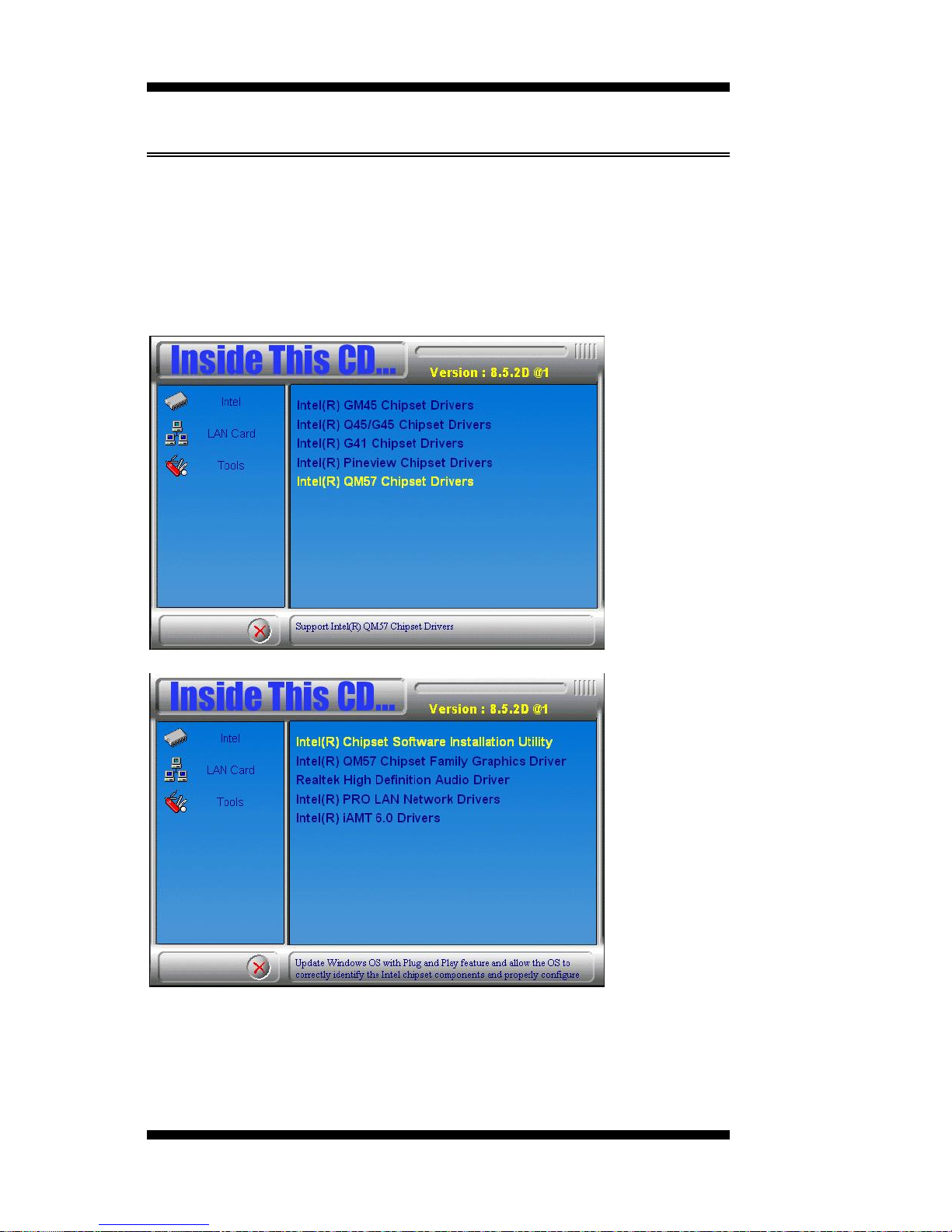

Intel Chipset Software Installation Utility......................... 52

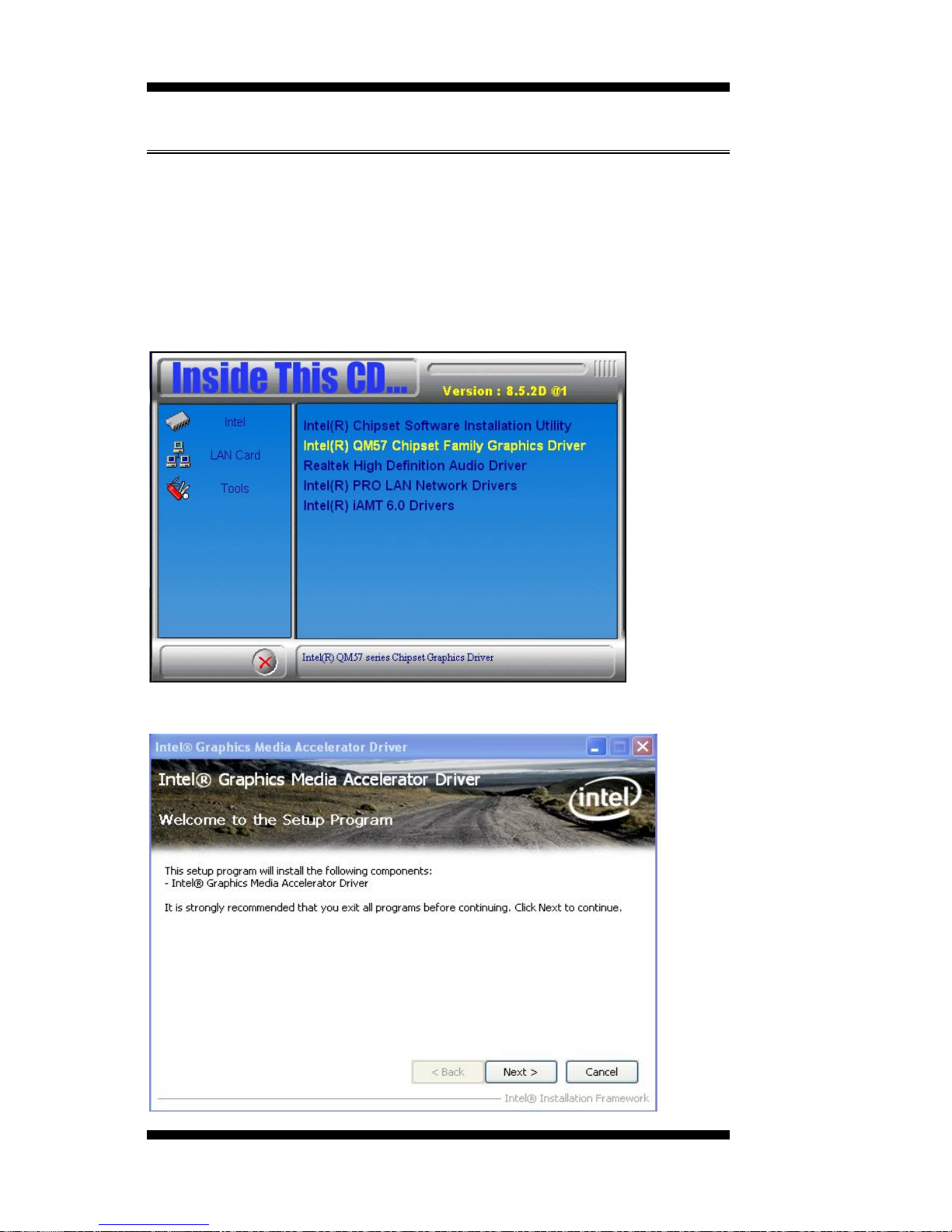

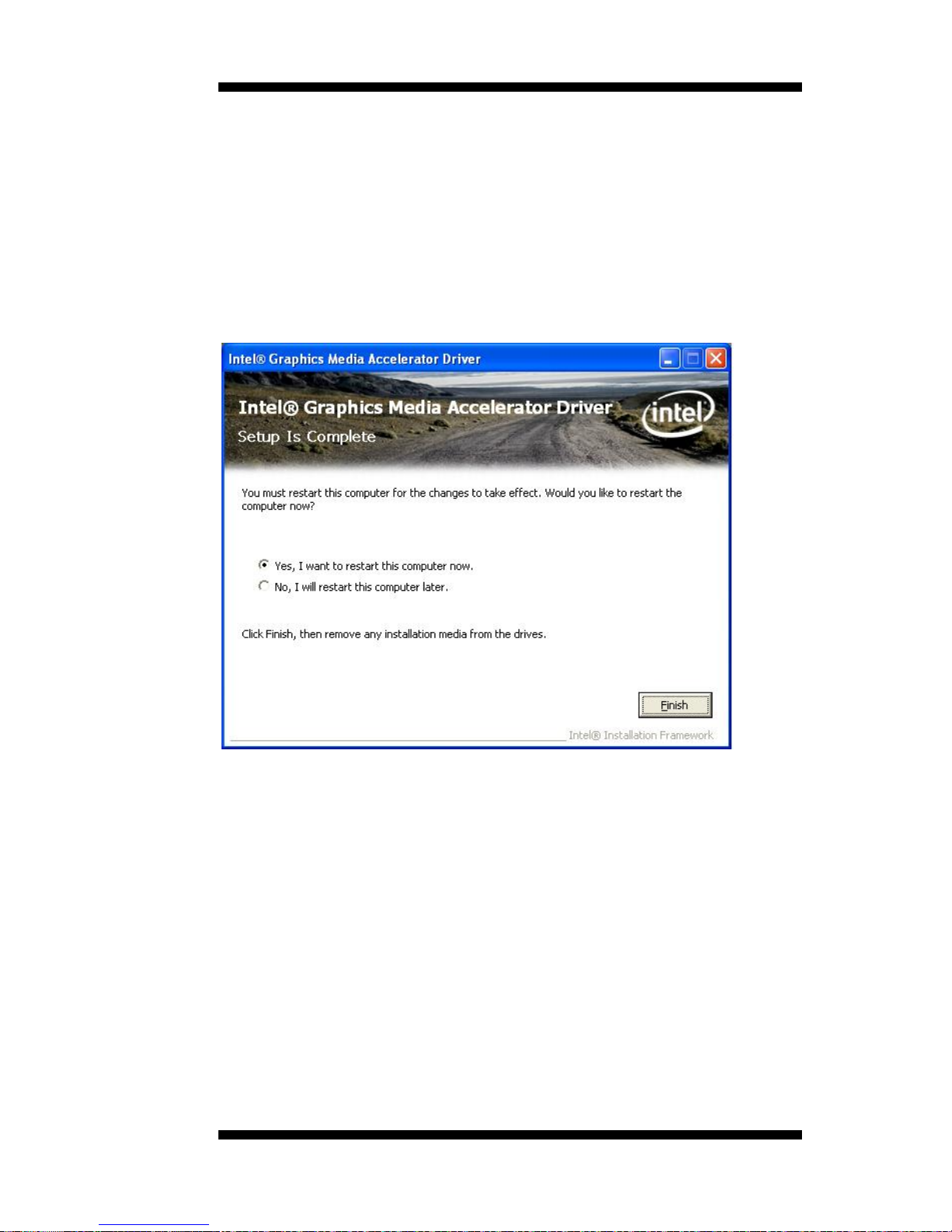

VGA Drivers Installation .................................................. 54

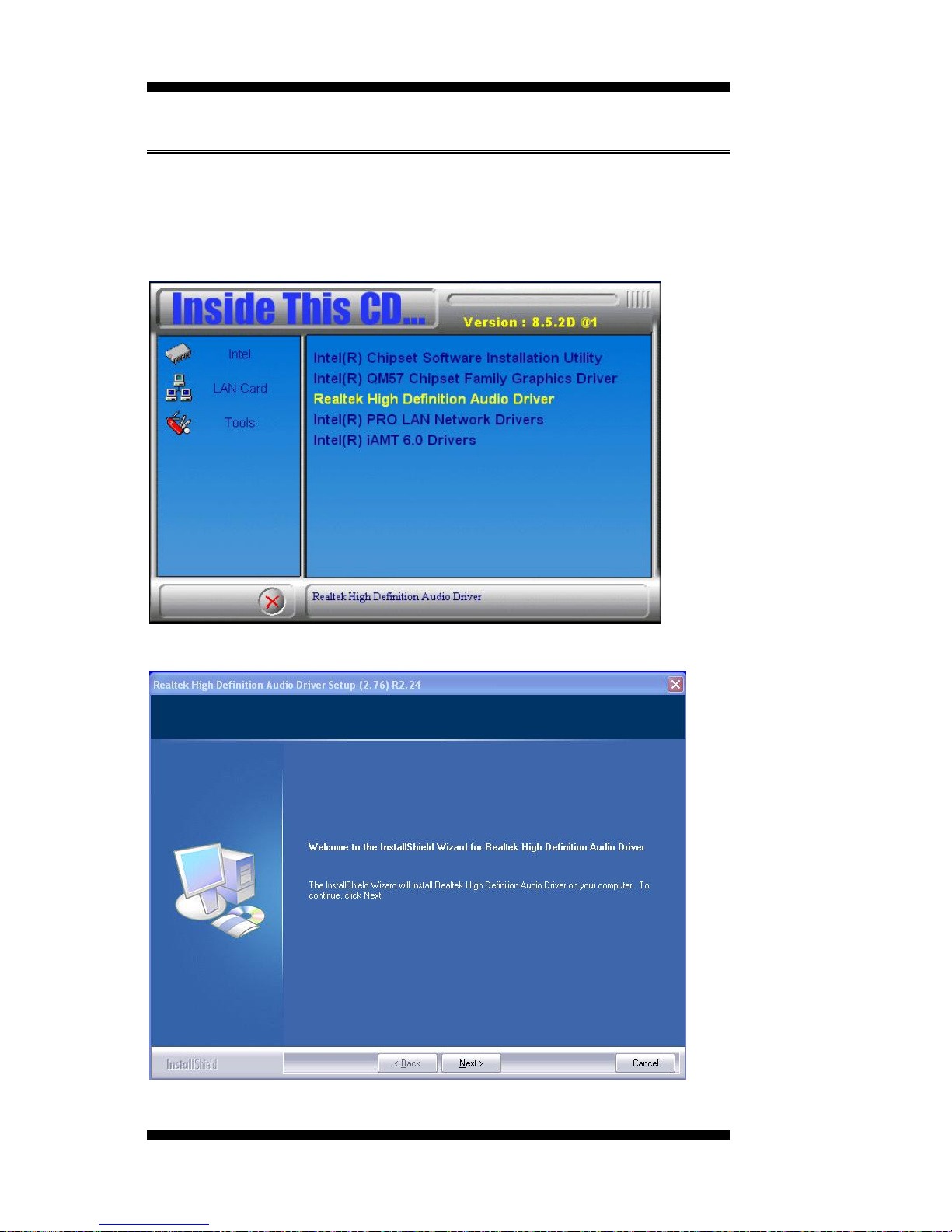

Realtek HD Audio Driver Installation ............................... 56

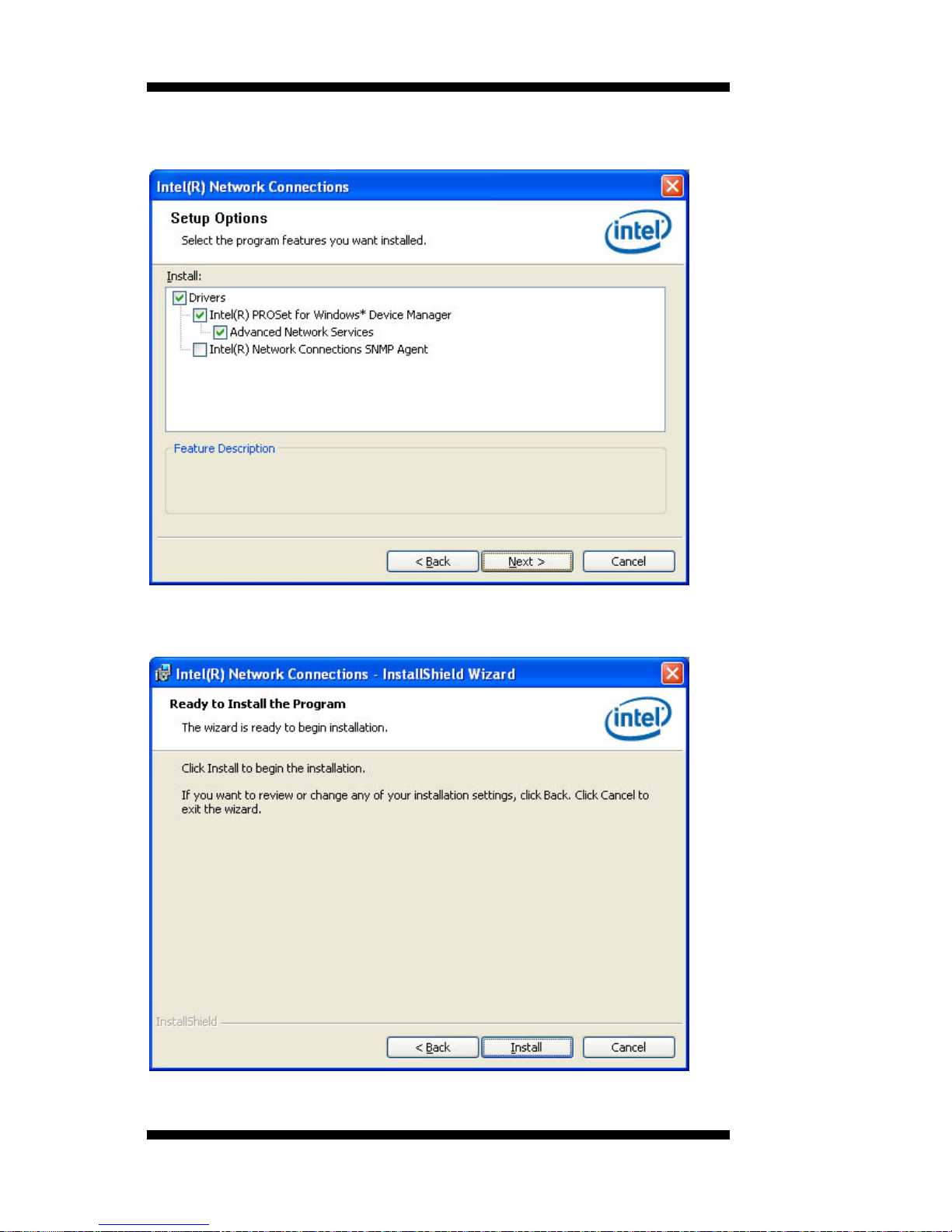

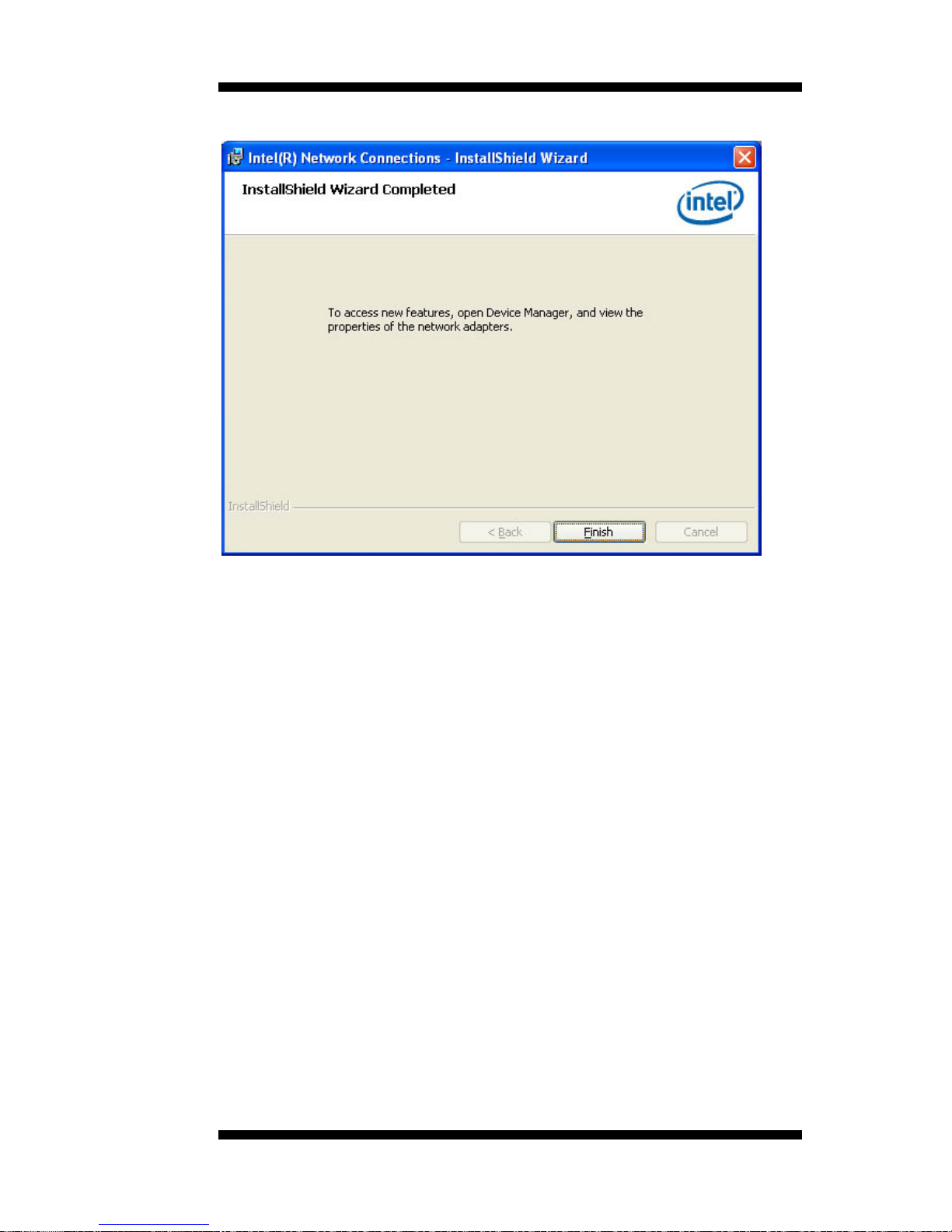

LAN Drivers Installation ................................................... 57
Intel® Management Engine Interface ............................... 60
Appendix ........................................................... 63
A. I/O Port Address Map ................................................... 63
B. Interrupt Request Lines (IRQ) ...................................... 64
C. Watchdog Timer Configuration .................................... 65
Page 4
iv
96M5980 User’s Manual
IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed (CTRL-ALT-F1).
Page 5
INTRODUCTION
96M5980 User’s Manual 1
Introduction
Product Description
The 96M5980 Mini ITX board incorporates the Intel® Chipset for Embedded
Computing, consisting of the Intel® Arrandale DC mobile processor (integrated
Graphic and Memory Controller) and Intel® Ibex Peak-M (PCH), an optimized
integrated graphics solution with a 800/1066MHz front-side bus. Dimensions of
the board are 170mm x 170mm.
The integrated graphics controller contains a refresh of the 5
th
generation
graphics core support Intel® Dynamic Video Memory Technology, Smart 2D
Display Technology, Clear Video Technology. It features a low-power design, is
validated with the Intel® Arrandale DC mobile processors on 45nm process.
With dual channel DDR3 800/1066MHz two SoDIMM sockets on board, the
board supports up to 8GB of DDR3 system memory.
The main features of the board are:
Supports Intel® Arrandale DC mobile processor
Supports up to 3.0GHz, 1066MHz FSB
Two DDR3 SoDIMM, Max. 8GB memory
Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN
Integrated Graphics VGA for CRT /DVI/ LVDS
4x SATA, 10x USB 2.0, 4x COM, Watchdog timer
1x Mini PCI-E (Mini Card), 1x PCI, 1xPCI-E(x1) slots
Page 6
INTRODUCTION
2
96M5980 User’s Manual
Checklist
Your 96M5980 package should include the items listed below.
• The
96M5980 Mini-ITX motherboard
• This User’s Manual
• 1 CD containing chipset drivers and flash memory utility
• Cable kit (Serial port, Serial ATA)
Page 7
INTRODUCTION
96M5980 User’s Manual 3
96M5980 Specifications
CPU Supported
Intel® Arrandale DC mobile processor
CPU Voltage
0.700V ~ 1.5V (IMVP-6.5)
System Speed
Up to 3.0GHz or above
CPU FSB
1066MHz FSB
Cache
Up to 4MB shared L3 Cache
Green /APM
APM1.2
CPU Socket
rPGA Socket 989
Chipset
Intel Ibex Peak-M (PCH) Chipset
PCH: 25mm x 27mm, 1071-pin FCBGA
BIOS
AMI BIOS, supports ACPI function
Memory
DDR3 800/1066 SoDIMM x2 (w/o ECC function), Max. 8GB
VGA
Arrandale DC mobile processor integrated graphics
Supports CRT
Supports DVI single or Dual
LVDS LCD Panel
Arrandale DC mobile processor built-in, supports 24-bit, single or
dual channel LVDS
LAN
1. PCH 10/100/gigabit MAC + PHY
• Intel 82577LM 10/100/1000
2. Intell 82574L PCI-e Gigabit LAN controller x1 (
96M5980F)
USB
PCH built-in USB 2.0 host controller, support 10 ports
Serial ATA Ports
PCH built-in SATA controller, supports 4 ports
IAMT6.0
PCH built-in Intel Active Management Technology VER 6.0 with HW
KVM (
96M5980RF only)
Audio
PCH built-in High Definition audio controller:ALC888 w/ 7.1 channels
LPC I/O
F81865F: COM1, COM2 (RS232/RS422/RS485), COM3 and COM4
Hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan
headers)
Digital IO
4 in & 4 out
Keyboard/Mouse
Supports PS/2 keyboard/mouse connector
Expansion Slots
PCI slot x1, PIC-E (x1) slot x1 and Mini PCIE socket x1
Edge Connector
PS/2 connector x1 for keyboard/mouse and dual USB stack
connector
Gigabit LAN RJ-45 + dual USB stack connector x2
DVI-D and DVI-I stack connector x1
DB9 x1 for COM 1; DB15 x1 for VGA
RCA Jack 3x1 for Audio (Front-Out, Line-In, Mic)
Onboard Header/
Connector
10-pin headerx1 for Digital I/O; 10-pin header x1 for COM2
20-pin header x1 for COM3, COM4
10-pin header x 2 for USB 7,8; 9,10
DF13 connector x2 for LVDS;
10-pin header x1 for audio Line-Out & Mic
4-pin header x1 for CD in, SPDIF-out connector x1
SATA connector x4 for SATA ports
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
System Voltage
+5V, +3.3V, +12V, -12V, 5VSB (2A)
Others
Modem Wakeup, LAN Wakeup
Board Size
170mm x 170mm (Mini ITX)
Page 8
INTRODUCTION
[

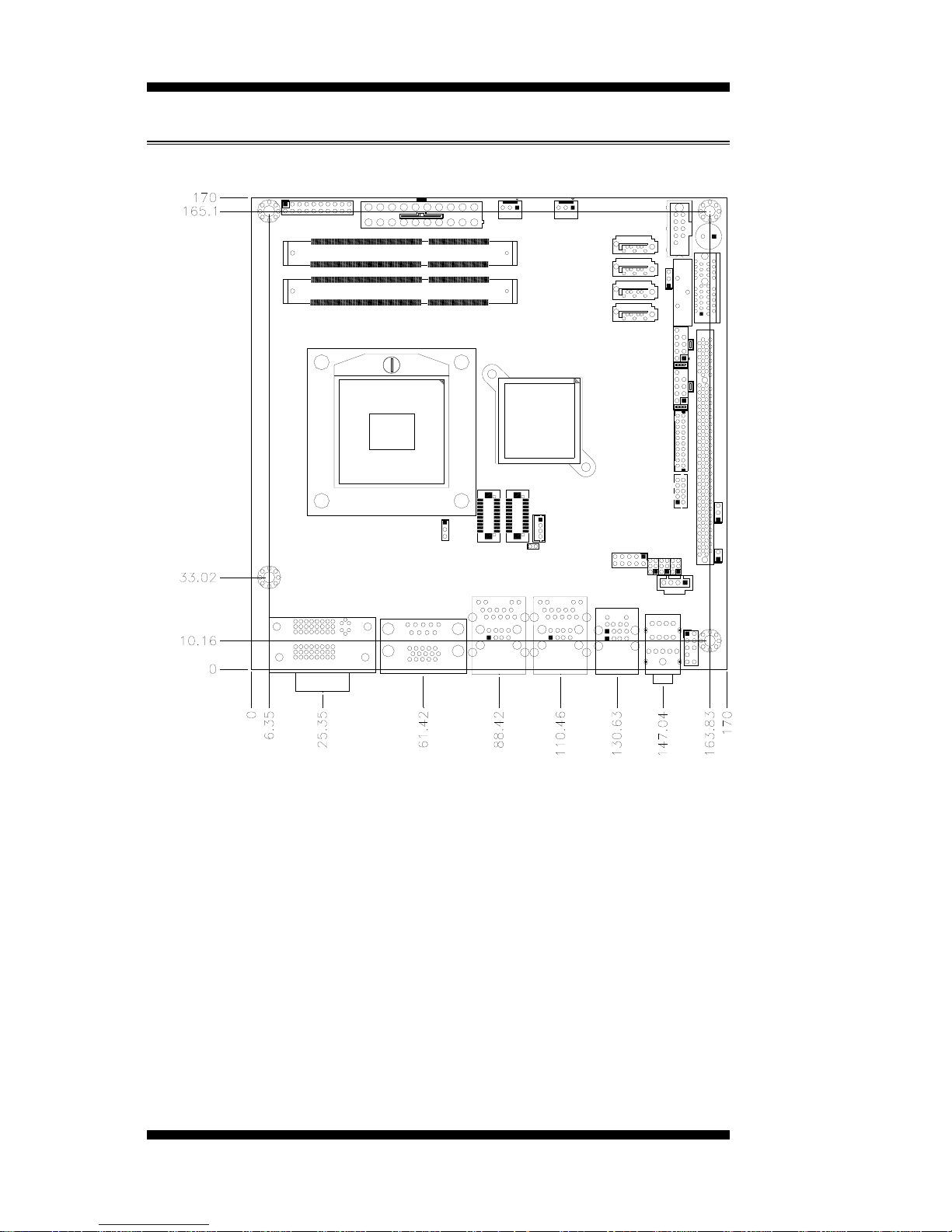

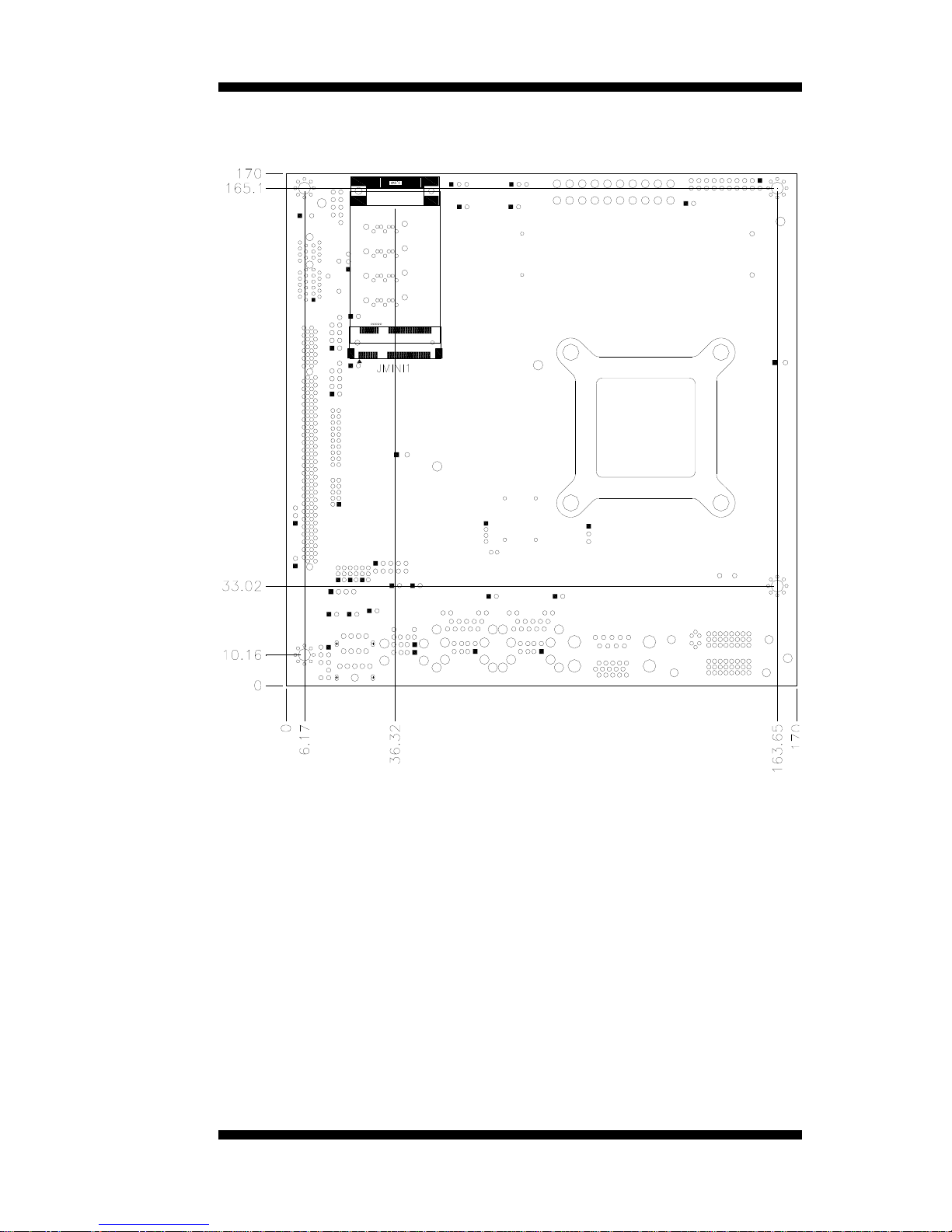

Board Dimensions
4
96M5980 User’s Manual
Page 9
INTRODUCTION
96M5980 User’s Manual 5
Page 10
INSTALLATIONS
6
96M5980 User’s Manual
Installations
This section provides information on how to use the jumpers and
connectors on the
96M5980 in order to set up a workable system. The
topics covered are:
Installing the CPU .................................................................................. 7
Installing the Memory ............................................................................ 8
Setting the Jumpers ................................................................................ 9
Connectors on 96M5980 ..................................................................... 13
Page 11
INSTALLATIONS

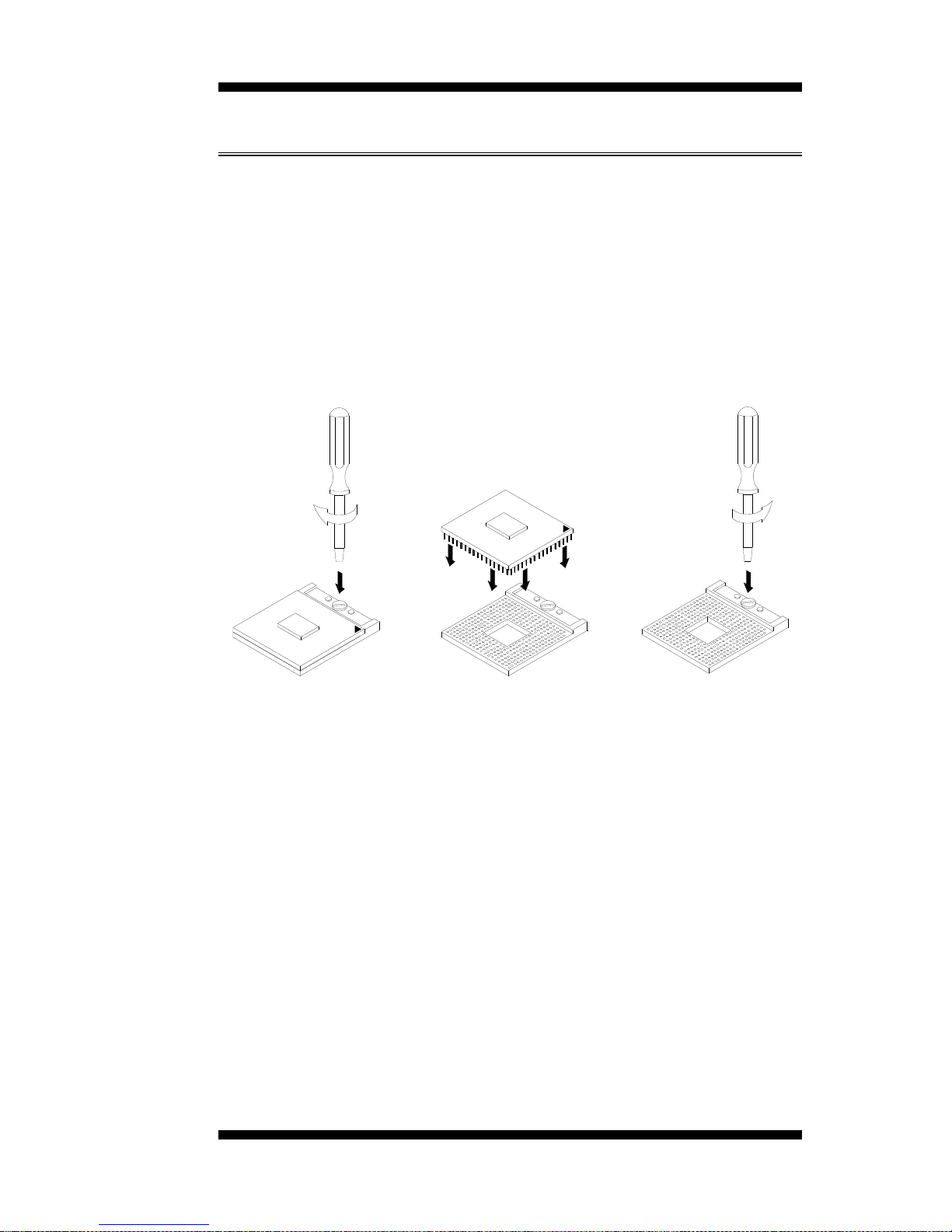

Installing the CPU
The 96M5980 board supports rPGA989 socket for Intel® Arrandale Dual
Core mobile processors.
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
96M5980 User’s Manual 7
Page 12
INSTALLATIONS

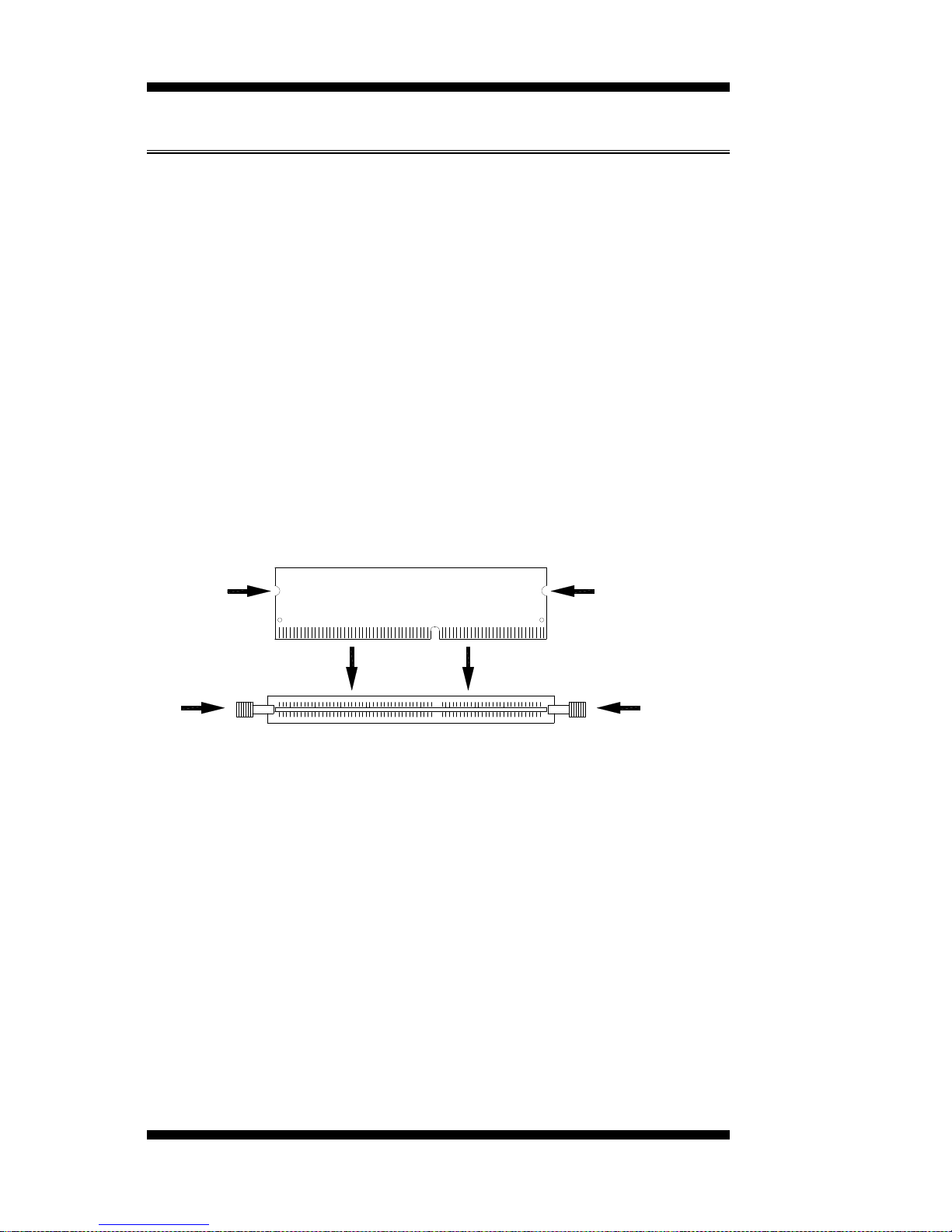

Installing the Memory
The 96M5980 board supports two DDR3 memory socket for a maximum
total memory of 8GB in DDR3 SO-DIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
8
96M5980 User’s Manual
DDR3 Module
Lock
Lock Lock
Lock
Page 13
INSTALLATIONS
96M5980 User’s Manual 9
Setting the Jumpers
Jumpers are used on 96M5980 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on
96M5980 and their respective functions.
Jumper Locations on
96M5980 ........................................................... 10
JP1: LCD Panel Power Selection ........................................................ 11
JP3, JP4, JP5: RS232/422/485 (COM2) Selection .............................. 11
JP6: PCI/PCIE Riser Card Selection ................................................... 12
JBAT1: Clear CMOS Setting .............................................................. 12
JP8: PS/2 Keyboard/Mouse Power Selection ...................................... 12
IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed.
Page 14
INSTALLATIONS

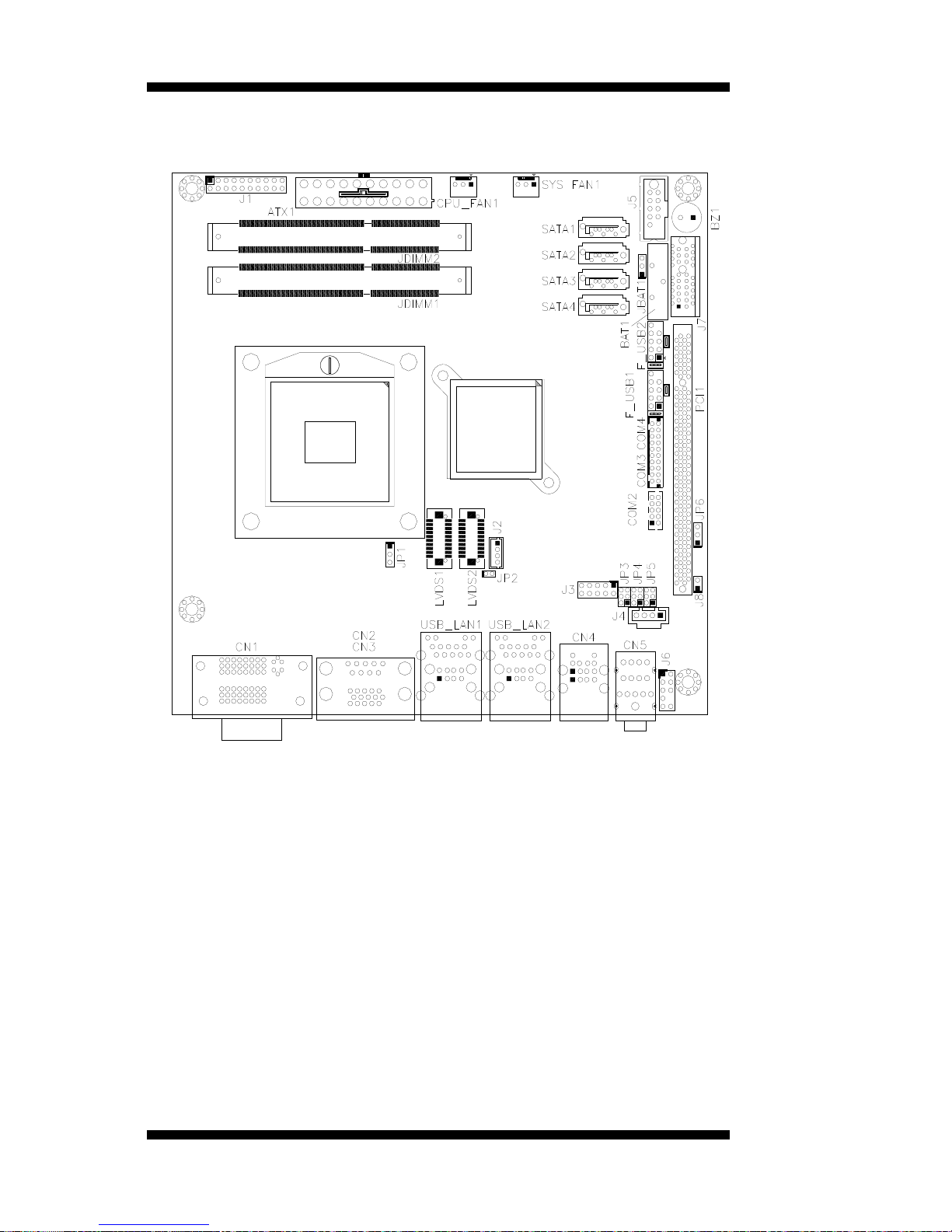

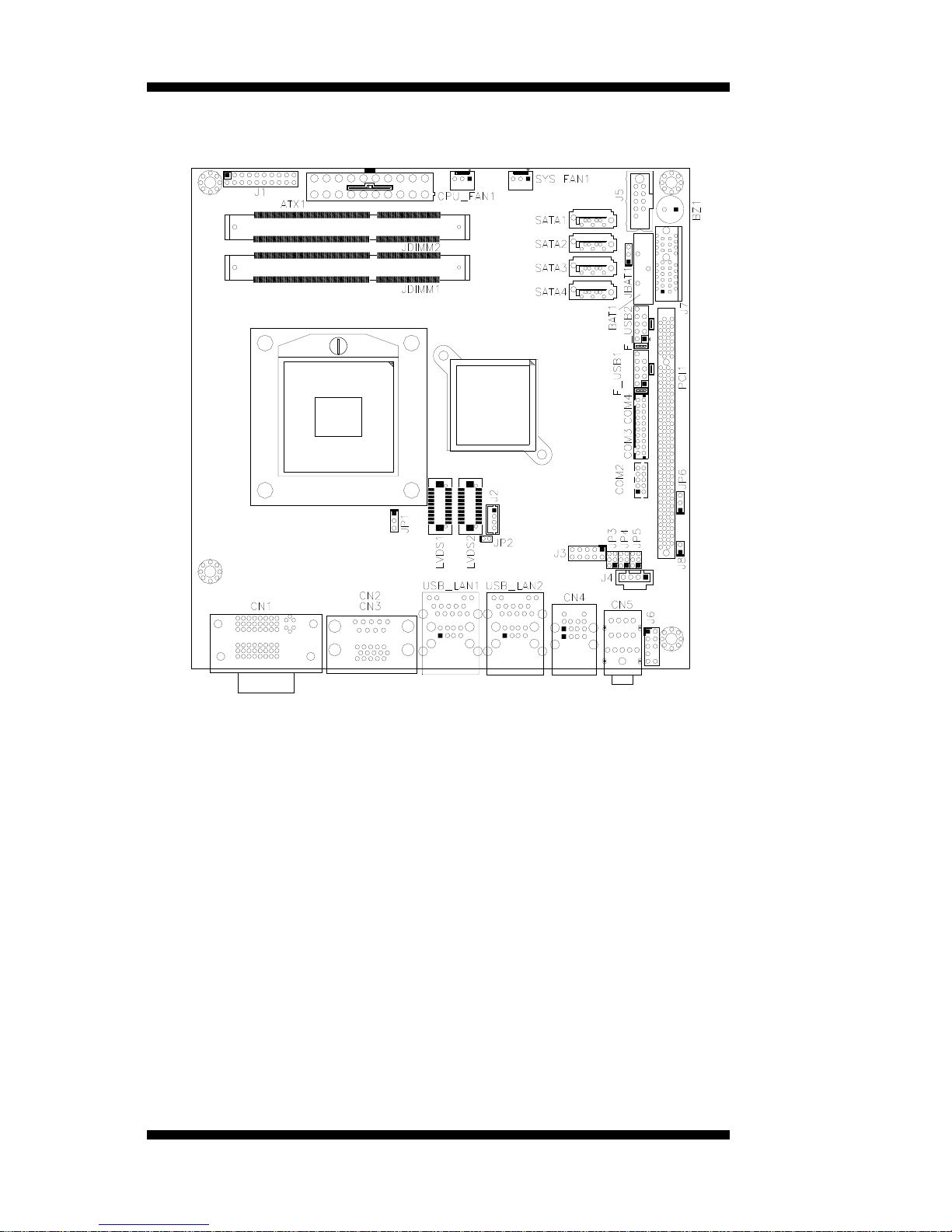

Jumper Locations on 96M5980
Jumpers on 96M5980 ........................................................................... Page
JP1: LCD Panel Power Selection ......................................................... 11
JP3, JP4, JP5: RS232/422/485 (COM2) Selection .............................. 11
JP6: PCI/PCIE Riser Card Selection .................................................... 12
JBAT1: Clear CMOS Setting............................................................... 12
JP8: PS/2 Keyboard/Mouse Power Selection ...................................... 12
10
96M5980 User’s Manual
Page 15
INSTALLATIONS

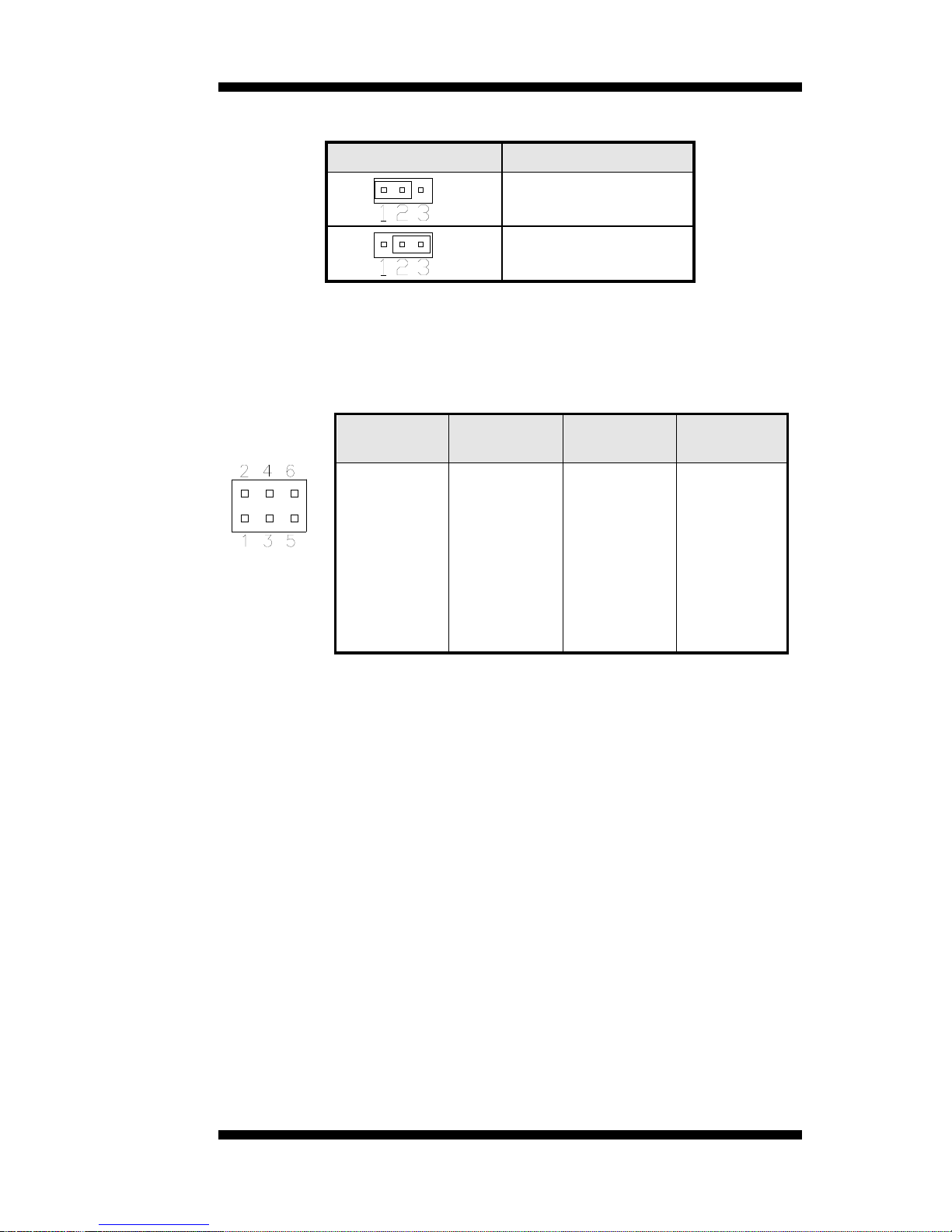

JP1: LCD Panel Power Selection
JP1
LCD Panel Power
3.3V
5V
JP3, JP4, JP5: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function
RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
JP3:
1-2
JP4:
3-5 & 4-6
JP5:
3-5 & 4-6
JP3:
3-4
JP4:
1-3 & 2-4
JP5:
1-3 & 2-4
JP3:
5-6
JP4:
1-3 & 2-4
JP5:
1-3 & 2-4
96M5980 User’s Manual 11
Page 16
INSTALLATIONS

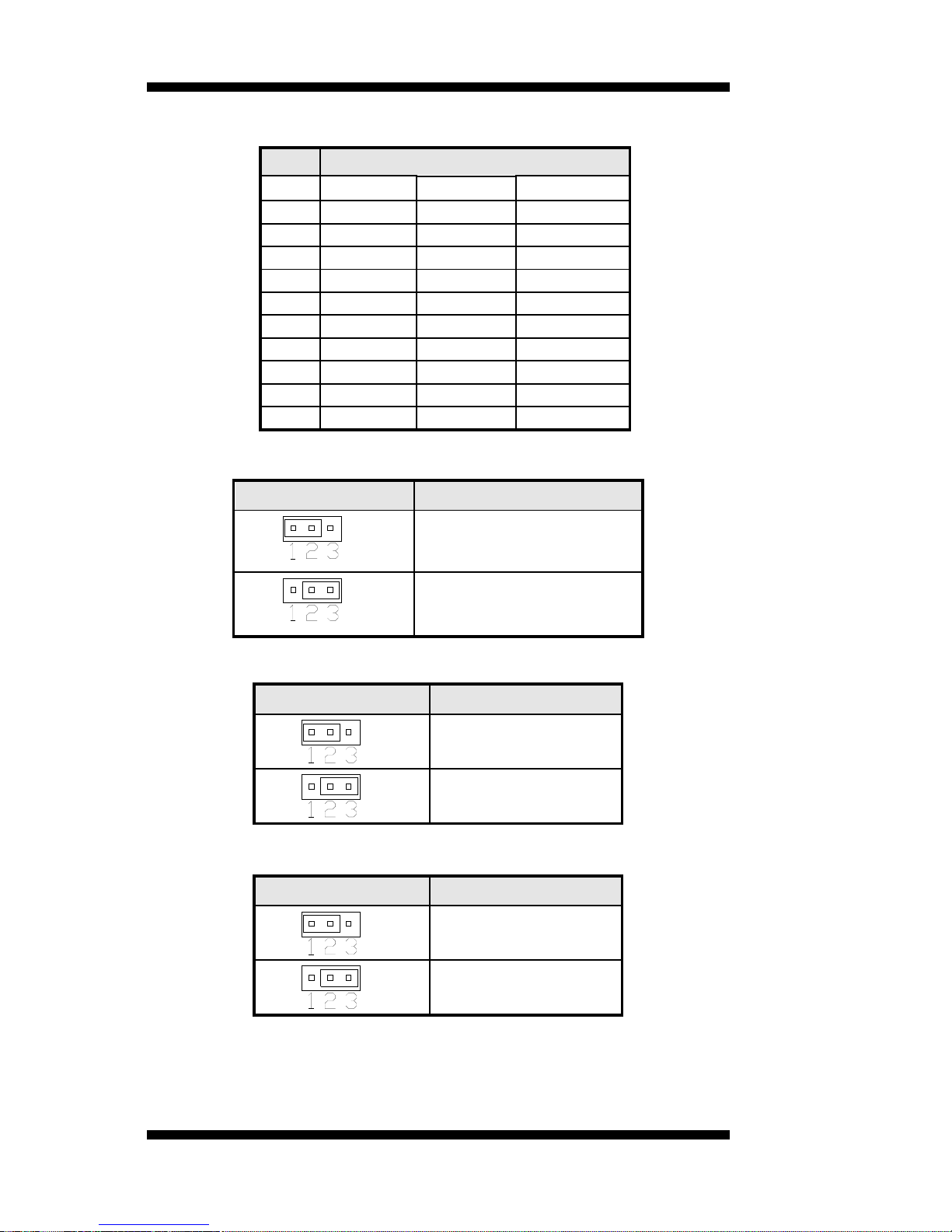

COM2 is jumper selectable for RS-232, RS-422 and RS-485.
Pin #
Signal Name
RS-232
R2-422 RS-485
1 DCD TX- DATA2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC
10 NC NC NC
JP6: PCI/PCIE Riser Card Selection
JP6
Riser Card
IP390 Riser Card
Install
IP151, IP240 Riser Card
Install
JBAT1: Clear CMOS Setting
JBAT1
Setting
Normal
Clear CMOS
JP8: PS/2 Keyboard/Mouse Power Selection
JP8
KB/MS Power
+5V
5V_DUAL
12
96M5980 User’s Manual
Page 17
INSTALLATIONS
96M5980 User’s Manual 13
Connectors on 96M5980
Connector Locations on 96M5980 ...................................................... 14

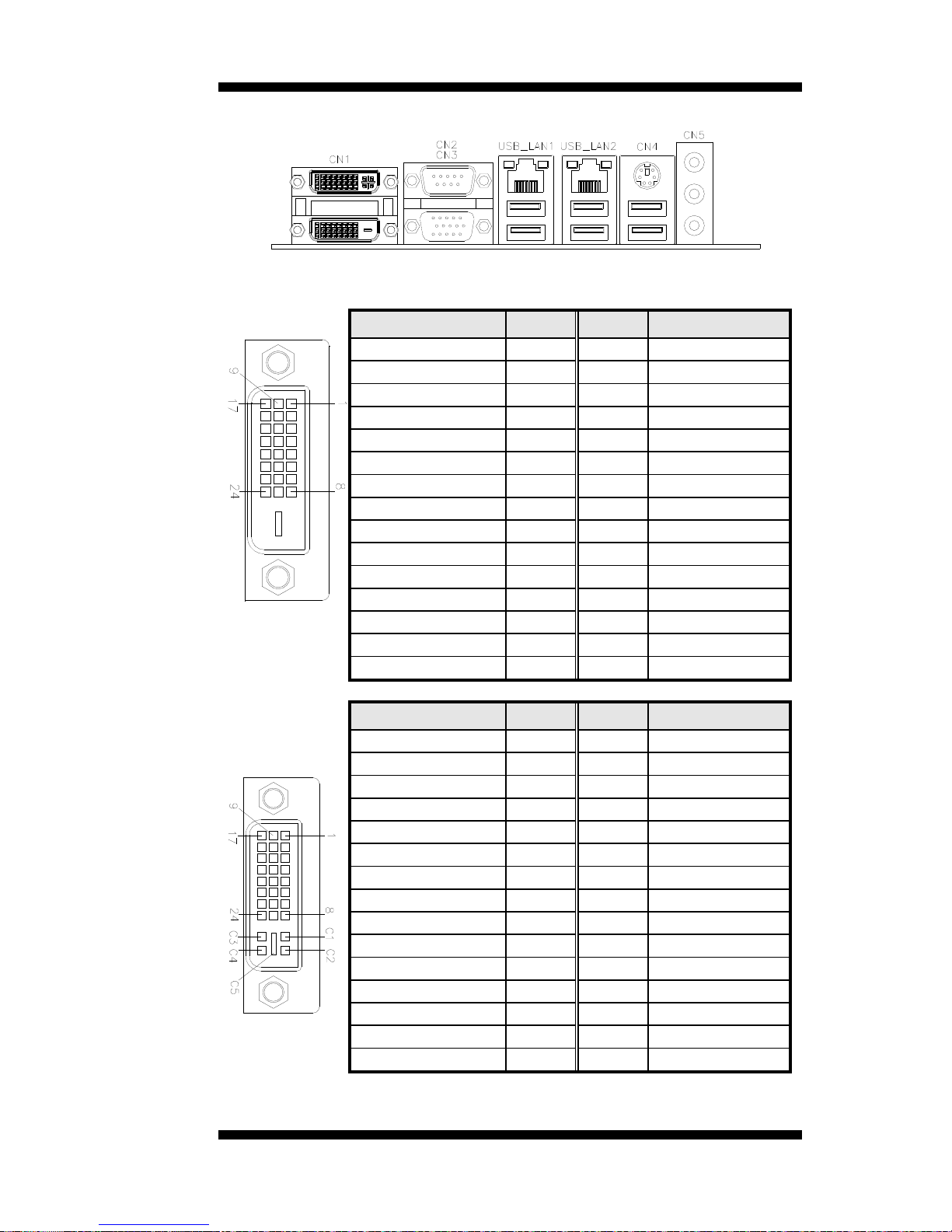

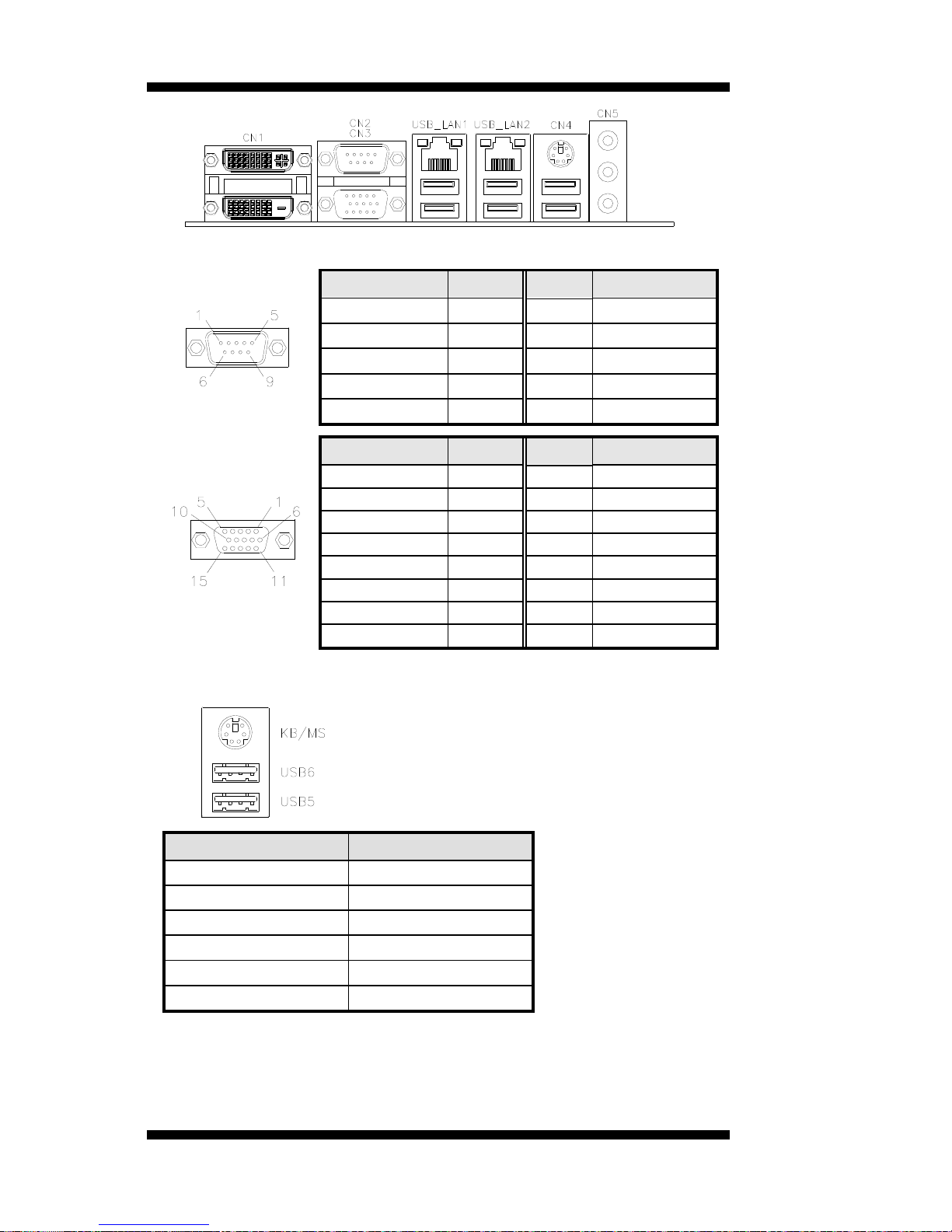

CN1: DVI-D and DVI-I Connector ..................................................... 15
CN2, CN3: COM1 and VGA Connector ............................................. 16
CN4: PS/2 Keyboard/Mouse Connectors and USB5/6 Ports .............. 16
USB_LAN1: 10/100/1000 RJ-45 (96M5980F) and USB3/4 Ports ..... 17
USB_LAN2: 10/100/1000 RJ-45 (96M5980) and USB1/2 Ports ....... 17
CN5: Audio Connector ........................................................................ 17
COM3_COM4: COM3, COM4 Serial Port ......................................... 17
SYS_FAN1: System Fan Power Connector ........................................ 17
CPU_FAN1: CPU Fan Power Connector ............................................ 17
ATX1: ATX Power Supply Connector ............................................... 18
J1 (F_PANEL): System Function Connector ...................................... 18
F_USB1: USB7/USB8 Connector ....................................................... 20
F_USB2: USB9/USB10 Connector ..................................................... 20
COM2: COM2 Serial Port ................................................................... 20
LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel) ....... 21
J2: LCD Backlight Connector ............................................................. 21
J3: Digital I/O ...................................................................................... 21
J4: CD-In Pin Header .......................................................................... 21
J5: SPI Flash Connector (factory use only) ......................................... 22
J6: Front Audio Connector .................................................................. 22
J7: PCI-E(x1) Slot ............................................................................... 22
J8: SPDIF Out Connector .................................................................... 22
PCI1: PCI Slot (supports 2 Master) ..................................................... 22
JMINI: Mini PCIE Connector ............................................................. 22
SATA1, SATA2, SATA3, SATA4: SATA Connectors ...................... 22
Page 18
INSTALLATIONS
Connector Locations on 96M5980
14
96M5980 User’s Manual
Page 19
INSTALLATIONS
CN1: DVI-D and DVI-I Connector
[
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
N.C 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 N.C.
SHIELD 1/3 11 C2 N.C.
DATA 3- 12 C3 N.C.
DATA 3+ 13 C4 N.C.
DDC POWER 14 C5 N.C.
A GROUND 1 15 C6 N.C.
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
N.C 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 N.C
SHIELD 1/3 11 C2 N.C
DATA 3- 12 C3 N.C
DATA 3+ 13 C4 N.C
DDC POWER 14 C5 A GROUND2
A GROUND 1 15 C6 A GROUND3
96M5980 User’s Manual 15
Page 20
INSTALLATIONS
16
96M5980 User’s Manual
CN2, CN3: COM1 and VGA Connector
[
Signal Name Pin # Pin # Signal Name
DCD
1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 4 9 RI
GND 5 10 Not Used
[[[[
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 DDC_DATA
HSYNC 13 14 VSYNC
DDC_CLK 15
CN4: PS/2 Keyboard/Mouse Connectors and USB5/6 Ports
PS/2 Keyboard & Mouse
USB Port5 /Port6
Signal Name Keyboard/Mouse
Keyboard data 1
Mouse data 2
GND 3
5V 4
Keyboard clock 5
Mouse clock 6
Page 21
INSTALLATIONS
USB_LAN1: 10/100/1000 RJ-45 (96M5980F) and USB3/4 Ports
USB_LAN2: 10/100/1000 RJ-45 (
96M5980) and USB1/2 Ports
CN5: Audio Connector
The audio connector, from top to bottom, is composed of Line in, Line
out and Microphone jacks.

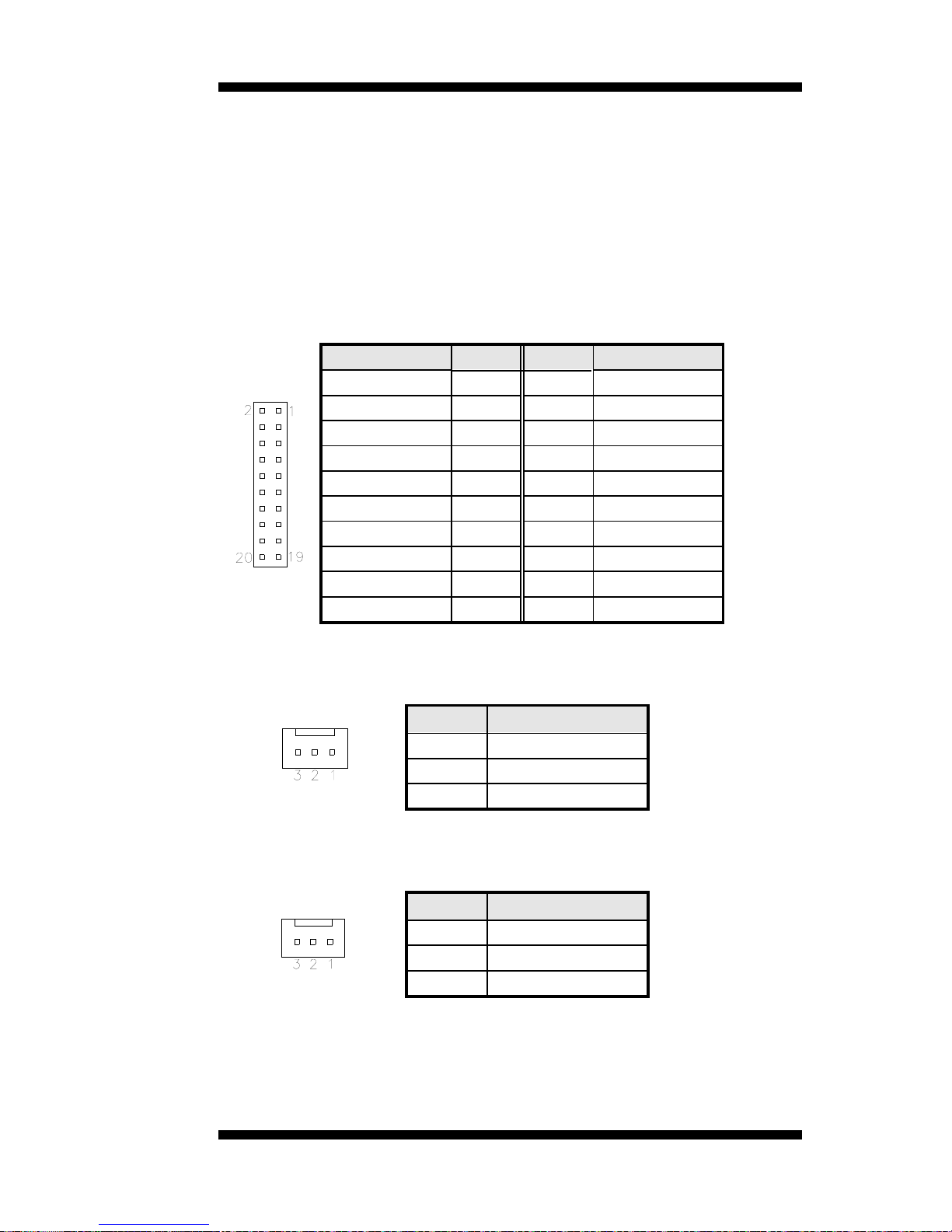

COM3_COM4: COM3, COM4 Serial Port
Signal Name Pin # Pin # Signal Name
DSR
2 1 DCD
RTS 4 3 RXD
CTS 6 5 TXD
RI 8 7 DTR
NA 10 9 Ground
DSR 12 11 DCD
RTS 14 13 RXD
CTS 16 15 TXD
RI 18 17 DTR
NA 20 19 Ground
SYS_FAN1: System Fan Power Connector
This is a 3-pin header for system fans. The fan must be a 12V (500mA).
Pin #
Signal Name
1 Ground
2
+12V
3 Rotation detection
CPU_FAN1: CPU Fan Power Connector
This is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin #
Signal Name
1 Ground
2
+12V
3 Rotation detection
96M5980 User’s Manual 17
Page 22
INSTALLATIONS

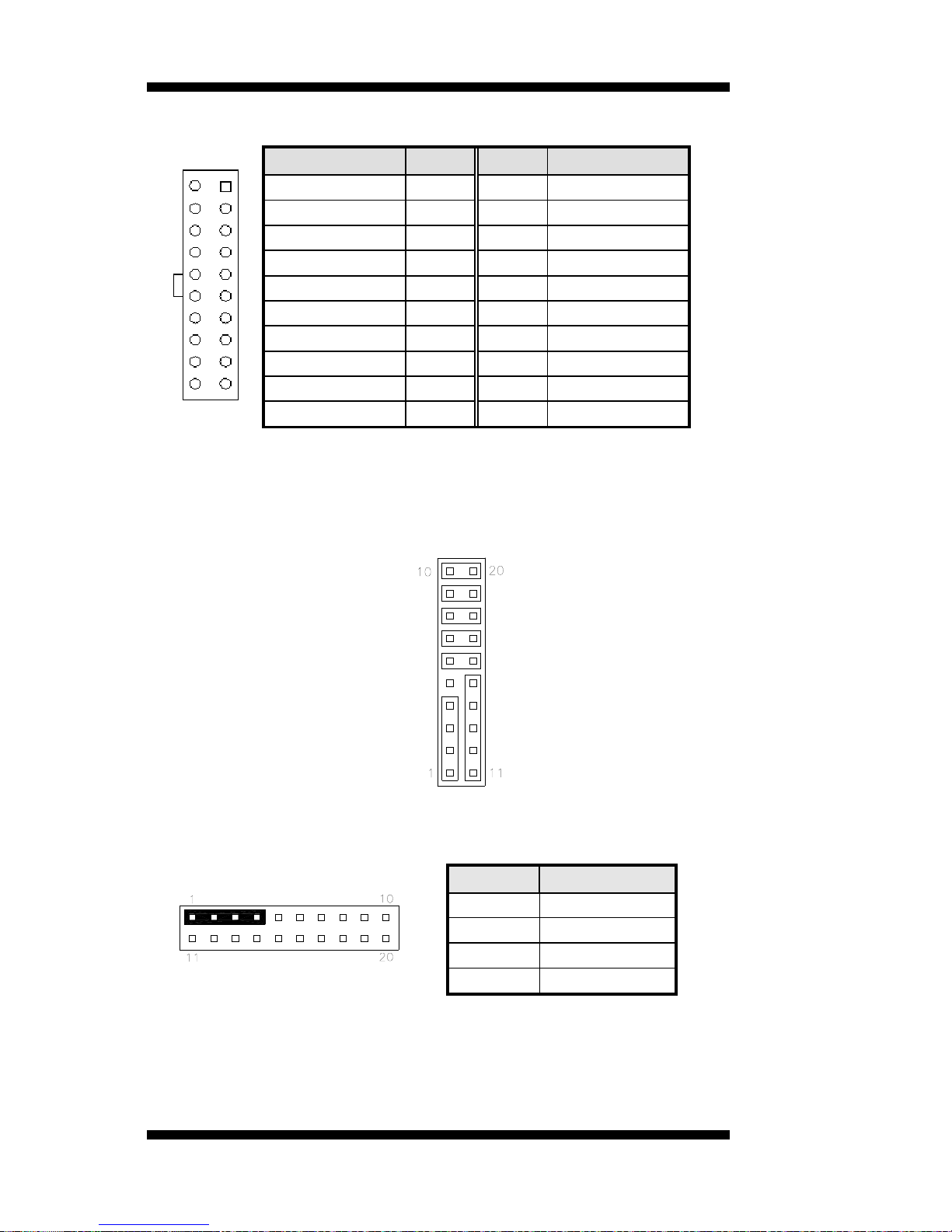

ATX1: ATX Power Supply Connector
11 1
20 10
Signal Name Pin # Pin # Signal Name
3.3V 11 1 3.3V
-12V 12 2 3.3V
Ground 13 3 Ground
PS-ON 14 4 +5V
Ground 15 5 Ground
Ground 16 6 +5V
Ground 17 7 Ground
-5V 18 8 Power good
+5V 19 9 5VSB
+5V 20 10 +12V

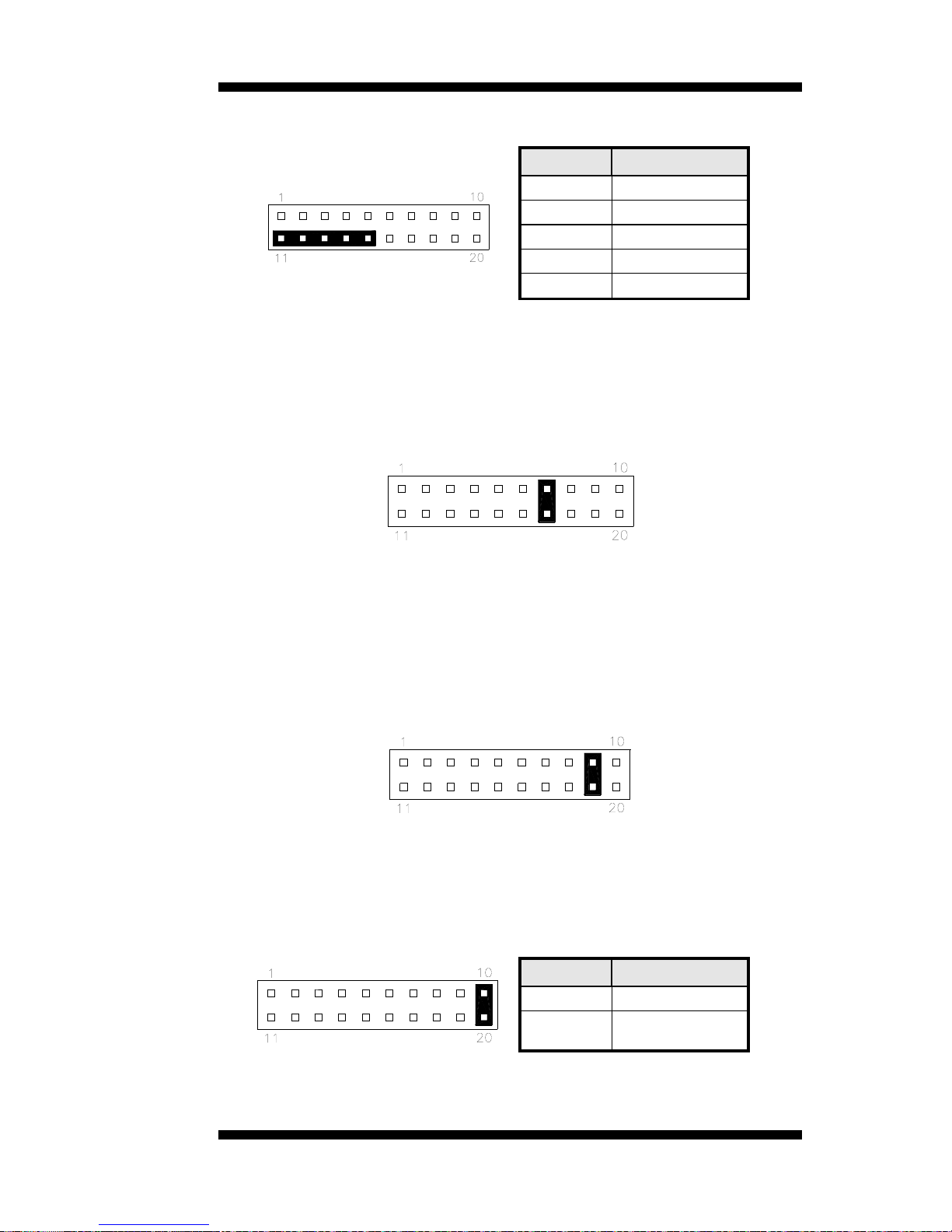

J1 (F_PANEL): System Function Connector
J1 provides connectors for system indicators that provide light indication
of the computer activities and switches to change the computer status. J2
is a 20-pin header that provides interfaces for the following functions.
Hard Disk Drive LED
Reset Switch
Not Defined
ATX Power On Switch
Not Defined
Power LED
Speaker
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.
Pin # Signal Name
1
Speaker out
2
No connect
3
Ground
4 +5V
18
96M5980 User’s Manual
Page 23
INSTALLATIONS
Power LED: Pins 11 - 15
Pin # Signal Name
11
Power LED
12
No connect
13
Ground
14
No connect
15 Ground
ATX Power ON Switch: Pins 7 and 17
This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin # Signal Name
10
HDD Active
20 5V
96M5980 User’s Manual 19
Page 24
INSTALLATIONS

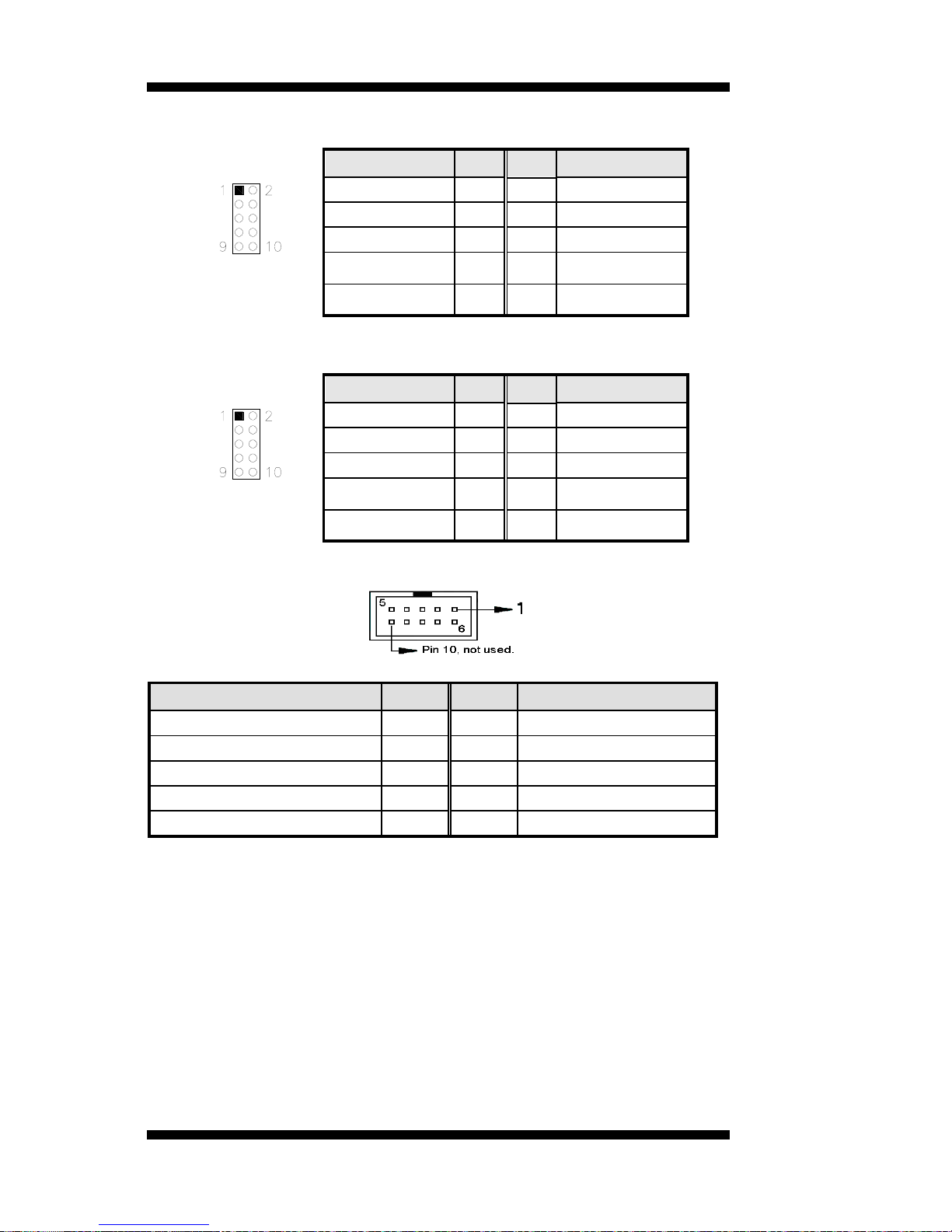

F_USB1: USB7/USB8 Connector
Signal Name Pin Pin Signal Name
Vcc
1 2 Vcc
D0- 3 4 D1-
D0+ 5 6 D1+
Ground 7 8 Ground
NC 9 10 Ground
F_USB2: USB9/USB10 Connector
Signal Name Pin Pin Signal Name
Vcc
1 2 Vcc
D0- 3 4 D1-
D0+ 5 6 D1+
Ground 7 8 Ground
NC 9 10 Ground
COM2: COM2 Serial Port
COM2
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
20
96M5980 User’s Manual
Page 25
INSTALLATIONS

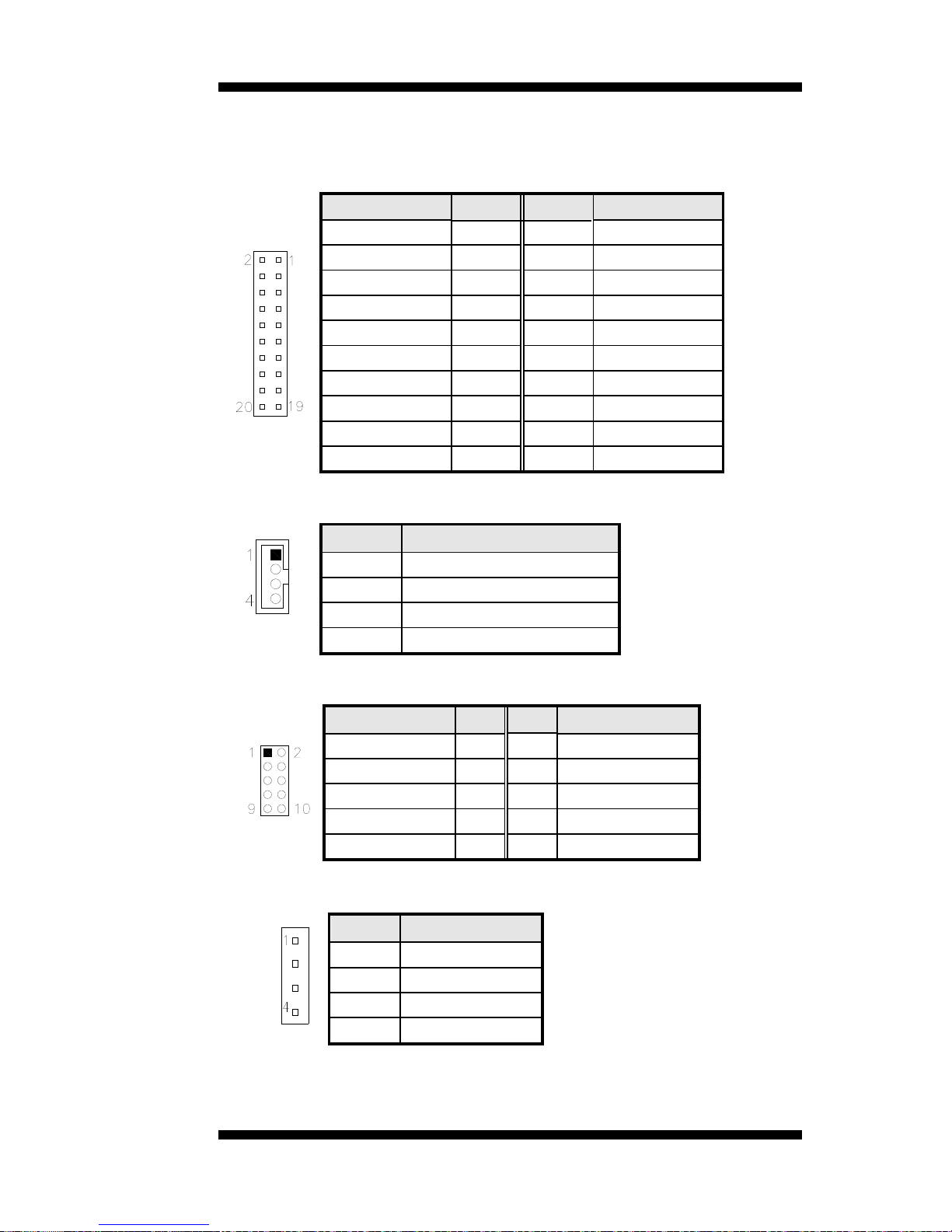

LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors on board consist of the first channel (LVDS1)
and second channel (LVDS2).
Signal Name Pin # Pin # Signal Name
TX0-
2 1 TX0+
Ground 4 3 Ground
TX1- 6 5 TX1+
5V/3.3V 8 7 Ground
TX3- 10 9 TX3+
TX2- 12 11 TX2+
Ground 14 13 Ground
TXC- 16 15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20 19 +12V
J2: LCD Backlight Connector
Pin # Signal Name
1 +12V
2 Backlight Enable
3
Brightness Control
4 Ground
J3: Digital I/O
Signal Name Pin Pin Signal Name
GND
1 2 VCC
OUT3 3 4 OUT1
OUT2 5 6 OUT0
IN3 7 8 IN1
IN2 9 10 IN0
J4: CD-In Pin Header
Pin # Signal Name
1
CD Audio R
2
Ground
3
Ground
4 CD Audio L
96M5980 User’s Manual 21
Page 26
INSTALLATIONS
J5: SPI Flash Connector (factory use only)
J6: Front Audio Connector
Signal Name Pin # Pin # Signal Name
MIC2_L 1 2 Ground
MIC2_R 3 4 Presence#
Line2_L 5 6 MIC2_ID
Sense 7 8 NC
Line2_R 9 10 Line2_ID
J7: PCI-E(x1) Slot
J8: SPDIF Out Connector
PCI1: PCI Slot (supports 2 Master)
JMINI: Mini PCIE Connector
SATA1, SATA2, SATA3, SATA4: SATA Connectors
22
96M5980 User’s Manual
Page 27
BIOS SETUP
96M5980 User’s Manual 23
BIOS Setup
This chapter describes the different settings available in the AMI BIOS
that comes with the board. The topics covered in this chapter are as
follows:
BIOS Introduction
........................................................................................ 24
BIOS Setup .................................................................................................... 24
Main BIOS Setup ......................................................................................... 25
Advanced Settings ........................................................................................ 26
Chipset Settings ............................................................................................ 42
Boot Settings ................................................................................................. 47
Security Settings ........................................................................................... 48
Save & Exit Settings .................................................................................... 49
Page 28
BIOS SETUP
24
96M5980 User’s Manual
BIOS Introduction
The BIOS (Basic Input/Output System) installed in your computer
system’s ROM supports Intel processors. The BIOS provides critical
low-level support for a standard device such as disk drives, serial ports
and parallel ports. It also password protection as well as special support
for detailed fine-tuning of the chipset controlling the entire system.
BIOS Setup
The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the
Setup utility. When you turn on the computer, the BIOS is immediately
activated. Pressing the <Del> key immediately allows you to enter the
Setup utility. If you are a little bit late pressing the <Del> key, POST
(Power On Self Test) will continue with its test routines, thus preventing
you from invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the ”Reset” button or simultaneously pressing the
<Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the
system Off and back On again. The following message will appear on
the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
Page 29
BIOS SETUP
96M5980 User’s Manual 25
Main BIOS Setup
This setup allows you to record some basic hardware configurations in
your computer system and set the system clock.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
BIOS INFORMATION
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
BIOS Vendor American Megatrends
Core Version 4.6.3.7
AMI CodeBase Version 1ABPZ 0.14 x64
Project Name 96M5980
BIOS Version A05b01
Build Date 12/29/2009 15:38:27
Memory Information
Total Memory 4096 MB (DDR3 1066)
System Language [English]
System Date [Tue 01/06/2009
System Time [00:08:21]
Access Level Administrator
Note:
If the system cannot boot after making and saving system
changes with Setup, the AMI BIOS supports an override to
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both AMI and your system manufacturer
to provide the absolute maximum performance and
reliability. Changing the defaults could cause the system to
become unstable and crash in some cases.
System Language
Choose the system default language.
System Date
Set the Date. Use Tab to switch between Data elements.
System Time
Set the Time. Use Tab to switch between Data elements.
Page 30
BIOS SETUP
26
96M5980 User’s Manual
Advanced Settings
This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Legacy OpROM Support
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Launch PXE OpROM
Launch Storage OpROM
► PCI Subsystem Settings
► ACPI Settings
► Trusted Computing
► Wake up event setting
► CPU Configuration
► SATA Configuration
► Thermal Configuration
► Intel IGD SWSCI OpRegion
► Intel TDT(AT-p) Configurations
► Intel TXT(LT) Configuration
► USB Configuration
► Super IO Configuration
► H/W Monitor
► Intelligent Power Sharing
► AMT Configuration
► Serial Port Console Redirection
► MXM 3.0/Hybrid Graphics
Launch PXE OpROM
Enable or Disable Boot Option for Legacy Network Devices.
Launch Storage OpROM
Enable or Disable Boot Option for Legacy Mass Storage Devices with Option
ROM.
► Wake up event setting
Enable/Disable Wake up event.
► Intel TDT(AT-p) Configurations
Disabling TDT Allow user to login to platform. This is strictly for testing only.
This does not disable TDT Services in ME.
► Intelligent Power Sharing
Intelligent Power Sharing configuration menu.
NOTE: DTS must be enabled for Power Sharing to function.
► MXM 3.0/Hybrid Graphics
Enable/Disable the MXM 3.0 support..
Page 31
BIOS SETUP
96M5980 User’s Manual 27
PCI Subsystem Settings
This section allows you to configure the PCI, PCI-X and PCI Express
settings.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
PCI Bus Driver Version V 2.02.01
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
PCI ROM Priority EFI Compatible ROM
PCI Common Settings
PCI Latency Timer 32 PCI Bus Clocks
VGA Palette Snoop Disabled
PERR# Generation Disabled
SERR# Generation Disabled
PCI Express Device Settings
Relaxed Ordering Disabled
Extended Tag Disabled
No Snoop Enabled
Maximum Payload Auto
Maximum Read Request Auto
PCI Express Link Settings
ASPM Support Disabled
WARNING: Enabling ASPM may cause
Some PCI-E devices to fail
Extended Synch Disabled
PCI ROM Priority
In case of multiple Option ROMs (Legacy and EFI Compatible), specifies what
PCI Option ROM to launch.
PCI Latency Timer
Value to be programmed into PCI Latency Timer Register.
VGA Palette Snoop
Enables or Disables VGA Palette Registers Snooping.
PERR# Generation
Enables or Disables PCI Device to Generate PERR#.
SERR# Generation
Enables or Disables PCI Device to Generate SERR#.
Relaxed Ordering
Enables or Disables PCI Express Device Relaxed Ordering.
Page 32
BIOS SETUP
28
96M5980 User’s Manual
Extended Tag
If ENABLED allows Device to use 8-bit Tag field as a requester.
No Snoop
Enables or Disables PCI Express Device No Snoop option.
Maximum Payload
Set Maximum Payload of PCI Express Device or allow System BIOS to select
the value.
Maximum Read Request
Launches (Enabled/Disabled) the boot option for legacy network devices.
PCI Express Link Settings
Set Maximum Read Request Size of PCI Express Device or allow System BIOS
to select the value.
ASPM Support
Set the ASPM Level:
Force L0 – Force all links to L0 State
AUTO – BIOS auto configure
DISABLE – Disables ASPM
Extended Synch
If ENABLED allows generation of Extended Synchronization patterns.
Page 33
BIOS SETUP
96M5980 User’s Manual 29
ACPI Settings
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Enable ACPI Auto Configuration Disabled
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Enable Hibernation Enabled
ACPI Sleep State S3 (Suspend to R…)
Enabled ACPI Auto Configuration
Enables or Disables BIOS ACPI Auto Configuration.
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This
option may be not effective with some OS.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter, when the SUSPEND
button is pressed.
Trusted Computing
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
TPM Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
TPM SUPPORT Disabled
Current TPM Status Information
NO TPM Hardware
TPM Support
Enables or Disables TPM support. O.S. will not show TPM. Reset of platform is
required.
Page 34
BIOS SETUP
30
96M5980 User’s Manual
Wake up event settings
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Wake system with Fixed Time Disabled
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Wake up hour 0
Wake up minute 0
Wake up second 0
Wake on Ring Enabled
Wake on PME Enabled
Wake system with Fixed Time
Enables or Disables System wake on alarm event. When enabled, System will
wake on the hr::min:: sec specified.
Wake on Ring
The options are Disabled and Enabled.
Wake on PME
The options are Disabled and Enabled.
Page 35
BIOS SETUP
96M5980 User’s Manual 31
CPU Configuration
This section shows the CPU configuration parameters.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
CPU Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Processor Type Intel(R) Core(TM) i5 CPU
EMT64 Supported
Processor Speed 2394 MHz
Processor Stepping 20652
Microcode Revision 9
Processor Cores 2
Intel HT Technology Supported
Hyper-threading Enabled
Active Processor Cores All
Limit CPUID Maximum Disabled
Execute Disable Bit Enabled
Hardware Prefetcher Enabled
Adjacent Cache Line Prefetch Enabled
Intel Virtualization Technology Disabled
Power Technology Energy Efficient
TDC Limit 0
TDP Limit 0
Hyper-threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading
Technology) and Disabled for other OS (OS not optimized for Hyper-Threading
Technology). When Disabled, only one thread per enabled core is enabled.
Active Processor Cores
Number of cores to enable in each processor package.
Limit CPUID Maximum
Disabled for Windows XP.
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when
combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2,
SuSE Linux 9.2, Re33dHat Enterprise 3 Update 3.)
Hardware Prefetcher
To turn on/off the MLC streamer prefetcher.
Page 36
BIOS SETUP
32
96M5980 User’s Manual
Adjacent Cache Line Prefetch
To turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hardware capabilities provided
by Vanderpool Technology.
Power Technology
Enable the power management features.
TDC Limit / TDP Limit
Turbo-XE Mode Processor TDC Limit in 1/8 A granularity. 0 means using the
factory-configured value.
SATA Configuration
SATA Devices Configuration.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
SATA Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
SATA Port0 Hitachi HDS721 (160.0GB)
SATA Port1 Not Present
SATA Port2 Not Present
SATA Port3 Not Present
SATA Port4 Not Present
SATA Port5 ATAPI iHDS11 ATAPI
SATA Mode IDE Mode
Serial-ATA Controller 0 Compatibled
Serial-ATA Controller 1 Enhanced
SATA Mode
(1) IDE Mode.
(2) AHCI Mode.
(3) RAID Mode.
Serial-ATA Controller
Enable / Disable Serial ATA Controller.
Page 37
BIOS SETUP
96M5980 User’s Manual 33
Thermal Configuration
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Thermal Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
ME SMBus Thermal Reporting
PPEC 0
PTL 0
MMGPC 0
MPPC 0
PTA 128
PTA_OFFSET 140
MGTA 128
MGTA_OFFSET 140
MCH Temp Read Enabled
PCH Temp Read Enabled
CPU Energy Read Enabled
CPU Temp Read Enabled
Thermal Data Reporting Enabled
Alert Enable Lock Disabled
ME SMBus Thermal Reporting
Enable/Disable ME SMBus Thermal Reporting Configuration.
PPEC
Processor Power Error Correction.
PTL
Processor Temperature Limit.
MMGPC
Max Memory Power Clamp.
MPPC
Max Processor Power Clamp.
MPCP
Max Processor Core Power Clamp.
PTA
PCH Temperature Adjust.
Page 38
BIOS SETUP
34
96M5980 User’s Manual
PTA_OFFSET
PCH offset for calculating PCH temperature.
MGTA
MCH/GfX Temperature Adjust.
MGTA_OFFSET
MCH/GfX offset for calculating MCH/GfX Temperature.
MCH Temp Read
MCH Temperature Read Enable.
PCH Temp Read
PCH Temperature Read Enable.
CPU Energy Read
CPU Energy Read Enable.
CPU Temp Read
CPU Temperature Read Enable.
Thermal Data Reporting
Thermal Data Reporting Enable.
Alert Enable Lock
Lock all Alert Enable settings.
Page 39
BIOS SETUP
96M5980 User’s Manual 35
Intel IGD SWSCI OpRegion
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Intel IGD SWSCI OpRegion Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
DVMT/FIXED Memory 256MB
IGD – Boot Type VBIOS Default
Active LFP No LVDS
Panel Color Depth 18 Bit
LFP LCD Panel Type 1024 x 768 LVDS
Panel Scaling Auto
Backlight Control PWM Inverted
BIA Control VBIOS Default
Spread Spectrum Clock Chip Off
ALS Support Disabled
Gfx Low Power Mode Enabled
DVMT/FIXED Memory
Select DVMT/FIXED Mode Memory size used by Internal Graphics Device.
Options are 128MB, 256MB and Maximum.
IGD – Boot Type
Select the Video Device which will be activated during POST. This has no effect
if external graphics present. Options are VBIOS Default, CRT, LFP, CRT+LFP,
EFP and CRT+EFP.
Active LFP
Select the Active LFP Configuration.
No LVDS: VBIOS does not enable LVDS.
Int-LVDS: VBIOS enables LVDS driver by Integrated encoder.
SDVO LVDS : VBIOS enables LVDS driver by SDVO encoder.
eDP: LVDS Driven by Int-DisplayPort encoder.
Panel Scaling
Select the LCD panel scaling option used by the Internal Graphics Device.
Options are Auto, Force Scaling, Off and Maintain Aspect Ratio.
Backlight Control
Back Light Control Setting. Options are PWM Inverted, PWM Nrmal, GMBus
Inverted and GMBus Normal.
BIA Control
Options are VBIOS Default, Disabled and Level 1/2/3/4/5.
Page 40
BIOS SETUP
36
96M5980 User’s Manual
Spread Spectrum Clock Chip
The default setting is Off. Other options are:
Hardware: Spread is controlled by chip.
Software: Spread is controlled by BIOS.
ALS Support
Enabled or Disabled. Valid only for ACPI.
Legacy = ALS Support through the IGD INT10 function.
ACPI = ALS suport through an ACPI ALS driver.
Gfx Low Power Mode
Enabled or Disabled. This option is applicable for SFF only.
Intel TDT(AT-p) Configurations
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Intel Theft Deterrence Technology Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
TDT Disabled
TDT Recovery 3
TDT
Enable/Disable TDT in BIOS for testing only.
TDT Recovery
Set the number of times Recovery attempted will be allowed.
Page 41
BIOS SETUP
96M5980 User’s Manual 37
Intel TXT(LT) Configuration
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Intel Trusted Execution Technology Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel TXT (LT) Support Disabled
Intel TXT (LT) Support
Enable/Disable Intel Trusted Execution Technology Support.
USB Configuration
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
USB Devices:
2 Hubs
Legacy USB Support Enabled
EHCI Hand-off Enabled
Device Reset Timeout 20 sec
Legacy USB Support
Enables Legacy USB support.
AUTO option disables legacy support if no USB devices are connected.
DISABLE option will keep USB devices available only for EFI applications.
EHCI Hand-off
Enabled/Disabled. This is a workaround for Oses without EHCI hand-off
support. The EHCI ownership change should be claimed by EHCI driver.
Device Reset Timeout
USB mass storage device Start Unit command timeout.
Options are: 10 sec / 20 sec / 30 sec / 40 sec.
Page 42
BIOS SETUP
38
96M5980 User’s Manual
Super IO Configuration
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Super IO Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Super IO Chip Fintek F81865
-> Serial Port 0 Configuration
-> Serial Port 1 Configuration
-> Serial Port 2 Configuration
-> Serial Port 3 Configuration
Power Failure Always off
Serial Port Configuration
Set Parameters of Serial Ports. User can Enable/Disable the serial port and
Select an optimal settings for the Super IO Device.
Power Failure
Options are:
Keep last state
Bypass mode
Always on
Always off (default)
Page 43
BIOS SETUP
96M5980 User’s Manual 39
H/W Monitor
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
PC Health Status
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
System Temperature1 +51 C
System Temperature 2 +35 C
System FAN1 Speed N/A
System FAN2 Speed 7109 RPM
VCC3V +3.408 V
Vin0 +0.928 V
Vin2 +5.087 V
Vin3 +12.232 V
VSB3V +3.424 V
VBAT +3.184 V
Fan1 Smart Fan Control 50 C
Fan2 Smart Fan Control Disabled
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as
monitored by the system and show the PC health status.
Fan1/Fan2 Smart Fan Control
This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.
Page 44
BIOS SETUP
40
96M5980 User’s Manual
AMT Configuration
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
AMT Enabled
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Unconfigure AMT/ME Disabled
WatchDog Timer Disabled
OS WatchDog Timer 0
BIOS WatchDog Timer 0
AMT
Options are Enabled and Disabled.
Unconfigure AMT/ME
Perform AMT/ME unconfigure without password operation.
WatchDog Timer
Enable/Disable WatchDog Timer.
Serial Port Console Redirection
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
COM0 (Disabled)
Console Redirection Port is Disabled
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection Enabled
Out-of-Band Mgmt Port COM0 (Disabled)
Data Bits 8
Parity None
Stop Bits 1
Terminal Type VT-UTF8
Console Redirection
Console Redirection Enable/Disable.
Terminal Type
VT-UTF8 is the preferred terminal type for out-of-band management. The next
best choice is VT100+ and then VT100.
Page 45
BIOS SETUP
96M5980 User’s Manual 41
Intel ME Subsystem
This section allows you to configure the PCI settings.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel ME Subsystem Configuration
ME Version 6.0.3.1195
ME Subsystem Enabled
End of Post Message Enabled
Execute ME8x Enabled
ME Version
Launches (Enabled/Disabled) the boot option for legacy network devices.
ME Subsystem
Launches (Enabled/Disabled) the boot option for legacy network devices.
End of Post Message
Launches (Enabled/Disabled) the boot option for legacy network devices.
Execute ME8x
Launches (Enabled/Disabled) the boot option for legacy network devices.
Page 46
BIOS SETUP
42
96M5980 User’s Manual
Chipset Settings
This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Enable CSID Disabled
► North Bridge
► South Bridge
► ME Subsystem
Enable CSID
By default, this item is disabled. Enable Compatible Revision ID.
North Bridge
This item shows the North Bridge Parameters.
South Bridge
This item shows the South Bridge Parameters.
ME Subsystem
This item shows the ME Subsystem Parameters.
Page 47
BIOS SETUP
96M5980 User’s Manual 43
North Bridge
This section allows you to configure the North Bridge Chipset.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Memory Information
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
CPU Type Arrandale
Total Memory 4096 MB (DDR3 1066)
Memory Slot0 2048 MB (DDR3 1066)
Memory Slot1 0
Memory Slot2 2048 MB (DDR3 1066)
Memory Slot3 140
CAS# Latency(tCL) 7
RAS# Active Time(tRAS) 20
Row Precharge Time(tRP) 7
RAS# to CAS# Delay(tRCD) 7
Row Refresh Cycle Timea(tRFC) 60
Write to Read Delay(tWTR) 4
Active to Active Delay(tRRD) 4
Read CAS# Precharge(tRTP) 5
Low MMIO Align 64M
Initiate Graphic Adapter PEG/IGD
Graphics Turbo IMON Current 31
VT-d Disabled
PCI Express Compliance Mode Disabled
PCI Express Port Auto
IGD Memory 32M
PAVP Mode Disabled
PEG Force Gen1 Disabled
Low MMIO Align
Low MMIO resources align at 64MB/1024MB.
Initiate Graphic Adapter
Select which graphics controller to use as the primary boot device.
Options are IGD, PCI/IGD, PCI/PEG, PEG/IGD, PEG/PCI and SG.
Graphics Turbo IMON Current
Graphics turbo IMON current values supported (14-31).
VT-d
VT-d Enable/Disable.
PCI Express Compliance Mode
PCI Express Compliance Mode Enable/Disable.
Page 48
BIOS SETUP
44
96M5980 User’s Manual
PCI Express Port
Options are Disabled, Enabled and Auto.
IGD Memory
IGD Share Memory Size. Options are Disable, 32M, 64M and 128M.
PAVP Mode
Select PAVP Mode used by Internal Graphics Device. Options are Disabled and
Enabled.
PEG Force Gen1
PCI Express Port Force Gen1. Options are Disabled and
Page 49
BIOS SETUP
96M5980 User’s Manual 45
SB Chipset Configuration
This section allows you to configure the South Bridge Chipset.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
SB Chipset Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
SMBus Controller Enabled
GbE Controller Enabled
Wake on LAN from S5 Enabled
Restore AC Power Loss Power Off
SLP_S4 Assertion Stretch Enable Enabled
SLP_S4 Assertion Width 4-5 Seconds
Audio Configuration
Azalia HD Audio Enabled
Azalia Internal HDMI codec Disabled
High Precision Event Timer Configuration
High Precision Timer Enabled
PCI Express Ports Configuration
USB Configuration
SMBus Controller
SMBus Controller help.
GbE Controller
This is constantly enabled.
Wake on LAN from S5
Wake on LAN from S5 help.
Restore AC Power Loss
Options are Power Off, Power On and Last State.
SLP_S4 Assertion Stretch Enable
Select a minimum assertion width of the SLP_S4# signal.
Audio Configuration
The Audio Configuration settings Enable/Disable the Azalia HD Audio and the
Azalia internal HDMI codec.
High Precision Event Timer Configuration
Enable/or Disable the High Precision Event Timer.
Page 50
BIOS SETUP
46
96M5980 User’s Manual
PCI Express Ports Configuration
Enable or Disable the PCI Express Ports in the Chipset.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
PCI Express Ports Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
PCI Express Port 1 Auto
PCI Express Port 2 Auto
PCI Express Port 3 Auto
PCI Express Port 4 Auto
PCI Express Port 5 Auto
PCI Express Port 6 Auto
PCI Express Port 7 Auto
PCI Express Port 8 Auto
USB Configuration
Enable/Disable All USB Devices, USB 2.0 (EHCI) Support and RMH
Support. The setting of AUTO on RMH Support Enable RMH support
on Ibex Peak B0 Stepping.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
All USB Devices Enabled
EHCI Controller 1 Enabled
EHCI Controller 2 Enabled
RMH Support Auto
USB Port 0 Enabled
USB Port 1 Enabled
USB Port 2 Enabled
USB Port 3 Enabled
USB Port 4 Enabled
USB Port 5 Enabled
USB Port 6 Enabled
USB Port 7 Enabled
USB Port 8 Enabled
USB Port 9 Enabled
USB Port 10 Enabled
USB Port 11 Enabled
USB Port 12 Enabled
USB Port 13 Enabled
Page 51
BIOS SETUP
96M5980 User’s Manual 47
Boot Settings
This section allows you to configure the boot settings according to your
preference.
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Quiet Boot Disabled
Fast Boot Disabled
Setup Prompt Timeout 1
Bootup NumLock State On
CSM16 Module Version 07.60
GateA20 Active Upon Request
Option ROM Messages Force BIOS
Interrupt 19 Canture Disabled
Boot Option Priorities
Boot Option #1 SATA: ATAPI iH…)
Hard Drive BBS Priorities
Quiet Boot
Enables/Disables Quiet Boot option.
Fast Boot
Enables/Disables boot with initialization of a minimal set of devices required to
launch active boot option. Has no effect for BBS boot options.
Setup Prompt Timeout
Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefinite waiting.
Bootup NumLock State
Select the keyboard NumLock state.
GateA20 Active
UPON REQUEST – GA20 can be disabled using BIOS services.
ALWAYS – do not allow disabling GA20; this option is useful when any RT
code is executed above 1MB.
Option ROM Messages
Set display mode for Option ROM. Options are Force BIOS and Keep Current.
Interrupt 19 Canture
Enable: Allows Option ROMs to trap Int 19.
Page 52
BIOS SETUP
48
96M5980 User’s Manual
Boot Option Priorities
Sets the system boot order.
Hard Drive BBS Priorities
Set the order of the legacy devices in this group.
Security Settings
This section allows you to configure and improve your system and
llows you to set up some system features according to your preference. a
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Password Description
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
If ONLY the Administrator’s password is set, then
this only limits accesss to Setup and is only asked
for when entering Setup.
If ONLY the User’s password is set, then this is a
power on password and must be entered to boot
or enter Setup. In Setup the User will have
Administrator rights
Administrator Password
User Password
Administrator Password
Set Setup Administrator Password.
User Password
Set User Password.
Page 53
BIOS SETUP
96M5980 User’s Manual 49
Save & Exit Settings
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Save Changes and Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Disacard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
SATA: ATAPI iHDS116 4
SATA: Hitachi HDS721616PLA380
Launch EFI Shell from filesystem device
Save Options
► Reset System with ME disable Mode
Save Changes and Exit
Exit system setup after saving the changes.
Disacard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving any changes.
Save Changes
Save Changes done so far to any of the setup options.
Discard Changes
Discard Changes done so far to any of the setup options.
Restore Defaults
Restore/Load Defaults values for all the setup options.
Page 54
BIOS SETUP
50
96M5980 User’s Manual
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
Boot Override
Pressing ENTER causes the system to enter the OS.
Launch EFI Shell from filesystem device
Attempts to Launch EFI Shell application (Shellx64.efi) from one of the
available filesystem devices.
Reset System with ME disable Mode
ME will run into the temporary disable mode.
Page 55
DRIVERS INSTALLATION
96M5980 User’s Manual 51
Drivers Installation
This section describes the installation procedures for software and
drivers under the Windows 2000 and Windows XP. The software and
drivers are included with the motherboard. If you find the items missing,
please contact the vendor where you made the purchase. The contents of
this section include the following:
Intel Chipset Software Installation Utility ........................................... 52
VGA Drivers Installation .................................................................... 54
Realtek HD Audio Driver Installation ................................................. 56
LAN Drivers Installation ..................................................................... 57
Intel® Management Engine Interface ................................................. 60
IMPORTANT NOTE:
After installing your Windows operating system (Windows 2000/ XP),
you must install first the Intel Chipset Software Installation Utility
before proceeding with the drivers installation.
Page 56
DRIVER INSTALLATION
Intel Chipset Software Installation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset components.
Follow the instructions below to complete the installation.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
QM57 Chipset Drivers.
2. Click Intel(R) Chipset Software Installation Utility.
3. When the Welcome screen to the Intel® Chipset Device Software
appears, click Next to continue.
52
96M5980 User’s Manual
Page 57
DRIVERS INSTALLATION
96M5980 User’s Manual 53
4. Click Yes to accept the software license agreement and proceed with
the installation process.
5. On the Readme File Information screen, click Next to continue the
installation.
6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.
Page 58
DRIVER INSTALLATION
VGA Drivers Installation
NOTE: Before installing the Intel(R) QM57 Chipset Family Graphics
Driver, the Microsoft .NET Framework 3.5 SPI should be first
installed.
To install the VGA drivers, follow the steps below.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
QM57 Chipset Drivers.
2. Click Intel(R) QM57 Chipset Family Graphics Driver.
3. When the Welcome screen appears, click Next to continue.
54
96M5980 User’s Manual
Page 59
DRIVERS INSTALLATION
4. Click Yes to to agree with the license agreement and continue the
installation.
5. On the Readme File Information screen, click Next to continue the
installation of the Intel® Graphics Media Accelerator Driver.
6. On Setup Progress screen, click Next to continue.
7. Setup complete. Click Finish to restart the computer and for changes
to take effect.
96M5980 User’s Manual 55
Page 60
DRIVER INSTALLATION
Realtek HD Audio Driver Installation
Follow the steps below to install the Realtek HD Audio Drivers.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
QM57 Chipset Drivers.
2. Click Realtek High Definition Audio Driver.
3. On the Welcome to the InstallShield Wizard screen, click Next.
3. InstallShield Wizard is complete. Click Finish to restart the computer.
56
96M5980 User’s Manual
Page 61
DRIVERS INSTALLATION

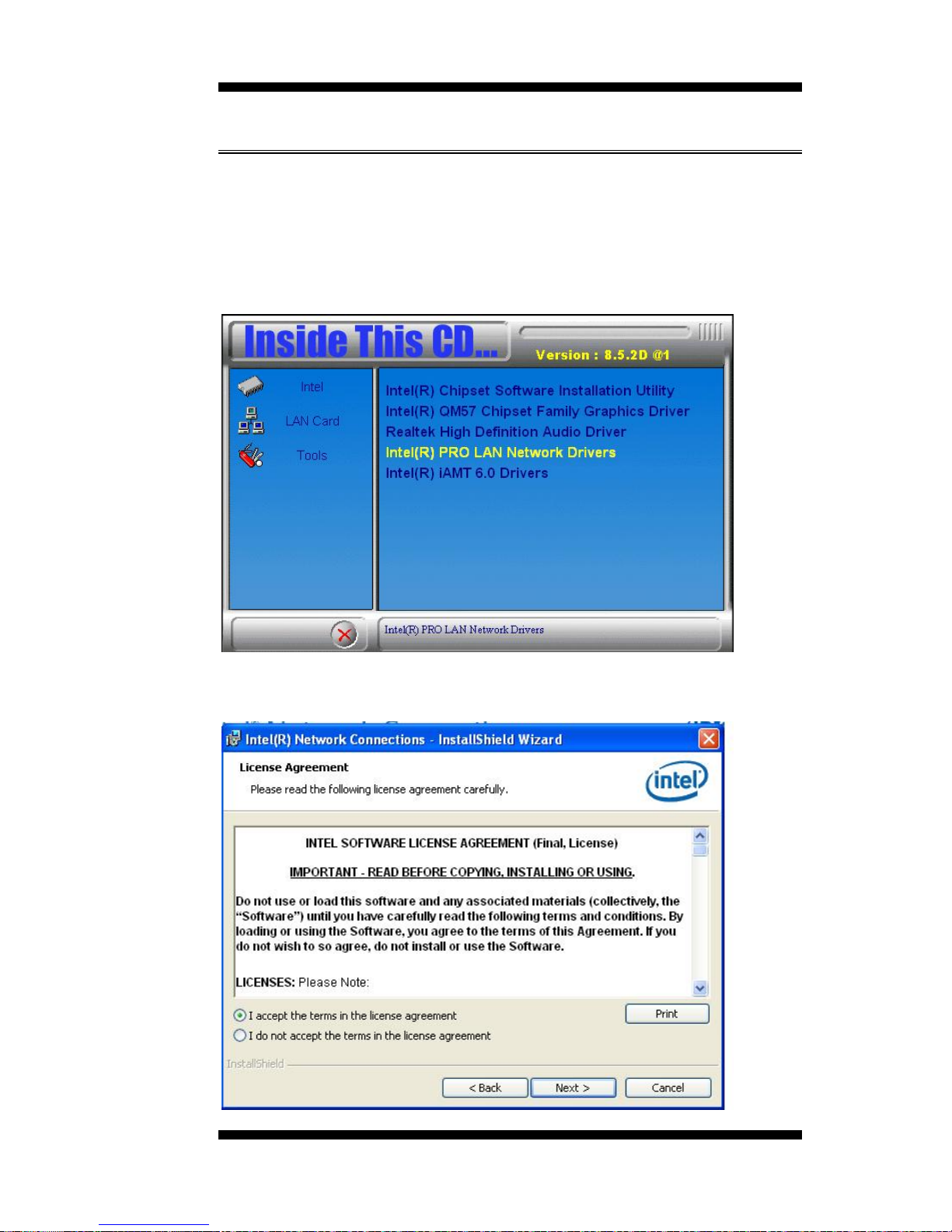

LAN Drivers Installation
Follow the steps below to install the Intel LAN drivers.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
QM57 Chipset Drivers.
2. Click Intel(R) PRO LAN Network Driver.
3. When the Welcome screen appears, click Next. On the next screen,
click Yes to to agree with the license agreement.
96M5980 User’s Manual 57
Page 62
DRIVER INSTALLATION
4. Click the checkbox for Drivers in the Setup Options screen to select
it and click Next to continue.
5. The wizard is ready to begin installation. Click Install to begin the
installation.
58
96M5980 User’s Manual
Page 63
DRIVERS INSTALLATION
6. When InstallShield Wizard is complete, click Finish.
96M5980 User’s Manual 59
Page 64
DRIVER INSTALLATION

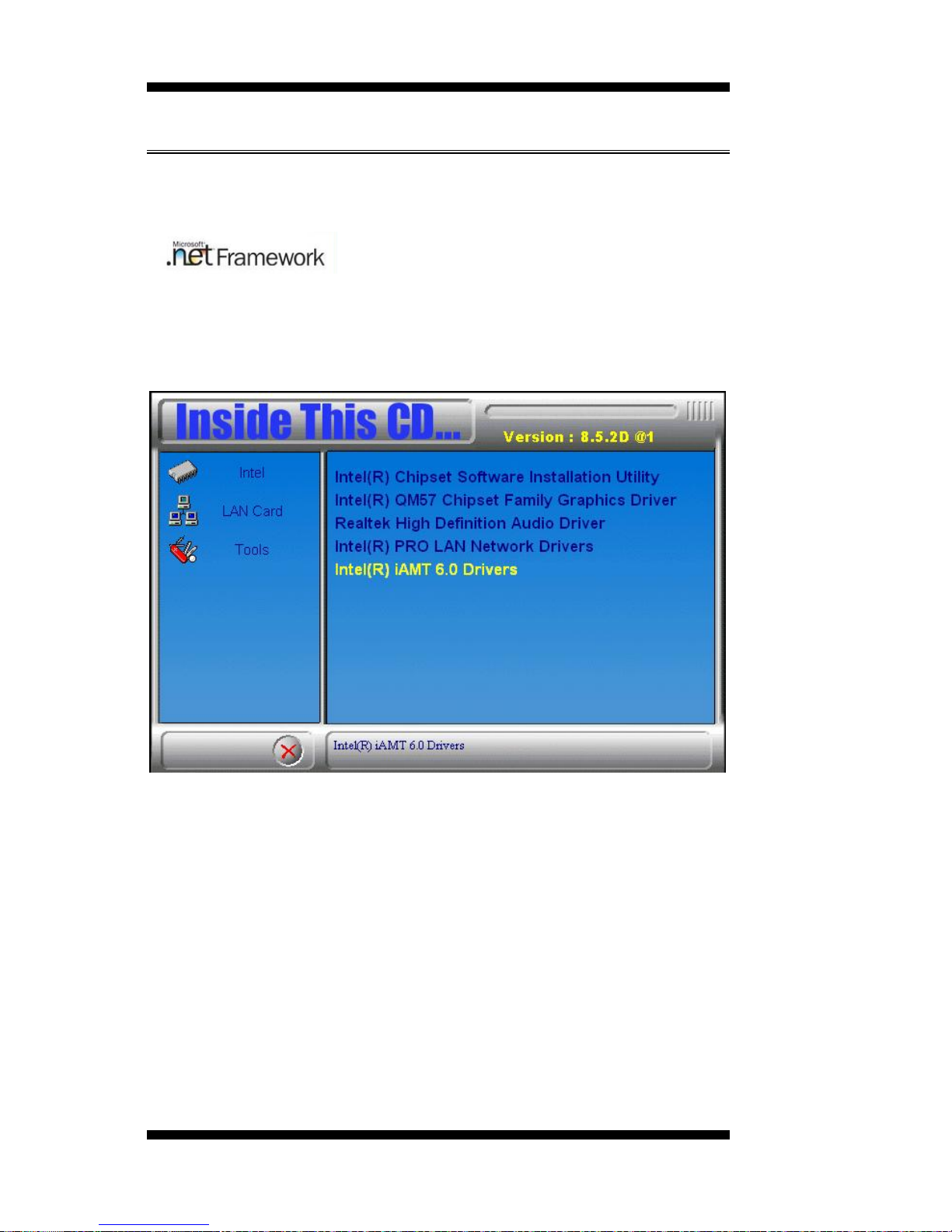

Intel® Management Engine Interface
NOTE: Before installing the Intel(R) AMT 6.0 Drivers, the
Microsoft .NET Framework 3.5 SPI should be first installed.
Follow the steps below to install the Intel Management Engine.
1. Insert the drivers disc that comes with the motherboard. Click Intel
and then Intel(R) AMT 6.0 Drivers.
60
96M5980 User’s Manual
Page 65
DRIVERS INSTALLATION

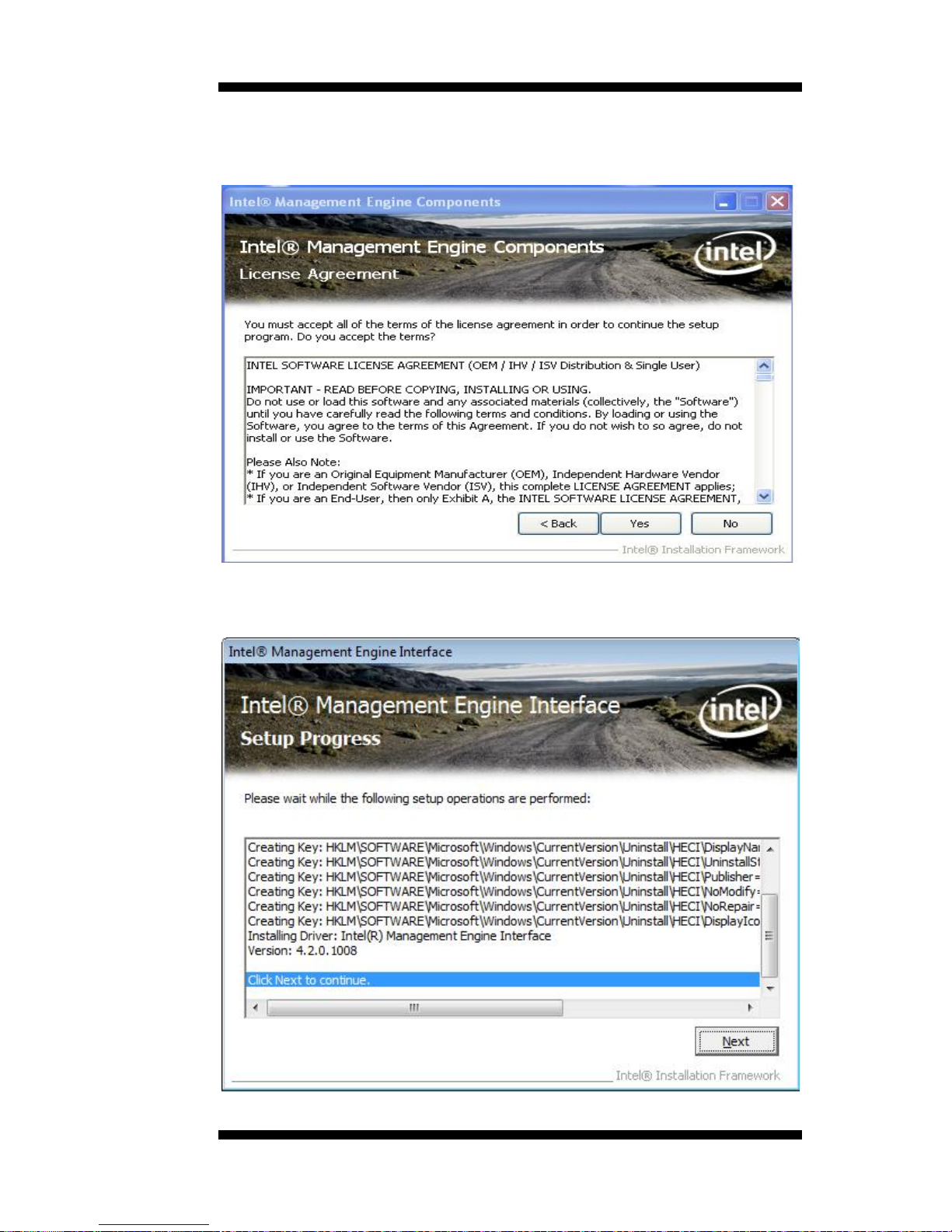

2. When the Welcome screen to the InstallShield Wizard for Intel®
Management Engine Components, click Next. On the next screen, click
Yes to to agree with the license agreement.
2. When the Setup Progress screen appears, click Next. Then, click
Finish when the setup progress has been successfully installed.
96M5980 User’s Manual 61
Page 66

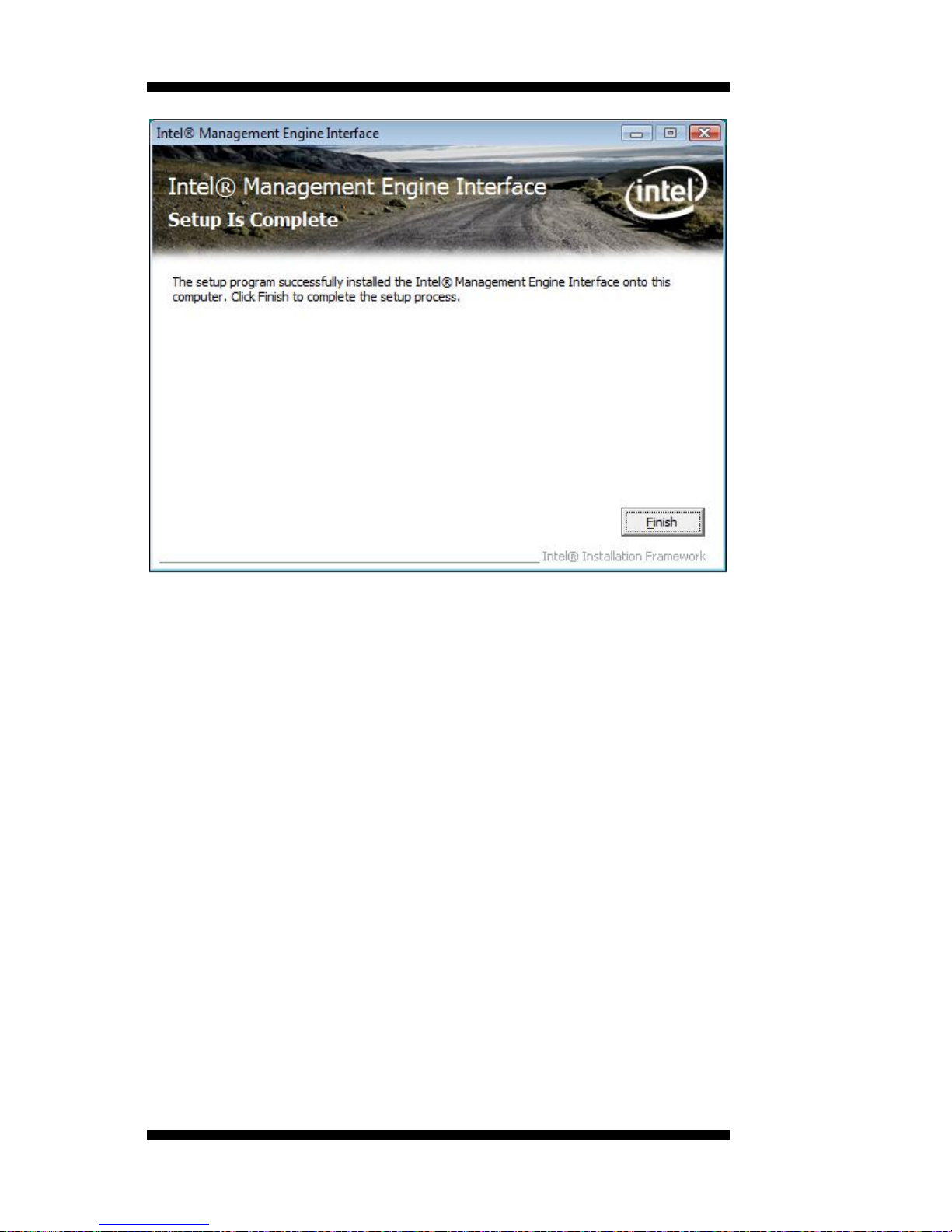

DRIVER INSTALLATION
62
96M5980 User’s Manual
Page 67
APPENDIX
96M5980 User’s Manual 63
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The following
table lists the I/O port addresses used.
Address
Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh
Interrupt Controller #1
040h - 05Fh
Timer
060h - 06Fh
Keyboard Controller
070h - 07Fh
Real Time Clock, NMI
080h - 09Fh
DMA Page Register
0A0h - 0BFh
Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h
IDE Interface
278h - 27Fh
Parallel Port #2(LPT2)
2E8h – 2EFh
Serial Port #4(COM4)
2F8h - 2FFh
Serial Port #2(COM2)
2B0h- 2DFh
Graphics adapter Controller
360h - 36Fh
Network Ports
3B0h - 3BFh
Monochrome & Printer adapter
3C0h - 3CFh
EGA adapter
3D0h - 3DFh
CGA adapter
3E8h – 3EFh
Serial Port #3(COM3)
3F8h - 3FFh Serial Port #1(COM1)
Page 68
APPENDIX
64
96M5980 User’s Manual
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.
Level
Function
IRQ0 System Timer Output
IRQ1
Keyboard
IRQ2
Interrupt Cascade
IRQ3
Serial Port #2
IRQ4
Serial Port #1
IRQ5
Reserved
IRQ6
Reserved
IRQ7
Reserved
IRQ8
Real Time Clock
IRQ9
Reserved
IRQ10
Serial Port #3
IRQ11
Serial Port #4
IRQ12
PS/2 Mouse
IRQ13
80287
IRQ14
Primary IDE
IRQ15 Secondary IDE
Page 69
APPENDIX
96M5980 User’s Manual 65
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user
will restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "F81865.H"
//--------------------------------------------------------------------------int main (int argc, char *argv[]);
void EnableWDT(int);
void DisableWDT(void);
//--------------------------------------------------------------------------int main (int argc, char *argv[])
{
unsigned char bBuf;
unsigned char bTime;
char **endptr;
char SIO;
printf("Fintek 81865 watch dog program\n");
SIO = Init_F81865();
if (SIO == 0)
{
printf("Can not detect Fintek 81865, program abort.\n");
return(1);
}//if (SIO == 0)
if (argc != 2)
{
printf(" Parameter incorrect!!\n");
return (1);
}
bTime = strtol (argv[1], endptr, 10);
printf("System will reset after %d seconds\n", bTime);
if (bTime)
{ EnableWDT(bTime); }
else
{ DisableWDT(); }
return 0;
}
Page 70
APPENDIX
66
96M5980 User’s Manual
//--------------------------------------------------------------------------void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_F81865_Reg(0x2B);
bBuf &= (~0x20);
Set_F81865_Reg(0x2B, bBuf); //Enable WDTO
Set_F81865_LD(0x07); //switch to logic device 7
Set_F81865_Reg(0x30, 0x01); //enable timer
bBuf = Get_F81865_Reg(0xF5);
bBuf &= (~0x0F);
bBuf |= 0x52;
Set_F81865_Reg(0xF5, bBuf); //count mode is second
Set_F81865_Reg(0xF6, interval); //set timer
bBuf = Get_F81865_Reg(0xFA);
bBuf |= 0x01;
Set_F81865_Reg(0xFA, bBuf); //enable WDTO output
bBuf = Get_F81865_Reg(0xF5);
bBuf |= 0x20;
Set_F81865_Reg(0xF5, bBuf); //start counting
}
//--------------------------------------------------------------------------void DisableWDT(void)
{
unsigned char bBuf;
Set_F81865_LD(0x07); //switch to logic device 7
bBuf = Get_F81865_Reg(0xFA);
bBuf &= ~0x01;
Set_F81865_Reg(0xFA, bBuf); //disable WDTO output
bBuf = Get_F81865_Reg(0xF5);
bBuf &= ~0x20;
bBuf |= 0x40;
Set_F81865_Reg(0xF5, bBuf); //disable WDT
}
//---------------------------------------------------------------------------
Page 71
APPENDIX
96M5980 User’s Manual 67
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "F81865.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int F81865_BASE;
void Unlock_F81865 (void);
void Lock_F81865 (void);
//--------------------------------------------------------------------------unsigned int Init_F81865(void)
{
unsigned int result;
unsigned char ucDid;
F81865_BASE = 0x4E;
result = F81865_BASE;
ucDid = Get_F81865_Reg(0x20);
if (ucDid == 0x07) //Fintek 81865
{ goto Init_Finish; }
F81865_BASE = 0x2E;
result = F81865_BASE;
ucDid = Get_F81865_Reg(0x20);
if (ucDid == 0x07) //Fintek 81865
{ goto Init_Finish; }
F81865_BASE = 0x00;
result = F81865_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_F81865 (void)
{
outportb(F81865_INDEX_PORT, F81865_UNLOCK);
outportb(F81865_INDEX_PORT, F81865_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_F81865 (void)
{
outportb(F81865_INDEX_PORT, F81865_LOCK);
}
//--------------------------------------------------------------------------void Set_F81865_LD( unsigned char LD)
{
Unlock_F81865();
outportb(F81865_INDEX_PORT, F81865_REG_LD);
outportb(F81865_DATA_PORT, LD);
Lock_F81865();
}
//--------------------------------------------------------------------------void Set_F81865_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_F81865();
outportb(F81865_INDEX_PORT, REG);
outportb(F81865_DATA_PORT, DATA);
Lock_F81865();
}
//--------------------------------------------------------------------------unsigned char Get_F81865_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_F81865();
Page 72
APPENDIX
68
96M5980 User’s Manual
outportb(F81865_INDEX_PORT, REG);
Result = inportb(F81865_DATA_PORT);
Lock_F81865();
return Result;
}
//---------------------------------------------------------------------------
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef __F81865_H
#define __F81865_H 1
//--------------------------------------------------------------------------#define F81865_INDEX_PORT (F81865_BASE)
#define F81865_DATA_PORT (F81865_BASE+1)
//--------------------------------------------------------------------------#define F81865_REG_LD 0x07
//--------------------------------------------------------------------------#define F81865_UNLOCK 0x87
#define F81865_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_F81865(void);
void Set_F81865_LD( unsigned char);
void Set_F81865_Reg( unsigned char, unsigned char);
unsigned char Get_F81865_Reg( unsigned char);
//--------------------------------------------------------------------------#endif //__F81865_H
Loading...
