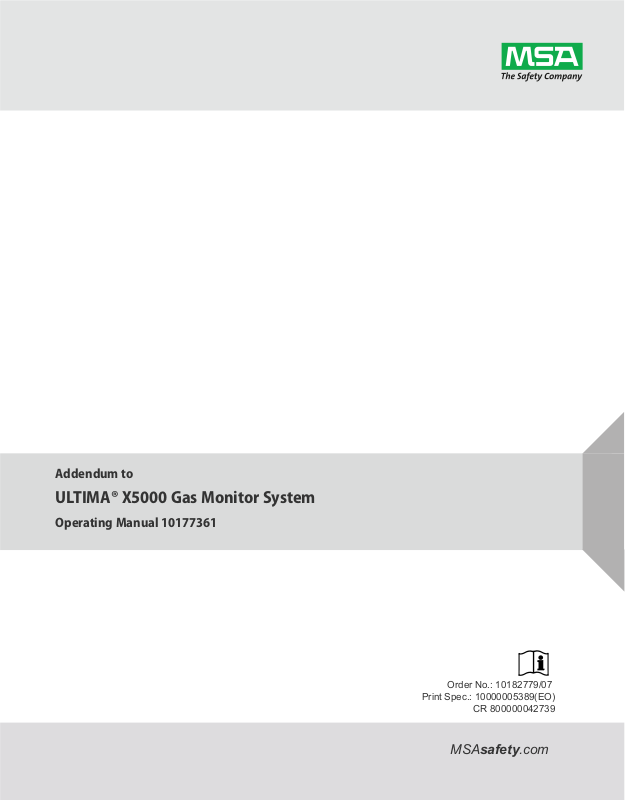

MSA X5000 User Manual
Addendum to
ULTIMA® X5000 Gas Monitor System
Operating Manual 10177361
Order No.: 10182779/07
Print Spec.: 10000005389(EO)
CR 800000042739
MSAsafety.com
Certification and Markings
Manufacturer: MSA THE SAFETY COMPANY
Address: 1000 Cranberry Woods Drive, Cranberry Township, PA 16066 USA
US
Product:
®
ULTIMA
MITTER, optional DIGITAL SENSOR, optional ULTIMA® XIR PLUS, optional
X5000 JUNCTION BOX, JB5000 JUNCTION BOX.
X5000 GAS MONITOR consisting of an ULTIMA
®
X5000 MAIN TRANS-
Certification and Markings
Certificate of Compliance (USA & Canada): FM20US0060X, 70116284 (LR 064969_0_000)
EU – Type Examination Certificate: Sira 17ATEX1049X and Sira 17ATEX4239X
IECEx Certificate of Conformity: IECEx SIR 17.0017X
INMETRO Certificate of Conformity: NCC 18.0106 X
Quality Assurance Notification: 0080
Year of Manufacture: See serial number
Serial No.: See label
STANDARDS: HAZARDOUS LOCATIONS AND GAS PERFORMANCE*
ULTIMA®
Standard Location
ANSI/IEC 60529-2004 (r. 2011)
ANSI/ISA 12.12.01-2015 X X X X X
UL 60079-0 2019 X X X X X
ANSI/ISA 60079-1 (12.22.01) -2013 X X X X
ANSI/ISA 60079-15 (12.12.02)-2012 X X X X X
ANSI/ISA 60079-31 (12.10.03)-2015 X X X
ANSI/ISA 61010-1 (82.02.01) Third
Edition
ANSI/ISA-60079-29-1 (12.13.01)-2013 X X X X
ANSI/UL 50 (Thirteenth Edition) X X X X X
ANSI/UL 50E (Second Edition) X X X X X
FM Class 3600:2011 X
FM Class 3600:2018 X X X X
FM Class 3611:2004 X
FM Class 3611:2018 X X X X
FM Class 3615:2006 X X X X
FM Class 3616:2011 X X X
FM Class 3810:2005 X X X X X
FM Class 6320:2014 X X X X
FM Class 6340:2018 X
UL 121201 (2017) X X X X X
USA
X5000 MAIN
TRANSMITTER
X X X X X
X X X X X
JB5000
and X5000
JUNCTION
BOX
ULTIMA
XIR
PLUS
DIGITAL
SENSOR
with Frit
DIGITAL
SENSOR
without
Frit
2
Addendum to ULTIMA®X5000 Operating Manual 10177361
