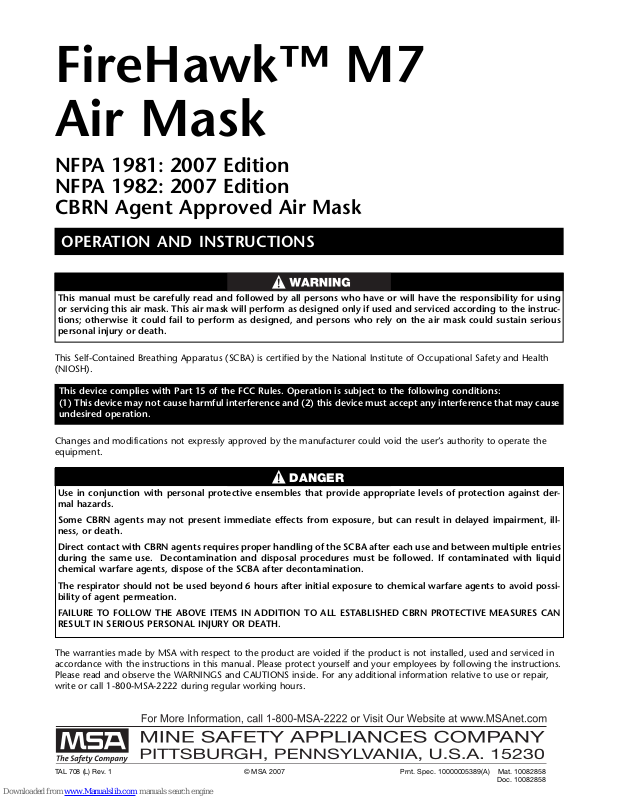

FireHawk™ M7
DANGER
Air Mask
NFPA 1981: 2007 Edition
NFPA 1982: 2007 Edition
CBRN Agent Approved Air Mask
OPERATION AND INSTRUCTIONS
This manual must be carefully read and followed by all persons who have or will have the responsibility for using
or servicing this air mask. This air mask will perform as designed only if used and serviced according to the instructions; otherwise it could fail to perform as designed, and persons who rely on the air mask could sustain serious
personal injury or death.
This Self-Contained Breathing Apparatus (SCBA) is certified by the National Institute of Occupational Safety and Health
(NIOSH).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference that may cause
undesired operation.
Changes and modifications not expressly approved by the manufacturer could void the user’s authority to operate the
equipment.
Use in conjunction with personal protective ensembles that provide appropriate levels of protection against dermal hazards.
Some CBRN agents may not present immediate effects from exposure, but can result in delayed impairment, illness, or death.
Direct contact with CBRN agents requires proper handling of the SCBA after each use and between multiple entries
during the same use. Decontamination and disposal procedures must be followed. If contaminated with liquid
chemical warfare agents, dispose of the SCBA after decontamination.
The respirator should not be used beyond 6 hours after initial exposure to chemical warfare agents to avoid possibility of agent permeation.
FAILURE TO FOLLOW THE ABOVE ITEMS IN ADDITION TO ALL ESTABLISHED CBRN PROTECTIVE MEASURES CAN
RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
The warranties made by MSA with respect to the product are voided if the product is not installed, used and serviced in
accordance with the instructions in this manual. Please protect yourself and your employees by following the instructions.
Please read and observe the WARNINGS and CAUTIONS inside. For any additional information relative to use or repair,
write or call 1-800-MSA-2222 during regular working hours.
TAL 708 (L) Rev. 1 © MSA 2007 Prnt. Spec. 10000005389(A) Mat. 10082858
Doc. 10082858
INTRODUCTION
TABLE OF CONTENTS
NIOSH Approval Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
pecial or Critical Users Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
S
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Inspection and Functional Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Donning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Using the Air Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
old Weather Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
C
URC Assembly Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Removing the Apparatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Cleaning and Disinfecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Flow Test and Overhaul Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Quick-Fill System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ExtendAire System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
NIOSH APPROVAL INFORMATION
CAUTIONS AND LIMITATIONS
I- Contains electrical parts which have not been evaluat-
ed as an ignition source in flammable or explosive
atmospheres by MSHA/NIOSH.
J- Failure to properly use and maintain this product could
result in injury or death.
M- All approved respirators shall be selected, fitted, used
and maintained in accordance with MSHA, OSHA and
other applicable regulations.
N- Never substitute, modify, add or omit parts. Use only
exact replacement parts in the configuration as specified by the manufacturer.
O- Refer to Users Instructions, and/or maintenance man-
uals for information on use and maintenance of these
respirators.
S- Special or critical User’s Instructions and/or specific
use limitations apply. Refer to user instructions before
donning.
CAUTIONS AND LIMITATIONS OF USE FOR CBRN
SCBA
Q- Use in conjunction with personal protective ensembles
that provide levels of protection against dermal hazards.
R- Some CBRN agents may not present immediate
effects from exposure, but can result in delayed
impairment, illness, or death.
T- Direct contact with CBRN agents requires proper han-
dling of the SCBA after each use and between multiple entries during the same use. Decontamination
and disposal procedures must be followed. If contaminated with liquid chemical warfare agents, dispose
of the SCBA after decontamination.
U- The respirator should not be used beyond 6 hours
after initial exposure to chemical warfare agents to
avoid possibility of agent permeation.
S - SPECIAL OR CRITICAL USER’S INSTRUCTIONS
Approved for use at temperatures above -25°F. Approved
only when the compressed-air container is fully charged
with air meeting the requirements of the Compressed Gas
Association Specification G-7 for quality verification level
(grade) D air or equivalent specifications. In fire service
applications, MSA recommends breathing air quality in
accordance with NFPA 1989. The cylinder shall meet
applicable DOT specifications.
Do not alter this air mask. Altering will void the IntrinsicSafety rating and may affect the Intrinsic-Safety of the
device. Misuse or abuse of the heads-up display system
(FireHawk M7 HUD), FireHawk M7 Control Module, or
FireHawk M7 Power Module or using this equipment in a
manner or situation not intended by the manufacturer, may
result in damage to the FireHawk M7 HUD, FireHawk M7
Control Module, or FireHawk M7 Power Module, may
result in personal injury or death to user or persons dependent on the user. Always inspect the FireHawk M7 HUD for
damage before use. If damage is found, immediately
remove the device from service. The FireHawk M7 HUD,
FireHawk M7 Control Module, and FireHawk M7 Power
Module are approved intrinsically-safe and conform to
UL/ANSI 913 for use in Class I, Div. I, Groups C and D
hazardous locations, temperature rating T3.
Use the air mask with adequate skin protection when
worn in gases and vapors that poison by skin absorption
(for example: hydrocyanic-acid gas). In making renewals
or repairs, parts identical with those furnished by the
manufacturer under the pertinent approval shall be maintained.
Approval for use against CBRN chemical warfare agents
is maintained only when using approved components and
following instructions listed on the NIOSH approval matrix
(P/N 10083874)
Do not mark the air mask, i.e., with stamps, labels, paint,
or other method. Use of such markings may interfere with
apparatus use or may constitute a flammability hazard.
TAL 708 (L) Rev. 1 - 10082858
2
INTRODUCTION
For more information on the air mask use and perfor-
ance standards, please consult the following publica-
m
tions:
NFPA Standard 1500, Fire Department Occupational
Safety and Health Programs (Chapter 5) and NFPA 1981
Standard, on Open-Circuit SCBA’s for Fire Service. Above
publications are available from the following: National Fire
rotection Association, Batterymarch Park, Quincy, MA
P
22269.
ANSI Standard Z88.5, Practices for Respiratory Protection
for the Fire Service; and, ANSI Standard Z88.2, Practices
for Respiratory Protection. American National Standards
Institute, 1430 Broadway, New York, NY 10018.
OSHA Safety and Health Standards (29 CFR 1910) (see
specifically Part 1910. 134), available from the
Superintendent of Documents, U. S. Government Printing
Office, Washington, DC 20402. Compressed Gas
Association, Inc., 1725 Jefferson Davis Hwy., Suite 1004,
Arlington, VA 22202.
Note: The FireHawk M7 HUD, FireHawk M7 Control
Module, and FireHawk M7 Power Module have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency and, if not installed in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment
does cause interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The FireHawk M7 HUD, FireHawk M7 Control Module,
and FireHawk M7 Power Module contain electrical
parts which have not been evaluated as an ignition
source in flammable or explosive atmospheres by
MSHA/NIOSH.
1. Read and follow all NIOSH and other approval limitations.
2. DO NOT use the carrier and harness assembly as a
vertical raising or lowering device.
. DO NOT use the air mask as an underwater device.
3
4. This system must be supplied with respirable
[Quality Verification Level (Grade) D, see ANSI/CGA
G-7.1-1989] or higher quality air; and a dew point
not to exceed -65°F (24ppm v/v) [Compressed Gas
Association Specification G-7.1 for Quality
Verification Level (Grade) D Gaseous Air]. In fire
service applications, MSA recommends breathing
air quality in accordance with NFPA 1989.
5. This device may not seal properly with your face if
you have a beard, gross sideburns or similar physical characteristics (see NFPA-1500 and ANSI
Z88.2). An improper facial seal may allow contaminants to leak into the facepiece, reducing or eliminating respiratory protection. Do not use this
device if such conditions exist. The face-to-facepiece seal must be tested before each use. Never
remove the facepiece except in a safe, non-hazardous, non-toxic atmosphere.
6. Return to a safe atmosphere immediately if discoloration, crazing, blistering, cracking, or other deterioration of the facepiece lens material is
observed.
7. Users must wear suitable protective clothing and
precautions must be taken so that the air mask is
not exposed to atmospheres that may be harmful
to it.
8. Take into account the following factors which may
affect the duration or the service life.
a. the degree of physical activity of the user;
b. the physical condition of the user;
c. the degree that the user’s breathing rate is
increased by excitement, fear, or other emotional
factors;
d. the degree of training or experience which the
user has had with this or similar equipment;
e. whether or not the cylinder is fully charged;
f. the presence in the compressed air of carbon
dioxide concentrations greater than the .04%
level normally found in atmospheric air;
g. the atmospheric pressure; if used in a pressur-
ized tunnel or caisson at 2 atmospheres (15 psi
gauge) the duration will be one-half as long as
when used at 1 atmosphere; at 3 atmospheres
the duration will be one-third as long; the service
life of the air mask is based on 1 atmosphere of
pressure.
h. the condition of the air mask.
Failure to follow this warning can result in serious personal injury or death.
3
TAL 708 (L) Rev. 1 - 10082858
INTRODUCTION
CBRN AGENT APPROVAL LABEL
The MSA CBRN Agent approved air mask has this
pproval label attached to the carrier and harness.
a
IMPORTANT NOTICE FOR RESPIRATOR USERS AND
RESPIRATORY PROTECTION PROGRAM
ADMINISTRATORS
1. An adequate respiratory protection program must
include knowledge of hazards, hazard assessment,
selection of proper respiratory protective equipment,
instruction and training in the use of equipment,
inspection and maintenance of equipment, and medical surveillance. [See OSHA regulations, Title 29 CFR,
Part 1910.134 (c).]
2. This SCBA may be used only after proper instruction
and training in its use as specified in NFPA-1500 and
OSHA regulations Title 29 CFR, Part 1910.134.
3. Quantitative fit testing should be conducted to determine proper facepiece size prior to using the respirator. A Fit Test Kit (MSA P/N 10044576) is available for
conducting quantitative fit tests with the Ultra Elite
Firehawk Facepieces. The facepiece donning instructions must be carefully followed when using the respirator and when conducting fit tests.
5. The CBRN Firehawk Second Stage Regulator must be
flow tested every year and overhauled on a periodic
basis. An overhaul kit (MSA P/N 10048942) is available.
CONTACT INFORMATION
In the event of a product concern, contact your local MSA
uthorized repair center or distributor, who will provide the
a
necessary information to MSA for issue resolution. To
report any serious concerns, or to speak with a certification organization, ,use the following contact information:
anufacturer
M
MSA Customer Service
Phone: 1-800-MSA-2222
Certifying Agencies
National Institue of Occupational Safety and Health
(NIOSH)
Phone: 412-386-6686
Safety Equipment Institute (SEI)
Phone: 703-442-5732
TAL 708 (L) Rev. 1 - 10082858
4
DESCRIPTION
DESCRIPTION
FireHawk M7 Air Masks from MSA are pressure-demand,
elf-contained breathing apparatus (SCBA) certified by the
s
National Institute for Occupational Safety and Health
(NIOSH) for use in atmospheres immediately dangerous to
life or health:
`Immediately dangerous to life or health’’ means condi-
`
tions that pose an immediate threat to life or health or
conditions that pose an immediate threat of severe exposure to contaminants, such as radioactive materials,
which are likely to have adverse cumulative or delayed
effects on health [Title 42 CFR, Part 84.2, (Q)].
This Air Mask complies with the National Fire Protection
Association (NFPA) Standard 1981 for Open-Circuit SelfContained Breathing Apparatus for Fire Fighters
This Air Mask has been designated by NIOSH as being
CBRN (chemical, biological, radiological, and nuclear)
Agent Approved. It complies with the special tests under
NIOSH 42 CFR 84.63(c); Chemical Agent Permeation and
Penetration Resistance Against Distilled Sulfur Mustard
(HD) and Sarin (GB) and the Laboratory Respirator
Protection Level (LRPL) tests.
The PR14 First Stage Regulator incorporates a down-
tream design and dual springs.
s
he regulator incorporates a large, easily replaceable, sin-
T
tered filter to capture particulates that may be in the air
stream.
FIREHAWK SECOND STAGE REGULATOR
The Firehawk Regulator is a pressure-demand regulator,
which maintains a positive pressure in the facepiece while
the air mask is in use.
The Firehawk Regulator attaches to the facepiece via a
slide-to-connect or a push-to-connect feature.
The Firehawk Regulator has two available covers, purge
and hard cover. The purge cover offers the user the ability
to manually activate the regulator or to provide a quick
burst of air during use without using the bypass knob.
There are also two types of Firehawk Regulator intermediate pressure hose connections, threaded and quick-connect.
The FireHawk M7 Air Mask consists of the following
components.
• PR14™ First Stage Regulator
• Firehawk Second Stage Regulator
• Cylinder and Valve Assembly
• Audi-Larm™ Audible Alarm with URC Assembly
• FireHawk M7 Carrier and Harness Assembly
• Ultra Elite
®
Facepiece
• FireHawk M7 HUD
• FireHawk M7 Control Module
• FireHawk M7 Power Module
Optional FIREHAWK M7 AIR MASK COMPONENTS
• Clear Command
®
Communications System
• FireHawk M7 Telemetry Module
• ExtendAire™ System
• Quick-Fill System
• Rescue Belt
FIREHAWK M7 AIR MASK COMPONENTS
PR14 FIRST STAGE REGULATOR
The PR14 First Stage Regulator reduces the pressure
from the cylinder and valve assembly to an intermediate
pressure, which is in turn further reduced by the Firehawk
Second Stage Regulator to a pressure that is respirable
by the user.
CYLINDER AND VALVE ASSEMBLY
Capacity Pressure Rated Svc*
Cubic Ft. psig Life (Min.)
45 4500 30
88 4500 60
45 2216 30
45 2216 30
60 3000 30
66 4500 45
*as approved by NIOSH
The cylinder valve includes a metal valve body, threaded
connection for filling and attachment of the Audi-Larm
Alarm, handwheel, safety disc (burst disc), and pressure
gauge.
The pressure gauge continuously shows the air pressure
in the cylinder.
The handwheel is used to open and close the cylinder
valve.
5
TAL 708 (L) Rev. 1 - 10082858
DESCRIPTION
AUDI-LARM ALARM WITH URC ASSEMBLY
The Audi-Larm Alarm rings when there is approximately
5% of the air mask’s rated service time remaining and
2
when the cylinder valve is first opened, providing an audible indication that the alarm is working properly.
A high pressure hose delivers air at cylinder pressure from
he Audi-Larm Alarm to the PR14 First Stage Regulator.
t
End of
Service
Cylinder
30 min. 2216 psi 7 minutes 530 psi
30 min. 3000 psi 10 minutes 750 psi
30 min. 4500 psi 7 minutes 1125 psi
45 min. 4500 11 minutes 1125 psi
60 min. 4500 psi 14 minutes 1125 psi
Note: The remaining service time calculations are based
on a 40 LPM (liters per minute) NIOSH breathing rate.
All FireHawk M7 Air Masks are equipped with an AudiLarm Alarm that includes a URC Assembly (Universal
Rescue Connection). The URC Assembly is a male quickfill inlet for use by Rapid Intervention Crews for emergency filling of the SCBA or during transfill operations.
Also included with the URC Assembly is a pressure relief
valve for protection of the cylinder burst disc.
Remaining Service Time
Time (Approx.) Indicator
Pressure
(Approx)
The facepiece has a low-resistance, pressure-demand
xhalation valve.
e
n inhalation check valve in the inlet housing keeps mois-
A
ture and contaminants out of the Firehawk Regulator.
The facepiece has a speaking diaphragm for clear communication.
FIREHAWK M7 HUD
The FireHawk M7 HUD, located on the Ultra Elite
Facepiece allows a user to see cylinder pressure in one
quarter cylinder increments, PASS pre-alarms, battery status, and telemetry information (optional) while wearing the
air mask.
FIREHAWK M7 CONTROL MODULE (PASS DEVICE)
The FireHawk M7 Control Module is the user’s interface
with the air mask.
The FireHawk M7 Control Module is equipped with an
analog gauge as well as an LCD to provide the user vital
information: numeric and iconic cylinder pressure, battery
status, thermal alarm (optional), and time remaining.
If the air mask is equipped with the optional FireHawk M7
Telemetry Module, the radio link status and evacuation
alarms are displayed.
The integrated PASS motion sensor is housed within the
FireHawk M7 Control Module.
FIREHAWK M7 CARRIER AND HARNESS ASSEMBLY
DO NOT use this carrier and harness assembly as a
vertical raising or lowering device. Failure to follow
this warning can result in serious personal injury or
death.
The carrier consists of a backplate, a cylinder band with
latch to hold the cylinder, and a harness, consisting of
shoulder pads, chest strap (optional), adjustable pull straps,
waist belt, waist belt mounted regulator retainer, swiveling
lumbar pad (optional), and Rescue Belt (optional).
ULTRA ELITE FACEPIECE
The facepiece is available in three sizes (Small, Medium,
and Large).
The facepiece lens is super-hardcoated to meet the
requirements of NFPA 1981.
TAL 708 (L) Rev. 1 - 10082858
FIREHAWK M7 POWER MODULE (PASS DEVICE)
The FireHawk M7 Power Module on the lower portion of
the backplate houses the batteries, serves as the cylinder
stop, emits audible PASS alarms, and has buddy lights.
The FireHawk M7 Power Module is linked to the FireHawk
M7 Control Module via the power cable.
OPTIONAL FIREHAWK M7 AIR MASK COMPONENTS
CLEAR COMMMAND COMMUNICATION SYSTEM
The Clear Command Communication System is an electronic speech projection system available with either an
amplifier or an amplifier with radio interface connection.
6
DESCRIPTION
FIREHAWK M7 TELEMETRY MODULE
The FireHawk M7 Telemetry Module provides the firefight-
r with two-way communication with Incident Command.
e
The firefighter’s vital statistics such as cylinder pressure,
service time remaining, PASS alarm, low battery alarm,
and thermal alarm are transmitted back to Incident
Command. Also, the firefighter has the ability to be evac-
ated remotely by Incident Command. The radio trans-
u
mitter is located inside of the FireHawk M7 Power
Module.
EXTENDAIRE SYSTEM
The ExtendAire System, located on the user’s left chest,
enables two users to share a common air supply during
emergency escape. The users can couple the Firehawk
Second Stage Regulator from one user to the intermediate pressure manifold of the other user. Both users will
receive intermediate pressure air from the donor's first
stage regulator and cylinder. The duration of the remaining
air supply will be reduced by at least half.
he SCBA is approved by NIOSH without inter-connecting
T
two users to one apparatus. NIOSH does not certify
buddy breathers”. Therefore, the attachment of the
“
receiver's regulator to the donor's apparatus voids the
NIOSH approval for both air masks.
RESCUE BELT
The MSA Fire Service Rescue Belt is a personal escape
system integrated into an FireHawk M7 Carrier and
Harness Assembly. The system is designed to provide the
user a means of escape from an elevated position. Use of
the Rescue Belt must be in accordance with the user’s fire
department procedures. Care and use instructions are
provided under a separate manual, P/N 10052748.
7
TAL 708 (L) Rev. 1 - 10082858
NOTES
TAL 708 (L) Rev. 1 - 10082858
8
VISUAL INSPECTION AND FUNCTIONAL TESTS
INSPECTION
onduct the Following: Before Use, After Each Use, and
C
Monthly
Thoroughly inspect this air mask upon receipt and before
use. This air mask is to be used only by trained and qualified personnel. Read and understand these instructions
before attempting to use this equipment.
Inspect the entire air mask after it is cleaned and disinfected. NFPA-1500, as well as ANSI Standards Z88.2 and
Z88.5, describe three levels of inspection procedures
which are to be performed. Refer to these documents, or
to an inspection program prepared by a health professional in establishing an inspection program.
If the air mask exhibits any of the conditions listed in
the Component Inspection section or if the air mask
does not function properly as described in the
Functional Tests section, the air mask must be
removed from service. Failure to follow this warning
can result in serious personal injury or death.
DO NOT inspect the air mask before cleaning if there
is danger of contacting hazardous contaminants.
Clean and disinfect first, then inspect. Failure to follow
this warning can cause inhalation or skin absorption
of the contaminant and result in serious personal
injury or death.
Never substitute, modify, add, or omit parts. Use only
exact replacement parts in the configuration as specified by the manufacturer. Failure to follow this warning
can result in serious personal injury or death.
COMPONENT INSPECTION
1. Facepiece
a. Inspect the facepiece for rubber deterioration, dirt,
cracks, tears, holes, or tackiness.
b. Inspect the head harness straps for tears, loss of
elasticity, or missing buckles or straps.
c. Inspect the lens for cracks, scratches, and a tight
seal with the facepiece rubber.
d. Ensure the exhalation valve is clean and operates
easily. The valve must move off the seat and return
when released.
e. Inspect the facepiece inlet for damage. Ensure the
spider gasket and valve disc are present.
f. Inspect the facepiece rubber behind the FireHawk
M7 HUD and/or Clear Command Communication
System bracket (optional) for holes or tears.
2. FireHawk M7 HUD
. Inspect the FireHawk M7 HUD for cracks or other
a
signs of damage which could allow contaminants to
nter the housing.
e
b. Ensure that moisture or debris is not present in the
battery compartment.
c. Ensure the battery compartment o-ring on the bat-
tery cap is free of debris and not damaged or miss
ng.
i
d. Reassemble the FireHawk M7 HUD to the bracket
on the Ultra Elite Facepiece.
3. Clear Command Communication System
a. Remove the amplifier housing from the facepiece
and inspect the housing for cracks or other signs of
damage
b. Ensure that the battery compartment is free of
moisture or debris.
c. Reassemble the amplifier housing on the facepiece.
d. Depress the on/off button on the unit and then
release it.
e. Look through the facepiece lens. The red LED
should be illuminated at the top of the amplifier unit.
f. Scrape a fingernail lightly across the voicemitter
microphone grille of the voicemitter microphone
assembly.
g. Listen for this sound reproduced in the amplifier
speaker.
h. Depress and release the on/off button again to turn
the unit OFF. The LED on the amplifier unit should
be OFF.
4. Firehawk Second Stage Regulator
a. If the FireHawk M7 Air Mask is equipped with a
quick-connect second stage intermediate pressure
hose, inspect the rubber washer for deterioration,
dirt, cracks, tears, or tackiness.
5. PR14 First Stage Regulator
a. Inspect the regulator mounting bracket (attached to
the backplate) for cracks, weakened areas, or signs
of heat or chemical related damage.
b. Inspect the regulator mounting bracket screws to
ensure they are secure.
c. Inspect the regulator mounting bracket to ensure
that it holds the regulator securely.
d. Inspect the pressure relief valve. Ensure that the
relief holes are clear and free of debris or other contaminants. Ensure that the pressure relief valve is
properly secured.
e. Inspect the hose connections. Ensure that the
hoses are properly secured.
6. Audi-Larm Alarm
a. Unthread the Audi-Larm Alarm coupling nut from
the cylinder valve. Inspect the coupling nut for
thread damage.
b. Ensure there is an o-ring present and not damaged.
Replace the o-ring if it is damaged.
c. Ensure that the bell is properly aligned and that the
screws are tight. If the bell is loose, remove the
alarm from service.
d. Inspect the relief valve for damage. Ensure the relief
9
TAL 708 (L) Rev. 1 - 10082858
VISUAL INSPECTION AND FUNCTIONAL TESTS
valve label is not damaged and that the relief valve
orts are not showing. If damaged, remove the air
p
mask from service and replace the relief valve.
. Reattach Audi-Larm Alarm to the cylinder valve.
e
7. High Pressure Hose
a. Inspect the high pressure hose between the Audi-
Larm Alarm and the PR14 First Stage Regulator.
Look for cuts or severe abrasions. If damage is pre-
ent, replace the hose.
s
8. Cylinder and Valve Assembly
a. Air mask cylinders should be recharged as soon as
possible after use. Cylinders should not be stored
partially charged for two reasons:
• If used without recharge, the service life of the air
mask is reduced.
• The cylinder burst disc vents excess pressure if a
full cylinder is over exposed to fire or heat. If the
cylinder is not full, it may be damaged before the
burst disc vents.
b. If the cylinder is less than FULL (within 10% of
rated service pressure), recharge it before storage.
Cylinder air must be at least CGA Quality
Verification Level (Grade) D respirable air. In fire service applications, MSA recommends breathing air
quality in accordance with NFPA 1989.
c. Inspect the cylinder valve for signs of damage. The
valve may be opened slightly to ensure it operates
properly. Be sure to fully close the valve.
d. Inspect the cylinder body for cracks, dents, weak-
ened areas, corrosive agents causing the fibers to
break or peel, or signs of heat-related damage. If
the cylinder is damaged return it to an MSA Service
Center.
e. Check the hydrostatic test date on the cylinder
approval sticker located on the cylinder neck.
Fiberglass composite cylinders must be tested
every three years. Carbon-wrapped and steel cylinders must be tested every five years.
f. Ensure the needle and gauge face on the cylinder
valve gauge are clearly visible and that the gauge
stem is not bent.
It is also essential that the required inspections and tests
be performed on all air mask cylinders in accordance with
Department of Transportation (DOT) regulations. DOT regulations require that composite cylinders be retired from
service after the fifteenth year. This does not include cylinder valve assemblies that may be reused. Steel and aluminum cylinder service life is indefinite if proper inspection and hydrostatic test procedures are followed and they
indicate that the cylinder may remain in service. Contact
an MSA distributor or sales associate for more information
regarding this policy.
Note: ANSI Z88.5 recommends checking cylinder pressure weekly. For maximum safety the cylinders should be
stored full or empty (pressure above ambient but less than
100 psi).
9. FireHawk M7 Carrier and Harness
. Operate the latch wing on the cylinder band to
a
ensure that it opens and closes properly and that it
olds the cylinder securely. If the cylinder band and
h
latch is locked, the latch wing should not turn.
b. Inspect the back plate for cracks, weakened areas,
or signs of damage due to heat or chemical related
damage.
. Inspect all harness components for cuts, tears,
c
abrasions, or signs of damage due to heat or chemical related damage.
10. FireHawk M7 Control Module
a. Inspect the gauge hose and power cable for any
visible signs of damage.
b. Inspect for external cracks in the housing and
ensure the rubber cover is not damaged.
c. Ensure the buttons are not damaged or missing.
d. Ensure the gauge hose and power cable are
securely attached to the FireHawk M7 Control
Module.
11. FireHawk M7 Power Module
a. Inspect the FireHawk M7 Power Module housing for
external cracks and ensure that the FireHawk M7
Power Module, battery tube, and cylinder stop are
securely attached to the backplate.
b. Inspect the piezo emitters on both sides of the
FireHawk M7 Power Module. Ensure that the emitter covers are not obstructed by dirt or debris.
c. Ensure that the power cable is securely attached to
the FireHawk M7 Power Module. The fitting on the
power cable should not be able to be unthreaded
by hand.
d. Remove the cap from the battery tube. Ensure that
the o-ring is properly installed on the battery cap, if
o-ring is missing, it must be replaced.
e. Inspect the inside of the battery tube. Ensure that
the battery terminals are not corroded and that the
tube if free of moisture and debris.
f. Replace the battery cap on the battery tube.
12. Record Keeping
a. Following inspection, the date and initials of the
designated inspector should be recorded on an
inspection tag. A more detailed record of the operations performed can be noted on an inspection and
maintenance log, available from MSA. When the
inspection data has been recorded, the air mask is
ready for use.
All repair and replacement of subassemblies must be
carried out by an MSA certified repair technician.
Failure to follow this warning will void NFPA and
NIOSH certifications and can result in serious personal injury or death.
TAL 708 (L) Rev. 1 - 10082858
10
VISUAL INSPECTION AND FUNCTIONAL TESTS
FUNCTIONAL TESTS
onduct the Following: Before Use, After Each Use, and
C
Monthly
1. Check that the Firehawk Regulator and facepiece can
hold a negative pressure.
a. Close the cylinder valve and purge any air from the
system using the bypass knob on the Firehawk
egulator.
R
b. Hold the facepiece against the face to create an
effective seal.
c. Attach the Firehawk Regulator to the facepiece and
inhale until the facepiece begins to collapse against
the face. Hold breath for approximately 10 seconds.
Negative pressure should be maintained and the
facepiece should remain collapsed against the face
for the entire 10 seconds.
d. Do not use the air mask if negative pressure cannot
be maintained in the facepiece. Return the Firehawk
Regulator and facepiece to a certified repairperson.
2. Check Firehawk Regulator operation.
Note: Firehawk Regulator functional checks must be conducted with a full cylinder. Check the pressure gauge on
the cylinder valve to verify that the cylinder is full.
a. Push the release buttons on the side of the regula-
tor.
b. Ensure that the regulator bypass knob is fully
closed (clockwise).
c. Slowly open the cylinder valve to pressurize the air
mask. Ensure that the cylinder valve is completely
opened.
d. Open the Firehawk Regulator bypass knob (counter-
clockwise). Ensure that air flows from the regulator.
Close the bypass knob (clockwise).
e. Attach the regulator to the facepiece. Ensure proper
regulator attachment by pulling on the regulator.
f. Don the facepiece or hold the facepiece against the
face to create an effective seal.
g. Inhale sharply to start air flow. Breathe normally.
Ensure proper regulator response. The regulator
should not make any unusual sounds including
whistling, chattering, or popping.
h. Remove the facepiece from the face. Ensure that air
flows freely. Push the regulator release buttons.
Ensure that air flow stops.
i. If the regulator fails to meet any of the above
checks, remove the air mask from service. Return
the regulator to a certified repairperson.
3. FireHawk M7 HUD, FireHawk M7 Control Module,
FireHawk M7 Power Module, and Audi-Larm Alarm
a. Verify proper function of the FireHawk M7 HUD,
FireHawk M7 Control Module, FireHawk M7 Power
Module, and Audi-Larm Alarm by observing the
FireHawk M7 Control Module gauge and display
when the alarms ring and tone. Perform this test
with a minimum cylinder pressure of 1200 psi for
2216 psi air masks, 1800 psi for 3000 psi air masks,
and 2000 psi for 4500 psi air masks.
. Pressurize the system by opening the cylinder
b
valve. Listen for the FireHawk M7 Power Module to
ound and for the Audi-Larm Alarm to ring briefly.
s
c. Look through the facepiece lens at the LED display
of the FireHawk M7 HUD, the LEDs must illuminate
through the startup sequence as the air mask is
pressurized:
One red LED on/off
o
o One orange LED on/off
o One yellow LED on/off
o Four green LED on/off
o Three green LED on/off
o Two yellow LED on/off
o One red LED ON on/off
d. Ensure that the alarm button on the FireHawk M7
Control Module and the buddy lights on the
FireHawk M7 Power Module are slowly flashing
green.
e. Allow the FireHawk M7 Control Module to remain
motionless for approximately 20 seconds. Listen for
the FireHawk M7 Power Module to sound the low
volume repeated tones of the PASS pre-alarm.
Verify that the alarm button on the FireHawk M7
Control Module and the buddy lights of the
FireHawk M7 Power Module are slowly flashing red.
Also verify that the orange LED is displayed in the
FireHawk M7 HUD. Ensure that the FireHawk M7
Control Module remains motionless until the full
PASS alarm activates. Listen for the FireHawk M7
Power Module to sound the loud PASS alarm. Look
for the alarm button on the FireHawk M7 Control
Module and the buddy lights on the FireHawk M7
Power Module to rapidly flash red.
f. Reset the PASS alarm by pressing the reset button
(yellow) on the side of the FireHawk M7 Control
Module two times within approximately one second.
g. To check the manual activation of the PASS alarm,
press and hold the alarm button on the front of the
FireHawk M7 Control Module for approximately
three seconds. Listen for the PASS alarm to be
emitted from the FireHawk M7 Power Module.
h. Reset the PASS alarm. Press the reset button (yel-
low) on the FireHawk M7 Control Module two times
within approximately one second.
i. Allow the FireHawk M7 Control Module to remain
motionless until the PASS pre-alarm sounds. Shake
the FireHawk M7 Control Module to reset the alarm.
j. If the FireHawk M7 Control Module and FireHawk
M7 Power Module pass these functional checks,
complete all remaining air mask donning steps of
this instruction manual.
k. Disconnect the Firehawk Regulator from the face-
piece.
l. Close the cylinder valve fully.
m.Slowly crack the bypass valve on the Firehawk
Regulator to bleed off pressure until the FireHawk
M7 Control Module pressure reading drops below
the following values:
11
TAL 708 (L) Rev. 1 - 10082858
VISUAL INSPECTION AND FUNCTIONAL TESTS
o 530 psi - approximately (2216 psi system)
750 psi - approximately (3000 psi system)
o
o 1050 psi - approximately (4500 psi system)
single flashing red LED must display in the FireHawk
A
M7 HUD at the appropriate pressure listed above. The
Audi-Larm Alarm will ring and the alarm button on the
FireHawk M7 Control Module and buddy lights on the
FireHawk M7 Power Module will flash red at this time.
n. The alarms should continue until the air pressure is
200 psi or less. If the Audi-Larm Alarm, FireHawk
M7 Control Module, FireHawk M7 Power Module, or
FireHawk M7 HUD does not function properly, the
air mask must be removed from service.
o. When the system pressure falls below 200 psi, turn
the FireHawk M7 Control Module off (sleep mode)
by pressing the reset button (yellow) two times within approximately one second.
p. Open the bypass valve slowly to release any
emaining pressure in the system. Close the bypass
r
valve.
DO NOT disconnect the Audi-Larm Alarm coupling nut
when pressure is shown on the FireHawk M7 Control
odule gauge or display. Release all pressure from
M
the air mask by opening the Firehawk Regulator
bypass valve. Removing the coupling nut with the air
mask is pressurized can result in serious personal
injury, death, or damage to equipment.
TAL 708 (L) Rev. 1 - 10082858
12
DONNING
DONNING THE AIR MASK
1. Remove the facepiece from the case.
DO NOT use a cover lens in a high-temperature envi-
onment, such as firefighting. High temperatures may
r
distort the cover lens. Or, moisture trapped between a
cover lens and the facepiece lens may condense and
distort vision. Always remove the cover lens before
donning the facepiece. Failure to follow this warning
can result in serious personal injury or death.
2. Ensure that the cylinder is fully pressurized.
3. Reach the right arm inside the right shoulder straps
and grasp the FireHawk M7 Control Module. Slide the
left arm through the left shoulder straps.
4. Bend forward slightly; resting the carrier on the back.
5. Attach the chest strap buckle (optional).
6. Fasten the waist belt and pull it tight for a snug fit.
Most of the air mask weight should be carried on the
hips.
7. Stand up straight. Pull the shoulder strap pull tabs out
to tighten the shoulder straps. Additional adjustments
to the waist belt may be needed.
8. The shoulder straps and waist strap ends must be
tucked in and lay flat across the body.
BEFORE USING THE AIR MASK
1. Grasp the Firehawk Regulator and push the side buttons.
Listen for any hiss or pop sounds from the Audi-Larm
Alarm, if heard, do not use the air mask. Return it to
an MSA trained or certified repairperson. Failure to
follow this warning can result in serious personal
njury or death.
i
4. As the system pressure rises from 50 to 200 psi, both
visible and audible alerts activate automatically, indicating that the air mask is functioning properly. Such
alerts include a brief ring from the Audi-Larm Alarm, a
chirp from the FireHawk M7 Power Module, and the
start-up sequence of the FireHawk M7 HUD LEDs.
DO NOT use the air mask if the Audi-Larm Alarm fails
to ring, the FireHawk M7 Power Module fails to sound,
or the FireHawk M7 HUD fails to light, The air mask
must be checked and corrected for proper operation
by an MSA trained or certified repairperson before
using. Failure to follow this warning can result in serious personal injury or death.
5. No air should flow from
the Firehawk Regulator.
If it does, repeat steps
1 and 2.
2. Ensure that the red
bypass knob is fully
closed (clockwise).

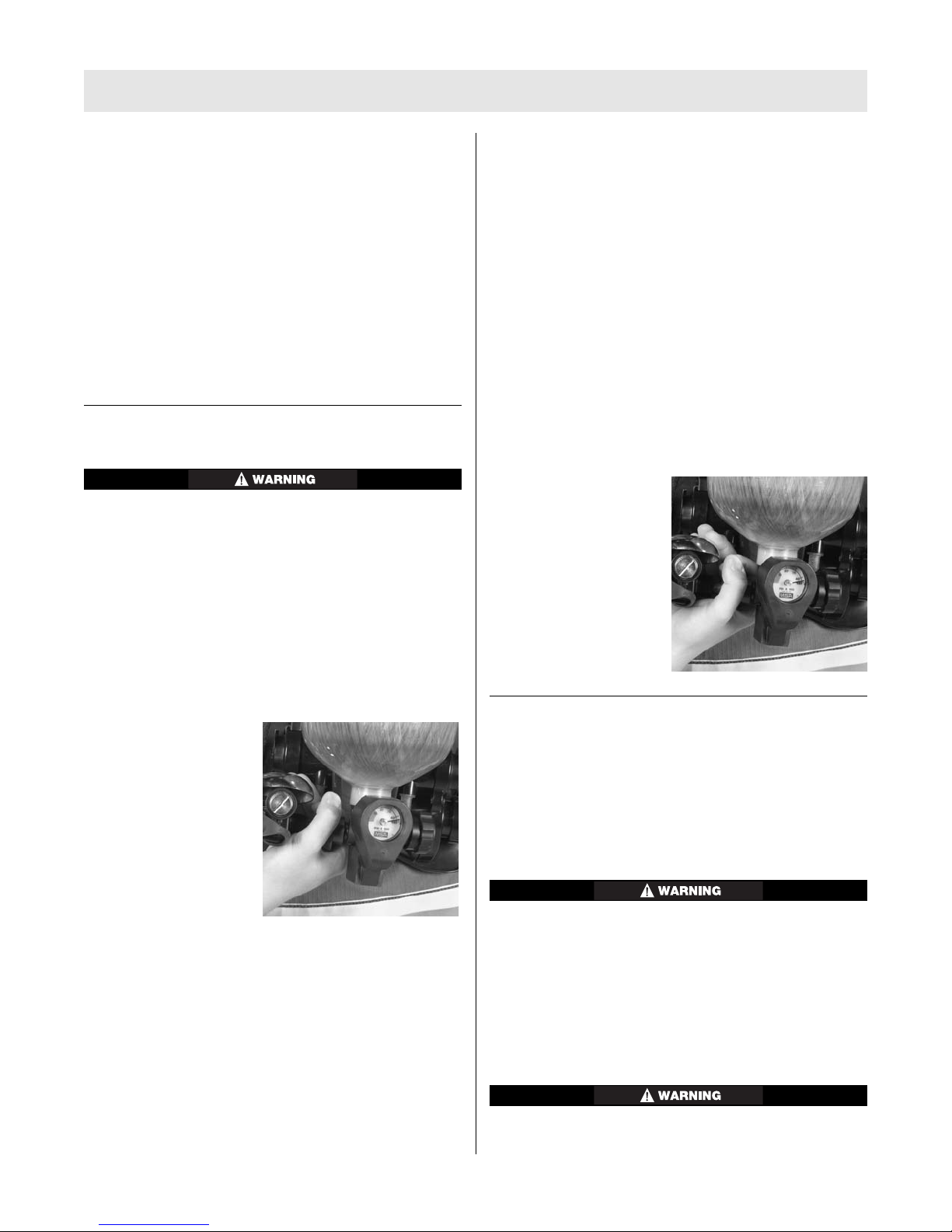

3. Reach behind and fully
open the cylinder valve.
6. Ensure the FireHawk M7 HUD and FireHawk M7
Control Module pressure indicators show a full cylinder.
DO NOT use the air mask if the cylinder gauge and
FireHawk M7 Control Moedule pressure readings are
not within 5% (110/2216 psi, 150/3000 psi, 225/4500
psi) of full cylinder pressure. Send the unit to an MSA
certified repair person.
13
TAL 708 (L) Rev. 1 - 10082858
DONNING
DONNING THE FACEPIECE
7. Check the Firehawk
egulator’s bypass
R
operation. Grasp the
red knob and turn it
counter-clockwise.
Listen for airflow and
hen turn it to the off
t
position.
8. Fully close the cylinder valve.
9. Listen for air leaks and watch the pressure gauge and
display on the FireHawk M7 Control Module for 10
seconds.
DO NOT use the air mask if the pressure drops more
than 100 psi in ten seconds, The air mask must be
repaired; otherwise, reduced service life may result.
10. Crack the Firehawk Regulator bypass valve slowly to
bleed off pressure until the FireHawk M7 HUD and
FireHawk M7 Control Module displays drop below:
530 psi-approximately (2216 psi system)
750 psi-approximately (3000 psi system)
1125 psi-approximately (4500 psi system)
Note: Before donning, ensure that the Firehawk Regulator
ealing ring is seated properly in its groove on the outlet
s
of the regulator and that it is not torn, gouged, or nicked.
1. Loosen all the harness
straps. Grip the bottom
straps.
2. Insert chin into the
lower part of facepiece,
then pull the harness
back over the head.
At these pressures the FireHawk M7 HUD should display
a flashing red LED, the Audi-Larm Alarm should ring continuously, and the alarm button on the FireHawk M7
Control Module and the buddy lights on the FireHawk M7
Power Module should be flashing red.
11. When the system pressure falls below 200 psi, turn
the FireHawk M7 Control Module off by depressing
the reset button (yellow) two times within approximately one second.
DO NOT use the air mask if the Audi-Larm Alarm fails
to ring or fails to continuously ring down to pressures
of 200 psi, or if the FireHawk M7 Control Module or
FireHawk M7 HUD fails to light properly. The air mask
must be checked and corrected for proper operation
by an MSA trained or certified repairperson before
using. Failure to follow this warning can result in serious personal injury or death.
Note: The FireHawk M7 HUD will automatically turn itself
OFF approximately 60 seconds after the air mask has
been depressurized. A single red LED will flash until the
device turns off.
3. Pull the back of harness downward until
centered at the back of
the head.
4. Tighten the two lower
straps first by pulling
them straight back, not
out. Tighten the facepiece until the mask is
snug against the face.
TAL 708 (L) Rev. 1 - 10082858
14
Loading...
