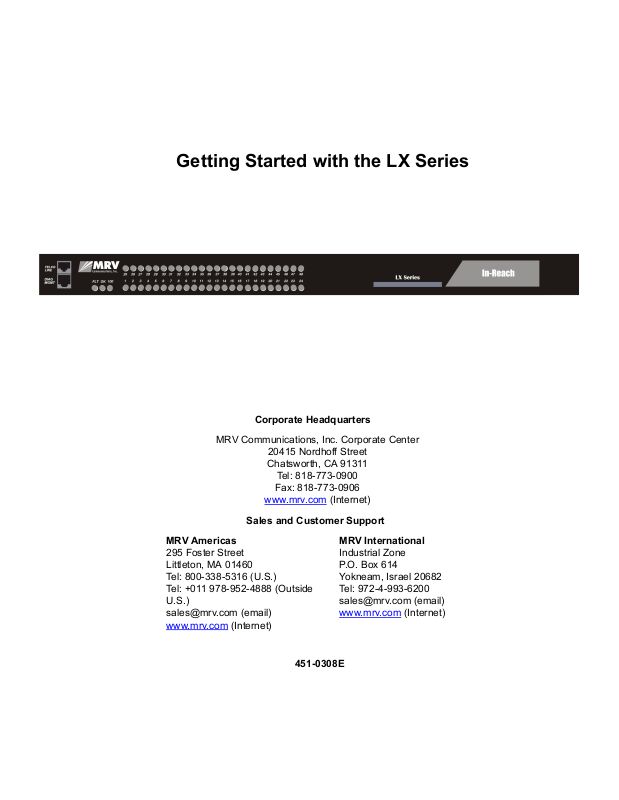

Getting Started with the LX Series
Corporate Headquarters
MRV Communications, Inc. Corporate Center
20415 Nordhoff Street
Chatsworth, CA 91311
Tel : 81 8- 77 3 -0 90 0
Fax: 818-773-0906
www.mrv.com
(Internet)
Sales and Customer Support
MRV Americas
295 Foster Street
Littleton, MA 01460
Te l: 80 0 -3 38 - 53 1 6 ( U. S .)
Te l: + 0 11 9 7 8- 9 52 - 48 88 (O u t si d e
U.S.)
[email protected] (email)
www.mrv.com
(Internet)
451-0308E
MRV International
Industrial Zone
P. O . B ox 61 4
Yokn ea m, Is ra e l 20 682
Tel : 97 2- 4- 99 3- 62 00
[email protected] (email)
www.mrv.com
(Internet)
Page 2
All rights reserved. No part of this publication may be reproduced without
the prior written consent of MRV Communications, Inc. The information in
this document is subject to change without notice and should not be
construed as a commitment by MRV Communications, Inc. MRV
Communications, Inc. reserves the right to revise this publication, and to
make changes in content from time to time, without obligation to provide
notification of such revision or changes. MRV Communications, Inc.
assumes no responsibility for errors that may appear in this document.
Copyright © 2003 by MRV Communications, Inc.
Should you experience trouble with this equipment, please contact one of
the following support locations:
• If you purchased your equipment in the Americas, contact MRV
Americas Service and Support in the U.S. at 978-952-4888. (If you are
calling from outside the U.S., call +011 978-952-4888.)
• If you purchased your equipment outside the Americas
(Europe, EU, Middle-East, Africa, Asia), contact MRV
International Service and Support at 972-4-993-6200.
2
451-0308
Page 3
CAUTION
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, can cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the power cord of the equipment into an outlet on a circuit that
is different from that to which the receiver is connected.
•Consult the dealer or experienced radio/TV technician for help.
Changes or modifications not expressly approved by MRV Communications,
Inc. could void the user's authority to operate the equipment.
451-0308
3
Page 4
4
451-0308
Page 5
Table of Contents
Preface................................................................................................................ 11
Customer Support ........................................................................................................11
Other Documentation ..................................................................................................11
Overview of the LX Series ................................................................................ 13
Conventions ..................................................................................................................13
System Specifications ..................................................................................................15
Installing the LX Series ..................................................................................... 17
Hardware Installation .................................................................................................17
Unpack and Inspect the Unit ................................................................................ 17
Package Contents................................................................................................... 17
LX Indicators and Interfaces .......................................................................................18
Front Panel LEDs .................................................................................................. 18
Rear Panel LEDs ................................................................................................... 19
Environmental and Installation Considerations........................................................23
Mounting the Unit into a 19-inch or 23-inch Rack ....................................................24
Cable Connections........................................................................................................25
Connect the Power Cable....................................................................................... 25
Connecting the Ethernet Interface ....................................................................... 25
Connect Serial Device Cables................................................................................ 25
Connecting Your Management Station................................................................. 25
Connecting DC Power ............................................................................................ 26
Modem Port (Optional) ................................................................................................27
Powering On .................................................................................................................27
System Login and Passwords ......................................................................................28
Resetting the Unit........................................................................................................29
Configuring the LX Unit for the First Time ...............................................................30
First Time Quick Configuration............................................................................ 30
Assigning an IP Address via the Network............................................................ 33
Accessing and Configuring the Graphical User Interface (GUI) ...............................33
Software Upgrades.......................................................................................................38
IP Configuration Menu ................................................................................................38
Booting from Defaults ..................................................................................................38
Accessing and Configuring Additional Features ........................................................39
Connecting to the LX Series via Telnet or SSH ................................................... 39
Accessing from a Terminal Attached to an LX Series Serial Port ...................... 40
Additional Considerations ...........................................................................................40
451-0308
5
Page 6
Sensor (Temperature/Humidity) Ports .......................................................................40
Connecting the Temperature/Humidity Sensor ................................................... 40
Command Line Interface (CLI) Tree Structure..........................................................42
ppciboot Factory Default Settings...............................................................................43
Additional Considerations for an Internet Environment ..........................................44
Autobauding Feature ...................................................................................................44
Reinitializing/Powering Off the Unit ..........................................................................44
Appendix A - Technical Specifications ........................................................... 45
Appendix B - POST Test Error Codes ............................................................. 49
Error Code Definitions.................................................................................................49
POST Test Error Code Sample....................................................................................51
Appendix C - Cabling the LX Series ................................................................ 55
Cabling Considerations................................................................................................55
Serial Device Connectors....................................................................................... 55
Diagnostic Port Connector (Port 0) ....................................................................... 55
10/100 Connector.................................................................................................... 56
Ordering Cables ..................................................................................................... 56
Modular Adapters ........................................................................................................56
Pin Assignments .................................................................................................... 57
Ordering and Installing the Inlet Connector Lock .....................................................59
Connecting to the Diagnostic Port (Port 0).................................................................59
Modem Control/Hardware Flow Control ....................................................................60
RJ-45 Wiring Considerations ......................................................................................60
Modular Adapters (RJ-45 to DB-25) ...........................................................................61
MRV Communications 8-Wire Cabling .......................................................................64
6
451-0308
Page 7
Figures

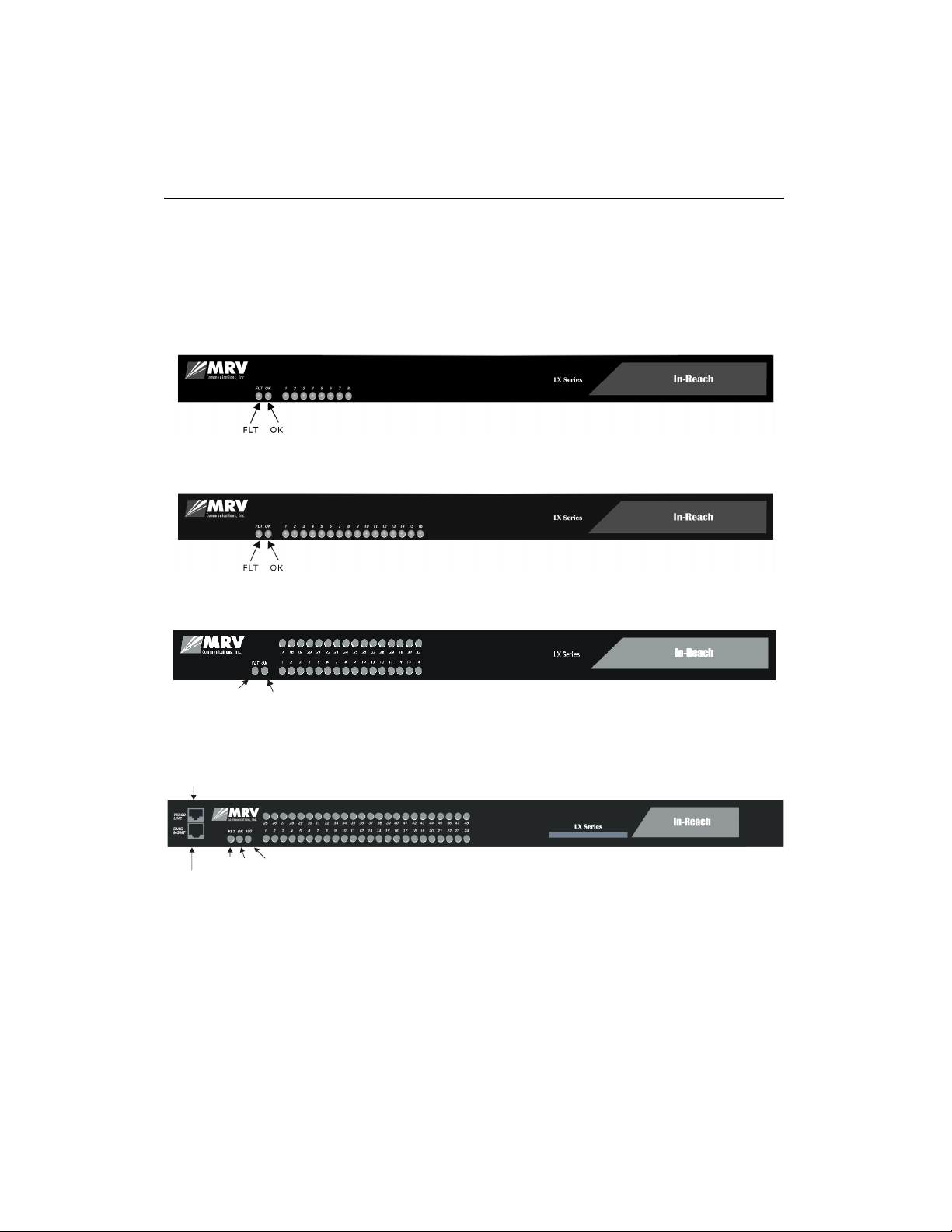

LX Series 4008 Front Panel.............................................................................. 18
LX Series 4016 Front Panel.............................................................................. 18
LX Series 4032 Front Panel.............................................................................. 18
LX Series 4048 Front Panel.............................................................................. 18

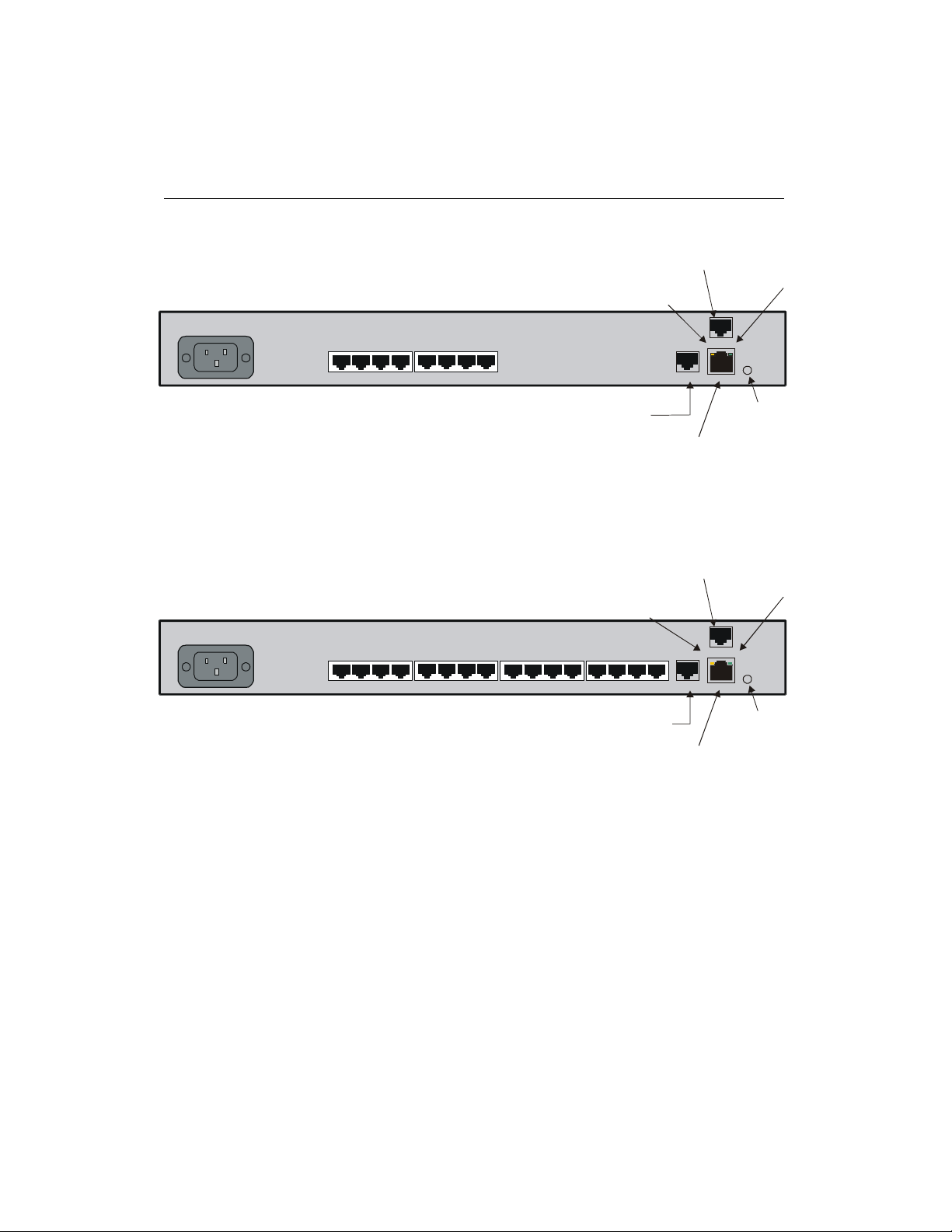

LX Series 4008 Rear Panel ............................................................................... 19
LX Series 4008M with Modem Rear Panel...................................................... 20
LX Series 4016M with Modem Rear Panel...................................................... 20
LX Series 4016 DC Version Rear Panel........................................................... 21
LX Series 4032M with Modem Rear Panel...................................................... 21
LX Series 4032M DC Version Rear Panel ....................................................... 22
LX Series 4048 AC Rear Panel......................................................................... 22

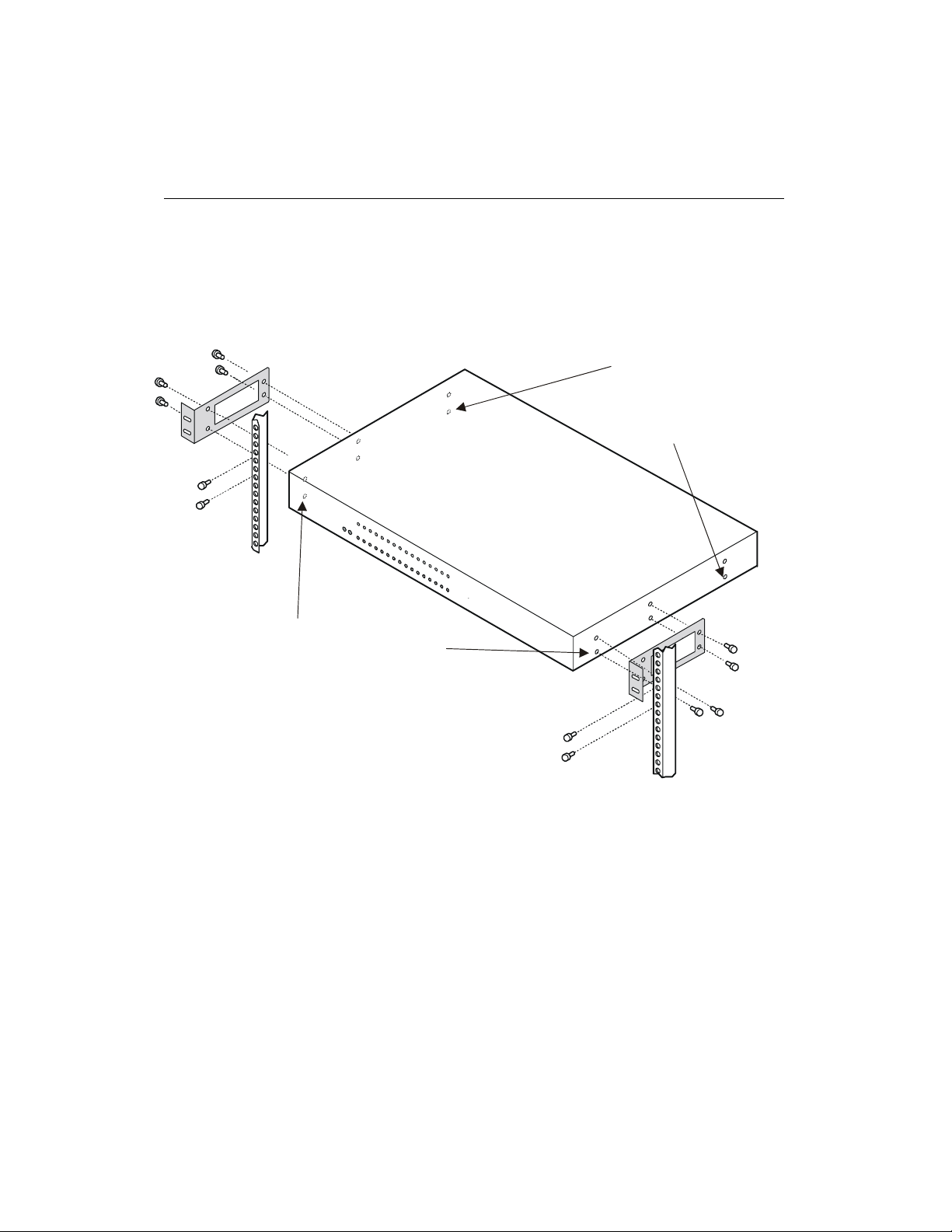

Mounting an LX Series in Rack ....................................................................... 24

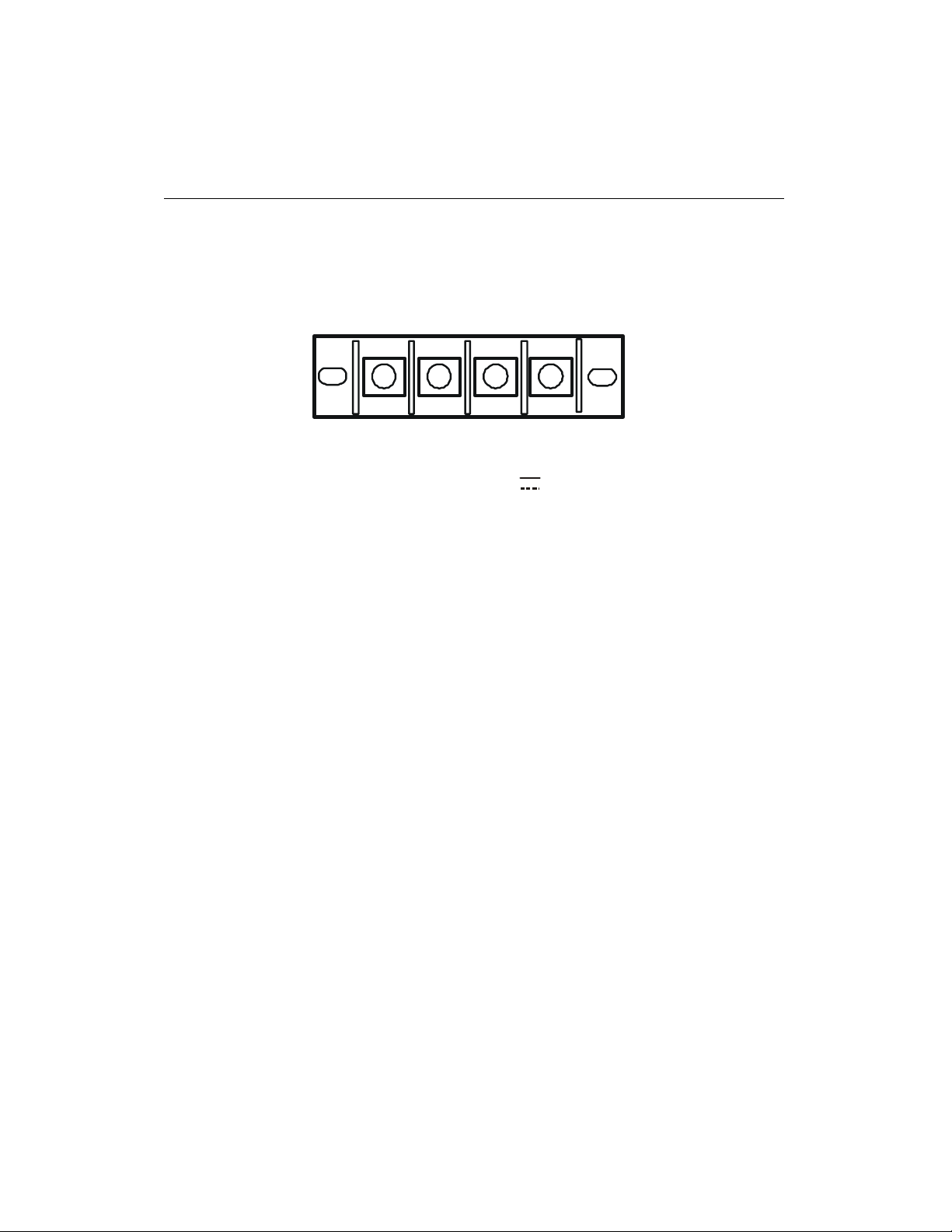

Connecting DC Power ....................................................................................... 26
LX Series RESET Switch Location .................................................................. 29
Connecting the Temperature/Humidity Sensor .............................................. 41
Basic Menu Structure ....................................................................................... 42
POST Test Error Code Sample......................................................................... 53
Serial Device Connector (RJ-45) Signal Assignments .................................... 55
10/100 Connector Assignments ........................................................................ 56

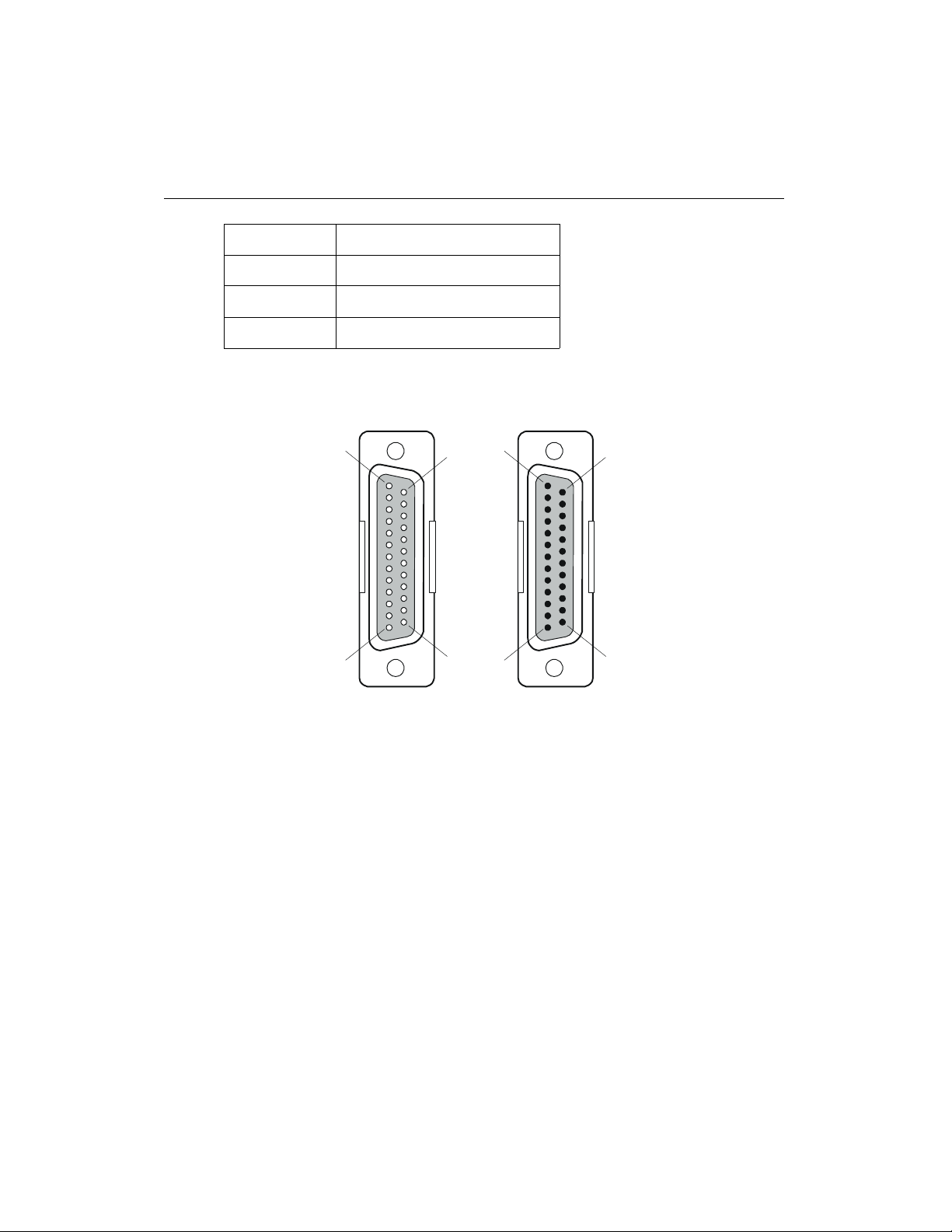

DB-25 Pins......................................................................................................... 58

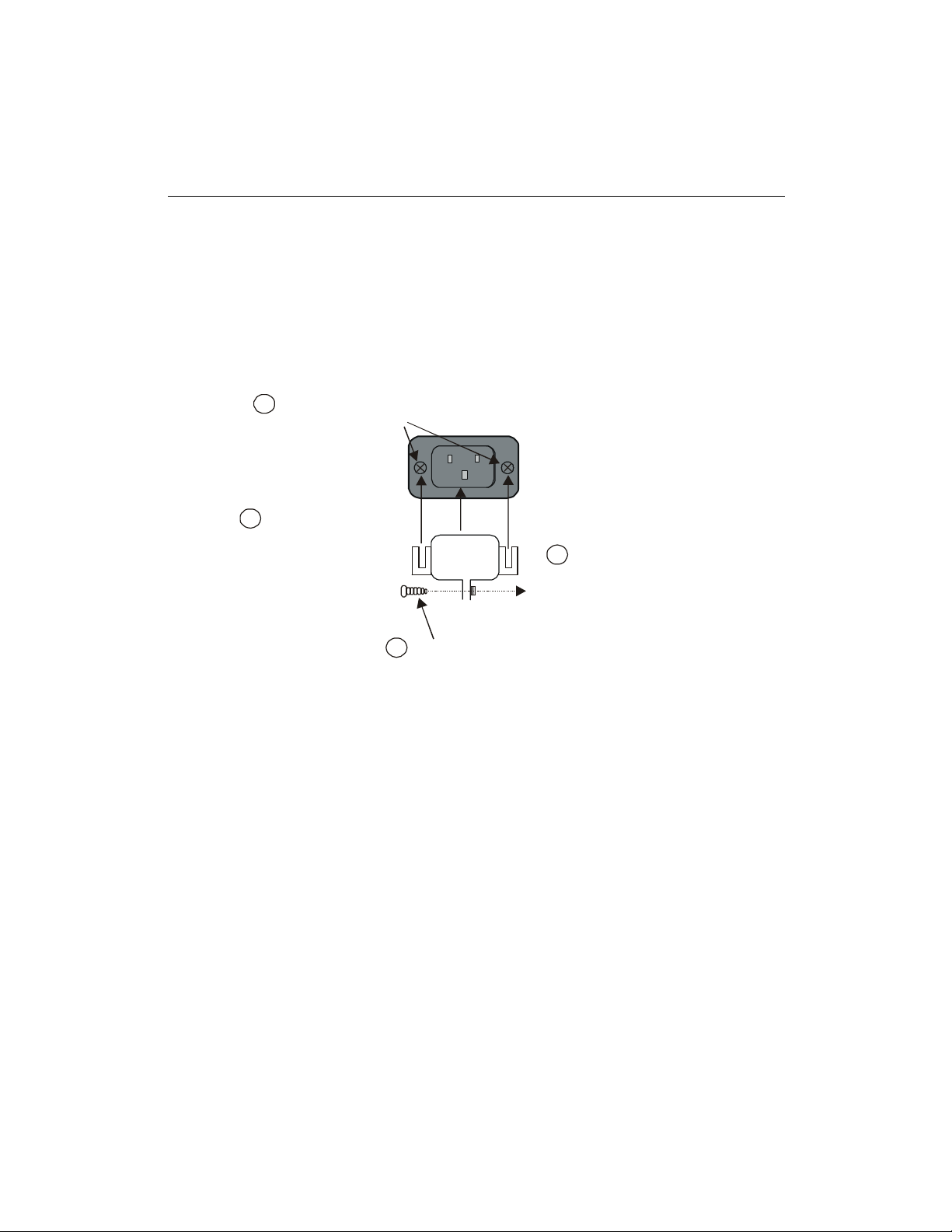

Installing the Inlet Connector Lock ................................................................. 59
Adapter Wiring, LX Series to DTE .................................................................. 61
Adapter Wiring, RJ-45 to DB-9, LX Series to DTE ......................................... 62
Adapter Wiring, LX Series to DCE .................................................................. 63
Modular Cables for RTS/CTS Flow Control (Eight-Wire), Concurrent with Mo-
dem Control Signalling ..................................................................................... 65
451-0308
7
Page 8
8
451-0308
Page 9
Tabl es
LX Series Specifications ....................................................................................45
POST Test Error Codes .................................................................................... 49
451-0308
9
Page 10
10
451-0308
Page 11
Preface
This guide describes how to install the software, describes the hardware
and cabling, as well as how to rack-mount the LX Series.
This guide is organized as follows:
•Preface - Describes the manual’s organization and how to contact
customer support.
• Chapter 1 – Provides an overview of the LX Series, including
supported communication speeds, software requirements, and
conventions.
• Chapter 2 – Describes how to install and connect the LX Series, as
well as the unit’s LEDs and connectors. Also explains how to connect to
the unit, access the Graphical User Interface, install Java Runtime
Environment (JRE), and connect to the LX Series via telnet and SSH.
• Appendix A – Provides the electrical, environmental, and physical
requirements for the LX Series installation.
• Appendix B – Provides the error code definitions for the POST test
error codes.
• Appendix C - Describes how to cable the LX Series unit.
Customer Support
Should you experience trouble with this equipment, please contact your
MRV Americas Service and Support customer representative in the USA
at 978-952-4888. International customers call +011 978-952-4888.
Other Documentation
Other manuals in the LX documentation set are:
• LX-Series Commands Reference Guide - Describes each individual
command in the LX CLI tree.
451-0308
11
Page 12
Preface
• Getting Started with MRV Communications LX Series MIBs - Provides
basic information regarding the Network Management System (NMS),
and procedures on how to use the Management Information Base
(MIB) structure (as pointers to objects in the devices) to manage these
units.
•LX-Series Configuration Guide - Provides information on network
configuration, initial setup, how to set up for remote console functions,
RADIUS, and system administration.
• Software Release Notes - Cites supported features as well as any notes
and restrictions for the current software version.
12
451-0308
Page 13
Chapter 1
Overview of the LX Series
The LX Series is a secure standalone communication server that is
designed for applications requiring secure console or serial port
management. The LX Series provides the most secure and robust feature
set to meet your remote console management and terminal server needs.
The LX Series includes the most comprehensive security features, such as
per port access protection, RADIUS, Secure Shell v2.0, PPP PAP/CHAP,
PPP dial-back, on-board database, menus, and others.
The LX Series console management solution enables centrally located or
remote personnel to connect to the console or craft ports of any network
element or server. This serial connection allows administrators to manage
and configure the remote network devices and servers, as well as perform
software upgrades as if attached locally.
The LX Series also provides various port densities of RS-232 DTE RJ45
Serial ports, as well as V.90/K56 flex Internal Modem options. Currently,
the LX hardware provides port densities of 8, 16, 32, and 48 ports, plus
port 0 for local management.
Conventions
The following conventions are used throughout this guide:
• User prompt – The user prompt is (for example) InReach:0> for
Non-superusers or InReach:0>> for superusers. The prompt will
change based on a login user profile, as configured by the Superuser.
The 0 represents the session number.
451-0308
13
Page 14
Overview of the LX Series
• Configure Mode prompt – A sample configure mode prompt is
Async 1-6:0 >>, where Async is a reminder that tells you which part
of the configuration you are in, 1-6 is the range of ports any operation
will affect, 0 is a session number, and >> indicates superuser mode. To
get to the Async 1-6:0 >> prompt, you must first type port async
1 6 at the Config:0 >> prompt. Note that you do not add a dash
between the range numbers in port async 1 6.
• Command execution – Unless otherwise specified, commands are
executed when you press <RETURN>.
• Keyboard characters (keys) – Keyboard characters are represented
using left and right angle brackets (< and >). For example, the notation
<CTRL> refers to the CTRL key; <A> refers to the letter A; and
<Enter> refers to the RETURN key.
• Typographical conventions – The following typographical
conventions are used:
Monospace Typeface – indicates text that can be displayed or typed
at a terminal (i.e., displays, user input, messages, prompts, etc.).
14
italics – are used to indicate variables in command syntax
descriptions.
• Help Key (?) - At any prompt level, you can press ? to display the
available commands at that level. The only time this is not true is if
you are in the midst of entering a command. If ? is at the end of a
partial command, the LX displays a list of valid arguments to assist
you in adding to the current command line.
• Tab - Press the Tab button to complete a partially entered command.
You must enter the first three characters of a command for
autocomplete to work. If the command is already complete, the Tab
button displays available commands.
• Command Recall - The up arrow recalls previously used commands.
• Ctrl-F – Moves forward to the next session.
451-0308
Page 15
• Ctrl-B – Moves back to the previous session.
• Ctrl-L – Returns you to the Local Command Mode.
NOTE: You must press the Enter key after you type Ctrl-F, Ctrl-B,
or Ctrl-L.
System Specifications
The following table lists important system specifications:
Item Description
Interface DTE RS-232 - RJ-45
Serial Line Speed 134 bps to 230 Kbps
Ethernet Interface 10/100 Auto Sensing
Default Serial Line Speed 9600 bps
Overview of the LX Series
DIAG Port/local management port
(default settings)
All Ports Except Management and
Modem Ports (default settings)
Modem Port (default settings) Autobaud is disabled.
The DIAG port (port 0) is the console
management port.
Autobaud is disabled.
9600/8/1/None.
Quick Start is enabled.
Access is Local.
APD is disabled.
Flow Control is Xon/Xoff.
Autobaud is disabled.
9600/8/1/None.
Access is Remote.
APD is disabled.
Flow Control is Xon/Xoff.
Speed is 57600.
Access is Local.
APD is enabled.
Flow Control is CTS.
451-0308
15
Page 16
Overview of the LX Series
16
451-0308
Page 17
Hardware Installation
This section explains how to install an LX Series Communications server
and place it into operation.
Unpack and Inspect the Unit
Place all packing materials back into the shipping carton and save the
carton. (If you need to return the unit to MRV Communications or your
distributor, you should return it in the original carton.)
Package Contents
The LX unit shipping carton contains the following items:
•One rack mounting kit. MRV provides the following mounting screws:
Eight 6-32 x 5/16” flathead screws for attaching the ears to the unit,
and four 10-32 screws to attach to the rack.
Chapter 2
Installing the LX Series
451-0308
•One power cord appropriate to your particular LX model.
•One 8-wire RJ-45 serial crossover cable.
•One female DB-9 to RJ-45 adapter.
•One software/documentation CD.
17
Page 18
Installing the LX Series
LX Indicators and Interfaces
This section explains the LX unit’s indicators and interfaces.
Front Panel LEDs
This section explains the front panel LEDs (see Figures 1 through 4).

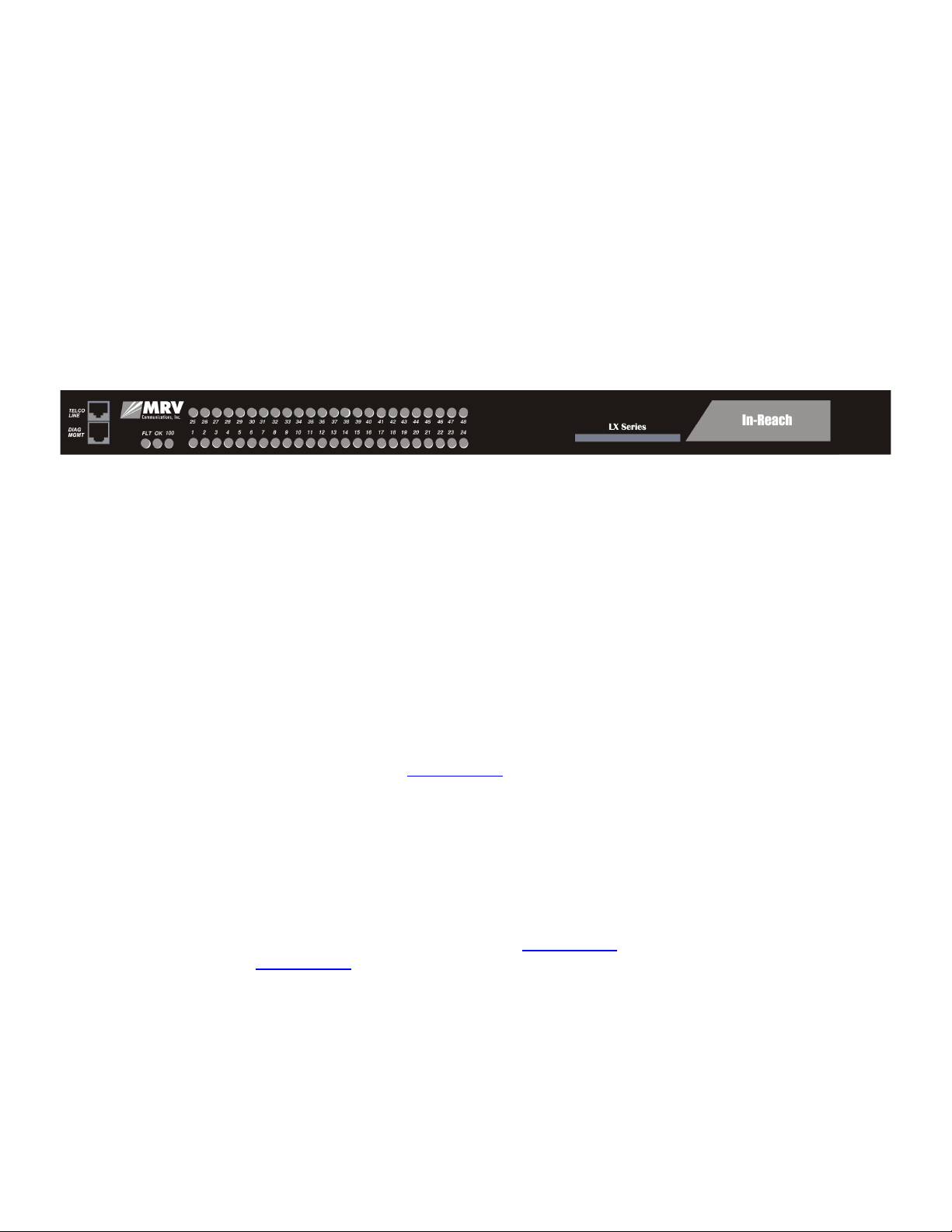

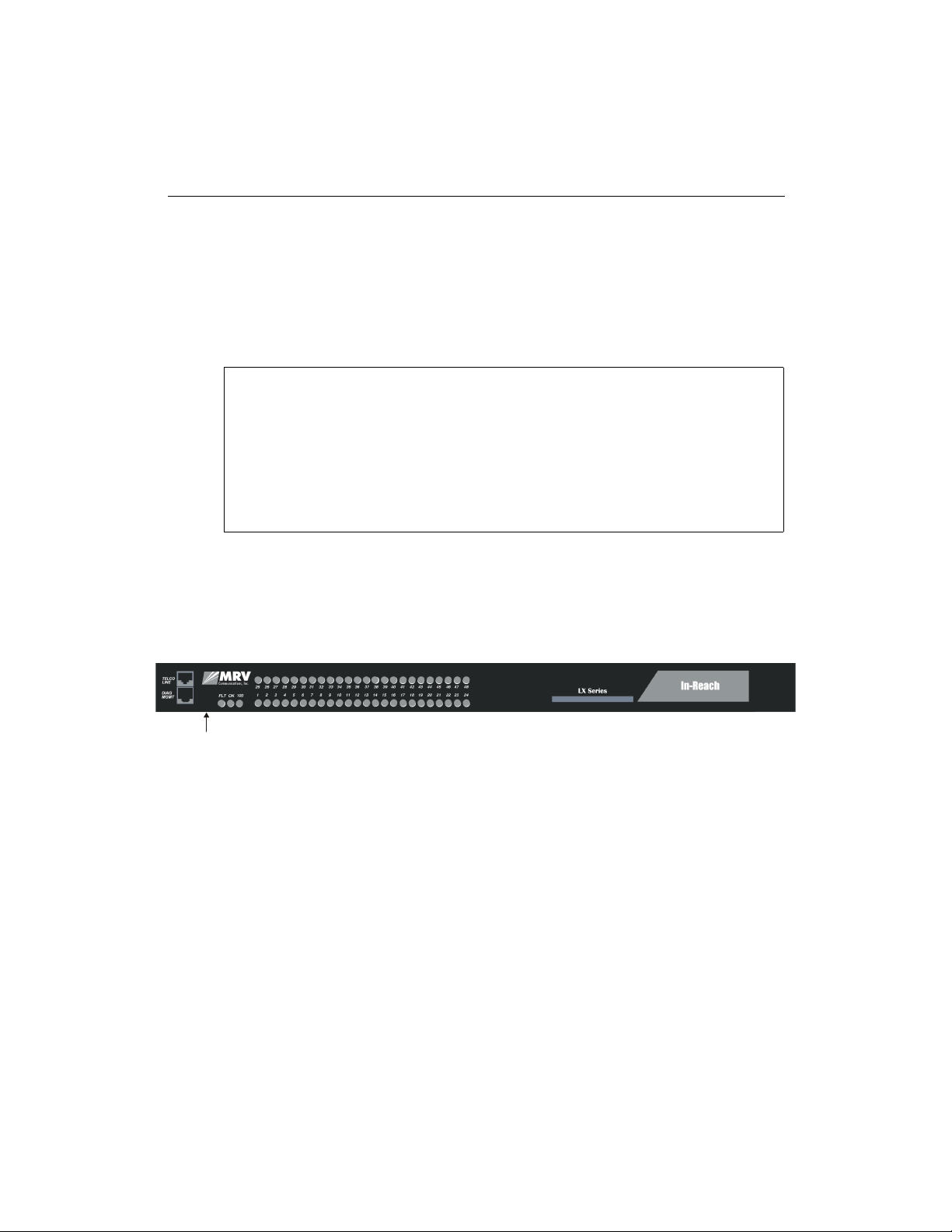

Figure 1 - LX Series 4008 Front Panel
Figure 2 - LX Series 4016 Front Panel
FLT
Modem Port
FLT
DIAG Port (Port 0)
18
100 Mbps LED
OK
OK
Figure 3 - LX Series 4032 Front Panel
Figure 4 - LX Series 4048 Front Panel
451-0308
Page 19
FLT
Solid red indicates a fault condition exists or maintenance is required. This
LED remains on until the initial Power On Self Test (POST) completes
successfully.
OK
Solid green indicates the system’s voltages are normal and the unit has
passed the POST test.
Port Status LEDs
Each of the eight (or 16, or 32, or 48) green LEDs flash when receive,
transmit, or status activity is detected on its corresponding serial port. The
port status LEDs are used in several ways. During the initialization process,
the LEDs indicate self-tests are being performed, and if any self-test fails,
they indicate an error code. After a POST test and a system software boot, the
lights indicate when a port is actively being used.
Rear Panel LEDs

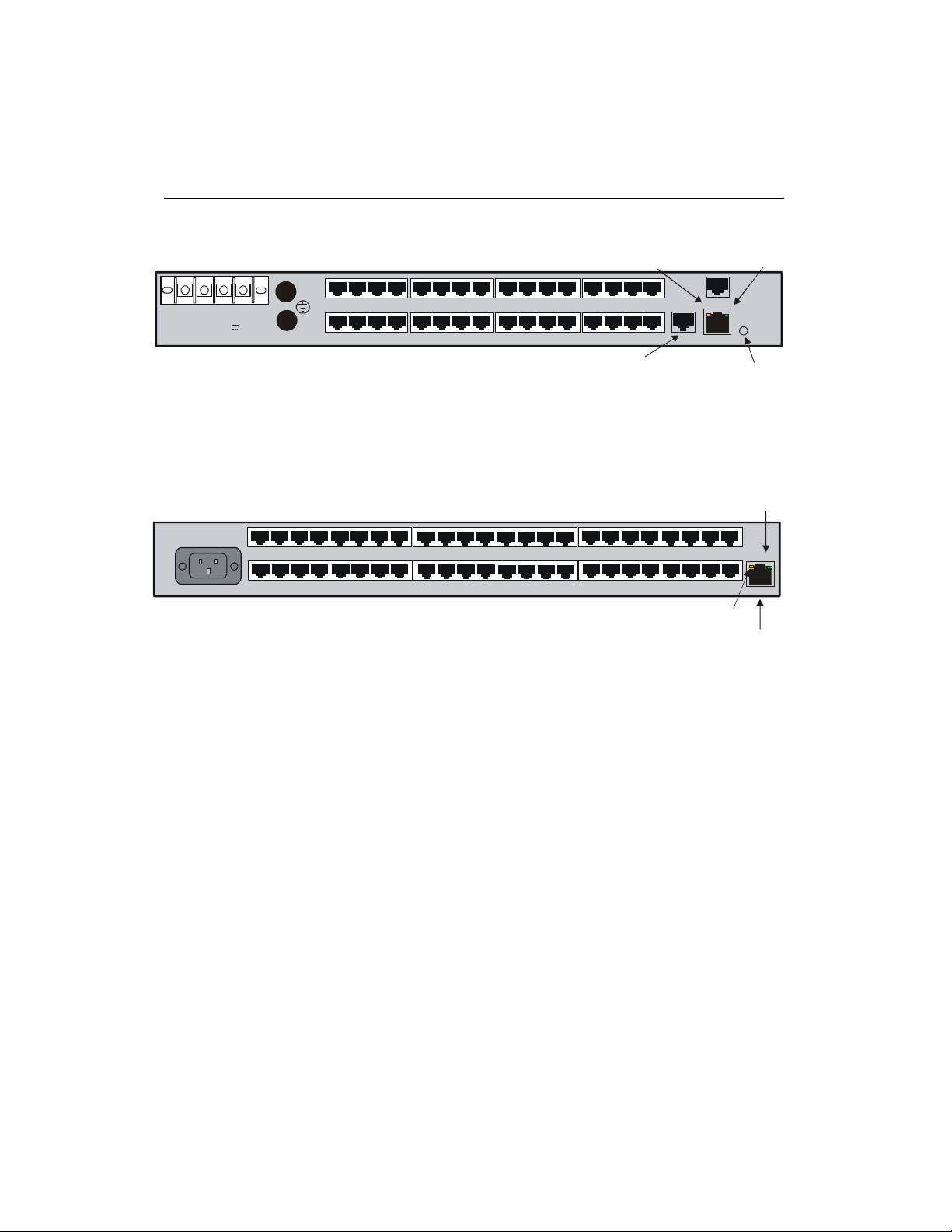

This section explains the rear panel LEDs and shows you a rear view of the
various LX models (see Figures 5 through 11).
Installing the LX Series
100-240VAC
1.0A 50/ 60Hz
451-0308
1234
5678
DIAG Port (Port 0)

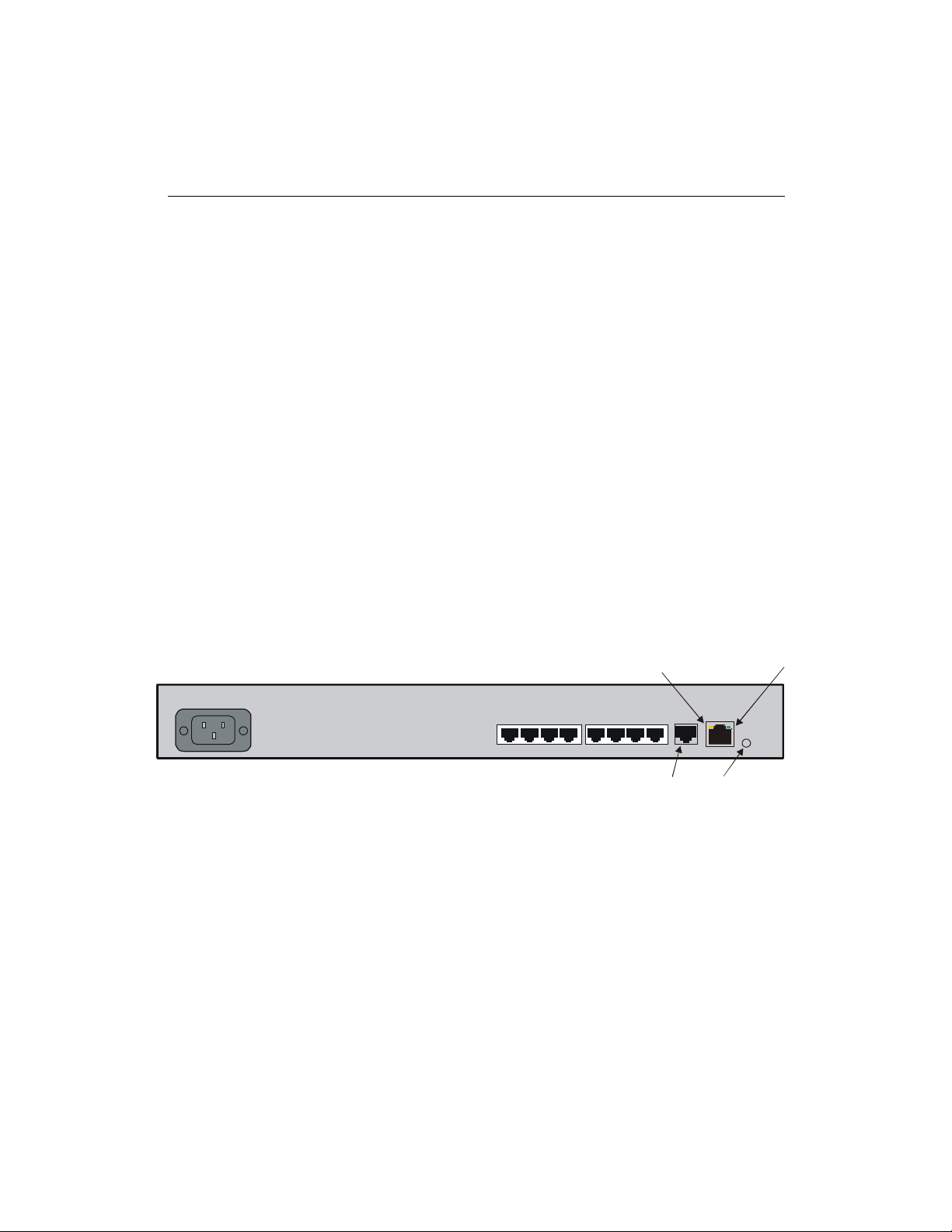

Figure 5 - LX Series 4008 Rear Panel
RCV
10/100
ETHERNET
RCV LINK
DIAG
100 Mbps
LED
LINK
100
19
Page 20
Installing the LX Series
100-240VAC
1.0A 50/ 60Hz
1234 5678
1234 5678
Modem Port
RCV
TELCO
LIN E
RCV LINK
DIAG/MGMT
10/100 ETH
LINK
100
100-240VAC
1.0A 50/ 60Hz
DIAG Port (Port 0)
10/100
Interface
Figure 6 - LX Series 4008M with Modem Rear Panel
Modem Port
RCV
1234 5678
9101112 131415 16
DIAG Port (Port 0)
10/100
Interface
Figure 7 - LX Series 4016M with Modem Rear Panel
DIAG
TELCO
LIN E
RCV LINK
10/100 ETHNT
100
Mbps
LED
LINK
100
100
Mbps
LED
20
451-0308
Page 21
Installing the LX Series
+ -
A
-24/-48/-60 VDC
1.2 MAX
100-240VAC
1.0A 50/60 Hz
+ -
RCV
B
1234 5678
9
10
11 1 2
13
16
14 15
DIAG Port (Port 0)
LINK
10 /100
ETHERN ET
RCV LINK
DIAG
100
100 Mbps
LED

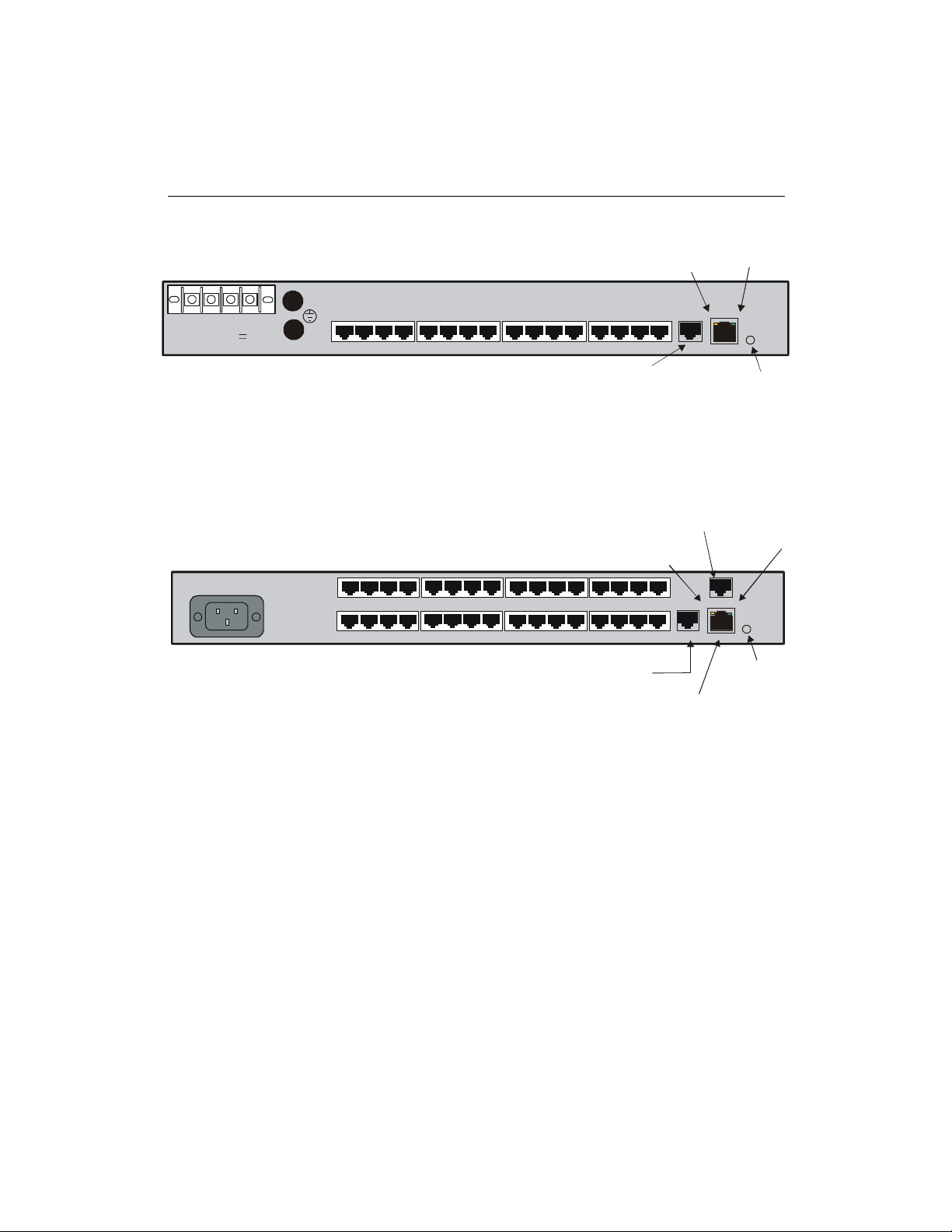

Figure 8 - LX Series 4016 DC Version Rear Panel
Modem Port
LINK
RCV
TELCO
LIN E
17
1234 5678
1234 5678
18 19
20
21 22 23 24
27 28
25 26
9101112 13
9101112 13
30 31
29
14 15
14 15
DIAG Port (Port 0)
DIAG
RCV LINK
10/100 ETHNT
32
16
16
10/100
Interface
100
100
Mbps
LED
451-0308
Figure 9 - LX Series 4032M with Modem Rear Panel
21
Page 22
Installing the LX Series
+ -
A
-24/-48/-60 VDC
1.2 MAX
100-240VAC
1.0A 50/ 60Hz
+ -
B
25 26 27 28 29
RCV
17 18 19 20 21 22
1234 5678
23
24
25 26
9
27
11 1 2
10
30 31
29
28
13
14 15
32
DIAG
16
DIAG Port (Port 0)
Figure 10 - LX Series 4032M DC Version Rear Panel
30 31
Figure 11 - LX Series 4048 AC Rear Panel
34
32
33
35 36 37 38
91011121314151612345678
39
42
40
41
43 44 45
17 18 19 20 21 22 23 24
LINK
TELCO
LIN E
RCV LINK
100
10 /100 ETH NT
100 Mbps
LED
LINK
46 47 48
RCV LINK
10/100 ETH
RCV
10/100
Interface
22
RCV
The RCV LED is one of two integral LEDs on the 10/100 jack. This yellow
LED flashes to indicate receive activity on the link.
LINK
This green LED defaults to a link good indicator. If the link is present and
operating, the LED comes ON.
100 Mbps
This green LED indicates speed. If the link is 100 Mbps, the LED comes ON.
On LX-4048 units, this LED is on the front of the unit.
451-0308
Page 23
Installing the LX Series
Environmental and Installation Considerations
•Unit must be installed in an environment with 20% to 80% humidity,
noncondensing, 0° - 40° C (32°-113° F).
•Do not choose a location where the unit will be exposed to direct
sunlight or subjected to vibration.
•Do not place an object on the side(s) of the unit that might block airflow
through the unit.
•The unit may be front, rear, or center mounted.
•There is no mounting difference between the 19” and 23” rack mount ears.
451-0308
23
Page 24
Installing the LX Series
Mounting the Unit into a 19-inch or 23-inch Rack
Attach the brackets to the unit, and then mount the unit in the rack. Refer
to Figure 12 for further information.
If you reverse-mount
the unit, remove the rear
and center top and bottom
screws, and insert the
supplied screws through
the rack-mount ears.
The three bottom side screws hold
the cover on the unit. To front-mount
the unit, you must
and center top and bottom screws before
attaching the rack-mount brackets.
Then insert the supplied screws through
the brackets and into the same holes.
24
remove the front
Figure 12 - Mounting an LX Series in Rack
451-0308
Page 25
Cable Connections
This section explains the cable connections for the LX unit.
Connect the Power Cable
Connect the supplied power cable to the rear of the LX unit and plug the
other end into a 3-prong wall outlet.
Connecting the Ethernet Interface
NOTE: This port is set to auto negotiation by default. You can manually
configure the port speed and duplex if you want. Refer to the LX-
Series Commands Reference Guide for further details.
Connect a cable (category 3 for 10 Mbps operation, category 5 for 10/100
Mbps operation) to the 10/100 connector on the rear of the LX Series (see
Figure 5) and the other end to your network. The LINK LED comes on
steady green if the cable is properly connected.
Connect Serial Device Cables
Connect the serial device cables to the 8-pin RJ-45 jacks on the rear of the
unit.
Installing the LX Series
NOTE: LX Series serial ports provide concurrent support for RTS/CTS
flow control and modem control. Refer to Appendix A and Appendix
C for further information.
Connecting Your Management Station
Connect the management station to the DIAG port (port 0) using the
connector and cable you received with the LX unit. Refer to “Connecting to the
Diagnostic Port (Port 0)” in Appendix C for more information on DIAG port
connections.
451-0308
25
Page 26
Installing the LX Series
Connecting DC Power
This section describes how to connect power to the DC version of the LX
Series 4008, 4016, and 4032. The LX-4048 model is made in an AC version
only.
+ -
A
+ -
B
-24/-48/-60 VDC
1.2 MAX
Figure 13 - Connecting DC Power
After you have installed the LX unit, you can connect the DC power as
described in the following procedure (refer to Figure 13):
1. Connect the LX to the facility's bonding network, using the points on
the rear panel of the LX. The connection to the facility's bonding
network should be made per local practices, using wire with a
minimum conductor size of 18 AWG.
2. Using a ¼-inch nut driver, remove the terminal block nuts.
3. Attach the facility’s “A” feed to the terminal block labeled “A”.
NOTE: Be sure that the -48VDC is connected to the minus side, and the
48VDC return is connected to the plus side.
4. Attach the facility’s “B” feed to the terminal block labeled “B”.
5. Replace the nuts and tighten them securely.
26
The DC leads should be 22 AWG or larger. They should be terminated
with a #5 ring terminal or larger depending on the wire size used.
451-0308
Page 27
NOTE: The LX will run with only one DC power feed connected. The
second input is provided for redundant system power, which is
used in high reliability installations.
6. Attach the clear plastic safety guard to the terminal blocks. (The clear
plastic safety guard is provided with the LX kit.)
Modem Port (Optional)
The modem port is a V.90/K56flex Kbps optional factory installed modem on
the LX Series. The modem port allows you to dial in to or out of the LX. If the
modem is present, connect your phone line to the modem’s RJ11 connector. If
the modem is not installed, the RJ11 connector will not be present on the rear
of the unit. In LX-4048M models, the modem port is on the front of the unit.
The Modem port number is as follows for LX models:
•LX-4008M - port number 9
•LX-4016M - port number 17
•LX-4032M - port number 33
Installing the LX Series
•LX-4048M - port number 49
At the InReach:0>> prompt, enter the show port async 33 modem
command to display a screen containing the LX-4032M modem port fields.
Powering On
The Power On Self Test (POST) starts when you apply power to the LX Series
unit. The port status LEDs flicker and the FLT LED remains on while the test
is running (this may take only a few seconds). If the unit passes the POST
test, the FLT LED extinguishes, and the OK LED turns green. If there is a
failure, the FLT LED stays on, and the port status LEDs begin flashing an
error code. Refer to Appendix B for an explanation of the codes.
451-0308
27
Page 28
Installing the LX Series
When the POST test is completed, the Main menu appears. The system loads
the IROS operating system from flash and then loads the system
configuration file. The Main menu reappears. If you are booting from defaults,
the Quick Configuration menu appears. Refer to the “System Maintenance”
chapter in the LX-Series Configuration Guide for further information on the
Main menu. Refer to “First Time Quick Configuration” on page 30 for further
details on the Quick Configuration menu.
Once the unit finishes loading the operating system, you can access the unit.
At your management station, access the unit with any terminal emulation
software. The terminal settings are 9600 baud, eight data bits, no parity, one
stop bit, Xon/Xoff flow control, and terminal type ANSI. The Login: screen
appears.
System Login and Passwords
The following username and passwords are the defaults the first time you use
the LX Series.
•The default login username is InReach (be sure to use a capital I and R).
The default login password is access.
28
•To enter the superuser mode at the InReach> prompt, enter enable.
The default password is system.
451-0308
Page 29
These passwords prevent persons who do not know them from accessing the
server. Change the default passwords to other values as part of your basic
server setup. You can use any character or number in a password. However,
backspace, tab, and escape are not supported. Refer to the “Password Enable”
section in the Subscriber chapter of the LX-Series Commands Reference Guide
for information on changing passwords.
If you change the default password for the superuser, make sure that the
new password is written down in a safe location. If you forget the password,
the server will need to be reset to factory default settings. See “ppciboot
Factory Default Settings” on page 43.
Resetting the Unit
To reset the LX Series, use a paper clip to momentarily press the reset
button, which is behind the small hole labeled R on the front panel. Refer
to Figure 14 for the exact location.
Installing the LX Series
IMPORTANT
Reset Switch
451-0308
Figure 14 - LX Series RESET Switch Location
When the LX Series enters the RESET state, all front panel LEDs
illuminate. When you release the reset button, the unit begins to execute
the Power On Self Test (POST).
If the LX Series detects an error, the front panel LEDs illuminate to show
an error code. This error sequence is repeated continually until the error is
corrected or you power off the unit. During this time, no data is exchanged
over the Ethernet cable or serial ports.
29
Page 30
Installing the LX Series
If the LX Series does not detect an error, the unit begins loading software
from the internal flash. Once loaded, the LX Series resumes normal
operations.
Configuring the LX Unit for the First Time
You can choose from four options to configure the unit for the first time:
• First Time Configuration Utility - The first time an LX unit boots
up at default parameters, you are presented with the option to run the
Initial Connectivity setup. Enter y and press <Enter>. Refer to “First
Time Quick Configuration” on page 30 for further details.
• Assign the IP Address via the Network - Refer to “Assigning an IP
Address via the Network” on page 33 for further details. Use this
option if your network is using DHCP, BOOTP, or RARP.
• Creating and Loading a Default Configuration File - Refer to
“Applying Default Configurations to Other Units” in the LX-Series
Configuration Guide.
• Configuring the LX Manually via the CLI - Refer to “Upgrading
Software with the ppciboot Main Menu” in the LX-Series Configuration
Guide.
First Time Quick Configuration
NOTE: The first time quick configuration runs only on the DIAG port (port 0)
on all models when booting from default parameters. The DIAG port
(port 0) of the LX-4008, LX-4016, and LX-4032 is on the rear of the
unit. The LX-4048 DIAG port (port 0) is on the front of the unit.
NOTE: Display problems may occur during bootup when you attach a
VT420 terminal to the DIAG port (port 0) and the VT420 display
setup is configured to Smooth-2 Scroll. To avoid this, change
the VT420 scroll setting to Jump Scroll.
30
451-0308
Page 31
Installing the LX Series
Use the following procedure to configure your LX unit for the first time.
1. Plug in the terminal at the DIAG port (port 0 - port values are 9600
bps, eight data bits, one stop bit, no parity, and Xon/Xoff flow control).
The Main Menu appears.
2. Press b to boot the LX unit. The setup takes a minute or two. The The
unit has loaded to factory defaults, would you like to
run Initial Connectivity Setup? y/n message appears.
3. Press y (yes) and press <Enter>. The Superuser Password prompt
appears.
4. Enter password system. The Quick Configuration menu appears:
Quick Configuration menu
1 Unit IP address
2 Subnet mask
3 Default Gateway
4 Domain Name Server
5 Domain Name Suffix
451-0308
6 Superuser Password
7 Exit and Save
Enter your choice:
5. Press the number corresponding to the parameter you want to set.
6. Enter the appropriate information and press <Enter> to return to the
Quick Configuration menu. Once you enter a parameter value, a data
entry line specific to that parameter appears on the Quick Configuration
menu.
7. Continue in this way through the menu, configuring as many parameters
as you want. You are not required to configure all parameters.
31
Page 32
Installing the LX Series
NOTE: You should change the Superuser Password, since this is the first
time you are configuring the LX unit (the default password is
system).
8. Press 7 (Exit and Save) to save your changes. The Is this
information correct? message appears.
CONFIGURATION SUMMARY
1 Unit IP address 10.80.1.5
2 Subnet mask 255.0.0.0
3 Default Gateway
4 Domain Name Server
5 Domain Name Suffix
6 Superuser Password Not Changed
7 Exit and Save
Is this information correct? (y/n) :
9. Press y (yes) and press <Enter>. The Save this information to
flash? message appears.
32
10. Press y (yes) and press <Enter>. The information is saved to flash.
11. Press <Enter> several times to display the Login: prompt.
12. Enter your login name. The default is InReach.
13. Enter your password. The default is access. You can now use the LX
unit.
NOTE: The login username and password are case-sensitive.
Completing the First Time Configuration
Once configured, the system stores the configuration in a file called
Config.prm by default. From here you can continue configuring the unit
via the CLI, Telnet, SSH, or by using the web browser.
451-0308
Page 33
•To use the CLI, refer to Figure16 for the CLI tree structure and to the
LX-Series Commands Reference Guide for information on specific
commands.
•To use Telnet, refer to “Connecting to the LX Series via Telnet or SSH”
on page 39.
•To use the web browser, refer to “Accessing and Configuring the
Graphical User Interface (GUI)” on page 33.
Assigning an IP Address via the Network
The LX is an intelligent unit; if you are running DHCP, BOOTP, or RARP the
LX obtains its own IP information automatically while it boots.
Once the unit has been assigned an IP address from your network, you can
configure the unit.
•To use the CLI, refer to Figure16 for the CLI tree structure and to the
LX-Series Commands Reference Guide for information on specific
commands.
Installing the LX Series
•To use Telnet, refer to “Connecting to the LX Series via Telnet or SSH” on
page 39.
•To use the web browser, refer to “Accessing and Configuring the
Graphical User Interface (GUI)” on page 33.
Accessing and Configuring the Graphical User Interface
(GUI)
This section describes how to access and configure the LX GUI. To perform
this procedure, you need a PC with Java Runtime Environment (JRE) 1.4 or
later installed.
NOTE: For optimum GUI performance, MRV Communications recommends
that your PC run at 500 Mhz or better. The minimum requirement for
desktop color settings is 256.
To access the GUI, do the following:
451-0308
33
Page 34
Installing the LX Series

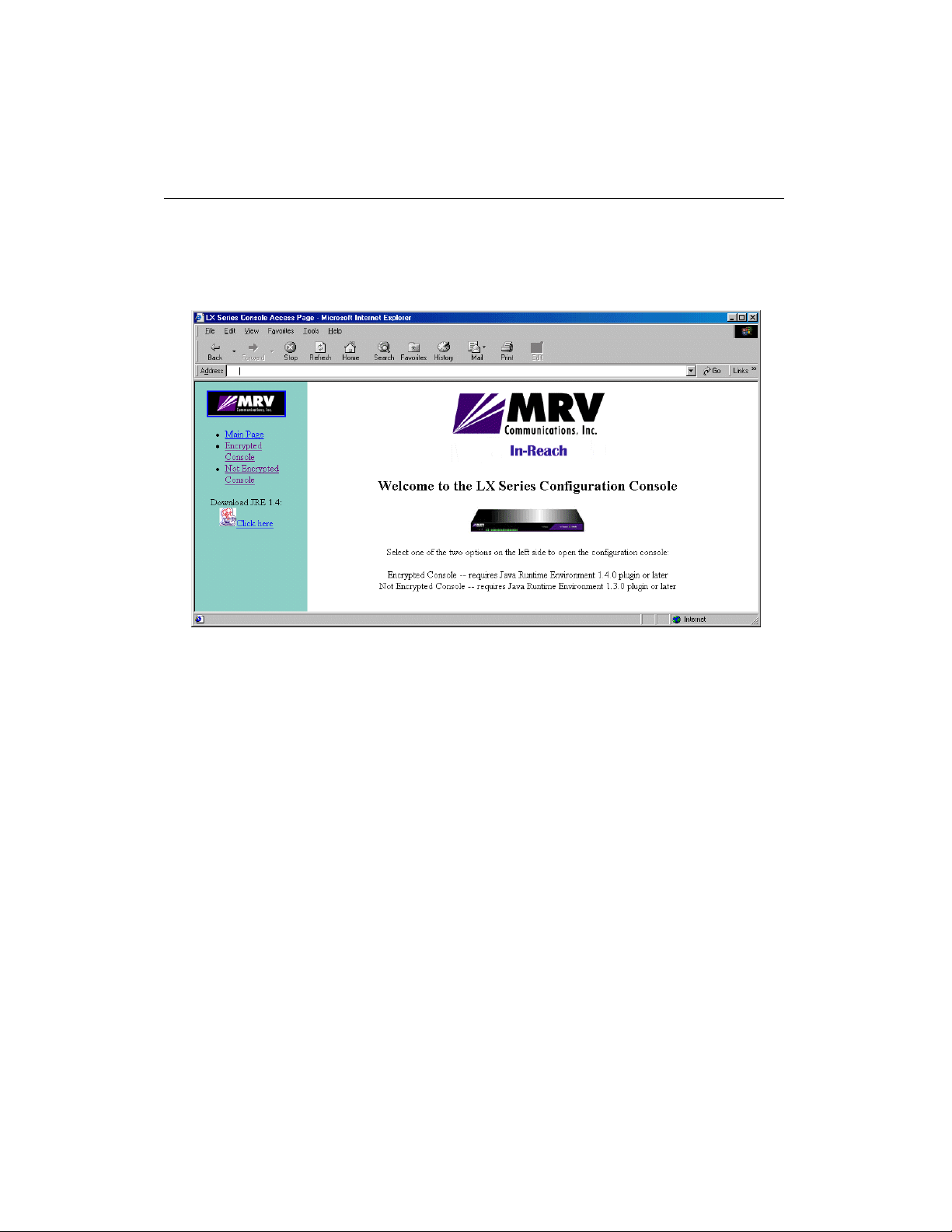

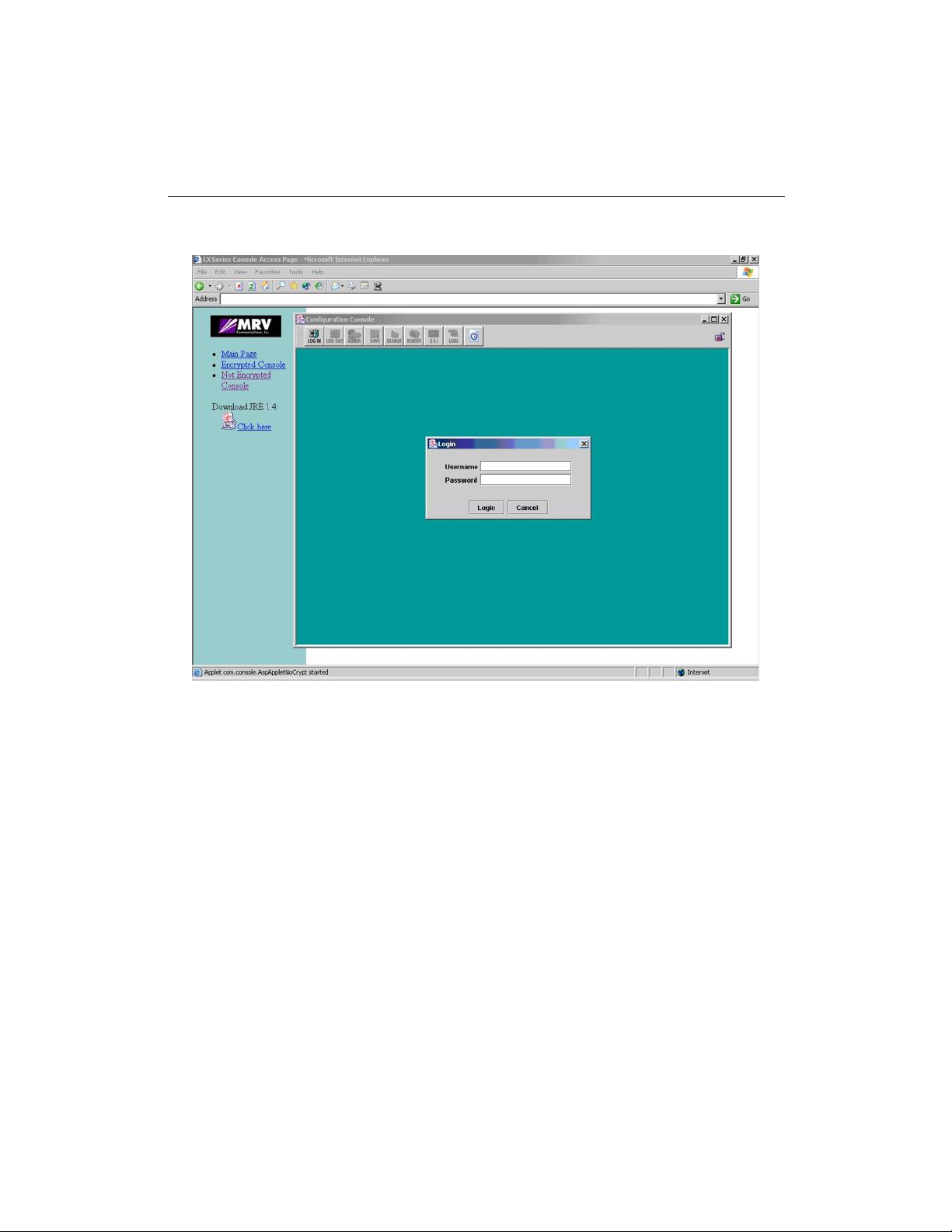

1. At your browser, type the IP address or hostname of your LX unit. The
LX Series Configuration Console page appears.
34
NOTE: Make sure that your PC has access to the World Wide Web. You may
need to download the latest release of the Java plug in to your PC.
This download is performed automatically if the GUI sees that the
plugin version is out of date, or not available at all. If for some
reason your PC does not download the Java plug-in automatically,
click on the Download JRE 1.4: link and install the software
manually from the http://java.sun.com web site.
451-0308
Page 35
Installing the LX Series

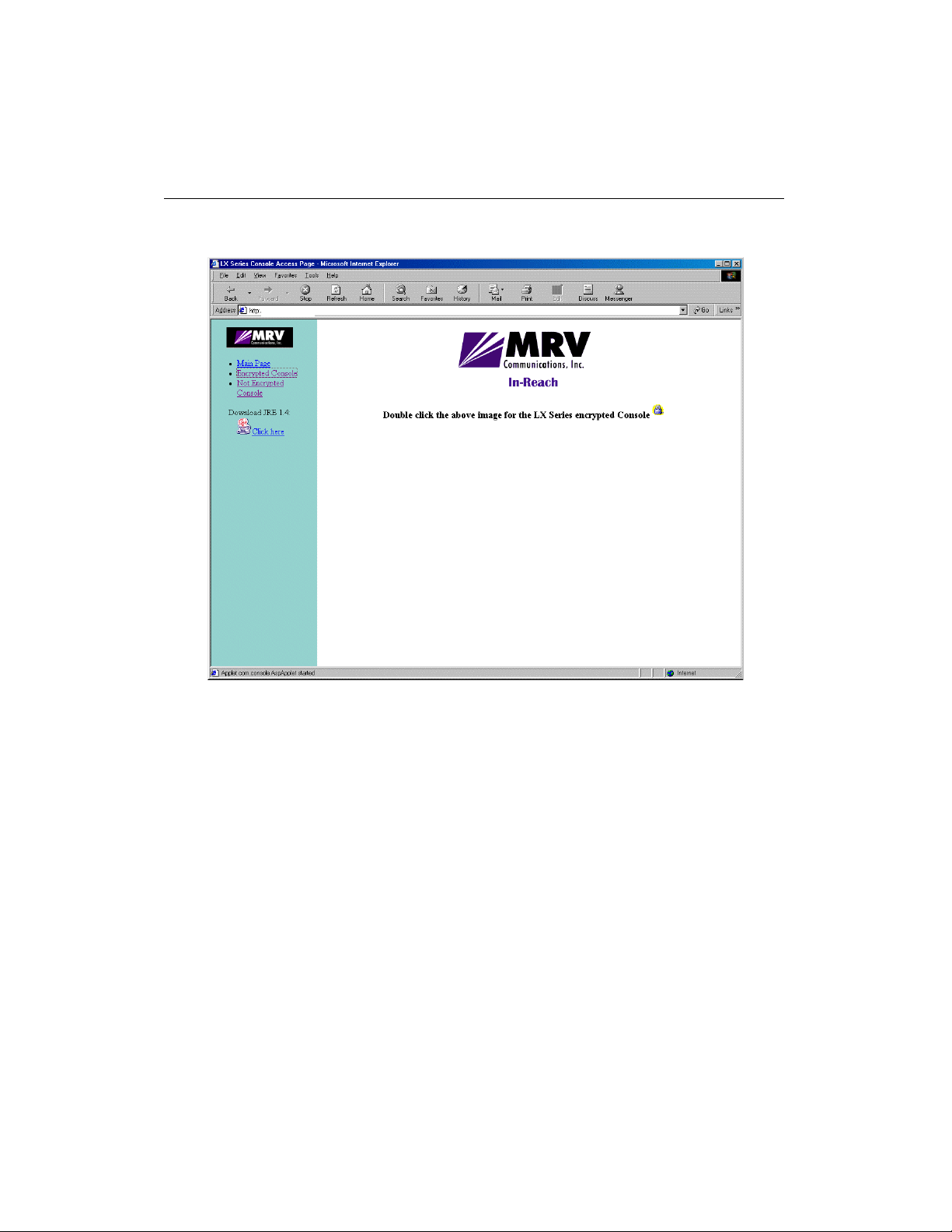

2. When you select Encrypted Console or Not Encrypted Console at the
LX Series Configuration Console page, and the system detects that you

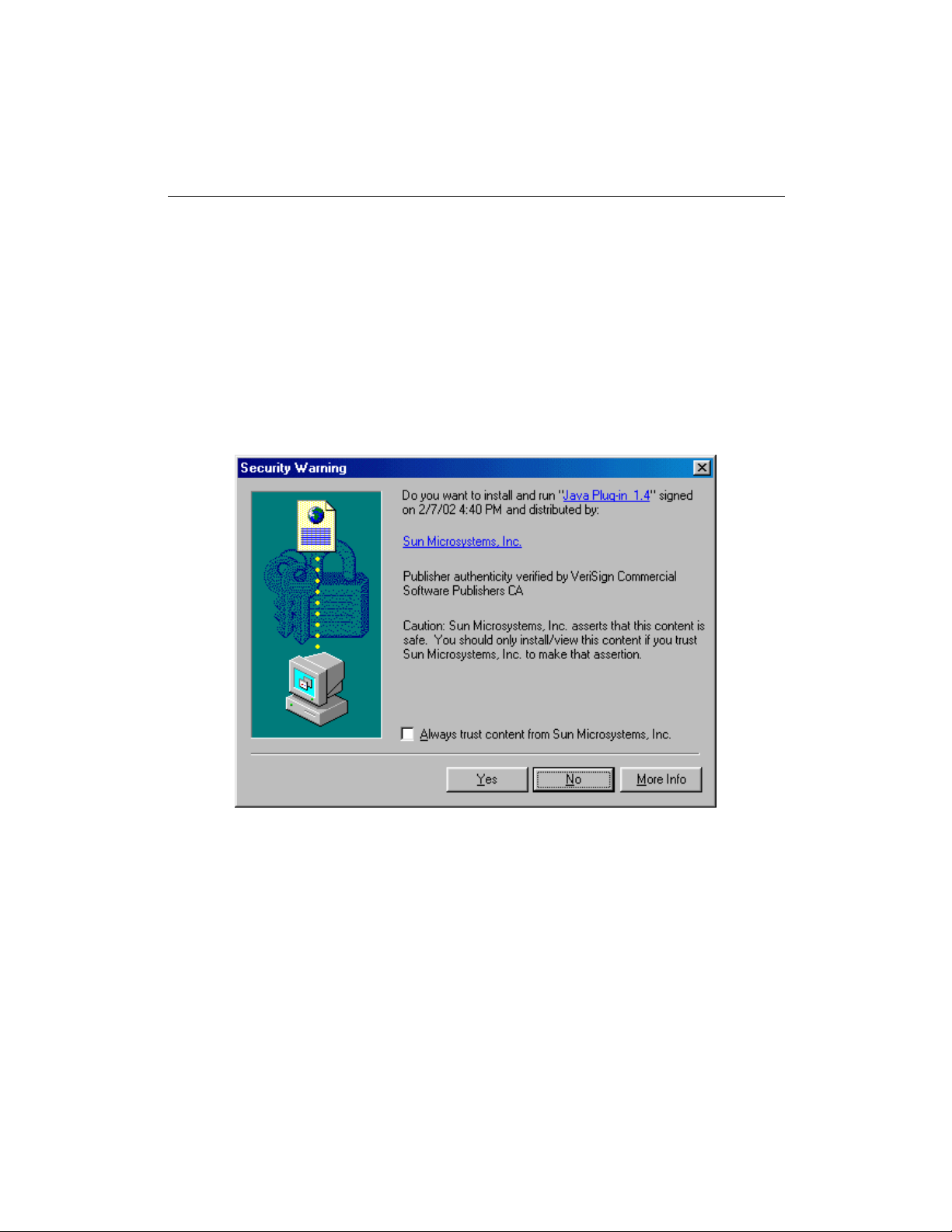

do not have the proper version of JRE installed, a Security Warning
window appears, asking if you want to install and run JRE plug-in
version 1.4 or later. Choosing Encrypted Console means the GUI will
run slower, but with security. Encrypted Console also requires Java
Runtime Environment 1.4 or later. Choosing Not Encrypted Console
means the GUI will run faster, but without security. Not Encrypted
Console requires Java Runtime Environment 1.3 or later.
451-0308
3. Click Yes. The plugin is downloaded and then the installation begins. A
Java Runtime Environment window appears after about two minutes.
NOTE: It may take longer for your PC to download JRE 1.4 (about 10 MB)
depending on the speed of your connection.
4. Follow the defaults to the end of the install. The LX Series Configuration
Console page reappears, now with the MRV icon visible.
35
Page 36
Installing the LX Series
36
NOTE: The java cache in JRE 1.4 is set ON by default. There is a known
problem within JRE 1.4 regarding cache functionality, which requires
you to disable the cache. On your Windows machine, select Start:
Programs: Settings: Control Panel, open the Java Plug-in 1.4.0 icon,
and click the Cache tab. At the Cache window, click the Clear Cache
button and uncheck the Enable Caching checkbox. Click OK.
5. Double-click on the larger MRV icon to open the GUI. A login window
appears.
451-0308
Page 37
Installing the LX Series
451-0308
6. Enter your Username and Password, and click Login.
NOTE: By default, authentication is done against the LX local user database.
To start, use the known username InReach and password access.
7. Click the Admin button on the tool bar and log in with the default
Superuser password system. You can now configure the unit via the GUI.

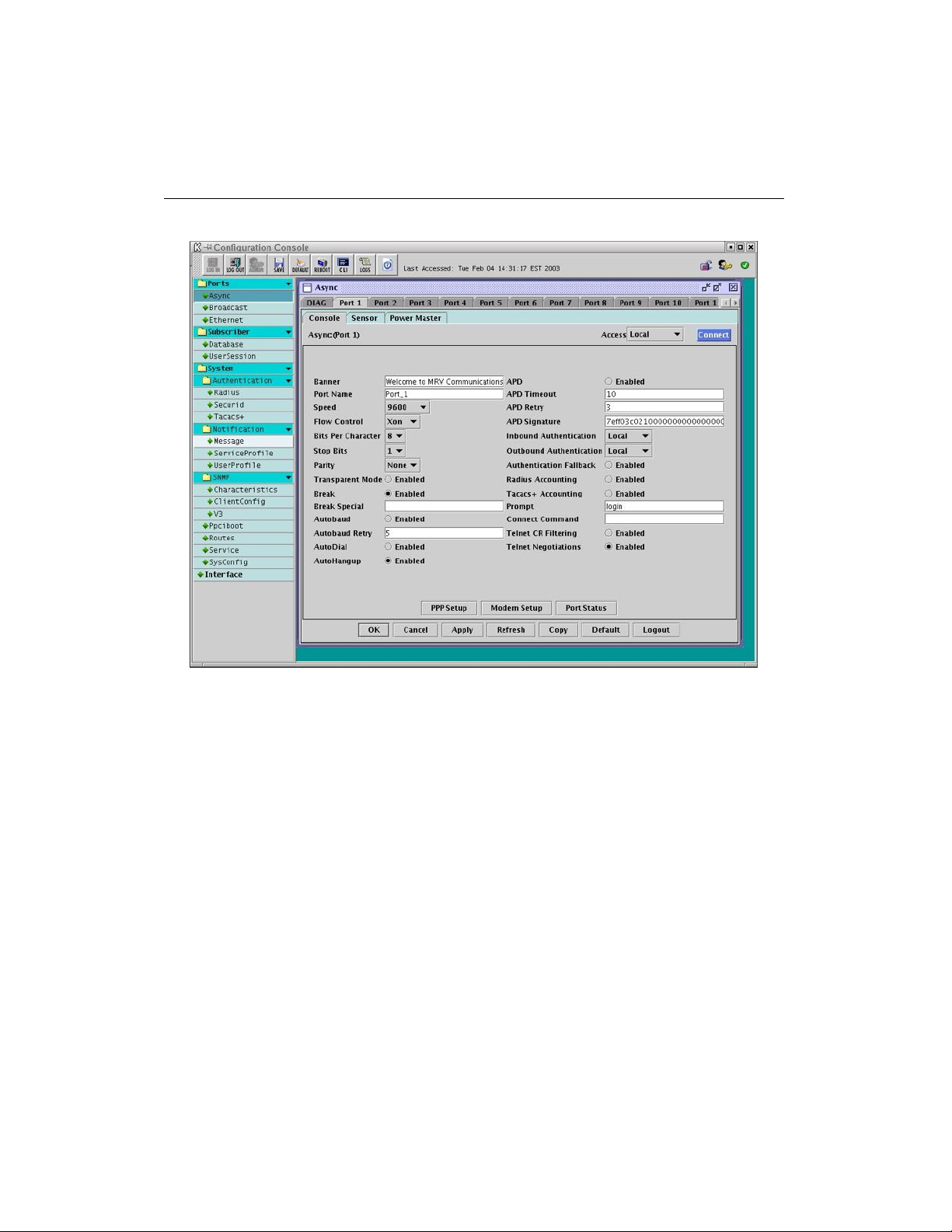

8. Click on the menus on the left side of the window. For example, selecting
Ports: Async opens the Async ports window:
37
Page 38
Installing the LX Series
Software Upgrades
To upgrade software using the ppciboot menu, refer to “Upgrading
Software with the ppciboot Main Menu” in the LX-Series Configuration
Guide. To upgrade software using the CLI, refer to “Upgrading Software
and ppciboot with the Command Line Interface” in the same manual.
IP Configuration Menu
For details on using the IP Configuration Menu, refer to “Using the IP
Configuration Menu” in the LX-Series Configuration Guide.
Booting from Defaults
For information on how to boot your unit from defaults, refer to “Booting
from Defaults” in the LX-Series Configuration Guide.
38
451-0308
Page 39
Installing the LX Series
Accessing and Configuring Additional Features
The following sections describe additional LX features you can access and
configure.
Connecting to the LX Series via Telnet or SSH
Telnet Directly in t o t h e Communication S e r v e r
NOTE: The default telnet port is 23. The default SSH port is 22.
1. Telnet to the unit from your machine.
2. Enter your subscriber login name, then your password.
3. If you entered the password correctly, the user> prompt is displayed.
Connecting to a Serial Port
NOTE: For example, devices connected to serial ports 1-32 on the LX-4032
are assigned telnet port numbers 2100-5200 by default. The
corresponding SSH port numbers are 2122-5222.
You can gain telnet/ssh access to a serial device by using the LX IP address
and default port number of that serial port.
451-0308
Changing the Telnet Port
To change the interface telnet port number, use the following commands:
InReach> enable
Password> system
InReach>> config
Config:0>> interface 1
Intf 1-1:0>> telnet port #
NOTE: If you change the port number, be sure not to use a socket number
assigned to another application or daemon.
39
Page 40
Installing the LX Series
Accessing from a Terminal Attached to an LX Series Serial Port
Use the following procedure to access the command line interface port from
a dumb terminal attached to an LX Series serial port, which is set for
access local, or dynamic:
1. Hit the return key several times to autobaud (if autobaud is enabled)
the port and get the Login: prompt.
2. Enter your login name. The default is InReach.
3. Enter your password. The default is access.
Additional Considerations
Other considerations include the following:
•Setting up users
•Authentication/Security
•Configuring modem settings
For further information on these issues, refer to the LX-Series Commands
Reference Guide, and to the Support area of the MRV website at
www.mrv.com.
Sensor (Temperature/Humidity) Ports
You can configure ports to act as temperature and humidity monitors when
connected to an In-Reach Temperature/Humidity Sensor. The Temperature/
Humidity Sensor provides an accurate measurement of the temperature/
humidity in the area in which your LX Series unit is placed.
The following section explains how to connect and install the sensor.
Connecting the Temperature/Humidity Sensor
A 10’ Male RJ-45 to Male RJ-45 straight-through cable (P/N MX-151-3027)
connects the temperature/humidity sensor to an LX async port. The LX
unit can be configured to support the sensor on any async port other than
the DIAG port (port 0).
40
451-0308
Page 41
Installing the LX Series
To connect the sensor:
1. Connect one end of the RJ-45 double-ended straight through cable to
the temperature/humidity sensor. The maximum length of this cable is
500 feet.
2. Connect the other end to any port you have configured as a sensor port.
RJ45 Double-Ended
Straight-Through Cable
451-0308
100-240VAC
1.0A 50/60Hz
1234 5678
9101112 13141516
15
33 34
TELCO
LINE
RCV LINK
100
DIAG
10/100 ETHNT

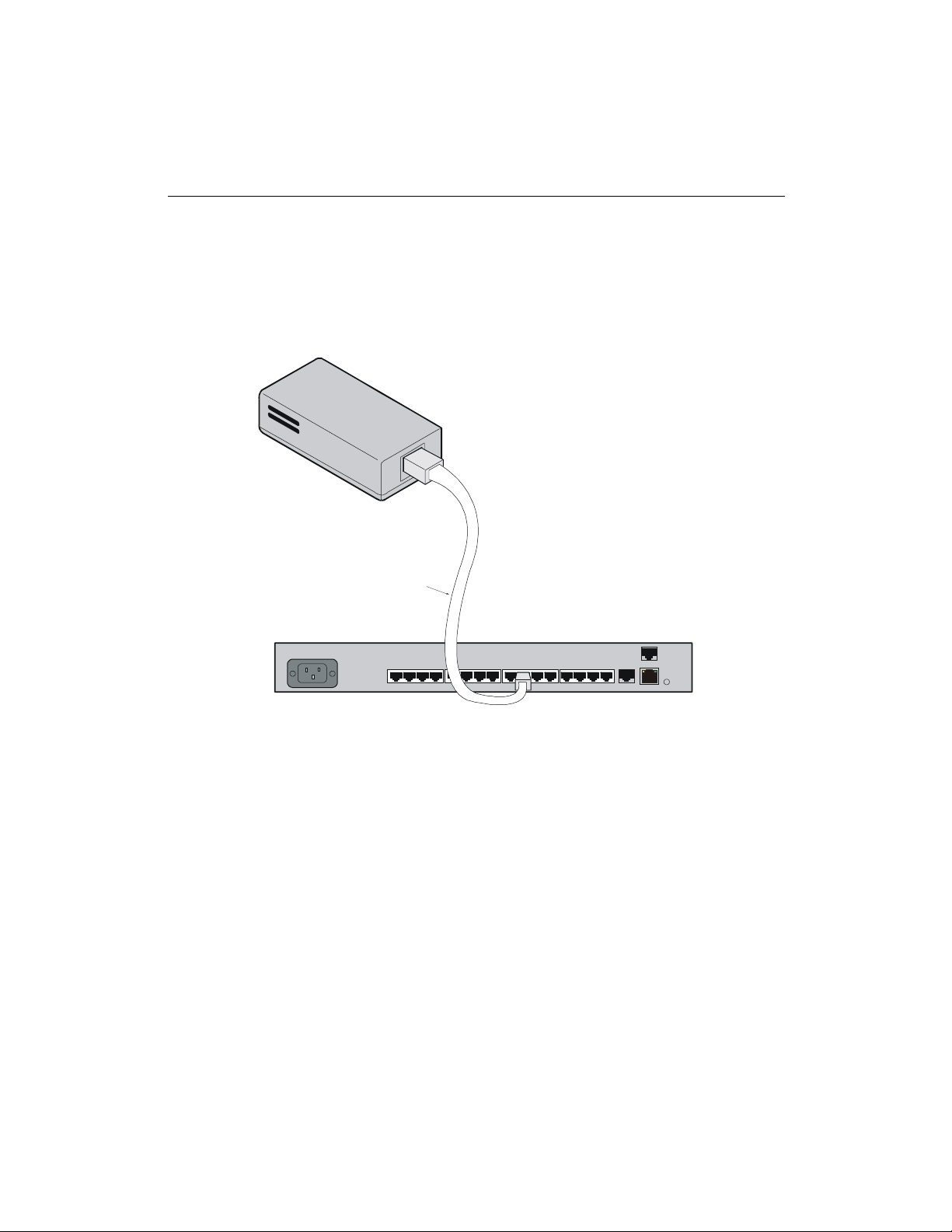

Figure 15 - Connecting the Temperature/Humidity Sensor
You must change the port’s “access” to “sensor” before performing any
monitoring. Use the following command, in the Async Port Configure
Mode, to configure asynchronous port 4 as a Sensor Port:
Async 4-4:0>>access sensor
Once the sensor is enabled, you can check the temperature with the
following command:
InReach:0>> show port async 4 status
41
Page 42
Installing the LX Series
3. You can also monitor the temperature/humidity remotely through the LX
CLI. Refer to the LX-Series Commands Reference Guide for a detailed
explanation of the commands used to configure and view your
temperature/humidity sensor through the CLI interface.
Command Line Interface (CLI) Tree Structure
The command line interface structure is designed to be as intuitive as
possible. Refer to “Navigating the LX Command Line Interface (CLI)” in
the LX-Series Commands Reference Guide for detailed information on the
menu tree modes. See Figure 16 for the CLI menu structure.
User
Enter “enable” command and
login to Superuser command mode
Superuser
42
Cconfiguration
Ibroadcast group
Broadcast Group
Notification
Nnotification
Ssnmp
Configuration
Iinterface
Interface
Ssubscriber
Mmenu
Subscriber
Pport ethernet
Pport async
Menu
Oopen
Menu Editing
Figure 16 - Basic Menu Structure
Async
Pppp
PPP
SNMP
Ethernet
Mmodem
Modem
451-0308
Page 43
ppciboot Factory Default Settings
The following table lists the factory default settings.
Main Menu Configuration Factory Default Setting
Boot from Network yes
Save boot image to flash no
Boot from flash yes
Time Out, in seconds 8
Installing the LX Series
IP Configuration Menu Configuration
IP Assignment method #1 DHCP
IP Assignment method #2 BOOTP
IP Assignment method #3 RARP
IP Assignment method #4 User Defined
NOTE: For defaults on specific commands, refer to the LX-Series Commands
Reference Guide.
Each LX Series unit is configured at the factory to use a default set of
initialization parameters that sets all ports to operate with asynchronous
ASCII terminal devices.
Factory Default Setting
451-0308
43
Page 44
Installing the LX Series
Additional Considerations for an Internet Environment
If you plan to use the unit in an Internet environment, you must define
addressing and identification characteristics to enable Internet hosts to
recognize the unit as a member of the network. Using ppciboot, an LX-Series
unit can be configured to obtain an IP address and other parameter values
from the network when the unit boots.
Autobauding Feature
Autobaud is disabled on all ports. The administrator can enable autobaud on a
per-port basis, except for the DIAG port (port 0). Default settings for the DIAG
port (port 0) are 9600/8/N/1.
Reinitializing/Powering Off the Unit
To reinitialize the unit, enter the following command from the superuser
mode:
reload
To power off the unit, disconnect the power cord.
44
451-0308
Page 45
Appendix A
Technical Specifications
The following table provides the specifications for the LX Series.
Tabl e 1 - LX S eri es S p eci fica t ion s
Item Description
Terminal Signals Transmit Data, Receive Data, Signal Ground, Data Set
Ready/Data Carrier Detect (DSR/DCD), Data Terminal
Ready (DTR), Clear-to-Send (CTS), and Request-to-Send
(RTS). Supports concurrent modem control.
Terminal Cabling Modular RJ-45 DTE
Serial Line Speed LX Series - 134 bps to 230 Kbps
Number of Serial Ports LX 4008 - 8 ports
LX 4016 - 16 ports
LX-4032 - 32 ports
LX-4048 - 48 ports
Modem (optional) V.90/K56flex 56 Kbps
LEDs FLT, OK, Port Status LEDs 1-8 (1-16 on 16 port, 1-32 on
32 port, 1-48 on 48 port), 10/100 Ethernet RCV, 10/100
Ethernet Link, 100Mbps speed
Controls Reset push button switch
451-0308
45
Page 46
Technical Specifications
Dimensions
Height
Depth
Width
LX Series
4.1 cm (1.62 in), LX-4048 - 4.34 cm (1.71 in)
21.5 cm (8.5 in)
48.2 cm (19 in)
Weight LX 4008 - 2.7 kg (6.0 lbs.)
LX-4016 - 3.06 kg (6.75 lbs.)
LX-4032 - 3.4 kg (7.5 lbs)
LX-4048 - 3.47 kg (7.65 lbs)
Processor/Speeds 66 (100 for 32-port) Mhz RISC processor with integral
communications co-processor.
LX-4008 - 2 RISC asynchronous communication coprocessors @ 60 Mhz.
LX-4016 - 4 RISC asynchronous communication coprocessors @ 60 Mhz.
LX-4032 - 8 RISC asynchronous communication coprocessors @ 60 Mhz
LX-4048 - 12 RISC asynchronous communication coprocessors @ 60 Mhz
Memory 8 MB Flash, 64MB SDRAM (128MB for LX-4032 and LX-
4048).
Environment 5% to 90% humidity, noncondensing
Operating Temperature: 0 - 40°C (32° - 113° F)
Storage Temperature: -40 to 85°C (-40 to 185° F)
Input Voltage 100 - 240 VAC 50 - 60 Hz (All LX Series)
46
451-0308
Page 47
Technical Specifications
Power Requirements LX-4008 AC - 11W, (38BTU/hr) 0.09A at 120V (typ), 11W
0.05A at 220V (typ)
LX-4008 DC - -48VDC Nominal, -20VDC to -72VDC
Operating Range, 1A @ -48VDC, Dual Feed, 165 BTU/hr
LX-4016 AC - 14W, (47.8 BTU/hr) 0.11A at 120V (typ),
14W 0.06A at 220V (typ)
LX-4016 DC - -48VDC Nominal, -20VDC to -72VDC
Operating Range, 1.2A @ -20VDC, Dual Feed, 165 BTU/
hr
LX-4032AC - 23W, (79 BTU/hr) 0.19A @ 120V (typ),
0.105A @ 220V
LX-4032DC - -48VDC Nominal, -20VDC to -72VDC
Operating Range, 0.6A @ 48VDC, Dual Feed, (99 BTU/hr)
LX-4048AC - 41W, (140 BTU/hr) 0.24A @ 120V (typ),
0.13A @ 220V
Minimum Software
Requirements
LX-4008S requires V2.0.0 or greater, LX-4016S requires
V2.0.1 or greater, LX-4032 requires V2.2.0 or greater, LX4048 requires V3.0.0 or greater.
Ethernet Interface 10/100 TX, Auto/10/100 Mbps duplex half full auto
Real Time Clock
Battery
32.768KHz crystal
Lithium coin cell battery CR2032 or equivalent. Capacity
is 200mAH. Power down shelf-life 1 year at 20
0
C.
451-0308
47
Page 48
Technical Specifications
48
451-0308
Page 49
Error Code Definitions
The following table provides the definitions for the LX Series POST test
error codes.
Tabl e 2 - POS T Te s t E r ror Code s
Error Definition Error Code (in
Real Time Clock does not work properly 1010
Appendix B
POST Test Error Codes
Hexadecimal)
Reading Invalid Default Value from CPLD Diagnostic
Register
Reading Invalid Default Value from Expansion CPLD
Diagnostic Register
Reading Invalid Pattern Value from CPLD Diagnostic
Register
Reading Invalid Pattern Value from Expansion CPLD
Diagnostic Register
Reading Invalid Value from CPLD System Fail Status
Register
AC FAIL bit is set in the CPLD System Fail Status
Register
+12VFAIL bit is set in the CPLD System Fail Status
Register
-12VFAIL bit is set in the CPLD System Fail Status
Register
2010
2011
2020
2021
2030
2031
2033
2034
451-0308
49
Page 50
POST Test Error Codes
CPLD FAIL bit is set in the CPLD System Fail Status
2035
Register
DC_A bit is set in the CPLD System Fail Status
2037
Register
DC_B bit is set in the CPLD System Fail Status
2038
Register
Watchdog Timer Failed 2040
Invalid HW Type 2050
Fast Ethernet Controller (FEC) Reset Delay Timeout 3010
Fast Ethernet Controller (FEC) Transmission Failed
3020
Timeout
Fast Ethernet Controller (FEC) Reception Failed
3030
Timeout
Fast Ethernet Controller (FEC) Invalid Data
3040
Received
CD1400 Reset delay timeout for Quadart 1 4110
CD1400 Reset delay timeout for Quadart 2 4120
50
CD1400 Reset delay timeout for Quadart 3 4130
CD1400 Reset delay timeout for Quadart 4 4140
CD1400 Reset delay timeout for Quadart 5 4150
CD1400 Reset delay timeout for Quadart 6 4160
CD1400 Reset delay timeout for Quadart 7 4170
CD1400 Reset delay timeout for Quadart 8 4180
CD1400 Loopback operation timeout for Quadart 1 4210
CD1400 Loopback operation timeout for Quadart 2 4220
CD1400 Loopback operation timeout for Quadart 3 4230
451-0308
Page 51
POST Test Error Codes
CD1400 Loopback operation timeout for Quadart 4 4240
CD1400 Loopback operation timeout for Quadart 5 4250
CD1400 Loopback operation timeout for Quadart 6 4260
CD1400 Loopback operation timeout for Quadart 7 4270
CD1400 Loopback operation timeout for Quadart 8 4280
CD1400 Invalid Data Received for Quadart 1 4310
CD1400 Invalid Data Received for Quadart 2 4320
CD1400 Invalid Data Received for Quadart 3 4330
CD1400 Invalid Data Received for Quadart 4 4340
CD1400 Invalid Data Received for Quadart 5 4350
CD1400 Invalid Data Received for Quadart 6 4360
CD1400 Invalid Data Received for Quadart 7 4370
CD1400 Invalid Data Received for Quadart 8 4380
Memory Error at (printing address) 5010
Memory Data Bus Failed 5020
Memory Address Bus Failed High 5030
Memory Address Bus Failed Low 5040
POST Test Error Code Sample
NOTE: This example applies to 8, 16, 32, and 48 port LX units. The 16, 32,
and 48 port LX units use only the first eight LEDs when generating
error codes.
The following sample illustrates the Port Status LED sequence for Error
2030 (Reading Invalid Value from PLD System Fail Status Register) on
the LX-4008. In this example:
451-0308
51
Page 52
POST Test Error Codes
1. A POST test failure occurs on an 8-port unit. All LEDs flash eight
times, very quickly, then the error code is displayed.
2. You record that LED 3 turns on. Again, all LEDs flash eight times very
quickly, then the rest of the error code is displayed.
3. You record that LEDs 3 and 4 turn on. Figure 17 explains how to
interpret the sample error code.
NOTE: In hexadecimal, 0 indicates the LED is OFF. 1 indicates the LED is
ON.
Each group of four LEDs is converted to a hexadecimal value as follows:
•0 = 0000
•1 = 0001
•2 = 0010
•3 = 0011
•4 = 0100
•5 = 0101
•6 = 0110
•7 = 0111
•8 = 1000
•9 = 1001
•A = 1010
•B = 1011
•C = 1100
•D = 1101
•E = 1110
•F = 1111
52
451-0308
Page 53
1 - All flash for 2 seconds
2 - High error code (20 Hex)
3 - Cycle 1 through 8
4 - Low error code (30 Hex)
5 - All extinguished
POST Test Error Codes
1 2 3 4 5 6 7 8
451-0308

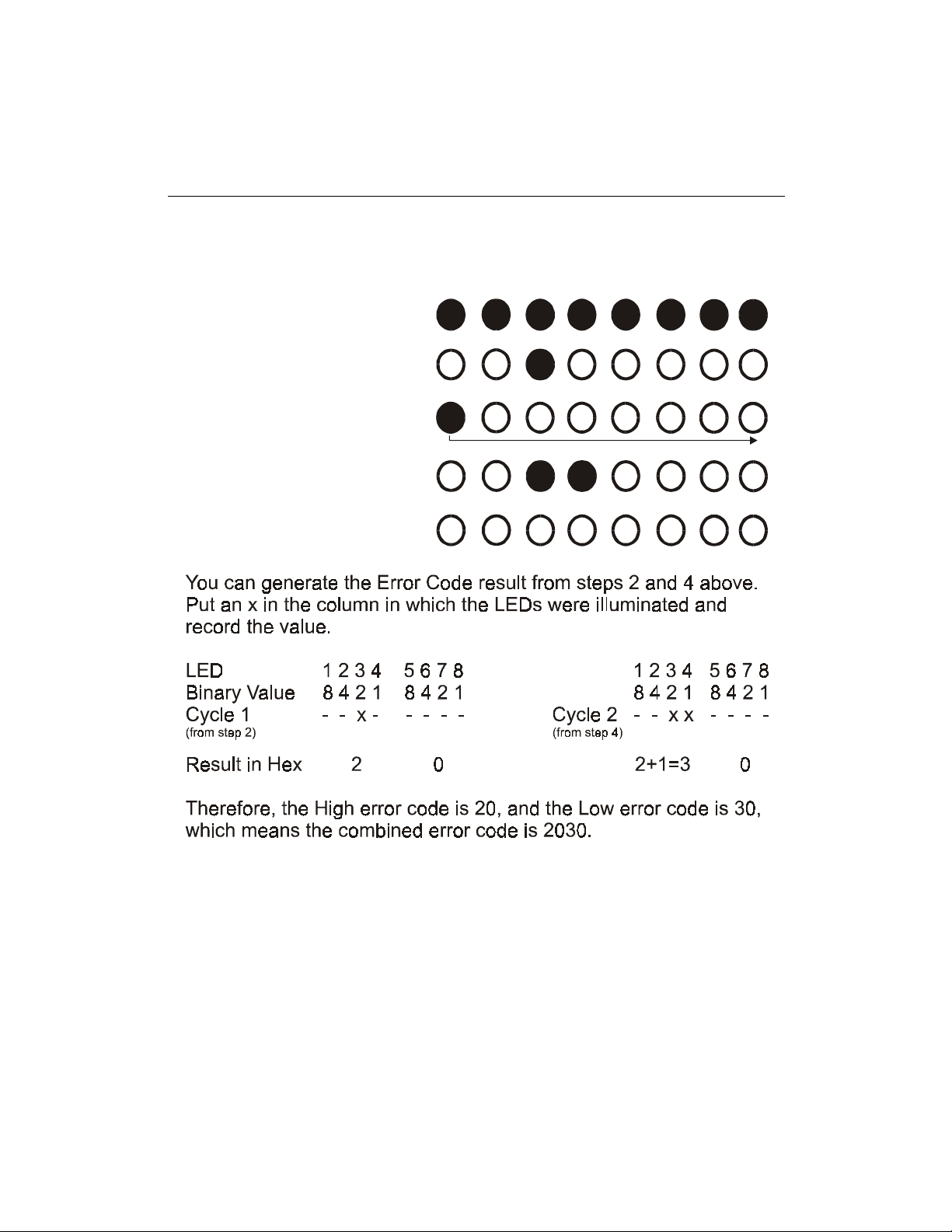

Figure 17 - POST Test Error Code Sample
53
Page 54
POST Test Error Codes
54
451-0308
Page 55
Cabling Considerations
Standard cabling items available from MRV Communications allow you to
connect to any serial device that uses male or female DB-25 or DB-9
connectors. All you need is the appropriate modular cable (crossover cable
for connecting to a DTE device, straight-through cable for connecting to a
DCE device), and the correct modular adapter (male or female DB-25
connector), which is essentially an RJ-45-to-DB25 adapter.
Serial Device Connectors
The signal assignments of the 8-pin jacks are shown in Figure 18.
Appendix C
Cabling the LX Series
12345678 1234
Rj-45 Jack
(Female)

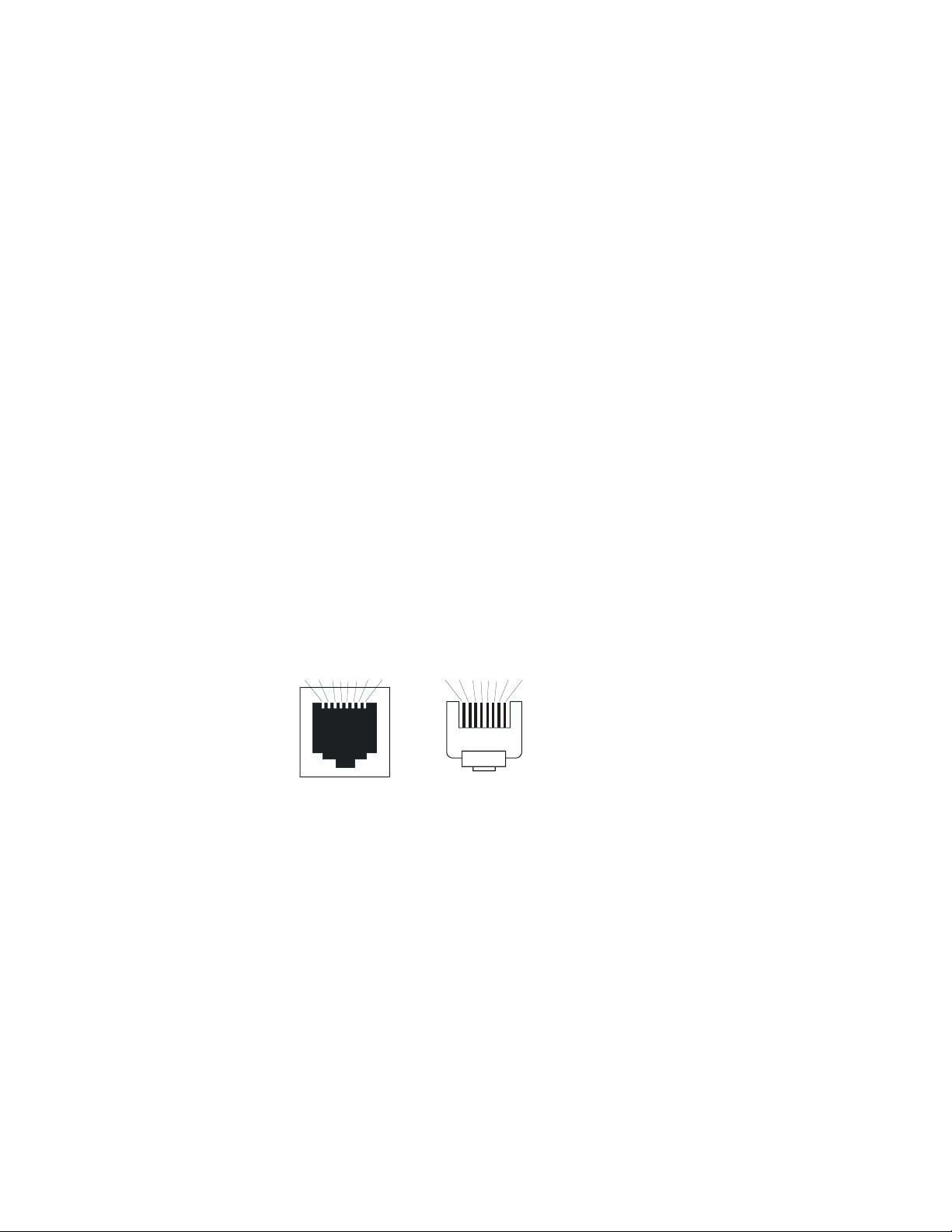

Figure 18 - Serial Device Connector (RJ-45) Signal Assignments
Diagnostic Port Connector (Port 0)
The pinout for the Diagnostic Port connector is the same as that of the
serial connector.
451-0308
56
78
Rj-45 Plug
(Male)
Pin Signal
1 CTS
2 DTR
3 TXD
4 SGND
5 SGND
6 RXD
7 DSR
8 RTS
55
Page 56
Cabling the LX Series
10/100 Connector
Figure 19 shows the standard 10/100 (RJ-45 jack) connector signal
assignments.
Ordering Cables
MRV Communications also supplies crossover cables and modular
adapters for use with all LX Series units. To order cables, adapters or
other cabling accessories from MRV Communications, contact your Sales
representative or distributor.
Pin Signal
1 TX+
2 TX3 RX+
4 No Connect
5 No Connect
6 RX-
8 7 6 5 4 3 2 1
7 No Connect
8 No Connect

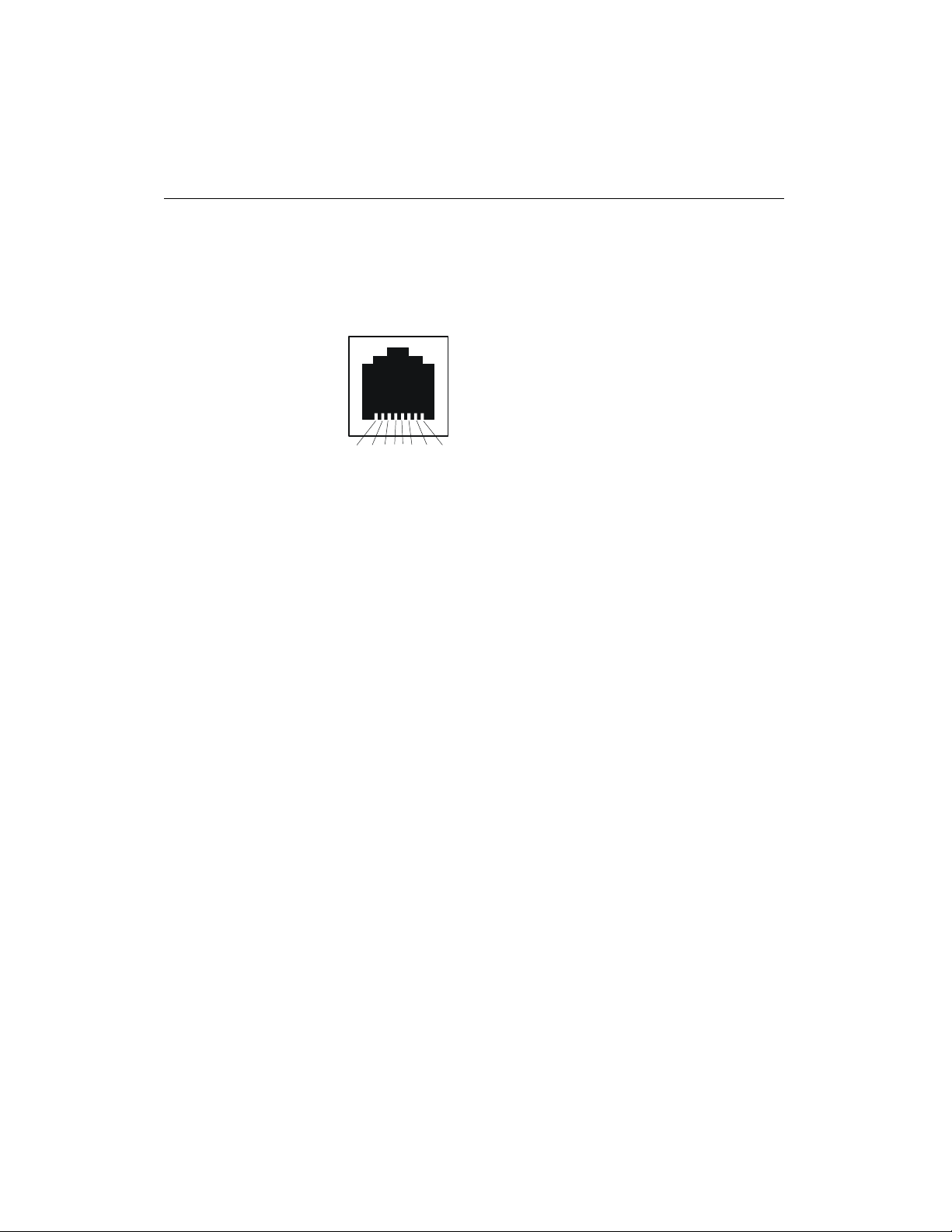

Figure 19 - 10/100 Connector Assignments
Modular Adapters
MRV Communications provides the following modular adapters for use
with LX-series units:
•Female DB-9 (PN MX-350-0308)
•Female DB-25 (PN MX-350-0181)
•Male DB-25 (PN MX-350-0179) – supports RING
•Male DB-25 (PN MX-350-0180) – supports RTS/CTS
This section describes the pinouts and wiring of the MRV-supplied DB-25
adapter.
56
451-0308
Page 57
Pin Assignments
The following table shows the pinouts for the DB-25 cable.
Pin Signal
1Cable Shield
2Transmit Data
3Receive Data to DCE
4RTS (Request to Send)
5CTS (Clear to Send)
6DSR (Data Set Ready)
7Signal Ground
8Data Carrier Detect
9Unused
10 Unused
Cabling the LX Series
451-0308
11 Unused
12 Unused
13 Unused
14 Unused
15 Unused
16 Unused
17 Unused
18 Unused
19 Unused
20 Data Terminal Ready
21 Unused
57
Page 58
Cabling the LX Series
22 Ring Indicate
23 Unused
24 Unused
25 Unused
Figure 20 shows serial DB-25 pin assignments.
1
13
DB-25
(Male)
13
14
25
1
DB-25
(Female)
25
14
Figure 20 - DB-25 Pins
58
451-0308
Page 59
Cabling the LX Series
Ordering and Installing the Inlet Connector Lock
You can use an inlet connector lock to lock the AC power cord to the LX
Series unit. MRV Communications does not supply this lock. You can order
the connector lock (part number 85910020) from Panel Components
Corporation. The web address at which you can order the connector lock is:
www.panelcomponents.com/first.html. See Figure 21 for installation
instructions.
Insert two 4-40 x
1
1/4” Philips screws
here. Do not
tighten.
Slide the connector
2
lock ears under the
screw heads.
Tighten the screws.
90-250VAC
1.0A 50/60 Hz
Plug in the power cord
3
(not shown).
Tighten the screw
4
beneath the connector
lock.
Figure 21 - Installing the Inlet Connector Lock
Connecting to the Diagnostic Port (Port 0)
NOTE: Display problems may occur during bootup when you attach a
VT420 terminal to the DIAG port (port 0) and the VT420 display
setup is configured to Smooth-2 Scroll. To avoid this, change
the VT420 scroll setting to Jump Scroll.
Connect the provided serial port cable to the DIAG connector (port 0), and
the other end to your terminal. You can use this direct connect serial link
to send commands to the boot loader and diagnostics. This port is used to
log system messages during bootup. You can also use port 0 to manage and
configure the LX once the unit completes the bootstrap process.
451-0308
59
Page 60
Cabling the LX Series
Modem Control/Hardware Flow Control
LX Series serial ports can be set up to support RTS/CTS flow control. The
adapters shown in Figure 22 and Figure 23 illustrate RTS/CTS flow
control for DTE devices using DB25 and DB9 connectors. Figure 24
illustrates RTS/CTS flow control for a DB-25 connector on a DCE device
like a modem. LX Series serial ports can also be set up to support modem
control (except for the DIAG port (port 0)). Figures 22, 23, and 24 support
modem control as needed. Only Figures 23 and 24 support concurrent
modem control and RTS/CTS flow control between the LX Serial Port and
the attached device.
The adapter shown in Figure 24 supports modem control.
NOTE: You would use a "null-modem" cable when making a direct
connection between the serial ports of two communication servers
(i.e., no modems involved) or other DTE device. For that
application, use a DTE-to-DTE cable.
RJ-45 Wiring Considerations
60
You should give special consideration to the wiring scheme when
connecting a device such as a terminal to a LX Series serial port. The LX
Series is considered a DTE device. To connect to another DTE device such
as a terminal, you will need crossover wiring, as shown in Figure 22 and
Figure 23. When a DCE device is connected to an LX Series serial port,
straight-through wiring is required, as shown in Figure 24.
NOTE: In general, an ethernet CAT3/CAT5 may introduce noise due to the
crossing of pins 3 and 6 (transmit and receive). Flat eight wire
cables are recommended.
451-0308
Page 61
Modular Adapters (RJ-45 to DB-25)
You can obtain adapters with male and female DB-25 connectors from
MRV Communications. These adapters direct signals from the RJ-45
connector on the cable to the correct pin on the DB-25 connector. Figure 22,
Figure 23, and Figure 24 show how devices are cabled when you use these
adapters.
LX Series
MAXserver
Connector
Female
RJ-45
Male
RJ-45
Crossover Cable
Male
RJ-45
Modular Adaptor
Female
RJ-45
Cabling the LX Series
DTE Cable
MAXserver
LX Series
Connector
CTS
CTS/RING
DTR
XMT
XMTGND
RCVGND
RCV
DSR *
RTS
(See Note, Page 5.)
*
1
2
3
4
5
6
7
8
Male RJ-45
Connector
1
2
3
4
5
6
7
8
Female
DB-25
1
2
3
4
5
6
7
8
Female RJ-45
Connector
1
2
3
4
5
6
7
8
Adaptor Wiring - MX-350-0181
(Female RJ-45 to fem ale DB-25)
Male RJ-45
Connector
Crossover Cable
MX-151-3028

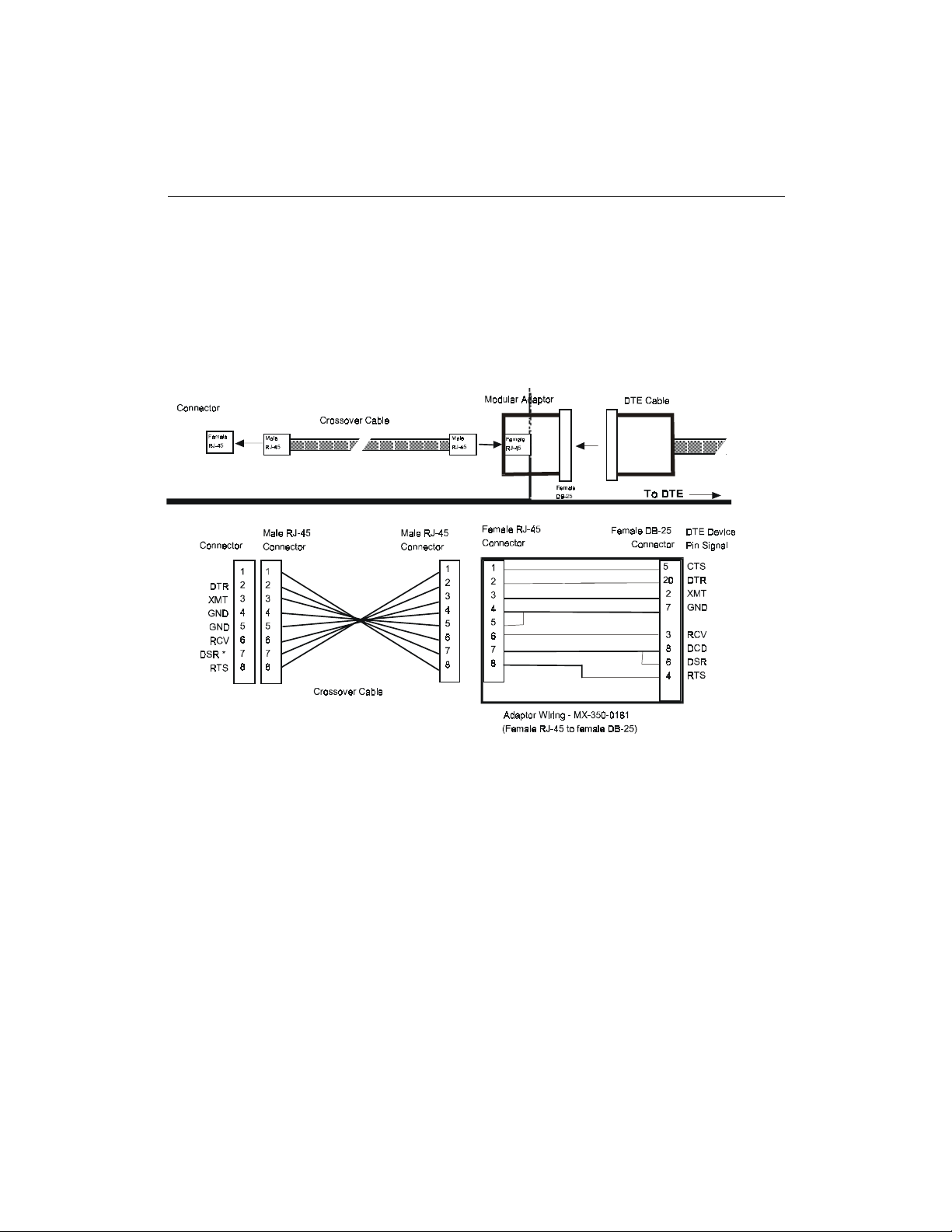

Figure 22 - Adapter Wiring, LX Series to DTE
To DTE
Female DB-25
Connector
5
20
2
7
3
8
6
4
DTE Device
Pin Signal
CTS
DTR
XMT
GND
RCV
DCD
DSR
RTS
451-0308
61
Page 62
Cabling the LX Series
LX Series
MAXserve r
Connector
Female
RJ-45
Male
RJ-45
Crosso ver Cable
Male
RJ-45
Modular Adaptor
Female
RJ-45
DB-9 Cable
DTE Cable
MAXserve r
LX Series
Connector
CTS/RING
DTR
XMT
XMTGND
RCVGND
RCV
DSR *
DCD
RTS
(See Note, Page 5.)
*
1
2
3
4
5
6
7
8
Male RJ-45
Connector
1
2
3
4
5
6
7
8
Crosso ver Cable
Male RJ-45
Connector
1
2
3
4
5
6
7
8
Female
DB-25
DB-9
Fema le RJ-45
Connector
1
2
3
4
5
6
7
8
8
Adaptor Wiring - MX-350-0181
(Female RJ- 45 to f emale DB -25)
Male DB-9)
To DTE
Female DB-25
Connector
0308

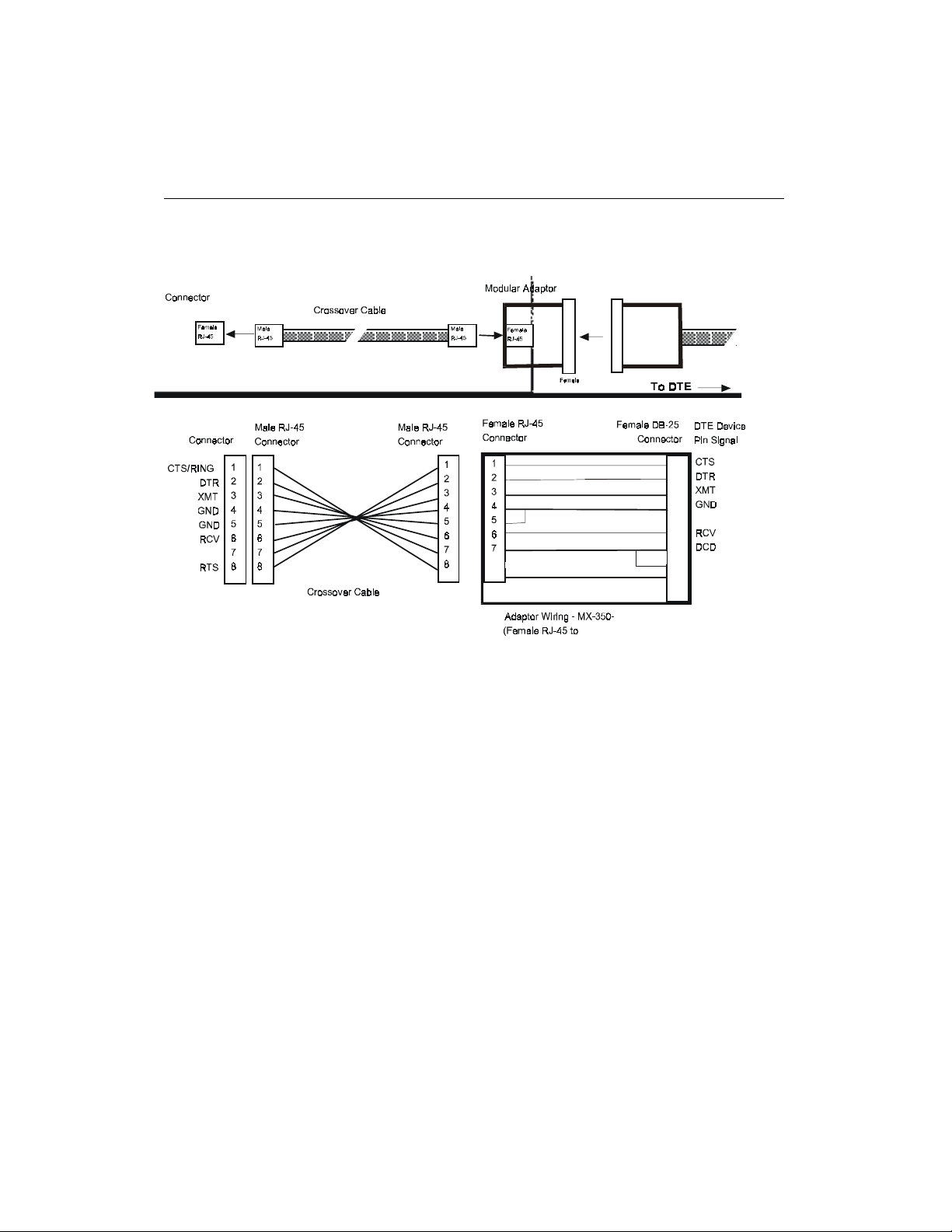

Figure 23 - Adapter Wiring, RJ-45 to DB-9, LX Series to DTE
5
8
20
4
2
3
7
5
3
2
8
1
6
6
4
7
DTE Device
Pin Signal
CTS
DTR
XMT
GND
RCV
DCD
DSR
DSR
RTS
RTS
62
451-0308
Page 63
Cabling the LX Series
LX Series
Connector
Female
RJ-45
Supports RTS/CTS
LX Series
Connector
CTS
DTR
XMT
GND
GND
RCV
DCD
RTS
1
2
3
4
5
6
7
8
Male RJ-45
Connector
1
2
3
4
5
6
7
8
Modular
Adaptor
1
2
3
4
5
6
7
8
Male
RJ-45
Female
RJ-45
Female R J-45
Connector
1
2
3
4
5
6
7
8
Adaptor Wiring MX-350-0180
(Female RJ-45 to male DB-25)
Male
Straight Through
RJ-45
Cable
Straight Through Cable
MX-151-3027
Male RJ-45
Connector

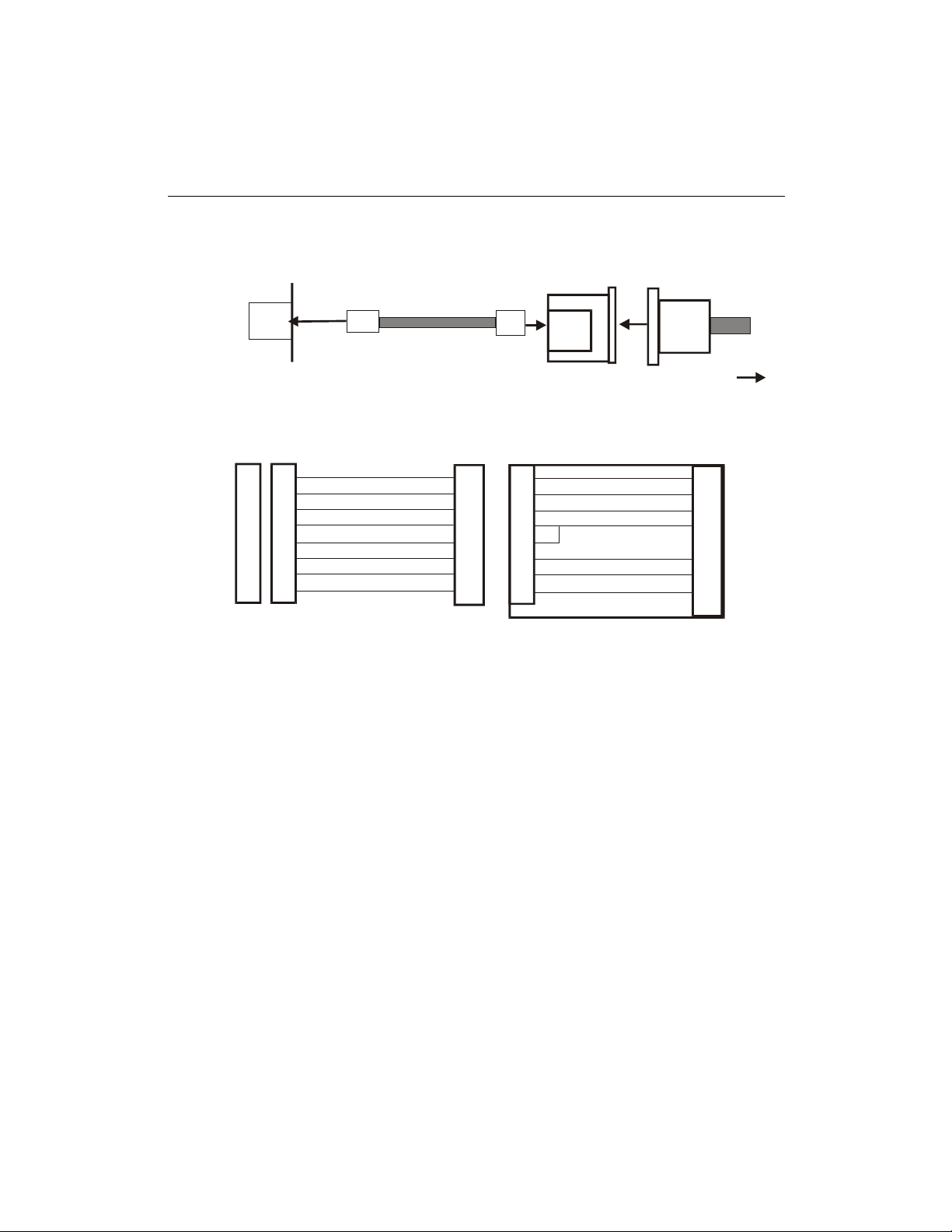

Figure 24 - Adapter Wiring, LX Series to DCE
Male
DB-25
Modem
Cable
To Modem
Male DB- 25
Connector
5
20
2
7
3
8
4
DCE Device
Pin Signal
CTS
DTR
XMT
GND
RCV
DCD
RTS
451-0308
63
Page 64
Cabling the LX Series
NOTE: In order to expand the functionality of the serial interface, the LX
Series modular cabling allows you to connect different signals to
pin 7 of the LX Series. (This pin is an input to the LX Series.) When
a DCE device is connected to an LX Series serial port, the device's
DCD output is connected to pin 7. In this case, the signal at pin 7 is
referred to as DCD. DCD is used here for session control only, not
for flow control.
When a DTE device is connected to an LX Series serial port, the
device's DTR output is connected to pin 7 of the LX Series. In this
case, the signal at pin 7 is referred to as DSR. (This cabling scheme
also provides DECconnect compatibility, since DECconnect does
not support the DCD signal.)
MRV Communications 8-Wire Cabling
This cabling scheme provides XMT, RCV, DCD/DSR, DTR, RTS, CTS, and
two signal ground wires. This cabling is provided through RJ-45
connectors. Using this cabling scheme you can concurrently use modem
control and RTS/CTS hardware flow control, since there are four control
signals. This scheme is useful with relatively high speed devices, complex
modem control applications.
64
In Figure 25, one signal is referred to as CTS. The CTS signal designation
refers to the signal observed at pin 1 of each serial port. Pin 1 is
multiplexed to these signals.
This scheme is useful with the following applications:
•Terminal emulation and file transfer applications, such as Kermit,
Xmodem, Microphone, etc.
•Applications such as PPP using low speed modems.
•Applications such as PPP using high speed modems.
•Applications using CCITT V.42-compliant modems, or other devices
operating at high port speeds.
451-0308
Page 65
RTS/CTS Modem Connection
RTS/CTS Modem Connection
LX Series
Communicat ion
Communicat ion
Server Connector
Server Connector
Connector
Straight Through Cable
Straight Through Cable
Modular Adapt or
Modular Adapt or
Cabling the LX Series
To M o d e m
To M o d e m
Male DB-25
Female RJ-45
Female RJ-45
Connect or
Connect or
CTS/ RING
CTS/ RING
CTS
DTR
DTR
XMT
XMT
XMTG ND
XMTG ND
RCVG ND
RCVG ND
RCV
RCV
DCD
DCD
RTS
RTS
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Male RJ-45
Male RJ-45
Connect or
Connect or
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Straight Through Cable
Straight Through Cable
Male RJ-45
Male RJ-45
Connect or
Connect or
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Female RJ-45
Female RJ-45
Connect or
Connect or
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Adaptor Wiring - MX-350-0180
Adaptor Wiring - MX-350-0180
(Female RJ-45 to male DB-25)
(Female RJ-45 to male DB-25)
Male DB-25
Connect or
Connect or
5
5
20
20
2
2
7
7
3
3
8
8
4
4

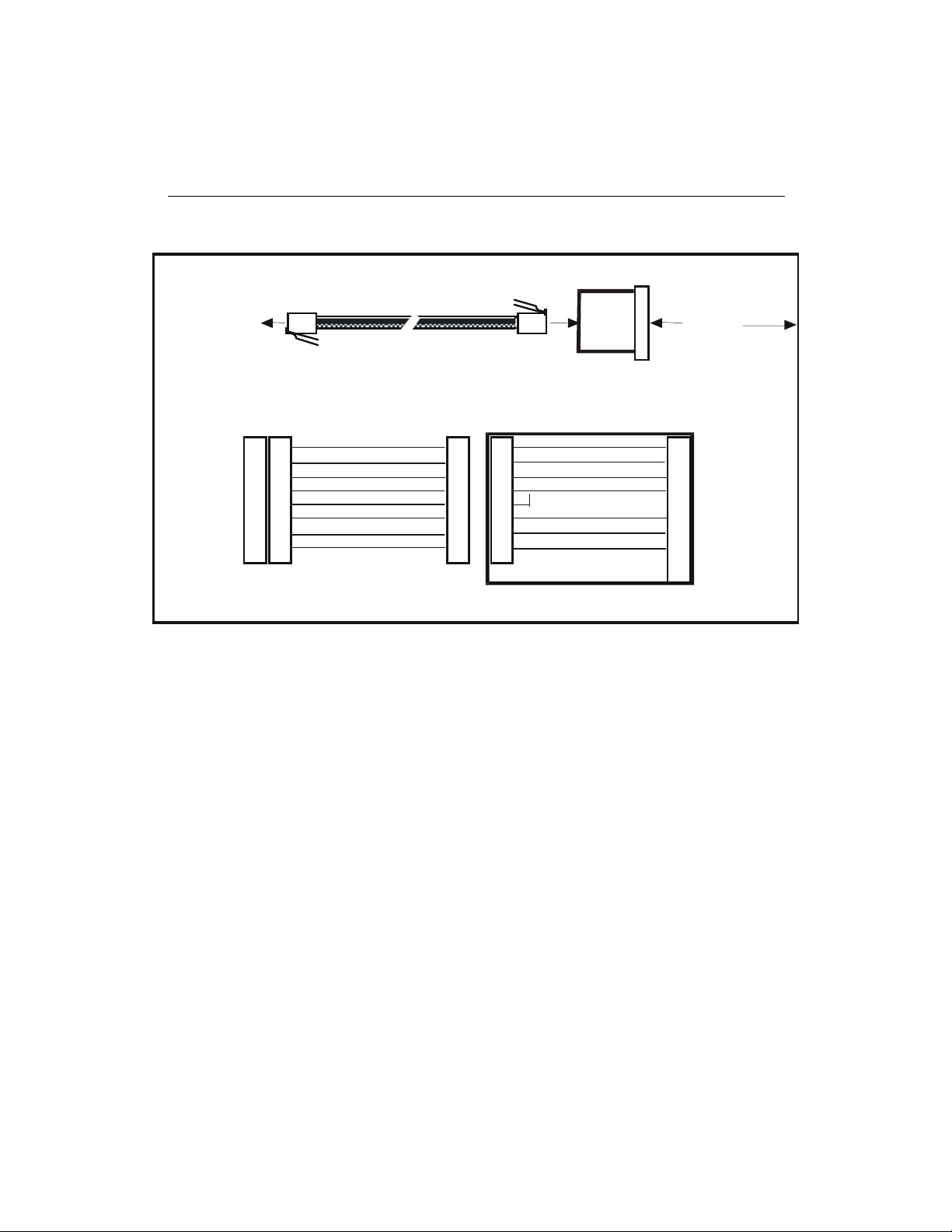

Figure 25 - Modular Cables for RTS/CTS Flow Control (Eight-Wire), Concur-
rent with Modem Control Signalling
Modem connector
Modem connector
Pin Signal
Pin Signal
CTS
CTS
DTR
DTR
XMT
XMT
GND
GND
RCV
RCV
DCD
DCD
RTS
RTS
451-0308
65
Page 66
Cabling the LX Series
66
451-0308
Page 67
INDEX
Numerics
10/100 connectors 56
8-wire cabling 64
A
adapter wiring 61
adapters 61
autobauding feature 44
C
cables
ordering 56
cabling 25, 45
signals 64
command recall 14
configured 43
configuring the LX unit for the first time
30
connecting DC power 26
connecting the power cable 25
connecting to a serial port 39
controls 45
conventions 13
crossover cables 55
D
DB-25 connectors 61
DB-25 pin assignments 64
DC power
connecting 26
diagnostic port connector 55
dimensions 46
DTE devices
connecting to LX Series 64
DTE wiring 61
E
environment 23, 46
environmental considerations 23
error code definitions 49
ethernet connection 25, 47
F
first time quick configuration 31
flow control 60
FLT - fault LED 19
front panel LEDs 18
G
Graphic User Interface (GUI)
accessing 33
H
hardware installation 17
help key 14
I
iBoot factory default settings 43
inlet connector lock
installing 59
ordering 59
installation
hardware 17
installing Java Runtime Environment
(JRE) 34
Installing the LX Series
site requirements 45
internet access
IP addresses 44
internet environment 44
IP address
assigning via the network 33
IP information
obtaining 33
J
Java
installing 34
java cache
turning off 36
L
LED
fault 19
451-0308
67
Page 68
INDEX
link 22
OK 19
receive 22
speed 22
LEDs 19, 29, 45
port status 19
LINK LED 22
login username 28
default 28
LX Indicators 18
LX series
4008 rear panel 19
4008 w/modem rear panel 20
4016 DC rear panel 21
4016 w/modem rear panel 20
4032 DC rear panel 22
4032 w/modem rear panel 21
4048 AC rear panel 22
about 13
LX Series ports
accessing from a terminal 40
LX Unit
configuring for the first time 30
LX-4008S front panel 18
LX-4016 front panel 18
LX-4032 front panel 18
LX-4048 front panel 18
M
management station
connecting to 25
memory 46
menu tree structure 42
minimum software requirements 47
modem 45
modem port 27
modular adapters 56
O
OK LED 19
organization of user guide 11
P
package contents 17
Passwords 28
passwords 28
defaults 28
pinouts
DB-25 57, 64
RJ-45 64
RJ-45 jacks 55
port status LEDs 19
ports 40
POST test error code sample 51
power cable 25
power on self test (POST) 27
power requirements 47
powering on 27
ppciboot factory default settings 43
processor 46
prompts 13
Q
quick configuration
first time 31
R
rack-mounting the unit 24
RCV LED 22
real time
clock 47
clock battery 47
rear panel
connections 19
LEDs 19
reinitializing/powering off the unit 44
RESET switch 29
resetting the unit 29
RJ-45
jacks 25
wiring 60
68
451-0308
Page 69
INDEX
S
sensor ports 40
serial device cables
connecting to RJ-45 jacks 25
serial ports
number of 45
signals 45
speed LED 22
speeds 45
system login 28
system specifications 15
T
tab button 14
technical specifications 45
telnet directly to the communication
server 39
telnet port
changing 39
temperature/humidity sensor
connecting the 40
turning off java cache 36
typographical conventions 14
U
Unpacking and inspecting the unit 17
V
voltage 46
W
weight 46
wiring schemes
for RJ-45 60
451-0308
69
Loading...
