Mr. Steam NDRU1114 Specifications

mr.steam

®

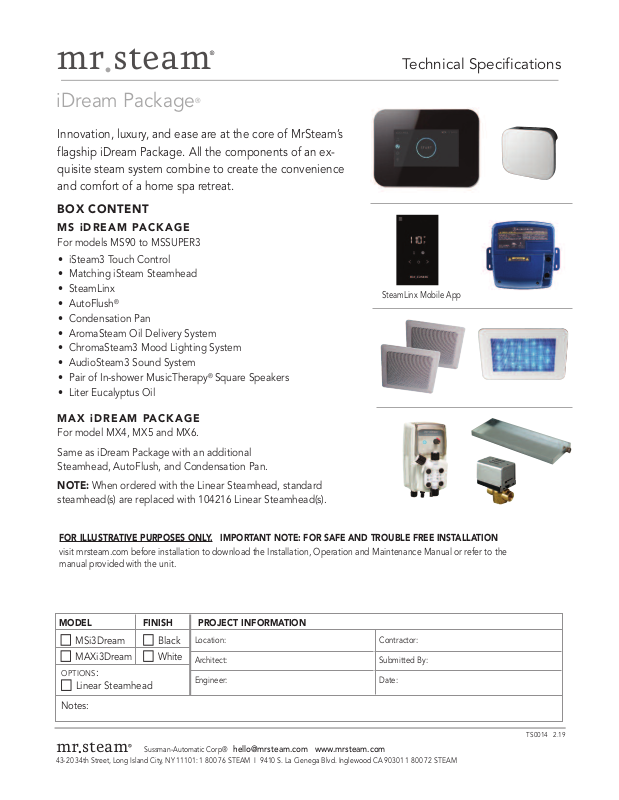

Technical Specifications

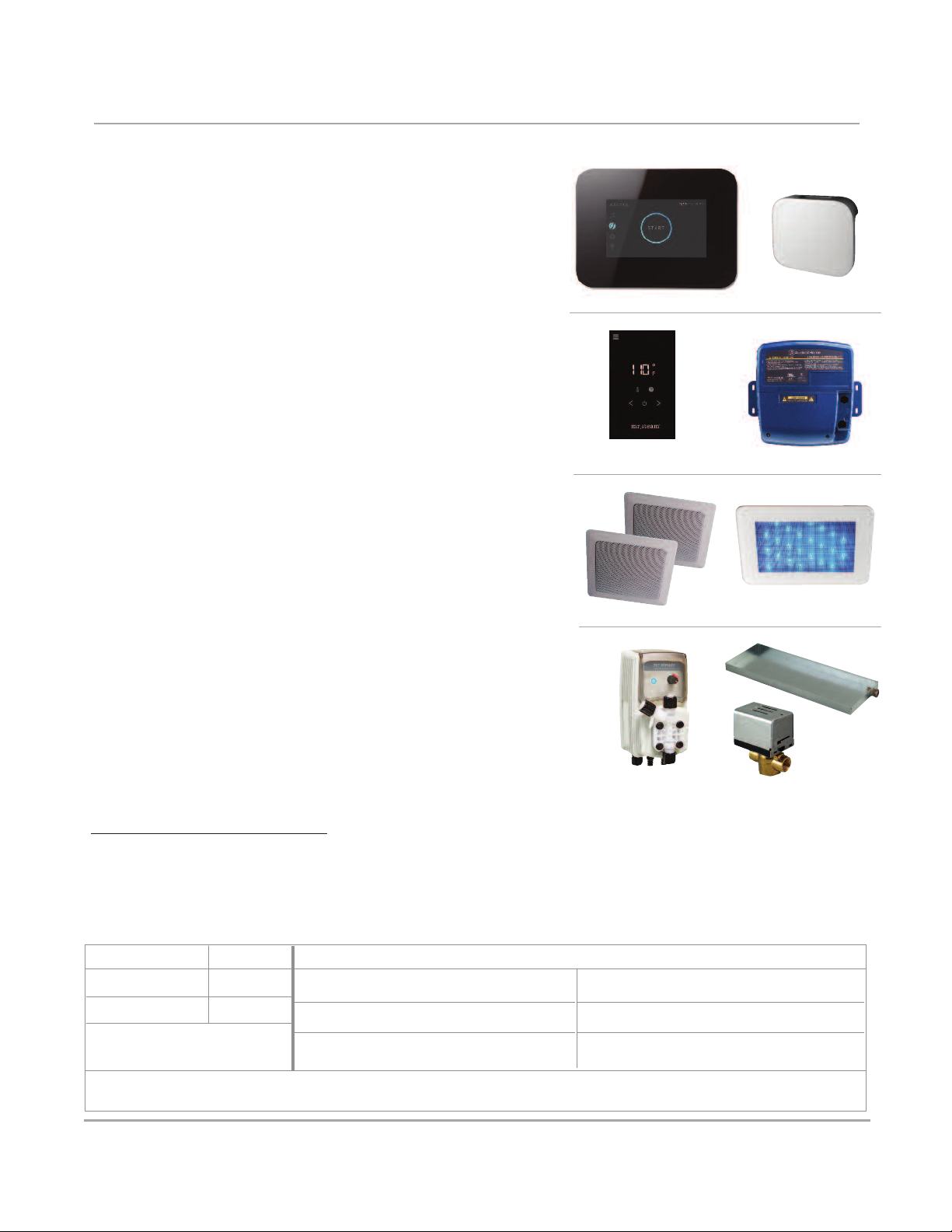

iDream Package

®

Innovation, luxury, and ease are at the core of MrSteam’s
flagship iDream Package. All the components of an ex­quisite steam system combine to create the convenience
and comfort of a home spa retreat.

BO X CO NT EN T

M S i D R E A M PA C KAGE

For models MS90 to MSSUPER3

• iSteam3 Touch Control

• Matching iSteam Steamhead

• SteamLinx

• AutoFlush

• Condensation Pan

• AromaSteam Oil Delivery System

• ChromaSteam3 Mood Lighting System

• AudioSteam3 Sound System

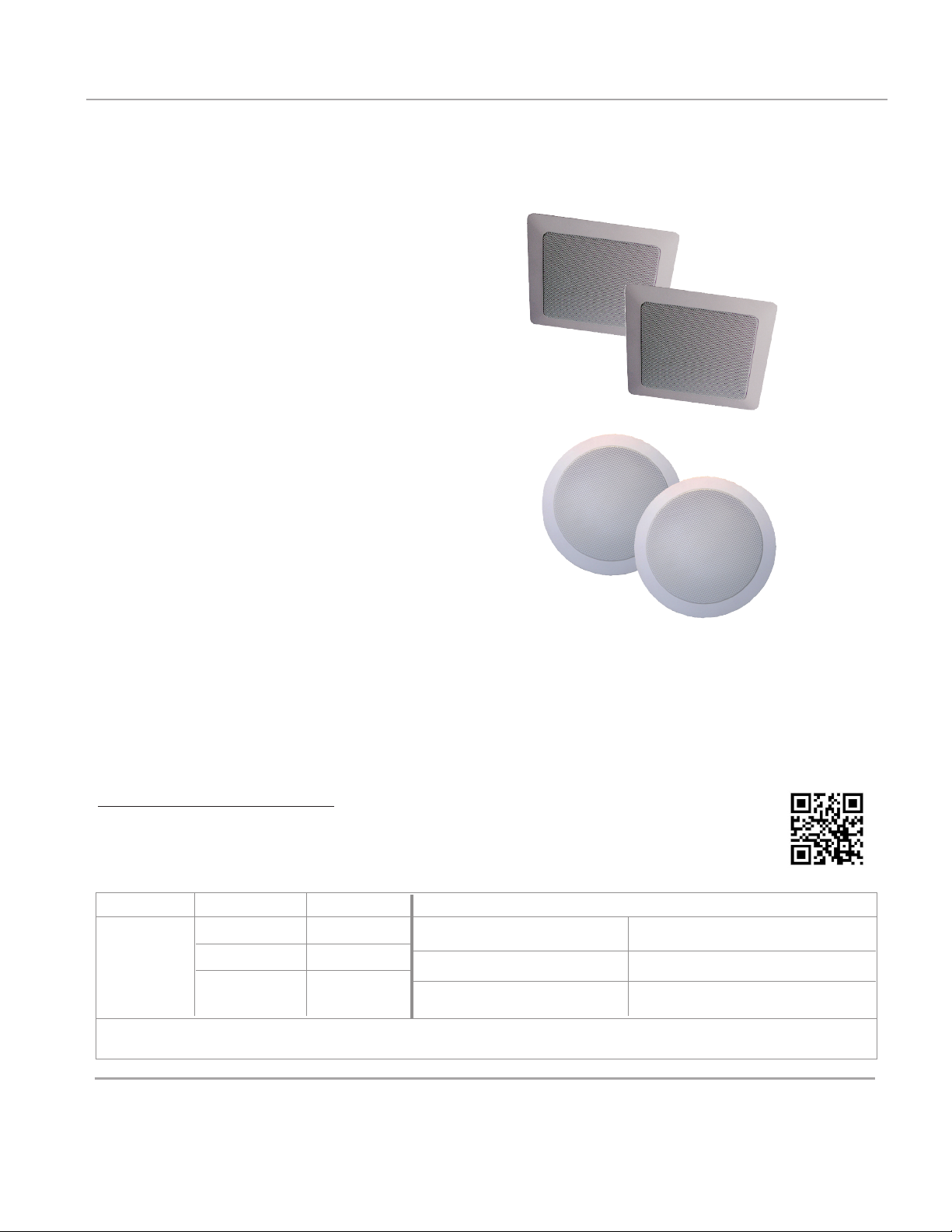

• Pair of In-shower MusicTherapy

• Liter Eucalyptus Oil

®

®

Square Speakers

SteamLinx Mobile App

M AX i D R E A M PA CKAGE

For model MX4, MX5 and MX6.

Same as iDream Package with an additional
Steamhead, AutoFlush, and Condensation Pan.

NOTE: When ordered with the Linear Steamhead, standard
steamhead(s) are replaced with 104216 Linear Steamhead(s).

FOR ILLUSTRATIVE PURPOSES ONLY.

visit mrsteam.com before installation to download the Installation, Operation and Maintenance Manual or refer to the
manual provided with the unit.

MODEL FINISH PROJECT INFORMATION

MSi3Dream



MAXi3Dream



OPTIONS:

Linear Steamhead



Notes:




Black
White

IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

mr.steam

43-20 34th Street, Long Island City, NY 11101: 1 800 76 STEAM I 9410 S. La Cienega Blvd. Inglewood CA 90301 1 800 72 STEAM

®

Sussman-Automatic Corp®

[e-mail] www.mrsteam.com

TS0014 2.19

mr.steam

10:06 AM

ACCESSORIES SETTINGS

S

TAR T

F

12 :16

PM

ST AR T

9

7

iSteam®3

®

Technical Specifications

Box Contents:

Dimensional Information

• iSteam3

• Owner’s Manual

• Control Cable (30 ft.)

• Rough-In Box

• Steamhead

• Optional Surface

• Tube of Silicone
Sealant Mount Gasket

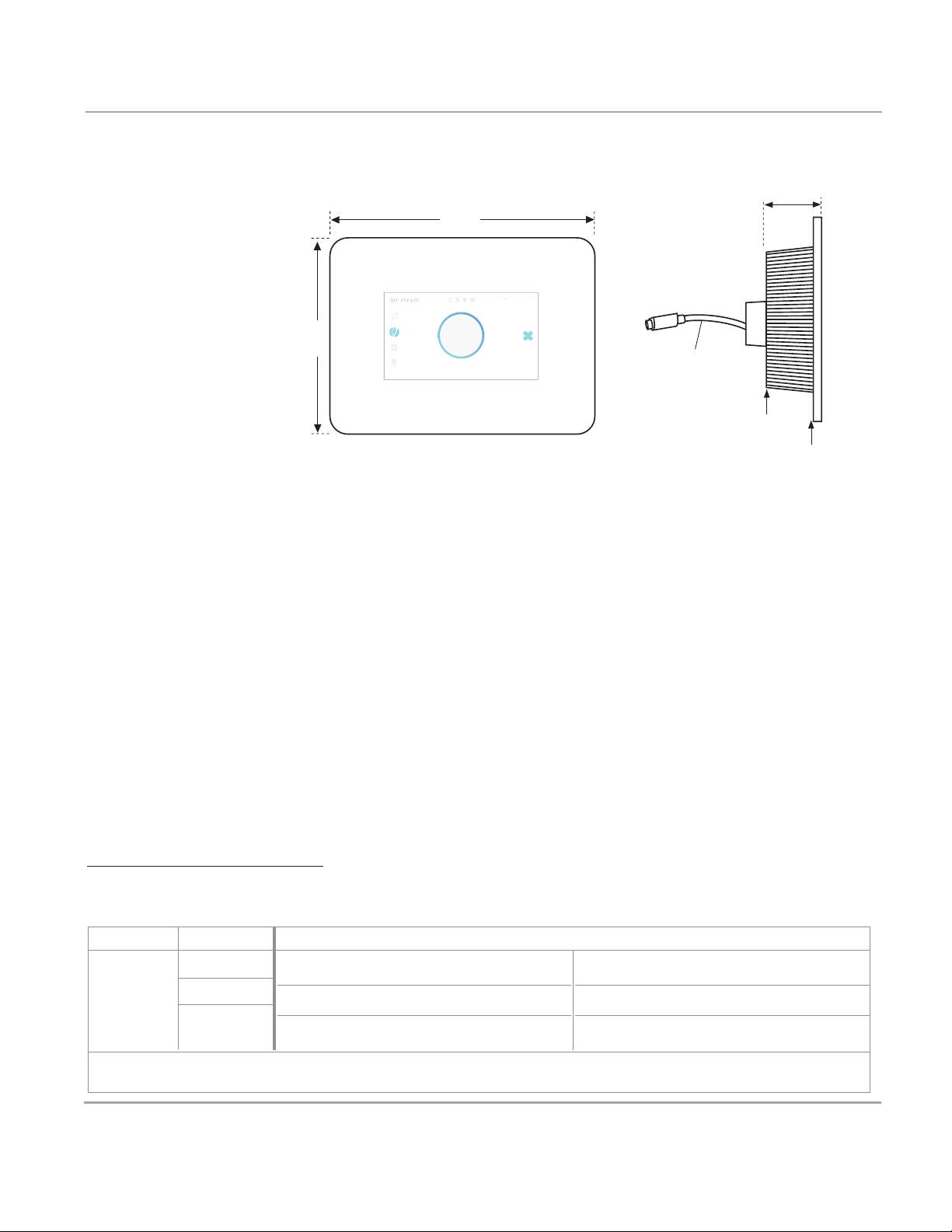

iSteam controls flush mount in the steam/shower enclosure
through a 5-1/4” wide x 3-9/16” high hole. iSteam controls
can also be surface mounted. They are suitable for use with
SteamLinx™mobile app control.

iSteam controls are suitable for use inside or outside the
steam/shower enclosure, featuring:

• Full color LCD touch screen

• Programmable temperature

• Programmable time

• Eight user presets

• AromaSteam, ChromaSteam3
and AudioSteam3 controls

1

4

⁄

2

”

• Passcode to prevent uninten­tional use of steam bath

• Includes AromaSteam Steam­head in white or black

• Compatible with SteamLinx

• Low voltage operation

1

6

⁄

8

”

Pigtail

1

⁄

2

”)

(8

W

all location for

optional surface mount

3

⁄

8

”

1

Wall location

for flush mount

The iSteam controls are designed to be installed inside
or outside the steam room but is primarily installed in­side the steam room. If the control is installed inside
the steam room the control must be located:

• 4-5 feet above the floor

• In a location representative of the desired steam
bathing temperatures near the bather seating area.
Do not locate the control above or near the steam­head or direct steam emissions.

• On a vertical wall

The control cable length is 30 feet. Insure that the con­trol and/ or steam generator are located accordingly.
An optional 60 ft. cable is available if required, PN
104117-60. If the control is installed outside the steam
room a Remote Temperature Probe Part Number MSTS
must be installed inside the steam room.

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

visit mrsteam.com before installation to download the Installation, Operation and
Maintenance Manual or refer to the manual provided with the unit.

MODEL FINISH PROJECT INFORMATION

iSteam3




Black
White

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

®

Sussman-Automatic Corp®

[e-mail] www.mrsteam.com

TS0073 REV 7.17

3

”

2

3

/

4

”

3

”

3”

7

/8”

03”

1

”

mr.steam

®

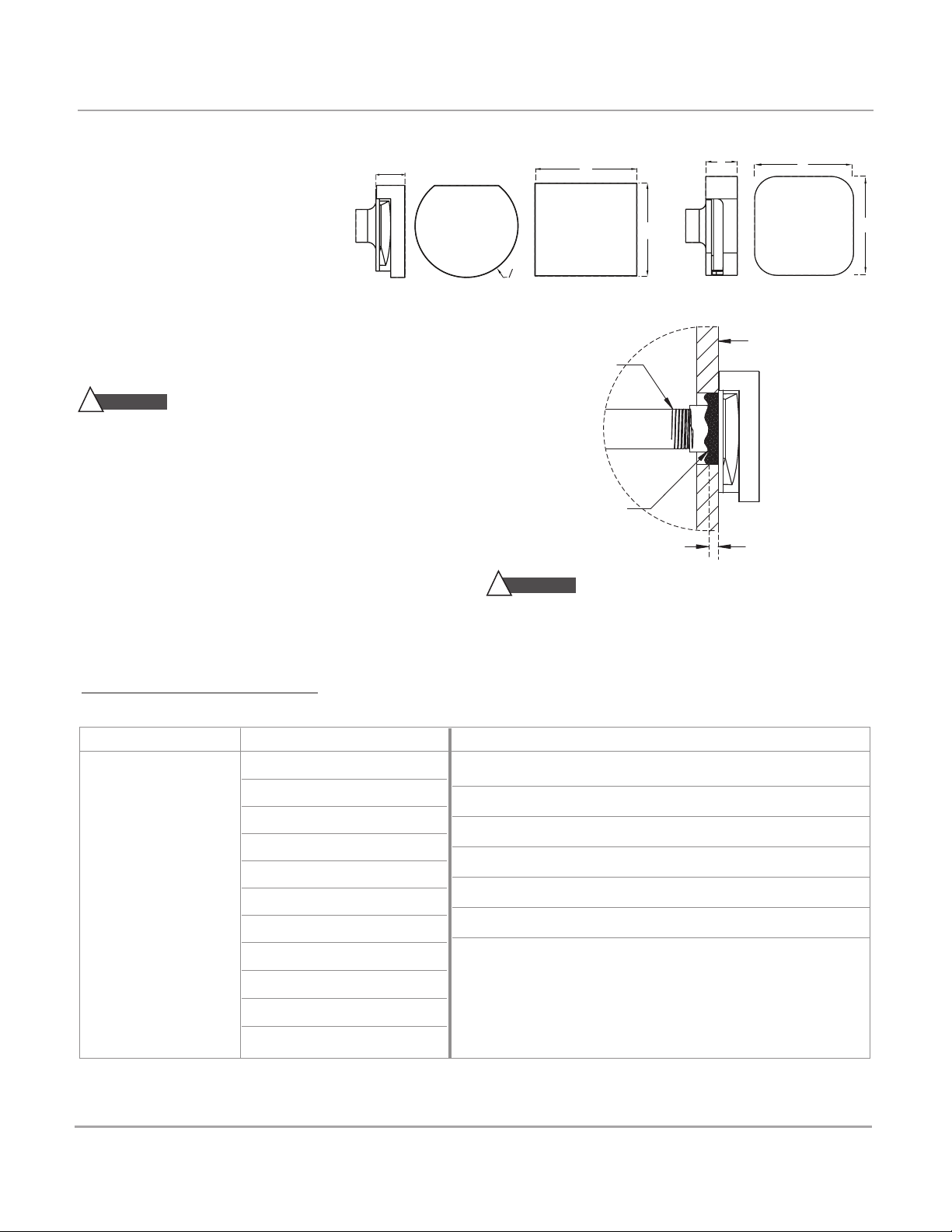

Technical Specifications

Round

103937

, Square

104040,104104

AromaSteam Steamhead

• Even distribution of steam while
remaining cool to the touch

• No field assembly required

• No moving parts

• Integrated aromatherapy oil
well for in shower use

Round & Square Steamhead Installation (

IMPORTANT: Do not disassemble steamhead. MrSteam’s steam

head is shipped fully assembled and requires no additional assembly.

CAUTION

!

are very hot, locate the steamhead where incidental contact by
bather with the steamhead or direct steam emission cannot occur.

NOTE: A 1.5” clearance hole around the steam pipe is needed
to mount the steamhead.

Locate steamhead 6-12 inches above floor, except for:

• Tub/shower enclosures, install 6 inches above tub top edge.

• For enclosures with acrylic or other non-heat resistant flooring
install Acrylic Shield Part Number 103938/10398SQ

IMPORTANT NOTE: To preserve steamhead finish,
do not use wrench or other tools to tighten. DO NOT
use abrasive cleansers or chemicals. Use only water
with mild soap and a non-abrasive sponge.

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION visit mrsteam.com
before installation to download the Installation, Operation and Maintenance Manual or refer to the manual provided with the unit.

Because the steamhead and direct steam emissions

103937 104040 104104

1

1

⁄2" NPT)

®

or equal

Use Teflon

sealant on pipe threads

Steam
Supply Pipe

Apply with silicone or

equal sealant as required

for moisture seal.

CAUTION

!

and other non-heat resistant enclosures for recommended
steamhead location. Use Acrylic Shield PN 103938/
103938SQ. See instructions provided with steam shield. (An
acrylic shield is not available for the iSteam steamhead.)

Consult with supplier of acrylic, fiberglass

/8" minimum clearance required
when Acrylic Shield is used. See
installation instructions provided
with the Acrylic Shield

End of pipe to be recessed
1/4" (without Acrylic Shield)
1/8" (with Acrylic Shield)

.

MODEL FINISH** PROJECT INFORMATION

103937-Round





104040-Square





104104*





* 104104 Steamhead is used for AirTempo, iSteam and black/white facia iTempo and iTempoPlus.
** For AirTempo select black or white with a decorative finish
***iSteam, black/white fascia iTempo and iTempoPlus are provided with matching glass face and chrome trim only.

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM FAX: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM FAX: [phone]

®

Sussman-Automatic Corp®[e-mail] www.mrsteam.com

BB Brushed Bronze



BN Brushed Nickel



ORB Oil Rubbed Bronze



PB Polished Brass



SB Satin Brass



PC Polished Chrome



PN Polished Nickel



BLK Black***



WH White***



MB




Matte Black

RAW

Custom Plating

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

Notes:

TS0010 8.18

mr.steam

33⁄8”

2

3

⁄4”

7

⁄ 8”

®

Technical Specifications

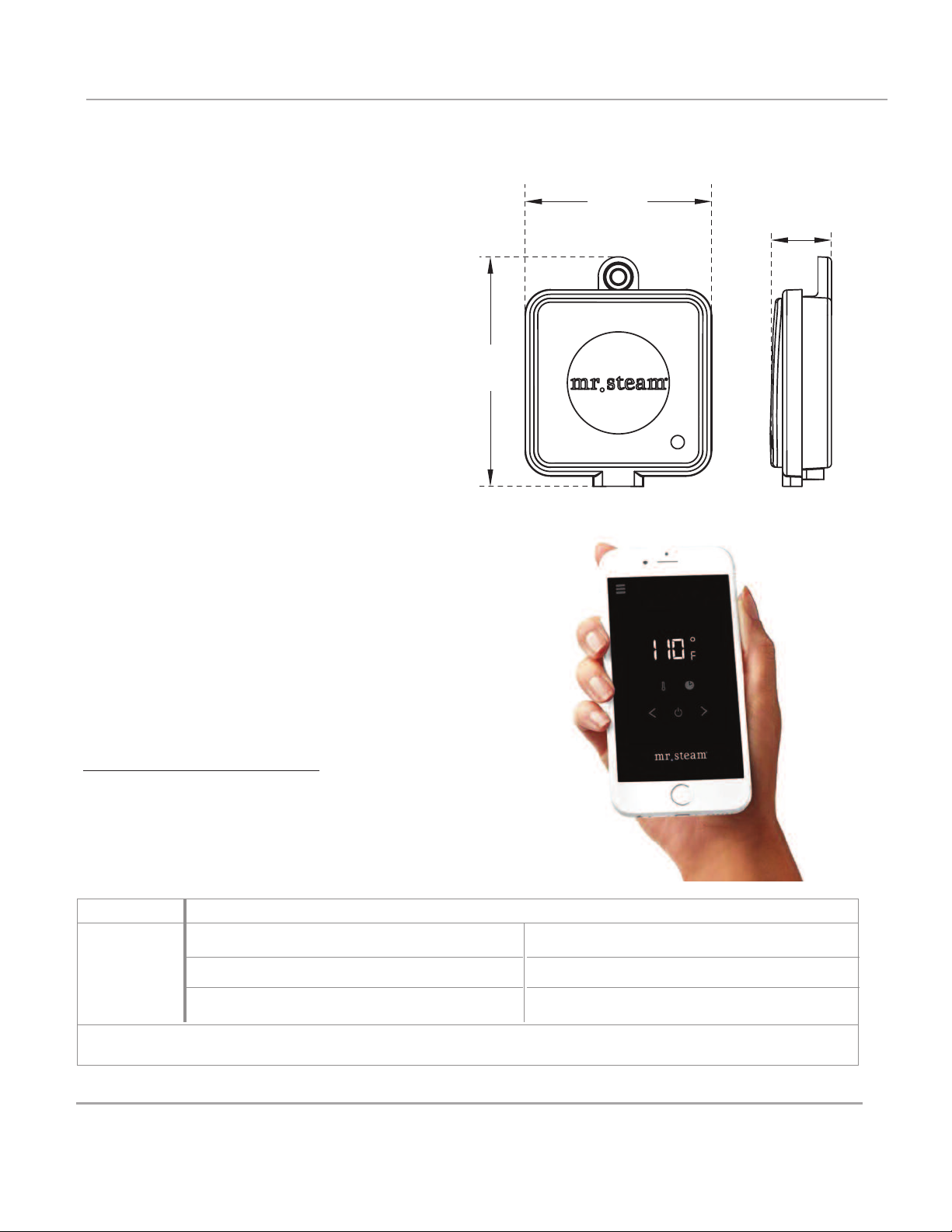

SteamLinx

B O X C O N T E N T

• SteamLinx Generator Module

• SteamLinx Router Module

• 6 foot Ethernet Cord

• Power Adapter

™

SteamLinx

Introducing the latest Mobile Steam Room

Technology, the SteamLinx Mobile System.

SteamLinx allows for seamless control of

essential steam room functionality using

your smart phone or mobile device.

Included in all Dream & Butler Packages.

Works will all MrSteam Controls

App available for download from Google
Play and the App Store

FOR ILLUSTRATIVE PURPOSES ONLY.
IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION visit

mrsteam.com before installation to download the Installation, Operation and
Maintenance Manual or refer to the manual provided with the unit.

MODEL PROJECT INFORMATION

Location:

Architect:

Engineer:

SteamLinx

Notes:

Contractor:

Submitted By:

Date:

mr.steam

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

®

Sussman-Automatic Corp®

[e-mail] www.mrsteam.com

TS0077 7.17

mr.steam

1.5”

25”

9”

®

Technical Specifications

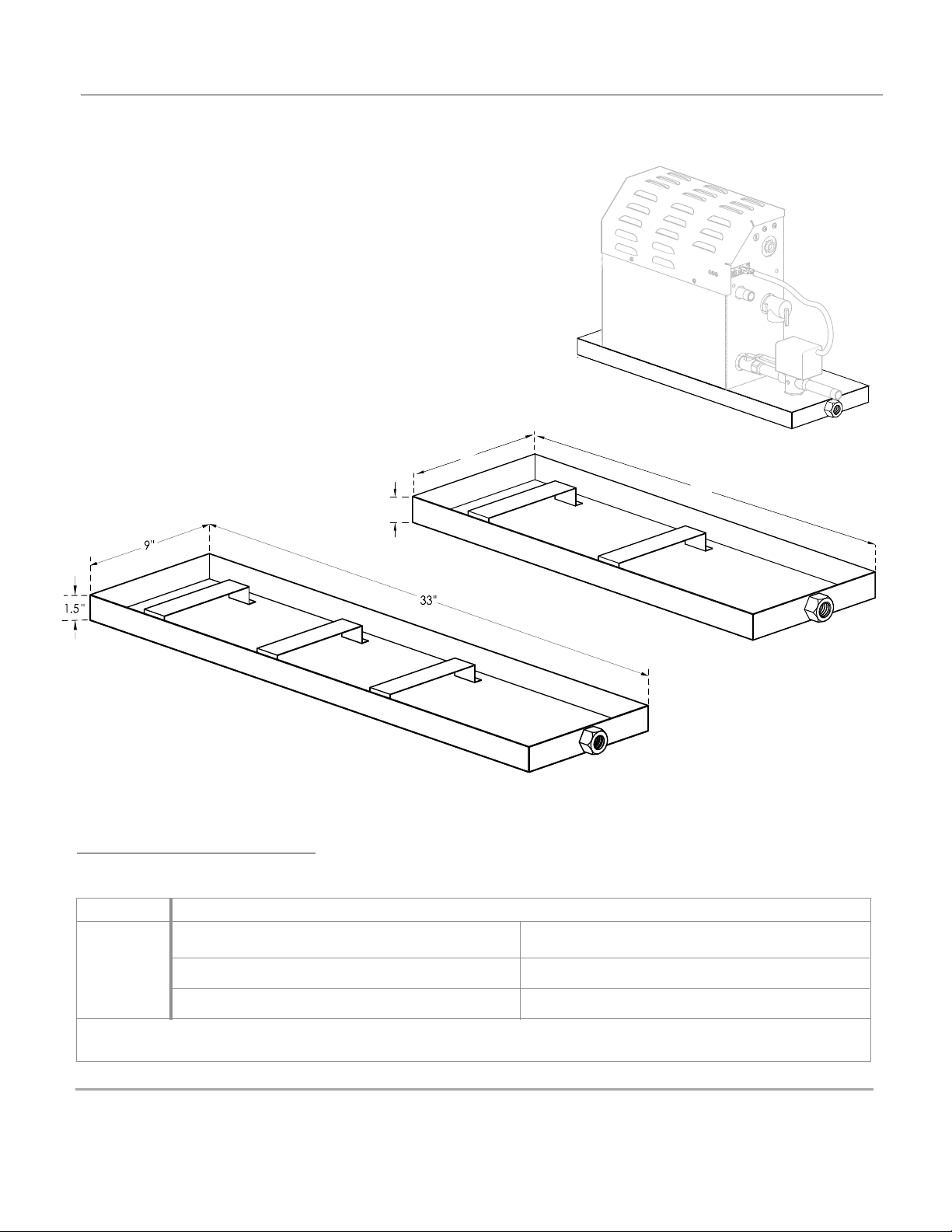

Condensation Pan 103867 & 104402

Mr.Steam strongly recommends the use of a condensation
pan in the unlikely event of a plumbing leak.

Locate the condensation pan on a solid level surface and
place the steam generator inside the condensation pan.
Insure the steam generator is level.

All plumbing shall be performed by a qualified licensed
plumber and in accordance with applicable national
and local codes. Check local plumbing code for receptor,
trap and vent requirements. Condensation pans drain by
gravity.The condensation pan is equipped with an integral

3

⁄4" NPT fitting.

103867

104402

NOTE: For MX4E, MX5E and MX6E
use model 104402

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

before installation to download the Installation, Operation and Maintenance Manual or refer to the manual provided with the unit.

MODEL PROJECT INFORMATION

103867

I

I

I

I

104402

Location:

Architect:

Contractor:

Submitted By:

visit mrsteam.com

Engineer:

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM
9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM

®

Sussman-Automatic Corp®[e-mail] www.mrsteam.com

Date:

TS0012 REV 2.19

mr.steam

4.5”

7.5”

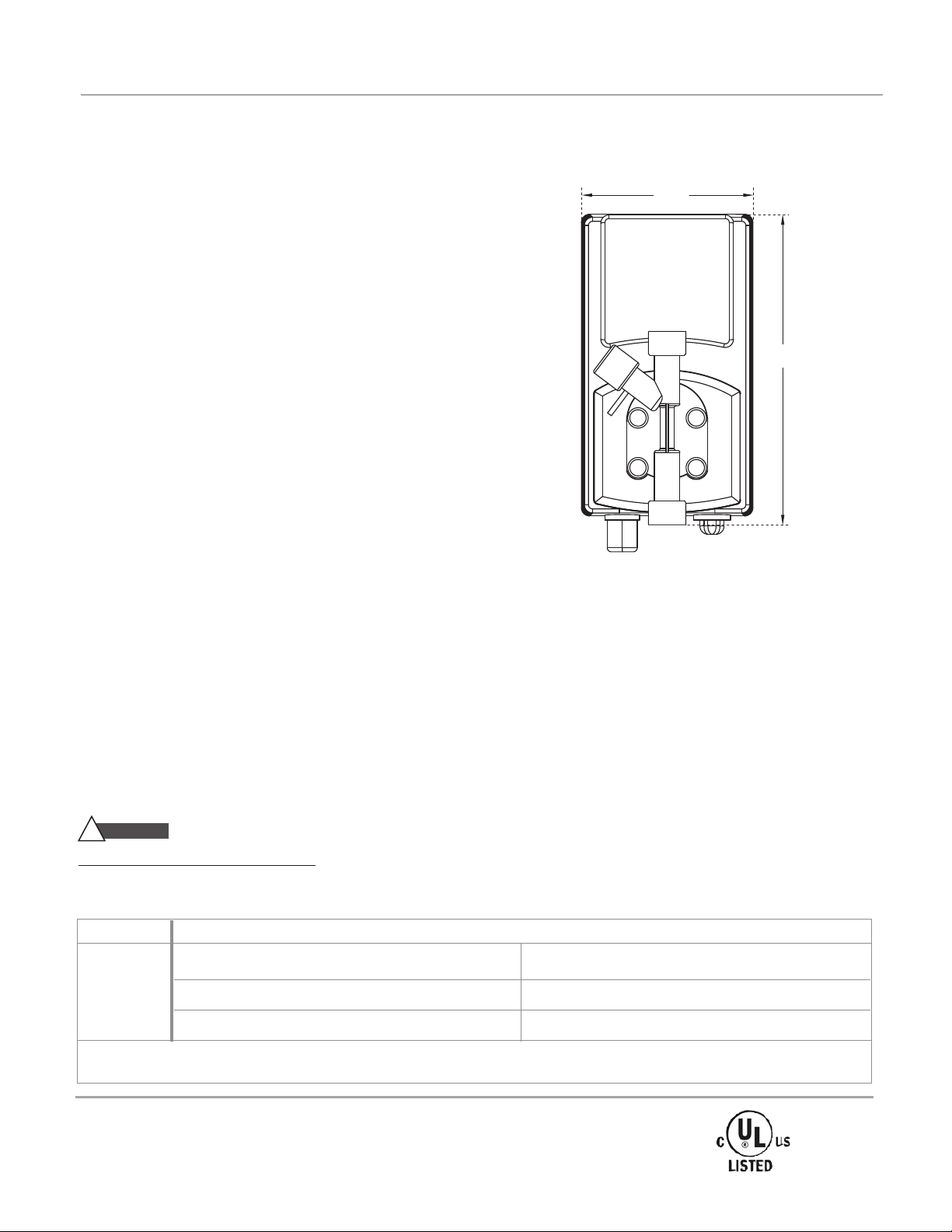

AromaSteam

®

Technical Specifications

CONTENTS

• 6 feet of pressure hose

• 2 feet of suction hose

• Filter

• Atomizing Nozzle

• Installation and Operation Manual

________________________________________________________

• Electronic oil delivery system evenly infuses scent into steam

• Complete with hoses, fittings and oil atomizer

• Can be controlled directly from an iSteam

• AromaSteam System oils available in one-liter bottles

• The AromaSteam is rated 0.5 Amps at 120 VAC

• cULus Listed

NOTE:

Mr. Steam offers special formulated & packaged oils for use
with the AromaSteam in the following fragrances:

MS OIL 1: Eucalyptus

MS OIL 2: Lavender

MS OIL 3: Evergreen

MS OIL 4: Energizing Mint

MS OIL 5: Breathe

:

®

or iTempoPlus

AromaSteam is for use with iSteam®or iTempoPlus®only.

®

________________________________________________

Dimensions: 7.5”W x 4.5”H x 4.5”D
Weight: 5 pounds
Motor voltage 120 VAC, 50/60 Hz
Current Draw 0.5 Amps

________________________________________________

WARNING

!

FOR ILLUSTRATIVE PURPOSES ONLY.

visit mrsteam.com before installation to download the Installation, Operation and Maintenance Manual or refer to
the manual provided with the unit.

MODEL PROJECT INFORMATION

MS AROMA

Not for use in acrylic or fiberglass rooms.

IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL : 1 800 76 STEAM FAX: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM FAX: [phone]

®

Sussman-Automatic Corp®[e-mail] www.mrsteam.com

TS0039 REV 12.17

mr.steam

®

Technical Specifications

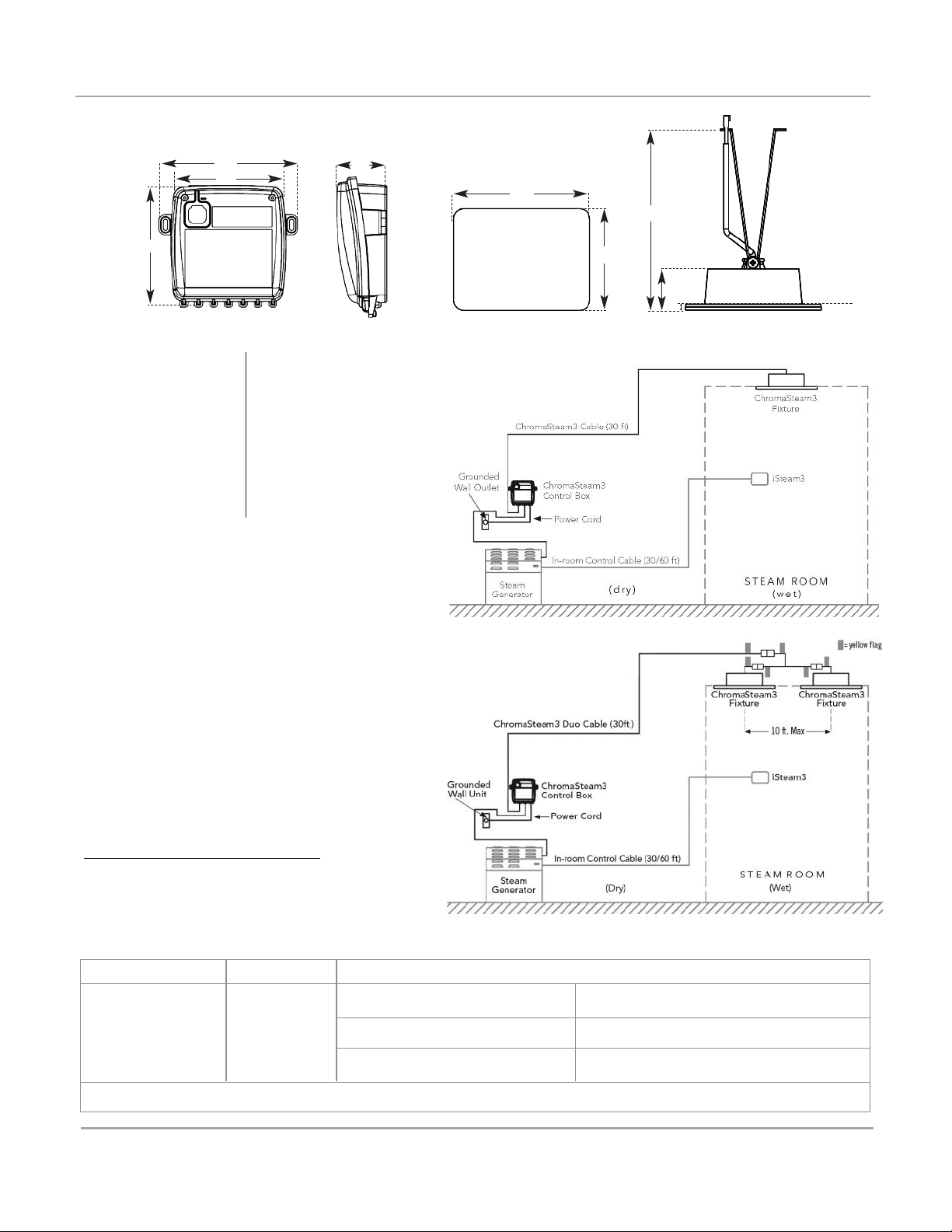

ChromaSteam3

1

7

⁄

32

"

3

6

⁄

8

"

1

6

⁄

8

"

®

ChromaSteam3 is only for use with iSteam3

2

BOX CONTENTS

MSCHROMA3 includes:

• (1) Light Fixture,

LED Controller

• (1) Tube of Silicone

• (1) 30 ft. cable

• (1) Rough-in Box

• (1) Installation and

Operation Manual

MSCHROMA3 DUO includes:

• (2) Light Fixtures,

LED Controller

• (2) Tubes of Silicone

• (1) 30 ft. cable

• (1) Duo Cable

• (2) Rough-in Boxes

• (1) Installation and

Operation Manual

IMPORTANT NOTE:

The ChromaSteam System
is for mood lighting only and not a substitute for
general illumination.

1

⁄

4

"

5

6

6

⁄

1

"

6

"

1

1

⁄

6

4

1

"

1

1

⁄

2

"

3

⁄

1

"

6

P OR TI ON

I N C EI LI NG

P

O RT IO N

IN STE AM RO OM

ChromaSteam3 is rated 0.4 amps at 120 VAC

________________________________________

The ChromaSteam3 System allows you to se­lect color and modes directly from the iSteam3
control. The built-in color microprocessor al­lows you to choose one color from the color
selection wheel and set color intensity.
Included low voltage power supply.
Available in white or black.

For mood lighting only.

FOR ILLUSTRATIVE PURPOSES ONLY.
IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE

INSTALLATION visit mrsteam.com before installation to

download the Installation, Operation and Maintenance
Manual or refer to the manual provided with the unit.

MODEL BEZEL COLOR PROJECT INFORMATION

MSCHROMA3



MSCHROMA3DUO



BK Black



WH White



Location:

Architect:

Contractor:

Submitted By:

Engineer:

Date:

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101: 1 800 76 STEAM I 9410 S. La Cienega Blvd. Inglewood CA 90301 1 800 72 STEAM

®

Sussman-Automatic Corp®

[e-mail] www.mrsteam.com

TS0076 REV 3.19

Speakers

Speaker Wire (100 ft max)

iSteam3

G

rounded

Wall Outlet

A

udioSteam

Antenna (4 ft)

Power Cord

(6 ft)

AudioSteam Control Cable (30/60 ft)

In-room Control Cable (30/60 ft)

Steam

G

enerator

S

T EA M R OOM

(

w et )

(dr y)

Speakers

Speaker Wire (100 ft max)

iTempo,
iTempoPlus,
AirTempo

Grounded
Wall Outlet

AudioSteam

Antenna (4 ft)

Power Cord

(6 ft)

In-room Control Cable (30/60 ft)

Steam

Generator

S TE AM R OOM

( we t)

(dr y)

mr.steam

®

Technical Specifications

AudioSteam & Audio@Home

he MusicTherapy

T
your steam room or shower. The MusicTherapy is easy to install and is com­patible with many audio sources such as portable music players and smart
phones equipped with Bluetooth

The AudioSteam can be controlled with the iSteam3 steambath control.
Audio@Home is controlled by a smart phone or tablet.

Just pair your Bluetooth
tal files or internet radio from your audio device will be streamed wirelessly.

WARNING

!

Control Options for the AudioSteam

A.

Operating the AudioSteam with the iSteam3 control

Diagram A

®

ound system is the perfect way to introduce music into

s

®

.

®

device and start playing your favorite music. Digi-

DO NOT connect speaker ground wires together.
DO NOT bridge channels

.

Locating the AudioSteam / Audio@Home

• The AudioSteam control cable is 30ft and the power cord is 6ft,
ensure the and AudioSteam are located accordingly. Only
Audio@Home has a 6 ft. power cord.

• Locate in a dry location where the wireless signal will not be
interrupted.

• Test Bluetooth

Dimensions

1

7

⁄

32

" 2

3

6

⁄

8

"

1

6

⁄

8

"

®

signal before mounting AudioWizard.

1

⁄

4

"

WARNING

!

ELECTRIC SHOCK HAZARD!

To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. DO NOT install AudioSteam in
the steam room or any location where it may become wet.

B.

Operating the AudioSteam with the iTempo,
iTempoPlus and AirTempo stand-alone control.

Diagram B

Environmental Ratings

Operating temperature: -4 °F to 140 °F
Storage temperature: -22 °F to 185 °F
Humidity: 70% max
Water resistance: IPX5

Subwoofer output only available on

AudioSteam Model MSAS3

Mechanical

Weight: 3.6 lb
Dimensions (WXHXD): 9.81” x 2.58” x 8.88”

Line Input

Input Voltage: 100-240 VAC 50-60Hz

Auxiliary Inputs

Maximum number of inputs: 1
Connection Type: 1/8” (3.5mm) stereo jack

Maximum voltage: 2.2 Vpp
Impedance: 100 Kohms

Audio Outputs

Max number of speakers: 4
Max number of subwoofers: 1
Audio Amplifier Type: Class D
Output Power (speaker): 25 WRMS, 50W PEAK
Output Power (subwoofer): 50 WRMS, 100W PEAK
Output Impedance (speaker): 4-8 Ohm
Output Impedance (subwoofer): 2-4 Ohm
Harmonic Distortion (speaker): 0.015% at 1W (1KHz)
Harmonic Distortion (subwoofer): 0.015% at 1W (100Hz)
Frequency response (speaker): 5Hz to 20 KHz F
Frequency response (subwoofer): 10Hz to 200 Hz

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION visit mrsteam.com
before installation to download the Installation, Operation and Maintenance Manual or refer to the manual provided with the unit.

MODEL PROJECT INFORMATION

MSAS3





(for use with iSteam3 only)

MSAH





(stand alone)

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM FAX: [phone] I 9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM FAX [phone]

®

Sussman-Automatic Corp®

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

[e-mail] www.mrsteam.com

TS0075 REV 7.17

®

mr.steam

Technical Specifications

MusicTherapy®Speakers, Round & Square

• Designed for use inside or outside the shower enclosure

• Ceiling, flush mount

• Square 7.06” x 7.06” Round: 6.5” diameter

• Two-way marine-grade speakers, polypropylene cones

• ABS frames with white powder-coated grills

• Suitable for most sources of audio input

• Rated 60W peak power with full range sound

• 30 watts RMS and 8 ohm impedance

• For use in any shower

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

visit mrsteam.com or scan the QR code before installation to download the Installation, Operation and
Maintenance Manual or refer to the manual provided with the unit.

MODEL SHAPE FINISH PROJECT INFORMATION

MS Speakers

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

RD Round



SQ Square



®

Sussman-Automatic Corp®

BK Black



WH White



[e-mail] www.mrsteam.com

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

TS0005 5.14
