mr.steam
147/8”
19
3
/4”
1
5
5
/
1
6
”
111/
16
WallSeat
®

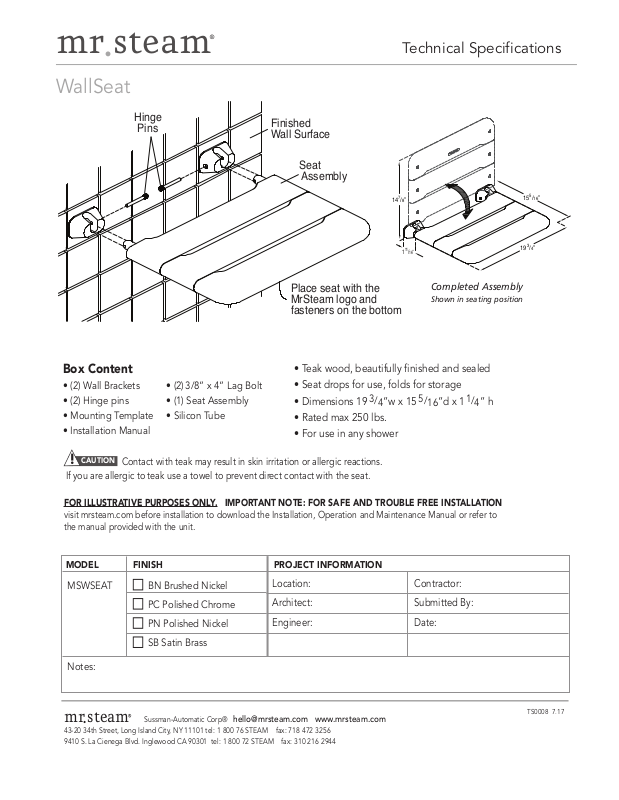

Technical Specifications
Hinge
Pins
Box Content
• (2) Wall Brackets • (2) 3/8” x 4” Lag Bolt
• (2) Hinge pins • (1) Seat Assembly
• Mounting Template • Silicon Tube
• Installation Manual
Finished
Wall Surface
Seat
Assembly
Place seat with the
MrSteam logo and
Completed Assembly
Shown in seating position
fasteners on the bottom
• Teak wood, beautifully finished and sealed
• Seat drops for use, folds for storage
• Dimensions 19
3
/
4
”w x 15
5
/
16
”d x 1
• Rated max 250 lbs.
• For use in any shower
1
/
” h
4
CAUTION
!
If you are allergic to teak use a towel to prevent direct contact with the seat.
FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION
visit mrsteam.com before installation to download the Installation, Operation and Maintenance Manual or refer to
the manual provided with the unit.
MODEL FINISH PROJECT INFORMATION
MSWSEAT
Notes:
mr.steam
43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: 718 472 3256
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: 310 216 2944
Contact with teak may result in skin irritation or allergic reactions.
BN Brushed Nickel
PC Polished Chrome
PN Polished Nickel
SB Satin Brass
®
Sussman-Automatic Corp®
hello@mrsteam.com www.mrsteam.com
Location:
Architect:
Engineer:
Contractor:
Submitted By:
Date:
TS0008 7.17
