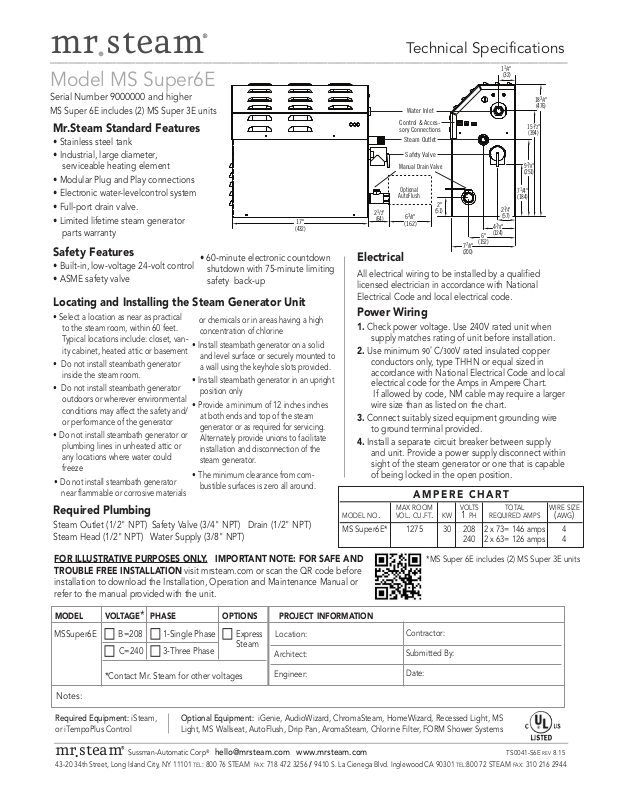

Mr. Steam MSSUPER6EB1X, MSSUPER6EB1, MSSUPER6EC1X, MSSUPER6EC3X, MSSUPER6EC1 Specifications

17"

(

432)

21/2

"

(64)

47/8

"

(124)

2"
(51)

77/8

"

(200)

71/4"
(184)

9

7

/8"

(251)

15

1

/2"

(

394)

18

3

/4"

(476)

11/4"

(32)

6"

(152)

63/8

"

(162)

21/4

"

(57)

®

mr.steam

Technical Specifications

______________________________________________________
Model MS Super6E

Serial Number 9000000 and higher
MS Super 6E includes (2) MS Super 3E units

Mr.Steam Standard Features

• Stainless steel tank

• Industrial, large diameter,
serviceable heating element

• Modular Plug and Play connections

• Electronic water-levelcontrol system

• Full-port drain valve.

• Limited lifetime steam generator
parts warranty

Water Inlet

Control & Acces­sory Connections

team Outlet

S

Safety Valve

anual Drain Valve

M

ptional

O

AutoFlush

Safety Features

• Built-in, low-voltage 24-volt control

• ASME safety valve

• 60-minute electronic countdown
shutdown with 75-minute limiting
safety back-up

Locating and Installing the Steam Generator Unit

• Select a location as near as practical
to the steam room, within 60 feet.
Typical locations include: closet, van­ity cabinet, heated attic or basement

• Do not install steambath generator
inside the steam room.

• Do not install steambath generator
outdoors or wherever environmental
conditions may affect the safety and/
or performance of the generator

• Do not install steambath generator or
plumbing lines in unheated attic or
any locations where water could
freeze

• Do not install steambath generator
near flammable or corrosive materials

or chemicals or in areas having a high

concentration of chlorine

• Install steambath generator on a solid
and level surface or securely mounted to
a wall using the keyhole slots provided.

• Install steambath generator in an upright
position only

• Provide a minimum of 12 inches inches
at both ends and top of the steam
generator or as required for servicing.
Alternately provide unions to facilitate
installation and disconnection of the
steam generator.

• The minimum clearance from com­bustible surfaces is zero all around.

Required Plumbing

Steam Outlet (1/2" NPT) Safety Valve (3/4" NPT) Drain (1/2" NPT)
Steam Head (1/2" NPT) Water Supply (3/8" NPT)

Electrical

All electrical wiring to be installed by a qualified
licensed electrician in accordance with National
Electrical Code and local electrical code.

Power Wiring

1. Check power voltage. Use 240V rated unit when

supply matches rating of unit before installation.

2. Use minimum 90˚ C/300V rated insulated copper
conductors only, type THHN or equal sized in
accordance with National Electrical Code and local
electrical code for the Amps in Ampere Chart.

If allowed by code, NM cable may require a larger

wire size than as listed on the chart.

3. Connect suitably sized equipment grounding wire
to ground terminal provided.

4. Install a separate circuit breaker between supply
and unit. Provide a power supply disconnect within
sight of the steam generator or one that is capable
of being locked in the open position.

A M P E R E C H A R T

MAX ROOM VOLTS TOTAL WIRE SIZE

MODEL NO. VOL. CU.FT. KW 1 PH REQUIRED AMPS (AWG)

MS Super6E* 1275 30 208 2x73= 146 amps 4

240 2x63= 126 amps 4

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND

*MS Super 6E includes (2) MS Super 3E units

TROUBLE FREE INSTALLATION visit mrsteam.com or scan the QR code before
installation to download the Installation, Operation and Maintenance Manual or
refer to the manual provided with the unit.

MODEL VOLTAGE* PHASE OPTIONS PROJECT INFORMATION

MSSuper6E

B=208



C=240





*

Contact Mr. Steam for other voltages

1-Single Phase





3-Three Phase









Express
Steam

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

Notes:

TS0041-S6E REV 8.15

Required Equipment: iSteam,
or iTempoPlus Control

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 800 76 STEAM FAX: [phone] / 9410 S. La Cienega Blvd. Inglewood CA 90301 TEL:800 72 STEAM FAX: [phone]

®

Sussman-Automatic Corp

Optional Equipment: iGenie, AudioWizard, ChromaSteam, HomeWizard, Recessed Light, MS
Light, MS Wallseat, AutoFlush, Drip Pan, AromaSteam, Chlorine Filter, FORM Shower Systems

®
