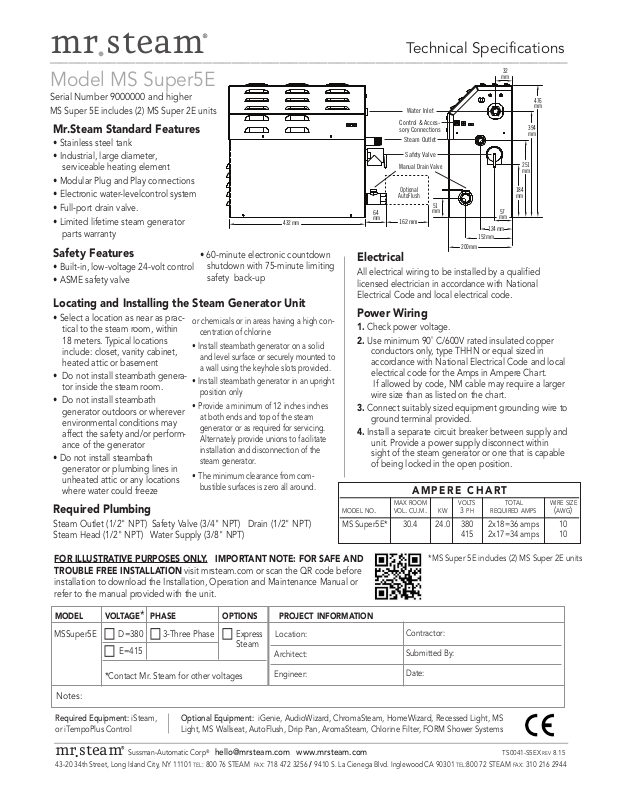

Mr. Steam MSSUPER5ED3X, MSSUPER5EE3X Specifications

432 mm

6

4

mm

124 mm

51

mm

200 mm

184
mm

251
mm

394
mm

476
mm

32

mm

152 mm

162 mm

57

mm

®

mr.steam

Technical Specifications

______________________________________________________
Model MS Super5E

Serial Number 9000000 and higher
MS Super 5E includes (2) MS Super 2E units

Mr.Steam Standard Features

• Stainless steel tank

• Industrial, large diameter,
serviceable heating element

• Modular Plug and Play connections

• Electronic water-levelcontrol system

• Full-port drain valve.

• Limited lifetime steam generator
parts warranty

Water Inlet

Control & Acces­sory Connections

team Outlet

S

Safety Valve

anual Drain Valve

M

ptional

O

AutoFlush

Safety Features

• Built-in, low-voltage 24-volt control

• ASME safety valve

• 60-minute electronic countdown
shutdown with 75-minute limiting
safety back-up

Locating and Installing the Steam Generator Unit

• Select a location as near as prac­tical to the steam room, within
18 meters. Typical locations
include: closet, vanity cabinet,
heated attic or basement

• Do not install steambath genera­tor inside the steam room.

• Do not install steambath
generator outdoors or wherever
environmental conditions may
affect the safety and/or perform­ance of the generator

• Do not install steambath
generator or plumbing lines in
unheated attic or any locations
where water could freeze

or chemicals or in areas having a high con-

centration of chlorine

• Install steambath generator on a solid
and level surface or securely mounted to
a wall using the keyhole slots provided.

• Install steambath generator in an upright
position only

• Provide a minimum of 12 inches inches
at both ends and top of the steam
generator or as required for servicing.
Alternately provide unions to facilitate
installation and disconnection of the
steam generator.

• The minimum clearance from com­bustible surfaces is zero all around.

Required Plumbing

Steam Outlet (1/2" NPT) Safety Valve (3/4" NPT) Drain (1/2" NPT)
Steam Head (1/2" NPT) Water Supply (3/8" NPT)

Electrical

All electrical wiring to be installed by a qualified
licensed electrician in accordance with National
Electrical Code and local electrical code.

Power Wiring

1. Check power voltage.

2. Use minimum 90˚ C/600V rated insulated copper

conductors only, type THHN or equal sized in
accordance with National Electrical Code and local
electrical code for the Amps in Ampere Chart.

If allowed by code, NM cable may require a larger

wire size than as listed on the chart.

3. Connect suitably sized equipment grounding wire to
ground terminal provided.

4. Install a separate circuit breaker between supply and
unit. Provide a power supply disconnect within
sight of the steam generator or one that is capable
of being locked in the open position.

A M P E R E C H A R T

MAX ROOM VOLTS TOTAL WIRE SIZE

MODEL NO.VOL. CU.M.KW3PH REQUIRED AMPS(AWG

MS Super5E* 30.4 24.0 380 2x18=36 amps 10

415 2x17=34 amps 10

)

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND

*MS Super 5E includes (2) MS Super 2E units

TROUBLE FREE INSTALLATION visit mrsteam.com or scan the QR code before
installation to download the Installation, Operation and Maintenance Manual or
refer to the manual provided with the unit.

MODEL VOLTAGE* PHASE OPTIONS PROJECT INFORMATION

MSSuper5E

Notes:

Required Equipment: iSteam,
or iTempoPlus Control

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 800 76 STEAM FAX: [phone] / 9410 S. La Cienega Blvd. Inglewood CA 90301 TEL:800 72 STEAM FAX: [phone]

D=380



E=415





*

Contact Mr. Steam for other voltages

®

Sussman-Automatic Corp

3-Three Phase









Optional Equipment: iGenie, AudioWizard, ChromaSteam, HomeWizard, Recessed Light, MS
Light, MS Wallseat, AutoFlush, Drip Pan, AromaSteam, Chlorine Filter, FORM Shower Systems

®

[e-mail] www.mrsteam.com

Express
Steam

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

TS0041-S5EX REV 8.15
