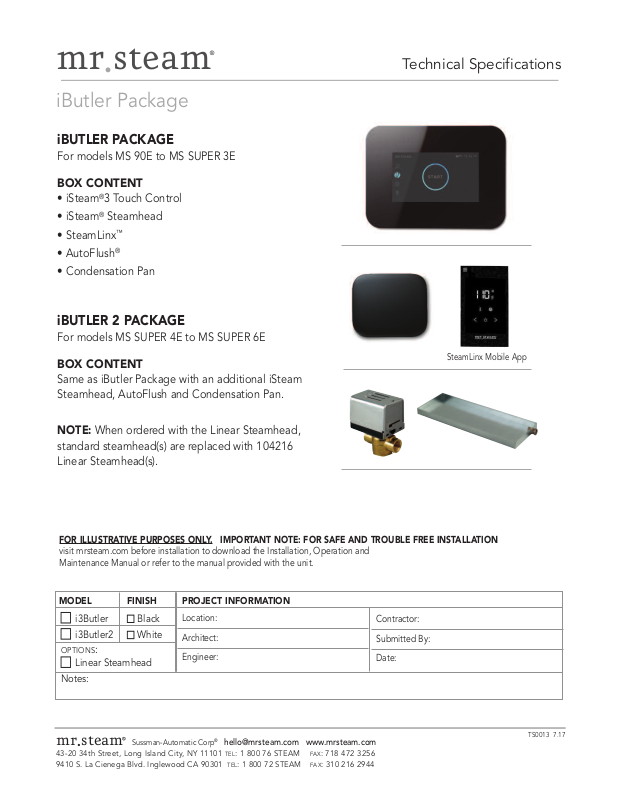

Mr. Steam I3UTLERLWH, I3BUTLERBK, I3BUTLERWH, I3BUTLERLBK Specifications

®

mr.steam

iButler Package

iBUTLER PACKAGE

For models MS 90E to MS SUPER 3E

BOX CONTENT

• iSteam®3 Touch Control

®

• iSteam

• SteamLinx

• AutoFlush

• Condensation Pan

iBUTLER 2 PACKAGE

For models MS SUPER 4E to MS SUPER 6E

Steamhead

™

®

Technical Specifications

BOX CONTENT

SteamLinx Mobile App

Same as iButler Package with an additional iSteam
Steamhead, AutoFlush and Condensation Pan.

NOTE: When ordered with the Linear Steamhead,
standard steamhead(s) are replaced with 104216
Linear Steamhead(s).

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

visit mrsteam.com before installation to download the Installation, Operation and
Maintenance Manual or refer to the manual provided with the unit.

MODEL FINISH PROJECT INFORMATION

i3Butler



i3Butler2



OPTIONS:

Linear Steamhead



Notes:





Black
White

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL : 1 800 76 STEAM FA X: 718 472 3256
9410 S. La Cienega Blvd. Inglewood CA 90301 T EL: 1 800 72 STEAM FAX: [phone]

®

Sussman-Automatic Corp

®

[e-mail] www.mrsteam.com

TS0013 7.17

mr.steam

®

Technical Specifications

AutoFlush

®

Box Contents

• AutoFlush Valve with Cord

• Installation instructions

Operation

The optional AutoFlush System fea­ture automatically drains the

®

Mr.Steam
A time delay allows the water to cool
down (about two hours) before it
drains by gravity for a safe and gentle
operation.

Note:

has been installed, the AutoFlush will
drain for ten minutes then refill with
fresh water to begin the pre-heat
cycle.

system following each use.

If the Express Steam®option

AutoFlush Shown Fully Assembled

Steam Generator

DO NOT TURN OR REMOVE THE DRAIN VALVE

(shown in the correct open position)

Drain Valve

AutoFlush Valve

Nipple

Plumb to
Drain Line

Our exclusive AutoFlush® automatically and electronically drains the system,

®

providing CleanSteam... Every Time

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

visit mrsteam.com or scan the QR code before installation to download the Installation, Operation and
Maintenance Manual or refer to the manual provided with the unit.

MODEL PROJECT INFORMATION

MS 81500E

Notes:

mr.steam

mr.steam

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

Location:

Architect:

Engineer:

®

®

Sussman-Automatic Corp®

Sussman-Automatic Corp®

and introduces fresh water.

Contractor:

Submitted By:

Date:

[e-mail] www.mrsteam.com

[e-mail] www.mrsteam.com

TS0011 REV 5.14
