Mr.Steam CT6E, CT9E, CT12E, CT15E User Manual

Installation, Operation & Maintenance Manual

Club Therapy Steambath Generator Systems

Installation, Operation & Maintenance Manual Models: CT6E, CT9E, CT12E, CT15E

mr.steam

®

Feel Good Inc.

Club Therapy®Steambath Generator Systems

U S A

Designed, Engineered
and Assembled in the

INSTALLATION, OPERATION & MAINTENANCE MANUAL

Table of Contents

Read Me First! & Warning Placard .....................................1

Select Your Club Therapy Model .......................................2

Specification Chart .............................................................2

Before Installing .................................................................3

Steam Room Guidelines.....................................................3

Locating the Steam Generator Unit ...................................4

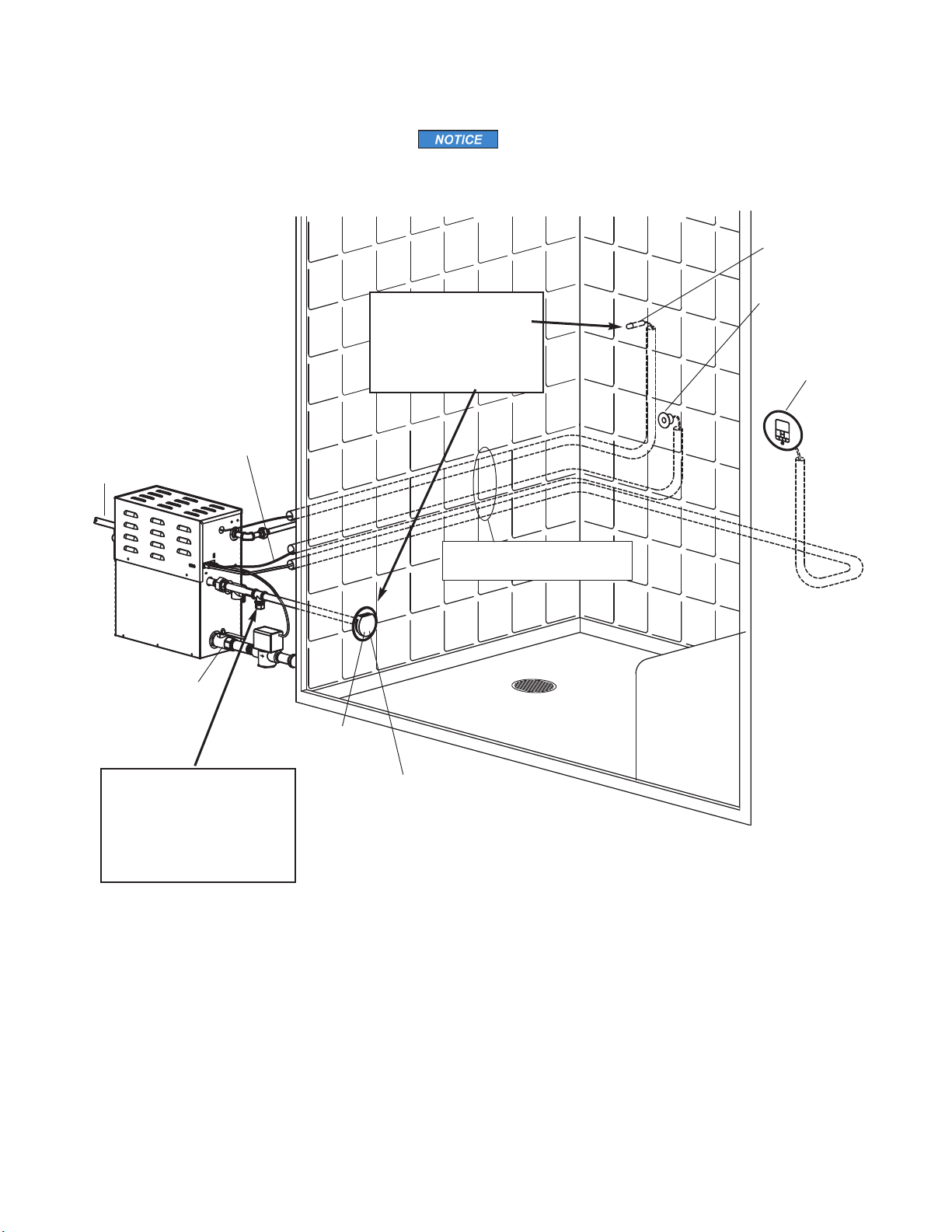

Typical Installation ..............................................................5

Installation: Plumbing, Water Supply, Drain, Steam

Outlet, Safety Valve, Condensation Pan, AromaSteam ....6

Water Quality Information..................................................6

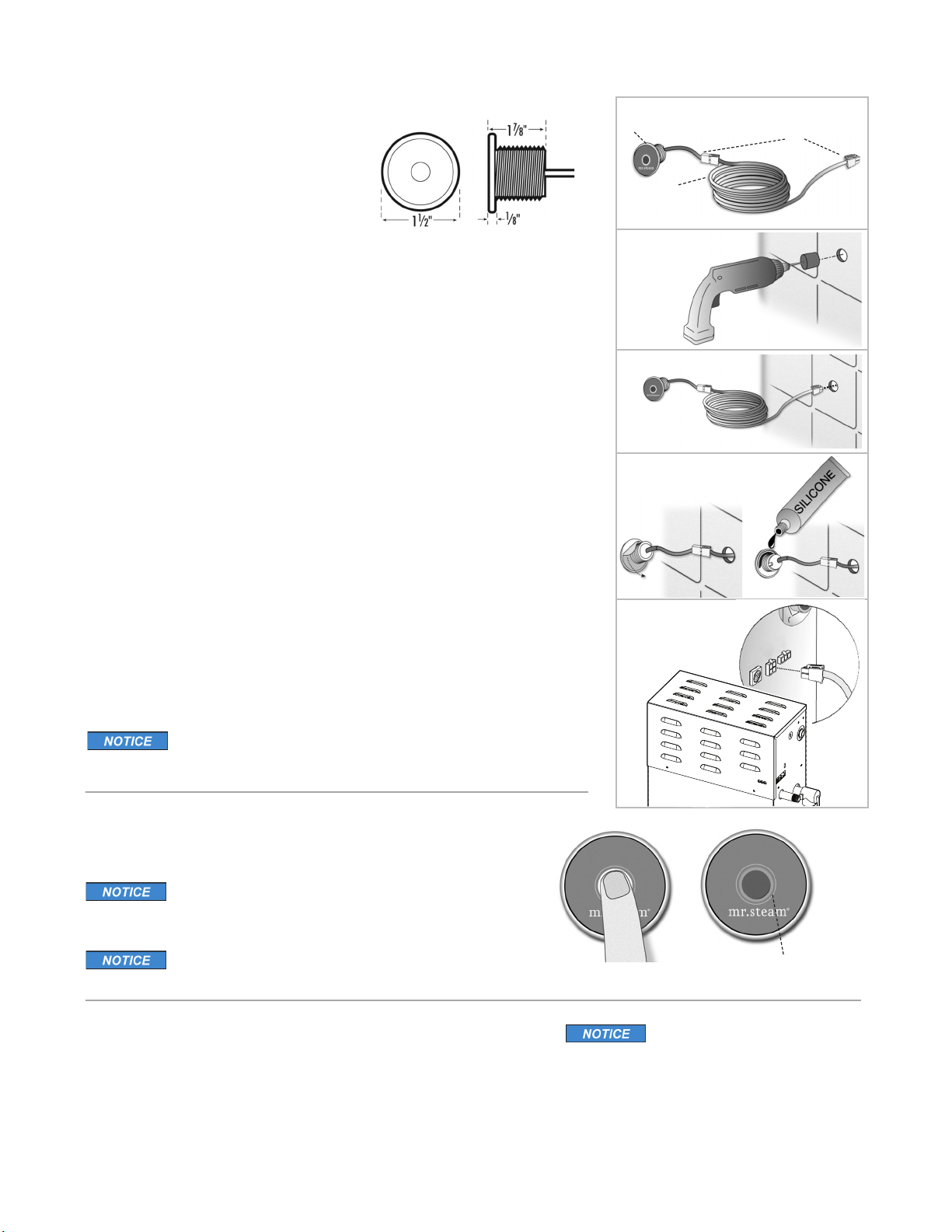

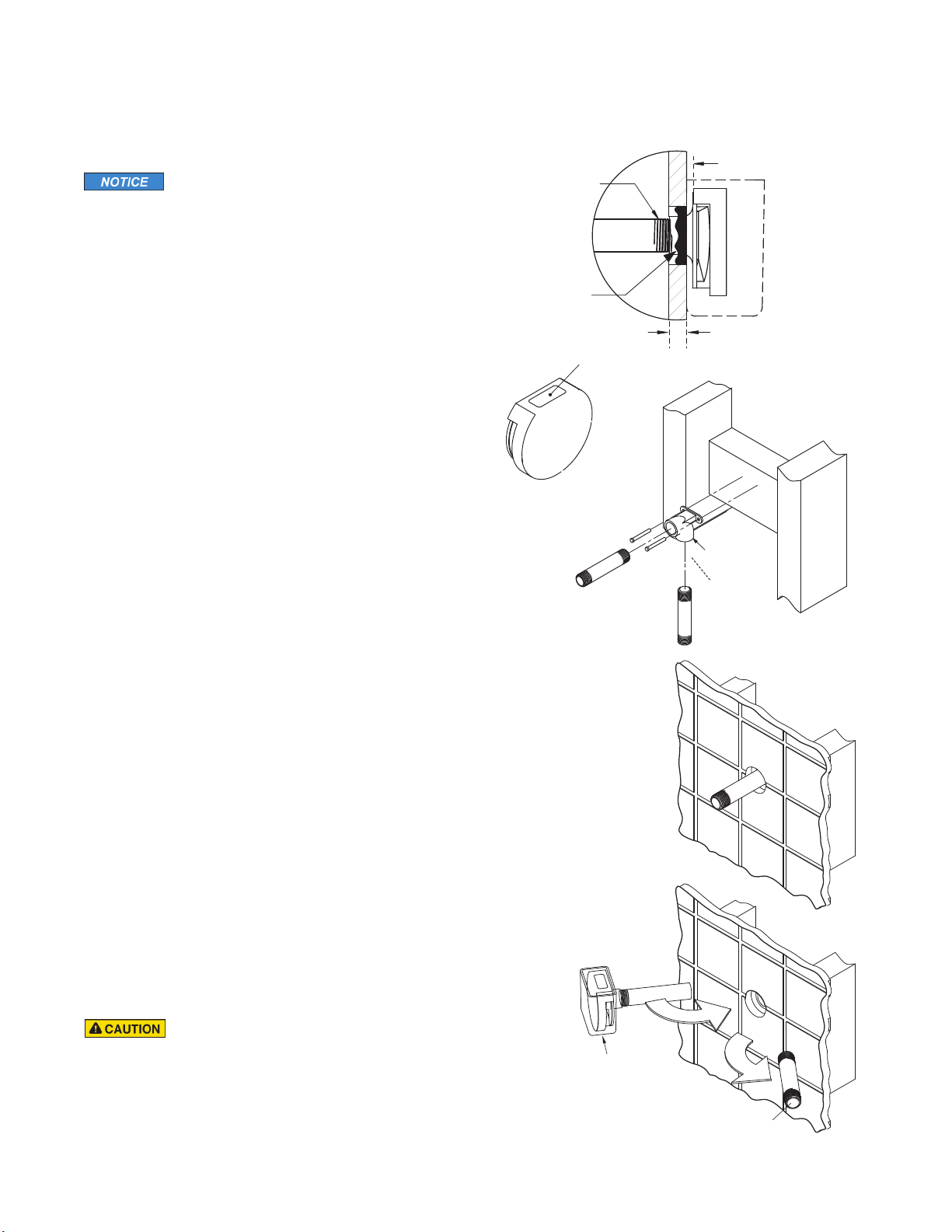

AromaSteam SteamHead Installation ................................7

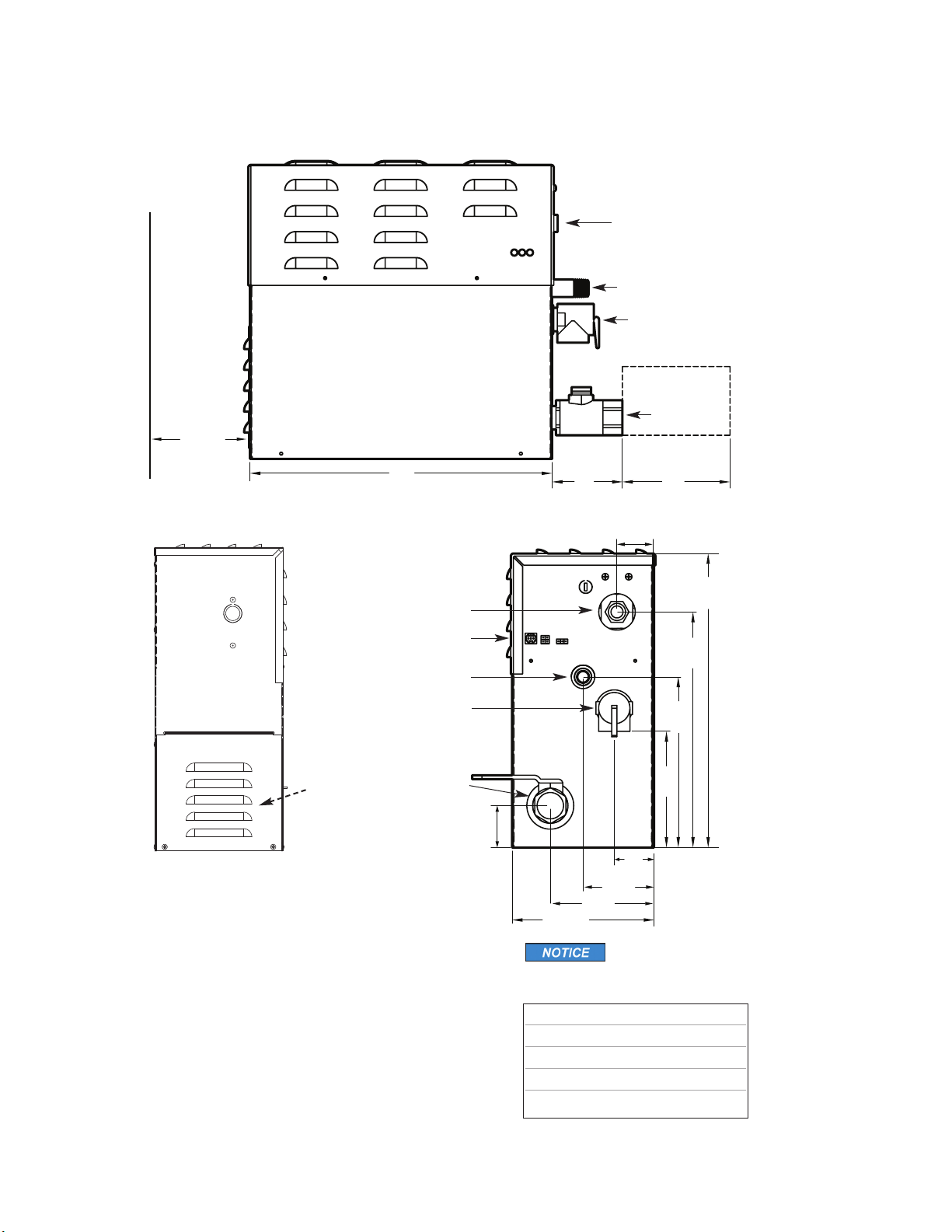

Generator Dimensions .......................................................8

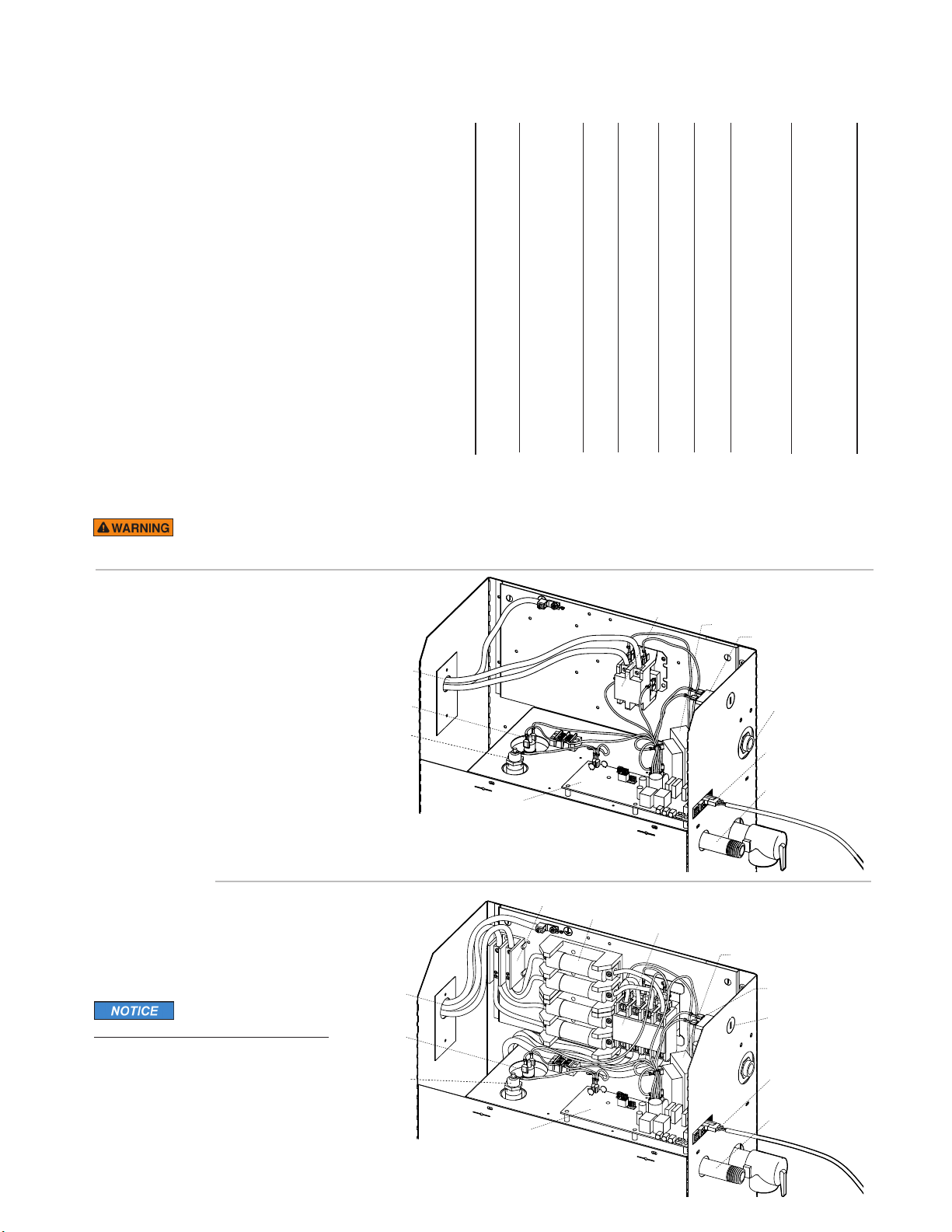

Electrical Specifications & Field Power Wiring ..................9

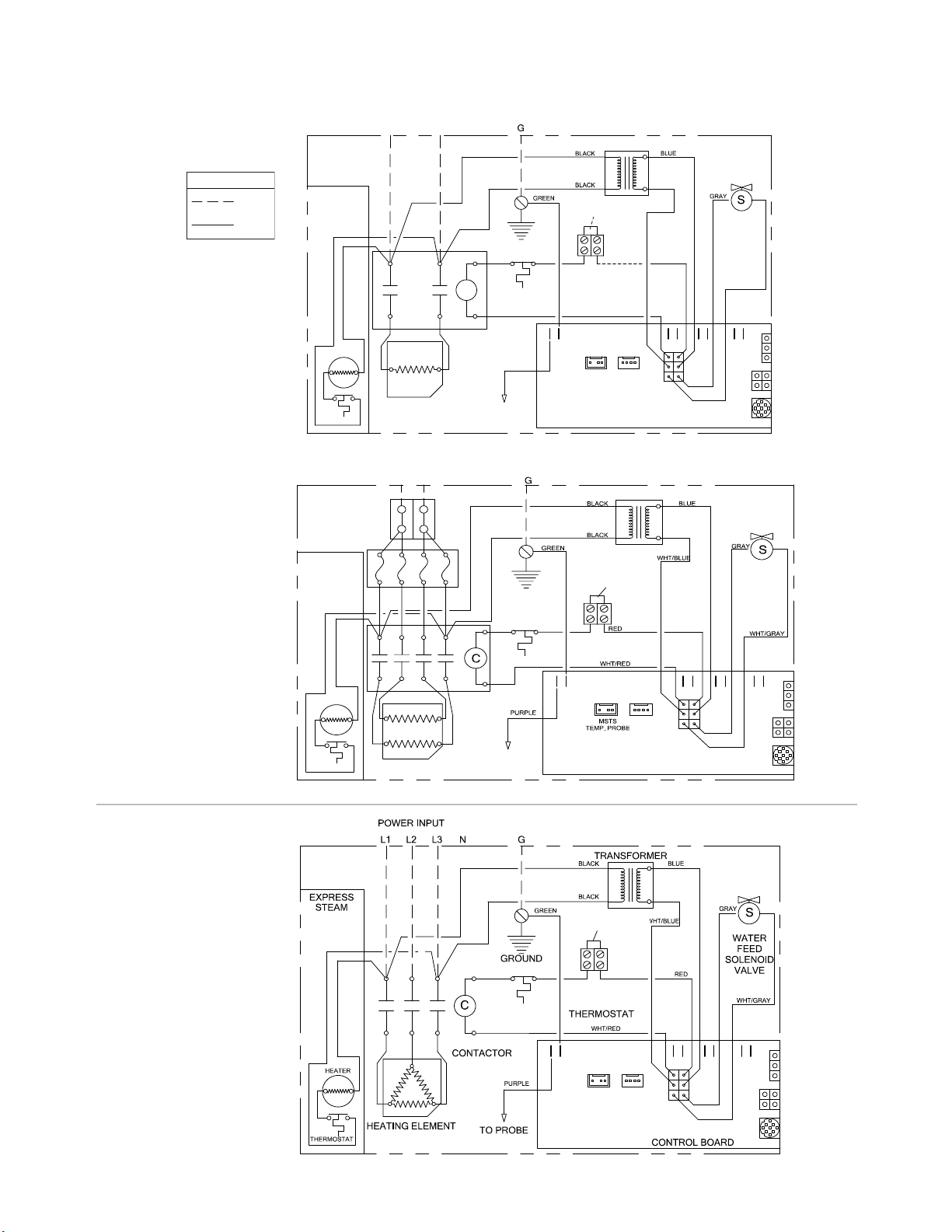

Wiring Diagrams...............................................................10

Initial Start-Up & Checkout, Maintenance, Generator

Operations and Troubleshooting..................................11

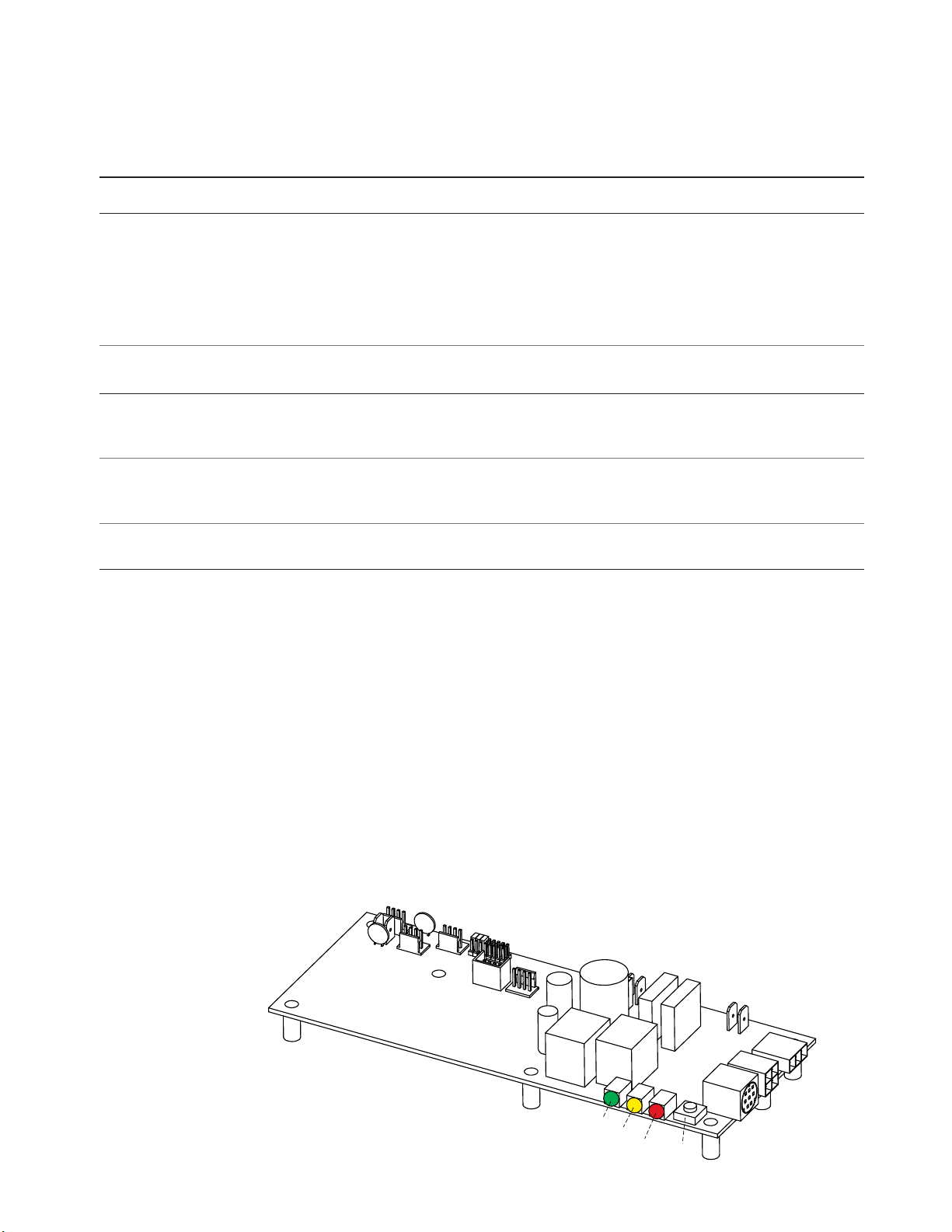

System Status Codes, Liquid Level Control Board ..........12

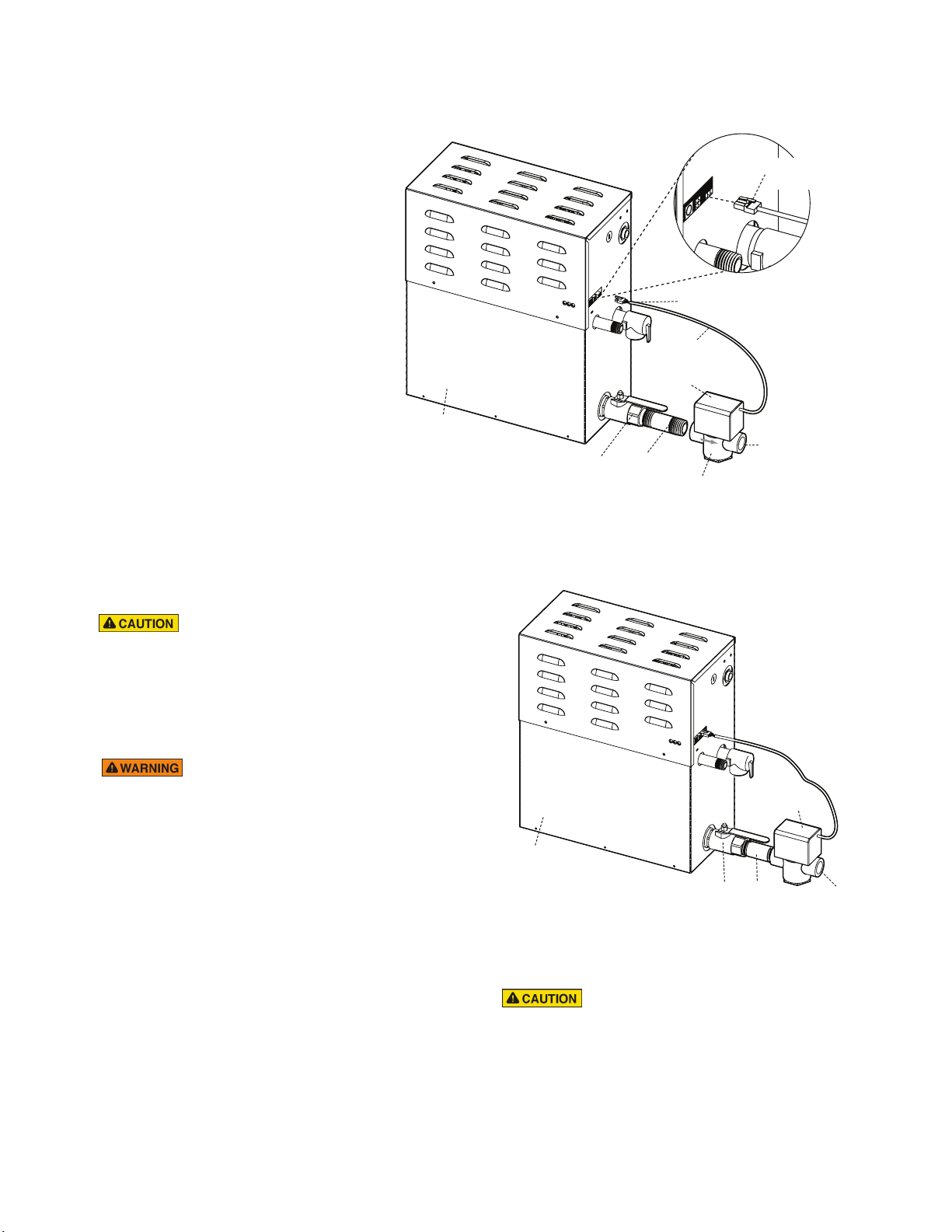

AutoFlush®System ...........................................................13

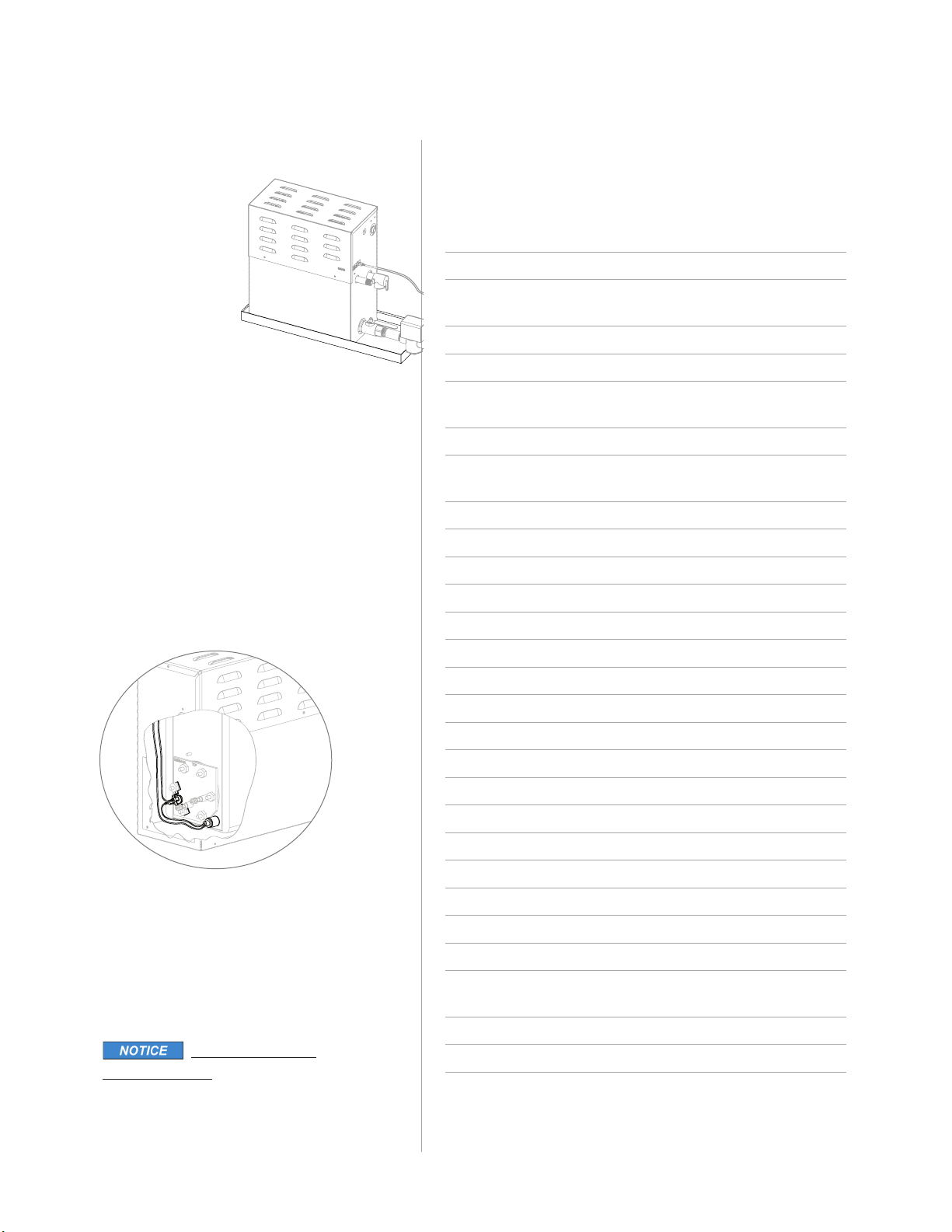

Condensation Pan, Express Steam®.................................14

Replacement Parts List.....................................................14

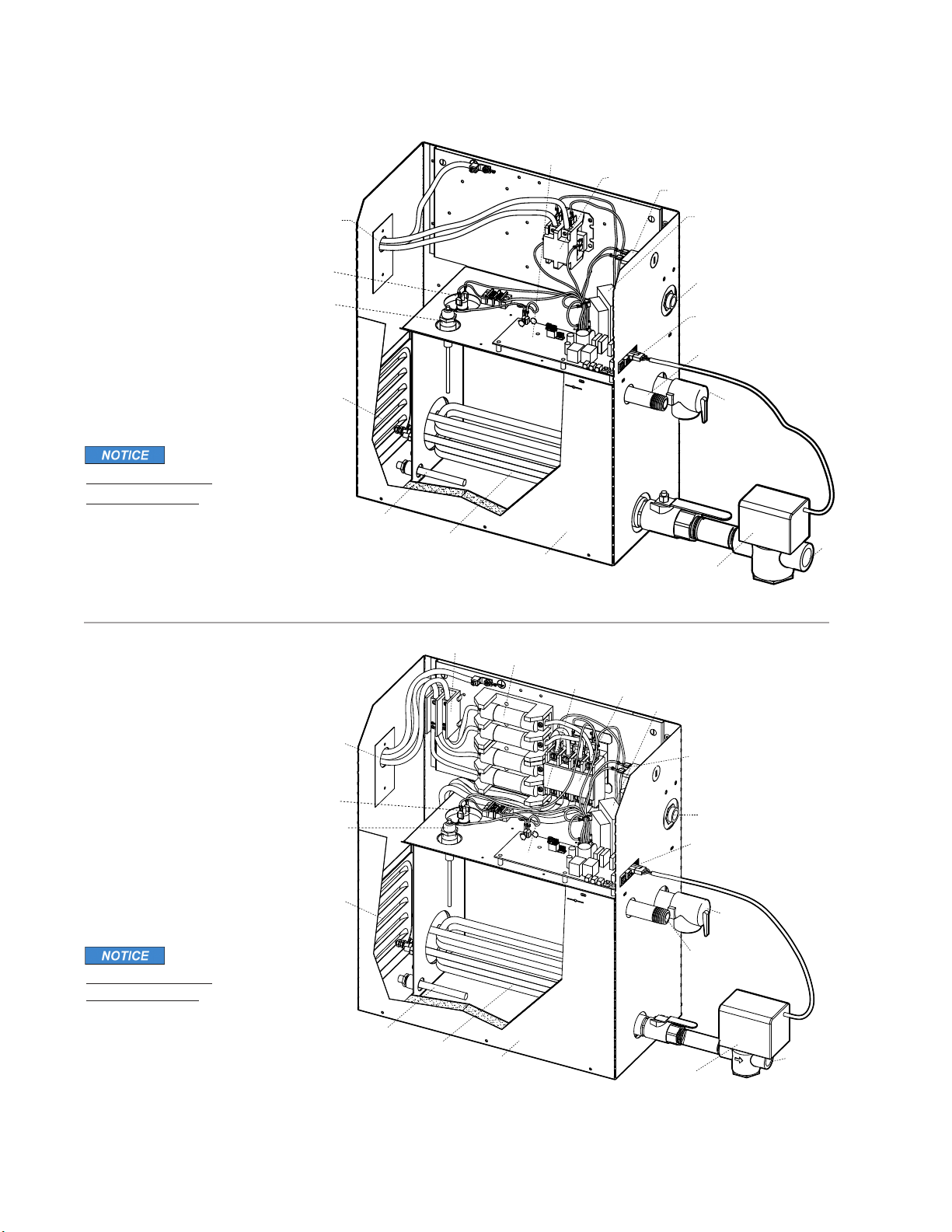

Replacement Parts Diagram.............................................15

Controls

Before Installing, Control Rough-In..................................16

CT SteamStop ..................................................................17

Care Tips for Controls and Steamhead............................17

General

Warranty ...........................................................................18

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM

9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM

®

Sussman-Automatic Corp.®[e-mail] www.mrsteam.com

PUR

100426

REV

1.20

mr.steam

STEAM ROOM BENEFITS

Steam bathing is a communal activity. Enjoy steam together with friends. Relax, knowing
that steam may be a natural detox. Here are some possible benefits of steam bathing:

- Cleanses, nourishes, and hydrates skin

- Boosts metabolism

- Provides relief for respiratory ailments such as colds, flu, allergies, and asthma

- Reduces stress and promotes restful sleep

Follow your steambath with a refreshing shower.

If you would like your own personal steam bath at home contact us at mrsteam.com

REDUCE THE RISK OF OVERHEATING AND SCALDING

1. Exit immediately if uncomfortable, dizzy or sleepy. Staying too long in a
heated area is capable of causing overheating.

2. Children under the age of 16 should not use the steam bath.

3. Check with a doctor before use if pregnant, diabetic, in poor health or
under medical care.

4. Breathing heated air in conjunction with consumption of alcohol, drugs or
medication is capable of causing unconsciousness.

5. Do not contact steam head or steam at the steam head.

REDUCE THE RISK OF SLIPPING AND FALL INJURY

Use care when entering or exiting the steam room, floor may be slippery.

Note:

For additional safety considerations see owner's manual.

MrSteam 43-20 34th Street, Long island City NY 11101 1-800-76-STEAM www.mrsteam.com

________________________________________________________________________________________

_

®

C L U B T H E R A P Y Installation, Operating & Maintenance Manual

RE A D ME FI R ST !

IMPORTANT NOTE:

instructions, you will notice warning and caution
symbols. This blocked information is important
for the safe and efficient installation and opera­tion of this generator. These are types of poten­tial hazards that may occur during this installa­tion and operation:

states a hazard may cause seri­ous injury or death if precautions are not fol­lowed.

signals a situation where minor
injury or product damage may occur if you do
not follow instructions.

is used to address practices not
related to physical injury.

IMPORTANT NOTE:

mation that is especially relevant to a problem­free installation.

All information in these instructions is based on
the latest product information available at the
time of publication. Sussman-Automatic
Corporation reserves the right to make changes
at any time without notice. More current instruc­tions may be available at

As you follow these

This highlights infor-

www.mrsteam.com.

When installing and using this electrical equipment, basic safety precautions
should always be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

1. READ AND FOLLOW ALL INSTRUCTIONS

2.

3.

A. The wet surfaces of steam enclosures may be slippery. Use care when

entering or leaving.

B. The steam head is hot. Do not touch the steam head and avoid the

steam near the steam head.

C. Prolonged use of the steam system can raise excessively the internal

human body temperature and impair the body’s ability to regulate its
internal temperature (hyperthermia). Limit your use of steam to 10-15
minutes until you are certain of your body’s reaction.

D. Excessive temperatures have a high potential for causing fetal damage

during the early months of pregnancy. Pregnancy or possibly pregnant
women should consult a physician regarding correct exposure.

E. Obese persons and persons with a history of heart disease, low or high

blood pressure, circulatory system problems, or diabetes should consult
a physician before using a steambath.

F. Persons using medication should consult a physician before using a

steambath since some medication may induce drowsiness while other
medications may affect heart rate, blood pressure and circulation.

Do not permit children under the age of 16

to use this steambath.

To reduce the risk of injury:

SAVE THESE INSTRUCTIONS

not actual size

HYPERTHERMIA occurs when the internal temperature
of the body reaches a level several degrees above the
normal body temperature of 98.6° F. The symptoms of
hyperthermia include an increase in the internal tem­perature of the body, dizziness, lethargy, drowsiness,
and fainting. The effects of hyperthermia include:

a) Failure to perceive heat;
b) Failure to recognize the need to exit the steambath;
c) Unawareness of impending risk;
d) Fetal damage in pregnant women;
e) Physical inability to exit the steambath

and

f) Unconsciousness.

The use of alcohol, drugs, or medica-

tion can greatly increase the risk of hyperthermia.

A warning placard has been provided in the Information
envelope. This placard is an essential part of providing
a safe environment for steam room users. This placard
must be mounted to the wall of the shower or steam
enclosure, at a point visible to all users. Failure to
mount this placard may result in serious injury or death.

1

mr.steam

________________________________________________________________________________________

_

®

C L U B T H E R A P Y Installation, Operating & Maintenance Manual

Select Your Club Therapy Model

Materials of construction, room size and special design features such as
large glass areas, all affect the steam generator model selection.

1.

Measure length, width & height in feet of the steam/shower or tub/shower

Multiply the Length ____ x Width____ x Height _____

=

2. Construction Materials:
For natural stones: natural marble,

stone, shale, glass block or concrete

For ceramic or porcelain tile on
cement board or mortar bed

Add 110%

Add 40%

3. Ceiling Height: For each foot above 8 feet
(max. of 10 feet) Add 15%

4. Add all figures above to obtain
the Total Room Volume required

Compare your TOTAL ADJUSTED ROOM VOLUME to the Specification Chart
below and select the appropriate model.

Visit www.mrsteam.com to size your generator automatically.

ROOM
VOLUME

TOTAL ADJUSTED

ROOM VOLUME

bath system, please note that if users are pregnant,

ave a coronary condition, are in poor health, are being

h
treated for any other medical condition, or are using
medication or drugs, MrSteam recommends that you
obtain the approval of their physician before use.
For information about this product and safety issues,
please call us at 1-800-76-STEAM or log onto
www.mrsteam.com

In considering a purchase of this steam-

IMPORTANT NOTES:

•

The guidelines for selecting the steambath generator is

a recommendation only. Because of variables in con­struction, these sizing instructions and specifications
should be considered as guidelines only. MrSteam will
review the model selected provided we receive com­plete information, including working drawings, specifi­cations, and pertinent electrical and construction
details. Otherwise, the manufacturer disclaims respon­sibility for the sizing of a model selected.

• For steam rooms constructed of acrylic or synthetic
materials, select next lower-rated CT model.

• The total adjusted room volume allows for up to 60
feet of insulated steam piping from the CT generator
to the steam room. If the 60 feet piping is exceeded
consult with factory. When locating the steam gener­ator consideration of the control and external tem­perature probe must be taken into account. The max­imum length for a control cable is 60 feet. The maxi­mum length of the MSTS is 60 feet. MSTS connects
to the steam generator and is required to be installed
inside the steam room when the control is mounted
outside the steam room.

Steam Generators Specification Chart

Amps (for Total Adj Wire Water Usage Shipping

Model No. KW 240v/1PH)† Room Vol. Size‡ gallons†† Dimensions* Wt. (lbs)**

CT6E 6 25 150 8 0.80 17"L x 18½"H x 77⁄8"D 40

CT9E 9 38 360 8 1.2 17"L x 18½"H x 77⁄8"D 40

CT12E 12 50 575 6 1.6 17"L x 18½"H x 77⁄8"D 40

CT15E 15 63 675 4 2.0 17"L x 18½"H x 77⁄8"D 40

IMPORTANT NOTES:

• Add C1 suffix to Model No. for 240V/1Ph; Add B1 suffix to Model No. for 208V/1Ph.

• All CT MS Models are cUL us Listed and CE; approved.

All CT Generators available in 240v/1PH, 208v/1PH and other voltages/phases.
† Amps are for 240/1PH rated units.
‡Wire size (AWG) based on minimum 90˚C rated THHN copper conductors. Refer to the

National Electrical Code for other types of conductors.

2

*Dimensions are for generator only, with-

out AutoFlush

**Shipping weight and pricing are for

generator only, without control or
steamhead.

†† Water usage based on 20 minutes of

operation.

®

or plumbing features.

mr.steam

STEAM RO OM BENEFITS

Steam bathing is a communal activity.Enjoy steam together with friends. Relax, knowing
that steam may be a natural detox. Here aresome possible benefits of steam bathing:

- Cleanses, nourishes, and hydrates skin

- Boosts metabolism

- Provides relieffor respiratory ailments such as colds, flu, allergies, and asthma

- Reduces stress and promotesrestful sleep

Follow your steambath with a refreshingshower.

If you would like your own personal steam bath at home contact us at mrsteam.com

REDUCE THE RISK OF OVERHEATING AND SCALDING

1. Exit immediately if uncomfortable, dizzy or sleepy.Staying too long in a
heated area is capable of causing overheating.

2. Children under the age of 16 should not use the steam bath.

3. Check with a doctor before use if pregnant,diabetic, in poor health or
under medical care.

4. Breathing heated air in conjunction with consumption of alcohol, drugs or
medication is capable of causing unconsciousness.

5. Do not contact steam head or steam at the steam head.

REDUCE THE RISK OF SLIPPING AND FALL INJURY

Use care when entering or exiting the steam room,floor may be slippery.

Note:

For additional safety considerations see owner's manual.

M

rSteam 43-20 34th Street,Long island City NY 11101 1-800-76-STEAM www.mrsteam.com

________________________________________________________________________________________

_

®

C L U B T H E R A P Y Installation, Operating & Maintenance Manual

Before Installing

Carefully inspect the CT steam generator and packaging for
shipping damage. In the event of shipping damage, please
contact the carrier for claim information. Our customer service
department can assist you with any missing or damaged parts.

Read these instructions before installation or service. Although
this CT steam generator has been fully qualified
for shipment by MrSteam, the following must be reviewed for
proper, safe and enjoyable steam bathing:

1. Verify that the model and accessories specifications are cor­rect for the incoming line voltage.

2. Insure steambath generator has been correctly sized for the
steambath room. Pay particular attention to room volume

and construction. If any questions, please refer to MrSteam sizing
and selection guide on page 2.

3. Marble or glass walls or ceilings “enlarge” the room’s size requir­ing a generator larger than one based only on the room’s cubic

oot (L x H x W) volume.

f

4. The physical size of the unit, clearance for plumbing servicing,
and its distance from the steam room must all be considered
before final installation.

5. Consider any controls and accessories before initiating installa­tion. Read the Installation & Operation Manual of all controls
and accessories available at
www.mrsteam.com/products/technical-downloads.html

Steam Room Guidelines

IMPORTANT NOTE:

copy and familiarize themselves with the latest edition of the
American College Sports Medicine Health/Fitness Facility
Standards and Guidelines, or a similar resource and reference
publication, and refer to those guidelines for the proper and
safe operation of a spa facility including steam rooms.

1. Steam room must be completely enclosed, with full
walls, door, floor and ceiling.

2. It is recommended that a gasketed door is used for
steam containment.

3. If tile-type or other smooth surfaced flooring is used
provide suitable anti-skid strips or equivalent, to
prevent a slipping hazard.

4. Check the suitability of any materials with the
manufacturer. Walls and ceilings must be constructed
of water-resistant, non-corrosive surface, such as tile,
marble, molded acrylic, or other non-porous material.

5. The ceiling should be sloped to prevent dripping of
condensate.

6. Provide a floor drain.

7. No heating, venting or air conditioning devices
should be installed inside the steam room.

Owners/Operators should obtain a

8. Steam room tile construction information is available from the Tile
Council of America, Inc. by purchasing
the TCA Handbook for Ceramic Tile Installation.at [phone]
or www.tileusa.com.

9. Windows that are part of the steam room should be double
paned and tempered safety glass.

10. Limit steam room ceiling height to 8 feet. Exceeding 8 feet may
require a higher-rated steam generator.

The warning
placard is located in the docu­mentation envelope. This plac­ard is an essential part of provid­ing a safe environment for steam
room users. This placard must be
mounted to the wall of the
shower or steam enclosure, at a
point visible to all users. Failure
to mount this placard may result
in serious injury or death. For a
replacement placard contact
MrSteam customer service at 1­800-76-STEAM or
[e-mail]

result in an inoperative or hazardous installation.

Discontinue use of the steam generator and control if the steam
generator or control are damaged or otherwise not functioning
properly. Doing so may result in an inoperative or hazardous
installation

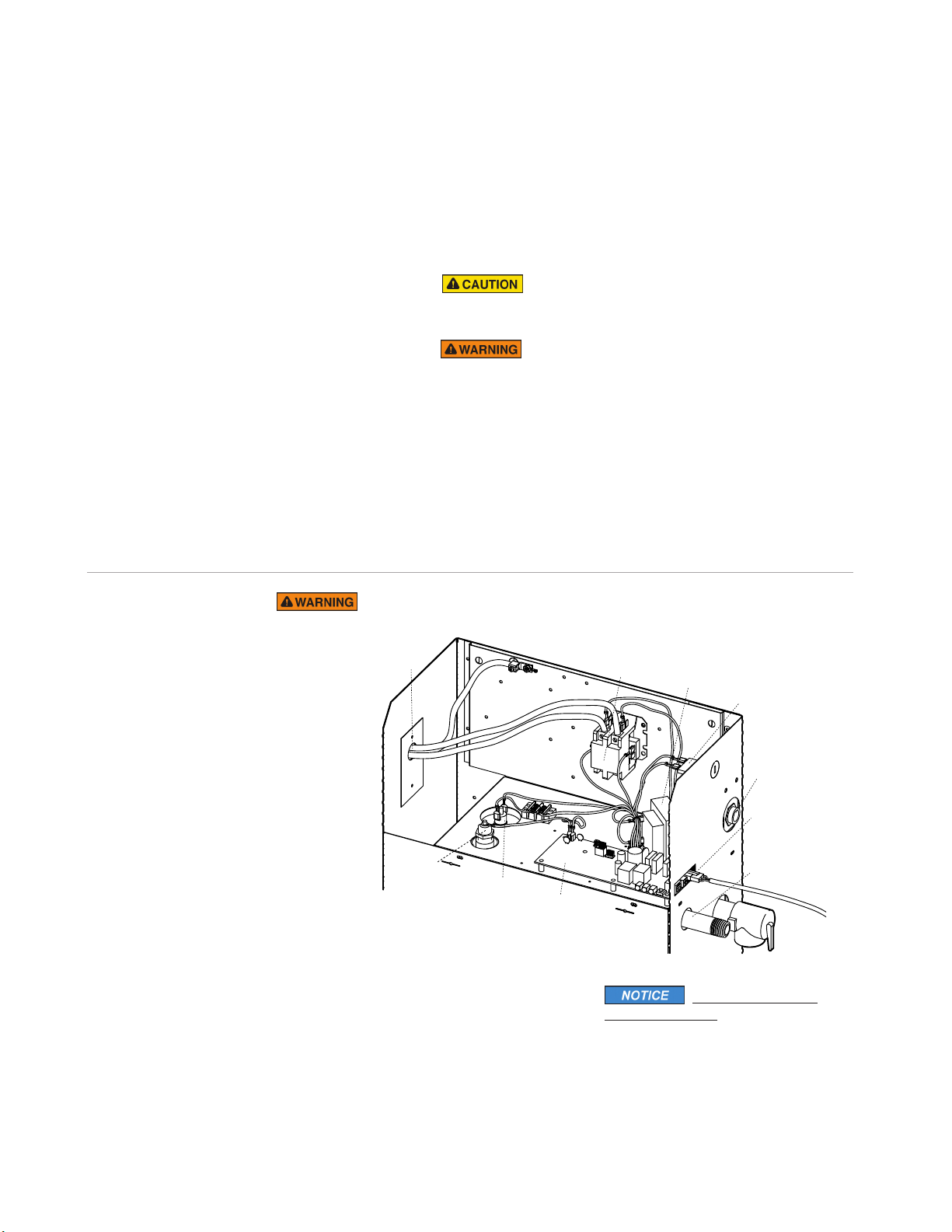

ELECTRICAL SHOCK HAZARD. MrSteam steam generators are
connected to 208V or 240V line voltage and contain live electri­cal components. All installation and service to be performed by
qualified and licensed electricians and plumbers only. nstallation
or service by unqualified persons or failure to use MrSteam parts
may result in property damage or in a hazardous condition.

Doing so may result in an inoperable or hazardous
installation and will void the warranty

Never use damaged equipment, doing so may

Do Not alter or modify any MrSteam product.

Not Actual Size

If acrylic, fiberglass or other non-heat resistant materials are
used as part of the steam room enclosure. Consult with the material manu­facture and see pg. 7, “Installing the AromaSteam Steamhead" for addition­al details.

IMPORTANT NOTES:

This document contains important safety, operation and maintenance infor­mation. Leave this document with the club/spa management.
Do not discard this document.

The following general information should be used in conjunction with con­sultations with an architect, designer and contractor in determining factors
necessary in providing a suitable and safe steam room.

MrSteam CT steam generators are intended to be operated with MrSteam’s

™

iTempo/Plus

, iSteam®and CT SteamStop®only, and are to be installed
strictly in accordance with the specific instructions contained in this manual
and as supplied in the manuals provided with the controls or accessories.

3

mr.steam

________________________________________________________________________________________

_

®

C L U B T H E R A P Y Installation, Operating & Maintenance Manual

Locating the Steam Generator Unit

IMPORTANT NOTE:

facilitate installation and service Select a location as near as practical to the steam room.

ypical locations include: closet, vanity cabinet, heated attic or basement.

T

The maximum length of the MSTS is 60 feet. MSTS connects to the steam
generator and is required to be installed inside the steam room when the control is mounted
outside the steam room.

(Items 1-7)

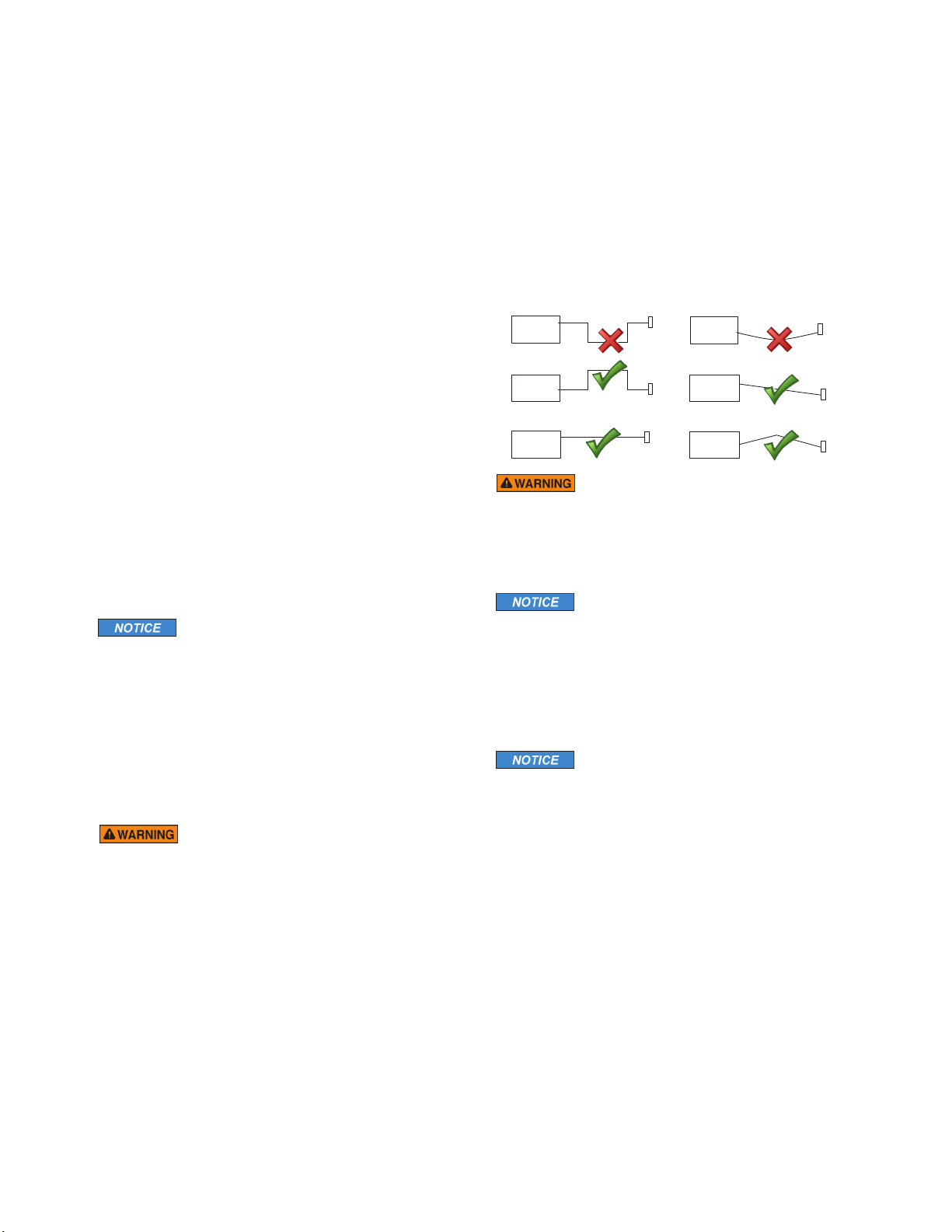

1. DO NOT install steambath generator or plumbing lines in unheated attic or any
locations where water could freeze.

2. DO NOT

3. DO NOT install steambath generator outdoors or wherever environmental condi­tions may affect the safety and/or performance of the generator.

4. DO NOT install steambath generator near flammable or corrosive materials or
chemicals such as gasoline, paint thinners, or the like. Installation in areas having
high concentrations of chlorine (such as pool equipment room) must be avoided.

5. Install steambath generator on a solid and level surface. Provide supports under
steam generator when wall mounting. Keyhole slots are provided for wall mounting.
Insure the steam generator is properly secured and level when mounting with
keyhole slots.

6. Install steambath generator in an upright position only.

7. Burn Hazard.
become hot during operation and remain hot after shutdown for a period of
time. Provide appropriate protection, including insulating plumbing lines.
Avoid plumbing runs and steamhead locations that can come in contact
with bathers.

install steambath generator inside steam room.

The control cables should be run in dedicated 1" conduit to

Steam piping, safety valve, drain valve, plumbing and steamheads

IMPORTANT NOTE:

8. Install anti-water hammer device as necessary.

9.

Provide a minimum of 12 inches at both ends and

top of the steam generator or as required for servicing. See page 8.

10. Provide unions as required to facilitate installation and disconnection of piping.

11. The controls should be placed in a location only accessible by the facility’s staff.
The CT SteamStop®and remote sensor are required to be installed inside the
steamroom.

MrSteam Generators and controls are CE and UL listed.

The CT series of steam generators are for commercial use only.

(Items 8-11)

4
