Mr. Steam AIRTBKBN, AIRTBKBB, AIRTWHBN, AIRTBKSB, AIRTWHBB Specifications

mr.steam

3

/4”

3

-5/8”

3-5/8”

®

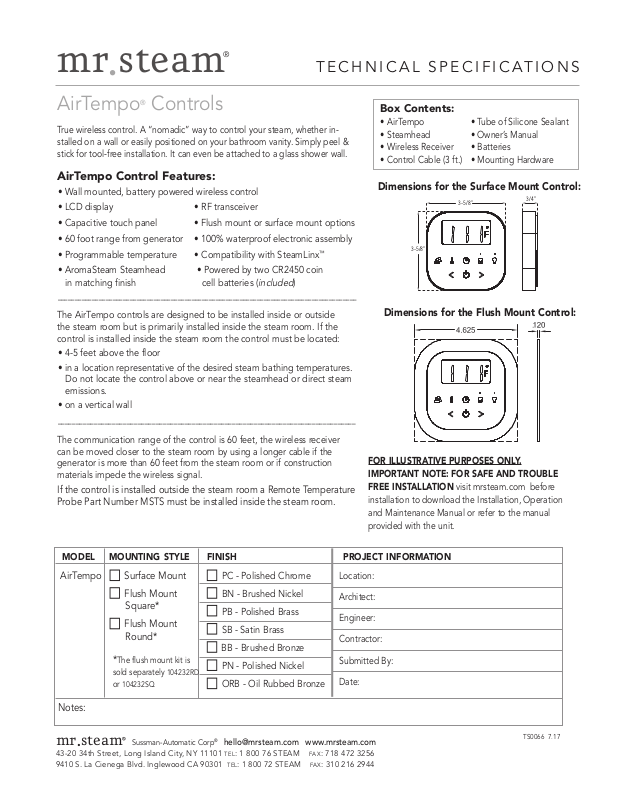

T E C H N I C A L S P E C I F I C AT I O N S

AirTempo®Controls

True wireless control. A “nomadic” way to control your steam, whether in­stalled on a wall or easily positioned on your bathroom vanity. Simply peel &
stick for tool-free installation. It can even be attached to a glass shower wall.

AirTempo Control Features:

• Wall mounted, battery powered wireless control

• LCD display • RF transceiver

• Capacitive touch panel • Flush mount or surface mount options

• 60 foot range from generator • 100% waterproof electronic assembly

• Programmable temperature • Compatibility with SteamLinx

• AromaSteam Steamhead • Powered by two CR2450 coin
in matching finish cell batteries (

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

The AirTempo controls are designed to be installed inside or outside
the steam room but is primarily installed inside the steam room. If the
control is installed inside the steam room the control must be located:

• 4-5 feet above the floor

• in a location representative of the desired steam bathing temperatures.
Do not locate the control above or near the steamhead or direct steam
emissions.

• on a vertical wall

included

™

)

Box Contents:

• AirTempo • Tube of Silicone Sealant
Steamhead • Owner’s Manual

•

• Wireless Receiver • Batteries

• Control Cable (3 ft.) • Mounting Hardware

Dimensions for the Surface Mount Control:

Dimensions for the Flush Mount Control:

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

The communication range of the control is 60 feet, the wireless receiver
can be moved closer to the steam room by using a longer cable if the
generator is more than 60 feet from the steam room or if construction
materials impede the wireless signal.

If the control is installed outside the steam room a Remote Temperature
Probe Part Number MSTS must be installed inside the steam room.

MODEL MOUNTING STYLE FINISH PROJECT INFORMATION

AirTempo

Notes:

Surface Mount



Flush Mount



Square*

Flush Mount



Round*

*

The flush mount kit is
sold separately
or 104232SQ

104232RD

PC - Polished Chrome



BN - Brushed Nickel



PB - Polished Brass



SB - Satin Brass



BB - Brushed Bronze





PN - Polished Nickel



ORB - Oil Rubbed Bronze



FOR ILLUSTRATIVE PURPOSES ONLY.
IMPORTANT NOTE: FOR SAFE AND TROUBLE
FREE INSTALLATION visit mrsteam.com before

installation to download the Installation, Operation
and Maintenance Manual or refer to the manual
provided with the unit.

Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM FAX: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM FAX: [phone]

®

Sussman-Automatic Corp

®

[e-mail] www.mrsteam.com

TS0066 7.17
