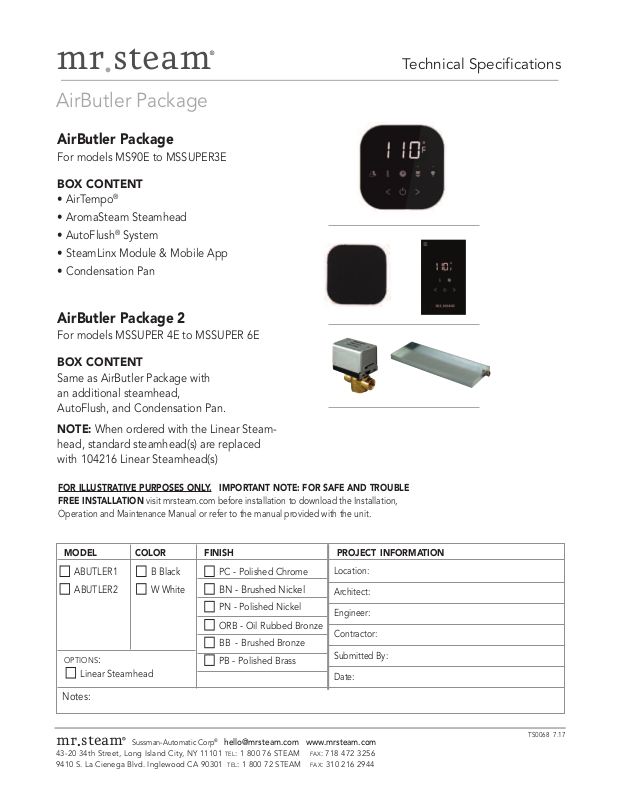

Mr. Steam ABUTLERLBKPN, ABUTLER1WBB, ABUTLER1BBB, ABUTLER1BBN, ABUTLER1BSB Specifications

®

mr.steam

AirButler Package

AirButler Package

For models MS90E to MSSUPER3E

BOX CONTENT

• AirTempo

• AromaSteam Steamhead

• AutoFlush®System

• SteamLinx Module & Mobile App

• Condensation Pan

AirButler Package 2

For models MSSUPER 4E to MSSUPER 6E

®

Technical Specifications

BOX CONTENT

Same as AirButler Package with
an additional steamhead,
AutoFlush, and Condensation Pan.

NOTE: When ordered with the Linear Steam­head, standard steamhead(s) are replaced
with 104216 Linear Steamhead(s)

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE
FREE INSTALLATION visit mrsteam.com before installation to download the Installation,

Operation and Maintenance Manual or refer to the manual provided with the unit.

MODEL COLOR FINISH PROJECT INFORMATION

ABUTLER1



ABUTLER2



OPTIONS:

Linear Steamhead






B Black

W White

PC - Polished Chrome



BN - Brushed Nickel



PN - Polished Nickel



ORB - Oil Rubbed Bronze



BB - Brushed Bronze



PB - Polished Brass



Location:

Architect:

Engineer:

Contractor:

Submitted By:

Date:

Notes:

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL : 1 800 76 STEAM FA X: 718 472 3256
9410 S. La Cienega Blvd. Inglewood CA 90301 T EL: 1 800 72 STEAM FAX: [phone]

®

Sussman-Automatic Corp

®

[e-mail] www.mrsteam.com

TS0068 7.17

mr.steam

®

Technical Specifications

AutoFlush

®

Box Contents

• AutoFlush Valve with Cord

• Installation instructions

Operation

The optional AutoFlush System fea­ture automatically drains the

®

Mr.Steam
A time delay allows the water to cool
down (about two hours) before it
drains by gravity for a safe and gentle
operation.

Note:

has been installed, the AutoFlush will
drain for ten minutes then refill with
fresh water to begin the pre-heat
cycle.

system following each use.

If the Express Steam®option

AutoFlush Shown Fully Assembled

Steam Generator

DO NOT TURN OR REMOVE THE DRAIN VALVE

(shown in the correct open position)

Drain Valve

AutoFlush Valve

Nipple

Plumb to
Drain Line

Our exclusive AutoFlush® automatically and electronically drains the system,

®

providing CleanSteam... Every Time

FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION

visit mrsteam.com or scan the QR code before installation to download the Installation, Operation and
Maintenance Manual or refer to the manual provided with the unit.

MODEL PROJECT INFORMATION

MS 81500E

Notes:

mr.steam

mr.steam

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]

43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: [phone]
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: [phone]

Location:

Architect:

Engineer:

®

®

Sussman-Automatic Corp®

Sussman-Automatic Corp®

and introduces fresh water.

Contractor:

Submitted By:

Date:

[e-mail] www.mrsteam.com

[e-mail] www.mrsteam.com

TS0011 REV 5.14
