mr.steam

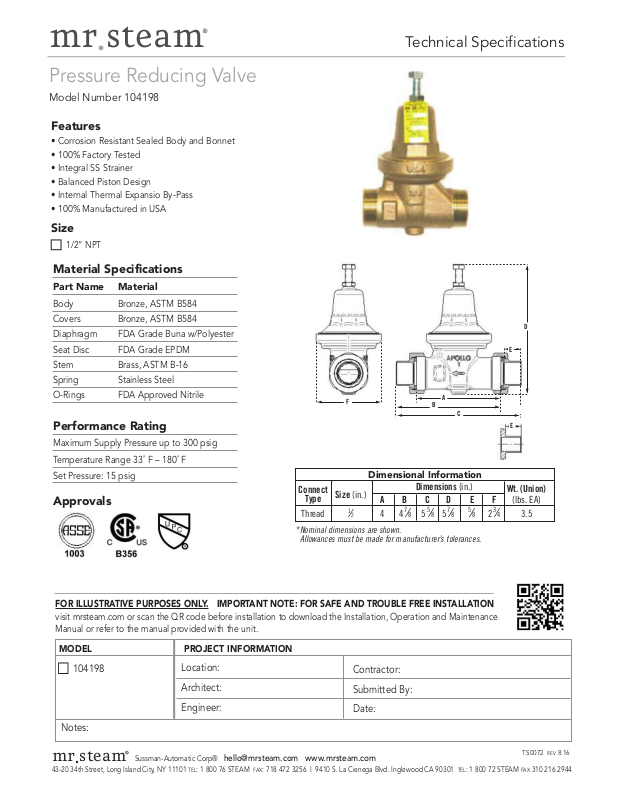

Pressure Reducing Valve
Model Number 104198
Features
• Corrosion Resistant Sealed Body and Bonnet
• 100% Factory Tested
• Integral SS Strainer
• Balanced Piston Design
• Internal Thermal Expansio By-Pass
• 100% Manufactured in USA
Size
1/2” NPT
Material Specifications
Part Name Material
Body Bronze, ASTM B584
Covers Bronze, ASTM B584
Diaphragm FDA Grade Buna w/Polyester
Seat Disc FDA Grade EPDM
Stem Brass, ASTM B-16
Spring Stainless Steel
O-Rings FDA Approved Nitrile
Performance Rating
Maximum Supply Pressure up to 300 psig
Temperature Range 33˚ F – 180˚ F
Set Pressure: 15 psig
Approvals
Technical Specifications
F

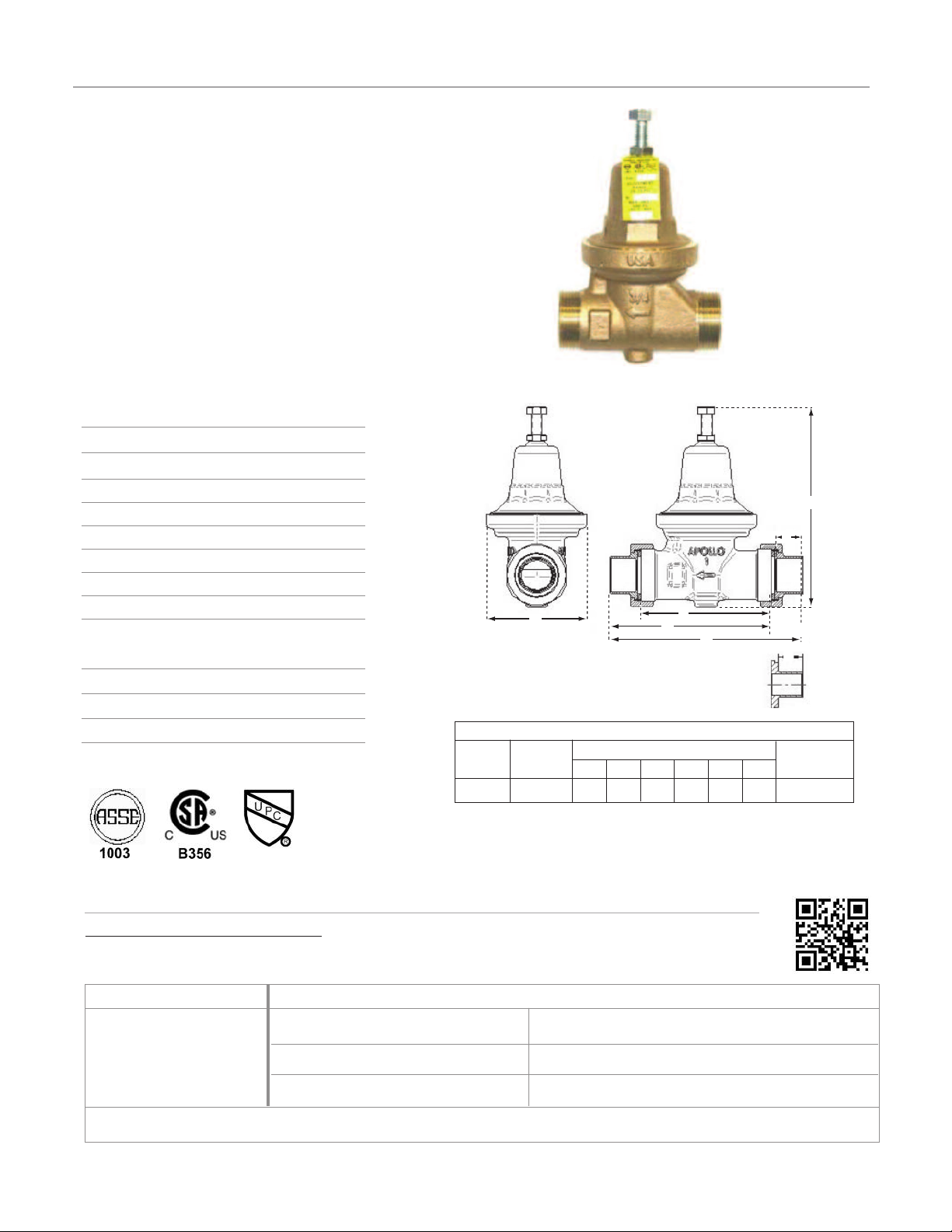

Dimensional Information
Connect
Thread
*Nominal dimensions are shown.
Allowances must be made for manufacturer’s tolerances.
Type
Size (in.)
1
⁄2 44
ABCD EF(lbs. EA)
7
⁄8 55⁄8 57⁄85⁄8 23⁄4 3.5
A
B
C
Dimensions (in.)
D
E
E
Wt. (Union)
FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION
visit mrsteam.com or scan the QR code before installation to download the Installation, Operation and Maintenance
Manual or refer to the manual provided with the unit.
MODEL PROJECT INFORMATION
104198
Location:
Architect:
Engineer:
Contractor:
Submitted By:
Date:
Notes:
mr.steam
43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM FAX: 718 472 3256 I 9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM FAX 310 216 2944
®
Sussman-Automatic Corp®
[email protected] www.mrsteam.com
TS0072 REV 8.16
