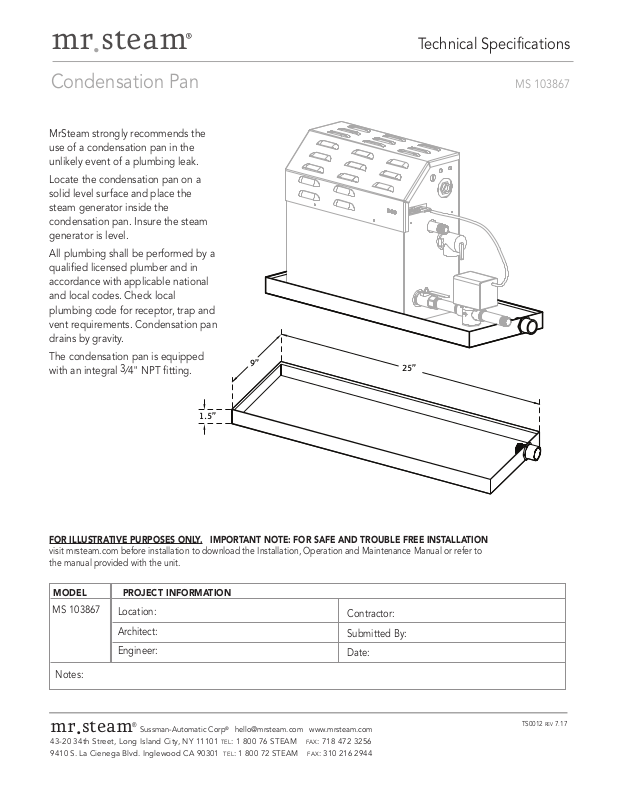

Technical Specifications

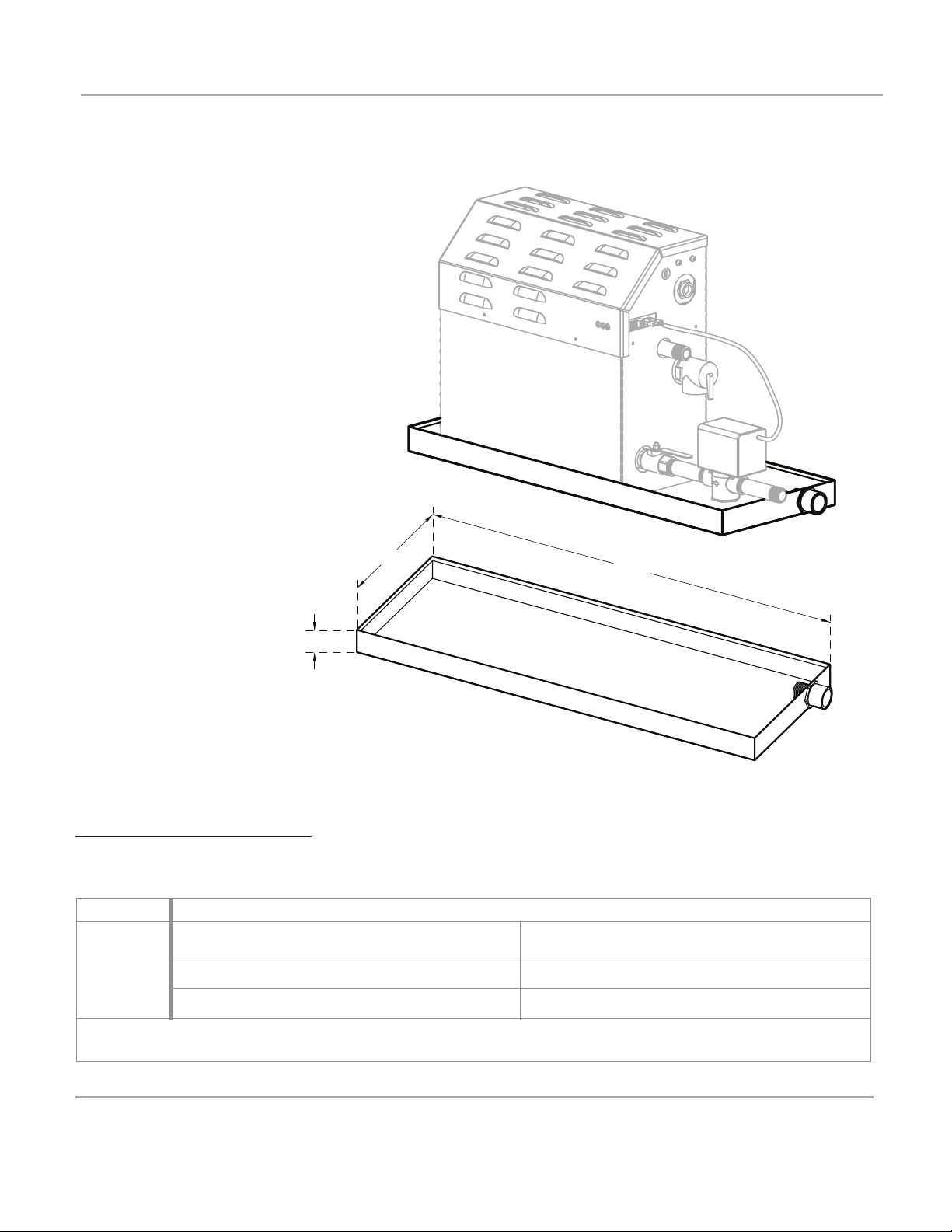

Condensation Pan MS 103867
MrSteam strongly recommends the
use of a condensation pan in the
unlikely event of a plumbing leak.
Locate the condensation pan on a
solid level surface and place the
steam generator inside the
condensation pan. Insure the steam
generator is level.
All plumbing shall be performed by a
qualified licensed plumber and in
accordance with applicable national
and local codes. Check local
plumbing code for receptor, trap and
vent requirements. Condensation pan
drains by gravity.
The condensation pan is equipped
with an integral 3⁄4" NPT fitting.
FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION
visit mrsteam.com before installation to download the Installation, Operation and Maintenance Manual or refer to
the manual provided with the unit.
MODEL PROJECT INFORMATION
MS 103867
Location:
Architect:
Contractor:
Submitted By:
Engineer:
Notes:
