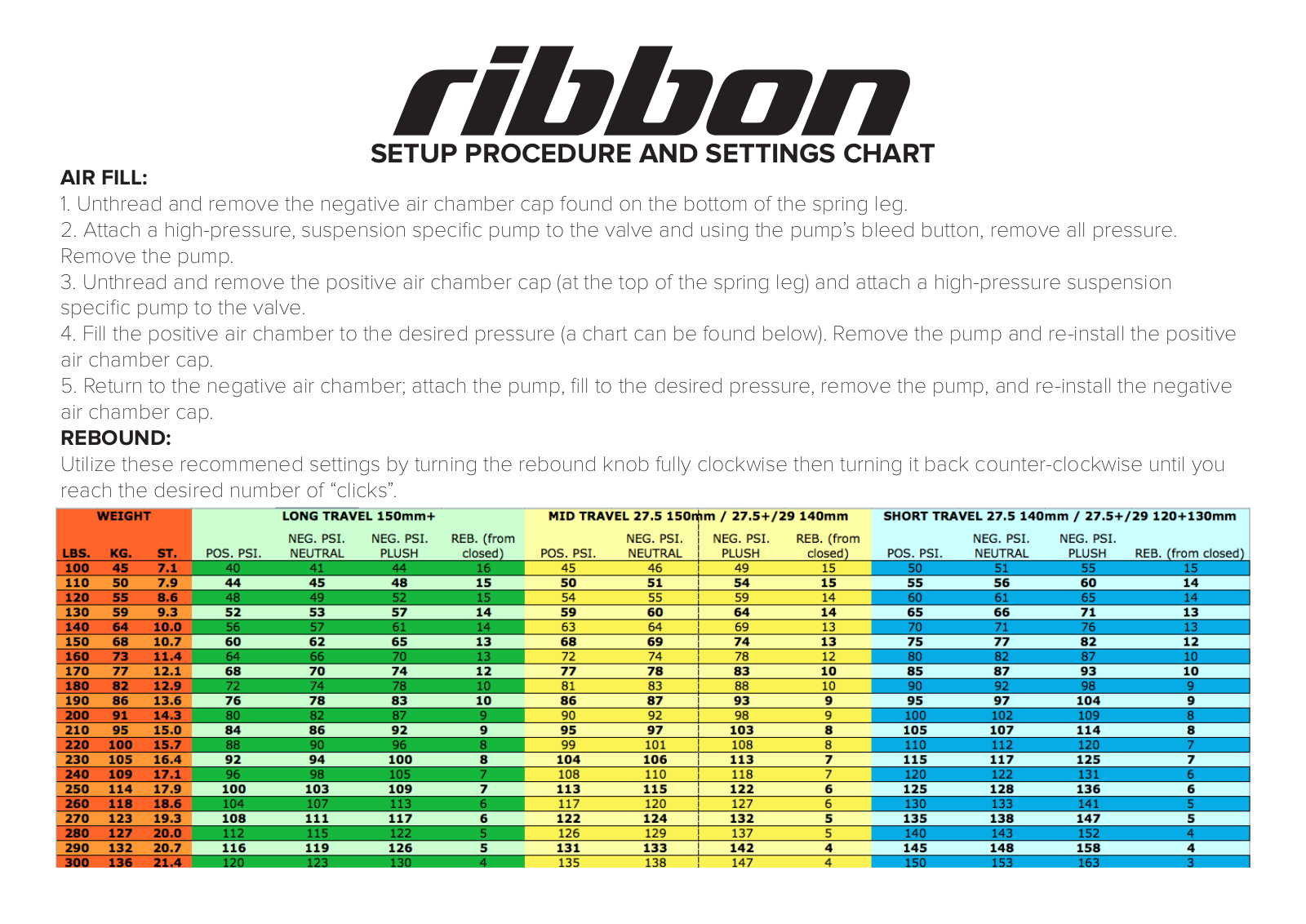

MRP Ribbon SETUP PROCEDURE AND SETTINGS CHART

SETUP PROCEDURE AND SETTINGS CHART

AIR FILL:

1. Unthread and remove the negative air chamber cap found on the bottom of the spring leg.

2. Attach a high-pressure, suspension specific pump to the valve and using the pump’s bleed button, remove all pressure.
Remove the pump.

3. Unthread and remove the positive air chamber cap (at the top of the spring leg) and attach a high-pressure suspension
specific pump to the valve.

4. Fill the positive air chamber to the desired pressure (a chart can be found below). Remove the pump and re-install the positive
air chamber cap.

5. Return to the negative air chamber; attach the pump, fill to the desired pressure, remove the pump, and re-install the negative
air chamber cap.

REBOUND:

Utilize these recommened settings by turning the rebound knob fully clockwise then turning it back counter-clockwise until you
reach the desired number of “clicks”.
