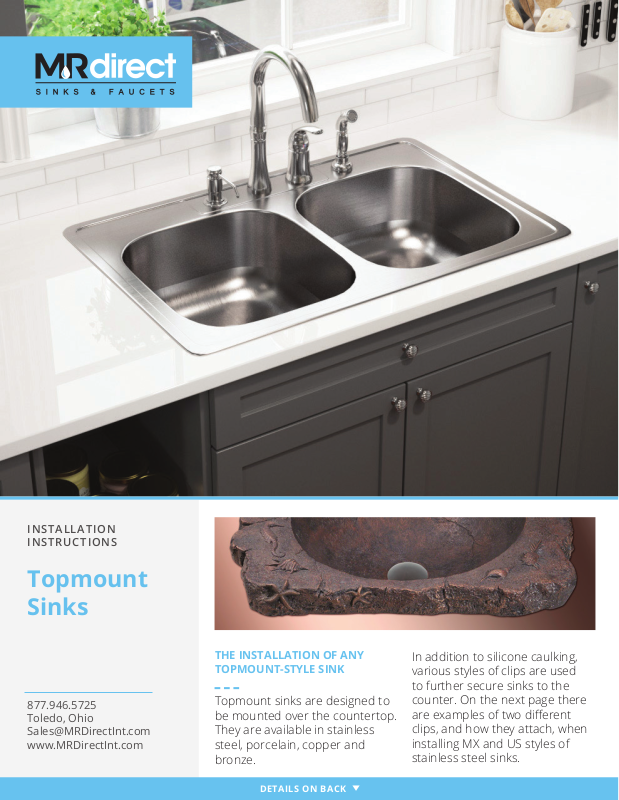

INSTALLATION
INSTRUCTIONS
Topmount
Sinks
877.946.5725
Toledo, Ohio
[email protected]
www.MRDirectInt.com
THE INSTALLATION OF ANY
TOPMOUNT-STYLE SINK
Topmount sinks are designed to
be mounted over the countertop.
They are available in stainless
steel, porcelain, copper and
bronze.
DETAILS ON BACK
In addition to silicone caulking,
various styles of clips are used
to further secure sinks to the
counter. On the next page there
are examples of two dierent
clips, and how they attach, when
installing MX and US styles of
stainless steel sinks.
Page 2
MORE ON FRONT
INSTALLATION INSTRUCTIONS (cont...)
Topmount Sinks
THE STEPS
Determine the locations for theclip brackets around
the perimeter of the sink. Pre-drill holes for the
clips using appropriate methods for the countertop
material.
Clean the surfaces of the sink and countertop which
will meet, with denatured alcohol.
Evenly apply a bead of siliconealong perimeter edge
of the opening on the top of the countertop.
Carefully align the sink over the countertop opening.
Evenly apply pressure to the sink securing a seal of
the silicone against the countertop.
THE INSTALLATION OF ANY
TOPMOUNT-STYLE SINK
Re-check that the sink is evenly aligned with the
countertop.
Attach and tighten the clip brackets against the edge
of the sink. Do not tighten one screw completely
before others. Partially tighten one clip then the one
across from it, and so on until all clips are fully
tightened. This will safeguard against an uneven or
insecure installation.
Use a cloth with denatured alcohol along the
perimeter of the sink and countertop to remove any
excess sealant.
