Page 1

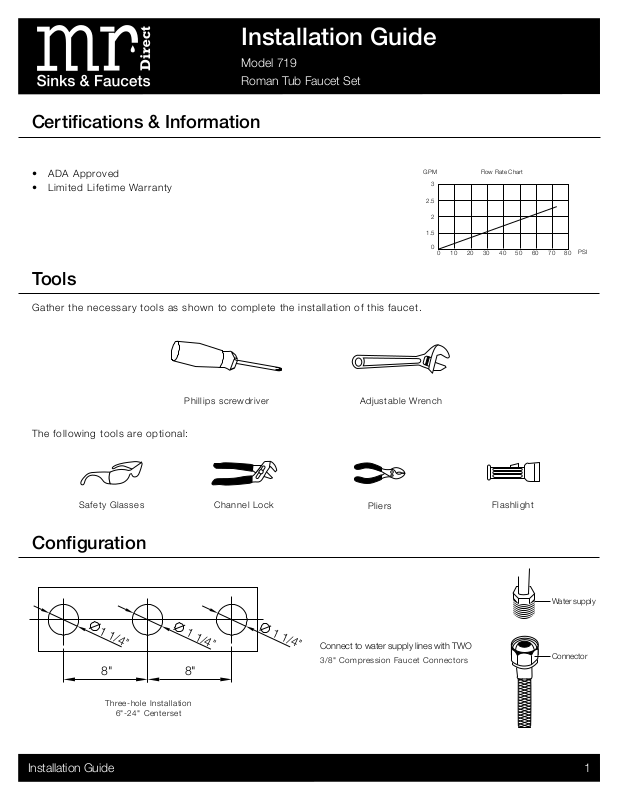

Installation Guide
Model 719
Roman Tub Faucet Set
Certifications & Information
• ADA Approved
• Limited Lifetime Warranty

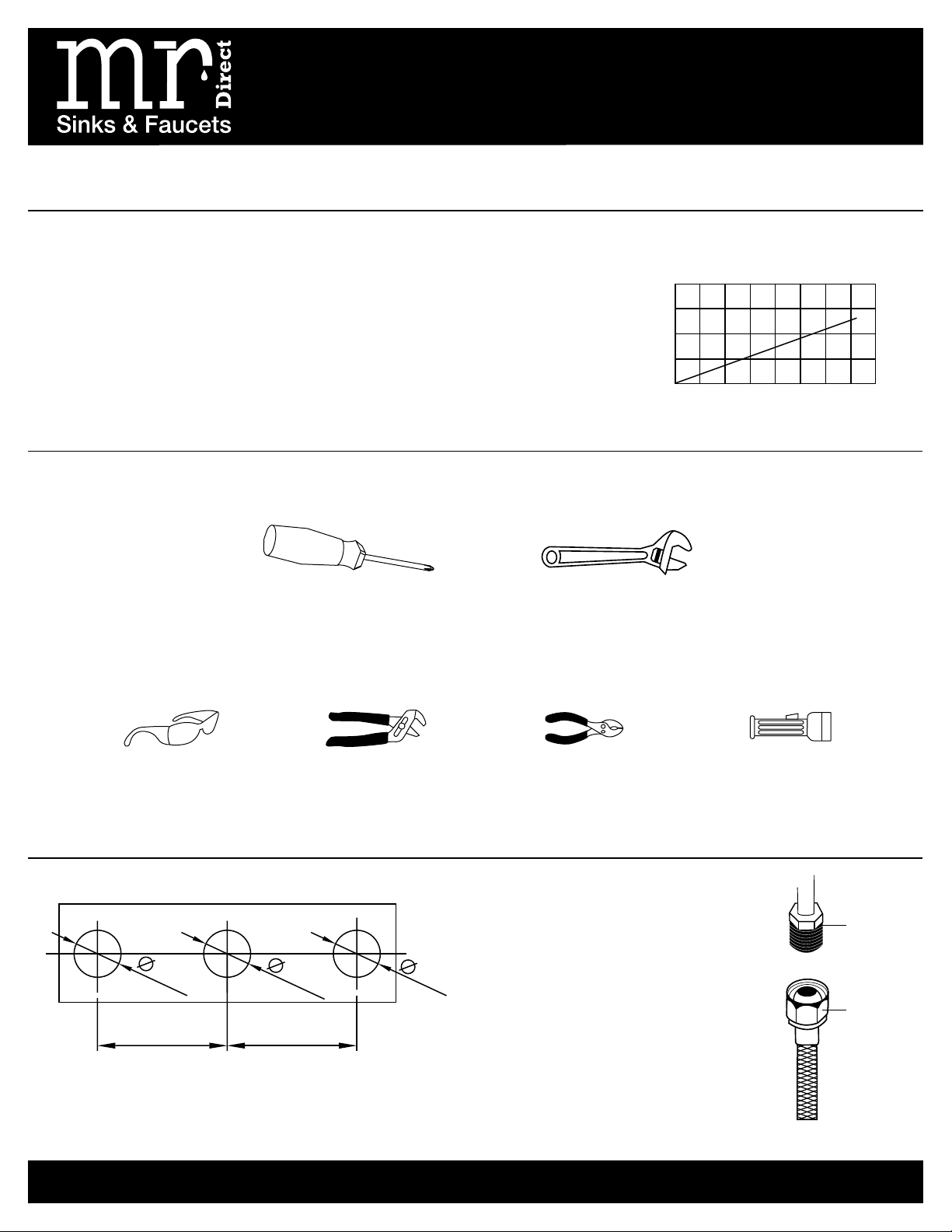

Tools
Gather the necessary tools as shown to complete the installation of this faucet.
Phillips screwdriver
The following tools are optional:
Adjustable Wrench
GPM
3
2.5
2
1.5
0
0
10 20 30 40 50 60 70 80
Flow Rate Chart
PSI
Configuration
1 1/4"
Sir
8" 8"
Faucet
Three-hole Installation
6"-24" Centerset
1 1/4"
1 1/4"
Pliers
Connect to water supply lines with TWO
3/8" Compression Faucet Connectors
FlashlightSafety Glasses Channel Lock
Water supply
Connector
1Installation Guide
Page 2
Installation Guide

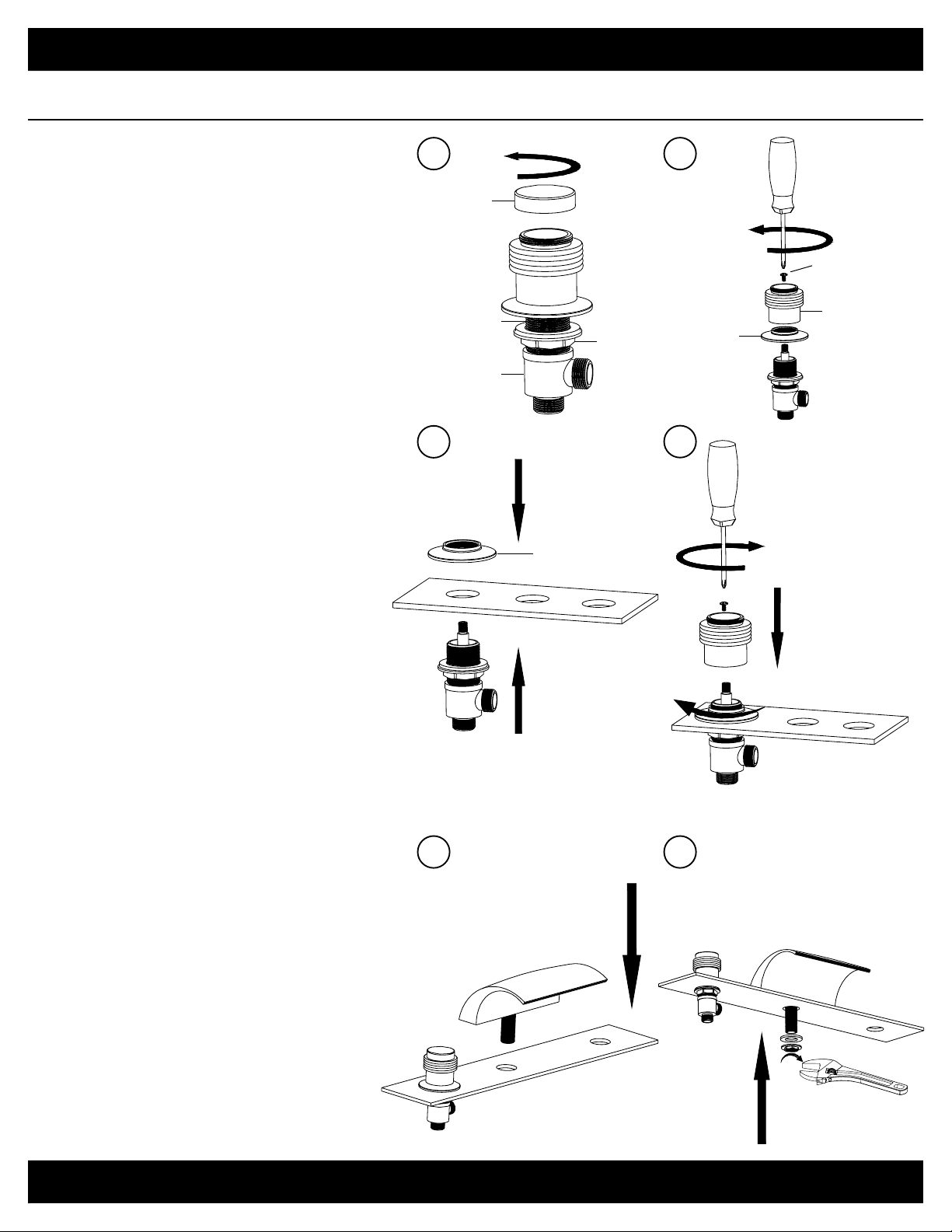

Faucet Installation
A. Turn off the water supply. Remove the
faucet and faucet handles with the mounting
hardware attached from the package.
B. Insert a phillips head screw driver into the
faucet handle body removing the set screw.
Separating the valve body from the handle
body.
C. From the underside of the sink or
mounting surface, attach the gasket and
washer, followed by the lock nut, onto
the shank. Insert the shank of the faucet
handle body into the hole of the sink
deck.
D. Lower the faucet base into the mounting
surface followed by the faucet handle.
Using a phillips screw drive tighten the
set screw until secure. Replace the
handle cover.
A
handle
cover
valve body
C
shank
handle base
lock nut
B
set screw
handle body
faucet base
D
Repeat the above steps for the second
faucet handle.
E. Remove all mounting hardware from the
faucet shank. Lower the faucet shank into
the mounting surface.
F. From the underside of the sink or mounting
surface, attach the washer, followed by the
lock nut, onto the shank. Tighten the lock
nut until secure.
E
F
2
Page 3

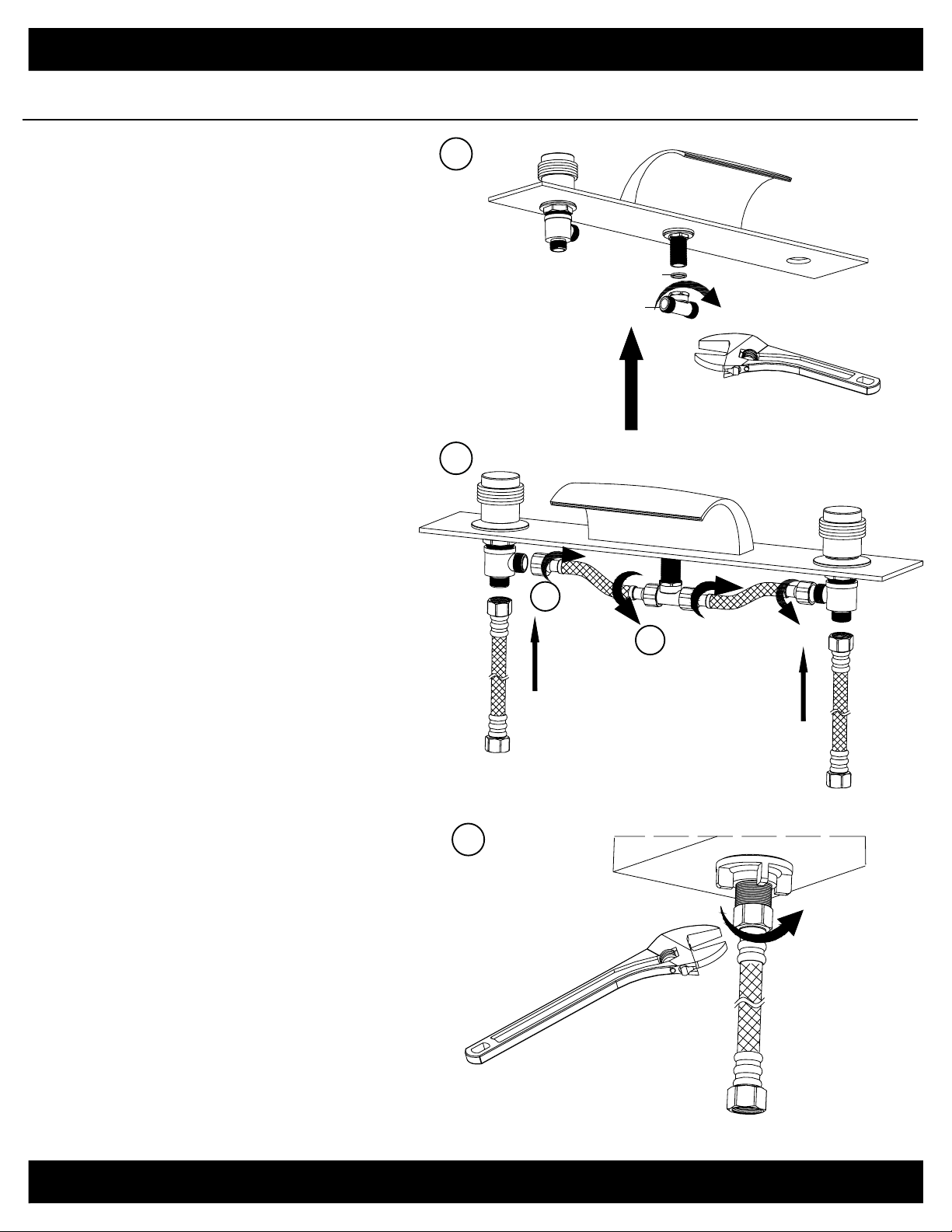

Faucet Installation Continued
Installation Guide
G. Ensure that the o-ring is properly secured in
the tee tting before attaching.
Tighten the tee tting on to faucet shank.
Secure all ttings with a 1/4 turn of a
wrench.
H. Attach the hot and cold supply lines to the
Tee tting at the faucet base.
Attach the opposite end of each hose to
the corresponding valve body ttings by
tightening the 3/8" compression ttings onto
the lines. Secure all ttings with a 1/4 turn of
a wrench.
G
o-ring
tee tting
H
2
I. Secure water line connections to each
corresponding faucet handle shank base.
Secure all ttings with a 1/4 turn of a wrench.
1
I
3
Page 4

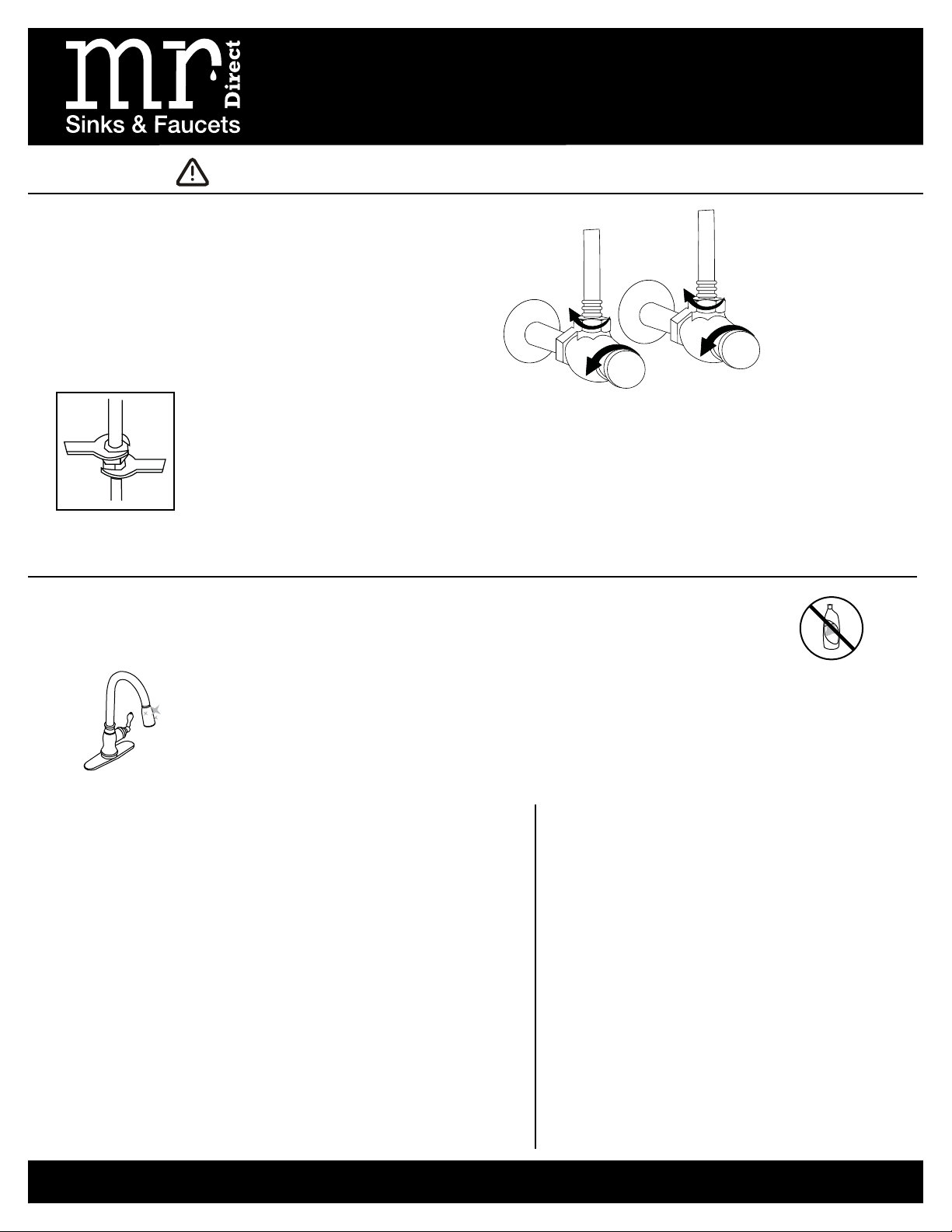

Important
Turn on the water supply SLOWLY, to test for leaks
before completely opening the water lines.
To prevent damage to the tube body, tighten the connections by carefully using two
wrenches as shown. Use caution to not bend the stem.
Check for leaks.
www.mrdirectint.com
1-877-946-5725
Cleaning Information
Simply rinse and dry faucets with a soft towel every week to prevent mineral deposits from forming. Clean spills and
splatters as they happen. Do not let soap, toothpaste or other contaminates dry on the faucet, this can stain or pit the
nish. Use a mild soap and soft sponge or towel to remove residue. Rinse and dry thoroughly.
Never use an abrasive cleaner or rough sponge to clean or dry your faucet. Harsh cleaners could dull or
scratch the nish. Use only a soft disinfectant that does not contain bleach or chlorine and apply with a soft
towel.
Warranty Information
MR Direct warrants to the original consumer purchaser that our sinks and faucets will be free from defects in
material and workmanship under normal use for the lifetime of the product. MR Direct may elect to repair or replace
any defective MR Direct product covered by our warranty.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses.
From time to time we will change design specications and materials as conditions require and improvements are
developed. We have no obligation to incorporate such changes in products we previously manufactured.
This warranty is in lieu of any and all other warranties, express or implied, including any warranties of
merchantability and of tness for a particular purpose; and excludes any incidental or consequential damages.
No representative has the authority to change or enlarge the above warranty.
This warranty is only valid in the United States of America. Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusion may not apply. This warranty gives you specic legal rights, and you may also have other rights which
vary from state to state.
Notes
One-Year Accessory Warranty
MR Direct warrants to the original purchaser that all of our accessories will be free from defects in material and
workmanship under normal use for one full year.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses. MR Direct may elect to repair or replace any
defective MR Direct accessory covered by our warranty.
4Installation Guide
