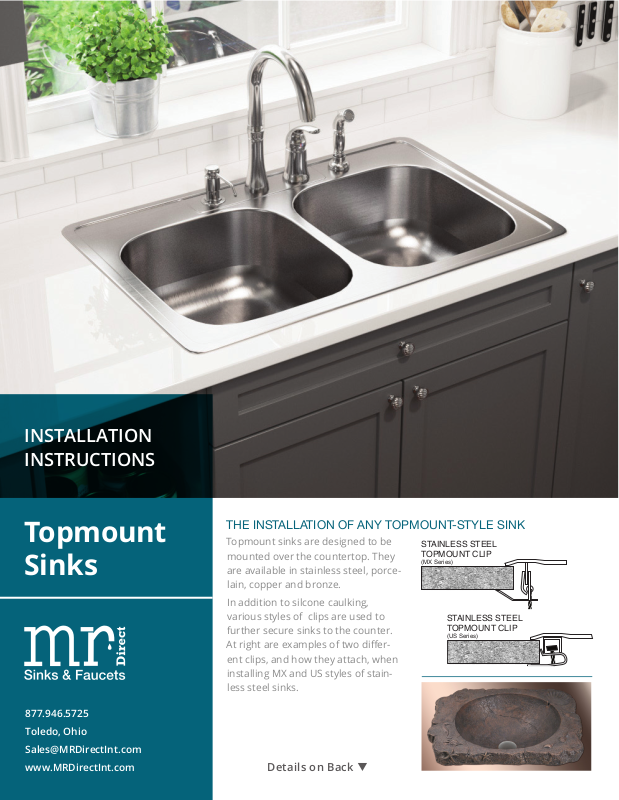

Page 1
INSTALLATION
STAINLESS STEEL
TOPMOUNT CLIP
(US Series)
INSTRUCTIONS
Topmount
Sinks
877.946.5725
Toledo, Ohio
THE INSTALLATION OF ANY TOPMOUNT-STYLE SINK
Topmount sinks are designed to be
mounted over the countertop. They
are available in stainless steel, porcelain, copper and bronze.
In addition to silcone caulking,
various styles of clips are used to
further secure sinks to the counter.
At right are examples of two dier-
ent clips, and how they attach, when
installing MX and US styles of stainless steel sinks.
STAINLESS STEEL
TOPMOUNT CLIP
(MX Series)
www.MRDirectInt.com
Details on Back q
Page 2
INSTALLATION
CONTINUED
Topmount
Sinks
THE STEPS
Determine the locations for the
clip brackets around the perimeter of the sink. Pre-drill holes for
the clips using appropriate methods for the countertop material.
Clean the surfaces of the sink
and countertop which will meet,
with denatured alcohol.
Evenly apply a bead of silicone
along perimeter edge of the
opening on the top of the countertop.
Carefully align the sink over the
countertop opening.
Attach and tighten the clip
brackets against the edge
of the sink. Do not tighten
one screw completely before
others. Partially tighten one
clip then the one across from it,
and so on until all clips are fully
tightened. This will safeguard
against an uneven or insecure
installation.
Use a cloth with denatured
alcohol along the perimeter
of the sink and countertop to
remove any excess sealant.
More on Front q
Evenly apply pressure to the sink
securing a seal of the silicone
against the countertop.
Re-check that the sink is evenly
aligned with the countertop.
877.946.5725
Toledo, Ohio
www.MRDirectInt.com
