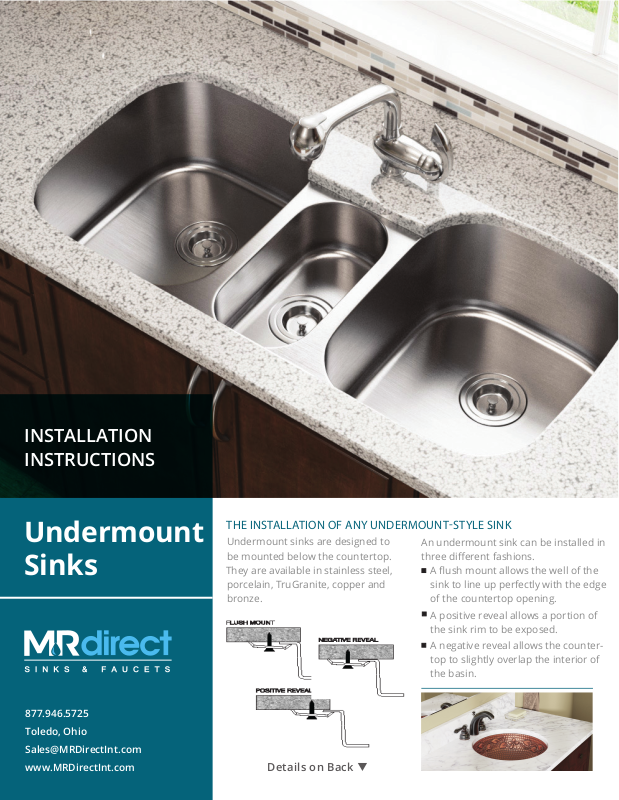

Page 1
INSTALLATION
INSTRUCTIONS
Under mount
Sinks
877.946.5725
Toledo, Ohio
THE INSTALLATION OF ANY UNDERMOUNT-STYLE SINK
Undermount sinks are designed to
be mounted below the countertop.
They are available in stainless steel,
porcelain, TruGranite, copper and
bronze.
An undermount sink can be installed in
three dierent fashions.
A ush mount allows the well of the
sink to line up perfectly with the edge
of the countertop opening.
A positive reveal allows a portion of
the sink rim to be exposed.
A negative reveal allows the counter-
top to slightly overlap the interior of
the basin.
www.MRDirectInt.com
Details on Back q
Page 2
INSTALLATION
CONTINUED
Under mount
Sinks
THE STEPS
Using the template provided,
measure and cut the hole in the
countertop.
Determine the locations for the clip
brackets around the perimeter of
the sink. Pre-drill holes for the clips
using appropriate methods for the
countertop material.
With denatured alcohol, clean the
surfaces of the sink and countertop which will meet.
Evenly apply a bead of silicone
along perimeter edge of the
opening on the underside of the
countertop.
Carefully align the sink under the
countertop opening.
Attach and tighten the clip brackets against the edge of the sink.
Do not tighten one screw completely before others. Partially
tighten one clip then the one
across from it, and so on until all
clips are fully tightened. This will
safeguard against an uneven or
insecure installation.
Remove any excess silicone
along the sink lip under the
countertop.
Use a cloth with denatured
alcohol along the inner perimeter
of the sink and top of counter to
remove any excess sealant.
More on Front q
Evenly apply pressure to the sink
securing a seal of the silicone
against the countertop.
Re-check that the sink is evenly
aligned with the countertop.
877.946.5725
Toledo, Ohio
www.MRDirectInt.com
