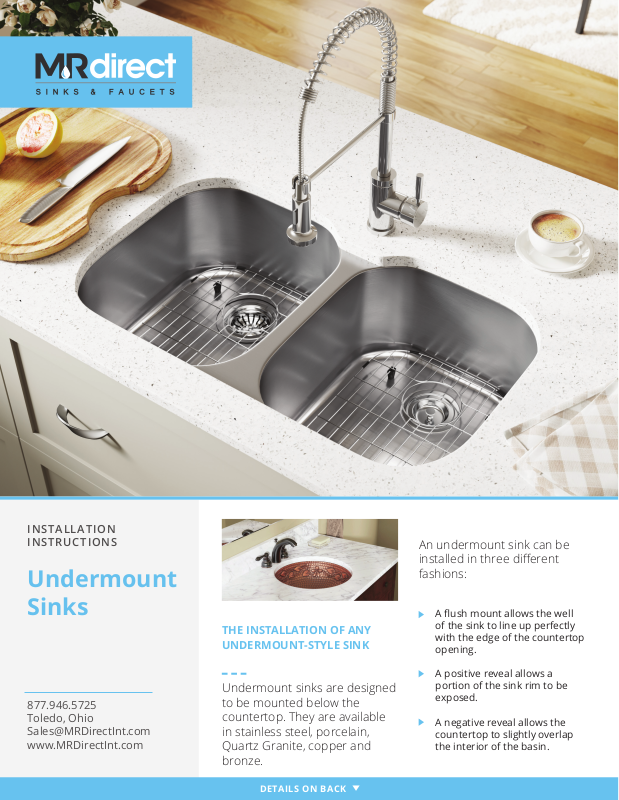

Page 1
INSTALLATION
INSTRUCTIONS
Undermount
An undermount sink can be
installed in three dierent
fashions:
Sinks
877.946.5725
Toledo, Ohio
[email protected]
www.MRDirectInt.com
THE INSTALLATION OF ANY
UNDERMOUNT-STYLE SINK
Undermount sinks are designed
to be mounted below the
countertop. They are available
in stainless steel, porcelain,
Quartz Granite, copper and
bronze.
DETAILS ON BACK
A ush mount allows the well
of the sink to line up perfectly
with the edge of the countertop
opening.
A positive reveal allows a
portion of the sink rim to be
exposed.
A negative reveal allows the
countertop to slightly overlap
the interior of the basin.
Page 2
MORE ON FRONT
INSTALLATION INSTRUCTIONS (cont...)
Undermount Sinks
THE STEPS
Using the template provided, measure and cut the
hole in the countertop.
Determine the locations for the clip brackets around
the perimeter of the sink. Pre-drill holes for the
clips using appropriate methods for the countertop
material.
With denatured alcohol, clean the surfaces of the sink
and countertop which will meet.
Evenly apply a bead of silicone along perimeter edge
of the opening on the underside of the countertop.
THE INSTALLATION OF ANY
UNDERMOUNT-STYLE SINK
Carefully align the sink under the countertop opening.
Evenly apply pressure to the sink securing a seal of
the silicone against the countertop.
Re-check that the sink is evenly aligned with the
countertop.
Attach and tighten the clip brackets against the edge
of the sink. Do not tighten one screw completely
before others. Partially tighten one clip then the
one across from it, and so on until all clips are fully
tightened. This will safeguard against an uneven or
insecure installation.
Remove any excess silicone along the sink lip under
the countertop.
Use a cloth with denatured alcohol along the inner
perimeter of the sink and top of counter to remove
any excess sealant.
877.946.5725
Toledo, Ohio
[email protected]
www.MRDirectInt.com
