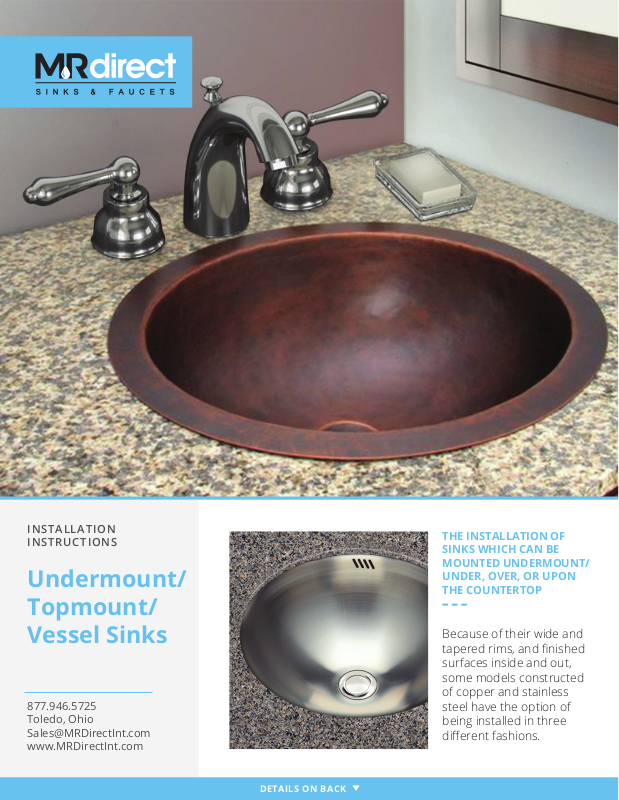

INSTALLATION
INSTRUCTIONS
Undermount/
Topmount/
THE INSTALLATION OF
SINKS WHICH CAN BE
MOUNTED UNDERMOUNT/
UNDER, OVER, OR UPON
THE COUNTERTOP
Vessel Sinks
877.946.5725
Toledo, Ohio
[email protected]
www.MRDirectInt.com
Because of their wide and
tapered rims, and fi nished
surfaces inside and out,
some models constructed
of copper and stainless
steel have the option of
being installed in three
di erent fashions.
DETAILS ON BACK
Page 2
MORE ON FRONT
INSTALLATION INSTRUCTIONS (cont...)
Undermount/Topmount/
Vessel Sinks
The installation steps provided here address all
three mounting techniques. The diagrams show that
undermounting oers three style choices, and
usually includes the use of clips. Topmounting
requires the use of silicone caulking. Vessels can
be mounted on the countertop or recessed into it.
When vessels with rounded bottoms are mounted
above the counter, a sink ring is typically installed
below the basin in order to stabilize it.
THE STEPS
UNDERMOUNT & TOPMOUNT
Using the template provided, measure and cut out
the hole.
Determine the locations for the clip brackets around
the perimeter of the sink. Pre-drill holes for the
clips.
VESSEL ABOVE COUNTER
Measure and cut a hole in the countertop matching
the diameter of the drain pipe.
If the bowl has a curved bottom, it will require a sink
ring. Position the ring on the counter over the drain
hole, then rest the basin on the ring. If the bowl has
a at bottom it can be rested directly on the counter.
Install the drain.
VESSEL RECESSED
Measure and cut a beveled hole in the
countertop to the diameter necessary to hold
the sink at the desired depth, not to exceed half
of the bowl’s height.
Rest the basin in the hole.
Install the drain.
UNDERMOUNT/TOPMOUNT TECHNIQUES
With denatured alcohol, clean the surfaces of the
sink and countertop which will meet.
Topmount: Apply a bead of silicone along underside
of the sink rim or the top perimeter edge of the
countertop opening. Undermount: Apply similarly on
the top of sink rim or underside of countertop.
Topmount: Carefully align the sink over the
countertop opening and lower into position, applying
pressure to secure a seal of the silicone against the
countertop. Undermount: Similarly align the sink
under the countertop.
Re-check that the sink is evenly
aligned and level.
Attach and tighten the clip brackets.
Remove excess sealant along edges with denatured
alcohol.
VESSEL TECHNIQUES
