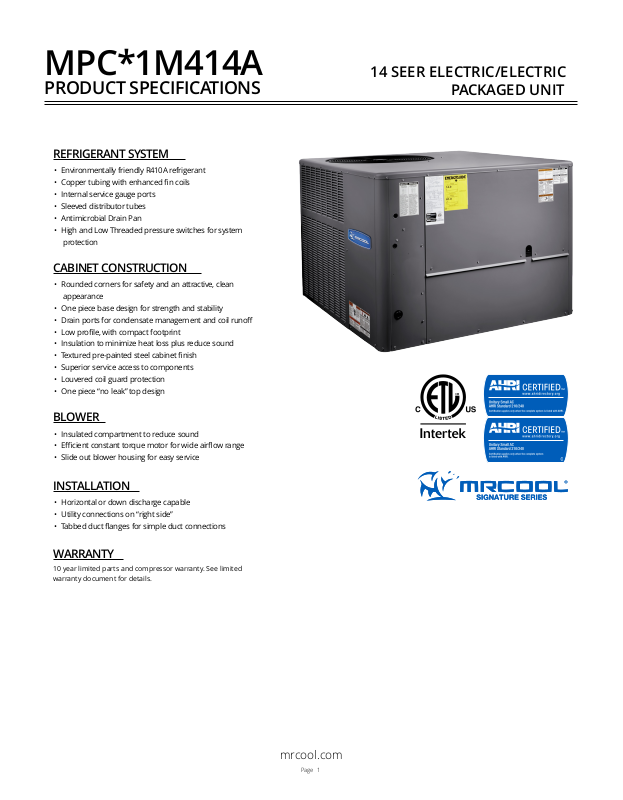

MPC*1M414A
14 SEER ELECTRIC/ELECTRIC
PRODUCT SPECIFICATIONS
REFRIGERANT SYSTEM
• Environmentally friendly R410A refrigerant
• Copper tubing with enhanced fin coils
• Internal service gauge ports
• Sleeved distributor tubes
• Antimicrobial Drain Pan
• High and Low Threaded pressure switches for system
protection
CABINET CONSTRUCTION
• Rounded corners for safety and an attractive, clean
appearance
• One piece base design for strength and stability
• Drain ports for condensate management and coil runoff
• Low profile, with compact footprint
• Insulation to minimize heat loss plus reduce sound
• Textured pre-painted steel cabinet finish
• Superior service access to components
• Louvered coil guard protection
• One piece “no leak” top design
PACKAGED UNIT
BLOWER
• Insulated compartment to reduce sound
• Efficient constant torque motor for wide airflow range
• Slide out blower housing for easy service
INSTALLATION
• Horizontal or down discharge capable
• Utility connections on “right side”
• Tabbed duct flanges for simple duct connections
WARRANTY
10 year limited parts and compressor warranty. See limited
warranty document for details.
mrcool.com
Page 1
UP TO 14 SEER PACKED A/C
MODEL NUMBER GUIDE
M
P C
24 1 M 4 14
A
MPC*1M414A
Unit Type
P = PACKAGED
ELECTRICAL AND PHYSICAL DATA
Model Voltage Phase Hz
MPG24S054M414A
MRCOOL
C = A/C ONLY
CAPACITY
Min Volts
@ 60 hz
Max
Fuse/
MCA
HACR
Breaker
14.4 20 8.6 43.5
Compressor
RLA LRA RLA HP RLA HP
REVISION CODE
SEER
R410
MULTI-POSITION
SINGLE PHASE
Condenser
Motor
Blower Motor
Refrig.
Charge
(oz.)
2.8 1/3 72 308
Weight
(lbs.)
MPG30S054M414A 18.2 25 10.6 47 4.1 1/2 80 319
MPG36S090M414A 22.7 35 15.7 72.2 4.1 1/2 87 332
208-230 1 60 197
MPG42S090M414A 27.5 40 15.9 112.3
MPG48S108M414A 28.7 45 16.9 94 6 3/4 115 411
MPG60S108M414A 38.9 60 26.4 152.5 7.6 1 125 445
1.0 1/6
6 3/4 108 405
1.7 1/4
PERFORMANCE
Cooling
Model
MPC241M414A 22,600
MPC301M414A 28,400 21,900 1000 79
MPC361M414A 34,000 26,100 1200
MPC421M414A 40,000 30,800 1400
MPC481M414A 45,500 35,000 1600 77
MPC601M414A 57,000 41,600 1800 78
Rated AHRI
Capacity
Btuh
SEER EER
14.0 11.0
Rated
Sensible
Capacity
Btuh
17,400 800 77
CFM
Sound
dBA
78
*Cer tified in accordance with Unitary Air Conditioner Certific ation Program , which is based on AH RI Sta ndard 2 10/24 0
mrcool.com
Page 2
UP TO 14 SEER PACKED A/C
BLOWER PERFORMANCE
MPC*1M414A
MODEL
MPC241M414A
MPC301M414A
MPC361M414A
MPC421M414A
MPC481M414A
MPC601M414A
BLOWER
TAP
TAP 1 610 560 525 485 430 0 0 0 0 0
TAP 2 820 795 760 720 690 650 615 575 540 470
TAP 3 950 920 880 850 820 800 760 720 680 625
TAP 1 850 820 780 745 710 680 630 590 550 515
TAP 2 1040 1000 970 935 900 875 845 815 770 735
TAP 3 1175 1145 1115 1080 1050 1015 990 945 900 860
TAP 1 850 800 750 700 645 600 550 480 435 0
TAP 2 1245 1210 1175 1140 1100 1065 1025 975 920 845
TAP 3 1400 1370 1335 1300 1265 1220 1180 1150 1060 875
TAP 1 800 720 640 550 475 390 310 0 0 0
TAP 2 1470 1410 1360 1300 1260 1210 1155 1095 1000 940
TAP 3 1700 1650 1610 1575 1540 1480 1430 1390 1340 1210
TAP 1 1145 1075 1000 930 850 790 740 670 570 490
TAP 2 1675 1630 1600 1540 1490 1440 1390 1300 1230 1125
TAP 3 1800 1770 1715 1690 1640 1610 1565 1500 1460 1380
TAP 1 1400 1320 1260 1200 1120 1060 980 900 N/A N/A
TAP 2 1920 1870 1820 1770 1720 1670 1450 1360 N/A N/A
TAP 3 2235 2195 2165 2130 2090 2060 2025 1985 1960 1940
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM @ ext. Static Pressure in in. wc without filter, dry coil
COOLING PERFORMANCE - EXTENDED RATINGS
Outdoor
Model
MPC241M414A
MPC301M414A
MPC361M414A
MPC421M414A
MPC481M414A
MPC601M414A
Indoor
Temp DB/
WB ºF
85 / 72 30,600 0.65 1.33 27,700 0.68 1.65 24,700 0.70 1.88 23,100 0.72 2.06 22,500 0.75 2.26
80 / 67 27,900 0.71 1.35 25,500 0.74 1.65 22,600 0.77 1.88 21,200 0.79 2.06 20,700 0.82 2.25
75 / 63 26,000 0.74 1.36 23,800 0.77 1.65 21,000 0.79 1.87 20,700 0.82 2.05 19,300 0.84 2.23
75 / 57 23,800 1 1.39 22,100 1 1.64 20,700 1 1.87 19,600 1 2.04 18,500 1.00 2.22
85 / 72 38,200 0.68 1.83 34,700 0.71 2.16 32,000 0.74 2.42 30,500 0.74 2.6 29,000 0.78 2.86
80 / 67 35,200 0.75 1.76 32,300 0.78 2.11 28,400 0.75 2.34 28,100 0.84 2.57 25,100 0.8 2.74
75 / 63 33,000 0.77 1.71 30,400 0.8 2.06 27,700 0.8 2.31 25,900 0.82 2.51 24,100 0.84 2.72
75 / 57 29,900 1 1.66 28,300 1 2.01 26,600 1 2.29 25,200 1 2.49 23,700 1 2.7
85 / 72 45,800 0.68 2.09 41,700 0.72 2.49 37,600 0.73 2.82 35,400 0.74 3.1 32,400 0.75 3.39
80 / 67 40,800 0
75 / 63 38,100 0.76 2.11 36,000 0.77 2.51 32,300 0.81 2.80 30,500 0.84 3.08 28,400 0.87 3.37
75 / 57 35,200 1 2.14 33,600 1 2.5 30,700 1 2.80 29,200 1 3.07 27,400 1 3.36
85 / 72 54,500 0.67 2.51 48,900 0.71 2.9 45,700 0.73 3.28 44,200 0.74 3.64 42,800 0.75 4.08
80 / 67 50,100 0.74 2.52 45,100 0.78 2.91 40,000 0.77 3.28 38,400 0.79 3.64 35,700 0.8 4.05
75 / 63 46,800 0.76 2.52 42,700 0.8 2.91 38,800 0.81 3.29 36,300 0.82 3.65 33,500 0.83 4.06
75 / 57 42,500 1 2.53 39,700 1 2.93 37,100 1 3.3 35,100 1 3.66 33,100 1 4.07
85 / 72 59,400 0.69 2.78 53,900 0.72 3.29 49,700 0.72 3.6 47,100 0.75 4.09 43,600 0.75 4.48
80 / 67 54,600 0.75 2.8 49,900 0.77 3.3 46,000 0.80 3.71 42,900 0.8 4.07 40,000 0.81 4.47
75 / 63 50,700 0.76 2.82 46,700 0.79 3.3 43,300 0.82 3.7 40,400 0.82 4.06 38,100 0.86 4.47
75 / 57 47,200 1 2.83 43,800 1 3.29 41,000 1 3.7 39,000 1 4.06 36,900 1
85 / 72 70,300 0.63 3.5 66,100 0.64 4.19 62,800 0.65 4.72 59,200 0.7 5.27 55,500 0.76 5.82
80 / 67 65,700 0.69 3.47 61,000 0.71 4.08 57,400 0.73 4.69 54,300 0.78 5.24 51,200 0.83 5.78
75 / 63 61,400 0.72 3.45 56,300 0.74 4.12 52,300 0.76 4.63 50,200 0.8 5.19 48,000 0.85 5.75
75 / 57 54,500 1 3.42 50,100 1 4.09 50,100 1 4.09 46,700 1 5.17 45,900 1 5.73
Btuh S/T kW Btuh S/T kW Btuh S/T kW Btuh S/T kW Btuh S/T kW
65º 82º / 67 ° 95º / 75 ° 105º / 85 ° 115º / 95°
.75 2.1 38,500 0.75 2.51 34,400 0.79 2.81 33,200 0.84 3.09 30,500 0.85 3.38
Outdoor Temperature - DB ºF
4.47
mrcool.com
Page 3
UP TO 14 SEER PACKED A/C
HEAT STRIP ELECTRICAL
MPC*1M414A
Model
Number
MPC241M414A
MPC301M414A
MPC361M414A
MPC421M414A
MPC481M414A
Heater
Model
MHK05P
MHK07P
MHK10P
MHK05P
MHK07P
MHK10P
MHK15P
MHK05P
MHK07P
MHK10P
MHK15P
MHK05P
MHK07P
MHK10P
MHK15P
MHK20P
MHK05P
MHK07P
MHK10P
MHK15P
MHK20P
Unit Supply
Voltage Single
Heater
Phase
240 5 29.5 30 - - 43.4 45
208 3.8 26.1 25 - - 40 45
240 7.5 42.6 45 - - 56.5 60
208 5.6 37.4 40 - - 51.3 60
240 10 55.6 55 - - 69.5 70
208 7.5 48.6 50 - - 62.5 70
240 5 31.2 35 - - 47.9 50
208 3.8 27.7 25 - - 44.5 50
240 7.5 44.2 45 - - 61 70
208 5.6 39 40 - - 55.8 60
240 10 57.2 55 - - 74 80
208 7.5 50.3 55 - - 67 70
240 15 57.2 55 26 30 100 110
208 11.3 50.3 55 22.6 25 89.6 90
240 5 31.2 30 - - 49.5 50
208 3.8 27.7 25 - - 46 50
240 7.5 44.2 45 - - 62.5 70
208 5.6 39 40 - - 57.3 60
240 10 57.2 55 - - 75.5 80
208 7.5 50.3 55 - - 68.6 70
240 15 57.2 55 26 30 101.5 110
208 11.3 50.3 50 22.6 25 91.1 100
240 5 33.5 35 - - 53.8 60
208 3.8 30.1 35 - - 50.3 60
240 7.5 46.6 50 - - 66.8 70
208 5.6 41.4 45 - - 61.6 70
240 10 59.6 55 - - 79.9 80
208 7.5 52.6 55 - - 72.9 80
240 15 5
208 11.3 52.6 55 22.6 25 95.5 100
240 20 59.6 55 52.1 60 131.9 150
208 15 52.6 60 45.1 50 118 125
240 5 33.5 35 - - 54.8 60
208 3.8 30.1 35 - - 51.3 60
240 7.5 46.6 50 - - 67.8 70
208 5.6 41.4 45 - - 62.6 70
240 10 59.6 60 - - 80.8 90
208 7.5 52.6 55 - - 73.9 80
240 15 59.6 60 26 30 106.9 110
208 11.3 52.6 55 22.6 25 96.4 100
240 20 59.6 55 52.1 60 132.9 150
208 15 52.6 60 45.1
kW
Min. Circuit
Ampacity
1
9.6 55 26 30 105.9 110
Max. Fuse /
HACR Brkr. 1
Min. Circuit
Ampacity
2
Max. Fuse /
HACR Brkr.
Min. Circuit
Ampacity
2
Single Point
50 119 125
Max. Fuse /
HACR Brkr.
Single Point
mrcool.com
Page 4
UP TO 14 SEER PACKED A/C
MPC*1M414A
MODEL NO.
MPC601M414A
HEATER
MODEL
MHK05P
MHK07P
MHK10P
MHK15P
MHK20P
Unit Supply
Voltage Single
Heater
Phase
240 5 35.5 40 - - 64.9 70
208 3.8 32.1 35 - - 61.5 65
240 7.5 48.6 50 - - 78.8 90
208 5.6 43.4 45 - - 73.6 80
240 10 35.5 40 26 30 91.8 100
208 7.5 54.6 60 - - 84.8 90
240 15 52.1 55 35.5 40 117.8 125
208 11.3 54.6 55 22.6 25 107.4 110
240 20 61.6 60 52.1 60 143.9 150
208 15 54.6 60 45.1 50 130 150
kW
Min. Circuit
Ampacity
1
Max. Fuse /
HACR Brkr. 1
Min. Circuit
Ampacity
2
Max. Fuse /
HACR Brkr.
2
ACCESSORIES
Description Where Used Kit Number
Down Flow Conversion - 2-3 Ton 24, 30, 36 MPDK2436
Down Flow Conversion - 3.5 -5 Ton 42, 48, 60 MPDK4260
Electric Heater 5KW All MHK05P
Electric Heater 7.5KW All MHK07P
Electric Heater 10KW All MHK10P
Electric Heater 15KW 30, 36, 42, 48, 60 MHK15P
Electric Heater 20KW 42, 48, 60 MHK20 P
Min. Circuit
Ampacity
Single Point
Max. Fuse /
HACR Brkr.
Single Point
mrcool.com
Page 5
3
UP TO 14 SEER PACKED A/C
DIMENSIONS (IN.)
MPC*1M414A
Model
MPC241M414A
MPC361M414A
MPC421M414A
MPC601M414A
2
(51)
11-1/2
(292)
A B C D E F G H
in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm
36-7/8 937 46-3/4 1187 13-3/8 340 5-7/8 149 16-3/4 425 14 356 30-1/8 762 25-1/2 648MPC301M414A
40-7/8 1038 55-1/4 1403 18-1/8 467 4-5/8 117 19-3/4 502 19-1/2 495 34-1/8 864 29-1/2 749MPC481M414A
46-3/4
(1187)
DOWNFLOW
SUPPLY AIR
OPENING
DOWNFLOW
RETURN AIR
OPENING
-1/4
(83)
F E
2 (51)
B
TOP VIEW
3-1/4
(83)
3-1/8
(79)
A
HORIZONTAL
SUPPLY AIR
OPENING
2-3/4
(70)
C D C
14-1/4
(362)
HORIZONTAL
RETURN AIR
OPENING
17
(432)
2-1/4
(57)
3-1/2
(89)
G
H
8-1/8
(206)
BACK VIEW
POWER ENTRY
1-1/8 (29) DIA.
KNOCKOUT
LOW VOLTAGE
ENTRY 7/8 (22) DIA.
KNOCKOUT
ELECTRIC HEAT
POWER ENTRY
RIGHT SIDE VIEW
12-3/4
(324)
CONDENSATE
DRAIN 3/4 NPT
18-1/8
(460)
mrcool.com
Page 6
8” High
14” High
100
102
44 5/8” X 44 5/8”
8” High
14” High
101
103
44 5/8” X 53 1/8”
UP TO 14 SEER PACKED A/C
ROOF CURB DIMENSIONS
MPC*1M414A
(254)
Unit Mounting
F
RETURN
OPENING
3-1/8
(79)
10
Brackets (4)
1-7/8
(48)
G
11-5/8
(295)
C
8 (203)
14 (356)
8
(203)
44-5/8
(1133)
33
(838)
SUPPLY
OPENING
E
H
5/8”
5/8”
D
NOTE - Roof deck may be ommitted within confines of curb.
Dimension LRP16GE24, 36 LRP16GE48, 60
A 44-5/8 1133 53-1/8 1349
B 43 1092 51 1295
C 18 457 24 610
D 44 1118 52-1/2 1334
E 37 940 41 1041
F 14 356 19-1/2 495
G 17 432 19-3/4 502
H
I
in. mm in. mm
52 1
2
Insulated
Pan
Unit Mounting
I
51
254102489-3/4
B
Brackets (4)
33
(838)
A
4
(102)
44
(1118)
TYPICAL FLASHING DETAIL
WOOD NAILER
CURB FRAME
COUNTER FLASHING
(FIELD SUP PLIED)
(FIELD SUP PLIED)
RIGID IN SU LA TION
(FIELD SUP PLIED)
CANT STRIP
(FIELD SUP PLIED)
1”
GNI FOOR FELT
1”
“
9
2
16
“
7
1
8
Usage
A B C D E
in. mm in. mm in. mm in. mm in. mm
24, 36 44-5/8 1133 43 1092 18 457 44 1118 37 940
48, 60 53-1/8 1349 51 1295 24 610 52-1/2 1334 41 1041
Usage
F G
in. mm in. mm
24, 36 14 356 16-3/4 425
48, 60 19-1/2 495 19-3/4 502
mrcool.com
Page 7
Loading...
