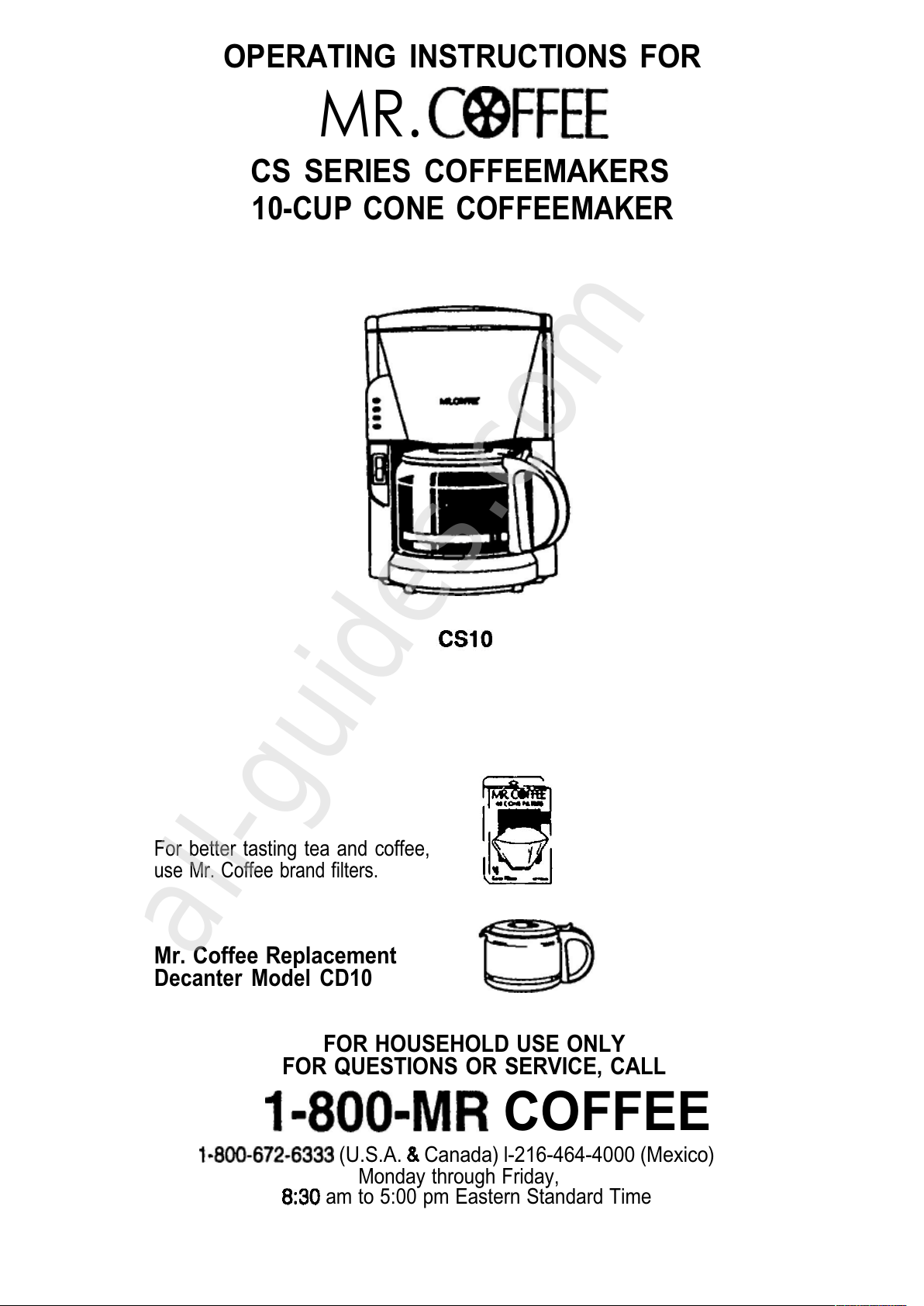

Page 1
OPERATING INSTRUCTIONS FOR
MR.
CS SERIES COFFEEMAKERS
10-CUP CONE COFFEEMAKER
For better tasting tea and coffee,
use Mr. Coffee brand filters.
Mr. Coffee Replacement
Decanter Model CD10
FOR HOUSEHOLD USE ONLY
FOR QUESTIONS OR SERVICE, CALL
COFFEE
(U.S.A. Canada) l-216-464-4000 (Mexico)
Monday through Friday,
am to 5:00 pm Eastern Standard Time
All manuals and user guides at all-guides.com
all-guides.com
Page 2

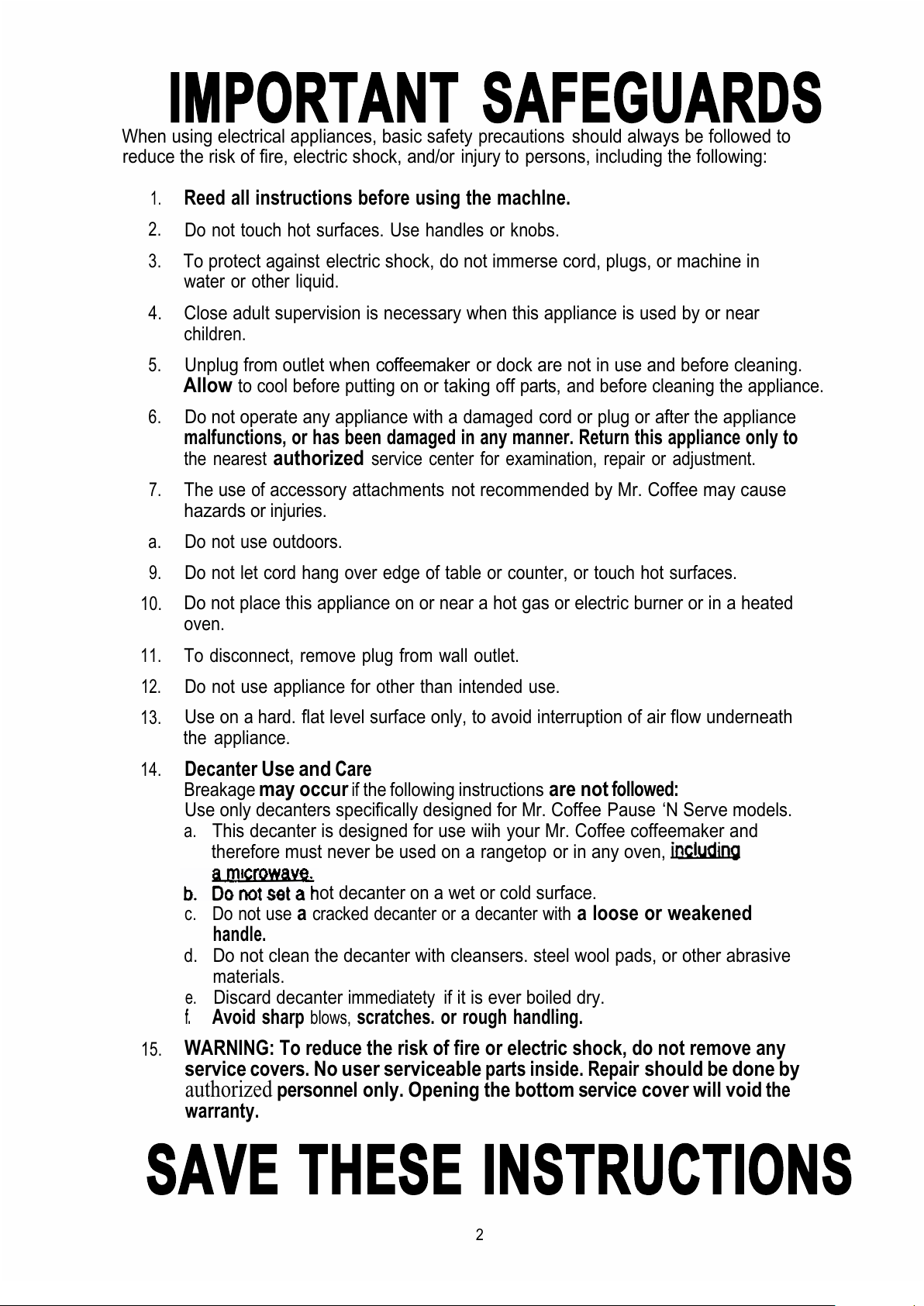

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions
should always be followed to
reduce the risk of fire, electric shock, and/or
injury to
persons, including the following:
1.
2.
3.
4.
5.
6.
7.
a.
9.
10.
11.
12.
13.
14.
15.
Reed all instructions before using the machlne.
Do not touch hot surfaces. Use handles or knobs.
To protect
against
electric shock, do not immerse cord, plugs, or machine in
water or other liquid.
Close adult supervision is necessary when this appliance is used by or near
children.
Unplug from outlet when
coffeemaker
or dock are not in use and before cleaning.
Allow
to cool before putting on or
taking
off
parts,
and before cleaning the appliance.
Do not operate any appliance with a
damaged
cord or plug or after the appliance
malfunctions, or has been damaged in any manner. Return this appliance only to
the nearest
authorized
service center for examination, repair or adjustment.
The use of accessory
attachments
not recommended by Mr. Coffee may cause
hazards or
injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place this appliance on or near a hot gas or electric burner or in a heated
oven.
To disconnect, remove plug from wall outlet.
Do not use appliance for other than intended use.
Use on
a hard.
flat level surface only, to avoid interruption of air flow underneath
the appliance.
Decanter
Use and
Care
Breakage
may occur
if
the following
instructions
are not
followed:
Use only decanters specifically designed for Mr. Coffee Pause ‘N Serve models.
a.
This decanter is designed for use wiih your Mr. Coffee coffeemaker and
therefore must never be used on a
rangetop
or in any oven,
ot decanter on a wet or cold surface.
c.
Do not use a cracked decanter or a decanter with
a loose or weakened
handle.
d.
Do not clean the decanter with cleansers. steel wool pads, or other abrasive
materials.
e.
Discard decanter
immediatety
if it is ever boiled dry.
f.
Avoid sharp
blows,
scratches. or rough handling.
WARNING: To reduce the risk of
fire
or
electric
shock, do not remove any
service
covers.
No user serviceable
parts inside. Repair
should be done by
authorized
personnel only. Opening the bottom service cover will void
the
warranty.
SAVE THESE INSTRUCTIONS
2
All manuals and user guides at all-guides.com
Page 3
SPECIAL CORD SET
INSTRUCTIONS
1.
A short power supply cord is provided to reduce the hazards resulting
from becoming entangled in or tripping over a longer cord.
2.
An extension cord may be purchased and used if care is exercised in
its use.
3.
If an extension cord is used, the marked electrical rating of the exten-
sion cord must be at least 10 amps and 120 volts. The resulting
extended cord must’be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or
tripped over accidentally.
l
This appliance has a polarized plug (one blade is larger than the
other). As a safety feature, this plug will fit In a polarized outlet
only one way.
lf
the plug does not fully fit in the outlet, reverse
the plug. lf it still does not fit, contact a qualified electrician. Do
not attempt to defeat this safety feature.
All manuals and user guides at all-guides.com
Page 4
Introduction
Congratulations! You are the owner of a Mr. Coffee 10-Cup Cone Coffeemaker. A
decanter-activated Pause ‘N Serve drip-stop valve allows you up to 30 seconds to sneak
a cup
while
the coffee is still brewing.
Please read
all
of the Instructions in this booklet
carefully
before you
begin
to use this
appliance. Proper care and maintenance will ensure the long life of this
appliance
and
its trouble-free operation. Save these instructions and refer to them often for cleaning
and care tips.
Contents
Page
Important Safeguards
..................................................................................................
2
Cord
Set
instructions ..................................................................................................
.3
Introduction
.................................................................................................................
.4
Diagram of Parts
..........................................................................................................
4
Brewing
Coffee
...........................................................................................................
.5
Automatic Pause ‘N Serve
...........................................................................................
6
Cleaning Instructions
...................................................................................................
6
Decanter Cleaning
........................................................................................................
6
If Service is Required
...................................................................................................
7
Limited
Warranty..
.......................................................................................................
.8
Diagram Of Parts
Control Switch
All manuals and user guides at all-guides.com
Page 5
IMPORTANT
Clean Your
Mr.
Coffee Before Using the First Time!
Wash decanter, lid and removable filter basket in mild detergent and water.
Rinse each thoroughly. Follow steps 4 through 6 below (using water only)
to clean the Inside of your coffeemaker.
Brewing Coffee
1.
2.
3.
4.
5.
6.
6.
9.
Open the filter basket by grasping flat panel on left and swinging basket open to the
right. Insert
a
Mr. Coffee’ brand #4 cone filter into the inner filter basket.
Add desired amount of coffee according to the coffee measurement chart found
below. Shake lightly to level coffee.
Be sure the paper filter. is properly centered before closing the filter basket.
Fill the decanter with tap water to desired capacity as marked on the side of the
decanter. (1 cup equals 4.5 ounces.)
Pour the water into the water reservoir. Place the empty decanter onto the warmer
plate.
Turn your coffeemaker switch ON. When coffee stops flowing, the brewing cycle is
complete.
Carefully remove the black inner filter basket and discard the used grounds and filter
Rinse the black inner filter
basket
and replace.
To make another pot of coffee, repeat steps 1 through 7.
Be sure to
turn
your coffeemaker OFF when the decanter is empty and you are no
longer using your coffeemaker. Unplug the power cord when not using the
coffeemaker.
To avoid risk of personal Injury or damage to property
as
a result of overflow, be
sure that the decanter
is
squarely centered under the brew basket during brewing
SUGGESTED COFFEE MEASUREMENT
For the best results, use drip grind recommended for automatic drip coffeemakers.
TO BREW
GROUND COFFEE:
10 cups
6
cups
9 tbls. or
4-l/2
scoops
7 tbls.
or
3-1/’2
scoops
6
cups
6
tbls. or 3 scoops
4
cups
5 tbls. or
2-1/2
scoops
2
cups
3 tbls. or
l-1/2
scoops
!
Use more less coffee to
suit your
taste.
2 level tablespoons - 1
level
scoop
1 cup 4.5 oz. brewed coffee
All manuals and user guides at all-guides.com
Page 6
Automatic Pause ‘N Serve Drip Stop Valve
For your convenience, our Pause ‘N Serve feature allows you up to 30 SECONDS
to sneak a cup while the coffee is still brewing. It also prevents any remaining
coffee in the filter basket from dripping onto the warmer plate once the brew cycle
is completed.
TO PREVENT INJURY FROM HOT OVERFLOW, REPLACE DECANTER
WITHIN 30 SECONDS IF REMOVED DURING BREWING.
Cleaning Ins
tru
ctions
Your coffeemaker be cleaned when you begin to notice excessive steaming or the
brewing time increases considerably. This condition is caused by a buildup of lime and
mineral deposits from your water. If the pumping action stops before all the water has
been pumped out of the machine, then the
appliance
requires cleaning.
The frequency of cleaning depends on the hardness of water used. The following table
gives the suggested cleaning intervals.
1.
2.
3.
4.
5.
6.
7.
6.
Pour one quart of undiluted white household vinegar into your
coff
eemaker.
Place a
#4
cone filter into the filter basket and close the filter basket.
Place the empty decanter on the warming plate and
turn
the
coff
eemaker ON.
When three cups have flowed through, turn the coffeemaker OFF and let stand
for
l/2
hour.
After
l/2
hour, pour the vinegar back into the coffeemaker.
Place the empty decanter on the warming plate.
Turn
the coffeemaker ON
and let
all
of the vinegar flow through.
Discard the vinegar and the paper filter.
To flush out all traces
of vinegar, pour a decanter full of tap water into the
coff
eemaker, turn it ON, and allow it all to
cycle
through.
Discard the water and
turn
the coffeemaker OFF. Repeat steps 7 and 6.
Decanter Cleaning
Hard water
.can
leave a whitish mineral deposit inside the decanter. Coffee and tea
discolor these deposits, sometimes leaving
a
brownish stain inside the decanter.
To remove these stains, follow these simple steps:
1.
Use a solution of equal parts white vinegar and hot water.
2.
Let solution stand in decanter for about 20 minutes and then discard.
3.
Wash and rinse the decanter thoroughly using a soft cloth. Do not use harsh
abrasive cleaners. These may cause scratches which can lead to breakage.
All manuals and user guides at all-guides.com
all-guides.com
Page 7
If Service Is Required,. Do
Not Return to Your
Store
For Service, call l-800-MR COFFEE (l-800-672-6333)(U.S.A. & Canada)
l-216-464-4000 (Mexico)
8:30
am to 5:00 pm Eastern Standard Time, Monday through Friday
To assist us in serving you, please have the model number
(CSlO)
and
dateof
purchase available.
All repairs must be made by Mr. Coffee or an authorized Mr. Coffee Service Center.
Please
call
us for assistance or for the location of the nearest authorized Mr. Coffee
Service Center.
Please do not return this appliance to your store.
We welcome your questions, comments or suggestions.
Please include your complete name, address and telephone number
and description of problem in all communications.
Consumer Affairs Department
MR. COFFEE
24709
Miles
Road
Bedford Heights, Ohio 44146-l 399
A
Division
of Health-o- meter, Inc.
All manuals and user guides at all-guides.com
Page 8

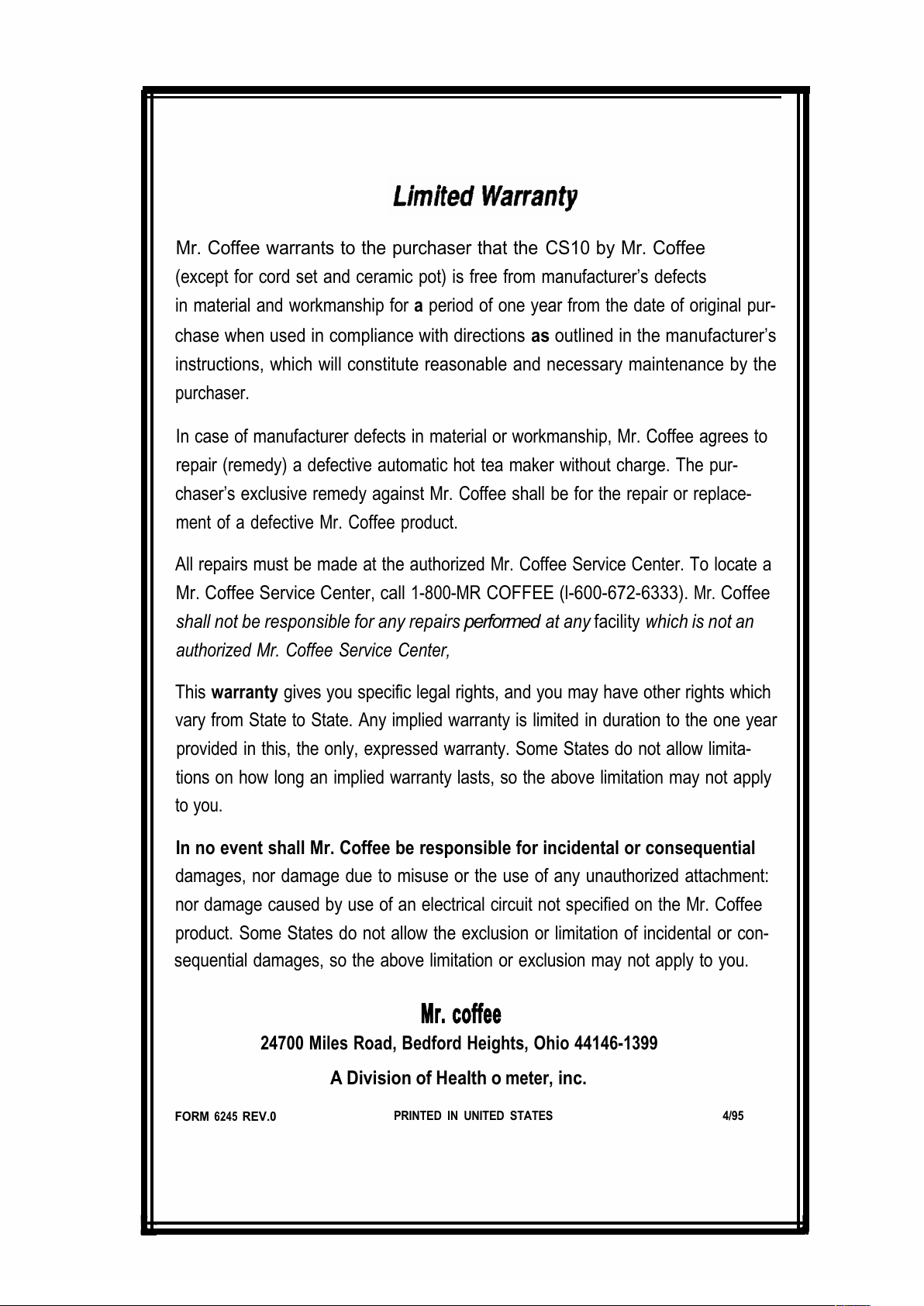

Mr. Coffee warrants to the purchaser that the CS10 by Mr. Coffee
(except for cord set and ceramic pot) is free from manufacturer’s defects
in material and workmanship for
a
period of one year from the date of original pur-
chase when used in compliance with directions
as
outlined in the manufacturer’s
instructions, which will constitute reasonable and necessary maintenance by the
purchaser.
In case of manufacturer defects in material or workmanship, Mr. Coffee agrees to
repair (remedy) a defective automatic hot tea maker without charge. The pur-
chaser’s exclusive remedy against Mr. Coffee shall be for the repair or replace-
ment of a defective Mr. Coffee product.
All repairs must be made at the authorized Mr. Coffee Service Center. To locate a
Mr. Coffee Service Center, call
1-800-MR
COFFEE (l-600-672-6333).
Mr.
Coffee
shall not be responsible for any repairs
performed
at any
facility
which is not an
authorized Mr. Coffee Service Center,
This
warranty
gives you specific legal rights, and you may have other rights which
vary from State to State. Any implied warranty is limited in duration to the one year
provided in this, the only, expressed warranty. Some States do not allow limita-
tions on how long an implied warranty lasts, so the above limitation may not apply
to you.
In no event shall Mr. Coffee be responsible for incidental or consequential
damages, nor damage due to misuse or the use of any unauthorized attachment:
nor damage caused by use of an electrical circuit not specified on the Mr. Coffee
product. Some States do not allow the exclusion or limitation of incidental or con-
sequential damages, so the above limitation or exclusion may not apply to you.
Mr. coffee
24700 Miles Road, Bedford Heights, Ohio 44146-1399
A Division of Health o
meter,
inc.
FORM
6245
REV.0
PRINTED IN UNITED STATES 4/95
All manuals and user guides at all-guides.com
Page 9
All manuals and user guides at all-guides.com
Page 10
All manuals and user guides at all-guides.com
Page 11
All manuals and user guides at all-guides.com
all-guides.com
Page 12
All manuals and user guides at all-guides.com
Page 13
All manuals and user guides at all-guides.com
Page 14
All manuals and user guides at all-guides.com
Page 15
All manuals and user guides at all-guides.com
Page 16
All manuals and user guides at all-guides.com
all-guides.com
Loading...
