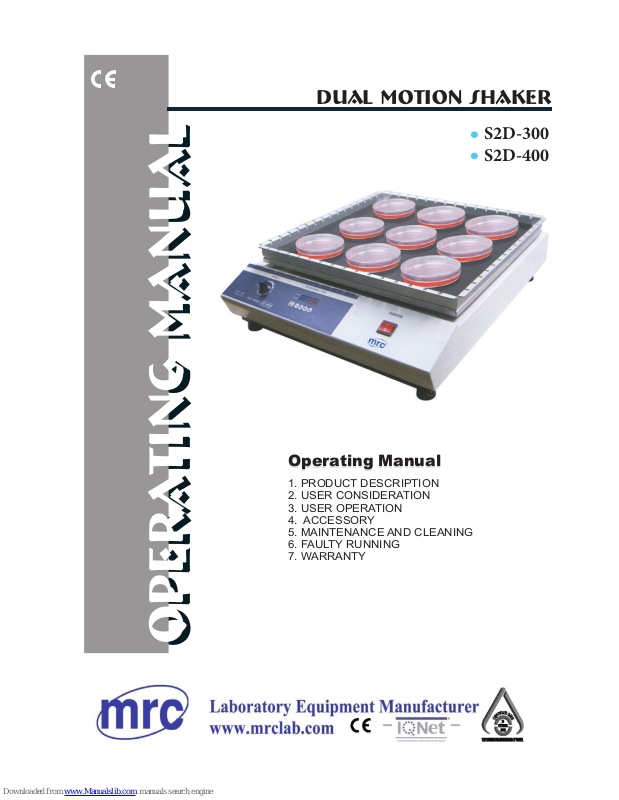

Operating Manual
Operating Manual
Dual motion shaker
S2D-300
S2D-400
1. PRODUCT DESCRIPTION
2. USER CONSIDERATION
3. USER OPERATION
4. ACCESSORY
5. MAINTENANCE
AND CLEANING
6. FAULTY RUNNING
7. WARRANTY
Operating Manual
Operating Manual
* Orbital range (14mm)
* Speed range (45~400rpm)
* Orbital range (28mm)
* Speed range (45~400rpm)
Change between orbital or reciprocating motion
Smooth and powerful orbital or reciprocating motion at
a low speed
Optional platform available for flasks
LED display (shown actual speed or time)
High quality permanent brushless DC motor for gentle and
powerful motion
Continuous or timed operation
PRODUCT DESCRIPTION
1
Characteristics
S2D-400
S2D-300
(Platform W400mm x D400mm)
(Platform W300mm x D300mm)
Non-slip pad
Shaking Platform
Rubber foot
Power ON/OFF switch
Tachometer/time
Speed control
PRODUCT DESCRIPTION
2
Specification
Description
Model
S2D-300
Free Voltage (AC100 ~ 240V)
W430mm x D520mm x H140mm
17 kg
Dimensions(mm)
Weight
Power
BLDC motor
Motor
28mm
Orbital range
45 ~ 400 rpm
Speed Timer
Loadable weight
6 kg
Temp. Resist
Lower than 55˚C
Platform(mm)
W400mm x D400mm
Wattage
Speed range
S2D-400
13 kg
14mm
4 kg
W300mm x D300mm
30W
W320mm x D410mm x H140mm
99hour 59 min
Unplug the appliance :
- If problems occur during the shaking process.
- Before you start cleaning the unit.
- Never use the appliance if the plug,
the cord or the appliance it self is damaged.
Be careful not to drop any chemical liquid and water on the
instrument to prolong the life of the instrument and protect
electronic shock. For example, PEG could be reason for the
paint on the surface to be peeled off.
Environmental conditions
- Indoor use.
- Environment temperature 5˚C to 40˚C.
- Maximum relative humidity 80% for temperatures up to 31˚C
decreasing linearly to 50% relative humidity at 40 C.
- Mains supply voltage fluctuations not to exceed 10% of the
nominal voltage.
- Other supply voltage fluctuations as stated by the manufacturer.
- Transient overvoltages according to installation categories.
3
1
User consideration
USER CONSIDERATION
Power switch is in the "on" position and operate it after 3 seconds
for stable using of product.
3
1
2
This section summarizes operation procedures for Dual Motion Shaker
controlling the rotation.
If you want to do "Timer Setting", the last
two numbers of the " " on the screen
will be blinking when you push the <MODE>
button. The maximum time period is
99hours and 59min.
Plug the power cord
into the wall receptacle.
When you turn on the power switch.
" " signal is going to be appeared
on the screen. In case of you are dealing
with speed control, there will be the red
light on the rpm part, and you can check
the current speed through the screen.
STOP
rpm ●
time ●
RUN
MODE
STOP
RPM/TIMER
0000
STOP
rpm ●
time ●
RUN
MODE
STOP
00000000
0000
00000000
User operation
USER OPERATION
4
RPM/TIMER
6
4
This section summarizes operation procedures for Dual Motion Shaker
controlling the rotation.
If you want to finish the Timer Setting,
please kindly push the <RUN/STOP>,
then it will be changed as RPM mode.
For example when you want to do
" Timer Setting" for 5 minutes, push
button repeatedly until the number "5"
appears on the screen. Then, when you
push the <MODE> button, the setting
will be finished. In case of you push
<RUN/STOP> button there will be the
yellow light on the part of "TIME", and
then the timer will be operating.
cf) The number of timer is going to be
lessened such as 60, 59, 58...
STOP
rpm ●
time ●
RUN
MODE
STOP
0005
5
If the timer setting finishes, there will be
an automatic buzz sounds for 3 times
for 4 seconds each, and the signal "END",
it will be appeared on the screen.
7
Control the shaking speed.
(45~400rpm)
STOP
rpm ●
time ●
RUN
MODE
STOP
STOP
rpm ●
time ●
RUN
MODE
STOP
0005
E
p
Speed
fast
RPM/TIMER
RPM/TIMER
RPM/TIMER
User operation
USER OPERATION
5
6
50ml holder/CP50 100ml holder/CP100 250ml holder/CP250 500ml holder/CP500
FT302-50-13 FT302-100-13 FT302-250-8 FT302-500-5
FT402-50-25 FT402-100-25 FT402-250-14 FT402-500-9
2D Silicon Rack-300 2D Silicon Rack-400 PLATE / FT302 PLATE / FT402
User Operation
USER OPERATION & ACCESSORIES
Accessory
7
The method of change for the dual motion
1.Lift the rubber pad out of the shaking plate
2. Loosen 4 bolt on the four corners of the shaking plate.
3. Also, loosen 4 bolts in middle of the BASE PLATE
4. ORBITAL → RECIPROCATING motion
- the base plate rotated 90 degrees and bolt up in holes NO.①
5. RECIPROCATING → ORBITAL motion
- the base plate rotated 90 degrees and bolt up in holes NO.②
Bolt
Base plate
Main body
①
②
User Operation
USER OPERATION
8
Bolt
Silicon rack
Post
Shaking
plate
The method of the silicon rack combination
1. Loosen 4 bolts on the four corners of the shaking plate.
2. The 4 posts stood on holes on each corner.
And put silicon rack down in there.
3. Fasten 4 screw bolts with posts.
User Operation
USER OPERATION
Always unplug the instrument before you start cleaning it.
Never immerse the appliance in water.
9
Never use the instrument if the plug, the cord or the
instrument itself is damaged.
The equipment is maintenance-free.
Clean the surfaces of the shakers at regular interval.
. Water containing a surfactant detergent additive.
. Turn the power ON/OFF control button to position OFF
. Pull the mains plug
. Clean the surfaces of the shaker
Maintenance and Cleaning
MAINTENANCE AND CLEANING & FAULTY RUNNING
After turning on the power switch, The units does not working.
Please, Checking the electronic fuse on the back of main body.
10
If the equipment have other defects, it should be informed to an
authorised servicing agent.
- In this case, the electronic fuse is broken. If you see the back of the
incubator, the fuse box could be seen. After detaching the box as the
pictures, change the fuse.
spare fuse
remove used fuse
MAINTENANCE AND CLEANING & FAULTY RUNNING
Faulty running
1 YEAR WARRANTY
Limited Warranty :
This equipment has been tested all the
functions and parts for proper operation
before shipment.
Please read this manual carefully. If you
have any questions or problems, check
with your dealer or write us direct. This
equipment is warranted for a period of
1years from date of purchase against
defects in workmanship and material only.
If a system component should ever fail to
work perfectly, It can be repaired or replaced
by our after-sales service without difficulty.
Model#:
Serial# :
Date Purchased :
Dealer Name :
City and Country :
WARRANTY
WARRANTY
Warranty
