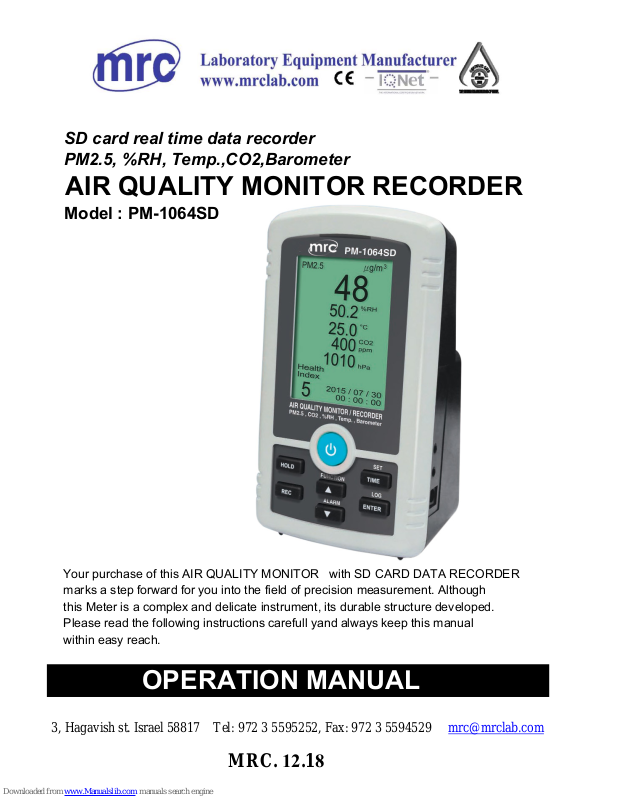

MRC PM-1064SD Operation Manual
Your purchase of this AIR QUALITY MONITOR with SD CARD DATA RECORDER
marks a step forward for you into the field of precision measurement. Although
this Meter is a complex and delicate instrument, its durable structure developed.
Please read the following instructions carefull yand always keep this manual
within easy reach.
OPERATION MANUAL
SD card real time data recorder
PM2.5, %RH, Temp.,CO2,Barometer
AIR QUALITY MONITOR RECORDER
Model : PM-1064SD
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com
MRC. 1
2.18
TABLE OF CONTENTS
1. FEATURES.............................................................................................................
1
2. SPECIFICATIONS.......................................................................................................
2
2-1 General Specifications...............................................................................................
2
2-2 Electrical Specifications.............................................................................................
3
3. FRONT PANEL DESCRIPTION...........................................................................
5
4
Measurement preparation............................................................................................
6
5. Measurement procedure...................................................................................................
9
5-1.METER POWER ON........................................................................................................................
9
5-2.PM2.5 Measurement.........................................................................................
9
5-3.Humidity and Temperature measurement....................................................................
9
5-4.CO2 measurement.............................................................................................................
10
5-5.Barometer measurement.............................................................................................................
10
5-6.Time Display.............................................................................................................
10
6. OTHER FUNCTION...................................................................................................
10
6-1 Data Hold........................................................................................................................
10
6-2 Record ( Max./ Min. reading ).........................................................................................
10
6-3 LCD Backlight ON/OFF.........................................................................................
10
6-4 ALARM function..............................................................................................................
11
6-5 User calibration function.........................................................................................
12
7. DATALOGGER...............................................................................................................
15
7-1 Preparation before execute datalogger function...............................................................................
15
7-2 Auto Datalogger ( Set sampling time ≧
2 second )......................................................
16
7-3 Manual Datalogger ( Set sampling time = 0 second )....................................................
17
7-4 Check time,sampling time information...............................................................................
17
7-5 SD Card Data structure.......................................................................................................................
18
8. Saving data from the SD card to the computer.......................................................
19
9. Air filter net REPLACEMENT...............................................................................
21
10. POWER SUPPLY from DC ADAPTER..........................................................................
21
11. BATTERY REPLACEMENT............................................................................................
21
12. SYSTEM RESET................................................................................................................
22
13. RS232 PC SERIAL INTERFACE....................................................................................
22
14. Micro suspend the particle (PM2.5) Parallel
table of the indicator and activity are proposed................................................................................
24
15. PATENT....................................................................................................................
25
1. FEATURES
* Real time recorder, save the data into the SD memory
card and can be down load to the Excel, extra software
is no need. User can make the further data or graphic
analysis by themselves. under the Excel software.
* Monitoring air pollutant source from dust, petrochemical industry,
steel-making plant, thermal power plant, restaurant, smoke, burning plants,
driving automobiles.
* The meter is a real-time air quality monitor instrument used to monitor
the concentration of PM2.5, humidity and temperature in the indoor
environment.
* PM2.5 : 0 to 250 μg/m³.
* Humidity : 5 to 95 %RH.
*
Temperature : 0 to 50 ℃,℃/℉.
* CO2 : 0 to 10,000 ppm
* Barometer : 10.0 to 1100.0 hPa, 7.5 to 825.0 mmHg, 0.29 to 32.48 inHg.
* PM2.5 time weighted average reading.
* Data hold,Record(Max,Min)
* ALARM setting, there is beeper sound output and external device control
output,
* Health index(0-9) detection and alarm .
* Can replacement air filter net.
* Built-in clock and Calendar, real time data record with SD memory card,
sampling time can be set from 2 second to 3600 seconds. Just slot the SD
card into the computer, all the measured values with the time information
(year, month, data, hour, minute, second) can be downloaded to the Excel
Directly, then user can make the further data analysis by themselves.
* Power by UM3/AA(1.5V) X 6 batteries or DC 9V adapter
* RS232/USB PC computer interface
* Meter can cooperate with 1 GB to 32 GB SD card.
* Patented.
1
2. SPECIFICATIONS
2-1 General Specifications
Circuit Custom one-chip of microprocessor LSI
circuit.
Display LCD Size: 2.18 X 2.87” (55.4 X 72.9 mm)(Dot Matrix)
LCD with green backlight ( ON/OFF ).
Measurement * PM2.5(Particulate matter)
* Humidity
* Temperature
* CO2
* Barometer
Over-range * LCD display show " OL "
* The data save into the Micro SD card will show
" 999 "(overleap the decimal point).
Datalogger Auto 2 sec to 3600 sec.
Sampling Time
Setting range
Manual Push the data logger button
once will save data one time.
@ Set the sampling time to
0 second.
@ Manual mode, can also select the
1 to 99 position ( Location ) no.
Data error no. 0.1% of total saved data max.
Memory Card SD memory card. 1 GB to 32 GB.
Measurement
* SD memory card Format
preparation
* Set clock time
setting
* Set sampling time
@ main setting * Auto power OFF management
* Set beep Sound ON/OFF
* Decimal point of SD card setting
* Temp. unit setting
* Barometer unit setting
* Alarm value setting
* TWA setting
* Altitude value setting
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
2
Sampling Time Approx. 1 second.
of Display
Data Output RS 232/USB PC computer interface.
* Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.
* Connect the optional USB cable
USB-01 will get the USB plug.
Alarm Output
* Open collector output
* Input impedance:330Ω
* Maximum applied voltage: 24 V DC
* Maximum starting current: 70mA DC
Power Supply * DC 1.5 V ( UM3, AA ) x 6 PCs, or equivalent.
* AC to DC 9 V power adapter
Power Current DC 230 mA approximately.
Backlight ON approximately DC 250 mA.
Operating 0 to 50 ℃. ( 32 to 122 ℉ ).
Temperature
Operating Less than 80% R.H.
Humidity
Weight 387 g/0.85 LB.
Dimension 164 X 93 X 72 mm(6.5 X 3.7 X 2.8 inch)
Accessories
Instruction manual....................................................................
1 PC
Included
AC to DC 9 V adapter.......................................................
1 PC
Optional Air filter net ( AF-01 )
Accessories USB cable, USB-01.
RS232 cable, UPCB-02.
Data Acquisition software, SW-U801-WIN.
SD memory card ( 4 GB )
2-2 Electrical Specifications (23±5 ℃)
PM2.5(Particulate matter)
0 to 250 μg/m³
1 μg/m³
±(10 % reading + 15μg/m³)
3
Resolution
Accuracy
PM2.5
Range
Humidity
Humidity Range 5 % to 95 % R.H.
Resolution 0.1 % R.H.
Accuracy ≧70% RH :
±(3% reading + 1% RH).
< 70% RH :
±3% RH.
Temperature
Temperature Range 0 ℃ to 50 ℃,32 ℉ to 122 ℉.
Resolution 0.1 degree
Accuracy ℃ ±0.8 ℃.
℉ ±1.5 ℉.
CO2 ( Carbon dioxide )
Range 0 to 10,000 ppm
CO2 Resolution 1 ppm
( Carbon Accuracy ±40 ppm
dioxide ) * ≦1,000 ppm.
±(50ppm +3% of reading)
23 ± 5 ℃. * > 1,000 ppm ≦ 3,000 ppm.
±(50ppm +5% of reading) typically
* > 3,000 ppm ≦ 10,000 ppm. ,
Repeatability ± 20 ppm * ≦ 3,000 ppm.
Barometric pressure(Barometer)
4
0.1mmHg
0.01inHg
Accuracy
± 1.5 hPa
± 1.2 mmHg
± 0.05 inHg
Unit
hPa
Resolution
0.1 hPa
mmHg
inHg
Range
10.0 to 1100.0
7.5 to 825.0
0.29 to 32.48
3. FRONT PANEL DESCRIPTION
Fig. 1
3-1.Display 3-9.SD card socket
3-2.Power/Backlight button 3-10.RESET button
3-3.HOLD key button 3-11.ALARM socket
3-4.REC key button 3-12.RS232 socket
3-5.TIME/SET key button 3-13.DC 9V power adapter socket
3-6.ENTER/LOG key button
3-14.PM2.5 Air sampling inlet(Air filter net)
3-7.▲/FUNCTION key button 3-15.PM2.5 Air sampling outlet
3-8.▼/ALARM key button 3-16.Battery Cover/Battery compartment
5
4. Measurement preparation
4-1.The initial boot screen
4-2.Into the measurement screen
4-3.Key outline
4-3-1.POWER/Backlight KEY(3-2,Fig.1):
A.Long press this button> 2 SEC. Native ON / OFF function.
B.In the boot state press the button briefly, for the LCM backlight
ON / OFF function.
4-3-2.HOLD KEY(3-3,Fig.1): LCD display value lock function.
A.In measureing:LCD display value lock function.
B.In setting.:Off setting function Back to measurement mode.
4-3-3.REC KEY(3-4,Fig.1): The maximum and minimum record.
4-3-4.TIME/SET KEY(3-5,Fig.1):
A.In the measurement screen press the button will display the year、
month、 day and time of the picture.
B.In the measurement screen long press button> 2 SEC, it will Into the
setting screen, when the setting screen press the button, change the
setting of the first layer option.
4-3-5.ENTER/LOG KEY(3-6,Fig.1):
A.When the setting screen press the button briefly for the storage of
set value function.
B.In measuring screen(eg SCREEN1)long press button> 2 SEC. When you
Into the data logger function.
6
4-3-6.
▲
/FUNCTION KEY(3-5,Fig.1):
A.When the setting screen press the button, the value increases function.
Long function. press and hold to quickly increase the value
B.In measuring screen (eg SCREEN1) long press button> 2 SEC., Then
switch to the TWA measurement functions (eg SCREEN4).
4-3-7.
▼
/ALARM KEY(3-6,Fig.1):
A.When the setting screen press the button, the value was down function.
Long press and hold down the value of fast function.
B.In measuring screen (eg SCREEN1) long press button> 2 SEC., Then
Into the ALARM function (eg SCREEN16).
4-4.Setting function easy instructions:
* SET SD F: Executive SD memory card format.
* SET DATE: Into the year
、
month
、
day adjustment.
* SET TIME: Into the hours
、
minutes
、
seconds adjustment.
* SET SP-T: Data logger sampling time setting.
* SET P-OFF: Auto Power Off Setting.
* SET BEEP: Beeper sound ON/OFF setting
* SET DEC: SD Card Decimal character setting USA or EURO.
* SET T-C/F: Temp. Unit
℃/℉
setting.
* SET hPa(Barometer unit setting)
* SET ALARM: Upper and lower alarm value setting.
* SET PM2.5 Hour TWA: PM2.5 Time-Weighted Average setting.
* SET Meter Altitude(Altitude value setting)
* SET ESC: Escape setting.
4-5.Setting screen Description:
4-5-1.SET SD F(SD memory card format):
A.Press
▲
or ▼ buttons to select YES or NO, when YES is selected and press
ENTER key to start the Format function.
B.When no press ENTER KEY store, press TIME / SET KEY proceed to the
next function setting(SET SD F
→
SET DATE).
4-5-2.SET DATE(Real time clock setting):(Year/Month/Date,Hour/Minte/Second)
A.Press
▲
or ▼ key year value adjustment,
▲
or ▼ then press and hold up,
down fast adjustment. Press ENTER then the set value is stored and the
month of adjustment functions, and so on the day / time / minute / second to
do the setting.
B.When no press ENTER KEY store, press TIME / SET KEY proceed to the
next function setting(SET DATE
→
SET SP-T).
7
Loading...
