MRC BPS- Instruction Manual
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 m
rc@mrclab.com
MRC.VER.02-11.10
INSTRUCTION MANUAL FOR
BPS-series
PrecisionBalances
3
Contents
1. TECHNICAL DATA ............................................................................. 6
2. BASIC INFORMATION ........................................................................ 8
2.1. Intended use .......................................................................................... 8
2.2. Inappropriate use ................................................................................... 8
2.3. Warranty ................................................................................................ 8
2.4. Monitoring the metrological parameters of the instrument ..................... 9
2.5. Data included in this user manual .......................................................... 9
2.6. Staff training ........................................................................................... 9
3. TRANSPORT AND STORAGE ........................................................... 9
3.1. Acceptance check .................................................................................. 9
3.2. Packaging .............................................................................................. 9
4. UNPACKING, INSTALLATION AND COMMISSONING .................. 10
4.1. Installation and operation place ........................................................... 10
4.2. Unpacking ............................................................................................ 11
4.3. Positioning ........................................................................................... 12
4.4. Standard accessories .......................................................................... 12
4.5. Cleaning .............................................................................................. 12
4.6. Connection to mains ............................................................................ 12
4.7. Connection of additional equipment ..................................................... 12
5. BASIC FUNCTIONS OF THE INSTRUMENT ................................... 13
6. KEYBOARD ....................................................................................... 14
7. USER MENU ...................................................................................... 15
7.1. Moving in user menu ........................................................................... 17
7.1.1. Return to weighing function ............................................................. 17
8. WEIGHING ......................................................................................... 17
8.1. Choice of basic weighing unit .............................................................. 18
8.2. Choice of weighing unit (temporary) .................................................... 19
8.3. Setting accessibility of balance operating modes ................................ 20
8.3.1. Choice of modes quantity accessible for user ................................. 20
8.3.2. Setting contents of P6.1 FFun – ALL parameters ........................... 22
9. MAIN SETTING PARAMETERS ....................................................... 23

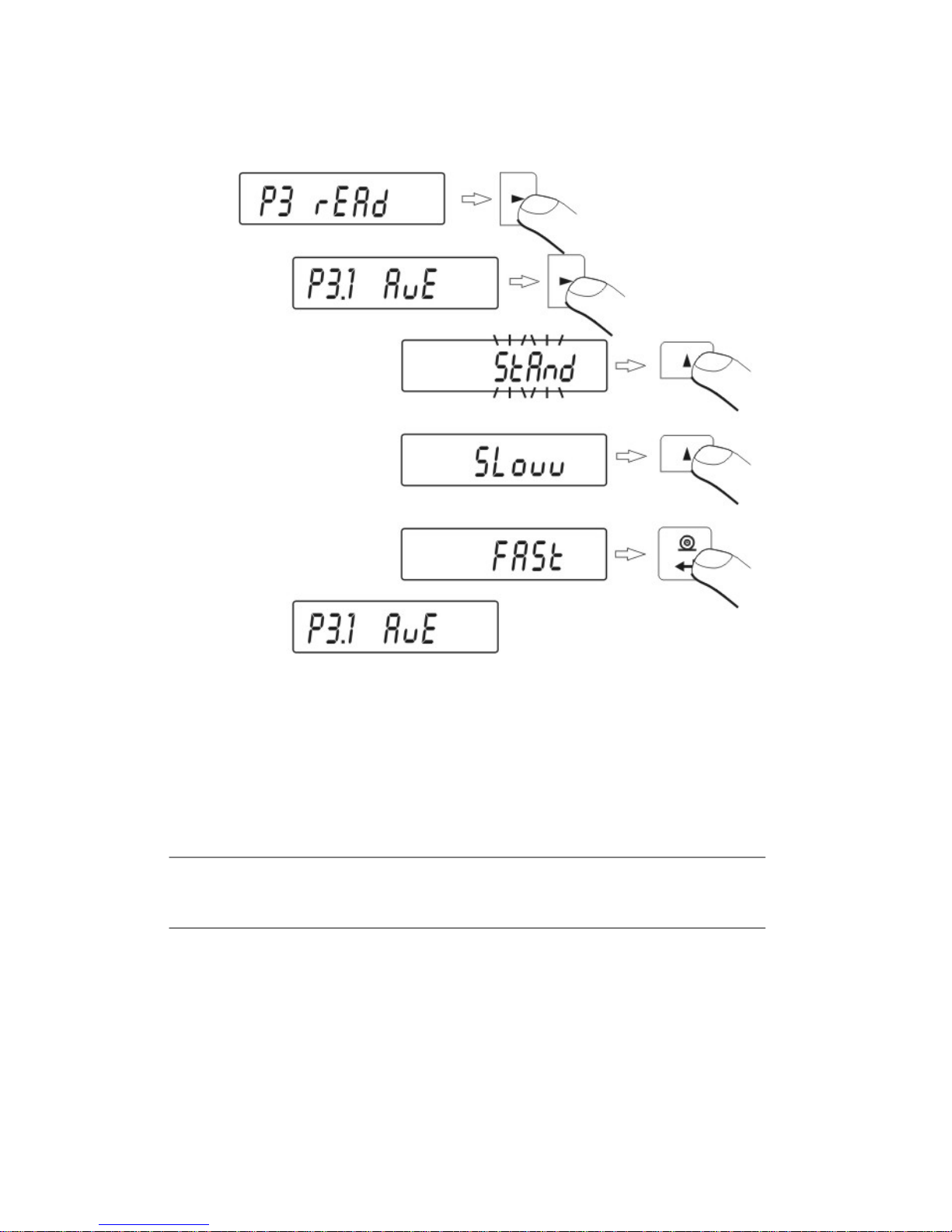

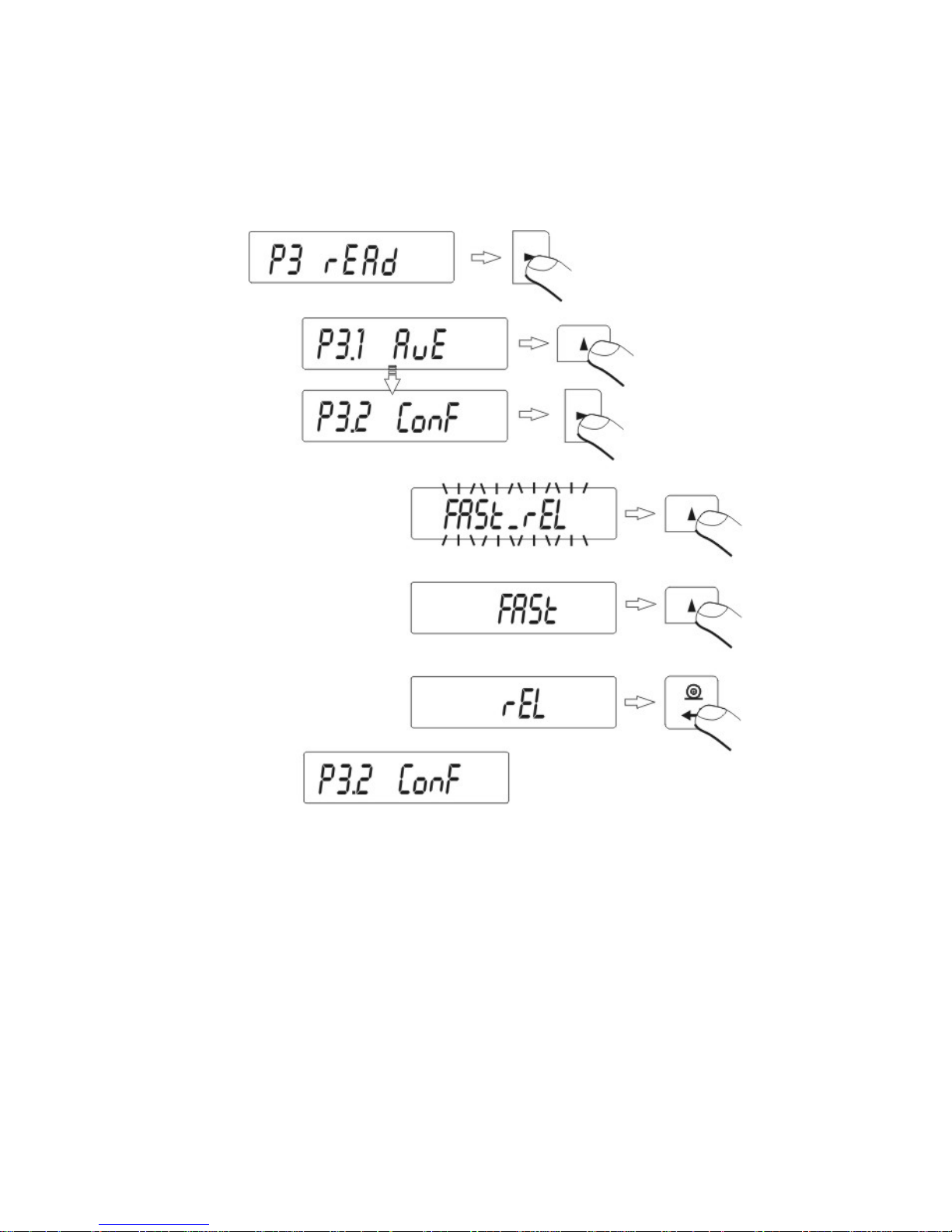

9.1. Setting level of filtering ......................................................................... 24
9.2. Result confirmation .............................................................................. 25

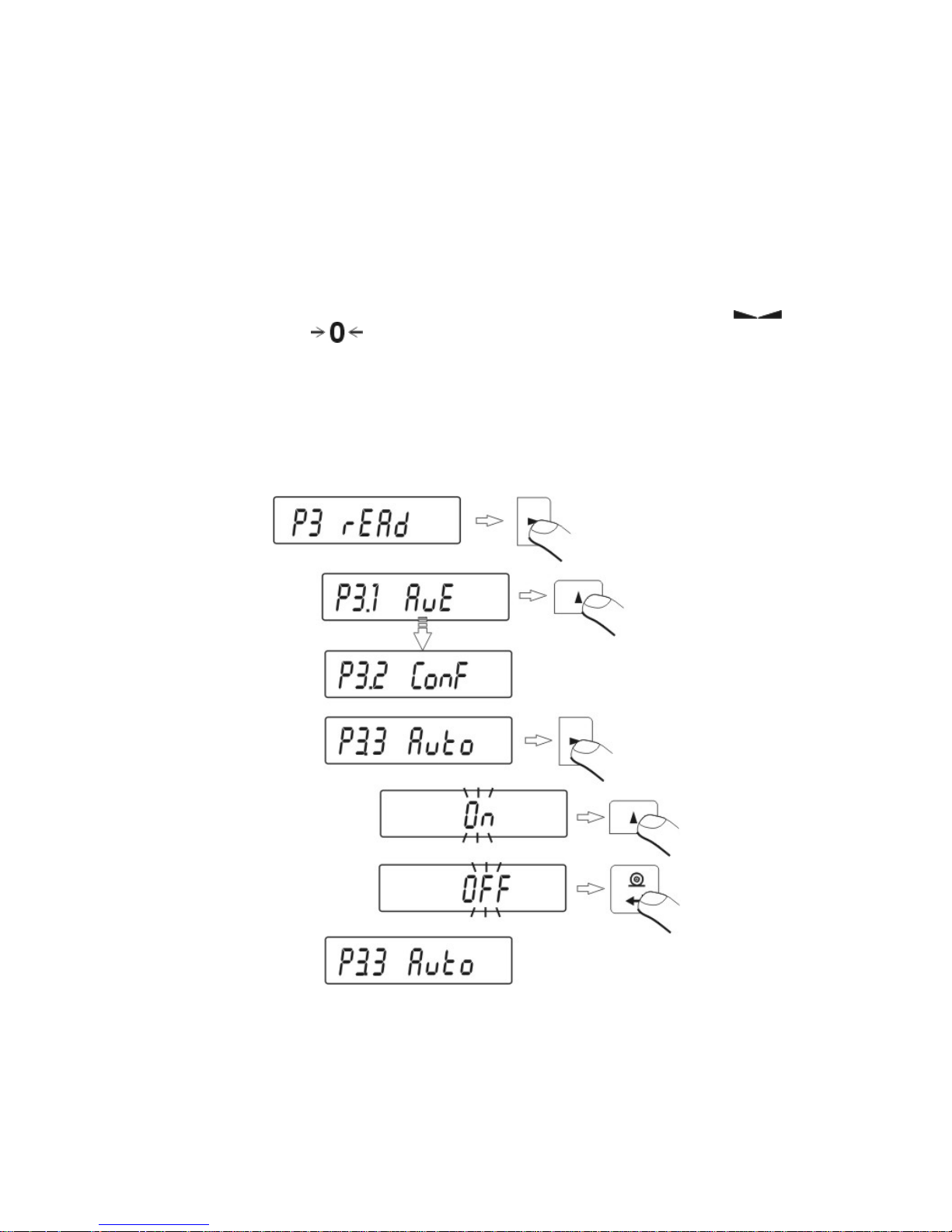

9.3. Autozero function ................................................................................. 26

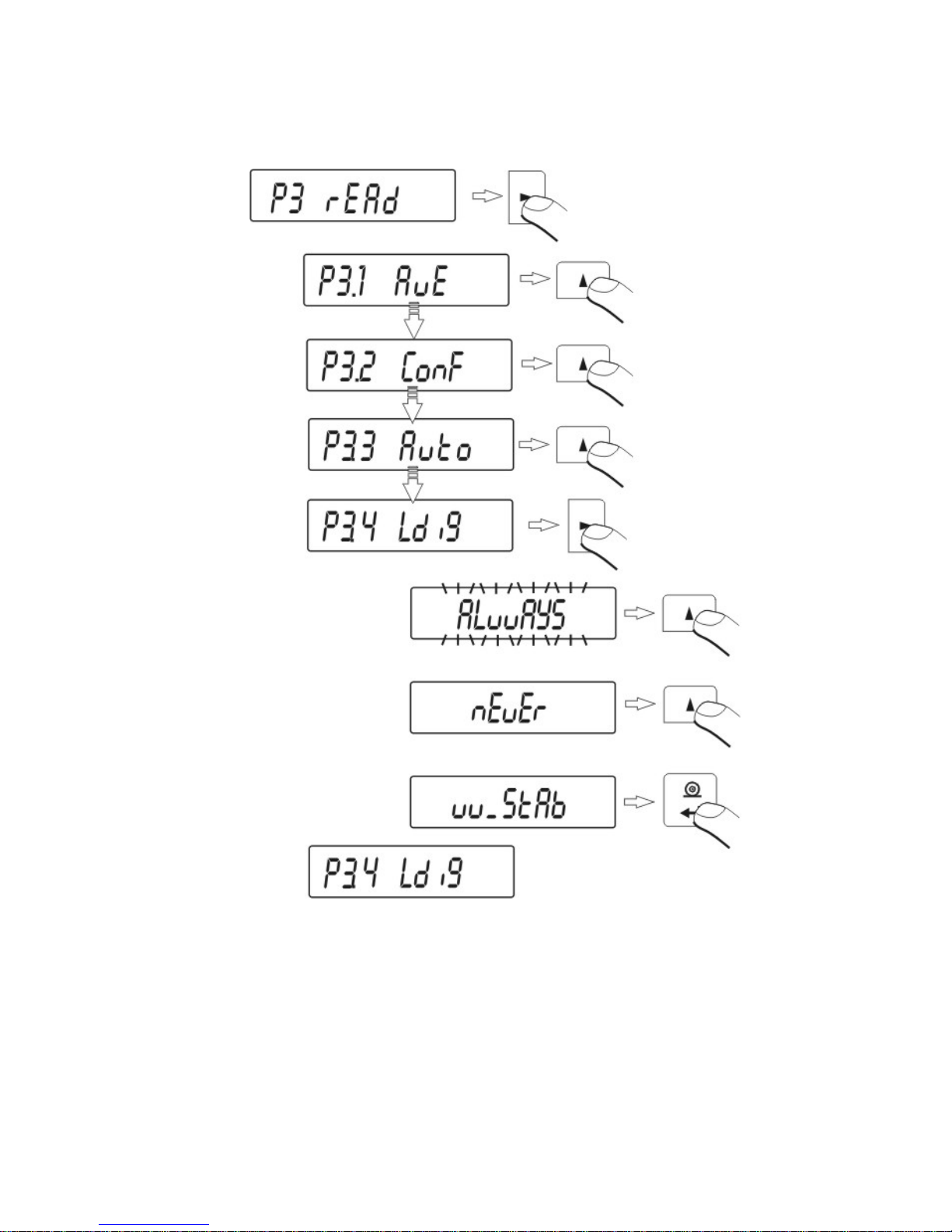

9.4. Light off the last display digit ................................................................ 27

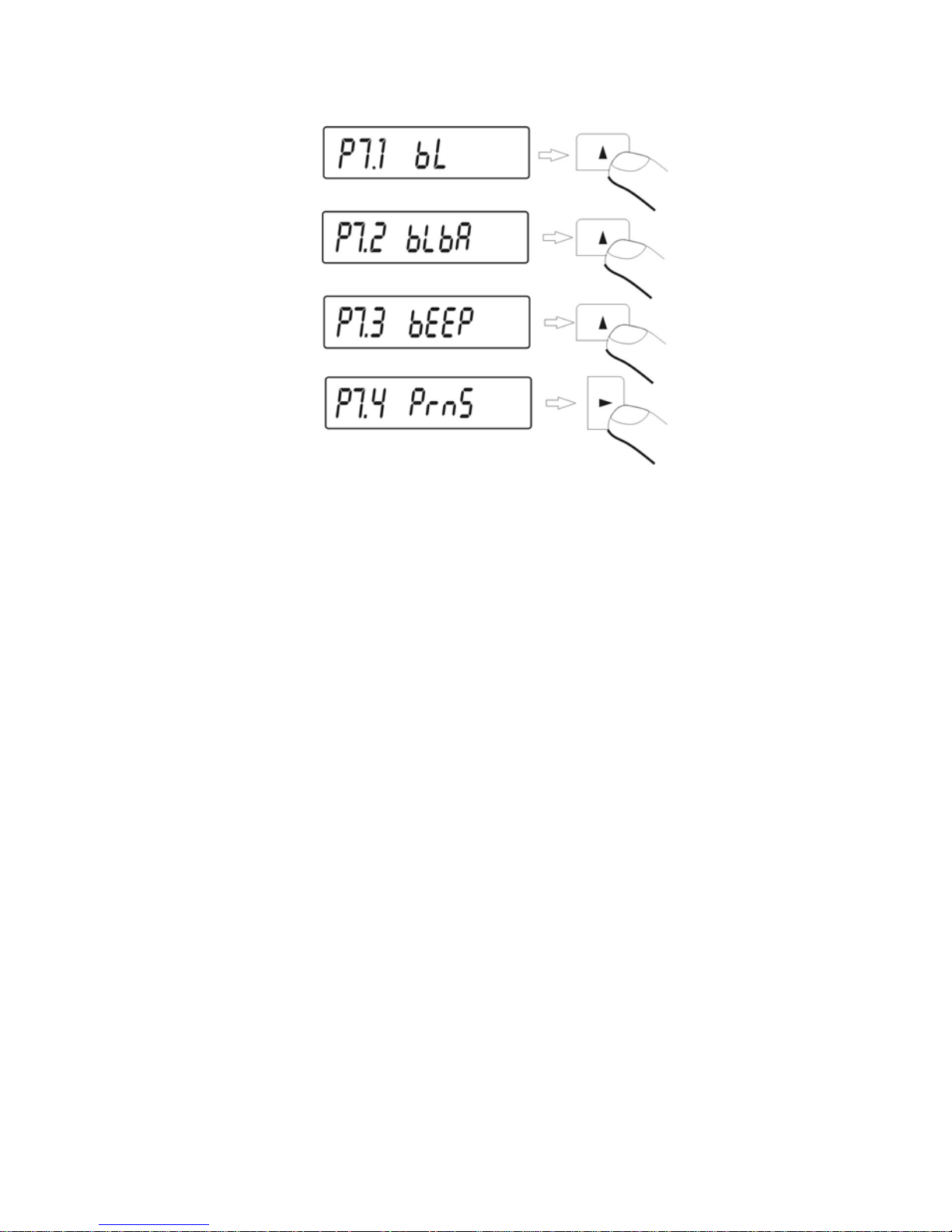

10. ANOTHER PARAMETERS ........................................................... 28
10.1. Backlight of weighing result ................................................................. 28
10.2. Adjusting brightness of display backlight ............................................. 29
4

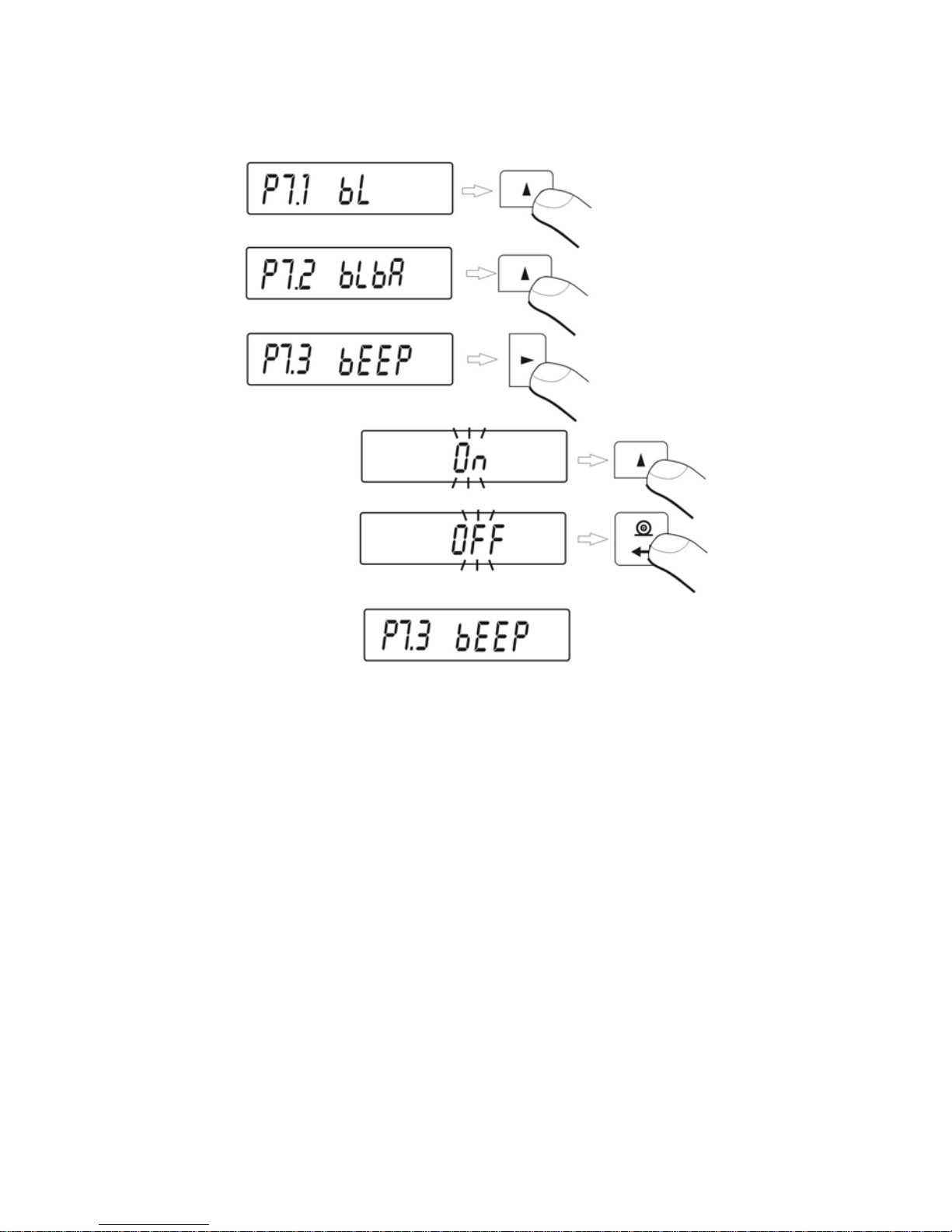

10.3. “Beep” signal – reaction on pressing key ............................................. 30
10.4. Printout of all balance parameters through RS 232 port ...................... 31
11. BALANCE CALIBRATION ........................................................... 31

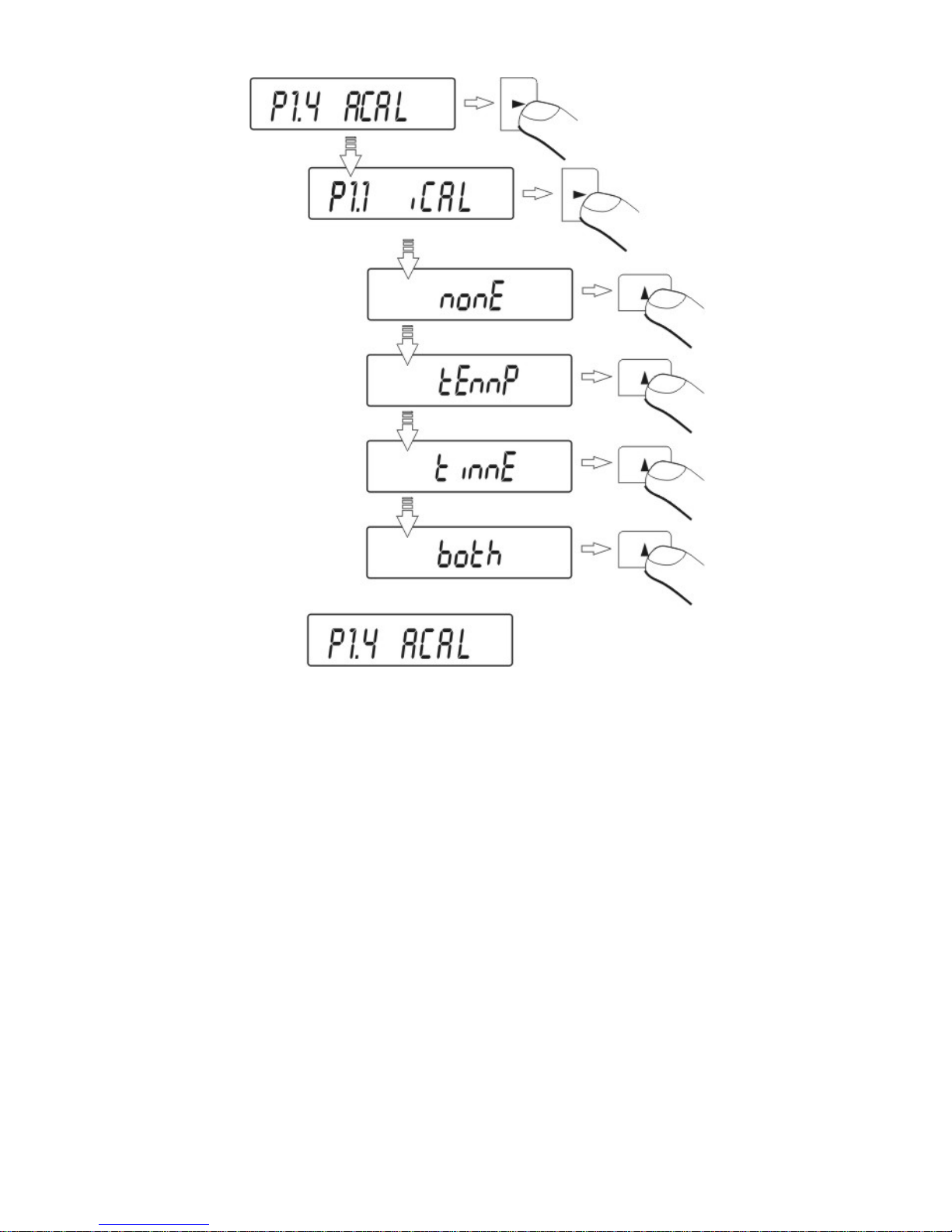

11.1. Balance with internal calibration .......................................................... 32

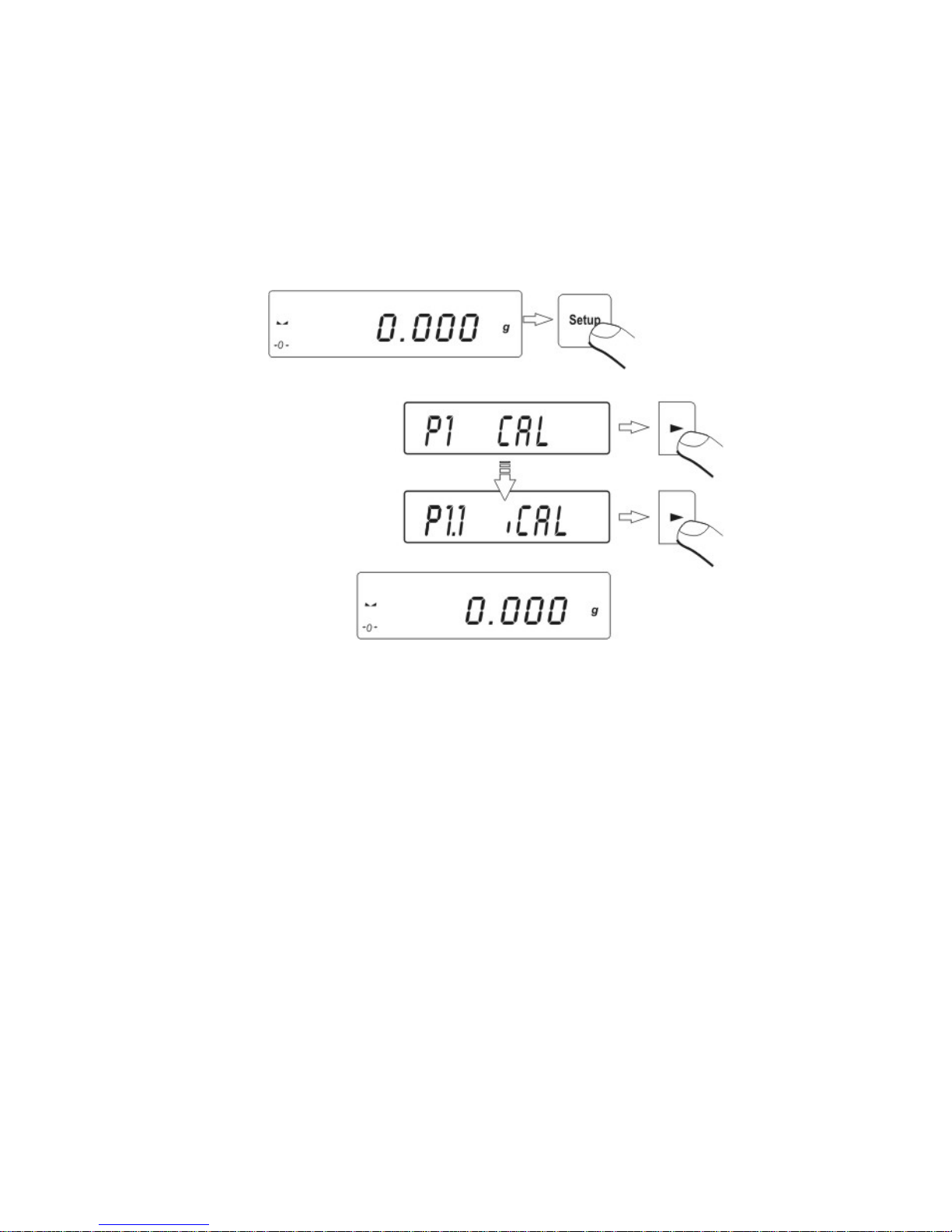

11.2. Entering calibration menu .................................................................... 33

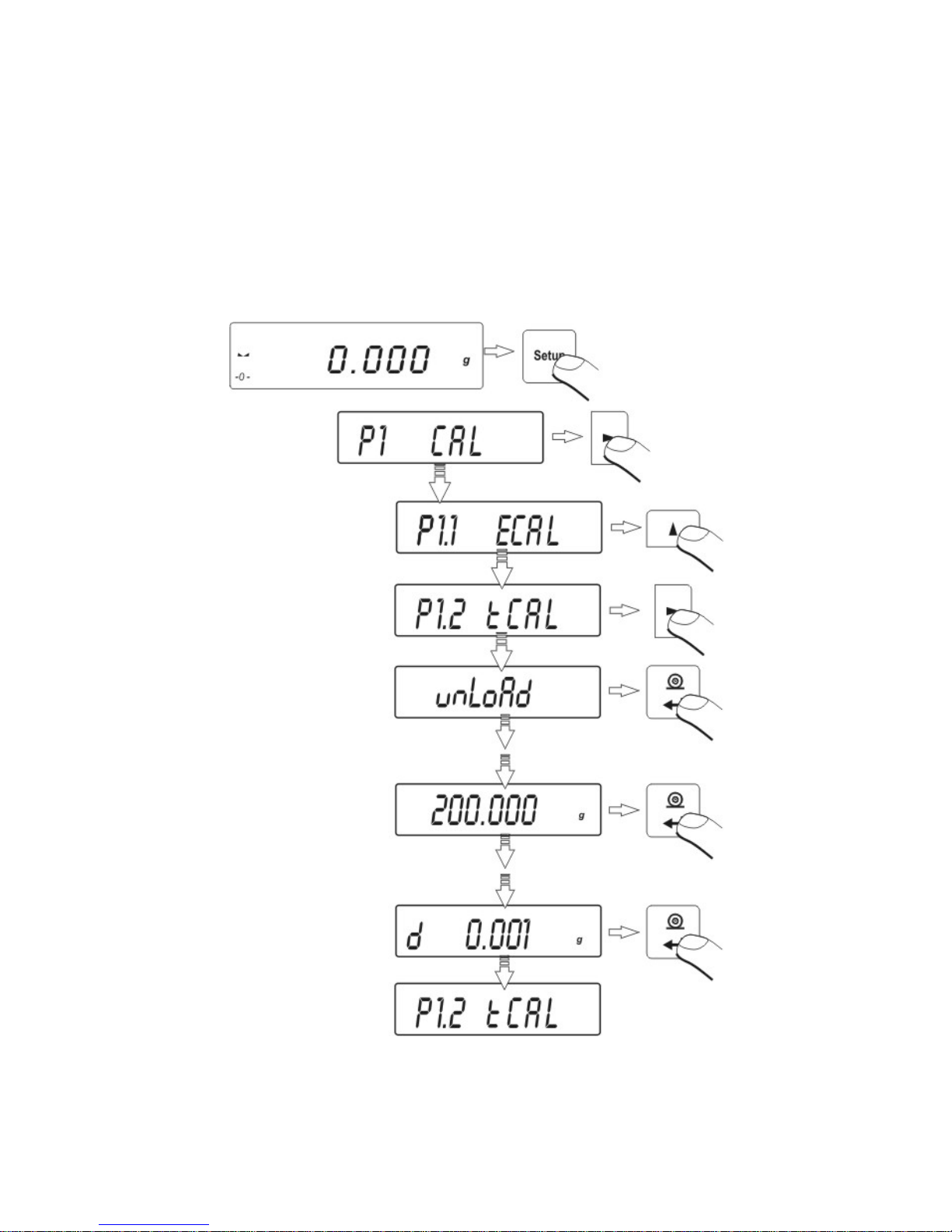

11.3. Calibration test ..................................................................................... 37
11.3.1. Balances with internal calibration ............................................... 37
11.3.2. Balances with external calibration .............................................. 38

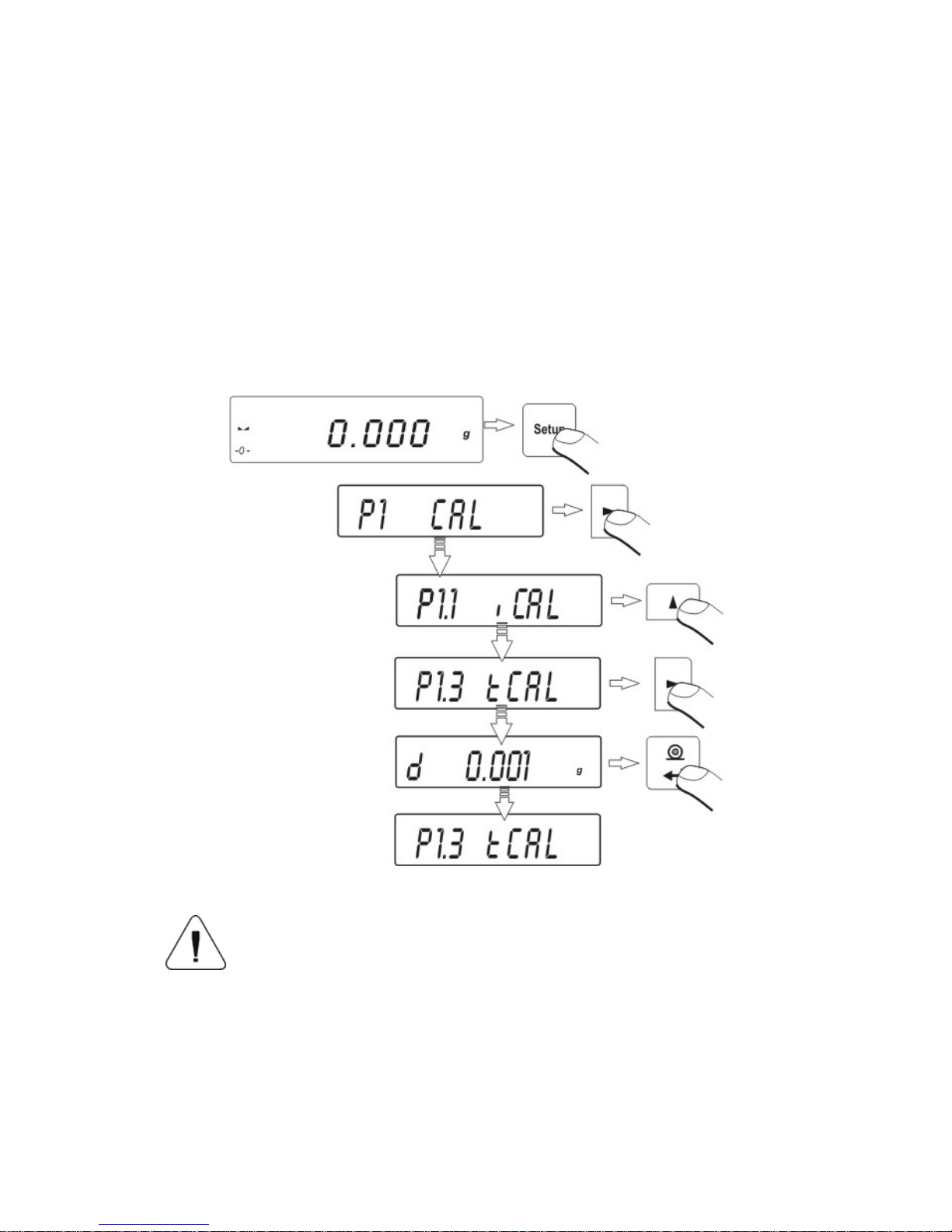

11.4. Manual calibration ................................................................................ 39
11.4.1. Internal calibration ...................................................................... 39

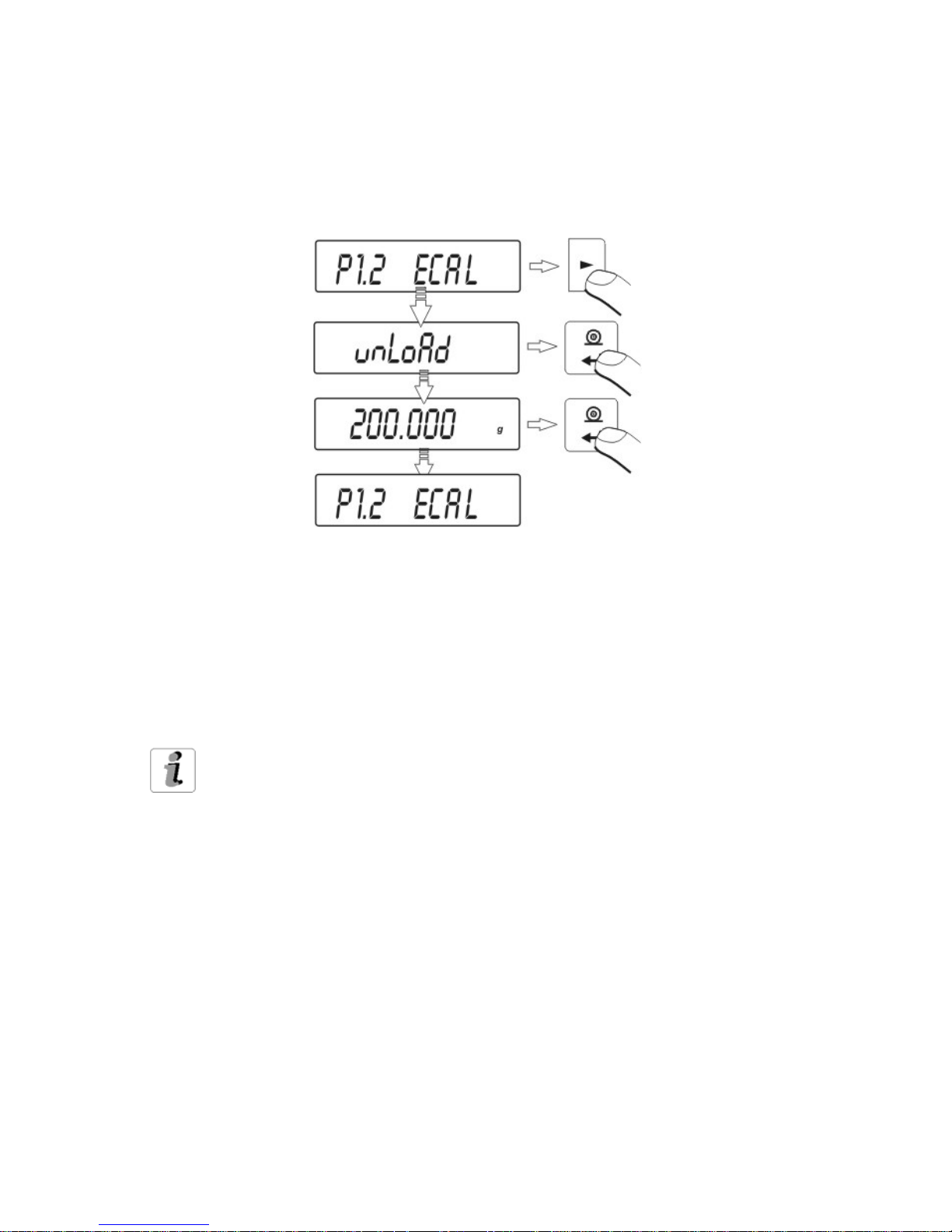

11.4.2. External calibration ..................................................................... 40
11.5. Calibration report printout .................................................................... 40
12. SETTING PRINTOUTS FOR GLP PROCEDURES ...................... 41
12.1. Setting the contents of printouts for GLP procedures .......................... 42
13. BALANCE OPERATING MODES................................................. 46

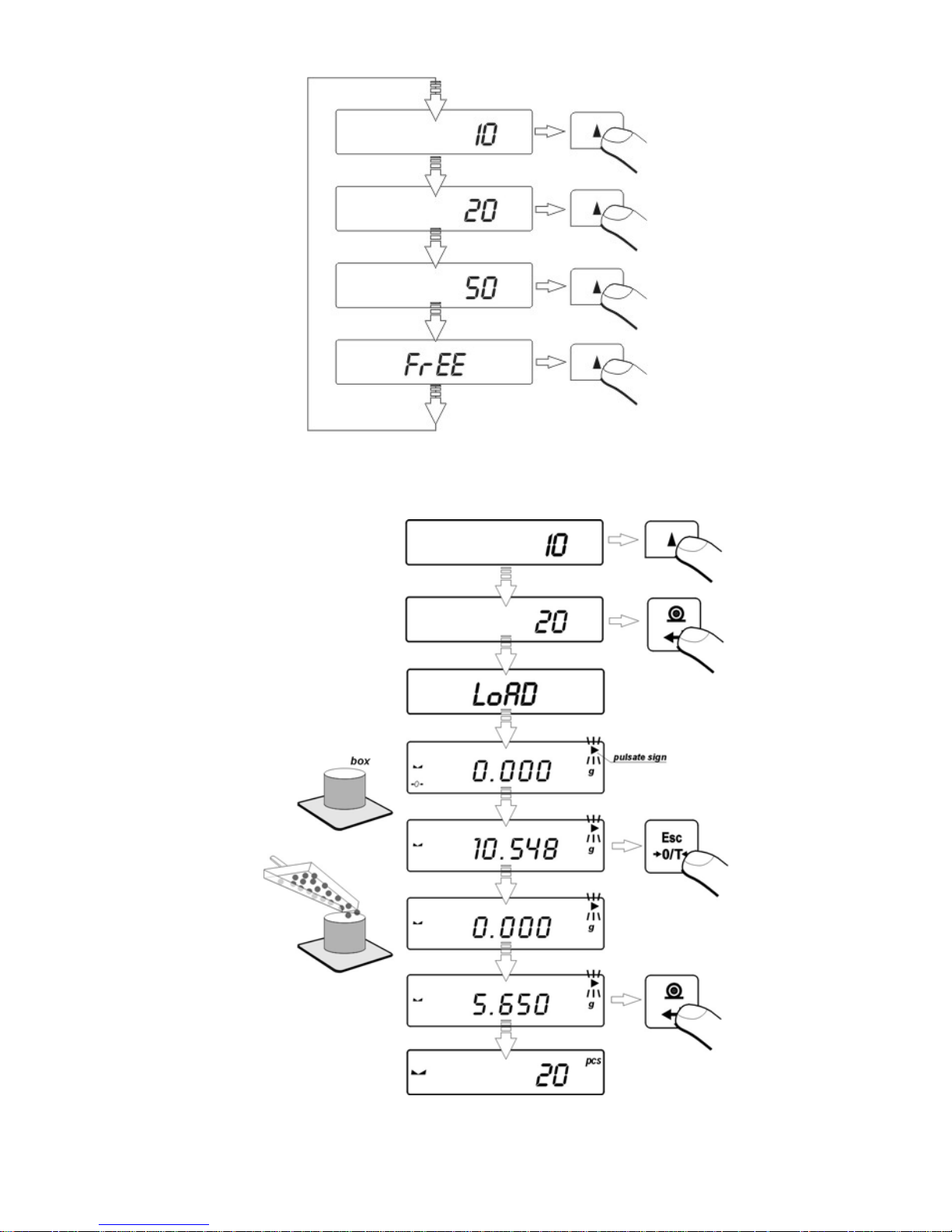

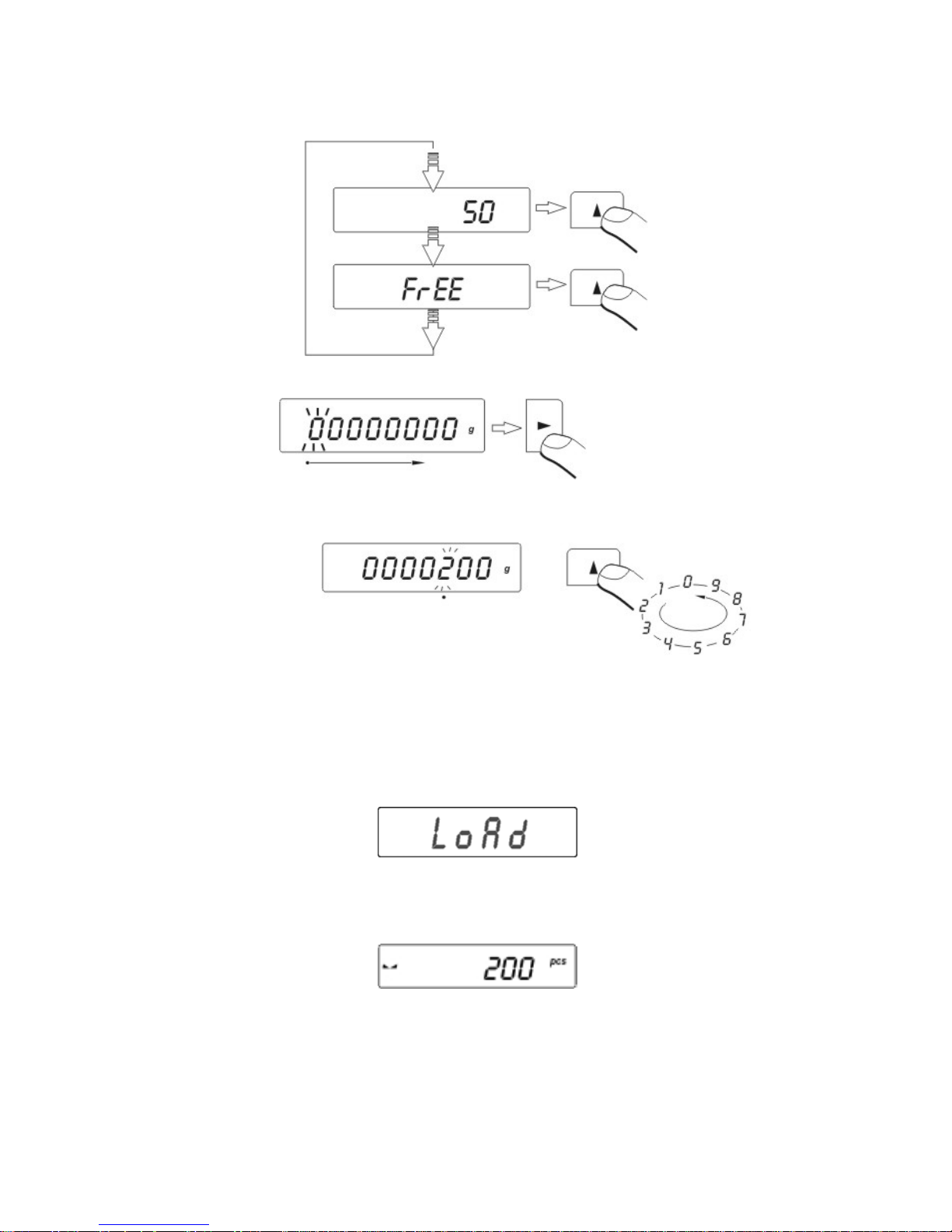

13.1. Counting details of the same mass ...................................................... 47
13.2. +/- control referring mass of set standard ............................................ 50

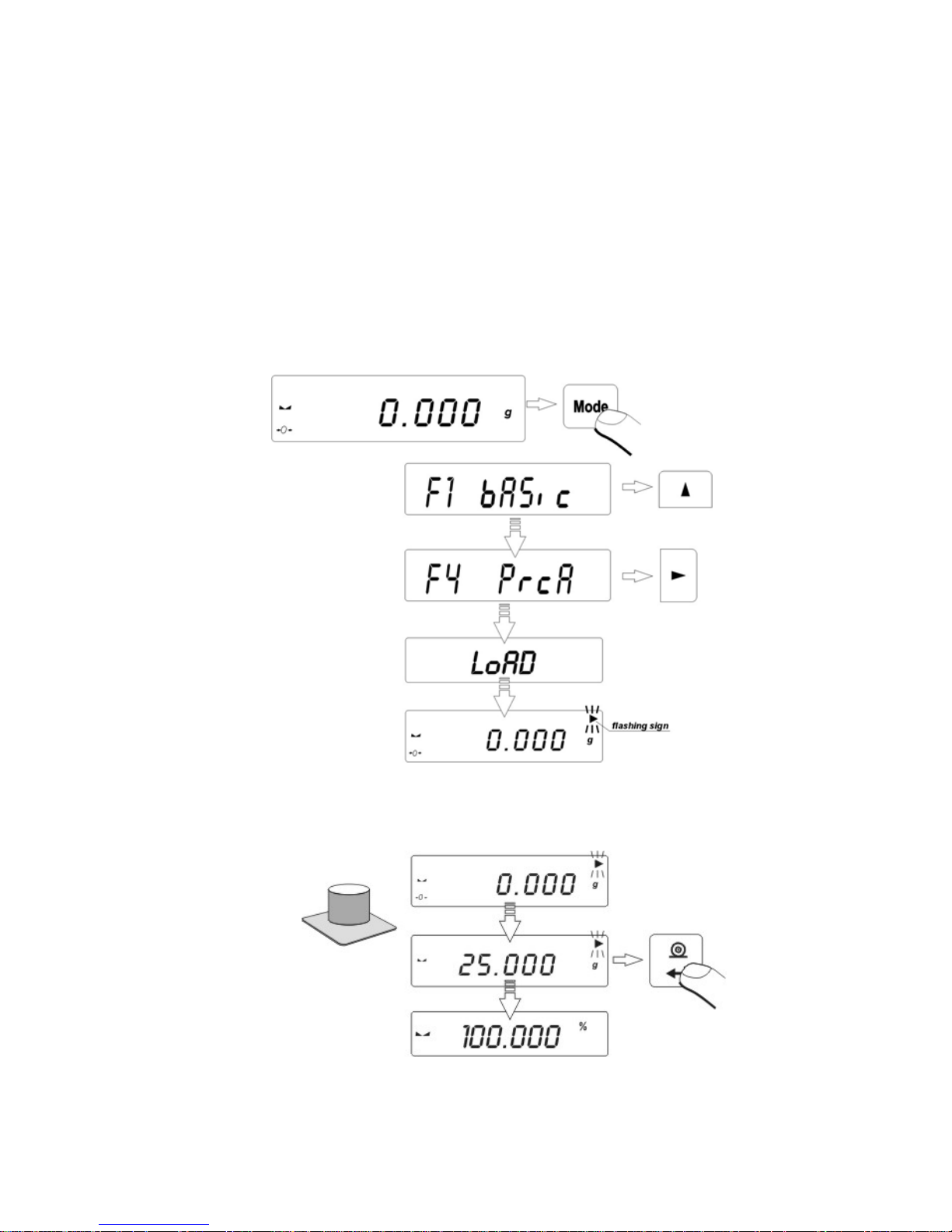

13.3. Control of % deviation referring mass of standard ............................... 53
13.3.1. Mass of standard determined by its weighing ............................ 53

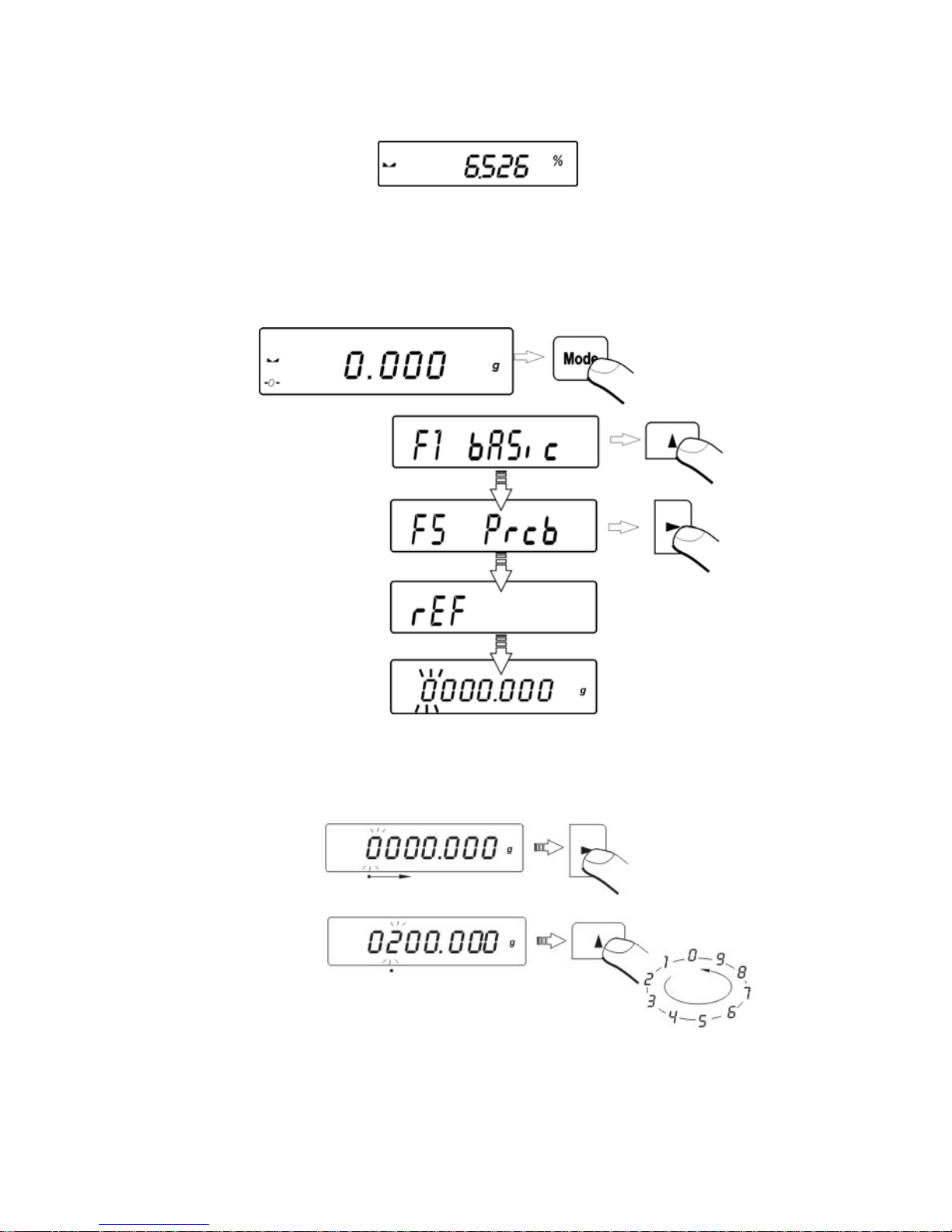

13.3.2. Mass of standard entered to balance memory by user .............. 54
13.4. Defining thickness of solids and liquids ............................................... 55
13.4.1. Testing thickness solids ............................................................. 56
13.4.2. Testing thickness of liquid .......................................................... 56

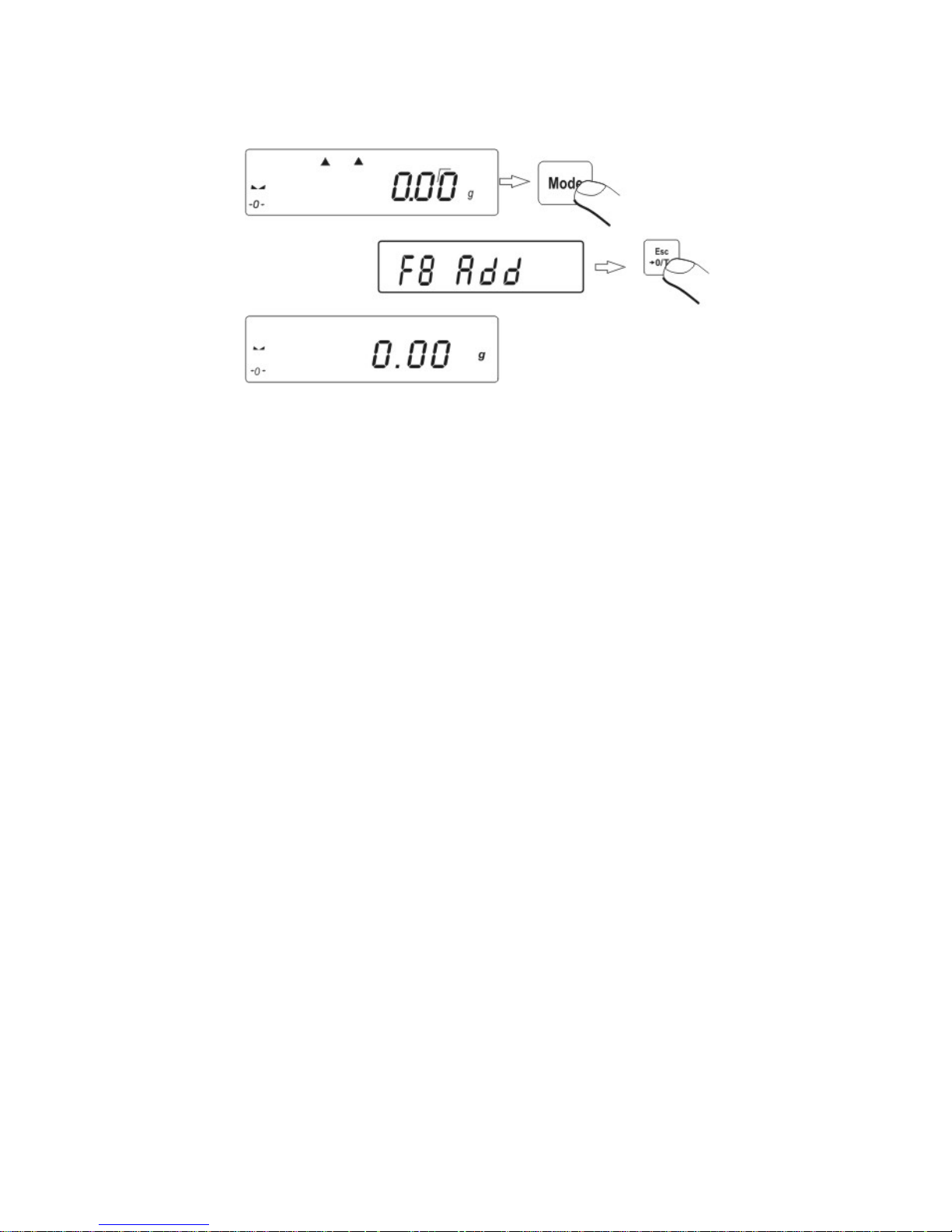

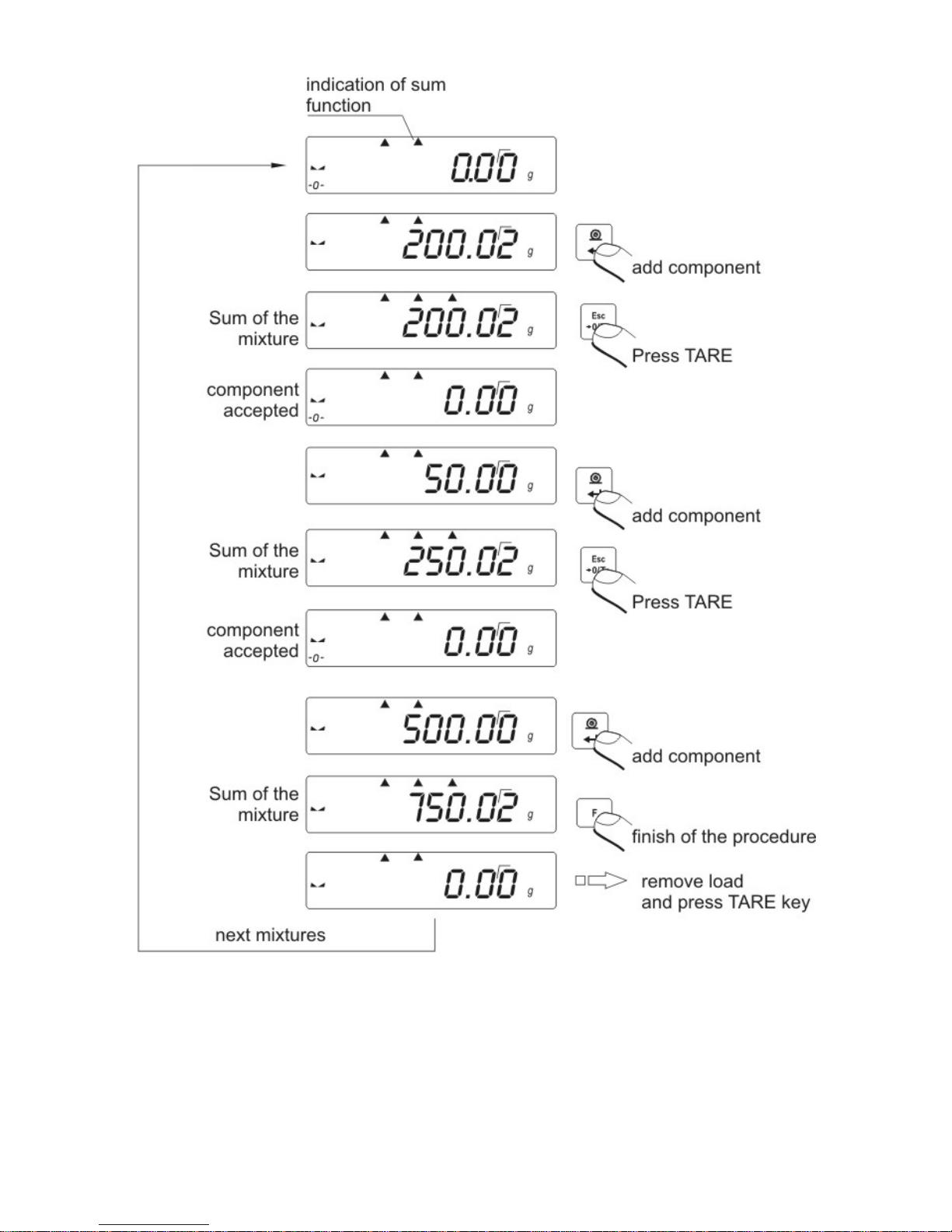

13.5. Summing function ................................................................................ 57
14. FUNCTIONS FOR USING RS 232 ................................................ 59

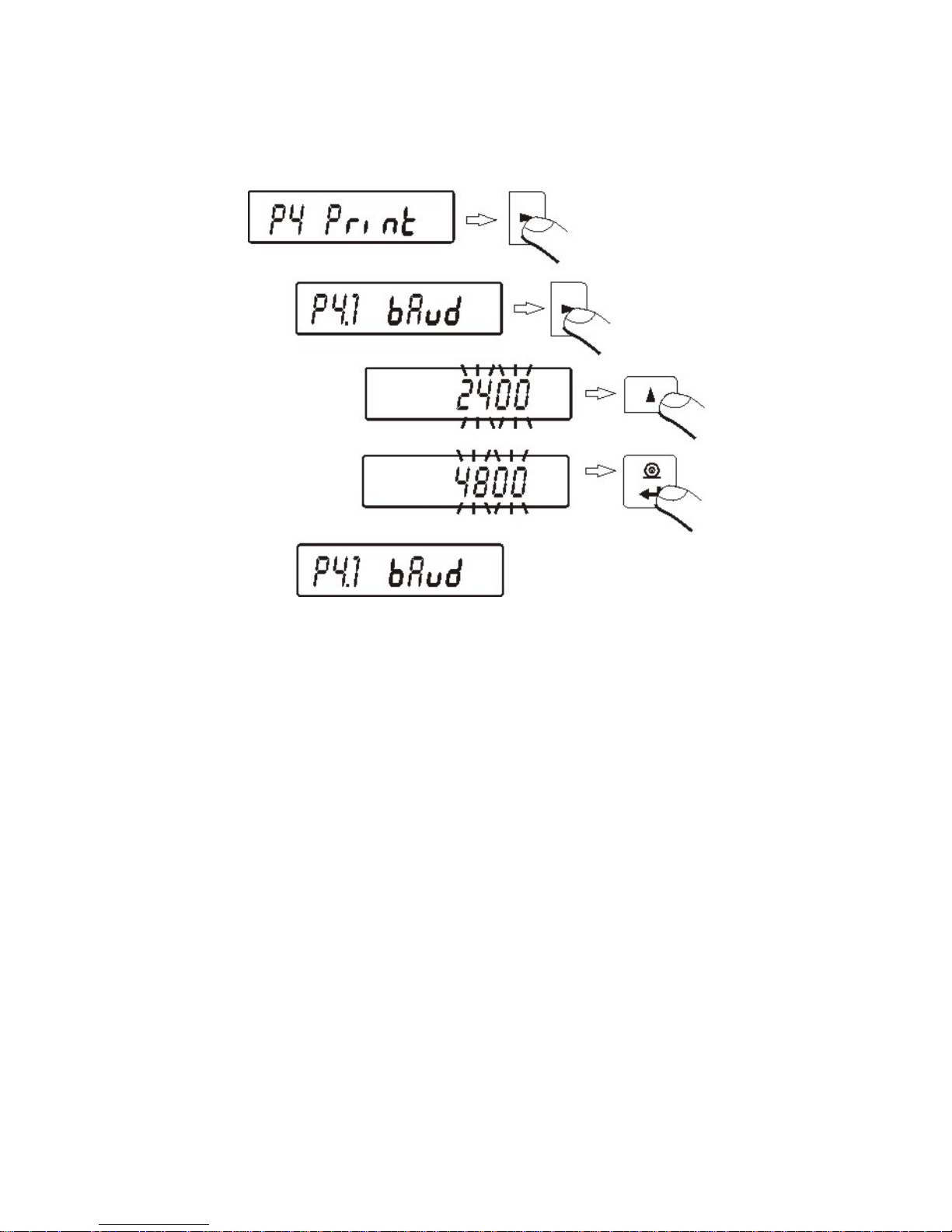

14.1. Speed of transmission ......................................................................... 60

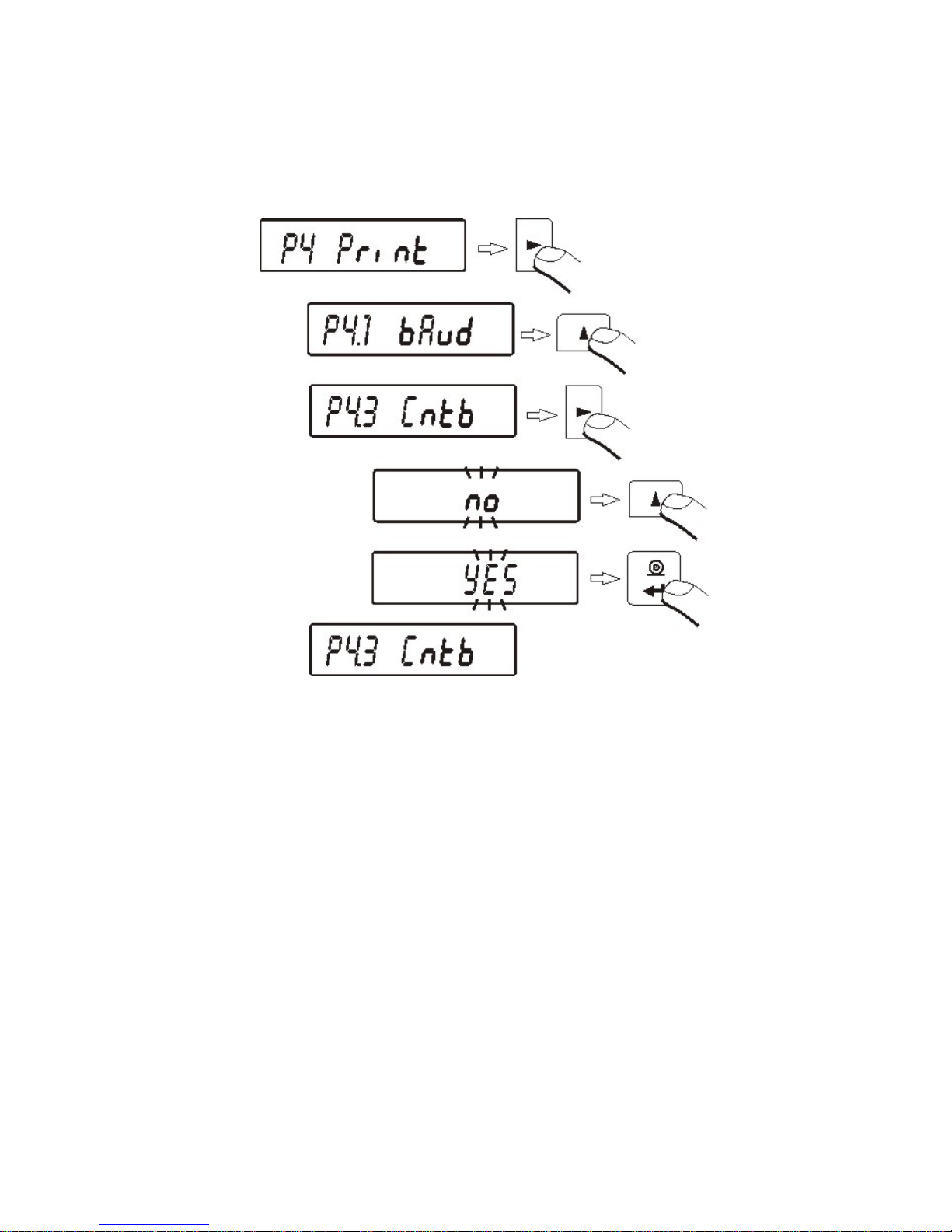

14.2. Continuous transmission ..................................................................... 61
14.2.1. Continuous transmission off in basic interval ............................. 61
14.2.2. Continuous transmission of in actual units ................................. 62
14.3. Setting type of operating for RS 232 joint ............................................ 63
14.4. Designation of data type sent through RS 232 joint ............................. 64

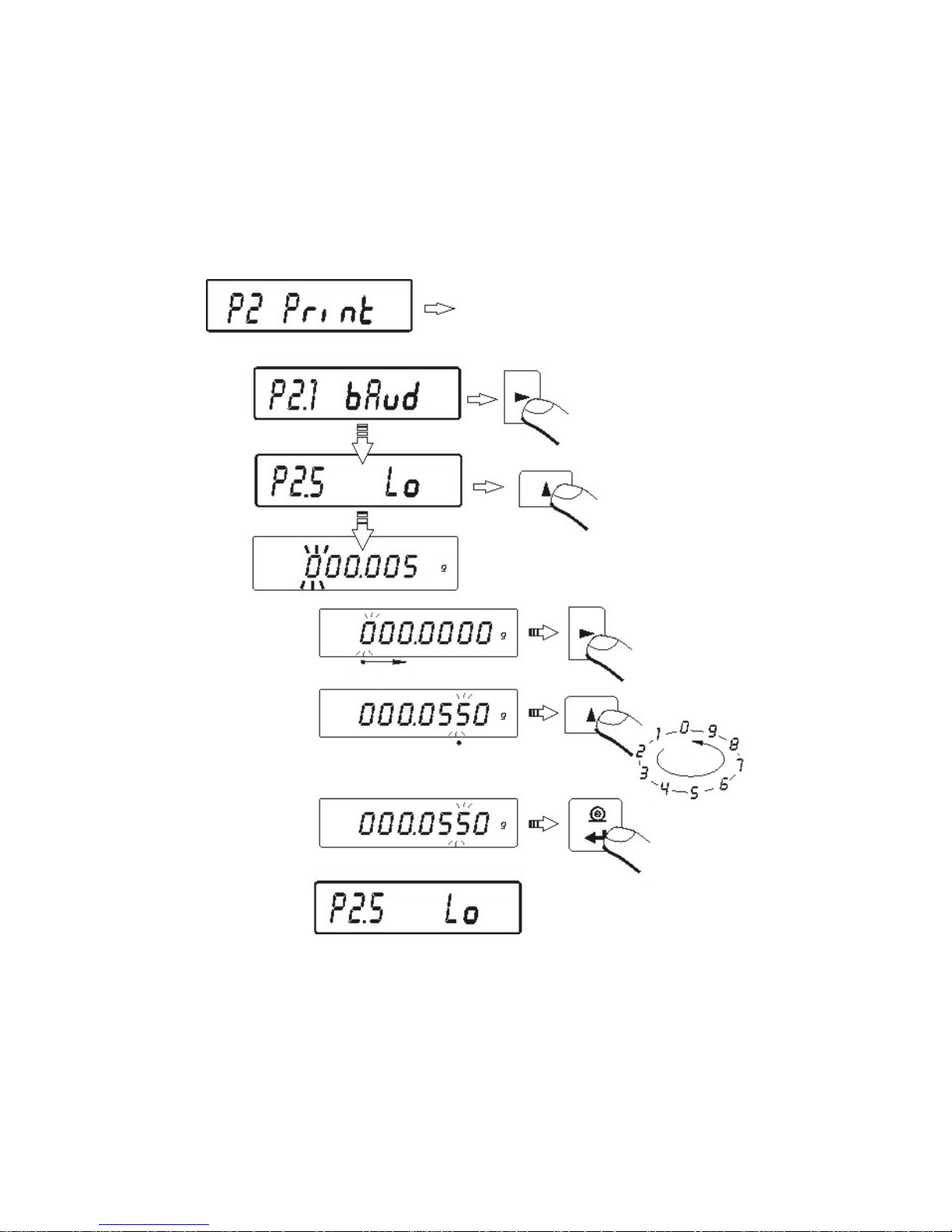

14.5. Designation of minimum mass for operating of some functions ........... 65
15. COOPERATION WITH PRINTER OR COMPUTER ..................... 66

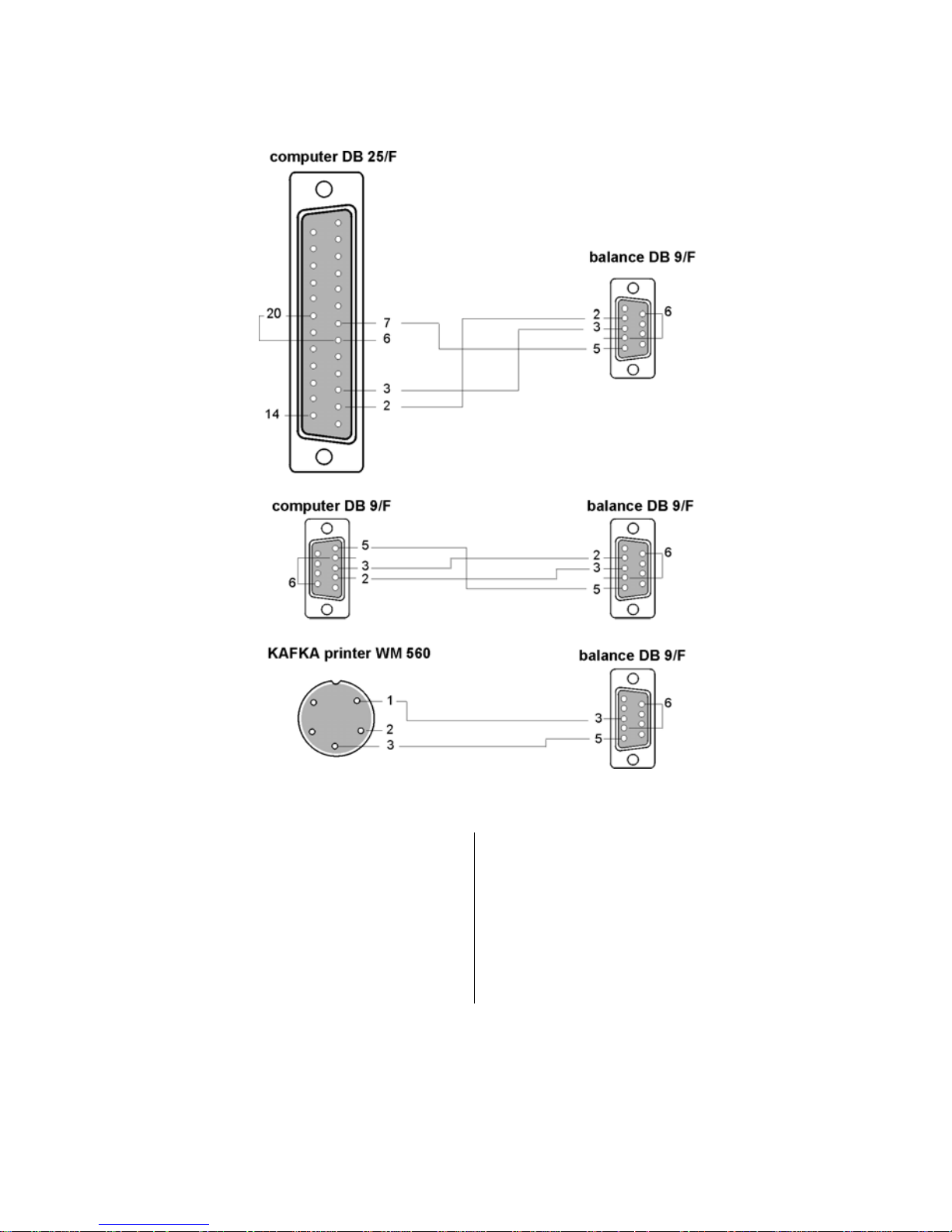

15.1. Schedules of connecting conductors ................................................... 67

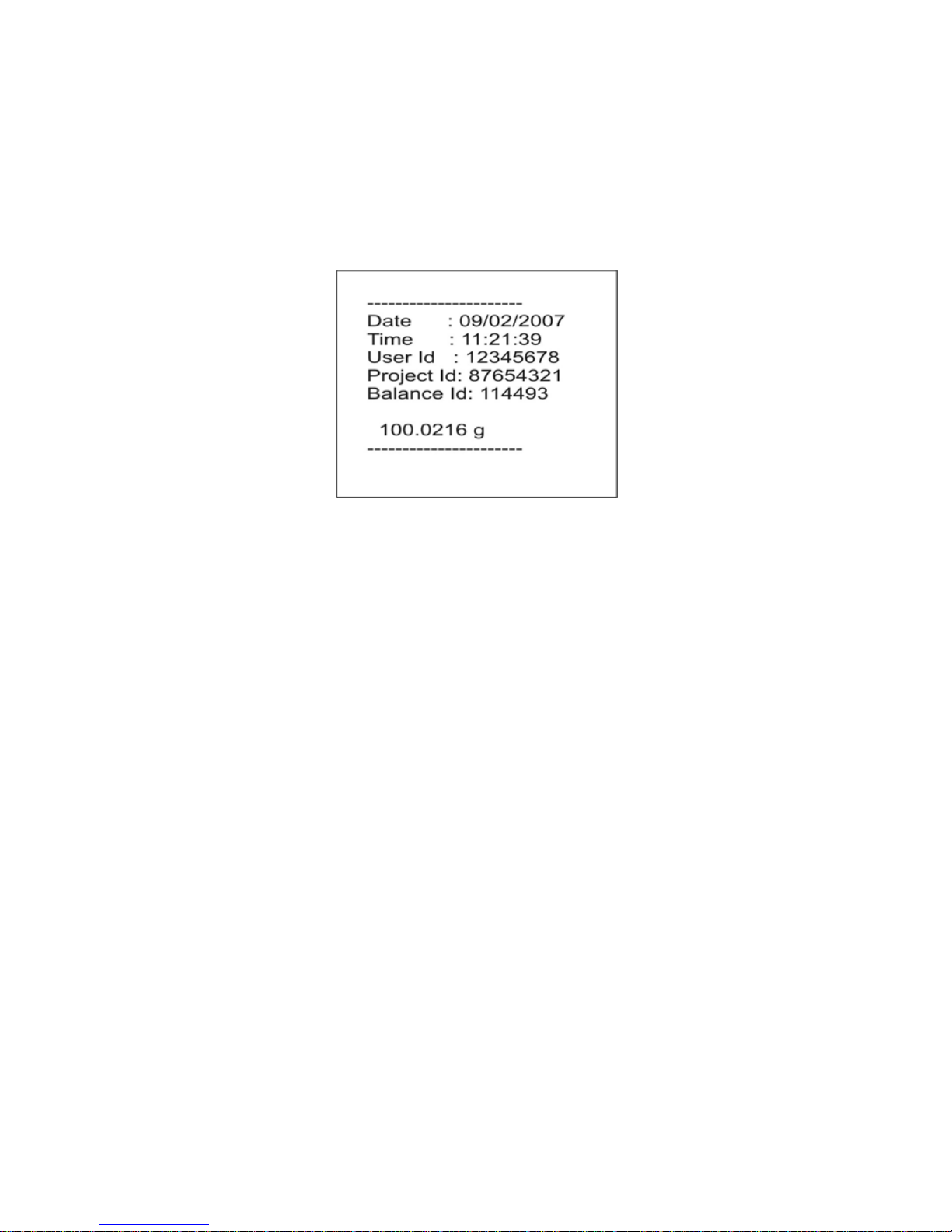

15.2. Printing data with date and time ........................................................... 68
15.3. Cooperation with statistic printout Kafka SQS ..................................... 68
15.4. Format of sending data ........................................................................ 68
15.4.1. Format of sent data after pressing the PRINT button ................. 69
15.4.2. Format of sent data for orders generated from the computer ..... 69
16. WEIGHING LOADS UNDER BALANCE ...................................... 70
17. LIST OF ORDERS IN 05& BALANCES ............................. 71
5
18. ERROR MESSAGES .................................................................... 72

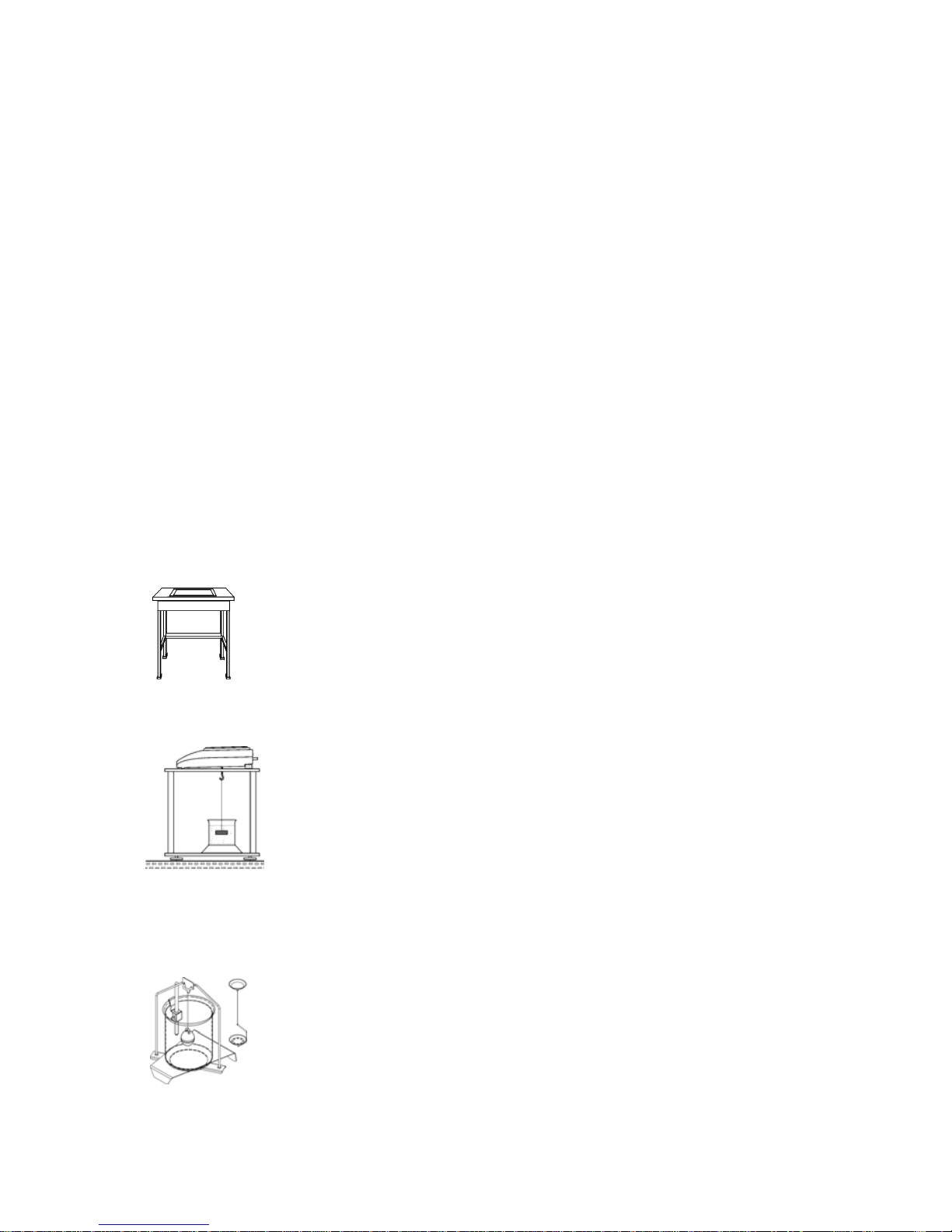

19. ADDITIONAL EQUIPMENT .......................................................... 72
19.1. Vibration damping table ....................................................................... 72
19.2. Rack for weighing load under balance ................................................. 72

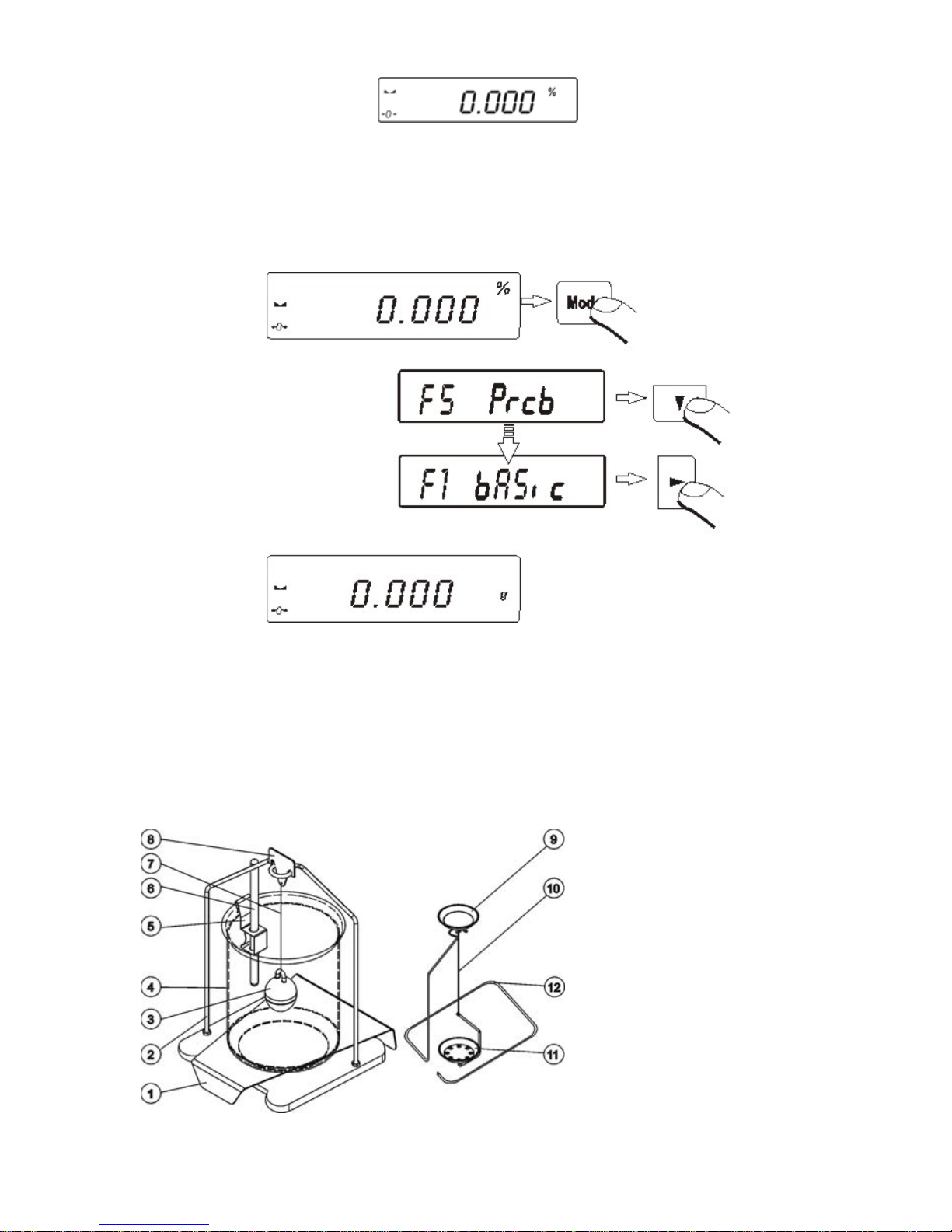

19.3. Set for defining thickness of solids and liquids ..................................... 72

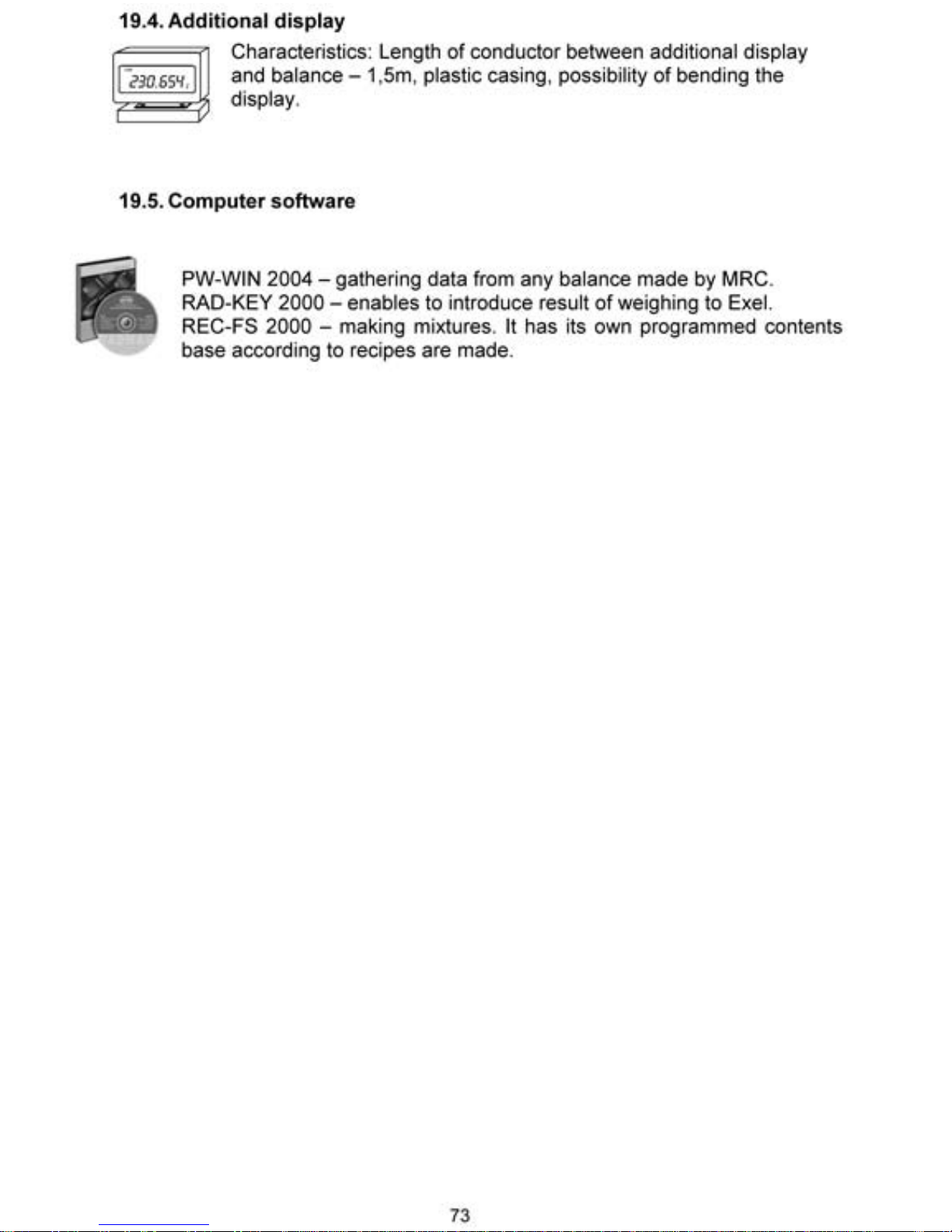

19.4. Additional display ................................................................................. 73
19.5. Computer software .............................................................................. 73
6
1. TECHNICAL DATA
External
calibration
BPS 510 /
C/1/CT
BPS 200 /
2000/C/1
BPS 60/C/1
BPS
110/C/1
BPS
210/C/1
BPS
360/C/1
BPS
510/C/1
BPS
750/C/1
BPS
1000/C/1
Internal
calibration
BPS 510 /
C/2/CT
BPS 200 /
2000/C/2
BPS
110/C/2
BPS
210/C/2
BPS
360/C/2
BPS
600/C/2
BPS
750/C/2
BPS
1000/C/2
Max capacity
510g /
2550ct
200 /
2000g
60g 110g 210g 360g 510g 600g 750g 1000g
Tare range
-510g /
-2550ct
-2000g -60g -110g -210g -360g -510g -600g -750g -1000g
Min capacity
0,02g /
0,1ct
20mg 20 mg
Readability
0,001g /
0,005ct
1/10mg 1 mg
Repeatability
0,001g /
0,005ct
1/10mg 1 mg 1,5 mg
Linearity
±0,001g
/0,005ct
±2 /
10mg
± 2 mg ± 3 mg
Working
temperature
+15 °C ÷ +30 °C
Power Zasilacz 230V 50Hz AC /11 V AC
Drift
sensitivity
2 ppm/°C w temp. +18°C - +30°C
Pan size 128 x 128mm
Dimensions:
7
External
calibration
BPS
2100/C/1/CT
BPS 600/C/1
BPS 1200/C/1
BPS 2100/C/1 BPS 3500/C/1
BPS 4500/C/1
BPS 6000/C/1
Internal
calibration
BPS
2100/C/2/CT
BPS 1200/C/2
BPS 2100/C/2
BPS 3500/C/2
BPS 4500/C/2
BPS 6000/C/2
Max capacity
2100 g /
10500 ct
600 g 1200g 2100 g 3500 g 4500 g 6000 g
Tare range
-2100 g /
-10500 ct
-600 g -1200g -2100 g -3500 g -4500 g -6000 g
Min capacity
0,5 g /
2,5 ct
500 mg
Readability
0,01 g /
0,05 ct
10 mg
Repeatability
0,01 g /
0,05 ct
10 mg 15 mg
Linearity
± 0,01 g /
0,05 ct
± 20 mg
Working
temperature
+15 °C ÷ +30 °C
Power Zasilacz 230V 50Hz AC /11 V AC
Drift sensitivity 2 ppm/°C w temp. +18°C - +30°C
Pan size 195 x 195mm
Dimensions of balance:
8
2. BASIC INFORMATION
2.1. Intended use
Balance you ha
ve acquired serves to determine the weighing value of a load in
laboratory environment. It is intended for application as a non-automatic
weighing instrument only, i.e. the material to be weighed is manually and
carefully placed in the center of the weighing pa n. Weighing result should be
read only after stable reading has been obtained.
2.2. Inappropriate use
Do not use the balance as a dynamic weighing instrument. Even if small
quantities of weighed material are added or removed from the weighing pan of
the instrument, the reading should be taken onl y after stabilization of the r esult.
Do not place any magnetic materials on the weighing pan, as this can caus e
damage of the measuring system of the instrument.. Be sure to avoid impact
shock and overloading the balance in excess of the prescribed maximum load
rating, minus any possible tare weight that has been applied. Never use the
balance in an environment endangered b y an explosion. This balance has not
been adjusted for operation in explosive areas. There must not be any
modification made to the balance.
2.3. Warranty
W
arranty
is not valid at the following:
• Non-observation of the guidelines in the user manua l,
• Use of balance other than specified in this manual,
• Alternation to or opening of the device,
• Mechanical damage and damage caused by media, natural water,
and tear,
• Inappropriate erection or electric installation,
• Overloading of the measuring instrument.
9
2.4. Monitoring the metrological parameters of the instrument
Metrological features of the balance should be tested b y the user within regu lar
intervals of time, within scope of quality assurance.
2.5. Data included in this user manual
Please read the user manual carefully before erecting and commissioning,
even if the user has is experienced with this kind of weighing instruments.
2.6. Staff training
This balance
may only be operated and looked after by trained member of
staff.
3. TRANSPORT AND STORAGE
3.1. Acceptance check
Pleas
e check the p
ackaging immediately upon del ivery and the device during
unpacking for any visible signs of external damage.
3.2. Packaging
Please retain a
ll parts of the original packagi ng in case it should be necessar y
to transport or return items at any time. Only the original packaging sho uld be
used for return consignments. Before dispat ch, disconnect all attached cables
and loose/movable parts (weighing pan, protecting shields, etc). Please place
any elements of the balance in its original packing. Please protect t he balance
and its parts against any damage while in transport.
10
4. UNPACKING, INSTALLATION AND COMMISSONING
4.1. Installation and operation place
•
Balance should be stored and used in locations free of vibrations and
shakes, free of wind and dust.
• Air temperature should not exceed range between:
+10
o
C ÷ +45oC
• Humidity of air should not exceed 80% (not condensing).
• When operating the balance, room temperature should not change more
than 0,5°C within one hour,
• The balance should be placed on a stable surface not affected by vibrations
and distant from heat sources.
• Please take special safety measures when weighing magnetic loads, as part
of this balance is a strong magnet. If there is a necessity to perform

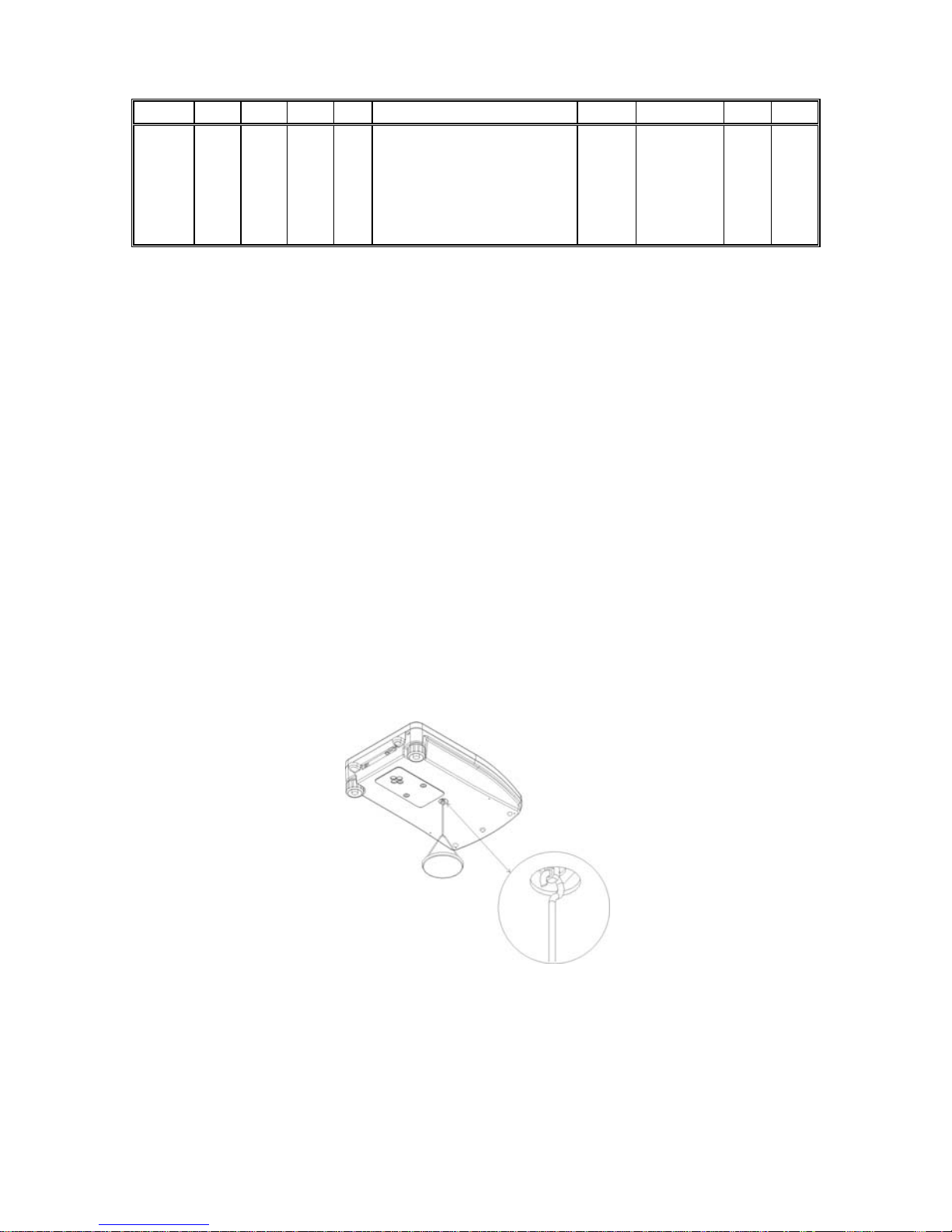

measurement of such load, please use option of under hook weighing, which
removes the load from area influenced by the magnet. For install ation place
of under hook device, please look at the bottom casing of the balance,.
• Avoid static charging of items to be weighed, or weighing container. In case
of static discharges may occur, please ground the device. Grounding bolt is
placed at the back side of the balance’s casing.
11
4.2. Unpacking
Carefully remove the balance from its packaging, remove the plastic and foil
wrapping and gently. Install the weighing pan, and other el ements according to
below schema:
- Take of the tape which
secures the static voltage
spring on one of the rubber
supporters (2),
- Put on the weighing pan (1)
on the rubber supporters (3),
- After putting on all of above
parts, please check if the
weighing pan is firmly located
on the rubber supporters.
- Take of the tape which
secures the static voltage
spring on one of the rubber
supporters (3),
- Put on the weighing pan (2)
on the rubber supporters,
- Put on the glass draught
shield (1), placed on the
surface of upper casing of the
balance,
- After putting on all of above
parts, please check if the
weighing pan is firmly located
on the rubber supporters.
12
4.3. Positioning
Before switching on the balance, please level the device
with two adjusting feet situated at the back of the casing.
Please level the balance so that the air bub ble of the level
is placed centrally.
4.4. Standard accessories
• Bala
nce.
• W
eighing pan and protecting elements.
• Power adapter.
• User manual.
4.5. Cleaning
Bala
nce should be cleaned with damp cloth. In order to cle an the weighing p an
of the balance, please remove it from the weighing chamber. Cleaning of the
pan when installed may cause damage of the measuring system of the
balance.
4.6. Connection to mains
Balance can be co
nnected to mains only with a power adapter offered as
standard accessory to the balance. Nominal po wer supply of the po wer adapte r
(specified on the data plate of the power adapter) shoul d be compatible to the
power from mains. Please plug the adapter the socket at the back of the
balance, the display with light on an d show sequence of digits – display test),
after which balance will display 0.0000g. if indication is different from zero,
please press ESC/TARA button.
4.7. Connection of additional equipment
The balance
must be disconnected from the mains before connecting or
disconnecting additional equipment ( printer, PC) to or from the data interface.
Use only accessories and peripheral equipment recommended by the
manufacturer with your balance. T hese have been ideally coordinated to your
balance.
13
5. BASIC FUNCTIONS OF THE INSTRUMENT
Electronic balance is appropriate for precise measurements mass in laboratory
conditions with possibility of setting to zero in all measure range. Balance
calibration is done by CAL on balance keyboard.
9 Functions for weighing units (press Units key)
- select default units of weighing <StUn>,
- Weighing in grams,
- Weighing in [mg],
- Weighing in [ct],
- Weighing in units from beyo nd SI (only: [oz], [ozt], [dwt], [t], [mom], [gn],
Access to these units is blocked from factory menu level,
9 Functions for calibration and weighing modes
- Counting pieces < PIECES>,
- Control +/- <HiLo>,
- Control of deviations % according to standard mass <Perc A>,
<Perc B>,
- Thickness of liquids <d_Li>or solids <d_Co>,
9 Choice of criteria of stable result depending on usage conditions
- Turn off/on system of autozero <AUTO>,
- Average result of weighing <AvE>,
- Back light function<bl>,
- Beep signal <bEEP>,
9 Function for using RS 232
- Choose speed of transmission,
- Define sent data as: stable / not stable,
- Continuous work,
- automatic work for RS 232.
Moreover balance can be used to weigh hang loads, print report of calibration,
check deviation of calibration and print reports of testing thickness of liquids and
solids.
www.mrclab.com
15
7. USER MENU
Menu is divided into 7 basic groups. Each group has individual name starting with
capital letter P. Names of groups and their contents is shown below.

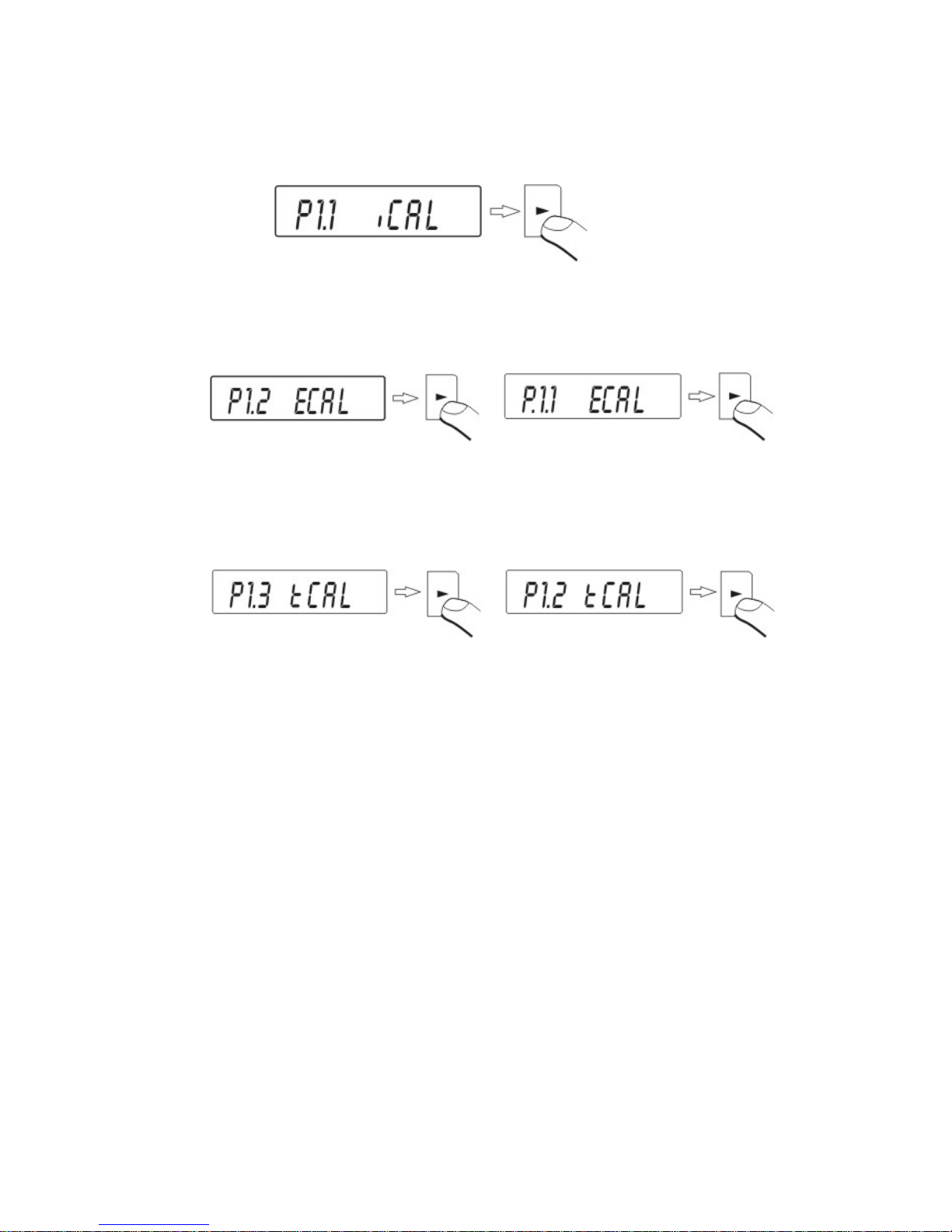

P1 CAL [Calibration]
P1.1 iCAL | [internal calibration]
P1.2 ECAL | [external calibration]

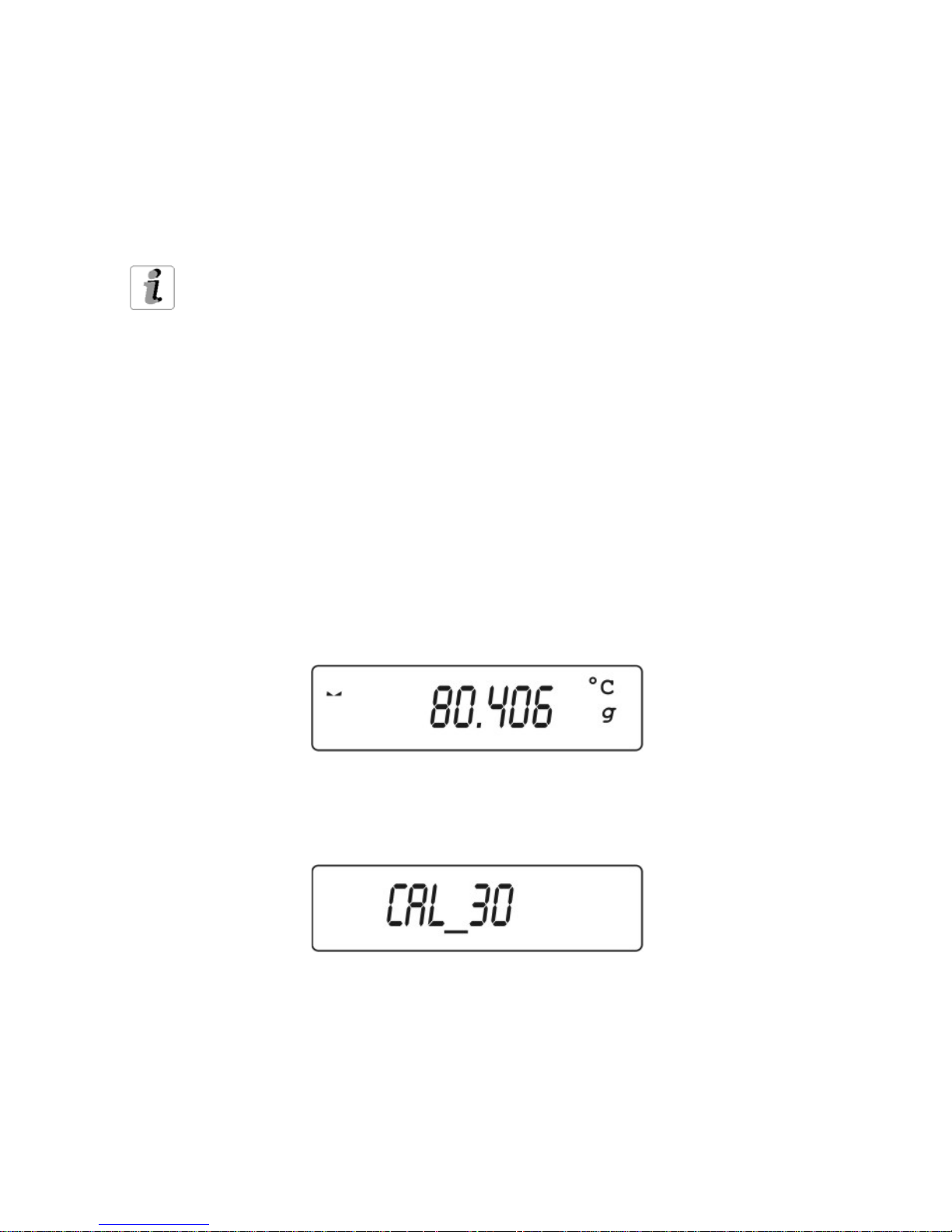

P1.3 tCAL | [temperature calibratio n]
P1.4 ACAL | both/nonE/tenno/tinnE [automatic calibration]

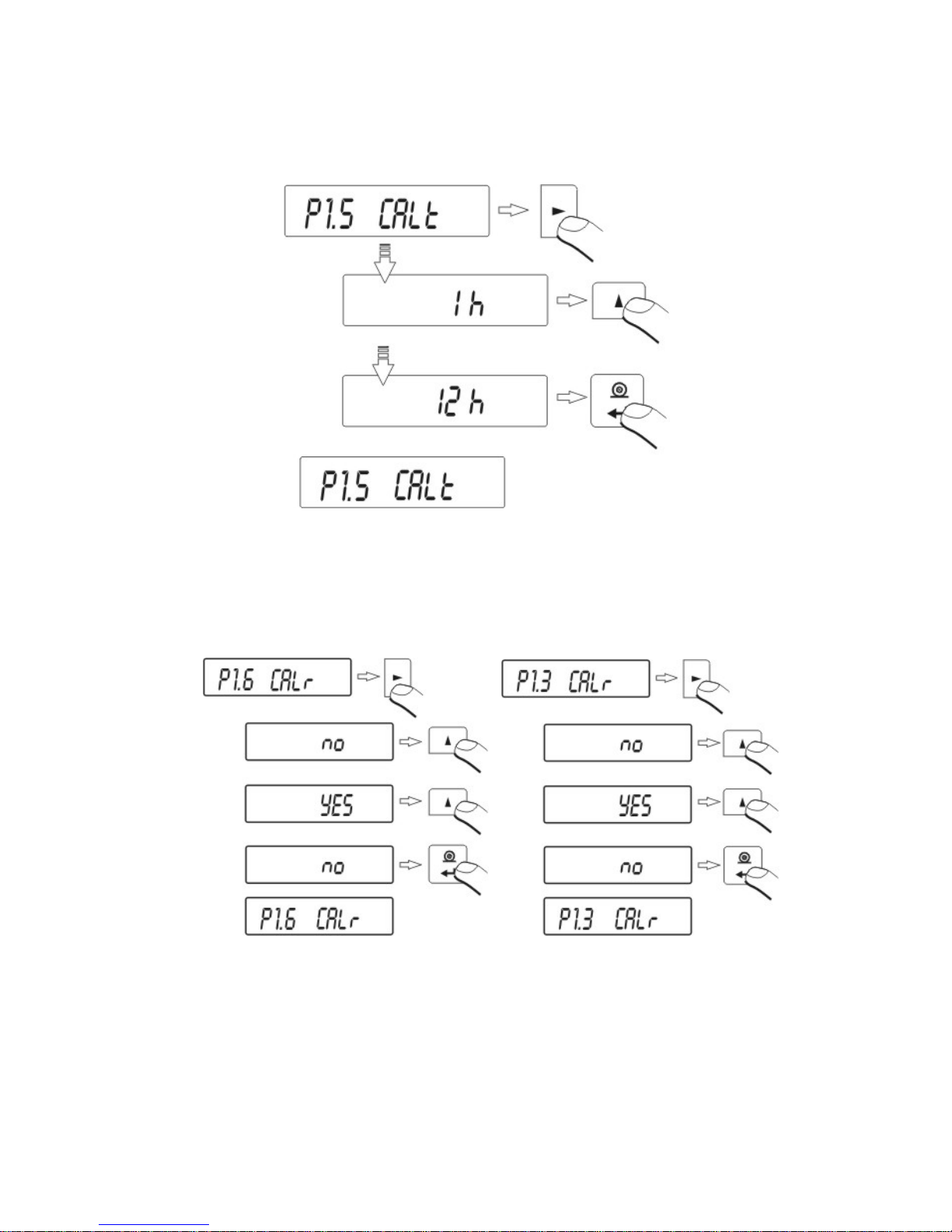

P1.5 CALt | 1 h ÷ 12h [time of automatic calibration]

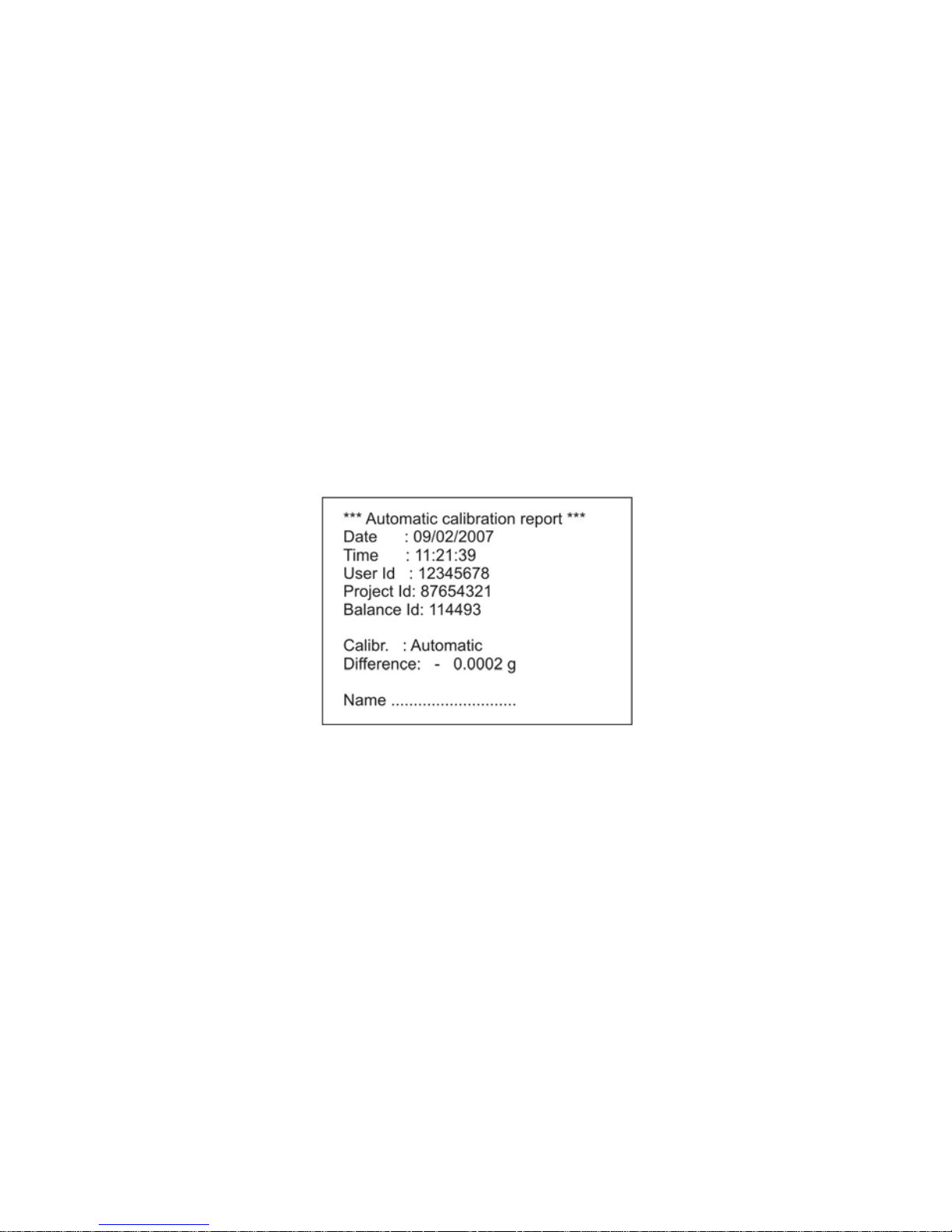

P1.6 CALr | YES/no [report from calibration]
P2 GLP [Good Laboratory Practice ]

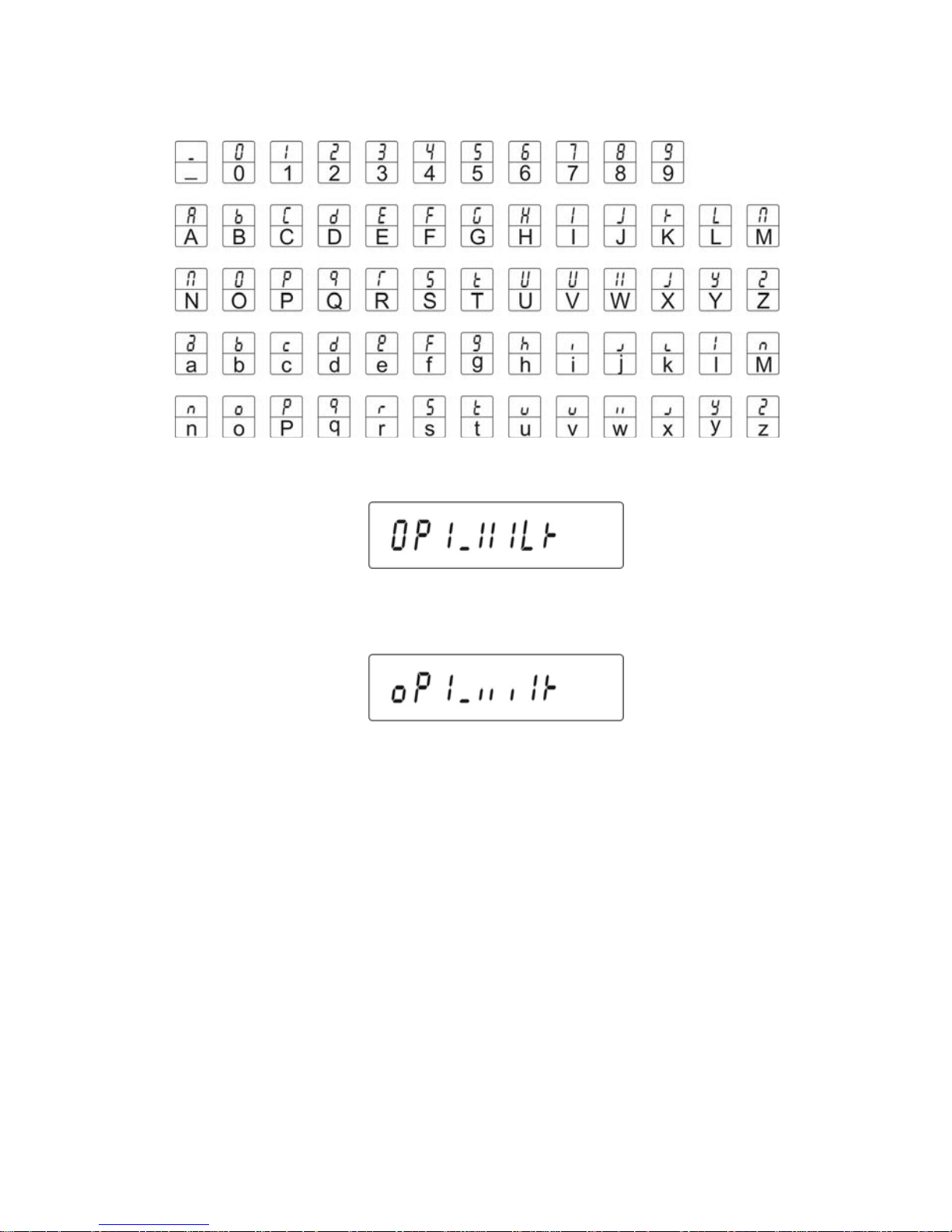

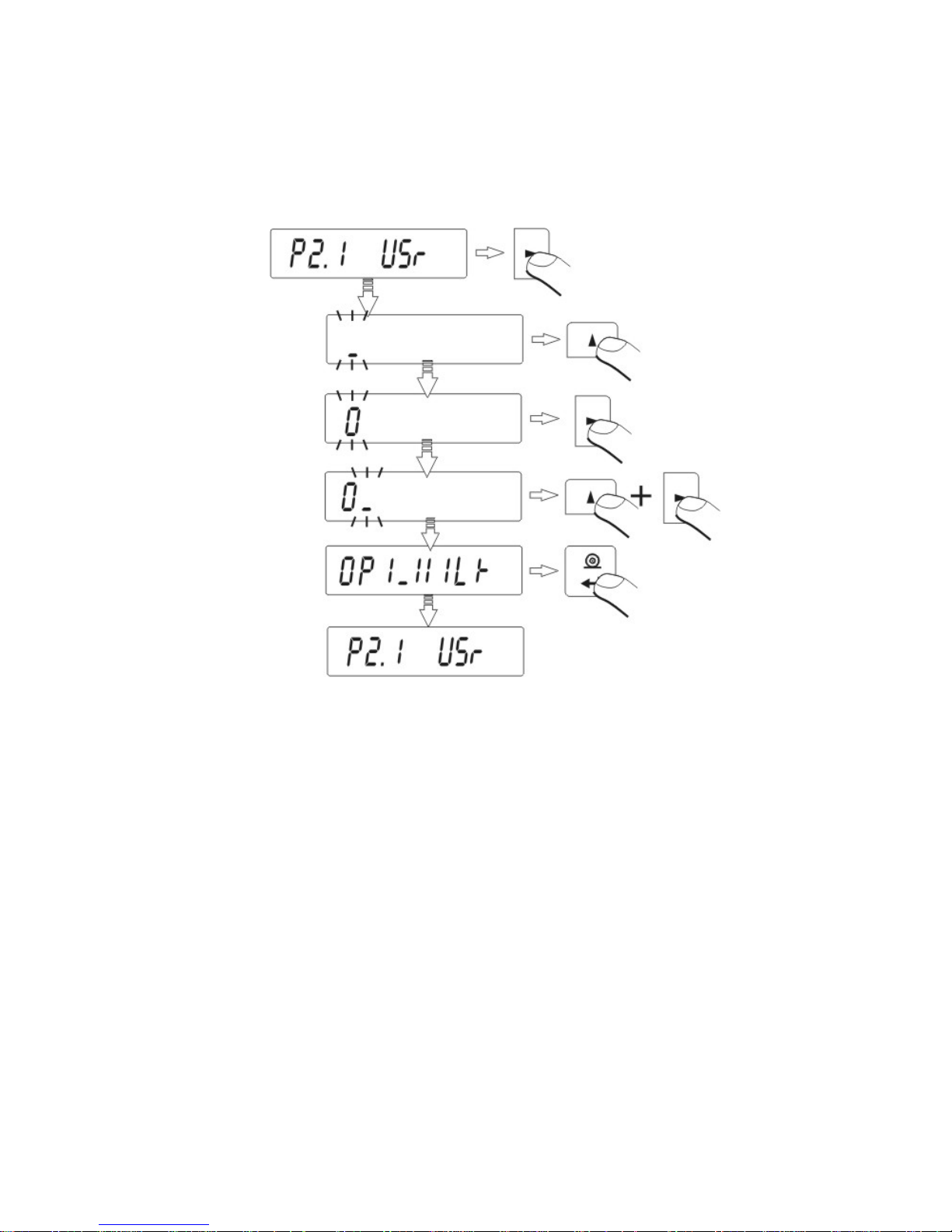

P2.1 USr | _ [name of user]
P2.2 PrJ | _ [name of project]
P2.3 Ptin | YES/no [printout of measurement time]
P2.4 PdAt | YES/no [printout of measurement date]
P2.5 PUSr | YES/no [printout of user name]
P2.6 PPrJ | YES/no [printout of project name]
P2.7 PId | YES/no [printout of factory number of balance]
P2.8 PFr | YES/no [printout of frames]
P3 rEAd [Main user parameters]
P3.1 AuE | Stand/Slouu/FASt [filtering level]
P3.2 ConF | FASt_rEL/Fast/rEL [confirmation of result]
P3.3 Auto | On/OFF [autozero]
P3.4 Ldi9 | ALuuAYS/never/uu_StAb [light off the last digit]
16
P4 Print [Data transmission – RS 232]
P4.1 bAud | 2400/4800/9600/19200 [speed of transmission]

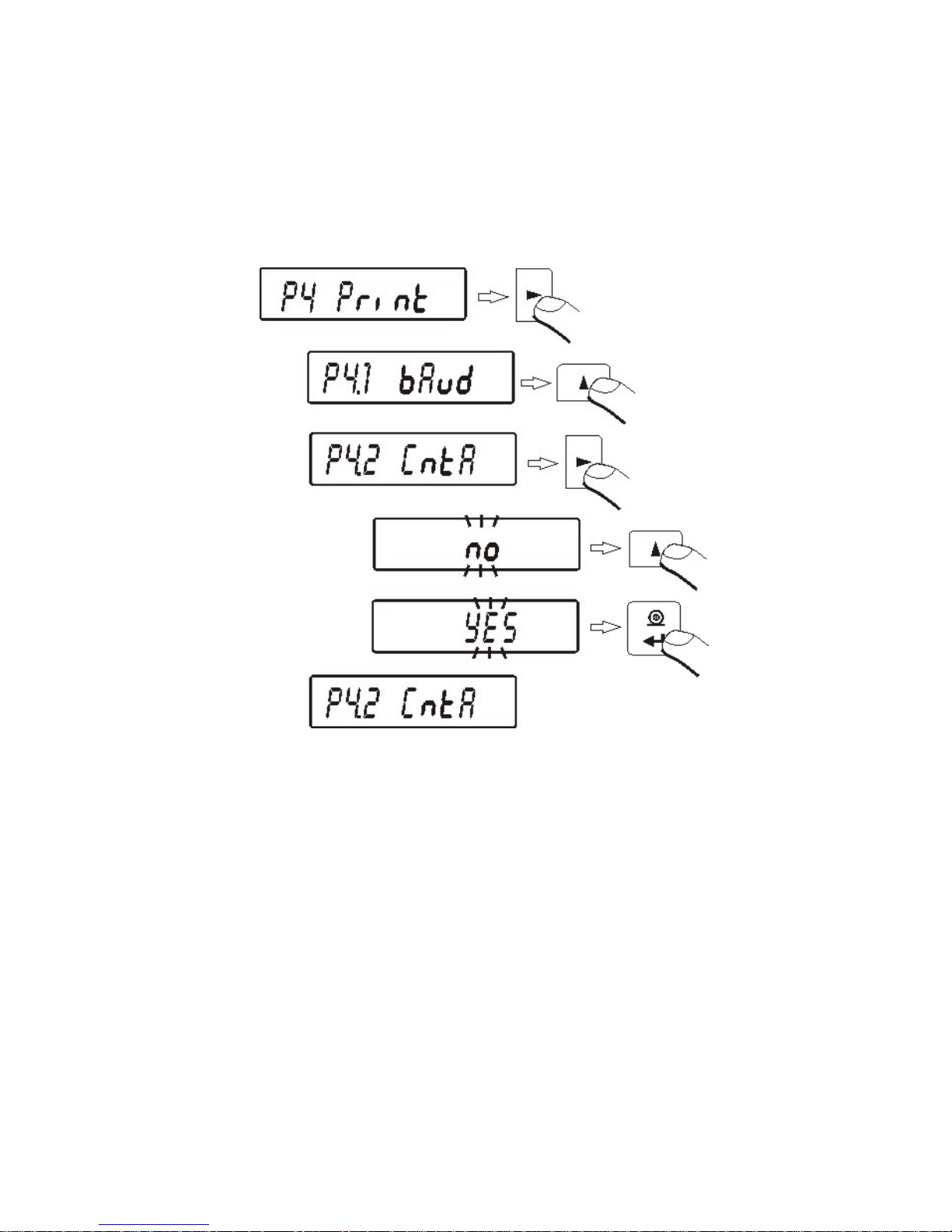

P4.2 CntA | YES/no [continuous printout in basic unit]
P4.3 Cntb | YES/no [continuous printout in currently
used unit]

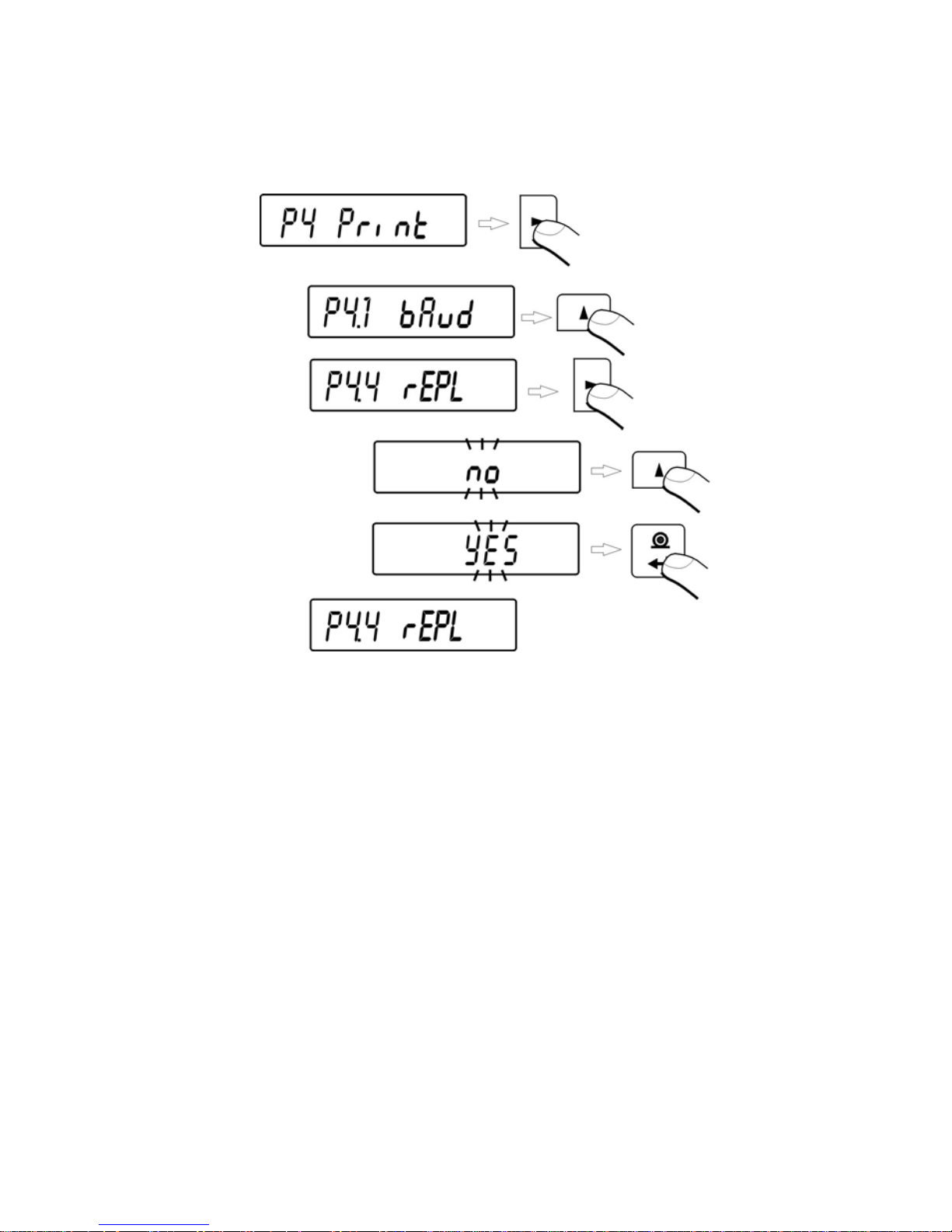

P4.4 rEPL | YES/no [manual or automatic operating]

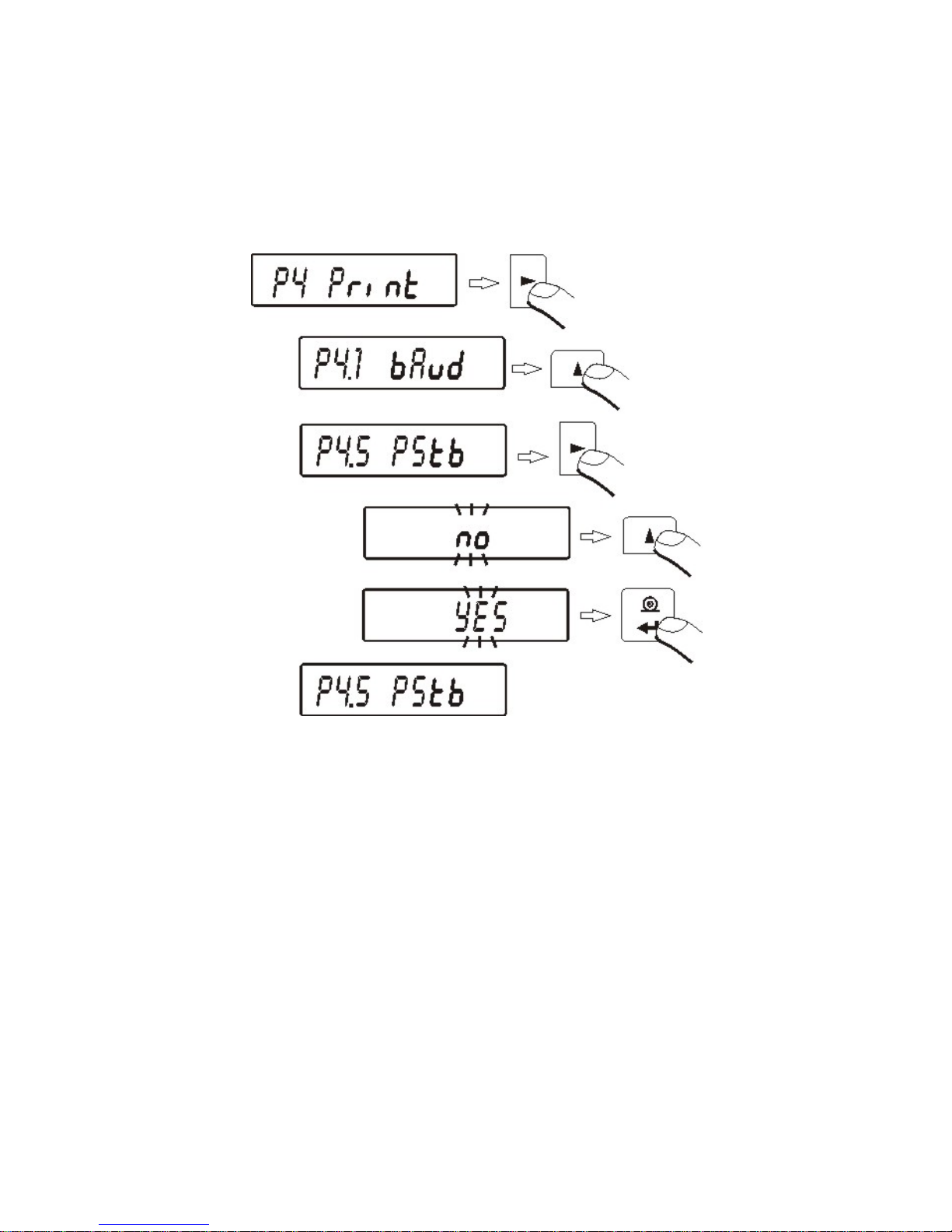

P4.5 PStb | YES/no [result printout: stable or unstable]
P4.6 Lo | 000.0000 [min mass for automatic operating]
P5 Unit [Mass units]
P5.1 StUn | g/mg/ct/oz/ozt/dwt/t/mom/G [basic mass unit – e.g. gram]
P5.2 mg | YES/no [mg - milligram]
P5.3 Ct | YES/no [ct – carat]
P5.4 oZ | YES/no [oz – ounce]
P5.5 oZt | YES/no [ozt – troy ounce]
P5.6 dwt | YES/no [dwt – pennyweight]
P5.7 t | YES/no [t – tael]
P5.8 nno | YES/no [mom - momme]
P5.9 Gr | YES/no [gr – grain]
P6 Func [Functions]
P6.1 FF un | [choice of balance function]
P6.2 PcS | YES/no [counting pieces]
P6.3 HiLo | YES/no [check weighing]
P6.4 PrcA | YES/no [% deviation with reference to
weighed standard mass]
P6.5 Prcb | YES/no [% deviation with reference to declared
standard mass]
P6.6 d_C o | YES/no [density determination of solids]
P6.7 d_Li | YES/no [density determination of liquids]
P7 othEr [Other functions]

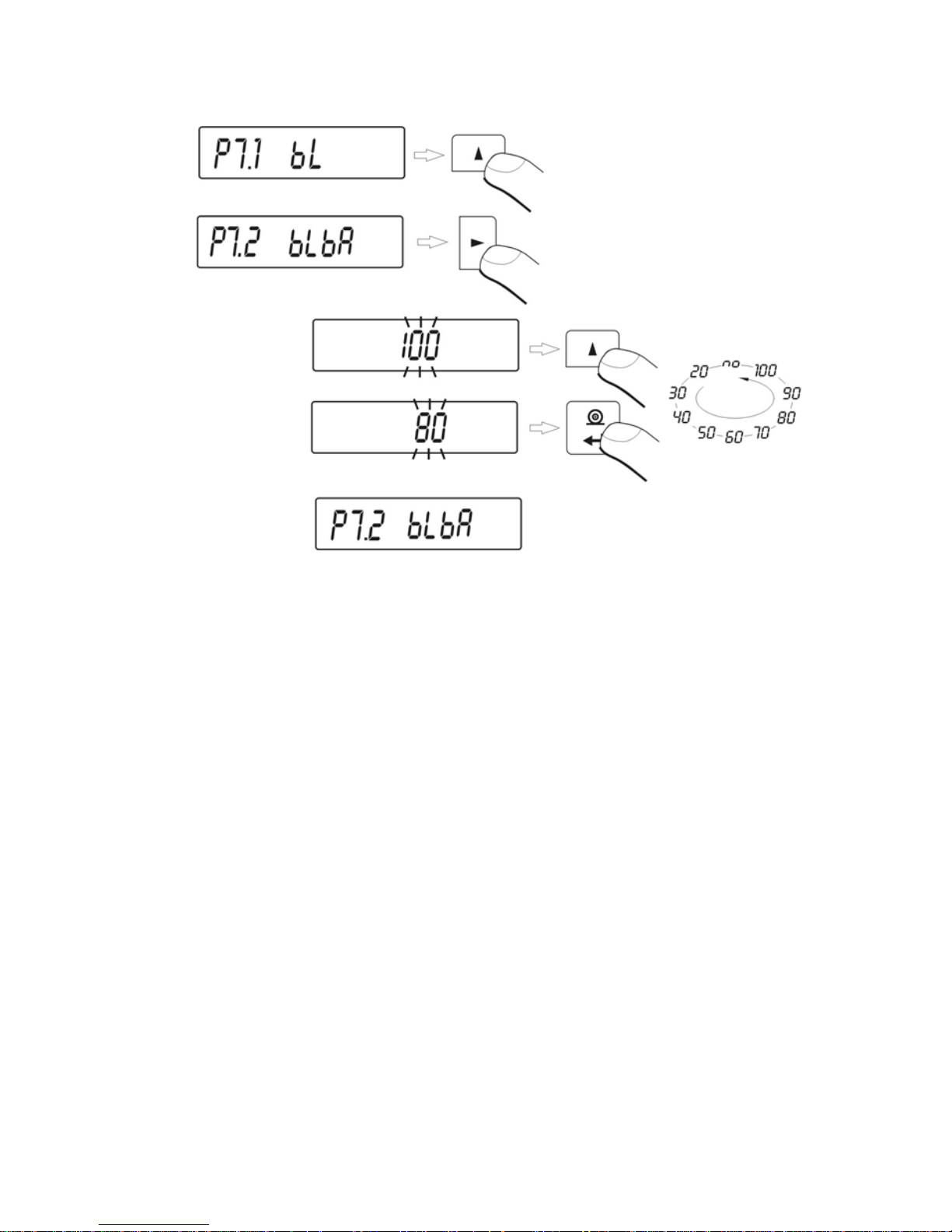

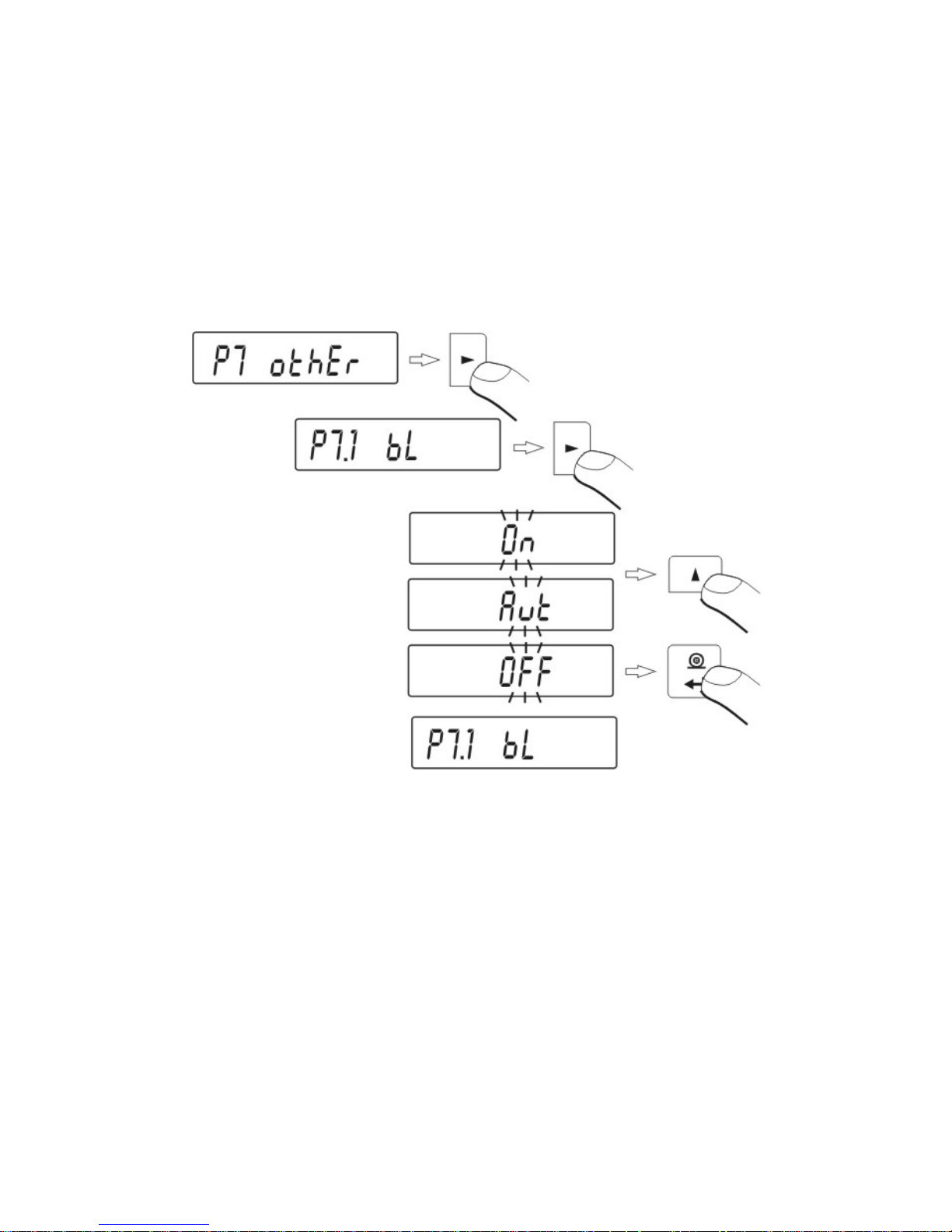

P7.1 bL | On/Aut/OFF [display backlight]
P7.2 bEEP | On/OFF [keys sound]
P7.3 PrnS | [printout of balance parameters]
17
7.1. Moving in user menu
User moves in menu using balance keyboard (see point no 6)
7.1.1. Return to weighing function
Introduce
d changes i
n balance memory will be saved for good after
return to weighing with procedure of saving chan ges. Press several
times Esc key until display indicates message SAvE?.
When display indicates question press if necessary: PRINT/ENTER –
confirmation of changes or ESC – resignation from introduced changes.
After pressing appropriate key, balance will go back to weighi ng.
8. WEIGHING
Before wei
ghing or if the conditions of work changes (e.g. if temperature of
surrounding is higher then 3
o
C) balance should be calibrated.
• Balance should be loaded few times by mass close to max capacit y before
taking measurements,
• Check if not load balance shows „precise zero” - if measurement is
stable - order , if not press key →0/T←,
• by means of Units key set measure unit : [g], [mg], [ct], and if they are
accessible in factory menu [oz], [ozt], [dwt], [t], [mom], [gn],
• put load on balance and read result on display ,
• indication can be setting to zero many times by pressing key Esc/TARE
(summary of mass loads record to balance memory cannot be bigger then its
max capacity).
www.mrclab.com
19
After choosing basic unit press ENTER/PRINT key. Chosen unit will stop
pulsing.
Possibilities of choice:
• For EC verified balances, user can choose following units: [g], [mg], [ct]
• For non-verified balances, user can choose following units: [g], [ct], [mg],
[oz], [ozt], [dwt], [t], [mom], [gn].
Go back to weighing mode with procedure of saving changes
(see point - 7.1.2. – return to weighing).
ATTENTION:
Balance after switching on will start with set basic unit.
8.2. Choice of weighing unit (temporary)
Function ena
bles choice of unit with which mass on the pan will be indicated.
Unit will be valid until change of unit or switching on and off the balance. Eac h
pressing the Units key, causes change of measuring unit.
Possibilities of choice:
• For EC verified balances, user can choose following units: [g], [mg], [ct]
• For non-verified balances, user can choose following units: [g], [ct], [mg],
[oz], [ozt], [dwt], [t], [mom], [gn].
20
8.3. Setting accessibility of balance operating modes
In this group of parameters user declares functions which are to be accessible
for user after pressing SETUP key.
Enter group P6 Func.

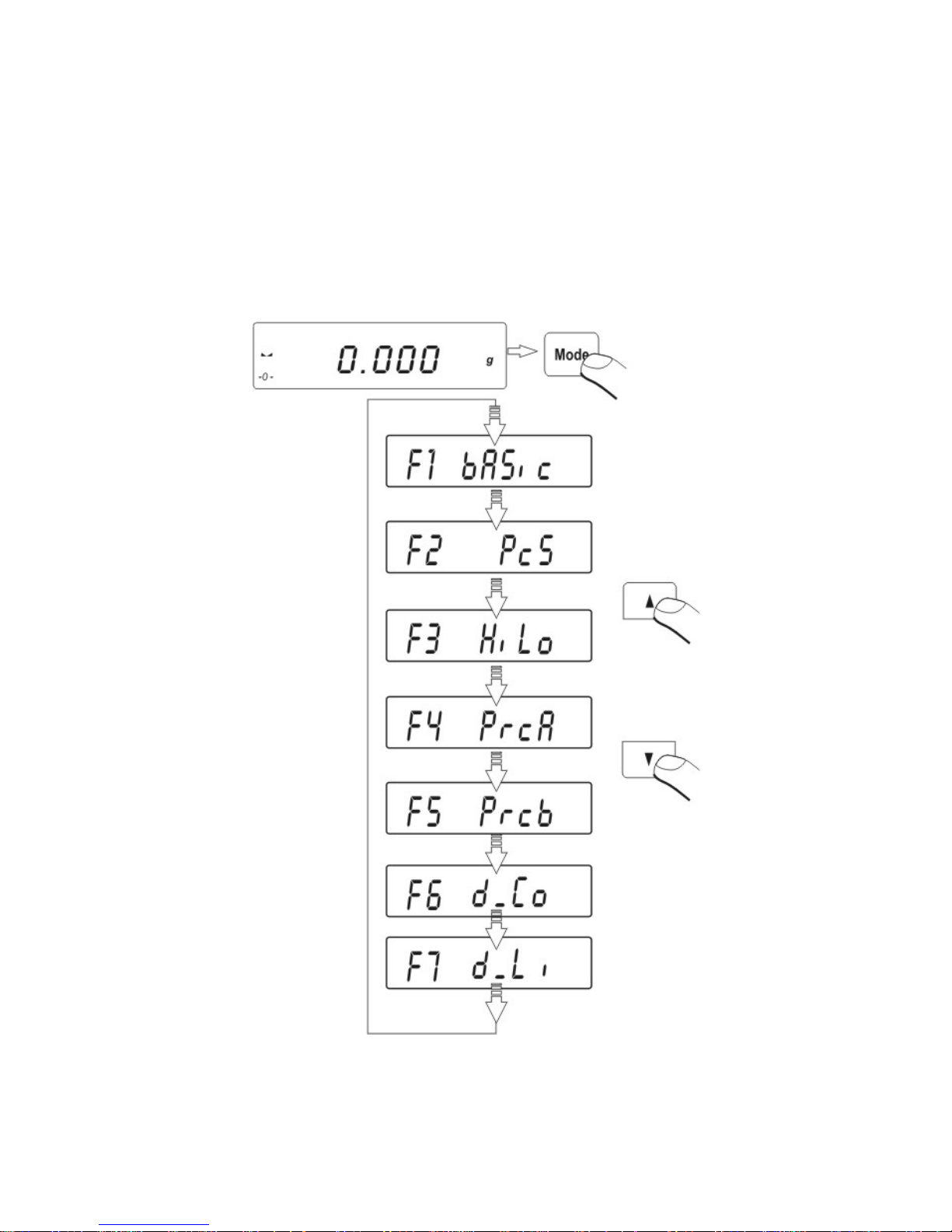

8.3.1. Choice of modes quantity accessible for user
F
unction enables user to set if after pressing RIGHT ARROW key all
operating modes will be accessible (ALL) or only one from the list chose n
and used by operator, or all functions unavailable (OFF).
21
After choosing setting press ENTER/PRINT key. Balance will go back to
displaying name ofsubmenu.P6.1 FFun. If function other than ALL is chosen,
procedure of returning to weighing differs from remaining ones. If e.g. function

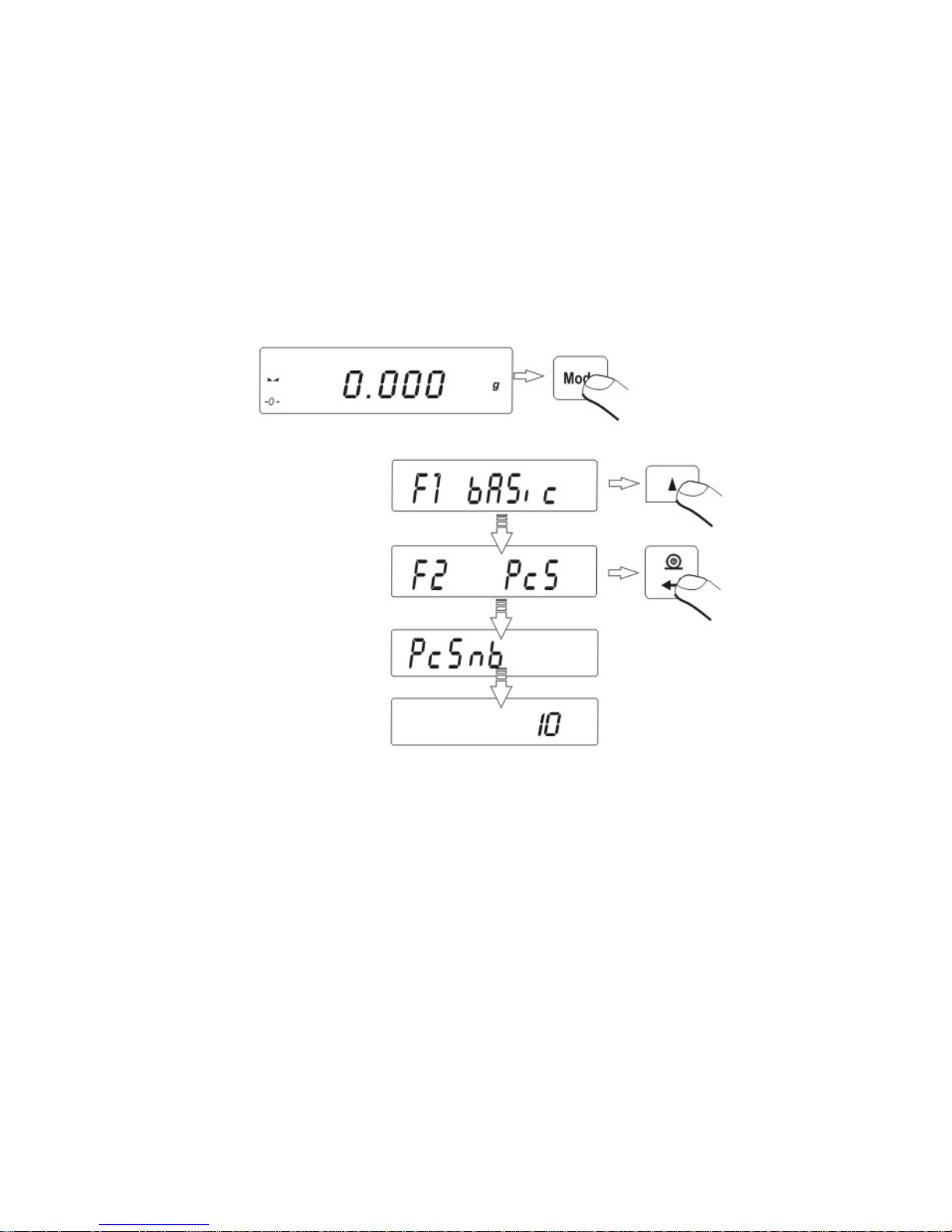

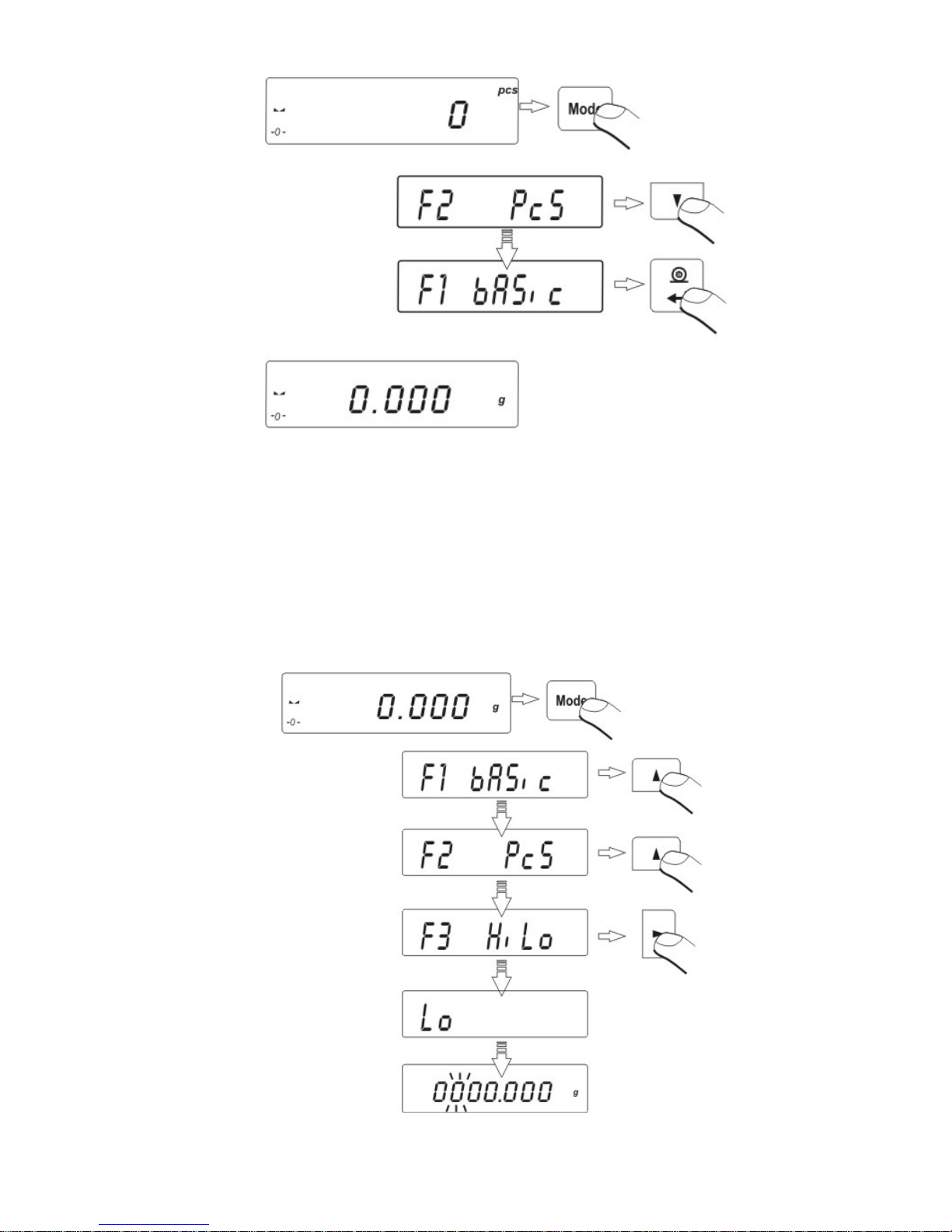

PcS is chosen (procedure according to 13.1 point), to return to weighing:
22
Press key Esc/TARA, balance will return to weighing.
8.3.2. Setting contents of P6.1 FFun – ALL parameters
F
unction enabl
es switching off modes not used by operator. This causes
faster access to used modes.
23
OFF – inaccessible mode
On – accessible mode.
Return to weighing
(see - 7.1.2. – return to weighing).
9. MAIN SETTING PARAMETERS
User can adjust balance to external condition s (filter range) or o wn needs (autozer o
working, memory of tare value). These parameters are in group <P3 rEAd>.
These functions will help user to adjust balance to external conditions in which
balance operates.
Loading...
