10R 280
Moving Head 3 in 1
User Manual
Catalog
Catalog.....................................02
1.Description ...............................03
2.Fixture size............................ 03
3.Fixture annotation ........................... 05
4.Warnning............................ 05
5.Packing and transportation................................ 07
6.AC Power supply............................... 07
7.Lamp and replacement.......................... 07
8.Display.............................. 08
9.Operation of display............................ 08
10.Channel............................. 13
1. Products
Thanks for choosing 280 Beam Moving Head Spot light. This is our latest developed
smart beam&spot light with up-to-date technology,advanced electronic control technology
and humanized design . It is more high-efficient, more beautiful surface compared with its
peers.. It is in compliance with CE standards and DMX512
Our 280 Beam&spot light adopts OSRAM lamp with short foci focusing system,
High quality lens and wide input volt which generate bright and even light distribution and
Excellent pictures. Smart LED screen display, with English language and easy to use.
Parameters:
Lighting source: Original Osram 280W
Input Volt: 100~240V/50-60Hz
Lighting source: Osram 280W
Luminous Flux: 140,000LM at 10M distance
Colour Temperature:8000K
Colour Wheel：13 colours + blank
Gobo：14 static gobos + blank，
9 rotating gobos (rotating both directions at variable speed)
Control: DMX512,Master/Slave,Sound and Auto
Channel: 16/24 Channel
Prism: 6-facet linear prism and 8-facet circular prism
Dimming: 0-100% linear dimming
Zoom angle: 2.5-10°
Spot Angle：5-20°
Focus: linear focus
Pan scan:540°(16bit) electric correction
Tilt scan:270°(16bit) electric correction
15pcs 3-phase motors, run faster and quieter
Colour touch screen,180° reversed display
Lens: High precision optical lens
Wash effect: adjustable wash effect angle
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime
With Voltage stabilizer inside, can work with unstable input volt.
Fixture size：：380MM（L）×330（W）×590（H）MM
Net. W: 15.5KG
G. W (Paper CTN): 17.5kgs
G. W(Flight case/1PC): 35kgs
G. W(Flight case/2PCS): 60kgs
Paper CTN Size: 465*450*685MM
Flight case/1PC: 460*380*71MM
Flight case/2PCS: 850*510*740MM
2. Fixture Size
Size：380MM（L）×330（W）×590（H）MM
3. Fixture Annotation
01 — Lens
02 — Body
03 — Y axis lock
04 — Arm
05 — X axis
06 — Holder
07 — Base
01 Display Screen
02 Set key
01 — 5 Pin interface
02 — 3 Pin interface
03 — Power
04 —Power socket
05 — Fuse
4. Warning
This item is only used in professional application, not for others. Please check the product
to see if there is damage during transportation. Please contact local agents or
manufacturer for repair or replacement.
IP 20, only for indoor use or outdoor use with good weather. Fixture should be kept at dry
place and forbidden use in wet, dusty and high temperature environment. Fire, heat,
electric shock, ultro-violet, should be noticed in operation. Please read instructions before
operation and operate in accordance with operation specifications and notice the
warnings. If you have any question, please contact our agents or customer service.
4.1 High Temperature
ta =45°C
No operation when ambient temperature is beyond 45°C
4.2 Bulb explosion
If there is little damage or crack on Lens，Please stop using and replace it
immediately.。
No authorized lens are forbidden。
Lens size：￠74×30 mm
4.3 Operation
Please don’t handle alone when carry and open the package.
before amounting fixtures, Please confirm the hanger can hold 10 times weight of
fixture itself and devices are in good shape and use safty rope to enhance security.
Please make pulleys’ position lower than
4.4 Prevention of Ultro-violet
Looking in the lamp directly is forbidden in case the ultro violet hurt eyes.
The fixtures without lens and surface covers are forbidden to use.
If there is crack or damage on lens or other parts, please replace immediately.
4.5 Prevention of Electric Shock
The staff who make electric connection must be trained or experienced.
Before mounting, please confirm the input volt is in compliance with our
specification.
And over-volt protection and leak protection are available.
Electrical installation must be done as regulations and every fixture much be earthed
correctly. Please unplug before install or uninstall lamp or replace diffuse.
No Using in stormy weather or wet environment
4.6 Prevention of flame
No installation on Flammable products
No wire with temperature control switch or fuse. Use the right fuse.
Keep Lighting equipment away from flammable
No protection on products within 3 meters. And the temperature must be below
60 Celsius
No obstacles obstruct fans or ventilation within 0.5M
Keep equipment cooling for at 20 minutes before moving
Replacement of original parts are forbidden.
F
4.7 Protection lock
Lock the X,Y axis during transportaton and keep fixture body vertical
4.8 Packing
1. Switch off power and keep fixture cool for at least 20 minutes
2. Clean fixture body and keep X, Y axis locked
3. Put fixture in pocket and make it headstand and put it in flying case
4. Flying cases can be stacked two layers at most and headstand is forbidden
5. For paper packing, put fixture in foam and use carton to cover foam
Make foam headstand.
3M
5. Packing and Transportation
Packing: Paper carton with foam
Flying case: 1pc/case or 2pcs/case
Accessory
Accessories QTY Unit
User Manual 1 pc
Security Rope 1 pc
Clamp 2 pcs
Signal cable 1 pc
Power cable 1 pc
6.A C Power supply
HOT BEAM Input volt、Power, Fuse
Input volt Power consumption Frequency
110~240V 470W 50/60HZ
Fuse Volt Current Model
250V 6A 5×20
Notice!! Only qualified staff are allowed to connect lighting equipment with power
Confirm the power supply is in compliance with our fixture and with overload
Production and earth leakage protection
L N Earth
RED B Yellow-green
7.Lamp and Replacement
BEAM 280 Lamp
Brand Power Lifetime CCT
OSRMA 280W 2200Hrs 9300K
Warning！Using other lamp will generate hidden danger or damage
Fixture. To reduce the risk of damaging fixture, please replace
Lamp when work time is 25% longer than rated lifetime.
BEAM 280 Lamp replace
Notice！No touch with filament with naked hands when replacing lamp to avoid greasy dirt
sticking to filament.keep filament clean. Switch off and wait at least
20 minutes to cool fixture. Lock Y axial at position of 60° angle.
The replacement procedures are as below
1. As Y axial locked, unscrew the plate at back of fixture body (PIC1)
2. As taking off the plate, you can see the lamp, don’t take off lamp untill
The fixture keep cooling for at least 20 minutes, then take off lamp.(PIC2)
(PIC2)
3.Hold the clip with one hand and take lamp with the other hand. (PIC3),plug out
Wire and take lamp out after clip loose.(PIC4)
(PIC3) (PIC4)
4. Check the glass inside and keep it clean (PIC5)
5.To install lamp, do it reversely.
(PIC5)

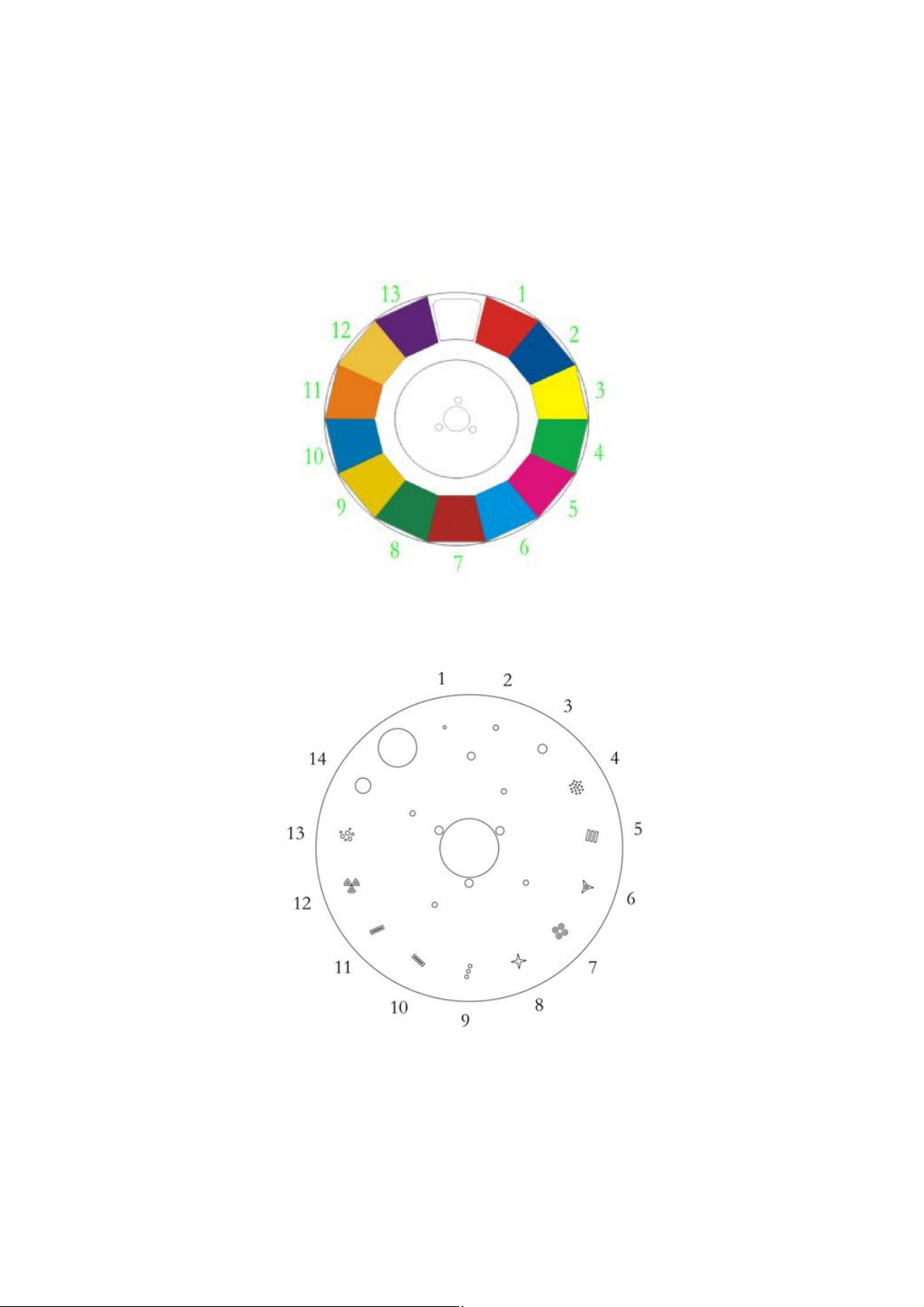

8.Colour wheel and gobo wheel
Colour Wheel：13 colours + blank
Gobo：14 gobos + blank, working with prism produce fantastic effects
9 Bidirectional rotating Gobos + blank, gobos can be customized.
Double Prisms (circular prism + linear prism)
The prisms has focus, rotation, zooming and shaking function, rotating speed is
Adjustable
Display Screen
9.Operation of display
Menu Operation
DMX
Run Mode
Chan mode
X Reverse On/Off
Y Reverse On/Off
X angle 540°/360°
XY OC check On/Off
Signal Clear On/Off
Full Color On/Off
Shortcut
ESC
Features
AUTO
WIRELESS
STAN
DEFE
SMAL
Zero Set
Channel set
Password 1
Password 2
ESC
Password 1
Password 2
Manual
Advance
Function
Factory set
Use
management
Reset
Save
ESC
All motor Yes/No
Reset
Test Run
Part motor Yes/No
X/Y motor Yes/No
Auto
Sound
ESC
Password 1
Password 2
ESC
Password 1
Password 2
ESC
Simulate
DMX Value
System Info
Display Setting
Lamp Setting
Display Obverse display/Reverse display
Other Info
Error Info
Brightness Level1-Level7
Light delay On/10S/20S/30S
Menu back Off/10S/20S/30S
Flicker On/Off
Default On/Off
Manual On/Off
Electronic On/Off
Language Chinese/English
ESC
10.DMX Channels
Standard
1 1
2 *
3 2
4 *
5 3
6 4
Simple
Mode
Value
0－255 X-axis0-540°
0－255 X-axis fine tuning
0－255 Y-axis 0-270°
0－255 Y-axis fine tuning
0－255 X Y-axis speed governing
0－19 blank
20－24 Energy saving mode（230W）
25－129 blank
130－139 on
140－149 X/Y axis reset
150－159 blank
160－169 Effect reset
170－199 blank
200－209 Fixture reset
210－229 reserved
Function
7 5
230－239 off
240－255 blank
Colour wheel
0－8 white
9 - 17 deep red
18－26 deep blue
27－35 yellow
36－44 green
45－53 magenta
54－62 sky blue
63－71 red
72－80 deep green
81－89 amber
90－98 blue
99－107 orange
108－116 cool colour
117－127 Fluorescent blue + white
128－129 white
130－134 deep red
135－138 deep blue
139－143 yellow
144－147 green
148－152 magenta
153－157 sky blue
158－161 red
162－166 deep green
167－171 amber
172－176 blue
177－180 orange
181－185 cool colour
186－189 Fluorescent blue
190－220 from fast to slow (water flo)
221－250 from slow to fast
251－255 Auto random colour selection
8 *
9 6
10 7
Colour wheel fine position
Effect speed
static gobo
0－3 blank
4 - 9 gobo1
10 - 15 gobo2
16－21 gobo3
22－27 gobo4
28－33 gobo5
34－39 gobo6
40－45 gobo7
46－51 gobo8
52－57 gobo9
58－63 gobo10
64－69 Penlight1
70－75 Penlight2
76－87 Penlight3
Gobo shaking from slow to fast
88－95 gobo1
96－103 gobo2
104－111 gobo3
112－119 gobo4
120－127 gobo5
128－135 gobo6
136－143 gobo7
144－151 gobo8
152－159 gobo9
160－167 gobo10
168－175 Penlight1
176－183 Penlight2
184－199 Penlight3
200－255 gobo from slow to fast
11 8
Rotating gobo
0－4 blank
5 - 7 gobo1
8 - 10 gobo2
11 - 13 gobo3
14-16 gobo4
17-19 gobo5
20-22 gobo6
23-25 gobo7
26-28 gobo8
29-31 gobo9
gobo Anti-clockwise rotation
32-34 gobo1
35-37 gobo2
38-40 gobo3
41-43 gobo4
44-46 gobo5
47-49 gobo6
50-52 gobo7
53-55 gobo8
56-59 gobo9
gobo shaking from slow to fast
60-67 gobo1
68-75 gobo2
76-83 gobo3
84-91 gobo4
92-99 gobo5
100-107 gobo6
108-115 gobo7
116-123 gobo8
124-129 gobo9
gobo shaking from fast to slow
130-137 gobo1
138-145 gobo2
146-153 gobo3
154-161 gobo4
162-169 gobo5
170-177 gobo6
178-185 gobo7
186-193 gobo8
194-199 gobo9
12 9
13 *
14 10
200-221
222-223
224-243
244-255
0－127 index
128－177 anti-clockwise from slow to fast
178－203 blackout
204－255 anti-clockwise from fast to slow
0－255 Gobo rotate fine
0－19 blank
20－75 linear prism
76-125 circular prism
126－199 linear prism rotate
200-255 Circular prism rotate
from fast to slow(water flow)
Stop
from slow to fast(water flow)
water flow randomly
gobo auto-rotate
Prism
prism auto-rotate
0－49 Index
50-75 6-facet prism rotate
15 11
16 12
17 13 zoom
18 *
19 14
76-104 Blank
105-127 8-facet prism rotate
128－191 clockwise from fast to slow
192－193 Blank
194－255 anti-clockwise from slow to fast
Frost
0－64 blank
65－255 Linear frost
0－255 Linear zoom
0－255 zooming fine
0－255
Focus
20 *
21 *
0－255 focus fine
0－255 Autofocus
strobe
0－31 strobe close
32－63 strobe
64－95 strobe from slow to fast
22 15
23 16
24 *
96－127 strobe
128－143 from fast to slow Slow off/fast on
144－159 from slow to fast Fast off/slow on
160－191 strobe
192－223 random strobe/from slow to fast
224－255 strobe
dimming
0－255 Linear dimming(0-100%)
Dimmer fine
PDF created with pdfFactory trial version www.pdffactory.com
Loading...
