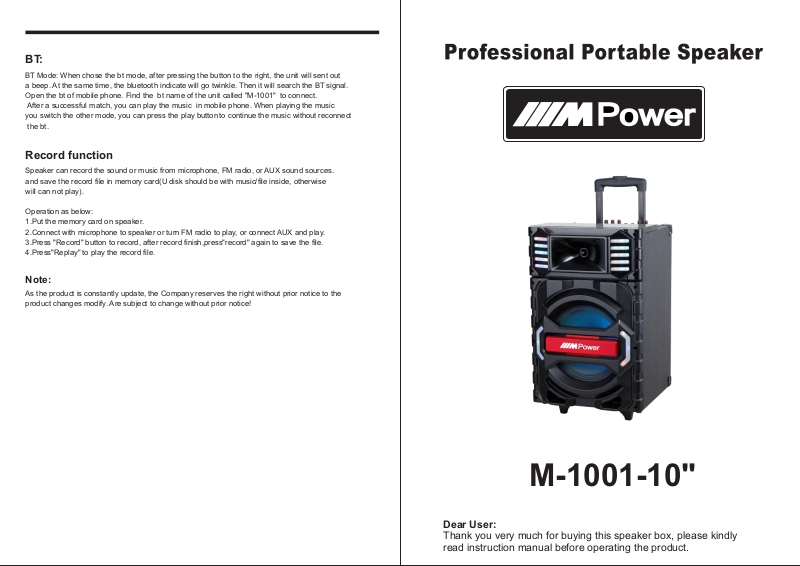

MPower M-1001-10 Instruction Manual

BT:

BT Mode: When chose the bt mode, after pressing the button to the right, the unit will sent out
a beep. At the same time, the bluetooth indicate will go twinkle. Then it will search the BT signal.
Open the bt of mobile phone. Find the bt name of the unit called "M-1001" to connect.
After a successful match, you can play the music in mobile phone. When playing the music
you switch the other mode, you can press the play button
the bt.

to continue the music without reconnect

Record function

Speaker can record the sound or music from microphone, FM radio, or AUX sound sources.
and save the record file in memory card(U disk should be with music/file inside, otherwise
will can not play).

Operation as below:

1.Put the memory card on speaker.

2.Connect with microphone to speaker or turn FM radio to play, or connect AUX and play.

3.Press "Record" button to record, after record finish,press"record" again to save the file.

4.Press"Replay" to play the record file.

Note:

As the product is constantly update, the Company reserves the right without prior notice to the
product changes modify. Are subject to change without prior notice!

M-1001-10"

Dear User:

Thank you very much for buying this speaker box, please kindly
read instruction manual before operating the product.

Front panel function instruction

play music.

17

16

POWER

11

CHAGE

14

-

12V BATTE RY IN

21

20

GT VOL

MIC VOL ECHO TREB LE B ASS VOLUME

OFFON

8

DC15V IN

FULL

10

OFF ON

+

GUITAR IN

9

PRIORT YTO
MICROP HONE

MIC IN

18

19

13

R

AUDIO IN PUT

7

15

12

USB

1

SD/MMC

MODEIRPREV P/P NEXT

3

5

4

2

6

L

01. USB: USB slot input player files, connect
your USB memory (flash drive) devices to

02. SD CARD: SD CARD slot input player files,
connect your SD CARD memory (flash drive)
devices to play music.

03. Mode: Press this button to select between
the 4 built-in modes. Inputs ( Line in,
Memory card, BT, FM) .

04. PREVIOUS/V-: MP3/BT previous song and
FM CH- button/Volume reduce.

05. PLAY/PAUSE: play pause button.

06. NEXT/V+: MP3/BT next song and FM CH+
button/Volume increase.

07. AUDIO INPUT: Audio input jack.

08. DC 15V 2A: DC 15V 2A jack

09. DC IN 12V: DC IN 12V

10. FULL: Full charge

11. Power: Power ON/OFF switch.

12. LED: LED ON/OFF switch

13. MIC Priority: Press the button to enter the
microphone priority mode, the system mainly
to enlarge the microphone volume, while
reducing music.

14. Charge: Charge lamp

15. VOLUME: Adjust the size of volume knob to
change the volume of phonetic notation.

16. BASS: MUSIC Bass Control, Turn this knob
to adjust the music Bass.

17. TREBLE: MUSIC Treble Control, Turn this
knob to adjust the music Treble.

18. MIC 1 INPUT:Used for microphone 1
signal input.

19. GUITAR INPUT:Used for microphone 2
signal input.

20. MIC VOL: Adjust the microphone volume
knob to change the handset volume.

21. ECHO: In the use of microphone is adjust
reverberation knob can adjust microphone
sound field echo effect.

22.GT VOL: Adjust the Guitar volume
knob to change the handset volume

Remote control

01. POWER: Power ON/OFF.

02. MODE: Input MODE Button: Press this button to toggle between the various
inputs ( Line in, Memory, BT, FM) .

03. MUTE: Mute button.

04. PLAY/PAUSE: play pause button. When on the mode of FM, Press this button
to auto scan all channels.

05. PREVIOUS: MP3/BT previous song and FM CH- button.

06. NEXT: MP3/BT next song and FM CH+ button.

07. VOL - : Volume reduce button.

08. VOL +: Volume increase button.

09. REPE: Repeat function in Memory card mode all songs and single songs
repeat.

10. Stop: Stop function key.

11. E/R: Recording function.

12. "0-9" songs select button. In Memory card mode can select songs directly
can select in Memory card by numbers 0-9. For example: if you want No. 9
song by playing songs in Memory card, just need to press 9, and if you want
No.19 song, just need to press 1+9. In FM mode can select FM channels
directly (input channel frequency to select channels) : a. Can select auto-kept
channels by pressing 0- 9 ( make sure channels were already kept). For
example: in FM mode, you want to listen No.3 channel, just need to press 3,
and if you want No.19 channels, just need to press 1+9. b. Select frequency
directly for channels by numbers 0- 9. For example: in FM mode, you want to
hear 98.5 MHz channel, just need to press 9+8+5.
