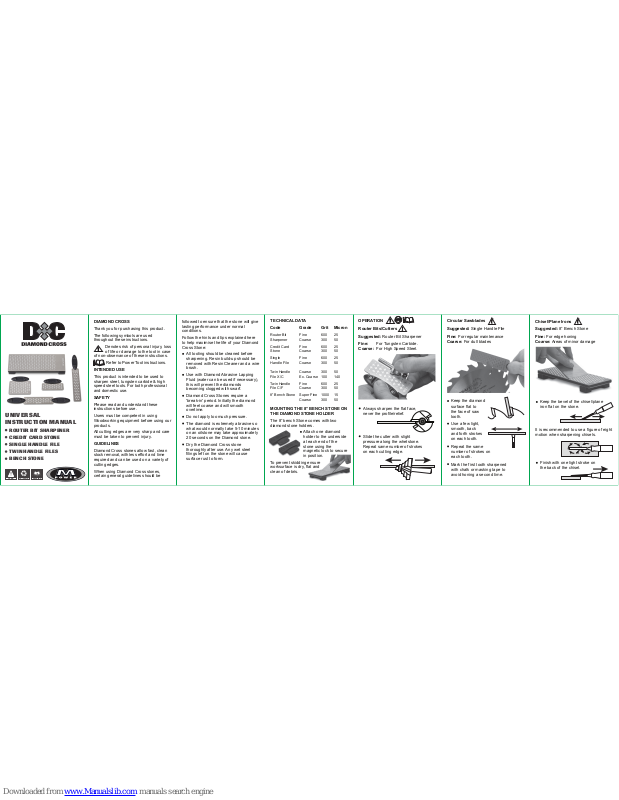

MPower Diamond Cross Instruction Manual

Circular Sawblades

Suggested: Single Handle File

Fine: For regular maintenance
Coarse: For dull blades

TECHNICAL DATA

Code Grade Grit Micron

Router Bit Fine 600 25
Sharpener Coarse 300 50

Credit Card Fine 600 25
Stone Coarse 300 50

Single Fine 600 25
Handle File Coarse 300 50

Twin Handle Coarse 300 50
File X/C Ex. Coarse 100 140

Twin Handle Fine 600 25
File C/F Coarse 300 50

8” Bench Stone Super Fine 1000 15
Coarse 300 50

MOUNTING THE 8” BENCH STONE ON
THE DIAMOND STONE HOLDER

The 8” bench Stone comes with two
diamond stone holders.

Attach one diamond
holder to the underside
at each end of the
stone using the
magnetic lock to secure
in position.

To prevent skidding ensure
worksurface is dry, flat and
clean of debris.

ROUTER BIT SHARPENER

CREDIT CARD STONE

SING LE HANDLE FILE

TWIN HAND LE FILES

BENCH STONE

followed to ensure that the stone will give
lasting performance under normal
conditions.

Follow the hints and tips explained here
to help maximise the life of your Diamond
Cross Stone:

All tooling should be cleaned before
sharpening. Resin build-up should be
removed with Resin Cleaner and a wire
brush.

Use with Diamond Abrasive Lapping
Fluid (water can be used if necessary),
this will prevent the diamonds
becoming clogged with swarf.

Diamond Cross Stones require a
'break-in' period. Initially the diamond
will feel coarse and will smooth
overtime.

Do not apply too much pressure.

The diamond is extremely abrasive so
what would normally take 5-10 minutes
on an oilstone may take approximately
20 seconds on the Diamond stone.

Dry the Diamond Cross stone
thoroughly after use. Any wet steel
filings left on the stone will cause
surface rust to form.

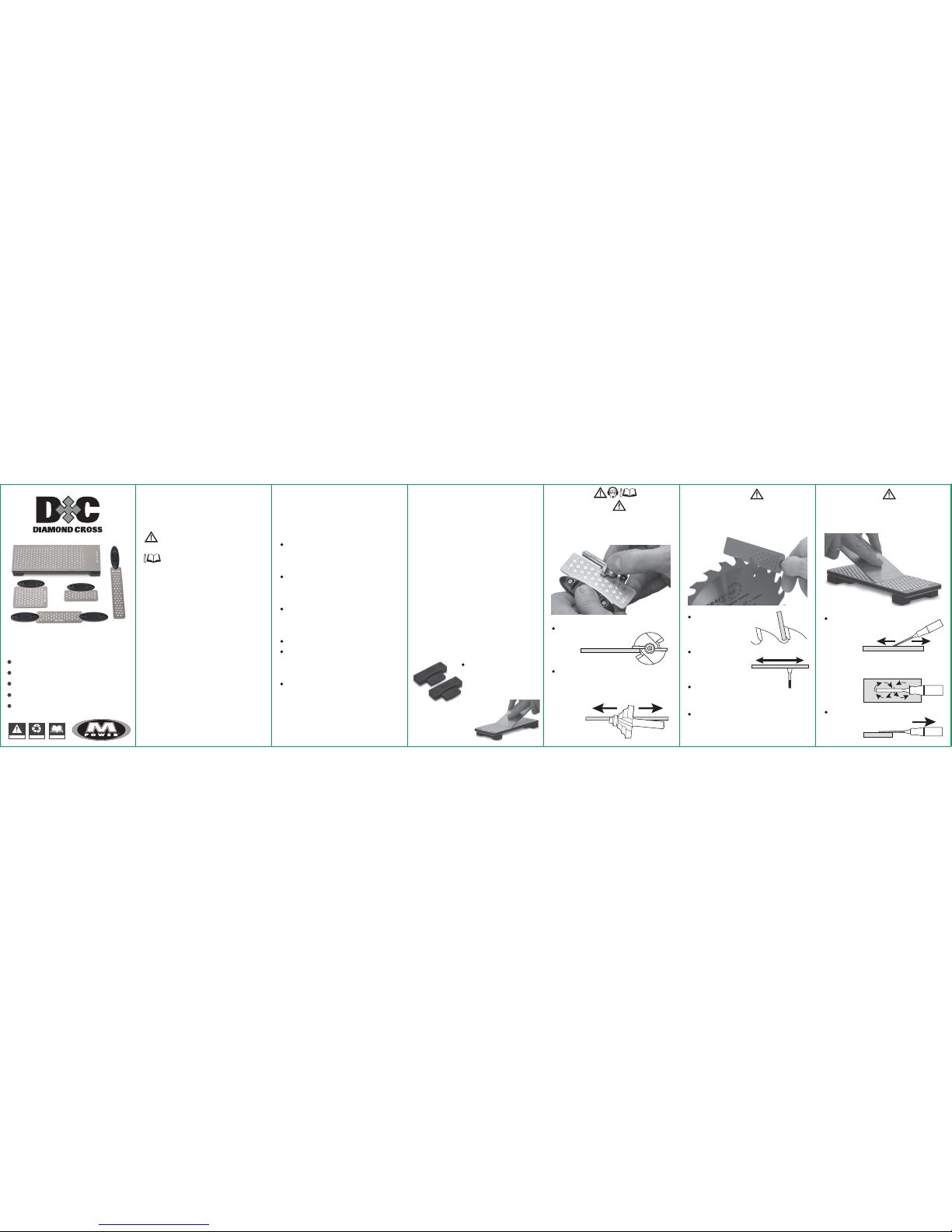

DIAMOND CROSS

Thank you for purchasing this product.

The following symbols are used
throughout these instructions.

Denotes risk of personal injury, loss
of life or damage to the tool in case

of non-observance of these instructions.

Refer to Power Tool instructions.

INTENDED USE

This product is intended to be used to
sharpen steel, tungsten carbide & high
speed steel tools. For both professional
and domestic use.

SAFETY

Please read and understand these
instructions before use.

Users must be competent in using
Woodworking equipment before using our
products.

All cutting edges are very sharp and care
must be taken to prevent injury.

GUIDELINES

Diamond Cross stones allow fast, clean
stock removal,with less effort and time
required and can be used on a variety of
cutting edges.

When using Diamond Cross stones,
certain general guidelines should be

OPERATION

Router Bits/Cutters

Suggested: Router Bit Sharpener

Fine: For Tungsten Carbide.
Coarse: For High Speed Steel.

Always sharpen the flat face,

never the profile/relief.

Slide the cutter with slight
pressure along the whetstone.
Repeat same number of strokes
on each cutting edge.

Chisel/Plane Irons

Suggested: 8” Bench Stone

Fine: For edge honing
Coarse: Areas of minor damage

Finish with one light stroke on

the back of the chisel.

It is recommended to use a figure of eight
motion when sharpening chisels.

Keep the bevel of the chisel/plane

iron flat on the stone.

Keep the diamond
surface flat to
the face of saw
tooth.

Use a few light,
smooth, back
and forth strokes
on each tooth.

Repeat the same
number of strokes on
each tooth.

Mark the first tooth sharpened
with chalk or masking tape to
avoid honing a second time.

UNIVERSAL
INSTRUCTION MANUAL

re-cycleread

version

2

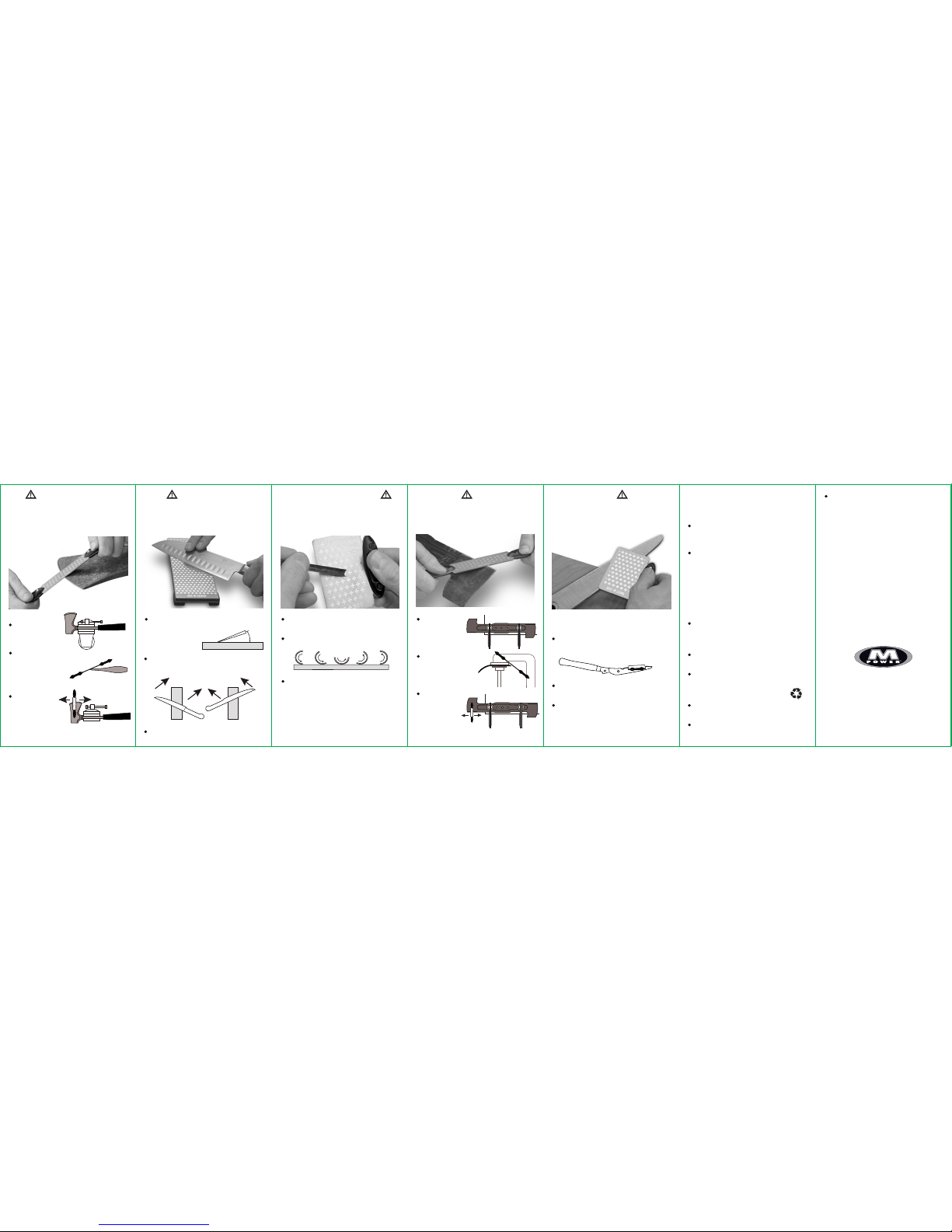

Axes

Suggested: Twin Handle File C/F

Fine: To hone the edge
Coarse: To prepare the edge

Knives

Suggested: 8 “ Bench Stone

Fine: To keep a razor edge
Coarse: To restore an edge

Small pointed tools and gouges

Suggested: Credit Card Stone

Fine: To maintain an edge
Coarse: To restore a dull edge

Mower Blades

Suggested: Twin Handle File X/C

Fine: To hone the edge
Coarse: To prepare the edge

Shears and Scissors

Suggested: Credit Card Stone

Fine: To hone the edge
Coarse: To prepare the edge

Mount the axe

in a vice.

Keep the same angle as the knife

bevel on the diamond stone.

The angle is 20˚

for most knives.

Keep the bevel on the back of the

gouge flat on the diamond stone.

Roll the tool gently to hone.

Fix the
mower blade
position using
two clamps.

Dismantle the shears to work on the
cutting blade.

Lay the diamond stone flat on the

cutting edge bevel.

Stroke smoothly towards the tip of the

blade.

Lay the stone flat on the sliding face
and remove the burr with a light stroke
(as per the main image above).

Keep the diamond
surface flat to the
face of the blade
edge.

Perform light
strokes back
and forth.

Small tools should be honed as per
chisels, pointed tools should be
honed as per gouges.

Keep the diamond
surface flat to the tip
of the Axe blade
edge.

Perform light
strokes back
and forth on
both sides.

20˚

ACCESSORIES

Non-slip magnetic Diamond Stone
Holder (pair) - Ref 21

Suitable for use with Diamond Cross
Router Cutter Sharpener, Credit
Card & 8” Bench Stones.

Also fits all other brands of credit card
and bench diamond stones.

DIAMOND STONE MAINTENANCE

Continual satisfactory operation depends
upon proper tool care and regular
cleaning.

Cleaning

Clean with a damp cloth or cleaning

(eraser) block.

Storage

Ensure diamond stones are stored

separately.

Do not store the diamond stones in

damp conditions.

ENVIRONMENTAL PROTECTION

Re-cylce raw materials instead of

disposing as waste.

Packaging should be sorted for

environmental-friendly re-cylcing.

300

Stroke away from the body, alternating

on each said of the knife.

Light strokes will produce a finer edge.

300

The product and its accessories at the
end of its life should be sorted
for environmental-friendly recycling.

GUARANTEE

All MPOWER products are guaranteed
against any defects in either
workmanship or material, except
products that have been damaged due to
improper use or maintenance.

POLICY

Our policy of continuous improvement
means that specifications may change
without notice. MPOWER Tools Limited
cannot be held liable for any material
rendered unusable, or for any form of
consequential loss.

Manufactured by MPOWER Tools Ltd

Tel: [phone]

Email: [email protected]

Email: [email protected]

Web: www.m-powertools.com

Manor Farm Reserve - Newton Tony - Salisbury

Wiltshire - SP4 0HA - UK

© Copyright MPOWER Tools Ltd 2018
