For Model No.
MPQCG77
EN
USER MANUAL
Tablet of Contents
Specifications………………………………………………………………….
Tablet Parts……………………………………………………………………
Getting started………………………………………………………………...
How to use TF card …………………………………………………………
How to connect to PC ………………………………………………………
Connection to Internet………………………………………………………..
Camera……………………………………………………………………….
Trouble Shooting…………………………………………………………….
Warnings…………………………………………………………….……
Specifications
Display: 7 inch HD (1024x600) Capacitive multi-touch screen
CPU: Spreadtrum&SC7731G Quad Cortex A7@ 1.3GHz
RAM: 512M/1 GB DDR III
GPU Mali-400 mp2
Internal Storage:4GB/ 8GB
Expansion Memory: Micro SD card up to 32GB (not supplied)
Built-In Wireless: 802.11b/g/n
SIM 3G module
Built-in Bluetooth (2.0 +EDR)
Built-in GPS (GPS + AGPS)
FM Radio
Double camera: front 0,3 Mpixels and back 2 Mpixels
AC Adapter: DC 5V-2A
Operating System: Android 5.1
Tablet Part
Name
function
Volume +
Press to increase the volume
Volume -
Press to decrease the volume
Power
Keep pressed to turn on/off the tablet; shortly
press to activate standby
Reset
Reset the system in case of device stuck and
restart
Earphone jack
Connect earphone to this standard 3.5mm jack
Micro USB port/OTG
port
PC connection / Peripheral connection through
HOST cable (for example keyboard, USB
device)
Back camera
2 Mpixels camera
Front camera
0,3 Mpixels camera
Micro SD input
Insert a micro SD card (up to 32GB)
SIM slot
SIM card port
Getting Started
1. To charge connect the AC power adapter to the DC 5V jack on the
2. The battery icon shows the battery status and charging status
Battery Charging
The tablet has a built-in rechargeable Li-polymer battery.
right side of the tablet.
3. The tablet can be used even if the battery is being charged.
the above icons indicate the different level of electricity left in the battery
4. no replacement of battery without authorization, or the explosion
5. Recharge it for at least half hour if it has been idle for long time and
6. Regularly recharge it at least one time monthly
7. 40°—5° is the optimum temperature for the battery recharging or
1. System is idle.
2. Manually activated by pressing the Power button once.
hazard might happen.
fails to start itself.
the battery performance might deteriorate slightly
Disposal
the battery might contain the polluting material, please give it to the
official recycling-station before disposing the tablet pc, and don’t litter.
Power ON/OFF
ON:
press the button for continuous 5 seconds until the tablet turns
“ON”.
OFF:
1.Press the button for continuous 5 seconds and it will appear
2.Select OK to power off the tablet
Screen Lock
This feature locks the screen, at the same time turn OFF the screen’s
backlight after a few seconds.
Screen locks when:

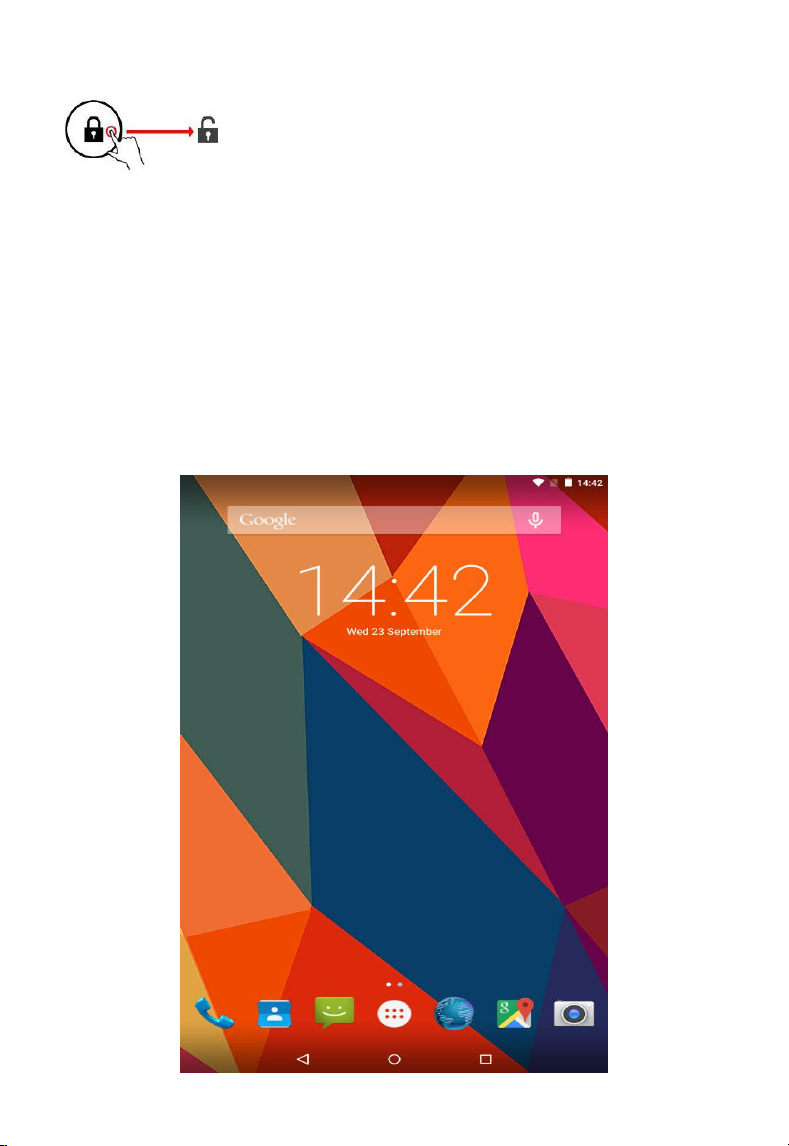

Screen unlock :
Home screen
The Home screen will look similar to the picture below. It is actually five
screens, each of which can have a different layout of icons. To switch
between screens, simply slide your finger left or right across the display.
The status bar and navigation buttons are always visible, no matter
which Home screen you can currently viewing.
The Desktop contains shortcuts to your most-used applications and widgets
1. Touch the "Settings" menu icon on the Application menu.The
2. Guide your finger up or down the left side of the screen to scroll through the
3. Touch a category title to view further options on the right side of the screen.
Touch the screen icon to quickly search the World Wide Web using Google.
The icon will launch the Application menu.
The status bar displays system information, such as current time, wireless
connectivity and battery.
Touch to Expand the status bar for more detailed information.
The button moves back one step to the previous menu/page.
The buttons returns immediately to the Android desktop.
The button display a menu of recently opened applications.
Settings Menu
The settings menu allows you to adjust Tablet system configuration.
To change settings:
Settings menu will open.
list of available categories.
Wi-Fi - Connect to /disconnect from wireless networks, view connection status
Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note:
this function is available only on devices supplied with 3G card)
Sound - Change volume, touch sound, screen lock sounds etc
Display - Change brightness, wallpaper, sleep settings, font size etc
Storage - Manage NAND and Micro SD card, view available capacity etc
Battery - See battery status and powered-on time
Apps - Manage applications, running services etc
Location services - Change approximate location detection, improve search results, GPS
1. in off mode insert SIM card in the slot.
2. after inserting SIM card turn on the tablet and wait to display the cell reception icon.
3. once the connection with the operator open the application and dial the
satellites
Security - Change screen lock type, encryption, password, credential storage etc
Language & input Select language, add to the dictionary, edit on-screen keyboard settings,
vocal search, etc
Backup & reset - Backup & restore data, perform factory reset, etc
Date & time - Set date, time zone, time, clock format etc
Turn on/off – automatic turning on / off settings
Accessibility - Set up large text, auto-rotate screen, speak password etc
Developer options - Advanced functions for Android developers - debugging, HDCP check
etc
About telephone - Information about your Android device
Telephone function
number.
How to Use TF card
1. Insert the TF card into the TF card slot. Gently push TF card into slot
2. A prompt will be seen on the screen saying “ Preparing SD card “
until it clicks into place.
Removing TF card
3. Select “Setting” and find “ Storage” then click “Unmount SD card”.
4. A prompt will be seen on the screen saying “ SD card safe to remove”
5. Gently press the TF card to remove and pull out the TF card.
1. Close all applications and documents which have been opened from
the TF card.
Note: Insert the TF card in correct position, otherwise it will damage the
card and the slot.
Software Keyboard
The tablet has a software keyboard which automatically show up
when you tap the place on screen where text or number are to be
entered.
Touch Screen
1 Use USB cable to connect tablet with computer. System will notice
2 The PC will detect an external disc named “mid”; this is the internal
3. Then the USB connection has been successfully.
The touch screen responds to finger touch.
Note: don’t place any object on the touch screen for it may damage or
crush the screen.
Single Click: single click one icon to choose the icon or option you want.
Long Press: press and hold one icon to make appear a menu related to
the executed function (if available).
Drag: drag on the screen and you can move between magic cube sides
or drag the application icons into the shortcut bar.
How to connect with computer
Note: Turn on your Tablet before connect the Tablet to PC by USB cable.
USB connected on top of screen.
memory of the tablet.
Connection to Internet
1 Select “ Settings”
2 Select “Wi-Fi” and slide OFF to ON status.
3 All detected wireless networks in the area will be listed, Click to
4 Enter WEP key or network key if necessary.
5 Once connected to a wireless network, settings will be saved
6 Wireless icon will appear on the taskbar when connected
Wireless:
select desired wireless connection.
successfully.
Note: when the tablet detects the same wireless network in the future,
the device will connect to the network automatically with same password
record.
Camera
Touch the icon to enter camera mode and the interface is
shown as follows:
1. Touch the icon in the middle to take photo
2. Move the icon on bottom and you can switch camera mode to
camera recording mode.
3. touch the icon on the top right to see the previous picture and
you can also delete, share, set it as the wallpaper. Click return button to
exit camera interface.
4. touch the icon to switch from front to back camera.
Trouble Shooting
Close Application
All running applications take up system memory and will slow down
system response. Please shut down all idle applications to release
memory and get the system speed back to normal.
To close the application, click the icon on the shortcut bar to
enter the system configuration interface. Select the Application →
Running services and the interface is shown as follows:
Tap the application you want to close. A pop-up window will be displayed.
Tap “Stop” to close that application.
Mandatory Power off
1. Press and hold the power button for 5 seconds and the device will be
powered off.
2. Press the reset button on the back and the device will be forced to be
powered off.
Restore Default Setting
If you want to reset the factory setting and erase all materials, please
press Settings → Privacy → Factory data reset.
** Warning: Factory data reset setting will delete your data and
configuration of system and applications from downloading.
**Please use this function carefully.
