Mpman MP-E2004 INSTRUCTION MANUAL

MP-E2004

User's Guide

Contents

Before Using

Features Checking the components Name of parts Battery installation

Operation

Basic Operation

Playing Music

Recording EQ/Section Repeat Function Listening Radio Radio Record Menu Setup

Connecting to PC

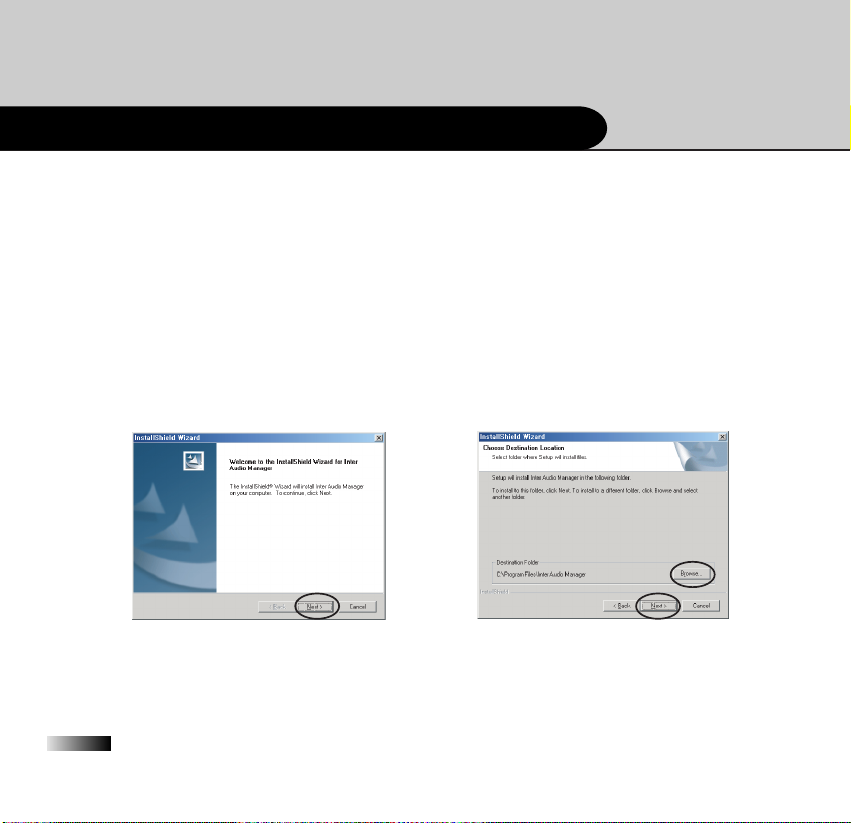

Installation of MP MAN Manager Using MP MAN Manager Downloading from PC Uploading MP3 Player file to PC Deleting file Firmware Upgrade

Initializing Flash Memory

4 6 7 8

9 12 15 18 19 21 22

24 27 30 31 32 33 34

Appendix

Emergency Recovery Button Tips

Menu Outline Table

Terminology

Customer Support

Cautions Trouble shooting

Specifications Product Warranty

The contents of this user's guide may change without prior notice due to the functional upgrade or modification.

35 36 39 40

41 43 44 46

Features

Direct Encoding

The former MP3 player was a 'PC- depending audio device' that simply played mp3 files downloaded from a computer. Therefore, in absence of a computer, other music files could not be added, thus the device had limitation in usage.

MP MAN supports Direct Encoding method that allows receiving audio signals from various A/V devices (TV, Audio, Radio, CD Player, MD and MP3 player) and storing the signal as MP3 file. From now on you can record music directly from you friend's music player.

WOW ON/OFF Function

This MP3 player supports WOW functions that allows the user to assign frequently used functions to one button for easier operation of the device. User can repeat one song (REPEAT ONE) and sound can be muted while listening to music (MUTE). Other functions needed by users will be provided through FIRMWARE UPGRADE after converging users' opinions.

Voice Recording

In addition to the basic playing function, it also includes voice recording function so you can record meetings or lectures.

Replay Speed Adjust Function

MP-E2004 SERIES has SPEED MODE that allows adjusting the replay speed in four steps. The replay speed adjust function allows closer listening of uncertain sound in studying languages. Also, using section repeat function (A-B) the user can listen to specific section repeatedly enhancing the efficiency of language study.

FM Stereo Radio

This device is FM radio enabled. FM broadcast is received as well as recorded that allows repeat listening.

Multi Codec

Most of music file is in mp3 format, however, WMA format that supports better compression rate than that of mp3 is growing nowadays. This device is a multi Codec player that supports MP3 and WMA format files by default. Ogg Vobis format files will be soon supported through Firmware Upgrade in near future.

Multi Language

This device supports multi language. The provided management software allows names to be displayed as it is shown on Windows. Since letters in various languages such as Korean, English, Chinese and Japanese are displayed with user assigned fonts, the user can easily personalize the player *When used as a portable saving device of direct flash drive, only ASCII code, such as English, numbers, etc., can be used.

Features

Please check the box contents when this product is purchased.

Front

Name of parts

Menu/Volume/ Mode Change

A B/EQ

USB

Line-in

Mic

LCD

Earphone

Play/Pause/Stop Power On/Off Forward/Rewind

Record Button /WOW

Hold But ton

Name of parts

Back

When inserting batteries, check polarity(+, -) first.

When they are inserted in an opposite way, it can cause a fatal problem to the product.

LCD display

Battery installation

1. Slide the battery cover to open.

2. Check the (+),(-) ends of the battery.

3. After installing battery, slide the battery cover back.

Mode (Current Audio Mode)

Play Status

Song Number

Volume

AUDIO

001/004

Memories(

Classic Normal

00:00:11

LINELINE

Battery Status

Play Time (Left-over time)

Singer/Title

Repeat

Basic Operation

Power on

When PLAY button is pressed for a while, the logo is displayed on the screen and the device is turned on.

AUDIO

MP MAN

Version1.73

MP3

>> Ver 1.73 refers to the current version of MP-E2004 Series set. The version is continuously upgraded through firmware upgrade.

Power off

When PLAY button is long-pressed while the device is on, the power is turned off.

POWER

OFF!!

00:03:59

001/004

Remember

Classic

LINELINE

Normal

Basic Operation

Mode Change

MP-E2004 Series has AUDIO, RECORD, and RADIO modes. When the MENU button is long-pressed, the mode display on the upper LCD screen is changed to AUDIO, RECORD and RADIO modes in respective order.

AUDIO

00:03:59

001/004

Classic

Detailed menu can be changed after the main menu is changed.

LINELINE

Normal

RECORD

003/003

REC003.IADRemember

Classic

00:00:11

Normal

MIC

FREQUENCY

(*Refer to page 22 and 23)

RADIO

91.9 MHz

Basic Opeation

Volume Adjustment

Volume can be adjusted by moving the device's volume button up (+)/down (- ).

AUDIO

00:01:03

Volume adjust range is from 0 to 40.

Short-press moves one volume step at a time

Long-press moves the volume continuously

Lock Function Setup

As HOLD button is pushed up, a padlock icon appears on the display screen and the device is locked. The lock is released when HOLD button is pushed down.

No button will work on Hold mode.

VOLUME 18

My Heart wi

Classic

Normal

AUDIO

00:01:03

002/004

My Heart wi

Classic

Normal

LINELINE

Play Music

Play

Change the mode to AUDIO by long- pressing the menu button. Music is played when PLAY button is pressed in AUDIO mode.

Stop

Music is stopped when PLAY button is pressed while music is being played. When PLAY button is pressed again, the music is played from the point where it stopped.

AUDIO

00:03:59

001/004

Remember

Classic

LINELINE

Normal

AUDIO

00:01:11

001/004

Memories(

Classic

Normal

AUDIO

LINE

001/004

00:01:11

LINE

Memories(

Classic

Normal

Browsing songs while in STOP status

While in STOP status of AUDIO mode, when the PLAY button is moved up/down, the next/previous song is displayed respectively. Once the desired song is displayed, pressing the PLAY button plays the selected song.

AUDIO

001/004

Memories(

Classic

Files can be browsed faster by long-pushing the PLAY button up/downwards while the device is in AUDIO MODE STOP status

Browsing songs while playing

While the device is playing, when PLAY button is pushed up/down the previous/next song is played respectively.

If the track is played more than 5 seconds, it plays from the start of the track.

AUDIO

002/004

My Heart wi

Classic

Play Music

00:00:00

LINELINE

Normal

00:01:03

LINE

Normal

Play Music

Moving to the particular part in the same track

When PLAY button is long-pushed up/down while music is being played, fast forwarding/rewinding function is executed. The music resumes as the PLAY button is released at the desired part of music.

AUDIO

00:01:03

002/004

My Heart wi

Classic

Normal

AUDIO

00:00:13

LINELINE

002/004

LINE

My Heart wi

Classic

Normal
