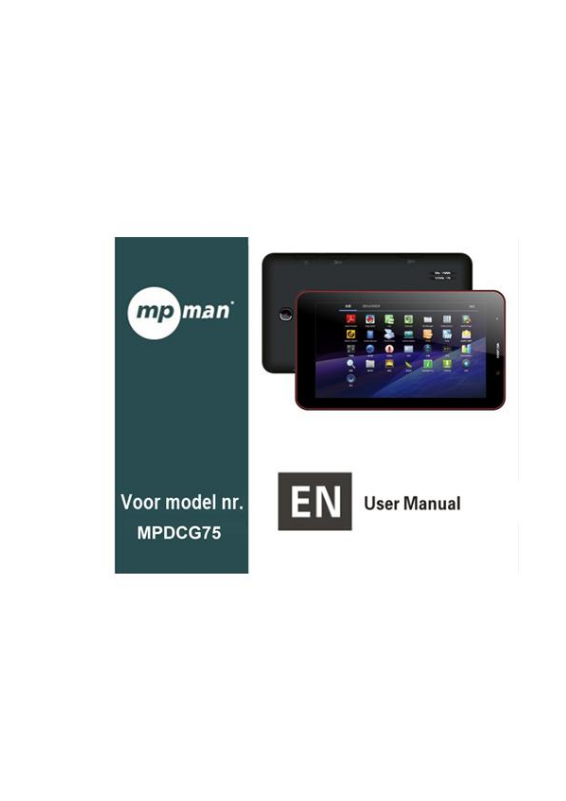

User Manual
User Manual
Before operating this product, please read , understand the follow
instructions .
- 3 -
Display
Display inch
7 inch
Resolution
1024*600
Ratio
16:9
Touch panel
5 point Capacitive multti-touching panel
Processor/ Memory
CPU
Media Tek 8312, dual core
Frequency
1.3GHz
GPU
Mali400 MP2
RAM
512MB
ROM
4GB
System
Android 4.2.2
Connect
WIFI
Support,IEEE802.11b/g/n
USB Host
x1
Micro-SD Slot
x1
Bluetooth
Support
Earphone
x1, 3.5mm
Battery information
Battey Type
Lithiumion battery
Battery Capacity
2200mAh
Standby
240~270 hours
Talk Time
6~6.5 Hours
Charge Time
2.5~3.0 Hours
Cautions
For better use, please carefully read the "User's Guide",and follow the prompts.
Avoid products placed above 35 ℃ or below-5 ℃environment;
Please forbid the product from fire, moisture environment, and direct sunlight;
Please do not attempt to personally disassemble, repair,modify the product, if
demand, please contact sales staff;
Please operate according to the "User's Guide";
Please avoid crashing the product;
Please do not use the product near strong magnetic fields, power plants, etc.;
Do not use the product when riding bicycle, car and motor cycle to avoid
dangerous.
Do not use high volume to avoid damage to your hearing;
Properly dispose of electronic waste,such as batteries.
Main Features
D88
User Manual
- 4 -
Product
L x W x H
191*110*8.8 mm
Weight
270g
Items
Name
Functions
1
Power
ON/OFF
Short press：Display sleep
Long press: (1) Power on/off；
（2）Reboot；
（3）Airplane mode；
（4）Ring/Vibrate/Silent；
2
Vol +/-
Short press，vol +/-；
3
Press Power and vol - button at the same time, can screen shot.
Items
Name
Functions
Accessories
Below items are included in your MID package, please confirm:
1. Main unit x 1
2. USB cable x 1
3. Adapter x1
4. CD x 1
How to Use Your Tablet
Jack
Earphone Jack: Insert earphone to this jack for phone calls or listening music.
Micro USB Jack: Charging your tablet, or connecting your tablet with PC to
copy/delete files, or connecting your USB accessories by the USB OTG
cable, such as USB mouse, USB keyboard. (Can only use one
equipment at the same time)
TF Card Slot: Insert TF card here, can support up to 32GB.
Mic: Built-in microphone for phone calls.
Physical Buttons
Touch Buttons
User Manual
- 5 -
1
Short press
Press on screen within 1.2s, it mainly used on menu
choice and confirm.
2
Long press
Press and hold on screen for more than 1.2s.
3
Drag
It belongs to identify the touch tracking direction.Mainly
for pictures,flip,drag and so on.
4
Virtual key
It belongs to the virtual keyboard.
Virtual keyboard as below:
Shortcuts
Please refer to the figure below:
User Manual
- 6 -
Item
Functions
Return key
Return to the previous screen
Desktop menu
Return to the Desktop
Recent program key
List the recent program
There are 3 shortcuts at the bottom of the screen:
Notification Bar and Quick Settings
Notification Bar is shown as below:
User Manual
- 7 -
Real-time displays notification information plate.
：Clear key to clear all the notification.
Quick settings is shown as below:
Show some short cuts, click the appropriate option, you can jump directly to
the "Settings" in the corresponding area.
Widgets
As shown below, it also belongs to a system of shortcuts.Some widgets are the
User Manual
- 8 -
system comes.When you install a third-party APK, widgets will appear.
Widgets can be dragged to any desktop interface in five HOME interface.
Product Use
Battery Charging
Your tablet has an integrated rechargeable lithium battery. Before using the
product for the first time, the battery should be charged fully to ensure proper
working of the product.
The battery inside the device can not be replaced. If you have questions or
need to replace the battery, please contact our equipment service center.
Do not connect the tablet to a power source other than that which is
indicated here or on the rating label as this may result in the risk of fire or
electric shock and failure of the product.
When the battery power is low, the device will display a low battery
message, if power is low, the device will automatically shut down. Please
recharge the tablet to continue using it.
If misused battery used in this device may cause a fire or chemical burns.
The battery used in this device may result in fire or chemical burn if it is
misused. Do not disassemble, incinerate, or heat the battery. Do not leave the
battery in a place subject to direct sunlight or in a car with its windows closed.
User Manual
- 9 -
Power On/Off/ Standby
Power on： Long press Power ON/OFF button, after the “ANDROID” logo loading for
several seconds, the desktop appears as below:
Power Off：Long press the Power ON/OFF button for 3 seconds, you can
power off the tablet according the dialog pop on the screen. Refer the figure
below:
User Manual
- 10 -
Standby: During the power on mode, press the power button to enter the
power-saving standby mode, then press the power button again, the screen
prompts to enter the unlock mode.
Reset
Stab the reset hole with a sharp hard object, you can reset the machine. After the
reset, the machine will power off.
Connecting to the PC
Connect the tablet to a PC with Windows XP/ Vista /7, Linux, MAC
operating system. The PC will automatically recognize the device.
On the tablet you will see a connection screen. To correctly connect the
device with the computer, press “Turn on USB storage.” and then you can
copy files to/from your PC.
User Manual
- 11 -
Desktop and Main Menu
Desktop screen as below:
Click icon to enter the Main menu, all the APK appear on the Main menu.
User Manual
- 12 -
Open or Switch Application
On the desktop or the main menu, select an application, click - to enter, you
can enjoy the application. To exit, press the or to the main interface.
After the return, you can click into other applications.
Click to switch between the running applications, refer to the figure
below:
Settings
Click icon in the main applications to open the system settings interface, as shown
below:
Select the appropriate operation of the relevant items, such as: wireless and network, display,
date and time settings, about device, etc.
User Manual
- 13 -
General Function
Some common features such as brightness, wallpaper, sleep time. In Settings
- General functions is easy to operate. Details as follows:
Wi-Fi
Wi-Fi connection is relatively simple,and similar mobile phone-related
User Manual
- 14 -
operations.First, open Wi-Fi,then tap Wi-Fi network you want to connect, and
then enter the password to login.Details as follows:
After the network connection, you can click the network is connected,
check the specific circumstances of the network connection. Details as follows:
Of course, you can also open Wi-Fi network through the "Quick Setup"
described earlier, or "suspended button" .However, the premise is that you
have a Wi-Fi network in the region,and the appropriate network passwords has
saved.
User Manual
- 15 -
Bluetooth
Enter the Bluetooth option, open the Bluetooth, you can see the Bluetooth
device information. You can toggle Bluetooth device status by clicking on the
"ANDROID BT" . Switch between "Not visible to other Bluetooth devices" and
"Visible to all nearby Bluetooth devices" . Details as shown below:
Storage
Enter “Storage”, you can see the storage device information, including the
tablet capacity, external Micro-SD card capacity and usage. Details as follows:
User Manual
- 16 -
Apps
Enter the “Apps”, you can view the status of each APP, for example: the
running, installed, and so on. Details as below:
Security
Enter “Security” to set security settings, set the security password, pattern and
so on. Details as below:
User Manual
- 17 -
Language & input
Enter “Language & input”, can set the language and input. As shown
below,click on the language to enter, you can set the machine language.
Language library is the latest 4.2.2 system language libraries.
Backup & reset
Enter “Backup & reset”, can backup the machine informations to avoid lost of
them. Remark: Reset will empty all the user Information function, please
carefully use this feature.
User Manual
- 18 -
The relevant content of settings introduced here, users can enjoy yourselves
on the remaining items!
Application
Let us introduce some common use.
File Manager
Click , users can view all the files in the fuselage memory and external
Micro-SD card. Each file can perform basic New, copy, cut, paste, install, play
and other operations... Details as below:
User Manual
- 19 -
Choose a file, a toolbar pop up, details as below:
Camera
Click to enter the camera application, the Android 4.2.2 version of the
camera system update from 4.1.1. Can preview bigger picture, zoom pictures
by sliding 2 fingers on the screen. After preview, gently slide, you can re-enter
User Manual
- 20 -
the camera interface. Details as below.
Gallery
Click to enter the gallery application, in the gallery, you can preview all
the storage space of the machine in the picture and video files, including
memory and Micro-SD card pictures and video files. Below is a picture gallery
document preview.
User Manual
- 21 -
Movie Studio
Click to play movies, details as below:
Music
Click to play musics, details as below:
User Manual
- 22 -
Browser
Click to enter the internet, after the network connection, open a Web
browser, enter the URL, you can quickly browse the web, or enter the URL
through the main desktop search bar to open the page.
Telephone
This machine supports 2G/3G phone function, support for GSM, WCDMA
standard band, dual sim dual standby, support ordinary SIM card and
Micro-SIM card. After loading the correct phone card, then connect to the
network, you can call. Click to enter the phone function applications.
Details as follows:
User Manual
- 23 -
Messaging
Click to enter the messaging application. Users can refer to SMS
related operations to explore. Below is the new massage interface.
For more information please check our website
www.mpmaneurope.com
