Precautions
This manual contains important safe measurements and
correct operational information, so please read all the
information carefully before you use the device in order to
avoid any unexpected accidents.
Do not put the player in high temperature, humidity
or dust place (over 40℃), especially not in the cars
with window closed in summer.
Do not knock or hit the player, especially do not
shake TFT screen in order to avoid TFT being
damaged or displayed abnormally.
Select suitable volume, turn down or stop use when
you feel tingle in ears.
Battery service lift may be various from different
using conditions, manufacturer and manufacturing
time.
Do not disconnect the player abruptly during the
formatting or uploading and downloading, otherwise,
it will cause the program error.
We will not be responsible for any obligation for any
memory loss caused by product damage, repair or
other reasons. Please operate correctly as per the
manual.
The player, no matter is powered on or not, once
connected with the USB port of started computer,
can be charged.
Do not dismantle the player personally or use alcohol,
thinner or benzene to clean the surface of the player.
Do not use the player in the electronics-prohibited
area, such as in the plane.
Do not use the player when driving or walking in
order to avoid traffic accidents.
Before charging, please turn off the MP3 player,
otherwise it will cause MP3 player abnormal working;
5
Please charge in the following conditions:
A. Battery electricity icon displays no electricity.
B. When the system show power used up warning,
C. No response with the pressing keys.
D. The player shows “Good-Bye” automatically.
※Our Company reserves the right for the improvement of
the product. It is subject to any change on the specifications
and designs without further notice!
Characteristics
1.8-inch full-color TFT display (160X128)
Slim design with Micro SD card slot
Multi music formats as MP3, WMA and WAV, good
timber and real audio frequency display
Movie function, full-screen play display
High-definition JPEG,BMP picture browse function
Microphone record
Energy-saving setting, brightness adjustable
Good timber, support 3D EQ surrounding effect,
customized EQ
Support multi languages
USB2.0 high speed
E-book function with bookmark function
Firmware Upgradeable
6
Player description
1. Power on/off or Lock
on/off
2. Earphone Jack
3. Micro USB Jack
4. “+”: Volume + and
moving up
5 <“ : Previous
Long touch “<“: Fast
backward playing
6. “-”: Volume - and
moving down
7. “>”: Next
Long touch “>”: Fast
forward playing
7
8. “ ”: Confirm / Enter
into submenu, play and
pause
9. “M”: Short touch: Exit to
superior menu / Back
10. Micro SD card slot.
Touch key function description:
“+”: Volume + and moving up
“-”: Volume - and moving down
“ ”: Confirm / Enter into submenu, play and pause
“M”: Short touch: Exit to superior menu / Back
“>”: Next
Long touch “>”: Fast forward playing
“<“ : Previous
Long touch “<“: Fast backward playing
Forward / backward under movie playing status:
Because the touch keys are very sensitive and in order to
avoid wrong operation, please pause the movie playing first
if you want to forward or backward playing, then keep
touching “>” or “<“ to get it.
Finger Touch operation:
Because the touch keypad is sensitive, it is very important
for user to touch the keys in a correct way, please follow the
operation as below:
! Important Note:
Because touch pad keys of MP3 player is very sensitive,
during using, if your fingers don't touch the keys on the
correct position, sometime touch keys can't work
normally. So please put your finger correctly on the keys,
especially do not touch the position between any two or
three keys.
Static electric will also affect the touch key working, but
it won't damage MP3 player. Try to touch keys more
times, it will resume to work
8
Main Menu
9
Basic Operation
Power On/Off
z
*Important: If your MP3 player is blocked or doesn’t
work, please Reset it and after two seconds, restart it
again.
Hold On/Off
Hold On: Short press the ”Power” button for 1 second, the
lock icon will show on the screen.
Hold Off: Short press the ”Power” button for 1 second, the
lock icon will disappear from the screen.
Power Reset
If your player is blocked during using, you can use a tiny pin
to press the RESET key at the top of MP4 player and restart
the player.
This player adopts built-in lithium batteries of high capacity.
Long pressing the power keys for three seconds,
the MP4 player will be powered on.
Long pressing the power keys for three seconds
when MP4 player is on, the player will be
powered off.
Battery
Full Partially used To be used Used up
10
The usable time of battery electricity may be various
according to different volume, type of playing file and
pressing operation. The player can save battery as per the
set [Customized Power Off Time] or [Display Setting].
Music
Select “Music display” in main menu and touch “ ” to enter
into music playback status.
Touch “M” key to exit to main menu.
Video
Select “Video” in main menu and touch “ ” to enter into
Video playback status.
11
Touch “M” key to exit to main menu.
Select “FM” in main menu and touch “ ” to enter into FM
radio status. Then touch “ ” again, It will enter into FM
submenu automatically first. (FM submenu includes:
Manual, Auto, Mem, Preset, Del )
Touch “ ” key to select: Manu, Auto, Memo, Pres, Del and
enter into FM program.
Manual:
Select the “Manu”, then you can scan the frequency
manually station by touching the “>” and “<” icon.
Auto:
Select the “Auto scan”, it will scan FM channel and save
them automatically.After auto scan complete, touch the “>”
or “<” to select channel,
Memory:
If you want to save FM channel, touch “M” to exit to FM
submenu and select “Mem” and touch play key to choose
channel to save the FM channel.
Radio
12
Preset:
Touch “ ” to enter into “Pres” , you will see the FM channel
you preset or saved before, touch “>” and “<” to choose the
channel you prefer.
Del:
Delete the saved channel. There will be a window popped
up to ask for confirmation of “Yes” or “No”, touch “ ” to
confirm your choice.
Note:
In FM mode, the earphone is used as antenna, so
please keeping the earphone is connected well.
In main menu, select “Photo” and touch “ ” icon to enter
into photo browser, touch “>” / “<“ to see next / previous
photos.
Text
Download TXT File
Download the file and save the file as TXT format into your
MP3 player.
Read File
Touch “ ” to enter into Text files, then short press “ ” key
to read. Scroll pages by touching “^” or “v“ keys.
13
Store Bookmark
When you are reading the book, touch the “<” icon and “ ”
to save the bookmark, there are total eight bookmarks can
be saved. Touch “ ” to confirm and save bookmark in the
current page. Short touch “M” to exit saving.
Touch “<” to save bookmark, use “^” or “v“ to select the
bookmark, and then touch “ ” to confirm. Touch “>” to
load saved bookmark.
Record
Touch “ ” to start recording and touch “M” to complete
recording and save the recorded file. After saving, it will
prepare next recording again.
REC Setup
In Stop state of REC mode, long press [MENU] key to exit
the Main interface, and enter “Setting” option, and select
“record” adjust the settings among [REC Quality]/[REC
Volume].
1. REC Quality: High quality, general quality (the first
one has larger REC file and better effect; the second
one is in the opposite)
After enter into “Record” status, you will see the interface as
following:
14
2. REC Volume: Five options of +1, +2, +3, +4 and +5.
The higher level, the larger recorded volume.
*When recording, please disconnect earphone to
improve the recording effect ;
*The recorded voice files can be found in Music Play menu
and play to try the effect.
*If the screen displays “Full Space”, it indicates that there is
no space for new recorded file, please delete other files to
release more space.
Explorer
Navigation is a resources manager which can help you to
know all files in MP3 player for convenient management.
You can select the music, movie or text file to enjoy it
directly. For example:
Bluetooth setting
After you enter into Bluetooth menu, the Bluetooth will
automatically turn on and search Bluetooth devices. BT
devices will show in PAIRED DEV LIST.And then you can
choose the Bluetooth device to connect.
Turn on/off Bluetooth function: Touch “>” and “<” button;
Scanning Bluetooth device: Long press “ ” button;
Delete Bluetooth device: Long press “M” button;
*Important: Bluetooth just support Music playback
mode. BT function will automatically turn off when end
user use Video, Picture, Radio and Record functions.
15
Settings
Music Setup:
1) Repeat mode:
Once: Stop when every one song is played over
Repeat 1: Repeat a single song
Folder once: Stop after finishing playing songs in one
subfolders
Folder Repeat: Repeat songs in subfolders
All Once: Stop after playing all songs
All Repeat: Repeat all songs continuously
Intro: Play the first 10 seconds of songs in the current folder.
Under Folder once and Folder Repeat mode, the MP3
player will recognize the songs in root folders first and
default play them once or repeat them continuously. If you
want to play songs in other subfolders, please enter into
from “Navigation” first and select songs in other subfolders
and play it, then MP3 will play all songs in this folder.
2) Play mode:
Order: Play music or movie one by one in order
Shuffle: Play music or movie randomly
3) EQ select: Normal, 3D, Rock, Pop, Classic, Bass, Jazz,
16
User EQ.
User EQ operation:
After choosing User EQ, touch “>” “<” key to shift to the
frequency one by one (60Hz / 300Hz / 1KHz / 3KHz / 6KHZ)
you want to adjust and adjust dB by “^” or “v“ key, touch “<”
‘’>”to shift to “Yes” or “No”, then touch “ ” to confirm or
cancel.
FM radio setup:
1) Stereo SW: Turn on or off the Stereo effect
2) FM Region: Choose your country or area to get better FM
frequency
Record setup :
(please see page12 to know detailed description)
Including Text auto browse and Photo auto browse, there
are 1 second to 5 second optional for time staying.
Display setup:
1) Blight Time: Setup the backlight time of TFT screen
except movie and charging status.
2) Lum: Setup the brightness level. There are 1 to 5 level to
choose. The higher level, the brighter it is.
3) Backlight mode: two options of Normal and
Auto Browse:
17
Electricity-saving modes.
System setup
1) About:: It shows the information of Firmware version,
Date and Memory capacity.
2) Firmware Upgrading
Touch “ ” to see the window as following:
it reminds you whether to upgrade the firmware, it will exit if
no firmware upgrading.
3) Defaulted Set
Reset your MP3 player back to defaulted setting. Touch “ ”
to pop up the window as following:
Languages:
Setup your languages of interface, there are 21 languages
including:
Chinese Simple, Chinese Big5, English, Korea, Japanese,
Spanish, French, Deutsch, Italian, Portuguese, Russian
Choose “Yes” or “No” and touch “ ” to confirm.
18
( Pyccknn )
Connecting with computer
The player has a high-speed USB2.0 port, supports the
systems including Windows98 (it needs to install the driver),
over W indows2K (it’s unnecessary to install the driver), Mac
OS 10.3 and over, Linux Redhat 8.0 and over. It supports
USB power supply and can be played without battery. After
connecting to the PC (several seconds later), the player will
display the connecting mode as following:
If the battery is too low, the display will shows “Low
battery to power off”. Please turn it off and you can use
USB CABLE to charge the battery from computer.
During charging, the battery icon will display as following.
After the charging, the battery electricity will shows full grids
(Fig.). It requires 3 hours to charge fully the battery (note:
for the first two times using, please make sure to charge for
8 hours).
USB Display Mode
Charging Battery Mode
19
Download operation of WMA music with DRM
On W indow 98SE/ Window ME / Windows 2000/ Windows
XP, WMA music with DRM should be transferred by
Windows Media Player 9.0 and 10.0 version (10.0 version
for W indows XP only) to MP3-Player
Other download operation probably will cause
MP3-Player can not read the WMA music with DRM file.
Operation introduction:
On W indow 98SE/ Window ME / Windows 2000/ Windows
XP, user should upgrade Windows Media Player to 9.0 or
10.0 version ( 10.0 version only for Windows XP).
A) On Windows Media Player 9.0 version : (Window
98SE/ Window ME / Windows 2000/ Windows XP)
1) Connect your MP3.Player to PC
2) Open Windows Media Player 9.0
! Warning:
1. Before charging, please turn off mp4 player,
otherwise it will cause MP3 player abnormal working;
2. If you want MP4 working during charging when
connecting computer, please remove the USB disk
protection to MP3-Player
20
3) In Windows Media Player 9.0 , open the desired WMA
music with DRM
System maybe request to download the license in case if
user does not download the WMA music with DRM properly
from the website .
In this case, user need download the license from music
publisher as instruction of Microsoft Website.
4) In operation windows , click “File ”
“Copy” “Copy to
Portable Device”
5) In the opening windows , choose the desired WMA music
with DRM as step 2)
And choose “Removable Disk”
21

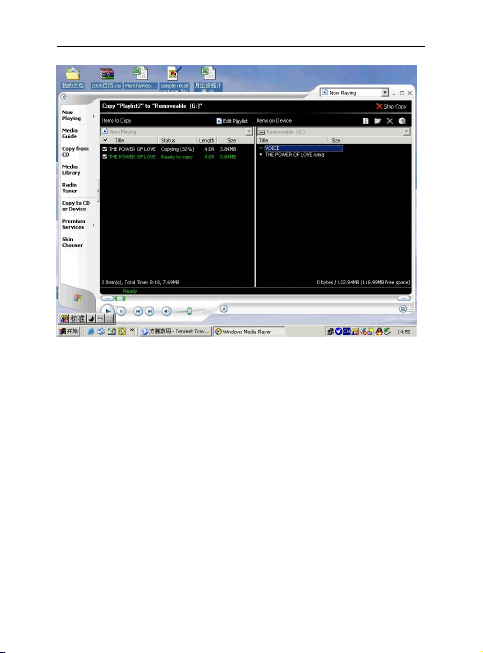

6) Then click Icon “Copy ” to transfer the WMA music with
DRM to your MP3-Player
22
7) Safely remove your MP3-Player from PC
B) On Windows Media Player 10.0 version (Windows XP
only)
1) Connect your MP3-Player to PC
2) Choose the desired WMA music with DRM
23
3) Click Right button of mouse and choose “Add to Sync
list”
24
4) On the open windows , choose “Sync ” option
25
5) On “Sync ” window , choose the desired WMA music
with DRM as step 2)
And choose “Removable Disk”
6) Click “start Sync “ to transfer the WMA music with DRM
to your MP3-Player
26
7) Safely remove your MP3-Player from PC.
Convert and Play Video File
This player can convert the WMV, RM, AVI, VOB or DAT
into AVI video format via the attached video convert
software in CD driver.
1. Click and run the program of “AV Converter.exe”, shown
as follows:
27
2.click "add ", show dialog as follows:
3.Select and set your desired parameters, select your
desired video/audio file and AVI video file routine to be
generated, save it and close the window. Then click
[Start to Convert] button, it begin to convert to AVI file.
28
4.The successfully converted AVI video file can be played in
MP3 player.
Upgrade Player Driver
The player can be upgraded or resume the damaged player
driver via the firmware software in the attached CD.
1. Run the Setup.exe in the folder named “Update tool” in
the CD driver, just follow the dialogue to finish installation.
2. Then click the “Start” of windows operation system, in
“All programs” submenu, you will find a program named
“ Consumer update ”, choose it and run the file “Firmware
update”, the window will pop out as following:
then click “Open” and select “Firmware.rfw” file in the CD
29
(the Interface is as follows)
3. Power on your MP3 player enter into “Settings” and
select “System”, choose “Upgrade” item, you will be asked
“Firmware upgrade?”, choose “Yes”, then connect the
player to PC via USB cable. After 3 seconds, click [Update]
till the Auto Upgrading is achieved.
4. After upgrading is completed, disconnect your MP3 with
computer, re-power on it, you will see “System Init…”, that
5. Now connect MP3 player with computer again, click this
means MP3 player start to initialize the system. After it is
completed, you will see MP3 player’s main menu again.
removable disk, you will see the window that asking you to
format removable disk, click “Yes” and start formatting, after
30
formatting is completed, you can download files and use it
Note: Firmware upgrade is to improve and optimize the
performance of the player. The normal work of the player
would not be affected even if the firmware isn’t upgraded.
The wrong operation of upgrading firmware would cause
the device not to work normally! The firmware upgrade
software of this player is not applied to other series of
players.
Troubleshooting
If the player can not be played normally, please check as
follows:
Troubles Causes
It cannot be turned
on
Check whether the player is powered on
or not and whether the machine program
is damaged or not
The player is
blocked
Push the power switch to restart the
player
It can not be played
Check whether the machine is powered
on or not
Confirm the volume is not in “0” level,
check the earphone is connected well
and keep the earphone clean
Format the disk again
It can not
upload/download
the file or the disk
can not be found in
computer
Insert USB cable totally well after the
Power on. Correctly install the driver
again.
It can not be
recorded
Check the enough memory and the
electricity
Words on display
are deformed
Make sure that you have selected the
correct language
again.
31
It can not be used
normally after
upgrading
Upgrade again in Windows 2000
MPmanager
For movie and music synchronization and conversion, use
MPMANAGER software included in device memory.
This software can be used also for update of device.
MPmanager manual is included in device memory.
Specifications:
Items Specificaons
Dimensions 86×40×10.5 mm (W*H*D)
TFT colored display
1.8inch TFT; 65K real color display,
Diagram (160 x 128)
Language support Mulple languages
Data transmission
speed
High speed USB2.0
Read: 4Mbps, Write: 1Mbps
Supportable file
format
Music:
MP3: 8K bps – 320K bps
WMA: 32K bps – 320K bps
WAV; 64kbps / 256kbps
Picture: JPEG
Supportable video
format
.AVI (All formats should be converted
to .AVI format by afforded firmware)
S/N 85dB
Frequency response 20Hz-- 20KHz
Max. output power 10mW + 10mW
Flash memory 2GB/4GB/8GB
Power supply 3.7V li-ion baery
Usable me of
baery
Video play: 3.5 hours
MP3 play: 12hours (power save mode)
Working temperature5℃to 40
℃
Supporng operang
system
WIN2K/XP,Mac OS 10.4.6
Weight About 32g
Accessories
User’s Manual, earphone, USB cable,
installaon CD disk
32
33
ALL INFORMATION IS SUBJECT TO BE CHANGED
This symbol bears the selective sorting symbol for waste
electrical and electronic equipment(WEEE). This means
that this product must be handled pursuant to European
Directive 2002/96/EC in order to be recycled or dismantled
to minimize its impact on the environment.
Electronic products not included in the selective sorting
process are potentially dangerous for the environment and
WITHOUT PRIOR NOTICE!
Recycling
34
human health due to the presence of hazardous
substances.
For more information please check our website
www.mpmaneurope.com
Loading...
