Mpio DMK PLUS User Manual

<HS100> User's Guide

Date of Publication : Oct. 2003
Date of First edition : Oct. 2003
Publishing Company : Digitalway, Inc.
Address of China Branch :

23F-G Hudu Mansion, NO.838 Zhangyang Road Pudong,

Shanghai (Zip: 200-122)
Tel : [phone]
Fax : [phone]

© 2003 Digitalway, Inc.

User ’s Guide

DMK+

designing your digital dream

The contents of user's guide could be changed without prior notice, depending on

updates and changes in specification, etc.

Please read all instructions in the user's guide before using the player.

English

Chinese

English

3

Table of Contents

English

2

Thanks for your purchasing MPIO DMK+. This Manual pro­vides you with the method of operation and caution. Be
sure to read this manual before using this product. MPIO
will always try to make better product.

Any form of imitation, copying, reproduction or translation in
part or in whole of both the product and its accompanying
documents or shrinking the product in such a form as to be
read by electronic means without Digitalway's prior consent
is prohibited by the Copyrights Act.

• Microsoft, Windows, Windows Explorer, and Windows
Logo are trademarks or registered trademarks of Microsoft
Corporation.

• Intel & Pentium are registered trademarks of Intel
Corporation.

• Macintosh, Macintosh Logo is trademarks or registered
trademarks of Apple Computer, Inc.

• The system and products appearing in this manual are
covered by trademarks or registered trademarks of each
company or organization concerned; the mark

TM

or ® is

not always indicated.

Designing Your Digital Dream

1. What is MP3 Player / 04

2. Technical Specifications /

05

3. Computer Requirements /

05

4. Warning / 06

5. Accessories Included with
your DMK+ / 07

6. Control's Overview / 08

7. Inserting the Battery / 09

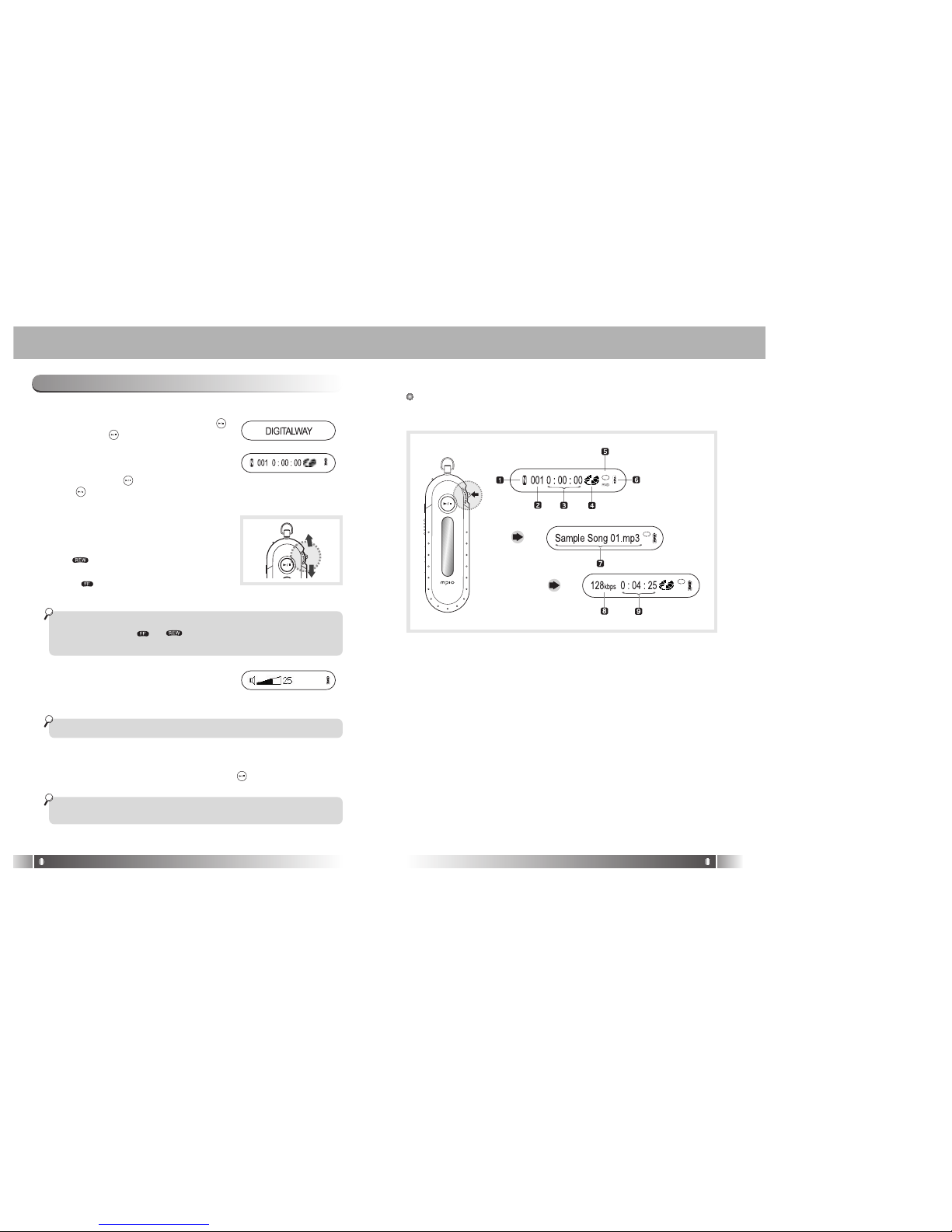

8. Listening to the Sample
Music / 10

(1)

Turn On the MPIO

/ 10

(2) Select the File / 10
(3) Volume Control / 10
(4) Turn Off the MPIO / 10
(5) LCD Display / 11

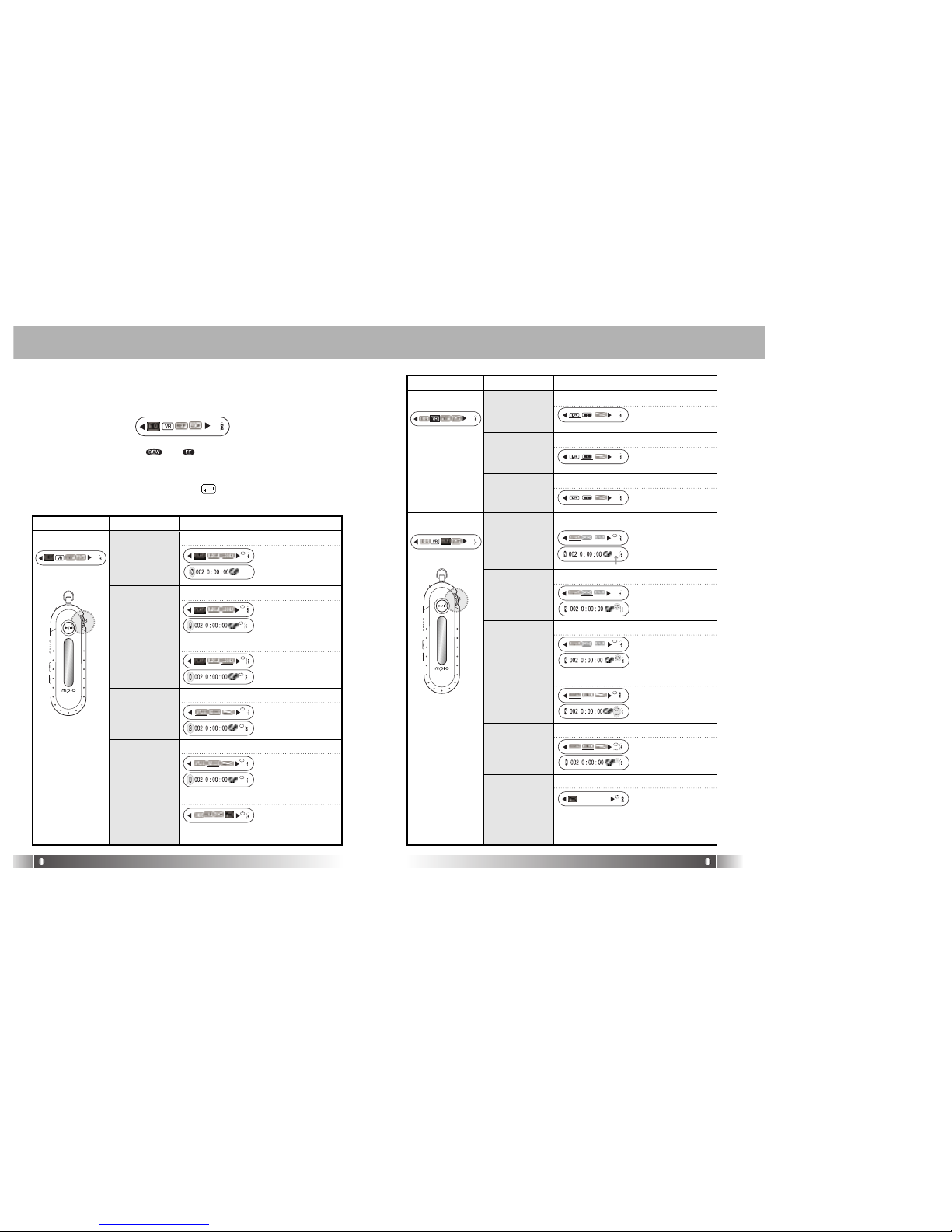

(6) Menu Setup / 12
(7)

Repeat Segmentation

/ 15

(8) Voice Record / 15

• MPIO DMK+

1. MPIO Manager 2
Installation / 16

2. Connecting MPIO to the
Computer / 18

3.

When MPIO is not connected
to the Computer

/ 18

4. How to use MPIO Manager
2 / 20

1)

Control’s Overview

/ 20

2) Menu Table of MPIO

Manager 2 / 22

3)

Basic Function

/ 23

4) Application Function for

Power User / 25

5)

How to use MPIO Audio

/ 26

• MPIO Manager 2

1.

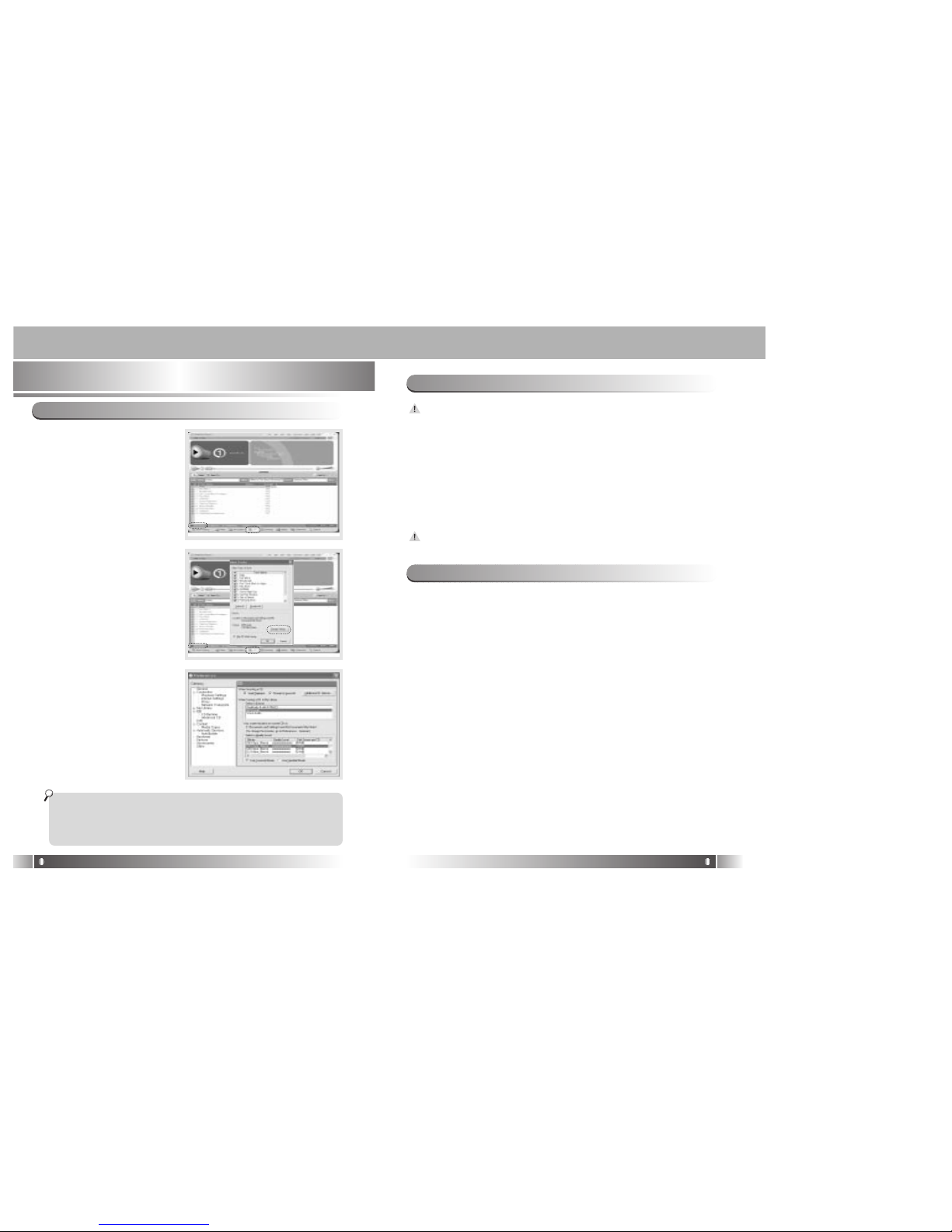

MP3 File Creation(Ripping)
From Audio CD / 28

2. Macintosh iTunes Plug-in
Installation / 28

3. Troubleshooting / 29

• Other Information

English

5

English

4

1. What is MP3 Player

MP3 Player is a device plays mp3 file, known to the general pub­lic as a digital audio format. You can listen to music by download­ing mp3 files stored on the Computer to the MP3 Player.

In order to download music to the MP3 Player;

1. Install MPIO Manager 2 of the Install CD in the computer.
(Refer to the Page 16)

- MPIO Manager 2 is the Communication Window between the
computer and MP3 Player.

2. Connect the the MP3 Player to the computer with the supplied
USB cable.

3. Through MPIO Manager 2, music files stored on the PC is
downloaded to the MP3 Player. (Refer to the Page 23)

UP

Model
Decoding Format
Memory Capacity
LCD
File Transfer Speed
Earphone Output
Power
S/N Ratio
THD
Output Frequency Range
Battery
Maximum Playing Time
Dimensions/Weight

MPIO DMK+
MP3/WMA/ASF
64/128/256 MB
1Line Graphics LCD

(With Violet EL Backlight)

Maximum 4.5 Mbps
10mW (R:5mW, L:5mW)

85dB

0.1%
20Hz ~ 20KHz

1.5V AAAType Alkaline Battery 1EA
13 hrs (MP3 file played with 128kbps)
88(W) x 29(H) x 23(D)mm / 29g

(Without Battery)

2. Technical Specifications

• MPIO DMK+

The basic system requirement of the computer to use MPIO &
supportable operating system.

• IBM PC

- Main Body: USB Interface (Rev 1.1) Standard Equipment &
CD-ROM Driver Mounted

- CPU Pentium: above 133MHz

- Memory: above 64MB

- Available Hard Disk Space: above 20MB

- Operation System Supported: Windows 98/ME/2000/XP

• Macintosh

- Main Body: USB Interface (Rev V1.1) Standard Equipment &
CD-ROM Driver Mounted

EX) Power Mac G3 (Blue&White)/G4/G4 Cube, iMac/iBook,

Powerbook, Powerbook G4

- Memory: above 64MB

- Available Hard Disk Space: above 20MB

- Operation System Supported: Mac OS Version 9.x later

Connecting MPIO player to the PC via USB Hub & Extension
Cord may cause the failure of Device, operation.

3. Computer Requirements

English

7

4. Warning

English

6

You should be fully aware of the notice below, before using
the product.

The company does not take the responsibility for the defect
of the product (accessory, connecting device etc.), damage,
data loss, accident & disorder etc., occurred from not fully
understanding the notice below, so please be sure to check
this notice.

1. Do not use the product for the other purpose except for the matters
described in the manual.

2. Pay attention not to hurt your hand while you touch a product box, manu­al, accessory etc. Keep the manual to use at any time.

3. Pay attention not to have a severe impact on the product, might cause a
trouble or a damage.

4. Pay attention not to use the device or leave it alone in places with high
temperature and humidity or of big thermal difference, and by the strong
magnetic field.

5. Do not spill any liquid (water, beverage etc.) on this device.

6.

The device that you discretionary disassembled or remodeled can be exempt­ed from the free service, so pay special attention to this.

7. The company does not take the responsibility for data loss caused by the
defect of the product, failed operation and other reasons, so pay attention
to this.

8. Check the polarity (+,-) of the battery when you insert a battery into the
device.

9. Try not to injure you nail or not to be scratched by the edges when you
open the battery cover.

10. Remove the battery when not in use. Leakage of battery might cause a

damage on device.

11. Pay attention not to use the earphone continuously for many hours that

might cause a hearing problem.

12. Please plug or unplug the earphone and cable by holding the plugs not

by pulling out the earphone or cable, to prevent internal line breaking.

13. When you plug the USB cable into the computer or device, please check

again the direction of plugging it. In case the USB cable is plugged in the
wrong way, the computer or the device might be damaged.

14. Do not leave the USB cable plugged into the computer.

15. Do not give an impact to the connected part while the USB cable is con-

nected to the device.

16. Remember not to leave USB cable to be connected to the device and

the computer

17. Maintain and keep clean the USB connection of the device.

18. When the device is covered with foreign particles, please wipe off it with

soft cloth or clean towel and be careful not to use chemicals.

5. Accessories Included with your DMK+

+

DMK Installation CDUser’s Guide

USB Cable Belt ClipNecklace Type

Earphone

AAA type battery Arm Band

English

9

6. Control's Overview

English

8

[Front Panel]

1. USB Port

2. Earphone Jack

3. Hold Slide

4. LCD

5. Volume Button

6. Play/Pause Buttton

7. Jog Button

8. MIC

[Rear Panel]

8. The Hole For Necklace Type Earphone

9. Battery Case

[Front Panel] [Rear Panel]

7. Inserting the Battery

1. Slide the battery
cover in the
direction of the
arrow.

2. Insert "AAA" type
battery with the
correct polarity.

3. Close the
cover and slide
it as indicated
until the bat­tery cover
latches.
