MPEG LA 4 ch MPEG-4 User Manual

User

User’’

s Manual

s Manual

English _V0.95

Please read instructions thoroughly before operation and retain it for future reference.

154

IMPORTANT SAFEGUARD

IMPORTANT SAFEGUARD

The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

This exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.

CE Mark

This apparatus is manufactured to comply with the radio interference
requirements.

CAUTION:

CAUTION:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.

Only operate this apparatus from the type of power source indicated on the label.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

RISK OF ELECTRIC SHOCK

Note: Version: 1052-09-I4-04-AA-11; 0038

Note: Any changes of AP, please refer to your distributor.

Note: Any changes of this manual made to the actual product are subjects to no further notification.

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING
MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON­COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY
MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL
INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC.
SEE HTTP://WWW.MPEGLA.COM

.

TABLE OF CONTENTS

TABLE OF CONTENTS

PARTS AND FEATURES

PARTS AND FEATURES

1.1 FEATURES -------------------------------------------------------------------------------------------------------------------------

1.2 PACKAGE CONTENTS ---------------------------------------------------------------------------------------------------------

1.3 SPECIFICATION ------------------------------------------------------------------------------------------------------------------

1.4 FRONT PANEL --------------------------------------------------------------------------------------------------------------------

1.5 REAR PANEL ----------------------------------------------------------------------------------------------------------------------

GETTING STARTED

GETTING STARTED

2.1 GETTING STARTED -------------------------------------------------------------------------------------------------------------

BASIC OPERATION

BASIC OPERATION

3.1 RECORDING -----------------------------------------------------------------------------------------------------------------------

3.2 PLAYBACK -------------------------------------------------------------------------------------------------------------------------

DETAILED MENU CONFIGURATION

DETAILED MENU CONFIGURATION

4.1 MENU TREE ----------------------------------------------------------------------------------------------------------------------

4.2 MAIN MENU OPTIONS_ RECORD -----------------------------------------------------------------------------------------

4.3 MAIN MENU OPTIONS_ TIMER --------------------------------------------------------------------------------------------

4.4 MAIN MENU OPTIONS_ DATE ---------------------------------------------------------------------------------------------

4.5 MAIN MENU OPTIONS_ ADVANCE ---------------------------------------------------------------------------------------

4.6 ADVANCE MENU_ CAMERA ------------------------------------------------------------------------------------------------

4.7 ADVANCE MENU_ DETECTION -------------------------------------------------------------------------------------------

4.8 ADVANCE MENU_ DISPLAY ------------------------------------------------------------------------------------------------

4.9 ADVANCE MENU_ ALERT -----------------------------------------------------------------------------------------------------

4.10 ADVANCE MENU_ REMOTE ------------------------------------------------------------------------------------------------

4.11 ADVANCE MENU_ SYSTEM -------------------------------------------------------------------------------------------------

4.12 ADVANCE MENU_ NETWORK ---------------------------------------------------------------------------------------------

4.13 ADVANCE MENU_ BACKUP ------------------------------------------------------------------------------------------------

4.14 ADVANCE MENU_ HDD INFO ----------------------------------------------------------------------------------------------

4.15 ADVANCE MENU_ EVENT LOG -------------------------------------------------------------------------------------------

ADDITIONAL OPERATION

ADDITIONAL OPERATION

5.1 SEARCH -----------------------------------------------------------------------------------------------------------------------------

5.2 KEY LOCK --------------------------------------------------------------------------------------------------------------------------

5.3 SWITCH THE N/P SYSTEM ----------------------------------------------------------------------------------------------------

5.4 USB UPGRADE--------------------------------------------------------------------------------------------------------------------

5.5 LICENSED SOFTWARE AP---------------------------------------------------------------------------------------------------­AP BASIC OPERATION --------------------------------------------------------------------------------------------------­AP ADVANCED SETTING -------------------------------------------------------------------------------------------------

Network -----------------------------------------------------------------------------------------------------------­DDNS ---------------------------------------------------------------------------------------------------------------­MAIL ----------------------------------------------------------------------------------------------------------------­FTP -----------------------------------------------------------------------------------------------------------------­DVR-CAMERA SETTING -------------------------------------------------------------------------------------­DEVICE ------------------------------------------------------------------------------------------------------------­DETECTION ------------------------------------------------------------------------------------------------------­NETWORK BACKUP & PLAYBACK ----------------------------------------------------------------------­SEARCH LIST ---------------------------------------------------------------------------------------------------­ALARM ------------------------------------------------------------------------------------------------------------­GENERAL --------------------------------------------------------------------------------------------------------­ACCOUNT --------------------------------------------------------------------------------------------------------­ONLINE USER INFO -------------------------------------------------------------------------------------------­FILE PATH ---------------------------------------------------------------------------------------------------------

5.6 CONNECT TO AP VIA IE BROWSER ---------------------------------------------------------------------------------------

TROUBLE SHOOTING

TROUBLE SHOOTING

6.1 FAQ -----------------------------------------------------------------------------------------------------------------------------------

APPENDIX #1

APPENDIX #1

INSTALL THE HDD -----------------------------------------------------------------------------------------------------------

APPENDIX #2

APPENDIX #2

PIN CONFIGURATION -------------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #33

RS232 PROTOCOL ----------------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #44

RECORDING TIME TABLE -------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #55

COMPATIBLE USB BRAND ------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #66

COMPATIBLE HDD BRAND ------------------------------------------------------------------------------------------------

1
1
2
4
6

7

8
9

10
11
12
13
14
14
15
17
18
19
20
21
22
23
23

24
25
25
26
26
27
32
32
33
34
34
35
35
36
37
38
38
39
39
40
40
41

43
44
45
46
47
48

42

PARTS AND FEATURES

PARTS AND FEATURES

1.1 FEATURES

1.1 FEATURES

1.2 PACKAGE CONTENTS

1.2 PACKAGE CONTENTS

1

MPEG4 DVR Technology

MPEG4 DVR Technology

Compression format provides crystal clear image with real time performance

Multiplex

Multiplex

Allows live display, record, playback, backup, and network at the same time

Long

Long--

Recording Hours:

Recording Hours:

500GB can record more than 18 days. (4CH, Frame Best Quality, 30IPS)

Backup Function:

Backup Function:

Backup files with USB memory stick (For Model 1) and network remote recording & backup

Remote Surveillance:

Remote Surveillance:

Remote surveillance with licensed software AP and IE browser
Web surveillance supports 5 users simultaneously

Intelligent Motion Trigger Recording:

Intelligent Motion Trigger Recording:

With advanced motion detection function, scheduled motion detection recording
(4 different adjustable factors for motion detection sensitivity) and convenient search function,
customized security environment is achieved

Alarm trigger recording will send alert with images to designated e-mail and FTP address
Supports pre-alarm recording (8MB)

Covert Recording:

Covert Recording:

A mask replaces the live image with a blank screen & the monitor shows nothing but recording is still on

A/V Support:

A/V Support:

Supports 2 audio-in, 1 audio-out to record sounds (Model 1)
Supports 1 audio-in, 1 audio-out to record sounds (Model 2)

Supports VGA output to monitor (optional)

General:

General:

Support multi-language OSD
System auto recovery after power reconnected
Support daylight saving function
Support manual / timer / motion / alarm / remote recording functions
Watermark function ensures authentication of recorded images
Support TCP/IP, PPPoE, DHCP and DDNS network connection

NOTE: Please check the package contents to make sure that you receive all accessories shown above.

Licensed Software AP

Adapter

(with two converters: EU & UK)

Accessories Pack

Accessories Pack

Manual & Quick Start

Digital Video Recorder

1.3 SPECIFICATION

1.3 SPECIFICATION

Frame: MJPEG ; CIF: MPEG4

1 audio input,
1 audio output (Mono)

Network Remote Backup

N / A

Model 2Model 1

YesWatermark

Support USB 1.1/ 2.0 USB
memory stick

USB Interface

Support USB 1.1/ 2.0 USB
memory stick and network
remote backup

Backup Device

4 Channels. Composite video signal 1 Vp-p 75Ω BNC Video Loop Out

Yes (8MB)Pre-alarm Recording

4 adjustable variables with precise calculation for motion detectionMotion Detect Sensitivity

16 × 12 grids per camera for all channelsMotion Detection Area

2 audio inputs,
1 audio output (Mono)

Audio I/O

120 IPS for NTSC / 100 IPS for PAL

Frame: 30, 15, 7, 3 IPS <NTSC> / 25, 12, 6, 3 IPS <PAL>
CIF: 120, 60, 30, 15 IPS <NTSC> / 100, 50, 25, 12 IPS <PAL>

Frame: 720 × 480 pixels with 30 IPS〈NTSC〉 /

720 × 576 pixels with 25 IPS 〈PAL〉

CIF: 352 × 240 pixels with 120 IPS〈NTSC〉/

352 × 288 pixels with 100 IPS 〈PAL〉

Refresh Rate

IDE type, ATA66, supported HDD ＊1 , support HDD capacity over
400GB

Hard Disk Storage

Best, High, Normal, and BasicImage Quality Setting

Adjustable Recording Speed

Manual／Timer／Motion／AlarmRecording Mode

Quick clean up the “index system” of the recorded files.
250GB under 2 seconds

HDD Quick Cleaning

Maximum Recording Rate

Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC

Video Output

4 Channels. Composite video signal 1 Vp-p 75Ω BNC Video Input

Frame: MPEG 4 ; CIF: MPEG4Video Compression Format

NTSC / PAL (switch able) Video System

2

 Any changes made to the actual product are subjects to no further notification.

2X digital zoom (live mode)Digital Zoom

Motion JPEGWeb Transmitting

Compression Format

10/100 Base-T. Support remote control and live view via Ethernet Ethernet

Support licensed software AP, and IE browser Web Interface

＜42 W Power Consumption

Specification Continued…

System auto recovery after power reconnectedSystem Recovery

Optional Peripheral

Dimensions (mm)

Operating Temperature

Power Source

Date Display Format

Video Adjustable

Camera Title

Video Loss Detection

Key Lock

Alarm I/O

Dwell Time
(Sequential Channel Switch)

PTZ control

Network Connection

Remote Alarm Notification

4 inputs, 1 output

343mm (W) × 59mm (H) × 223mm (D)

VGA connector

E-mail images, and images uploading to FTP site’s specific account

Support TCP/IP, PPPoE, DHCP and DDNS functions

10℃ ~ 40℃ (50℉~104℉)

Support up to 6 letters

DC 19V

YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off

Hue／Color／Contrast／ Brightness

Yes

Yes

Programmable with adjustable dwell time

Support PELCO-D protocol

3

1.4 FRONT PANEL

1.4 FRONT PANEL

4

 “LED LIGHT”:

HDD: HDD is reading or recording
HDD Full: HDD is full.
ALARM: Once the alarm is triggered
TIMER: When timer recording is turned on
PLAY: Under playing status
REC: Under recording status

 “MENU”:

Press “MENU” button to enter main menu.

 “ENTER”/ “SET”:

Press “ENTER” button to confirm.

Press “SET” to change channel display position.
Press “▲▼◄►“ to select the channel which you like to change,
Press “＋”or “－” select the channel which You would like to show.

Press “ENTER” button to confirm.

 “SEARCH ”:

Press “SEARCH” button to enter the search mode.

 “SLOW ”:

Under playback mode, press “SLOW“ button to show slow playback.

 “ZOOM ”:

Press “ZOOM” button to enlarge the picture of selected channel (under live mode).

 “”/ “－ ”:

Press “ “ button to show the 4 channel display mode.
Press “ － ” button to change the setting in the menu.

5

 “SEQ”/ “＋ ”:

Press “SEQ” button to activate the call monitor function and press “SEQ” button

again to escape the call monitor mode.
Press “＋ ” button to change the setting in the menu.

 “POWER”:

Press this button to turn on / off the DVR.
(Under recording mode, please stop record before turn off the DVR).

 “CH1 ”“CH2 ”“CH3 ”“CH4 ”:

Press “1 ”“2 ”“3 ”“4 ” buttons to select the channel.

 “REC”:

Press “REC” button to activate the manual recording.

 “PLAY”:

Press “PLAY” button to playback the recorded files.

 “UP / PAUSE , DOWN / STOP, LEFT / FAST REWIND, RIGHT / FAST FORWARD“:

Press “▲▼◄►“ to move the cursor up / down / left / right.

Under playback mode, press “ “ button to pause playback.
Under playback mode, press “ “ button to stop playback.
Under playback mode, press “ “ button to fast rewind.
Under playback mode, press “ “ button to fast forward.

 “”:

Press these two buttons to select live or playback sounds of the 2 audio channels.

 “”:

Press these two buttons at the same time to enter / exit the PTZ control mode.

 Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “►“ to switch to PAL system.
(Press the buttons until the monitor show the video image of the DVR.)

 Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “◄“ to switch to NTSC system.
(Press the buttons until the monitor show the video image of the DVR.)

 Press “MENU” + “ENTER” buttons on the DVR front panel to key lock.

1.5 REAR PANEL

1.5 REAR PANEL

6

1) 75Ω / HI:

When using Loop function, please switch to HI. When you don’t use Loop function, please
switch to 75Ω.

2) VIDEO INPUT (CHANNEL 1 - 4) :Connect to video source, such as camera.
LOOP (CHANNEL 1 - 4):Video output.

3) MONITOR:

Connect to Main monitor.

4) CALL MONITOR:

Connect to CALL monitor. Show the channel switch display. When the alarm is triggered, the
call monitor will show the image of the triggered channel for a period of time.

5) AUDIO IN (two audio-in for Model 1; one audio-in for Model 2) :

Connect to audio source, such as camera which equipped with audio function.
When users start the recording function, the audio input will be recorded.

6) AUDIO OUT :

Connect to monitor or speaker.
With 1 mono audio output from the same source.

7) D/V PORT (Digital Video Port):

Connect to VGA connector card.

8) EXTERNAL I/O PORT:

Connect to external device. Control external device or controlled remotely by external device
(alarm input, external alarm).

9) LAN:

Connect to Internet by LAN cable.

10) LINK / ACT LED light:

When the Internet is activated, the LED light will be on

11) POWER:

Connect to provided adapter.

12) USB (For Model 1):

Support firmware update and files backup.

DC 19V

41

75?

HI-IMPEDANCE

1

LOOP

EXTERNAL I/O

INPUT

2

LOOP LOOP LOOP

3

INPUT

4

INPUT

LAN

ACT.

LINK

1

CALLMONITOR

IN

OUT

2

USB

INPUT

VD

/

5

7

2

8

9

11

64

3

1

10

12

Take Model 1 as an example

2.1 GETTING STARTED

2.1 GETTING STARTED

GETTING STARTED

GETTING STARTED

NOTE:

NOTE:
Please refer to Appendix #1 for HDD installation
instructions.

NOTE:

NOTE:
Please refer to “Section 1.5 Rear Panel”
for connection.

NOTE:

NOTE:
Please refer to Appendix#2 for pin configurations
of the external I/O port .

Connecting all the devices to construct a surveillance.

1) Install HDD:
The HDD must be installed
before the DVR is turned on.

2) Connect cameras.

3) Connect monitors.

4) Connect the external devices.

5) Connect the AC power cord to power adapter and plug into an electrical outlet.
The standby LED would be on as red.
Press the “POWER” button. The power LED will be on as red.
It takes approximately 10 to 15 seconds to boot the system.

Channel Title

Available Capacity

of Internal HDD

System Time

Under HDD

Overwrite Mode

2006-MAR-13 [MON] 14:43

420GB

420GB

--OWOW-

-

01

01

02

02

03

03

04

04

●

●

●

●

7

Take Model 1 as an example

Under Recording

2005-MAR-13[MON] 14:43

420GB

420GB

--OWOW-

-

01

01

02

02

03

03

04

04

●

●

●

●

BASIC OPERATION

BASIC OPERATION

3.1 RECORDING

3.1 RECORDING

The DVR offers three recording modes, manual record, event recording, and timer
record. If power is off accidentally, recorded video files will still be stored in the HDD.

DVR will return to original recording status after power is on again.

1) MANUAL RECORDING (continuous recording) :
Recording is initiated by manually pressing the “REC” button.
Indicated by the sign “●”

2) EVENT RECORDING (triggered by motion and external alarm) :
When this functions is activated,
the recording is triggered by motion or external alarm.
Indicated by the sign “ ” and “ ” .

3) TIMER RECORDING (scheduled time) :
Recording is scheduled by Timer. Indicated by the sign “TIMER RECORD”.

NOTE :
When the HDDs are full under O/W
recording mode, previous recorded
files may be overwritten without
further warning notices.

8

3.2 PLAYBACK

3.2 PLAYBACK

Press “ PLAY ” button, the DVR will display the last recording video.

1) FAST FORWARD (F.F. ) & FAST REWIND (REW):

You can increase speed for fast forward and rewind on the DVR.
In the playback mode,
＊ Press “ “ once to get 4X speed forward and press twice to get 8X speed,

… and the maximum speed is 32X.

＊ Press “ “ once to get 4X speed rewind and press twice to get 8X speed,

… and the maximum speed is 32X.

＊ The type of recording image size (Frame or CIF )will also shown on the screen.

2) PAUSE / IMAGE JOG:

Press “ “ button to pause the current image displayed on the screen.
In the Pause mode,

＊ Press “ “ once to get forward by frame change.
＊ Press “ “ once to get rewind by frame change.

3) STOP:

Press “ “ button under all circumstance, it will return DVR to live monitoring mode.

4) CHANNEL SHIFT:

＊ Display mode:

Press MODE “ ” button to 4 channels display.

＊ Full Screen Switch:

Press “1 ”“2 ”“3 ”“4 ” buttons to show the full screen channels.

＊ Channel display switch:

Press “SET” to change channel display position.
Press “▲▼◄►“ to select the channel which you like to change,

Press “＋”or “－” select the channel which you like show.
Press “ENTER” button to confirm.

5) SLOW PLAYBACK:

Model 1: Press “SLOW” button to get 1/4X speed playback and press twice to get 1/8X.
Model 2: Press “SLOW” button to get 1/4X speed playback.

6) AUDIO:

Press “ ” to select live or playback sounds of the 2 audio channels.

＊ AUDIO 1 (L) ; AUDIO 1 (P)
＊ AUDIO 2 (L) ; AUDIO 2 (P) L: Live audio; P: Playback audio

9

DETAILED MENU CONFIGURATION

DETAILED MENU CONFIGURATION

4.1 MENU TREE

4.1 MENU TREE

10

DATE:

DATE:

YEAR MONTH DAY

YEAR MONTH DAY

FORMAT: Y

FORMAT: Y--MM--D D ……

TIME:

TIME:

HOUR MIN SEC

HOUR MIN SEC

MENU

MENU

RECORD

RECORD

TIMER

TIMER

DATE

DATE

ADVANCE

ADVANCE

TITLE

TITLE

BRIG

BRIG

CONT

CONT

SATU

SATU

HUE

HUE

COV

COV

REC

REC

CAMERA

CAMERA

DISPLAY

DISPLAY

REMOTE

REMOTE

NETWORK

NETWORK

MANUAL RECORD

MANUAL RECORD

ENABLE

ENABLE

EVENT RECORD

EVENT RECORD

ENABLE

ENABLE

TIMER RECORD

TIMER RECORD

ENABLE

ENABLE

OVERWRITE

OVERWRITE

RECORD IMG SIZE

RECORD IMG SIZE

RECORD QUALITY

RECORD QUALITY

MANUAL RECORD

MANUAL RECORD

IPS

IPS

EVENT RECORD

EVENT RECORD

IPS

IPS

TIMER RECORD

TIMER RECORD

IPS

IPS

TOTAL IPS SHARE

TOTAL IPS SHARE

DATE

DATE

START

START

HH : MM

HH : MM

END

END

HH : MM

HH : MM

ALERT

ALERT

BACKUP

BACKUP

EVENT LOG

EVENT LOG

HDD INFO

HDD INFO

TITLE DISPLAY

TITLE DISPLAY

DATE DISPLAY

DATE DISPLAY

HDD INFO

HDD INFO

LOSS SCREEN

LOSS SCREEN

PLAYBACK

PLAYBACK

INFO

INFO

DWELL

DWELL

DURATION

DURATION

(SEC)

(SEC)

DEDE-

-

INTERLACE

INTERLACE

EXT. ALERT

EXT. ALERT

INT. BUZZER

INT. BUZZER

KEY BUZZER

KEY BUZZER

VLOSS BUZZER

VLOSS BUZZER

MOTION BUZZER

MOTION BUZZER

ALARM BUZZER

ALARM BUZZER

ALARM DURATION

ALARM DURATION

(SEC)

(SEC)

HDD BUZZER

HDD BUZZER

HDD NEARLY FULL

HDD NEARLY FULL

(GB)

(GB)

SYSTEM

SYSTEM

SERIAL TYPE

SERIAL TYPE

BAUD RATE

BAUD RATE

HOST ID

HOST ID

PASSWORD

PASSWORD

RESET DEFAULT

RESET DEFAULT

CLEAR HDD

CLEAR HDD

UPGRADE

UPGRADE

VERSION

VERSION

VIDEO FORMAT

VIDEO FORMAT

LANGUAGE

LANGUAGE

AUTO KEYLOCK

AUTO KEYLOCK

WATERMARK

WATERMARK

DAYLIGHT SAVING

DAYLIGHT SAVING

TITLE

TITLE

DET

DET

AREA

AREA

LS

LS

SS

SS

TS

TS

RE

RE

ALARM

ALARM

DETECTION

DETECTION

TITLE

TITLE

DEVICE

DEVICE

ID

ID

PROTOCOL

PROTOCOL

RATE

RATE

MONITOR

MONITOR

OUT

OUT

DETECTION

DETECTION

TIMER

TIMER

PRE

PRE--

ALARM

ALARM

This USB backup function
is only for Model 1

OSD

OSD

4.2 MAIN MENU OPTIONS___RECORD

4.2 MAIN MENU OPTIONS___RECORD

Move the cursor to the “RECORD”, and press ”ENTER”, then the screen will show the
following options.

1) MANUAL RECORD ENABLE:
Start / Stop the manual recording function.

2) EVENT RECORD ENABLE:
Start / Stop the event recording function. When this functions is activated, the
recording will triggered by motion or external alarm

3) TIMER RECORD ENABLE

:

Start / Stop the timer recording function.

4) OVERWRITE:
Select to overwrite previous recording video in HDD. When the HDD is full under O/W
recording mode, previous recorded files will be overwritten without further warning
notices.

5) RECORD IMG SIZE:
There are two recording options, FRAME and CIF. When change record image size,
user need to stop recording first.

6) RECORD QUALITY:
There are four quality settings: BEST, HIGH, NORMAL & BASIC

7) MANUAL RECORD IPS:
Recording is activated by pressing the “REC” button. Select the images per second of
MANUAL RECORD, The options are as the followings:

NTSC

NTSC: FRAME: 30, 15, 7, 3

PAL

PAL: FRAME: 25, 12, 6, 3

CIF: 120, 60, 30, 15 CIF: 100, 50, 25, 12

(MENU)

►

RECORD

RECORD

TIMER
DATE
ADVANCE

Press “MENU” button to enter the main menu list. The default admin password is 0000.
Enter the default password and press “ENTER”. (Users could alter the password later, please
refer to “Section 4.11 ADVANCE MENU_SYSTEM”

)

Use the following buttons for menu setting:

“▲▼◄► “ to move the cursor.

“＋ , －” to choose the numbers / selections.

“ ENTER “ to go to the submenu / to confirm the selection

“ MENU “ to go to the menu OSD

/ to confirm the change / to exit the menu OSD

RECORD

RECORD

MANUAL RECORD ENABLE
EVENT RECORD ENABLE
TIMER RECORD ENABLE
OVERWRITE
RECORD IMG SIZE
RECORD QUALITY
MANUAL RECORD IPS
EVENT RECORD IPS
TIMER RECORD IPS
TOTAL IPS SHARE

11

8) EVENT RECORD IPS:
Recording is activated by event (alarm and motion trigger). Select the
images per second for EVENT RECORD. The options are as followings:

NTSC

NTSC: FRAME: 30, 15, 7, 3

PAL

PAL: FRAME: 25, 12, 6, 3

CIF: 120, 60, 30, 15 CIF: 100, 50, 25, 12

9) TIMER RECORD IPS:

Recording is activated by timer schedule. Select the images per second for
TIMER RECORD. The options are as followings:

NTSC

NTSC: FRAME: 30, 15, 7, 3

PAL

PAL: FRAME: 25, 12, 6, 3

CIF: 120, 60, 30, 15 CIF: 100, 50, 25, 12

10) TOTAL IPS SHARE:
There are two IPS settings:

FIX

FIX:

IPS per channel = RECORD IPS ÷ 4 channels

GROUP (Suitable for Frame mode)

GROUP (Suitable for Frame mode):

IPS per channel = RECORD IPS ÷ number of channels under recording.

Note: For Model 2, the IPS in frame mode is always fix.

4.3 MAIN MENU OPTIONS___TIMER

4.3 MAIN MENU OPTIONS___TIMER

Move the cursor to “TIMER”, and press ”ENTER”, then the screen will show the
following options.

RECORD

RECORD

DATE START END
OFF 00 : 00 - 00 : 00
DAILY 08 : 00 - 18 : 00
SUN 06 : 00 - 23 : 00
MON-FRI 00 : 00 - 00 : 00
OFF 00 : 00 - 00 : 00
OFF 00 : 00 - 00 : 00
OFF 00 : 00 - 00 : 00

(MENU)

RECORD

►

TIMER

TIMER

DATE
ADVANCE

12

4.4 MAIN MENU OPTIONS___DATE

4.4 MAIN MENU OPTIONS___DATE

(MENU)
RECORD

TIMER

►

DATE

DATE

ADVANCE

Move the cursor to “DATE”, and press ”ENTER”, then the screen will show the
following options.

NOTE: The illustrated setting means: During the daylight saving time period (start from the 4thSunday of March,
end on the 4

th

Sunday of October), the DVR system time will plus one hour.

1) DATE:
Select scheduled record day (SUN/MON/TUE/ WED/ THU/ FRI/ SAT/ MON–FRI /
SAT-SUN / DAILY/OFF) to set up timer record schedule.
NOTE 1 : Specific day could be changed by “＋”or “－”button.
NOTE 2 : If you plan to set the timer recording across the midnight, there are two
ways for setting the timer recording schedule, please following the instructions below.
Example 1 :

If you only want to set recording timer schedule from every Sunday 23:30
to Monday 23:30, then you could set recording timer schedule as Sunday from 23:30
to 23:30.
Example 2 :

If you plan to set the timer recording from Sunday 08:00 to Monday
15:00, then you could set the recording timer schedule as Sunday from 08 : 00 to 00 :
00, and Monday 00 : 00 to 15 : 00.
Note: Please turn on “Timer Record Enable” in record menu, refer to P.11.

2) START:
Select the start time for the recording.

3) END:
Select the finishing time for the recording.

DATE

DATE

DATE 2006-MAR-28 13:23:00
FORMAT Y-M-D
DAYLIGHT SAVING ON

1) DATE:
Set the correct time of the DVR ( YEAR / MONTH / DAY / HOUR / MIN / SEC)

2) FORMAT:
There are three formats: Y-M-D, M-D-Y, D-M-Y.

3) DAYLIGHT SAVING:
Specify whether to use daylight saving time and time period. ( START / END)
Daylight saving time can be adjusted manually.
Enter the daylight saving menu mode to set the start time, the end time and
adjust how many hours of the daylight saving.

DAYLIGHT SAVING

DAYLIGHT SAVING

START 4TH-SUN-MAR 01: 00: 00
END 4TH-SUN-OCT 01: 00: 00
ADJUST 01 : 00

13

4.5 MAIN MENU OPTIONS___ADVANCE

4.5 MAIN MENU OPTIONS___ADVANCE

(MENU)
RECORD
TIMER
DATE

►

ADVANCE

ADVANCE

ADVANCE

ADVANCE

CAMERA

DETECTION
DISPLAY
ALERT
REMOTE
SYSTEM
NETWORK
BACKUP
HDD INFO
EVENT LOG

4.6 ADVANCE MENU ___CAMERA

4.6 ADVANCE MENU ___CAMERA

Move the cursor to “CAMERA”, and press ”ENTER”, then the screen will show the
following options.

CAMERA

CAMERA

TITLE BRIG CONT SATU HUE COV REC

01 110 128 128 128 NO YES
02 110 128 128 128 NO YES
03 110 128 128 128 NO YES
04 110 128 128 128 NO YES

1) TITLE:
Move the cursor to the camera title which you want to change, and press
“ENTER” to access the setting screen. Assign each channel a title (up to six
characters (letters or symbols…)), the default title is the channel number.

2) BRIG / CONT / SATU / HUE:
Adjust the Brightness/Contrast/Saturation/Hue of each channel.
The level is from 0 to 255. The default value of BRIG is 110, others are128.

3) COV (COVERT):
Select “YES” to mask the selected channel which is under recording.
When this function is activated, the “COV” words will be shown on the screen.

4) REC (RECORD):
Select “YES” to enable the record function; Select “NO” to disable the record.

5) PREV / NEXT:
Select “PREV” to go to the previous page; Select “NEXT” to go the next page.

14

Move the cursor to “ADVANCE”, and press ”ENTER”, then the screen will show the
following options.

15

4.7 ADVANCE MENU ___DETECTION

4.7 ADVANCE MENU ___DETECTION

Move the cursor to “DETECTION”, and press ”ENTER”, then the screen will show the
following options.

DETECTION

DETECTION

TITLE DET AREA LS SS TS RE ALARM

01 ON SETUP 07 03 02 10 OFF
02 ON SETUP 07 03 02 10 LOW
03 ON SETUP 07 03 02 10 HIGH
04 ON SETUP 07 03 02 10 OFF

DETECTION

DETECTION

DETECTION SETUP
DETECTION TIMER

1) DETECTION SETUP:

a) TITLE:

Show camera title of each channel.

b) DET:

Select “ON” to activate the motion detection function of the selected channel.
Select “OFF” to inactivate the motion detect function of the selected channel.

c) AREA:

Press the “ENTER” button to set detection area.
Pink blocks represent the area that is not being detected while the transparent blocks
are the areas under detection.

Press “ENTER” to confirm the
start area

Press ◄ or ► to choose the
width of the area

Press ◄ or ► to choose the
height of the area, and press
“ENTER” again to confirm.

Multi-detection area

Press “－” to turn all area
under detection

Press “＋” to close all
detection area

16

▲▼◄►: navigates between targets.

d) LS :

The sensitivity of comparing two different images. The smaller the value is,
the higher sensitivity for motion detection.
The highest sensitivity setting is 00 and the lowest sensitivity setting is 15.
The default value is 07.

e) SS :

The sensitivity regarding the size of the triggered object on the screen.(the
number of motion detection grids). The smaller the value is, the higher
sensitivity for motion detection.
The highest sensitivity setting is 00 and the lowest sensitivity setting is 15.
The default setting is 03.

Note: The default setting of Spatial Sensitivity is 03 which means once a object

is detected more than 3 grids. The system will get triggered. So the value
of Spatial Sensitivity must be less than the number of grids that you set up
to motion detection area.

f) TS :

The sensitivity regarding how long the object gets triggered. The smaller
the value is, the higher motion detection sensitivity will be.
The highest sensitivity setting is 00, and the lowest sensitivity setting is 15.
The default setting is 02.

g) RE :

The value of RE is a reference for detection. The default value is 10, which
means DVR will compare 10 continuous images at one time according to
the sensitivity of LS, SS, TS simultaneously. The bigger the value is, the
higher sensitivity for motion detection.

h) ALARM:

Select LOW / HIGH for the alarm polarity. The default alarm value is OFF.

DETECTION TIMER

DETECTION TIMER

DATE START END
OFF 00 : 00 - 00 : 00
DAILY 08 : 00 - 18 : 00
SUN 06 : 00 - 23 : 00
MON-FRI 00 : 00 - 00 : 00
OFF 00 : 00 - 00 : 00
OFF 00 : 00 - 00 : 00
OFF 00 : 00 - 00 : 00

2) DETECTION TIMER:
Set the date, start time, end time of the detection function.

17

4.8 ADVANCE MENU ___DISPLAY

4.8 ADVANCE MENU ___DISPLAY

Move the cursor to “DISPLAY”, and press ”ENTER”, then the screen will show the
following options.

DISPLAY

DISPLAY

TITLE DISPLAY ON
DATE DISPLAY ON
HDD INFO ON
LOSS SCREEN BLUE
PLAYBACK INFO NORMAL
DWELL DURATION (SEC) 2
DE-INTERLACE ON
MONITOR OUT MAIN
OSD SETUP
WATERMARK ON

1) TITLE DISPLAY:
Turn the channel title display on / off.

2) DATE DISPLAY:
Turn the date display on / off.

3) HDD INFO”
Turn on / off the information display of internal HDD.

4) LOSS SCREEN”
Set the color of video loss screen (Blue or Black)

5) PLAYBACK INFO:
Set the position where playback information will be indicated
(center or normal (on the button of left-hand side of the screen)).

6) DWELL DURATION (SEC):
Set the duration time of each channel for CALL MONITOR (2, 4, 8, 16 sec.)

7) DE-INTERLACE:
Set the “DE-INTERLACE” function on / off.

Note:
For Model 2, de-interlace function is always off in the frame quad playback mode.

8) MONITOR OUT

:

Select video output device (Main monitor / VGA output (optional device))

9) OSD

:

Set customized OSD color.

10) WATERMARK:
In the playback mode of the software AP, users could proof the authenticity of the
BACKUP VIDEO. If the BACKUP VIDEO had been modified, the video image will turn to

light red

light red and the playback will be paused.
Please refer to P. 31 for detailed instruction.

Note: This function is always on and non

Note: This function is always on and non--

switchable.

switchable.

18

4.9 ADVANCE MENU ___ALERT

4.9 ADVANCE MENU ___ALERT

Move the cursor to “ALERT”, and press ”ENTER”, then the screen will show the
following options.

1) EXT. ALERT:
Set the sound on / off when external alarm is triggered.

2) INT. BUZZER:
Set the sound of KEY / VLOSS / MOTION / ALARM / HDD FULL on or off.

3) KEY BUZZER:
Set the sound on / off when pressing the button.

4) VLOSS BUZZER:
Set the sound on / off when video loss happened.

5) MOTION BUZZER:
Set the sound on / off when motion alarm triggered.

6) ALARM BUZZER

:

Set the sound on / off when internal alarm triggered.

7) HDD BUZZER:
Set the sound on / off when the HDD is full.

8) HDD NEARLYFULL (GB):
If HDD buzzer is on, you could choose to have a buzzer notification when the
HDD available capacity is only xxx GB left..

9) ALARM DURATION (SEC):
Press “ENTER” or “＋”or “－” button to set the duration time of alarm recording
(5, 10, 20, 40 sec.).

10) PRE-ALARM:
Set the pre-alarm function on (8MB)/ off.
When pre-alarm and event record functions are both activated, the DVR will
record 8MB file before alarm / motion triggered.

ALERT

ALERT

EXT. ALERT ON
INT. BUZZER ON
KEY BUZZER ON
VLOSS BUZZER ON
MOTION BUZZER ON
ALARM BUZZER ON
HDD BUZZER ON
HDD NEARLY FULL (GB) 05
ALARM DURATION (SEC) 05
PRE-ALARM OFF

19

4.10 ADVANCE MENU ___REMOTE

4.10 ADVANCE MENU ___REMOTE

Move the cursor to “REMOTE”, and press ”ENTER”, then the screen will show the
following options.

REMOTE

REMOTE

TITLE DEVICE ID PROTOCOL RATE

01 PTZ 001 P - D 02400
02 CAMERA 002 NORMAL 02400
03 CAMERA 003 NORMAL 02400
04 CAMERA 004 NORMAL 02400

1) TITLE:
Title of each camera.

2) DEVICE:
Select to control normal camera or PTZ camera for each channel.

3) ID:
Set the ID number (0 ~ 255) of PTZ camera.

Note: After connect to PTZ correctly, the default ID of PTZ will be shown on the screen.
Note: Please refer to below instruction “PTZ Connection and Control”

4) PROTOCOL:
Select NORMAL (our protocol) or PELCO-D protocol.

5) RATE:
Set the baud rate of each channel (2400, 4800, 9600, 19200, 57600).

***PTZ Connection and Control: ***

***PTZ Connection and Control: ***

1)

Device

Device: Our own brand PTZ / Pelco-D protocol PTZ

2)

Connection

Connection

: Detailed connection and instructions, please refer to PTZ manual.

Note:

Note:

As for “RS485A and RS485B Port” please refer to “Section 1.5 Rear Panel”, or refer to

“Appendix #2 PIN Configuration”.

3)

Control Mode

Control Mode: Refer to front panel.

4) Detailed PTZ operation, please refer to PTZ manual.

4.11 ADVANCE MENU ___SYSTEM

4.11 ADVANCE MENU ___SYSTEM

Move the cursor to “SYSTEM”, and press ”ENTER”, then the screen will show the
following options.

1) SERIAL TYPE:

Press “ENTER” or “＋”or “－” button to set the control serial type (RS-485, RS-232) of
DVR.

2) BAUD RATE:

Press “ENTER” or “＋”or “－” button to set the BAUD RATE of DVR
(2400, 9600, 19200, 57600).

3) HOST ID:

Press “ENTER” or “＋”or “－” button to set the ID of DVR (0 ~ 255).

4) PASSWORD:
Press “ENTER” to set the password for accessing DVR (admin password or guest
password). Users who use guest password to access the DVR will only allow to view the
live streaming video, sequence display, shift the channel display, and key lock.

5) RESET DEFAULT:
Press “ENTER”, and select “YES” to confirm or “NO” to cancel.

6) CLEAR HDD:
Press “ENTER”, and “YES” to confirm clear HDD or “NO” to cancel.

7) UPGRADE:

(This function is only for Model1.)
(For Model 2, only support upgrade from AP side, please refer to P.27)

Press “ENTER”, and select “YES” to confirm upgrade or “NO” to chancel.

8) AUTO KEYLOCK

:

Set the auto key lock function (Never / 10 sec / 30 sec / 60 sec).

9) LANGUAGE (Support multi-language):
Press “ENTER”, and select the language for the OSD.

10) VERSION:
The firmware version information.

11) VIDEO FORMAT:
The information of the DVR’s video format.

20

SYSTEM

SYSTEM

SERIAL TYPE RS - 485

BAUD RATE 02400
HOST ID 003
PASSWORD SETUP
RESET DEFAULT RESET
CLEAR HDD MASTER
UPGRADE NO
AUTO KEYLOCK NEVER
LANGUAGE ENGLISH
VERSION 1052-09-I4-04-AA-11
VIDEO FORMAT NTSC

For Model 1

For Model 1

4.12 ADVANCE MENU ___NETWORK

4.12 ADVANCE MENU ___NETWORK

21

Move the cursor to “NETWORK”, and press ”ENTER”, then the screen will show the
following options.

NETWORK

NETWORK

NETWORK TYPE STATIC
DNS 61. 66. 138. 53
PORT 0 0 8 0

1) NETWORK TYPE (STATIC):

Select NETWORK TYPE, and press “＋”or “－” button to set the network
type as STATIC, and then press “ENTER” to go to the submenu of the
network. In the submenu of network type, use “＋”or “－” button to set all the
information needed in the DVR. See the illustration below.

2) NETWORK TYPE (DHCP):

The DHCP function needs to be supported by router or cable modem network with
DHCP service. For detailed DHCP setting, please follow the AP (Licensed
Software AP) setup, and then refer to P32 and P33.

3) NETWORK TYPE (PPPoE):

This PPPoE function need to have “username” and “password” from ISP supplier.
For detailed PPPoE setting, please follow the AP (Licensed Software AP) setup,
and then refer to P32 and P33.

NOTE:

DHCP and PPPoE network types need to apply DDNS service to get “Hostname” to
correspond to dynamic IP address. For detailed DDNS setting, please refer to P.33.

STATIC

STATIC

IP 60

. 121. 46. 236
GATEWAY 60. 121. 46. 226
NETMASK 255. 255. 255. 254

22

4.13 ADVANCE MENU ___ BACKUP

4.13 ADVANCE MENU ___ BACKUP

Move the cursor to “BACKUP”, and press ”ENTER”,
then the screen will show the following options.

1) START TIME:
Select the start time of the backup.

2) END TIME:
Select the end time of the backup.

3) AVAILABLE SIZE:
Display the available capacity in the USB.

4) CHANNEL:
Select channels by pressing “ENTER” button to change the symbol in front of the channel
number.
Symbol “X” means that this channel is not selected.
Symbol “●” means that this channel is selected.

5) HDD NUM:
Master HDD.

6) BACKUP TO USB:
Press “ENTER” to start backup the chosen file to USB.

BACKUP

BACKUP

USB BACKUP

Select “USB BACKUP” and then press “Enter”.

NOTE:

NOTE:

c The USB format must be “FAT 32”.
d If the USB is not supported by the DVR, then the “USB ERROR”

message will be shown on the screen.

e We recommend to clear all the files in the USB before you backup

files in your USB.

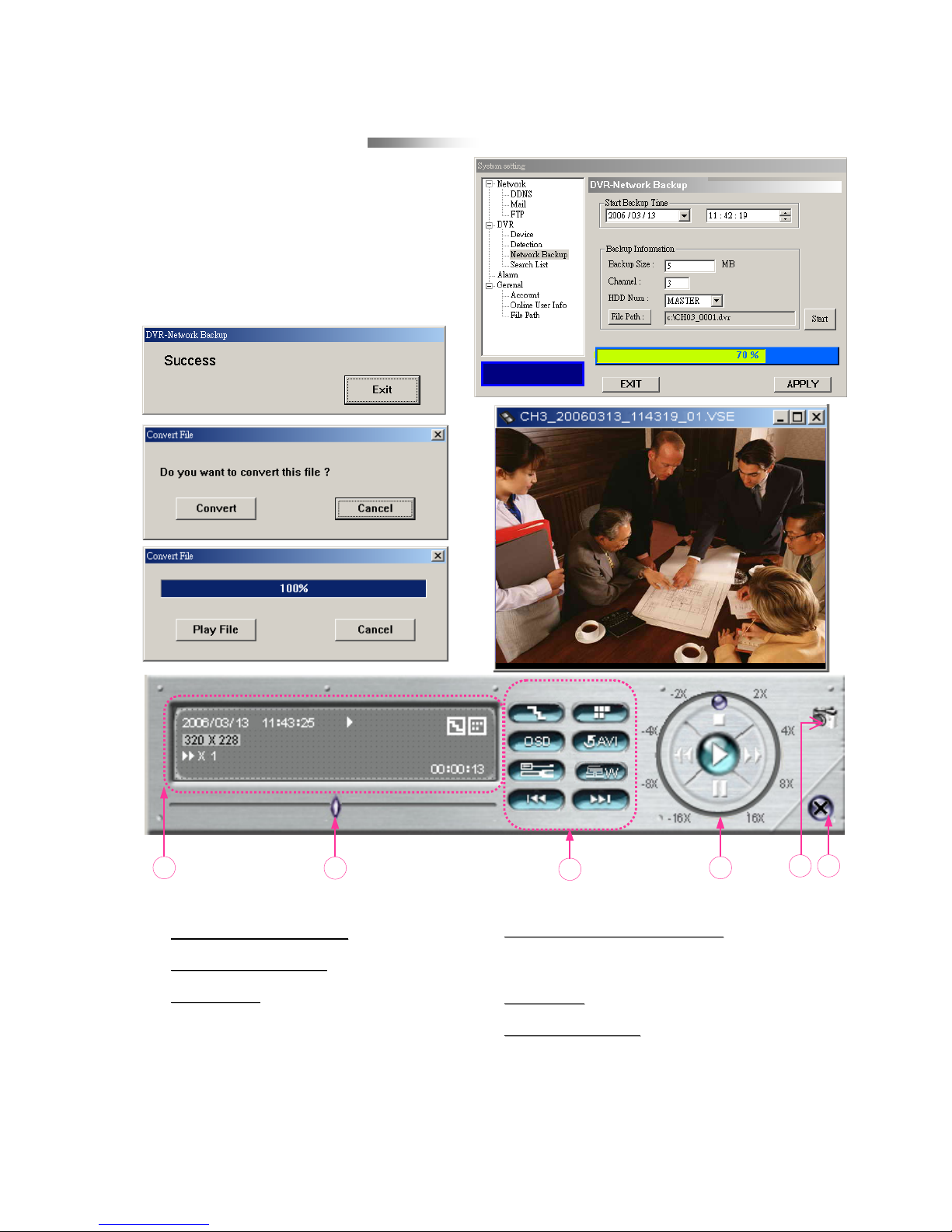

f The backup files can be view on the licensed software AP.

Or users can convert the recorded file to AVI format. For detailed
AP playback, please refer to P.31.

This USB backup function is only for Model 1

USB BACKUP

USB BACKUP

START TIME 2005-12-28 10 : 56 : 32
END TIME 2005-12-28 12 : 00 : 00
AVAILABLE SIZE 0512 MB
CHANNEL

● 01 ● 02 X 03 X 04

HDD NUM MASTER
BACKUP TO USB START

23

4.14 ADVANCE MENU ___HDD INFO

4.14 ADVANCE MENU ___HDD INFO

HDD INFO

HDD INFO

HDD NUM HDD SIZE

MASTER 400.517

You can get the capacity information on all the connected HDD.

4.15 ADVANCE MENU ___EVENT LOG

4.15 ADVANCE MENU ___EVENT LOG

You can get all the information (event type, time, and channel) on the event list
(including video loss list, net list, other lists (such as power on / off, key unlock, reset
to default). Select the event list you want to see and press “ENTER”.

EVENT LOG

EVENT LOG

VLOSS LIST
NET LIST
OTHERS
CLEAR ALL

1) VLOSS LIST:
Show the information of video loss list.

2) NET LIST:
Show the information of net login list.

3) OTHERS:
Show the information of power on / off, unlock, reset to default list.

4) CLEAR ALL:
Clear all event log lists.

ADDITIONAL OPERATION

ADDITIONAL OPERATION

24

5.1 SEARCH

5.1 SEARCH

Press “SEARCH” buttons on the front panel of the DVR to enter the search mode.
Then the screen will show the following options.

SEARCH

SEARCH

HDD MASTER
FULL LIST
RECORD LIST
SYSTEM LIST
ALARM LIST
MOTION LIST
EVENT SEARCH
TIME SEARCH

1) HDD:
Master HDD.

2) FULL LIST:
List all recorded files
( R: RECORD / S: SYSTEM / A: ALARM / MS: MOTION / T: TIMER).

3) RECORD LIST:
List of manual recorded files.

4) SYSTEM LIST:
List of system recorded files.
Under continuous recording mode, the DVR system will save one recording file
every one hour.

5) ALARM LIST:
List of alarm trigger recorded files.

6) MOTION LIST:
List of motion trigger recorded files.

7) EVENT SEARCH:
Search by specific time period (YEAR / MONTH / DAY / HOUR / MIN), channel,
HDD, and event type (motion / alarm triggered recording videos).
When you playback the recording videos, it would play with fast speed.

8) TIME SEARCH:
Search by specific time period (YEAR / MONTH / DAY / HOUR / MIN).

NOTE:

Move the cursor to the specific recorded file and press “ENTER” to play the
video, and press stop “ ” button to return the live display.

5.3 SWITCH THE N/P SYSTEM

5.3 SWITCH THE N/P SYSTEM

1) Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “►“ to switch to PAL system.
(Press the buttons untill the monitor show the video image of the DVR.)

2) Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “

◄“ to switch to NTSC system.

(Press the buttons untill the monitor show the video image of the DVR.)

5.2 KEY LOCK

5.2 KEY LOCK

1)1)Key Lock On

Key Lock On:

2)2)Key Lock Off

Key Lock Off:
Press any key (except “SHIFT” and “POWER” buttons)
and then key in the password to exit Key Lock mode.

3)3)Password

Password:
For the password setting, please refer to “Section 4.11 ADVANCE
MENU_SYSTEM”.

c Press “MENU” + “ENTER” buttons on the DVR front panel to key lock.
d Auto key lock: refer to “Section 4.11 ADVANCE MENU_SYSTEM”.

25

5.4 USB UPGRADE

5.4 USB UPGRADE

5.5 LICENSED SOFTWARE AP

5.5 LICENSED SOFTWARE AP

WARNING

WARNING

UPGRADE
ARE YOU SURE?

YES NO

WARNING

WARNING

PLEASE WAIT…
UPGRADE KERNEL

OK

WARNING

WARNING

PLEASE WAIT…
UPGRADE BOOT

OK

WARNING

WARNING

PLEASE WAIT…
UPGRADE HTML

OK

WARNING

WARNING

UPGRADE SUCCESS
REBOOT

OK

WARNING

WARNING

SHUTDOWN
PLEASE WAIT…

OK

1

1

2

2

3

3

4

4

5

5

6

6

Users can use USB to upgrade.
Please format the USB memory device as FAT 32 format first.

1) Get the upgrade files from your distributor.

2) Save the upgrade files in your USB device (Do not change the file name).

3) Go to the “MAIN MENU – SYSTEM - UPGRADE” , and press “ENTER”.

4) Select “YES”, and press “ENTER” again to confirm upgrade.

NOTE:

c The USB format must be “FAT 32”.
d If the USB can’t be detected by the DVR, the “USB ERROR” message

will be shown on the screen.

26

NOTE:
For the latest version of the software AP, please refer to your distributor, or refer to
“Section 5.6 CONNECT TO AP VIA IE BROWSER”

.

1)

1)

Install the Software

Install the Software:

c Place the attached CD into CD-ROM and it will start to install application

programs into PC (Including AP and JAVA program).

d The PC will run the setup file automatically.
e After setup, user will see “ “ icon on the desktop.

This USB upgrade function is only for Model 1

For Model 2, only support upgrade from AP side, please refer to P.27

2)

2)

AP Basic Operation

AP Basic Operation:

NOTE: The version of the licensed software will shown on the login page.

c Connect DVR to PC via RJ45 network line.

d

d

LAN Setting :

LAN Setting :
The default DVR IP is “192.168.1.10”, and default “username” and
“password” are both “admin”. Users should set PC’s IP address as
“IP:192.168.1.

XXX

XXX (1~255, except 10)” (in order to make the PC and DVR

under the same domain).

e Double click to enter login page.

Key in IP (192.168.1.10), username (admin), password (admin), port (80)
in the login page. After connect to the DVR with local LAN, users could
modify the network settings in DVR or in system config of the licensed
software AP.

f

f

Network Type ~ Static IP :

Network Type ~ Static IP :
Set the network information in the DVR menu (Section 4.12) or in System
Config of the licensed software AP (P.32).

Network Type ~ Dynamic IP (DHCP and

Network Type ~ Dynamic IP (DHCP and

PPPoE

PPPoE

) :

) :
Set the Network information in System Config of the licensed software AP.
For detailed DHCP and PPPoE setting, please refer to P.32 and P.33.

g After setup the network information, double click to enter login page.

Key in “Username”, “ Password”, “IP” (Static IP) or “Host name” (Dynamic
IP), and “Port”. And then click the green button to connect.

h LOGIN AP Icon Explanation.

Address Book:

Address Book: Press this
button to add a new IP into
the IP Address Book
or choose any preset IP
address to access the
software AP.

Search:

Search: Search available
DVR IP address in local area
network and modify the
network setting of the DVR.

Player:

Player: Press this button to
access and play the recorded
files that are saved in your PC.

Upgrade Firmware:

Upgrade Firmware: Press this
button to upgrade DVR
firmware or OSD langue file.
The provided firmware and
OSD files should be saved at
PC first.

Copy:

Copy:

Press this button to
copy all the software
installation files, so users could
keep all the settings of video
web server for next software
installation on other PC.

27

i Video Web Server Control Panel.

Digital Device Control Panel ~ 4 CH DVR

Digital Device Control Panel ~ 4 CH DVR

a. Image Transfer Rate Per Second

b. Data Transfer Rate

c. Connect / Disconnect

d. Resolution:

NTSC: 320 × 228 ; 640 × 456
PAL: 320 × 276 ; 640 × 552

e. Image Quality (High, Medium, Low)

f. Snapshot : press this button to take a snapshot of the image which will

be saved in the designated destination.

28

b

i

a

c

e

f g hd

t.

p.

p.

o.

o.

q.

q.

r.

r.

l.

j.
k.

n.

u.

s.

w.

v.

m.

2006-MAR-13(MON) 09:50:48

47.114 GB

01 02

03

04

g. Record : press this button to start recording, and press this button again to stop

recording. The recorded files will be saved to the designed path on the PC. Each
recording file can be up to 18,000 frames. When the recording file is full, the new
recorded file will be saved as the second file.

If the HDD space is less than 200MB, the program will stop recording.
h. System Config: press this button to enter the setting page of the software AP.
i. Number of Online Users
j. CH 1 ~ 4
k. 4 Channel Display
l. Record
m. Search
n. Stop / Fast Rewind / Fast Forward / Pause / Slow Playback / Play
o. ＋
p. －
q. Digital Zoom
r. Set : press this button to change channel display position.

Press “▲▼◄►” to select the channel that You would like to change.

Press “＋”or “－” select the channel that You would like to show.

Press “Enter” button to confirm.
s. Sequence: press this button to enter the call monitor function and press again to

exit from call monitor mode.
t. Enter
u. PTZ Control On / Off:

When the PTZ control turned on, users could select

the PTZ device, and press “OK” button to enter the PTZ control AP screen.

(Press “ESC” to exit from PTZ control AP screen and back to DVR control AP

screen)

v. Menu / Up / Down / Left / Right
w. Turbo ON/ OFF:

To speed up menu selection or the control of the PTZ camera under software AP,

users could activate "Turbo" function by clicking this button. Users are allowed to

change the turbo steps from 1 to 10. .

Ex. If users activate the TURBO function, and set the value of the turbo step as 3,

then when users press one of the button up/down/left/right, one mouse click

will function as clicking 3 times.

29

2006-MAR-13(MON) 09:50:48

47.114 GB

01

Digital Device Control Panel ~ PTZ

Digital Device Control Panel ~ PTZ

j. Preset 1 ~ 16
k. AUTO
l. Zoom Tele Zoom Wide
m. Focus Near Focus Far
n. Max Zoom In Max Zoom Out
o. Enter
p. PTZ Control On / Off:

When PTZ control mode is turned on, users could select
the PTZ device, and press “OK” button to enter the PTZ control AP
screen. (Press “ESC” to exit from PTZ control AP screen and back to

DVR control AP screen)
q. Menu / Up / Down / Left / Right
r. Turbo:

To speed up menu selection or the control of the PTZ camera under

software AP, users could activate "Turbo" function by clicking this button.

Users are allowed to change the turbo steps from 1 to 10. .

Ex. If users activate the TURBO function, and set the value of the turbo

step as 3, then when users press one of the button up/down/left/right, one

mouse click will function as clicking 3 times.

30

2006-MAR-13(MON) 09:50:48

47.114 GB

01

q.

p.

o.

r.

r.

l.

l.

m.

m.

n.

n.

j.

k.

j

Playback Operation

Playback Operation

A.

Playback Information

Playback Information :

Display information such as “Date”,
“Time”, “Resolution”, “ Rewind /
Forward Speed”, “Status” and
“Functions”, etc..

B.

Time Progress Bar

Time Progress Bar :

Show the playback progress status.

C.

Functions

Functions :

D.

Playback Control Buttons

Playback Control Buttons :

Play / Stop / Pause / Fast Rewind /
Fast Forward

E.

Snapshot

Snapshot

:

Press this button to take a snapshot
of the current image which will be
saved in the designated destination.

F.

Close the Player

Close the Player

.

 De-interlace: Reduce the vibration of the paused picture.
 De-blocking: Reduce the video mosaic phenomenon.
 OSD: Display the OSD of the AP playback window.
 AVI convert: Convert the entire recorded file to AVI format.
 Config. Setting: Enter AP config. setting box, and

set the file destination, text color, and text color of progress status.

 Watermark: Proof the authenticity of the backup video.
 Open Previous File: Open previous backup video.
 Open Next File: Open next backup video.

31

AP Playback Window :

AP Config. Setting Box :

A

B

C

D

E F

One click to activate

One click to activate

•De-interlace

• De-blocking

•OSD

• AVI Convert

• Config. Setting

• Watermark

• Open Previous File

• Open Next File

To snap video, right-click of the mouse to make a
starting point (red) and click one more time to make a
ending point. Then right-click to convert to AVI format.

Note:

Note:

• When users pause the playback picture, press
“ ” button to go to the previous frame, or press
“ ” button to go to the next frame.

• In the playback mode of the software AP, users could
press ” “ button to check the authenticity of the
BACKUP VIDEO. If the BACKUP VIDEO had been
altered, the video image will turn to

light red

light red and the

playback will be paused.

Note:

Note:

• When users use remote AP recording, the watermark
function is not supported.

3)3)AP Advanced Setting

AP Advanced Setting:

 Press “System Config ” button to enter the system setting page.

Network

Network

The network configuration allows DVR
to connect to an Ethernet network or
dial-up.

4CH DVR

4CH DVR

4CH DVR

ccStatic IP:

Static IP:

Enter the “server IP”, “gateway”,
“net mask” and “web port”, then
press “APPLY” to confirm.

ddPPPoE

PPPoE::

Enter the “username” and
“password” provided by your ISP
(Internet Sever ) supplier, then
press “APPLY” to confirm.

eeDHCP:

DHCP:

This DHCP function need to be
supported by router or cable
modem network with DHCP
service. Choose the DHCP IP type
and press “APPLY” to confirm.

***Note***:

***Note***:

PPPoE and DHCP network
connection type will require to
apply

DDNS service

DDNS service to get a

“

Hostname

Hostname” to correspond to
dynamic IP address.
Please refer to P.33 for details.

***Note***:

***Note***:

Some router brand may need to
restart the DVR to get the IP
address.

ffWeb Port:

Web Port:

The DVR can be viewed over the
network with software AP or a web
browser. Typically the TCP port
used by HTTP is 80. However in
some cases it is better to change
this port number for added
flexibility or security. Valid number
is 80 ~ 19999.

32

DDNS

DDNS

DDNS APPLY EXAMPLE:

DDNS APPLY EXAMPLE:

 Go to a website which provide free DDNS services.

For example, “http://www.dyndns.org”.

 Create an account in DynDNS.
 After created your account, users will receive an confirmation e-mail within few minutes. To

complete registration, please follow the instructions received.
Users must complete these steps within 48 hours to complete the registration.
If the confirmation e-mail was not received within an hour, request “password reset”

(http://www.dyndns.org/account/resetpass/).

 Use the DDNS username and password to login the DynDNS.

Create Hostname:

Create Hostname:

Login → “Account” → “My Service” → “Add Host Services” → “Add Dynamic
DNS Host” → Enter and choose the hostname → Click on “Add Host” → DDNS Hostname
created.

YourHostName

YourHostName

1

1

2

2

3

3

4

4

5

5

33

4CH DVR

c DDNS is a service for transforming

dynamic IP to corresponding to a specific
“Hostname”.

ddDDNS Apply:

DDNS Apply:

Go to a website which provide free DDNS
services and apply a “Hostname”. See the
example below.

eeEnable the DDNS function

Enable the DDNS function

:
Enter “DDNS username” into “username”
column.
Enter the “DDNS password” into
“password” column.
Enter the “Hostname” into “Domain”
column.
Choose the “DDNS system name”.
After setting, press “APPLY” to confirm.

ffAuto:

Auto:

When using DHCP network connection,
the system will auto get DNS information.

Mail

Mail

c When alarm or motion is triggered,

a video copy file can be captured.
DVR can send e-mail notification
to the assigned recipients (up to 5
recipients).

***Note***:

***Note***:

To activate the e-mail notification
function, please enable the
function of e-mail notification in the
“Alarm” setting first (P.38).

d Add the recipients’ email accounts

in the “Mail Account” column.
The detailed information (SMTP
server, username and password)
refer to e-mail system supplier.

e Please type in the entire email

address in the “Mail from” column
to ensure emails will not be
blocked by SMTP.

f In some cases, mail server require

to verify password, please enter
the “user name”and “password”.

g After finished the settings, press

“APPLY” to confirm.

4CH DVR

FTP

FTP

c When alarm or motion is triggered, a

video copy file can be captured.
And DVR can upload the captured
images to the assigned FTP site.

d Enter the detailed FTP information.

***Note***:

***Note***:

To activate the FTP notification
function, please enable the function
of FTP notification in the “Alarm”
setting first (P.38).

e After setting, press “APPLY” to

confirm.

4CH DVR

34

35

DVR

DVR ––

Camera Setting

Camera Setting

c Each camera channel can be adjusted

independently.

d Select the desired camera channel.

Press “

Edit

Edit” to enter the setting box.

e

Title:

Title:

Enter the camera channel name up to
6 characters.

f

Adjustment:

Adjustment:

Adjust the BR (brightness) / CT
(contrast) / SU (saturation) / HU (hue)
/ REC (recording) of the camera.

g After setting, press “OK” and then

press “APPLY” to confirm.

4CH DVR

c Select the desired channel of the

installed external device.
Press “

Edit

Edit” to enter the setting box.

d

Device Type

Device Type

:
Choose either general camera or
PTZ camera.

e

ID No.

ID No.

:
Set the ID number (0 ~ 255) of the
installed external PTZ device.

f

Protocol Type

Protocol Type

:

Choose “

NORMAL

NORMAL” protocol for our
own brand camera.
Choose “PP--DD” protocol for PELCO-D
protocol camera.

g

Baud Rate

Baud Rate

:
Set the baud rate of each channel
(2400, 4800, 9600, 19200, 38400,
57600, 115200).

h After setting, press “OK” and then

press “APPLY” to confirm.

Device

Device

4CH DVR

36

Detection

Detection

c Select the desired channel, and

press “

Edit

Edit” to enter the motion
detection sensitivity and area setting
box.

d

Motion Detection Sensitivity

Motion Detection Sensitivity:

Set the detection sensitivity in 4
different adjustable factors.

LS:

LS: The sensitivity of comparing two

different images. The smaller the
value is, the higher sensitivity for
motion detection.

SS:

SS: The sensitivity towards the size

of the triggered object on the screen
(the number of motion detection
grids). The smaller the value is, the
higher sensitivity for motion detection.

TS:

TS: The sensitivity towards how long

the object staying in detection area to
get triggered. The smaller the value
is, the higher sensitivity for motion
detection.

RE:

RE: The value of RE is a reference

for detection. The bigger the value is,
the higher sensitivity for motion
detection.

e

Alarm:

Alarm:

Select LOW / HIGH for the alarm
polarity.

f

Motion Detection Area

Motion Detection Area:

Clicking the area by PC mouse,

one can choose the motion area to
be detected.

The under

The under--

detection

detection

area is in transparent picture while

area is in transparent picture while

the undetected area is in pink color.

the undetected area is in pink color.
*Click the “Select All” to activate the
detection area as full area.

*Click the “Clear All” to clean the

previously selected detection area.

g After setting, press “OK” and then

press “APPLY” to confirm.

4CH DVR

Note: Enable the motion detection function.

When the motion is triggered,
a “ ” icon will shown on the
screen. And software AP will start
recording automatically.

37

Network Backup

Network Backup

c Backup the recorded files to the PC

from DVR via network.

d Enter the backup information Æ

Press “Start” Æ Success Æ Covert
Æ Play File.

1.

Playback Information

Playback Information

2.

Time Progress Bar

Time Progress Bar

3.

Functions

Functions :

(1) De-interlace
(2) De-blocking
(3) OSD
(4) AVI Convert
(5) Config. Setting
(6) Watermark
(7) Open Previous
(8) Open Next File

4.

Playback Control Buttons

Playback Control Buttons :

Play / Stop / Pause / Fast Rewind / Fast
Forward

5.

Snapshot

Snapshot

6.

Close the Player

Close the Player.

A

B

C

D

E F

4CH DVR

38

Alarm

Alarm

c

Alarm Trigger

Alarm Trigger:

Enable or disable Email and FTP
notification function.

d

Alarm Method

Alarm Method:

Two notification methods
— Email and / or FTP.

e

Post Number

Post Number:

Set MJPEG pictures (1-10 pictures).

f

Alarm Duration

Alarm Duration:

Set the duration time of motion
trigger recording (5 sec., 10 sec., 20
sec., 40 sec.).

g

Alarm Refresh

Alarm Refresh:

Clean the alarm message “ ”
which is shown on the screen.

Note:

Note:

Email Notification:

MJPEG pictures will be made at your designated
space set in “File Path”, plus an e-mail contained
with the MJPEG pictures (1-10 pictures) to be
sent to the address which is set under “Mail”.

FTP Notification:

MJPEG pictures will be made at your designated
space set in “File Path”, plus a FTP file contained
with the MJPEG pictures (1-10 pictures) to be

sent to the address which is set under “FTP”.

4CH DVR

Search List

Search List

c

HDD Number

HDD Number:

Select HDD (Master).

d

List Type

List Type:

Select list type (All/ Manual/ System/
Alarm/ Motion).

e

Max List Number

Max List Number:

Maximum number of list (128) .

f

Download HDD List

Download HDD List:

Press this button to start download
the list.

4CH DVR

Account

Account

c Set up the user’s account ( Max 5

accounts) , password, life time, and
authority level.
(

Max 5 users on line at the same time

Max 5 users on line at the same time).

d User’s level:

SUPERVISOR

SUPERVISOR——

Control all the functions
(“a”, “b”, “c”, “d”, “e” and “f” ).

HIGH

HIGH——

Control only “a”, “b”, “c”, “d” and “e”
functions, but cannot control “f” function.

NORMAL

NORMAL——

Control only “a”, “d”, and “e” functions,
but cannot control “b”, “c” and “f”
functions.

GUEST

GUEST——

Watch the image only. Only the “a”
function can be used.

e

Life time

Life time :

According to different authority level,
different accounts can stay online for
different time period (1min, 5min, 10min,
1hour, 1day, infinity).

39

General

General

c Get the information of DVR firmware

version in this window.

d

Select

Select ““

Turbo Step

Turbo Step””

(1

(1 --

10)

10).

To speed up menu selecting or the
control of the PTZ camera under
video web server, users can activate
"Turbo" function by clicking this button.
Users are allowed to change the turbo
steps from 1 to 10.
Ex. If the value of turbo step is
“5“ means that when user press one
of the button up/down/left/right, one
click is as clicking 5 times.

e

Max Log List

Max Log List:

Set the maximum number of log list.

f

Server Log

Server Log:

Press “Server Log” button to enter the
server log list window.

a

b

c

d

e

f

4CH DVR

4CH DVR

4CH DVR

c Get all the current online users’

information list (Name, IP Address,
Authority Level, Resolution and
Image Quality).

Online User Info

Online User Info

40

c

Snapshot Path

Snapshot Path:

Assign the route for saving the
snapshot picture.

d

Record Path

Record Path:

Assign the route for saving the
manual recording file.

File Path

File Path

5.6 CONNECT TO AP VIA IE BROWSER

5.6 CONNECT TO AP VIA IE BROWSER

Same as the AP operation.

Same as the AP operation.

Please refer to

Please refer to ““

Section 6.6

Section 6.6

Licensed Software AP

Licensed Software AP””..

Change Image Quality

Change Image Quality

Change Resolution

Change Resolution

PTZ

PTZ

To set the display position of the image

To set the display position of the image

(LT: Upper Left; LD: Lower Left; RT: Upper Right; Lower Right)

(LT: Upper Left; LD: Lower Left; RT: Upper Right; Lower Right)

41

Step 1

Step 1: Type in IP address into the URL address box and press enter.

Then you’ll see the following page.

Note:

Note:

If the TCP port number is not 80, see the example below.
IP address: 60.121.46.236 ; Port number: 888
Æ Key in “http://60.121.46.236 :888” into the URL address box and press enter.

The DVR can be viewed over the network with a web browser. Please install licensed
software AP first.

*** This function is suitable in both Windows 2000 and Windows X

*** This function is suitable in both Windows 2000 and Windows X

P ***

P ***

Step 2

Step 2

: Key in the “username” and “password” to login

Download AP

Download JAVA

NOTE:

NOTE: Users can download the latest AP version from the website.

NOTE:

NOTE: Users can update the JAVA program from the website.

TROUBLE SHOOTING

TROUBLE SHOOTING

6.1 FAQ

6.1 FAQ

Please refer to the FAQ table below for easy trouble shooting. The table below
describes some typical problems and also their solutions. Please check them before
calling your DVR dealer.

Confirm the camera is power supplied.

Check the setting of camera lens.

Check monitor video cable and connections.

Check camera video cable and connections.No live video

Check if the “RECORD ENABLE” is set to “YES”.Timer record is not working

Update the JAVA program
Update the firmware of the software AP

Can’t view the DVR over the network with
a web browser

Change another USB thumb-drive to test.Can’t detect USB thumb-drive

Make sure HDD “Master”, “Slave” mode is correctly set.

Change another HDD cable for testing.

Change another HDD for testing.Detect HDD fail

Users could align the power connector and HDD closely, or
change another suitable HDD.

DVR keeps rebooting

Check if the HDD is installed and connected properlyNo recorded video

Press any key and then enter the password to exit “Key
Lock” mode.

Not working when pressing any button

Confirm that there is power at the outlet.

Check power cord connection.No power

SOLUTIONPROBLEM

42

APPENDIX #1

APPENDIX #1

APPENDIX #1

APPENDIX #1 ––

INSTALL THE HDD

INSTALL THE HDD

Carefully following the steps to ensure correct installation.

*** Note: Please set the HDD to “Master Mode” or “Single Mode” ***

1) Open the upper cover of the DVR and screw out the bracket.

2) Screw HDD onto the HDD bracket. (Refer to Fig.1 & 2)

3) Connect the HDD to power connector and IDE BUS (make sure to align the
HDD precisely to the pin connection)
And then screw the HDD bracket onto DVR base. (Refer to Fig. 3)

4) Close the upper cover of the DVR. (Refer to Fig. 4 & 5)

Fig. 1

Fig. 2

Fig. 3

Fig. 4 Fig. 5

43

APPENDIX #2

APPENDIX #2

APPENDIX #2

APPENDIX #2 ––

PIN CONFIGURATION

PIN CONFIGURATION

PIN 1.

RS232

RS232--TXTX

DVR can be controlled remotely by the keyboard of PC,
using RS-232 serial communications signals.

PIN 2.

RS232

RS232--RXRX

DVR can be controlled remotely by the keyboard of PC,
using RS-232 serial communications signals.

PIN 3. ~ PIN 6.

ALARM INPUT

ALARM INPUT

To connect wire from ALARM INPUT ( PIN 3 -- 6 ) to GND ( PIN 9 ) connector,
DVR will start recording and buzzer will be on.

When Menu/ Camera/ Alarm is set up to “Low” : When alarm input signal is “ Low ”, the unit starts to record
and buzzer.

When Menu/ Camera/ Alarm is set up to “High” : When alarm input signal is “ High ”, the unit starts to
record and buzzer.

PIN 7.

EXTERNAL ALARM NC

EXTERNAL ALARM NC

Under normal operation COM connect with NC and disconnect from NO. But when alarm is triggered, COM
disconnect with NC, and connect with NO. Attention: Voltage restrictions is under AC/DC 30V.

PIN 8.

EXTERNAL ALARM NO.

EXTERNAL ALARM NO.

Under normal operation COM disconnect with NO. But when Alarm triggered, COM connect with NO.

Voltage restrictions is under AC/DC 30V.

PIN 9.

GND

GND

Signal GND.

PIN 10.

RS485

RS485--BB

DVR can be controlled remotely by the keyboard of PC,
using RS-485 serial communications signals.

PIN 11.

RS485

RS485--AA

DVR can be controlled remotely by the keyboard of PC,
using RS-485 serial communications signals.

PIN 12, 13.

PIN OFF

PIN OFF

PIN 14.

ALARM RESET

ALARM RESET

To connect wire from ALARM RESET ( PIN 14 ) to GND ( PIN 9 ) connector, it can disable ALARM. An
external signal to

ALARM RESET ( PIN 14 ) can be used to reset both ALARM OUTPUT signal and DVR’s internal buzzer.
When alarm has been triggered, signal becomes “Low”, and it will stop all alarm activities. Under normal
operation, signal remains “High”.

PIN 15.

EXTERNAL ALARM COM

EXTERNAL ALARM COM

Under normal operation COM disconnect with NO. But when alarm triggered, COM connect with NO.
Attention: Voltage restrictions is under AC/DC 30V.

PIN 16, 17.

GND

GND

Earth GND

44

Solder Side of DSUB 15 PIN

8 7 6 5 4 3 2 1

15 14 13 12 11 10 9

16 17

APPENDIX #3

APPENDIX #3

APPENDIX #3

APPENDIX #3 ––

RS

RS--

232 Protocol

232 Protocol

G0x47KEY_CH16

F0x46KEY_CH15K0x4BKEY_KEY LOCK

E0x45KEY_CH14W0x57KEY_POWER

D0x44KEY_CH13R0x52KEY_RIGHT

C0x43KEY_CH12N0x4EKEY_DOWN

B0x42KEY_CH11P0x50KEY_PLAY

A0x41KEY_CH10U0x55KEY_UP

90x39KEY_CH9L0x4CKEY_LEFT

80x38KEY_CH8r0x72KEY_REC

70x37KEY_CH7S0x53KEY_SLOW

60x36KEY_CH6c0x63KEY_16 CUT

50x35KEY_CH5b0x62KEY_9 CUT

40x34KEY_CH4z0x5AKEY_ZOOM

30x33KEY_CH3a0x61KEY_4 CUT

20x32KEY_CH2ENTER0x0DKEY_ENTER

10x31KEY_CH1M0x4DKEY_MENU

ASCCICODEFUNCTIONASCIICODEFUNCTION

1) Use PC keyboard to simulate DVR keypad.

2) Data: REMOTE PROTOCOL use 8 bit data, 1 start bit, 1 stop bit.

45

APPENDIX #4

APPENDIX #4 ––

RECORDING TIME TABLE

RECORDING TIME TABLE

1) Recording time varies depending on the following factors:
* Different camera quality
* Different picture composition (such as frequency of the object movement)

46

APPENDIX #4

APPENDIX #4

Record

mode

Quality IPS 500GB record

time(hour)

Record day

30

436.9 18.2

15

767.6 32.0

7

1398.0 58.2

3

2258.6 94.1

30

552.8 23.0

15

971.3 40.5

7

1768.9 73.7

3

2857.9 119.1

30

726.2 30.3

15

1276.0 53.2

7

2323.9 96.8

3

3754.5 156.4

30

1173.7 48.9

15

2062.2 85.9

7

3755.9 156.5

3

6068.1 252.8

120

520.8 21.7

60

915.1 38.1

30

1666.7 69.4

15

2692.7 112.2

120

734.2 30.6

60

1290.0 53.8

30

2349.5 97.9

15

3795.9 158.2

120

966.2 40.3

60

1697.6 70.7

30

3091.8 128.8

15

4995.2 208.1

120

1338.7 55.8

60

2352.1 98.0

30

4283.8 178.5

15

6921.0 288.4

Frame Best

High

Norm a l

Basic

CIF Best

High

Norm a l

Basic

APPENDIX #5

APPENDIX #5

APPENDIX #5

APPENDIX #5 ––

COMPATIBLE USB BRAND

COMPATIBLE USB BRAND

NOTE:

Please upgrade the firmware of the DVR to latest version to ensure the accuracy of
following table.

512MBCruzer MicroSanDisk

256MBCruzer MicroSanDisk

128MBCruzer MicroSanDisk

512MBHANDY STENO HF202Apacer

256MBHANDY STENO HF202Apacer

512MBCool Drive (U339)PQI

256MBCool Drive (U339)PQI

512MBDataTraveler DTI KUSBDTI/256FE

Kingston

256MBDataTraveler DTI KUSBDTI/256FE

Kingston

512MBJetFlash 110Transcend

256MBJetFlash 110

Transcend

Capacity

Capacity

Model

Model

Manufacturer

Manufacturer

47

APPENDIX #6

APPENDIX #6

APPENDIX #6

APPENDIX #6 ––

COMPATIBLE HDD BRAND

COMPATIBLE HDD BRAND

NOTE: Please upgrade the firmware of the DVR to latest version to ensure the
accuracy of following table.

7200rpm160GBCaviar SE WD1600JBWestern Digital

7200rpm120GBCaviar SE WD1200JB

Western Digital

7200 rpm400GBBarracuda 7200.8 ST3400832A/P

Seagate

7200 rpm300GBBarracuda 7200.8 ST3300831A/P

Seagate

7200rpm250GBDiamondMax 10 6L250R0-3

Maxtor

7200rpm250GBMaxLine Plus Ⅱ, Model#7Y250P0

Maxtor

7200rpm120GBDiamondMax 10 6L120PO

Maxtor

7200rpm500GBDeskstar 511DHT0021

HITACHI

7200 rpm120GBDeskstar 180 GXP

HITACHI

250GB

200GB

120GB

250GB

200GB

160GB

120GB

80GB

200GB

200GB

160GB

160GB

120GB

80GB

60GB

120GB

80GB

250GB

160GB

160GB

160GB

80GB

Capacity

Capacity

7200rpmHDS722516DLAT80HITACHI

7200rpmDeskstar 7K250, HDS722525VLAT80

HITACHI

7200 rpmDeskstar 120GXP (80GB)

IBM

7200 rpmDeskstar 120GXP (120GB)

IBM

5400rpmDiamondMax 536DX(60GB) 4W060H4

Maxtor

7200 rpmDiamondMax Plus 9

Maxtor

7200 rpmDiamondMax Plus 9, Model#6Y120L

Maxtor

7200rpmDiamondMax Plus 9, Model#6Y160L0

Maxtor

7200rpmDiamondMax 10 6L160R0

Maxtor

7200rpmDiamondMax 10 6L200R0

Maxtor

7200rpmDiamondMax 10 6L200PO

Maxtor

CaviarSE WD2500JB

Caviar WD2000BB-00DWA0

Caviar WD1200BB-00CAA1

Barracuda 7200.8 ST3250826A

Barracuda 7200.8 ST3200826A

Barracuda 7200.7 Plus, ST3160023A

Barracuda ATA V, ST3120023A

Barracuda ATA IV, ST380021A

HDS722516VLAT80

Deskstar 7K250, HDS722516VLAT20

Deskstar HDS728080PLAT20

Model

Model

7200rpmWestern Digital

7200rpm

Western Digital

7200rpm

Western Digital

7200 rpm

Seagate

7200 rpm

Seagate

7200 rpm

Seagate

7200 rpm

Seagate

7200rpm

Seagate

7200rpm

HITACHI

7200rpm

HITACHI

7200 rpm

HITACHI

Rotation

Rotation

Brand Name

Brand Name

48
