Page 1

NetFRAME

Quick Start Guide

NF1610 NF2610 NF3610 NF6600

Page 2

Page 3

. . . . . . . . . . . . . . .

Table of Contents

Trademark Notice........................................................................................ iii

Limitation of Liability.................................................................................... iii

Life Support — Nuclear Facilities................................................................ iii

Welcome........... ....... ...... ...... ....... ...... ....... ...... ....... ........ 1

Technical Reference Manual................................................................ 1

Manual Conventions............................................................................. 2

Special Text ................................................................................................ 2

NF1610 System Features.......... ...... ....... ...... ....... ...... .. 3

NF1610 Front Panel..................................... .. ..... .. .. .. .. .. .. .... ..... .. .. .. .. .. .. 4

NF1610 Front Panel View ........................................................................... 4

NF1610 Back Panel ............................................................................. 5

NF1610 Back Panel View ........................................................................... 5

NF1610 Front Control Panel ................................................................ 6

NF1610 Front Control Panel View .............................................................. 6

NF1610 Control Button Description ............................................................ 7

NF1610 Front Control Panel LED Description ............................................ 8

NF1610 Top Panel...................................................................... .. .... .. .. 9

NF1610 Top Panel View ............................................................................. 9

NF2610 System Features .......................................... 11

NF2610 Front Panel..................................... .. ..... .. .. .. .. .. .. .... ..... .. .. .. .. .. 12

NF2610 Front Panel View ......................................................................... 12

NF2610 Back Panel ........................................................................... 13

NF2610 Back Panel View ......................................................................... 13

NF2610 Front Control Panel .............................................................. 14

NF2610 Front Control Panel View ............................................................ 14

NF2610 Control Button Description .......................................................... 15

NF2610 Front Control Panel LED Description .......................................... 16

NF2610 Top Panel.................................................... .. .. .. .. .. .. ....... .. .. .. . 17

NF2610 Top Panel View ........................................................................... 17

NF1610/2610 System Board Features ...................... 19

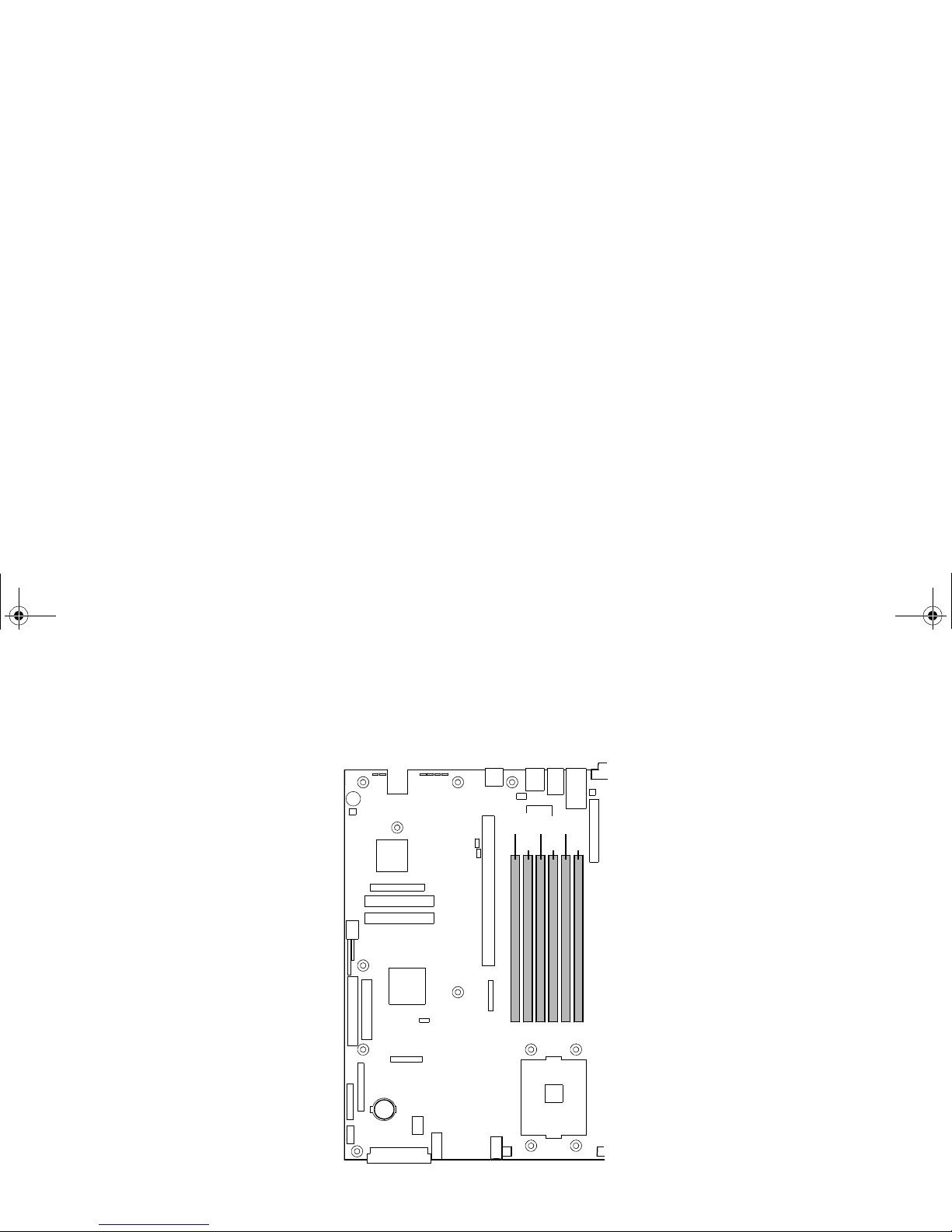

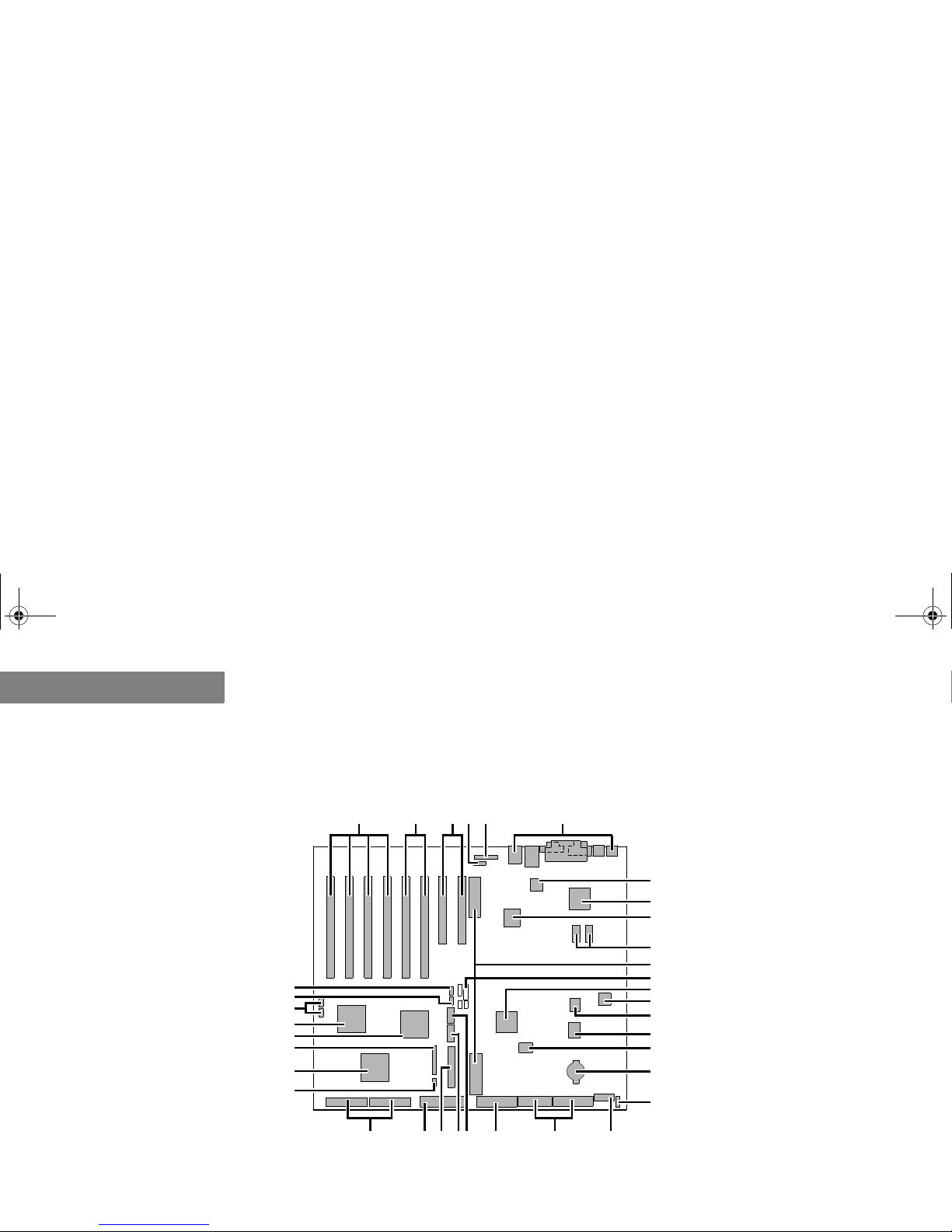

NF1610/2610 System Board Components......................................... 20

NF1610/2610 Memory Specifications ................................................ 22

NF1610/2610 Memory Bank Order ........................................................... 23

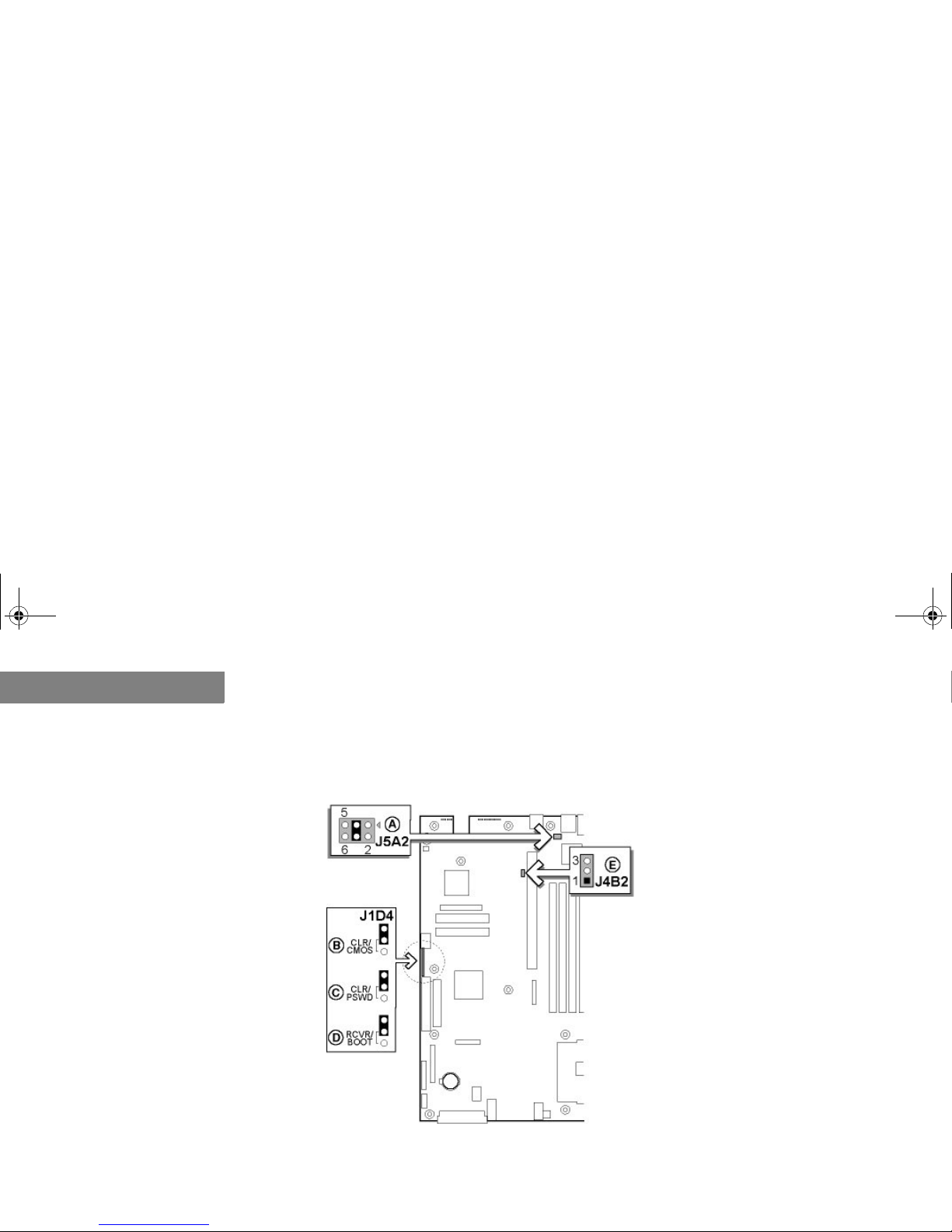

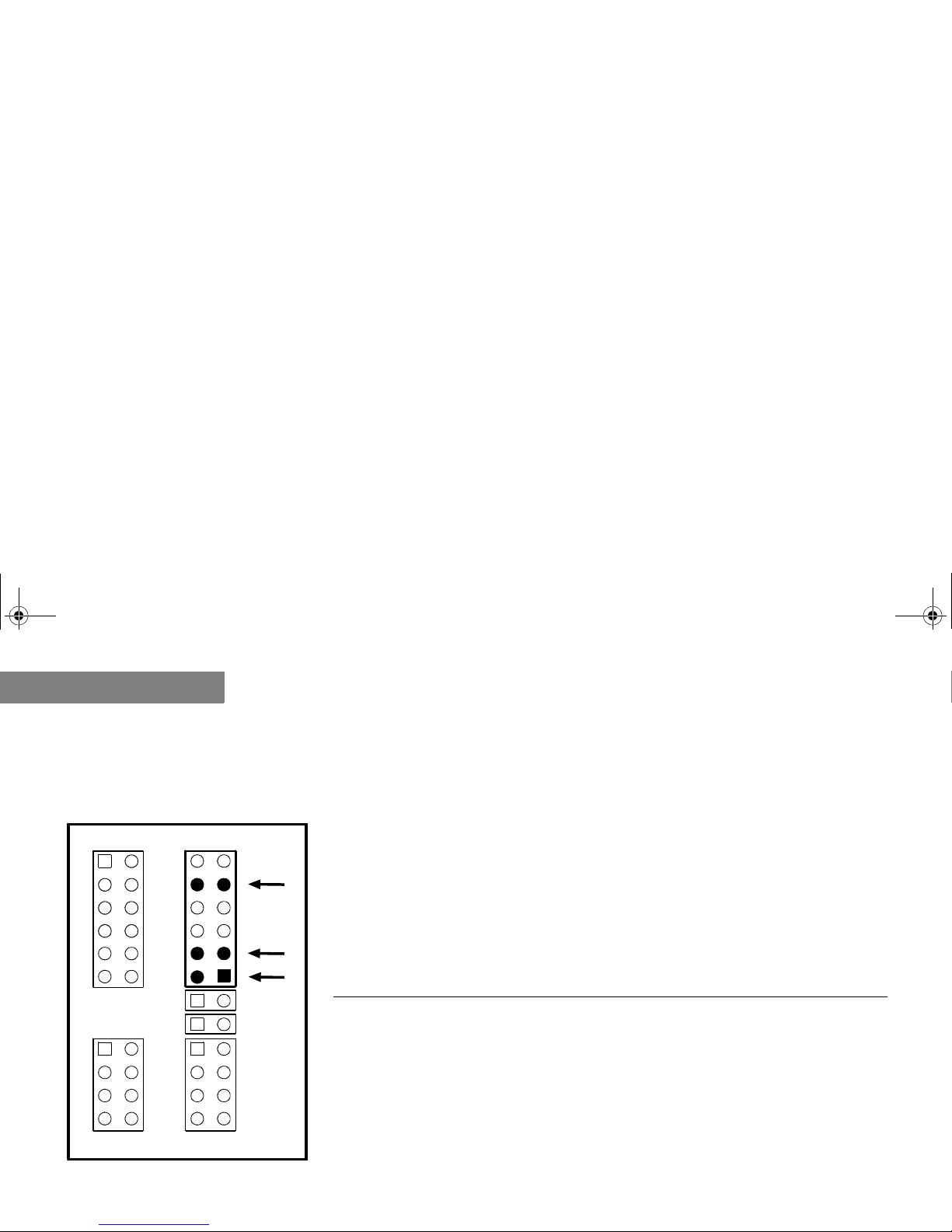

NF1610/2610 System Board Jumpers ............................................... 24

NF3610 System Features........................................... 29

NF3610 Pedestal/Rack Chassis......................................................... 30

NF3610 Front Panel View ......................................................................... 30

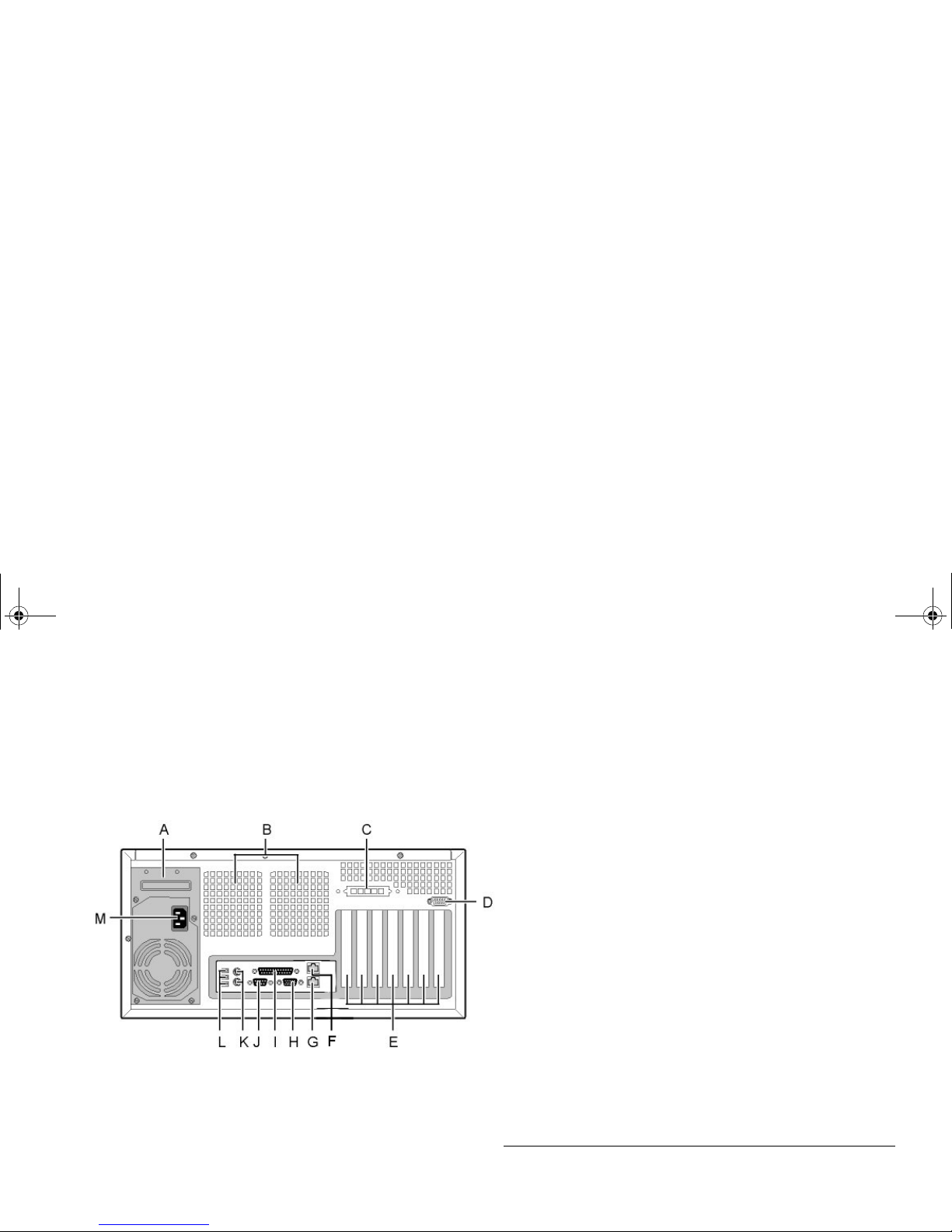

NF3610 Back Panel View.......................................................................... 31

NF3610 Pedestal/Rack Chassis w/Hot-Swap Power Supply ............. 32

NF3610 Front Panel View ......................................................................... 32

NF3610 Back Panel View.......................................................................... 33

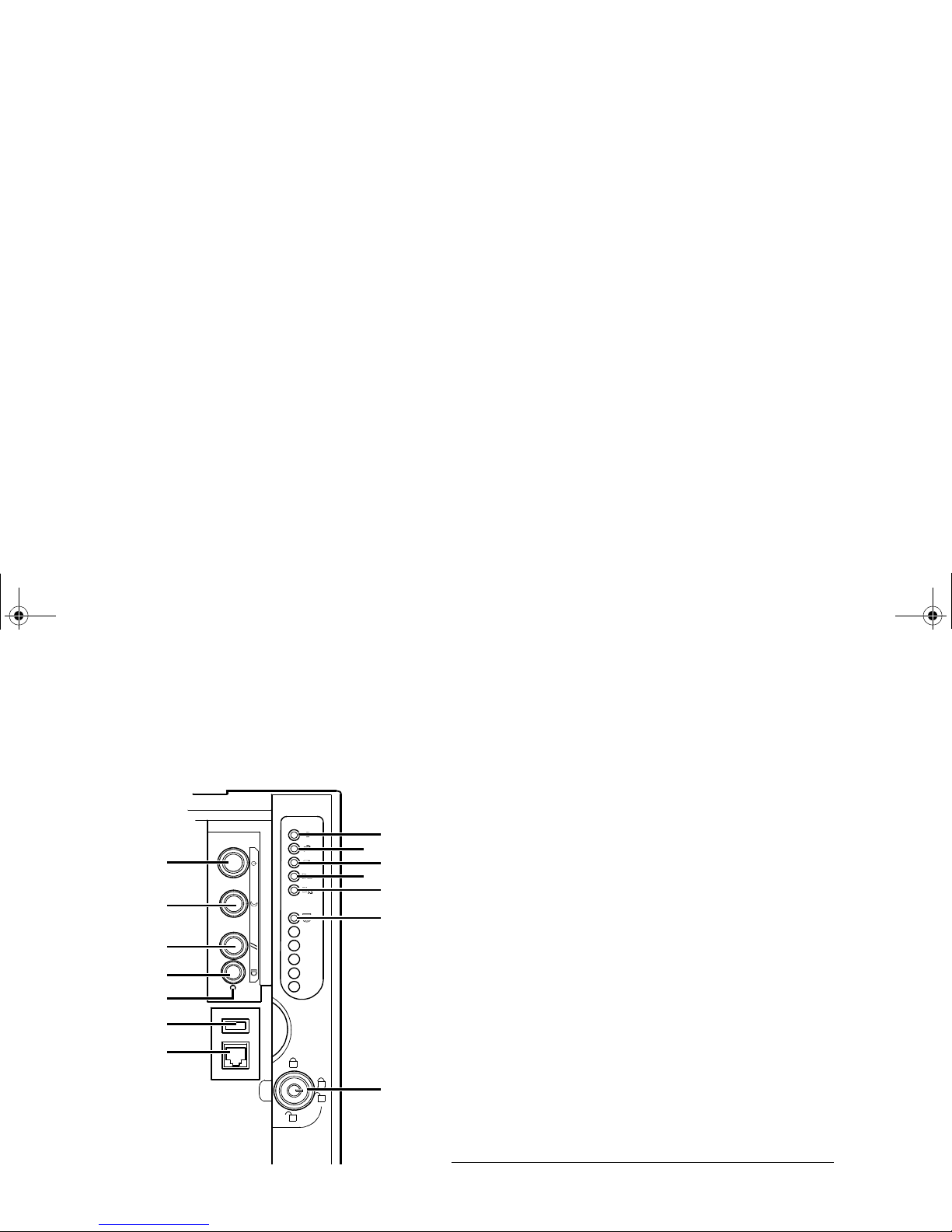

NF3610 Front Control Panel View...................................................... 34

NF3610 Pedestal Chassis Front Control Panel View................................ 34

NF3610 Rack Chassis Front Control Panel View...................................... 35

NF3610 Front Control Panel LED Description .......................................... 36

NF3610 System Board Features ............................... 39

NF3610 System Board Components.................................................. 40

NF3610 Memory Specifications ......................................................... 42

NF3610 System Board Jumpers ........................................................ 43

NF6600 System Features........................................... 47

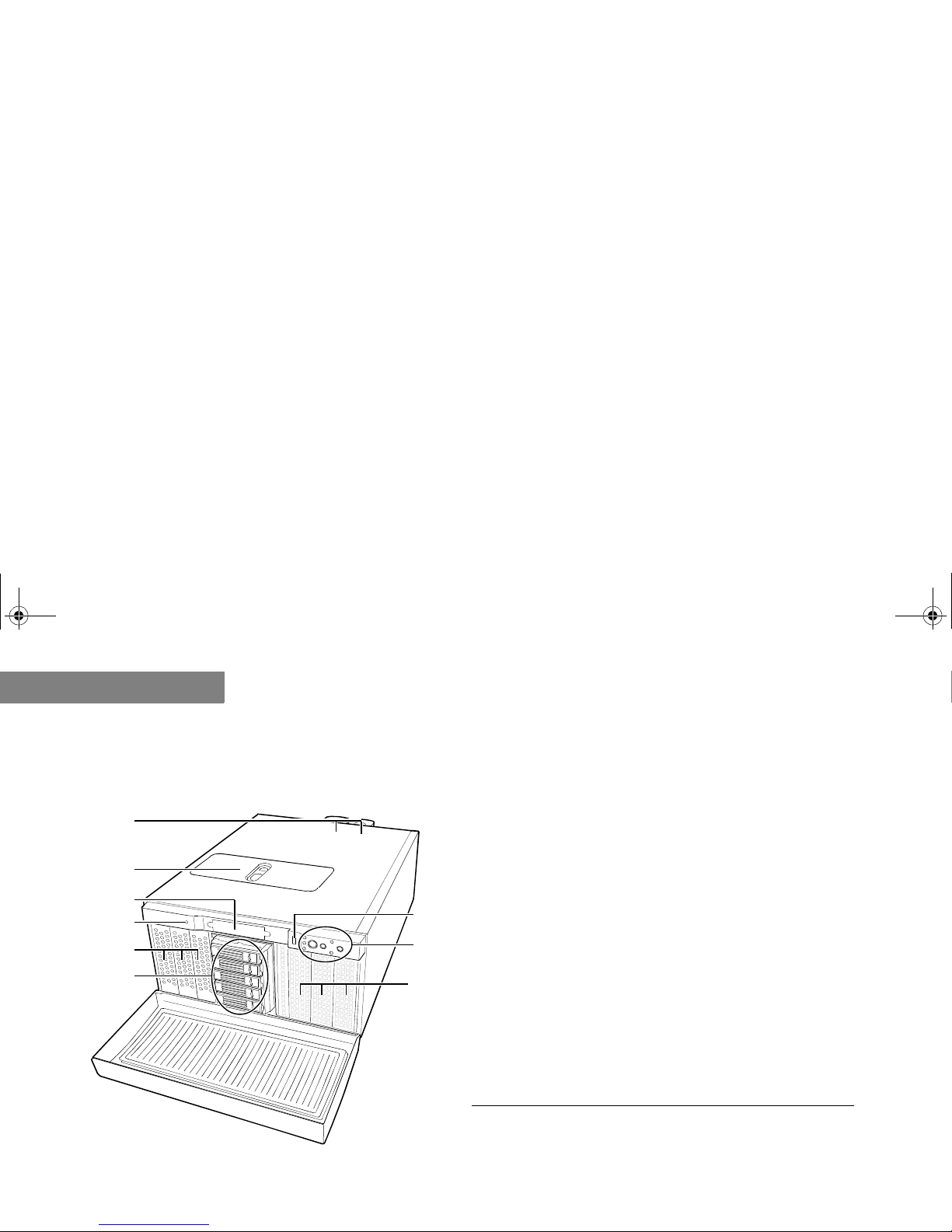

NF6600 Pedestal Chassis...................................................... ....... .. .. . 48

NF6600 Front Panel View ......................................................................... 48

MAS001426-02.book Page i Monday, May 19, 2003 2:45 PM

Page 4

NF6600 Front Control Panel View............................................................. 49

Back Panel View........................................................................................ 50

NF6600 Rack Optimized Chassis ...................................................... 51

NF6600 Front Panel View.......................................................................... 51

NF6600 Front Control Panel View............................................................. 52

NF6600 Back Panel View.......................................................................... 53

NF6600 Front Control Panel Descriptions.......................................... 54

NF6600 System Board Features............................... 57

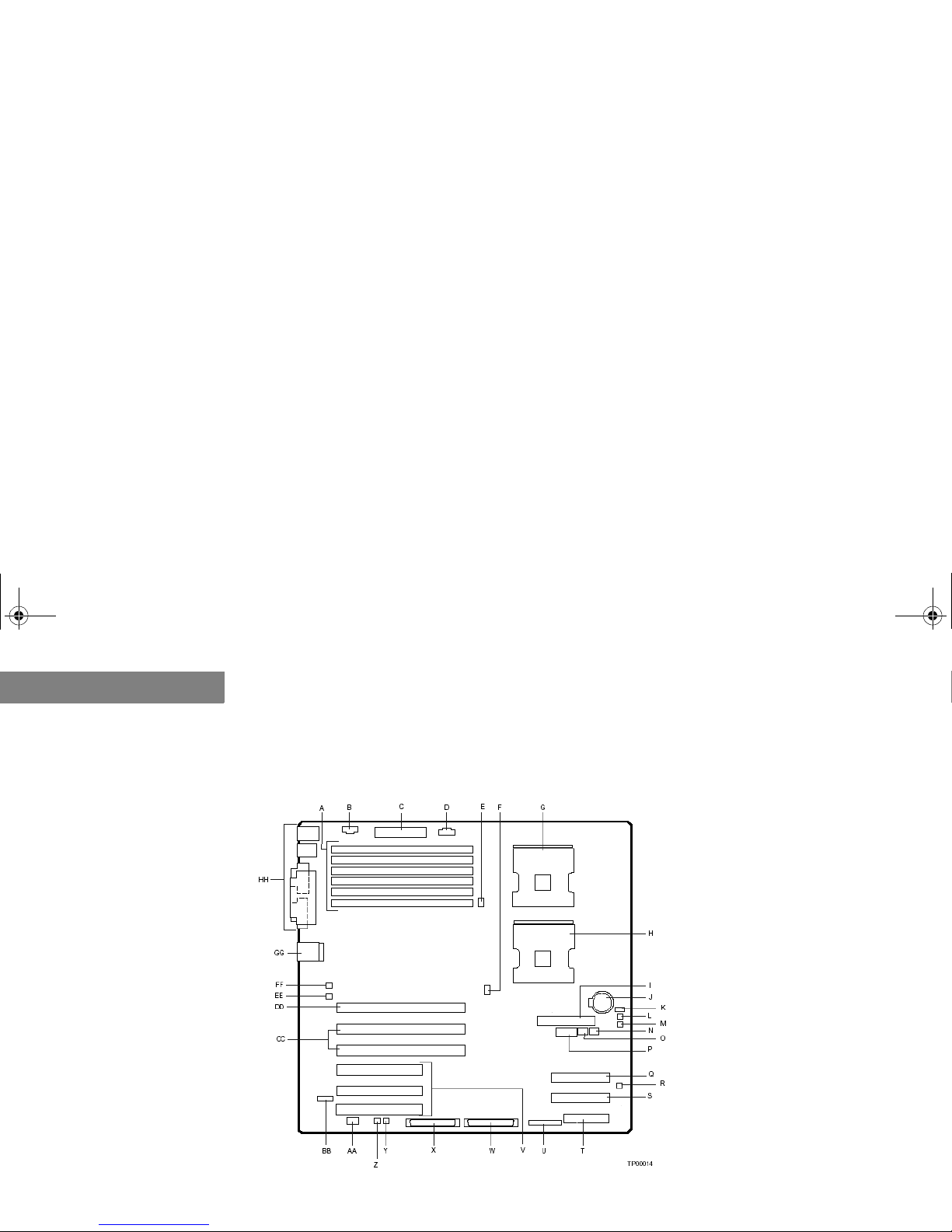

NF6600 System Board Components.................................................. 58

NF6600 Memory Specifications ......................................................... 61

Memory Bank Order .................................................................................. 62

NF6600 Processor Specifications...................................................... 63

NF6600 System Board Jumpers ........................................................ 64

MAS001426-02.book Page ii Monday, May 19, 2003 2:45 PM

Page 5

iii

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Copyright 2003 MPC Computers, LLC. All rights reserved. The information in this document is subject to change without prior notice in order to improve reliability, design , an d fu nc tion and does not represent a commitment on the part of the manufactur er . In no eve nt w ill the m anufacturer or seller of an MPC product be liable for direct, indirect, special, incidental, or consequential dam ages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. Except as stated in the applicable MPC Computers, LLC limited warranty, MPC and its affiliates, by this manual, make no other express warranties and all other warranties, including, without limitation: THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. This document contains pro pr ie tary in fo rmation that is protected by copyright. No part of this docume nt m ay be photocopied, reproduced, or translated to another la nguage without the prior written consent of: MPC Computers, LLC 906 E. Karcher Road, Nampa, Idaho 83687

Trademark Notice

Windows, Windows NT, MS-DOS, and Microsoft are registered trademarks of Microsoft Corporation. Pentium and Xeon are trademarks or reg i st er ed t ra dem arks of Intel Corporation. Oth er product names mentioned herein are used for identification pu rposes only and may be trademarks and/or register ed t ra demarks of their respectiv e companies.

Limitation of Liability

While reas onable efforts have been made to ensure the accuracy of th is manual, the manufactur er and seller assume no liability resulting from errors or omissions in this manual or from the use of the information contained herein.

Life Support — Nuclear Facilities

Products sold by MPC are not authorized for use as critic al com ponents in medical devic es or systems or in nuclear facilities witho ut the express written approval of th e C hief Executive Officer of MPC.

MAS001426-02, KDA, 05-3 0- 2003

MAS001426-02.book Page iii Monday, May 19, 2003 2:45 PM

Page 6

MAS001426-02.book Page iv Monday, May 19, 2003 2:45 PM

Page 7

1-1

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ELCOME

Thank you for buying an MPC NetFRAME server. This Quick Start Guide provides information to help you quickly get started using your new server. Please refer to the appropriate chapter for your server.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TECHNICAL REFERENCE MANUAL

For detailed information about your server’s case, hardware, system boa rd, error codes, BIO S, and System Setup Utility, please refer to the NetFRAME

Technical Reference Manual located on the

MPC Web site at http://support.buympc.com and on the NetFRAME

System Drivers CD that

shipped with your system. To locate the manual on the Drivers CD, do the following:

1 Insert the NetFRAME

System Drivers CD into the CD-ROM drive. The CD will autorun.

2 When the installation interface appears, press the Manual button located in the lower-left corner.

The manual will automatically be downloaded to your Windows Desktop.

3 From your Windows Desktop, double click on the NetFRAME T echnical Reference Manual icon to

open the system manual.

MAS001426-02.book Page 1 Monday, May 19, 2003 2:45 PM

Page 8

WEL CO ME

Manual Conventions

1-2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MANUAL CONVENTIONS

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Important information concerning the operation of your computer.

Caution

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Failure to follow directions could result in loss of data or damage to equipment. Failure to heed

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

these cautions could negate the user warranty.

Special Text

The text in this guide is formatted to highlight unique information or instructions. Review the following examples of special text used throughout this manual:

• Screen (window) names, functions, or anything that appears on the screen is formatted in bold. For

example: Click OK, the Standards screen, the Edit menu.

• Keyboard strokes are indicated by brackets. For example: Press [Enter], use the [Alt] key. When keys

should be held down simultaneously, they are separated by the + sign. For example: Press [Ctrl+Alt+Delete]. When keys should be pressed sequentially, they will be in individual brackets without the plus sign. For example: Press [1][Enter]. The [1] key should be pressed first and then the [Enter] key should be pressed.

• Screen messages are indicated by quotes. For example: The message “Enter your username and

password” will appear.

• Anything that you need to type will appear in italics. For example: Enter the word password.

MAS001426-02.book Page 2 Monday, May 19, 2003 2:45 PM

Page 9

2-3

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610 S

YSTEM

EATURES

The following chapter provides information about the components and connectors on your server.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 3 Monday, May 19, 2003 2:45 PM

Page 10

NF1610 SYSTEM FEATURES

NF1610 Front Panel

2-4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610 FRONT PANEL

NF1610 Front Panel View

Table 1 and Figure 1 identify the features on the front of your server.

Figure 1. NF1610 Front Panel Component Layout

A D E

Table 1: NF1610 Front Panel Components

Chassis handle

Drive bay (1-inch)

HDD activity/fault indicator

Flex bay (optional DVD/CD-ROM drive/FDD module shown)

Front Control Panel (for more information refer to “NF1610 Front Control Panel” on page 2-6)

Chassis handle

MAS001426-02.book Page 4 Monday, May 19, 2003 2:45 PM

Page 11

NF1610 SYSTEM FEATU RES

NF1610 Back Panel

2-5

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610 BACK PANEL

NF1610 Back Panel View

Table 2 and Figure 2 identify the connectors on the back panel of your chassis.

Figure 2. NF1610 Back Panel Connector Layout

A B

K J I H G F E

Table 2: NF1610 Back Panel Connectors

PCI card bracket (low-profile)

RJ-45 NIC 2 connector

PCI card bracket (full-length)

Power supply

USB connector

RJ-45 serial port

PS/2 mouse/keyboard connector

RJ-45 NIC 1 connector

SCSI channel A connector (SCSI only)

Video connector

USB connector

MAS001426-02.book Page 5 Monday, May 19, 2003 2:45 PM

Page 12

NF1610 SYSTEM FEATURES

NF1610 Front Control Panel

2-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610 FRONT CONTROL PANEL

Table 3 and Figure 3 identify the buttons and LEDs on the front control panel.

NF1610 Front Control Panel View

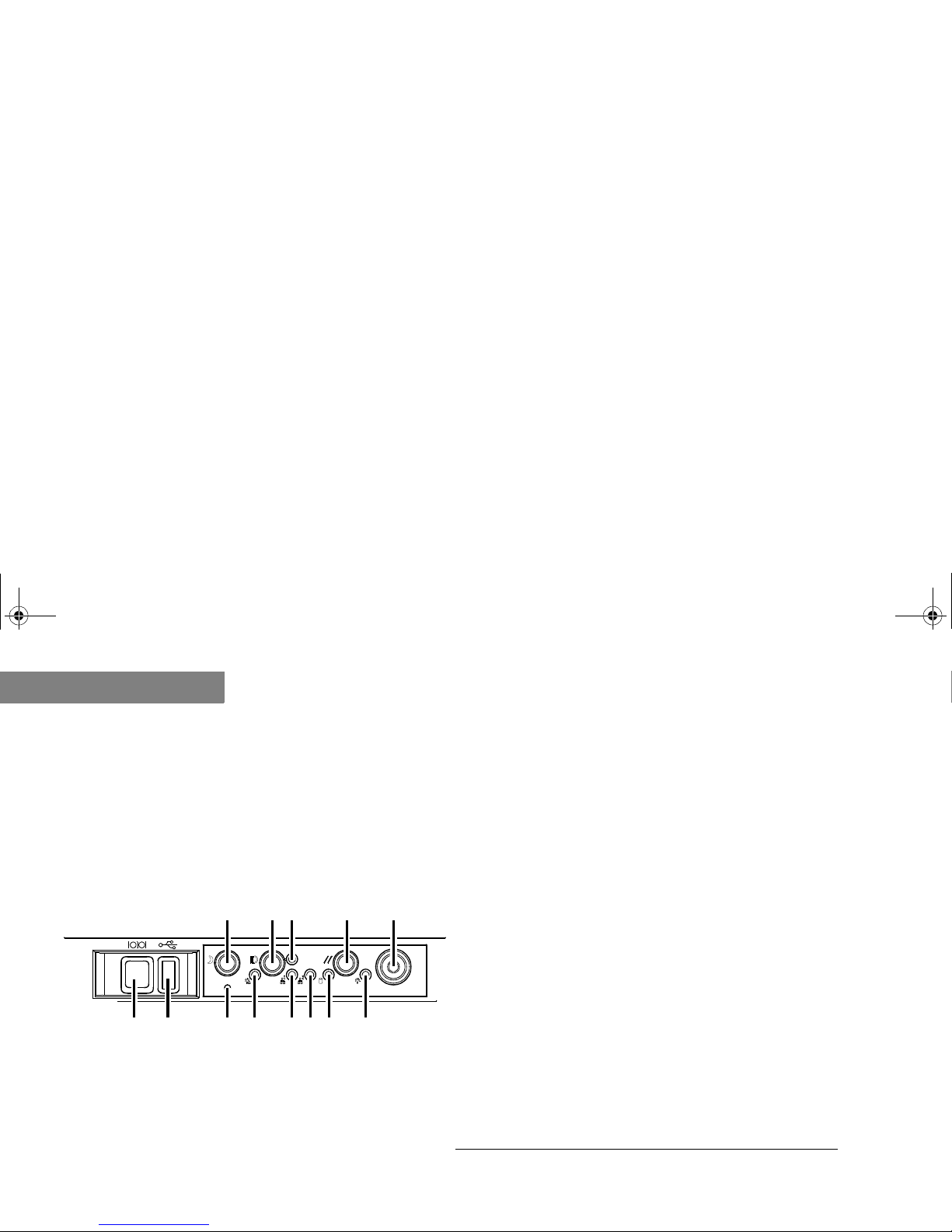

Figure 3. NF1610 Front Contr ol Panel Component Layout

L JK

BA F GEDC

Table 3: NF1610 Front Control Panel Components

NIC 2 activity LED

NIC 1 activity LED

Power/sleep button

Power/sleep LED

Hard disk drive status LED

System status LED

ID LED

ID button

Reset button

USB connector

Non-maskable interrupt (NMI) button

Video connector

MAS001426-02.book Page 6 Monday, May 19, 2003 2:45 PM

Page 13

NF1610 SYSTEM FEATU RES

NF1610 Front Control Panel

2-7

. . . . .

NF1610 Control Button Description

Table 4 describes the control button functions which are located on your server’s front control panel. T o view the front control panel features, refer to NF1610 Front Control Panel View on page 2-6.

Table 4: NF16 10 Control Button Descri ption s

Button

Description

Power/Sleep Button

This button toggles the system power on and off. The sleep button is for ACPI-compatible operating systems.

ID Button

This button toggles the front panel ID LED and the system board ID LED on and off. The system board ID LED is visible from the rear of the chassis and allows you to locate the server you are working on from behind a rack of servers.

Reset Button

This button reboots and initial iz es the sy st em.

NMI Button

When you press the recessed button with a paper clip or pin, the system issues a non-maskable interrupt and puts the server into a halt state for diagnostic purposes.

MAS001426-02.book Page 7 Monday, May 19, 2003 2:45 PM

Page 14

NF1610 SYSTEM FEATURES

NF1610 Front Control Panel

2-8

NF1610 Front Control Panel LED Description

Table 5 describes the LEDs located on your server’s front control panel. To view the front control panel features, refer to NF1610 Front Control Panel View on page 2-6.

Table 5: NF1610 Front Control Panel LED Description

LED

Description

NIC 1 Activity LED NIC 2 Activity LED

A continuous green light indicates a link between the system and the network to which it is connected. A blinking green light indicates network activity.

Power/Sleep LED

A continuous green light indicates the system has power applied to it. A blinking green lighta indicates the system is sleeping. No light indicates the system does not have power applied to it (other than 5 V standby power).

a. The power LED sleep indication is maintained on standby by the chipse t. If the system is turned off without going thr ough the BIOS, the LED state in effect at the time

the power turned off will be res tored when the system is turned on u n ti l th e BIOS clears it. If the system is not tu rn ed of f normally, it is possible that the power LED will be blinking at the same time that the syst em sta tus LE D is off due to a failu re or configuration change that prevents the B IO S from r unni ng.

Hard Disk Drive Status LED

A random blinking green light indicates hard disk drive activity (SCSI or IDE). A continuous amber light indicates hard disk drive fault (SCSI or IDE). No light

indicates no hard disk drive activity nor fault (SCSI or

IDE).

b. This light is al s o o ff when the system is turned off or in a sleep state.

System Status LED

A continuous green light indicates the system is operating normally. A blinking green light indicates the system is operating in a degr aded co ndition. A co ntinuo us amb er light

indicates the system is in a criti cal or nonrecoverable condition. A blinking amber light indicates the system is in a noncritical condition. No light indicates POST/system stop.

c. The amber status take s pre cede n c e over the gr een status. When the amber LED is on or blinking, th e green LED is off.

ID LED

A continuous blue light indicates ID button is depressed or light is turned on by software. No light indicates ID button is not depressed.

MAS001426-02.book Page 8 Monday, May 19, 2003 2:45 PM

Page 15

NF1610 SYSTEM FEATU RES

NF1610 Top Panel

2-9

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610 TOP PANEL

NF1610 Top Panel View

Table 6 and Figure 4 identify the connectors on the top panel of your server chassis.

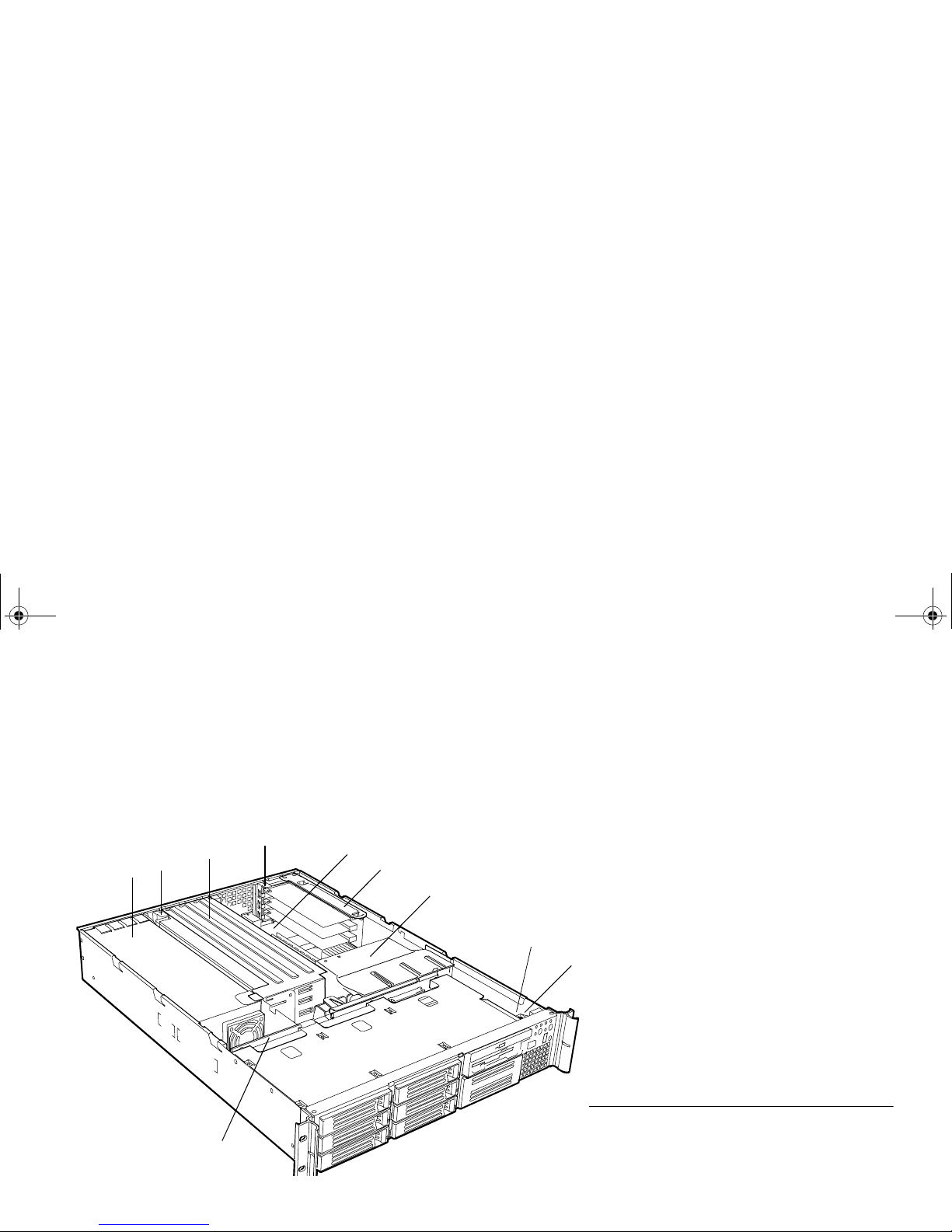

Figure 4. NF1610 Top Panel Component Layout

Table 6: NF1610 Top Panel Components

Power supply

PCI card bracket (full-height)

Riser card assembly

PCI card bracket (low-profile)

System Board

Power distribution board

Air baffle

Fan module

Front panel board

Intrusion switch

Backplane board

MAS001426-02.book Page 9 Monday, May 19, 2003 2:45 PM

Page 16

NF1610 SYSTEM FEATURES

NF1610 Top Panel

2-10

MAS001426-02.book Page 10 Monday, May 19, 2003 2:45 PM

Page 17

3-11

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF2610 S

YSTEM

EATURES

The following chapter provides information about the components and connectors on your server.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 11 Monday, May 19, 2003 2:45 PM

Page 18

NF2610 SYSTEM FEATURES

NF2610 Front Panel

3-12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF2610 FRONT PANEL

NF2610 Front Panel View

Table 7 and Figure 5 identify the features on the front of your server.

Figure 5. NF2610 Front Panel Component Layout

A B C D E

Table 7: NF2610 Front Panel Components

Chassis handle

Drive bay (1-inch)

HDD activity/fault indicator

Flex bay (optional DVD/CD-ROM drive/FDD module shown)

Front Control Panel (for more information refer to “NF2610 Front Control Panel” on page 3-14)

Chassis handle

Tape drive bay

MAS001426-02.book Page 12 Monday, May 19, 2003 2:45 PM

Page 19

NF2610 SYSTEM FEATU RES

NF2610 Back Panel

3-13

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF2610 BACK PANEL

NF2610 Back Panel View

Table 8 and Figure 6 identify the connectors on the back panel of your chassis.

Figure 6. NF2610 Back Panel Connector Layout

A CB D E

FGHIJL KMON

Table 8: NF2610 Back Panel Connectors

PCI card bracket (low-profile)

RJ-45 NIC 2 connector

Serial A port mounting (cable not provided)

PCI card bracket (full-length)

AC power input (primary)

AC power input (redundant)

Power supply module, redundant

Power supply module, primary

USB connector

RJ-45 serial port

PS/2 mouse/keyboard connector

RJ-45 NIC 1 connector

SCSI channel A connector

Video controller

USB connector

MAS001426-02.book Page 13 Monday, May 19, 2003 2:45 PM

Page 20

NF2610 SYSTEM FEATURES

NF2610 Front Control Panel

3-14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF2610 FRONT CONTROL PANEL

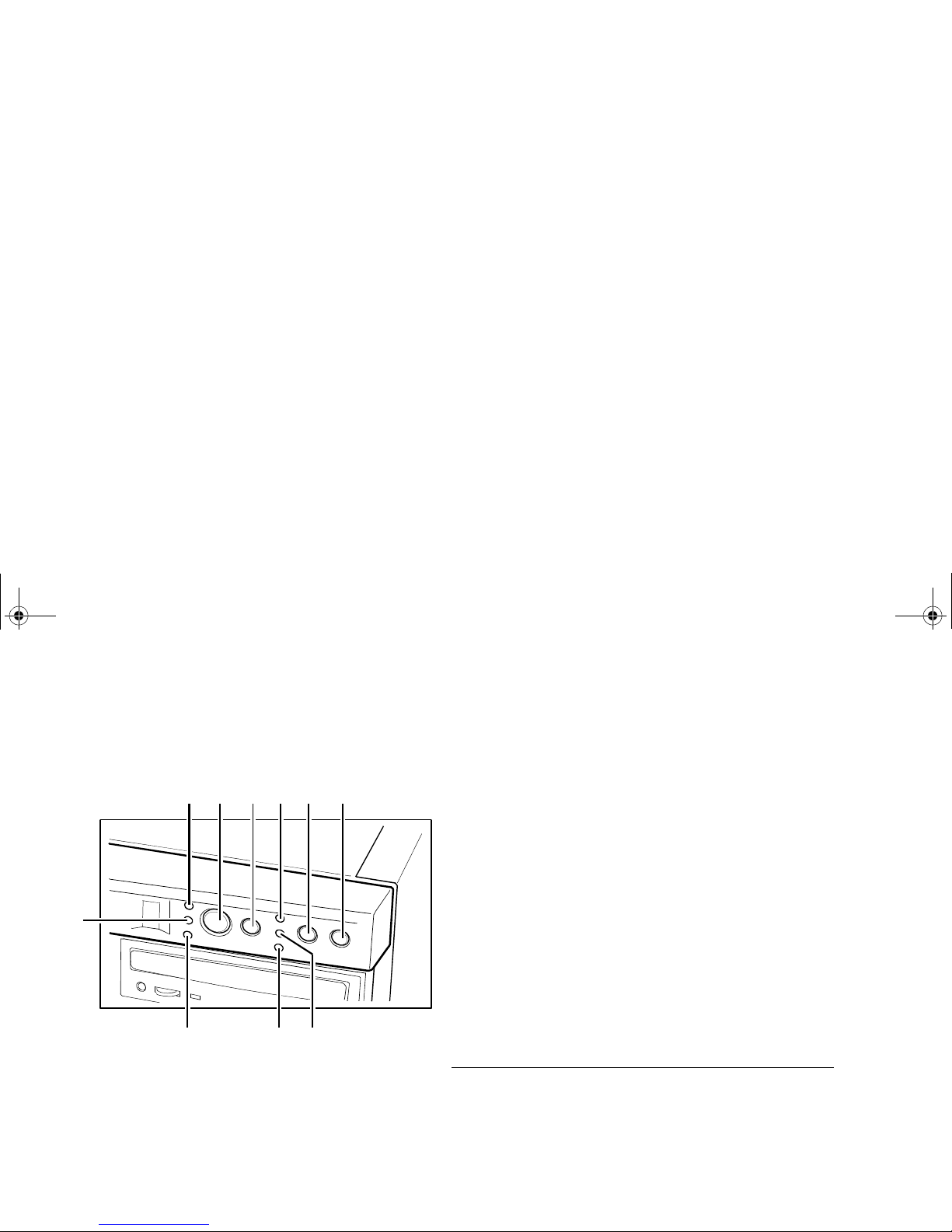

Table 9 and Figure 7 identify the buttons and LEDs on the front control panel.

NF2610 Front Control Panel View

Figure 7. NF2610 Front Contr ol Panel Component Layout

L JK

BA F GEDC

Table 9: NF2610 Front Control Panel Components

NIC 2 activity LED

NIC 1 activity LED

Power/sleep button

Power/sleep LED

Hard disk drive status LED

System status LED

ID LED

ID button

Reset button

USB connector

Non-maskable interrupt (NMI) button

Video connector

MAS001426-02.book Page 14 Monday, May 19, 2003 2:45 PM

Page 21

NF2610 SYSTEM FEATU RES

NF2610 Front Control Panel

3-15

. . . . .

NF2610 Control Button Description

Table 10 describes the control button functions which are located on your server’s front control panel. T o view the front control panel features, refer to NF2610 Front Control Panel View on page 3-14.

Table 10: NF2610 Control Button Descriptions

Button

Description

Power/Sleep Button

This button toggles the system power on and off. The sleep button is for ACPI-compatible operating systems.

ID Button

Reset Button

This button reboots and initial iz es the sy st em.

NMI Button

When you press the recessed button with a paper clip or pin, the system issues a non-maskable interrupt and puts the server into a halt state for diagnostic purposes.

MAS001426-02.book Page 15 Monday, May 19, 2003 2:45 PM

Page 22

NF2610 SYSTEM FEATURES

NF2610 Front Control Panel

3-16

NF2610 Front Control Panel LED Description

Table 1 1 describes the LEDs located on your server’s front control panel. To view the front control panel features, refer to NF2610 Front Control Panel View on page 3-14.

Table 11: NF2610 Front Control Panel LED Description

LED

Description

NIC 1 Activity LED NIC 2 Activity LED

A continuous green light indicates a link between the system and the network to which it is connected. A blinking green light indicates network activity.

Power/Sleep LED

a. The power LED sleep indic a tion is maintained on standby by the chipset. If the system is turned off witho ut going through the BIOS, the LED state in effect at the time

Hard Disk Drive Status LED

A random blinking green light indicates hard disk drive activity. A continuous amber light indicates hard disk drive fault. No light

indicates no hard disk drive activity nor fault.

b. This light is al s o o ff when the system is turned off or in a sleep state.

System Status LED

A continuous green light indicates the system is operating normally. A blinking green light indicates the system is operating in a degr aded co ndition. A co ntinuo us amb er light

indicates the system is in a criti cal or nonrecoverable condition. A blinking amber light indicates the system is in a noncritical condition. No light indicates POST/system stop.

c. The amber status take s pre cede n c e over the gr een status. When the amber LED is on or blinking, th e green LED is off.

ID LED

A continuous blue light indicates ID button is depressed or light is turned on by software. No light indicates ID button is not depressed.

MAS001426-02.book Page 16 Monday, May 19, 2003 2:45 PM

Page 23

NF2610 SYSTEM FEATU RES

NF2610 Top Panel

3-17

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF2610 TOP PANEL

NF2610 Top Panel View

Table 12 and Figure 8 identify the connectors on the top panel of your server chassis.

Figure 8. NF2610 Top Panel Component Layout

Table 12: NF2610 Top Panel Components

Power supply

PCI card bracket (full-height)

Riser card assembly

PCI card bracket (low-profile)

System Board

Riser card assembly (low-profile)

Processor air duct

Front panel board

Intrusion switch

Backplane board

MAS001426-02.book Page 17 Monday, May 19, 2003 2:45 PM

Page 24

NF2610 SYSTEM FEATURES

NF2610 Top Panel

3-18

MAS001426-02.book Page 18 Monday, May 19, 2003 2:45 PM

Page 25

4-19

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610/2610 S

YSTEM

OARD

EATURES

The following chapter provides information about your server’s system board, memory, and jumpers.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 19 Monday, May 19, 2003 2:45 PM

Page 26

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 System Board Components

4-20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610/2610 SYSTEM BOARD COMPONENTS

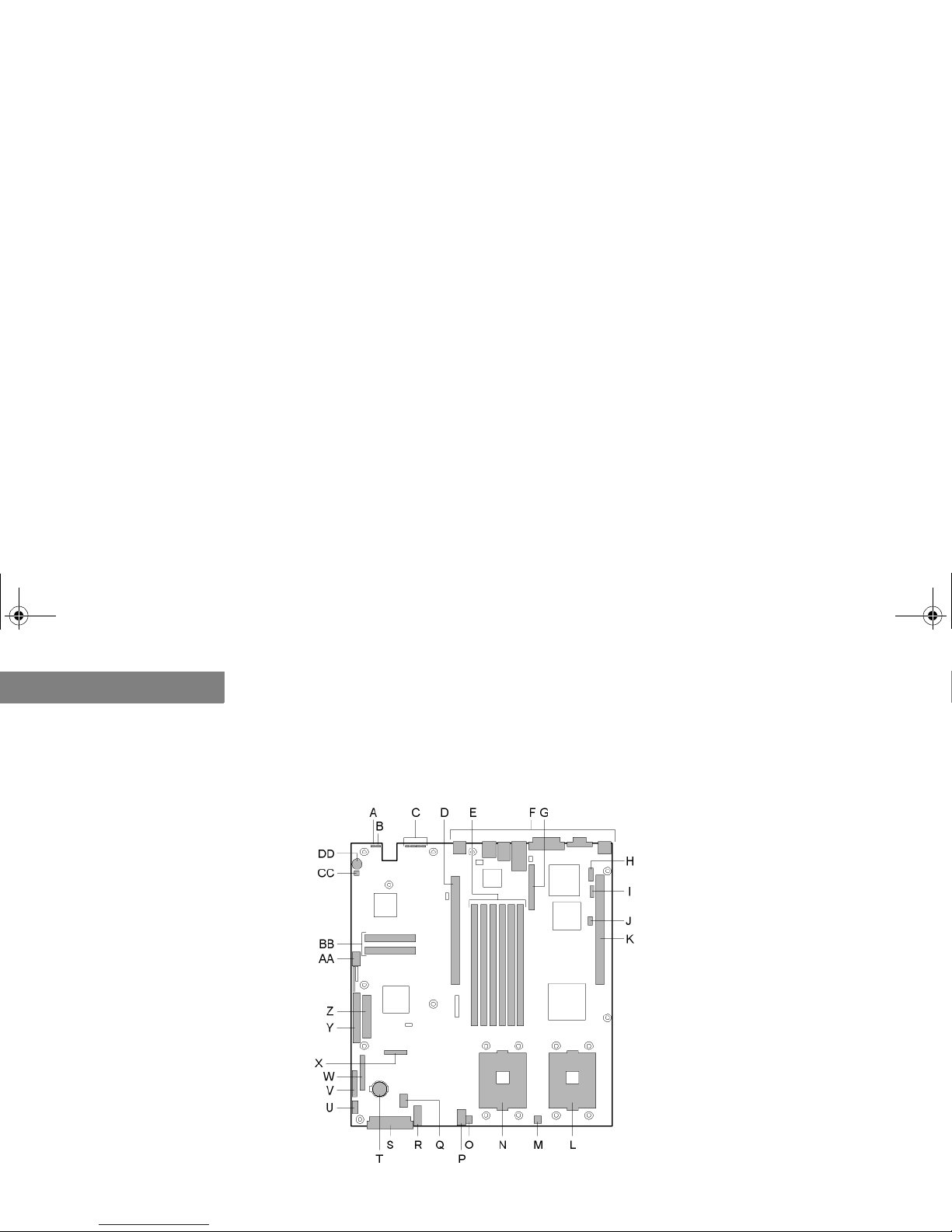

Use Figure 9 below and T able 13 on page 4-21 to identify the components on your system board. The figure below illustrates both SCSI and IDE configurations.

Figure 9. NF1610/2610 System Board Layout

MAS001426-02.book Page 20 Monday, May 19, 2003 2:45 PM

Page 27

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 Sy s te m Bo ard Compon en ts

4-21

. . . . .

Table 13: NF1610/2610 System Board Components

Letter

Component Description

Letter

Component Description

A System status LED P Auxiliary signal connector B ID LED Q System fan 1 connector C Diagnostic LEDs (POST code) R System fan 2 connector D 64-bit PCI riser slot for PCI-X bus B (full-height) S Main power connector E DIMM slots T Battery F I/O ports U Power supply signal connector G SCSI channel B connector (SCSI version only) V ATX front panel connector H COM 1 serial header W SSI front panel connector

I ICMB connector X Floppy/FP/IDE connector

J IPMB connector Y ATA/IDE connector K 64-bit PCI riser slot for PCI-X bus C (low-profile) Z Floppy drive connector L Secondary processor socket AA USB 2 & 3 header

M Secondary processor fan connector BB ATA-100 connectors (ATA version only)

N Primary processor socket CC Hard Disk Drive LED header O Primary processor fan connector DD Speaker

MAS001426-02.book Page 21 Monday, May 19, 2003 2:45 PM

Page 28

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 Memory Specifications

4-22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610/2610 MEMORY SPECIFICATIONS

The system board has six 168-pin DIMM slots each supporting 72-bit ECC registered DDR DIMMs (DDR-266 compatible). The 1610 server chassis requires low-profile (LP) 1.2-inch DIMMs. Memory is partitioned in three banks. Y ou may install a minimum of 256 MB (128MB x 2) and as much as 12 GB. DIMMs must be installed in pairs and in the following order: 1B and 1A, 2B and 2A, 3B and 3A.

The controller automatically detects, sizes, and initializes the memory array, depending on the type, size, and speed of the installed DIMMs, and reports memory size and allocation to the server through configuration registers.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installed DIMMS must be the same speed and must all be registered.

Caution

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Use extreme care when installing a DIMM. Applying too much pressure can damage the socket.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Keyed DIMMs insert only one way.

MAS001426-02.book Page 22 Monday, May 19, 2003 2:45 PM

Page 29

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 Memory Spec ific a tio ns

4-23

. . . . .

NF1610/2610 Memory Bank Order

The figure below shows the location of the memory banks and how the banks are partitioned.

Figure 10. NF1610/2610 Mem o ry Ba nks

2B2A3B

MAS001426-02.book Page 23 Monday, May 19, 2003 2:45 PM

Page 30

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 System Board Jumpers

4-24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF1610/2610 SYSTEM BOARD JUMPERS

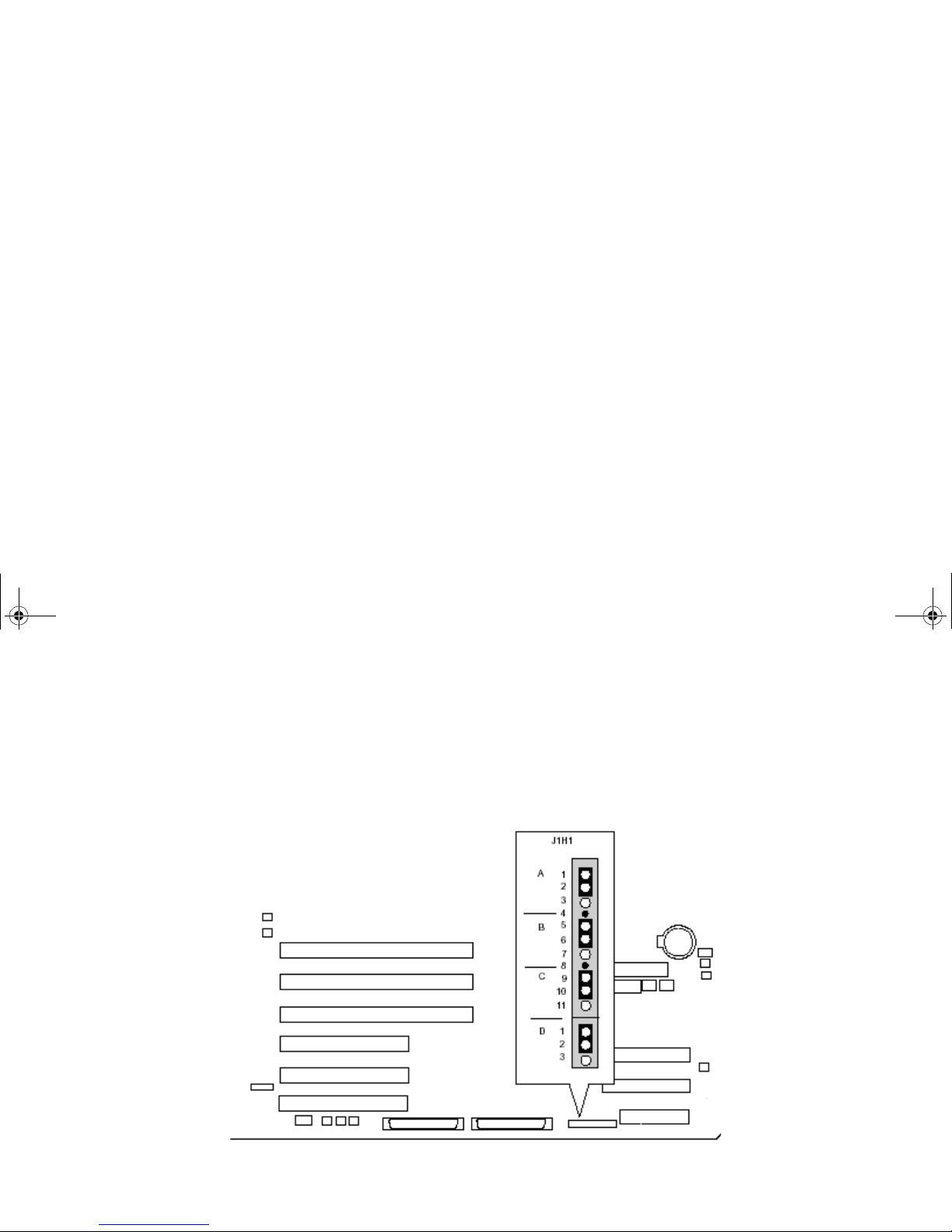

Figure 11 shows the locations of the system board's jumpers, and Table 14 and Table 15 explain the settings for the configuration jumpers.

Figure 11. NF1610/2610 Jumper Block Layout

MAS001426-02.book Page 24 Monday, May 19, 2003 2:45 PM

Page 31

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 System Board Jumpers

4-25

. . . . .

Table 14: NF1610/2610 Configuration Jumper Options

Jumper Block

Description

A - RJ-45 Serial Port Config

Configures either a DSR or a DCD signal to the connector.

B - CMOS CLR

If these pins are jumpered, the CMOS settings are cleared. These pins should not be jumpered for normal operation.

C - PSWD CLR

If these pins are jumpered, the password is cleared. These pins should not be jumpered for normal operation.

D - RCVRY BOOT

If these pins are jumpered, the system will attempt BIOS recovery. These pins should not be jumpered for normal operation.

E - BMC Boot Block Write Enable

If these pins are jumpered, BMC boot block is erasable and programmable at the next reset. These pins should not be jumpered for normal operation.

MAS001426-02.book Page 25 Monday, May 19, 2003 2:45 PM

Page 32

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 System Board Jumpers

4-26

EXTERNAL RJ-45 SERIAL PORT JUMPER BLOCK

The rear RJ-45 serial port is a fully functional serial port that supports any standard serial device and provides support for serial concentrators.

For server applications that use a serial concentrator to access the server management features of the system board, a standard 8-pin CAT-5 cable from the serial concentrator is plugged directly into the rear RJ45 serial port. You can configure the 8-pin RJ-45 connector to match either of two pin-out standards used by serial port concentrators. To accommodate either standard, the J5A2 jumper block, located directly behind the rear RJ-45 serial port, must be jumpered appropriately for the desired standard.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

By default, the system board will have the rear RJ45 serial port configured to support a DSR signal.

• For serial devices that require a DSR signal (default), the J5A2 jumper must be configured

in position 3-4 (see B in Figure 12).

• For serial devices that require a DCD signal, the jumper must be in position 1-2 (see A in

Figure 12).

MAS001426-02.book Page 26 Monday, May 19, 2003 2:45 PM

Page 33

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 System Board Jumpers

4-27

. . . . .

Figure 12. NF1610/2610 J6A2 Jumper Block for DSR Signal



DCD-DTR to Pin #7

DSR-DTR to Pin #7

MAS001426-02.book Page 27 Monday, May 19, 2003 2:45 PM

Page 34

NF1610/2610 SYSTEM BOARD FEATURES

NF1610/2610 System Board Jumpers

4-28

DB9 SERIAL CONNECTOR

For those server applications that require a DB9 serial connector, you must use an 8-pin RJ-45to-DB9 adapter. Table 15 defines the pin-out required for the adapter to provide RS-232 support.

Table 15: NF1610/2610 DB9 Serial Connector

RJ-45

Signal

Abbreviation

DB9

1 request to send RTS 7 2 data terminal ready DTR 4 3 transmitted data TD 3 4 signal ground SGND 5 5 ring indicator RI 9 6 received data RD 2 7 DCD or DSR DCD/DSR 1 or 6 8 clear to send CTS 8

MAS001426-02.book Page 28 Monday, May 19, 2003 2:45 PM

Page 35

5-29

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 S

YSTEM

EATURES

The following chapter provides information about the components and connectors on your server.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

There are two case optio ns fo r you r sys tem: the p edest al/r ack cha ssis a nd th e pedes tal /rack chas sis with

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

hot-swap power supply. Please use the information that pertains to your specific case.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 29 Monday, May 19, 2003 2:45 PM

Page 36

NF3610 SYSTEM FEATURES

NF3610 Pedestal/Rack Chassis

5-30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 PEDESTAL/RACK CHASSIS

NF3610 Front Panel View

Table 16 and Figure 13 identify the features on the front of your pedestal/rack server chassis.

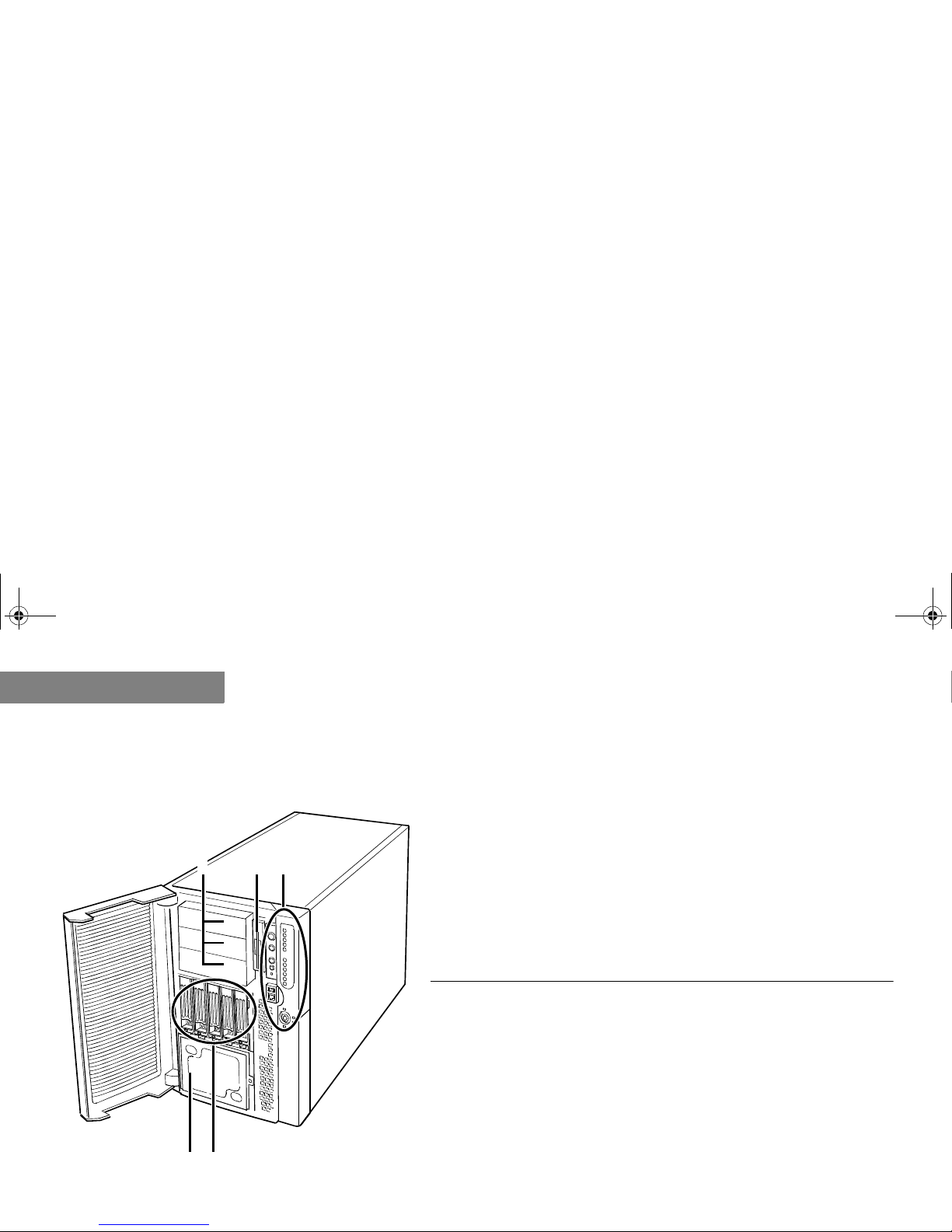

Figure 13. NF3610 Pedestal/Rack Chassis Front Panel Component Layout

Table 16: NF3610 Pedestal/Rack Chassis Front Panel Components

USB Port

Front control panel (for more information, refer to NF3610 Front Control Panel View on page 5-34)

5.25-inch Removable Media Drive Bays

Hot-Swap Drive Carriers

Internal Drive Bays

Chassis Intrusion Switch

Diskette Drive Bay

MAS001426-02.book Page 30 Monday, May 19, 2003 2:45 PM

Page 37

NF3610 SYSTEM FEATU RES

NF3610 Pedestal/Rack Chassis

5-31

. . . . .

NF3610 Back Panel View

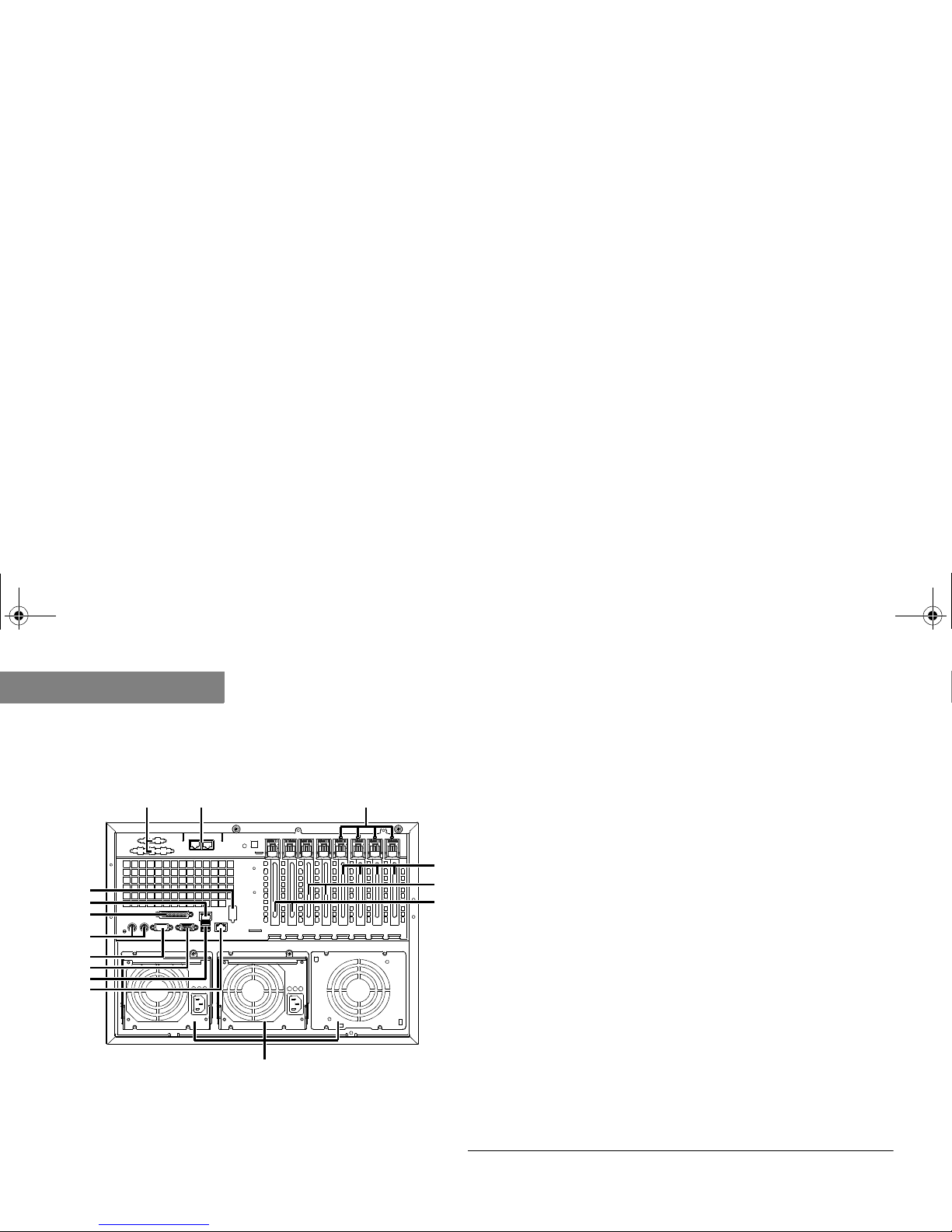

Table 17 and Figure 14 identify the connectors on the back panel of your pedestal/rack chassis.

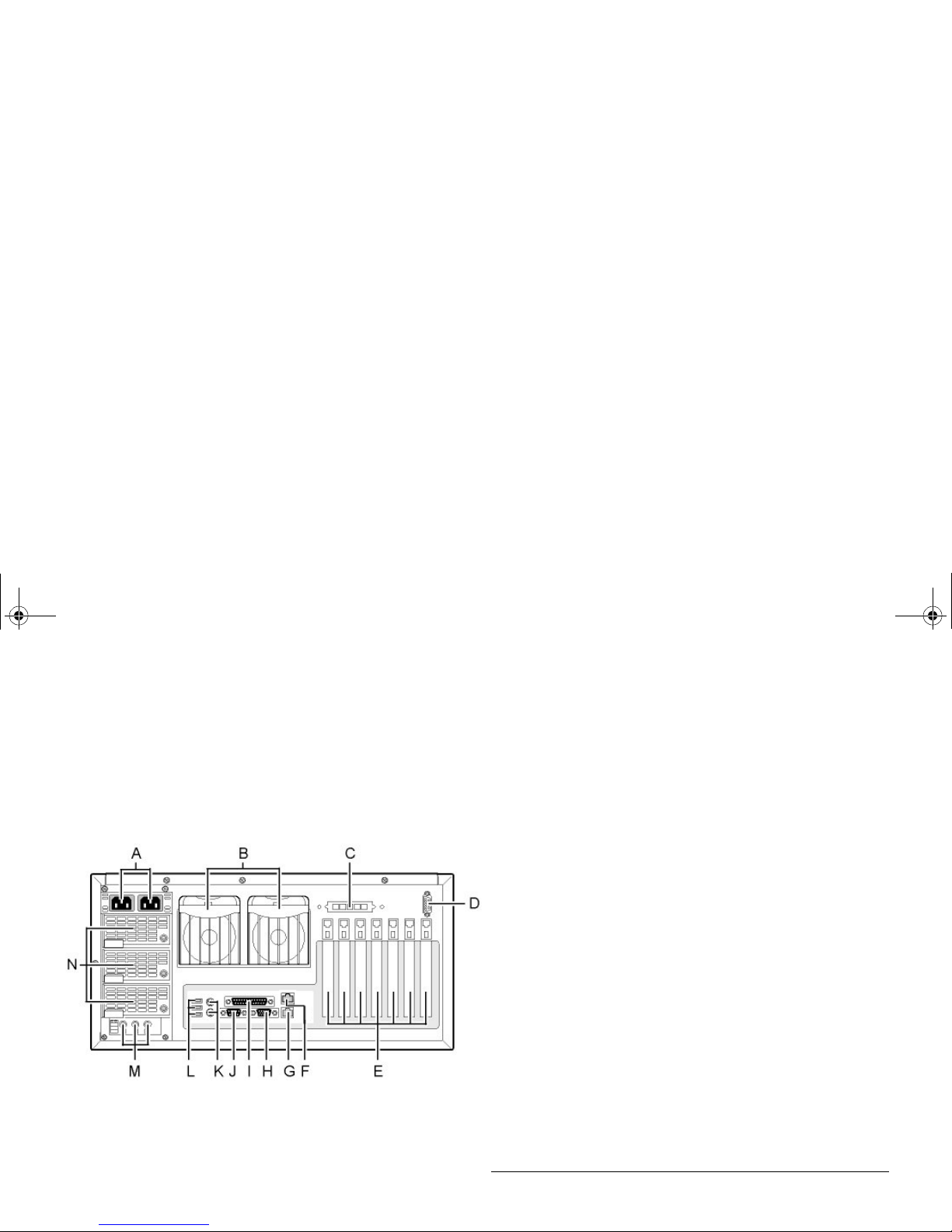

Figure 14. NF3610 Pedestal/Rack Chassis Back Panel Connector Layout

Table 17: NF3610 Pedestal/Rack Chassis Back Panel

Connectors

Power Supply

Fans

ICMB or External SCSI Knockout

Optional Serial Port

Expansion Slot Covers

NIC1 (Gbit) Jack

NIC2 (Gbit) Jack

Video Port

Parallel Port

Serial Port A

Mouse and Keyboard Ports

USB 1, 2, and 3 Ports

AC Input Power Connector

MAS001426-02.book Page 31 Monday, May 19, 2003 2:45 PM

Page 38

NF3610 SYSTEM FEATURES

NF3610 Pedestal/Rack Chassis w/Hot-Swap Powe r Supply

5-32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 PEDESTAL/RACK CHASSIS W/HOT-SWAP POWER SUPPLY

NF3610 Front Panel View

Table 18 and Figure 15 identify the features on the front panel of your server.

Figure 15. NF3610 Pedestal/Rack Chassis with Hot-Swap Power Supply Front Panel Front Panel Component Layout

A B

T a ble 18: NF3610 Pedestal/Rack Chassis with Hot-Swap Powe

Supply Front Panel Components

USB Port

Front Control Panel (for more in formati on, refe r to NF3610 Front Control Panel View on page 5-34)

5.25-inch Removable Media Drive Bays

Hot-Swap Drive Carriers

Internal Drive Bays

Chassis Intrusion Switch

Diskette Drive Bay

Front Hot-Swap System Fan Access Door

Rear Hot-Swap System Fans

MAS001426-02.book Page 32 Monday, May 19, 2003 2:45 PM

Page 39

NF3610 SYSTEM FEATU RES

NF3610 Pedesta l/Rack Chassis w/Hot- Swap Power Supply

5-33

. . . . .

NF3610 Back Panel View

Table 19 and Figure 16 identify the connectors on the back panel of your server.

Figure 16. NF3610 Pedestal/Rack Chassis with Hot-Swap Power Supply Back Panel Connector Layout

Table 19: NF3610 Pedestal/Rack Chassis with Hot-Swap Powe

Supply Back Panel Connectors

AC Input Power Connectors

Rear System Fans

ICMB or External SCSI Connector Knockout

Optional Serial Port

Expansion Slot Covers

NIC1 (Gbit) Jack

NIC2 (Gbit) Jack

Video Port

Parallel Port

Serial Port A

Mouse and Keyboard Ports

USB 1, 2, and 3 Ports

AC Module Power Good LEDs

Power Supply Modules

MAS001426-02.book Page 33 Monday, May 19, 2003 2:45 PM

Page 40

NF3610 SYSTEM FEATURES

NF3610 Front Control Panel View

5-34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 FRONT CONTROL PANEL VIEW

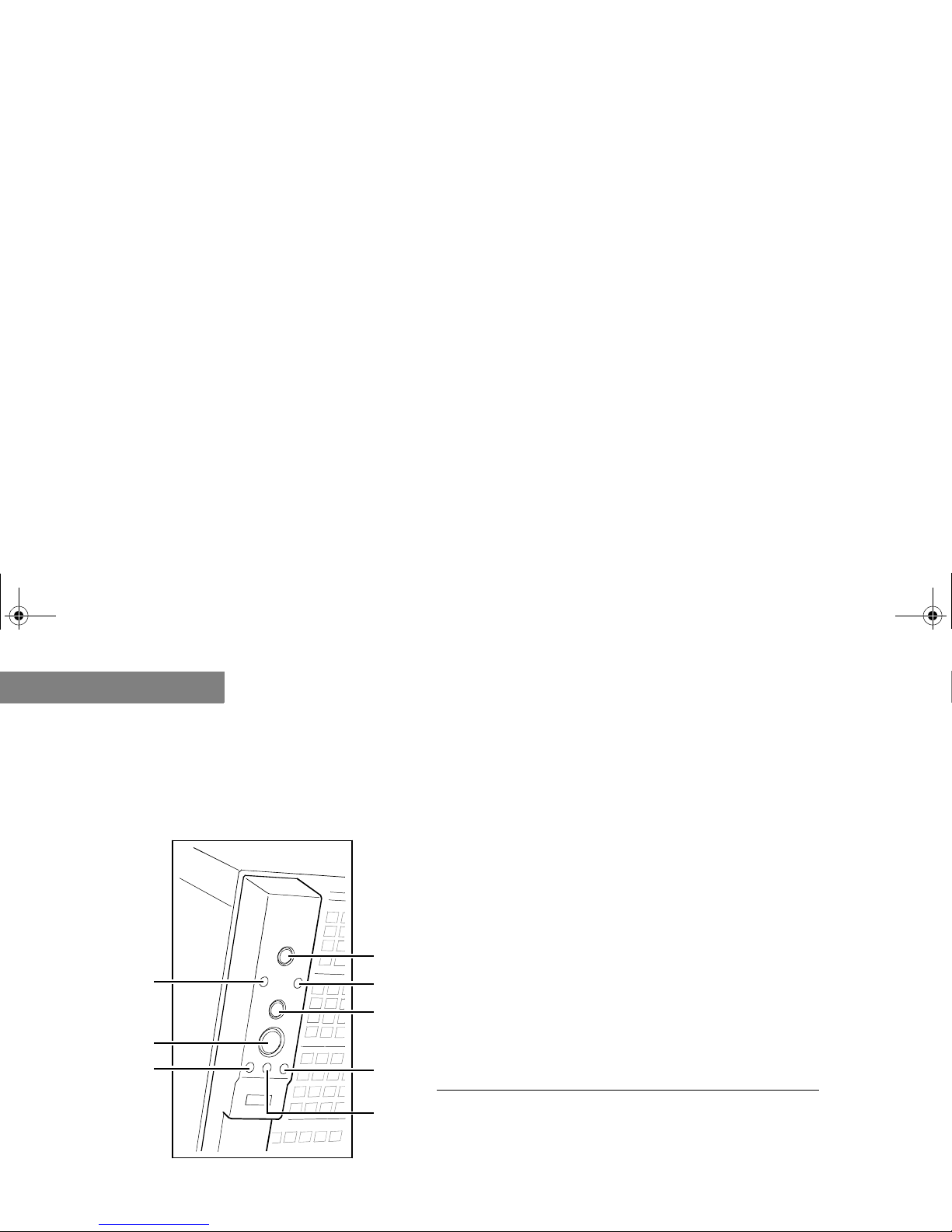

The figures and tables below identify the buttons and LEDs on the front control panel of both the pedestal and rack chassis with or without a hot-swap power supply.

NF3610 Pedestal Chassis Front Control Panel View

Figure 17. NF3610 Pedestal Chassis with/without a Hot-Swap Power Supply Front Control Panel Component Layout

Table 20: NF3610 Pedestal Chassis with/without a Hot-Sw ap Power

Supply Front Control Panel Components

Reset Button

LAN #2 Activity LED

Sleep Button

Status LED

Power/Sleep LED

Hard Drive Activity LED

Power Button

LAN #1 Activity LED

MAS001426-02.book Page 34 Monday, May 19, 2003 2:45 PM

Page 41

NF3610 SYSTEM FEATU RES

NF3610 Front Control Pane l View

5-35

. . . . .

NF3610 Rack Chassis Front Control Panel View

Figure 18. NF3610 Rack Chassis with/without a Hot-Swap Power Supply Front Control Panel Component Layout

GIH

ABCDFE

Table 21: NF3610 Rack Chassis with/without a Hot-Swap Power

Supply Front Control Panel Components

Hard Drive Activity LED

Power Button

Sleep Button

LAN #1 Activity LED

Reset Button

ID Button

ID LED

LAN #2 Activity LED

Status LED

Power/Sleep LED

MAS001426-02.book Page 35 Monday, May 19, 2003 2:45 PM

Page 42

NF3610 SYSTEM FEATURES

NF3610 Front Control Panel View

5-36

NF3610 Front Control Panel LED Description

Table 22 describes the LEDs located on your server’s front control panel. T o view the front control panel features, refer to NF3610 Pedestal Chassis Front Control Panel View on page 5-34 or refer to NF3610 Rack Chassis Front Control Panel View on page 5-35.

Table 22: NF3610 Front Control Panel LED Description

Feature

Color

Condition

Description

Hard Drive Activity

Green BLINK Hard drive activity Amber ON Fault

OFF No activity

LAN#1 Link/Act

Green ON Linked Green BLINK LAN activity

OFF Disconnected

LAN#2-Link/Act

Green ON Linked Green BLINK LAN activity

OFF Disconnected

MAS001426-02.book Page 36 Monday, May 19, 2003 2:45 PM

Page 43

NF3610 SYSTEM FEATU RES

NF3610 Front Control Pane l View

5-37

. . . . .

Status LED

Green ON System ready Green BLINK Processor or memory disabled Amber ON Temperature or voltage critical fault; CPU/Terminator missing Amber BLINK Power fault; Fan fault; Temperature or voltage non-critical fault ... OFF Fatal error during POST

Power/Sleep LED

Green ON Power on Amber ON Sleep (S1)

OFF Power off or Sleep (S4)

ID LED (rack only)

Blue ON Server identification; Toggled by ID button or software (rack-mount

system only)

... OFF Server identification; Toggled by ID button or software (rack-mount

system only)

Table 22: NF3610 Front Control Panel LED Description (Continued)

Feature

Color

Condition

Description

MAS001426-02.book Page 37 Monday, May 19, 2003 2:45 PM

Page 44

NF3610 SYSTEM FEATURES

NF3610 Front Control Panel View

5-38

MAS001426-02.book Page 38 Monday, May 19, 2003 2:45 PM

Page 45

6-39

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 S

YSTEM

OARD

EATURES

The following chapter provides information about your server’s system board, memory, and jumpers.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 39 Monday, May 19, 2003 2:45 PM

Page 46

NF3610 SYSTEM BOARD FEATURES

NF3610 System Board Components

6-40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 SYSTEM BOARD COMPONENTS

Use Figure 19 below and Table 23 on page 6-41 to identify the components on your system board.

Figure 19. NF3610 System Board Layout

MAS001426-02.book Page 40 Monday, May 19, 2003 2:45 PM

Page 47

NF3610 SYSTEM BOARD FEATURES

NF3610 System Board Components

6-41

. . . . .

Table 23: NF3610 System Boa rd Components

Letter

Component Description

Letter

Component Description

DIMMS R System Fan 3

B Aux Power S Secondary IDE C Main Power T Front Panel Connector D +12 V CPU Power U Configuration Jumper E CPU1 Fan V PCI 32-bit/33 MHz F CPU2 Fan W SCSI Channel B G Primary Processor Socket X SCSI Channel A H Secondary Processor Socket Y HDD LED Connector

I Floppy Disk Drive Connec tor Z Chassis Intrusion

J Battery AA Serial B Connector K IPMB BB ICMB L System Fan 5 CC PCI-X 64-bit/100 MHz

M System Fan 4 DD PCI-X 64-bit/133 MHz

N HSPB B EE System Fan 2 O HSPB A FF System Fan 1 P USB Header GG Dual 1000 GB NIC Q Primary ATA HH System I/O Connectors

MAS001426-02.book Page 41 Monday, May 19, 2003 2:45 PM

Page 48

NF3610 SYSTEM BOARD FEATURES

NF3610 Memory Speci fi cations

6-42

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 MEMORY SPECIFICATIONS

The system board contains six 184-pin dual in-line memory module (DIMM) slots. Memory is partitioned as three banks; DIMMs must be populated in identical pairs. The memory subsystem provides dual memory bus architecture; the memory on the board is partitioned into three banks of DDR DIMMs. DIMMs must be installed in pairs, providing a 144-bit wide data path via three separate memory buses. DIMMS must also be installed in order by Bank: Bank 1 must be filled before populating BAnk 2. Bank 2 must be populated before populating Bank 3.

The memory controller supports 2-way interleaved SDRAM, memory scrubbing, single-bit error correction, and multiple-bit error detection with the Intel x4 Single Device Data Correction capability that allows the system to continue to run even in the event of a multi-bit SDRAM failure.

Memory can be implemented with either single-sided (one-row) or double-sided (two row) DIMMS. THe server board supports up to six ECC DDR DIMMS that are compliant with the JEDEC DDR 266 specification. A wide range of DIMM sizes are supported, including:

• 128 MB

• 256 MB

• 512 MB

• 1 GB

• 2 GB

MAS001426-02.book Page 42 Monday, May 19, 2003 2:45 PM

Page 49

NF3610 SYSTEM BOARD FEATURES

NF3610 System Board Jumpers

6-43

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF3610 SYSTEM BOARD JUMPERS

Figure 20 shows the locations of the system board's jumpers, and Table 24 explains the settings for the configuration jumpers.

Figure 20. NF3610 Jumper B lock Layout

MAS001426-02.book Page 43 Monday, May 19, 2003 2:45 PM

Page 50

NF3610 SYSTEM BOARD FEATURES

NF3610 System Board Jumpers

6-44

Caution

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Some jumpers have a small tab on top that you can grip with your fingertips, forceps, or with a pair of fine needle-nosed pliers. If your jumpers do not have such a tab, take care when using needlenosed pliers to re mov e or in stal l a jumper; grip the narrow sides of the jumper w ith t he plie rs ; n eve r grip the wide sides. Gripping the wide sides can damage the contacts inside the jumper, causing intermittent problems with the function controlled by that jumper. Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the stake

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

pins on the board.

Table 24: NF3610 Jumper Configuration

Jumper Name

Jumper Letter

Pins

Description

CMOS Normal Operation

A 1-2 These pins are for normal operation.

CMOS Clear

2-3 If these pins are jumpered, the CMOS settings will be cleared on the

next reset. THese pins should

not be jumpered for normal operation.

Password Normal Operatio n

B 4-5 These pins are for normal operation.

Password Clear

5-6 If these pins are jumpered, the password will be cleared on the next

reset. THese pins should

not be jumpered for normal operation.

MAS001426-02.book Page 44 Monday, May 19, 2003 2:45 PM

Page 51

NF3610 SYSTEM BOARD FEATURES

NF3610 System Board Jumpers

6-45

. . . . .

BIOS Normal Operation

C 9-10 These pins are for normal operation.

BIOS Recovery

11-12 If these pins are jumpered, the system will attempt BIOS recovery

boot, loading BIOS code from a floppy diskette into the Flash device. This is typically used wh en the BIOS co de has been c orrupte d. Thes e pins should

not be jumpered for normal operation.

BMC Normal Operation

D 1-2 These pins are for normal operation.

BMC Flash

2-3 If these pins are jumpered, the system will not protect the BMC flash

and will allow it to be overwritten by the Firmware Update Utility.

Table 24: NF3610 Jumper Configuration

Jumper Name

Jumper Letter

Pins

Description

MAS001426-02.book Page 45 Monday, May 19, 2003 2:45 PM

Page 52

NF3610 SYSTEM BOARD FEATURES

NF3610 System Board Jumpers

6-46

MAS001426-02.book Page 46 Monday, May 19, 2003 2:45 PM

Page 53

7-47

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 S

YSTEM

EATURES

The following chapter provides information about the components and connectors on your server.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

There are two case op tions f or your s yste m: the p edest a l chass is and the r ack optim ized chass is. Ple ase

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

use the information that pertains to your specific case.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 47 Monday, May 19, 2003 2:45 PM

Page 54

NF6600 SYSTEM FEATURES

NF6600 Pedestal Chassis

7-48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 PEDESTAL CHASSIS

NF6600 Front Panel View

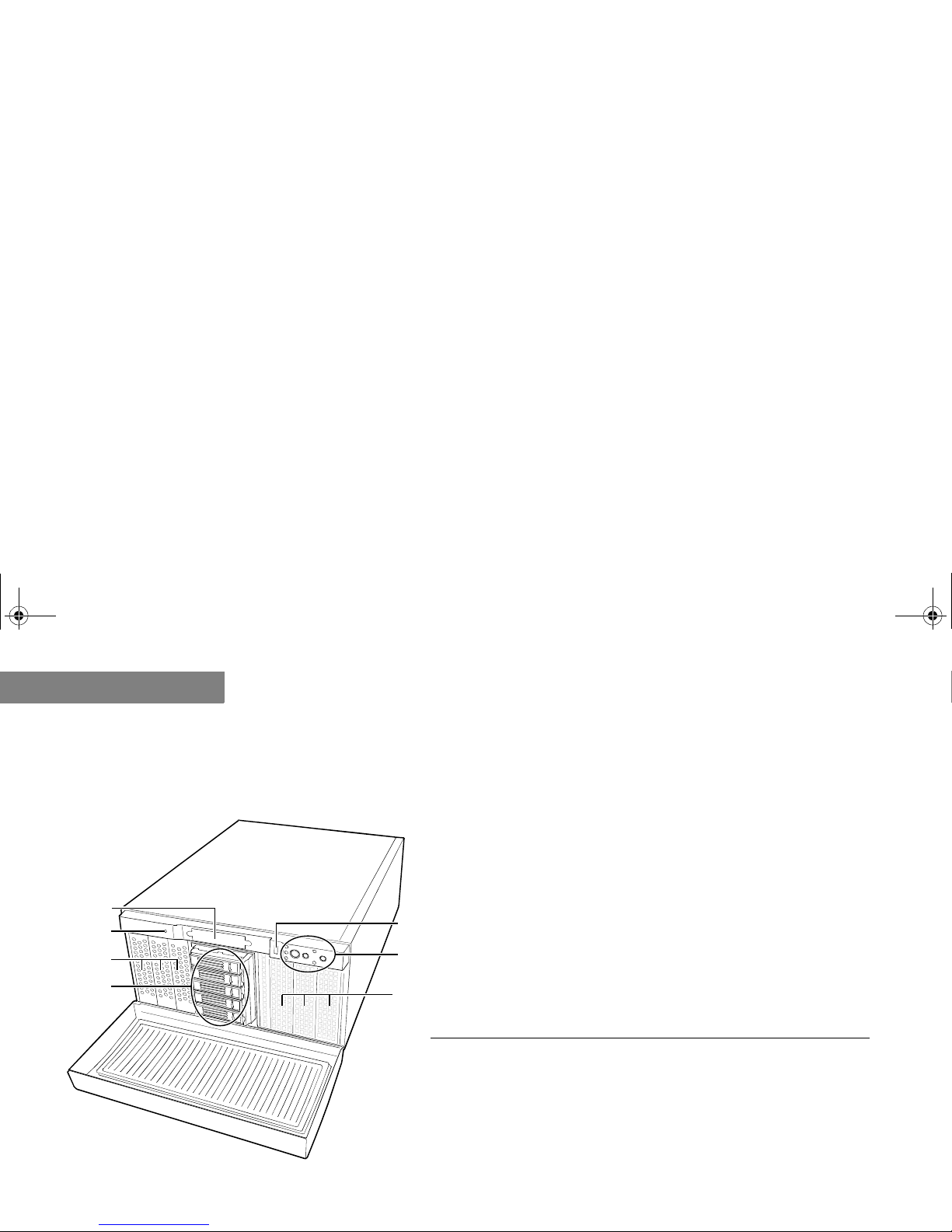

Table 25 and Figure 21 identify the features on the front of your pedestal server chassis.

Figure 21. NF6600 Pedestal Chassis Front Panel Component Layout

123

Table 25: Pedestal Chassis Front Panel Components

Three 5.25-inch peripheral bays

2 3.5-inch diskette drive bay 3 Fr ont control panel (for more information, refer to NF6600 Fron

Control Panel View on page 7-49)

4 Hot-swap drive bay 5 Hard drive backplane bay

MAS001426-02.book Page 48 Monday, May 19, 2003 2:45 PM

Page 55

NF6600 SYSTEM FEATU RES

NF6600 Pedestal Chassis

7-49

. . . . .

NF6600 Front Control Panel View

Table 26 and Figure 22 identify the buttons and LEDs on the front control panel of your pedestal server. (For descriptions of the front control panel features, refer to page 7-54.)

Figure 22. NF6600 Pedestal Chassis Front Control Panel Component Layout

Table 26: Pedestal Chassis Front Control Panel Components

Power button

2 Sleep button 3 Reset button 4 Chassis ID button 5 NMI switch 6 USB port 7 Serial port 8 Main power LED 9 Fault LED 10 Hard drive activity LED 11 LAN1 LED 12 LAN2 LED 13 Chassis ID LED 14 Lock

3 4

MAS001426-02.book Page 49 Monday, May 19, 2003 2:45 PM

Page 56

NF6600 SYSTEM FEATURES

NF6600 Pedestal Chassis

7-50

Back Panel View

Table 27 and Figure 23 identify the connectors on the back panel of your pedestal server.

Figure 23. NF6600 Pedestal Chassis Back Panel Connector Layout

12 3

5 6

Table 27: Pedestal Chassis Back Panel Connectors

1 Optional VHDCI SCSI & SCSI connector knockouts 2 Optional ICMB ports 1 (left) & 2 (right) 3 Hot-plug PCI LEDs 4 Hot-plug 64-bit PCI-X add-in card slots (green clips) 5 Non-hot-plug 64-bit, 100 MHz PCI-X add-in card slots (blue clips

)

6 Non-hot-plug 32-bit, 33 MHz PCI add-in card slots (blue clips) 7 Power supply bays 8 LAN2 Gbit RJ45 connector 9 USB ports 0 (upper) & 1 (lower) 10 Video connector 11 Serial port A 12 PS/2-compatible mouse & keyboard ports 13 IEEE 1284 enhanced parallel port 14 LAN1 100/10 RJ45 connector 15 Knockout for optional serial port B

MAS001426-02.book Page 50 Monday, May 19, 2003 2:45 PM

Page 57

NF6600 SYSTEM FEATU RES

NF6600 Rack Optimized Chassis

7-51

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 RACK OPTIMIZED CHASSIS

NF6600 Front Panel View

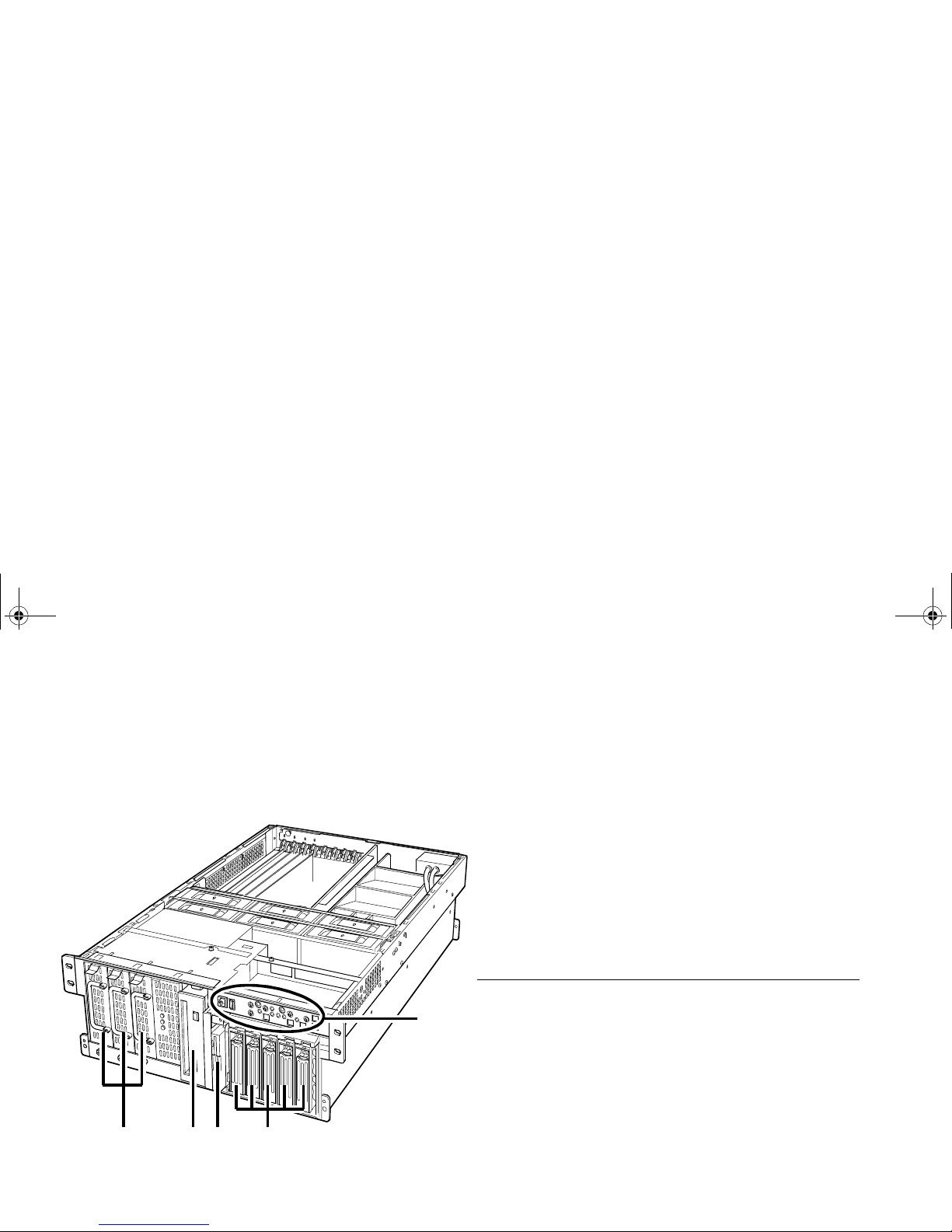

Table 28 and Figure 24 identify the features on the front panel of your rack optimized server.

Figure 24. NF6600 Rack Optimized Chassis Front Panel Component Layout

1234

T a ble 28: Rack Optimized Chassis Front Panel Components

Power supply bay

2 5.25-inch peripheral bay 3 Media bay with 3.5-inch diskette & CD-ROM drive 4 Hot-swap drives 5 Front Control Panel (for more information, refer to

NF6600 Back Panel View on page 7-53)

MAS001426-02.book Page 51 Monday, May 19, 2003 2:45 PM

Page 58

NF6600 SYSTEM FEATURES

NF6600 Rack Optimized Chassis

7-52

NF6600 Front Control Panel View

Table 29 and Figure 25 identify the buttons and LEDs on the front control panel of your rack optimized server. (For descriptions of the front control panel features, refer to page 7-54.)

Figure 25. NF6600 Rack Optimized Chassis Front Control Panel Component Layout

123 45

678910111213

Table 29: Rack Optimized Chassis Front Control Panel

Components

1 Sleep button 2 Chassis ID button 3 Chassis ID LED 4 Reset button 5 Power button 6 Main power LED 7 Hard drive act i vity LED 8 LAN2 LED 9 LAN1 LED 10 Fault LED 11 NMI switch 12 USB port 13 Serial port

MAS001426-02.book Page 52 Monday, May 19, 2003 2:45 PM

Page 59

NF6600 SYSTEM FEATU RES

NF6600 Rack Optimized Chassis

7-53

. . . . .

NF6600 Back Panel View

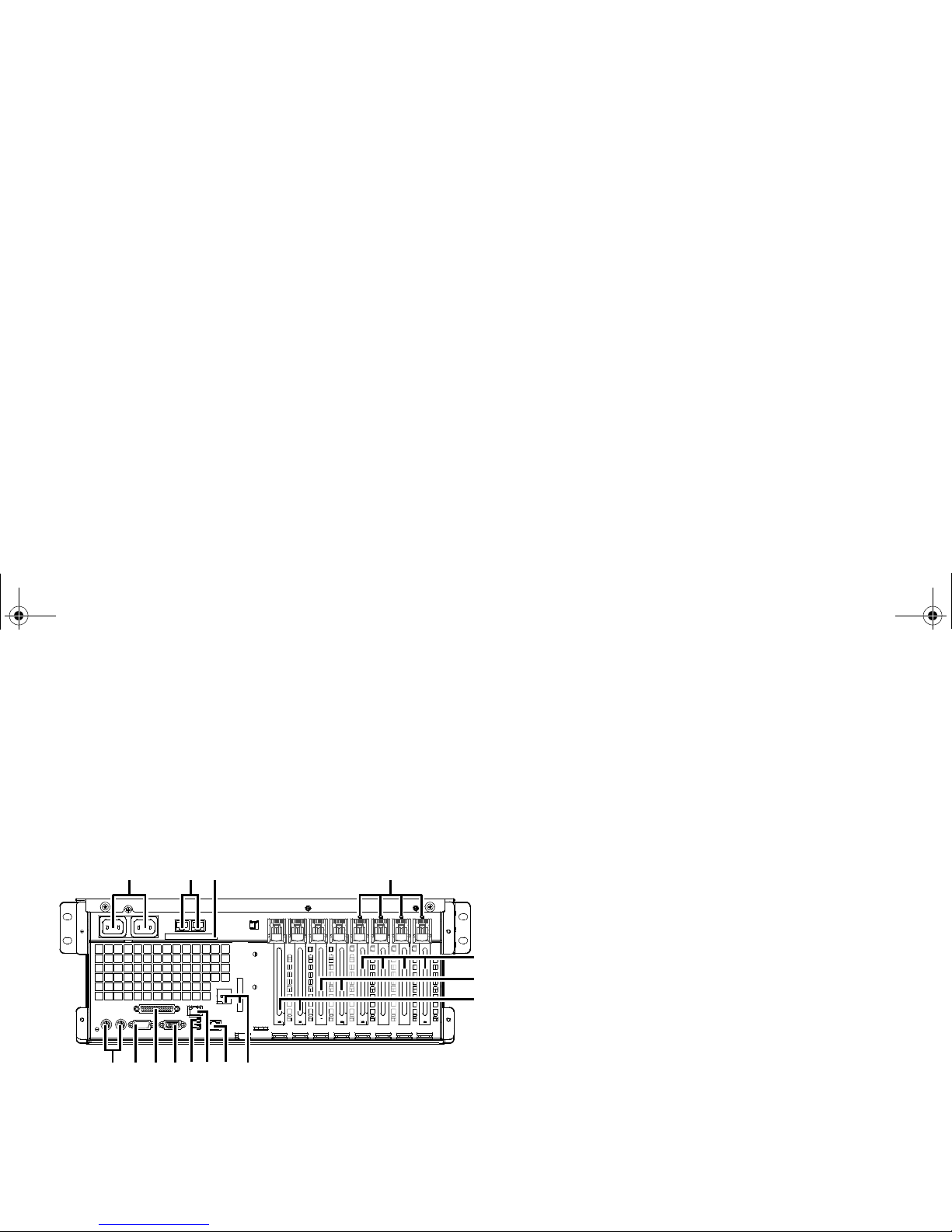

Table 30 and Figure 26 identify the connectors on the back panel of your server.

Figure 26. NF6600 Rack Optimized Chassis Back Panel Connector Layout

123

5 6

89101112131415

Ta ble 30: Rack Optimized Chassis Back Panel Connectors

1 Power supply AC inlet 1 & 2 2 Optional ICMB ports 1 (left) & 2 (right) 3 Knockout for optional SCSI connector 4 Hot-plug PCI LEDs 5 Hot-plug 64-bit PCI-X add-in card slots (green clips) 6 Non-hot-plug 64-bit, 100-MHz PCI-X add-in card slots (blu

clips)

7 Non-hot-plug 32-bit, 33-MHz PCI add-in card slots (blue

clips)

8 Optional VHDCI SCSI & serial B connector knockout 9 LAN2 Gbit port 10 LAN1 100/10 RJ45 connector 11 USB ports 0 (upper) & 1 (lower) 12 Video connector 13 IEEE 1284 enhanced parallel port 14 Serial port A 15 PS/2-compatible mouse & keyboard ports

MAS001426-02.book Page 53 Monday, May 19, 2003 2:45 PM

Page 60

NF6600 SYSTEM FEATURES

NF6600 Front Control Panel Des criptions

7-54

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 FRONT CONTROL PANEL DESCRIPTIONS

Table 31 describes the features located on your server’s front control panel. To view the layout of the front control panel features, refer to NF6600 Front Control Panel View on page 7-49 for the pedestal chassis, and refer to NF6600 Back Panel View on page 7-53 for the rack optimized chassis.

Table 31: NF6600 Front Control Panel Feature Description

Feature

Description

Power button To turn the power on, briefly press the power button. Note that if the system is in a sleep state,

briefly pressing the power button brings the system out of the sleep state. To turn the power off, press and hol d the po wer bu tton for m ore than four secon ds. Thi s override s

ACPI mode.

Main power LED A solid green light indicates the presence of DC power in the server. A flashing green light

indicates that the system is in ACPI sleep mode.

Sleep button To put a system supporting ACPI into sleep mode, briefly press the sleep button.

To wake a system from sleep mode, briefly press the s lee p butt on.

Note: This button’s func tio n is

configurable in Windows 2000.

Reset button

To reset the system, briefly press the reset button. To clear the CMOS, complete the following steps:

1. Press and hold the reset button for at least four seconds.

2. While pressing and holding the reset button, press and hold the power button.

3. At the same time, release both the reset and powe r button s. The sy ste m will powe r on, and the CMOS will be reset.

MAS001426-02.book Page 54 Monday, May 19, 2003 2:45 PM

Page 61

NF6600 SYSTEM FEATU RES

NF6600 Front Control Panel Des criptions

7-55

. . . . .

NMI switch Using this switch causes a non-maskable interrupt. The NMI switch is located behind the bezel

door.

USB port USB port 3 is located behind the bezel door. Serial port Serial port B is located behind the bezel door. Fault LED A red light indicates any system fault condition. Hard drive activity LED A green light indicates system hard drive activity. LAN1 LED A green light indicates LAN1 activity. LAN2 LED A green light indicates LAN2 activity. Chassis ID button Pressing this button illuminates LEDs on both the front and rear of the chassis, which simplifies

identification of the chassis in a rack from the rear.

Chassis ID LED A blue light indicates the chassis ID is active.

Table 31: NF6600 Front Control Panel Feature Description (Continued)

Feature

Description

MAS001426-02.book Page 55 Monday, May 19, 2003 2:45 PM

Page 62

NF6600 SYSTEM FEATURES

NF6600 Front Control Panel Des criptions

7-56

MAS001426-02.book Page 56 Monday, May 19, 2003 2:45 PM

Page 63

8-57

. .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 S

YSTEM

OARD

EATURES

The following chapter provides information about your server’s system board, memory, processors, and jumpers.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The appearance, location, and existence of the components mentioned may vary by model.

MAS001426-02.book Page 57 Monday, May 19, 2003 2:45 PM

Page 64

NF6600 SYSTEM BOARD FEATURES

NF6600 System Board Components

8-58

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 SYSTEM BOARD COMPONENTS

Use Figure 27 below and Table 32 on page 8-59 to identify the components on your system board.

Figure 27. NF6600 System Board Layout

A B CDE F

G H

I J

K L M N O

P Q

R S

TUVWXYZAA

I I

MAS001426-02.book Page 58 Monday, May 19, 2003 2:45 PM

Page 65

NF6600 SYSTEM BOARD FEATURES

NF6600 System Board Components

8-59

. . . . .

Table 32: NF6600 System Board Components

Letter

Component Description

Letter

Component Description

A 64-bit Hot-Plug PCI-X Slots O BIOS Flash Component B 64-bit, 100-MHz, Non-Hot-Plug PCI-X Slots P PC87417 Super I/O Controller C 32-bit, 33-MHz, Non-Hot-Plug PCI Slots Q BMC Flash Component D Intelligent Chassis Management Bus (ICMB)

Connector (P24)

R Battery

E Hot-Plug Indicator Board (HPIB) Connector (P23) S Chassis Intrusion Detect Connector (P36) F Back Panel I/O Connectors T 14-pin Power Control Connector (P35) G Intel 82550 Ethernet Controller U 24-pin Power Connector (P32) H ATI Rage XL 2D/3D Graphics Accelerator V 20-pin Power Connector (P28) I Intel 82544 Ethernet Controller W Serial Port B Connector (P17) J Video RAM (VRAM) (4 MB total) X USB #3 Header (P18) K Processor Board Connectors (P21 and P22) Y Front Panel Header (P19) L Jumpe r B lock JP4 Z IDE Connector (P13) M ServerWorks South Bridge Controller (CSB5) AA SCSI LVD Connectors (P4 and P7) N BMC Component BB Intelligent Platform Management Bus (IPMB)

Connector (P12)

MAS001426-02.book Page 59 Monday, May 19, 2003 2:45 PM

Page 66

NF6600 SYSTEM BOARD FEATURES

NF6600 System Board Components

8-60

CC Ad apt ec 790 2 SCSI Controll er GG RAID LED Connectors (P1 and P2) DD Fan Connector (P11) HH Hot-Swap Backplane (HSBP) Connector (P16) EE ServerWorks PCI Bus Bridge Controller (CIOB30) I I HSBP Connector (P15) FF ServerWorks PCI Bus Bridge Controller (CIOB30)

Table 32: NF6600 System Board Components (Continued)

Letter

Component Description

Letter

Component Description

MAS001426-02.book Page 60 Monday, May 19, 2003 2:45 PM

Page 67

NF6600 SYSTEM BOARD FEATURES

NF6600 Memory Specifications

8-61

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 MEMORY SPECIFICATIONS

The system board contains twelve dual in-line memory module (DIMM) slots that support PC-200 or PC-266 compliant registered ECC DDR DRAM DIMMs.

• Minimum configuration: Four 128-MB DIMMs for a total of 512 MB.

• Maximum configuration: Twelve 2-GB stacked DIMMs for a total of 24 GB.

Caution

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Use extreme care when installing a DIMM. Applying too much pressure can damage the socket.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Keyed DIMMs insert only one way.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Always fill banks completely. The system ignores partially filled banks.

MAS001426-02.book Page 61 Monday, May 19, 2003 2:45 PM

Page 68

NF6600 SYSTEM BOARD FEATURES

NF6600 Memory Speci fi cations

8-62

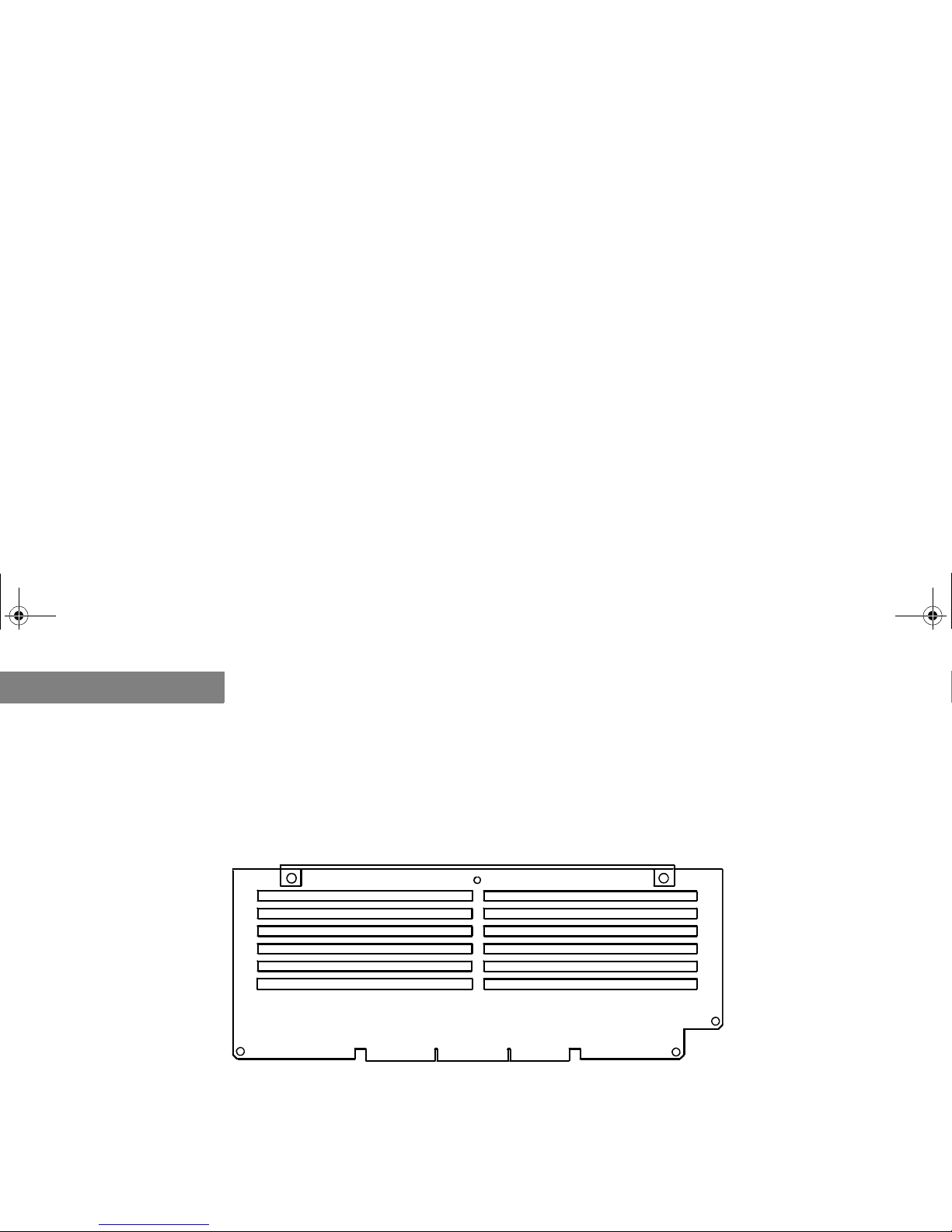

Memory Bank Order

Load the DIMMs in the following order:

1 Bank 1: DIMMs # 1, 2, 3, and 4 2 Bank 2: DIMMs # 5, 6, 7, and 8 3 Bank 3: DIMMs # 9, 10, 11, and 12

Figure 28. NF6600 Memory Banks

MAS001426-02.book Page 62 Monday, May 19, 2003 2:45 PM

Page 69

NF6600 SYSTEM BOARD FEATURES

NF6600 Processor Specifications

8-63

. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

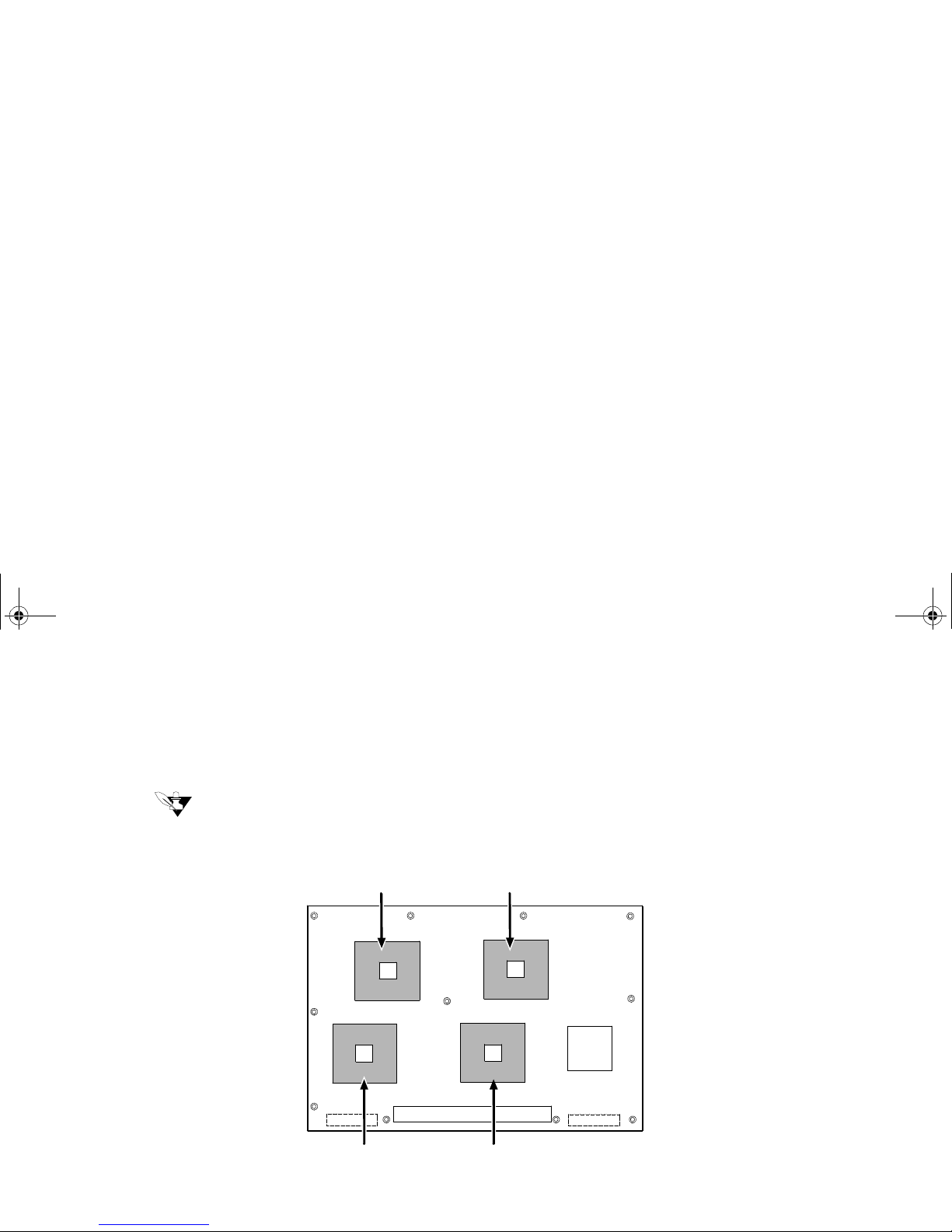

NF6600 PROCESSOR SPECIFICATIONS

The NetFRAME 6600 accommodates one to four Intel® Xeon processors.

Note

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

You must install a processor in processor socket 1. When installing multiple processors, populate the

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

processor sockets in the order shown below.

Figure 29. Correct Order for Populating Processor Sockets

MAS001426-02.book Page 63 Monday, May 19, 2003 2:45 PM

Page 70

NF6600 SYSTEM BOARD FEATURES

NF6600 System Board Jumpers

8-64

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NF6600 SYSTEM BOARD JUMPERS

Jumper block JP4 includes pins for several BIOS reset operations. Table 33 and Figure 30 identify these pins. For normal operation, jumpers should not be installed on any of the identified pins.

Figure 30. NF6600 Jumper Block Layout

12 11

JP4

JP8

11 12

JP3

JP7

Table 33: Jumper Block JP4 Description

Pins

Jumper Name

Description

A CMOS Clear If pins 1 and 2 are jumpered, the CMOS settings

are cleared.

B Password Clear If pins 3 and 4 are jumpered, the user and

administrator passw or ds are cl eare d.

C Recovery Boot If pins 9 and 10 are jumpered, the system will

attempt to recover the BIOS.

MAS001426-02.book Page 64 Monday, May 19, 2003 2:45 PM

Page 71

Page 72
